ROUTER CAMERAS


DK-RT1-CSC

Telecamera nascosta in alimentatore

2MP 1080P

False router hidden camera with SD card, IR and wifi for remote control via Internet. 1-2 years stand-by battery life with PIR motion detector.

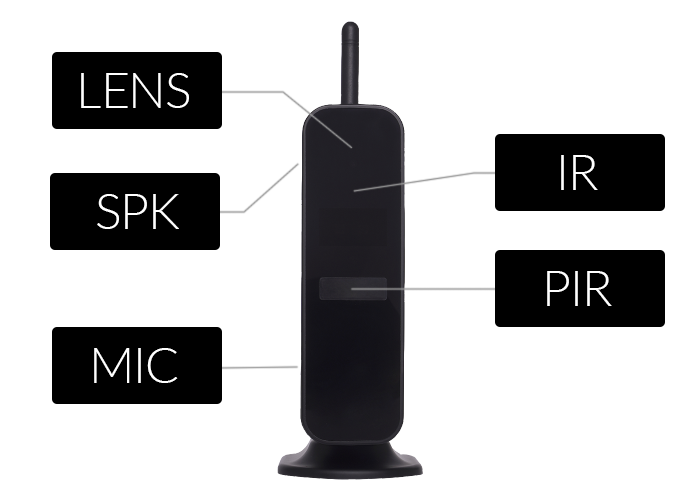

2.8 mm 90° pinhole lens 64GB SD card slot Up to 40 hours video storage on SD card Built-in microphone Loudspeaker for 2-ways audio 6 m. IR illuminator 940nm invisible IR LEDs PIR motion detector 1-2 years standby battery life Recording on mains power Wi-Fi for remote control Free P2P Cloud Server Free App for smartphone

LONG STAND-BY SPYCAMS


Battery powered for 1-2 years

These cameras are long stand-by investigative cameras. Although being battery-powered, these cameras are able to work for 1 or 2 years in stand-by and wake up in the event of an intrusion. They can record videos and send notifications to your mobile phone. These cameras work only if connected to your WiFi and allow you live monitoring and playback with your smartphone.

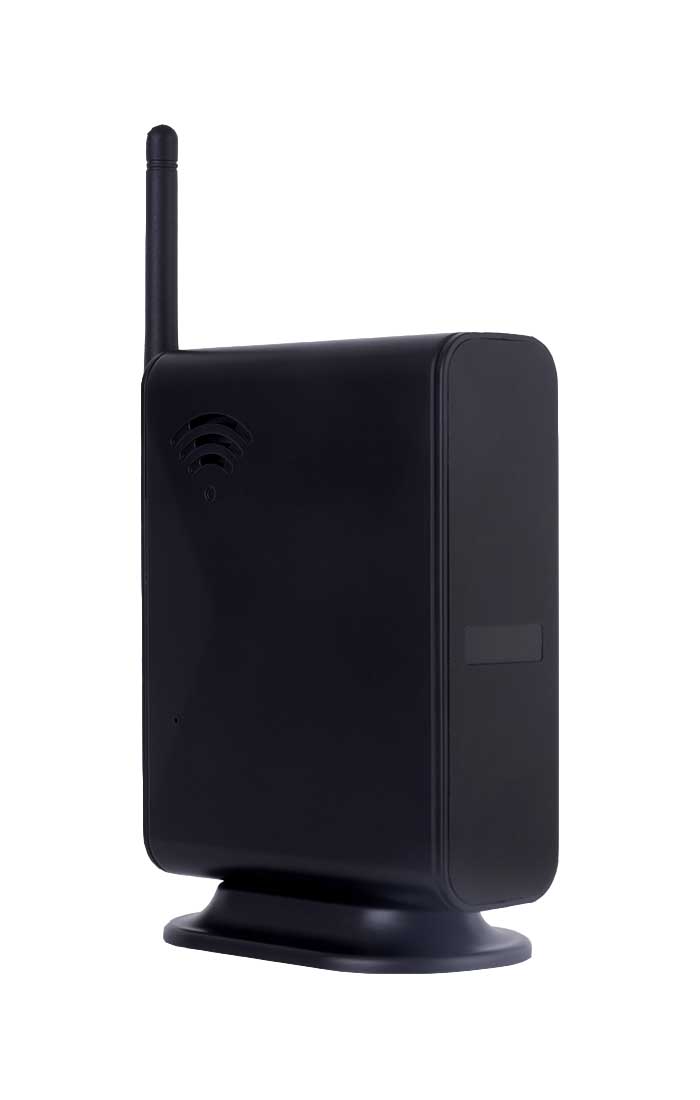

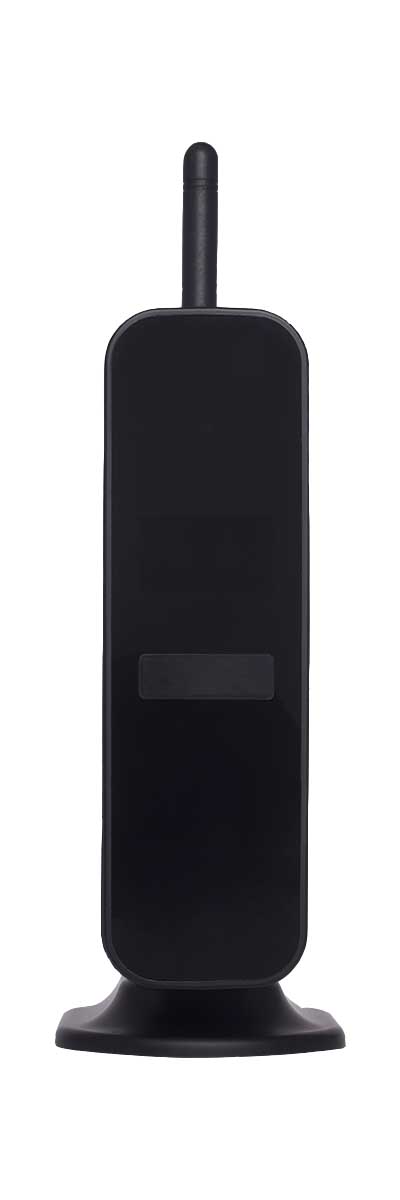

In this model, the camera is hidden in a fake wifi router, absolutely invisible and unsuspected in any environment.

VIDEO & AUDIO

2 megapixels high resolution video

These hidden cameras for investigation provide 2 MP @ 25 f/s video resolution. 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and provide high quality video and rich detail. In order to guarantee maximum performance, we use the same high-level CMOS and processors of our IP cameras for traditional CCTV surveillance in these hidden cameras. Here you can download two 2MP demo movies.

2MP normal light 2MP low light

Invisible lens with black glass

These mini cameras are equipped with a hidden lens with approximately 90° angle of view. Thanks to the dark glass on the front, the lens is absolutely invisible and there is no shooting hole, like in most other hidden cameras. The absolutely invisible lens makes these cameras truly unsuspected, even if observed by the trained eye.


Microphone and speaker for 2-ways audio

These hidden mini cameras are equipped with built-in microphone to transmit and record audio along with video. The microphone has excellent sensitivity covering an average room. The cameras also have a built-in loudspeaker thanks to which you can communicate from your mobile phone with people near the camera.


View in the dark with 6 m. IR

These desktop router cameras are equipped with 2 invisible infrared LEDs for night vision in absolute darkness. Thanks to the IR LEDs, the camera is able to shoot perfectly in the dark, up to a distance of 6 meters . This is a feature that you very rarely find in investigative cameras of this kind. You can activate the black and white IR vision at will via a button in the app, or you can set the LEDs to turn on automatically.

RECORDING


Video storage on SD card

The spy cameras of this range record videos on a removable Micro SD card. Micro SD card is not included. To use these cameras you must purchase a micro SD card, in Class 10 or higher, of the maximum capacity supported by the camera. Do not buy slower SD cards, class 4 or 6, as they will not work properly.

DK-RT1-CSC
SD max. 64GB
Max. video storage 40 hours

Video download and playback

To playback the footage recorded by the camera is very easy. Just connect with your mobile phone to browse and download the video clips. You can do that from remote, with no need to remove the memory card. You can playback MP4 movies directly on your smartphone or transfer them to your computer and play them with common free players, such as VLC. These cameras also allow you to copy files to your computer directly from the SD card.


PIR motion detector

These long stand-by cameras can work on battery for a very long time thanks to a little trick. Instead of being always in operation, like normal spy cameras, these cameras work mainly in stand-by , taking very little power and wake up only when you connect from remote, or when an intruder is detected. To detect intrusions, these cameras have a motion detector sensor (PIR), like those used in burglar alarms, which detects the body temperature of the intruder. The PIR detector is invisible and has a range of 10 meters, perfect to cover an average room.

POWER SUPPLY

Rechargeable built-in batteries

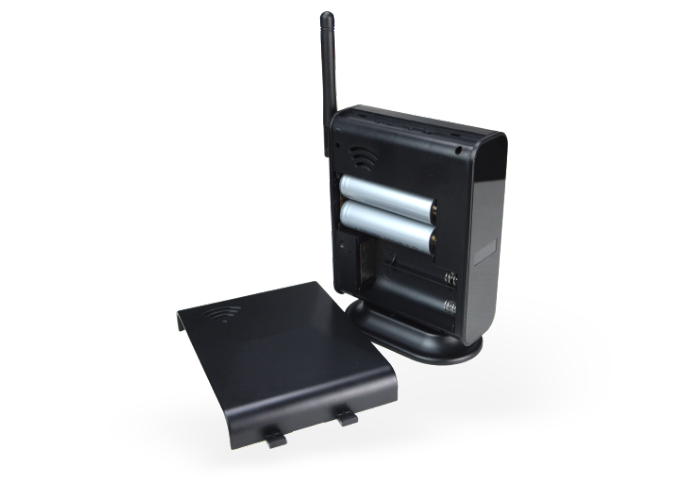

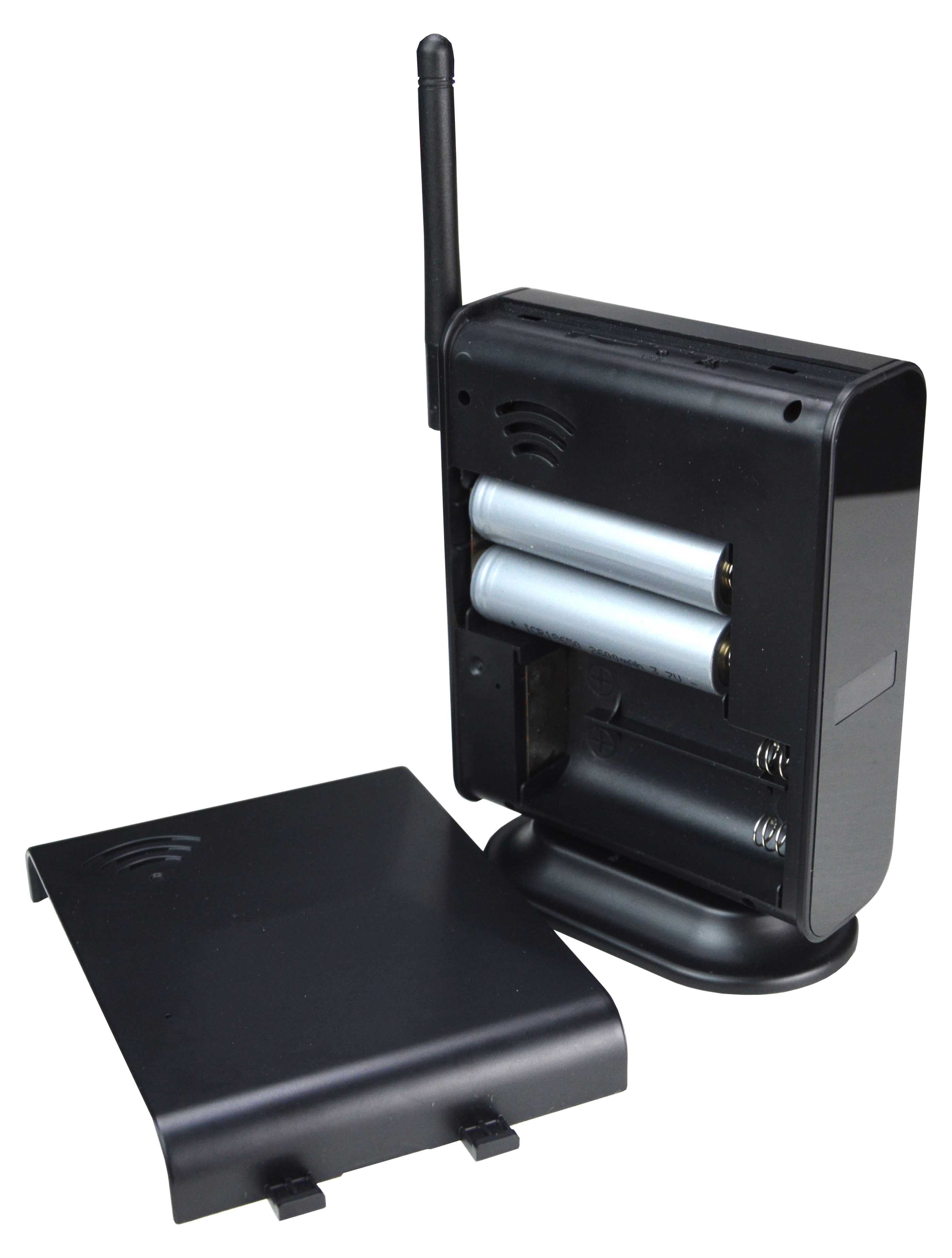

These spy cameras are supplied as standard with two rechargeable lithium batteries that allow about 1 year stand-by. Obviously, if intrusions occur the battery life is reduced proportionally. If you want you can buy two additional batteries, to get up to 2 years in stand-by. The batteries are recharged by connecting a USB charger (not included) with the cable included. The camera can notify on your mobile when the batteries are running low.


220V power supply

Most of the time these cameras run on the internal battery, but can also be mains powered, by means of an external USB power adapter (not included). In this way the camera can remain in operation 24 hours a day , like a real CCTV video surveillance system. These clock cameras are an excellent solution to provide your venue with a 24/7 hidden surveillance, quick and easy to set up.

REMOTE CONTROL


WiFi with APP for smartphones

These hidden cameras are equipped with a Wi-Fi transmitter for Smartphone control and must be connect to your home Wi-Fi network. You can monitor your spy camera over the Internet with our free P2P cloud server. With the free APP CAMSC for Android and iOS, you have full control of the cameras at any time with mobile phones or tablets. You can WATCH AND HEAR in real time. You can RECORD and take pictures. You can even PLAY AND DOWNLOAD the footage in the camera's memory. You can also RECEIVE real time push notifications on your mobile phone all the time that an intrusion occurr or in case of low batteries.

Free iOS and Android app for spycam Spycam live view Listen-in camera feature Loudspeaker SD card recording Video download P2P cloud  server for easy web control Alarm push notification CamSC CamSC

TIPS


Make a perfect hidden camera

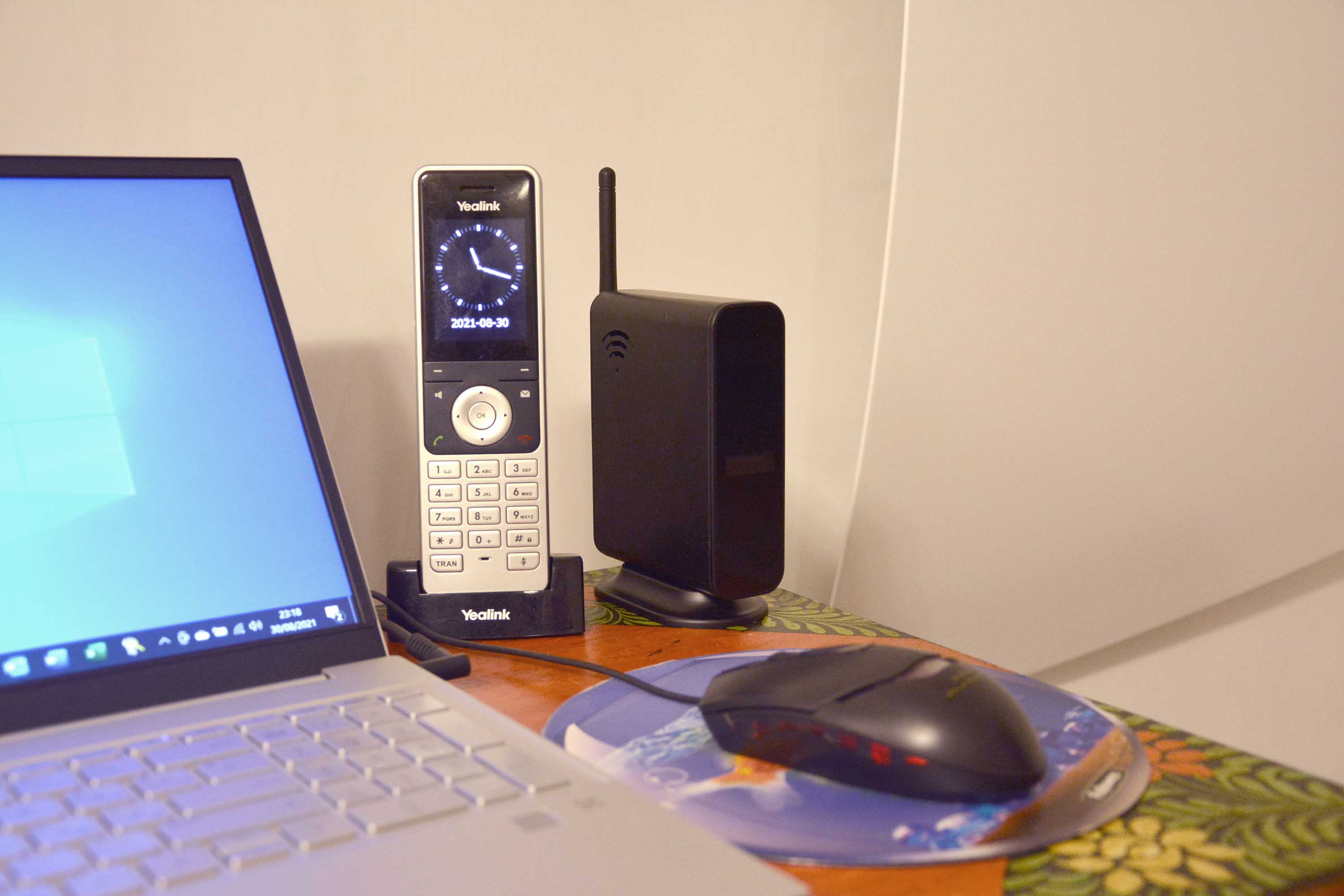

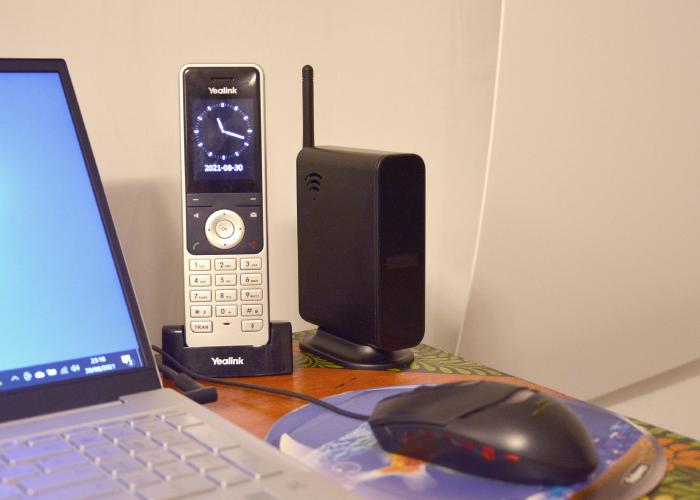

To make an effective covert shot, you need to choose a favorable position for your camera. By their nature, these cameras should be placed on a table, shelf or bedside table and pointed to cover the room. They are absolutely unsuspected objects that normally do not draw attention. While choosing your camera position do not forget to check the wifi coverage first.


Connect the camera to your WiFi network

These long stand-by cameras work only if connected to your home WiFi network. It's an operation that runs easily with our app and lets you control your camera through the Internet, wherever you are. Thanks to our free P2P cloud server , you do not need to configure anything in your router, you just need to know the ID of your device that you will find in the package.

TECHNICAL DATA


CODE DK-RT1-CSC
Description Camera in false router with SD and WiFi
Type Long stand-by battery or mains
CAMERA
Max. resolution 2MP FullHD 1080P
Sensor 1/2.7" CMOS OV2710
Chipset Hi3518E
Video resolution 1920x1080 @ 25 f/s
Compression H264 Dual
Infrared illuminator 940 nm invisible IR illuminator 6 m. range
ICR
Lens Minilens 2.8 mm (90°)
Focus Fixed
Motor lens
Shutter 1/25...1/12000
S/N ratio Over 50dB
Files video format MP4 15..120 minutes
Video storage Around 40 hours on 64GB @ 1080P
SET UP
Ethernet port
Wi-Fi 802.11 b/g/n 2.4GHz (Client mode)
USB port MicroUSB for charger
Microphone
Speaker
SD card slot Max. 64GB Class 10 or above
CVBS TV output
POWER SUPPLY
Built-in battery 2x2600 mAH rechargeable batteries 1 year stand-by. Further 2 batteries optional.
Records on mains power
FEATURES
Recording modes Motion detection
Automatic overwrite Yes (not excludable)
Camera control Smartphone/Tablet via WiFi
Onvif Not supported
P2P
Browser
PC Not supported
Smartphone Free APP CamSC for iOS Android
Multi streaming
Save to cloud
Mirror Vertical
Corridor
Overlays Date and Time (not excludable)
BLC
AWB
DNR
WDR
Anti fog
HSBLC
Starlight
Motion detection
Privacy mask
Anti tampering
Alarm actions Start recording, Push notifications on mobile
Sending Time-Lapse photos
GENERAL
Casing False wifi router
Protection degree IP40
Operating temperature -5°C +40°C RH95% Max
Power supply 5VDC (220V AC adapter not included)
Power consumption Max. 3W
Overall dimensions 55x135x115 mm
Weight 250 gr.

QUESTIONS & ANSWERS


What is included?

USB CABLE
SD READER
APP
USER MANUAL

What is not included?

Cameras record on MicroSD card. The micro SD card is not included. You can buy in our price list a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by the camera in the technical data table above.

What's the price

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.
