MINI CAMERAS WITH WIFI


PIN-HOLE LENS

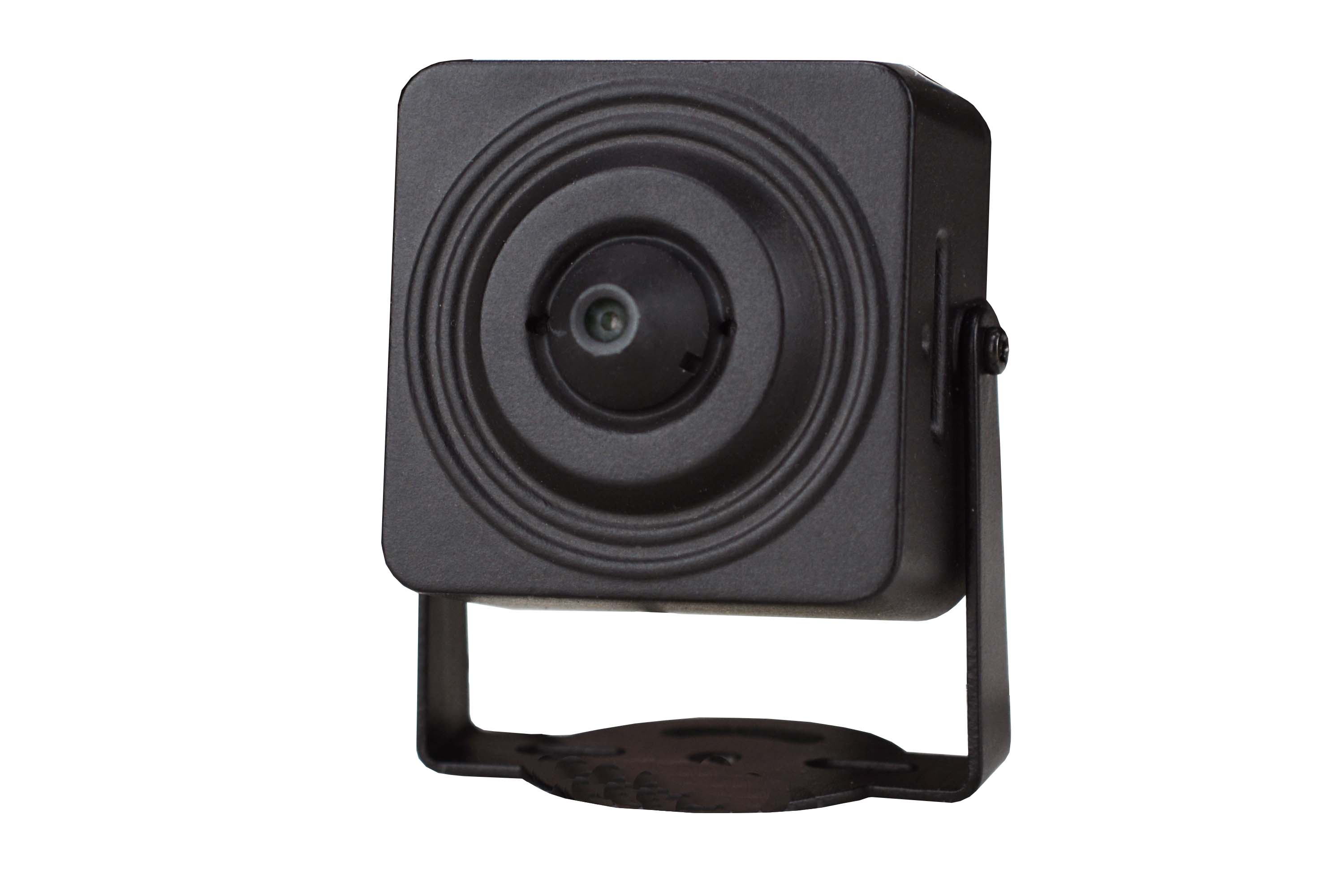

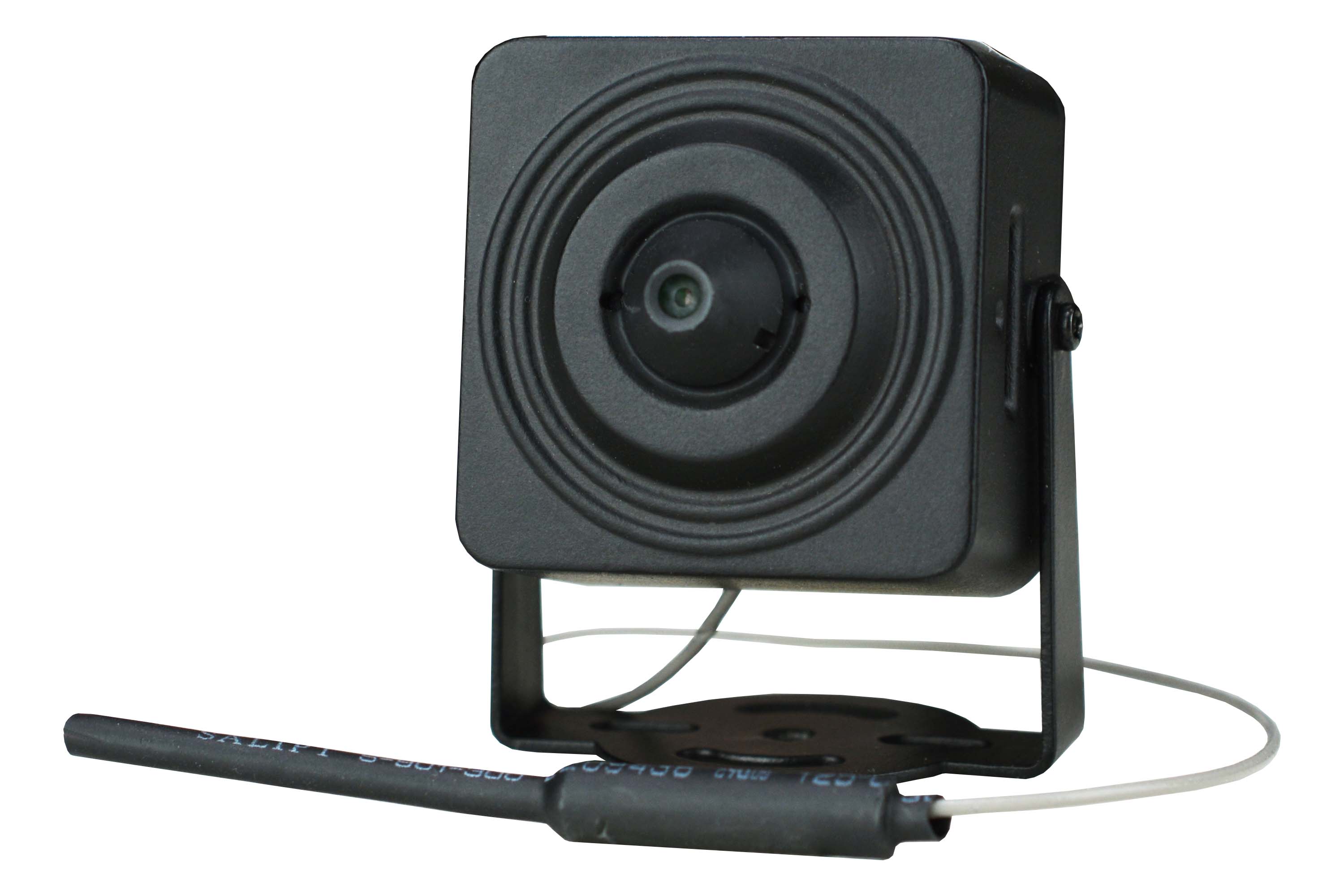

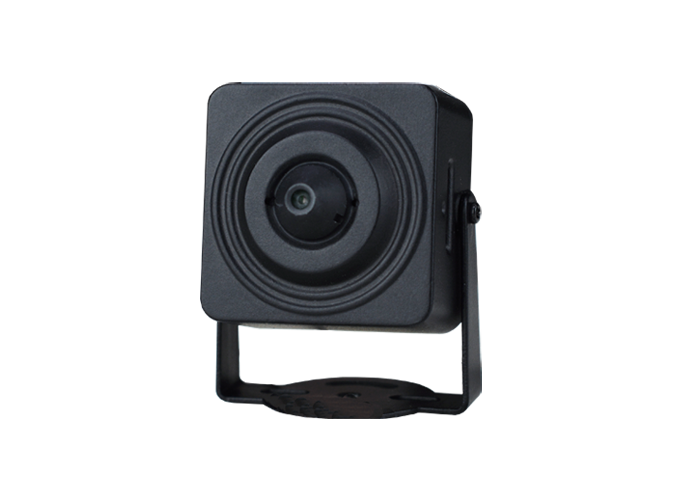

Onvif outdoor IP camera
RK-TCC3WF 3MP

Pinhole lens 3,7 mm. LAN WiFi Low lighting starlight camera Recording on SD card up to 512GB Audio input for external microphone Audio output Alarm I/O H264 and H265 video compression Web control with free P2P cloud server Free APP for smartphone and tablet

MINI LENS

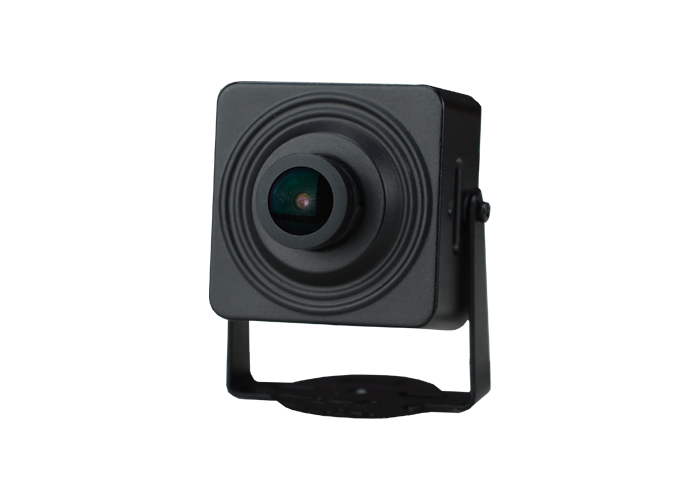

Onvif outdoor IP camera

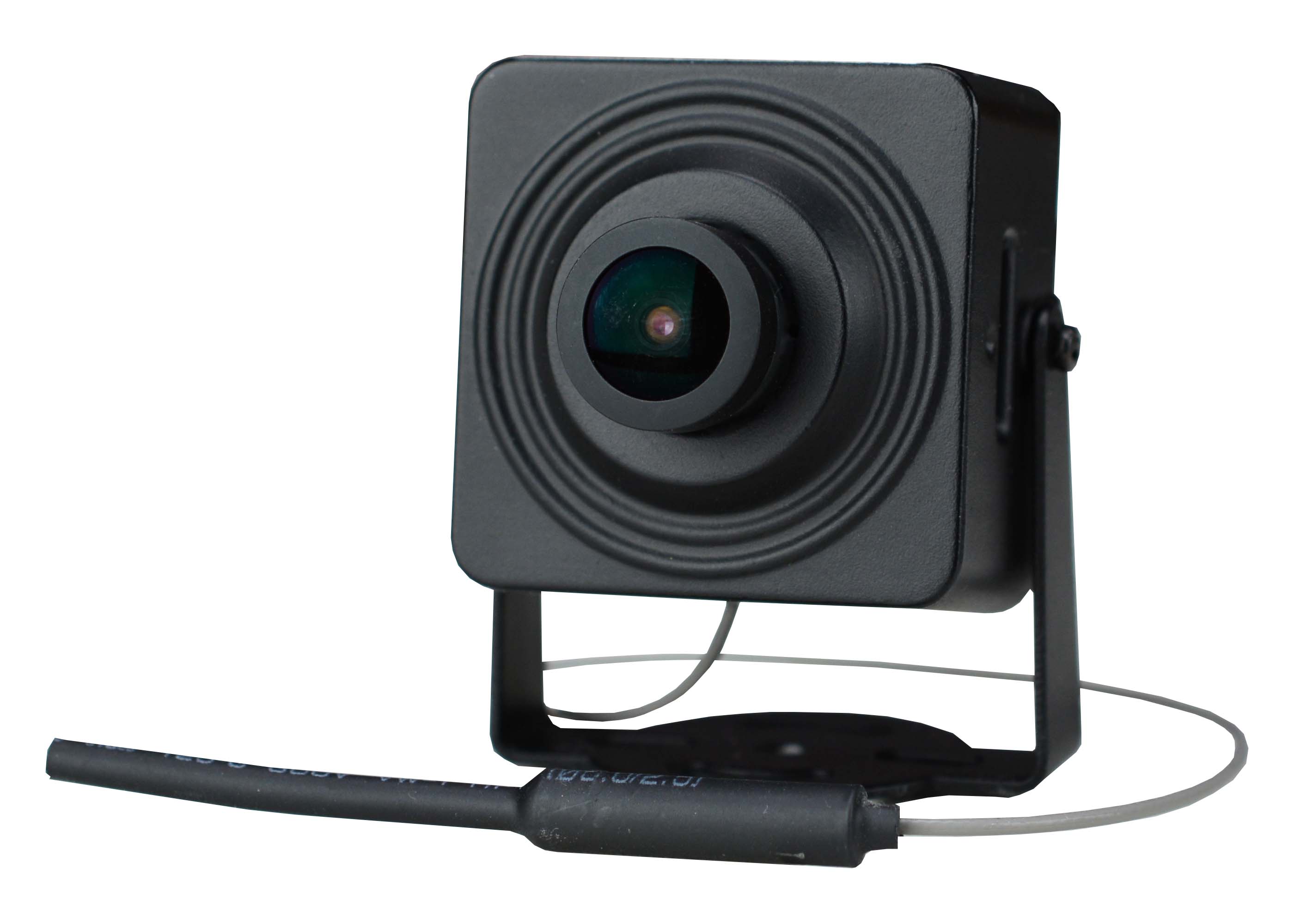

RK-TCC4WF 3MP

Minilens lens 2.8 mm. LAN WiFi Low lighting starlight camera Recording on SD card up to 512GB Audio input for external microphone Audio output Alarm I/O H264 and H265 video compression Web control with free P2P cloud server Free APP for smartphone and tablet

HIDDEN CAMERAS WITH WIFI


IN ALARM DETECTOR

PIR detector IP camera
RK-TCN8WF 3MP
RK-TCN8WFA 3MP WITH MICROPHONE

Pinhole lens 3,7 mm. LAN WiFi Low lighting starlight camera Recording on SD card up to 512GB Audio input for external microphone Audio output Alarm I/O H264 and H265 video compression Web control with free P2P cloud server Free APP for smartphone and tablet

IN ALARM DETECTOR

PIR detector IP camera
RK-TCN3WF 3MP
RK-TCN3WFA 3MP WITH MICROPHONE

Pinhole lens 3,7 mm. LAN WiFi Low lighting starlight camera Recording on SD card up to 512GB Audio input for external microphone Audio output Alarm I/O H264 and H265 video compression Web control with free P2P cloud server Free APP for smartphone and tablet

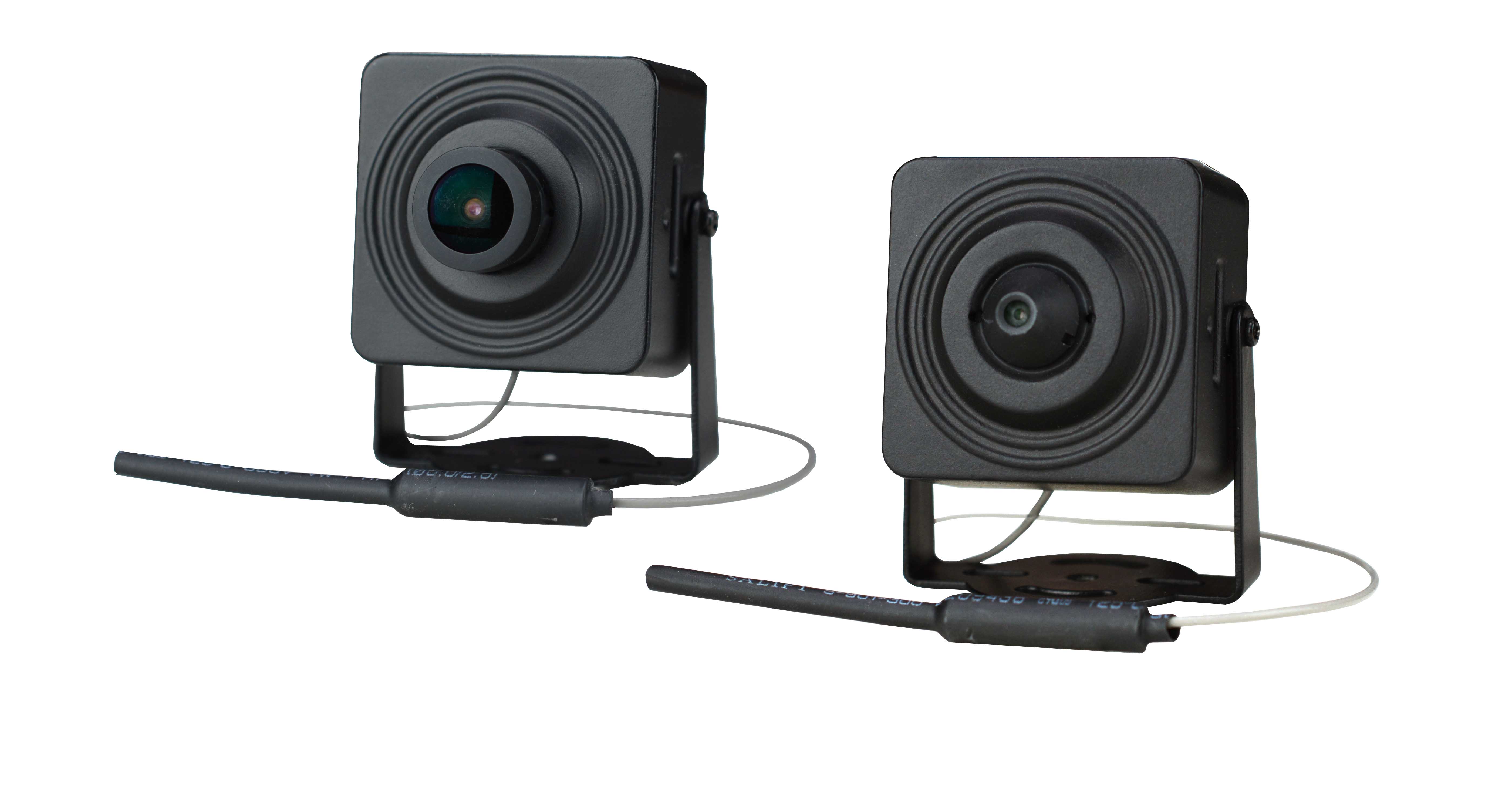

THE WIRELESS MINI CAMERAS


LAN + WiFi Mini - Hidden IP cameras

The cameras in this range are network IP cameras with WiFi . You can hardwire these cameras to your cable network, because they also have a network port, or you can connect wireless to your wifi network or to our WiFi NVR. These mini cameras are the smallest IP cameras in our range and are therefore ideal for making invisible cameras. You can also find them in the hidden version, as alarm or fire detector cameras.


300 m. range WiFi transmitter

All mini and hidden IP cameras in this range come with a built-in WiFi transmitter which you can connect to your WiFi network. The wifi antenna consist of a flexible cable, instead of the classic L shape, to reduce the size and also to allow you to cut off the antenna in case of wired use. The wifi range in open air get up to 300 meters in optimal conditions. Indoor, with walls, you can get to 4-5 rooms away. If you want you can also connect these wifi cameras directly to ours WiFi NVR


Hard-wired or Wireless setup

With our mini and hidden cameras you have different installation options. If it is convenient you can connect them by wires with a normal network cable . Otherwise you can connect them wireless to your WiFi network or directly to one of our WiFi NVR.
You can use these cameras with WiFi to create an entirely wireless CCTV system or you can use them along with other hard-wired IP cameras. The video signal of our WiFI cameras is perfectly stable and reliable. Once you have installed your system you will not distinguish the cameras you have connected by cable from the wireless ones. To know how to install a wifi IP camera, you can follow our video tutorials. Below you can see the scheme of a small IP system, partly wired and partly wifi.


12VDC power

All cameras in this series are equipped with a power plug to connect a 12VDC power adapter which is not included and must be purchased separately. Mini cameras do not support POE power via the network cable due to their small size. However, if you use the camera with wired connection, you can bring the power along the network cable by combining a POE splitter , like the one in this picture.

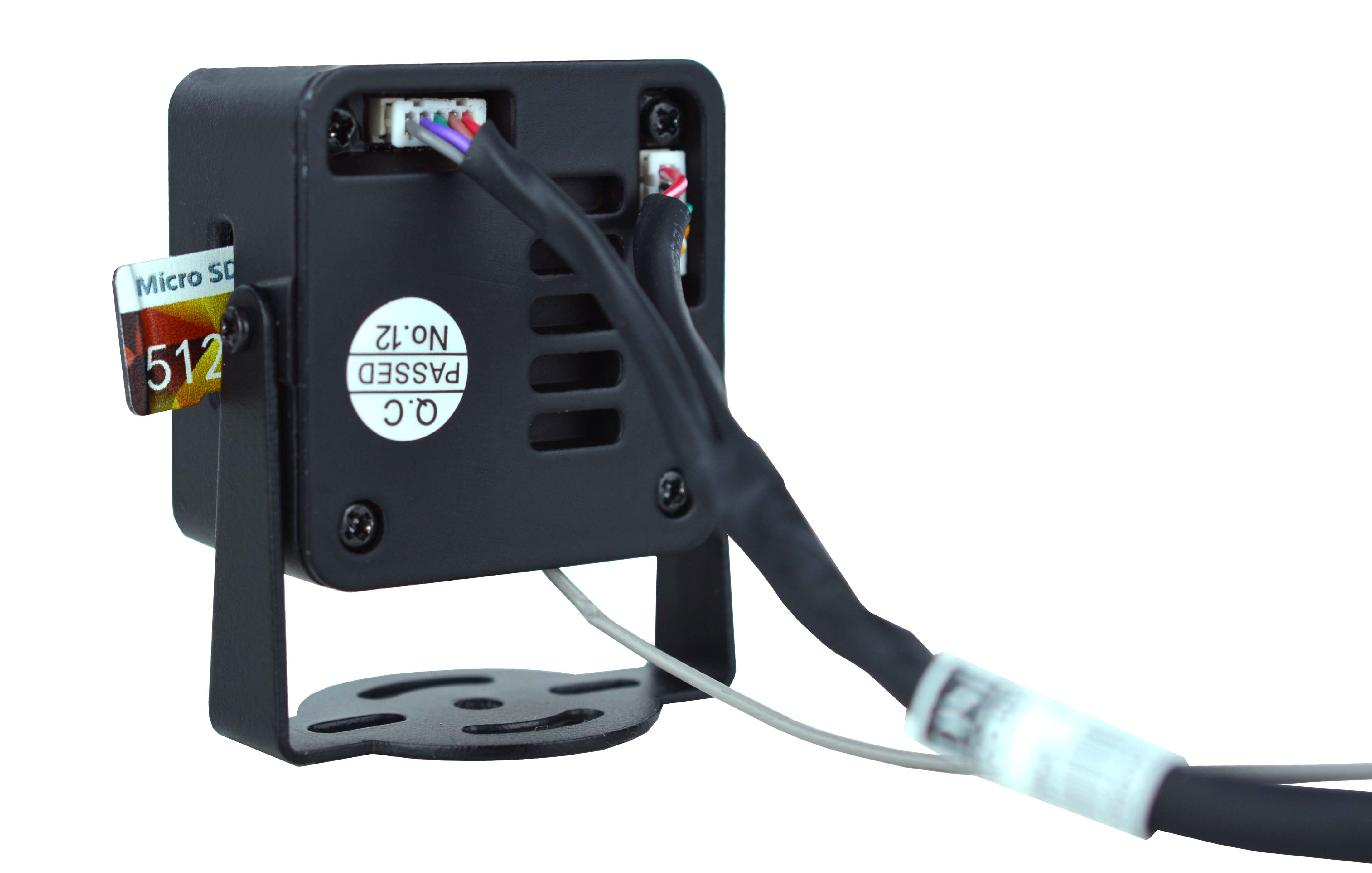

Audio and Alarm output

Despite their small size, these mini and hidden cameras come with a full set of connections. Thanks to the audio input and output you can connect a microphone and a speaker. Some hidden models also have built-in microphone. The cameras of this series are also equipped with alarm output for the connection of devices to be activated in the event of an alarm, such as sounders or lights.

A 12VDC POWER
B ALARM OUTPUT
C AUDIO INPUT FOR MIC
D AUDIO OUTPUT FOR SPEAKER
E RJ45 ETHERNET PORT

RK SERIES DVR, NVR and IP cameras

These mini and hidden IP cameras are part of our RK product range, which also includes NVRs and standard IP cameras. This RK range is designed for the residential and commercial markets. It combines excellent performance with all the convenient functions which are essential for the private users. These RK products also ensure an unbeatable quality/price ratio. All cameras and video recorders in this range share our IoVedo.RK mobile app, our P2P cloud server and our software tools for computers.

THE VIDEO


3 Megapixel high resolution

These RK series WiFi mini cameras guarantee high video quality in spite of the small size. They provide 3MP@15f/s or 2MP@25f/s video resolution. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and is ideal for short distance monitoring. Here you can download a short demo video.

2MP VIDEO

The only Onvif certified Italian IP cameras

Onvif is the international association that brings together the main manufacturers of IP cameras and define standardized interfaces for interoperability of IP-based security products. Buying from us, you first have the guarantee of choosing one of the few companies in Italy that are part of the association. Besides, you are buying from the only Italian manufacturer that produces ONVIF certified IP cameras. All the cameras in this range are included in the official "Onvif Conformant" product list , having successfully passed all compliance tests of the Onvif Profile S standard.
If you are looking for your next IP camera supplier, be sure to choose a member of Onvif and check on the association's website if the products are certified. Do not buy non-certified products because you would have no guarantee to receive a universally compatible device.


H264 H265 video compression

Our WiFi IP cameras support the latest H264, H265 and H265+ video compression formats and deliver a high-quality yet light video stream that uses the least amount of bandwidth. These cameras can handle 3 VIDEO STREAMS with different compressions and resolutions, that you can choose according to the device with which you connect. The frame rate is also adjustable up to 25 fps (real-time). Choose the reliable H264 format for maximum compatibility with all NVRs, or use the H265 format to reduce disk space usage and minimize bandwidth. Here on the side you can download two similar clips in H264 and H265 format: note the difference in size for the same video quality.


Mirror, WDR, BLC, DNR, Antifog

These RK Series IP cameras come with a full pack of advanced features. With an Internet browser you can set the options as you like so as to adapt the camera to your needs. You can adjust the image and rotate it, with the MIRROR and CORRIDOR functions, in order to suit to the area to be monitored. The WIDE DYNAMIC RANGE (WDR) function is useful if you shoot bright areas together with darker areas. With the BLC you can enhance subject on a bright background. The ANTIFOG and DIGITAL NOISE REDUCTION functions allow you to improve shooting in difficult conditions with poor visibility.


Motion detection, privacy and antitampering

All cameras in this range can generate alarms and perform actions such as recording, sending emails, uploading files via FTP, notify cell phones etc. With the MOTION DETECTION you can detect intrusions in the camera's field of view. With the TAMPER DETECTION you can detect if the camera is moved from its normal position. You can enable or disable these features based on a week scheduler. The PRIVACY masks are used to obscure parts of the video in order to respect other people privacy.


STARLIGHT for low light

Mini cameras cannot use infrared illuminators for viewing in the dark, like bigger cameras, because their size is too small. For this reason, our mini cameras are equipped with STARLIGHT technology and use the SONY STARVIS & # 8482 backlit CMOS sensor, for low light. Starlight cameras are designed to allow clear color video at night by taking advantage of any source of natural light.

HARDWARE


Mini & Hidden cameras

We can supply our mini wifi IP cameras not only in the standard mini version, but also hidden in fake alarm or fire detectors. With these versions you can make a hidden camera without worrying about camouflaging the lens. The burglar detector camera can be mounted on the wall and easily oriented thanks to the swivel bracket. The smoke detector camera can be mounted on the ceiling, in a corner of the room, and monitor diagonally downwards with adjustable angle.


Minilens and Pinhole lense

These mini cameras come with M12 lenses. Almost all models are equipped with a special cone lens, called Pin-Hole. It is a wide-angle lens for hidden cameras, capable of shooting through a small hole of only 1 mm., which is ideal for close-up shots, typical of these cameras.

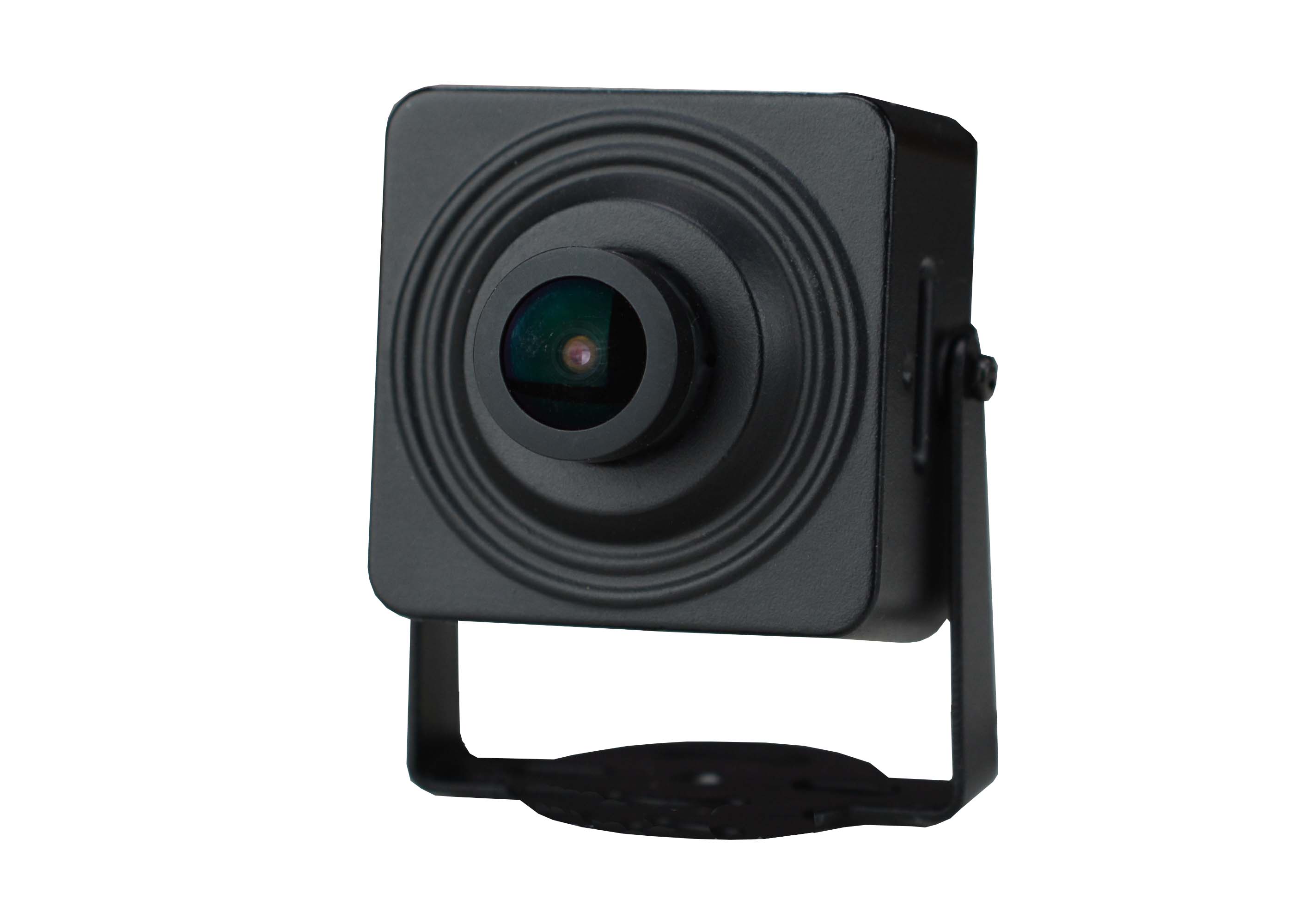

The RK-TCC4 cameras come with a mini-lens, also wide angle. In these cameras you can replace the lens, if you prefer a zoom view, choosing an alternative lens among our LENSES


Audio

All these WiFi mini IP cameras supports audio. Typically, these cameras have a MINIJACK AUDIO INPUT CONNECTOR to which you can connect an external microphone. You can place the microphone close to the camera, or further away, with a wired connection. To power-up the microphone you can use the power adapter of the camera by splitting the DC output with a DC splitter that you can find among our connectors. Some camera in this wifi range is also available with a BUILT-IN MICROPHONE inside the camera, for an even easier installation.

PC CONTROL


Control your system with IE browser

Every computer on the network is a perfect monitor for your IP cameras. No software needs to be installed. Just use your Internet Explorer browser and enter the login password for WATCHING live video. You can RECORD , take snapshots and ZOOM-IN by dragging the mouse. A user friendly menu, available in many languages, allows you to SET all system options. You can also PLAYBACK the videos which have been recorded in the camera memory, searching date and time over the timeline. The cameras in this range also support the RTSP protocol, which allows you to watch live video with ordinary players such as VLC.

APP CONTROL


Control your system with smartphone / tablet

With our free APP for Android and iOS, you can control your IP cameras with a mobile phone or tablet. You can use the app within your Wi-Fi network, calling the IP address of the camera, or via the Internet, calling the camera CLOUD ID. You can WATCH up to 16 cameras on the screen. You can RECORD , take snapshots and ZOOM IN with the classic two-finger gesture. You can also PLAYBACK the videos which have been recorded in the camera memory, searching date and time over the timeline. If you enable motion detection, you can receive NOTIFICATION on your mobile phone at every event.

IoVedo.RK Free App for iOS and Android Real time live view Playback Listen-in PTZ motor camera control P2P cloud server for easy Internet access Alarm push notification IoVedo.EZ IoVedo.EZ

NETWORK SERVICES


Free P2P Cloud server

With your smartphone and your computer you can control your cameras easily over the Internet. Each camera has an ID number and is registered on our P2P cloud server with unlimited access. Thanks to the PEER-TO-PEER (P2P) technology, you can connect via the Internet in seconds, even if your Internet connection does not have static IP address. No special router settings, such as port forwarding, are required. The P2P cloud server allows you to use these cameras even with mobile or satellite Internet connection that usually do not accept direct link.


Saving videos on Cloud, FTP, E-mail

These cameras allow you to save video files on an Internet cloud server. In this way the most important data are kept safe from tampering attempts. RK cameras support the most popular and reliable cloud services on the WEB: GOOGLE and DROPBOX . In the event of an alarm, the cameras can also send photos and videos via e-mail or upload files to FTP servers.


IPCSearcher Software for Windows

During the installation you will need to change the default IP address of the cameras. To do that quickly, you can download our free IPCSearcher software, suitable for all our RK series IP cameras. IPCSearcher search and displays all the RK IP cameras connected to the network and allows you to edit the network settings in a few clicks. After setting the hard-wired IP address, you can connect the camera to your WiFi network and use it without wires.

DOWNLOAD IPCSEARCHER

WIFI VIDEO RECORDING


Compatible with all NVRs

These "Naked" cameras are designed to work best with a network video recorder, also called NVR. You can use all NVR video recorders that support the Onvif protocol. If you are making a new CCTV system we recommend our RK series NVRs for perfect compatibility. These NVRs share the same user interface, app and cloud server with the cameras in this range. Although IP cameras support several kinds of video recording, buying an NVR is always recommended, because it has many useful features that make life easier for the user. Besides, modern NVRs are really inexpensive.


512GB SD Card slot

All cameras in this range have a built-in micro SD card slot. You can insert a micro SD memory up to 512GB and record video clips straight on the camera. In the camera configuration you can define the period of the day you want to record. Once the memory card is full, the automatic overwriting of the oldest video files is usually set. The BUILT-IN MEMORY turns your IP camera into a stand-alone video surveillance system capable of recording even without a network video recorder. Even if you have an NVR, we recommend you still use the SD card, because it record in every condition, even if the network is disconnected because of a failure or sabotage


ONVIF videorecording software

If you want to video record the IP cameras of your network on a computer, you can download our free VMS software that supports all our IP cameras and also Onvif IP cameras from other manufacturers. You can install it on as many computers as you want and use it freely, both as a main videorecorder and as an additional control station. VMS can manage many devices on your local network showing up to 64 cameras on screen, in multiple custom layouts.

VMS SOFTWARE

SDK for developers

If you are a software developer you can easily implement our devices in your projects. We provide you free SDK libraries to control all functionalities of our devices with your own software. If you need to get a clean video stream for your software you can do that via RTSP protocol.

DOWNLOAD SDK

QUALITY - PRICE


Get your money worth

These "Naked" IP cameras are designed to give you the best value for your money in residential systems. However, they are still professional cameras with the best CMOS and Chipset and provide superb video quality. Please do not compare this range of cameras with the entry level products of other manufacturers where the cheapest sensors are used to sell at the lowest possible price. Check in the datasheets the brand of the sensor and chipset and if it is not declared ask yourself why.

TIPS


Use these cameras with our WiFi kits

These WiFi cameras are perfectly compatible with our WiFi kits , the plug and play wireless systems, for flats and shops. If you want, you can connect these cameras to the wifi NVR of these kits, in addition to the standard ones. If you purchase these WiFi cameras together with the WiFi kit, we will deliver everything configured and ready to work: 100% plug & play. You can configure your wifi kit to your liking, adding these WiFi cameras when you need a hidden camera. See how you can add these cameras to the wifi kits in this video tutorial.

TECHNICAL DATA



CODE RK-TCC3WF RK-TCC4WF RK-TCN8WF RK-TCN8WFA RK-TCN3WF RK-TCN3WFA
Description WiFi IP mini camera WiFi IP mini camera WiFi IP hidden camera WiFi IP hidden camera WiFi IP hidden camera WiFi IP hidden camera
Type With Pin-Hole lens With mini lens (replaceable) Burglar detector camera Burglar detector camera Fire detector camera Fire detector camera
CAMERA
Maximum resolution 2MP 1080P 2MP 1080P 2MP 1080P 2MP 1080P 2MP 1080P 2MP 1080P
Optical sensor 1/2.8" SONY Starvis CMOS 1/2.8" SONY Starvis CMOS 1/2.8" SONY Starvis CMOS 1/2.8" SONY Starvis CMOS 1/2.8" SONY Starvis CMOS 1/2.8" SONY Starvis CMOS
Chipset HS Hi3516C HS Hi3516C HS Hi3516C HS Hi3516C HS Hi3516C HS Hi3516C
Starlight
Video resolutions 2048x1536 @ 15 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s ... 720x480 @ 25f/s ... 352x288 @ 25f/s 2048x1536 @ 15 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s ... 720x480 @ 25f/s ... 352x288 @ 25f/s 2048x1536 @ 15 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s ... 720x480 @ 25f/s ... 352x288 @ 25f/s 2048x1536 @ 15 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s ... 720x480 @ 25f/s ... 352x288 @ 25f/s 2048x1536 @ 15 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s ... 720x480 @ 25f/s ... 352x288 @ 25f/s 2048x1536 @ 15 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s ... 720x480 @ 25f/s ... 352x288 @ 25f/s
Video compressions H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG
POE power supply
Local power supply 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC
Infrared illuminator
ICR
Lens Pin-hole 3.7 mm Minilente 2.8 mm (replaceable) Pin-hole 3.7 mm Pin-hole 3.7 mm Pin-hole 3.7 mm Pin-hole 3.7 mm
Focus Manual Manual Fixed Fixed Fixed Fixed
Shutter 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000
S/N ratio Over 52dB Over 52dB Over 52dB Over 52dB Over 52dB Over 52dB
SUPPLIED
Network port RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T
WiFi IEEE802.11 2.4Ghz IEEE802.11 2.4Ghz IEEE802.11 2.4Ghz IEEE802.11 2.4Ghz IEEE802.11 2.4Ghz IEEE802.11 2.4Ghz
WiFi range 300m Max. without obstacles 300m Max. without obstacles 300m Max. without obstacles 300m Max. without obstacles 300m Max. without obstacles 300m Max. without obstacles
Audio input Minijack audio input Minijack audio input Minijack audio input Buil-in microphone Minijack audio input Buil-in microphone
Audio output Minijack audio output Minijack audio output Minijack audio output Minijack audio output Minijack audio output Minijack audio output
Alarm I/O 1 output 1 output 1 output 1 output 1 output 1 output
SD card Max. 512 GB Max. 512 GB Max. 512 GB Max. 512 GB Max. 512 GB Max. 512 GB
CVBS output
FUNCTIONS
Protocols TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP
Onvif Supported Supported Supported Supported Supported Supported
P2P Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode
Browser IE 9 or superior IE 9 or superior IE 9 or superior IE 9 or superior IE 9 or superior IE 9 or superior
Smartphone iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad
Multi streaming 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream
Web cloud storage Google Dropbox Google Dropbox Google Dropbox Google Dropbox Google Dropbox Google Dropbox
Mirror Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable
Corridor 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270°
Overlays Data Time Description Data Time Description Data Time Description Data Time Description Data Time Description Data Time Description
BLC Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable
AWB Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable
DNR 3D 3D 2D 3D 2D 3D 3D 3D
WDR Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable Automatic or adjustable
Anti Fog
HSBLC
Motion detection Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler
Privacy mask 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas
Antitampering Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler
Alarm actions Recording Email FTP Cloud Push notification Recording Email FTP Cloud Push notification Recording Email FTP Cloud Push notification Recording Email FTP Cloud Push notification Recording Email FTP Cloud Push notification Recording Email FTP Cloud Push notification
GENERAL
Casing Aluminum Aluminum Aluminum + ABS Aluminum + ABS Aluminum + ABS Aluminum + ABS
Protection degree IP66 outdoor IP66 outdoor IP66 outdoor IP66 outdoor IP66 outdoor IP66 outdoor
Adjustbale bracket Wall and ceiling Wall and ceiling Wall Wall Ceiling Ceiling
Operating temperature -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max
Power supply 12VDC +/-10% 12VDC +/-10% 12VDC +/-10% 12VDC +/-10% 12VDC +/-10% 12VDC +/-10%
Consumption Max 1.5W Max 1.5W Max 1.5W Max 1.5W Max 1.5W Max 1.5W
Dimensions 37 x 37 x 24 mm. 37 x 37 x 24 mm. 70 x 120 x 48 mm. 70 x 120 x 48 mm. 120(diam) x 58(H) mm. 120(diam) x 58(H) mm.
Weight 135 gr. 135 gr. 160 gr. 160 gr. 160 gr. 160 gr.

QUESTIONS & ANSWERS


What is included?

CAMERA
RJ45 WATERPROOF
WALL PLUGS
MANUAL
SETTING SW
NVR SW
APP

What is not included?

All these wifi cameras must be powered with a 12VDC power adapter, which is not included. Do not forget to order one of these 12VDC POWER ADAPTERS

What is the price?

Find the prices of our products in the Online Price List or in the CCTV STORE, our e-commerce portal.
