Connectors and adapters for CCTV


Here you will find all the types of connectors you need in the wiring of CCTV video surveillance systems. Choose our high quality connectors for your networking, video, audio or power wiring. Get professional results without struggling.

PRODUCT RANGE


RJ

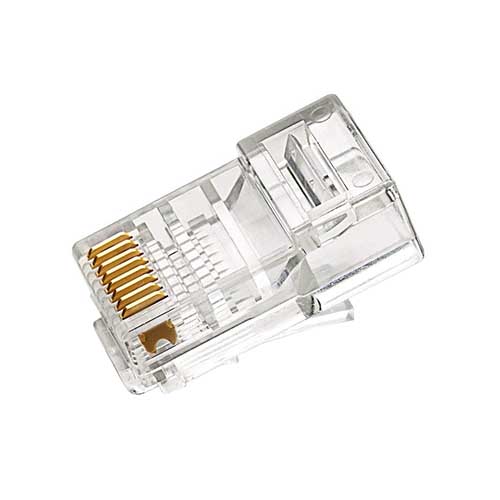

connettori di rete RJ45

Network connectors for IP cameras, switches and NVRs

BNC

connettori BNC

Connectors for analog video over coax cables

DC

connettori BNC

Plugs and sockets for DC power

RCA

connettori RCA

Connectors for analog audio

F,N,SMA

connettori F N SMA

Connectors for antenna coax cables

MINIJACK

connettori BNC

Multi-purpose 3 ways connectors

TOOLS

connettori BNC

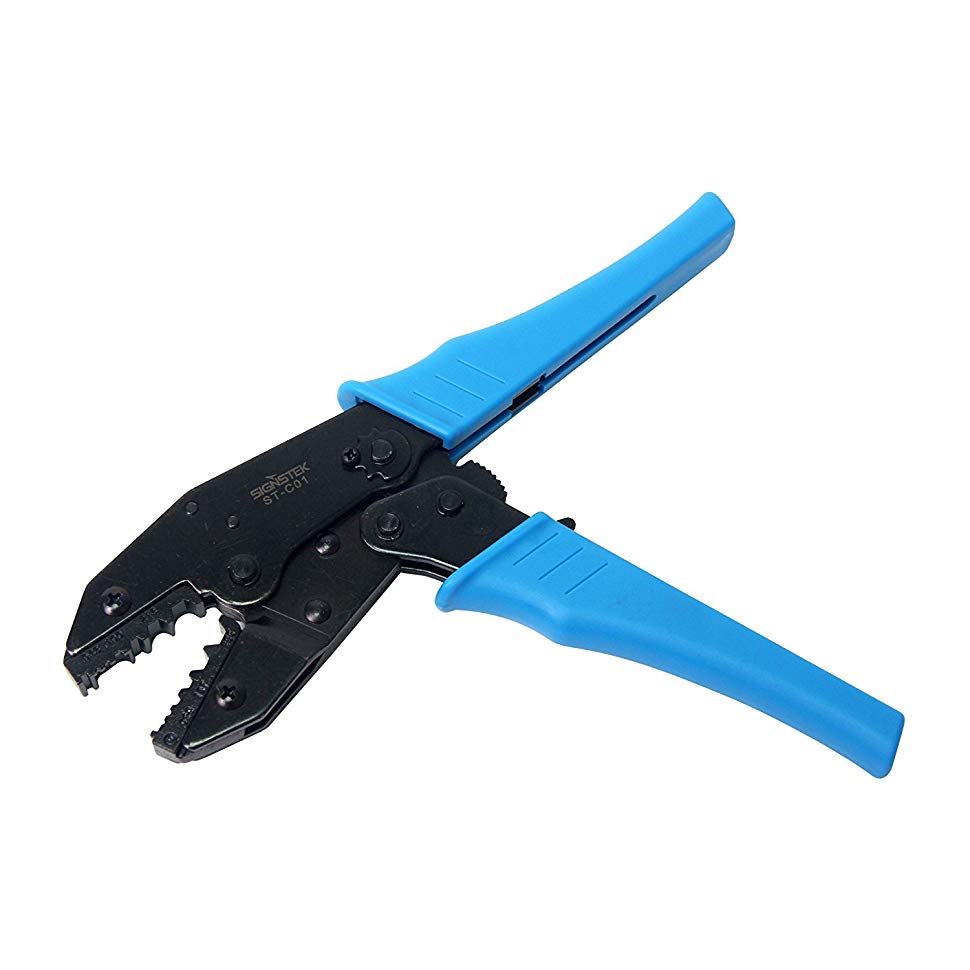

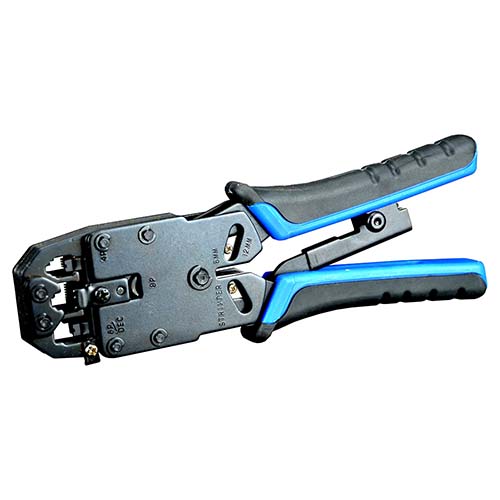

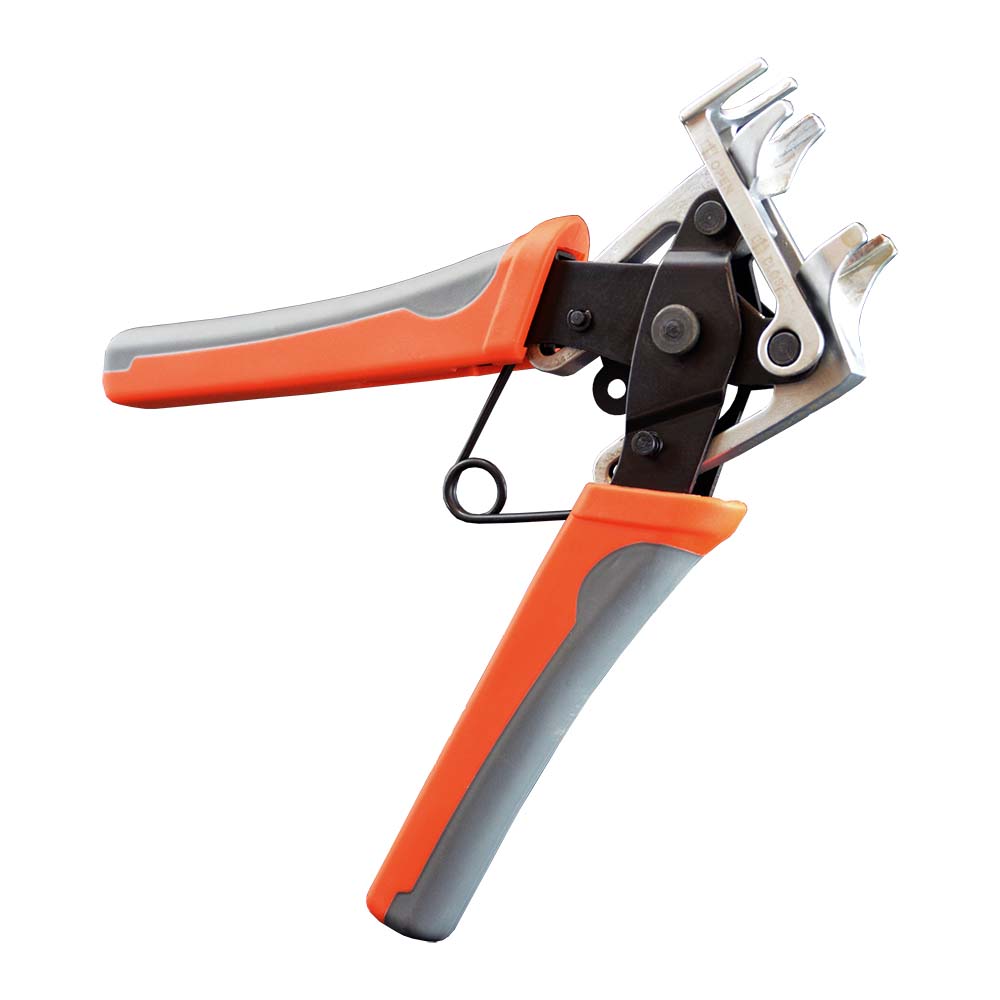

Crimping clamps for coax and UTP cables

RJ CONNECTOR


RJ connectors are used in the IT networks for wiring computers and peripherals. These are the most common IP CCTV connectors you can use to connect IP cameras, NVRs and network switches. Most IP video surveillance systems are installed using only RJ45 connectors.

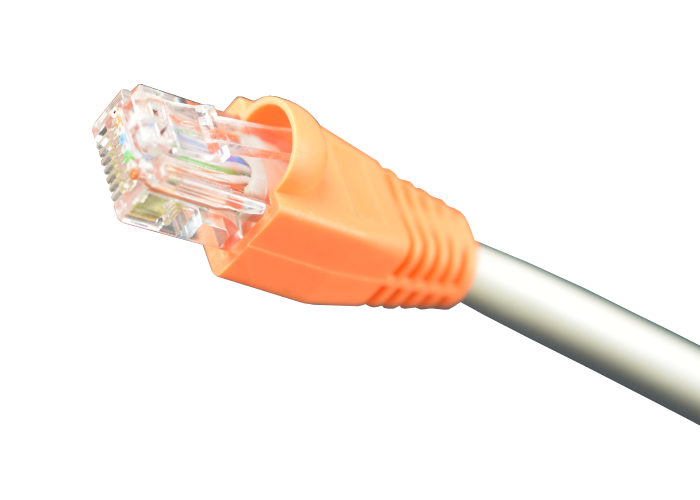

RE-RJ45P

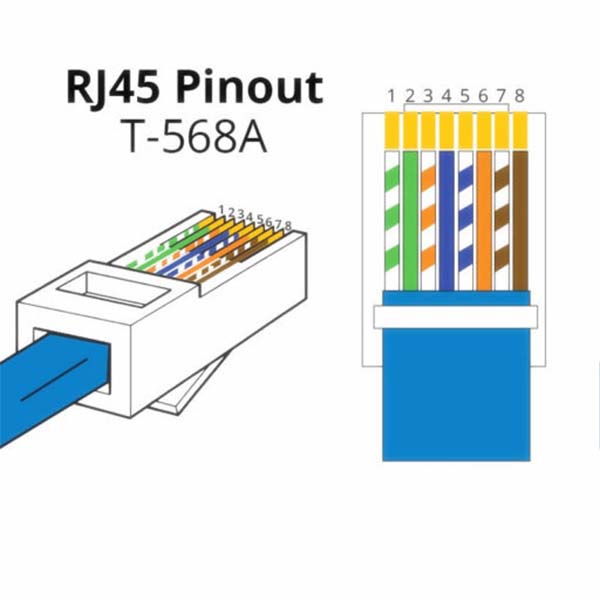

Crimp-on RJ45 male connector - Passthrough version

The innovative RJ45 passthrough connectors

Know more on RJ45 PASSTHROUGH

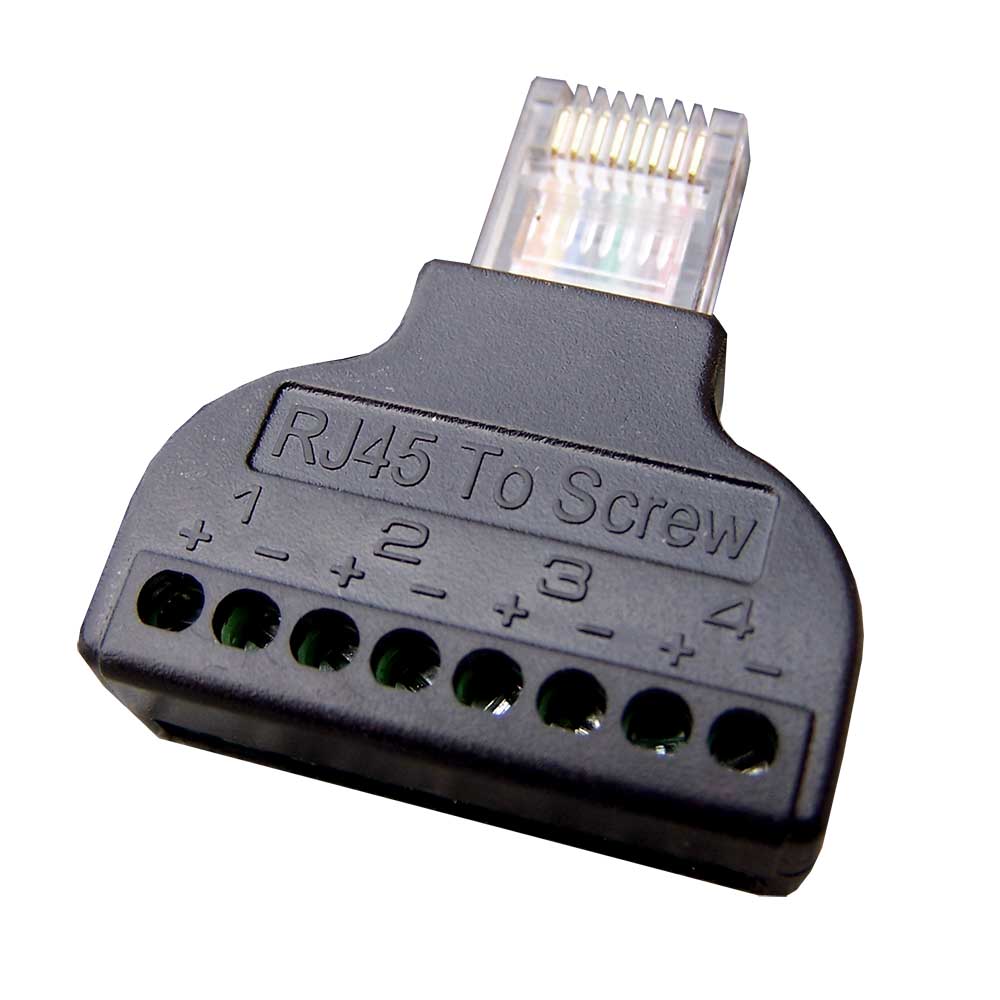

RE-RJ45S

RJ45 male connector with terminal board

This is a special network connector that can be mounted without special tools. It is very useful when using the RJ45 connector for special applications where more then one cable must be wired to one connector, like analogue video wiring on twisted-pairs
SUITABLE FOR: All cables
MADE OF: Plastic body
MOUNTING: Screwdriver only required
PACKAGE: 1 pcs.

QUESTION & ANSWER


Is it hard to crimp a network connector?

It is easy to crimp RJ45 connector to UTP cables using the appropriate clamp. There are several tutorials on the web that show how to do it. It takes only a little bit of precision in arranging the cables and some test to get familiar with the right tecnique.

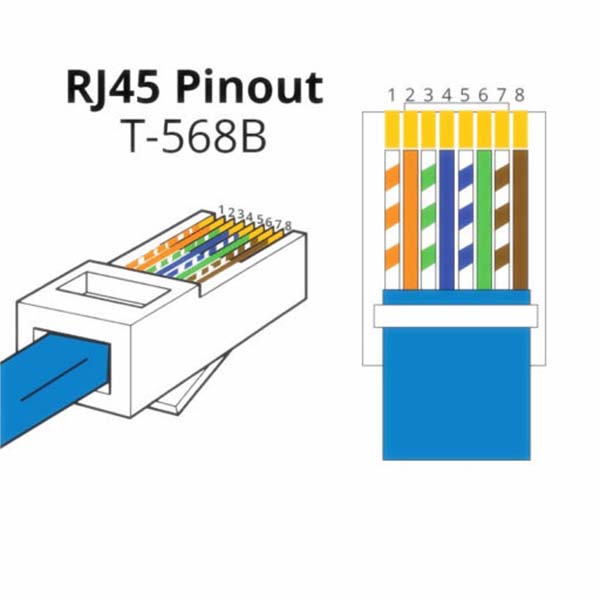

Which is the right cable order in RJ45 connectors?

An RJ45 connector has 8 pins to which you have to connect the 4 pairs in the UTP network cable. To wire an IP camera system you must always use a "direct" sequence, never use crossover wiring. There are two recognized standards: T-568A and T-568B. Choose one or the other is the same, you just have to keep the same standard from both ends of the cable.

What's the price?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.

CCTVSTOREPRO.COM

BNC CONNECTORS


BNC connectors are the classic CCTV connectors for coaxial cables. You can use them to carry the analog video signal (CVBS, AHD, CVI, TVI) at any video resolution. The male connector is normally mounted on the cable while the female is in the device (camera, DVR). All our BNC connectors have 75 Ohm impedance, suitable for video wiring.




QUICKCOAX

Press-on BNC male connector

The new revolutionary BNC connector you can mount in 30 seconds

Know more on QUICKCOAX

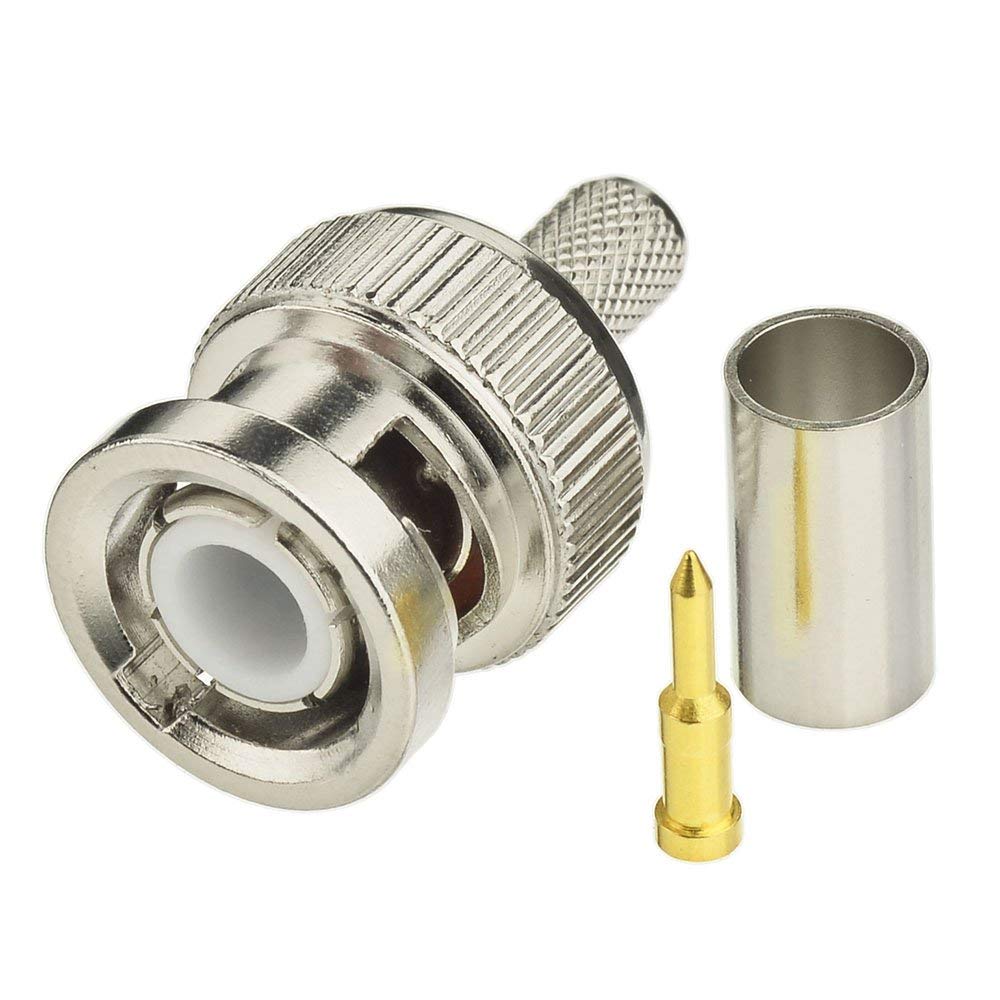

RE-BNCCR1

Crimp-on BNC male connector

This is the traditional connector for coaxial cables. It is the most inexpensive of its kind, but the proper assembly requires experience.
SUITABLE FOR: 5-6 mm. coaxial cables like RG59
MADE OF: Copper pin + steel body + crimp sleeve
MOUNTING: Crimping clamp required
PACKAGE: 10 pcs.


RE-BNCCR1S

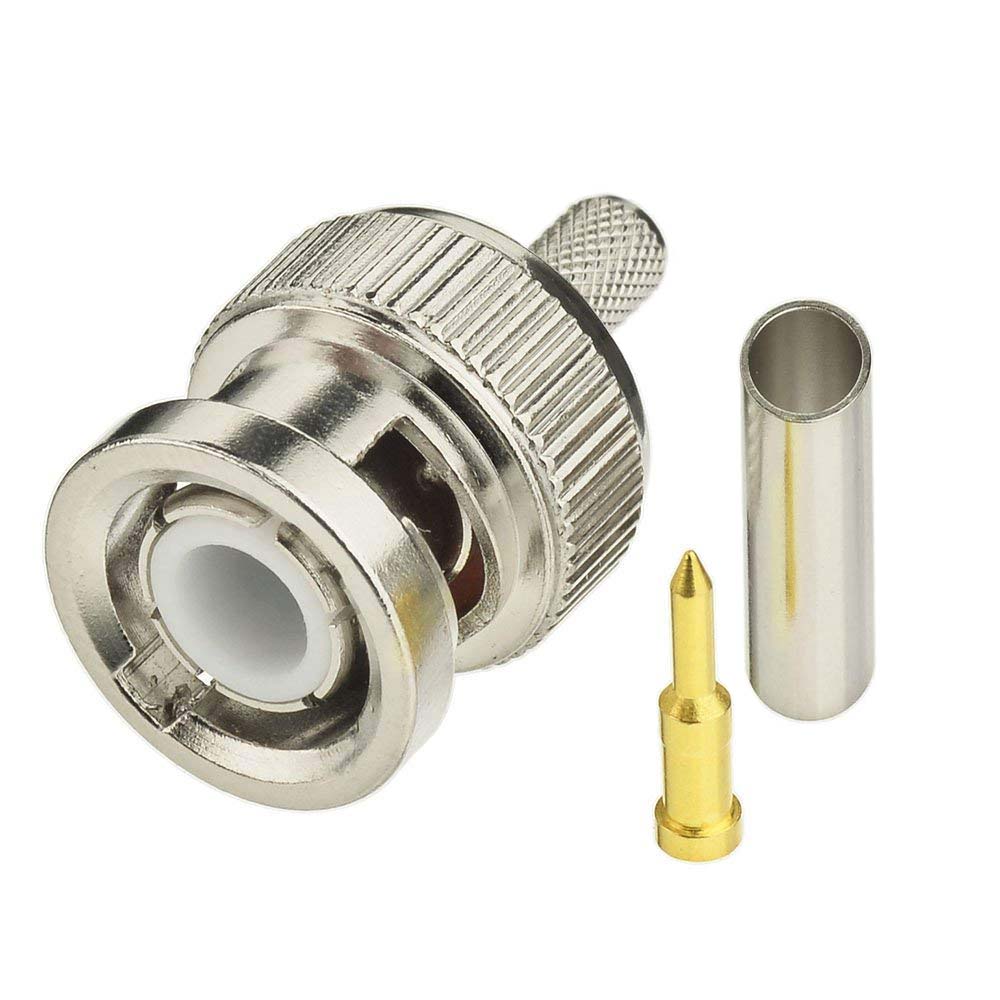

Crimp-on BNC male connector for mini-coax

This is the video connector for small size mini-coax. Because of the tiny size of the inner cable, this connector must be assemble with care.
SUITABLE FOR: 2-2.5 mm. mini-coaxial cables like RG179
MADE OF: Copper pin + steel body + crimp sleeve
MOUNTING: Crimping clamp required
PACKAGE: 10 pcs.

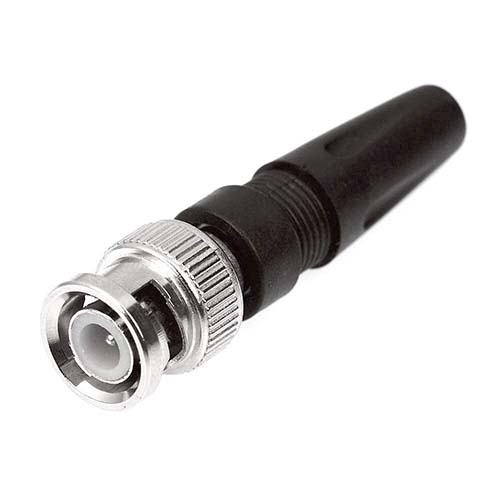

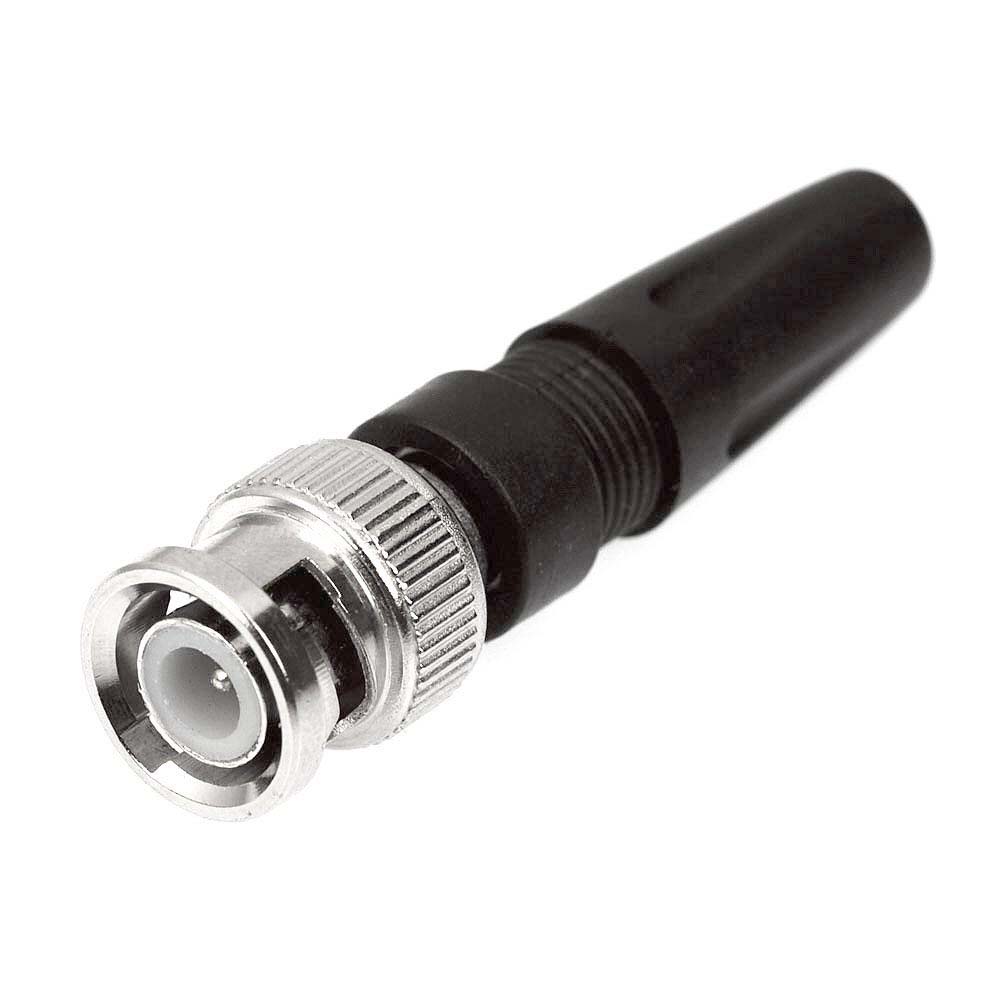

RE-BNCS1

Solder type BNC male connector

This is the solder type video connector for coaxial cable, suitable for any cable size. It is ideal to produce pre-assembled cables. Including rubber cap.
SUITABLE FOR: Coaxial cables of any size
MADE OF: Steel body + rubber cap
MOUNTING: Soldering iron required
PACKAGE: 10 pcs.

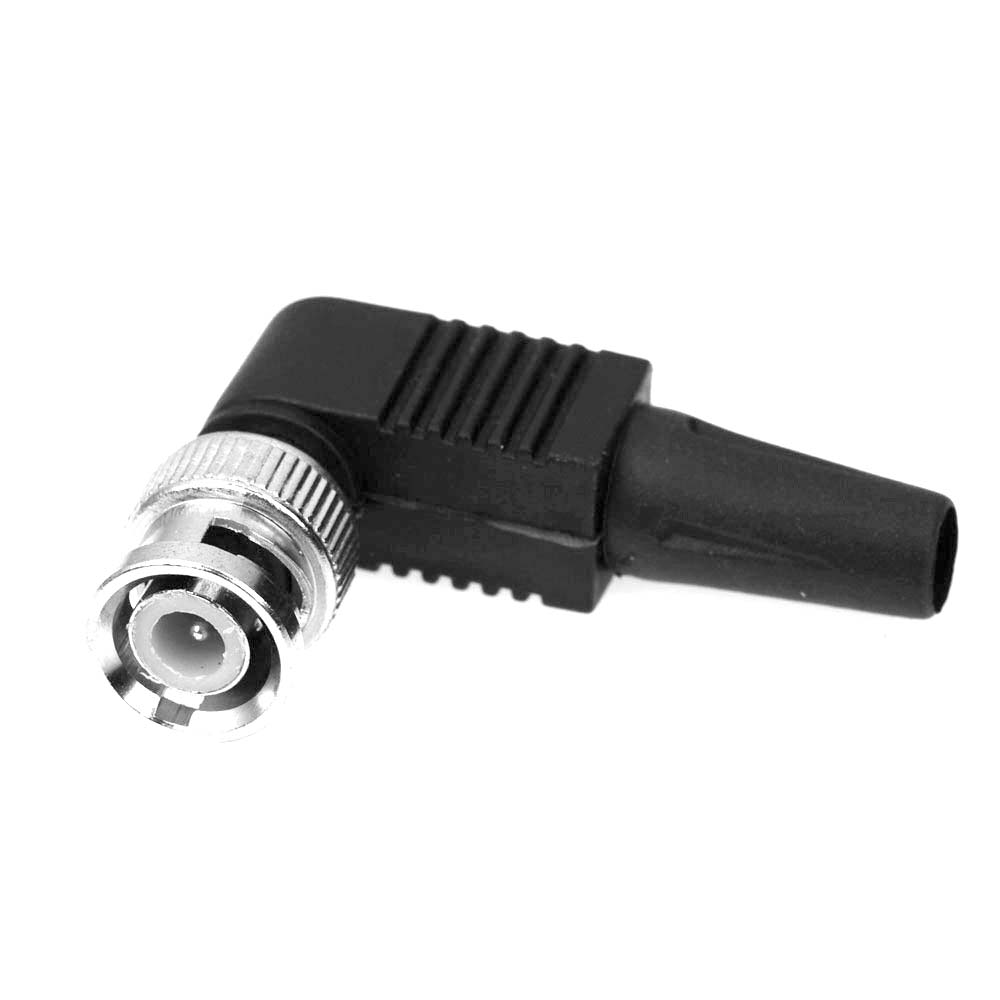

RE-BNCS1L

Solder type BNC male connector 90°

This is the solder type video connector for coaxial cable, L shape. Its short depth make it suitable to several applications. Including rubber cap.
SUITABLE FOR: Coaxial cables of any size
MADE OF: Steel body + rubber cap
MOUNTING: Soldering iron required
PACKAGE: 10 pcs.

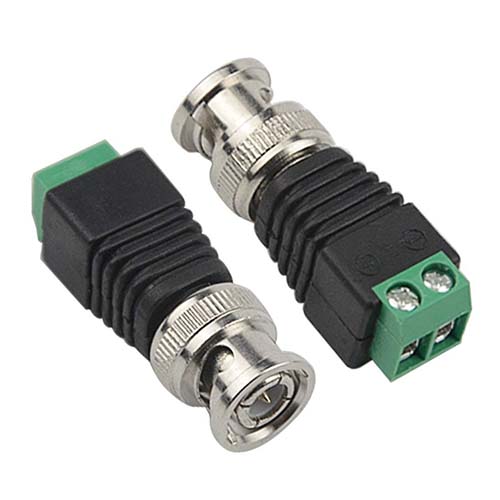

RE-BNC1S

BNC male connector with screw terminals

Connector for video coaxial cables with 2 screws terminal board. Ideal for quick connections on any type of cable. No special tools required.
SUITABLE FOR: Coaxial cables of any size and cable pairs
MADE OF: All in one
MOUNTING: Just screwdriver required
PACKAGE: 10 pcs.


RE-BNCCR2

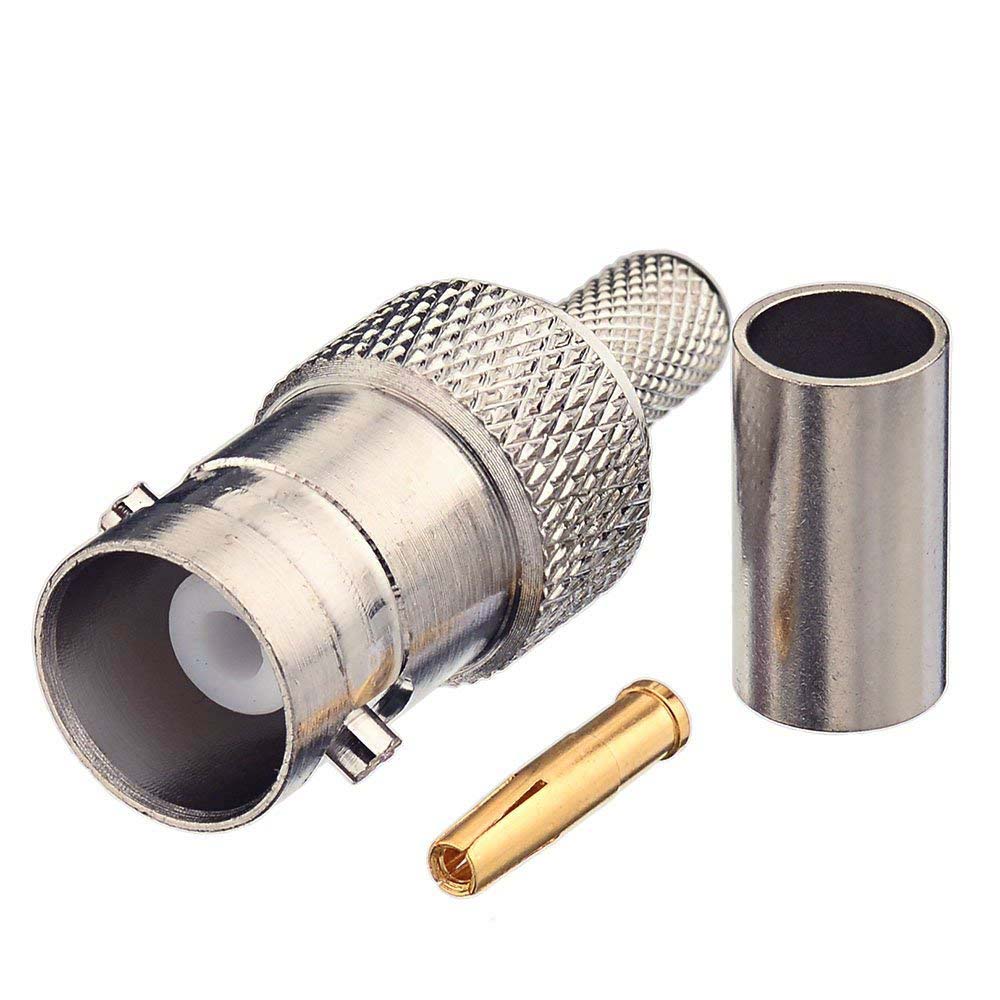

Crimp-on BNC female connector

This female BNC connector is usually installed in the video devices like cameras or DVR. This cable mounting version can be used to connect 2 cables together.
SUITABLE FOR: 5-6 mm. coaxial cables like RG59
MADE OF: Copper pin + steel body + crimp sleeve
MOUNTING: Crimping clamp required
PACKAGE: 10 pcs.

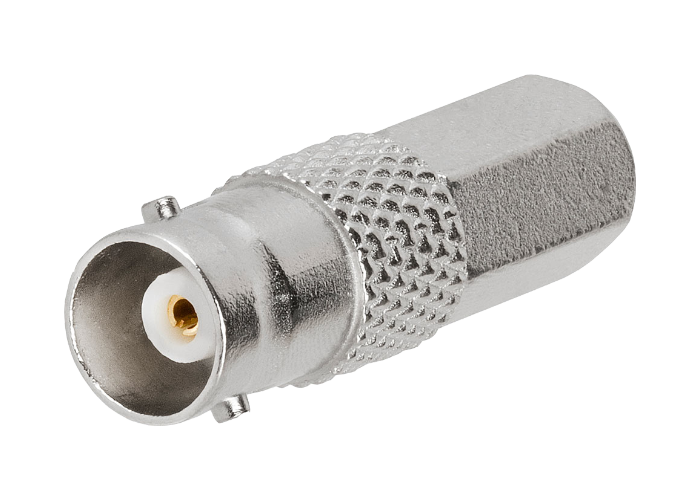

RE-BNCAV2

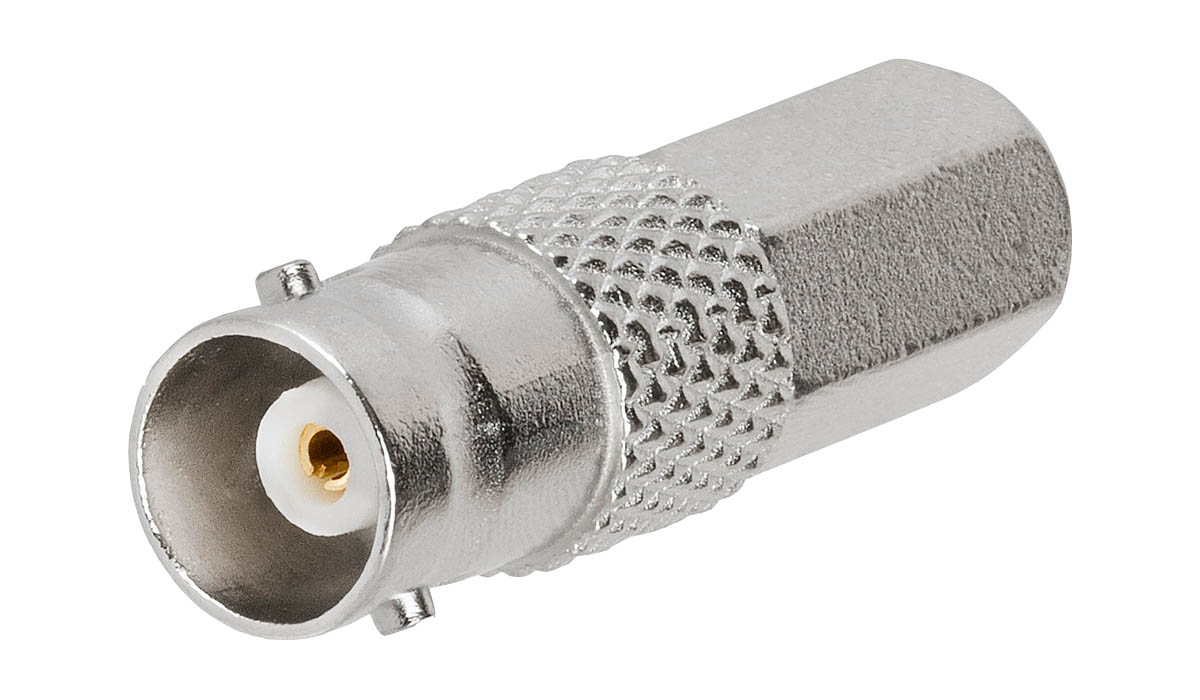

Twist-on BNC female connector

This connector is useful to connect two cables together. This screwing version is very convenient because it can be assembled without tools.
SUITABLE FOR: 5-6 mm. coaxial cables like RG59
MADE OF: All in one
MOUNTING: No tools required
PACKAGE: 10 pcs.


RE-BNC2S

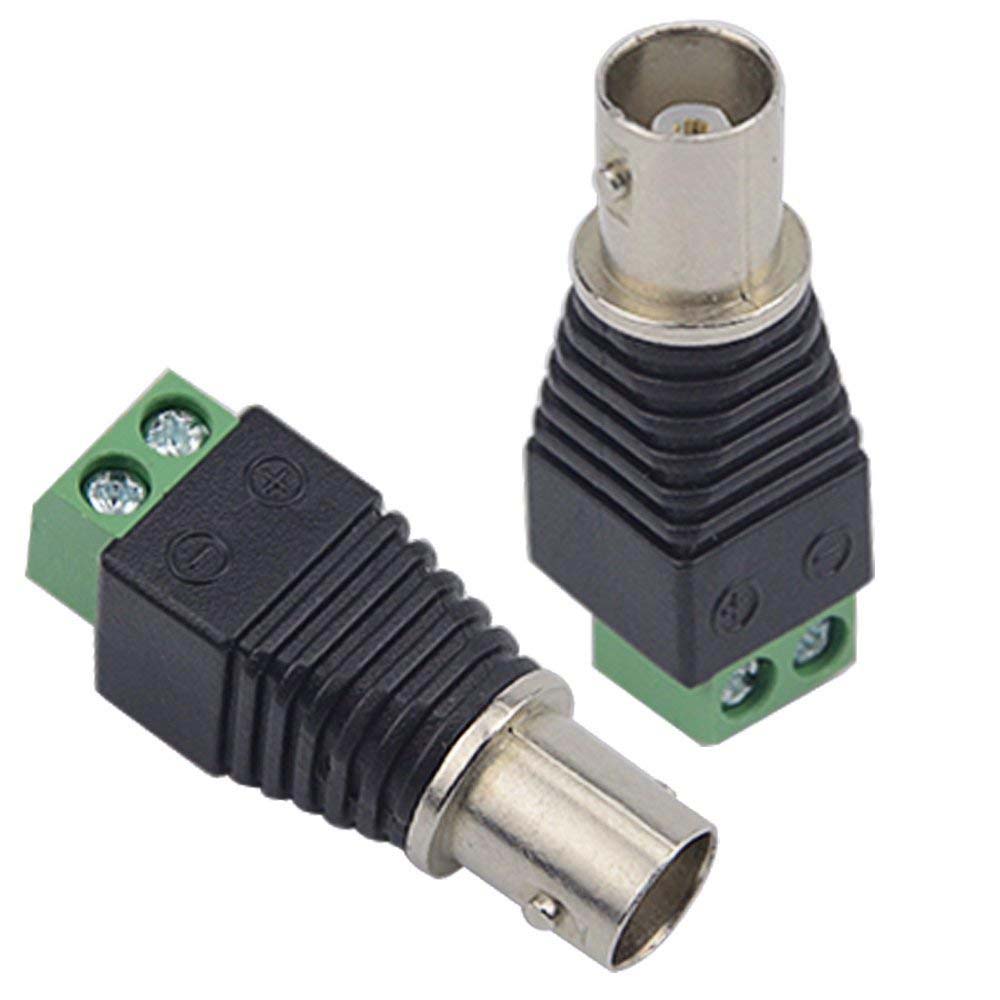

BNC female connector with screw terminals

Connector for video coaxial cables with 2 screws terminal board. Ideal for quick connections on any type of cable. No special tools required.
SUITABLE FOR: Coaxial cables of any size and cable pairs
MADE OF: All in one
MOUNTING: Just screwdriver required
PACKAGE: 10 pcs.

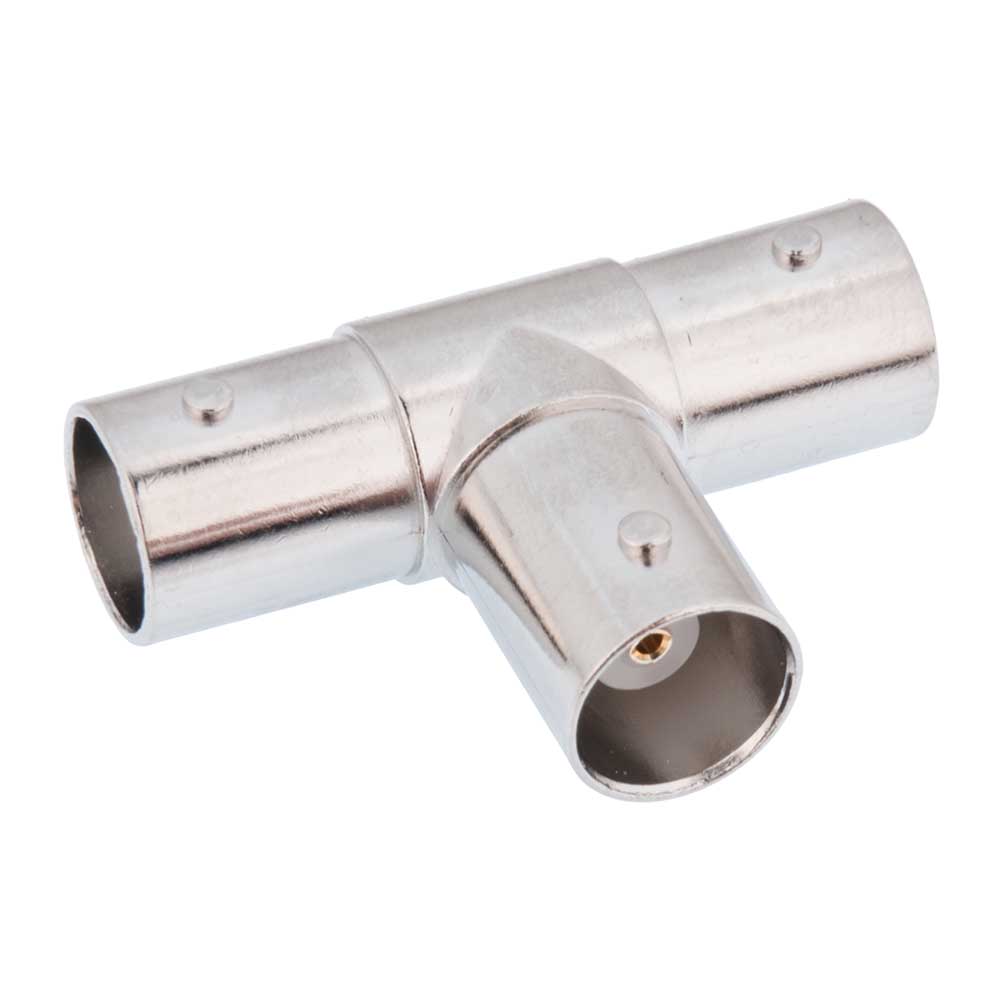

RE-BNCT2

3 BNC female T junction

This splitter is used to create video junctions with one input and two outputs. You can also use only 2 of the 3 connector ways to obtain a female-to-female BNC adapter and connect two BNC cables together. It should be used as a splitter only if the two outputs are not used at the same time, since in order to recreate two simultaneous video signals, one video distibutor needs to be used .
SUITABLE FOR: BNC connectors
MADE OF: All in one
MOUNTING: Clip-on
PACKAGE: 10 pcs.

QUESTION & ANSWER


How to crimp a coax connector?

Follow the instruction in our TUTORIAL area. There are also several video tutorial available on the web.

Is crimping coax connectors hard?

The perfect crimping of a coax connector takes some time and a certain amount of experience. You must assemble the connector carefully to avoid accidental contact between the core and the braid, especially if small mini-coax are used. The inner pole should preferably be soldered to guarantee perfect conductivity. For all these reasons the coaxial crimping has always been one of the main problems in the installation of analog CCTV systems. Fortunately, at least for BNC connectors, the QUICKCOAX press-on connectors have solved all these problems and can be easily assembled in just 30 seconds. WATCH THE VIDEO.

What's the price of connectors?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.

CCTVSTOREPRO.COM

DC POWER CONNECTORS


Here you will find the plugs and sockets for DC power supply. You can use these connectors to connect the 12VDC power adapters to the cameras and to make DC junctions. All our devices require positive inside, be careful not to make mistakes to avoid damaging the equipment.

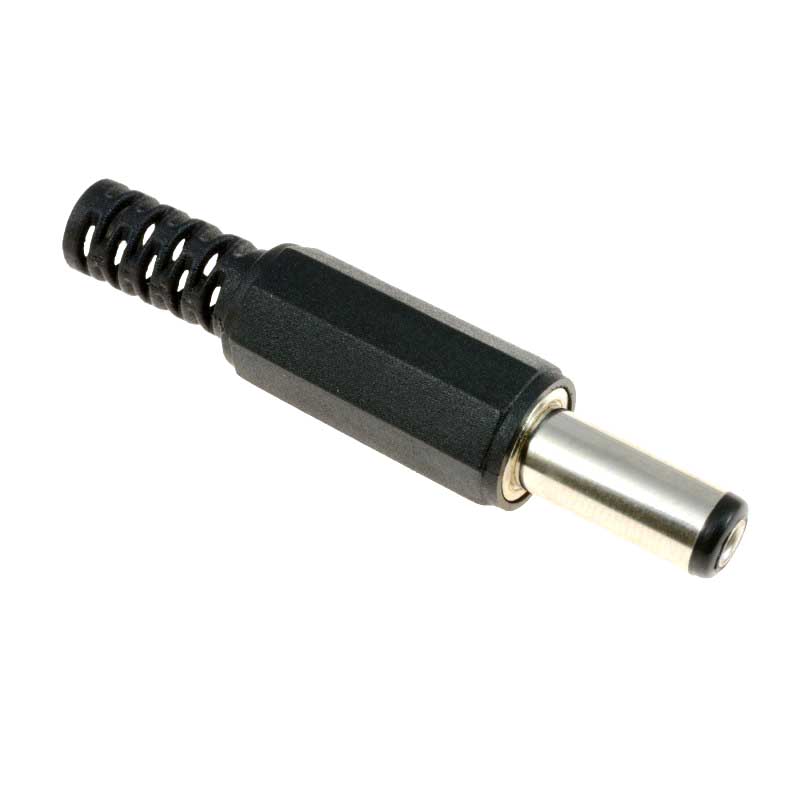

RE-PLUG55

Solder type 5.5 mm DC plug

You can use this connector to connect power to all of our 12VDC cameras. This connector size is 5.5 mm external diameter and 2.1 mm. internal. The metal plug is 9 mm long. This solder type is excellent for the small size, but requires soldering iron
SUITABLE FOR: Power cables up to 1.5 mm
MADE OF: Metal body + plastic cap
MOUNTING: Soldering iron required
PACKAGE: 10 pcs.


RE-PLUG55S

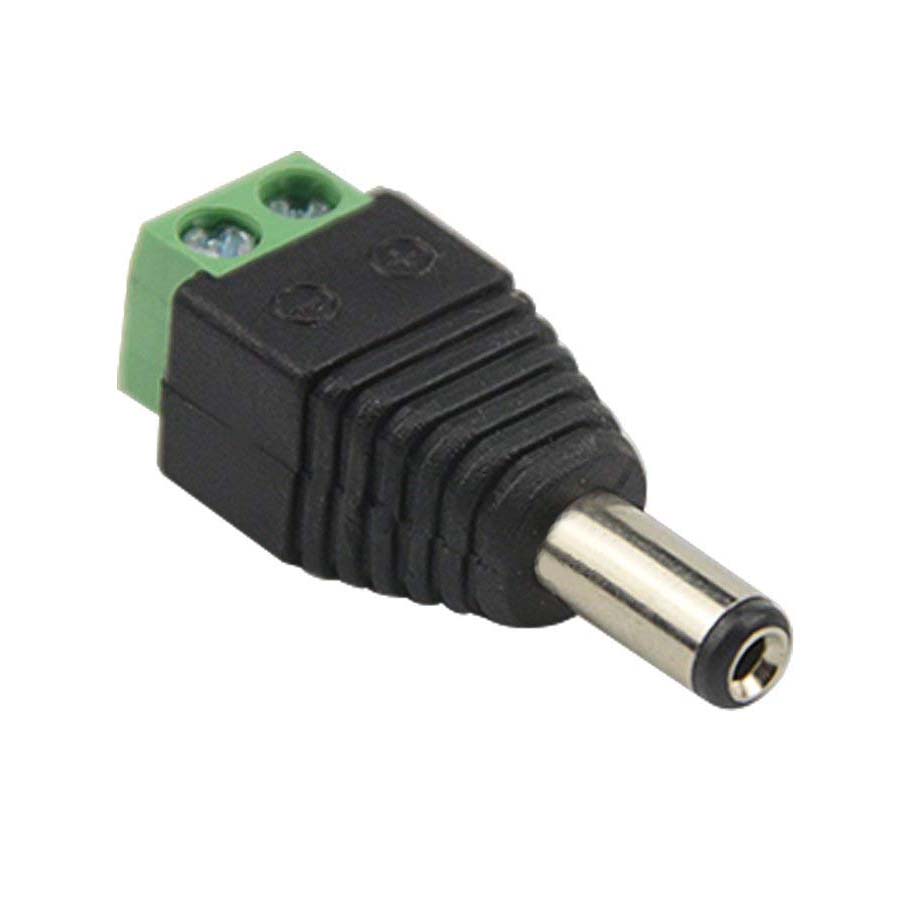

5.5 mm DC plug with terminal board

You can use this connector to connect power to all of our 12VDC cameras. Compared to the cheaper soldering model, this plug with terminal board can be mounted more quickly, just with the screwdriver.
SUITABLE FOR: Power cables up to 1.5 mm
MADE OF: All in one
MOUNTING: Only screwdriver required
PACKAGE: 10 pcs.

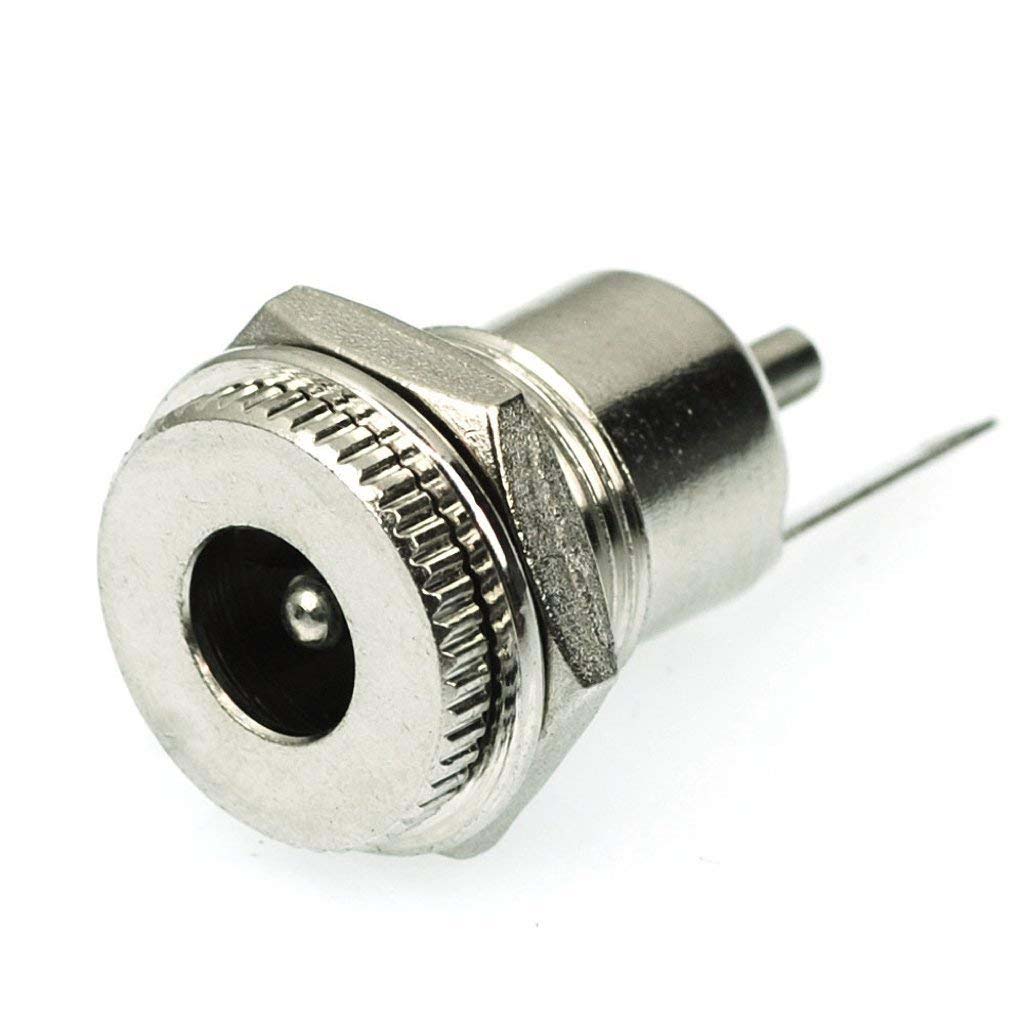

RE-JACK55

Solder type, panel mount 5.5 mm DC jack

This is the DC socket that is normally found in devices, such as in our cameras. This panel socket can be used if you want to power a device inside an enclosure. It comes with a front ring that allows you to screw the connector to the panel.
SUITABLE FOR: Power cables up to 1.5 mm
MADE OF: Metal body + mounting screw
MOUNTING: Soldering iron required
PACKAGE: 10 pcs.

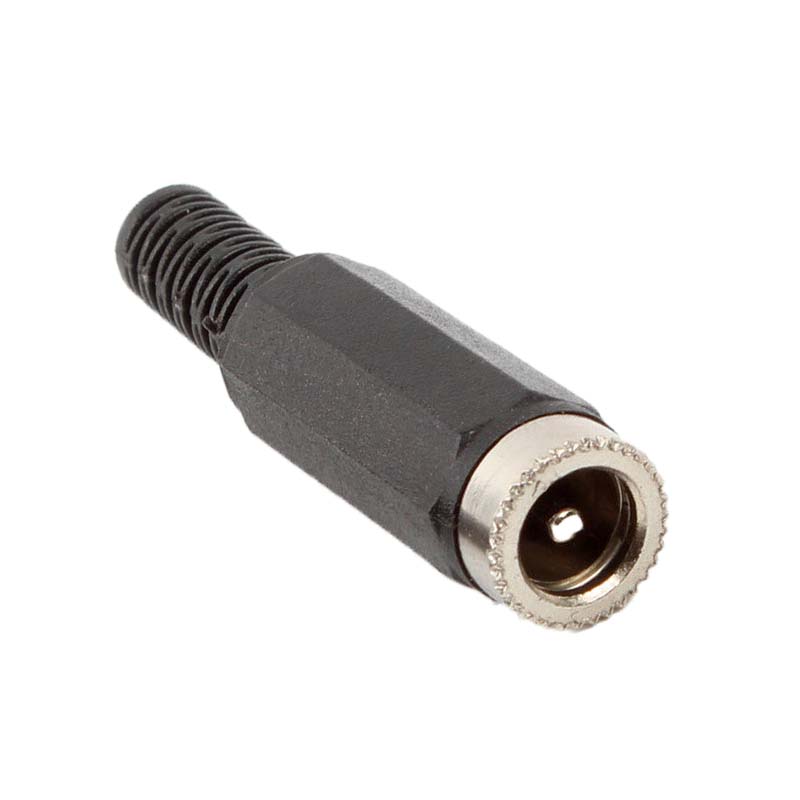

RE-JACK55V

Solder type 5.5 mm DC jack

This is the DC socket that is normally found in devices, such as in our cameras. This cable mount socket can be used to connect two power cables together or to make DC junctions.
SUITABLE FOR: Power cables up to 1.5 mm
MADE OF: Metal body + mounting screw
MOUNTING: Soldering iron required
PACKAGE: 10 pcs.

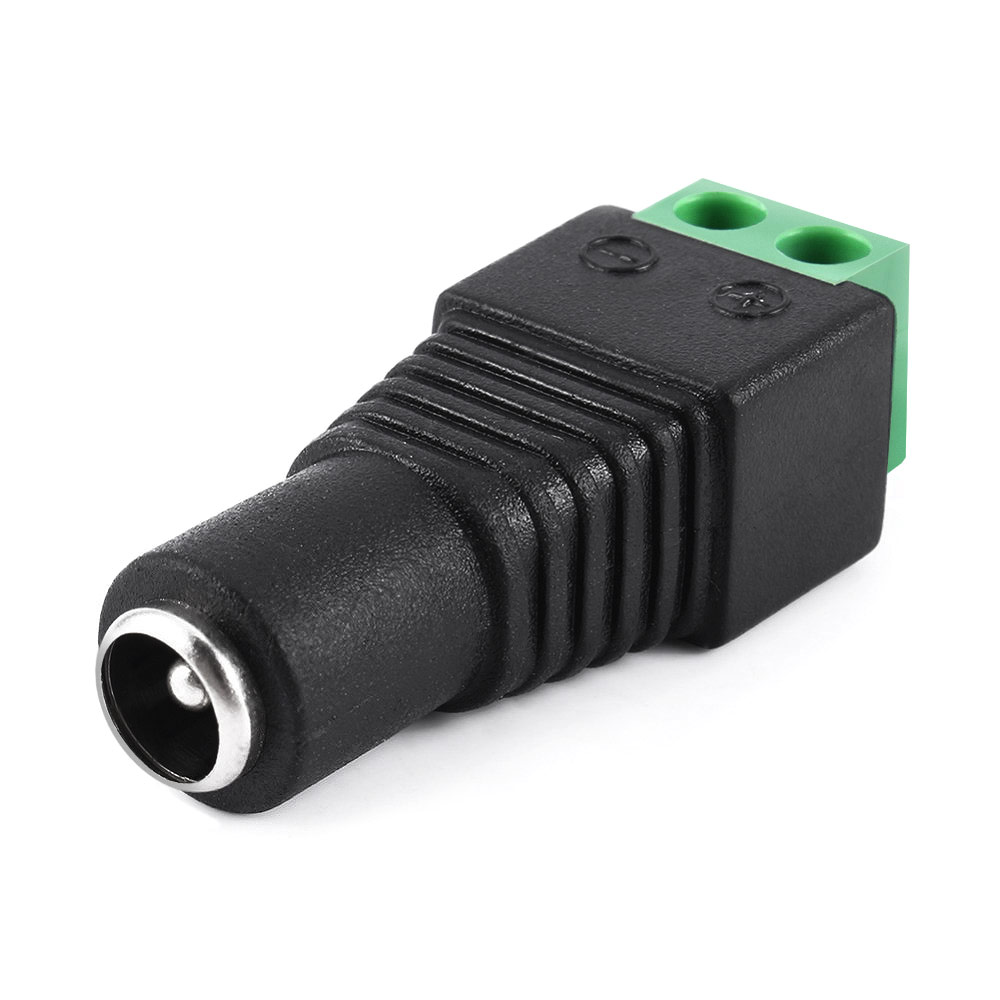

RE-JACK55S

5.5 mm DC jack with terminal board

This is the DC socket that is normally found in devices, such as in our cameras. This cable mount version with terminal board can be used to connect two power cables together and to make junctions. Compared to the cheaper soldering model, this terminal board version is easy to mount just with a screwdriver.
SUITABLE FOR: Power cables up to 1.5 mm
MADE OF: All in one
MOUNTING: Soldering iron required
PACKAGE: 10 pcs.

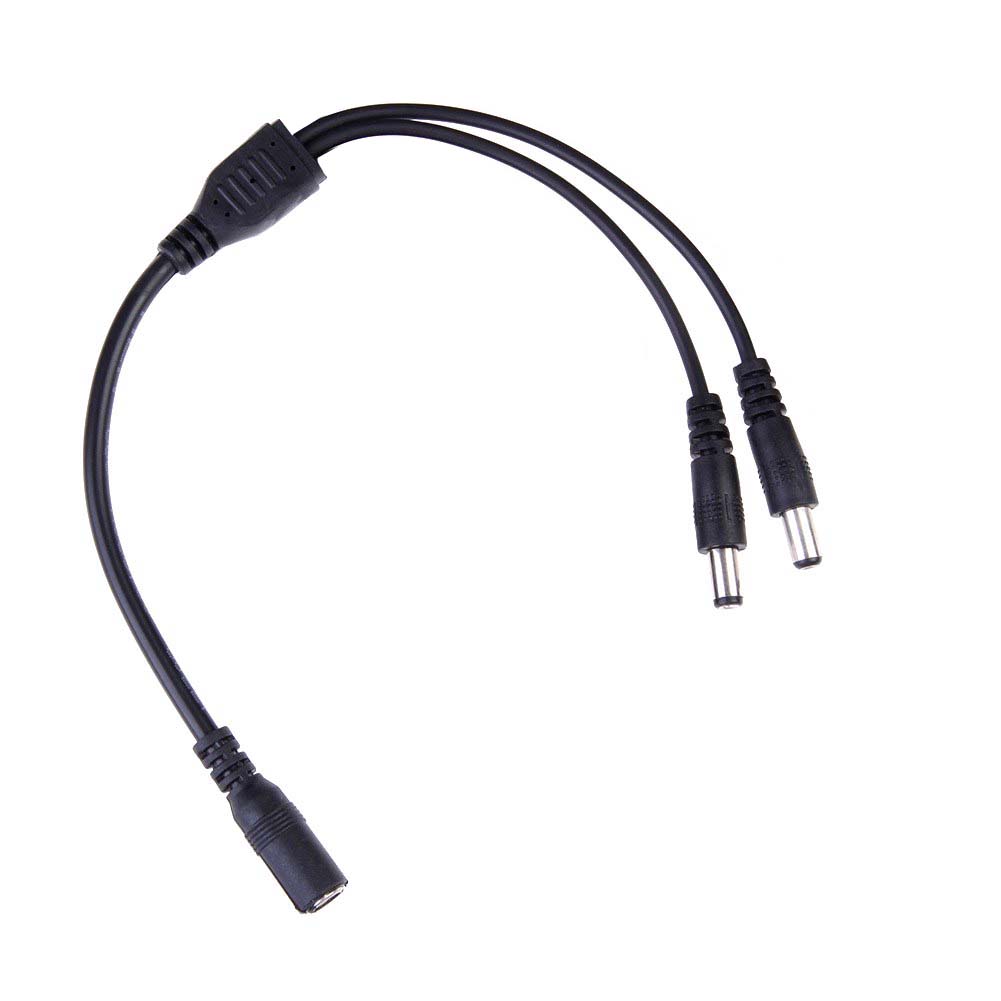

RE-CP2

1 input - 2 output DC splitter cable

This splitter is used to power up to 2 devices with a single power cord. It is convenient when you need to split one power cord to connect 2 devices. This cable comes with a 5.5 mm input socket and 4 output plugs.
SUITABLE FOR: Power cables with 5.5 mm DC connectors
MADE OF: Cable adapter
MOUNTING: Plug-in
PACKAGE: 1 pc.

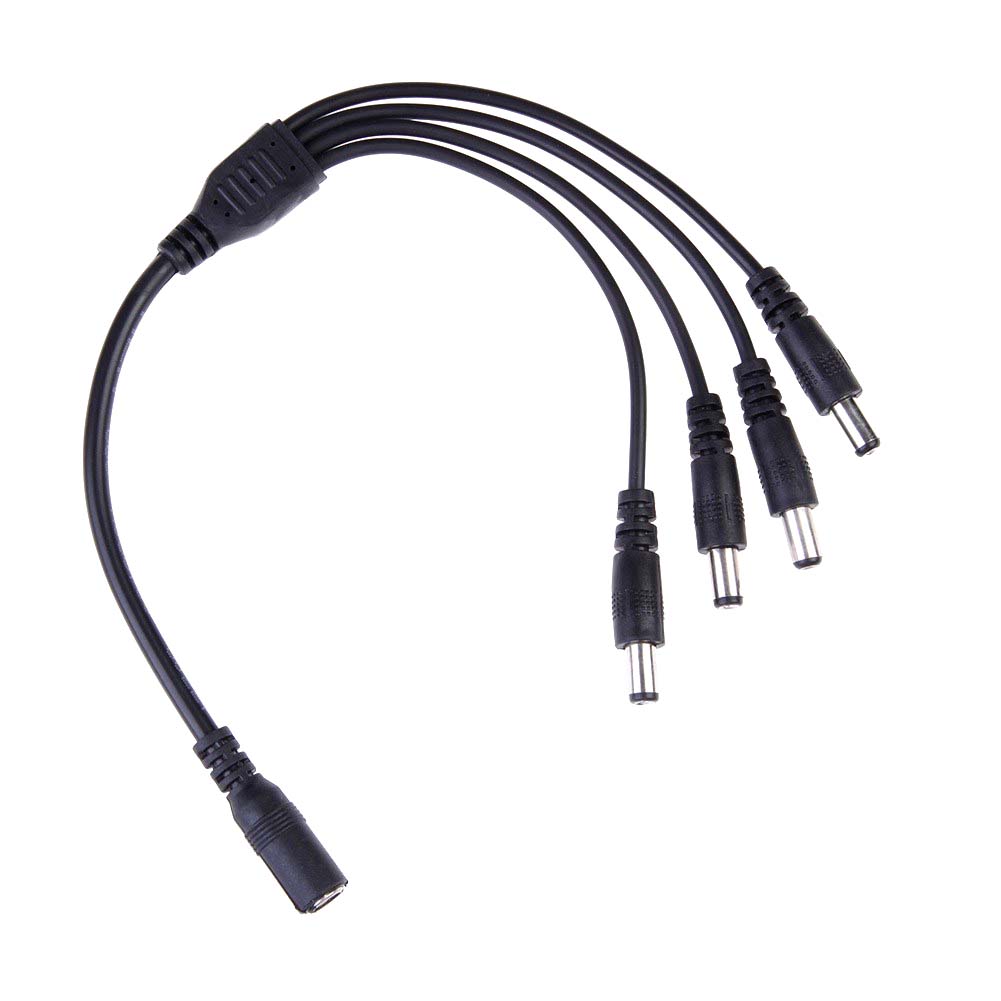

RE-CP4

1 input - 4 output DC splitter cable

This splitter is used to power up to 4 devices with a single power cord. It is convenient when multiple devices are powered from the same power source, such as a camera with IR illuminator or a camera with a transmitter. This cable comes with a 5.5 mm input socket and 4 output plugs.
SUITABLE FOR: Power cables with 5.5 mm DC connectors
MADE OF: Cable adapter
MOUNTING: Plug-in
PACKAGE: 1 pc.


RE-CB1

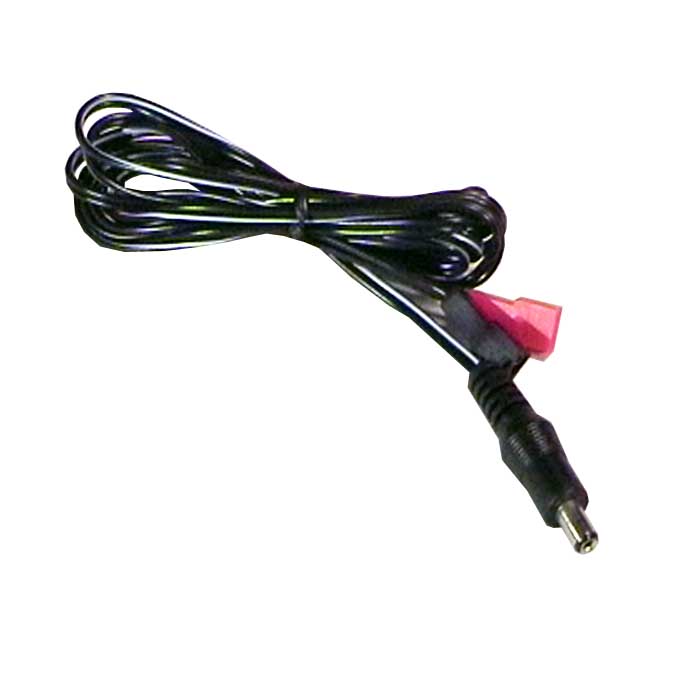

12VDC cable for DC batteries

This cable is used to power all of our 12VDC devices with a DC battery. This cable comes with 5.5 mm DC plug and 2 big-size fast-on connectors on the battery side. Length 1 m
SUITABLE FOR: Batteries with 4.75 mm fast-on terminals
MADE OF: Cable adapter
MOUNTING: Plug-in
PACKAGE: 1 pc.

QUESTION & ANSWER


Is it better a single central power supply units or many local adapters?

You can power the cameras of your CCTV system by connecting a small adapter near each camera. It's a safe power solution because it provides the camera with perfect 12V power, but it does not allow you to have a backup battery for the system. If you want a system that stays in operation even in the event of a power failure, you need to install a centralized back-up power supply with a battery or a UPS. In this case you will bring power to each camera with 2 DC cables. The further the camera is, the greater the section of the power supply cable must be, since DC creates a considerable voltage drop which is proportional to the cable length and inversely proportional to its section.

Do IP cameras requires an adapter?

Generally speaking, IP cameras do not require a 12VDC power supply because they receive power through the network cable from the POE switch, or from the NVR POE ports. Exceptions are the WiFi cameras that obvoiusly require a local power supply and several PTZ cameras that do not support POE due to the high power consumption

What's the price?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.

CCTVSTOREPRO.COM

RCA CONNECTORS


RCA connectors are used in CCTV mainly for audio. You can use RCA plugs to wire microphones or the audio terminals of DVRs. The male connector is mounted on the cable while the female is normally in the device (camera, DVR). All our RCA connectors have 50 Ohm impedance, suitable for audio wiring




RE-RCA1N (black)
RE-RCA1R (red)

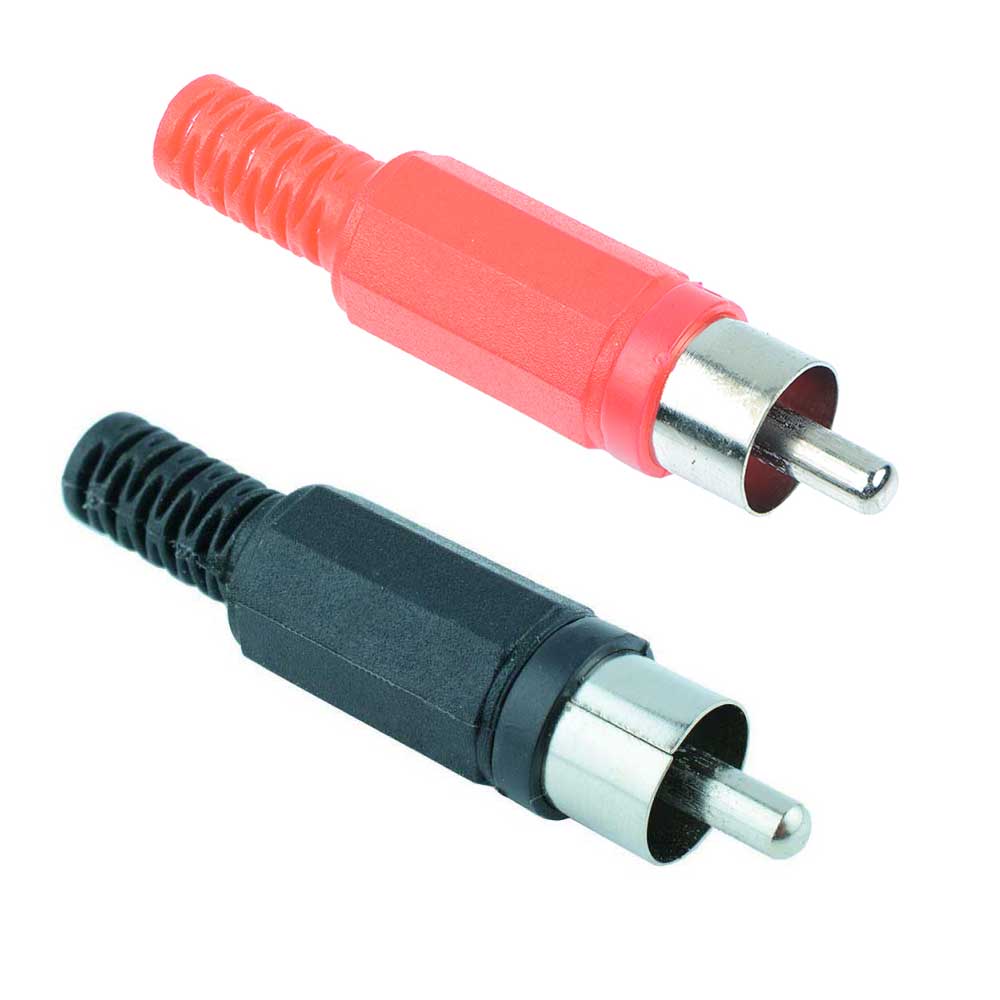

Solder type RCA male connector

This is the most common connector to terminate audio cables, whether you use coaxial cables or a simple pair. The cable must be soldered to the metal body.
SUITABLE FOR: All kinds of audio cables
MADE OF: Steel body + plastic cover
MOUNTING: Soldering iron required
PACKAGE: 10 pcs.

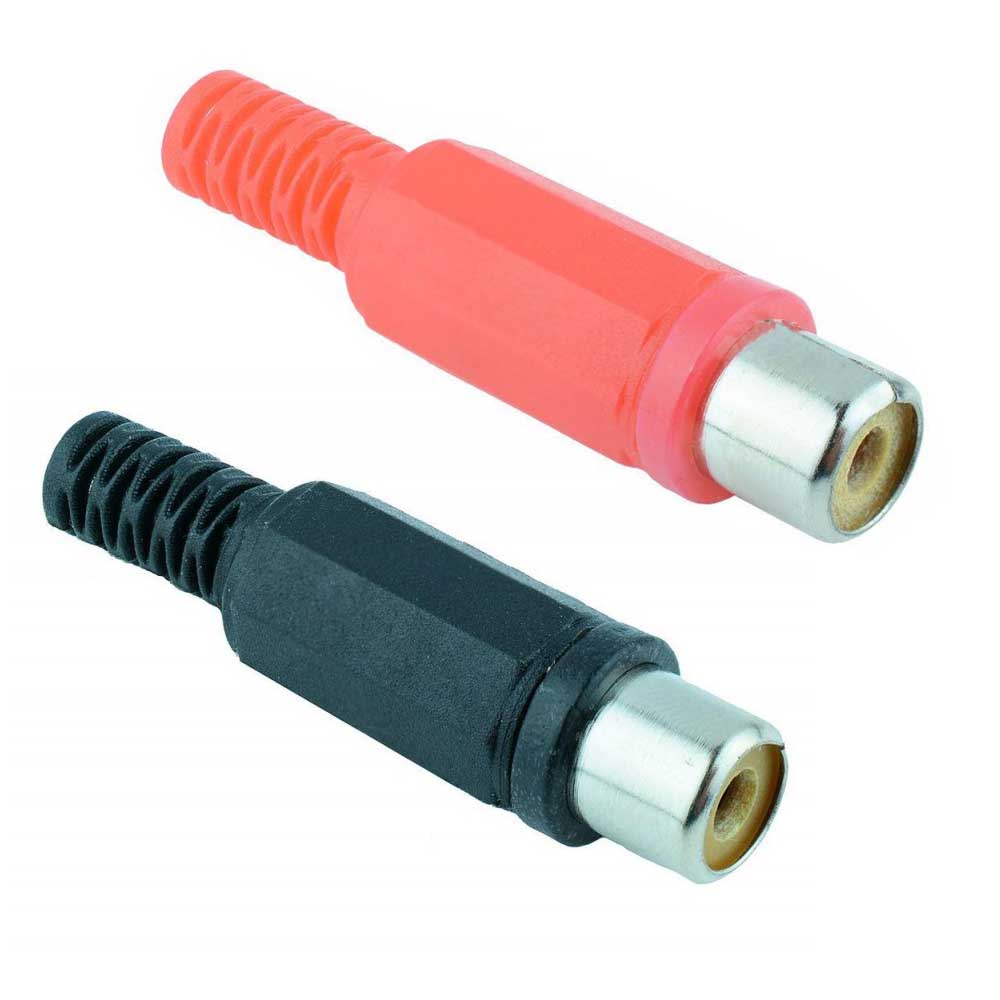

RE-RCA2N (black)
RE-RCA2R (red)

Solder type RCA female connector

This female audio connector is generally placed in the device: This cable mounting version can be useful to connect two cables together.
SUITABLE FOR: All kinds of audio cables
MADE OF: Steel body + plastic cover
MOUNTING: Soldering iron required
PACKAGE: 10 pcs.

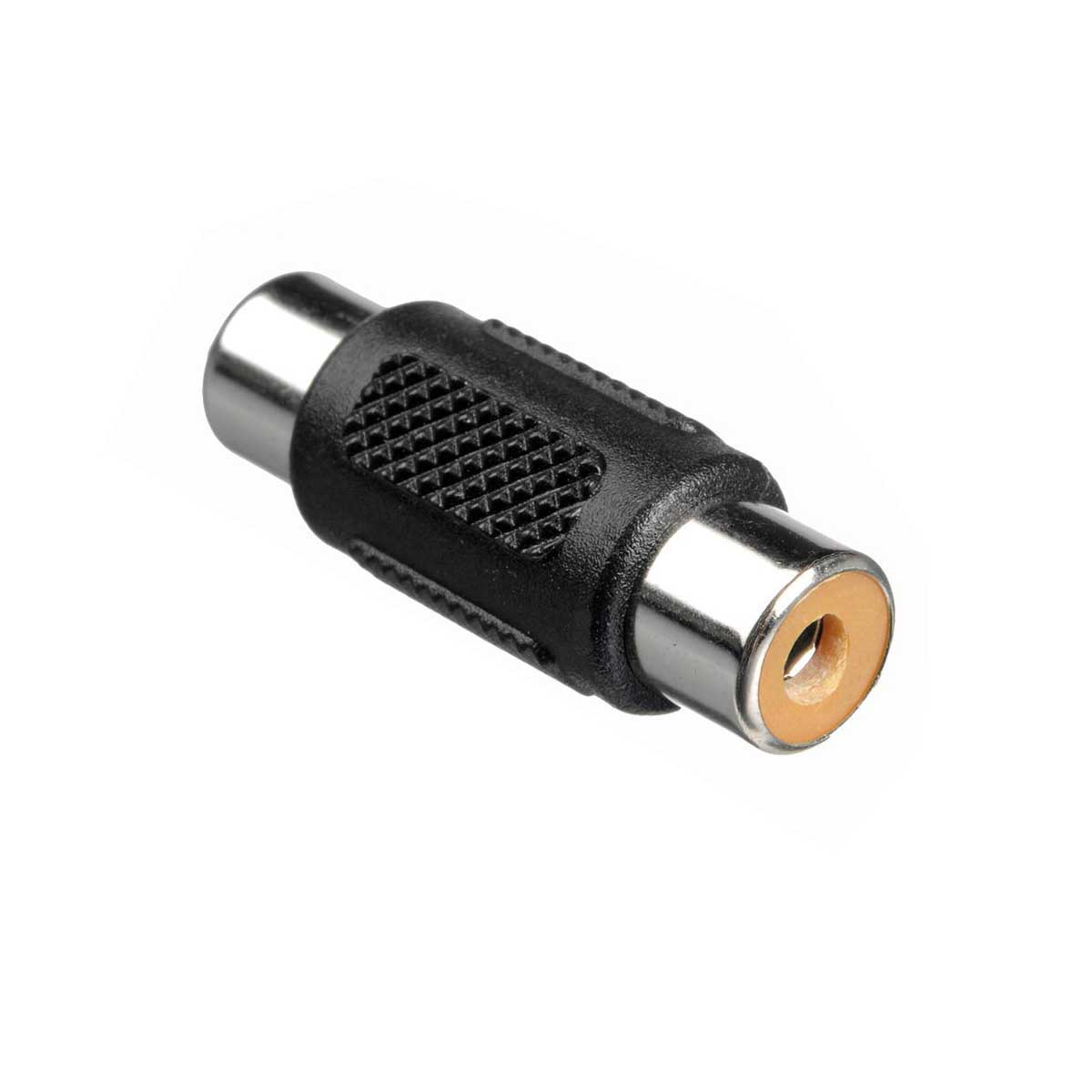

RE-RCA22

RCA female-to-female adapter

This adapter is used to connect two audio cables together.
SUITABLE FOR: RCA connectors
MADE OF: All in one
MOUNTING: Clip-on
PACKAGE: 10 pcs.


RE-RCA11

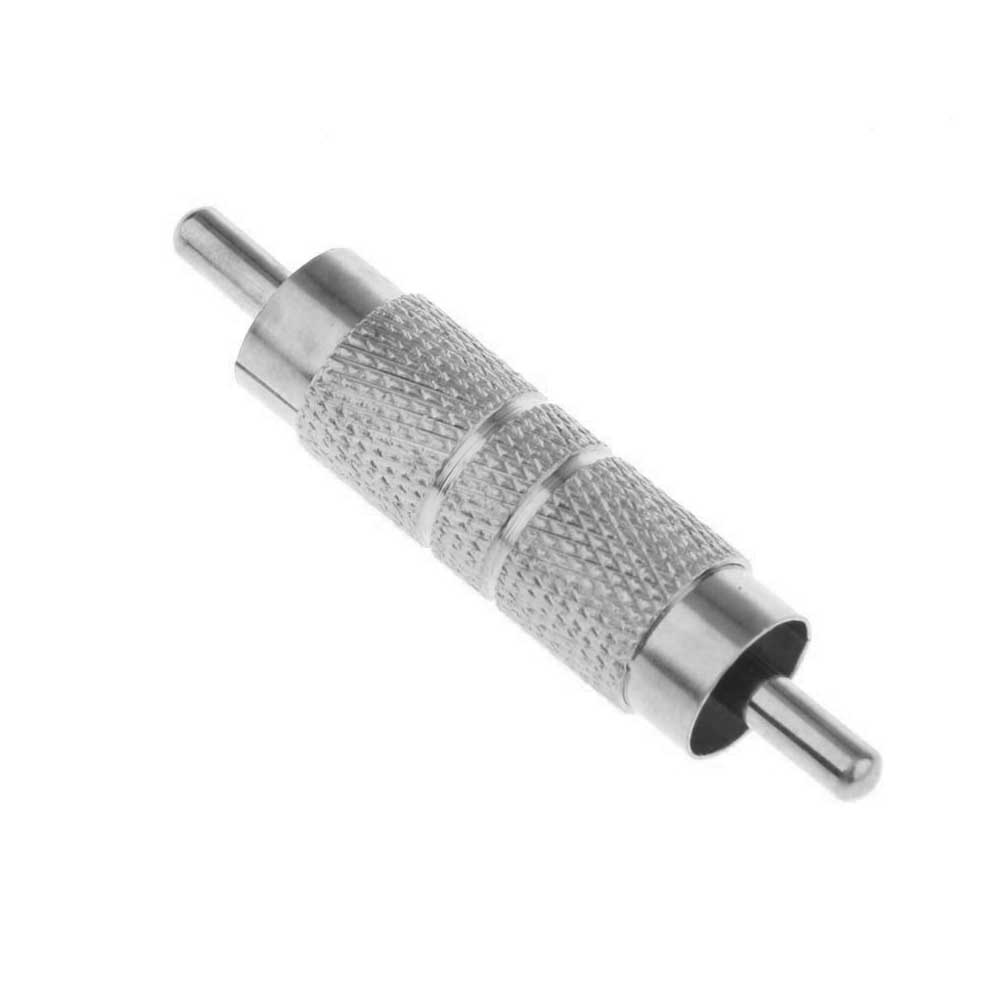

RCA male-to-male adapter

This adapter is used to convert a female RCA connector to a male RCA.
SUITABLE FOR: RCA connectors
MADE OF: All in one
MOUNTING: Clip-on
PACKAGE: 10 pcs.

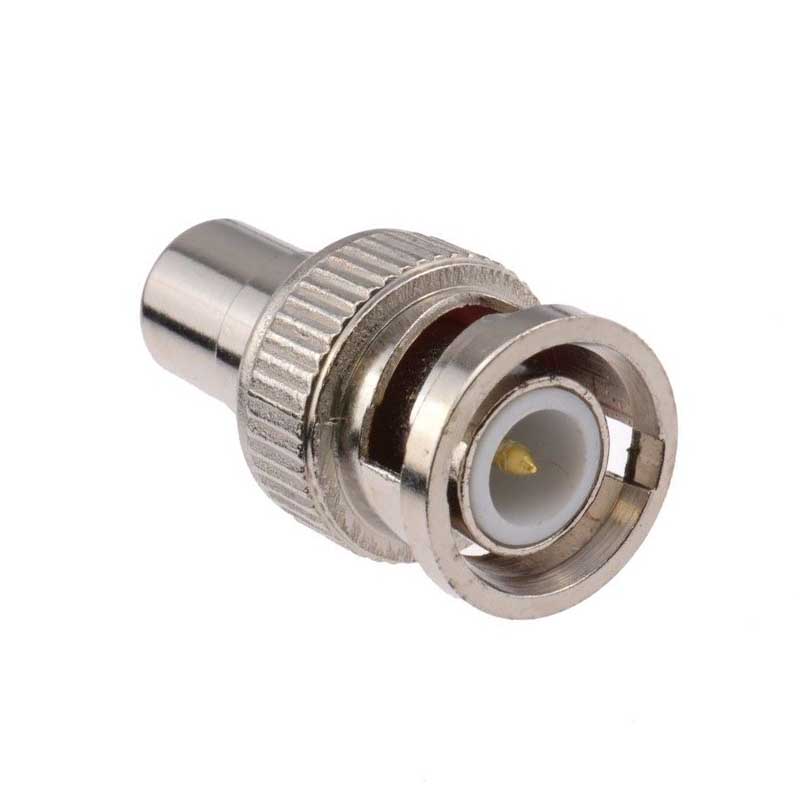

RE-BNCRCA1

RCA female to BNC male adapter

This adapter is used to connect an RCA cable to a BNC terminal.
SUITABLE FOR: RCA/BNC connectors
MADE OF: All in one
MOUNTING: Clip-on
PACKAGE: 10 pcs.


RE-BNCRCA2

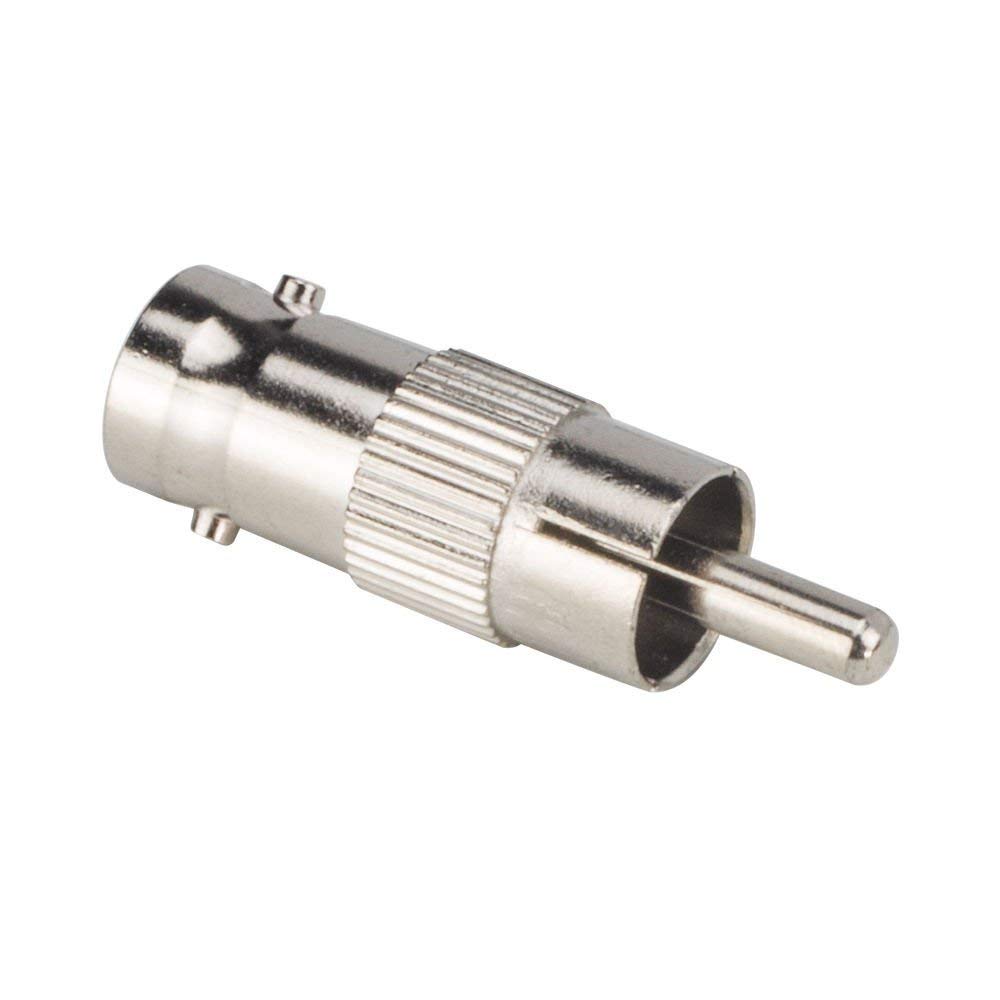

BNC female to RCA male adapter

This adapter is used to connect a BNC cable to an RCA terminal.
SUITABLE FOR: RCA/BNC connectors
MADE OF: All in one
MOUNTING: Clip-on
PACKAGE: 10 pcs.

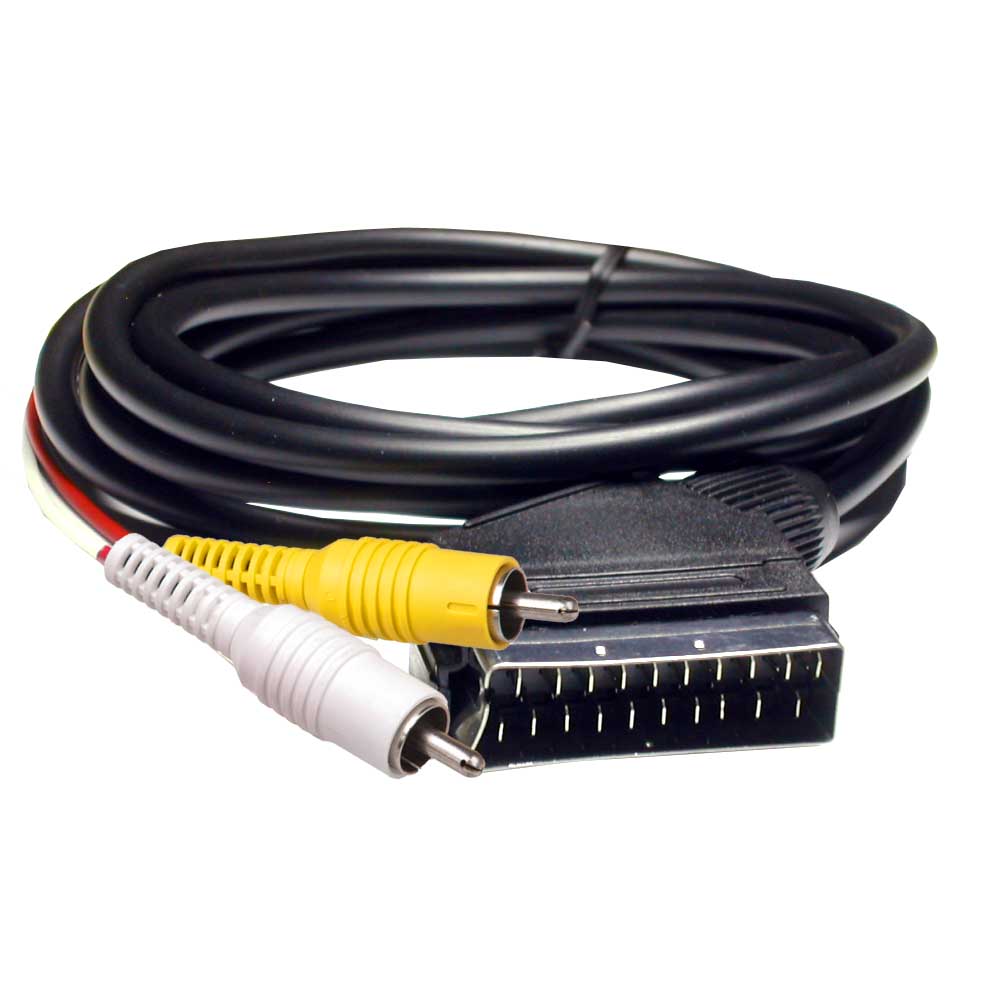

RE-SCART1

A/V adapter cable RCA male to TV SCART IN

This adapter is for connecting an analog CVBS video-audio signal to a TV SCART socket. Although very common in the past, these connectors are now used quite rarely because they cannot support video resolution higher than CVBS analog TV. This cable can be useful if you need to connect a remote TV to the DVR using a coaxial cable.
SUITABLE FOR: RCA/SCART connectors
MADE OF: Cable adapter
MOUNTING: Clip-on
PACKAGE: 1 pc.


RE-SCART2

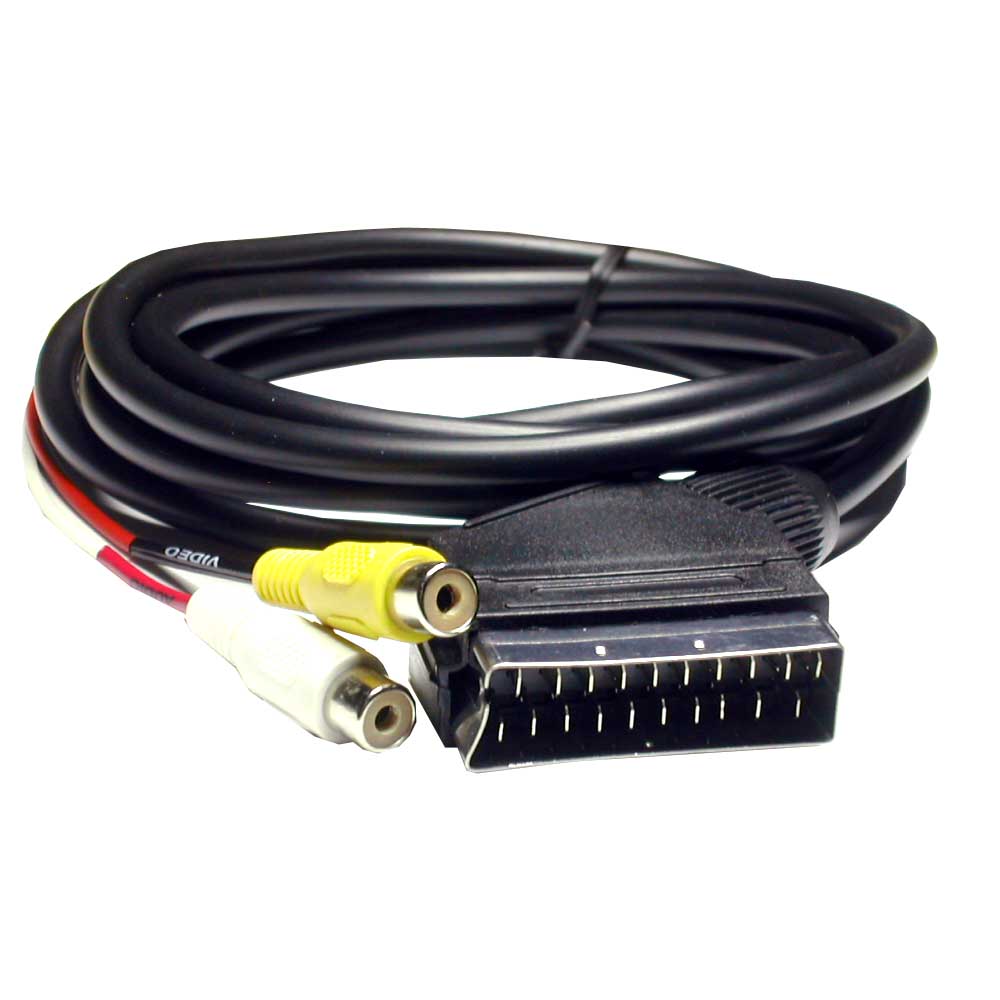

A/V adapter cable RCA female to TV SCART OUT

This adapter is used to pickup the Audio Video CVBS signal from a TV via the SCART socket. Although very common in the past, these connectors are now used quite rarely because they cannot support video resolution higher than CVBS analog TV. You can use this cable if you need to transfer the video of a TV monitor to a second device.
SUITABLE FOR: RCA/SCART connectors
MADE OF: Cable adapter
MOUNTING: Clip-on
PACKAGE: 1 pc.

QUESTION & ANSWER


May I use RCA plugs for video?

Yes, but the impedance would not be correct and the conductivity lower than the BNCs. This is why it is better to do it only on very short cables.

What's the right audio cable?

The ideal cable is a 50 Ohm coaxial, like RG58 or RG174. However, the audio in CCTV is not Hi-Fi and that's why simple cable pairs are used much more frequently. 2x0.5 mm wires, often combined with coax video cables, are good for most applications.

What's the price?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.

CCTVSTOREPRO.COM

F, N, SMA CONNECTORS


These kinds of connectors are used for coaxial cables carrying antenna signal. The male connector is mounted on the cable while the female come with the equipment. All our F, N, SMA connectors have 50 Ohm impedance, suitable for the antenna signal.

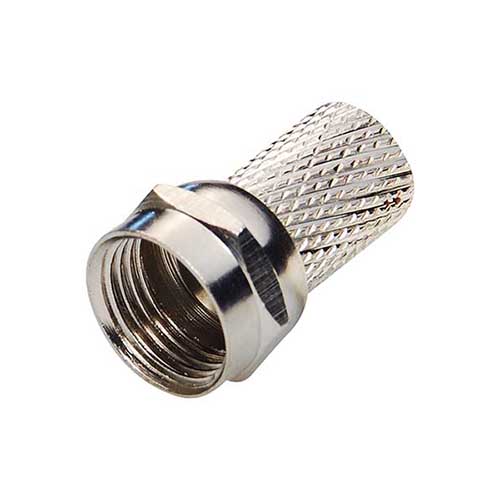

RE-FAV1

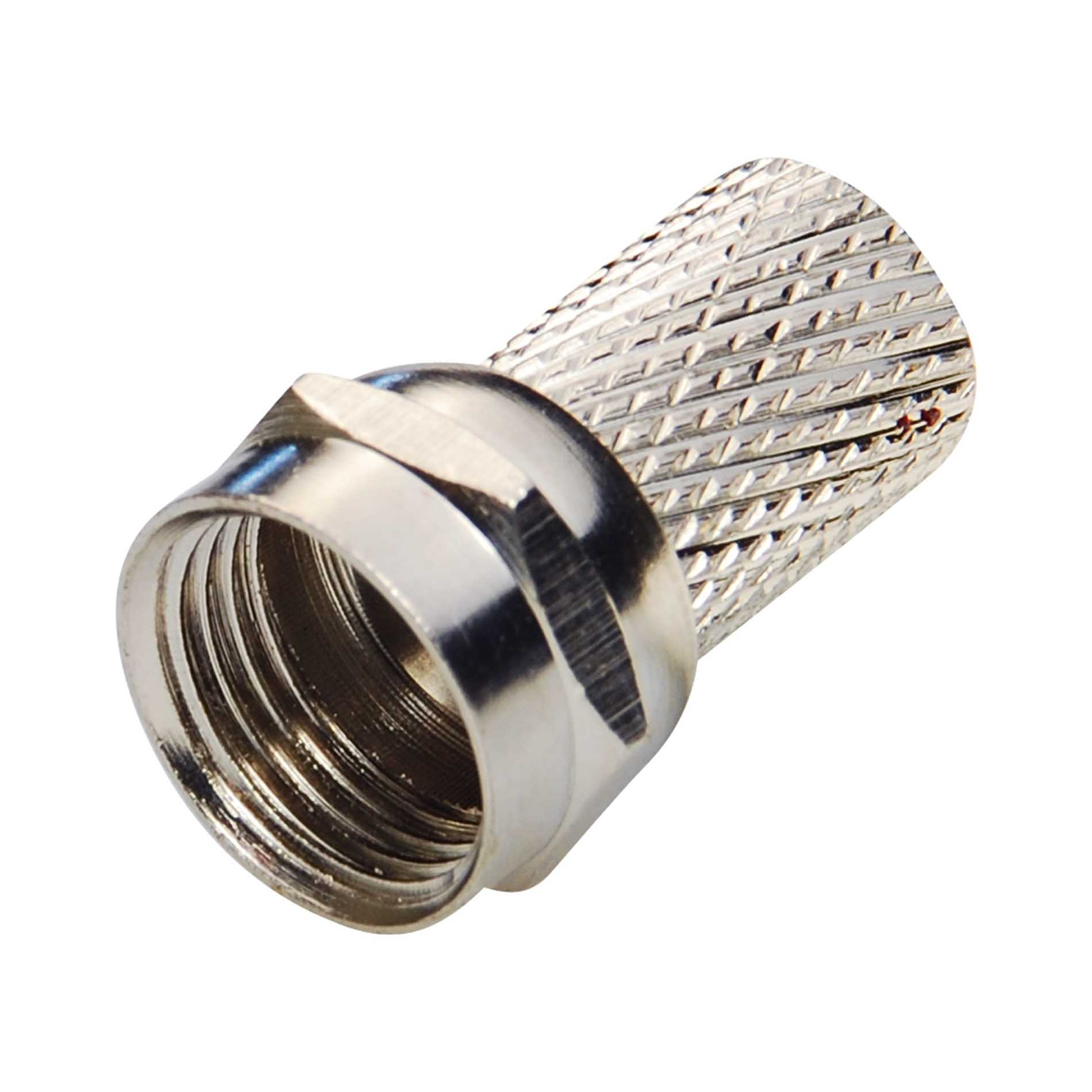

Twist-on F male connector

This connector is widely used to wire antennas for satellite TV. It is screwed directly onto the coaxial cable and the core of the cable work as a contact pin.
SUITABLE FOR: 5-6 mm coaxial cables like RG58, RG223 etc.
MADE OF: Steel body
MOUNTING: No tool required
PACKAGE: 10 pcs.

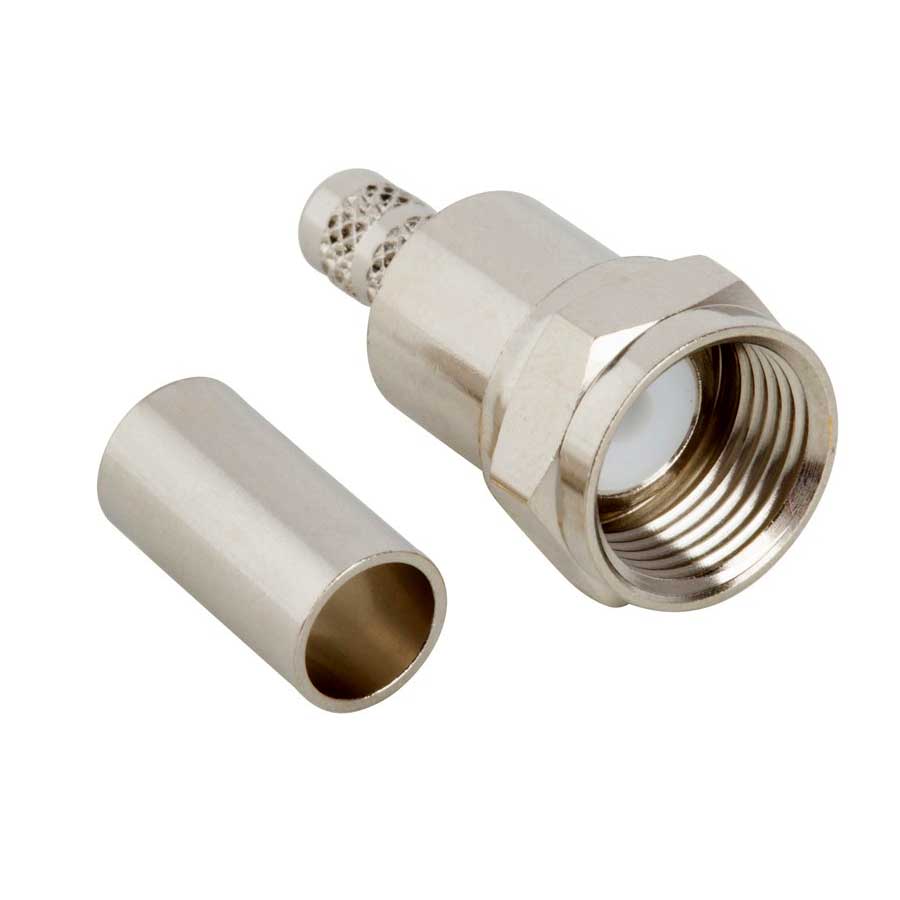

RE-FCR1

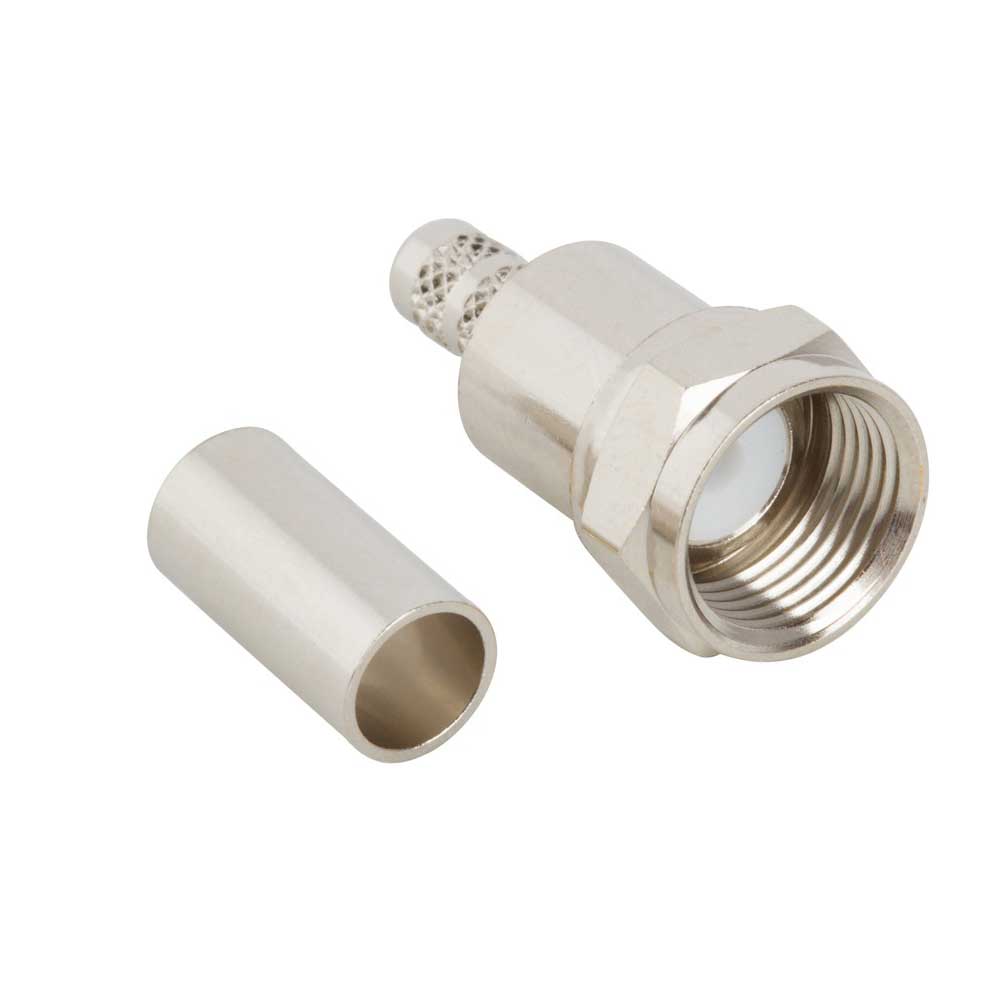

Crimp type F male connector

This is the classic satellite antenna connector, but in the crimp version. Compared to the more common screw-on connector, provides less signal attenuation and is more solid. The core of the cable is also the central contact pin. Like all crimp connectors it requires special clamp and quite a good deal of experience for assembly.
SUITABLE FOR: 5-6 mm coaxial cables like RG58, RG223 etc.
MADE OF: Steel body + crimp sleeve
MOUNTING: Crimp clamp required
PACKAGE: 10 pcs.


RE-FCR2

Crimp type F female connector

This female connector comes normally with the equipment. However, this crimp type version can be used to connect 2 cables together. Like all crimp connectors it requires special clamps and experience for assembly.
SUITABLE FOR: 5-6 mm coaxial cables like RG58, RG223 etc.
MADE OF: Steel body + crimp sleeve
MOUNTING: Crimp clamp required
PACKAGE: 10 pcs.


RE-NCR1

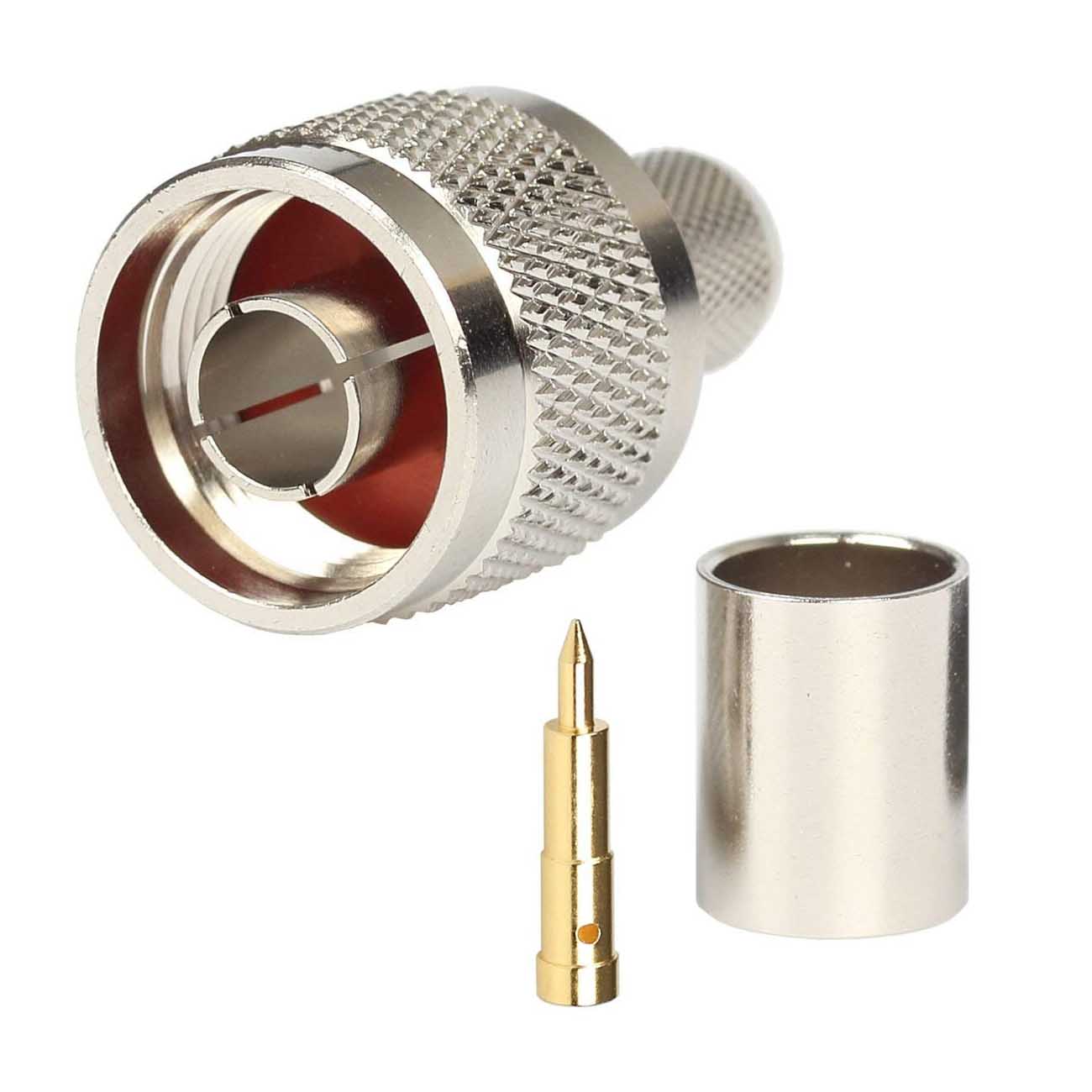

Crimp type N male connector

This is a professional, low-attenuation, outdoor antenna connector. It is used to wire high performance external antennas and comes with internal seals. Like all crimp connectors it requires special pliers and experience for assembly.
SUITABLE FOR: 5-6 mm coaxial cables like RG58, RG223 etc.
MADE OF: Steel body + copper pin + crimp sleeve
MOUNTING: Crimp clamp required
PACKAGE: 1 pc.


RE-NCR2

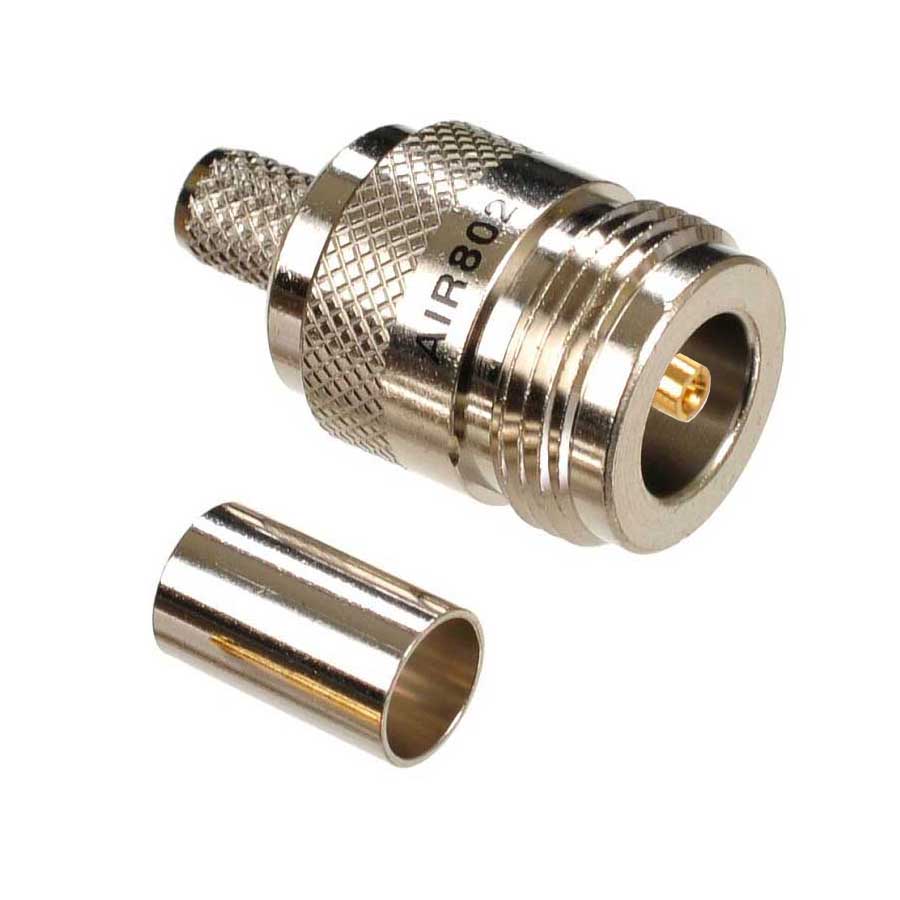

Crimp type N female connector

This is a professional antenna connector that is normally found in the device. This cable mounting connector is used to connect 2 cables together. Like all crimp connectors it requires special pliers and experience during assembly.
SUITABLE FOR: 5-6 mm coaxial cables like RG58, RG223 etc.
MADE OF: Steel body + crimp sleeve
MOUNTING: Crimp clamp required
PACKAGE: 1 pc.

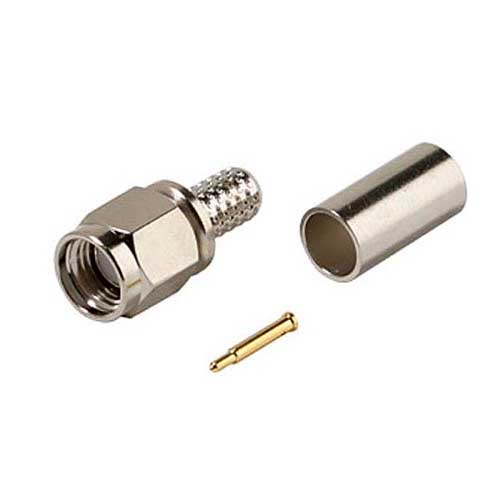

RE-SMACR1

Crimp-on SMA male connector

This is an antenna connector widely used in radio devices for its small size. This is the standard version, not the reversed version used in wifi devices. Like all crimp connectors it requires special pliers and assembly experience.
SUITABLE FOR: 5-6 mm coaxial cables like RG58, RG223 etc.
MADE OF: Steel body + copper pin + crimp sleeve
MOUNTING: Crimp clamp required
PACKAGE: 1 pc.

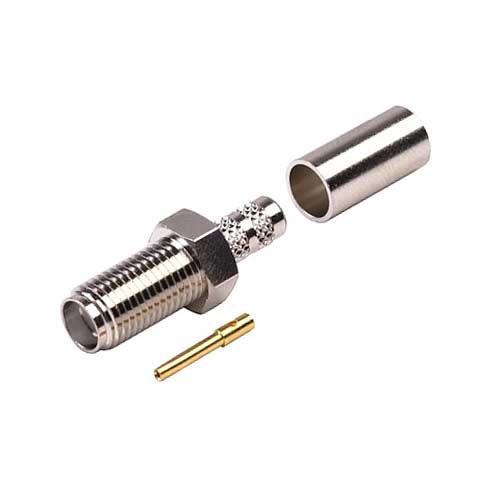

RE-SMACR2

Crimp type SMA female connector

This is the connector that is used in many wireless devices. This cable-crimp version is used for connecting 2 cables together. This is the standard version of this connector, not the reversed one widely used in wifi devices. Like all crimp connectors it requires special pliers and assembly experience.
SUITABLE FOR: 5-6 mm coaxial cables like RG58, RG223 etc.
MADE OF: Steel body + copper pin + crimp sleeve
MOUNTING: Crimp clamp required
PACKAGE: 1 pc.

QUESTION & ANSWER


Can I put a cable between the antenna and the device?

To interpose a cable between the antenna and the device is never advisable. The signal attenuation caused by the cable may reduce the antenna gain. If you have to do this, use low attenuation coaxial cables, special for antennas, and limit the length of the cable to the minimum.

What's the price?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.

CCTVSTOREPRO.COM

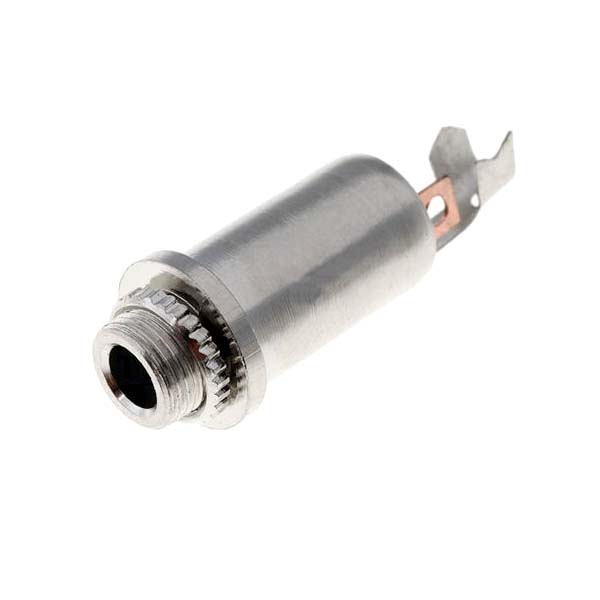

MINIJACK CONNECTORS


Minijack plugs are very popular in the audio field as a small connector for headphones and speakers. Some of our cameras use these connectors for audio input. Minijack can also be used in many other applications where a small multiple connection is needed. All our connectors are three-pole, so they manage up to 3 different, isolated signals.




RE-PLUG35

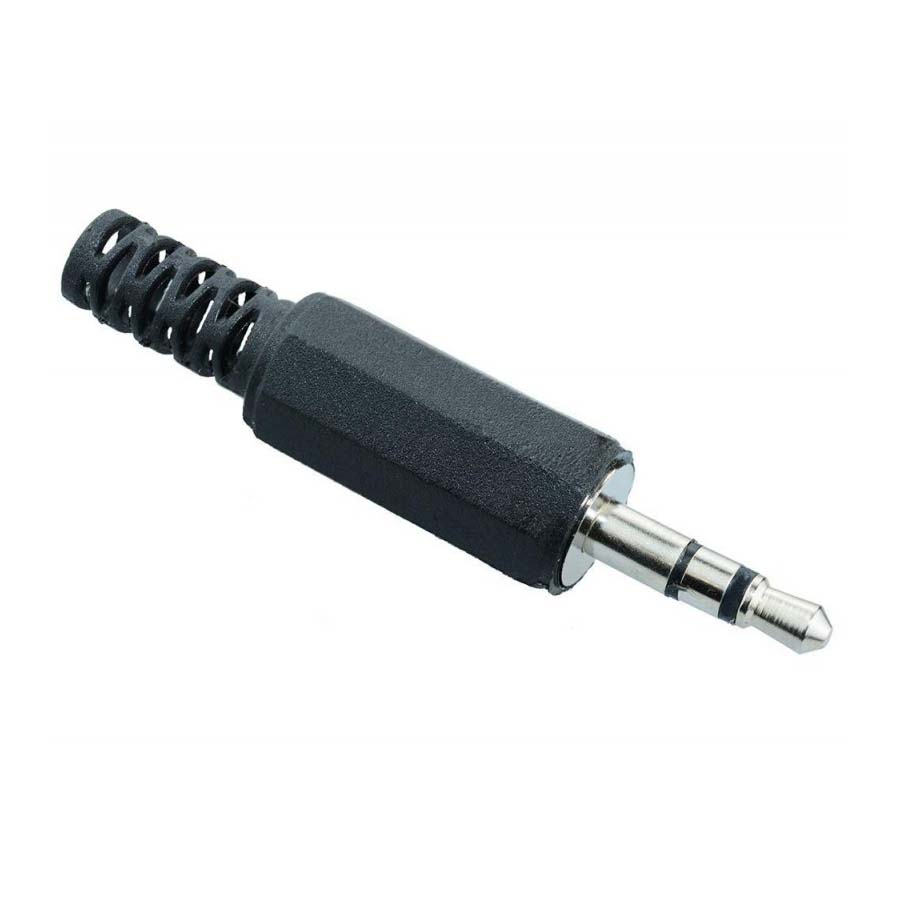

Solder type 3.5 mm minijack plug

This is the classic audio connector for headphones and speakers. It has 3 isolated segments that allow you to conduct 3 signals such as Video + Audio + GND. Thanks to its small size, minijack can be a good way of connecting mini-cameras.
SUITABLE FOR: Up to 3 cables 1.5 mm max.
MADE OF: Metal body + plastic cap
MOUNTING: Soldering iron required
PACKAGE: 10 pcs.


RE-JACK35

Solder type, panel mount, 3.5 mm minijack socket

This is the classic audio socket for headphones and speakers. It has 3 isolated segments that allow you to conduct 3 signals such as Video + Audio + GND. This panel mount socket can be used to connect audio and video to devices placed inside an enclosure. This connector comes with front ring nut for panel mounting.
SUITABLE FOR: Up to 3 cables 1.5 mm max.
MADE OF: Metal body + mounting nut
MOUNTING: Soldering iron required
PACKAGE: 10 pcs.


RE-JACK35V

Solder type 3.5 mm minijack socket

This is the classic audio socket for headphones and speakers. It has 3 isolated segments that allow you to conduct 3 signals such as Video + Audio + GND. This cable mount jack can be used to connect 2 cables together.
SUITABLE FOR: Up to 3 cables 1.5 mm max.
MADE OF: Metal body + plastic cap
MOUNTING: Soldering iron required
PACKAGE: 10 pcs.

QUESTION & ANSWER


How to connect audio minijack?

If you use our mini-jacks for a stereo audio connection, you must connect the ground (GND) to the segment close to the plastic cap (sleeve), the left channel to the tip and the right channel to the median segment.

Can I use minijack for DC?

Although a minijack has isolated segments, short circuits can occur during extraction and insertion. For this reason we do not recommend connecting the 12VDC to these connectors. Instead, use the DC plugs to supply power.

What's the price?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.

CCTVSTOREPRO.COM

TOOLS


Crimping tools for CCTV connectors




RE-CRJP

RJ connectors crimping clamp

This crimping tool is used to crimp RJ45 network connectors and is ideal for wiring IP CCTV systems. This model is equipped with a blade for cutting conductors in passthrough connectors. It also features wire cutters and wire strippers to remove the PVC jacket in 5mm Ethernet cables. This clamp is suitable for all types of 8 or 6 pin RJ connectors (RJ45, RJ12)
ADATTO A: All RJ connectors 8-6 pins
CONFEZIONE: 1 pc.

Know more on RJ45 PASSTHROUGH

RE-CR

Coax cable crimp clamp

This clamp is used to crimp connectors on coaxial cables. It is suitable for the most common 6 mm diameter coaxial cables. such as RG59, RG58, RG223 etc.
ADATTO A: 6-8 mm coax connectors
CONFEZIONE: 1 pc.


QUICKCOAX

QuickCoax connectors mounting clamp

QuickCoax is the revolutionary BNC pressure connector that is mounted in 30 seconds

QUESTION & ANSWER


Can I wire an IP CCTV system without tools?

You can use the RJ45 connectors with the terminal block, but they are quite big and expensive. The RJ45 crimping clamp is essential to wire IP CCTV systems.

Can I wire an analog CCTV system without tools?

Yes, you can use solder type connectors or press-on QuickCoax connectors.

What's the price?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.

CCTVSTOREPRO.COM

PRICE LIST

WWW.CCTVSTOREPRO.COM
