Passthrough RJ45 connectors
The latest generation network connectors for wiring your IP CCTV system.
The latest generation network connectors for wiring your IP CCTV system.

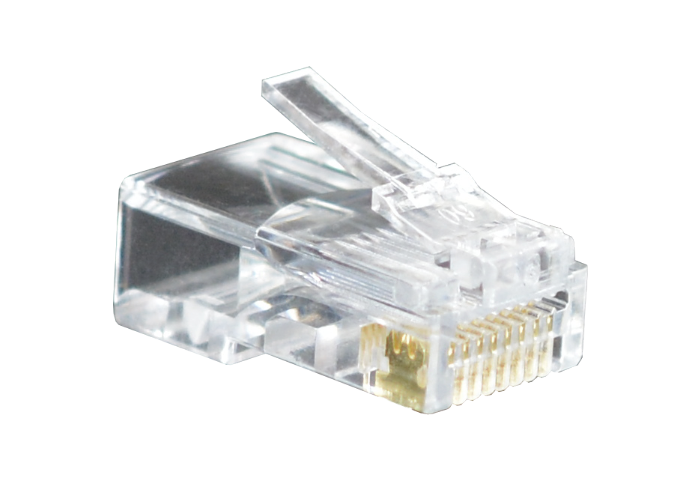

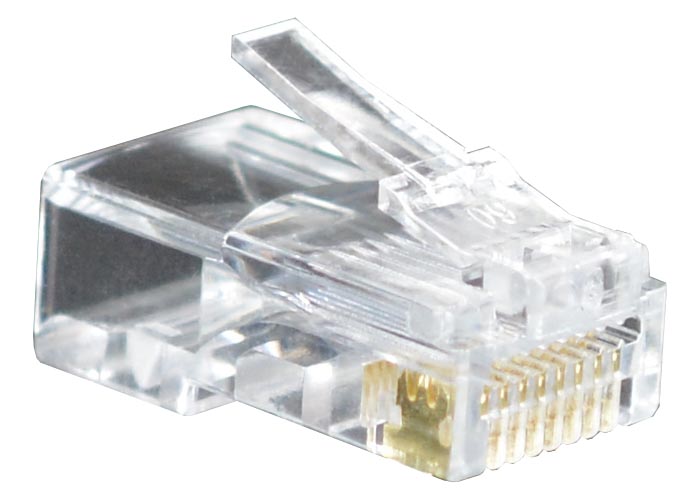

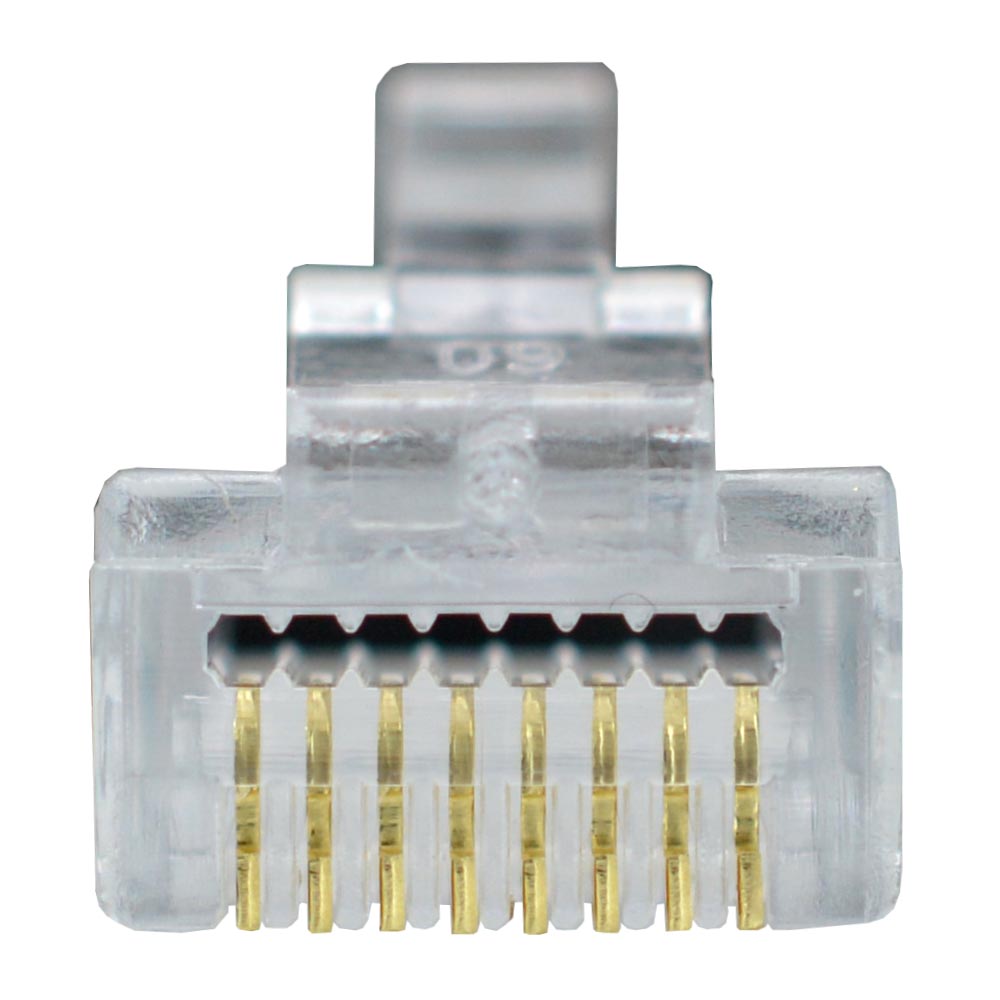

Passthrough RJ45 crimp-type connector

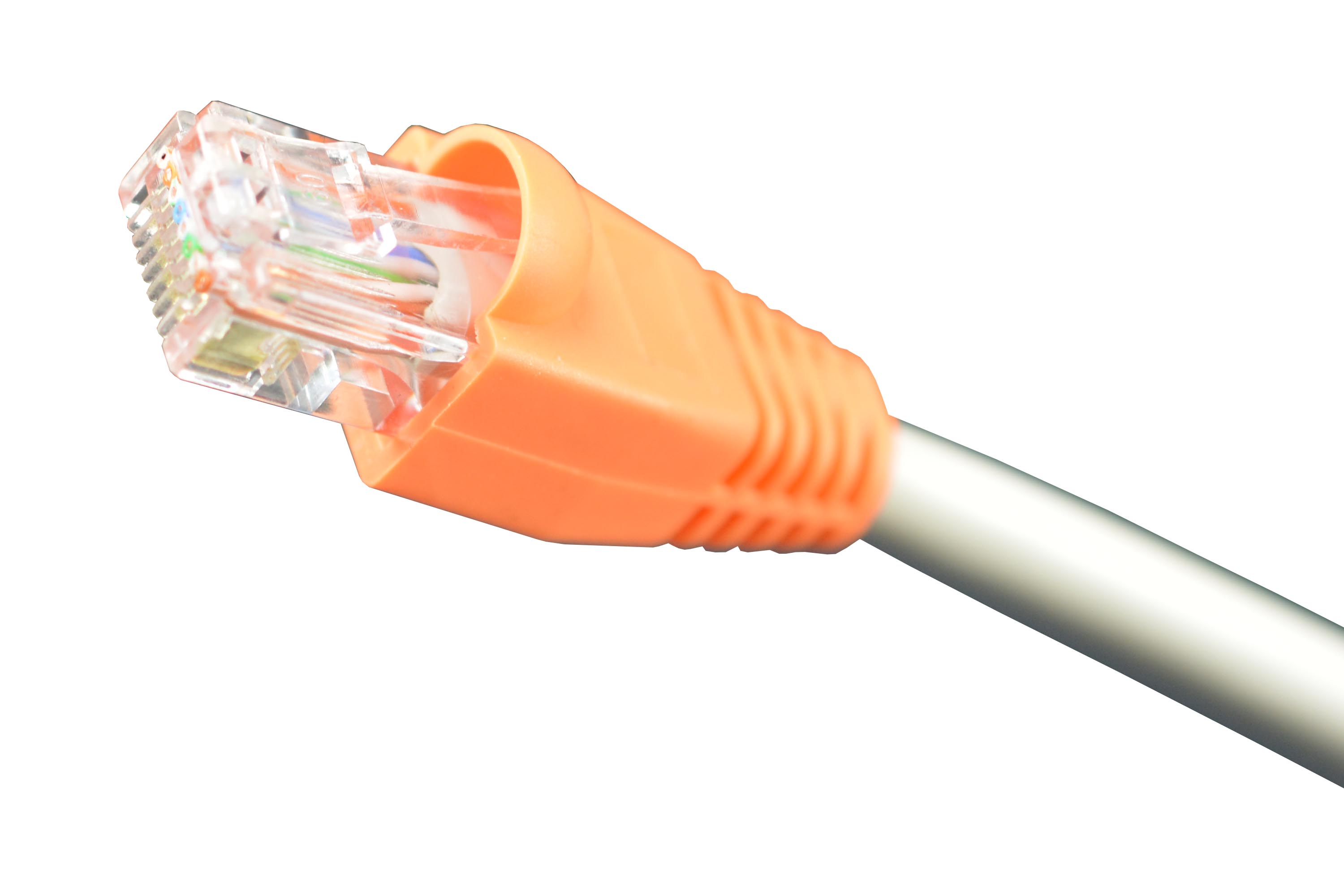

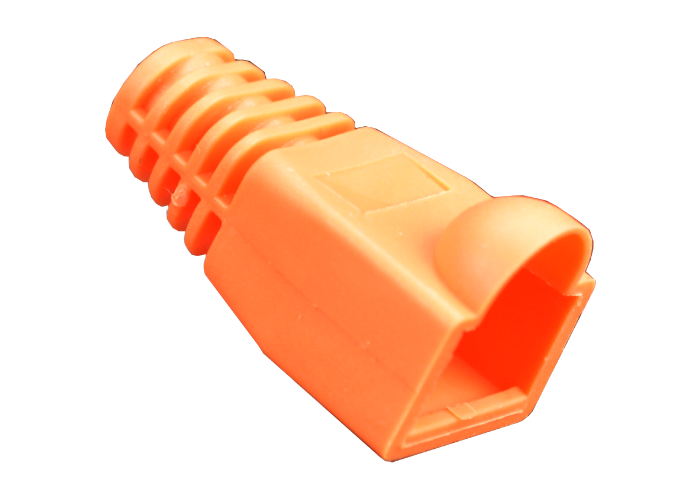

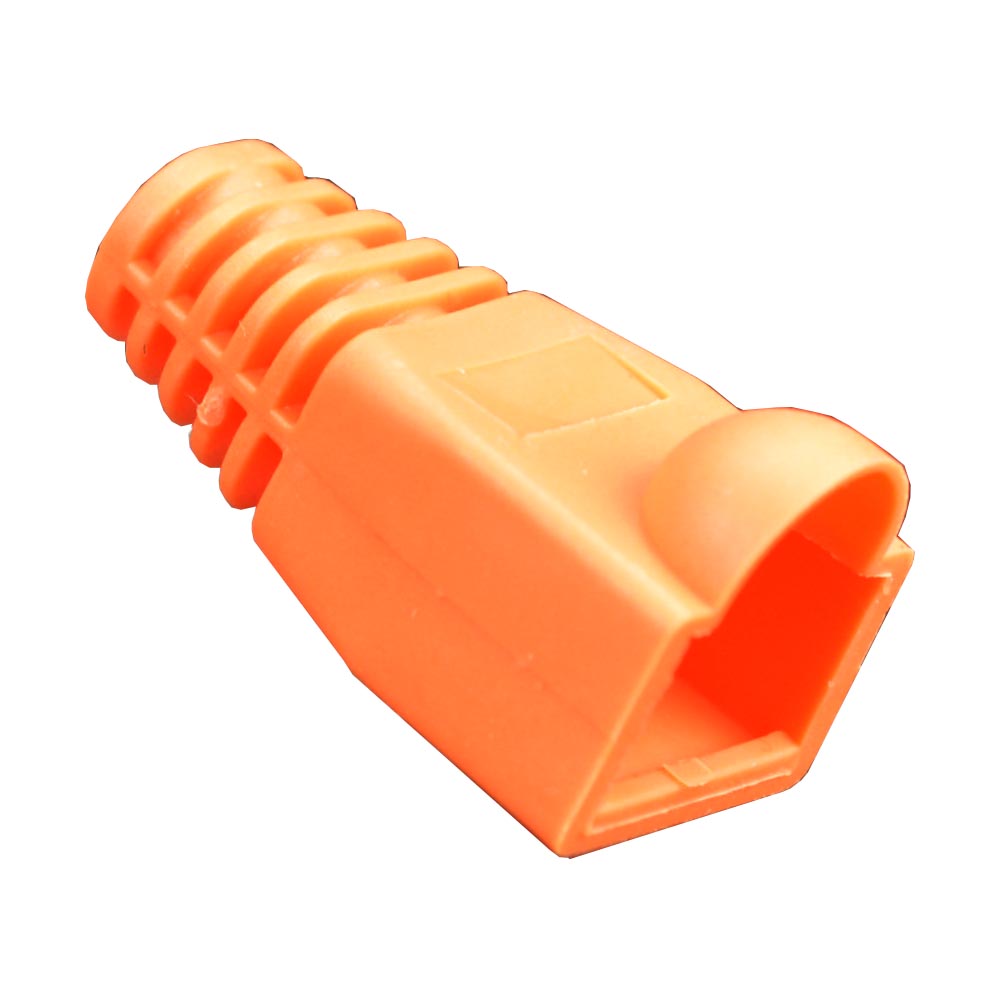

Rubber cap for RJ45
Orange

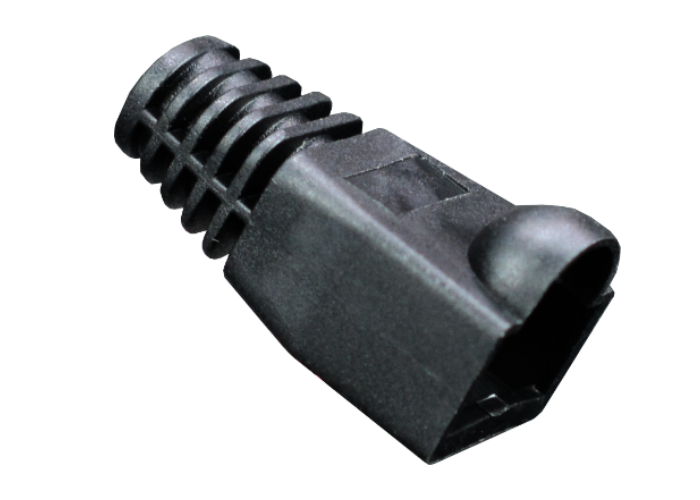

Rubber cap for RJ45
Black

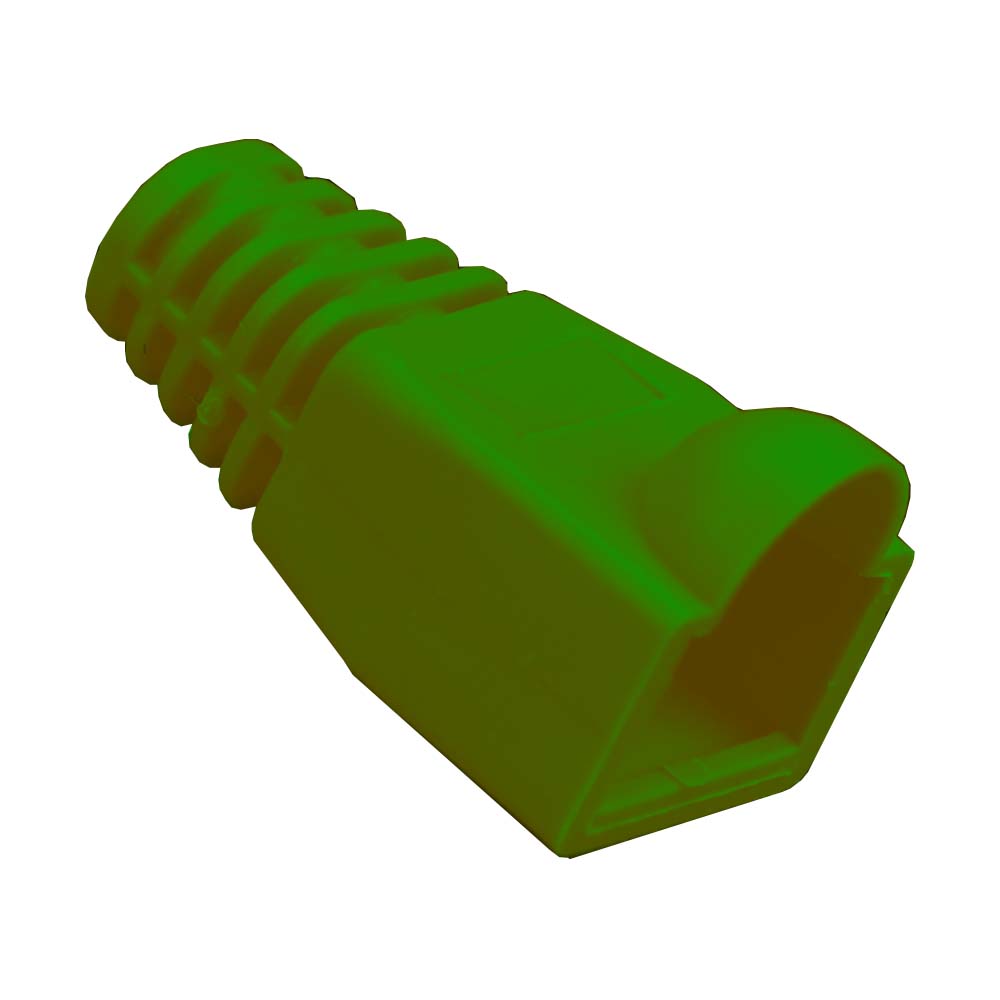

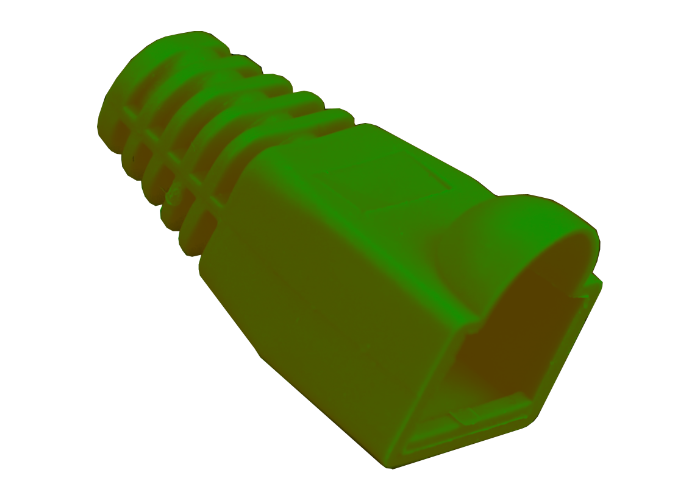

Rubber cap for RJ45
Green

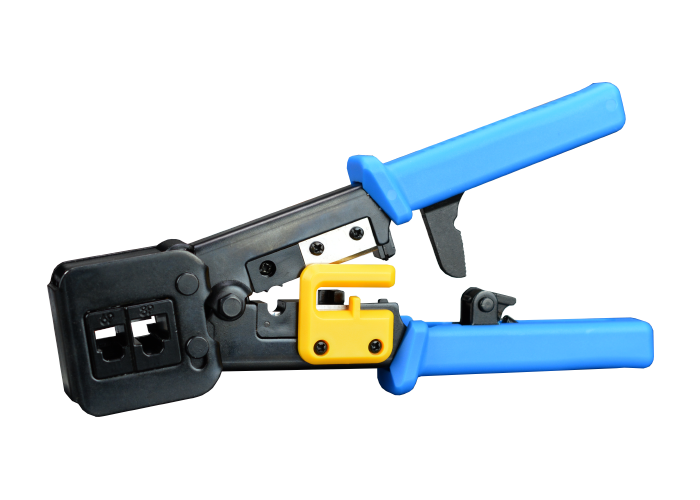

Crimping clamp for passthrough RJ45 (8/6 pin)
The 8-pin RJ45 connector is the connector par excellence in the digital world. Computers, routers, switches, IP cameras, NVRs - everything connects with this network connector. These new revolutionary pass-through RJ45 connectors dramatically innovate the way you can make an Ethernet cable. Easy to install, but safe and reliable, these new connectors will become soon your ace in the hole for digital cabling.

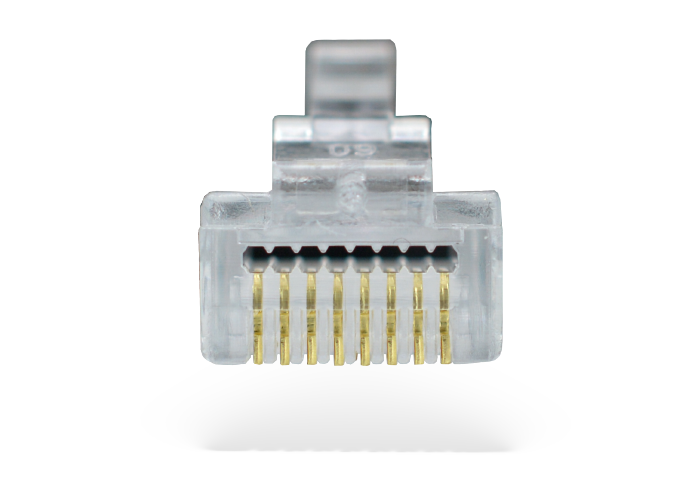

Pass-through connectors come with small holes through which the wires pass through the connector body. This provides many benefits. First you don't have to cut the cables by hand before inserting the plug. In this way there will be no risk that some wire cut too short, do not crimp properly. Besides, you can easily double check the color sequence before crimping the plug. Every single connector is 100% reliable with these plugs, so you won't need to test the cable before use.

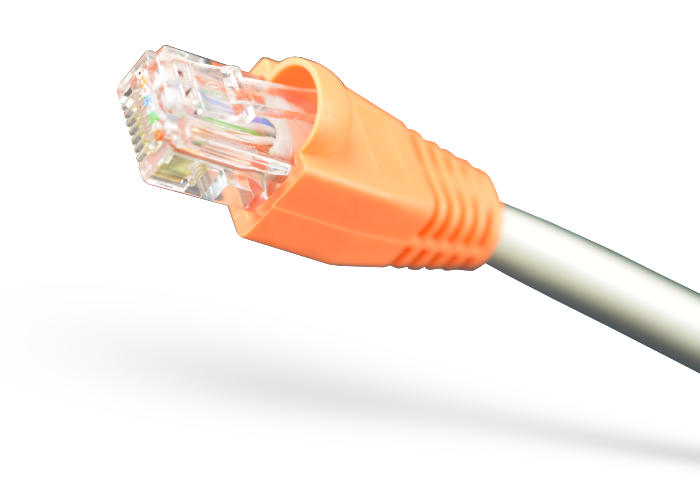

Pass-through RJ45 connectors are much easier to install than traditional plugs. With these connectors you can remove 4 or 5 cm. PVC jacket for handling the wires with ease. Once the cables are inserted into the plug, you can easily push the jacket deeply into the conductor for a perfect crimping. With these connectors you don't need years of experience to make a perfect RJ45 wiring. Each cable you make will have strong, secure connections that you can further protect with the optional rubber caps.

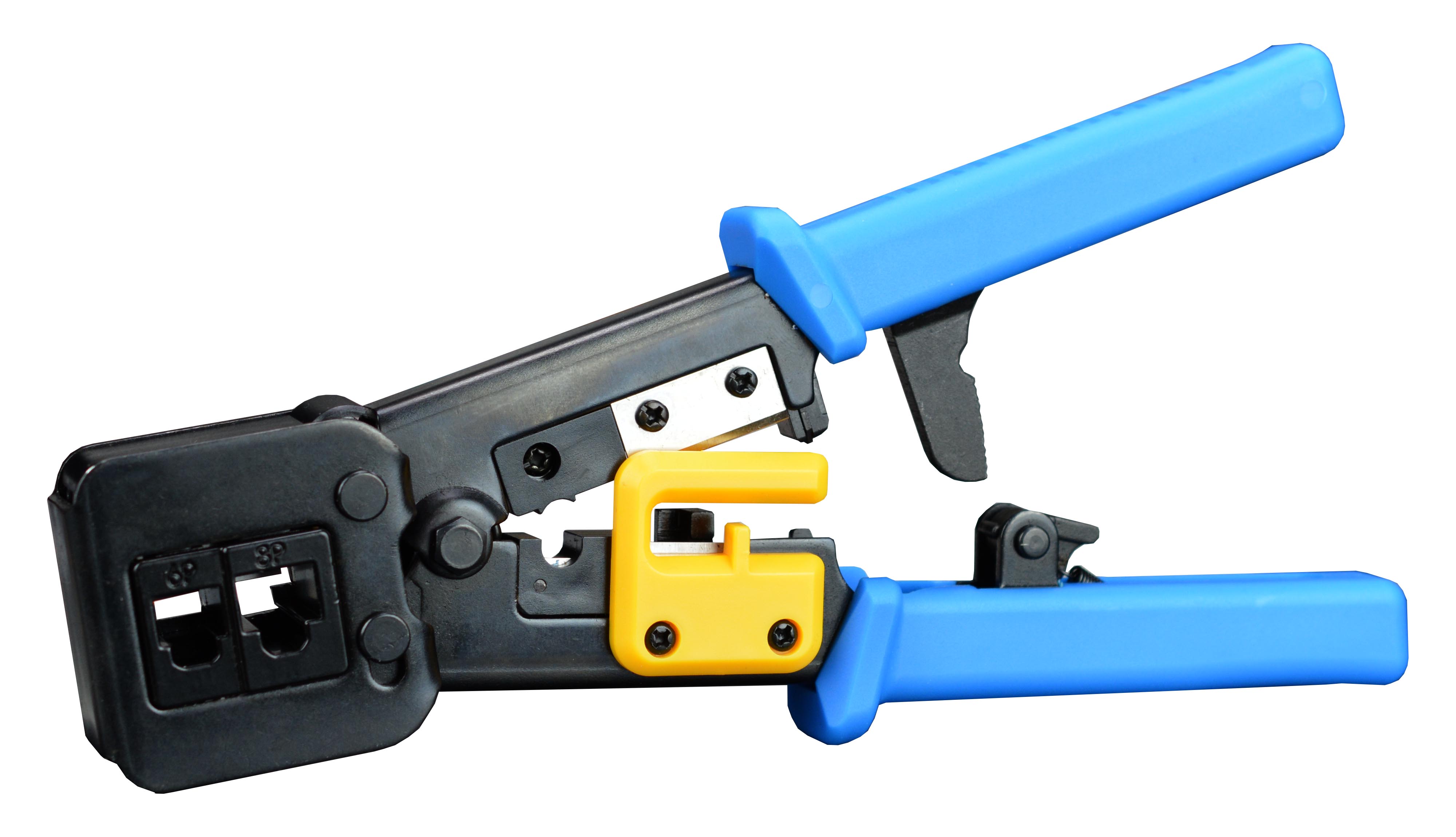

These passthrough connectors can be crimped with any traditional RJ45 clamp. However, for a better experiance, you can buy our crimping clamp for passthrough connectors that automatically cuts the wires that pass thruough the plug head. In addition this clamp include a wire stripper to remove the PVC jacket on 5 mm cables. See in the tutorial below how easy it is to crimp an RJ45 passthrough connector with our crimping tool.
This video tutorial shows you how to install RJ45 passthrough connectors on Ethernet cables. In this tutorial you are going to learn how to remove the cable jacket, how to set the right pinout and how to use the crimping tool (15 min.)
