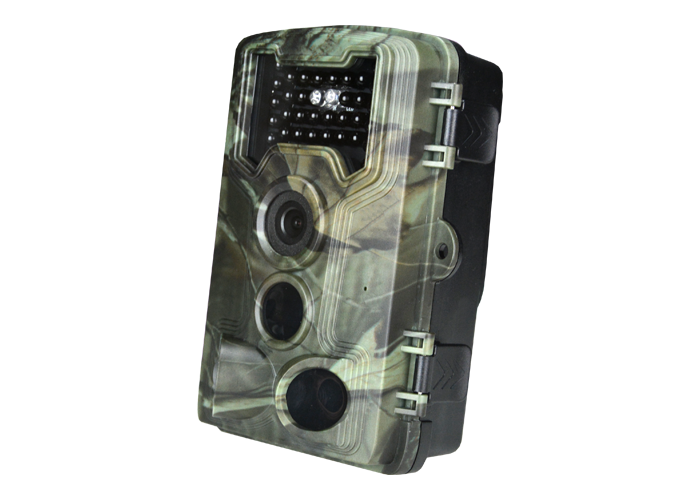

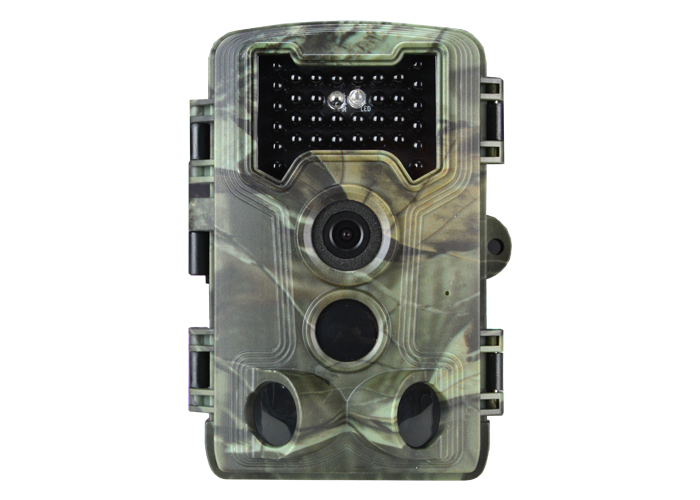

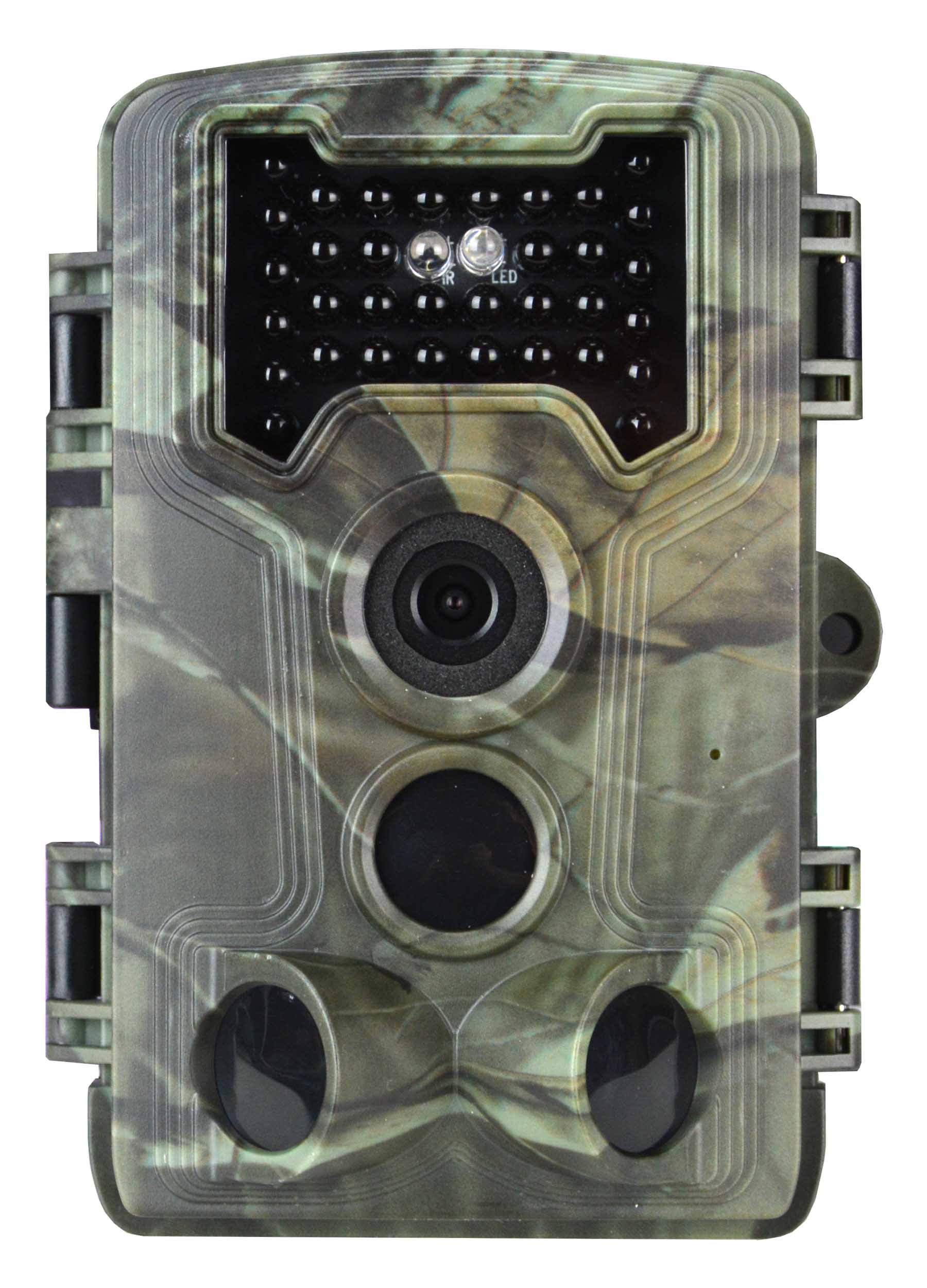

TRAIL HUNTING CAMERAS


DK-HT3-S

Telecamera mimetica a batteria

3MP

Hunting camera with SD and LCD monitor

120° wide-angle lens Waterproof casing fro outdoor 20 m. IR illuminator 940nm invisible IR 256GB SD card slot 24 hours video storage on SD 6 months average battery life Microphone for audio PIR motion detection LCD display

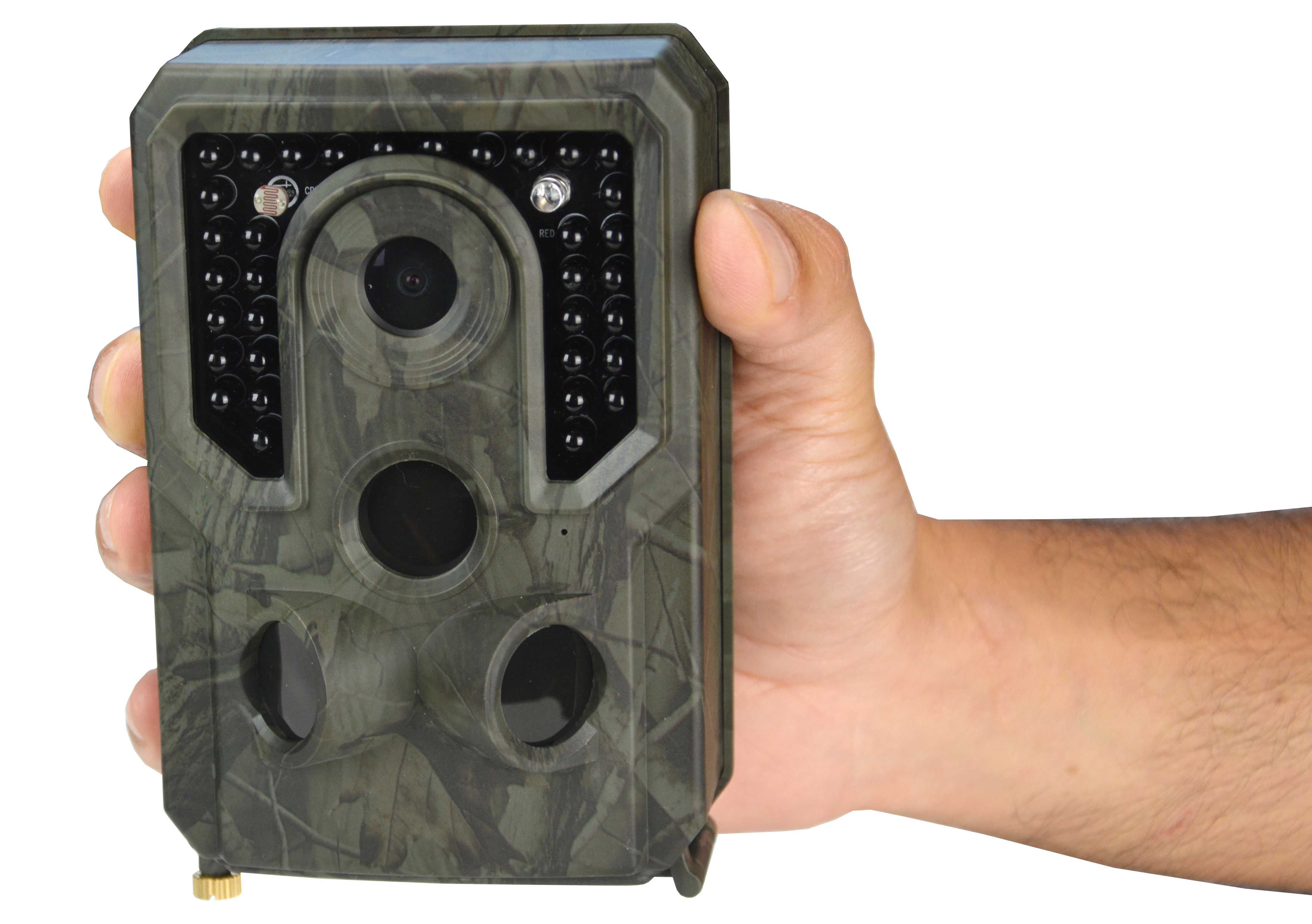

PERFECT OUTDOOR CAMERAS


The best cameras for the countryside

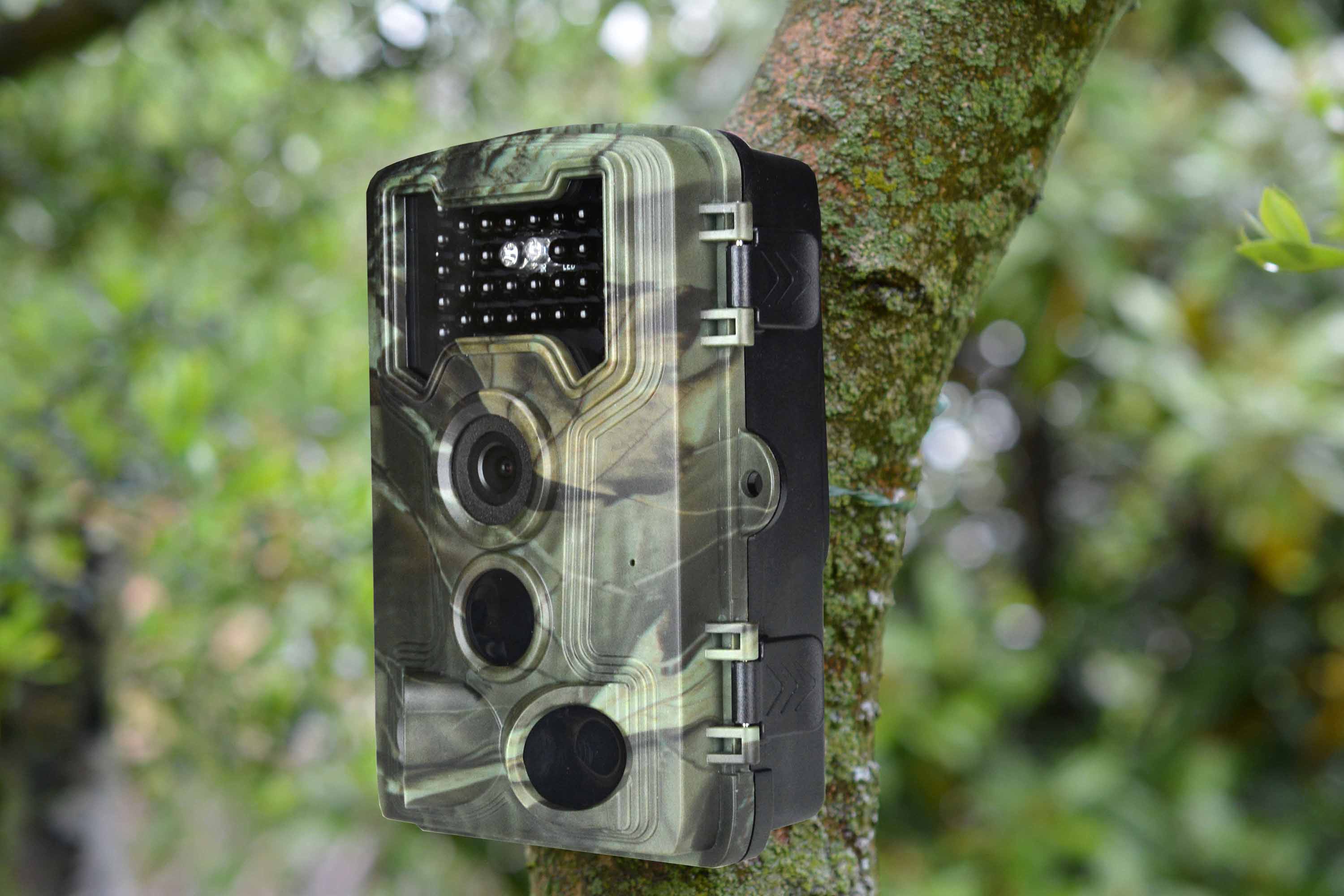

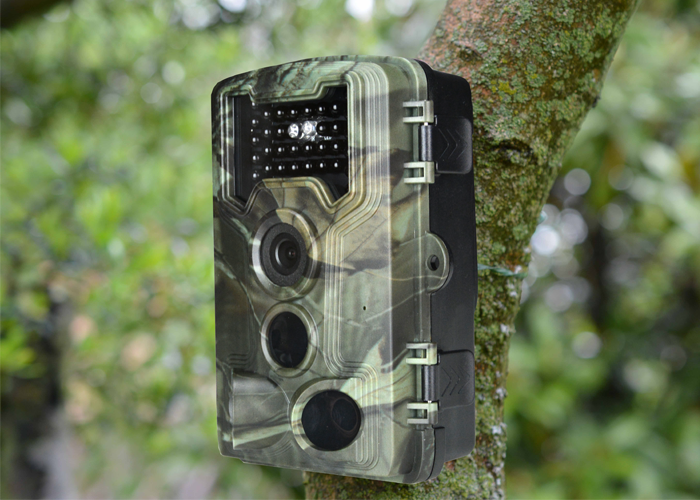

These cameras are designed for video surveillance in the countryside, with no power. They are equipped with an outdoor waterproof casing, painted in camouflage shades to blend perfectly with the foliage. They should be mounted on a tree branch or similar support and oriented towards the area to be monitored. Hunting cameras, also called trail cameras or photo traps, are ideal for monitoring farmland, vineyards, huts. They are also useful in an urban context for video surveillance of isolated areas. Thanks to the built-in batteries and to the PIR detector, these cameras do not require power supply and are very easy to install and operate.

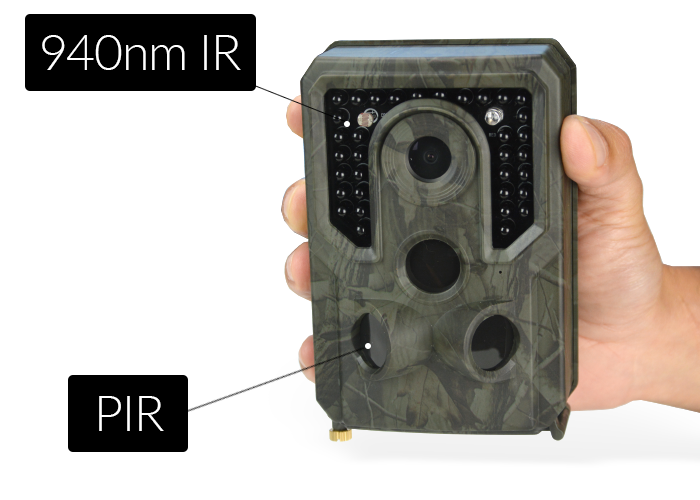

120° lens and PIR detector

These hunting cameras have a wide angle lens which allows around 120° view. Furthermore they are equipped with a PIR intruder detector, which activates the camera only when the presence of a person or animal is detected . Thanks to this sensor, the camera remains in standby for most of the time, consuming very little battery. When the PIR detects an intruder, the camera activates, recording photos or videos. Thanks to the PIR detector these cameras can remain active for long periods, waiting for an intrusion. PIR detectors, widely used in alarm systems, detect body temperature, so they are not effected by the movement of the foliage.


940 nm invisible IR illuminator

These fototraps are equipped with an infrared illuminator that allows you to shoot in the dark up to a distance of 20 m. The illuminator switch on automatically when darkness falls and consists of 940 nm LEDs which are totally invisible in the dark. The night shot is in black / white.

VIDEO AND AUDIO


58MP photo resolution and 2-3MP video resolution

Despite their small size, these cameras take photos up to 58MP and record videos at 2 or 3MP 25 f/s, like our best standard video surveillance cameras. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels) and 3MP resolution, are the current standard of high resolution digital TV and guarantee excellent definition of details.
When the camera detects the presence of people or animals it can take a sequence of photos and even record a video of programmable duration . The cameras include a high sensitivity microphone for recording the audio.

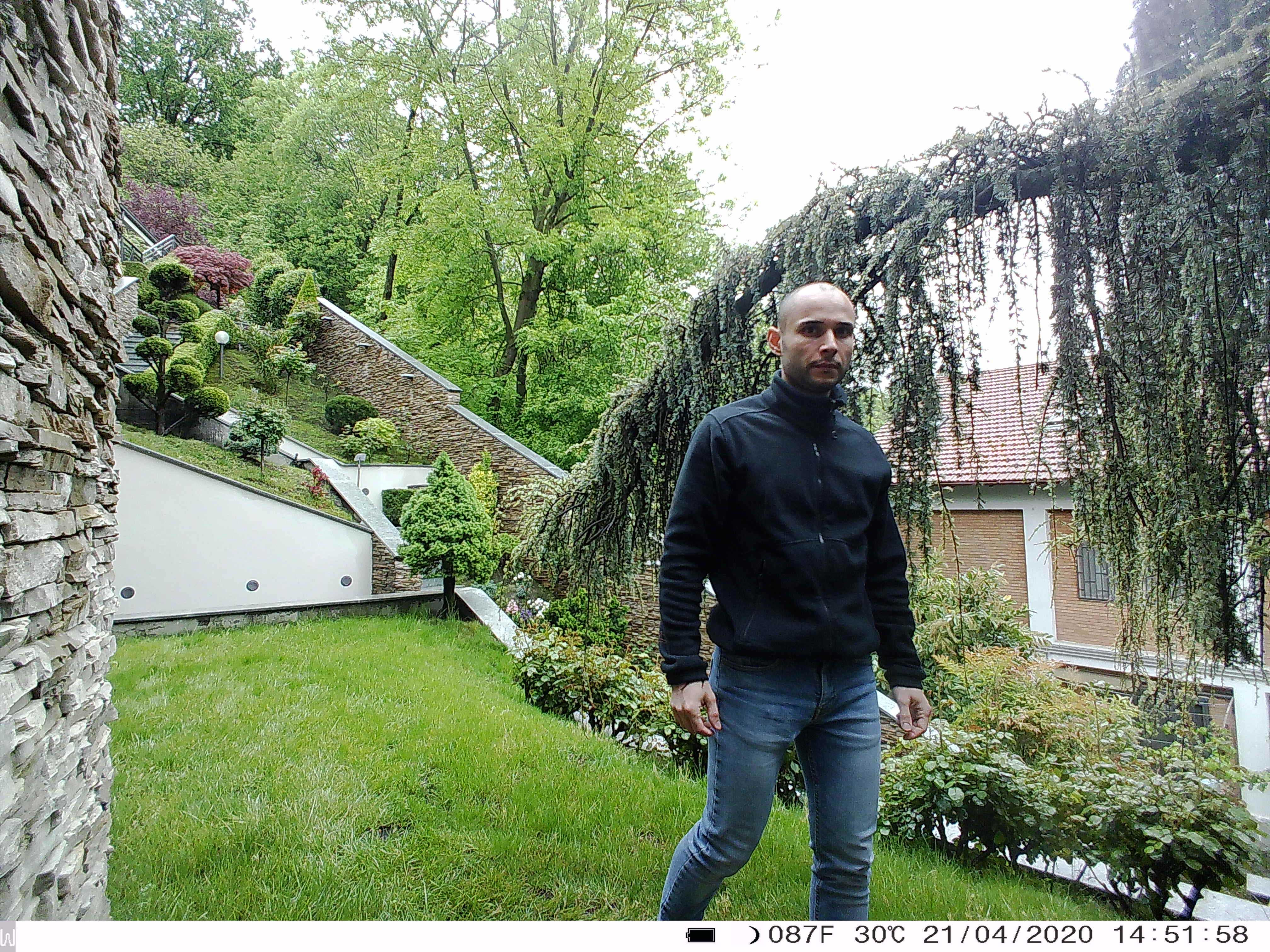

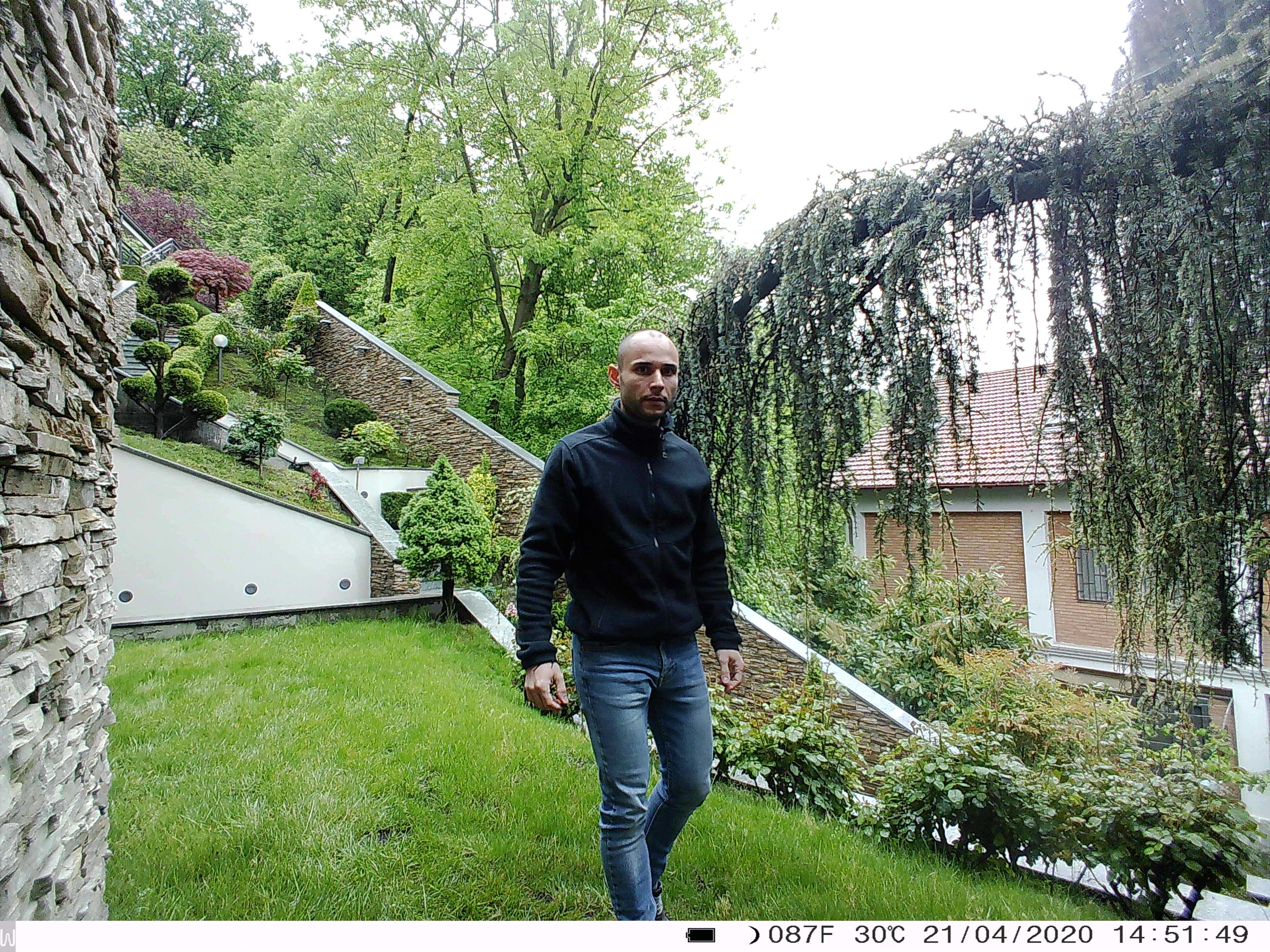

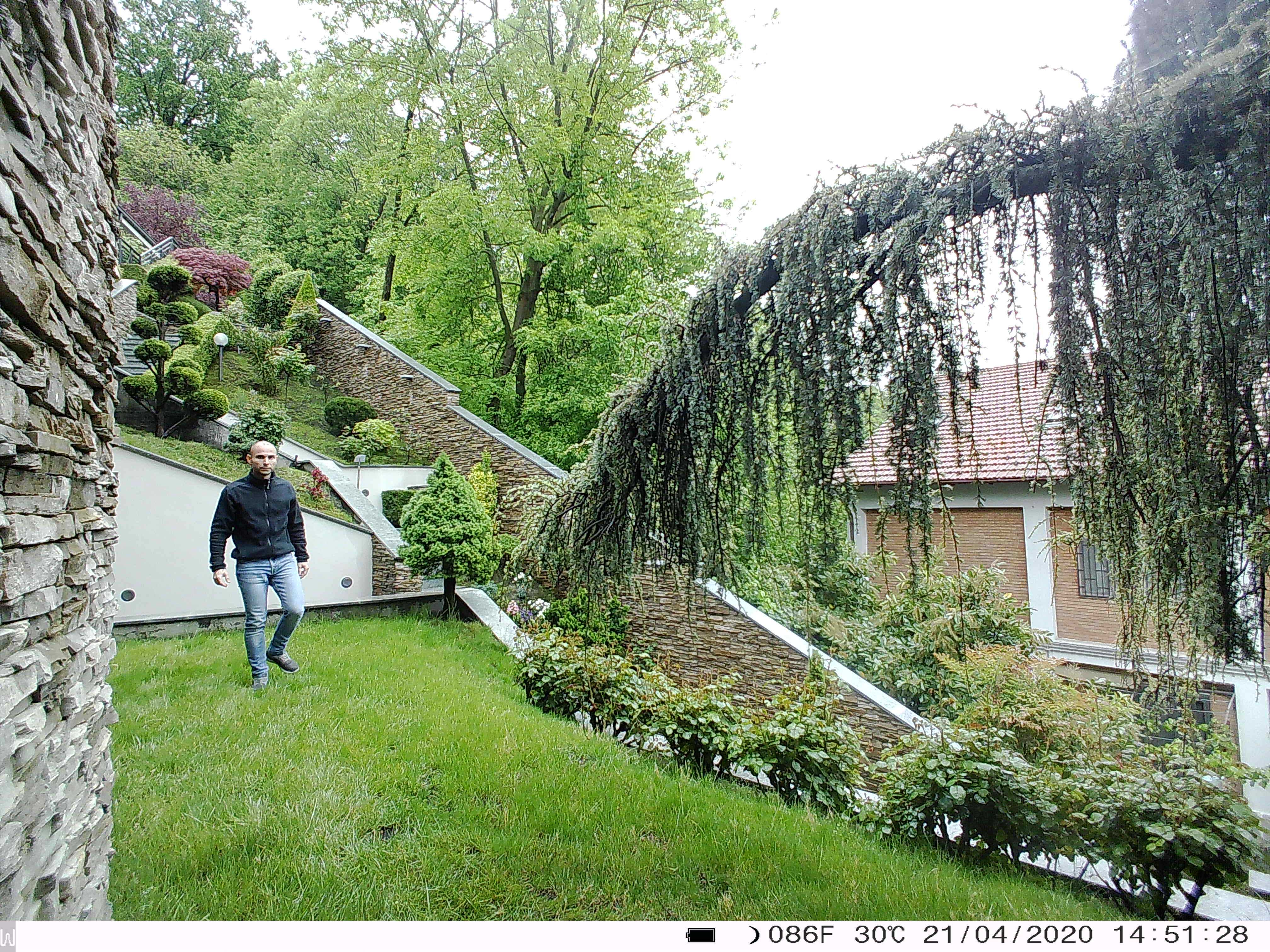

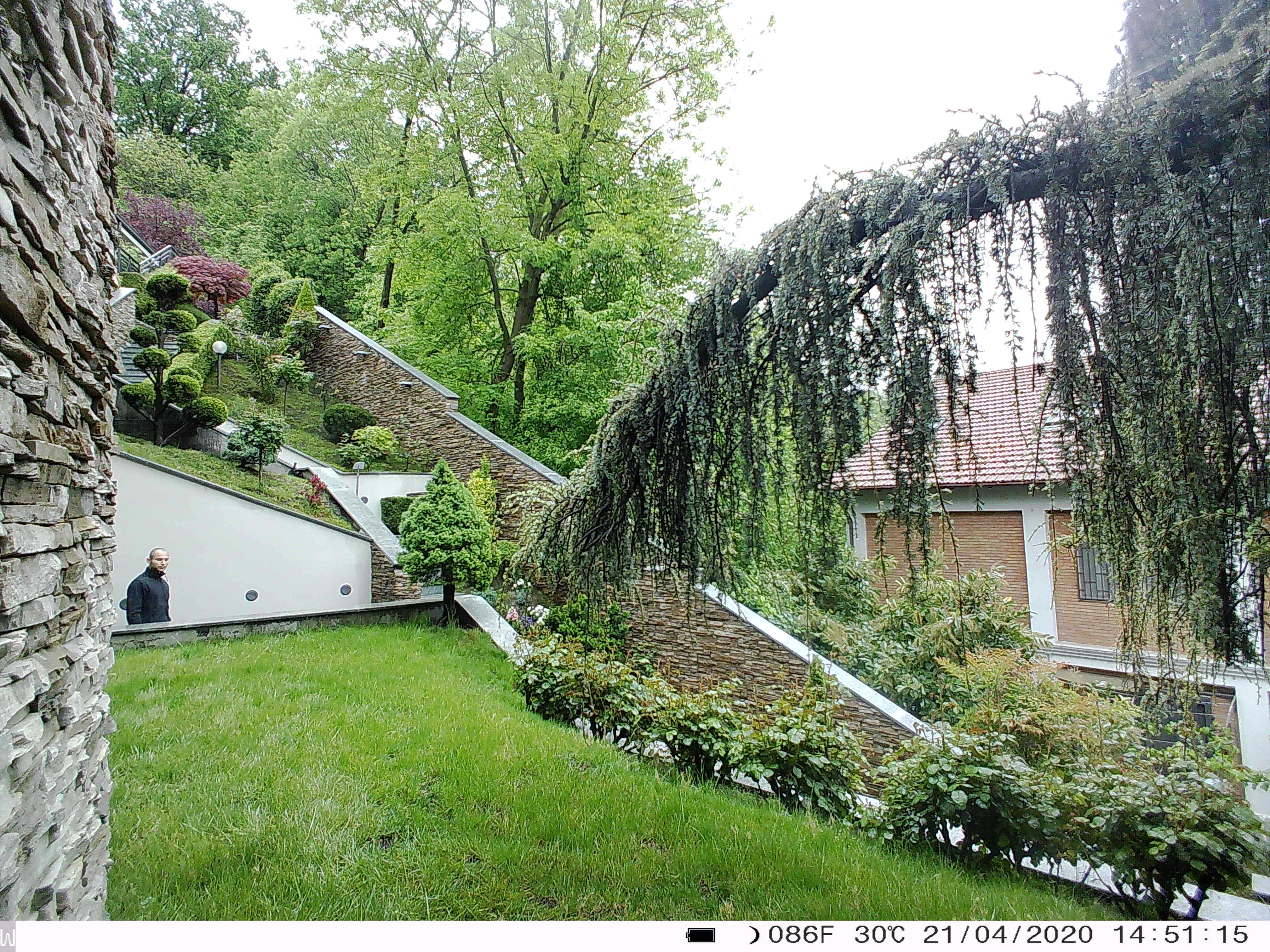

Here you will find a real photo sequence, made with these cameras. You can enlarge the pictures to appreciate the quality of the shot.

Video 3MP Foto 58MP Microfono ambientale

SD CARD RECORDING

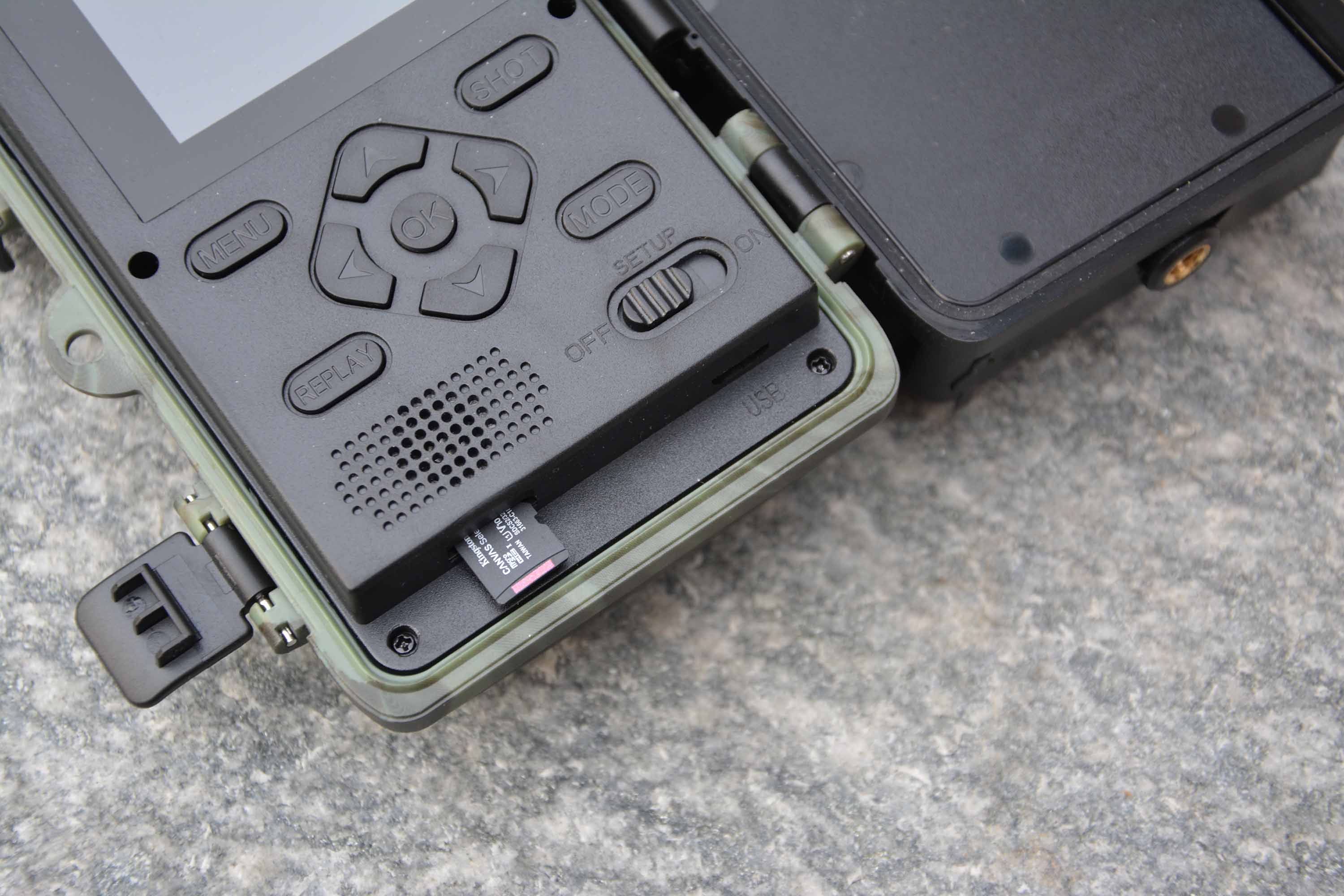

Video storage on SD card

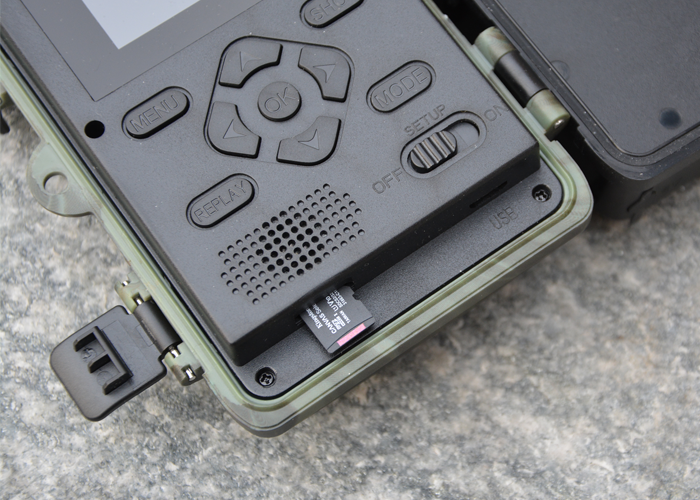

These trail cameras record movies and photos on a removable micro SD memory card. The SD card is not included. To use these cameras you must purchase a Class 10 or higher SD card with a maximum capacity of 256GB. The maximum storage capacity depends on the model. Remember that these cameras only take up memory space when they detect the presence of people.

DK-HT3 DK-HT3-S
Card type Micro SD Micro SD
SD max. 32GB 256GB
Max. storage 4 ore 28 ore

Files download

Playing the videos and pictures recorded on the SD card is very easy. You just have to plug the camera to a computer USB port with the included cable. Alternatively, you can remove the SD card from the camera and insert it into a USB reader, such as the one in this picture. You can browse photos and play AVI movies with common free players, such as VLC or Windows Media Player . Important files can be downloaded to your computer.

POWER SUPPLY

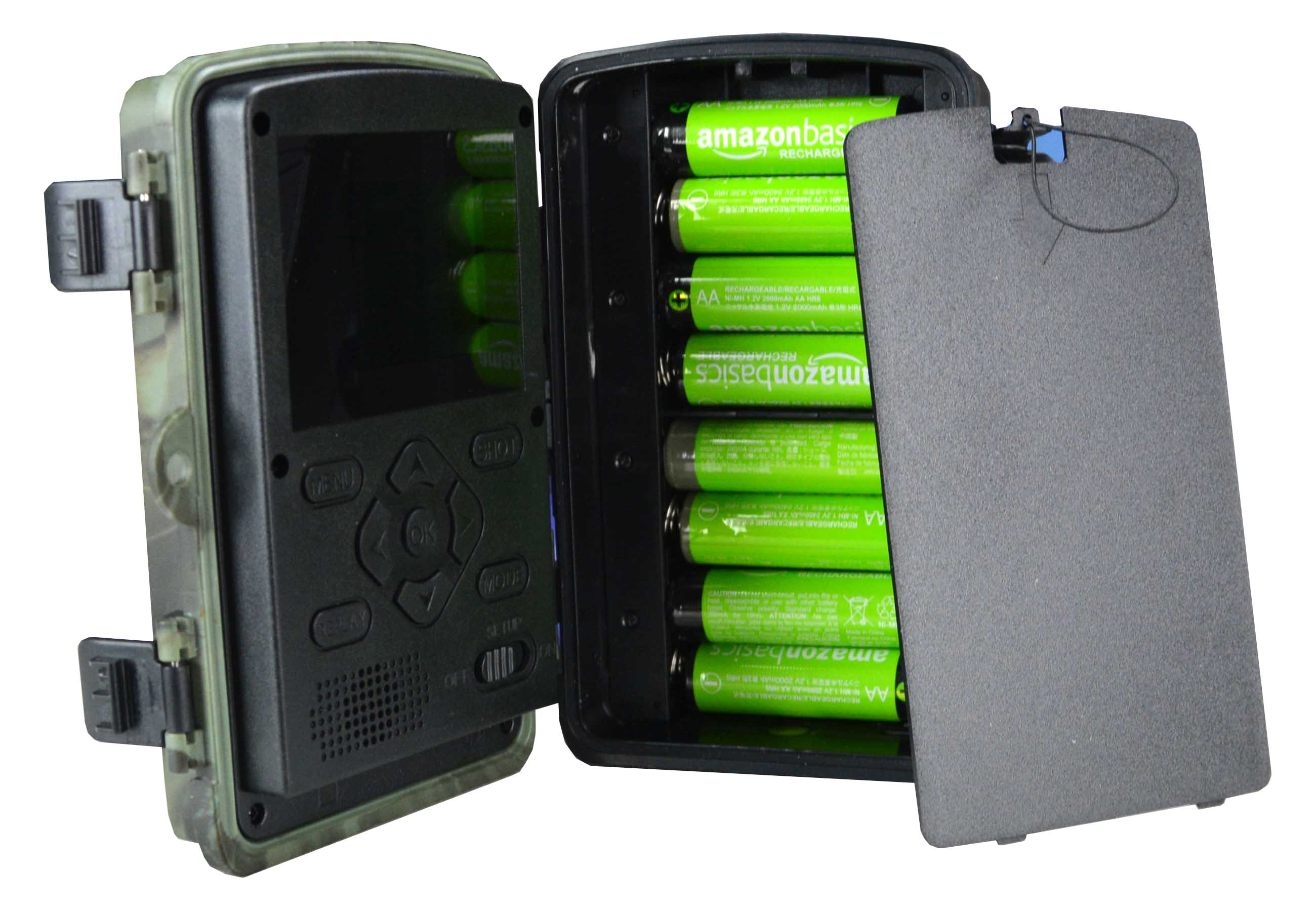

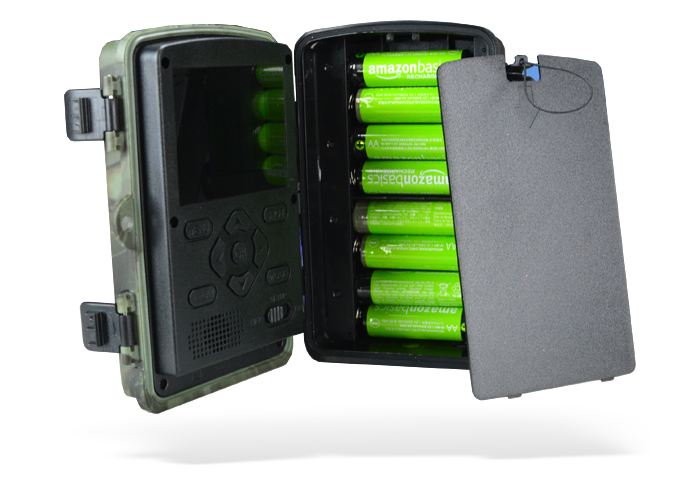

Built-in batteries

These cameras are designed for use in the open air and are therefore battery powered. The PIR detector allows a very long battery life in stand-by as the camera turn on only when an intruder is detected.

DK-HT3 DK-HT3-S
BATTERY TYPE 2 x 18650 rechargeable (included) 4 or 8 AA standard or rechargable batteries (not included)
BATTERY LIFE IN STAND-BY 6 months 6 months (with 8 batteries)
AVERAGE BATTERY LIFE 1-2 months 1-2 months

CONTROL

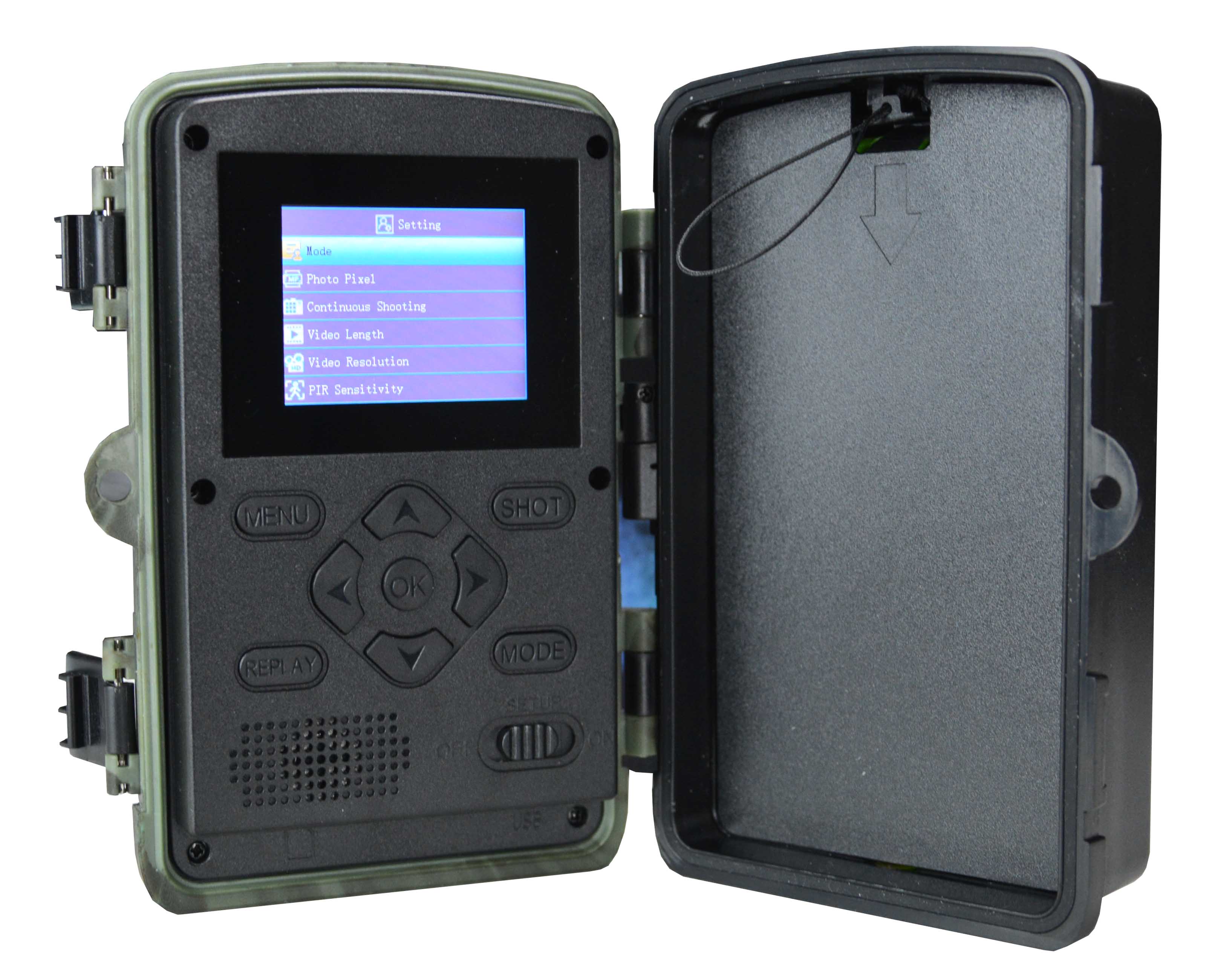

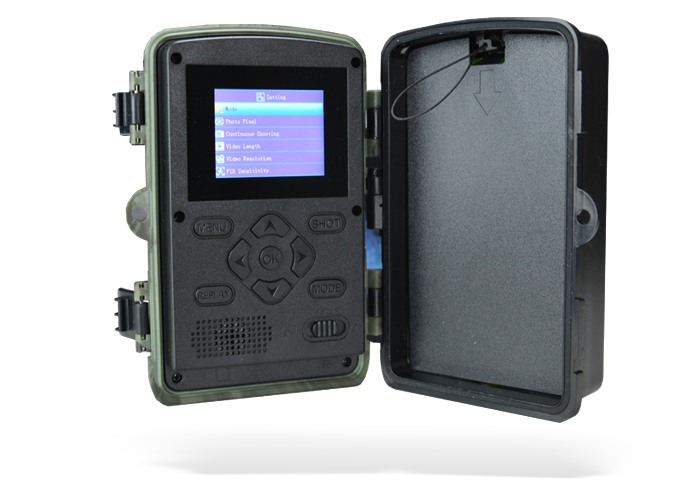

Built-in keypad and LCD monitor

These hunting cameras come in a waterproof housing which contains the control keypad. There are 2 working modes: test mode, which is used to position the camera, and working mode where the camera start monitoring and do not give any indication. Some models also have an LCD monitor that allows you to check the view, configure operating options and review footage.

TIPS


Make a perfect fototrap

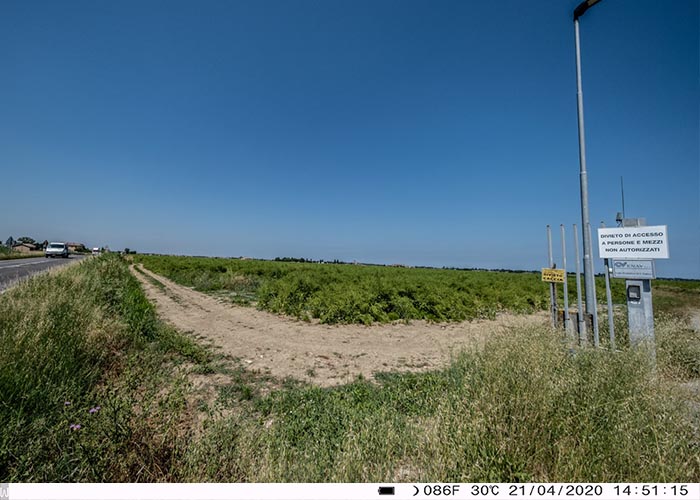

These photo traps base their operation on the PIR intruder detector, thanks to which it remains in stand-by when there is no presence of people, thus saving battery. In order for this system to be effective you must install the camera where there is an occasional presence of people . For example, it is an ideal solution for monitoring country houses, farmland, construction sites etc. It is not convenient for you to use these hunting cameras where there is a constant passage of people because it would continuously record and would run out of batteries shortly. As an example, here you can see the shot of a camera used against illegal waste spill.

TECHNICAL DATA



CODES DK-HT3-S
Description Mimetic hunting camera
Type With PIR, SD card, display
CAMERA
Maximum resolution 2.7MP
Optical sensor 1/4" CMOS 3MP
Chipset Ambarella
Video resolutions 2560x1440 @ 30 f/s
Photo resolution 58MP
Video compression H264
Infrared illuminator 20 m. 940 nm. invisible LED
ICR
Lens Minilens 120°
Focus Fixed
Video files format MOV of 5-60 seconds
SET UP
USB port MicroUSB for PC
Audio microphone
PIR detector 120° - Triggering time 0,3-0,6 sec.
SD card slot MicroSD max. 256GB Class 10 or above
CVBS output
Monitor 2" LCD
POWER SUPPLY
Batteries 4 or 8 AA batteries (not included)
Stand-by battery life Approx. 6 months
Average battery life Approx. 1-2 months
Battery recharge Rechargable AA batteries are supported
Mains operation Supported with the USB cable included (adaptor not included)
Solar panel
FEATURES
Recording modes Foto (1..5), Video, Foto+Video
Triggering modes PIR detector
Camera control Pushbuttons
Smartphone
Overlays Date, Time (selectable)
Alarm actions Start recording
Sending Time-Lapse photos
GENERAL
Casing ABS
Protection degree IP65
Operating temperature -30°C +60°C RH95% Max
External power supply 5VDC +/-10% USB
Stand-by power consumption 0,1 mA
Operating power consumption 100mA recording withour IR, 670 mA with IR
Overall dimensions 95x135x73 mm.
Weight 260 gr. (without batteries)

QUESTIONS & ANSWERS


What is included?

CAMERA
USB CABLES
BELT

What is not included?

Cameras record on SD cards. The micro SD card is not included. In our price list, you can buy a suitable SD card

What is the price?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.
