MINICAMERAS TO HIDE


DK-CS4-TUY

CAMERA + DVR + WIFI

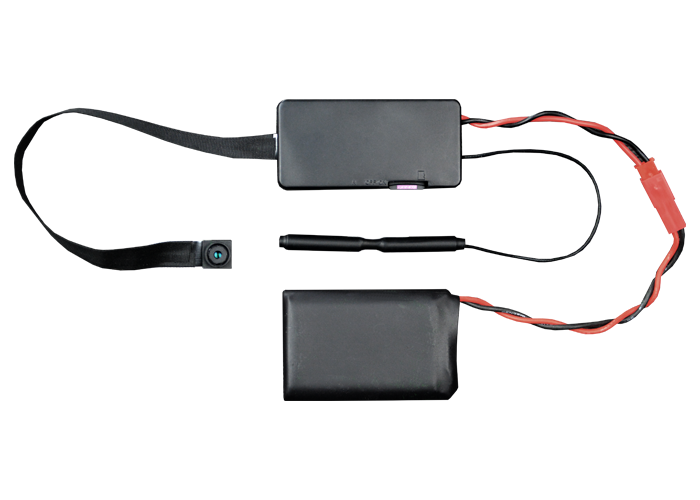

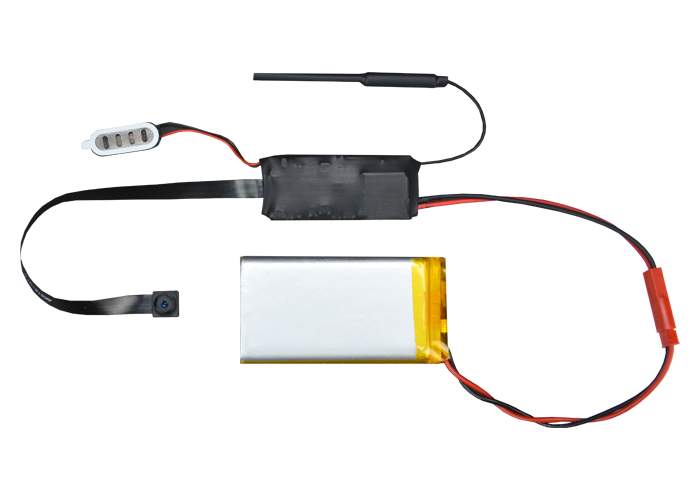

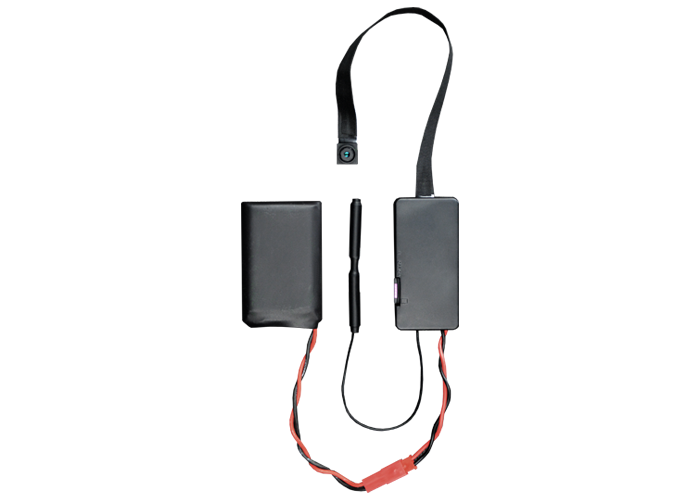

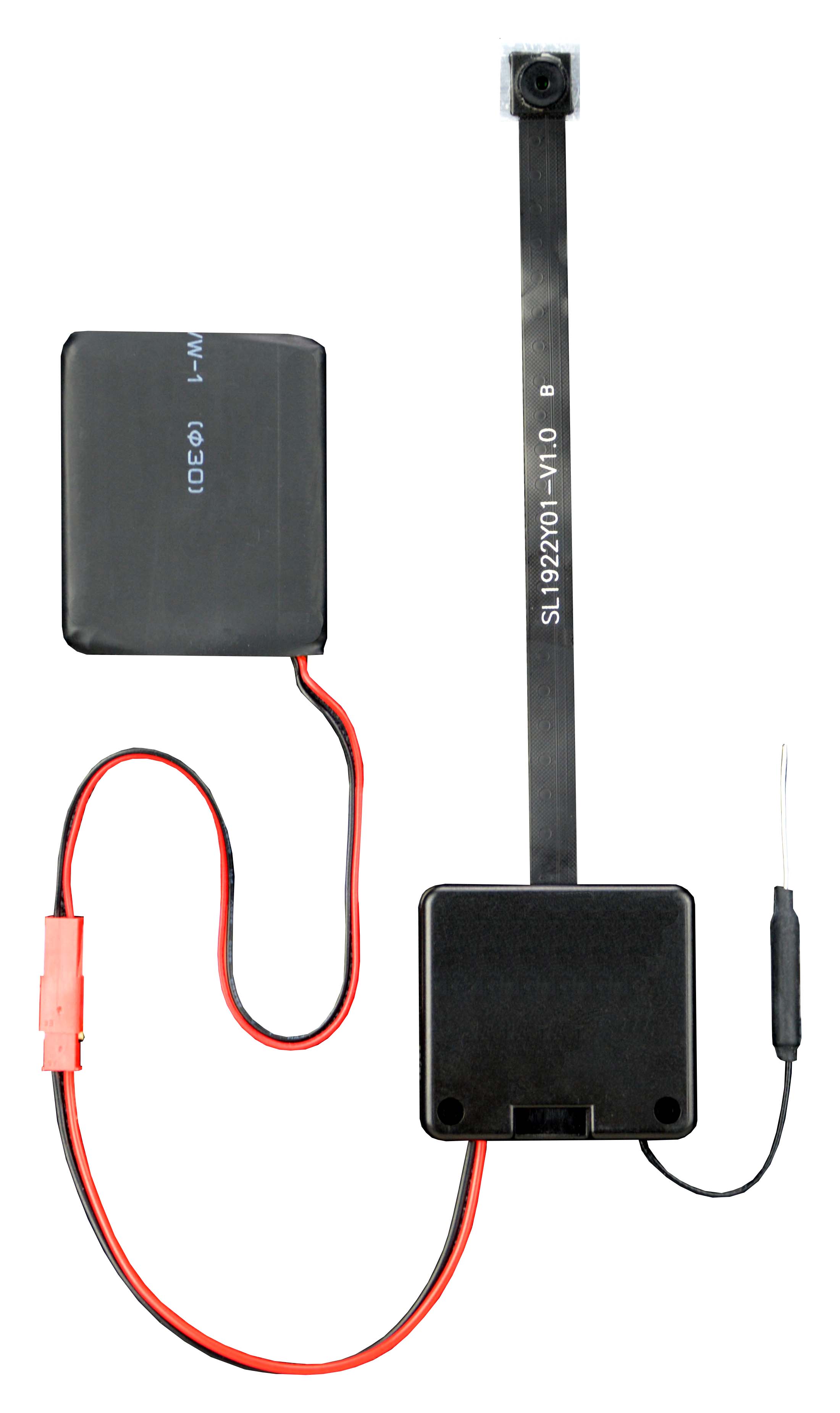

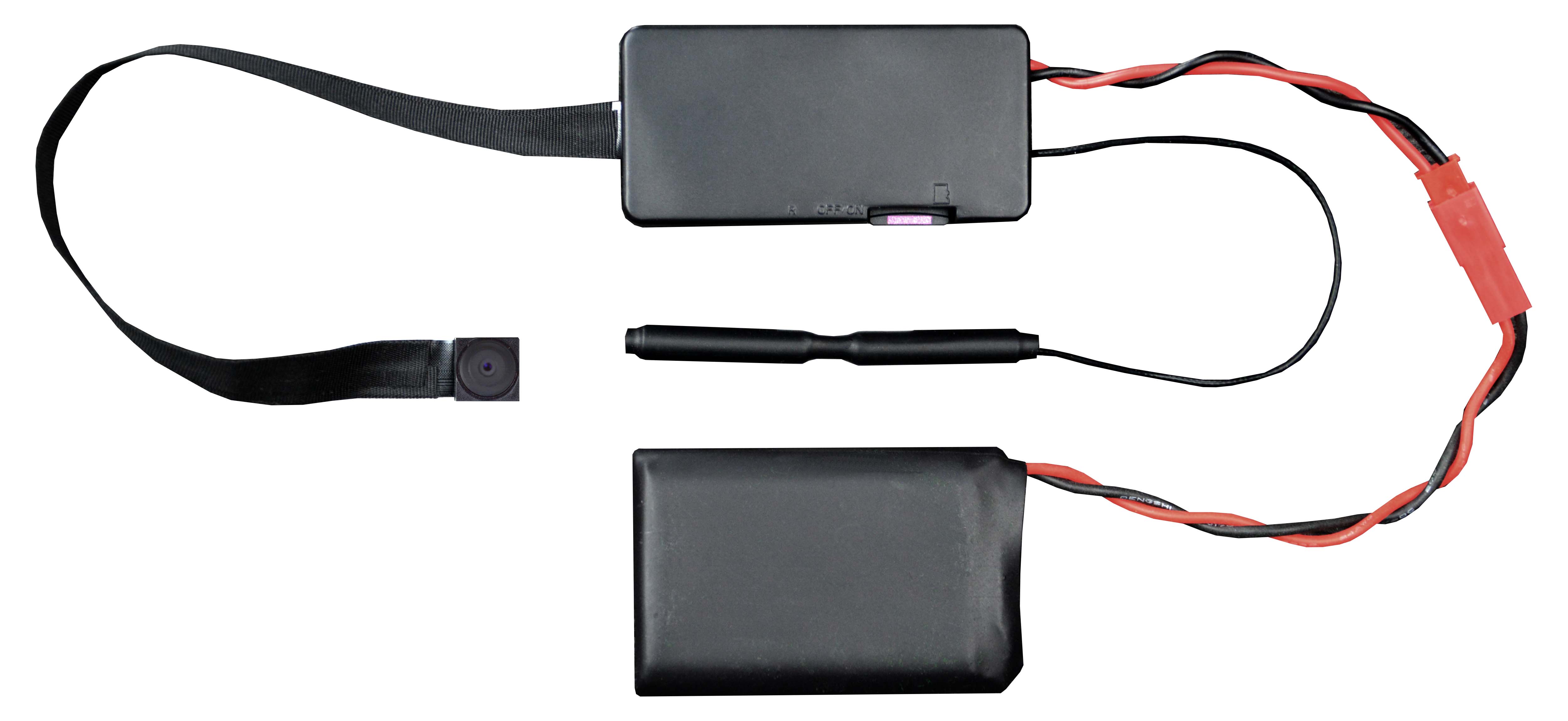

Hidden battery-powered camera

2MP 1080P App TUYA

Do it Yourself hidden camera with SD card. Battery (2600mAh)/Mains power - WiFi control with smartphone

Lens mounted on flat cable 2.8 mm 90° pin-hole lens Micro SD card slot up to 128GB 300-hour video file storage on SD card of maximum capacity Built-in microphone for audio Built-in speaker for audio 2-ways audio 6 m. IR illuminator Motion detection 7 hours recording with standard battery Record with mains power supply Wi-Fi for mobile control with app Free P2P Cloud Server for easy web access Free App

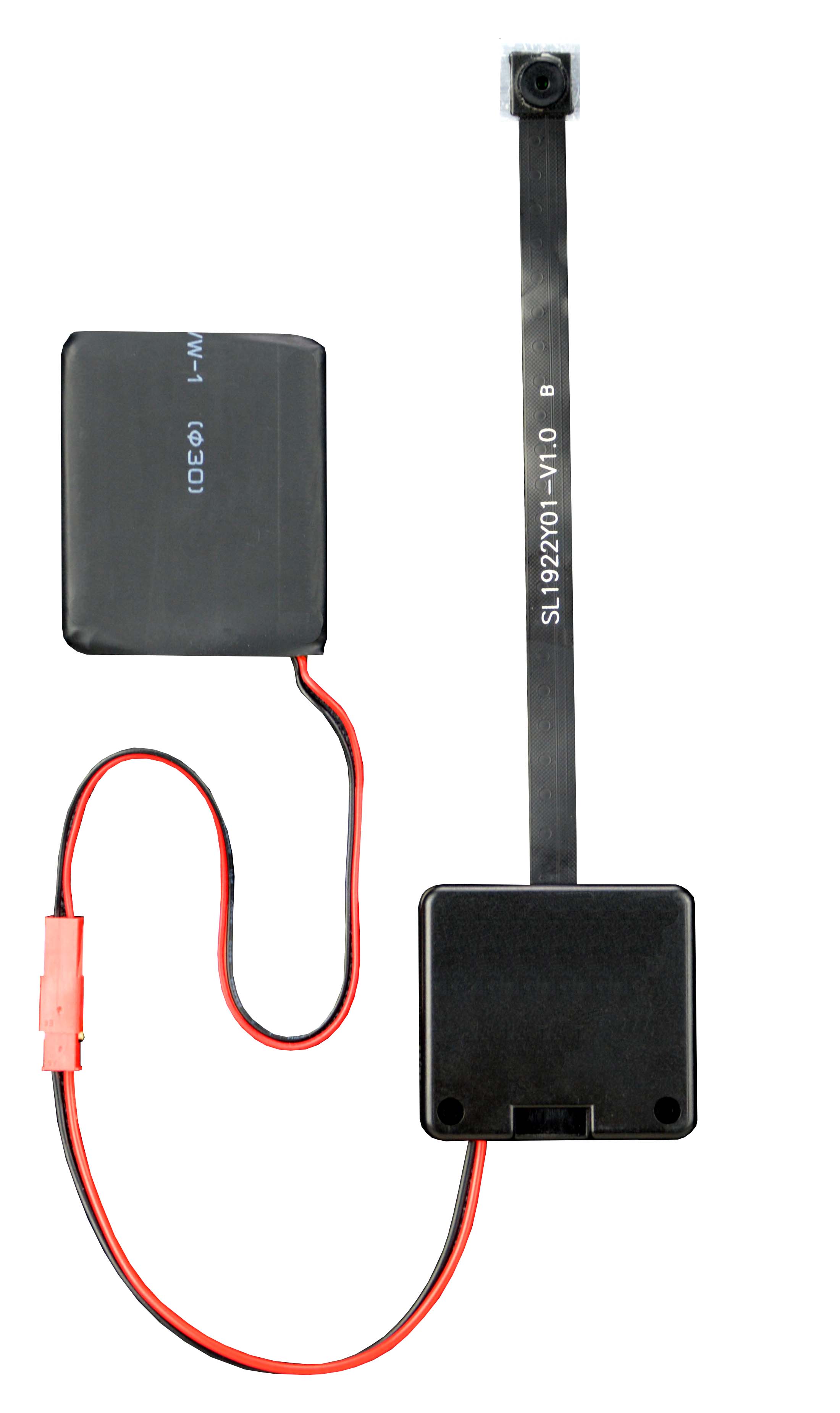

DK-CS4-DVR

CAMERA + DVR

Hidden battery-powered camera

2MP 1080P

Do it Yourself hidden camera with SD card. Battery (1500mAh)/Mains power

Lens mounted on flat cable 2.8 mm 90° pin-hole lens Micro SD card slot up to 32GB 40 hours video of archive on the maximum capacity SD card Built-in microphone for audio Motion detection 5 hours recording with standard battery Record with mains power supply

OPTIONAL BATTERIES

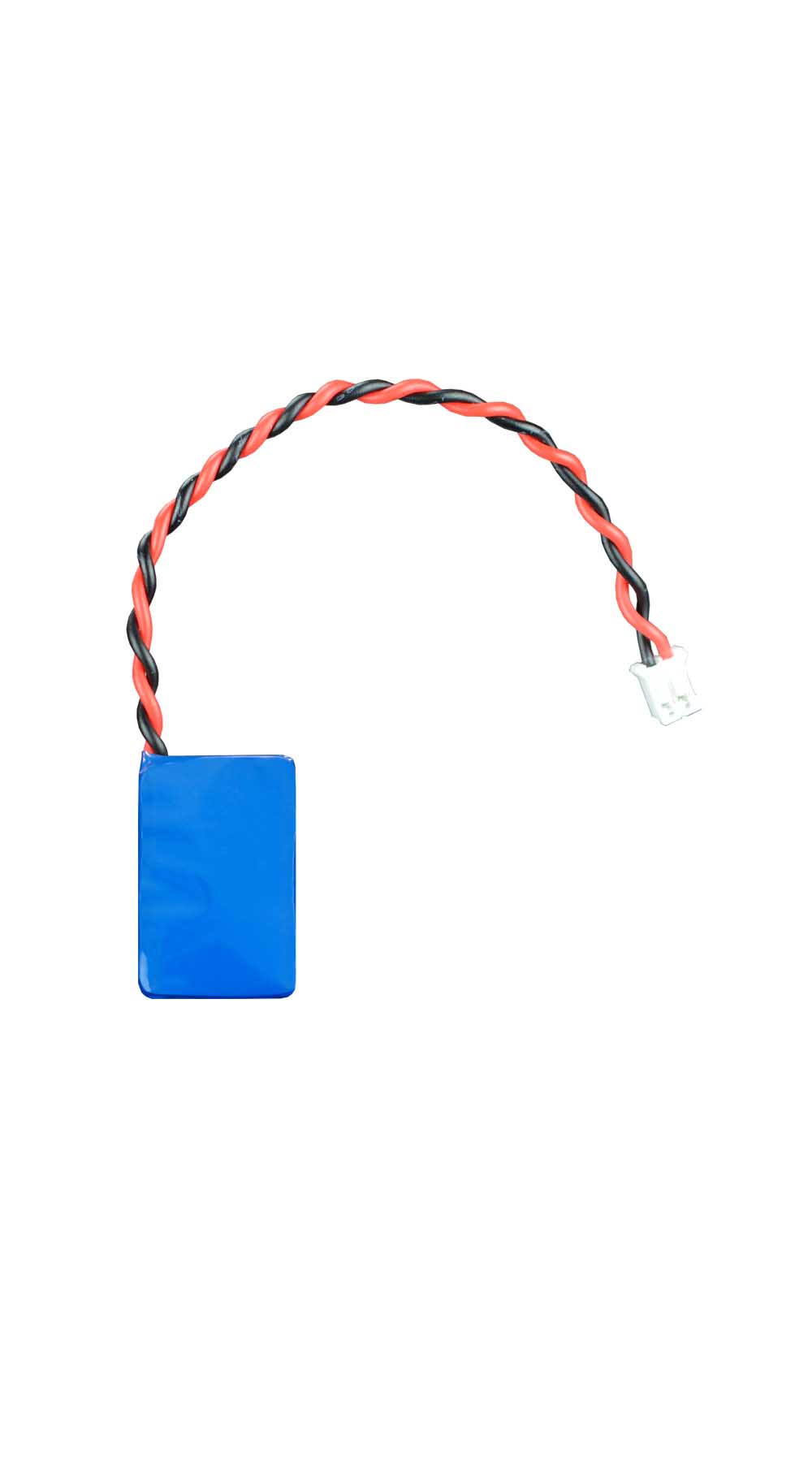

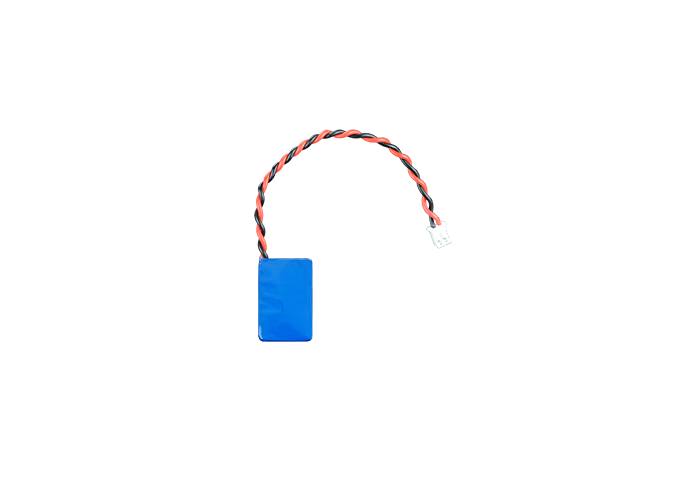

DK-BL1

Battery for hidden cameras

300 mAh battery

For DK-CS. 37x20x5 mm.

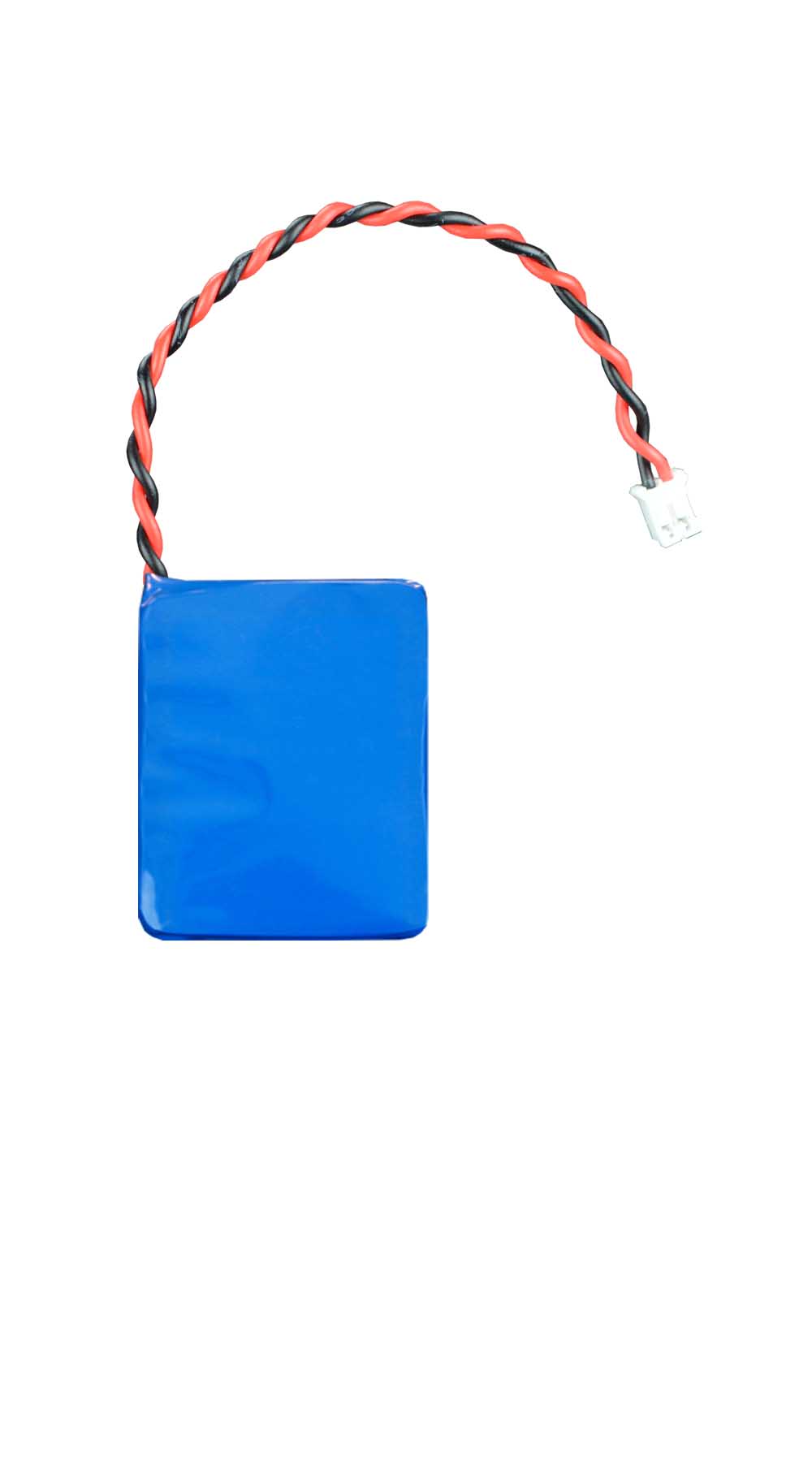

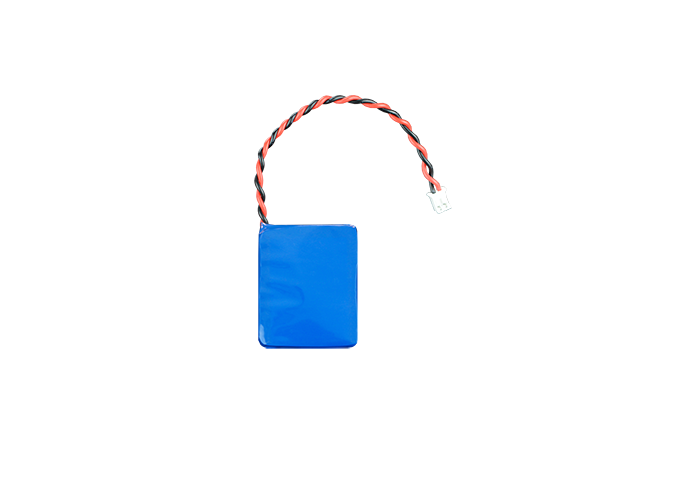

DK-BL1H

Battery for hidden cameras

1200 mAh battery

For DK-CS. 39x45x5 mm.

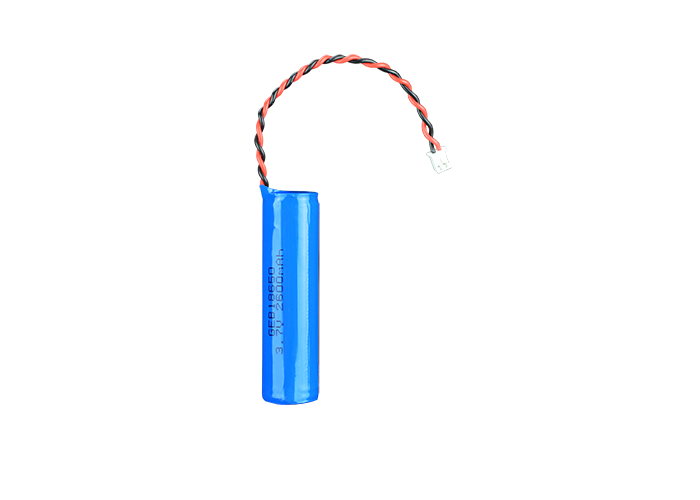

DK-BL2

Battery for hidden cameras

2600 mAh battery

For DK-CS. 18x70X18 mm.

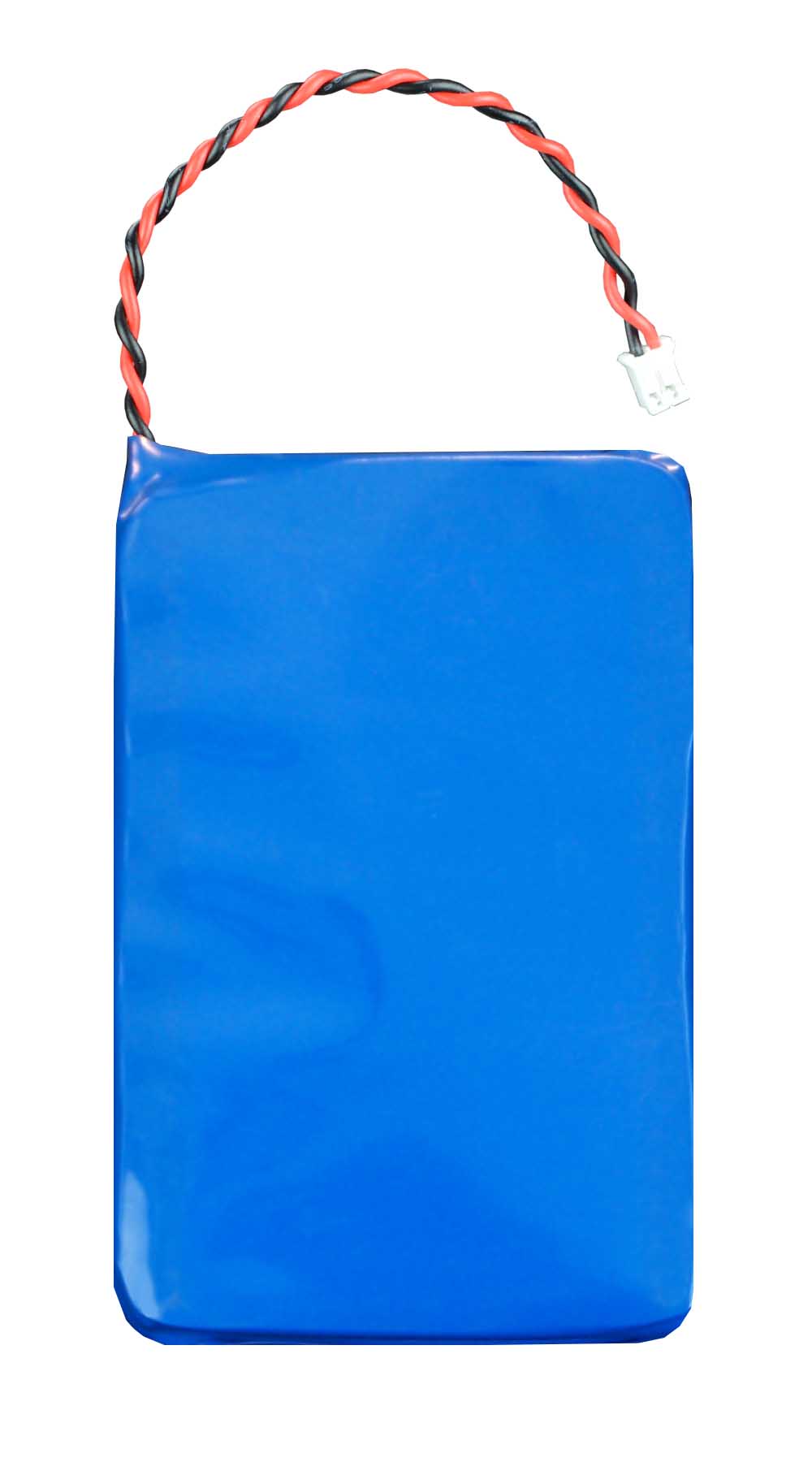

DK-BL3F

Battery for hidden cameras

4200 mAh battery

For DK-CS. 60x95x5 mm.

DK-BL3

Battery for hidden cameras

5200 mAh battery

For DK-CS. 36x70x18 mm.

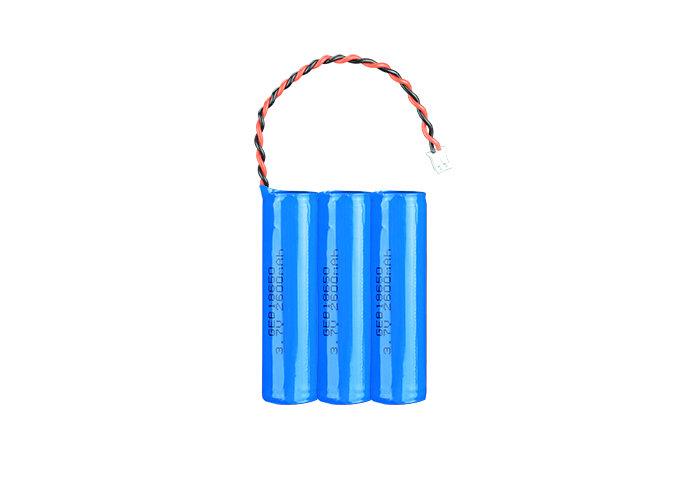

DK-BL4

Batteria per Telecamera nascosta

7800 mAh battery

For DK-CS. 54x70x18 mm.

ACCESSORIES

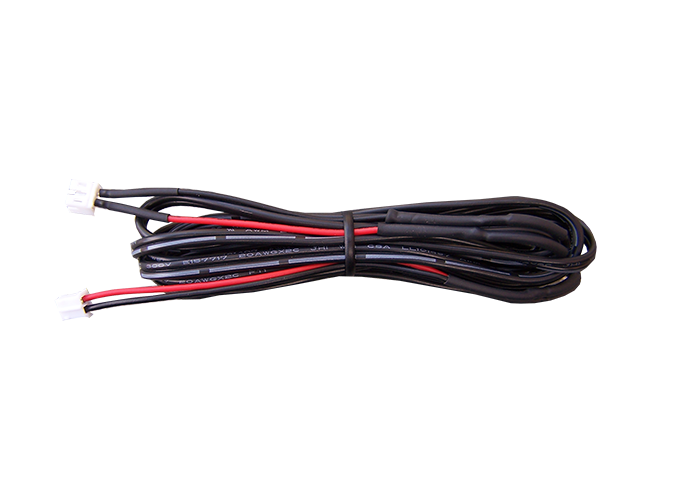

DK-BLP1

pinhole battery cable for hidden camera

Battery extension cable

1 m extension cable to place the battery away from the camera

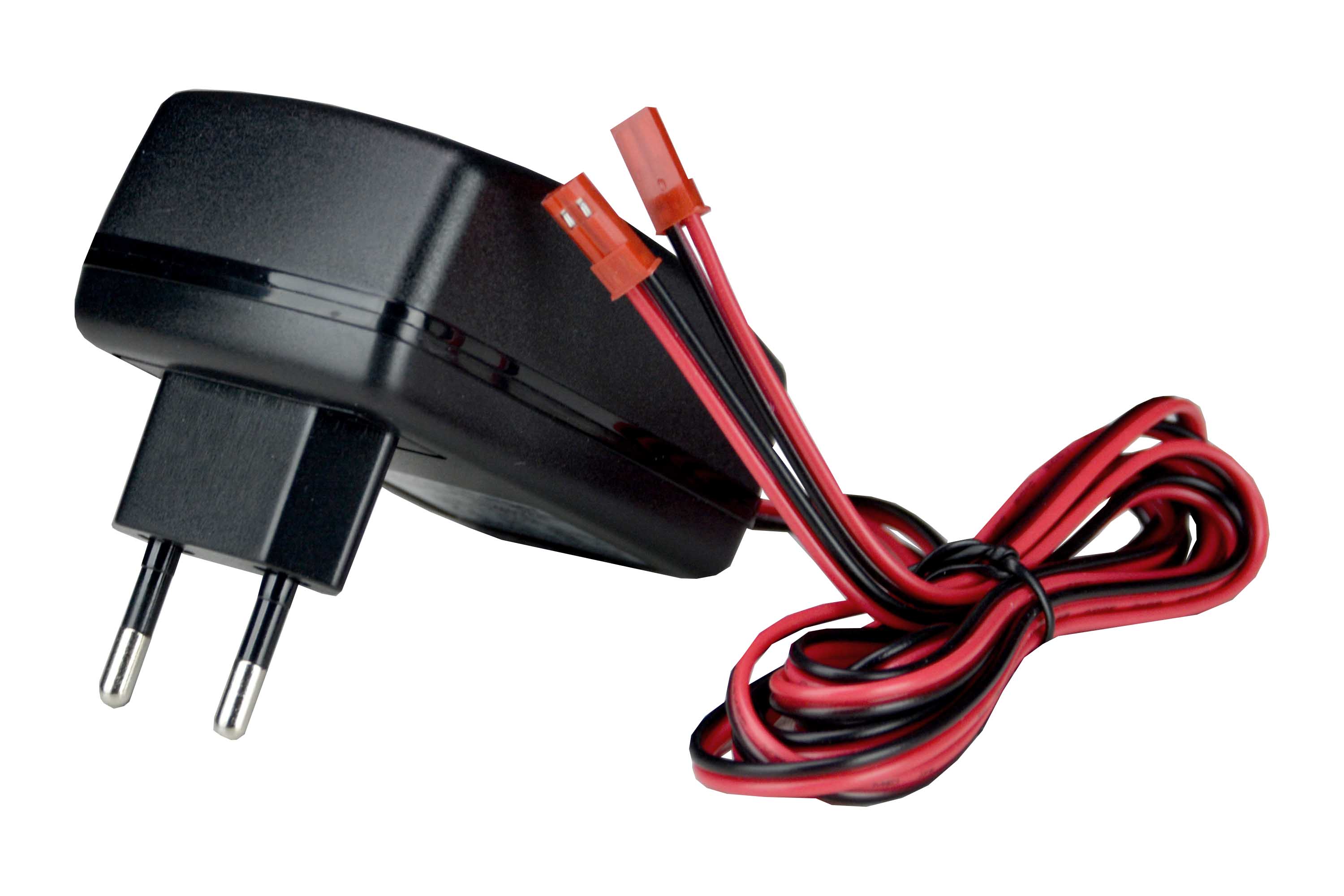

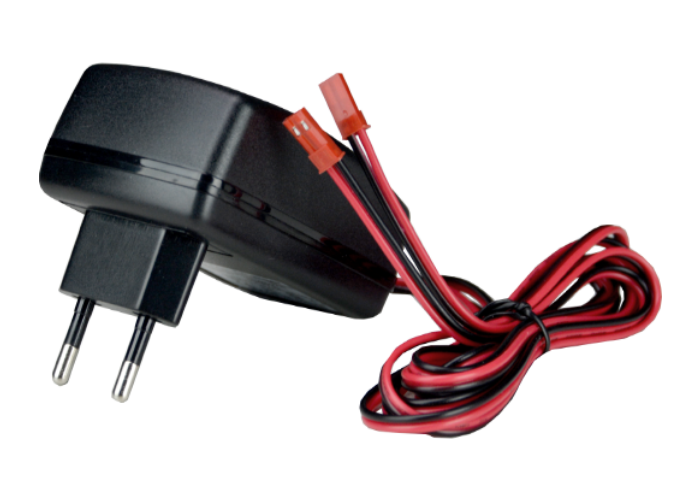

DK-BCL2

	Charger for hidden cameras

Charger

220V battery charger to recharge 2 batteries disconnected from the camera

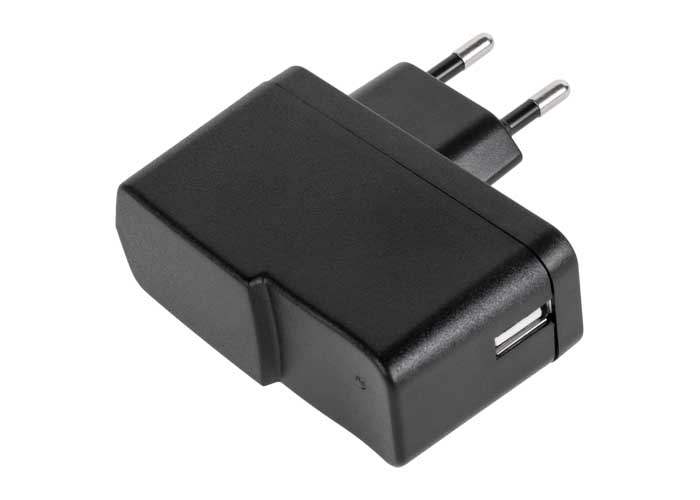

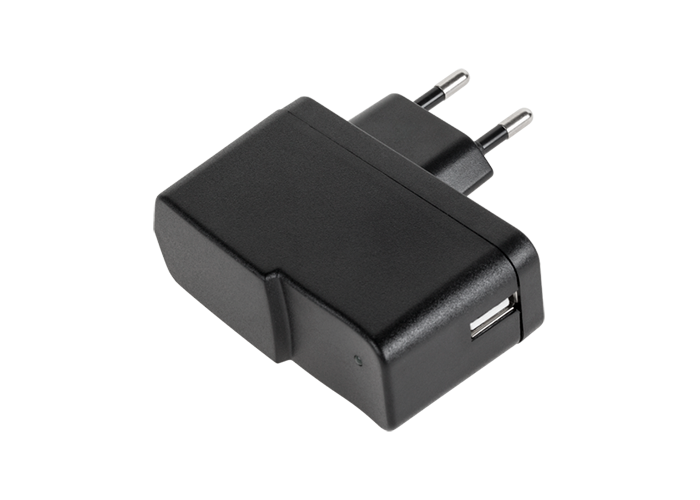

RE-AL4USB

USB adapter for hidden cameras

Power adapter

220V to USB adapter, to connect cameras to mains power

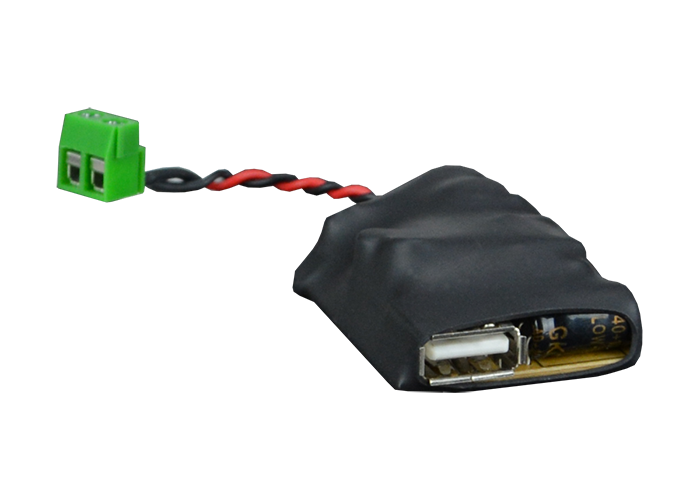

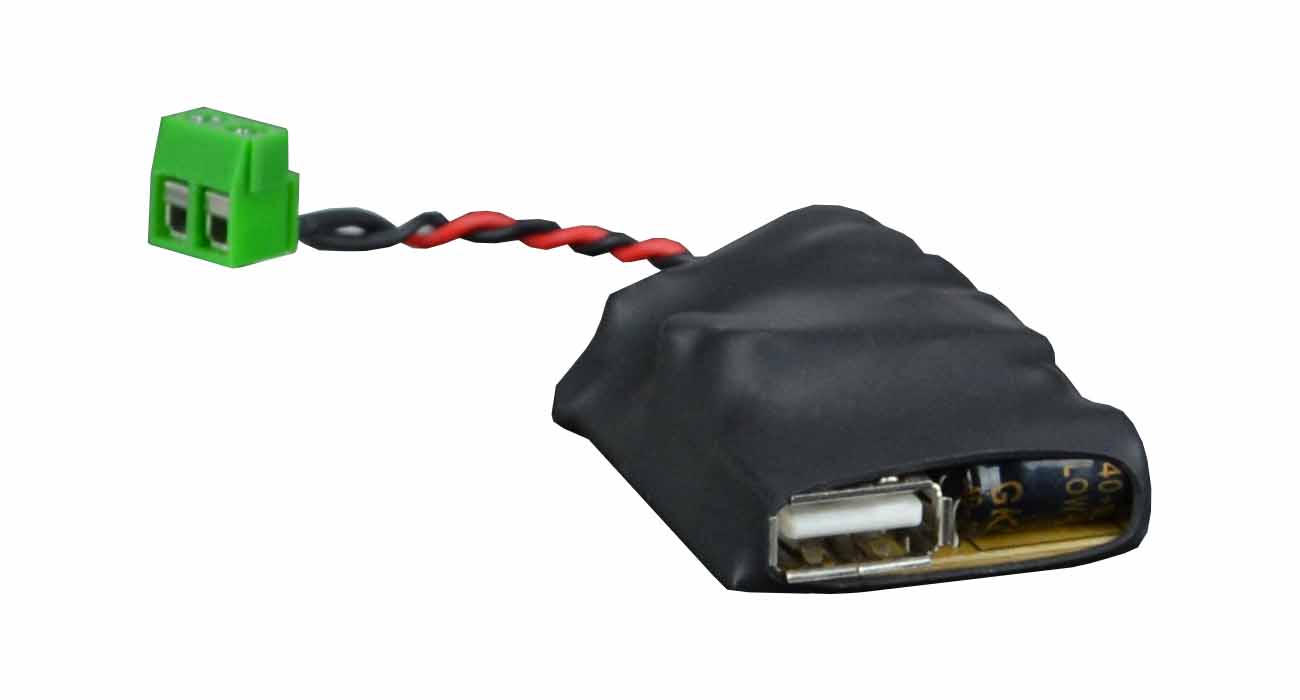

RE-AL6USB

USB adapter for hidden cameras

Hideable power adapter

220V to USB adapter, to connect cameras to mains power

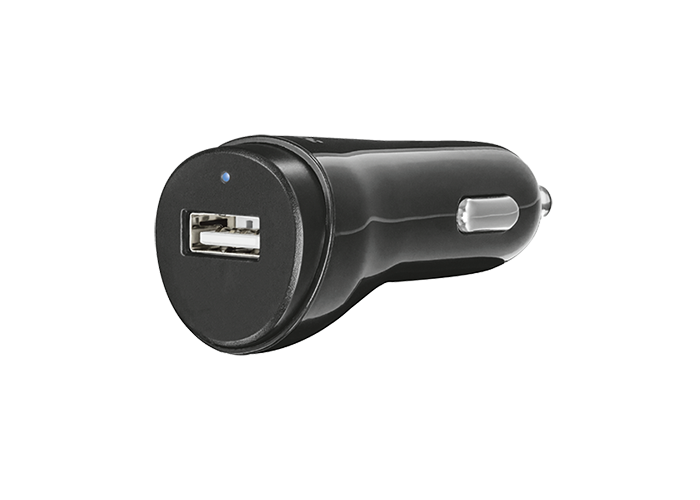

RE-CB3

USB adapter for hidden cameras

Car power adapter

Car lighter USB adapter, to power up the cameras on vehicles

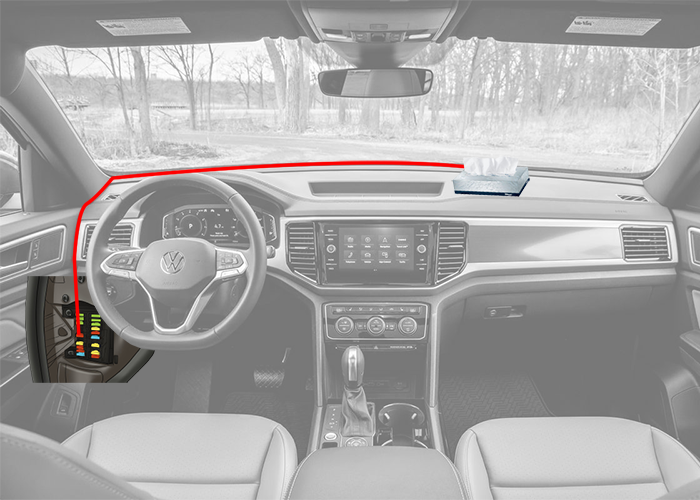

DK-VMICRO

USB Kit for car fuse box

Vehicle fuse box kit

Kit to connect the camera to a vehicle fuse box. Including voltage drop unit to protect the vehicle battery.

DK-CSM

building kit for hidden cameras

Magnetic mounting kit

Magnetic kit for lens mounting. Make hiding the camera easier.

DK-CSOB---

Lens for hidden camera

Spare lenses

For DK-CS4--- cameras

DK----MSD

Micro SD card for hidden cameras

Micro SD card

Memory cards suitable for DK---- cameras. Several capacity options.

THE INVESTIGATIVE CAMERAS


DIY hidden cameras

DK-CS cameras are ready-to-hide investigative cameras. You can hide them yourself in objects of all kinds to make totally invisible and unsuspected video surveillance systems. In our investigation range you will also find cameras already hidden in everyday objects, ready to use. These, however, are "Do It Yourself" hidden cameras . They require a little more work for camouflage, but they allow you to make a really invisible camera, using objects that are already present in the environment.

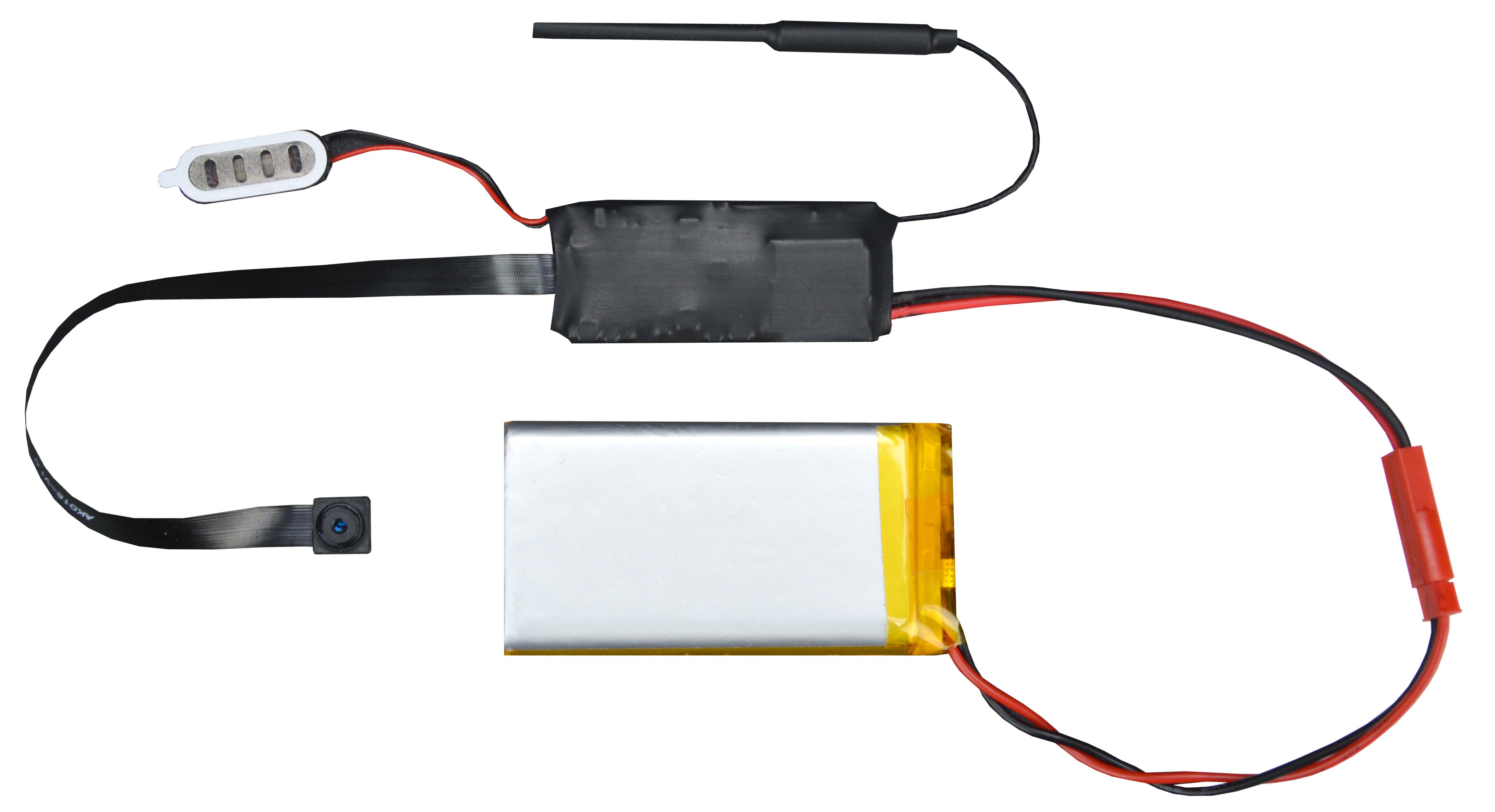

Micro camera and DVR in 20 grams

These DK-CS micro-cameras are really tiny, so they can be hidden in any type of object. The whole camera, with its lens, Sd card and battery, easily gets into a pack of cigarettes. Check the data tables at the bottom of the page to see how small this micro cameras can be. You can hide these cameras anywhere, even wear them among clothes.


From 2011, a success story



The first DK-CS camera we produced was called DK-CS1. It was launched in 2011 and literally created a new market segment from scratch: the DIY (Do It Yourself) spy cameras. DK-CS1 was a revolutionary camera, imitated by all our competitors, mostly Chinese. The lens was integrated into the motherboard and the PCB was covered by an insulating resin coat. The current DK-CS cameras are much more advanced than this first sample, but if you're interested in knowing more about this true milestone you can click here and watch on YouTube our video presentation from back then. It can help you understand where it all started.

VIDEO AND AUDIO

High resolution 2 megapixels video



Despite the small size, these spy cameras provide 2 MP @ 25 f/s video resolution, like our standard security cameras. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV. Below you can watch a few demo clips recorded with our spy cameras.

WATCH DEMO VIDEOS

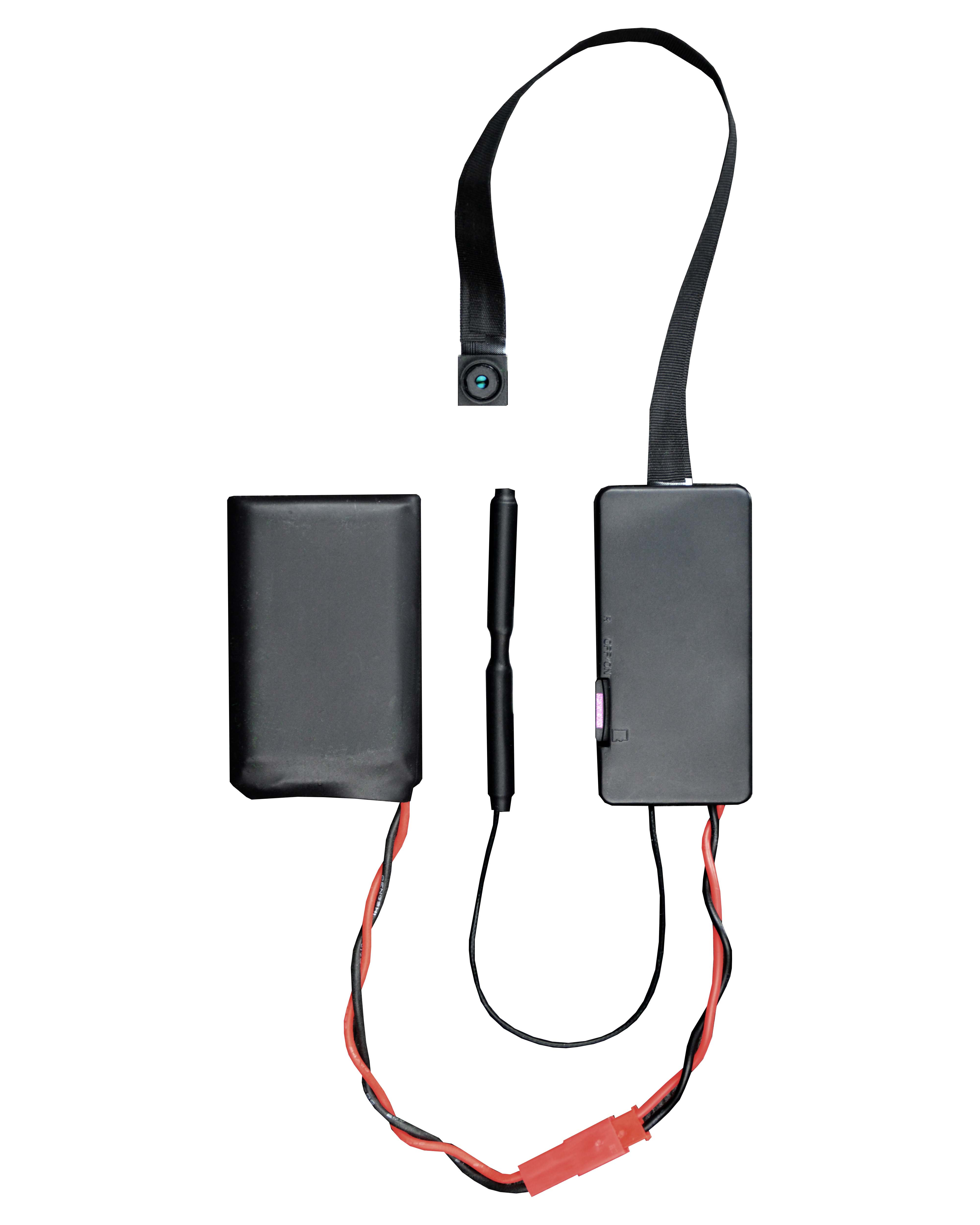

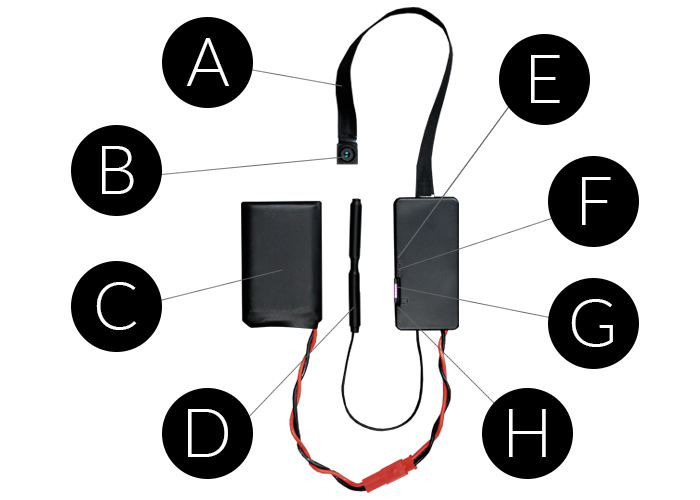

Several hardware options

These ready-to-hide cameras come with a full set of options for covert surveillance, like our best hidden cameras.

A Rechargeable lithium battery
B Micro SD card memory slot
C WiFi antenna
D Wide-angle mini pinhole lens
E 6 m. invisible infrared illuminator
F Microphone for audio
G Loudspeaker for 2 ways audio

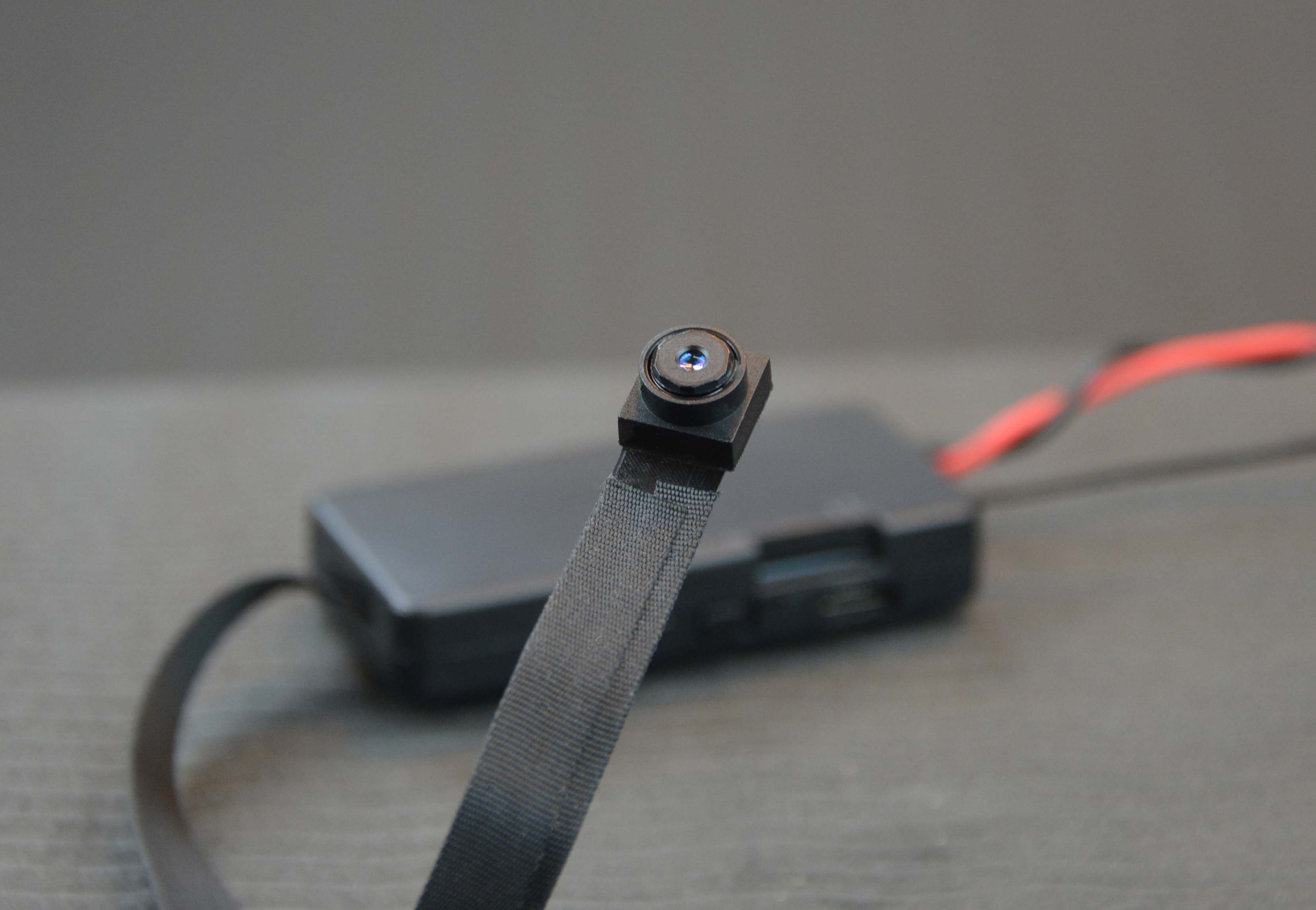

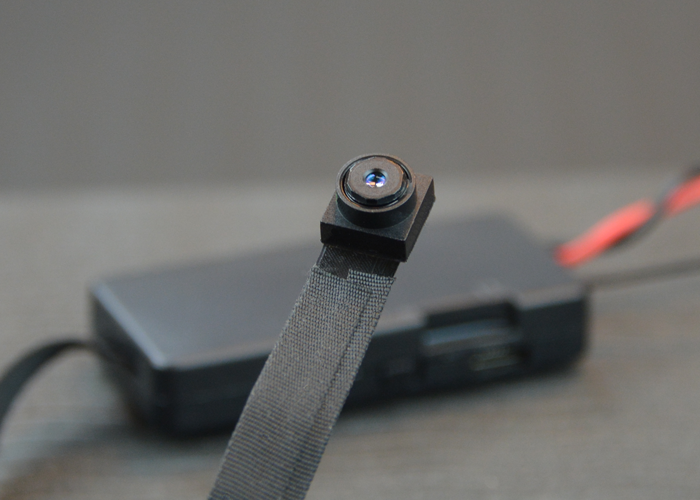

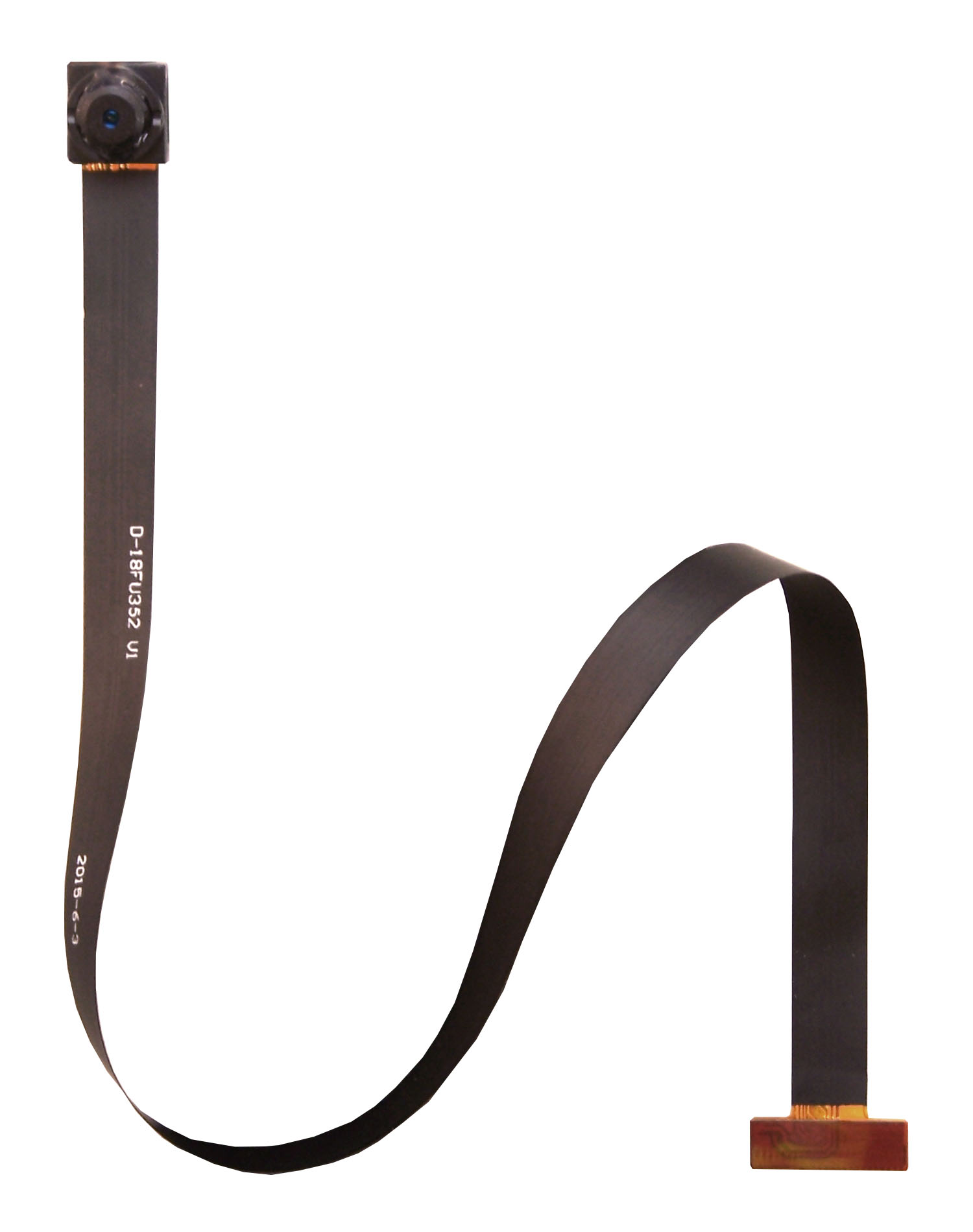

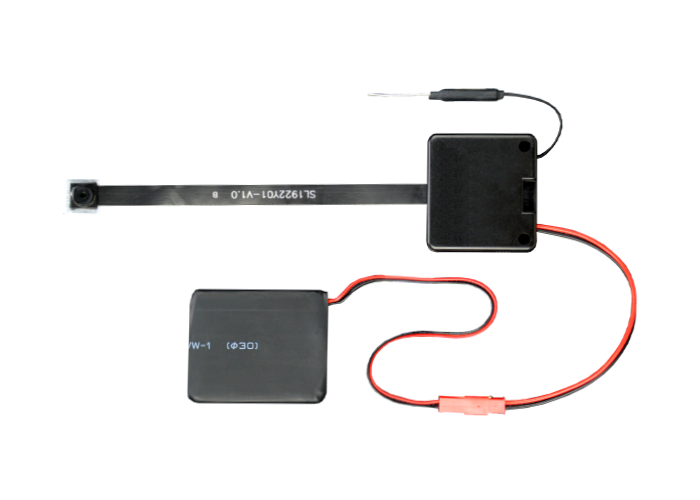

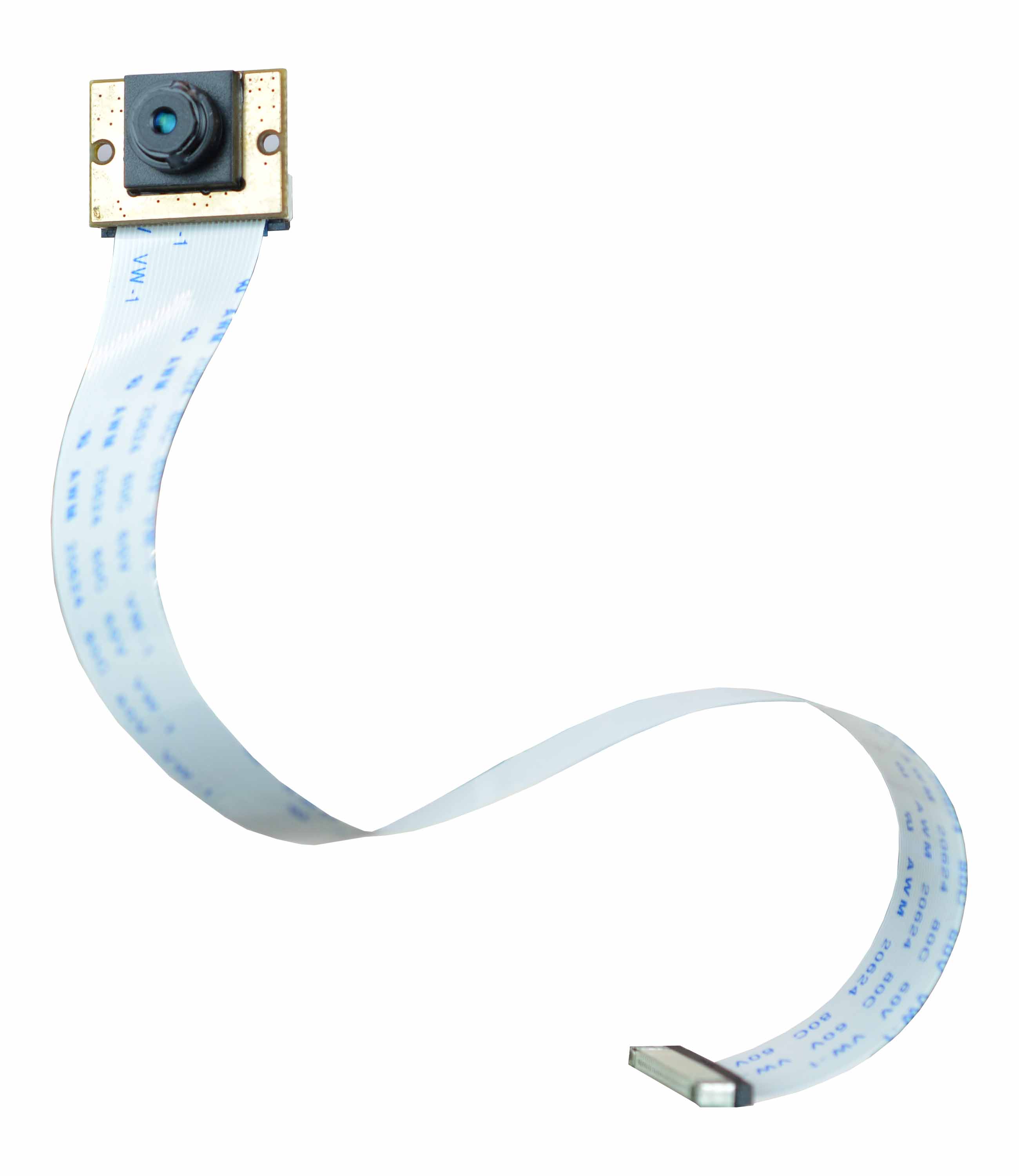

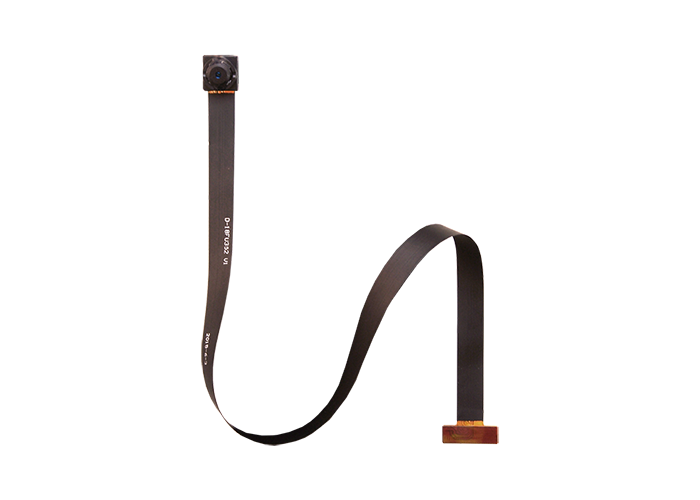

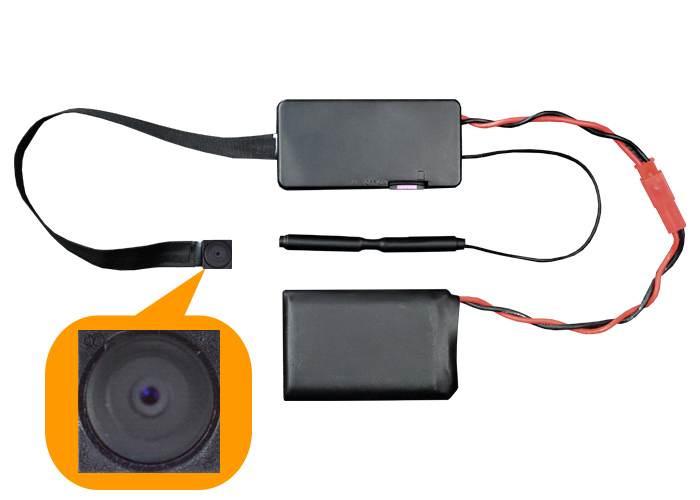

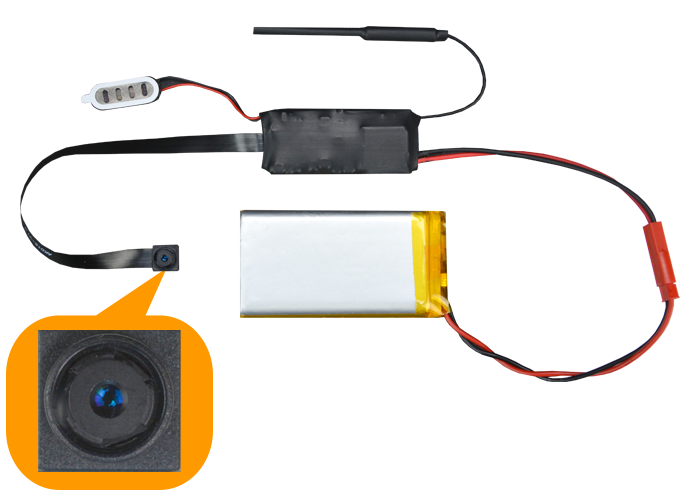

Pinhole lens on flat cable



All our mini-cameras with SD memory card come with wide-angle lens providing about 90° coverage. The lens is a pinhole flat lens that can record through a small hole of only 1 mm. To make mounting easier, especially inside small objects, the lens is not embedded in the motherboard, but mounted on a flexible flat cable of about 15 cm.


Microphone for audio

These cloaking mini-cameras also include audio. All cameras in this range come with a built-in microphone able to cover a medium-sized room. If the surface that hides the camera is not too thick you do not have to make a hole for audio. The audio is recorded together with the video and is also available during live view, in WiFi cameras.

VIDEO RECORDING

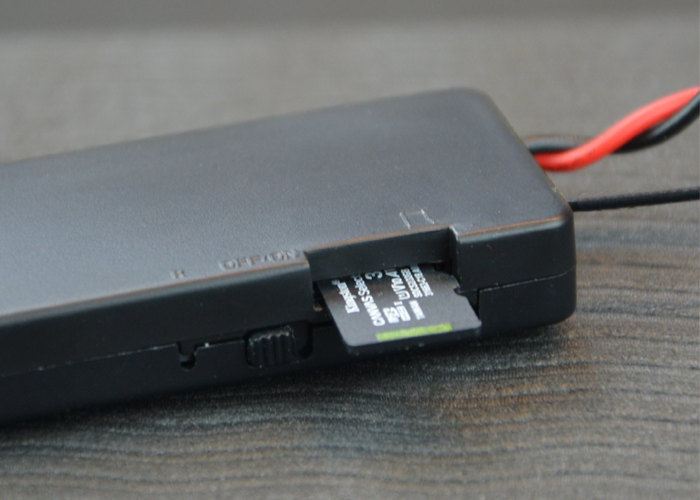

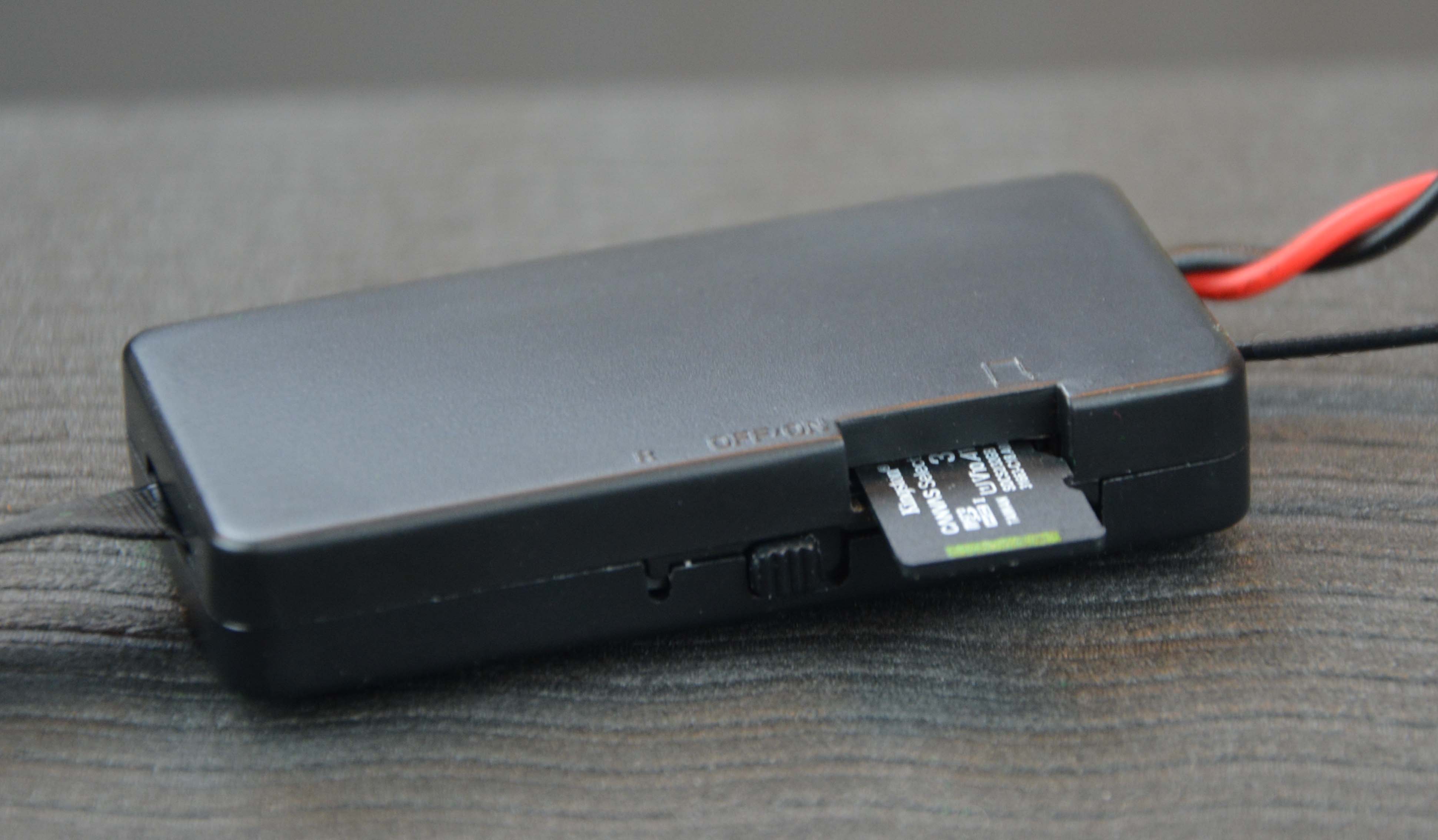

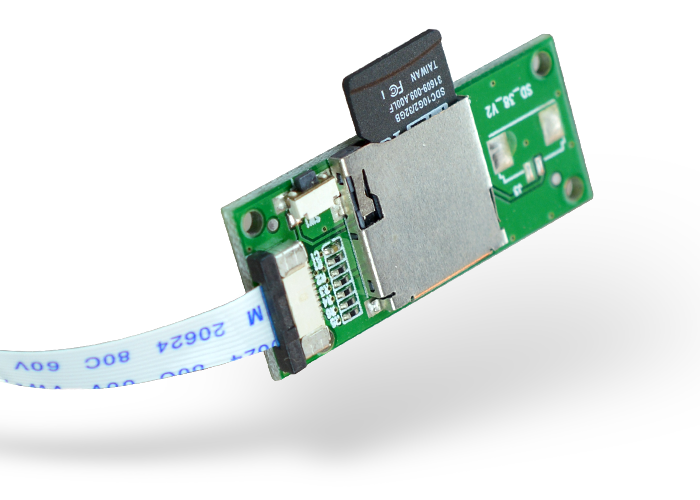

Video storage on SD card



All spy cameras in this range record videos on removable Micro SD cards. Please note that micro SD card is not included. To use these cameras, you must purchase a separate SD card in Class 10 or higher of the maximum capacity that your camera is supporting. The maximum storage capacity and SD size depend on the model. Please note that the Tuya wifi camera records crypted video files so the SD card content cannot be browsed by computer.

DK-CS4-TUY DK-CS4-DVR
SD max. 128GB 32GB
max. archive 300 hours 40 hours

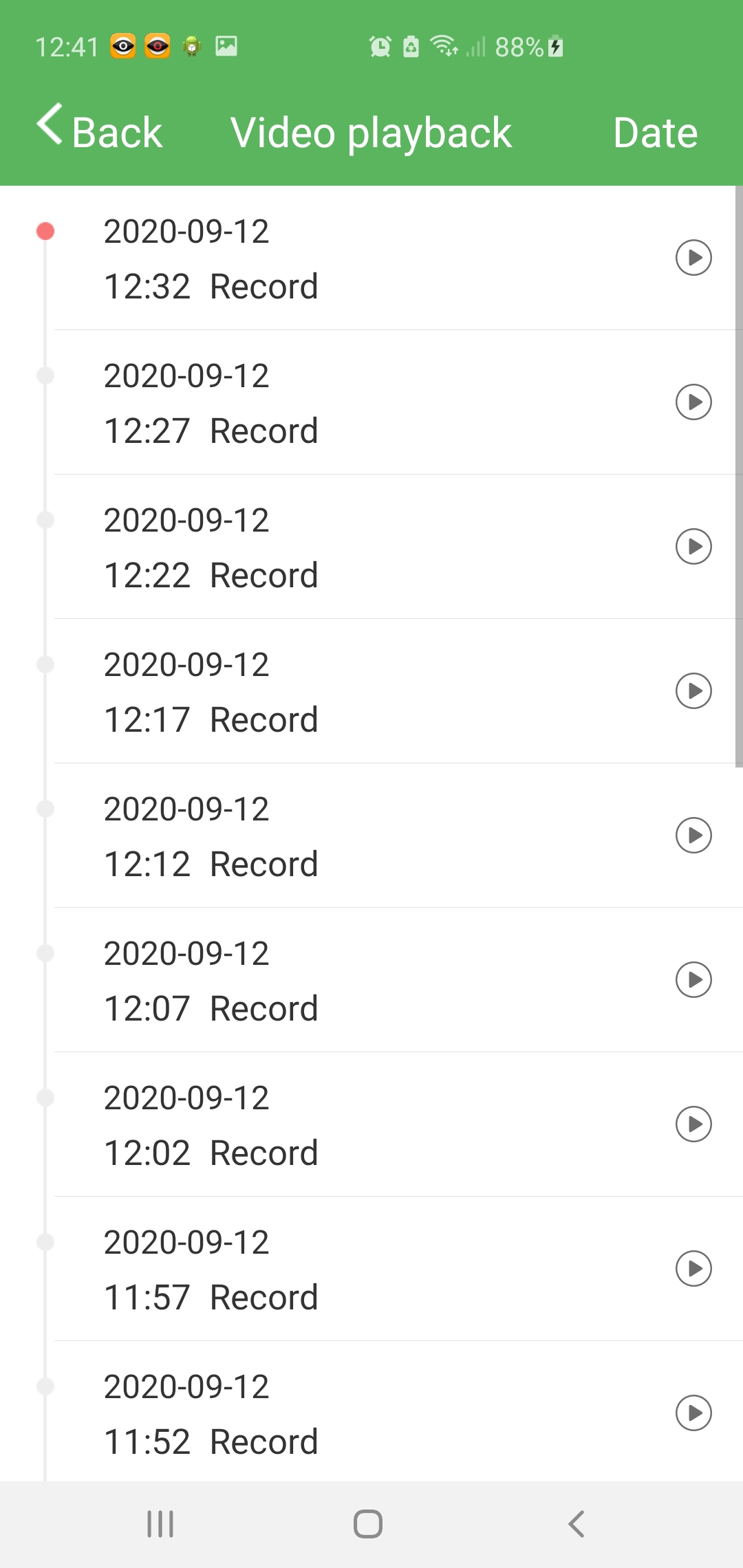

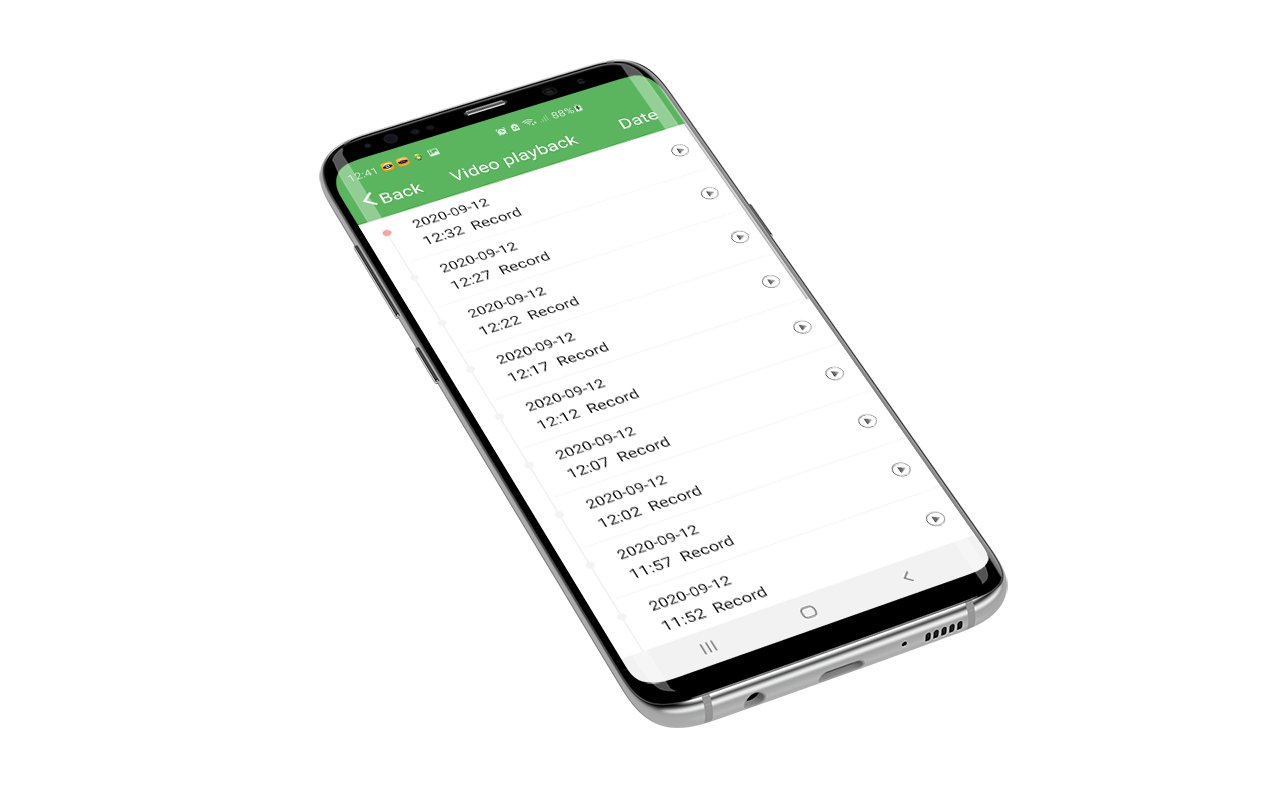

Playback and download video footage

To watch the video files that are stored on the SD card, you must remove the card and plug it into a Personal Computer. If your PC does not have any SD card reader, you can use the USB reader included. You can play the movies with common free players, like VLC. Cameras with Wi-Fi, based on Tuya app, saves crypted video files that can only be played via app or browser.


Motion detection

All cameras in this range can record continuously. In CONTINUOUS recording mode, the camera si recording 24/7. Once the memory is full, the camera goes on recording, and the oldest files are overwritten. The MOTION DETECTION mode allows recording only if movements occur in front of the lens. It is a very convenient function to avoid wasting precious memory space by recording non significant scenes. Cameras with built-in wifi can even perform schedule recording, with programmable time frames. NOTE: Motion recording helps you to save memory space, but does not extend the battery life.

POWER SUPPLY


The rechargeable lithium batteries



All these spy cameras come with a rechargeable lithium battery (1500/2600 mAh according to model). The standard battery allows recording for several hours as shown in the table. Several optional batteries are available, with lower or higher power. Choose low power batteries if you need small size, or high power batteries if you need longer battery life. The battery is connected to the camera with a small plug connector for easy replacement.

BATTERY DK-CS4-TUY DK-CS4-DVR
DK-BL1 300 mAh 45 min. 1 hour
DK-BL1H 1200 mAh 3 hours 4 hours
DK-BL2 2600 mAh 7 hours 8,5 hours
DK-BL3F 4200 mAh 12 hours 14 hours
DK-BL3 5200 mAh 14 hours 17 hours
DK-BL4 7800 mAh 21 hours 25,5 hours

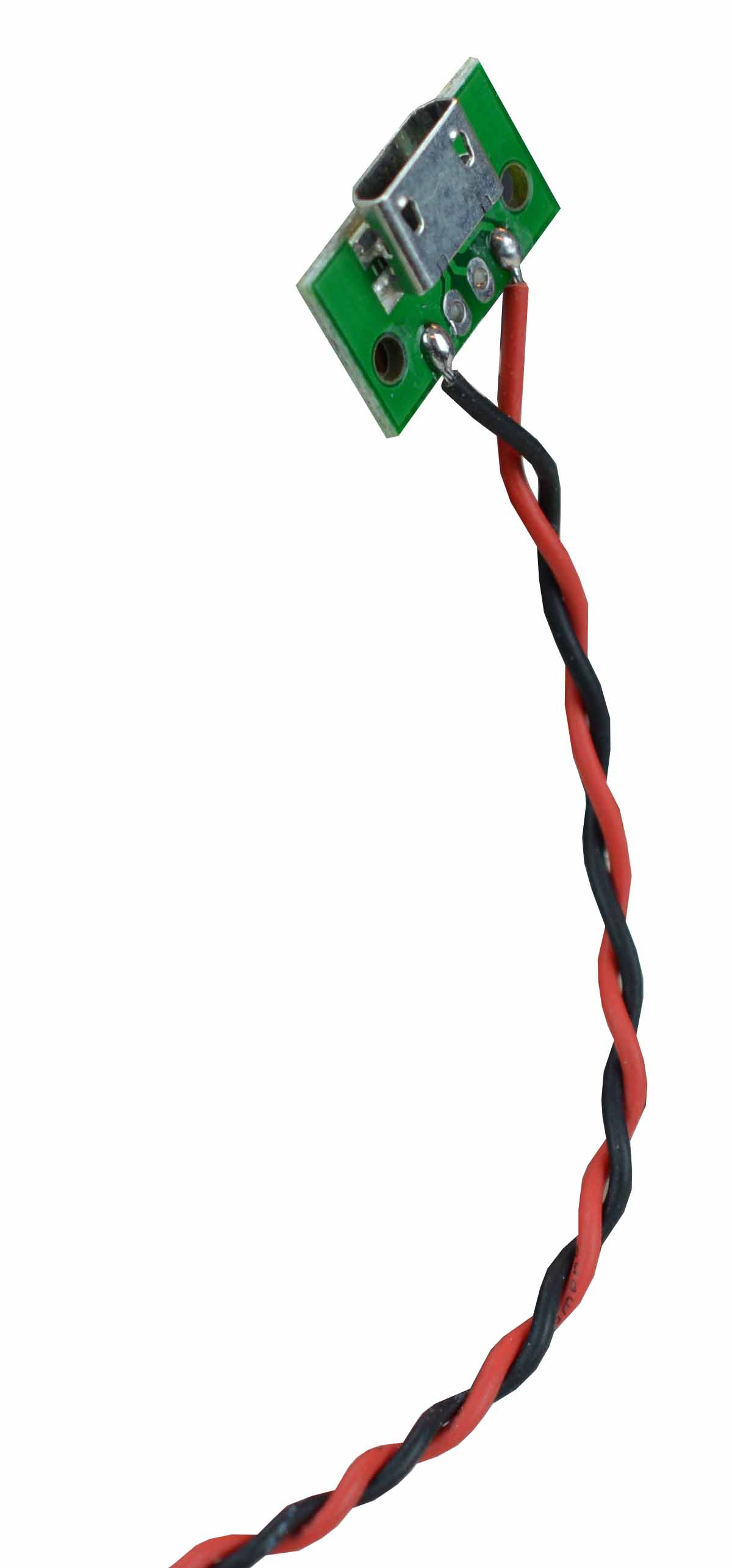

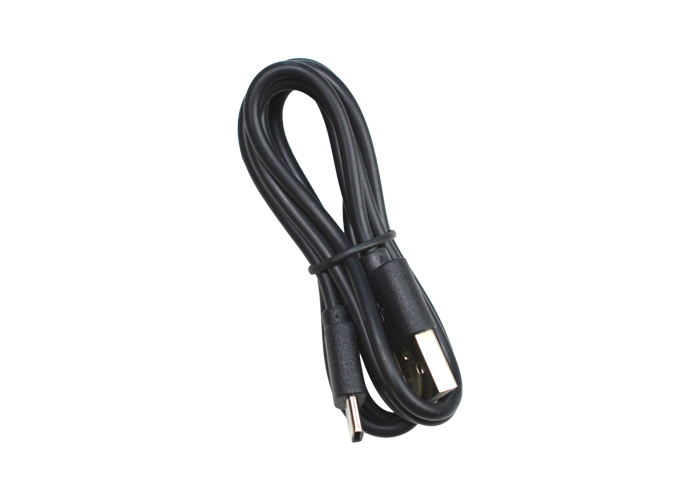

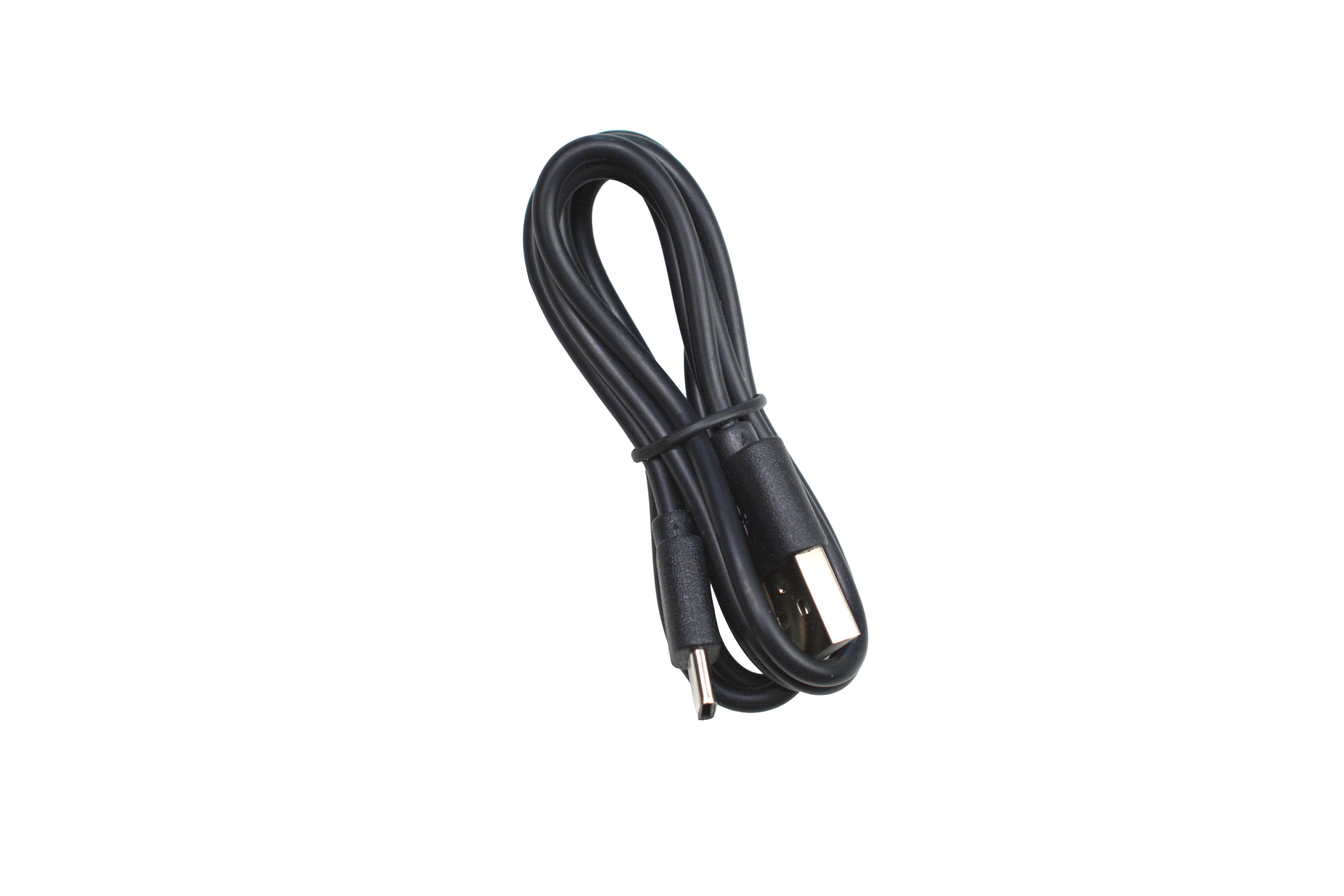

Recharging the battery via USB



The batteries for these cameras are rechargeable 3.7V Li-ion batteries. When the battery is low you can recharge it by connecting the USB port of the camera to the computer or to a USB charger. The USB cable is included in the package. Full battery charging takes a few hours depending on the battery power. If you want to record continuously, you should buy at least two batteries and the stand-alone battery charger (DK-BCL2) . With this charger you can recharge the batteries without the need of the camera.


Mains power recording

All these hideable minicameras can record even if the USB port is connected to a charger. If you buy a USB power adaptor and hide it with the camera you can record continuously, 24 hours a day, without any problems of battery life. Under mains power, you can both disconnect the battery, or leave it there, as a backup in the event of a power failure. In our price list you have several kind of USB adapters to choose from. A very interesting version is the cover mounting USB adapter that is ideal to hide with the camera.

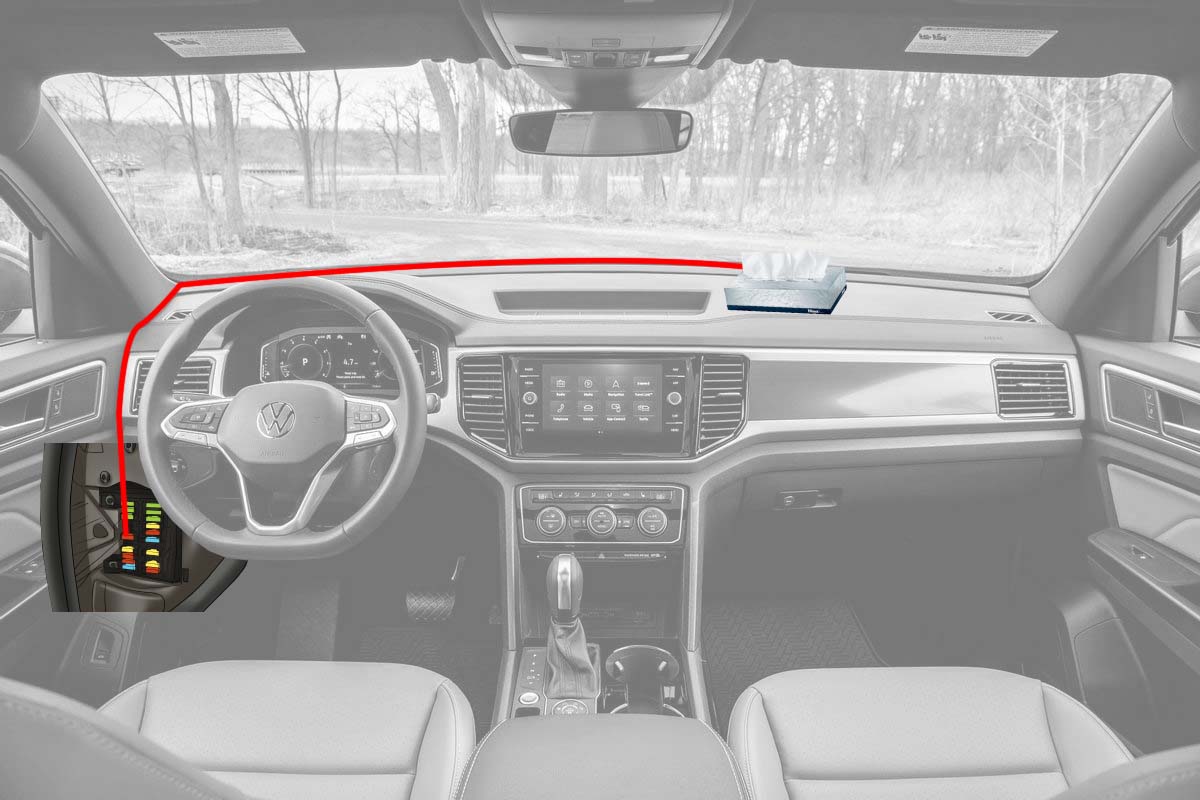

Using the camera on vehicles

These cameras are often used on cars, hidden in objects on board. You can use the camera with its own battery or connecting the camera to the vehicle battery, with the USB lighter adapter. If you want to record for a long time during parking, you can also connect the camera to the car's fuse box with our vehicle installation kit. The kit consists of a connection cable to be run under the vehicle seals, which includes the transformer and the voltage drop unit. The voltage drop box is a safety device that automatically disconnects the camera before the vehicle's battery runs out. The installation kit includes the splitters to connect to the fuse holders.

REMOTE CONTROL

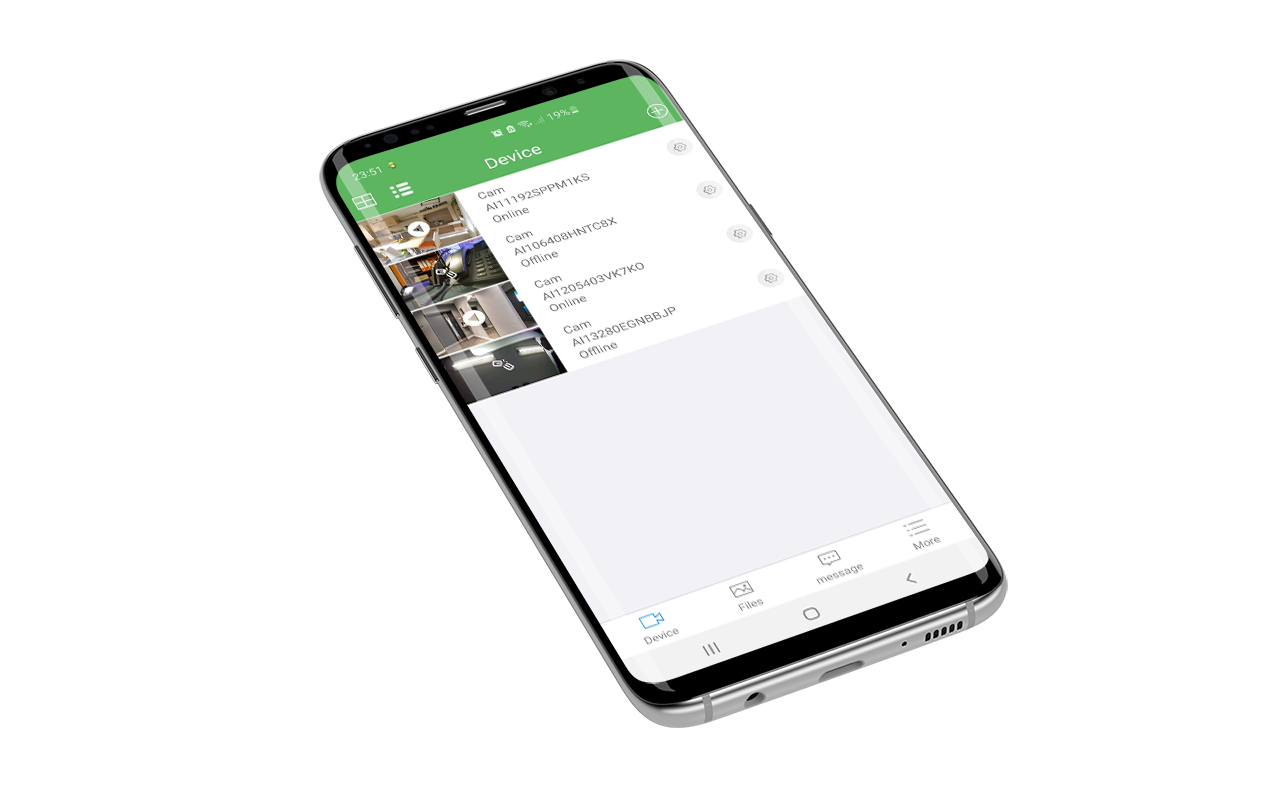

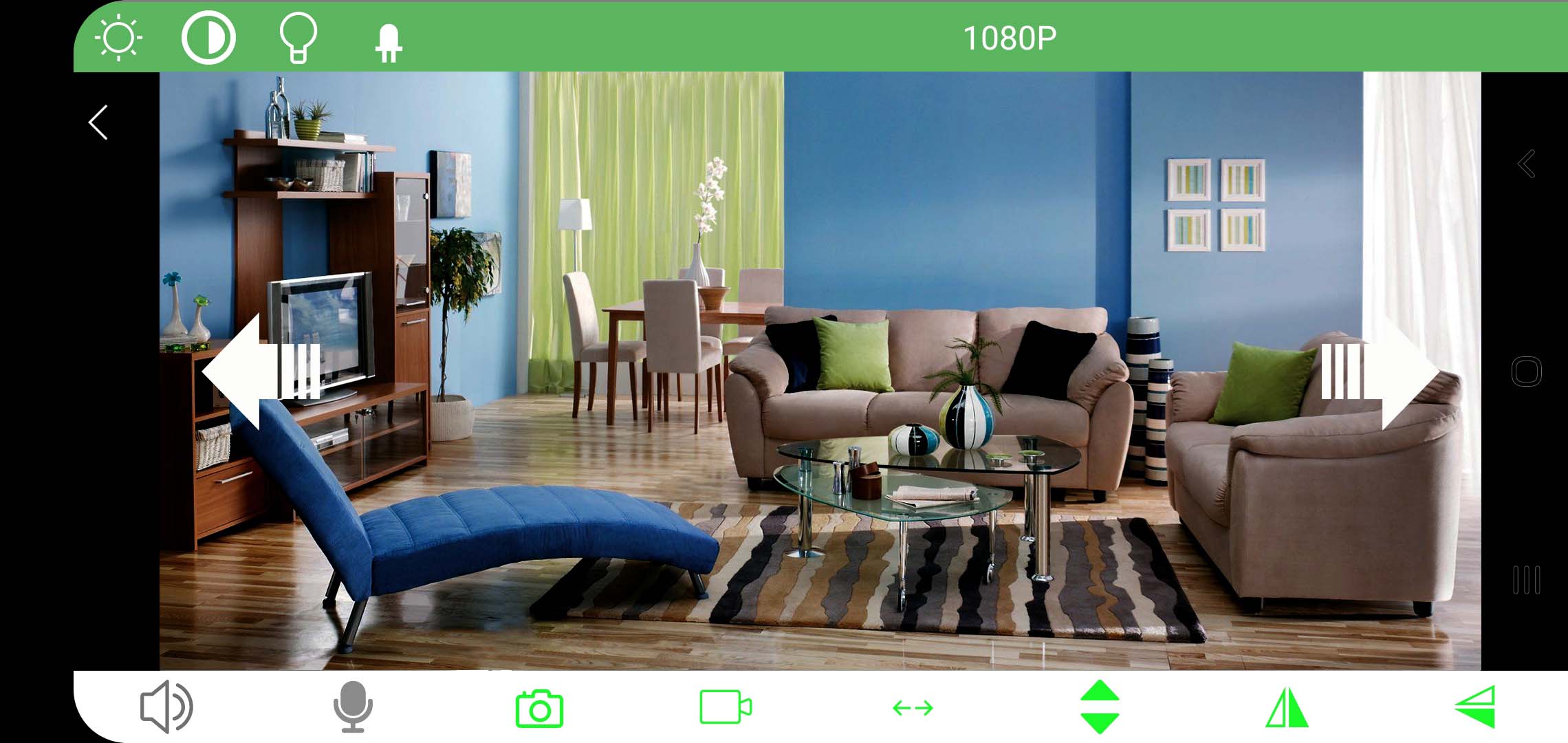

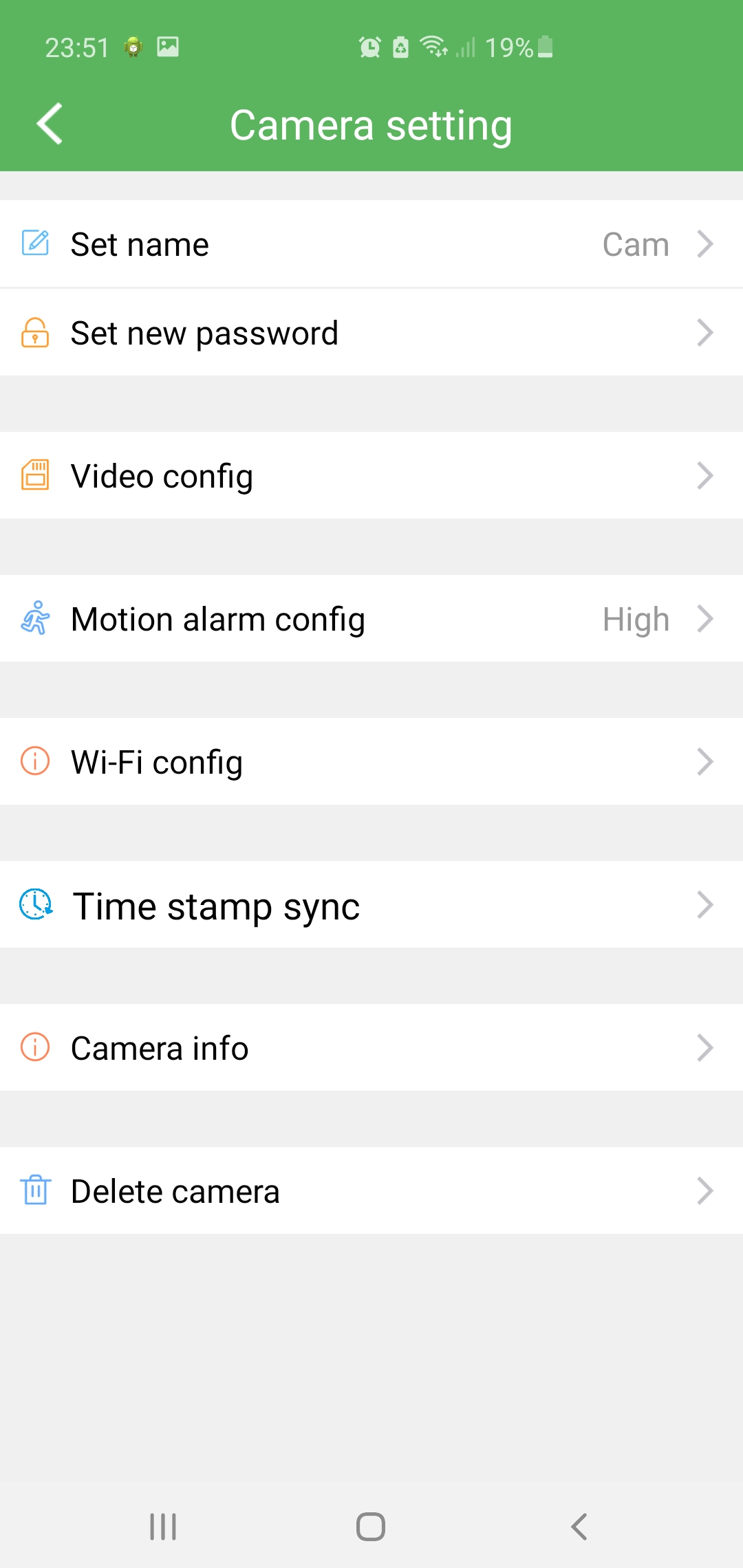

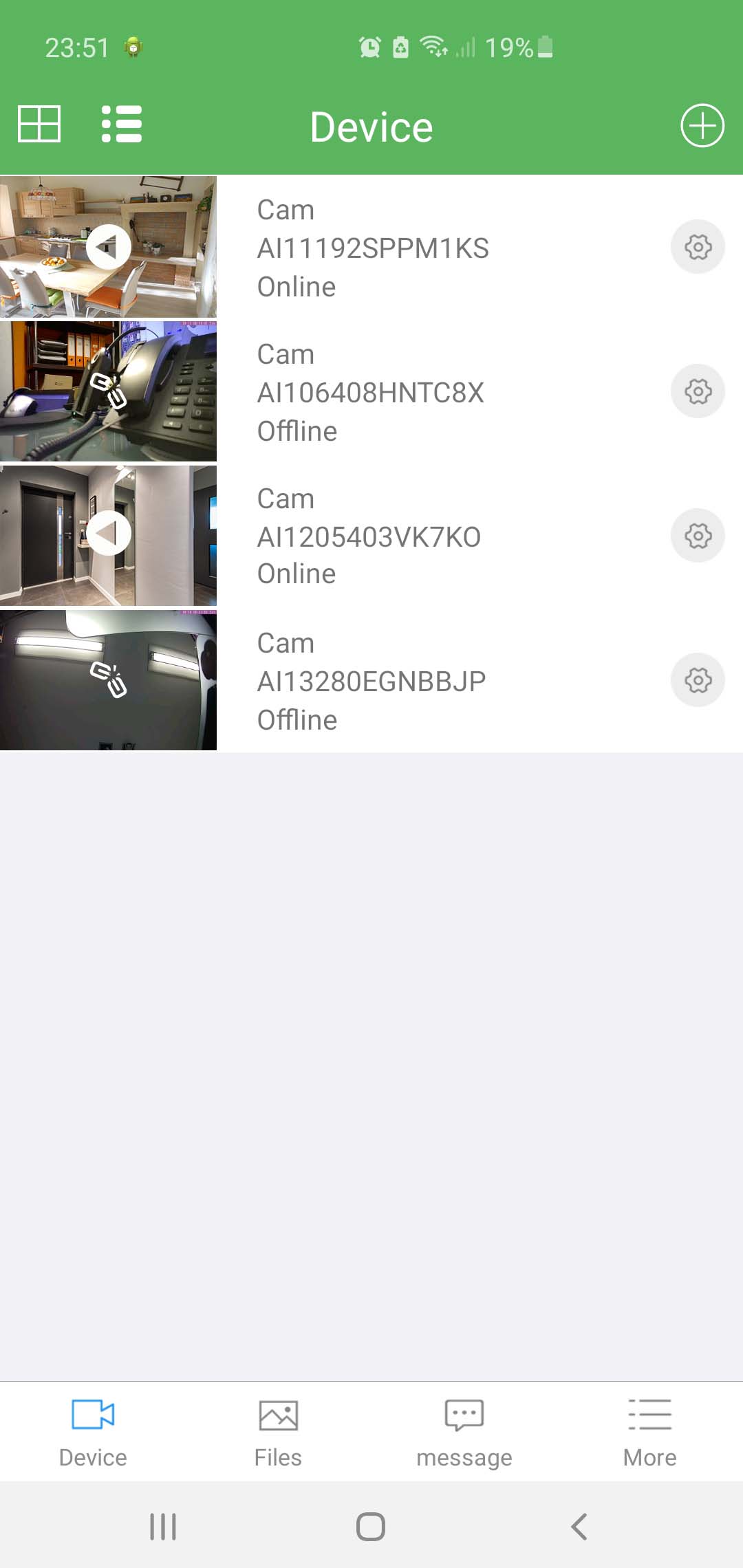

SmartLife, the Internet Of Things mobile app

Some camera in this range of hidden cameras are equipped with a Wi-Fi transmitter for Smartphone control. You can connect the camera to your home Wi-Fi network and control your spy camera over the Internet with the free P2P cloud server. These cameras support the powerfull Smartlife app by Tuya, the popular app for domotics that we also use for all our smarthome products. With the APP you can WATCH AND HEAR in real time. You can RECORD and take pictures. You can even PLAYBACK your footage. If you enable Motion Detection you can RECEIVE real time push notification on your mobile phone all the time that an intrusion occurs. This app is also supporting 2-ways audio

Free app for iOS or Android Real time live view Playback Listen-in 2-ways audio PTZ motor camera control Push notifications Cloud P2P Smartlife Smartlife Powered by Tuya

EASY TO INSTALL

Based on TUYA platform

All wifi cameras in this range are based on TUYA home automation platform and its IOT app Smart-Life which is very popular all over the world. With this system you can fully automate your home , simply by purchasing devices and connecting them to your WiFi in a matter of seconds. Supervise your properties with our 220V cameras or battery cameras; control your lights, pumps, irrigation with our remote controls or interact with people with our intercoms. Our Smart Home devices are wireless, easy to install and really inexpensive.

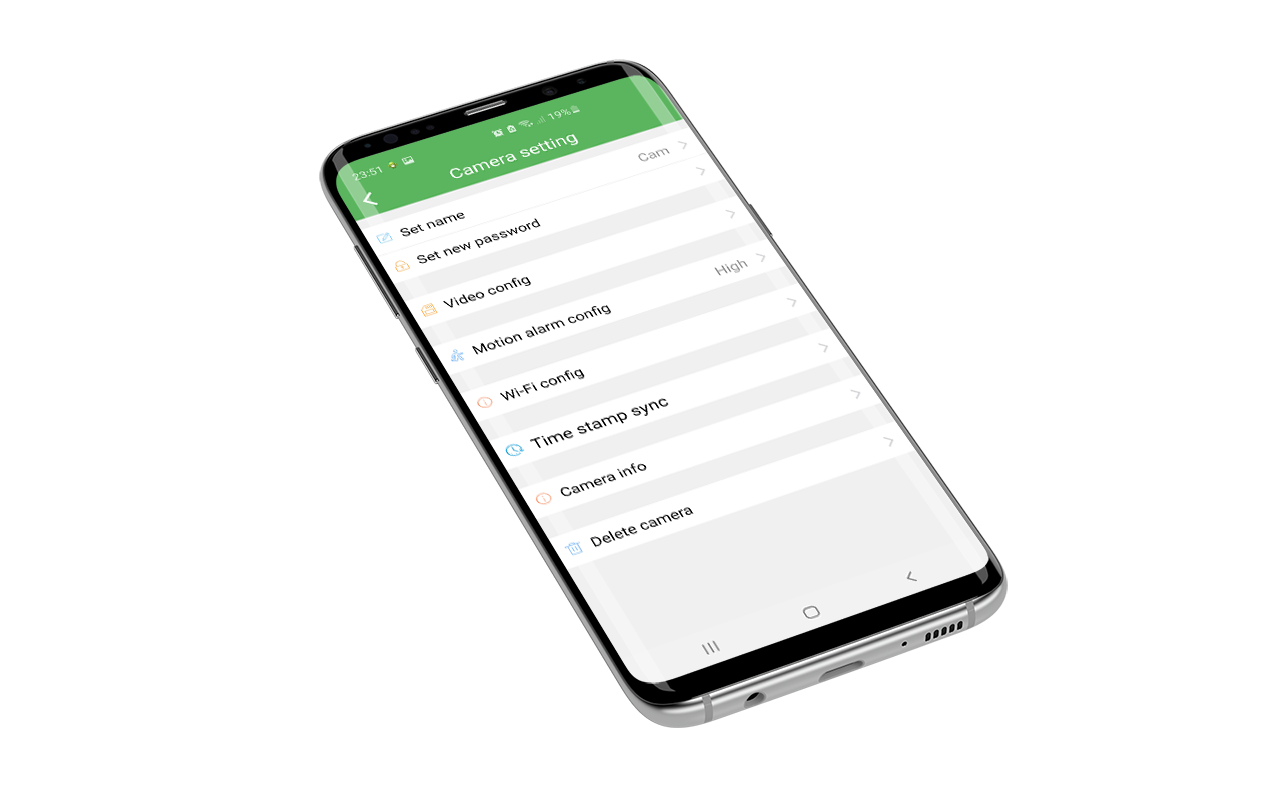

Connect to your WiFi without PC

Unlike our Onvif cameras for CCTV systems, these cameras are designed to be installed without the aid of a computer and without knowing anything about networks or IP. You just need a mobile phone to connect the cameras to your home wifi in a few minutes. Download the free Smart Life app on your smartphone and show the QR code that pop up on the screen in front of the camera. In just a few easy steps your camera is ready to work via the Internet. The P2P cloud server avoid difficult router settings and support any Internet connection, even 4G or satellite.

EASY TO USE

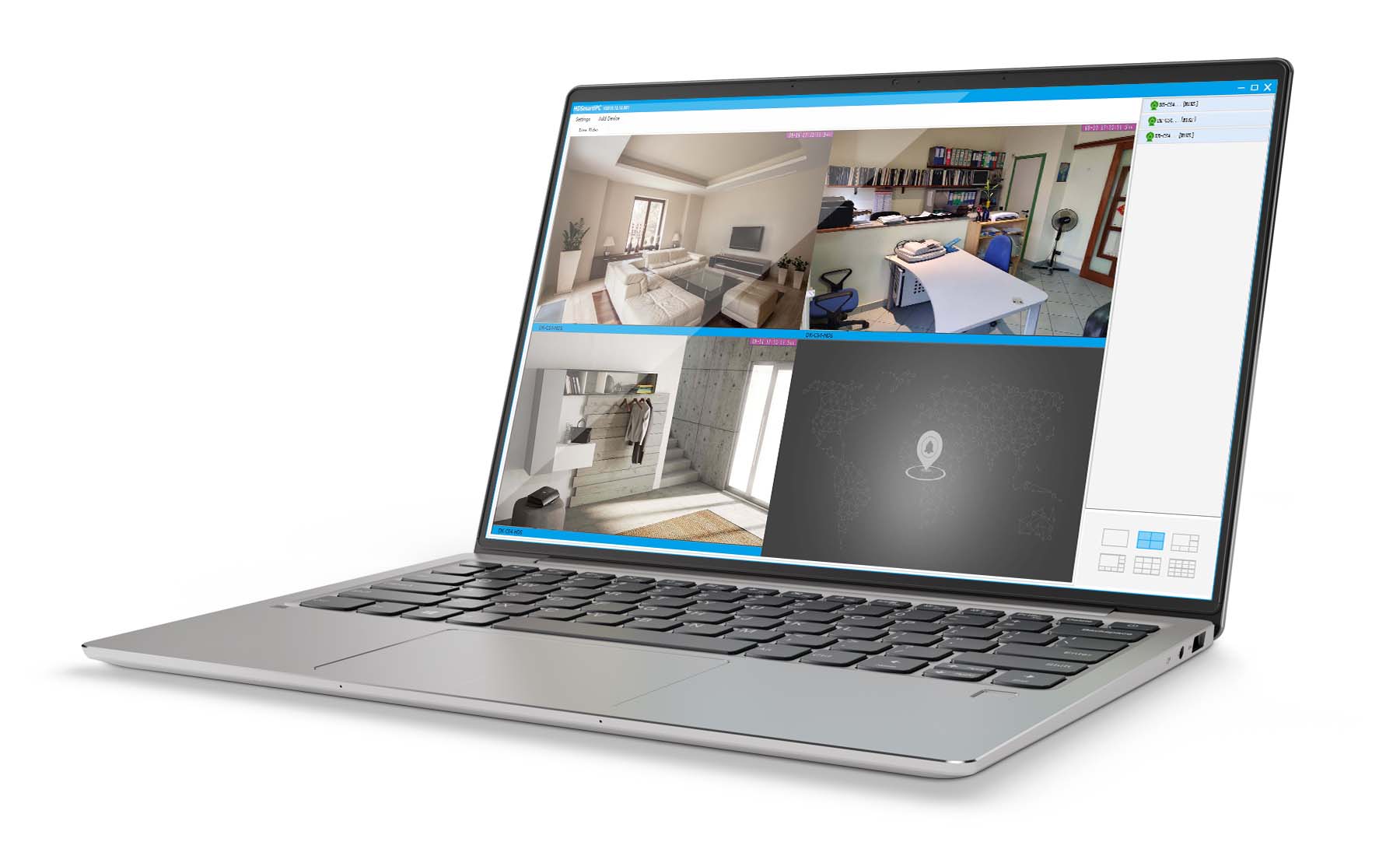

Monitor via Internet by PC

Although the wifi cameras in this range are mainly designed for control by smartphone or tablet, you can also monitor via computer. It can be useful to comfortably control your home while you are at work. No software is required to access from a computer, just use any browser and connect to protect-eu.ismartlife.me logging in with your smartphone. All browser are supported: Chrome, Firefox or even Safari for Mac.


Save videos on Cloud

These cameras can save recorded video in the event of an intrusion on a cloud server via the web. It's an interesting feature, if you are concerned that your cameras could be stolen by the intruders. You can playback the video recordings at any time, via app or computer. You can choose among several subscription options at a reasonable fee.

VOICE CONTROL

Compatible with Amazon Alexa and Google Assistant

Our Tuya based cameras are compatible with Amazon Alexa and Google Home / Google Assistant voice control platforms. Both platforms offer you different devices with monitors such as Amazon Echo Show or Google Nest Hub where you can watch your cameras with a simple voice command. Just download the SmartLife skill and in a few minutes you will be ready to call the name of your camera and watch it in the display. With our Smart Home cameras and Amazon Alexa or Google Assistant, you can install a WiFi monitor in every room of your home with just a few taps on your smartphone.

Compatible with Amazon Echo Alexa Compatible with Google assistant Google Home

TIPS


Make a perfect hidden camera



To make an effective hidden camera you first have to choose a suitable object that possibly has a small aperture, behind which you will set the lens. You can even make a small hole yourself with a 1-2 mm drill bit. We recommend you to choose an object with a thin cover (1 or 2 mm). Then you do not have to make a hole for the microphone and you avoid the edge of the hole falling into the field of view.

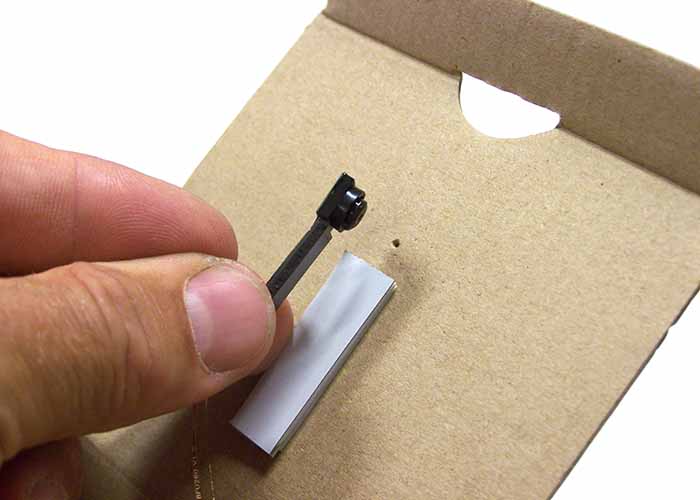

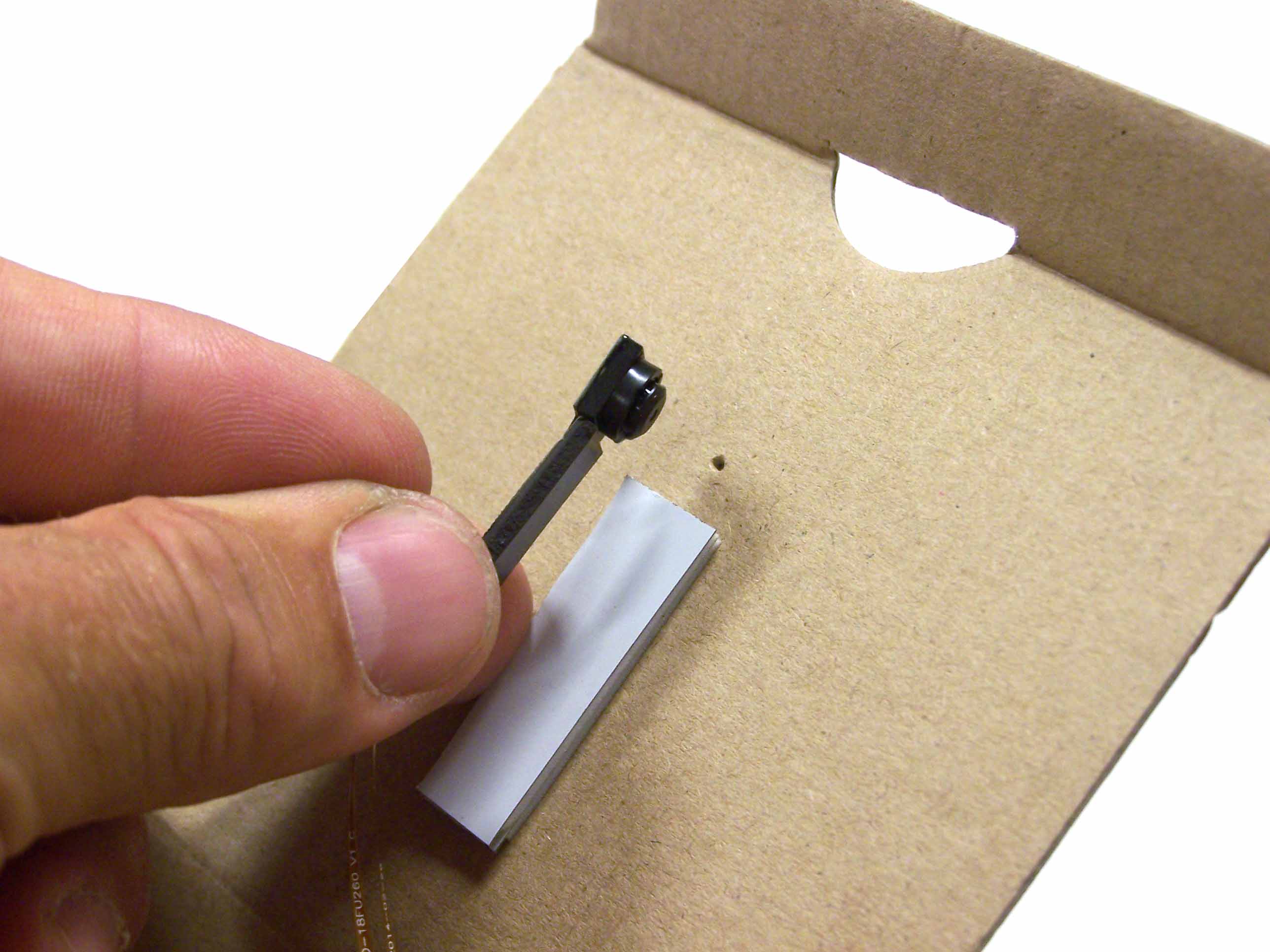

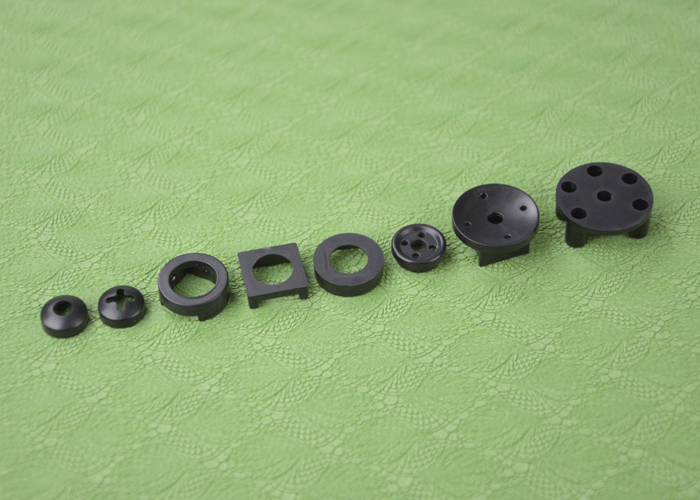

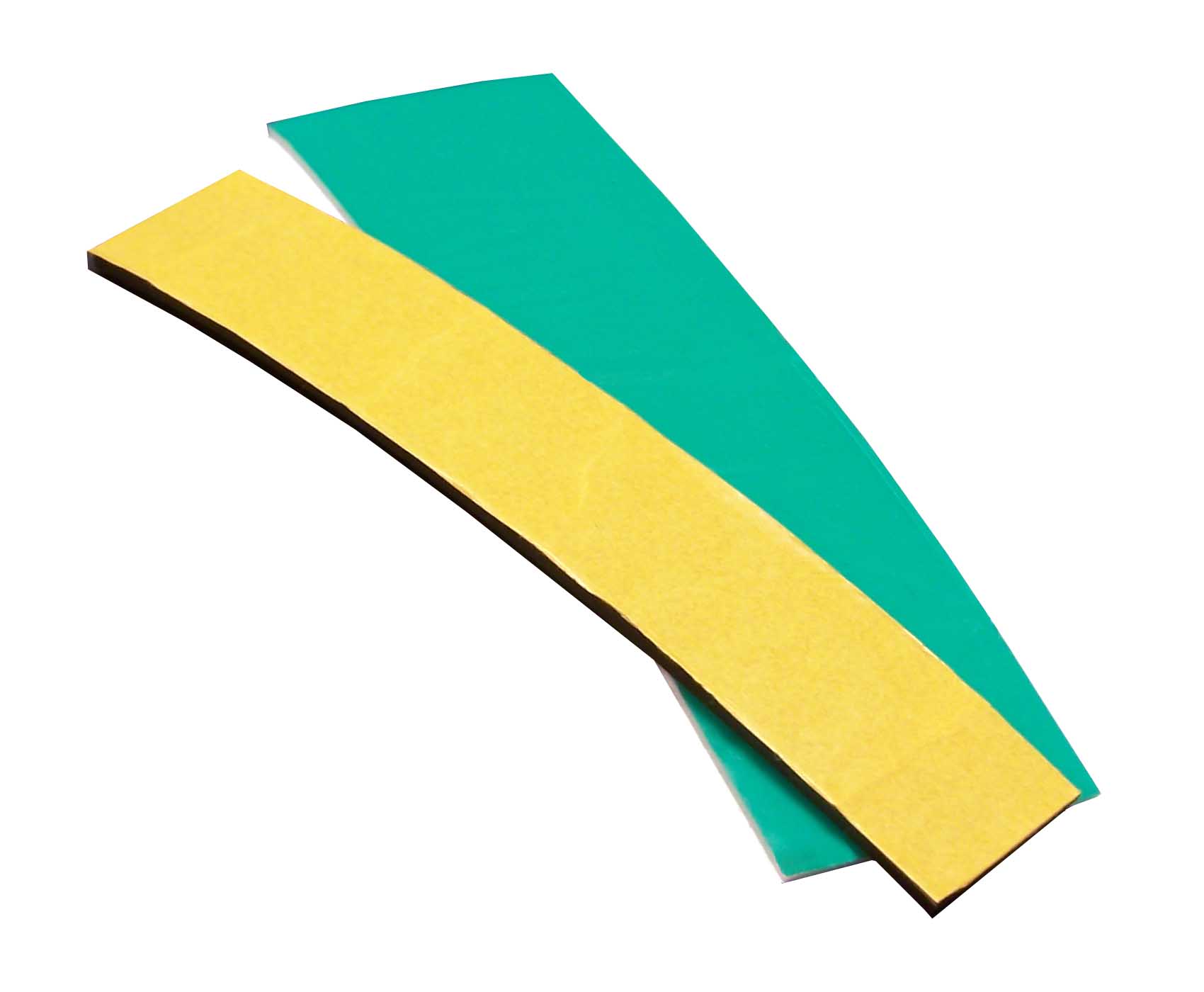

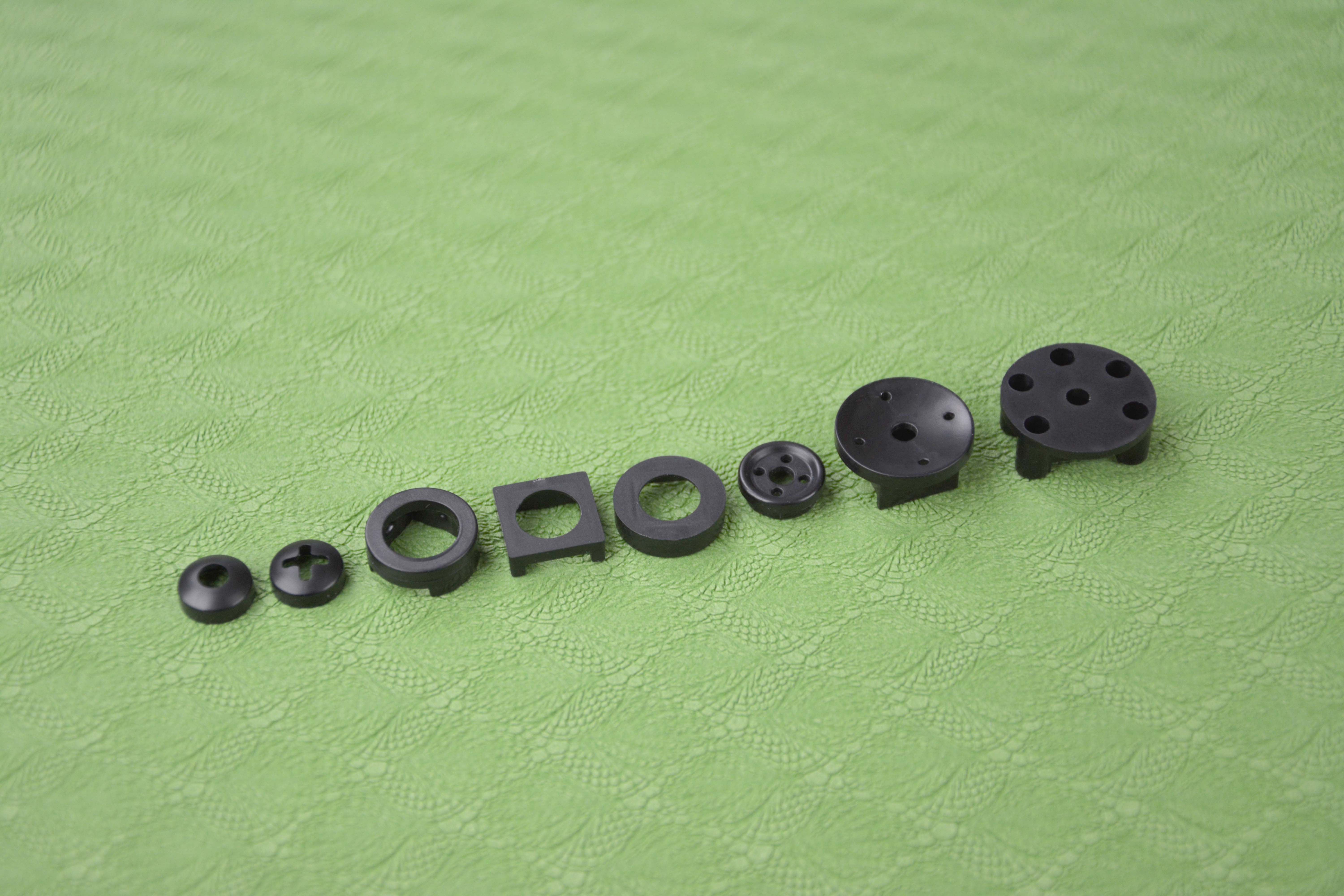

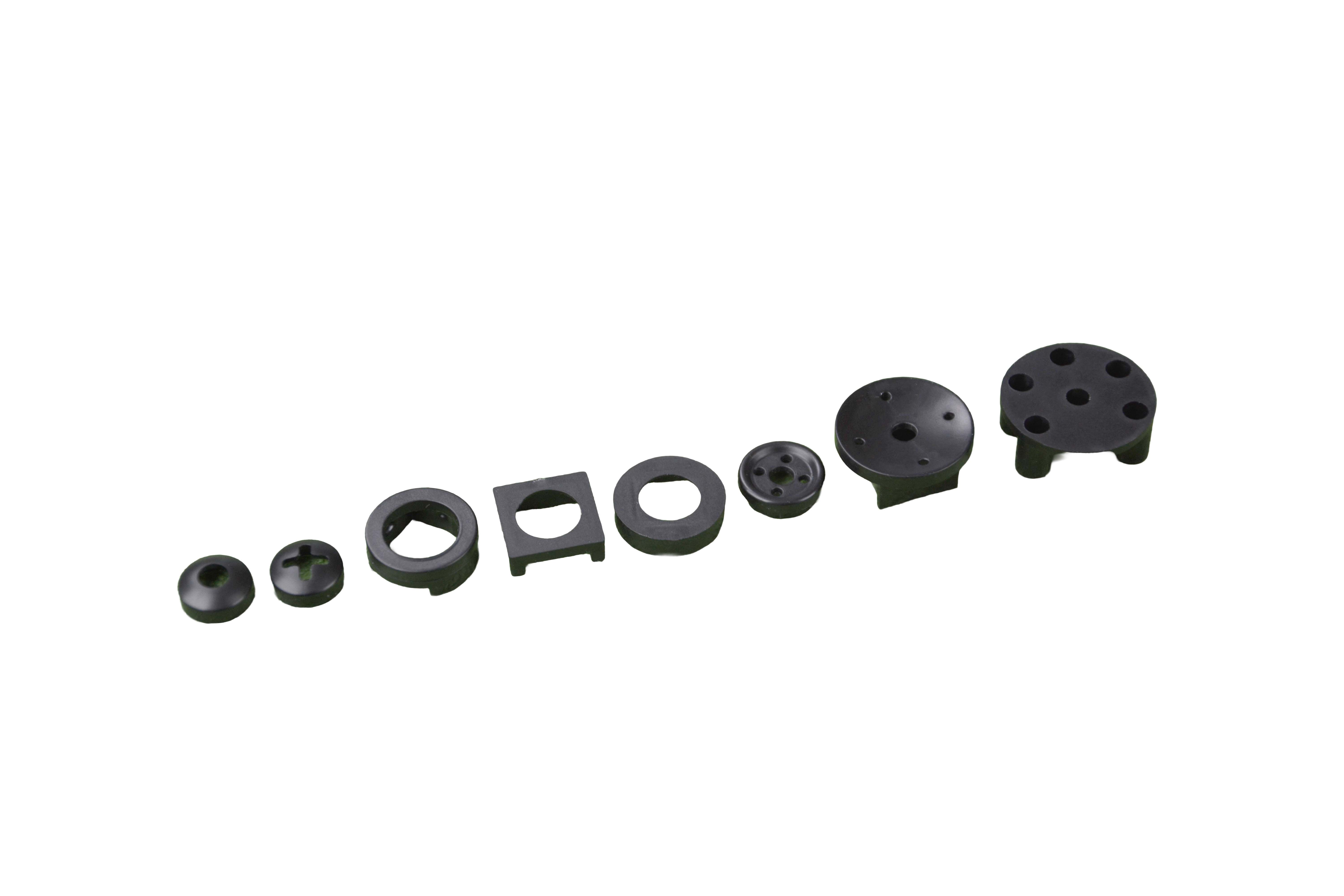

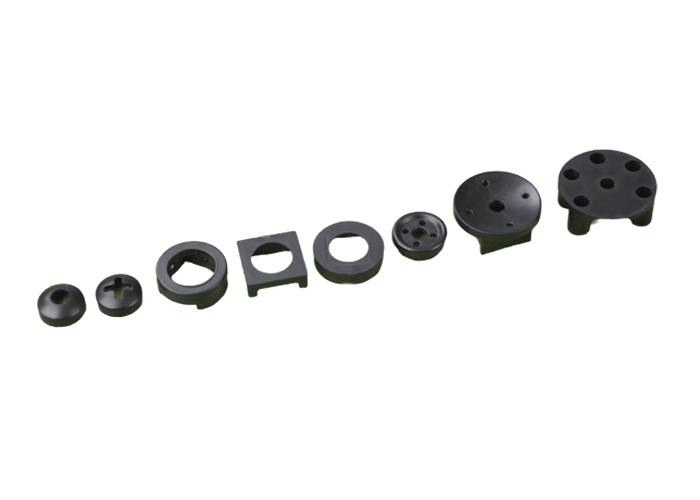

Easily hide the lens with the magnetic kit



While setting up a hidden camera you have to make sure that the camera's pinhole lens is placed exactly behind the shooting hole and stays solidly in this position. To help you in the assembly we developed a magnetic kit with which you can position and remove the camera in a matter of seconds . The kit consists of an metal sticker, to be applied to the surface and a magnetic tape, to be stuck on the flat cable, close to the lens. You can cut the two elements with scissors so that they fit your object perfectly.

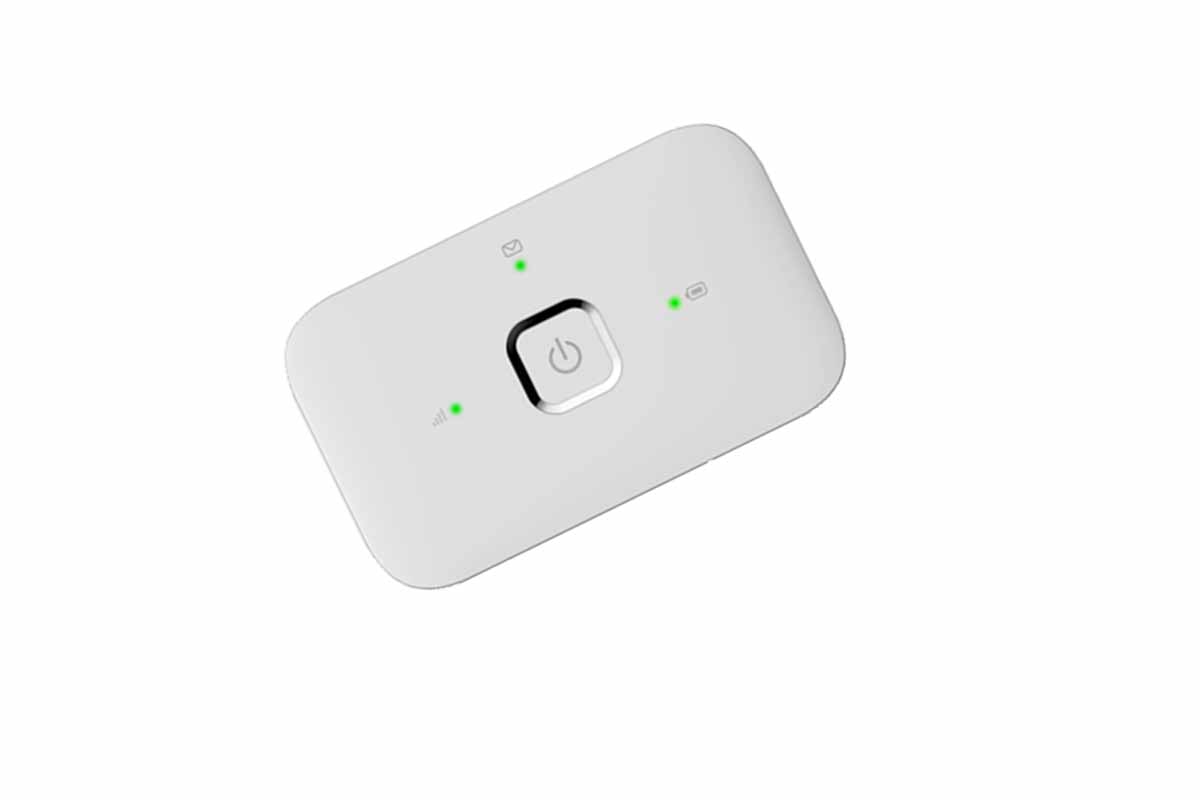

Make a portable hidden camera with web control



You can access your spy camera via Internet even if you cannot connect the camera to a local WiFi network. To do that you could connect the camera to your mobile phone (in HotSpot mode) or to a 4G WiFi router. A 4G WiFi router is a small and inexpensive device in which you can insert a data SIM card which is also available with battery power. The hidden camera will access the Internet through the mobile device and you will be able to control it via the web. Put one of our DIY hidden cameras with a 4G wi-fi router inside a box and you will get a portable, web-enabled, hidden camera.


DATASHEET


CODE DK-CS4-TUY DK-CS4-DVR
Description Hideable camera with SD card Hideable camera with SD card
Type Smartphone control via wifi Pushbutton control
CAMERA
Maximum resolution 2MP FullHD 1080P 2MP FullHD 1080P
Optical sensor 1/2.7" CMOS OV2710 1/2.7" CMOS OV2710
Chipset Hi3518E Hi3518E
Video resolutions 1920x1080 @ 25 f/s 1920x1080 @ 25 f/s
Video compression H264 Dual H264 Dual
Infrared illuminator 6 m.
ICR
Lens 2.8 mm (90°) flat pinhole 2.8 mm (90°) flat pinhole
Focus Fixed Fixed
Shutter 1/25...1/12000 1/25...1/12000
S/N ratio Over 50dB Over 50dB
Video files format Tuya crypted MOV duration 1..10 minutes
Video storage About 300 hours on 128GB @ 1080P About 40 hours on 32GB @ 1080P
SUPPLIED WITH
Network port
Wi-Fi 802.11 b/g/n 2.4GHz (Client mode)
USB port MicroUSB for recharging MicroUSB for recharging
Audio microphone
Audio speaker
SD card slot Max. 128GB Class 10 or higher Max. 32GB Class 10 or higher
CVBS output
POWER SUPPLY
Standard battery Li-Po 3.7V 2600mAh Li-Po 3.7V 1500mAh
Standard battery life 7 hours recording 5 hours recording
Compatible batteries All DK-BL--- All DK-BL---
Battery recharge Through USB cable Through USB cable
Record during recharge
FUNCTIONS
Recording mode Continuous, Motion, Time scheduler Continuous, Motion
Camera control Smartphone via WiFi Push-buttons
Protocols TCP/IP
Onvif
P2P
Browser All browsers supported
Smartphone Free APP for iOS and Android Tuya Smartlife
Multi streaming
Saving on web cloud server
Mirror Horizontal and vertical Horizontal and vertical
Corridor
Overlays Date and Time (selectable) Date and Time (selectable)
BLC
AWB
DNR
WDR
Anti Fog
HSBLC
Starlight
Motion detection
Privacy mask
Anti tampering
Alarm actions Start recording, Push notifications to mobile phones Start recording
Sending Time-Lapse photos
GENERAL
Casing Plastic Plastic
Protection degree IP40 IP40
Operating temperature -20°C +60°C RH95% Max -20°C +60°C RH95% Max
Power supply 5VDC +/-10% 5VDC +/-10%
Power consumption Max. 600mA a 3.7VDC Max. 500mA a 3.7VDC
Overall dimensions 64x50x18 mm (PCB only) 51x48x22 mm (PCB only)
Weight 36 gr. (+50 gr. standard battery) 16 gr. (+40 gr. standard battery)

QUESTIONS & ANSWERS


What is included?

CAMERA
BATTERY
USB CABLE
SD READER
ENGLISH MANUALS

What is not included?

Cameras record on MicroSD card. The micro SD card is not included. In our price list, you can buy a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by your camera in the technical datasheet above.

What is the price?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.
