MDVR for vehicles


AHD mobile DVR for vehicles with HDD or SD card. Also available with GPS, WiFi and 4G.

MDVR FOR VEHICLES


MDVR WITH SD
4 CHANNELS AHD

MDVR per Telecamera stagna auto

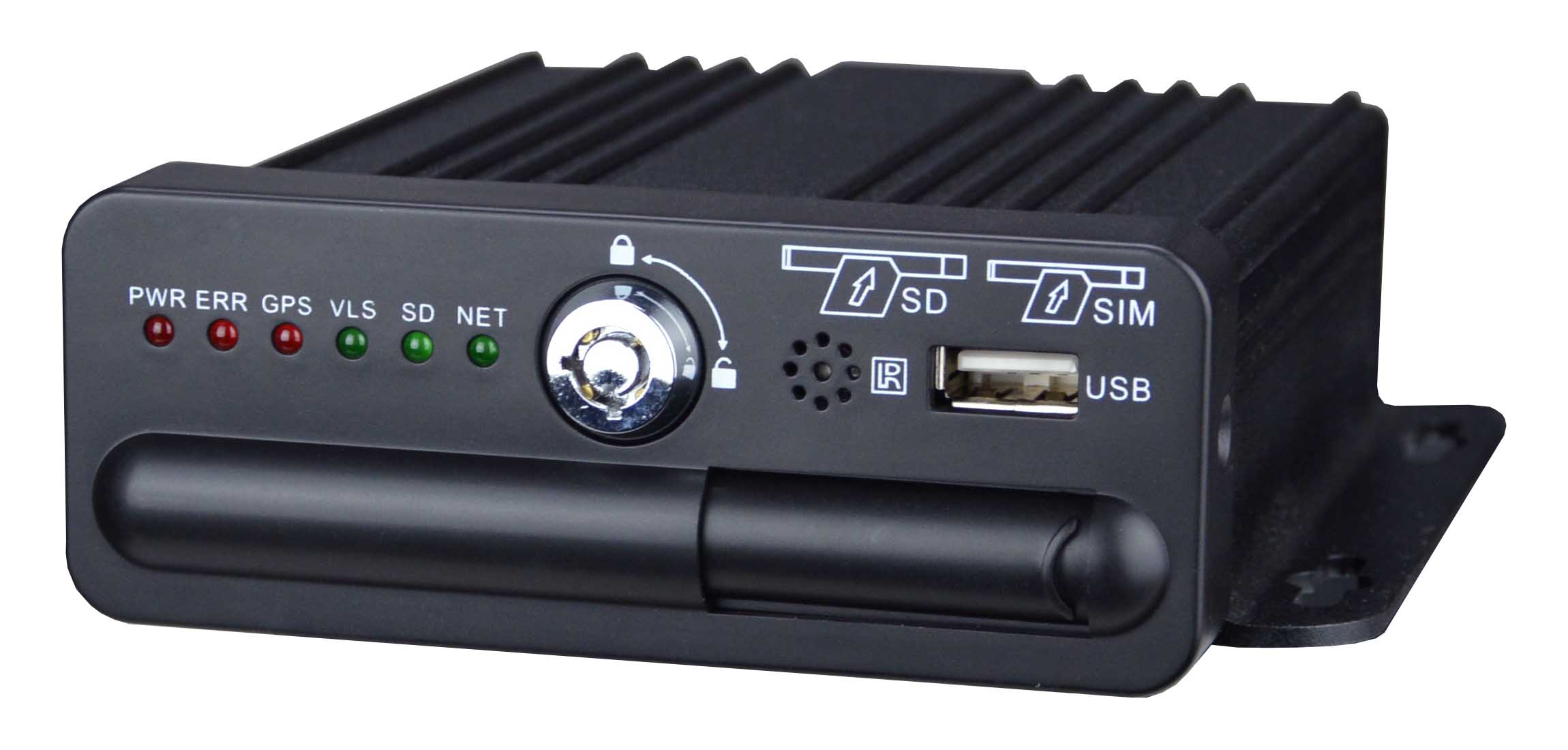

MV-41SD AHD 1080P

4 video inputs Compatible with AHD cameras up to 1080P Compatible with CVBS cameras H264 H265 compression 2 audio input SD card slot up to 256GB G-Sensor Mirror function 3 inputs + 1 output

MDVR WITH SD
4 CHANNELS AHD

MDVR per Telecamera stagna auto
MV-41SD-4G AHD 1080P
GPS | 4G

4 video inputs Compatible with AHD cameras up to 720P Compatible with CVBS cameras H264 H265 compression 2 audio input SD card slot up to 256GB G-Sensor 4G GPS P2P App with maps Mirror function 3 inputs + 1 output

MDVR WITH SD + HDD
4 CHANNELS AHD

MDVR per Telecamera stagna auto

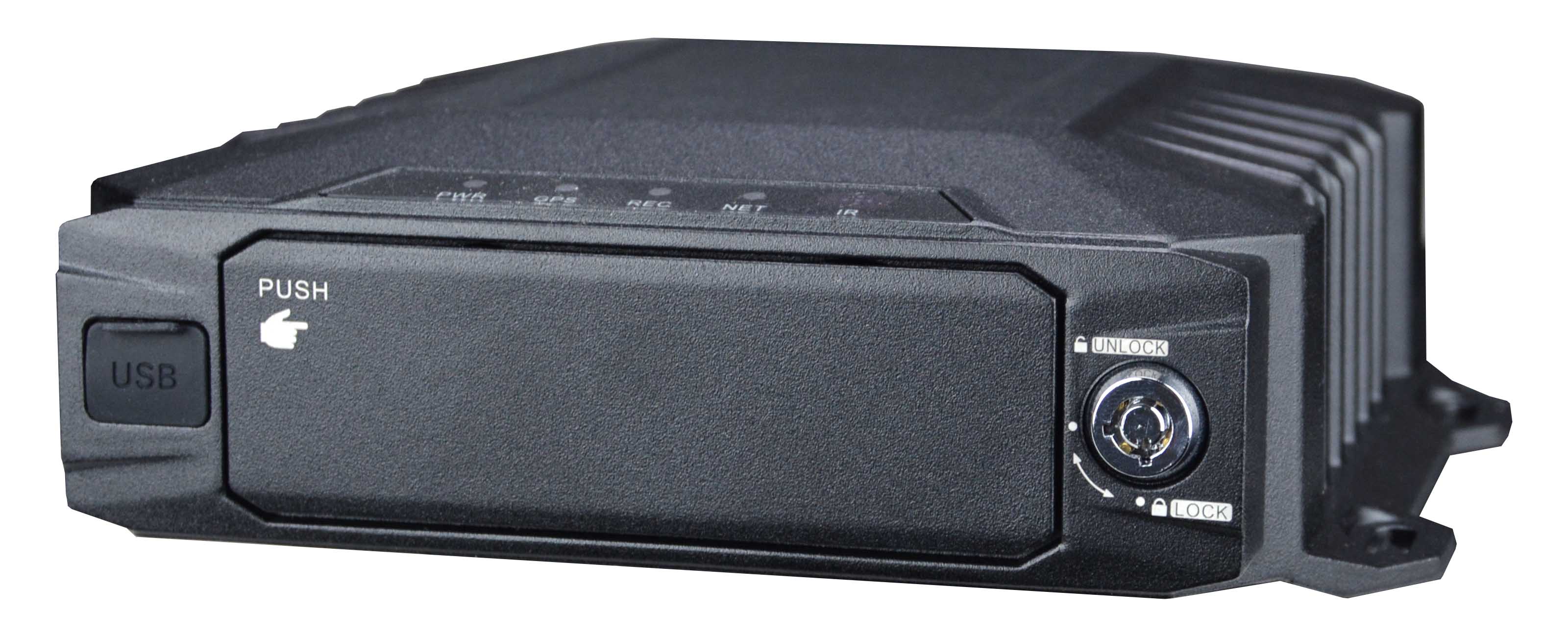

MV-42HD AHD 1080P

4 video inputs Compatible with AHD cameras up to 1080P Compatible with CVBS cameras H264 H265 compression 4 audio inputs SD card slot up to 256GB 2.5 inches HDD slot G-Sensor RJ45 port Mirror function 4 inputs + 2 outputs

MDVR WITH SD + HDD
4 CHANNELS AHD

MDVR per Telecamera stagna auto
MV-42HD-4G AHD 1080P
GPS | WIFI | 4G

4 video inputs Compatible with AHD cameras up to 1080P Compatible with CVBS cameras H264 H265 compression 4 audio inputs SD card slot up to 256GB 2.5 inches HDD slot G-Sensor RJ45 port WiFi 4G GPS P2P App with maps Mirror function 4 inputs + 2 outputs

MDVR WITH SD + HDD
8 CHANNELS AHD

MDVR per Telecamera stagna auto
MV-82HD-4G AHD 1080P
GPS | 4G

8 video inputs Compatible with AHD cameras up to 1080P Compatible with CVBS cameras H264 H265 compression 4 audio inputs SD card slot up to 256GB 2.5 inches HDD slot G-Sensor RJ45 port 4G GPS P2P App with maps Mirror function 4 inputs + 2 outputs

THE MOBILE DVR


MDVR for AHD and CVBS cameras

The MV Series video recorders are DVRs specifically designed for use on board mobile vehicles, such as cars, aircraft and boats . In the CCTV industry, these devices are called MDVR (Mobile Digital Video Recorder) and are actually very different from our standard DVR for analog cameras. In particular, casing, terminals and memory slots are designed to bear strong vibrations and extreme climatic conditions.
These MDVRs are compatible with all analog CVBS or AHD cameras. CVBS is the classic analog video format and is still the most widely used on vehicles, with small monitors. If you look for the highest resolution, you can choose the AHD format, the high-resolution analog video, that get up to 1MP 720P and 2MP 1080P resolution.


Record any cameras

These MDVRs can manage any type of analog camera, both traditional CVBS and AHD, up to 2MP resolution. Obviously the perfect match is with our vehicle cameras, however, if you use the MDVR on a boat or a heavy vehicle, you can connect any camera for traditional AHD systems. If you buy an MDVR model with a network port, you can also connect IP Onvif cameras up to 2MP.

VEHICLES CAMERAS

Suitable for vehicle monitor

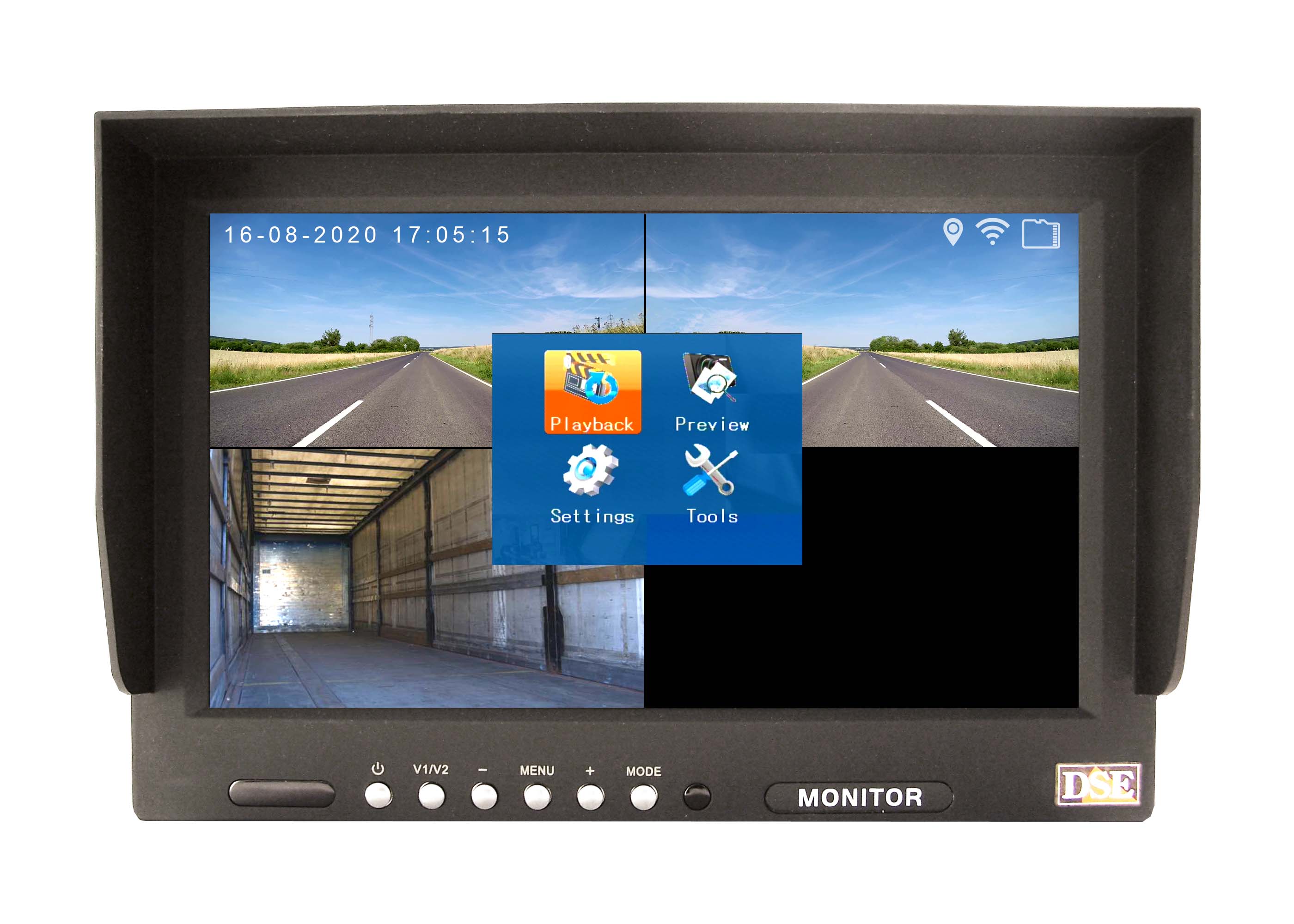

These MDVRs are designed to work with small analog monitors as on the vehicles dashboard there is no room for big VGA or HDMI monitors that we we use in ordinary DVRs. Of course, the perfect match is with our vehicle monitors, designed to be installed in the driver's cab. The configuration menu of these vehicle DVRs is optimized for display on a mini monitor and can be easily controlled from the driver's seat with the IR remote control included.

VEHICLE MONITORS

HARDWARE 100% MOBILE

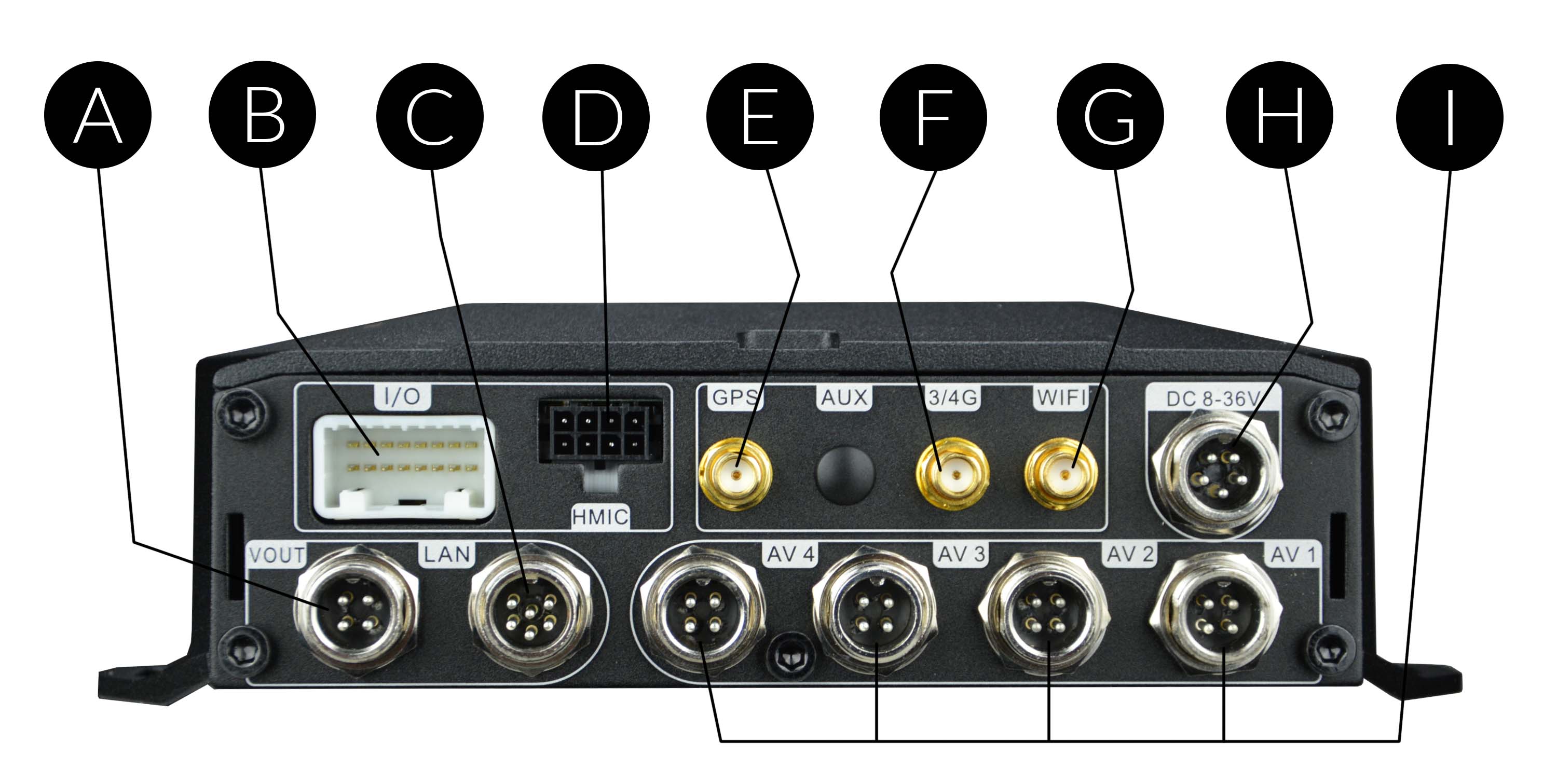

A VOUT Here you connect the local monitor that you will normally install on the dashboard of the vehicle. BNC / RCA / DC cable is included
B I/O Here you connect the cable for the auxiliary connections that is included. You connect alarm inputs and outputs that you can use for various functions. For example, you can automatically bring the rear view camera to full screen when you engage reverse gear.
C LAN Here you connect the local network to connect IP cameras. RJ45 cable is included
D HMIC Here you can connect a mic for the driver
E GPS Here you connect the GPS antenna
F 3/4G Here you connect the 4G cellular antenna, which is included with models that are equipped with a 4G SIM slot
G WIFI Here you connect the WiFi antenna to connect a wireless network
H DC Here the power supply from the vehicle battery is connected. Our MDVRs accept 8 to 36VDC power supply to fit any vehicle's battery.
I AV Here you connect the audio / video inputs of the cameras that also receive power from these ports. BNC / RCA / DC cable is included

NOTE) Please check the datasheets at the end of this page to know the exact hardware setup of each model

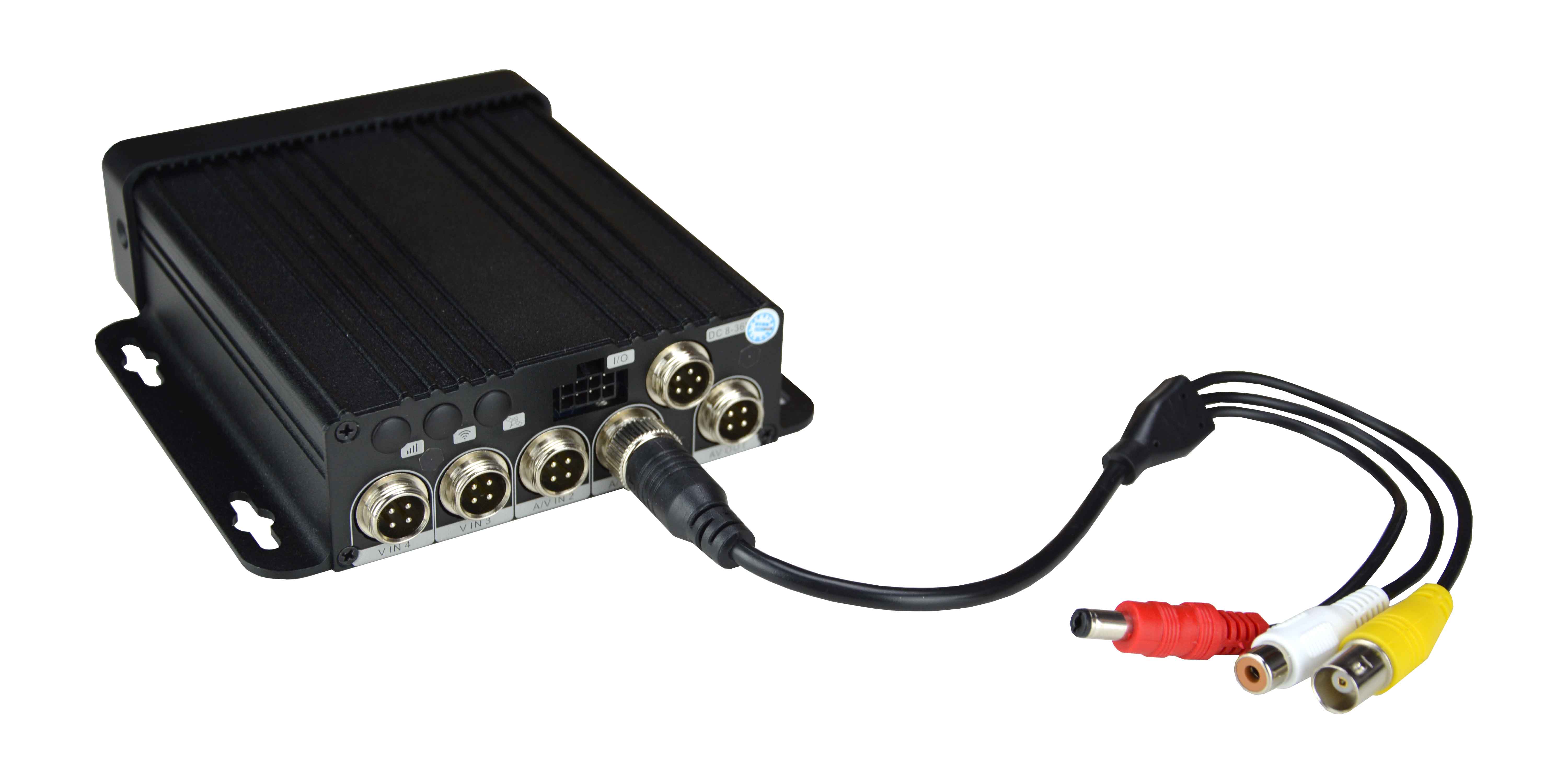

Single port for video, audio and DC power

In vehicle DVRs, connections are made with Mini-DIN AVIATION connectors because they are very small and include an anti-vibration fixing ring. Unlike regular home DVRs, these MDVR's video inputs and outputs carry video, audio, and 12VDC power to the connected device, so you don't have to worry about supplying separate power to cameras and monitors. If your cameras have the classic BNC or RCA terminals there are no problems, because you will find in the package 5 MINIDIN / BNC-RCA-DC adapter cables like the one in the figure.

SD or HDD recording

Safe video recording under shocks and vibrations

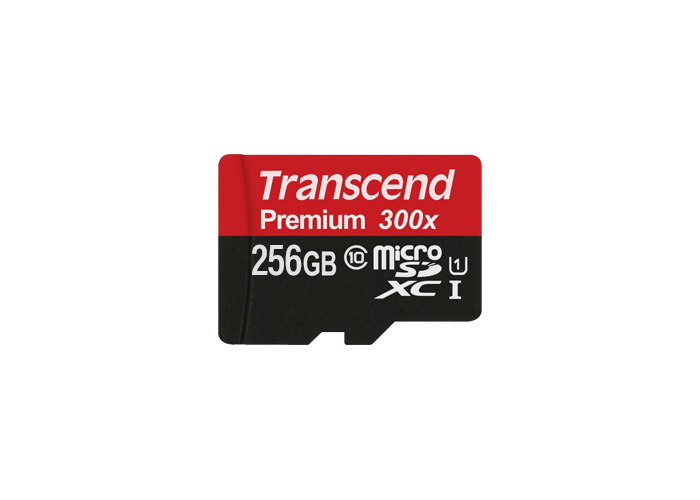

MV Series Vehicle DVRs are designed to record reliably even when effected by shocks and strong vibrations. All models have an SD card slot where you can insert a memory card up to 256GB (not included). You can store up to 1 week recording (1 ch 1080P average settings) on a 256GB SD card.

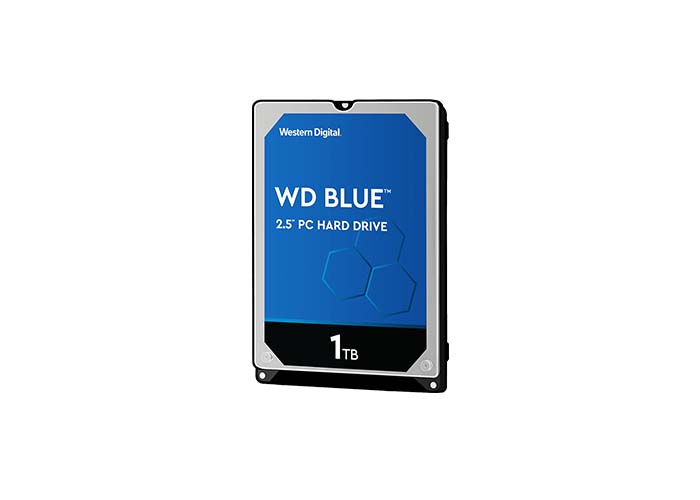

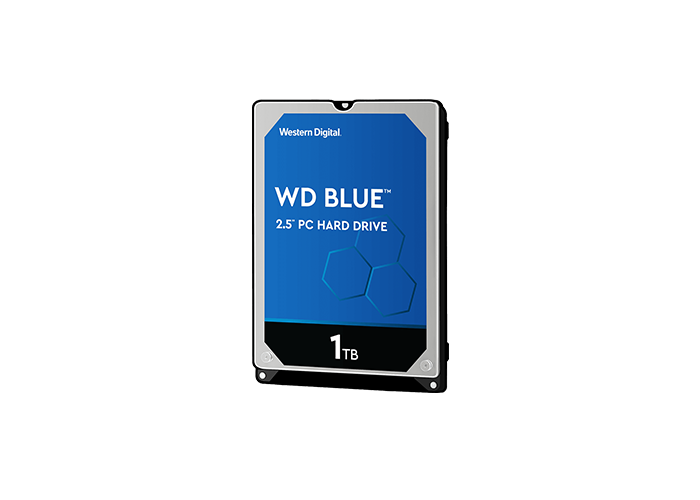

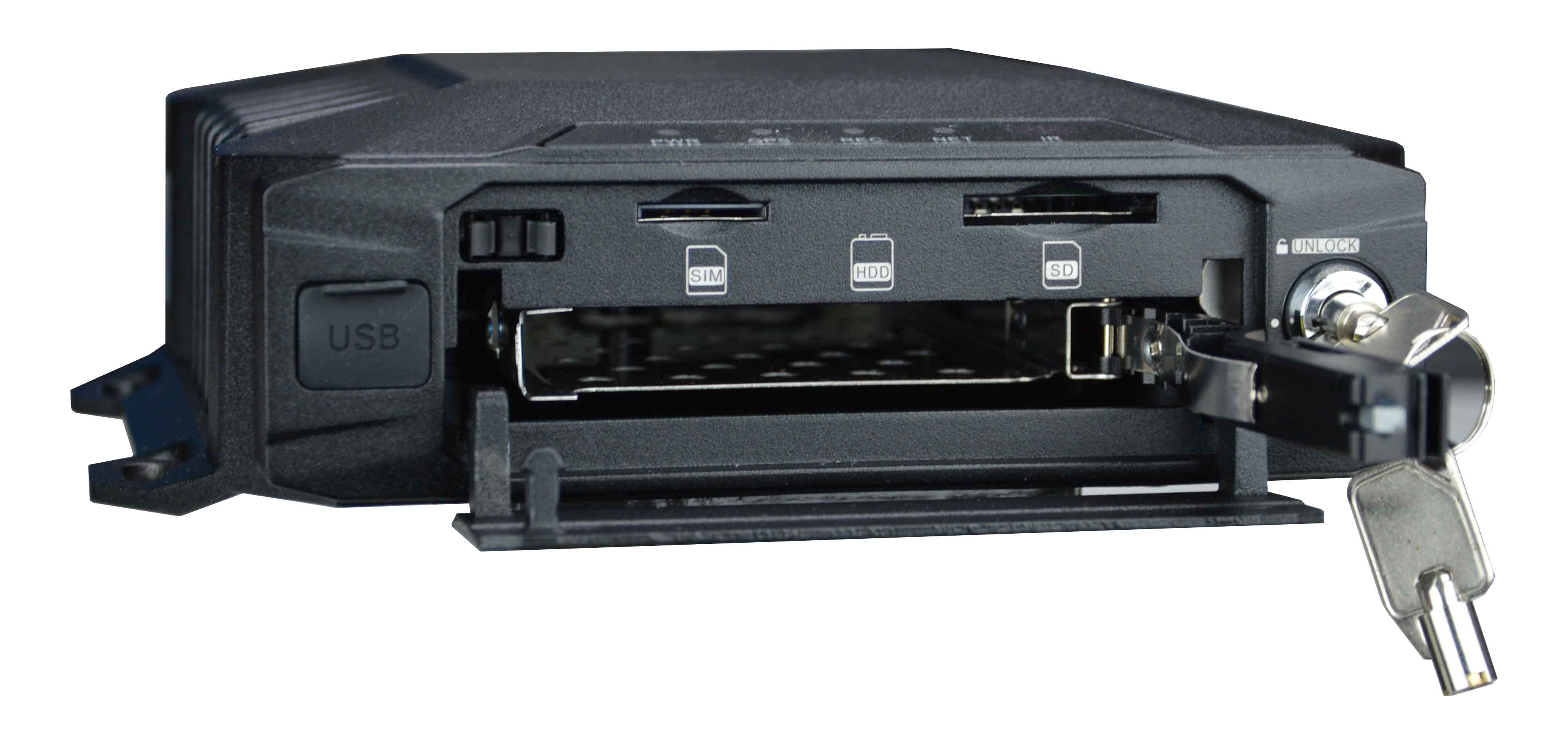

Some models can also accommodate a 2.5" hard drive for larger storage capacity, up to 2TB. Unlike cheap "dummy MDVRs" on the web, in our MDVR the disk is mounted on a cushioned slide with a key locking mechanism that protects the disc from vehicle vibrations.
These MDVRs are capable of CONTINUOUS recording, TIMER recording, or ALARM recording, with a pre-recording period.

MAIN FUNCTIONS

Mirror

When used on vehicles, cameras often monitor backward. In this case the video must be flipped horizontally as in the figure. All MDVRs in this range are equipped with a mirror function (image flipping), programmable on each channel . Then you can use any type of camera, even those not designed for vehicles, which often do not include this function.


Alarm Input/Output

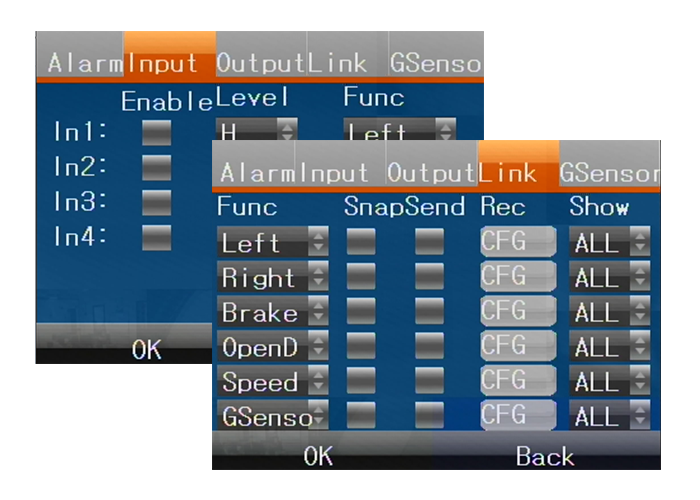

All our MDVRs have alarm inputs and outputs. You can connect the alarm inputs to the vehicle switchboard or to contacts and push-buttons on board. To each input you can link alarm actions, such as POP-UP CAMERA FULL SCREEN, START RECORDING, TAKE PICTURES or SEND NOTIFICATIONS TO THE MONITORING SERVER OR VIA APP . With the alarm outputs you can activate local devices in case of activation of the inputs.


G-Sensor

All models in this range of vehicle video recorders come with a built-in G-Sensor . G-Sensor detects sudden changes of speed due to an accident or special events. You can start several action when the G-Sensor is triggered. For example you can start recording automatically, with pre-recording time, activate external devices and send notifications.


GPS

Some models in this range of vehicle video recorders come with built-in GPS. These models are equipped with a GPS antenna module, with a 3 m connection cable. The GPS is useful to overprint the geographic coordinates on the video and to geolocalize and track the vehicles via software or APP .


WiFi and 4G for web control

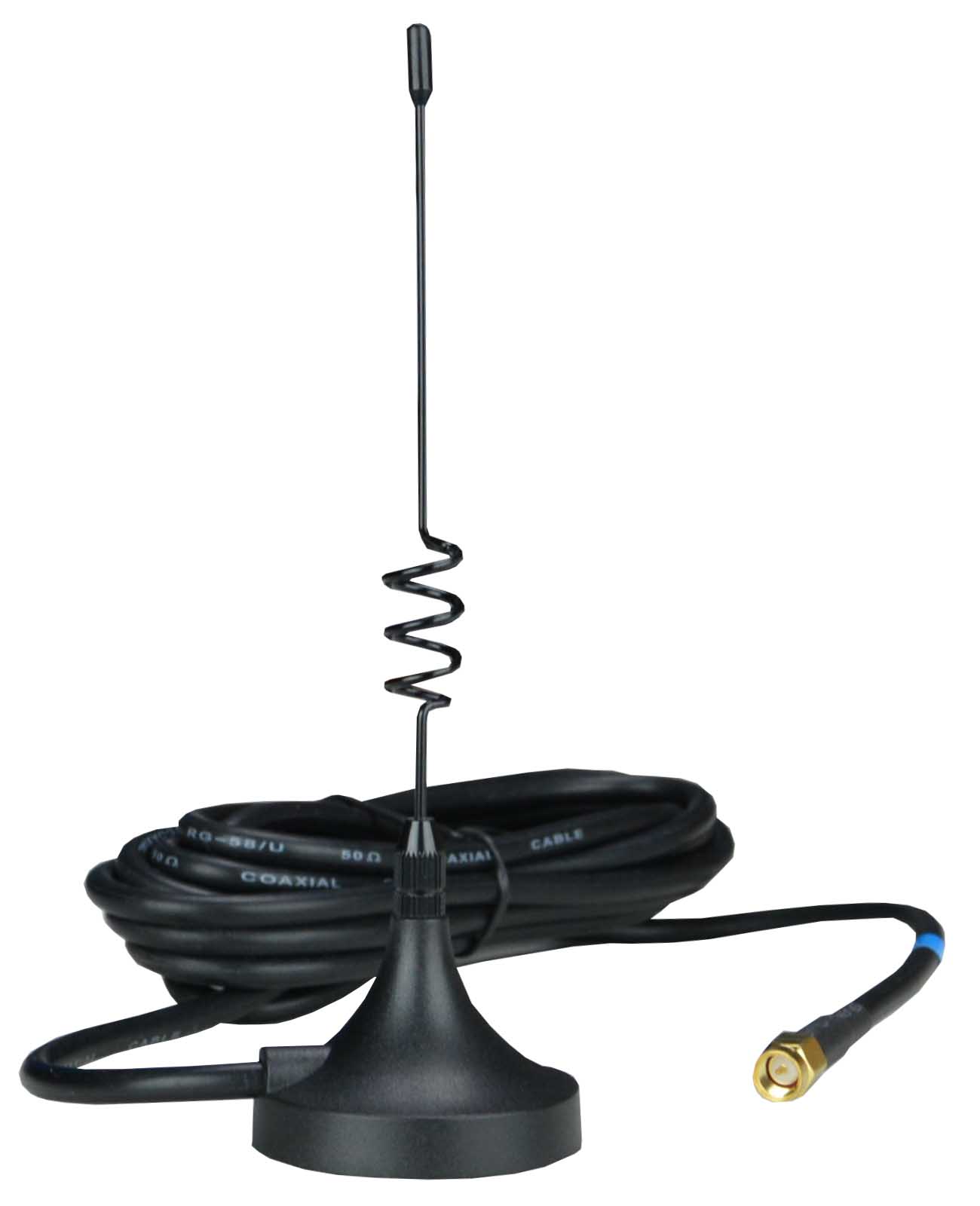

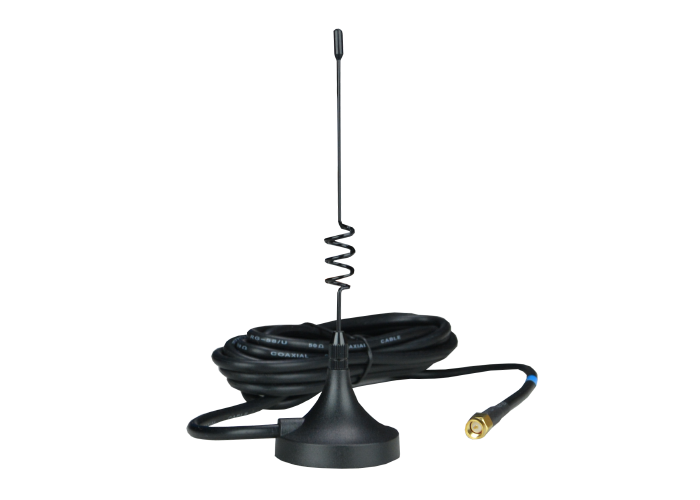

Some models in this range of vehicle video recorders come with WiFi and 4G. These models are equipped with special antennas, with a 3 m connection cable.
In the 4G models you can insert a SIM card inside, so the 4G MDVR will be able to connect to the Internet without the need of external devices.
The WIFI allows you to connnect the MDVR to a wifi network to connect to the internet. The wifi network could even be a simple 4G router or a smartphone in hotspot mode, both excellent solutions for vehicles. The MDVR is also supporting wifi in Access Point mode to allow full local control by mobile phone.

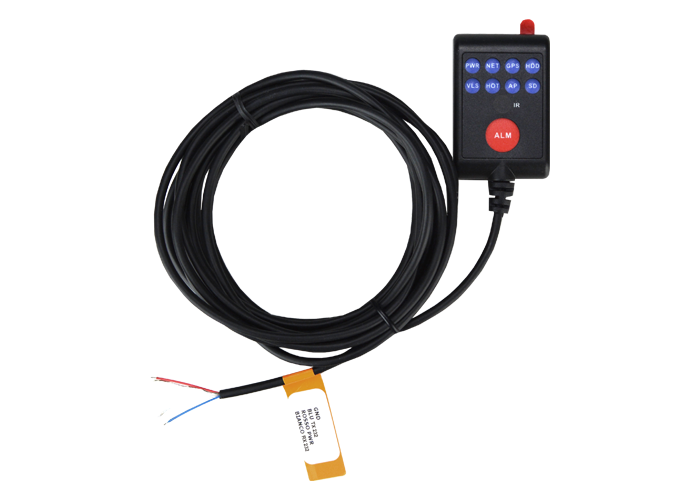

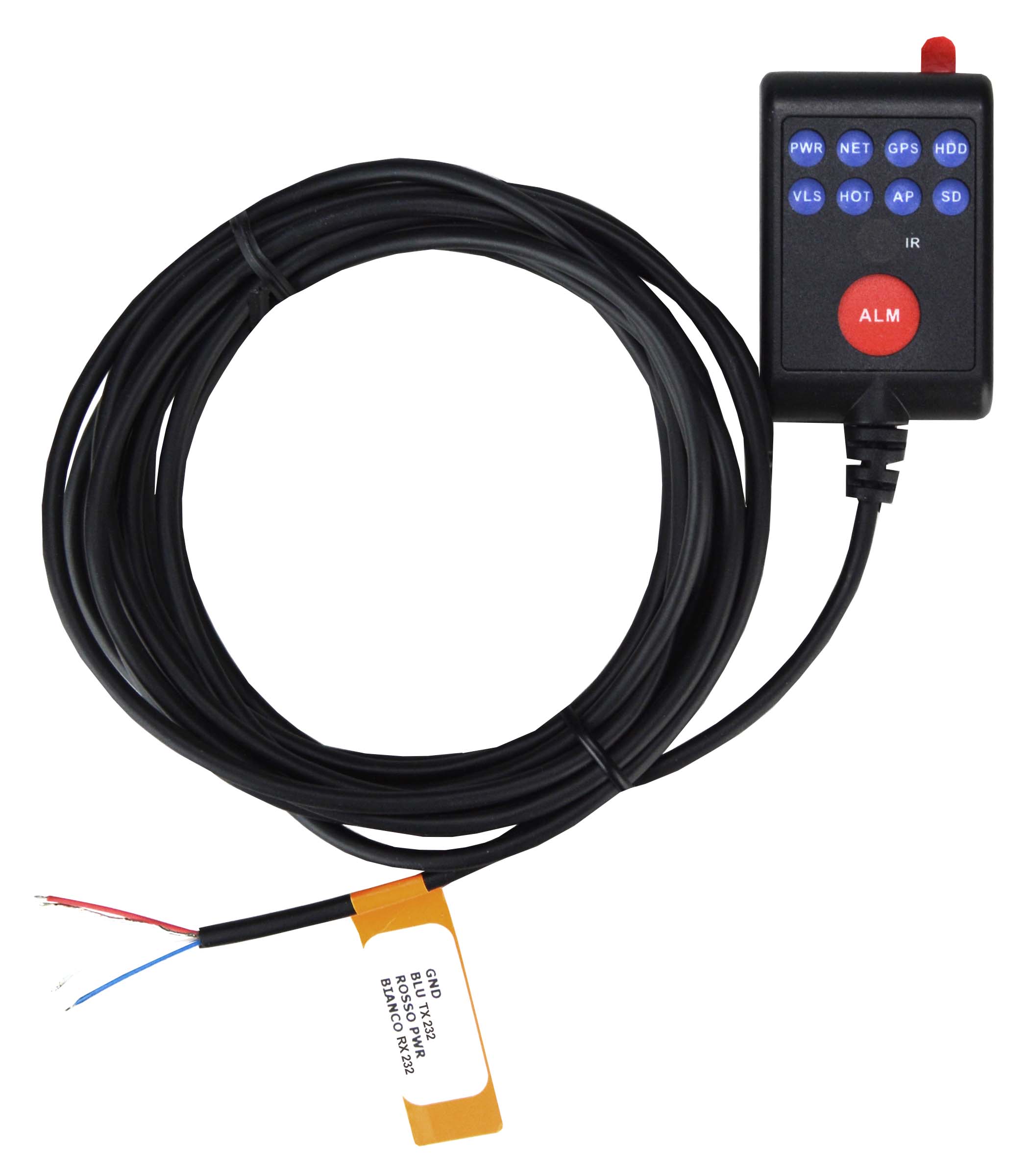

Optional remote IR receiver

All the features of the MDVRs are managed with the included infrared remote control. If you install the MDVR in a location that is difficult to reach with the remote control you can order the optional IR remote receiver. The remote IR receiver is equipped with a cable that connects to the RS232 pins of the MDVR. It can be placed near the driver with the rear double-sided tape. In addition to work as a receiver for the remote control, the remote control unit has several push-buttons to quickly activate the main functions of the MDVR. The optional IR receiver is suitable with all MDVR with hard disk.

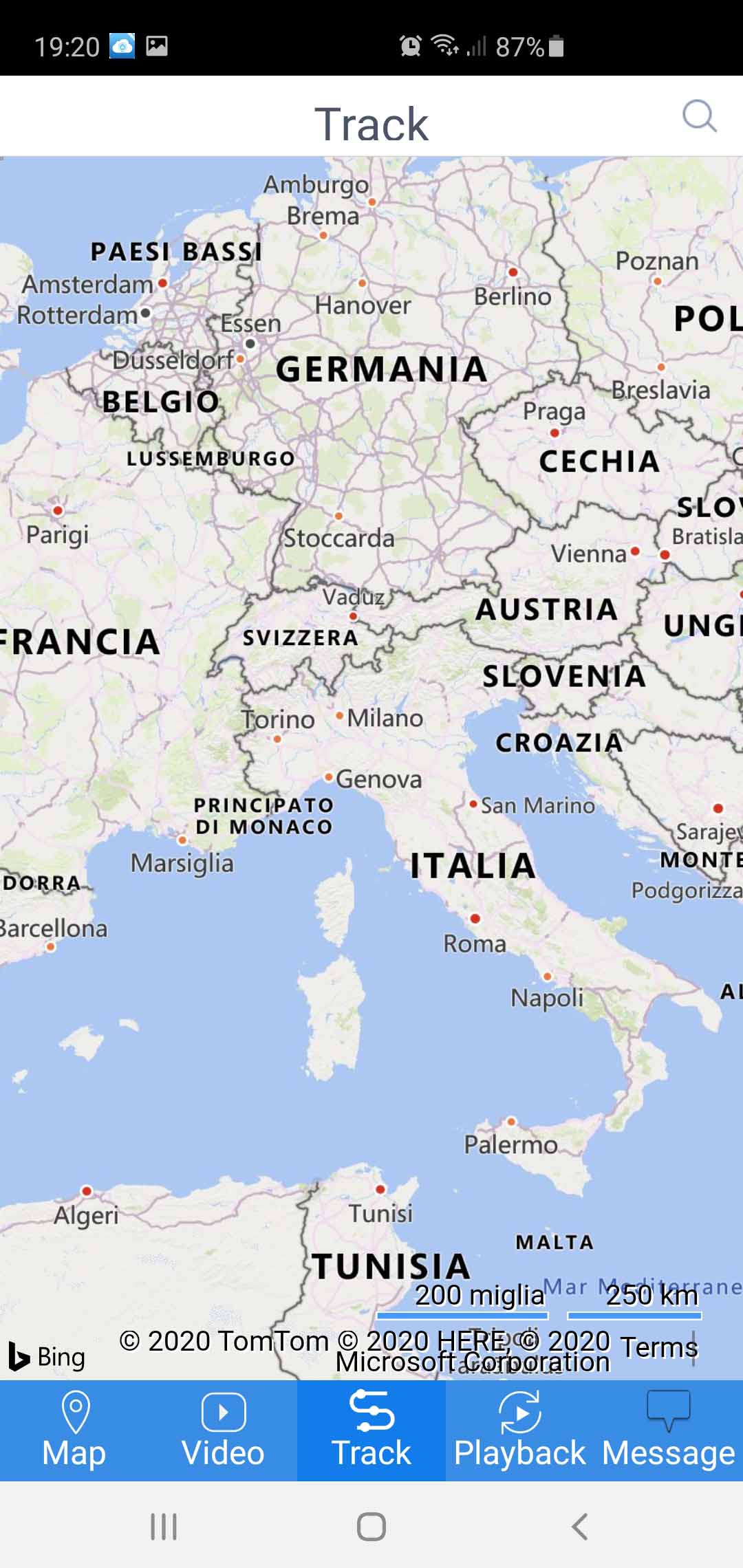

APP WITH MAPS

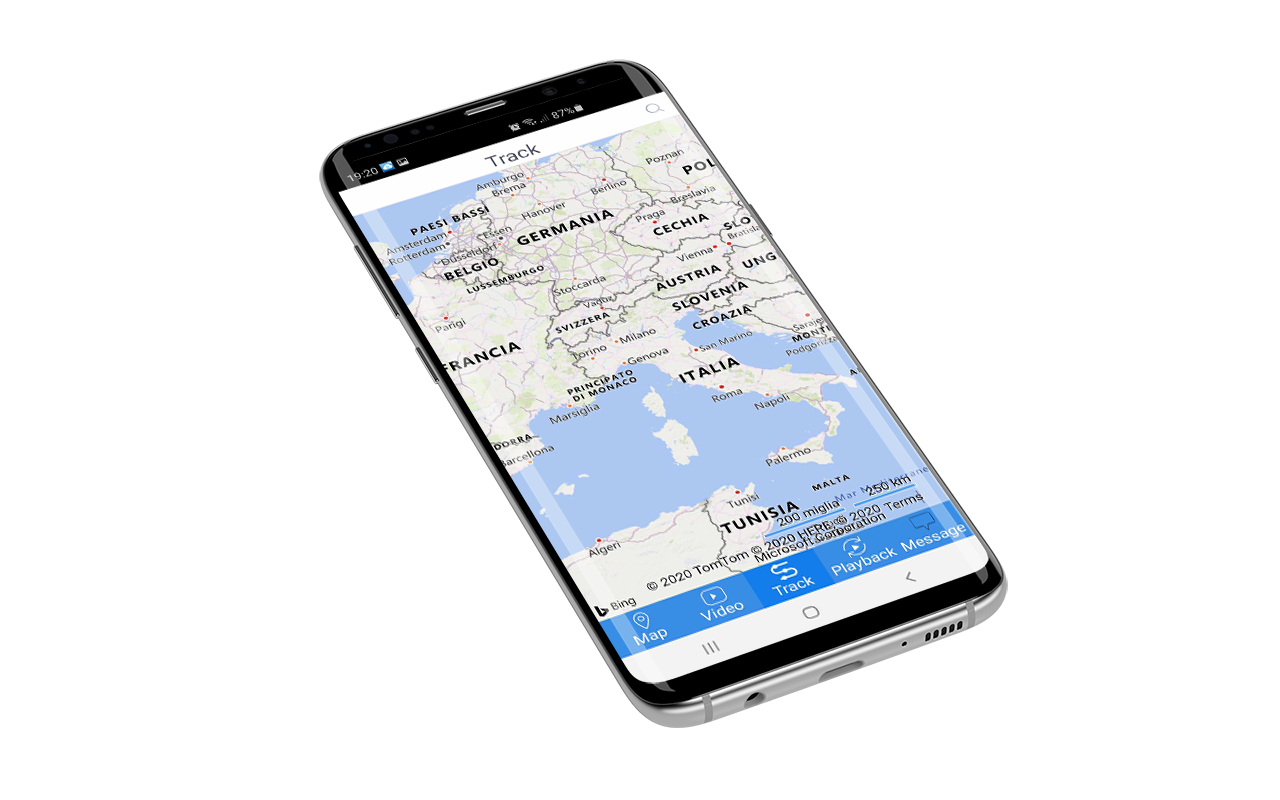

APP for smartphone

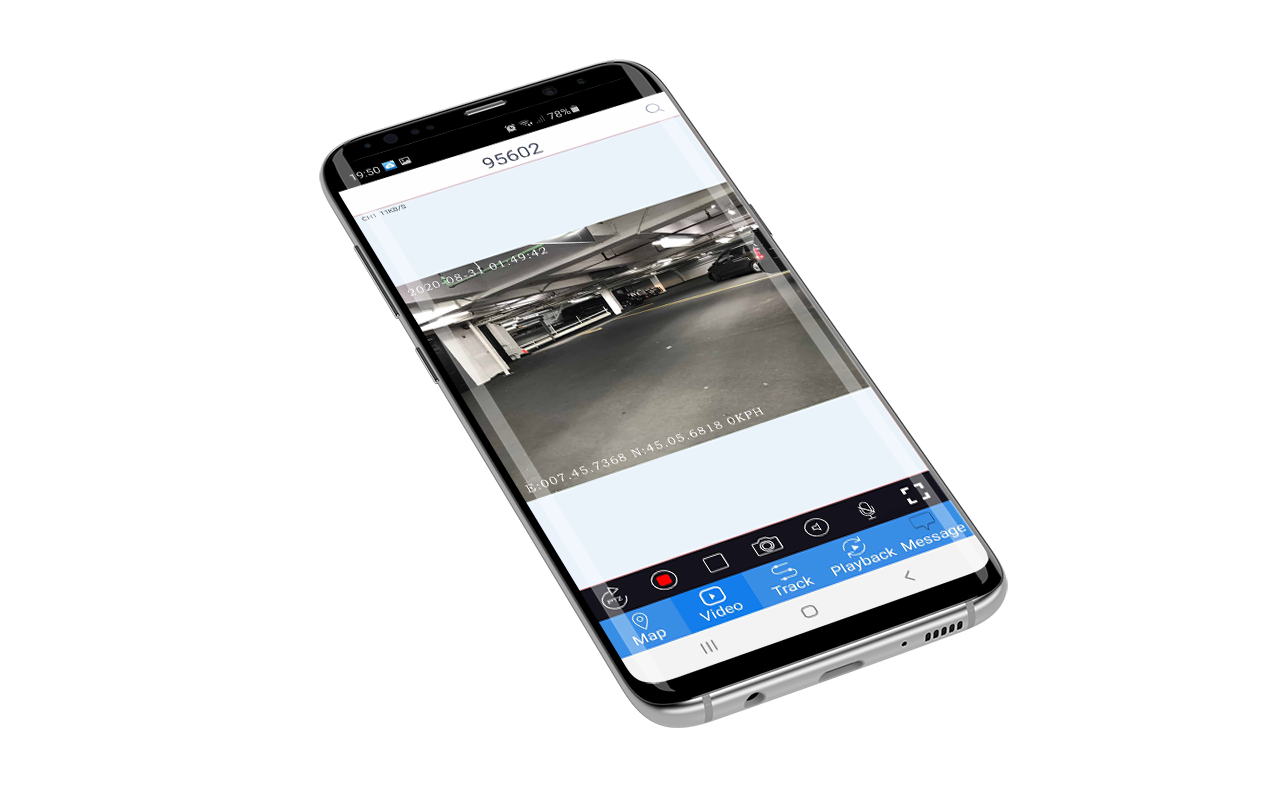

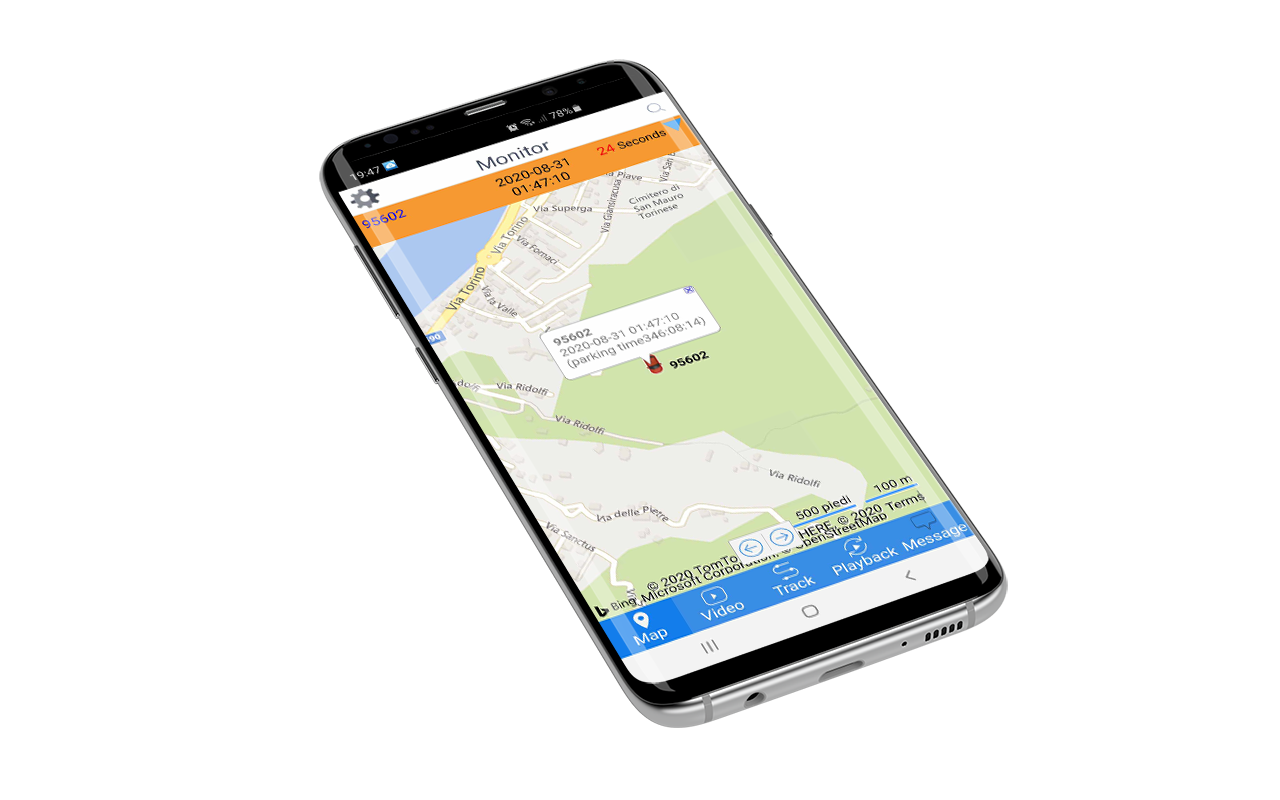

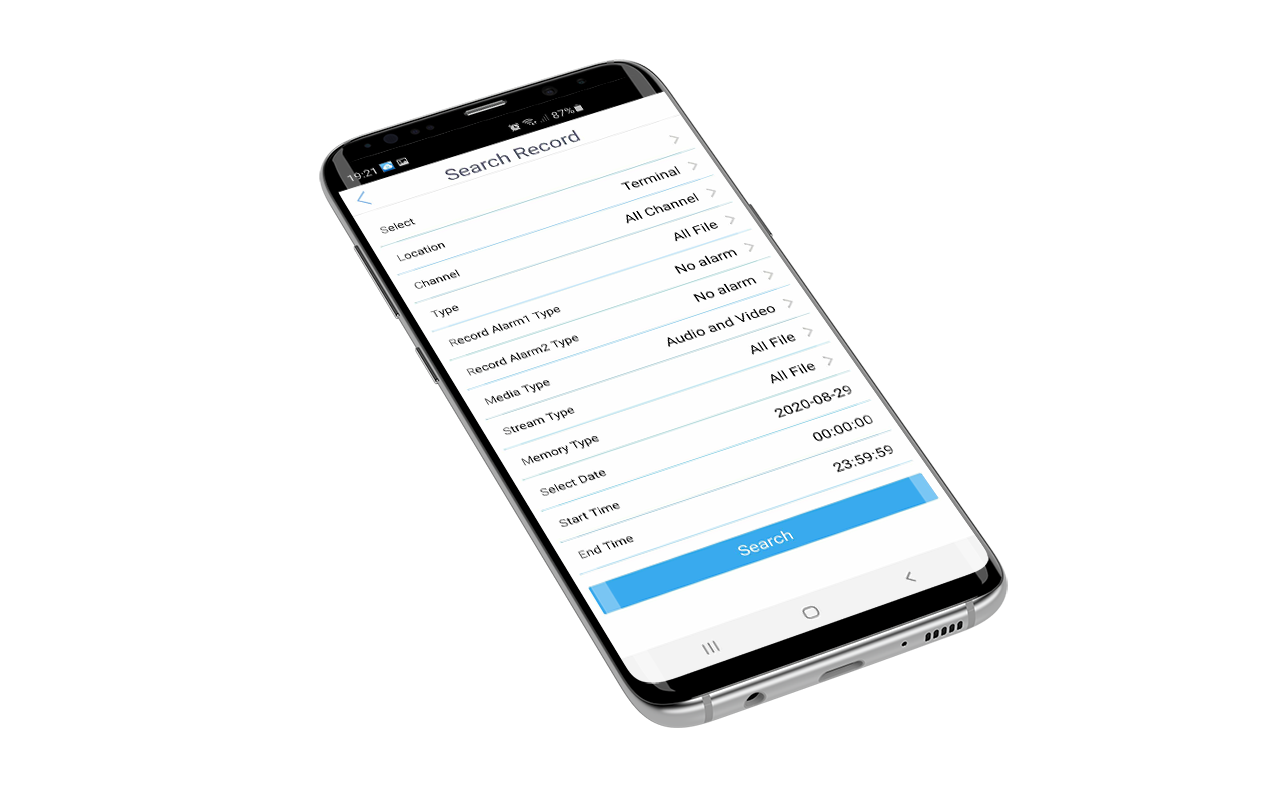

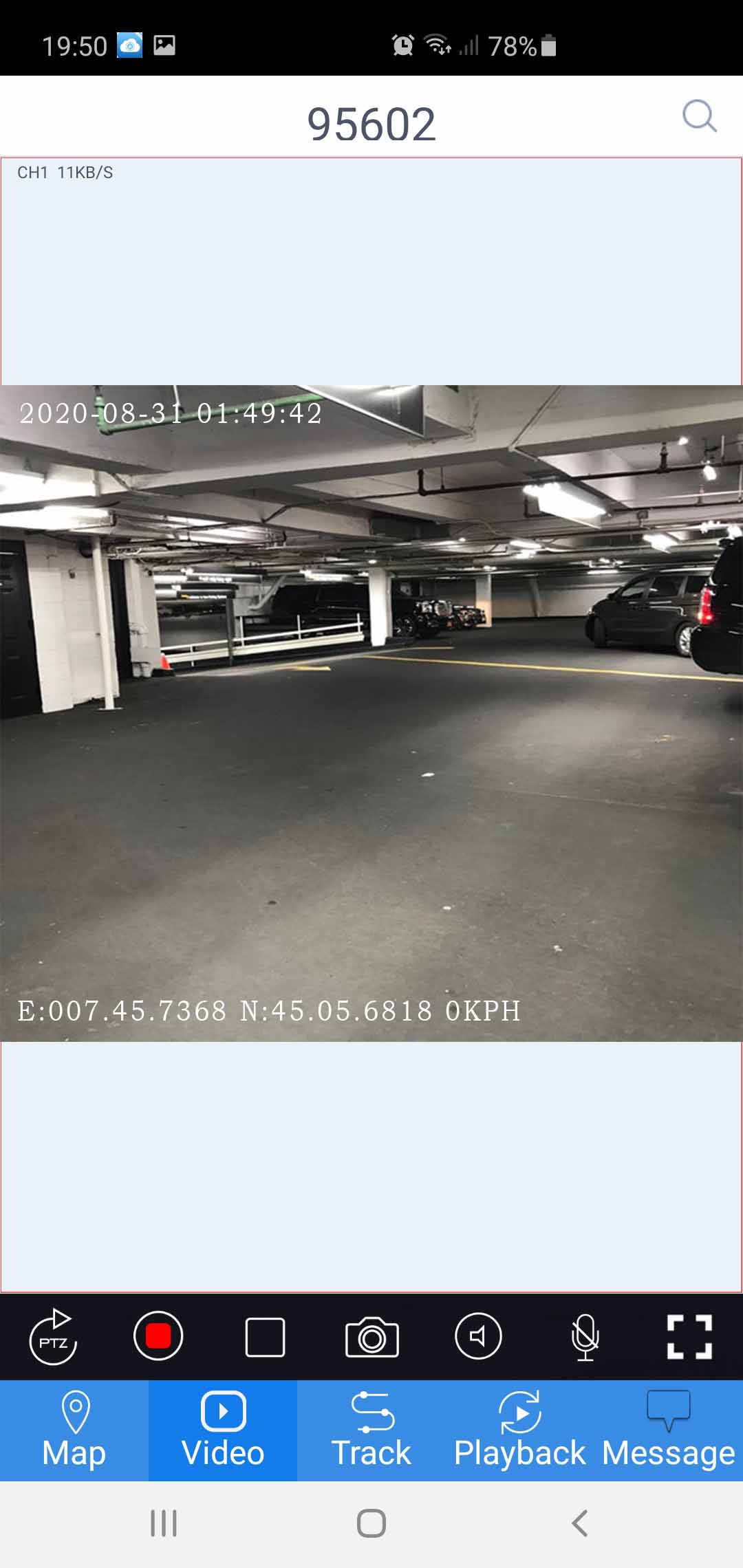

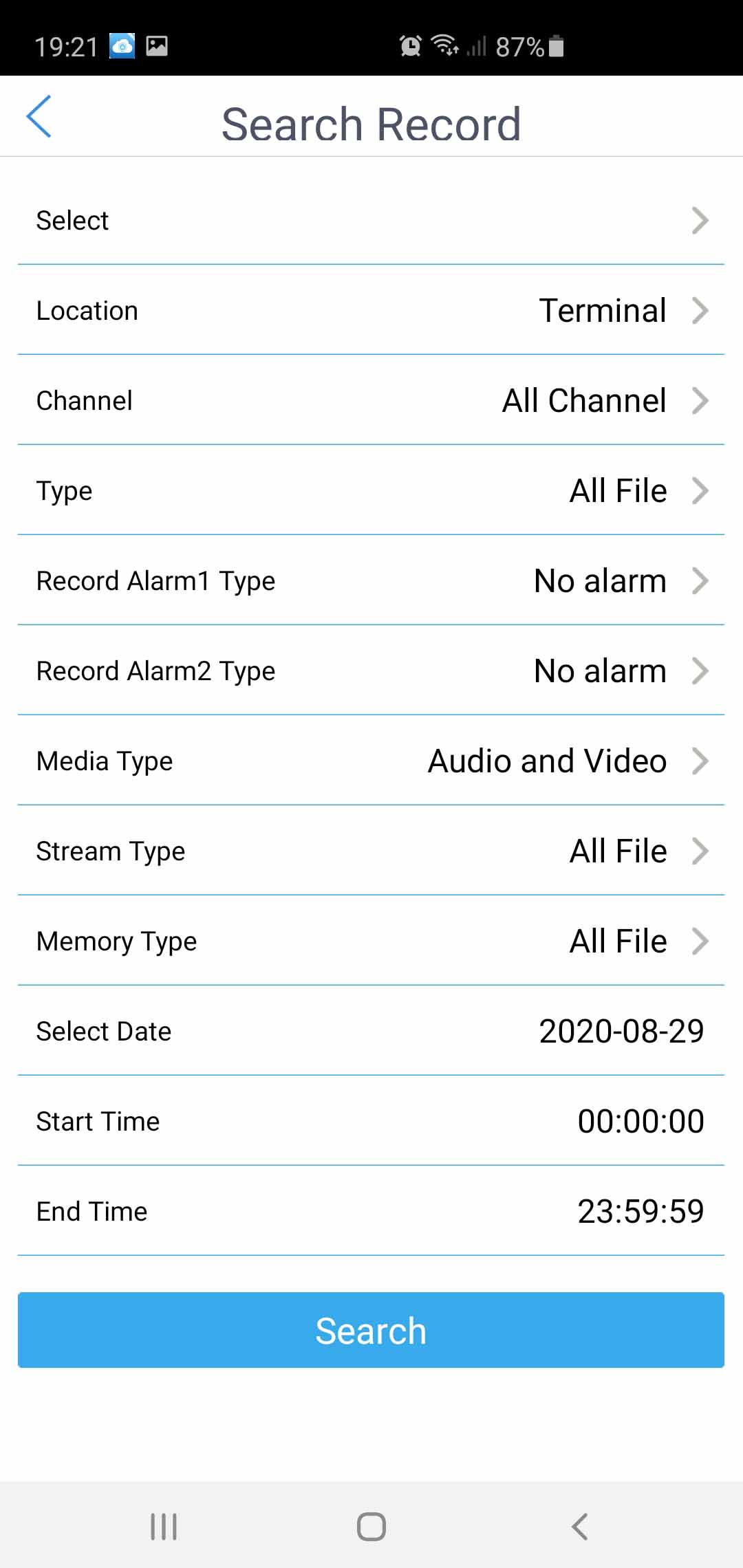

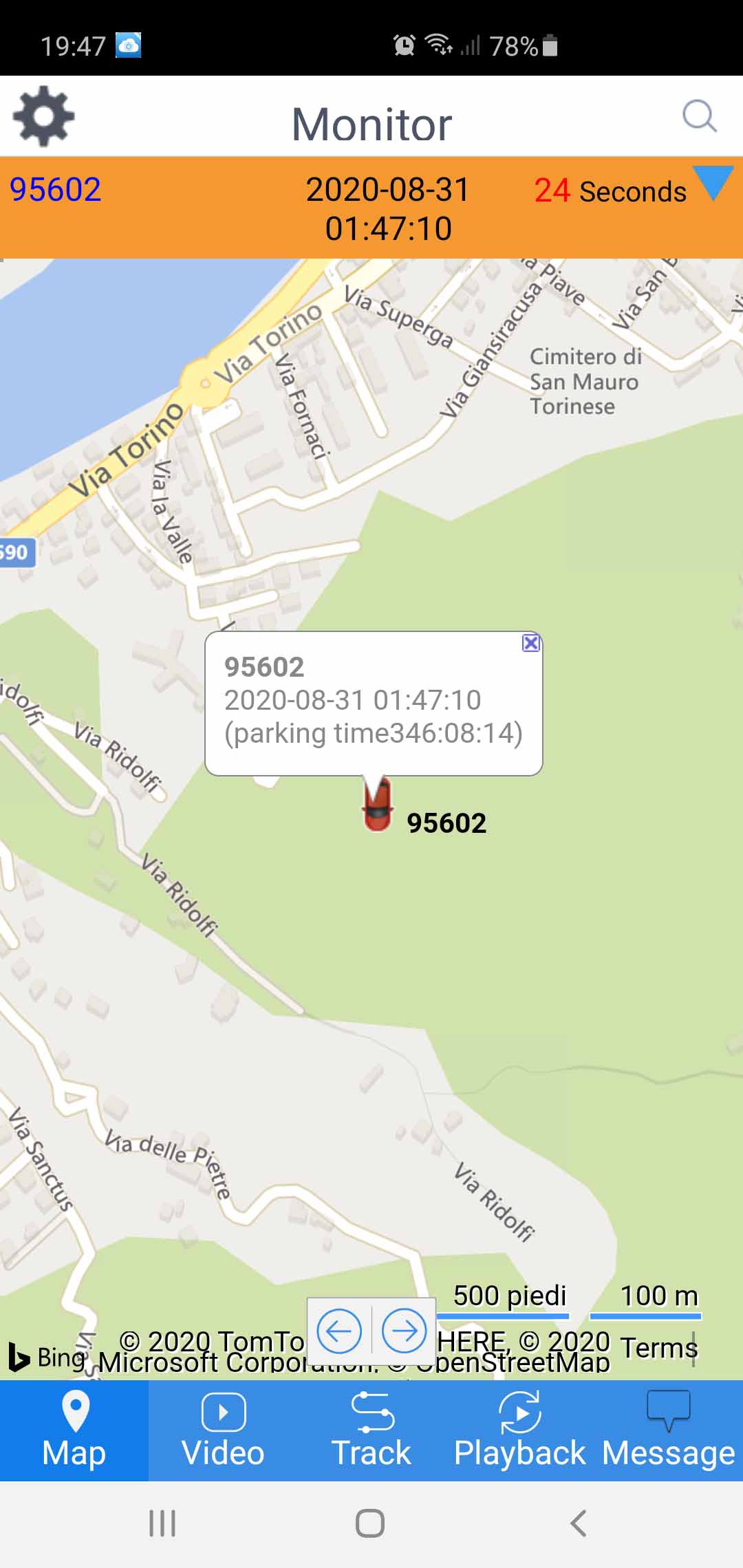

The models with 4G and WiFi support the CMSV6 fleet management app that you can freely install on your mobile or tablet. With this app you can GEOLOCATE your vehicles in real time on detailed GRAPHIC MAPS and WATCH the live video of the cameras. You can RECORD and take pictures. You can also PLAY AND DOWNLOAD the videos recorded in the MDVR, searching by date and time. You can also receive notifications of events. With CMSV6 you can easily manage a FLEET OF VEHICLES loading as many MDVRs as you like. Of course CMSV6 include P2P cloud server to reach MDVR with no need of static IP opr router configuration.

App per iOS e Android gratuita Visione live da app Localizzazione GPS Controllo registrazione Download dei file video PTZ motor camera control P2P cloud server for easy Internet access Alarm push notification APP APP

FLEET MANAGEMENT SOFTWARE

Track your vehicles on your computer

Our 4G MDVRs are compatible with the CMSV6 fleet management software. If you buy an MDVR with 4G, we will create your private account in the cloud server, where you can manage all your devices, even those you will buy in the future. This service is included in our 4G MDVRs: 100% free. CMSV6 is a very powerful software for windows that works great in 4G thanks to the P2P CLOUD server.
You can GEOLOCATE all your vehicles on maps or satellite photos and WATCH your cameras in real time. You can PLAY recorded videos and DOWNLOAD the video files. CMSV6 also manages ALARM EVENTS with real-time notifications.

CMSV6 FOR WINDOWS

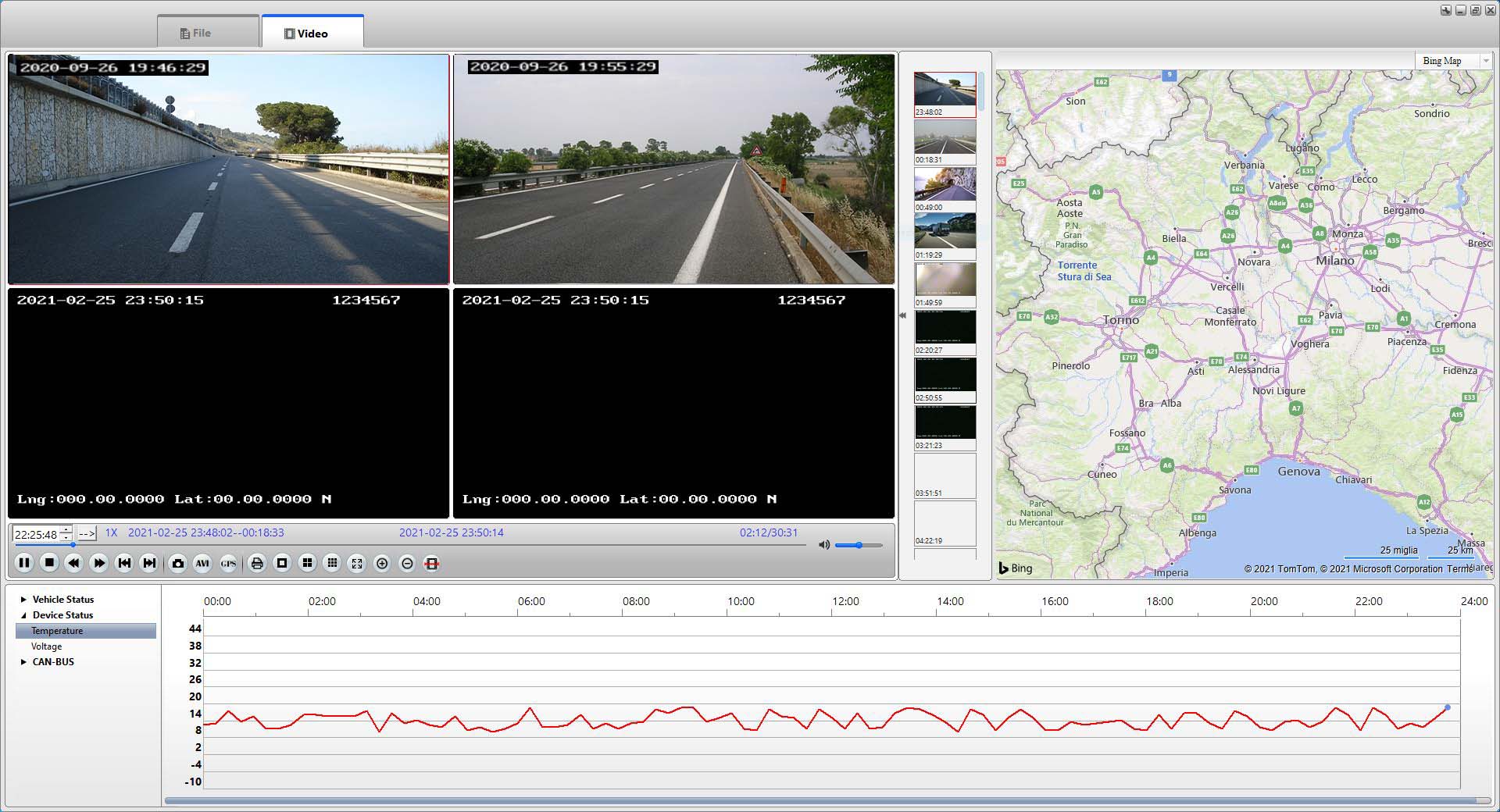

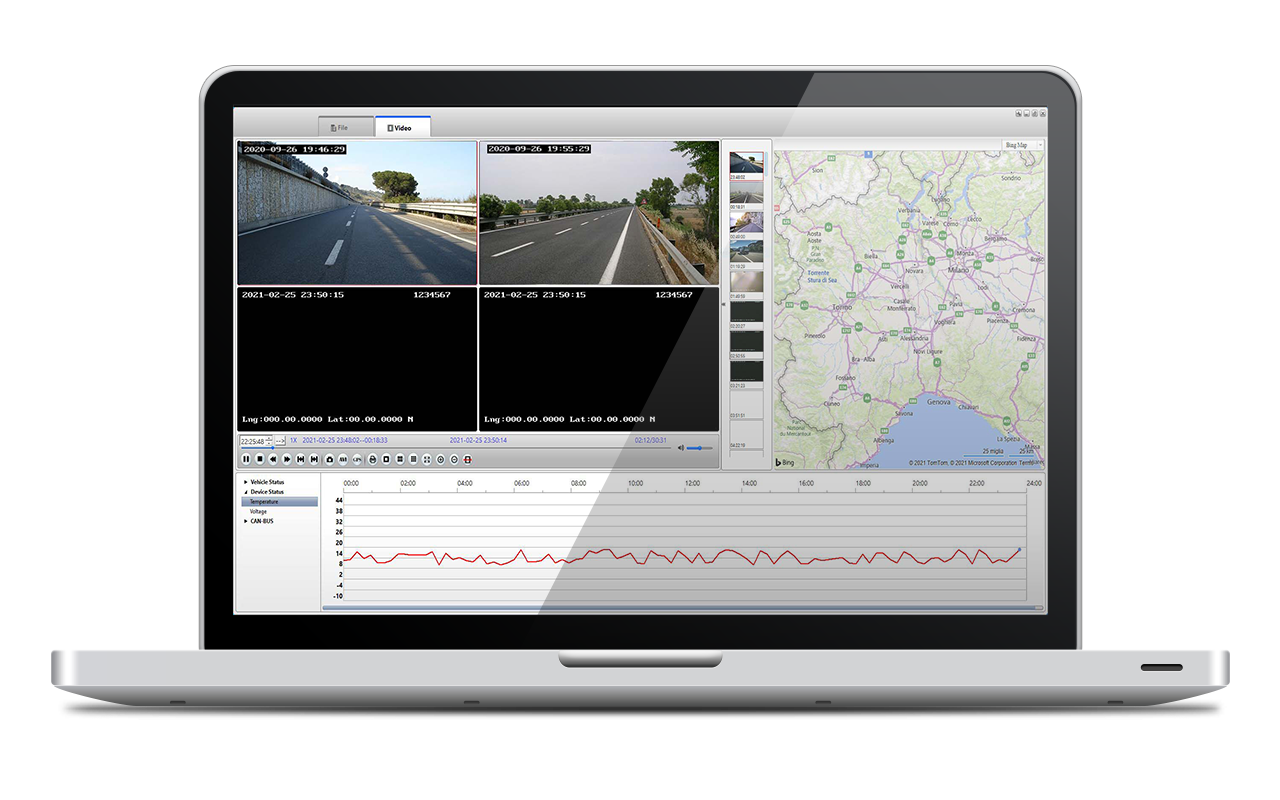

ADVANCED PLAYER

Play footage on PC

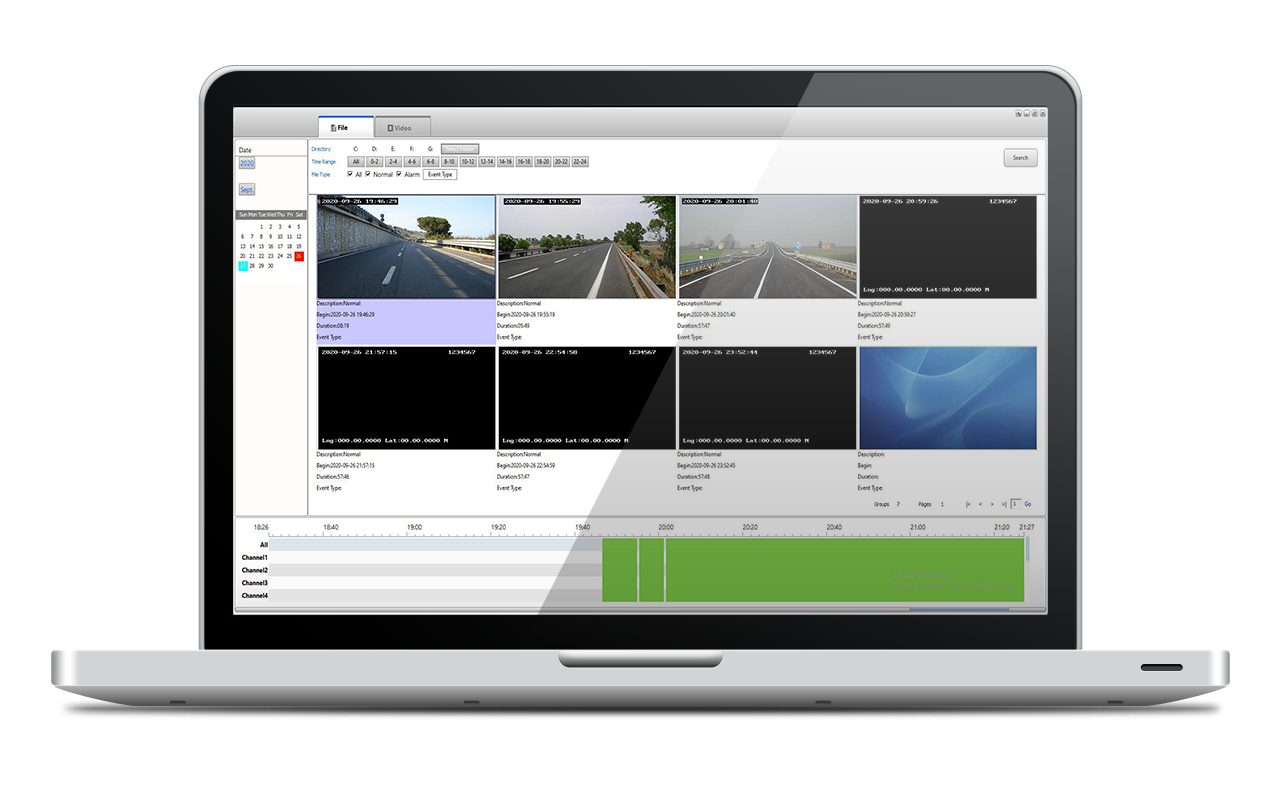

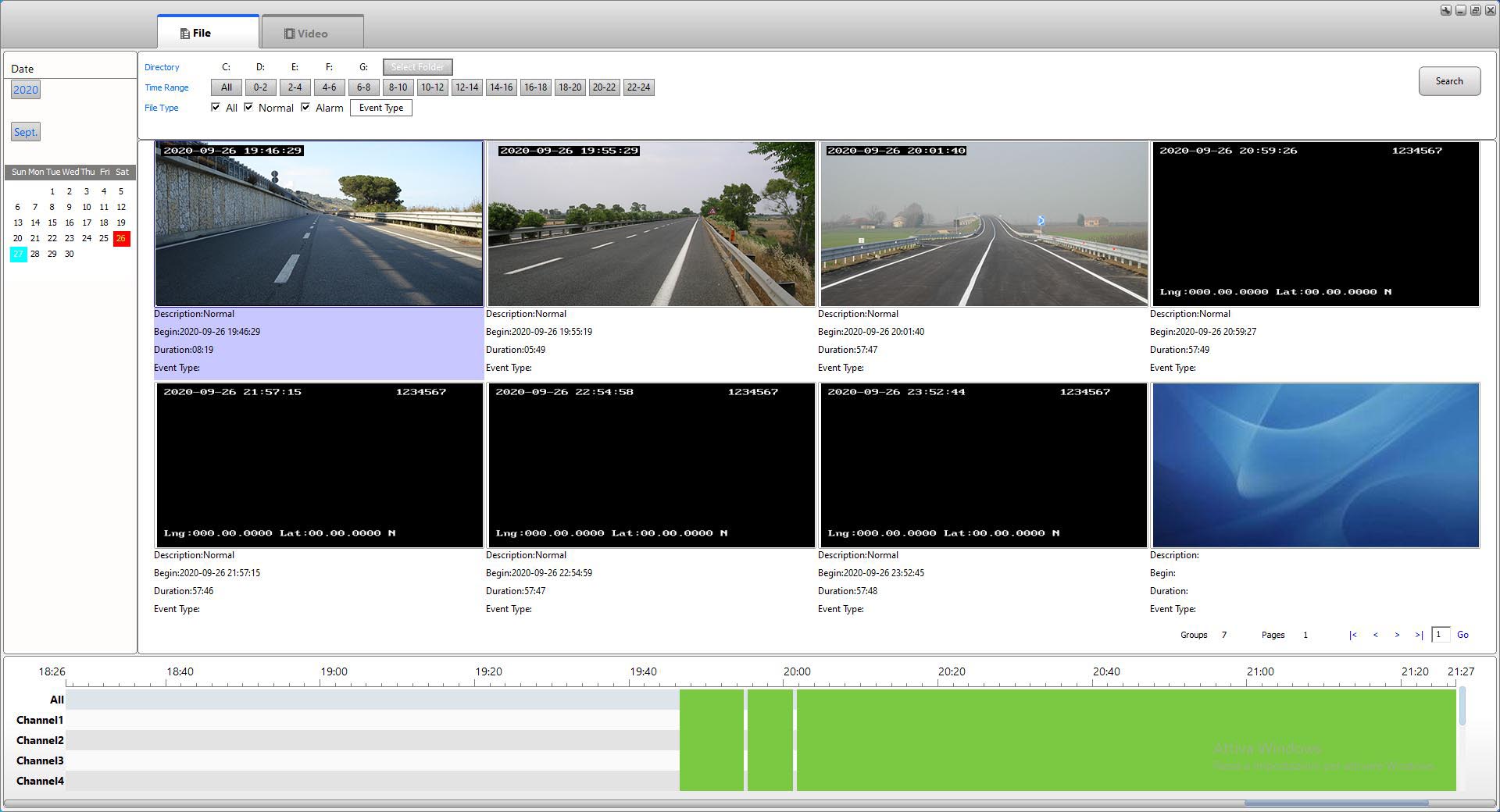

These MDVRs record much more than the video on SD card or Hard Disk. Together with the video, all the data detectable by the MDVR, such as date, time, vehicle data and geographical coordinates are saved. With the PC player you can search and play movies along with all vehicle data.

MDVR PLAYER FOR WINDOWS


SDK per sviluppatori

Questi MDVR possono essere integrati in software personalizzati di gestione realizzati da terze parti per adeguarsi a tutte le specifiche applicazioni di gestione veicoli. Per questo forniamo gratuitamente agli sviluppatori le librerie SDK per controllare tutte le funzionalità con applicazioni software esterne.

SCARICA SDK

TECHNICAL DATA



PRODUCT CODE MV-41SD MV-41SD MV-42HD MV-42HD-4G MV-42HD-4G
Description Mobile DVR for AHD CVBS IP cameras Mobile DVR for AHD CVBS IP cameras Mobile DVR for AHD CVBS IP cameras Mobile DVR for AHD CVBS IP cameras Mobile DVR for AHD CVBS IP cameras
VIDEO
Inputs 4 video + 2 audio 4 video + 2 audio 4 video + 4 audio 4 video + 4 audio 8 video + 8 audio
Compatible cameras AHD CVBS cameras AHD CVBS cameras AHD CVBS and IP ONVIF cameras AHD CVBS and IP ONVIF cameras AHD CVBS and IP ONVIF cameras
Video compression H265, H264 H265, H264 H265, H264 H265, H264 H265, H264
Video resolution AHD up to 2MP 1080P, CVBS D1 AHD up to 2MP 1080P, CVBS D1 AHD up to 2MP 1080P, CVBS D1 AHD up to 2MP 1080P, CVBS D1 AHD up to 2MP 1080P, CVBS D1
Dual stream
HARDWARE
Main processor Hi3521D Hi3521D Hi3531D Hi3531D Hi3531D
Operating system LINUX embedded LINUX embedded LINUX embedded LINUX embedded LINUX embedded
Hard Disk 1 2.5" Max. 2TB 1 2.5" Max. 2TB 1 2.5" Max. 2TB
SD card Slot SD max 256GB Slot SD max 256GB Slot SD max 256GB Slot SD max 256GB Slot SD max 256GB
Ethernet 1xRJ45 10/100/1000 1xRJ45 10/100/1000 1xRJ45 10/100/1000
Video inputs 4 BNC 4 BNC 4 BNC 4 BNC 8 BNC
Audio inputs 2 RCA 2 RCA 4 RCA 4 RCA 4 RCA
Audio outputs 1 RCA 1 RCA 1 RCA 1 RCA 1 RCA
Alarm inputs 4 voltage inputs 4 voltage inputs 4 voltage inputs 4 voltage inputs 4 voltage inputs
Alarm outputs 1 relay output 1 relay output 2 relay output 2 relay output 2 relay output
Serial port RS232 RS232 RS232 e RS485 for PTZ Pelco P/D RS232 e RS485 for PTZ Pelco P/D RS232 e RS485 for PTZ Pelco P/D
USB ports 1xUSB2.0 1xUSB2.0 1xUSB2.0 1xUSB2.0 1xUSB2.0
Video output 1xCVBS BNC 1xCVBS BNC 1xCVBS BNC 1xCVBS BNC 1xCVBS BNC
Auxiliary DC power output 12V@2.5A 12V@2.5A 12V@1A, 5V@1A 12V@1A, 5V@1A 12V@1A, 5V@1A
Remote control
Mouse
G-Sensor
GPS
WiFi Wi-Fi 802.11b/g/n,2.4G/5.8G
3G/4G Slot SIM card 3G/4G Slot SIM card 3G/4G Slot SIM card 3G/4G
PERFORMANCE
Recording 2MP 1080P 4CHx25f/s, 1MP 720P 4CHx25f/s, D1 4CHx25f/s 2MP 1080P 4CHx25f/s, 1MP 720P 4CHx25f/s, D1 4CHx25f/s 2MP 1080P 4CHx25f/s, 1MP 720P 4CHx25f/s, D1 4CHx25f/s 2MP 1080P 4CHx25f/s, 1MP 720P 4CHx25f/s, D1 4CHx25f/s 2MP 1080P 4CHx25f/s, 1MP 720P 4CHx25f/s, D1 4CHx25f/s
SOFTWARE
P2P Cloud Server Free Free Free
Browser Quick configuration via browser Quick configuration via browser Quick configuration via browser
Smartphone CMSV6 app for iPhone iPad Android Android-Pad CMSV6 app for iPhone iPad Android Android-Pad CMSV6 app for iPhone iPad Android Android-Pad
Fleet management software CMSV6 for Windows CMSV6 for Windows CMSV6 for Windows
Recording mode Timer, Continuous, Alarm Timer, Continuous, Alarm Timer, Continuous, Alarm Timer, Continuous, Alarm Timer, Continuous, Alarm
FEATURES
Live view 1/4 cameras 1/4 cameras 1/4 cameras 1/4 cameras 1/8 cameras
OSD ID, Date, Time, License plate, Channel ID, Date, Time, License plate, Channel ID, Date, Time, License plate, Channel ID, Date, Time, License plate, Channel, GPS ID, Date, Time, License plate, Channel, GPS
Motion detection
Alarm input actions Recording, Pop-up camera, output trigger Recording, Pop-up camera, output trigger, APP/SW notification Recording, Pop-up camera, output trigger Recording, Pop-up camera, output trigger, APP/SW notification Recording, Pop-up camera, output trigger, APP/SW notification
PTZ control via serial port Pelco P/D via RS485 Pelco P/D via RS485 Pelco P/D via RS485
UTC camera menu remote control
Automatic overwrite when memory full
Timeline for playback search
Password protection
GENERAL
Casing Shock-proof metal casing Shock-proof metal casing Shock-proof metal casing Shock-proof metal casing Shock-proof metal casing
Operating temperature -20°C +70°C RH90% Max -20°C +70°C RH90% Max -20°C +70°C RH90% Max -20°C +70°C RH90% Max -20°C +70°C RH90% Max
Power supply 8..36VDC +/-10% 8..36VDC +/-10% 8..36VDC +/-10% 8..36VDC +/-10% 8..36VDC +/-10%
Power consumption Max 10W Max 10W Max 25W Max 25W Max 25W
Dimensions 128x40x135 mm 128x40x135 mm 180x180x45 mm 180x180x45 mm 180x180x45 mm
Weight 360 gr 360 gr 1300 gr (without HDD) 1300 gr (without HDD) 1300 gr (without HDD)
Accessories in the package 5 AV/DC cable adapters | 1 power supply cable | Remote control | I/O cable 5 AV/DC cable adapters | 1 power supply cable | Remote control | I/O cable 5 AV/DC cable adapters | 1 power supply cable | Remote control | I/O cable | 1 RJ45 LAN cable 5 AV/DC cable adapters | 1 power supply cable | Remote control | I/O cable | 1 RJ45 LAN cable | WiFi, GPS, 4G antennas 5 AV/DC cable adapters | 1 power supply cable | Remote control | I/O cable | 1 RJ45 LAN cable | WiFi, GPS, 4G antennas

Q & A


What is included?

See the accessories included in the package at the end of the technical datasheet above

What is not included?

All our MDVRs are supplied without Hard Disk and without SD card. In our price list you can buy specific Hard Disks for video surveillance and SD cards to be installed inside.

What's the price?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.
