4G Dashcam for vehicles
WITH SIM CARD FOR VEHICLE MONITORING OVER MOBILE NETWORK
..the best cameras for vehicles fleet management
REMOTE MONITORING BY PHONE, TABLET, PC. SUPPORTING CMSV6/CMSV7 AND 2-WAYS AUDIO
WITH SIM CARD FOR VEHICLE MONITORING OVER MOBILE NETWORK
REMOTE MONITORING BY PHONE, TABLET, PC. SUPPORTING CMSV6/CMSV7 AND 2-WAYS AUDIO
DASHCAM WITH GPS WIFI 4G

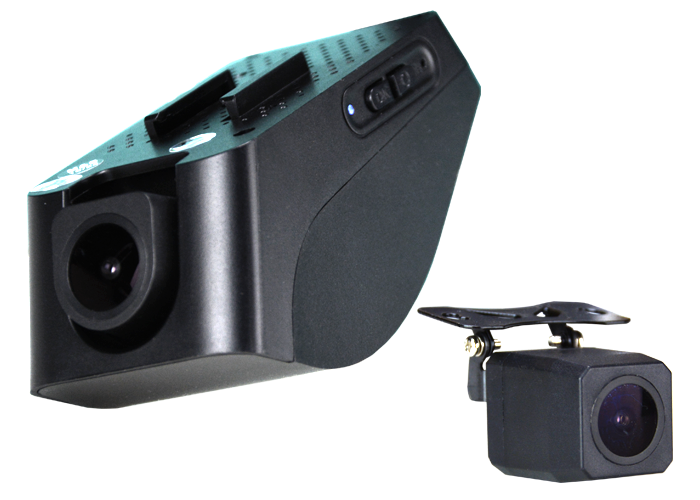

Front camera +
Rear-view waterproof camera with 5 m. cable
SUPPORTING CMSV6/CMSV7 FLEET MANAGEMENT PLATFORM
ACCESSORIES
|
|

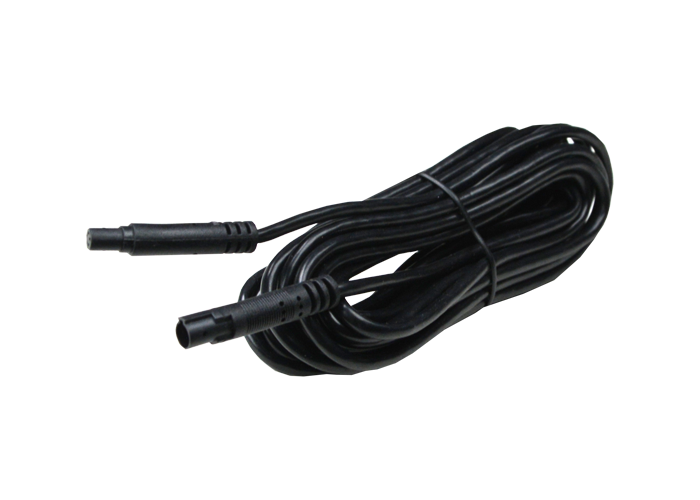

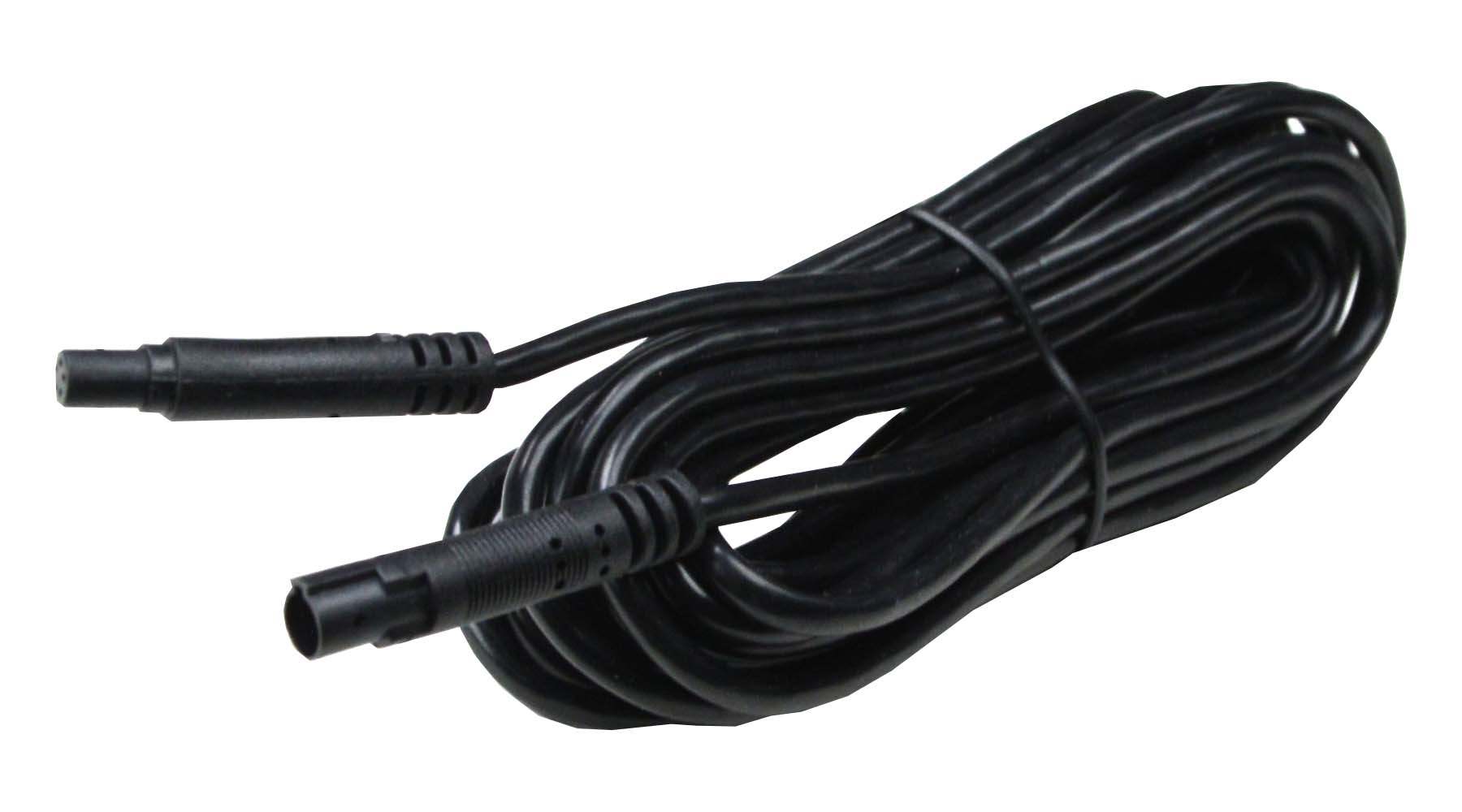

| DK-MSD... | DK-V-CAV5 Additional 5 m cable for camera |
Would you like to video monitor all your company's vehicles with GPS localization? With our 4G dashcams you can do it without complicated and expansive devices. Our 4G dashcams are easy to install in any vehicle and connect straight to the Internet. A 4G SIM can be plugged in. You can view live video and video footage with our free app or manage the whole vehicle fleet from your computer with the famous CMSV6/CMSV7 Fleet Management Platform.

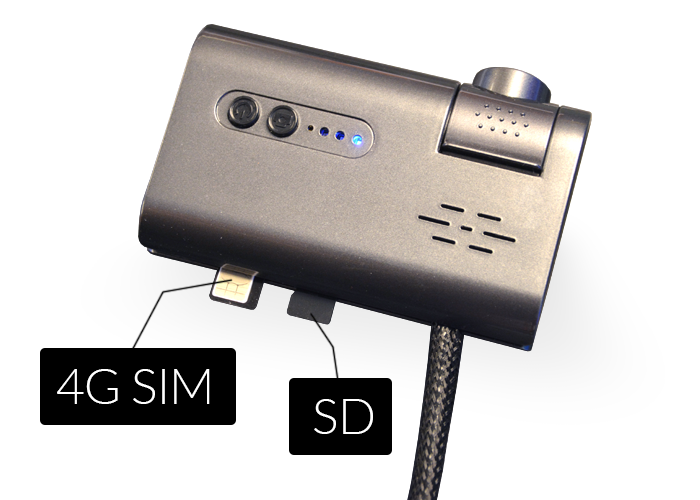

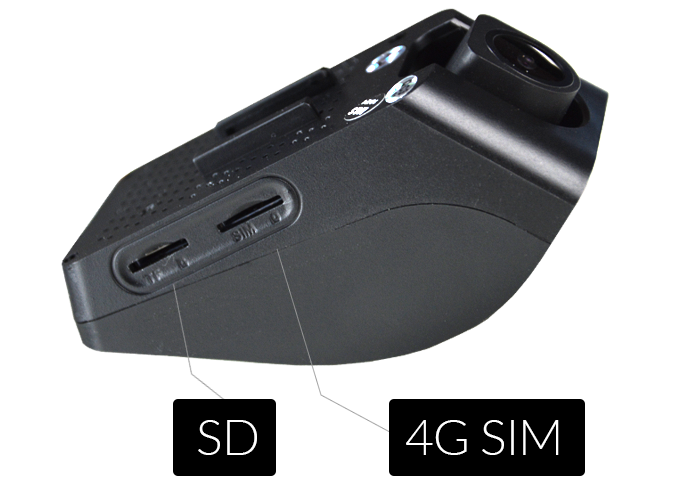

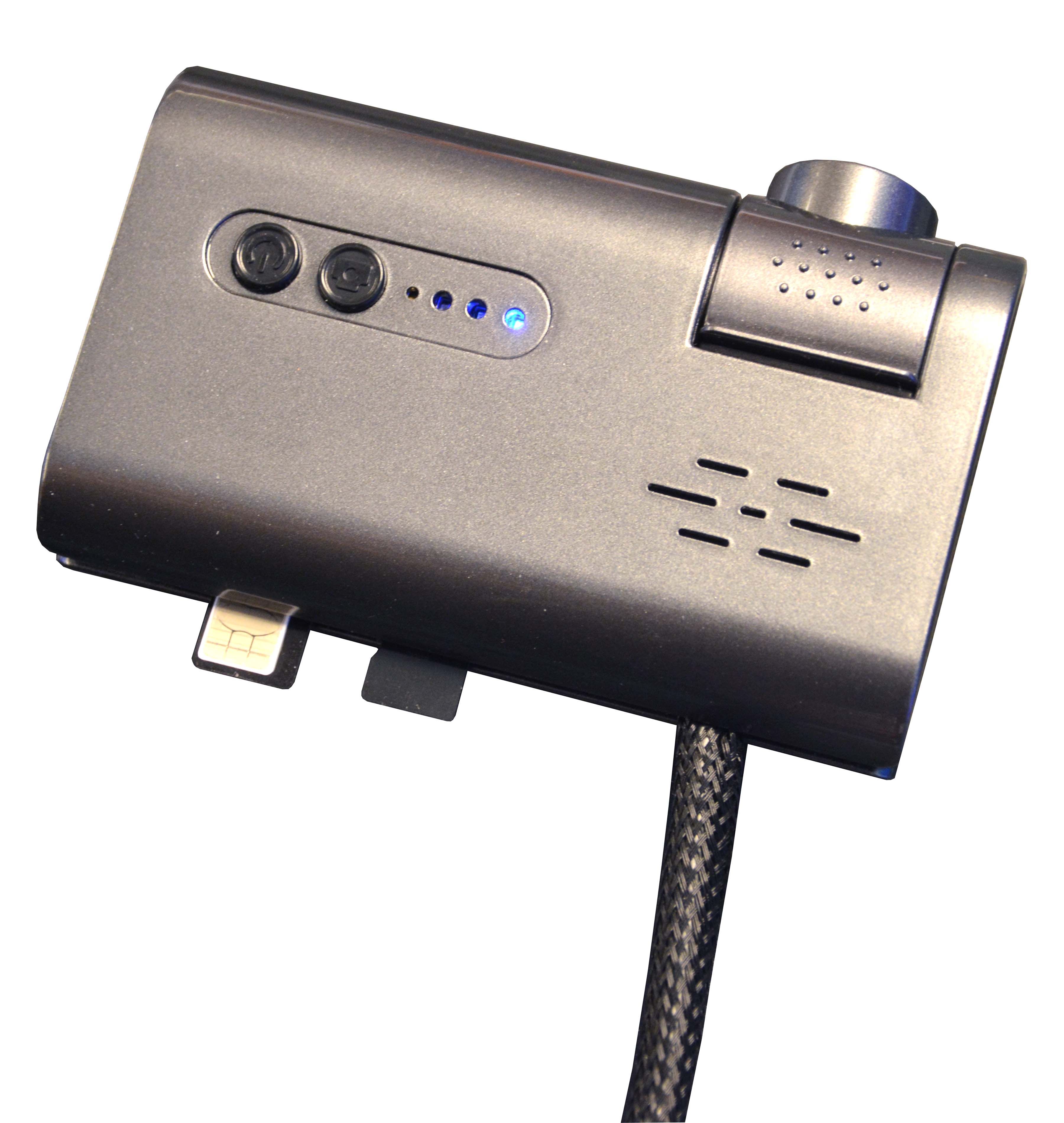

These cameras come with 2 card slots: SD and SIM. You can insert a microSD card into the SD/TF slot to record videos while driving. The footage can be used as an evidence in the event of an accident. You can insert a 4G sim into the SIM slot to be able to connect via the Internet at any time. If the format of your sim card is MICROSIM, you can plug it directly into the slot, if instead your sim is smaller, like NANOSIM, you must use an adapter (not included).

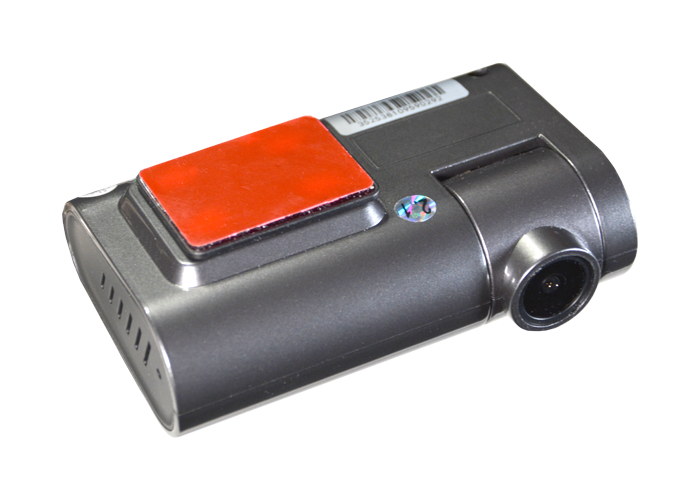

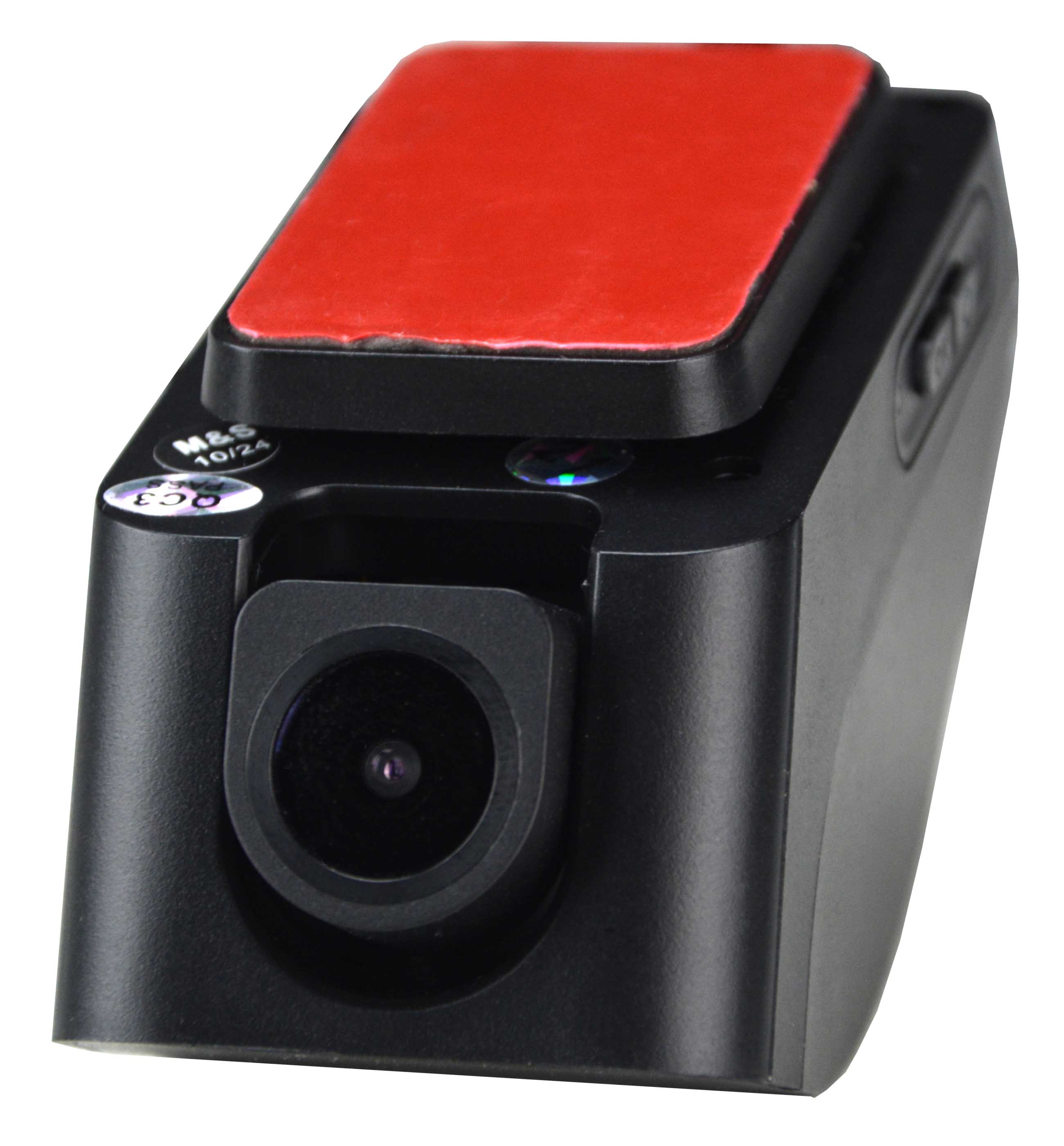

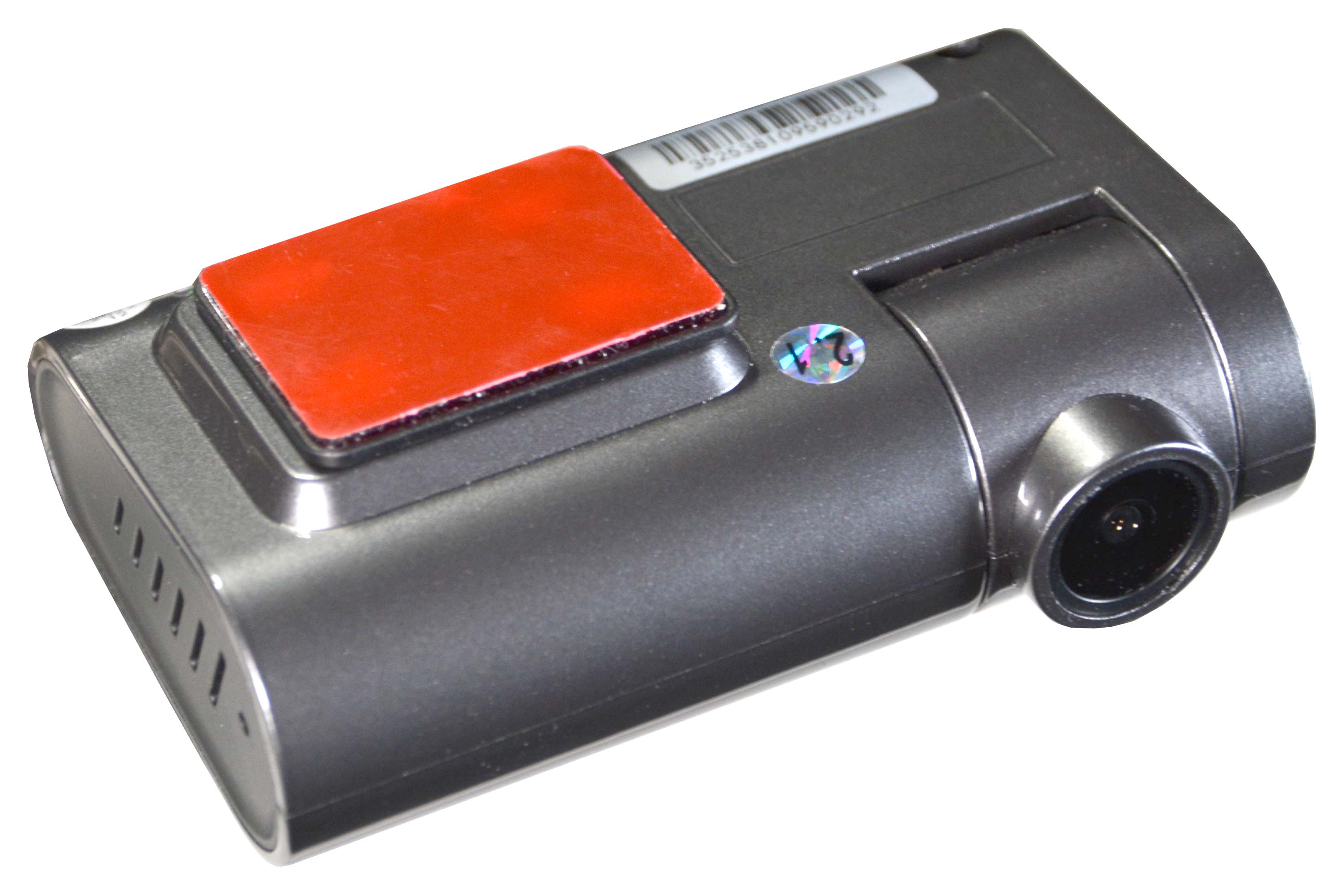

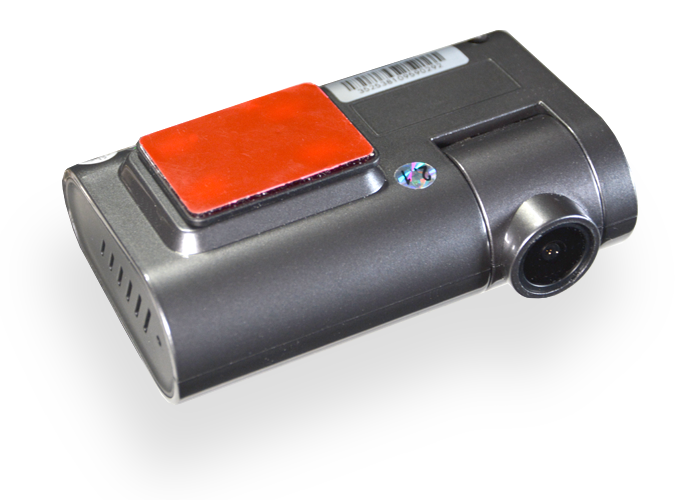

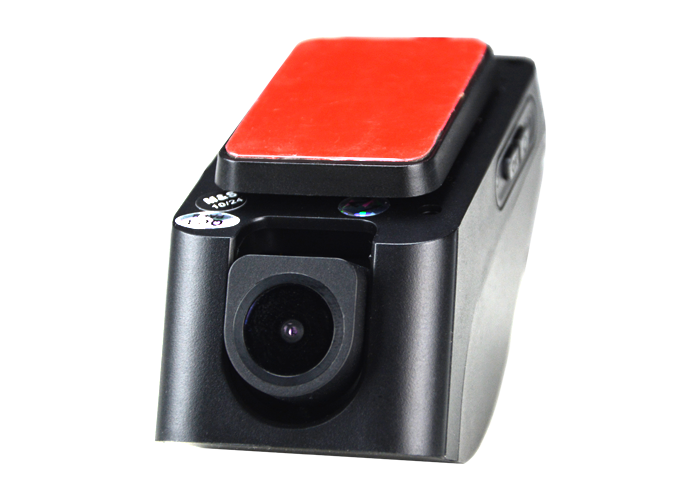

Our car dashcams are set up in minutes and can be easily moved from one vehicle to another suiting any changes in your vehicle fleet. They are usually mounted next to the rear view mirror and adhere solidly to the windshield thanks to the adhesive bracket. You can install the dashcam to the left of the mirror, on the driver side, but preferably on the passenger side, so as not to reduce visibility while driving..

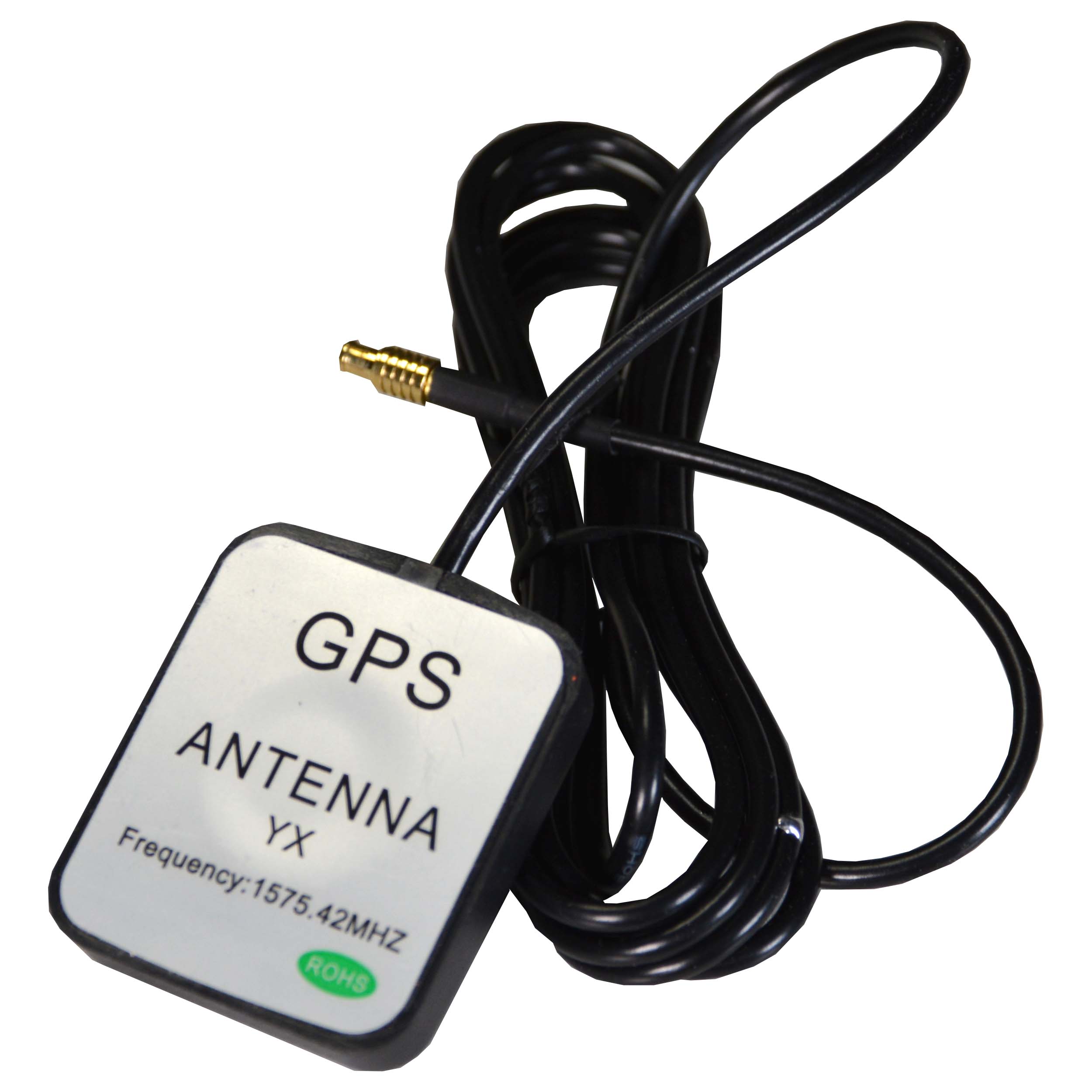

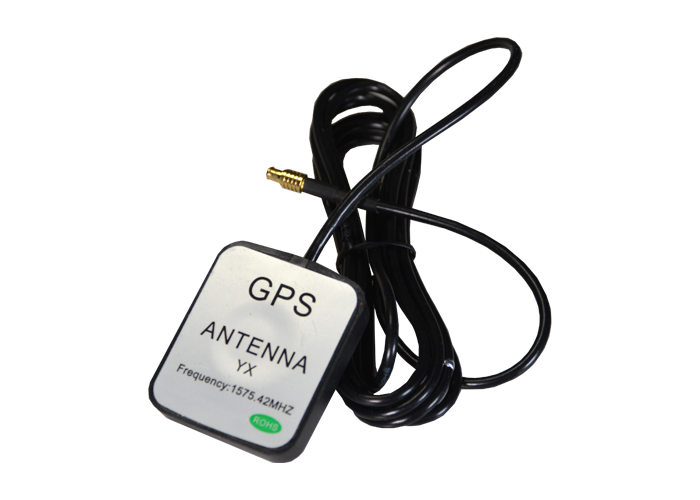

These cameras are equipped with GPS for vehicle geolocation. The GPS antenna connects with a cable and must be placed in the best position for receiving the satellite signal. Thanks to GPS you can know in real time where are your vehicles. Even when playing back the footages you can simultaneously see the sign on a map showing the vehicle's position.

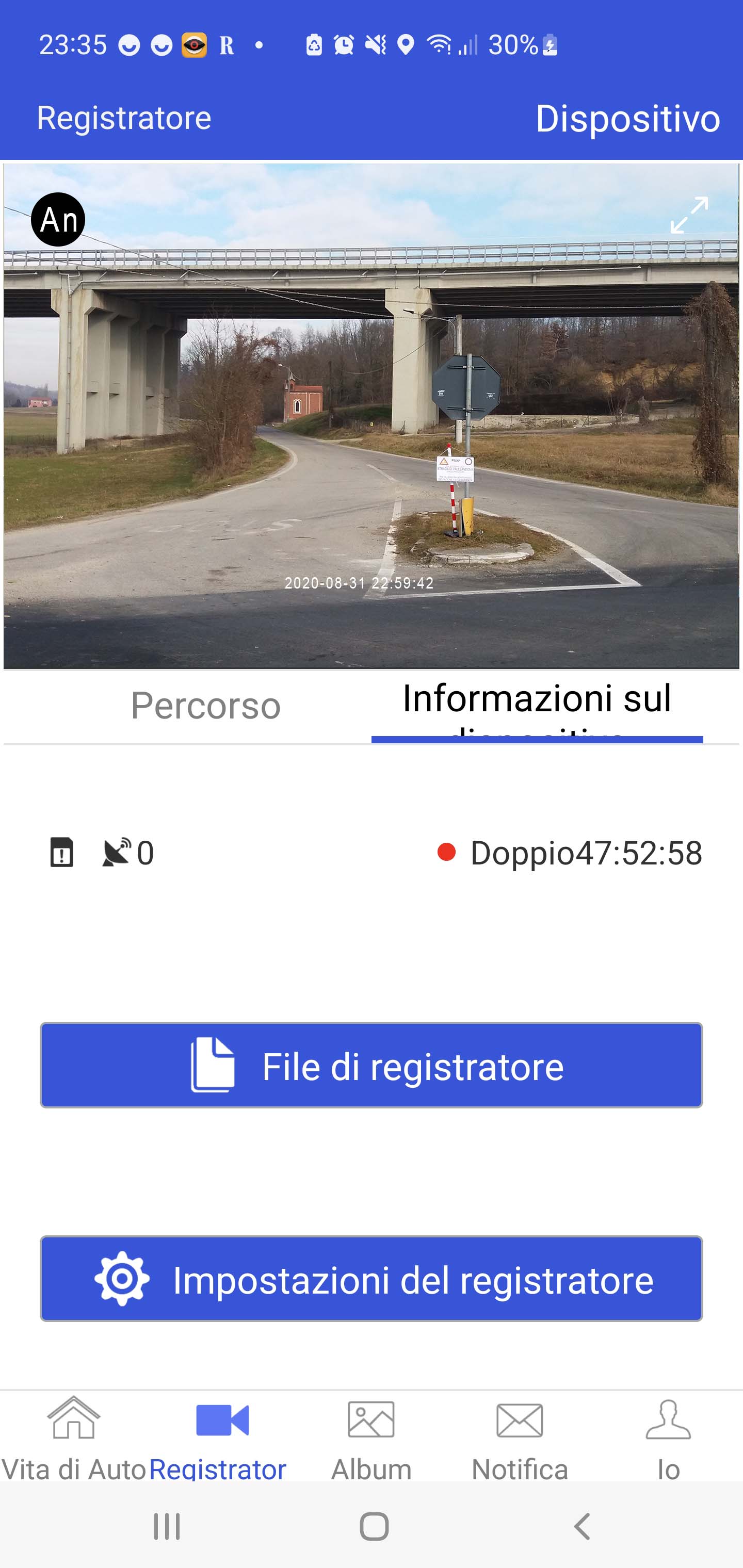

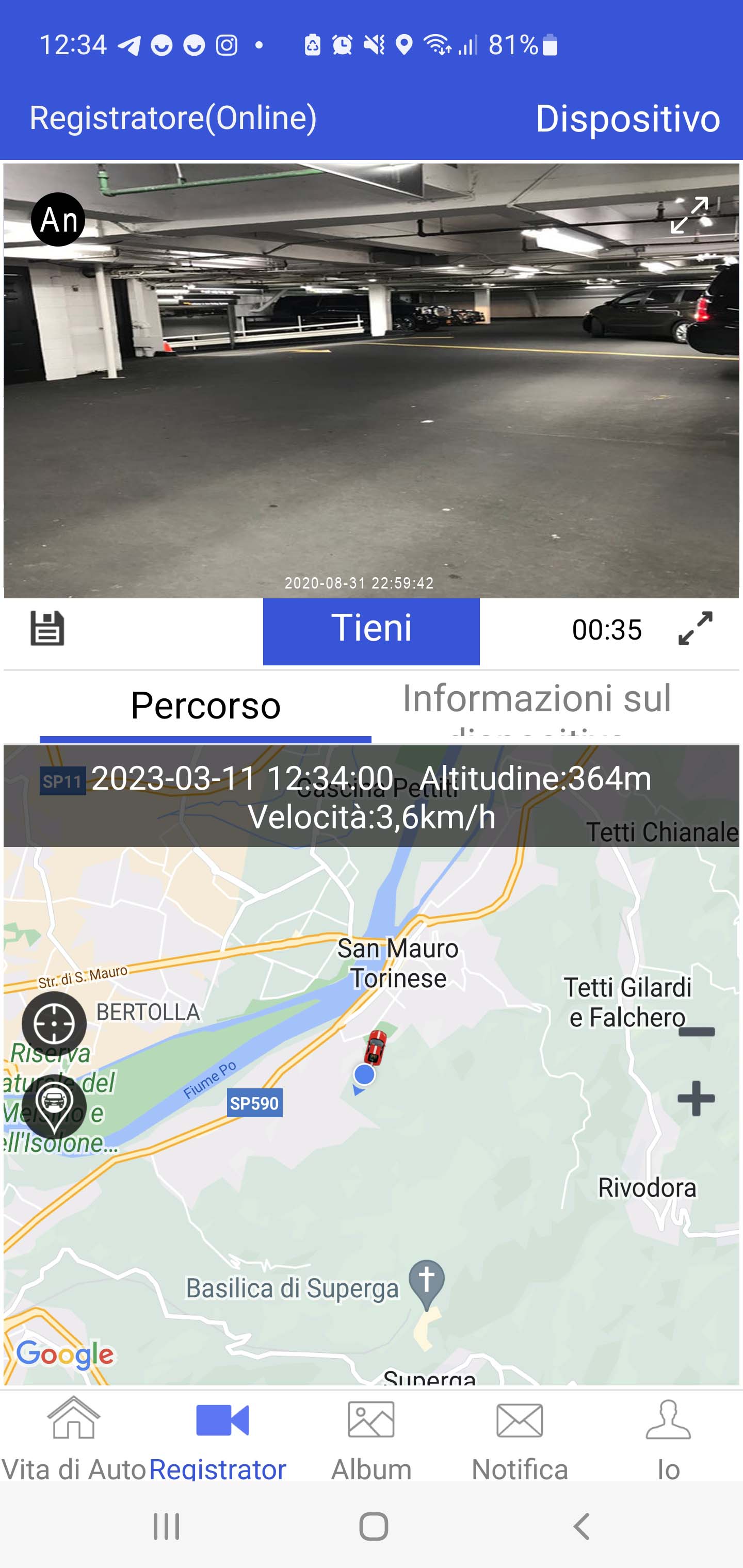

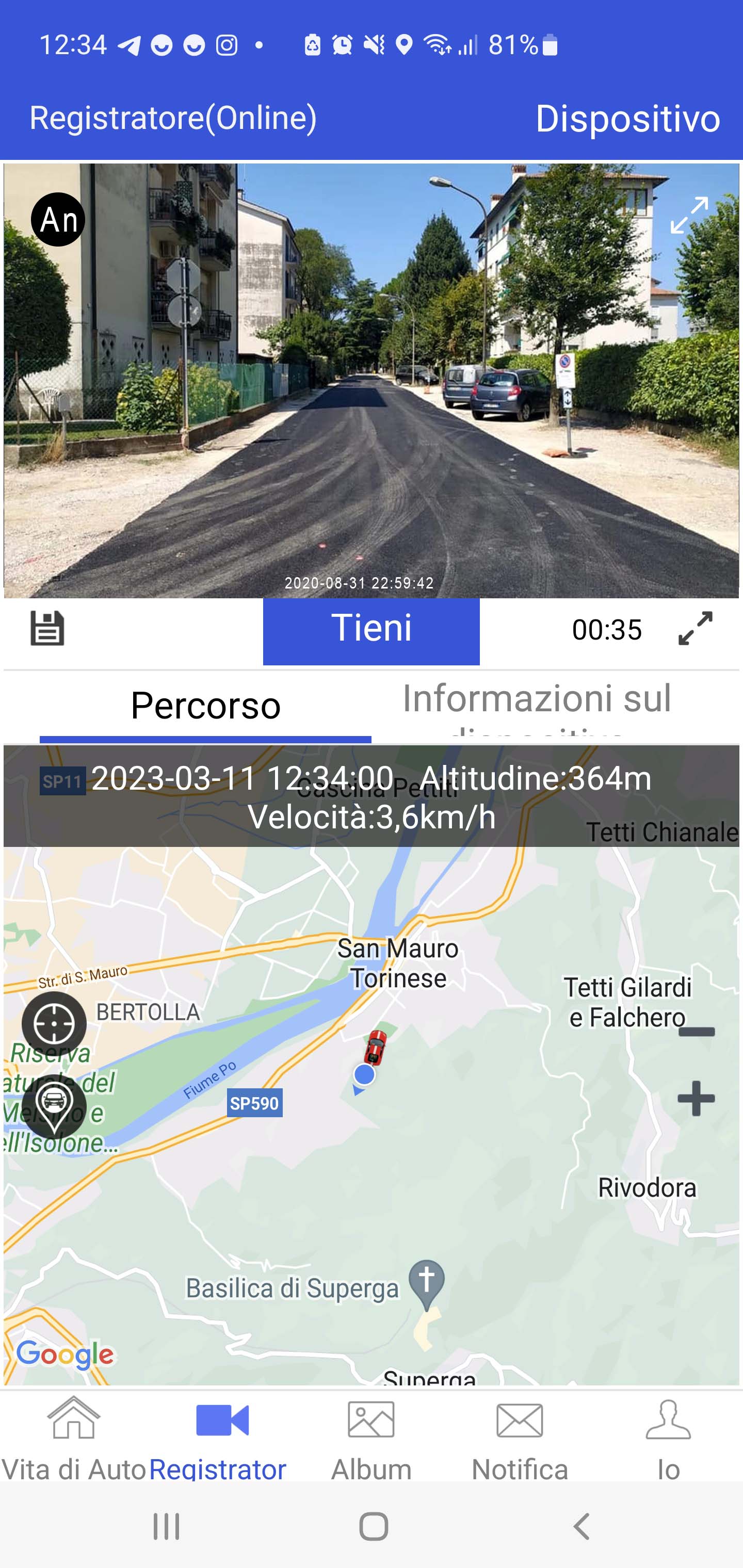

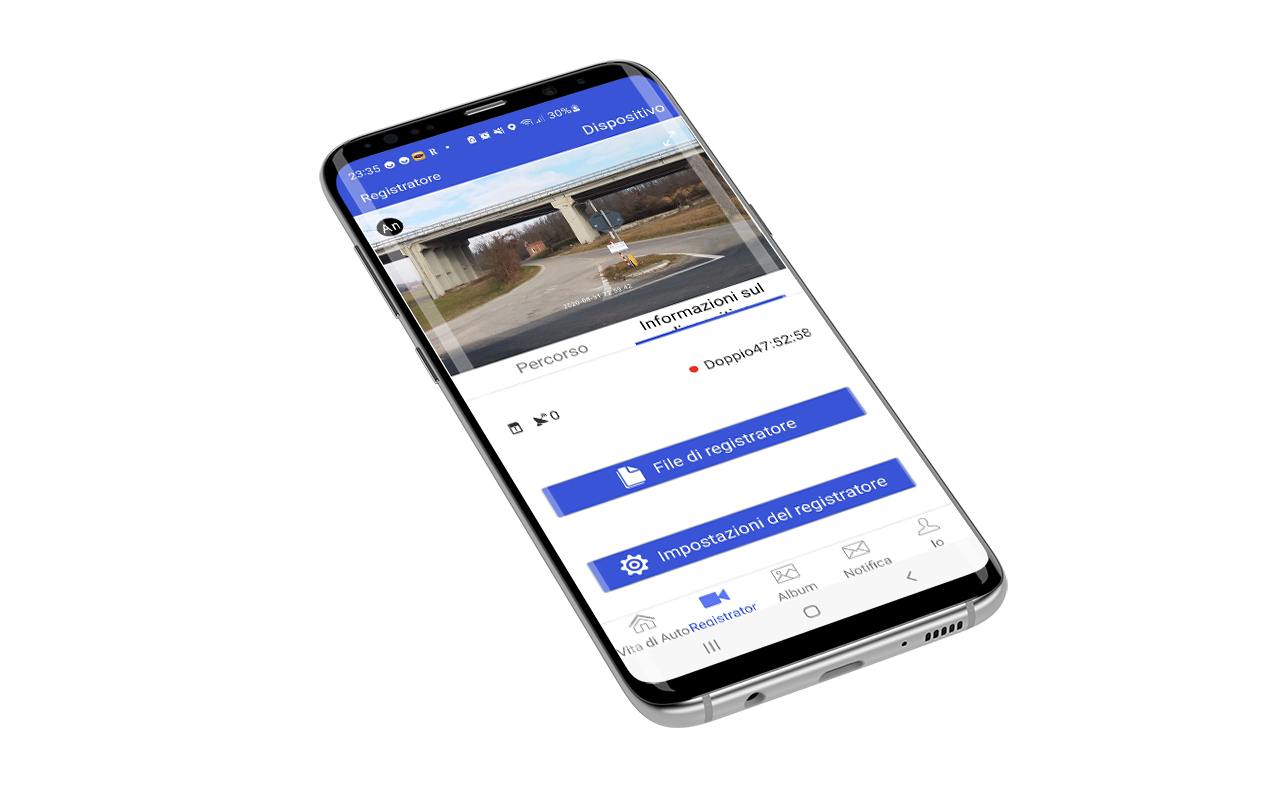

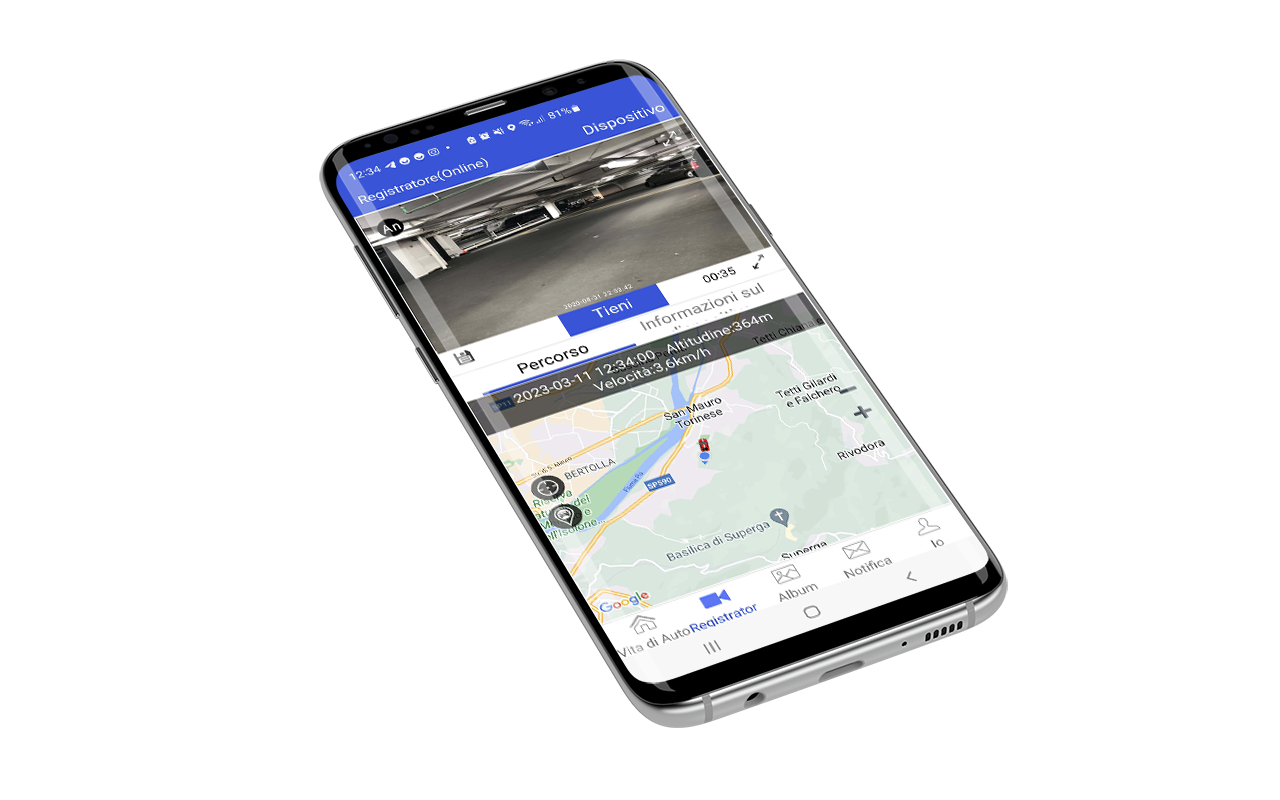

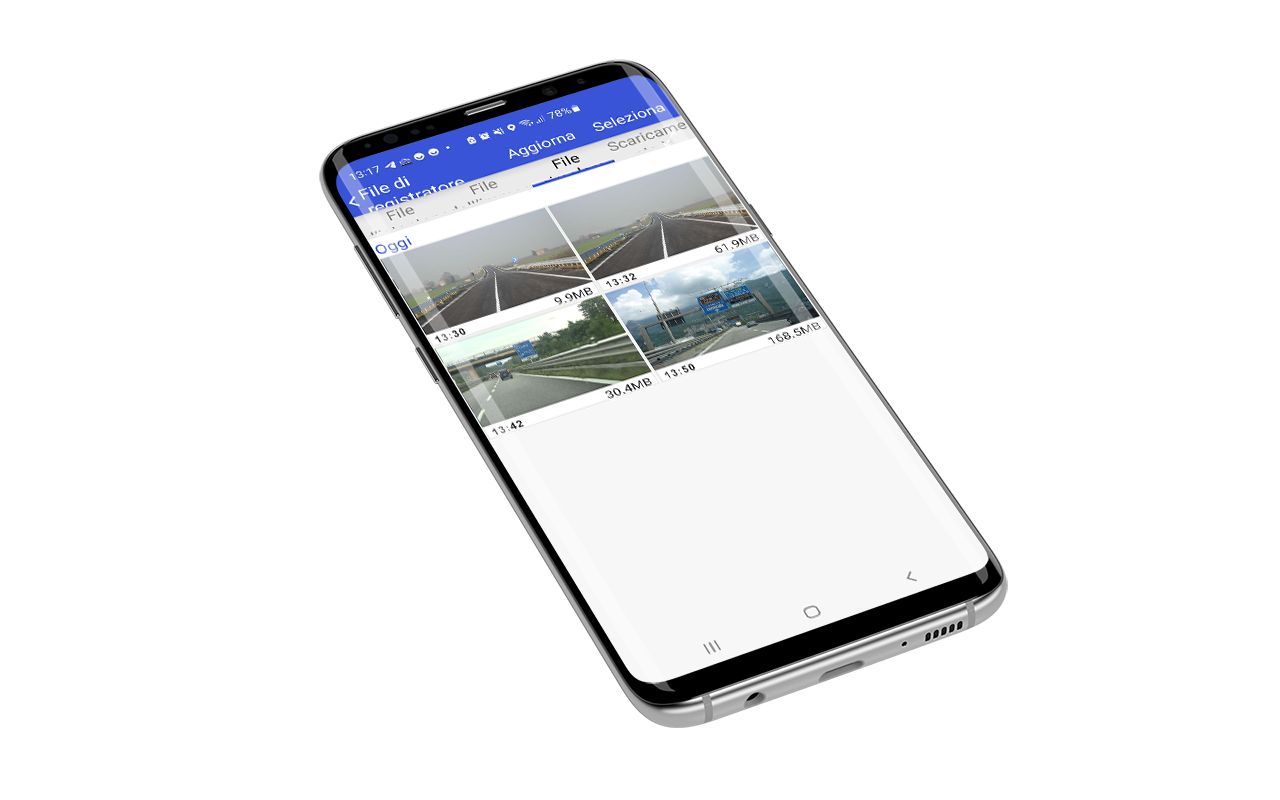

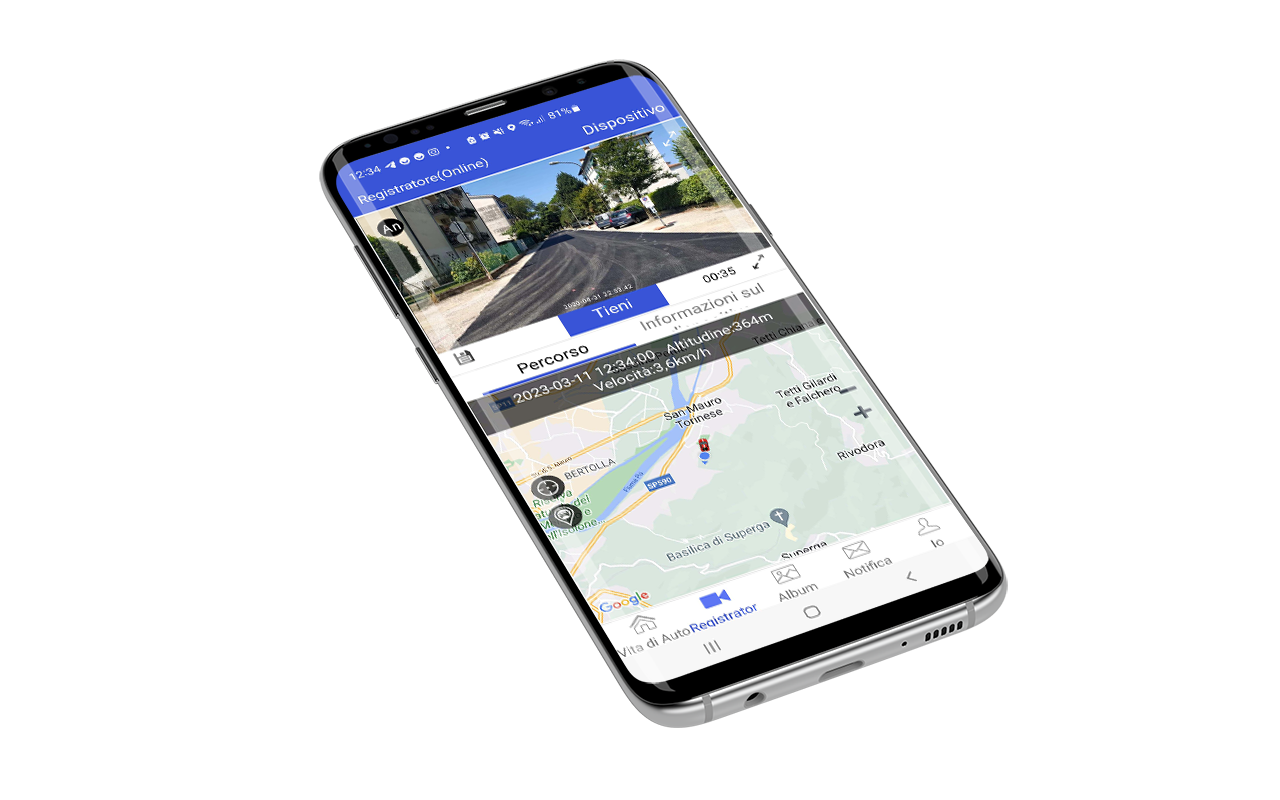

With the free APP for Android and iOS, you can control your vehicle fleet directly with your mobile phone or tablet. You can WATCH live video of the vehicles and their GPS location on the map. You can RECORD and take pictures. You can also PLAY AND DOWNLOAD the videos stored in the camera memory, searching by date and time. Our app is also supporting 2-ways audio to talk with people inside the vehicle.

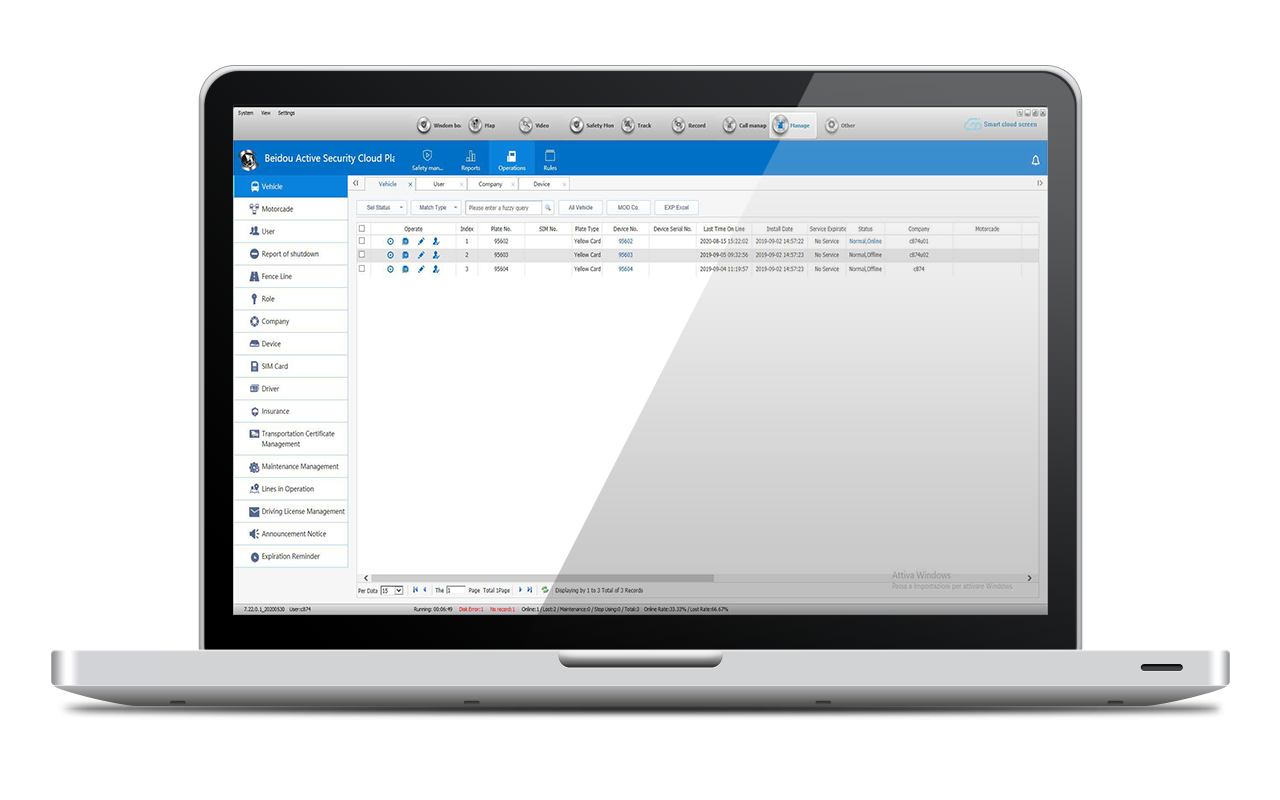

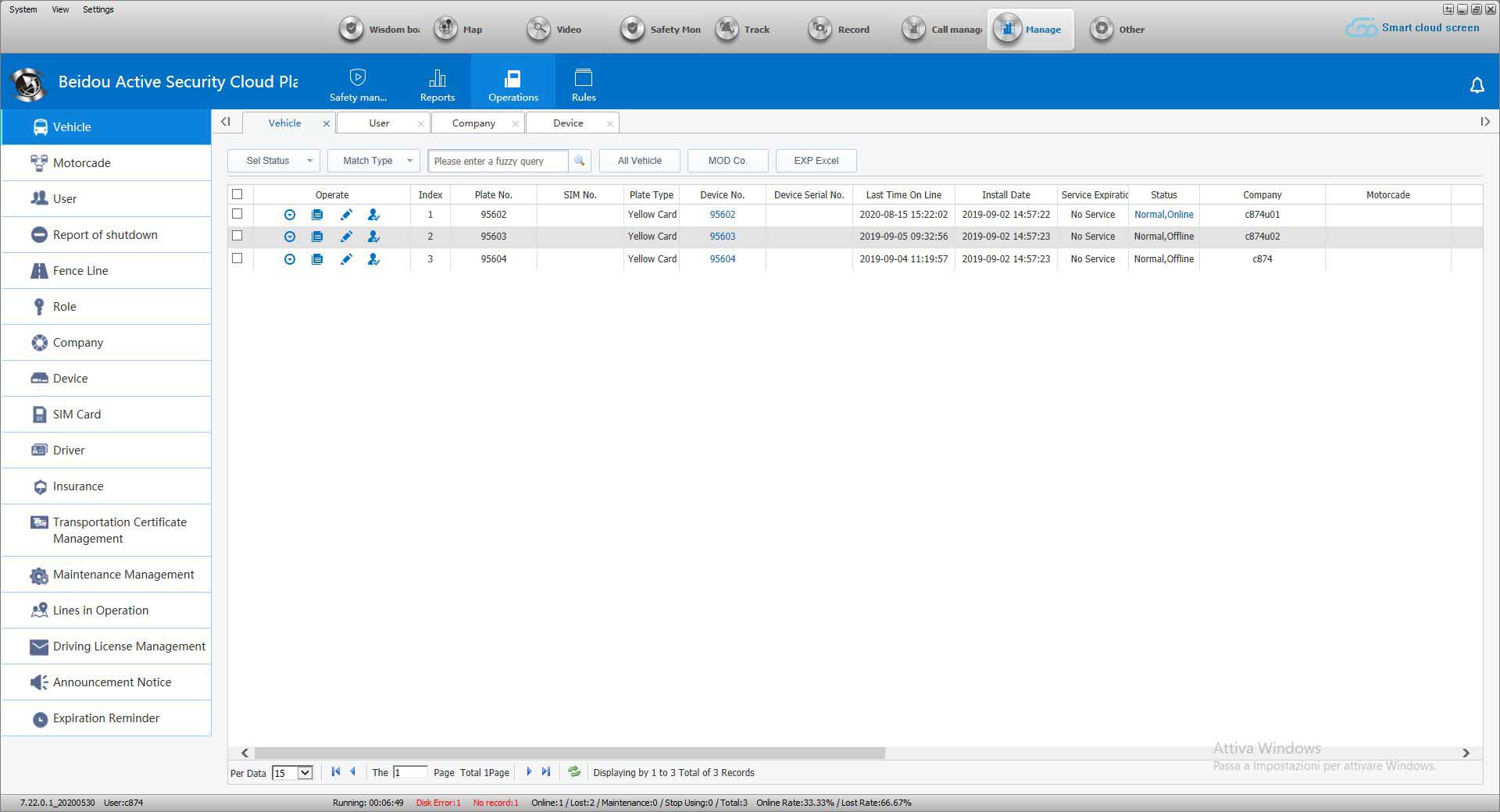

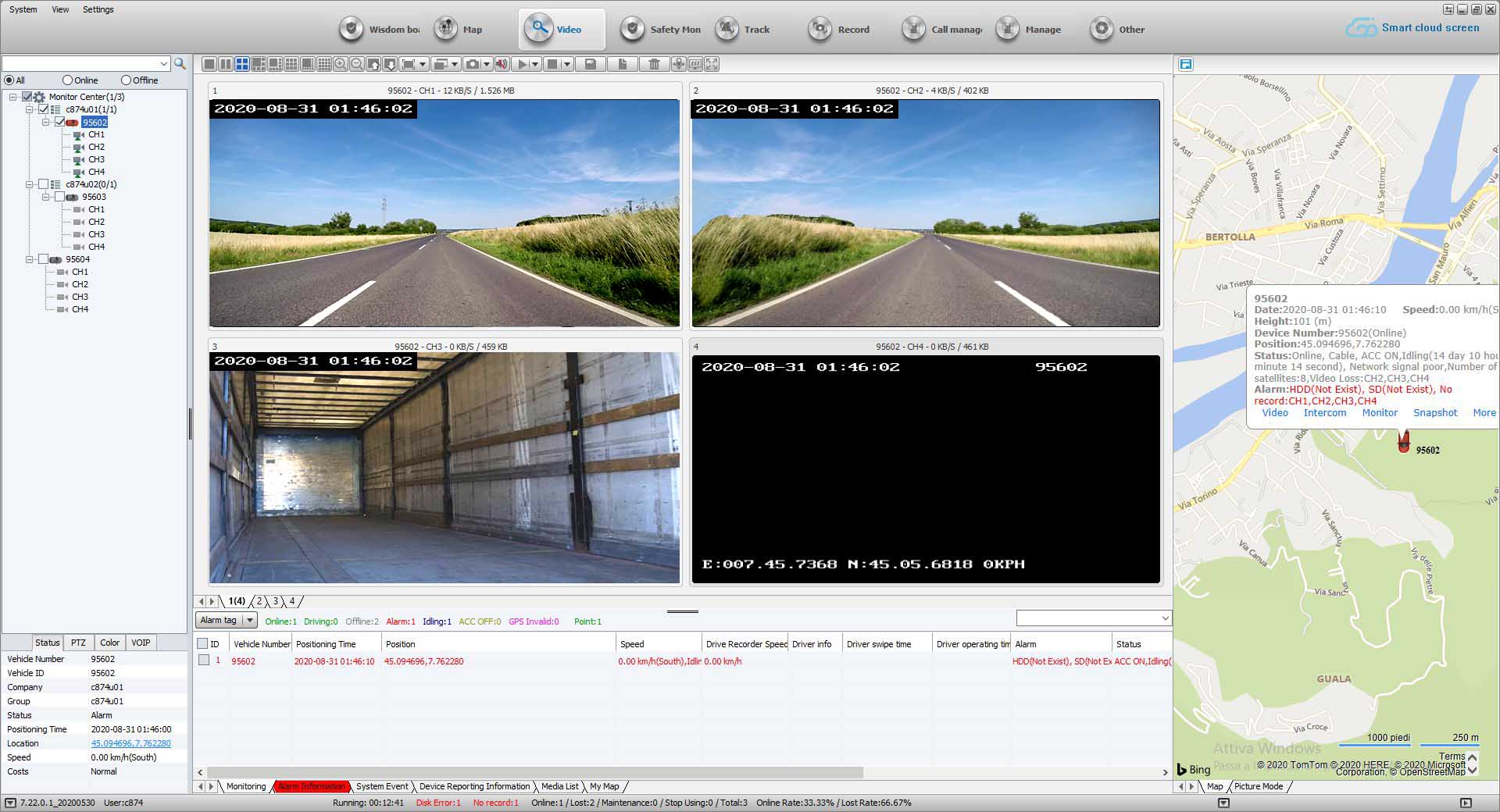

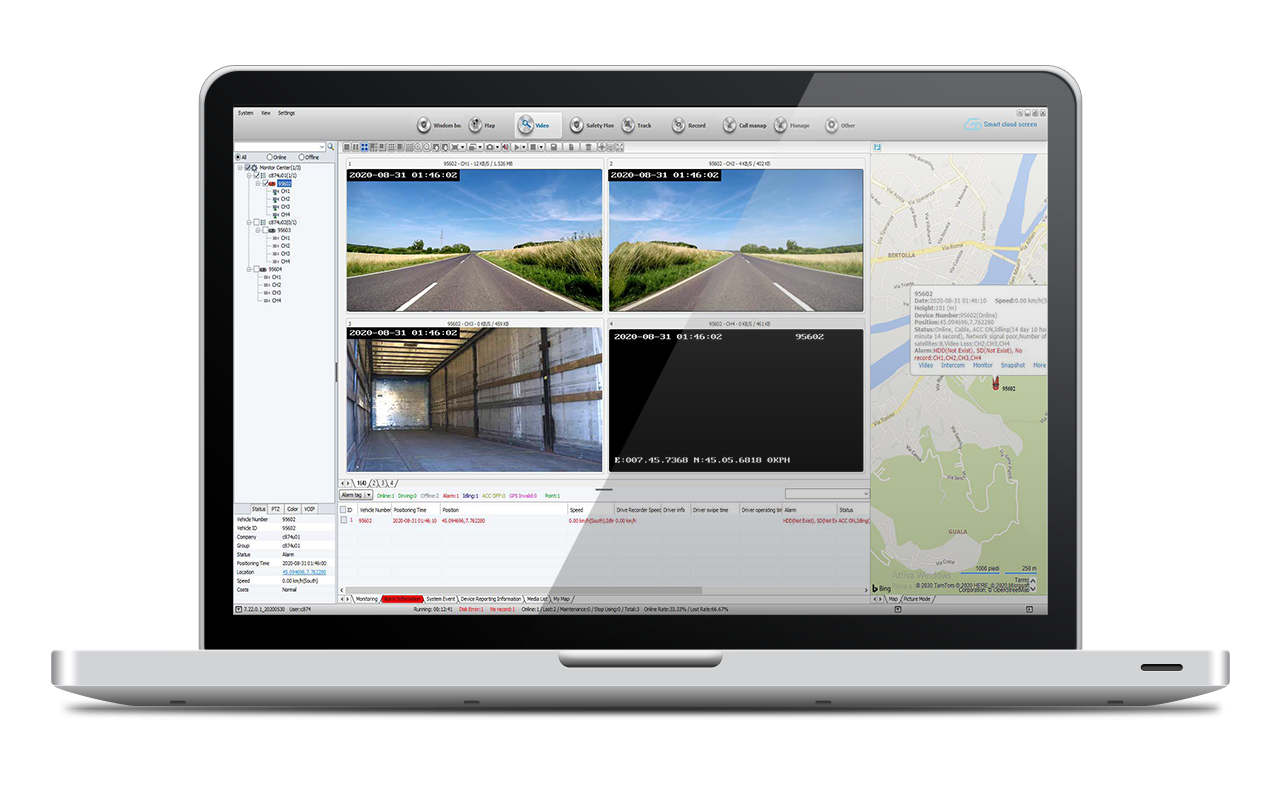

Our 4G dashcam are compatible with the famous CMSV6/CMSV7 fleet management software. If you buy one of our 4G dashcam, we will create your private account in the cloud server, where you can manage all your devices, even those you will buy in the future. We included 1 year free membership with all our dashcam. CMSV6/CMSV7 is a very powerful software for windows that works great in 4G thanks to the P2P CLOUD server.

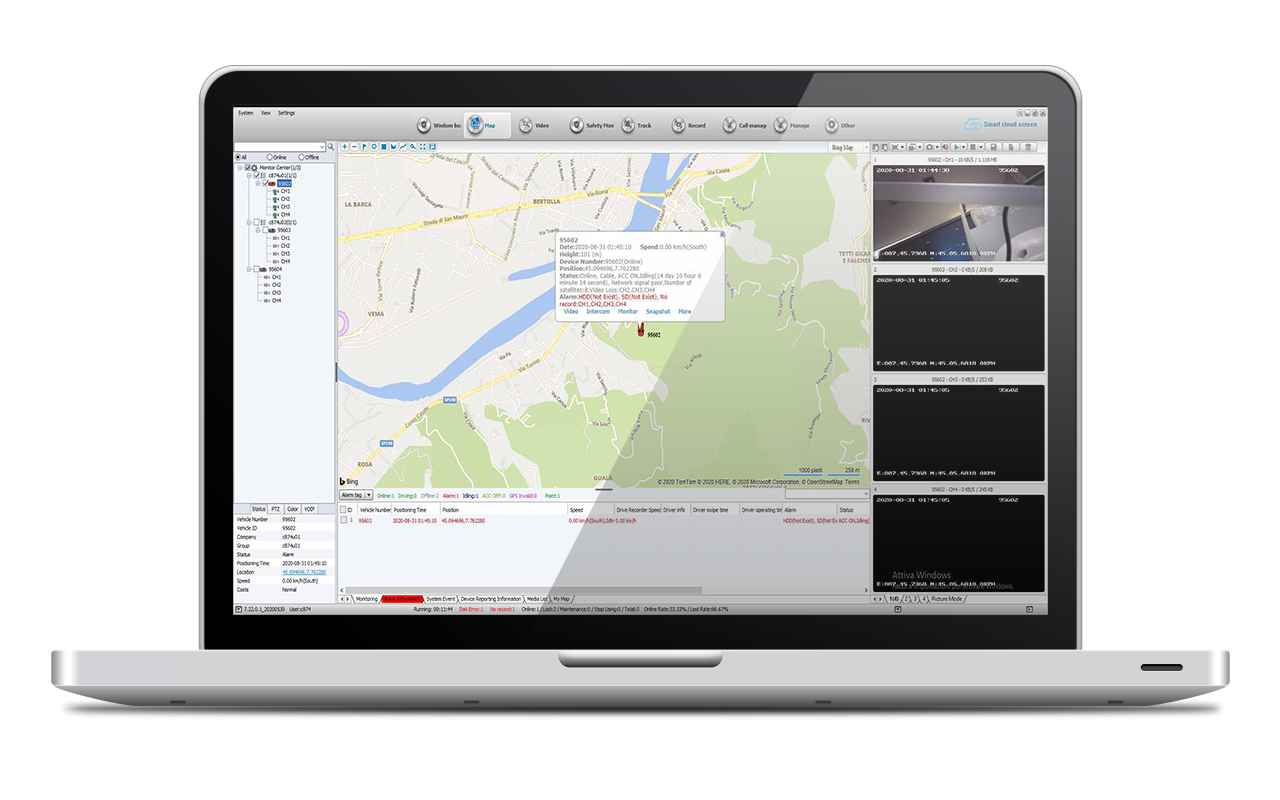

You can GEOLOCATE all your vehicles on maps or satellite photos and WATCH your cameras in real time. You can PLAY recorded videos and DOWNLOAD the video files. CMSV6/CMSV7 manages ALARM EVENTS with real-time notifications and is also supporting 2-ways audio to talk with people inside the vehicle.

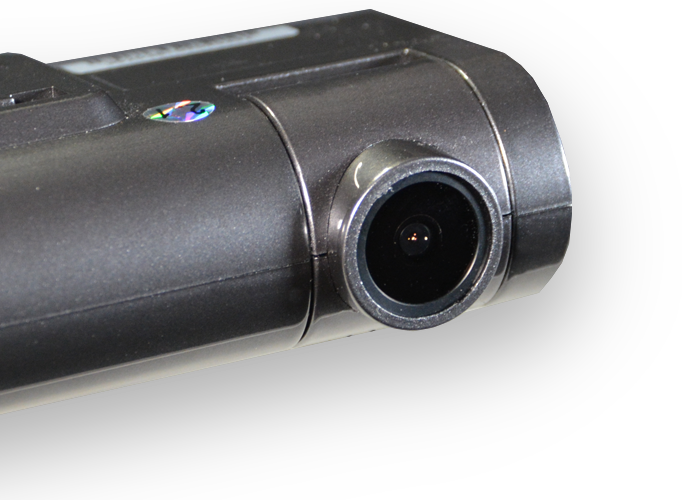

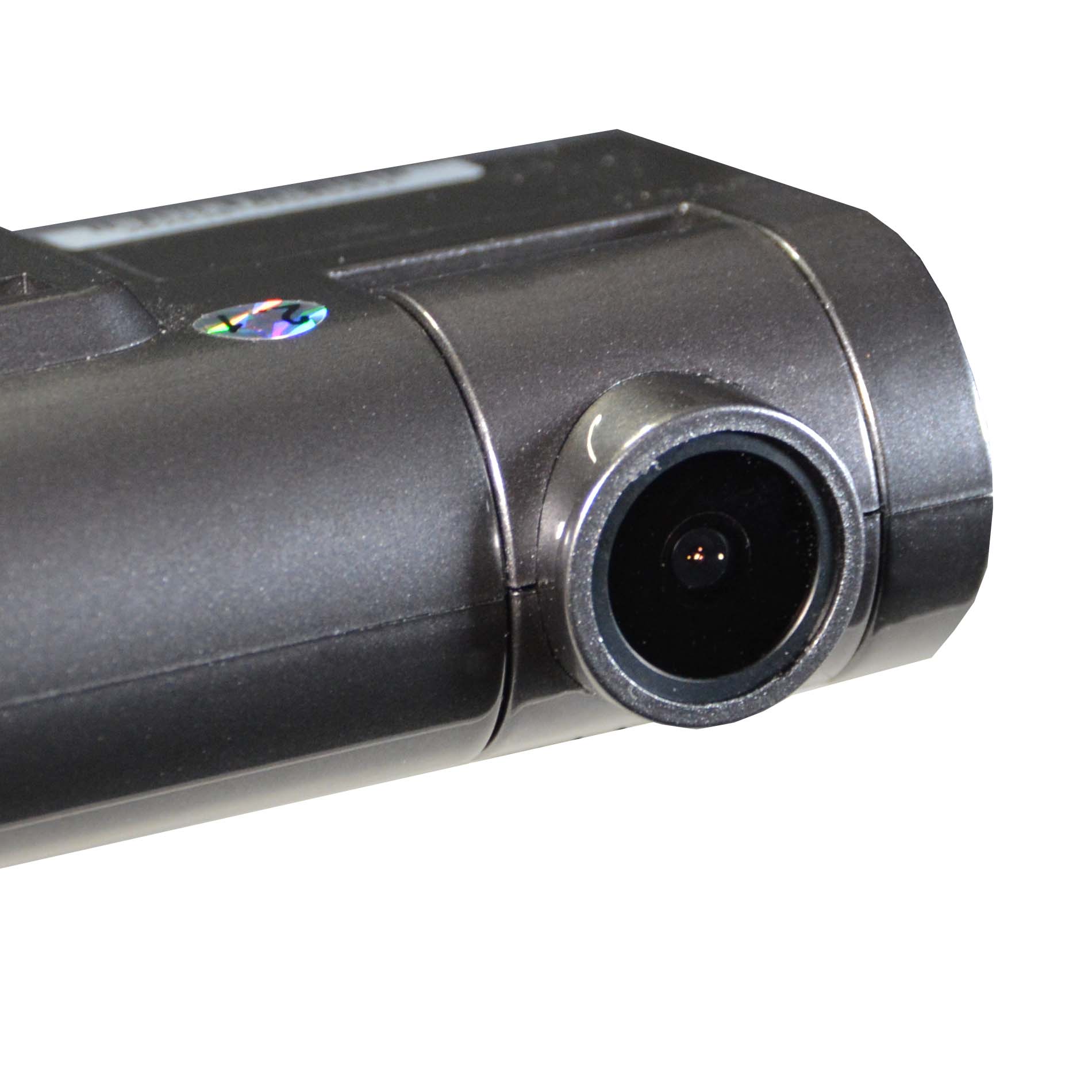

These cameras come with wide angle fish-eye lenses that privides 140° coverage. Thanks to the wide viewing angle and 2MP FullHD 1080P (1920x1080) @ 30 f/s high resolution, our dash cams perfectly monitor everything that happens around the vehicle.
These cameras also record the audio inside the vehicle, thanks to the built-in high-sensitivity microphone. All camera lenses can be easily oriented to obtain the best view according to the installation position.

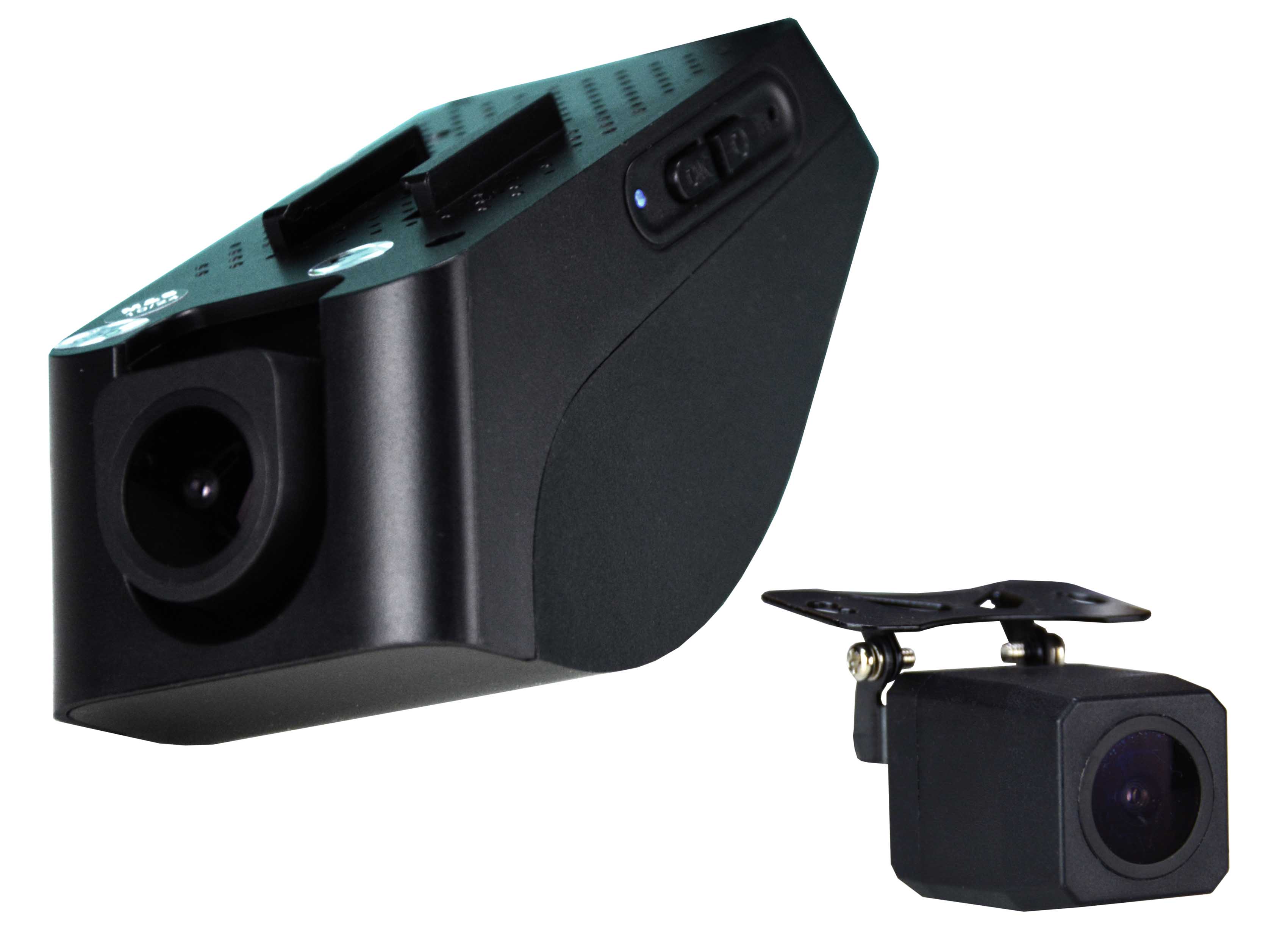

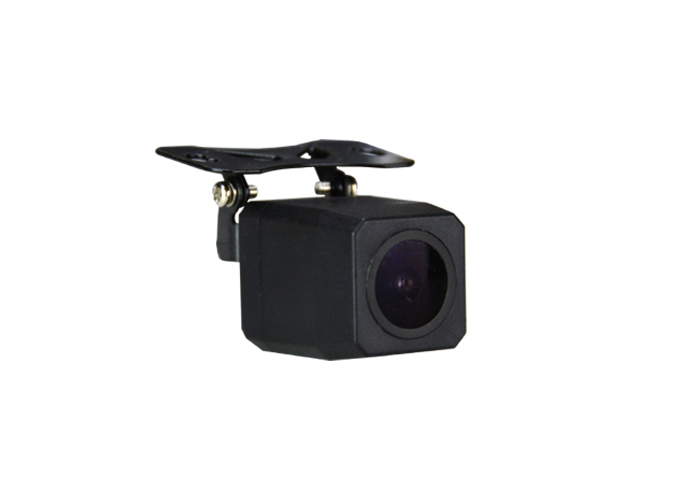

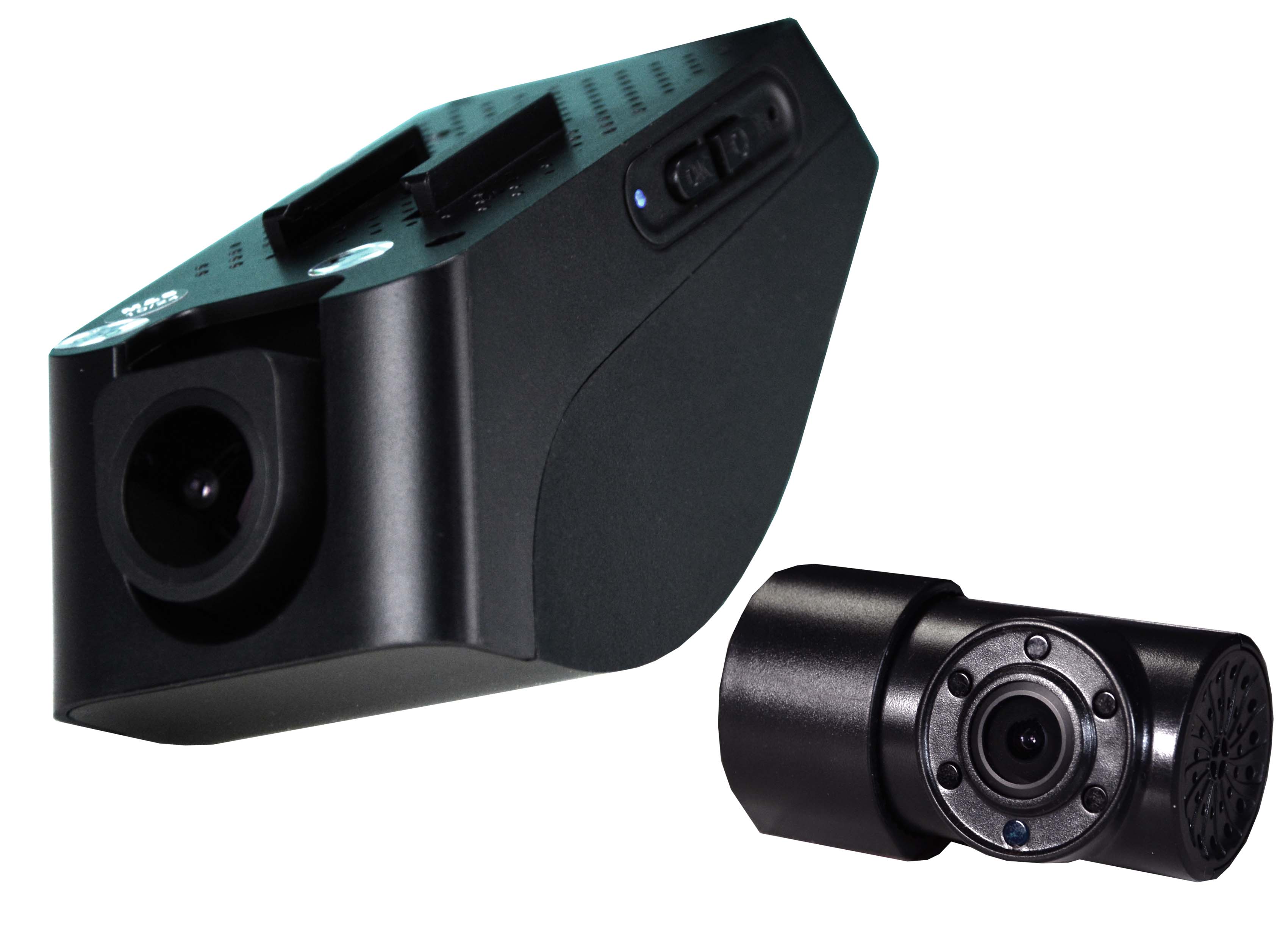

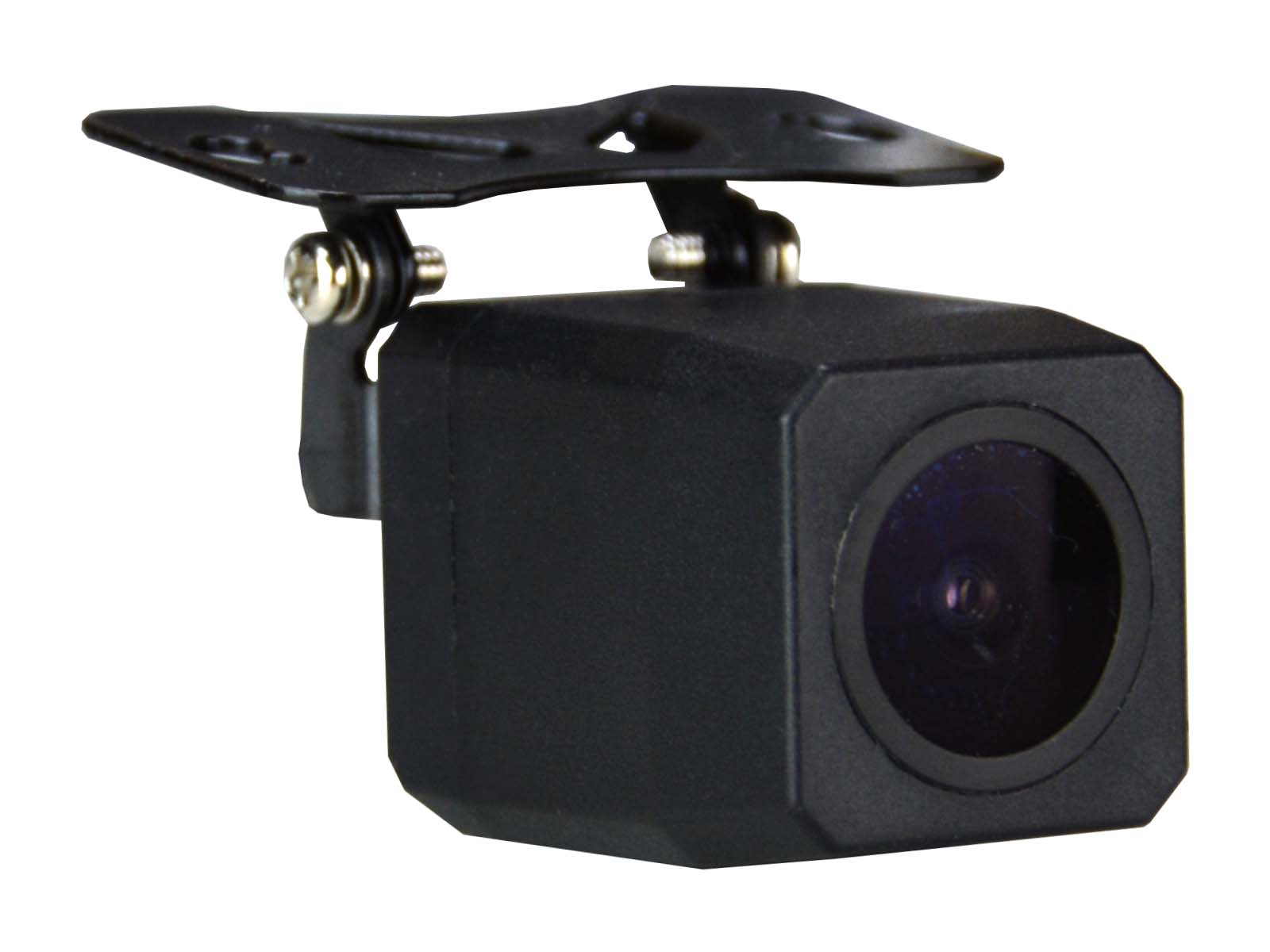

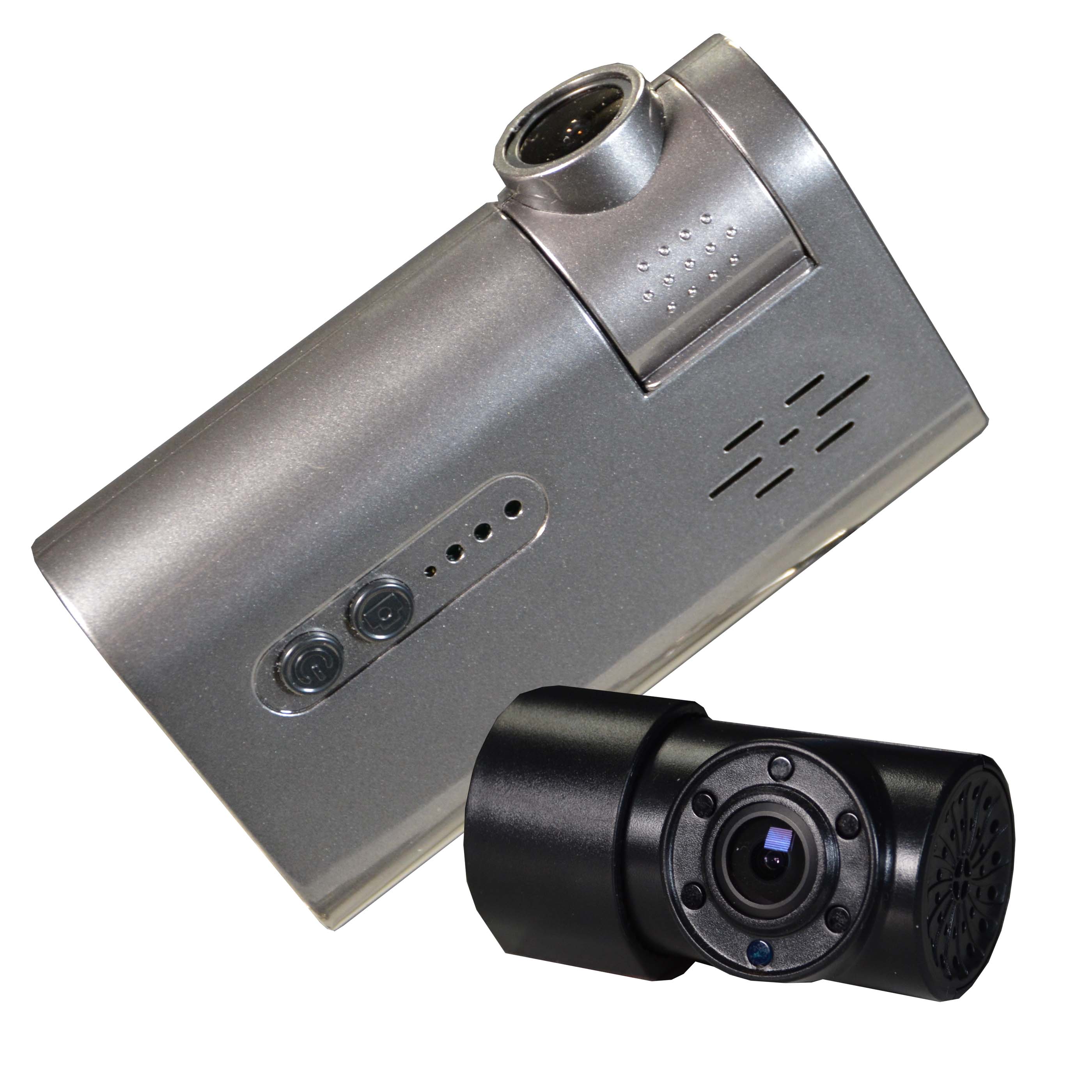

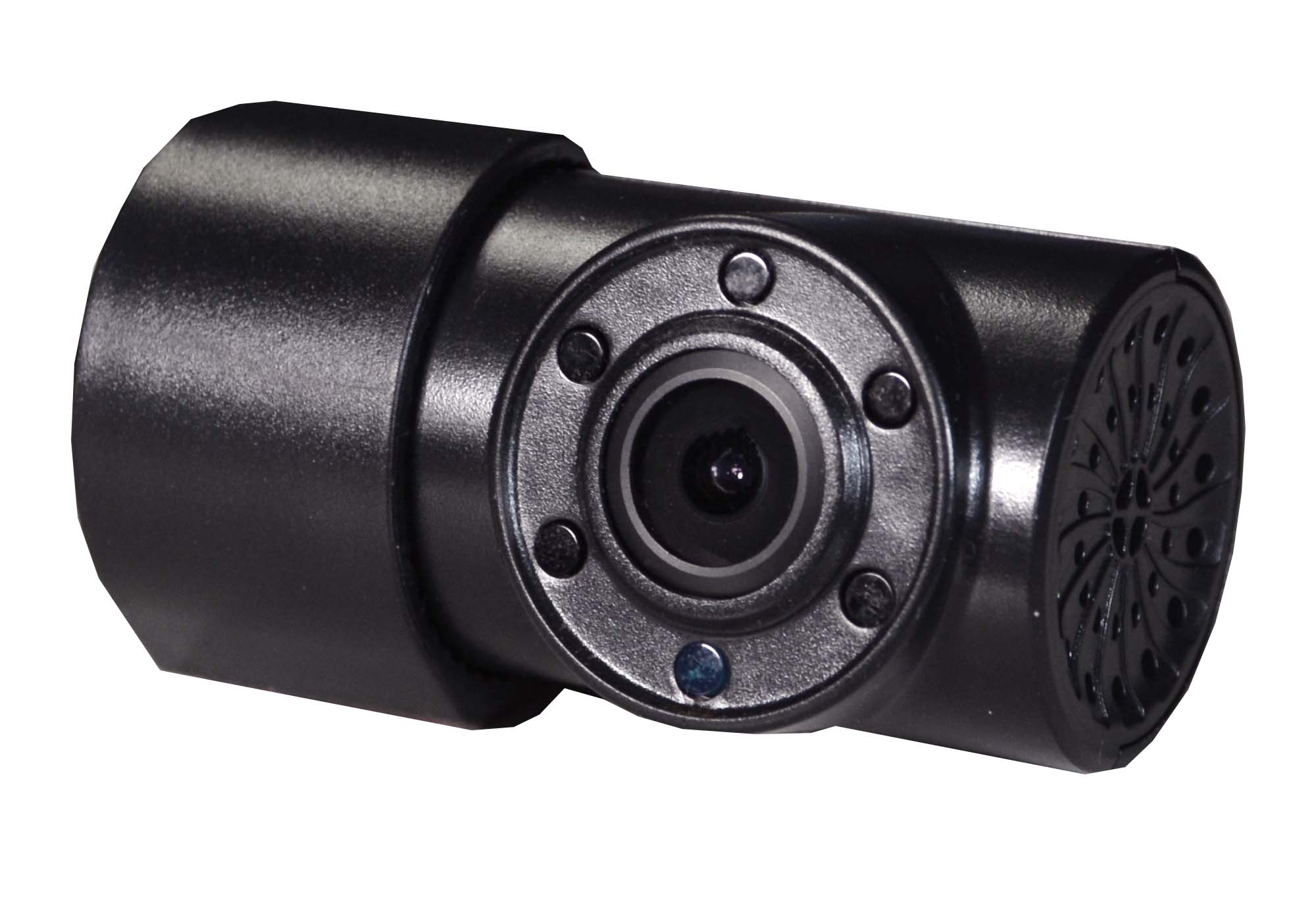

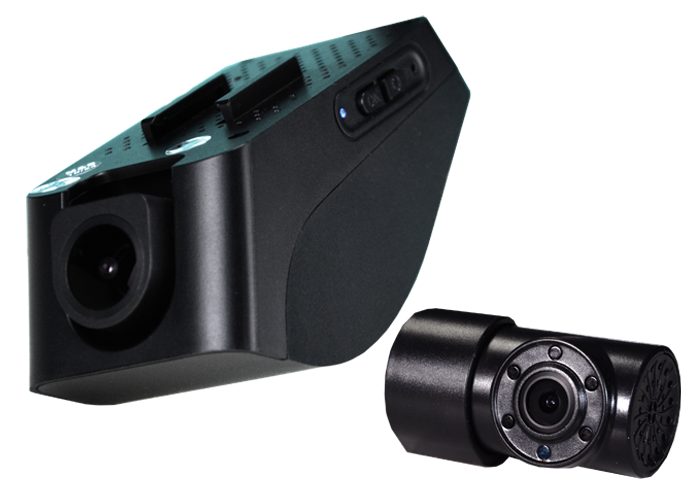

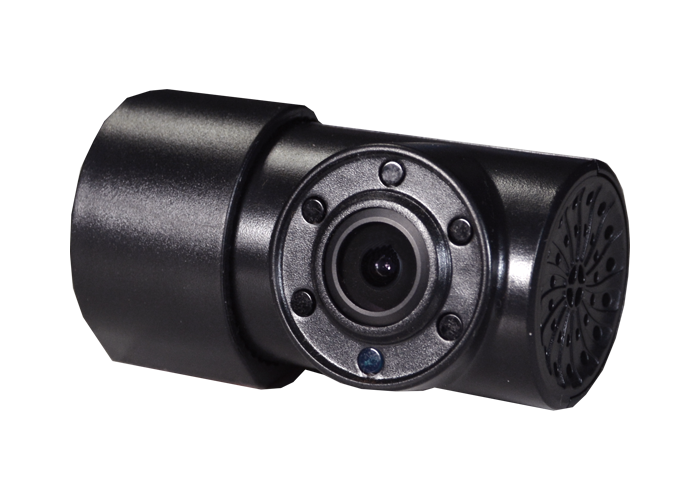

These dashcams are available in two versions: with rear-view secondary camera and with cabin-view secondary camera. The rear camera is waterproof and is typically mounted as a reversing camera, even outside the vehicle, above the license plate. The internal camera is used for recording inside the cabin and is equipped with an infrared illuminator for recording even in the dark. Both secondary cameras, rear and internal, provide VGA resolution (640x480) and are equipped with a 140° wide-angle lens.
Each of our 4G dash cameras includes a 5.5-meter extension cable to connect the auxiliary camera when it is positioned far from the main dashcam. It is especially useful for rear cameras, which must be installed at the back of the vehicle, and for interior cameras—for example, when used to monitor a van’s cargo area. For larger vehicles, an additional 5.5-meter extension cable is available separately and can be connected to the standard cable to extend the reach.

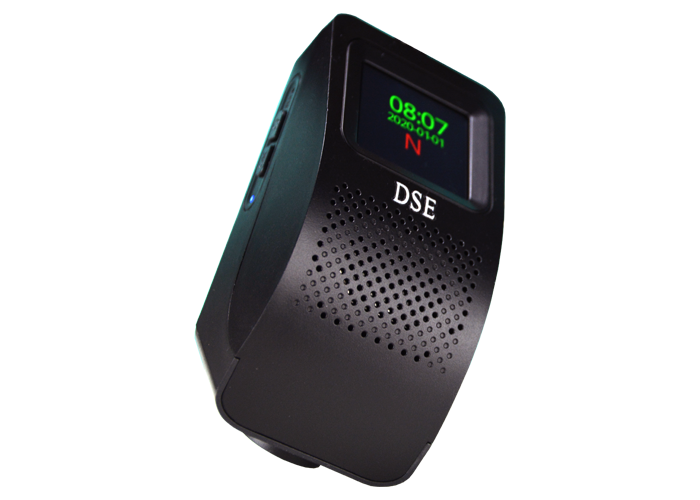

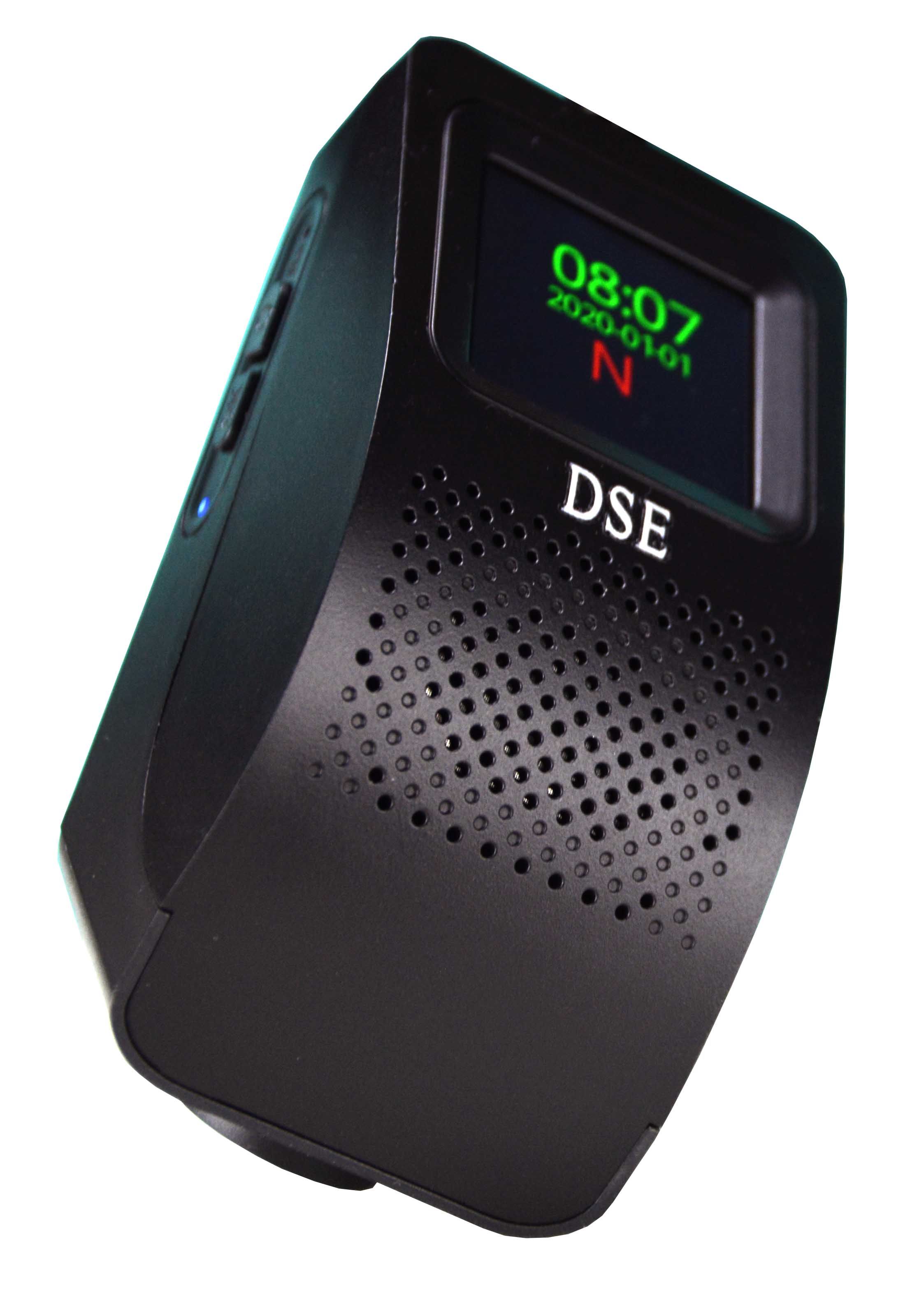

When menaging a fleet of vehicles communicating easily with drivers is a crucial factor. With the built-in microphone and speaker, these 4G dashcams allow two-way audio. You can communicate hands-free with your drivers both with the free app and the CMSV6/CMSV7 vehicle management platform
These black box cameras record videos on a removable Micro SD memory. Micro SD card is not included . To record video you need to buy a micro SD card of the maximum capacity of 128GB (24 hours recording). These cameras record H264 video files in .TS format. When the memory is full, the oldest files are automatically overwritten. The video files recorded on the occasion of anomalous events, or that you have manually locked, are protected from overwriting.

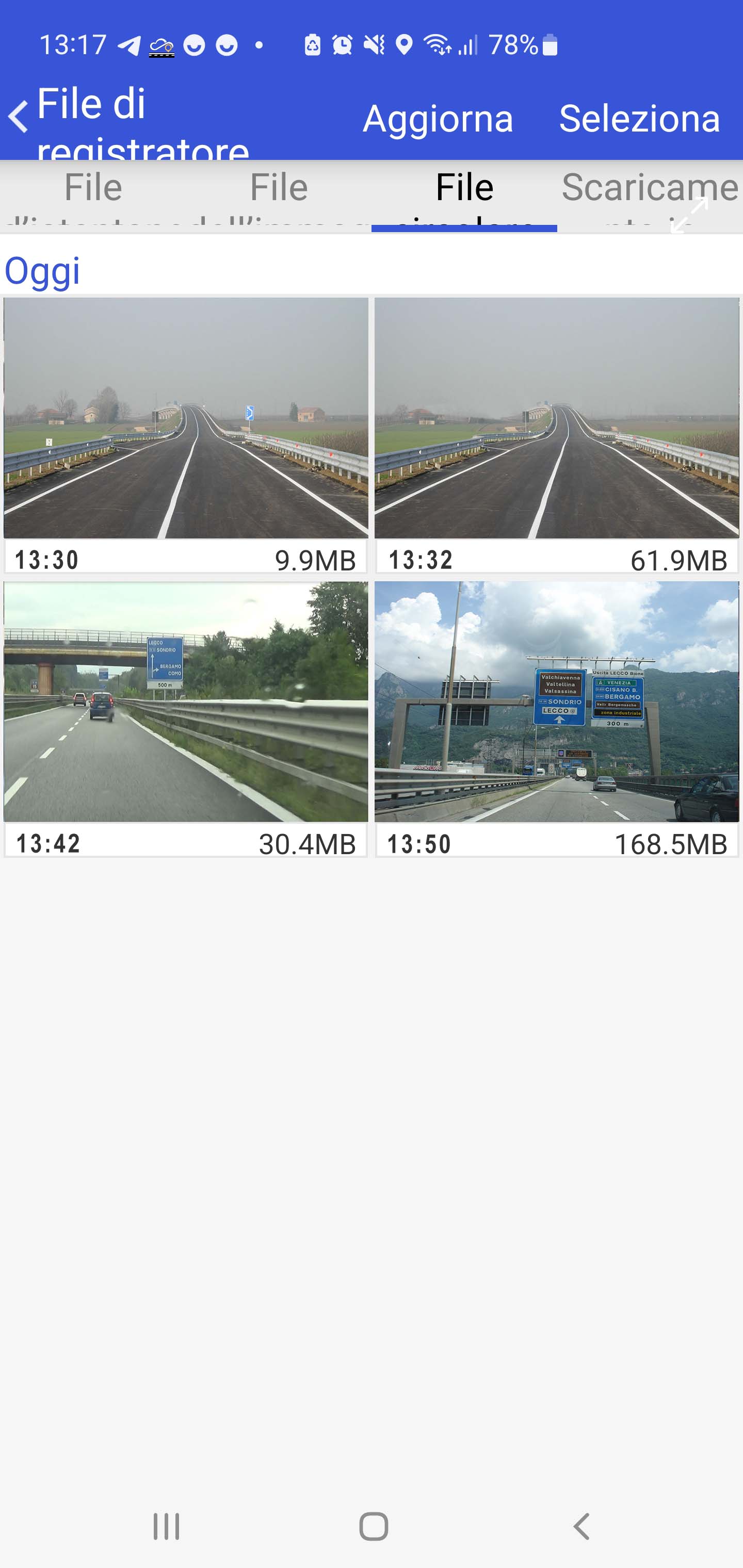

You can playback the footage you have recorded by removing the SD card and inserting it into a SD card reader for PC. You can play the video files with common free players, such as VLC. You can also connect to the camera with your smartphone or computer and play/download the files with the free app or CMSV6/CMSV7 software.
These 4G dashcam for fleet management come with a built-in GPS tracker that stores the position of the vehicle along with each video frame. When you download a movie on your smartphone or PC you can check the exact route of your vehicle on the street map, alongside the video. This function provides important evidence because it makes the action clear if an accident occurs.
Usually you will program your camera to record continuously. Once the memory is full, it will overwrite the oldest files. To prevent important videos from being erased, the camera is equipped with a collision sensor ( G-SENSOR) with adjustable sensitivity. In the event of an accident, the video file is automatically protected against overwriting and saved in a separate folder for easy tracing. There is also a camera button that you can press at any time to manually protect an important video footage from overwriting.
With our dash cams you can protect your car while parking even if the camera is off, using the PARKING mode . These cameras enter the parking mode automatically when the vehcile is off. In this mode, the camera remains off and is activated automatically only when a bump on the vehicle is detected. You can set the sensitivity of the shock sensor to detect even light impacts. Thanks to this function, your car is protected even when you are away. If your vehicle was hit while you were not present, you will find a video that shows you what happened.

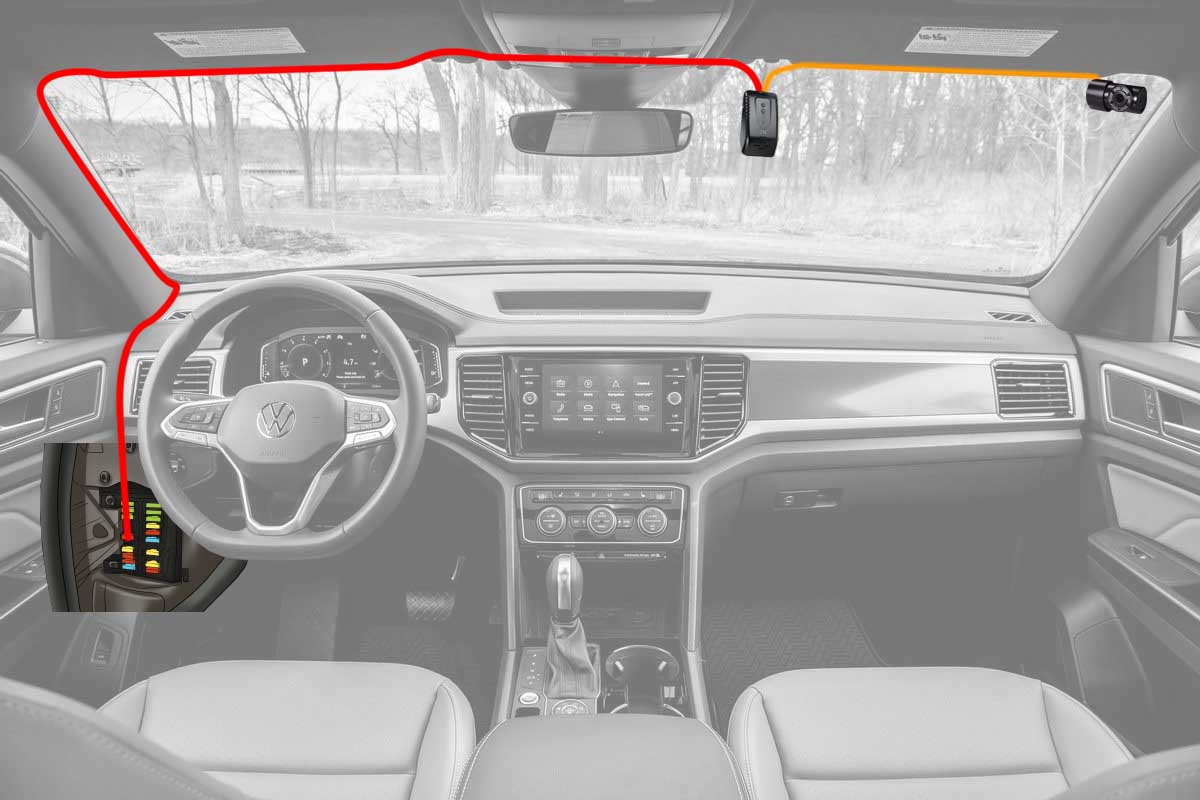

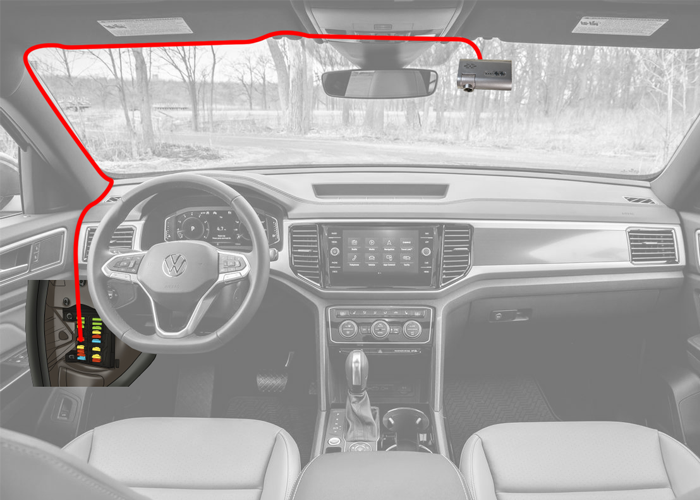

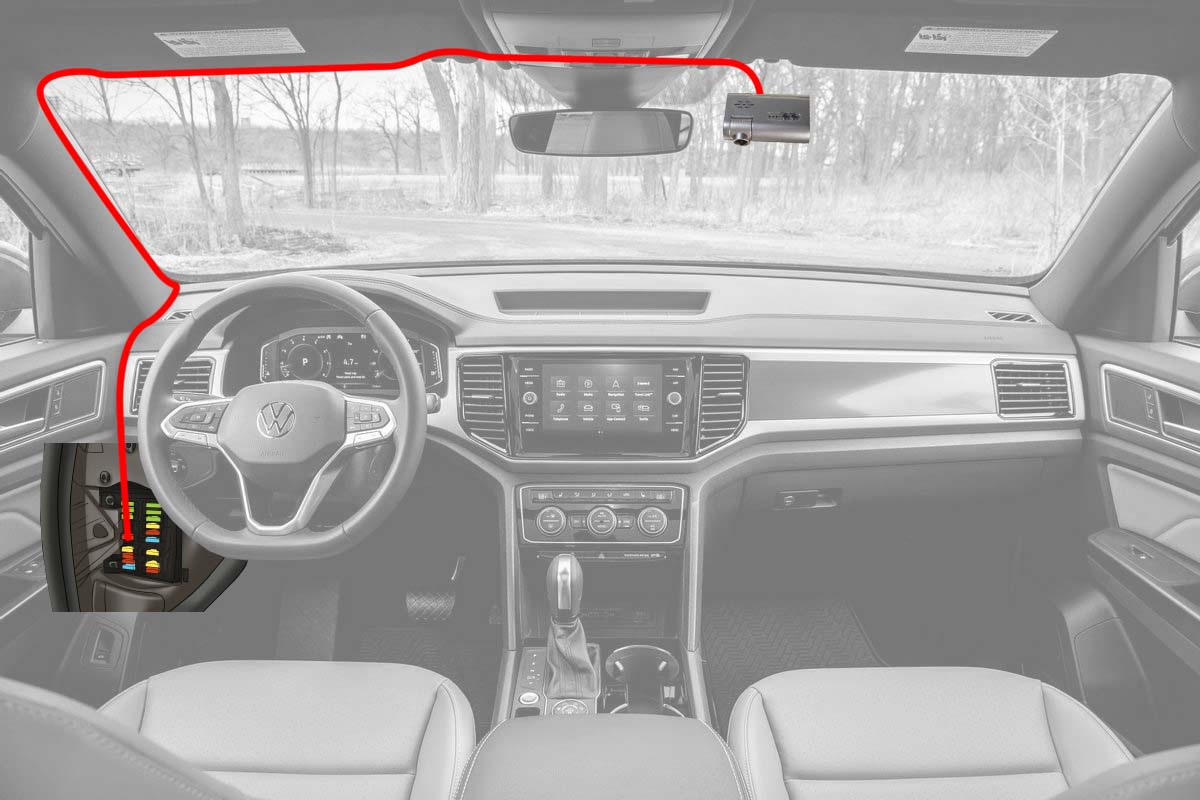

Being intended for fleet surveillance, these cameras cannot be powered, like our normal dashcams, with the cigarette lighter socket, but require a stable wiring to the vehicle's switch box. The camera comes with a connection cable long enough to run along the edge of the front window and reach the switchbox. You can wire the camera yourself or have it installed by an car electrician for little money.
The camera has 3 connectors to be connected to the fuse box using the included splitters shown in the picture (A=insert into the fuse socket, B=connection to the camera, C=original fuse).
The GND connector must be connected to a ground screw, well fixed to the chassis of the vehicle. The BAT connector is connected to a fuse holder that supplies constant voltage. The ACC connector must be connected to a fuse holder which supplies voltage only when the vehicle is on. In this way the camera starts automatically when the vehicle is on and automatically enters parking mode when parked.
Installing the dashcams on your vehicles is easy. You can do it yourself, folllowing the instructions. The cables we supply are thin and flexible, and with a little patience you can easily route them under the window seals.
In a few minutes your Do-It-Yourself installation will be finished, perfectly integrated into the original aesthetics of your vehicle.
You can get our dash cams up and running on your own in a few minutes, however, if you want a "turnkey" service you can contact any auto electrician to have your new dashcam professionally installed. It is a quick and inexpensive job.
|
|
|
|---|---|---|
| CODE | DK-V2-4GBM | DK-V2-4GBM |
| Description | 4G black box dash cam | 4G black box dash cam |
| Type | With 2 cameras: front camera and rear camera | With 2 cameras: front camera and cabin camera |
| CAMERA | ||
| Cameras | 2: Front, Rear/Cabin waterproof (wired) | 2: Front, Cabin with IR (wired) |
| Front camera max. resolution | 2MP FullHD 1080P | 2MP FullHD 1080P |
| Max. video resolutions | 1920x1080 @ 30 f/s | 1920x1080 @ 30 f/s |
| 2nd camera max. resolution | 0,3MP 640x480 | 0,3MP 640x480 |
| Video compression | H264 (.TS) | H264 (.TS) |
| Infrared illuminator | 6 m. IR | |
| Lens | Front 140° | Rear 140° | Front 140° | Rear 140° |
| Focus | Fixed | Fixed |
| Video files format | .TS 2 minutes | .TS 2 minutes |
| SET UP | ||
| Monitor | LCD 1,5" | LCD 1,5" |
| LAN port | ||
| Wi-Fi | 802.11 b/g/n 2.4GHz Hotspot/Client mode | 802.11 b/g/n 2.4GHz Hotspot/Client mode |
| 3G/4G | 3G WCDMA: 2100(B1) | 4G FDD-LTE: B1/B3 | 3G WCDMA: 2100(B1) | 4G FDD-LTE: B1/B3 |
| USB port | ||
| Collison sensor | Accelerometer (G-Sensor) with adjustable sensitivity | Accelerometer (G-Sensor) with adjustable sensitivity |
| GPS | with separate magnetic antenna | with separate magnetic antenna |
| Audio microphone | ||
| Audio speaker | ||
| 2-way audio | with free app or with CMSV7 software and app | with free app or with CMSV7 software and app |
| SD card slot | Max. 128GB Class 10 or higher | Max. 128GB Class 10 or higher |
| Max. video storage | 24 hours | 24 hours |
| POWER SUPPLY | ||
| Built-in battery | ||
| Power | 9-16VDC from fuse box | 9-16VDC from fuse box |
| Installation kit | Nor required | Nor required |
| FUNCTIONS | ||
| Recording mode | Continuous, Parking with Shock Detection | Continuous, Parking with Shock Detection |
| Automatic overwrite | ||
| Protect files from overwriting | Automatic (G-Sensor) or Manual (button) | Automatic (G-Sensor) or Manual (button) |
| Camera control | Buttons | Buttons |
| Parking surveillance | Parking on shock detection | Parking on shock detection |
| Onvif | ||
| P2P | ||
| Browser | CMSV7 | CMSV7 |
| PC Software | CMSV7 | CMSV7 |
| Smartphone | Free app or CMSV7 | Free app or CMSV7 |
| Overlays | Date Time | Date Time |
| Motion detection | ||
| Time-Lapse recording | ||
| GENERAL | ||
| Casing | ABS | ABS |
| Protection degree | IP40 (Rear view IP65) | IP40 |
| Operating temperature | -20°C +70°C RH85% Max | -20°C +70°C RH85% Max |
| Power supply | 9-16VDC BAT/ACC | 9-16VDC BAT/ACC |
| Power consumption | Max. 3.5W | Max. 3.5W |
| Dimensions | 50x103x45 mm. | 50x103x45 mm. |
| Weight | 118 gr. | 118 gr. |
Cameras record on MicroSD card. The micro SD card is not included. On our website you can buy a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by the camera in the technical data table above. These camera support microsim format. If your 4G card is a nanosim a suitable adapter is required
