WIFI ACCESS POINTS


WIFI AP 2.4 GHz FOR INDOOR/OUTDOOR

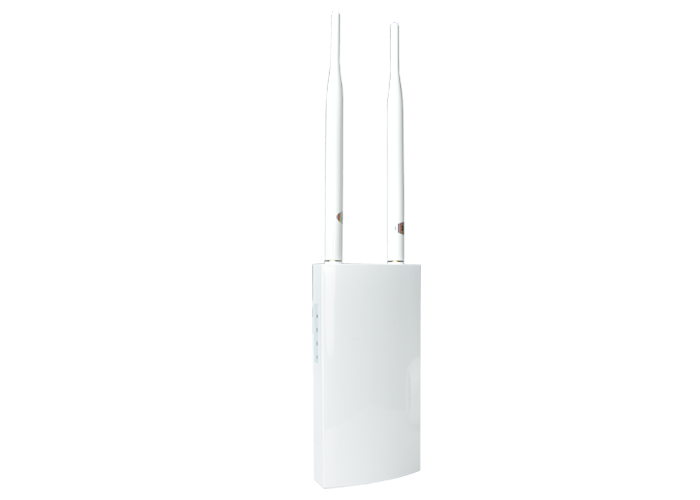

Access point wifi for outdoor
IN-APW1 WIFI 2.4

Indoor/Outdoor WiFi hotspot. 2.4GHz 300Mbps. POE or mains power. Ideal for WiFi cameras

INFO

WIFI AP 2.4/5 GHz FOR INDOOR/OUTDOOR

Access point wifi for outdoor
IN-APW2 WIFI 2.4/5

Indoor/Outdoor WiFi hotspot. 2.4/5GHz 300/1200Mbps. POE or mains power. Ideal for all wifi devices

INFO

WIFI6 AP FOR INDOOR

Access point wifi
IN-AP6 WIFI6

Indoor WiFi6 hotspot. 2.4/5GHz 3000Mbps. POE or mains power. Ideal for all wifi devices with many connections

INFO

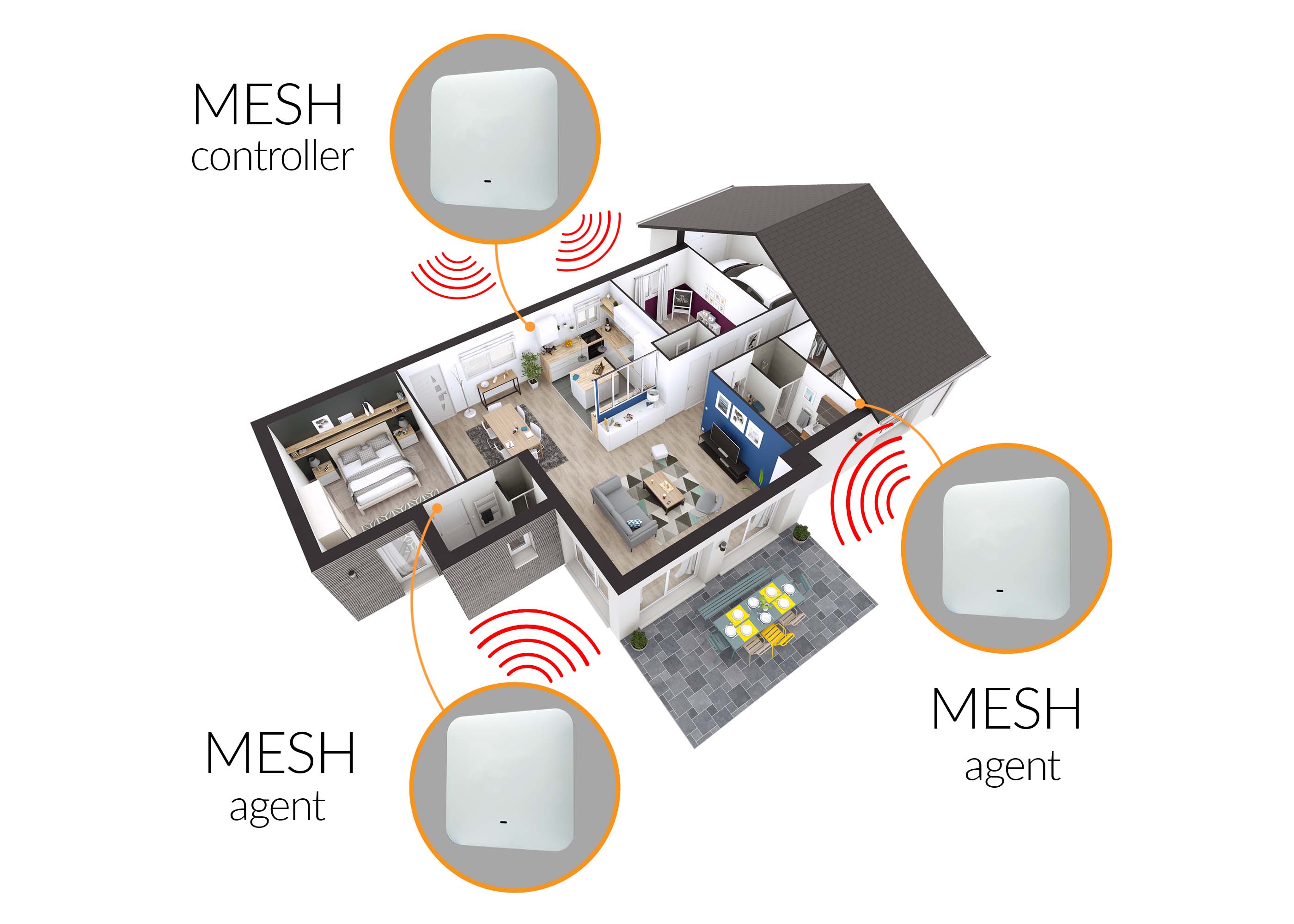

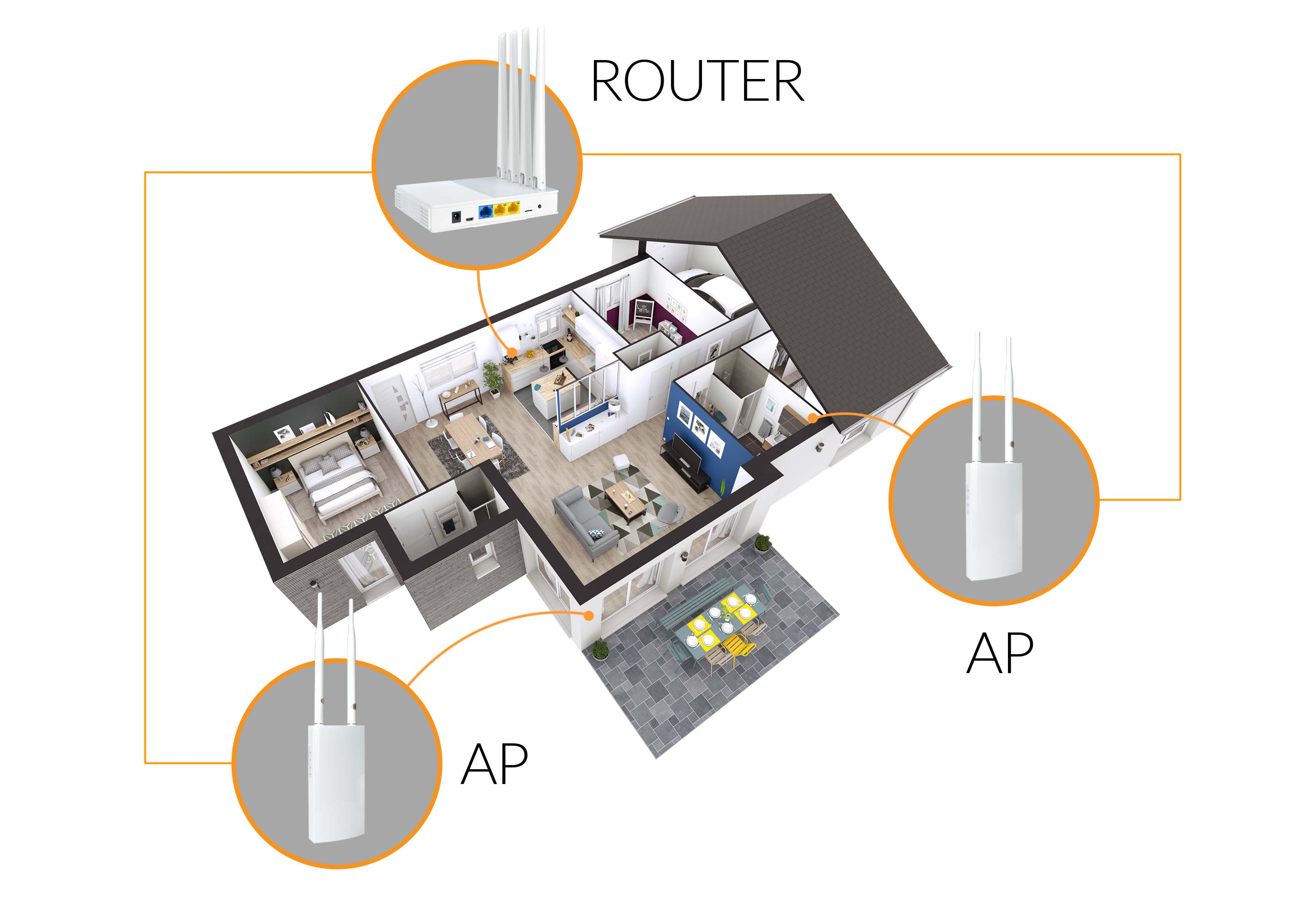

Your router's WiFi coverage is not enough?

With these APs, connected via cable, you can create new WiFi hotspots and perfectly cover even large areas. Just connect the AP to your network with a network cable, and you'll have a new WiFi where you need it.

Ripetitore wifi

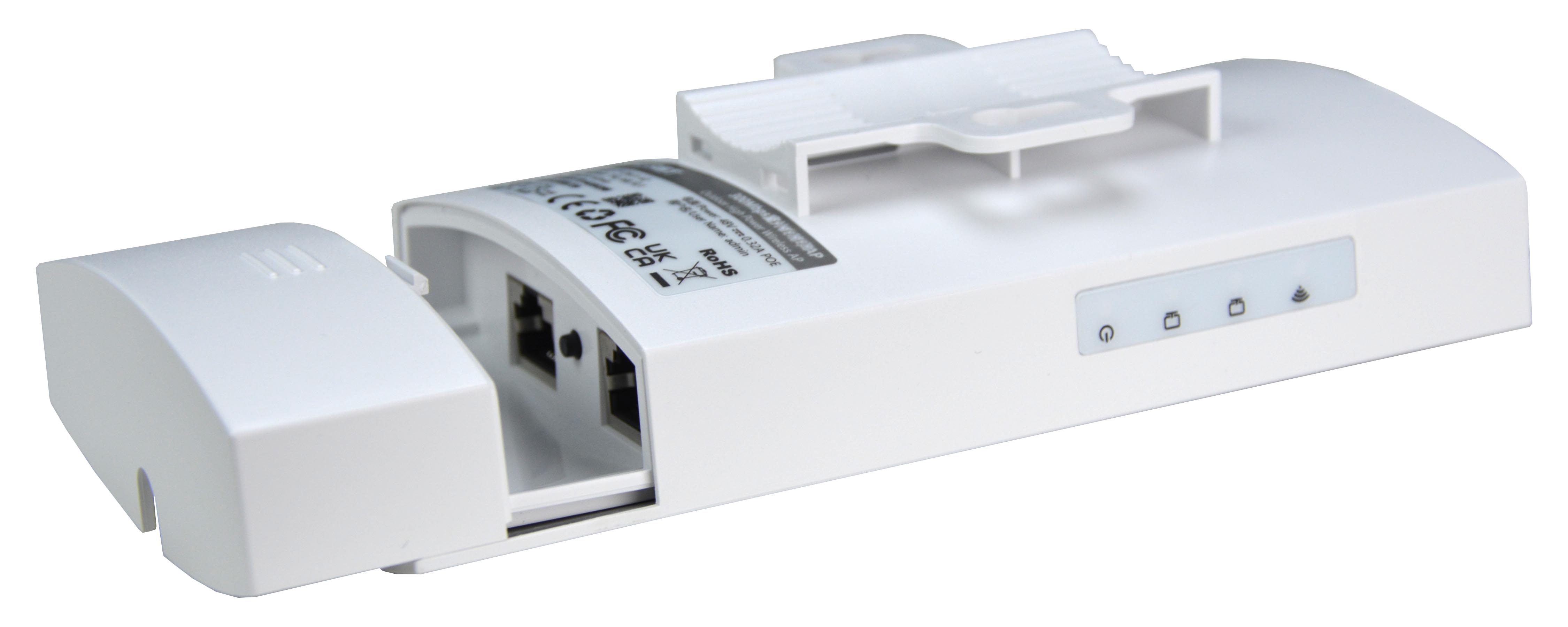

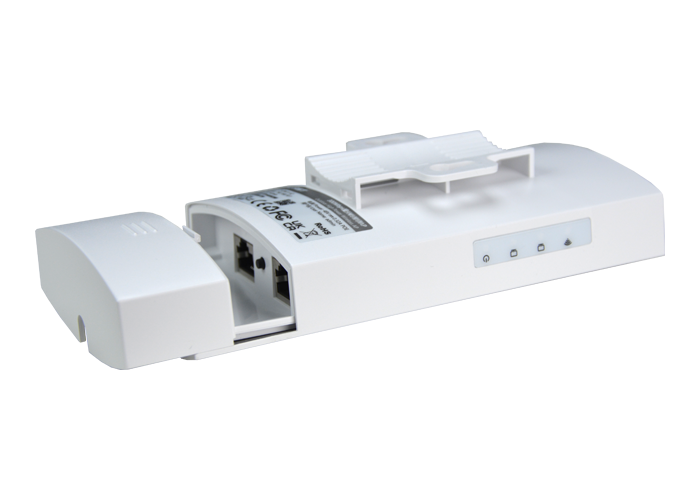

IN-APW1

WiFi AP 2.4GHz for indoor/outdoor

This WiFi Access Point creates a 2.4GHz (300 Mbps) WiFi network, the frequency used by most WiFi cameras, making it ideal for video surveillance systems. It is waterproof and can be installed both indoors and outdoors, on a wall or on a pole, using the included metal straps. If you connect this AP to a PoE switch, it will be powered through the network cable. If instead you connect it to non-PoE ports, such as those on a router, you will need to use the included PoE injector. Two 5dBi omnidirectional antennas ensure excellent range and great obstacle penetration. The AP is automatically configured using just your smartphone.


IN-APW2

WiFi AP 2.4/5GHz for indoor/outdoor

This WiFi Access Point creates a WiFi network at 2.4GHz (300 Mbps) and 5GHz (1200 Mbps). It is ideal as a network AP because it allows you to connect both 2.4GHz devices, such as WiFi cameras, and devices that can take advantage of the faster 5GHz network, such as smartphones or computers. It is waterproof and can be installed both indoors and outdoors, on a wall or on a pole, using the included metal straps. If you connect this AP to a PoE switch, it will be powered through the network cable. If instead you connect it to non-PoE ports, such as those on a router, you will need to use the included PoE injector. Two 5dBi omnidirectional antennas ensure excellent range and great obstacle penetration. The AP is automatically configured using just your smartphone.

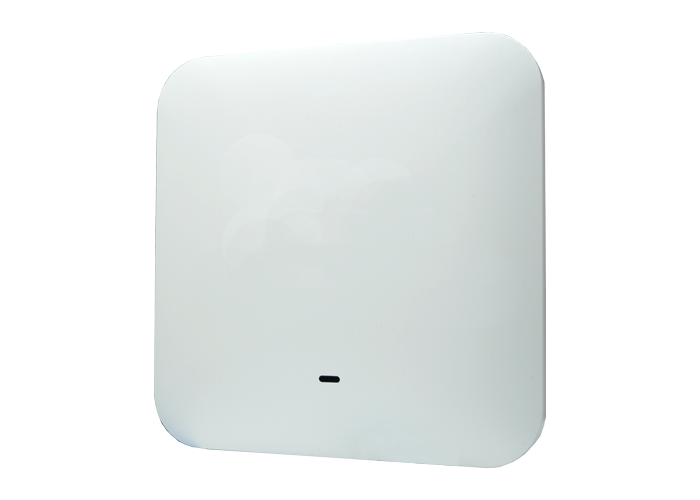

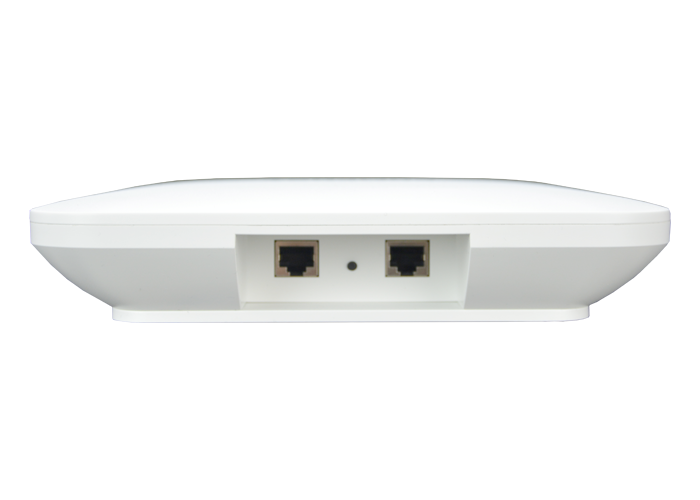

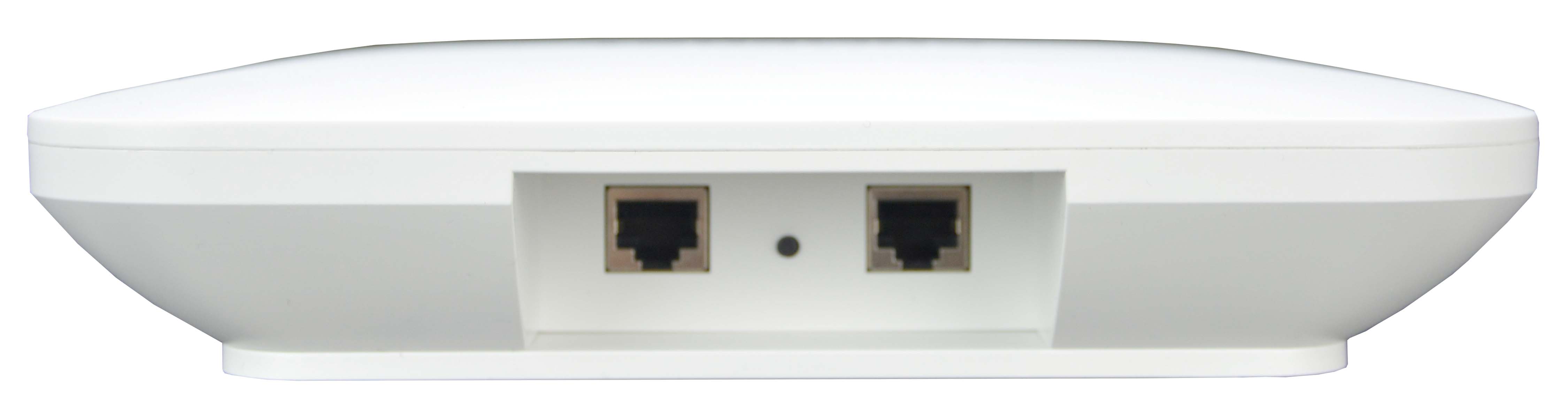

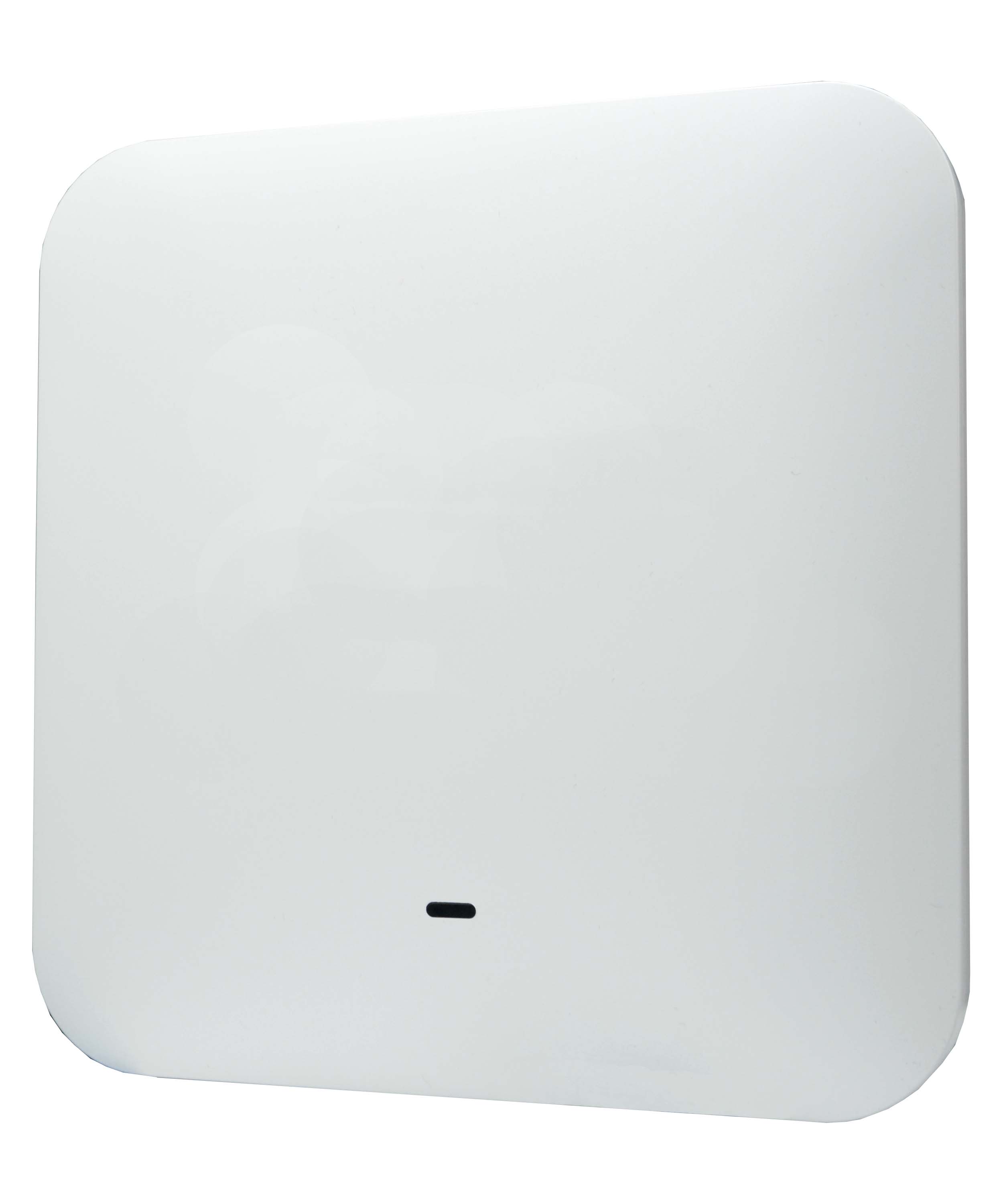

IN-AP6

WiFi6 AP for indoor (ceiling/wall)

This WiFi Access Point creates a WiFi6 2.4GHz (574 Mbps) and 5GHz (2400 Mbps) network. It is ideal as an indoor network AP because it uses the latest WiFi6 standard, offering higher speeds and the ability to handle numerous simultaneous connections. It is installed indoors, on a wall or ceiling, and provides a next-generation WiFi connection that is still compatible with all devices. If you connect this AP to a POE switch, it will be powered through the network cable. If you connect it to non-POE ports, such as those on a router, you will need to use the included POE injector. Four internal 3dBi antennas ensure excellent range and great obstacle penetration. The AP is configured automatically via smartphone.


Q & A


Where is the best place for a WiFi AP?

The first WiFi Access Point in your network is built into the router. Place the new AP in an area not covered by the router, where you can run a network cable. Position it high up and free from obstacles.

How many WiFi AP can I install?

As many as you like. You can place one in each area in order to cover the whole property.

How do you configure the WiFi AP?

The AP is self-configuring. You can fine-tune the settings with your smartphone, and the configuration interface is accessible through a web browser.

What does Router or Bridge mode mean?

All of our WiFi AP support both modes. In Router mode, the AP creates its own WiFi network with a different IP address range from the router. In Bridge mode, the AP creates a network using the same IP address range as the router.

How much does it cost?

You can find product prices on our e-commerce portal CCTVSTOREPRO.COM
