CONTROL VIA VIDEO CABLE or RS485

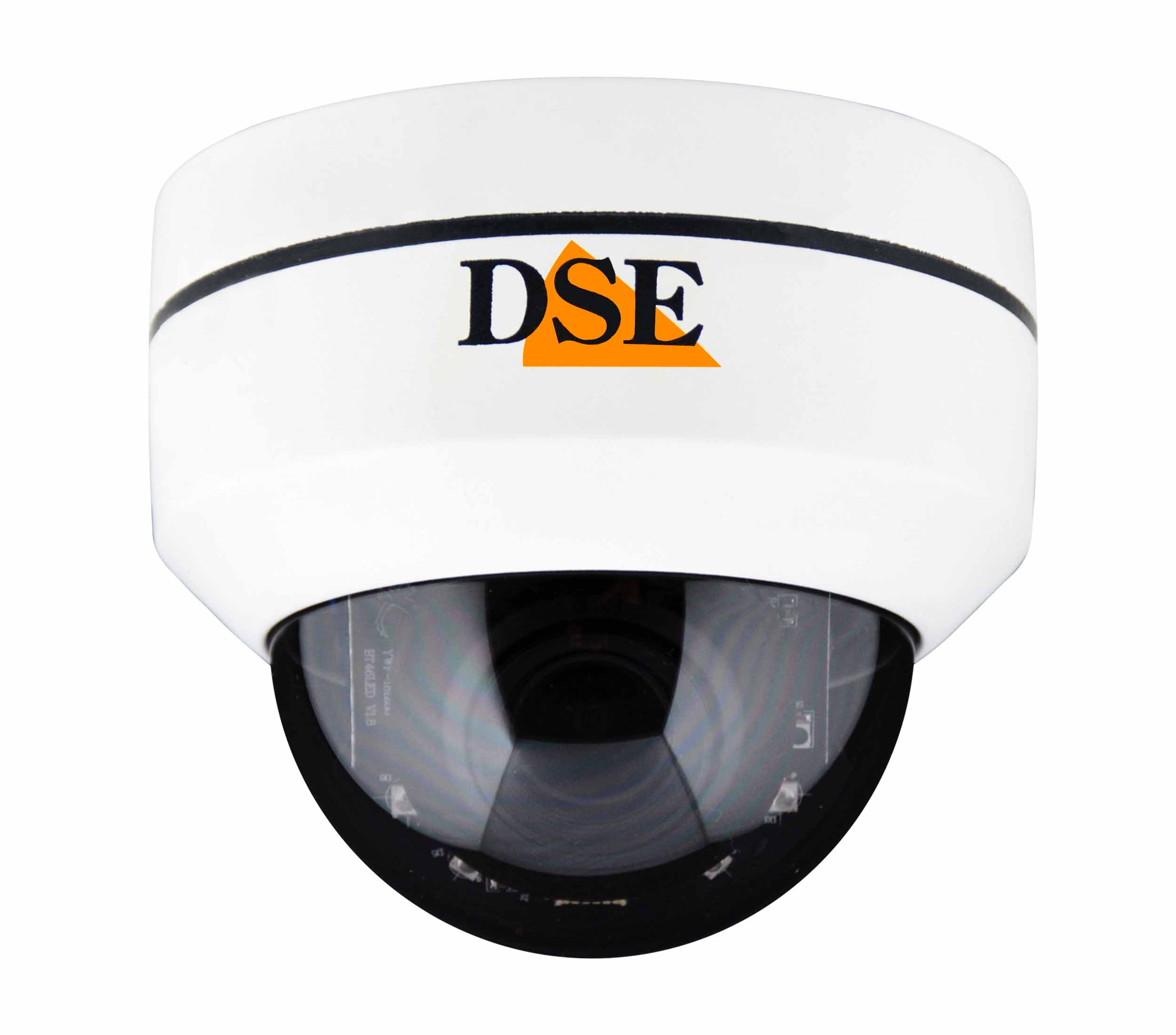

MICRO SPEED DOME
ZOOM 4X

Telecamera IP esterno onvif
SD-D4 2MP
SD-D4-5 5MP

AHD video format CVI TVI video format CVBS video format Waterproof casing for outdoor Pan Tilt Zoom motor camera Controllo menu OSD da DVR su cavo video con UTC 30°/sec rotation speed SmartIR infrared illuminator 30 m. Zoom lens 4x Motor zoom lens Autofocus lens IR cut filter removable

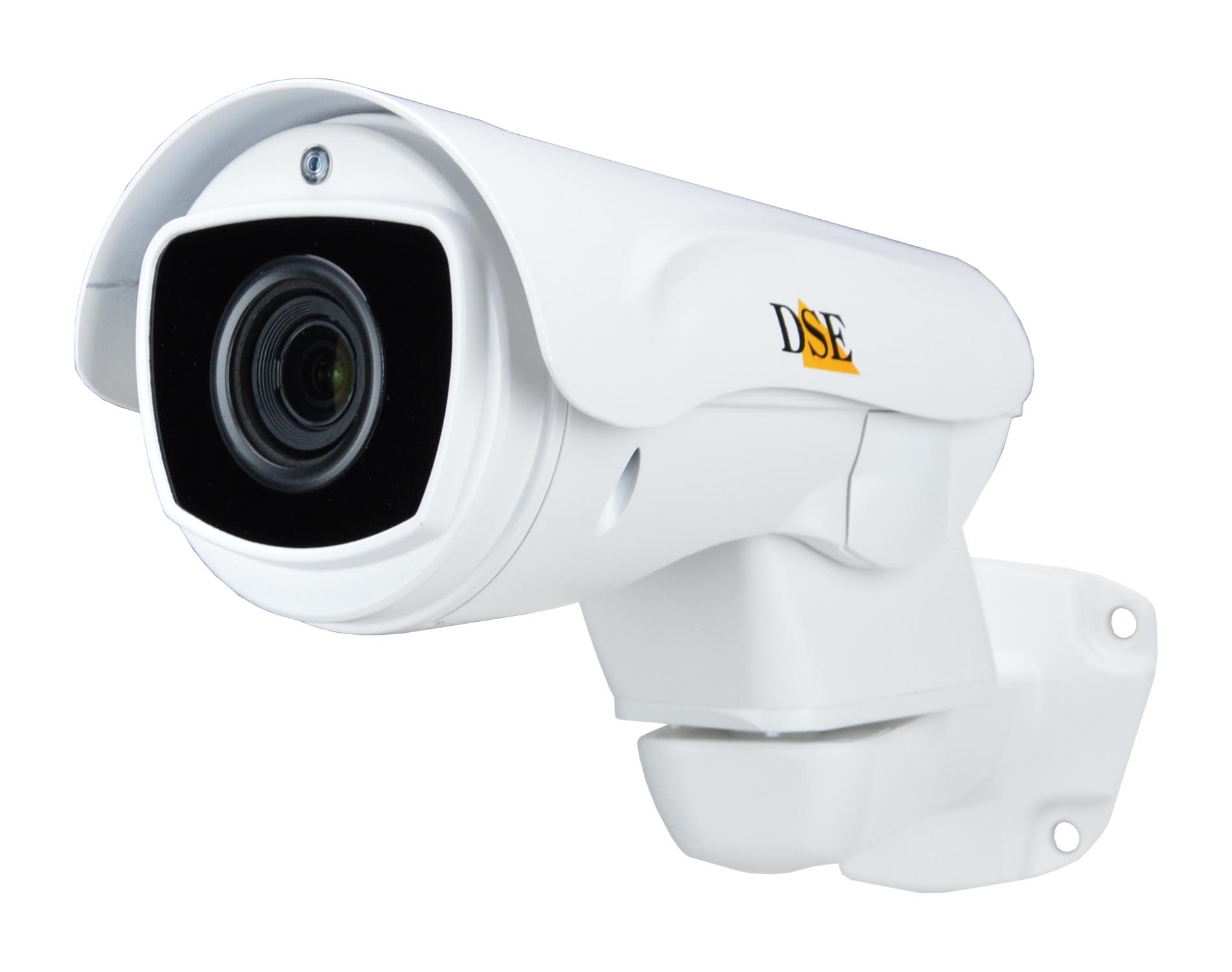

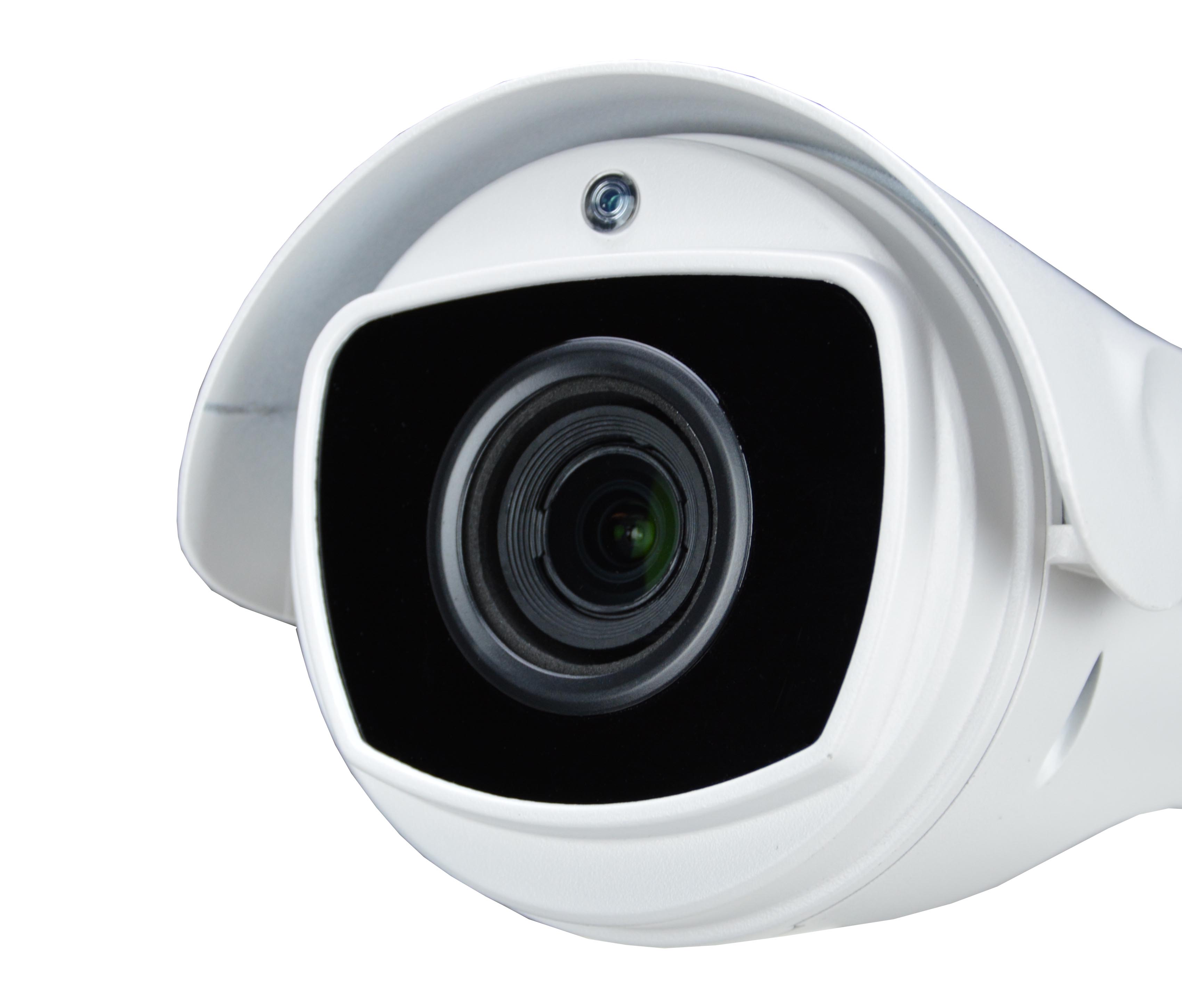

BULLET PTZ
ZOOM 10X

Telecamera IP esterno onvif
SD-E10-5 5MP

AHD video format CVI TVI video format CVBS video format Waterproof casing for outdoor Pan Tilt Zoom motor camera Controllo menu OSD da DVR su cavo video con UTC Rotation speed 30°/sec SmartIR infrared illuminator 100 m. Zoom lens 10x Motor zoom lens Autofocus lens IR cut filter removable

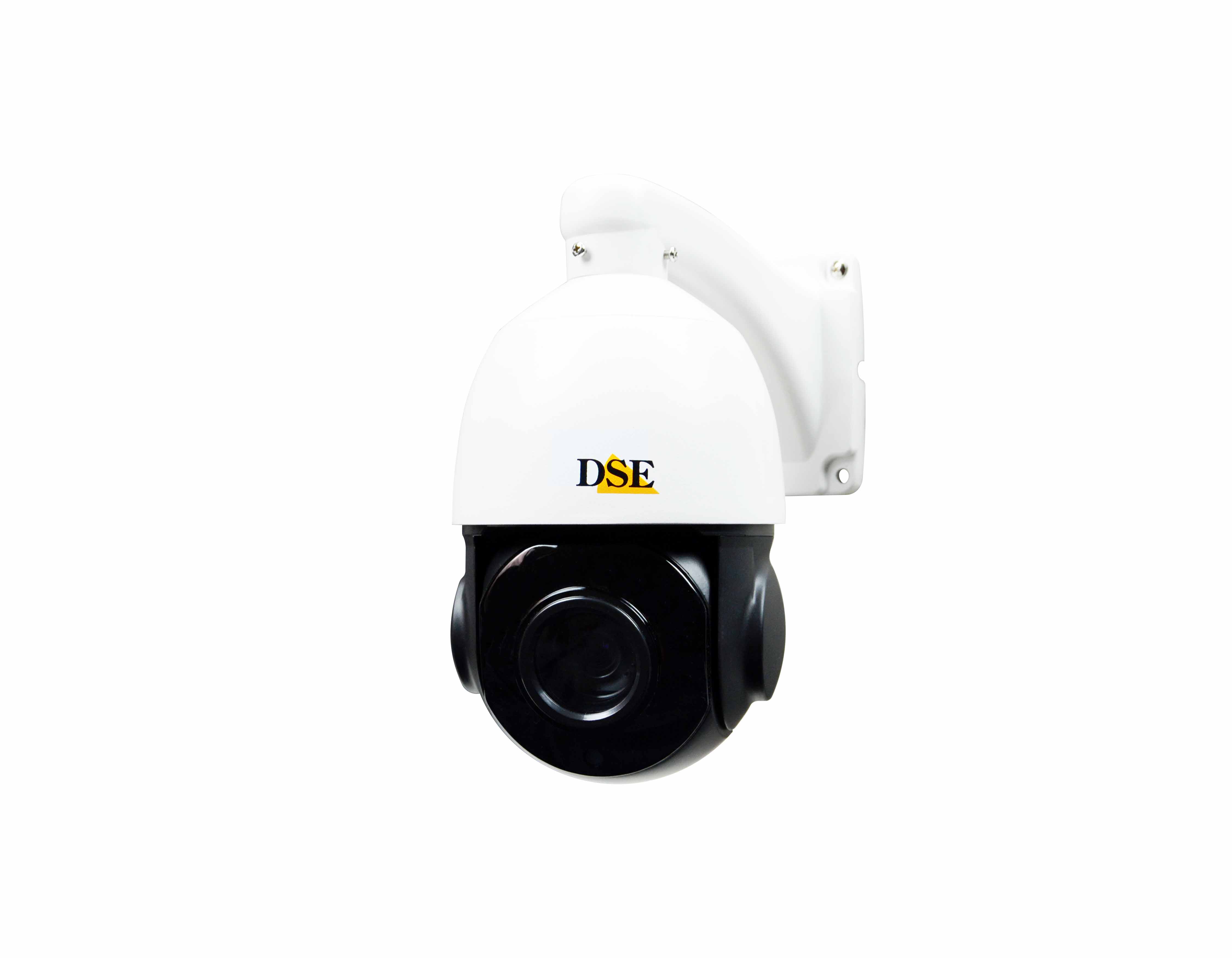

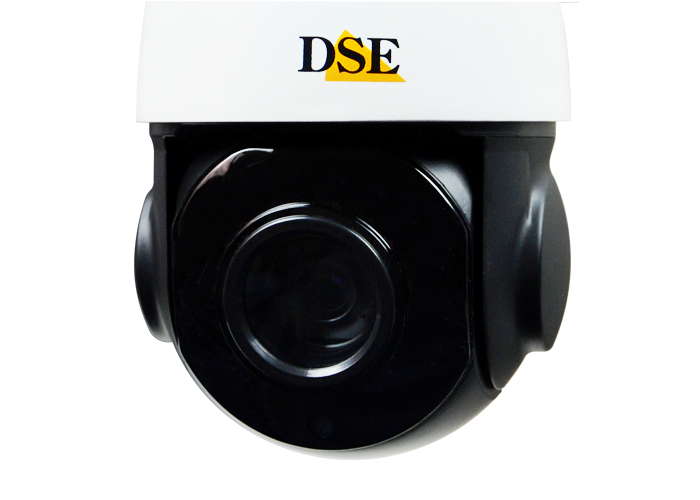

MINI SPEED DOME
ZOOM 20X

Telecamera IP esterno onvif
SD-DM20-5 5MP

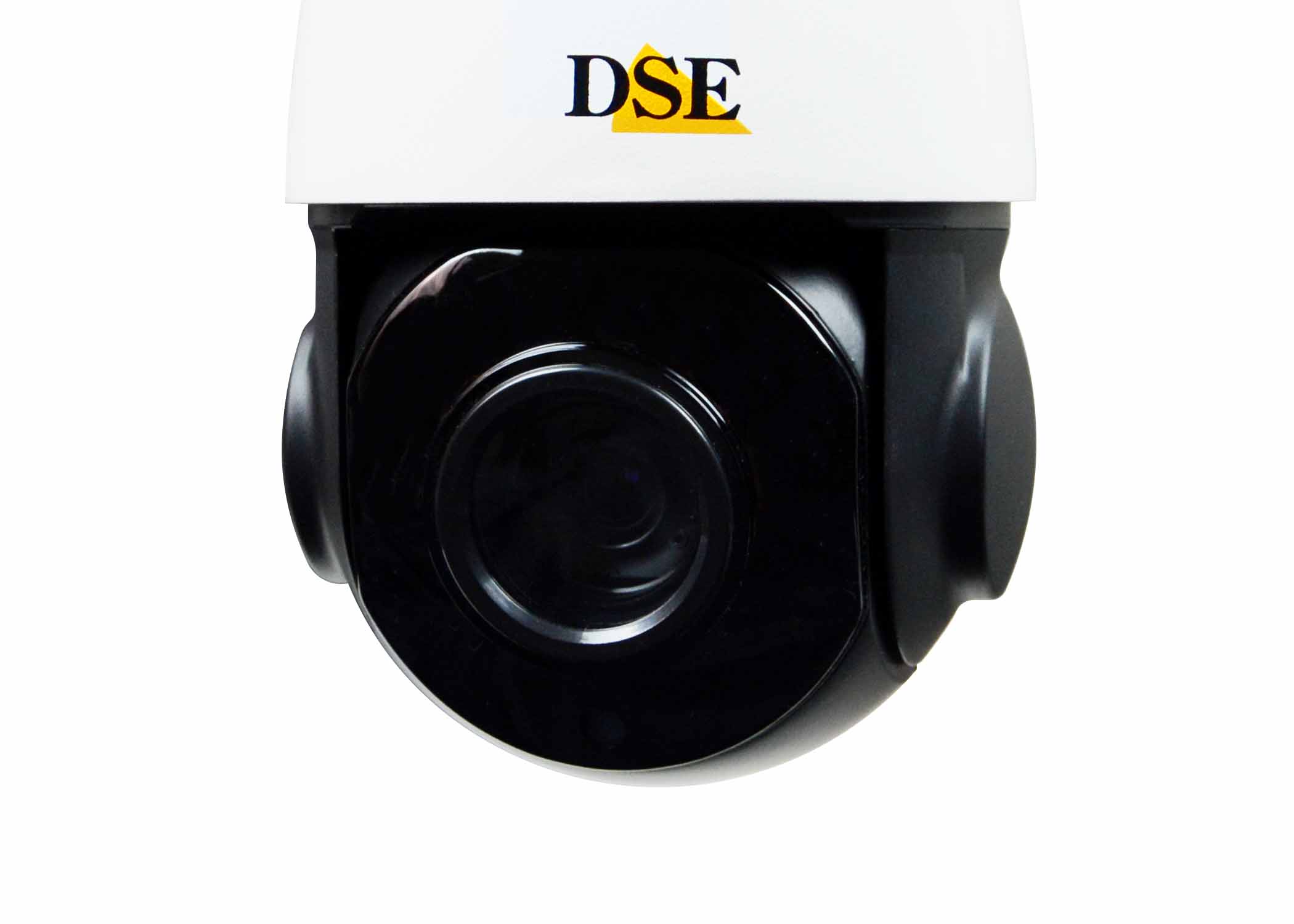

AHD video format CVI TVI video format CVBS video format Waterproof casing for outdoor Pan Tilt Zoom motor cameraControllo menu OSD da DVR su cavo video con UTC Rotation speed 60°/sec SmartIR infrared illuminator 60 m. Zoom lens 20x Motor zoom lens Autofocus lens IR cut filter removable

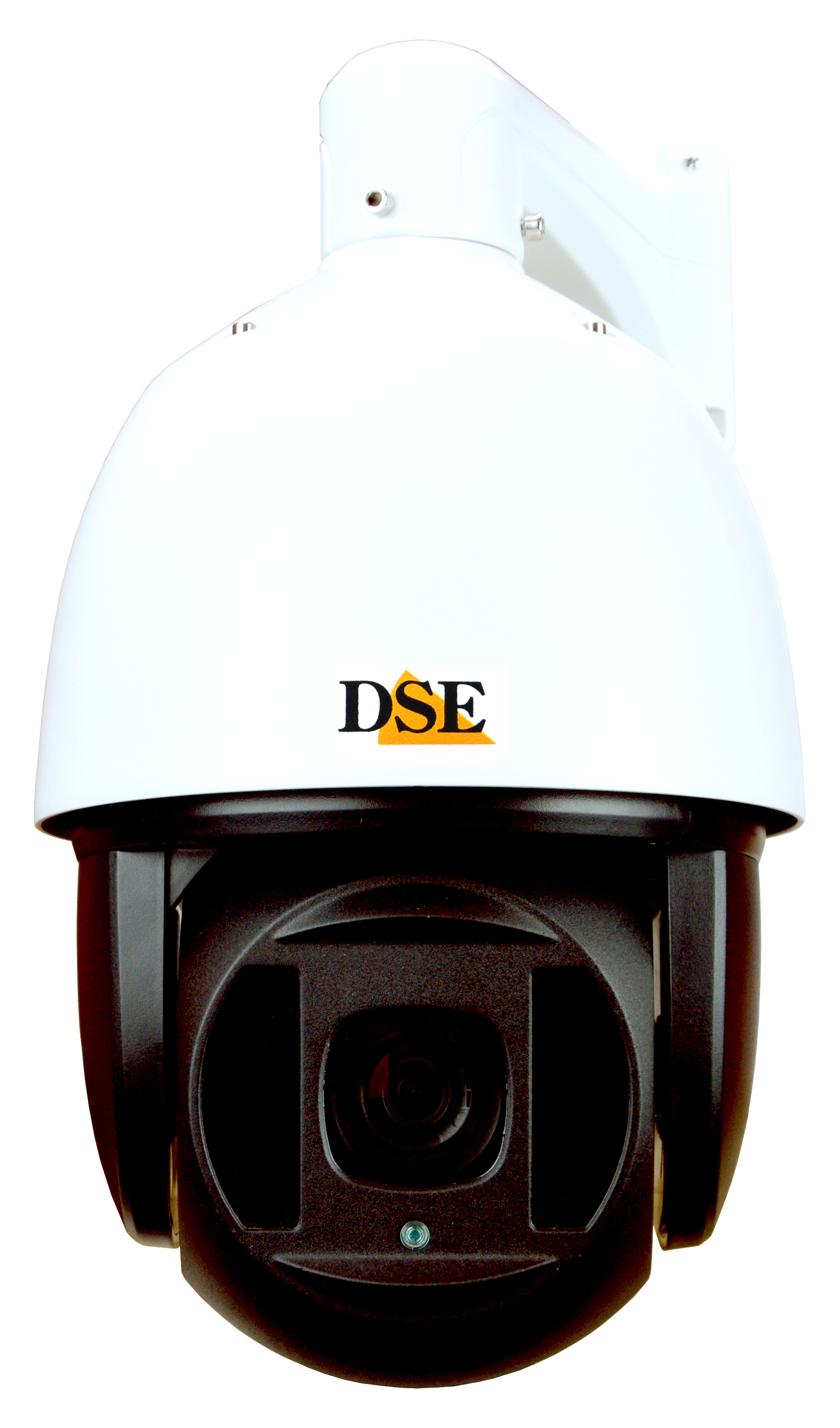

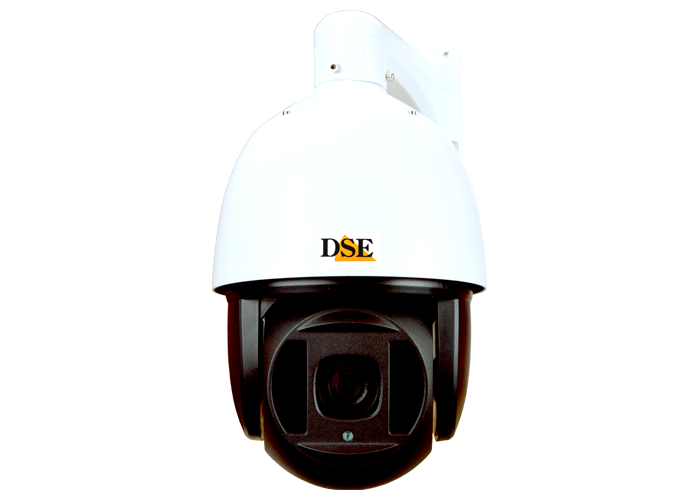

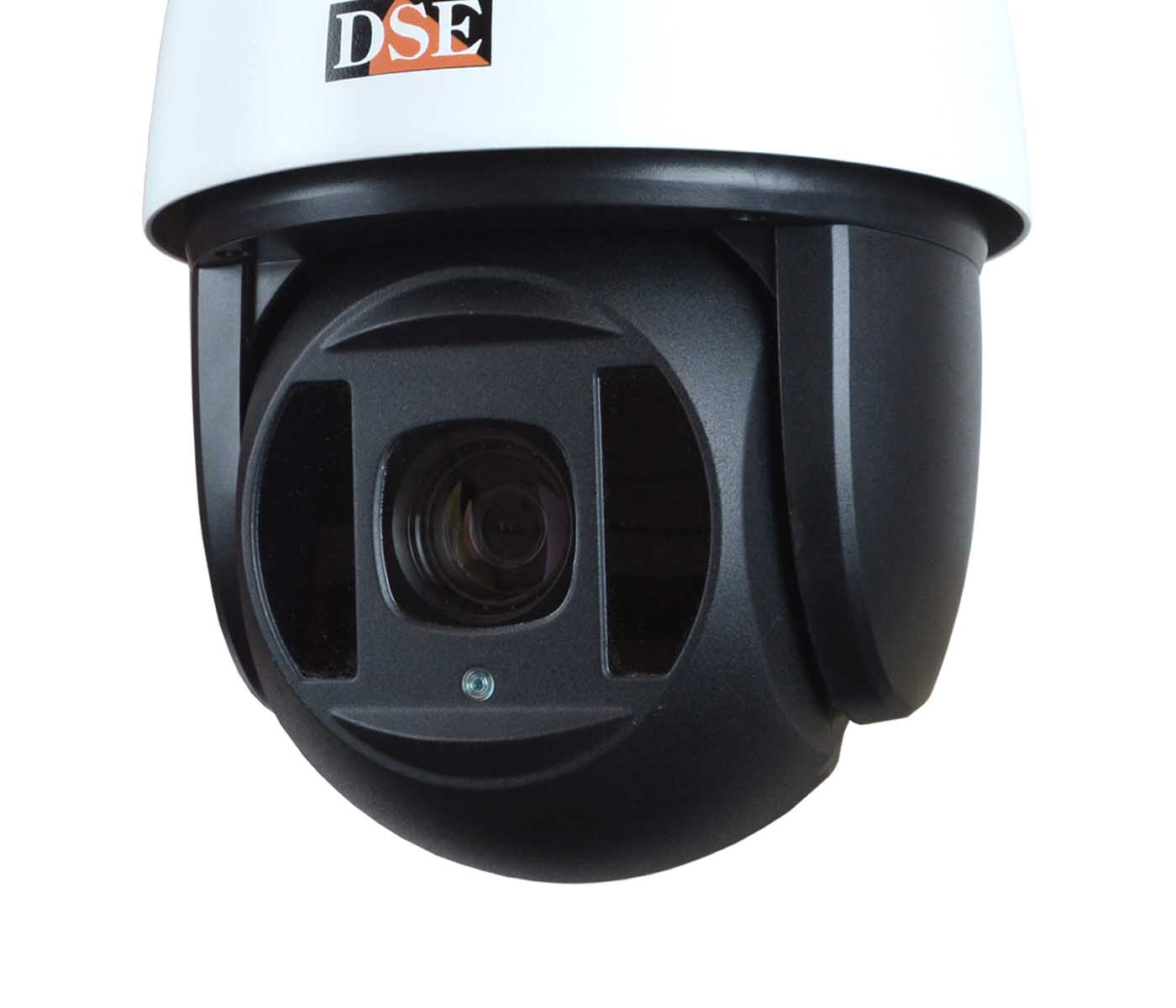

HIGH SPEED DOME
ZOOM 20X

Telecamera IP esterno onvif
SD-D20 2MP
SD-D20-5 5MP

AHD video format CVI TVI video format CVBS video format Waterproof casing for outdoor Pan Tilt Zoom motor cameraControllo menu OSD da DVR su cavo video con UTC Rotation speed 200°/sec SmartIR infrared illuminator 120 m. Zoom lens 20x Motor zoom lens Autofocus lens IR cut filter removable

AHD ANALOG CAMERAS


AHD PTZ cameras for CCTV over coax

The cameras in this range are AHD analog CCTV cameras in high resolution. With these cameras you can make a high-performance video surveillance system while maintaining the simplicity and dependability of traditional analog video. AHD cameras are the ideal solution for updating existing CCTV systems on coaxial cable and for creating new systems that are easy to install and maintain.


Switch to AHD, discover high resolution PTZ cameras up to 5MP

With the AHD (Analog High Definition) technology, the old analog video, at low resolution, has retired. Combined with AHD digital video recorders, these new generation cameras offer you all the megapixel resolution and remote control capabilities of our digital IP cameras, but in analog technology, fully compatible with all existing cabling. An AHD camera does not require configuration like an IP camera: it connects and works immediately. This is why we recommend these cameras if you want a robust and easy to install system, ideal for small systems. If you want to know more about AHD, have a look at the video tutorial that we recorded in 2014, presenting, first company in Italy, this innovative technology. Below you can see a basic example of a small AHD system.


AHD CVI TVI CVBS : 4 in 1

Almost all of our AHD cameras are actually 4 in 1, which means they can provide 4 types of video signal. The AHD signal is our main format for high resolution analog video. AHD is the most popular format worldwide and is an international standard that allows you to use our AHD cameras with any brand of AHD DVR. CVI and TVI, also called TurboHD, are similar to AHD but used by other manufacturers. You may need these video formats if you connect our cameras to other DVRs. CVBS is the old analog, low resolution video. You have to switch the camera to CVBS mode if you want to connect to analog monitors or old DVRs.
You can switch the video signal of the cameras by yourself, but you can also specify the video format you like while placing your order.

AHD VIDEO


High resolution up to 5 Megapixel

The cameras in this series allow you to set the video resolution from 2MP up to 5MP. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and meets the needs of most security systems. If you can spend a slightly higher budget, consider our 5 MP models, which provide more details while zooming-in. When designing your system, you can mix cameras with different resolutions based on the importance of the monitored area. Here you can download short demo movies in the most common resolutions.
ATTENTION : Our RK Series DVR support all kind of analog cameras up to 8MP (4K) on all channels, but if you already have a DVR please check the maximum supported resolution before buying .


12VDC power supply + BNC video

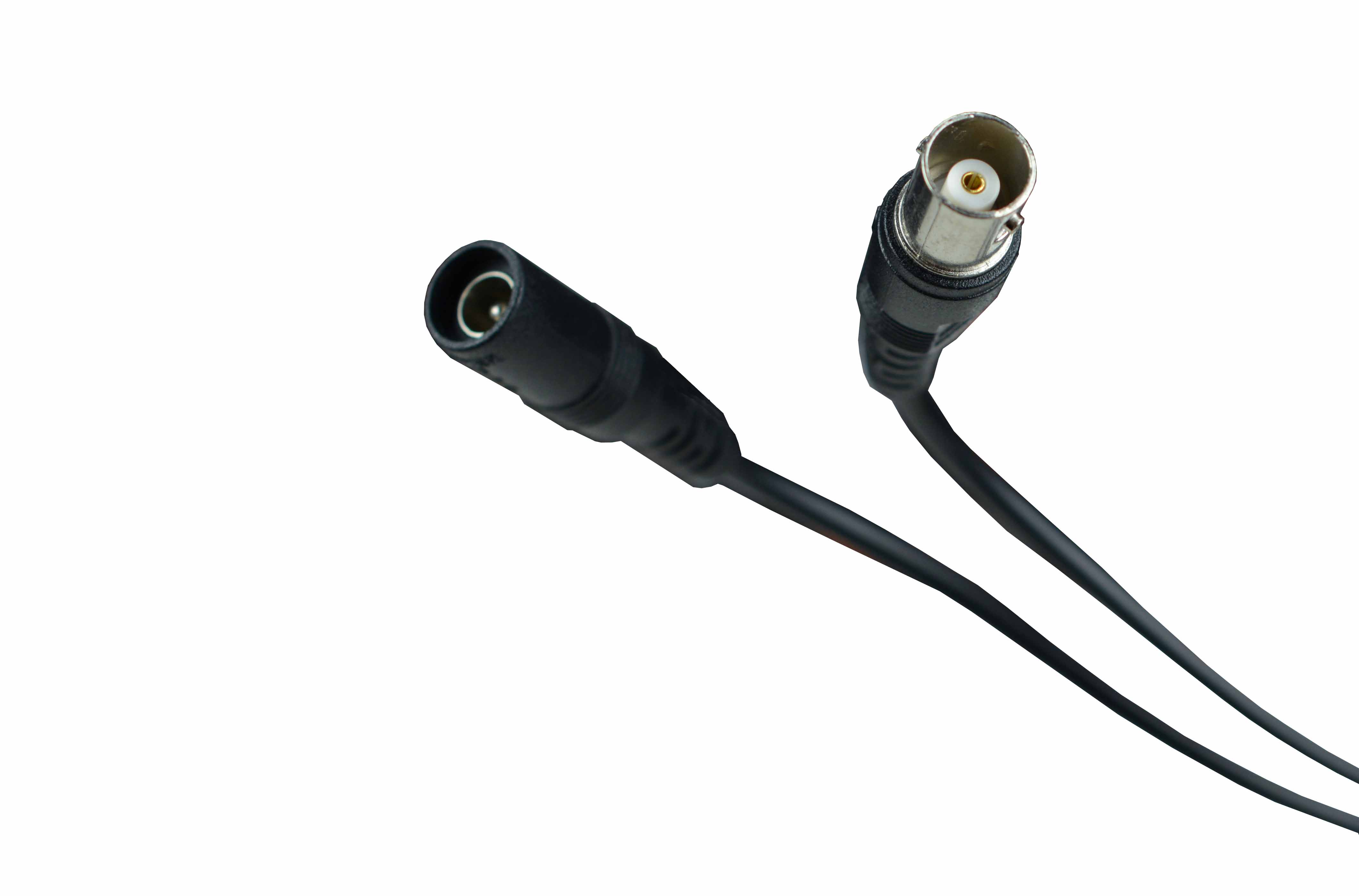

All cameras in this range have 2 connectors: BNC plug for video and DC plug for 12VDC power. The connectors are placed at the end of a cable of about 70 cm. which protrudes from the back of the camera. This cable is useful to reach a junction box where connections must be kept protected from the rain. You can supply 12V power with an adapter near the camera or with a central power supply unit. Choose in our range of power adapters the most suitable solution for your system. You can transfer the video signal with coaxial cables. Alternatively, you can use UTP network cable with small converters called balun. These waterproof cameras do not have a built-in microphone. If you need audio you can use a stand-alone microphone.


PTZ control over coax or RS485

Analogue motorized cameras can be controlled with a DVR or a PTZ keypad. All the models in this range support PTZ command via UTC, along the video cable. Thanks to UTC, also called COC, our RK Series DVR control PTZ cameras without additional cables besides power and video, like a fixed camera. If your DVR does not support PTZ commands via UTC, all these camera also accept traditional PTZ control via RS485 BUS , that is an additional twisted pair. If you control the camera via RS485 you must use the Pelco-D protocol, which is the reference standard for these communications.


SMART IR infrared illuminator with ICR

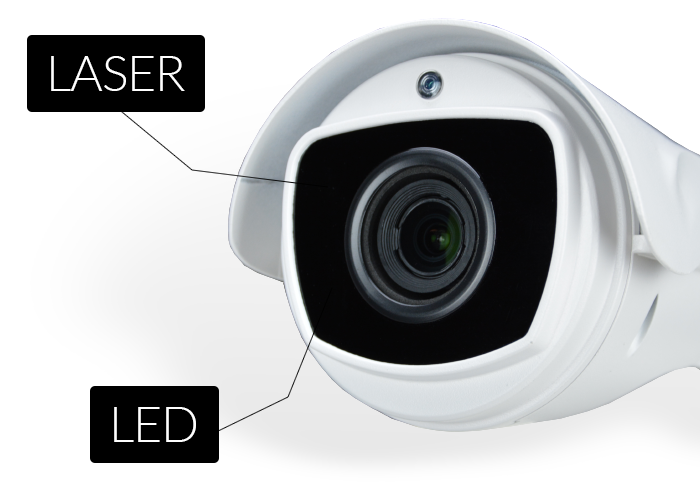

To be able to work in total darkness, these cameras are equipped with infrared LEDs that provide invisible night illumination up to 120 METERS, depending on the models. Thanks to Smart IR technology, the power of the LEDs adapts to the distance of the subject avoiding overexposure in close-up shots. The cameras in this range are equipped with high performance 42µ Superflux LEDs which provide high lighting power while maintaining relatively low energy consumption. The LEDs turn on by themselves below 10 lux. In night mode the camera shoots in Black White thanks to a mechanical removal mechanism of the IR filter (ICR). If you want, you can set the cameras to full color, excluding infrared mode.


4x to 20x motor zoom

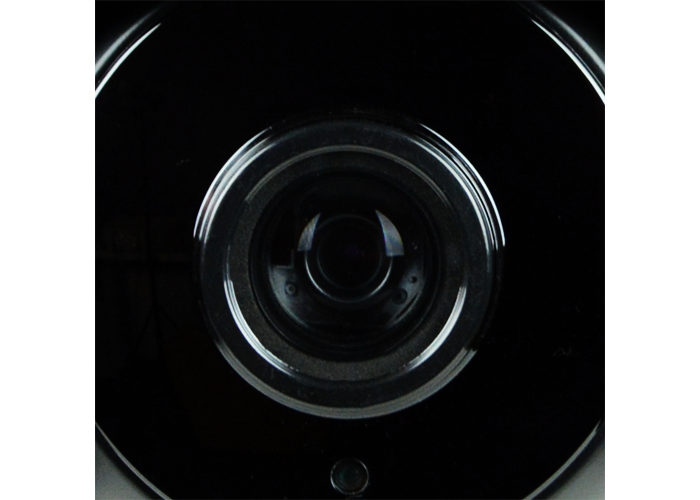

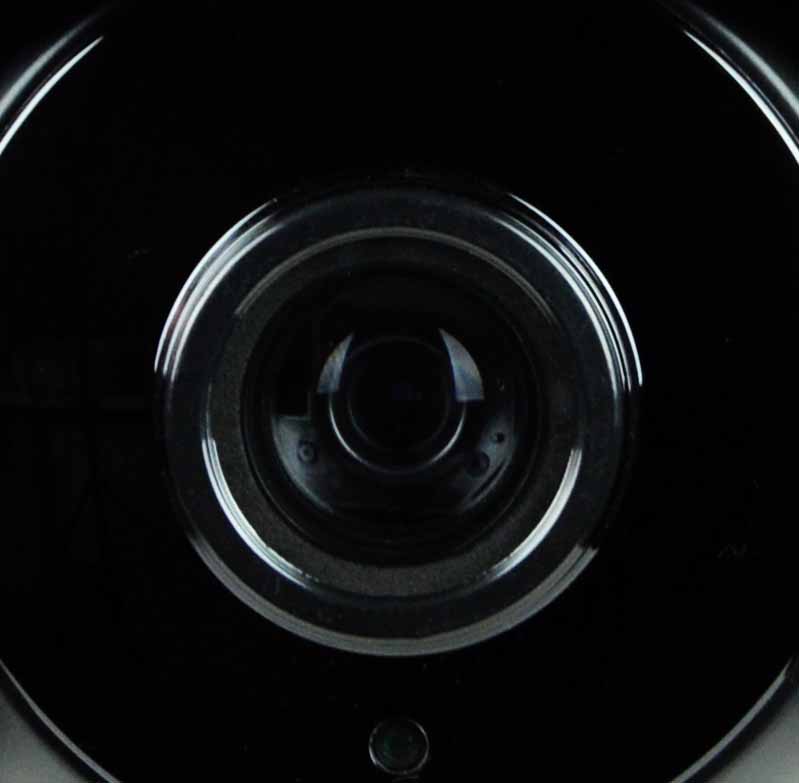

These PTZ cameras are equipped with a motor zoom lens that you can control remotely. You will find in this range several types of zoom from 4x to 20x optical magnification. These lenses come with autofocus to automatically focus on subjects at any distance. Pay close attention if you find on the web speed dome cameras with power zoom at low price, because many low profile manufacturers use to overlay false magnification values, higher then the real optical zoom of the camera.


Mirror, WDR, BLC, DNR

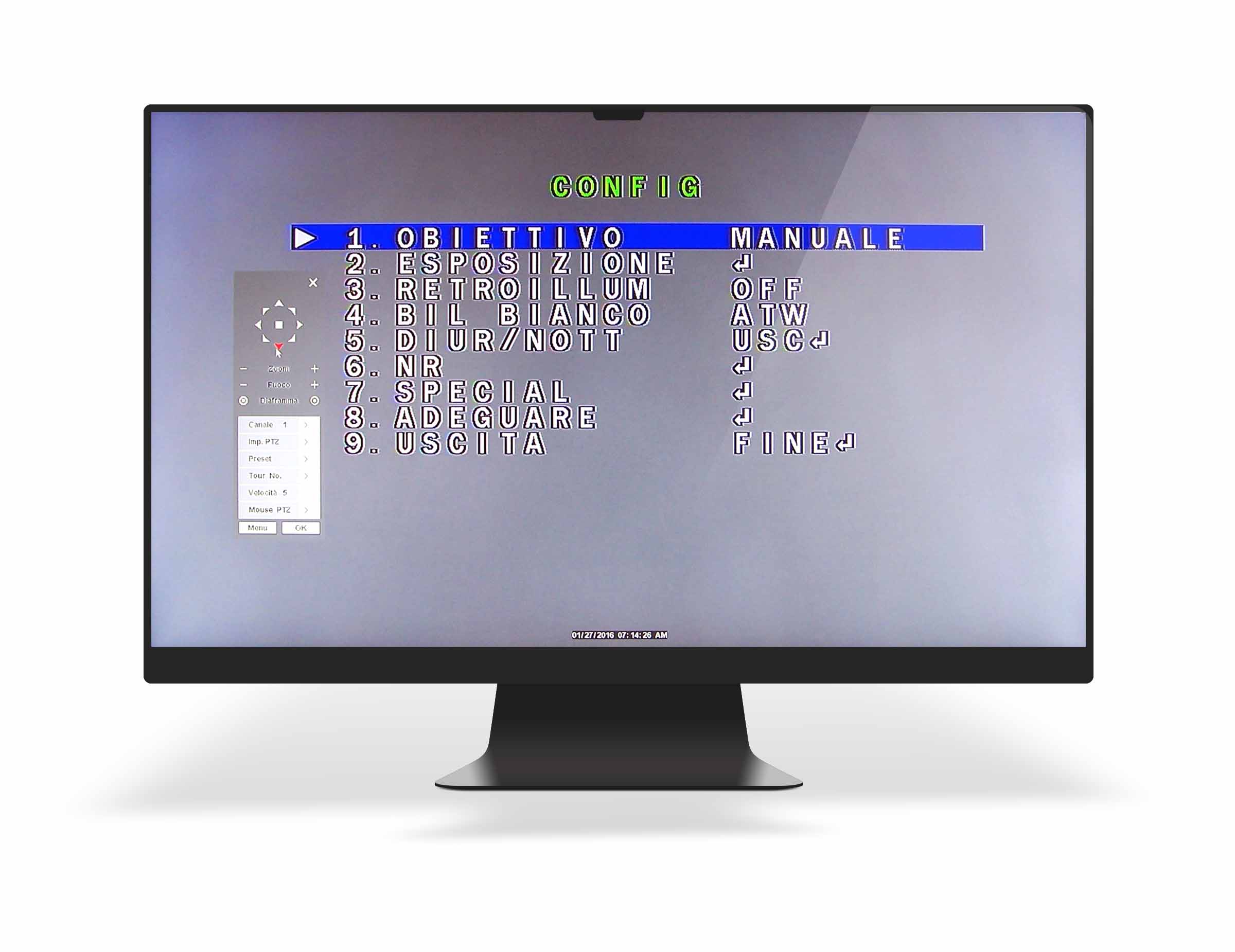

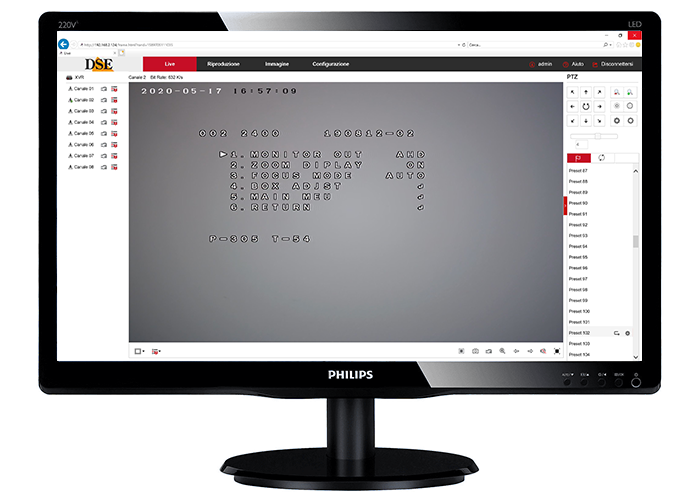

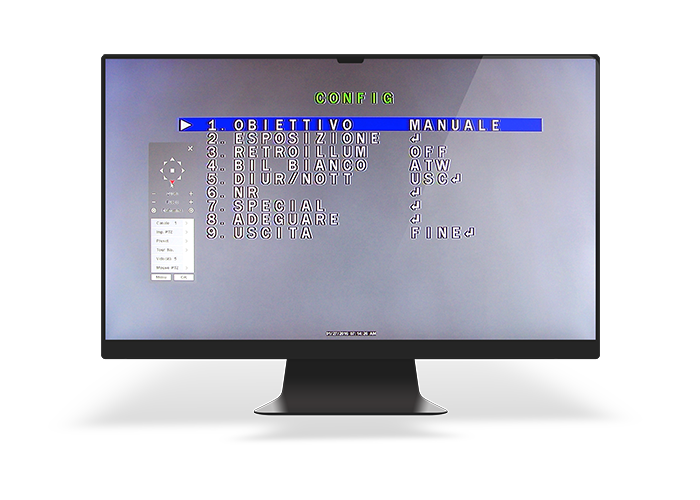

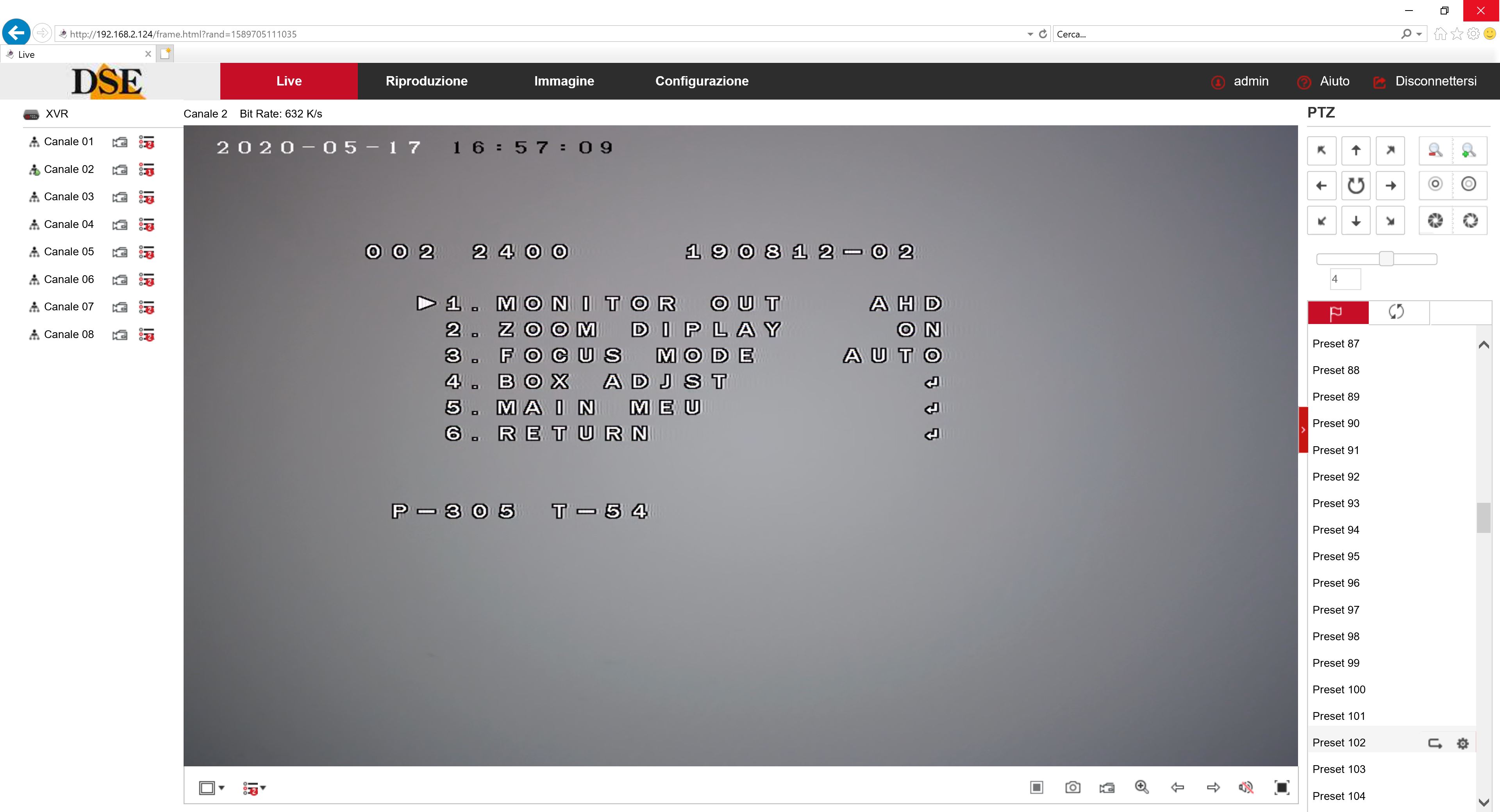

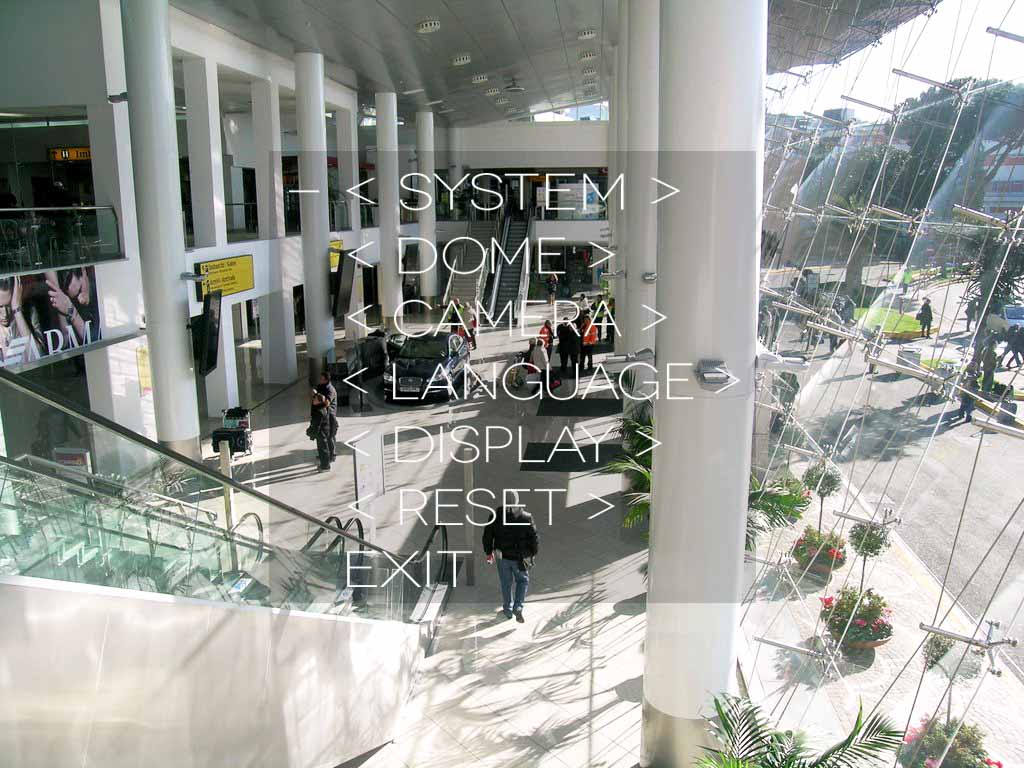

Our AHD PTZ cameras come with a full pack of advanced features. A user friendly On Screen Display, allows you to set the options so as to adapt the camera to your needs. You can adjust the image and rotate it, with the MIRROR functions, in order to suit the area to be monitored. The WIDE DYNAMIC RANGE (WDR) function is useful if you shoot bright areas together with darker areas. With the BLC you can enhance subject on a bright background. The DIGITAL NOISE REDUCTION functions allow you to improve shooting in difficult conditions with poor visibility.

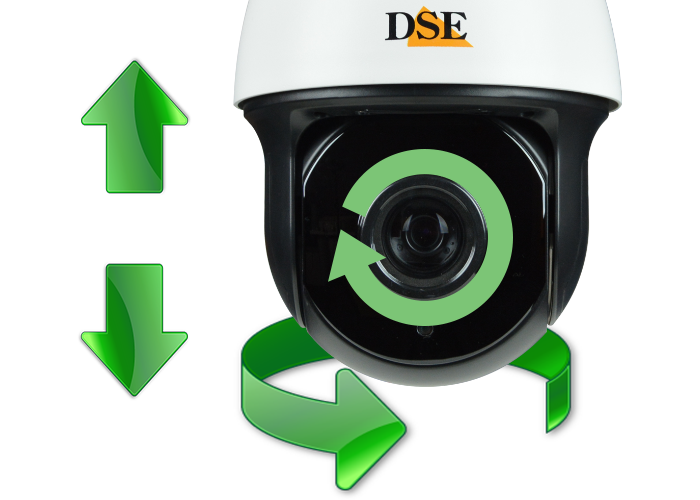

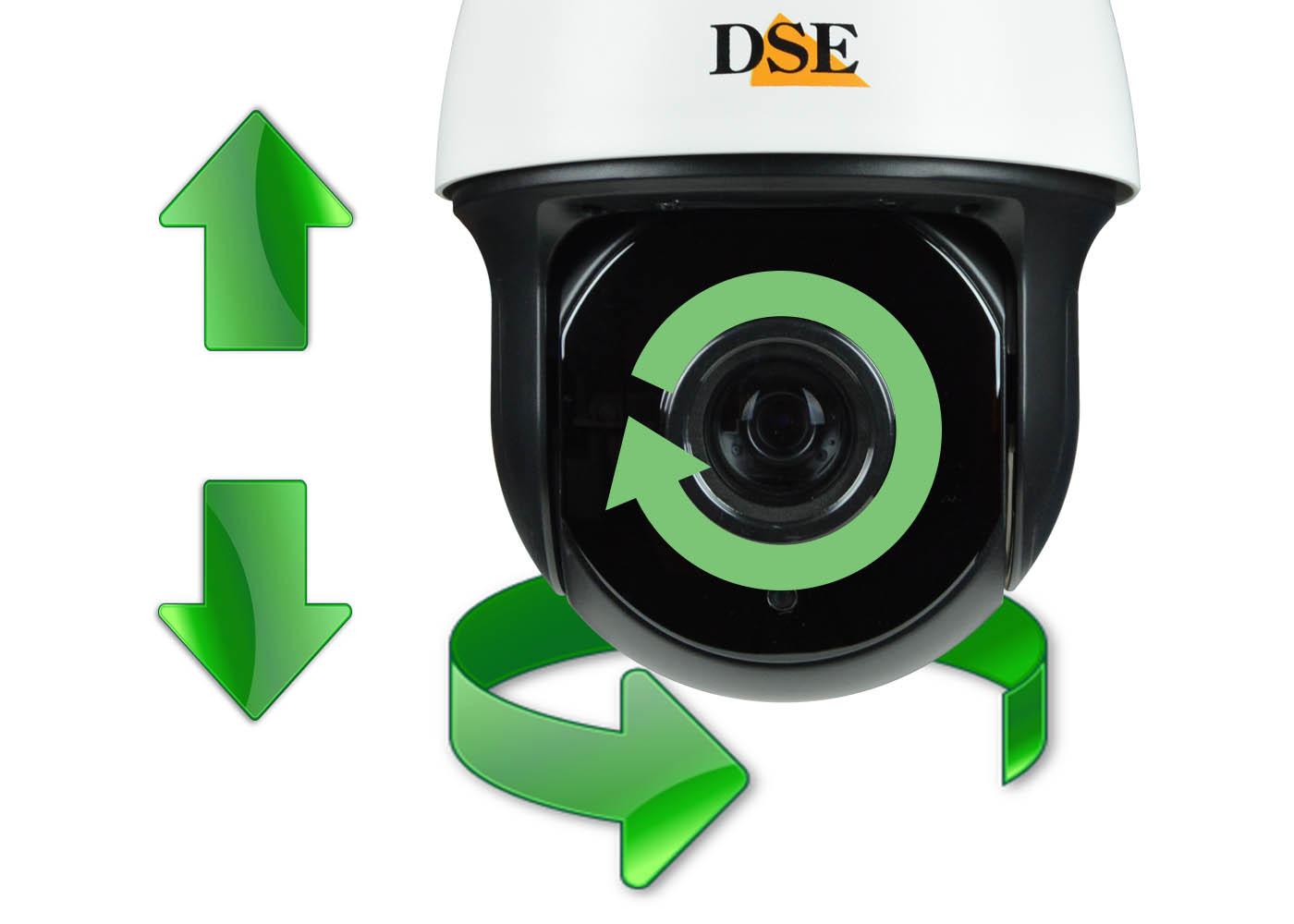

PAN TILT ZOOM


IP67 waterproof with Black Glass

All the cameras in this range are waterproof, with IP67 degree of protection. You can mount them indoor or outdoor, exposed to the rain. We do not use cheap plastic casings for our PTZ cameras, but only strong, die-casted, aluminum enclosures, fire-painted. All the cameras in this range come with Black Glass front covers which increase the efficiency of LEDs (about 8% more than normal glass) and reduce the attraction of insects at night.


Pan Tilt up to 200°/sec

The cameras in this range are all motorized and remote controllable. Dome cameras rotate horizontally at 360° (PAN) and vertically at 180° (TILT). During tilt moving, they are equipped with AUTOFLIP to provide straight video even over 90° of rotation, beyond the vertical axis. The bullet PTZ, rotate enough to cover the are in front of the camera. The full-metal rotor mechanism ensures high precision in positioning. The high speed dome models can rotate very quickly from one point to another at 200°/sec. The bullet cameras and micro speed dome cameras rotate more slowly, at 30° sec.


256 preset, 3 cruise, scan, funzione home

All our speed dome cameras in this range can perform automatic moves. You can set 256 PRESET to quickly recall specific positions and 3 CRUISE to monitor a sequence of several presets. With the SCAN function you can monitor large areas by keeping the camera in constant rotation. You can also set a home automatic action, also called IDLE, that the camera performs automatically in the absence of operator commands.


Mounting accessories

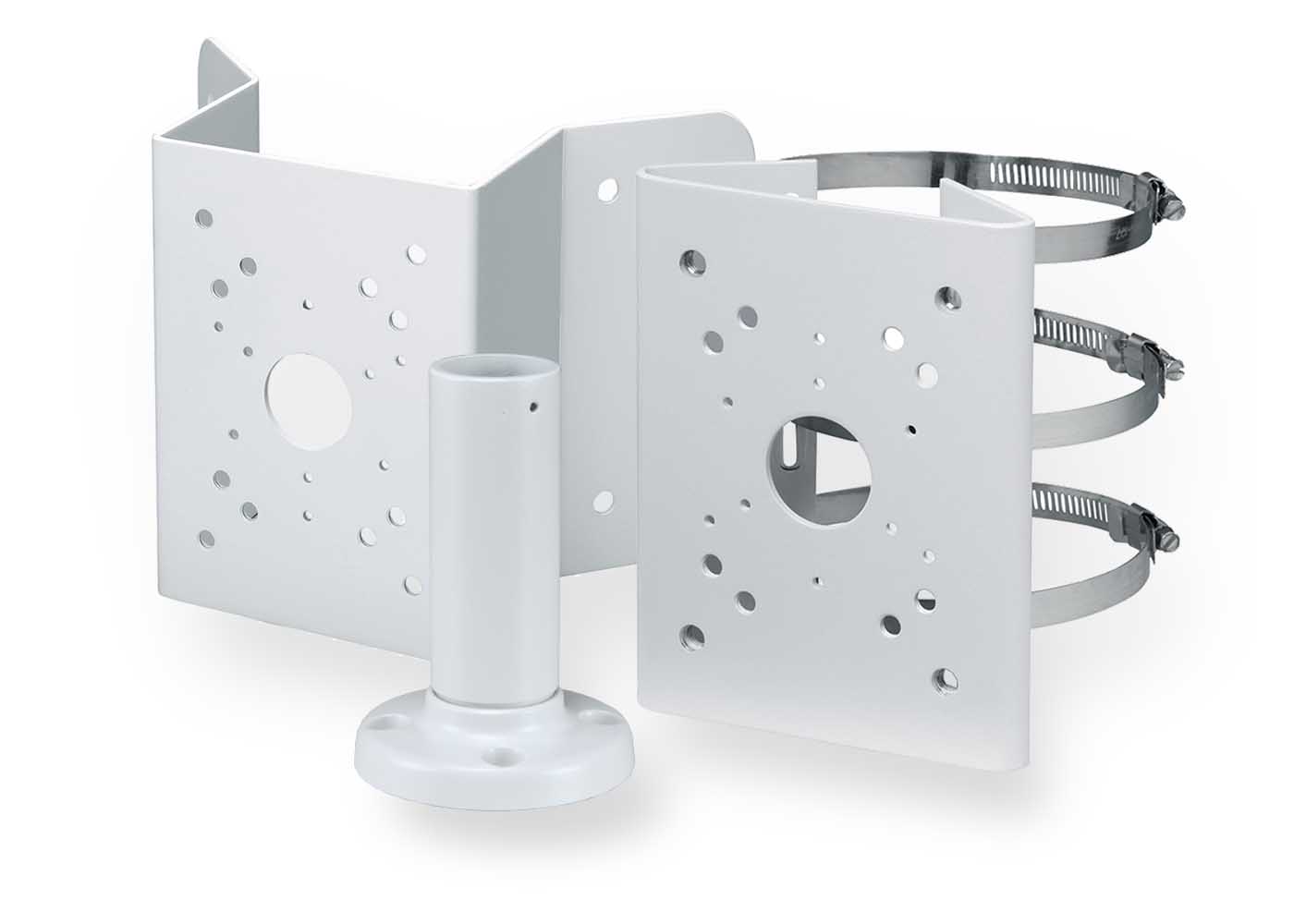

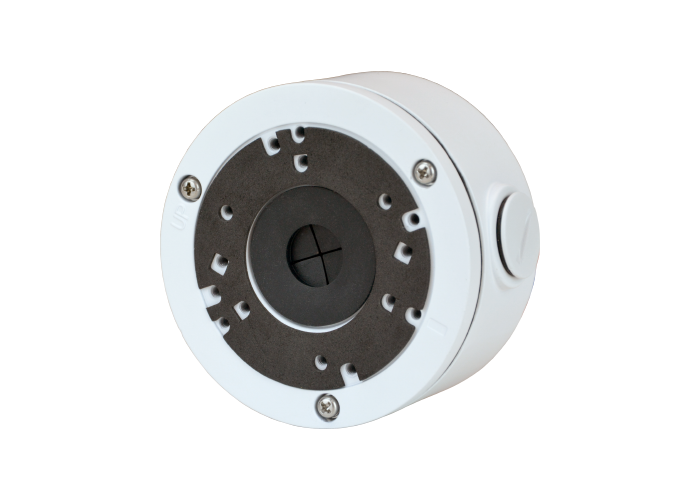

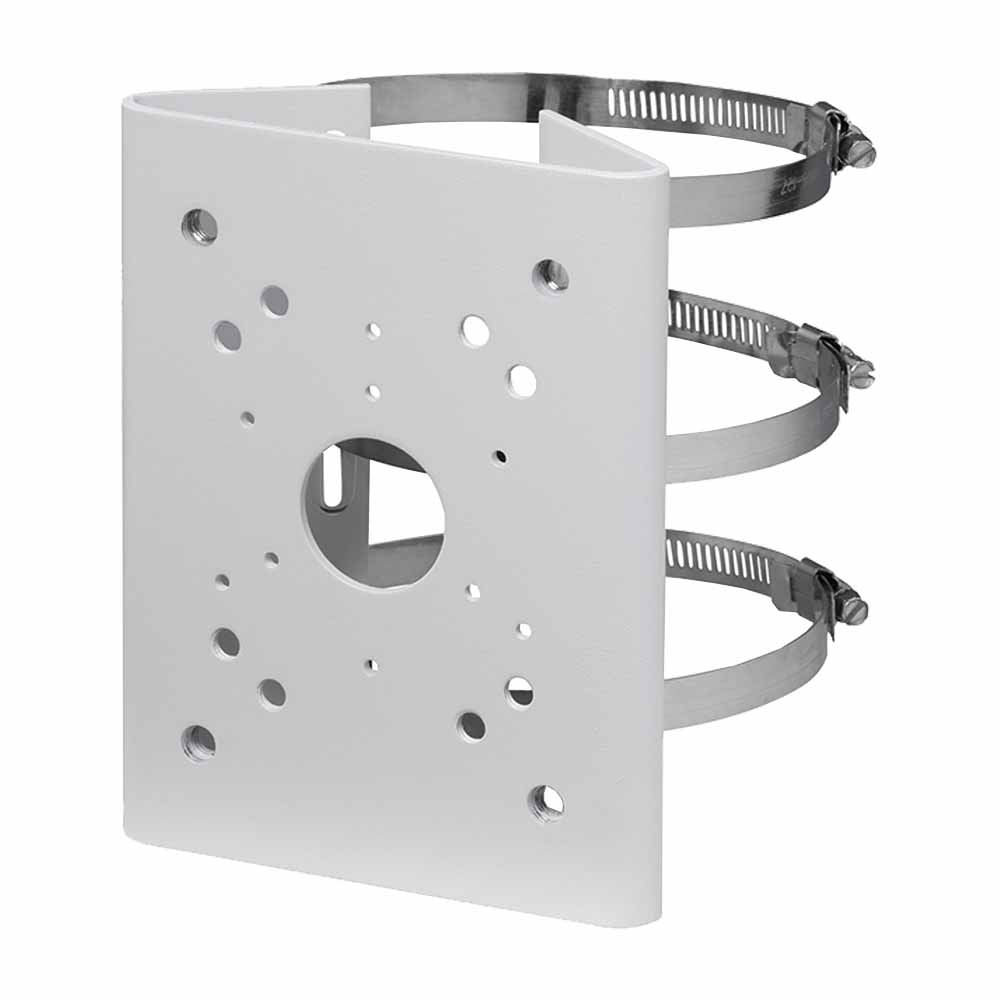

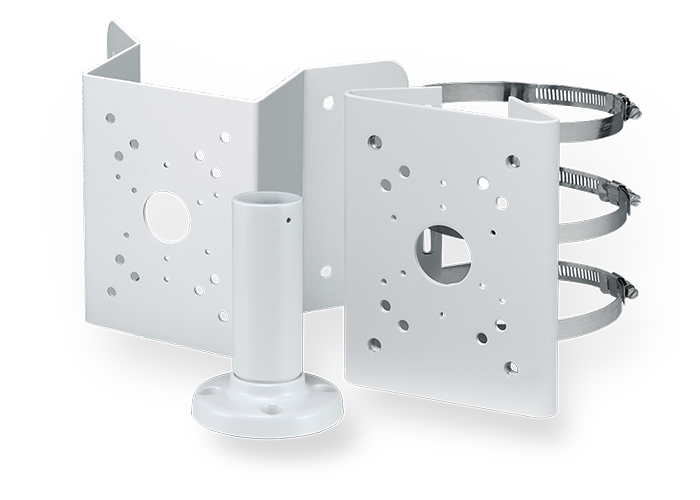

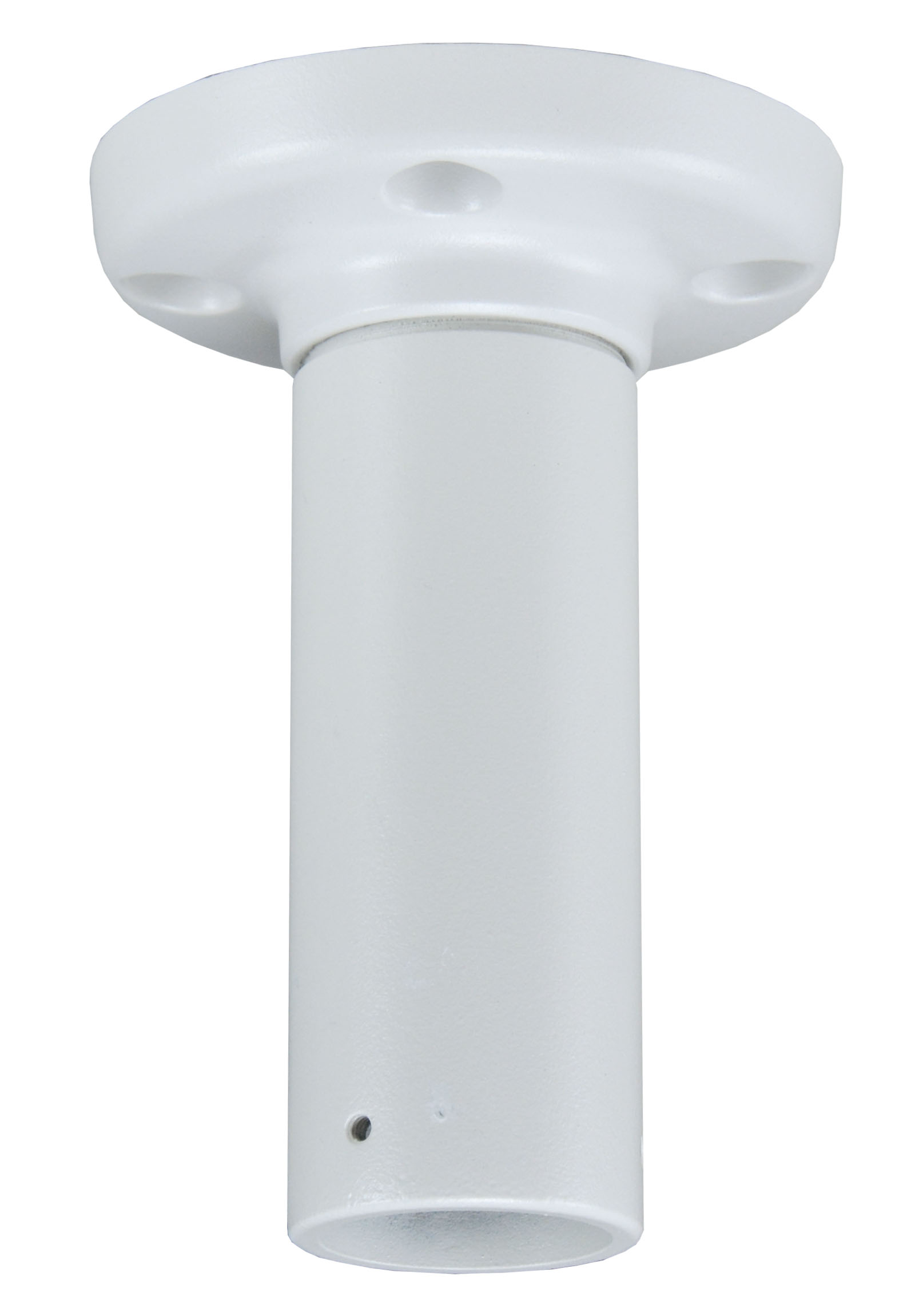

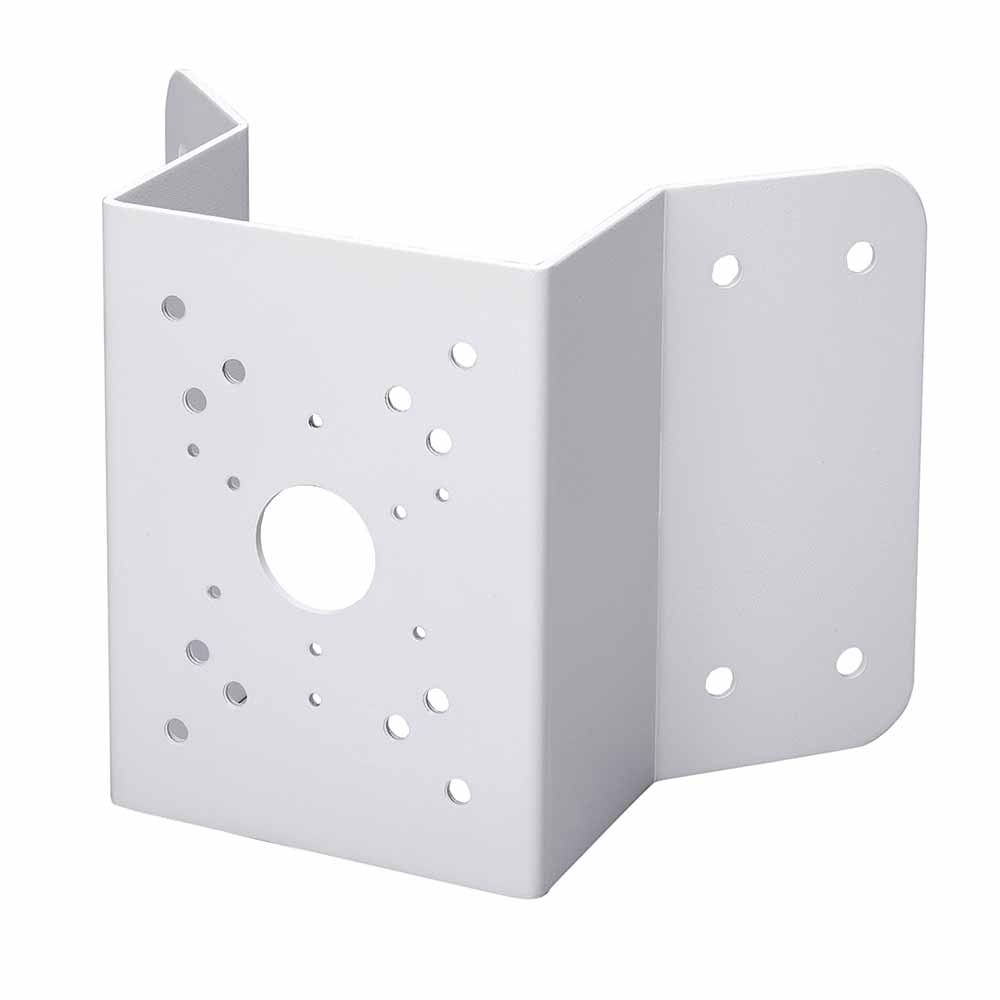

These PTZ cameras are supplied with a wall mount bracket with the exception of the micro speed dome cameras suitable for ceiling mounting. There are also several mounting accessories that you can buy separately. The ceiling mount bracket must be purchased if you wish to hang the camera. The pole collar, with steel clamps and the corner mounting base are available for big speed dome only, but can be easily adapted to mini speed dome cameras by drilling the plate..

SPEED DOME ACCESSORIES

AHD VIDEO RECORDING


Compatible with all DVRs

These AHD cameras are designed to be connected to a digital video recorder, also called DVR, which has the task of digitizing the video signals of the analog cameras and recording videos on the Hard Disk. With the video recorder you can perform all the digital functions of IP systems, like remote control via Internet or intrusion detection with motion alarm. The cameras in this range are compatible with all DVRs on the market, but it is preferable that your DVR supports the maximum resolution of the camera. For a perfect compatibility with all advanced camera features, consider to buy one of our multi-tech DVR.

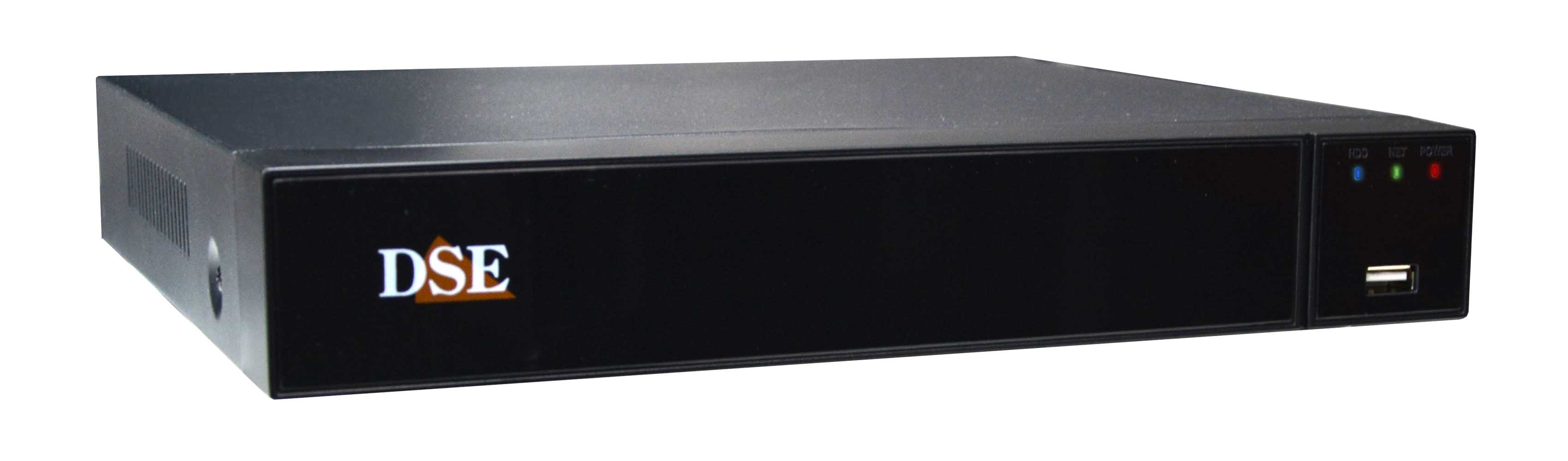

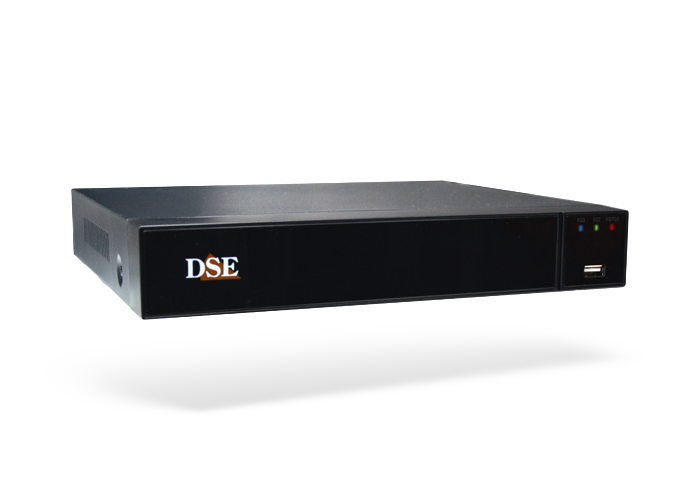

RK SERIES DVR

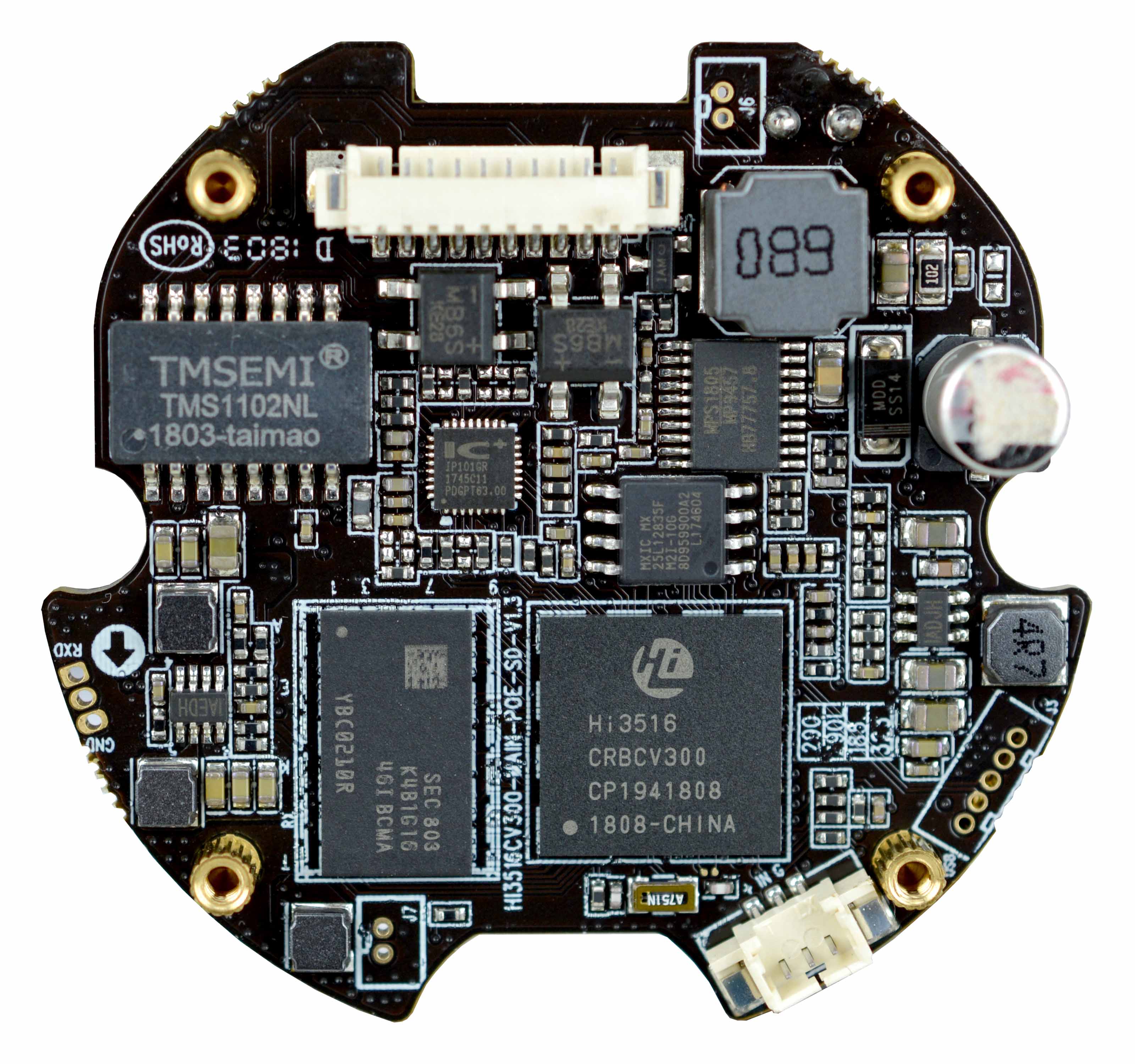

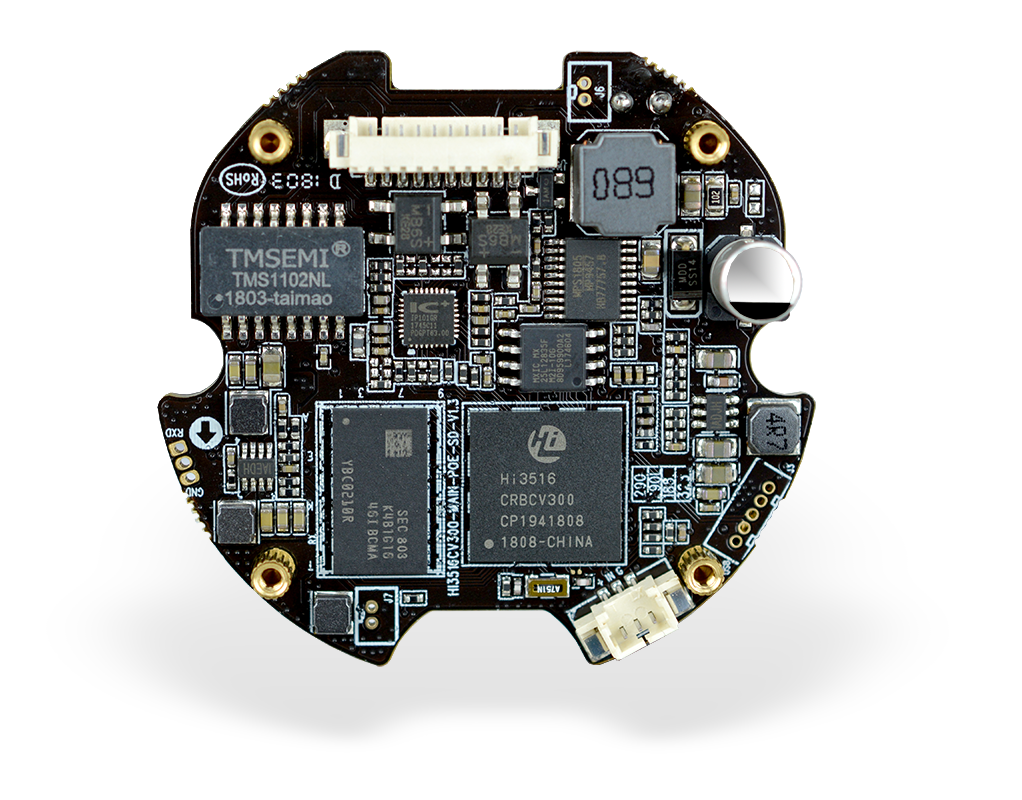

Remote control via video cable with UTC/COC

Our AHD motorized cameras contain a UTC chip that allows you to control movements without the need for a control cable, but directly by sending commands along the video cable. It is a very convenient function because it allows you to install a motorized AHD camera with the same wiring as a fixed one (Video and power supply). With UTC control you can also change the internal camera options, as you do with IP cameras. To be able to control the menu of the camera remotely you need a DVR that supports the UTC COC protocol, like ours RK Series DVR.


Remote control by DVR, PC, SMARTPHONE or KEYPAD

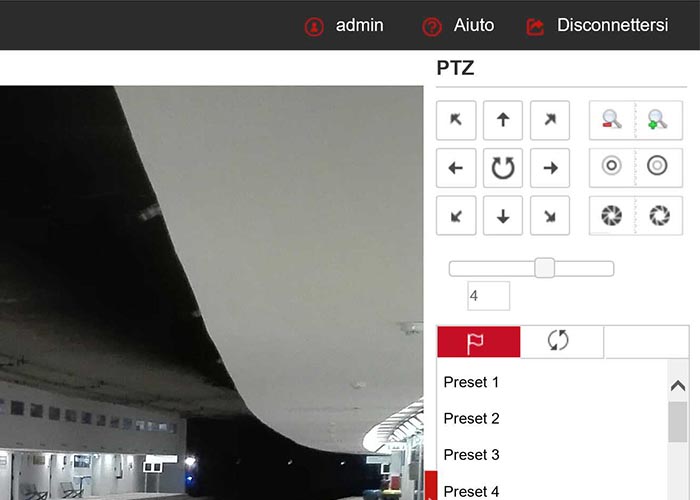

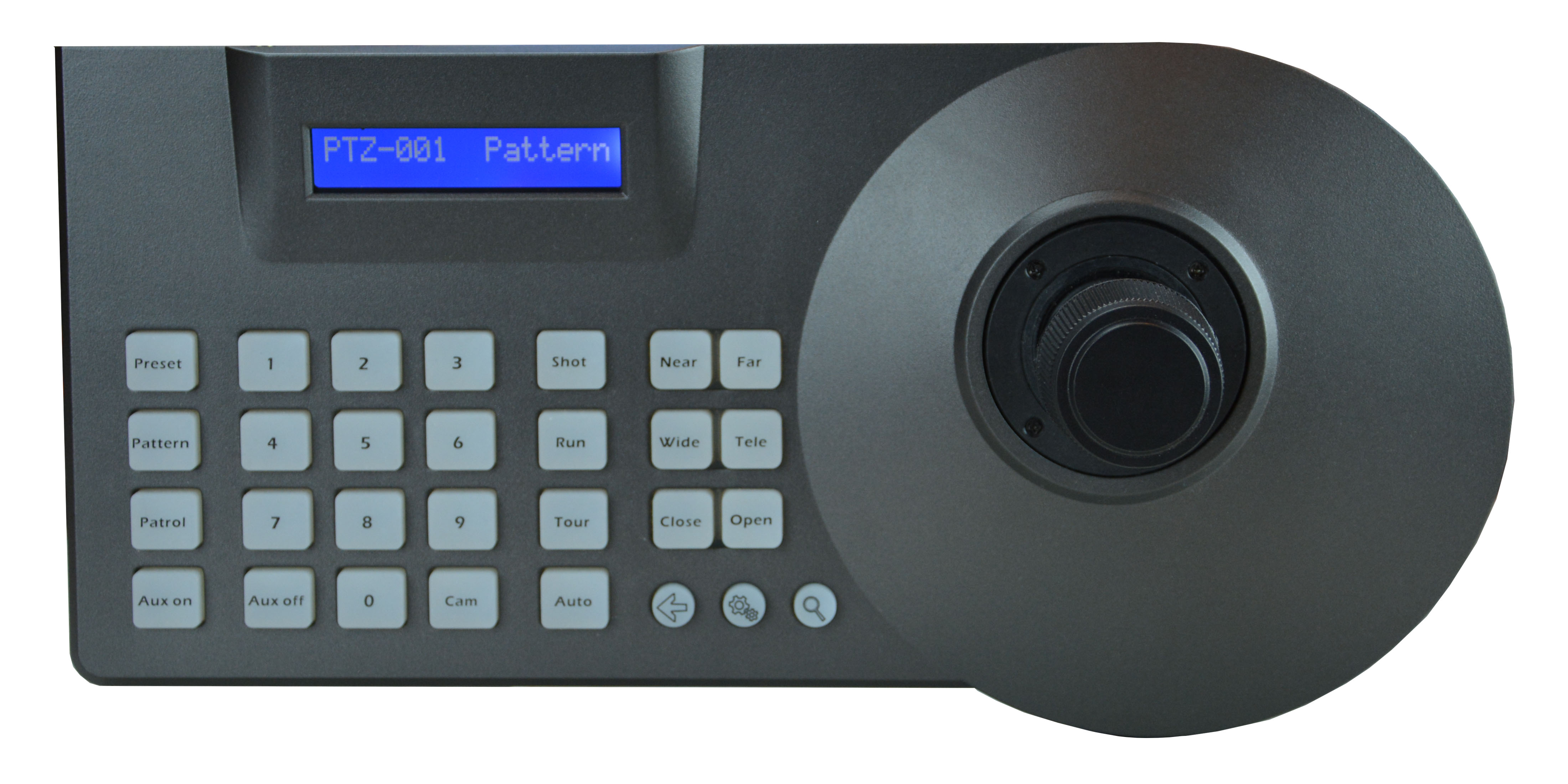

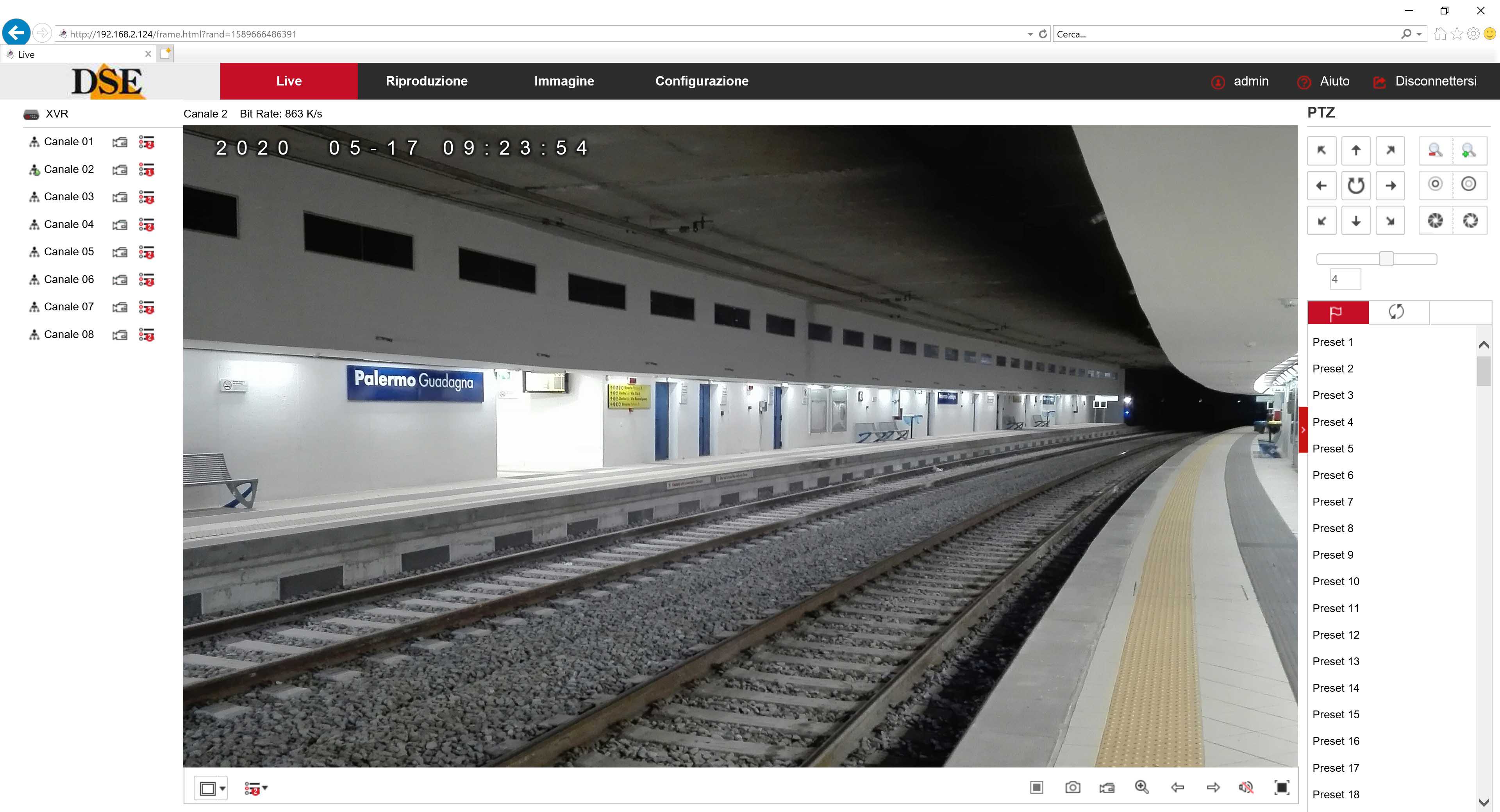

You can control the movements of our motorized AHD cameras through the DVR, acting locally, with the mouse, or even via the web, with a PC or mobile phone. If you need a stand-alone control station with a joystick, you can buy one of our PTZ RS485 control keypad . You can connect several control units to the same cameras, such as a DVR and a keyboard, and use the one you prefer depending on the situation.

TECHNICAL DATA



CODICE SD-D4 SD-D4-5 SD-E10-5 SD-DM20-5 SD-D20 SD-D20-5
Description AHD CVI TVI CVBS motorized camera AHD CVI TVI CVBS motorized camera AHD CVI TVI CVBS motorized camera AHD CVI TVI CVBS motorized camera AHD CVI TVI CVBS motorized camera AHD CVI TVI CVBS motorized camera
CAMERA
Max. resolution 2MP 5MP 5MP 5MP 2MP 5MP
Optical sensor SONY IMX323 1/2.9" CMOS OV 05A10 1/2.7" CMOS OV 05A10 1/2.7" CMOS OV 05A10 1/2.7" CMOS SONY IMX323 1/2.9" CMOS OV 05A10 1/2.7" CMOS
Video resolution AHD 1920x1080 @ 25 f/s (FullHD) 2592x1944 @ 12.5 f/s (5MP) ... 1296x1944 @ 25 f/s (H5MP) ... 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP) 2592x1944 @ 12.5 f/s (5MP) ... 1296x1944 @ 25 f/s (H5MP) ... 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP) 2592x1944 @ 12.5 f/s (5MP) ... 1296x1944 @ 25 f/s (H5MP) ... 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP) 1920x1080 @ 25 f/s (FullHD) 2592x1944 @ 12.5 f/s (5MP) ... 1296x1944 @ 25 f/s (H5MP) ... 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP)
Video resolution TVI 1920x1080 @ 25 f/s (FullHD) 2592x1944 @ 12.5 f/s (5MP) ... 1296x1944 @ 25 f/s (H5MP) ... 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP) 2592x1944 @ 12.5 f/s (5MP) ... 1296x1944 @ 25 f/s (H5MP) ... 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP) 2592x1944 @ 12.5 f/s (5MP) ... 1296x1944 @ 25 f/s (H5MP) ... 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP) 1920x1080 @ 25 f/s (FullHD) 2592x1944 @ 12.5 f/s (5MP) ... 1296x1944 @ 25 f/s (H5MP) ... 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP)
Video resolution CVI 1920x1080 @ 25 f/s (FullHD) 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP) 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP) 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP) 1920x1080 @ 25 f/s (FullHD) 2560x1440 @ 15 f/s (4MP) ... 1280x1440 @ 25 f/s (H4MP)
Video resolution CVBS Max. 960x576 (960H) Max. 960x576 (960H) Max. 960x576 (960H) Max. 960x576 (960H) Max. 960x576 (960H) Max. 960x576 (960H)
Electronic shutter 1/25" ... 1/50000" 1/25" ... 1/50000" 1/25" ... 1/50000" 1/25" ... 1/50000" 1/25" ... 1/50000" 1/25" ... 1/50000"
S/N ratio >50dB >50dB >50dB >50dB >50dB >50dB
Power supply 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC
Infrared illuminator 30 m. (4LED d35 850nm) 30 m. (4LED d35 850nm) 100 m. (4LED d35 850nm + 2 Laser) 60 m. (4LED d42 850nm) 120 m. (6LED d42 850nm) 120 m. (6LED d42 850nm)
ICR
Lens Zoom 4x 2.8...12 mm. Zoom 4x 2.8...12 mm. Zoom 10x 5.1...51 mm. Zoom 20x 4.7...94 mm. Zoom 20x 4.7...94 mm. Zoom 20x 4.7...94 mm.
Focus Autofocus/Manual Autofocus/Manual Autofocus/Manual Autofocus/Manual Autofocus/Manual Autofocus/Manual
SETUP
Audio
Video output BNC female BNC female BNC female BNC female BNC female BNC female
Power input 5.5x2.1 mm. plug 5.5x2.1 mm. plug 5.5x2.1 mm. plug 5.5x2.1 mm. plug 5.5x2.1 mm. plug 5.5x2.1 mm. plug
PTZ control over video cable Via DVR with UTC/COC protocol Via DVR with UTC/COC protocol Via DVR with UTC/COC protocol Via DVR with UTC/COC protocol Via DVR with UTC/COC protocol Via DVR with UTC/COC protocol
PTZ control over additional twisted pair RS485 port (A-B terminals) with PelcoD protocol RS485 port (A-B terminals) with PelcoD protocol RS485 port (A-B terminals) with PelcoD protocol RS485 port (A-B terminals) with PelcoD protocol RS485 port (A-B terminals) with PelcoD protocol RS485 port (A-B terminals) with PelcoD protocol
PAN TILT
Rotation speed Max. 30°/sec Max. 30°/sec Max. 30°/sec Max. 60°/sec Max. 200°/sec Max. 200°/sec
Rotation angle 355° PAN, 140° TILT con autoflip 355° PAN, 140° TILT con autoflip 200° PAN, 45+40° TILT 360° PAN, 180° TILT with autoflip 360° PAN, 180° TILT with autoflip 360° PAN, 180° TILT with autoflip
Pan Tilt accuracy <0,5° <0,5° <0,5° <0,5° <0,5° <0,5°
Automatic actions 256 preset, 3 tour, scan 360°, scan tra finecorsa 256 preset, 3 tour, scan 360°, scan tra finecorsa 256 preset, 3 tour, scan 360°, scan tra finecorsa 256 preset, 3 tour, scan 360°, scan tra finecorsa 256 preset, 3 tour, scan 360°, scan tra finecorsa 256 preset, 3 tour, scan 360°, scan tra finecorsa
Home function
FUNCTIONS
Mirror Verticale e/o Orizzontale Verticale e/o Orizzontale Verticale e/o Orizzontale Verticale e/o Orizzontale Verticale e/o Orizzontale Verticale e/o Orizzontale
Overlay Date/Time, Position, Zoom Date/Time, Position, Zoom Date/Time, Position, Zoom Date/Time, Position, Zoom Date/Time, Position, Zoom Date/Time, Position, Zoom
BLC
AWB
DNR
WDR
GENERAL
Casing Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Protection degree IP66 waterproof IP66 waterproof IP66 waterproof IP66 waterproof IP66 waterproof IP66 waterproof
Mounting bracket Including ceiling plate Including ceiling plate Including wall bracket Including wall bracket Including wall bracket Including wall bracket
Operating temperature -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max
Power supply 12VDC +/-10% 12VDC +/-10% 12VDC +/-10% 12VDC +/-10% 12VDC +/-10% 12VDC +/-10%
Power adapter included
Power consumption Max 60 mA (340 mA IR on) Max 60 mA (340 mA IR on) Max 60 mA (340 mA IR on) Max 60 mA (340 mA IR on) Max 60 mA (410 mA IR on) Max 60 mA (410 mA IR on)
Overall dimensions 108 mm.(D) 93 mm (H) 108 mm.(D) 93 mm (H) 117 mm.(L) 99 mm.(H) 300 mm (P) 150 mm.(D) 245 mm (H) 210 mm.(D) 320 mm (H) 210 mm.(D) 320 mm (H)
Weight 490 gr. 490 gr. 1.3 Kg. 2 Kg. 5 Kg. 5 Kg.

DOMANDE & RISPOSTE


What's included?

SPEED-DOME and MINI SPEED-DOME

CAMERA
BRACKET
POWER ADAPTER
MANUALS

BULLET

CAMERA
BRACKET
MANUALS

What is not included?

Micro speed dome cameras are supplied without 12VDC power adapter. You can choose one from our POWER SUPPLY UNITS . The speed dome and mini speed dome cameras already have a wall bracket, but if you need to mount them on a pole, ceiling or corner you have to order separately a BRACKET FOR SPEED DOME
