Waterproof mini bullet AHD cameras


These are the smallest waterproof cameras in our range. AHD high resolution and outdoor water protection in extra small size. Perfect to monitor machines tools or automatic systems.

AHD mini bullet cameras

AHD FINGER CAMERAS

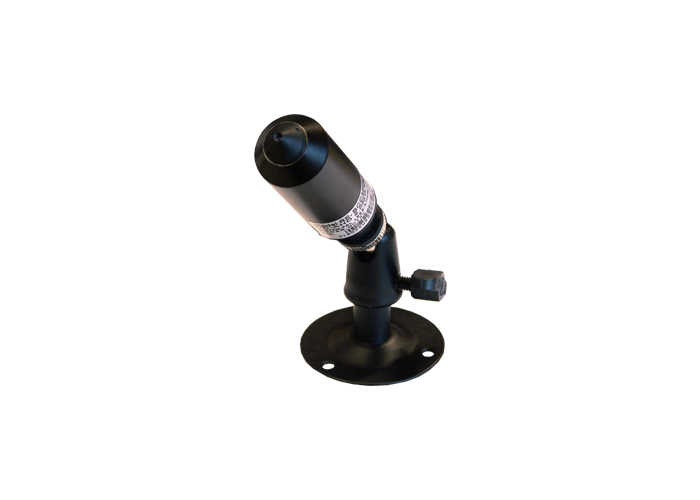

PINHOLE LENS

Telecamera miniaturizzata AHD
RE-BCC3FD4 2MP

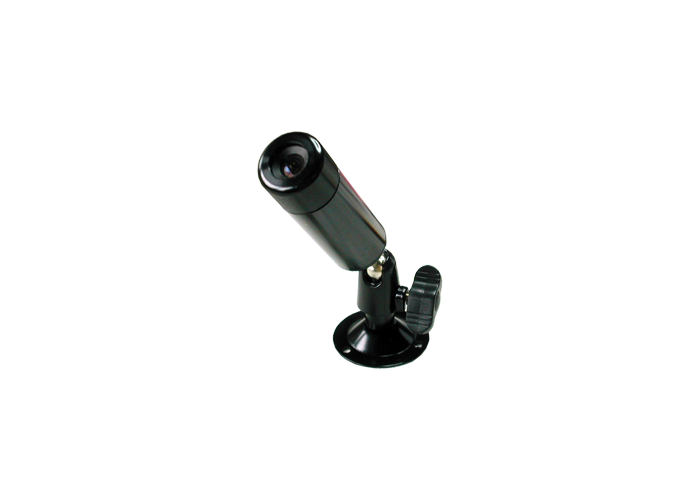

MINI LENS

Telecamera miniaturizzata AHD
RE-BCC4FD4 2MP

AHD HIGH RESOLUTION


The smallest AHD cameras in protected casing

The cameras in this range are the smallest water protected cameras in our range. They are AHD analog cameras , suitable to be connected to AHD videorecorders. AHD technology is the ideal solution for this type of camera because it allows to manufacture smaller electronics than IP technology.
AHD cameras offer you all the megapixel resolution and remote control functions of our digital IP cameras, but in analog technology, fully compatible with any existing cabling, on coaxial or twisted pair. An AHD camera does not require configuration like an IP camera: on the contrary, it connects and works right away.
Here you will find the basic diagram of a small AHD system.


AHD CVI TVI CVBS cameras: what does it means?

All cameras in this AHD range are actually 4 in 1, meaning they can provide 4 types of video signal. The AHD signal is our main video format for high resolution analog video. It is the most popular format and it is an international standard so you can use our AHD camera with any AHD DVR from other brands. CVI and TVI , or TurboHD, are similar formats to AHD but used by other manufacturers. You can switch the video signal of our cameras to these formats if you need to connect to other DVRs. CVBS is the old low resolution analog video. You need to switch the camera to CVBS mode if you want to connect to an analog monitor or an old DVR. You can change the video signal of the camera yourself with any DVR supporting UTC protocol. I you do not have one you can require us to deliver the camera already set as you like by default.

MINI & STRONG

The mini Finger Cameras

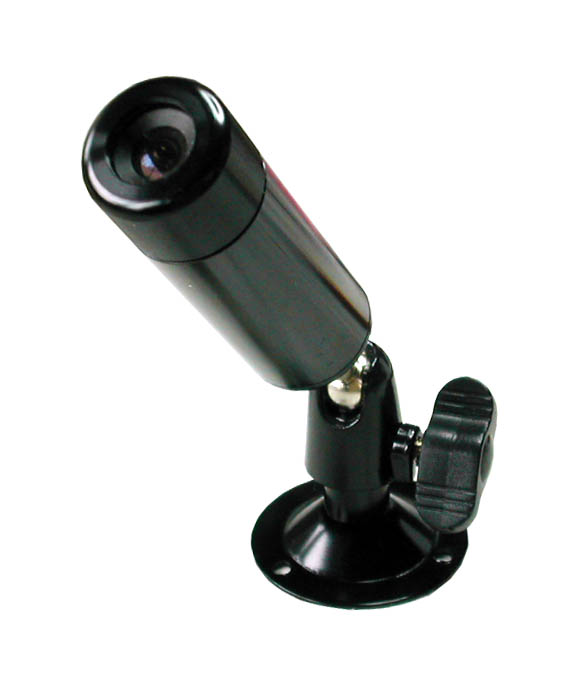

These are mini cameras in a water proof bullet casing, also called "Finger Cameras". Protected in a sturdy aluminum case, only 23 mm in diameter, they are the best cameras if you need to combine solidity with small size. They are ideal for outdoor surveillance, if you want a small, non-invasive camera. They can also be used successfully in machine tools and production lines monitoring.

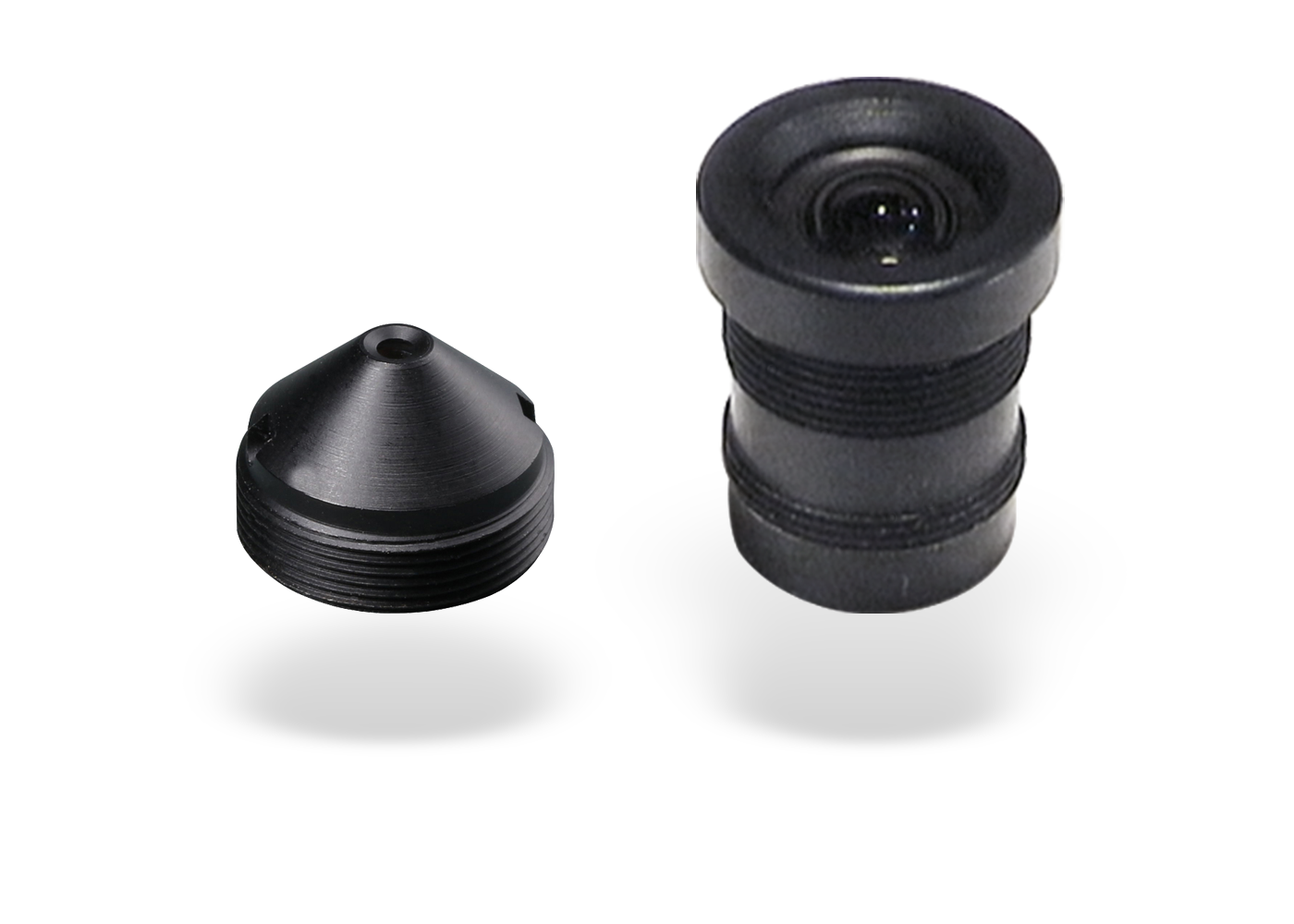

PinHole or Mini lens

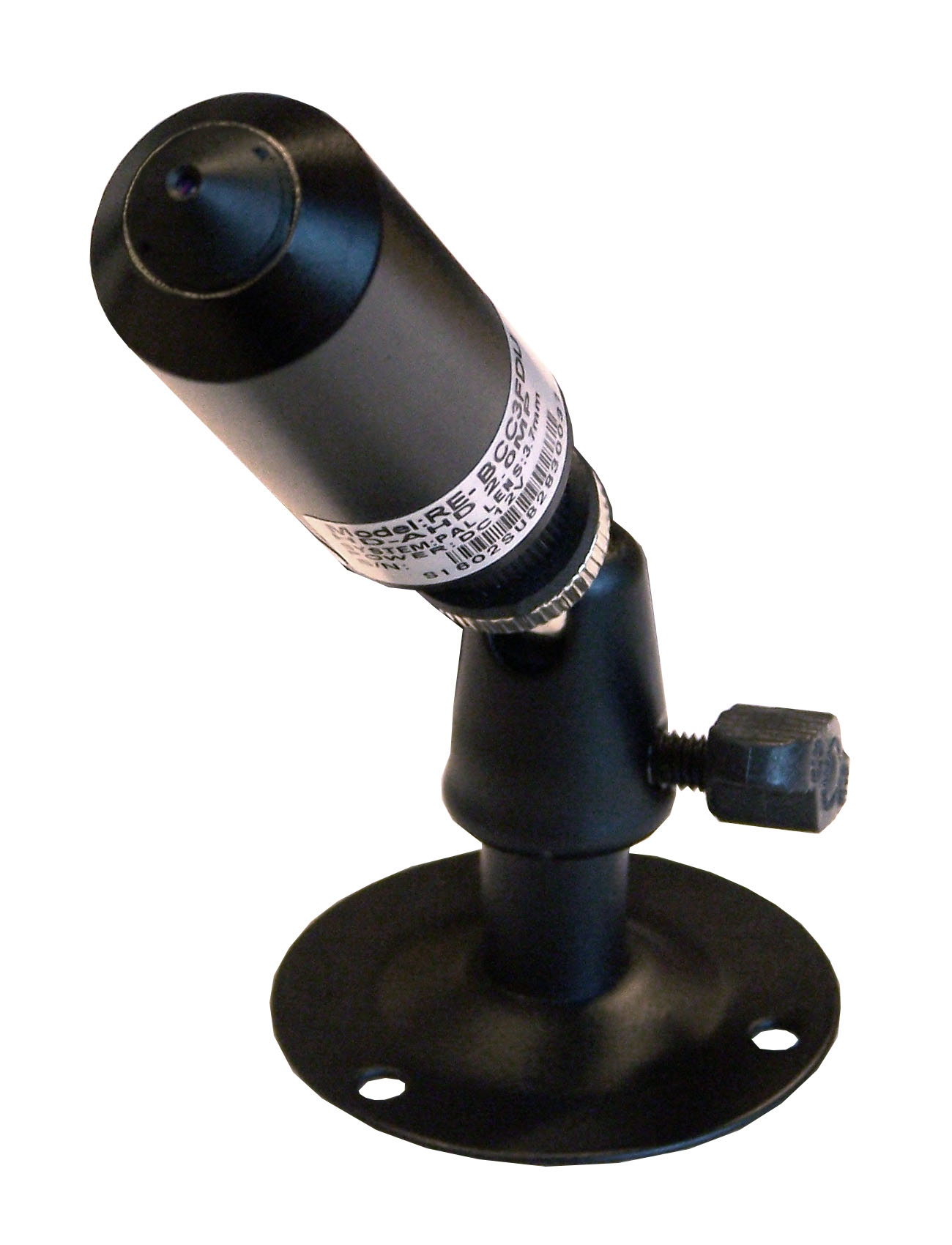

These tubular cameras are available in two versions: with pinhole lens and with mini lens. The version with mini lens has the advantage of being completely IP66 waterproof and can be exposed to rain. The version with pinhole lens has a lower degree of protection, IP 54, but the 1 mm lens make them perfect for creating outdoor hidden cameras.
Both versions provide wide angle view.


12VDC power supply, BNC video

These cylindrical cameras have 2 connectors: a BNC for video and a 12VDC power plug. You can supply 12V power with a power adapter near the camera or with a central power unit. Choose from our range of Power Supply Units the best solution for your system. You can transfer the video signal with a coaxial cable or you can use a twisted pair with small converters also called balun.

POWER ADAPTERS CABLES

2 MP 1080P high resolution

The finger cameras of this series provide a high resolution Full HD video signal, absolutely comparable to our digital IP cameras. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and guarantees you an excellent quality in close-up shots indoors and outdoors. These micro cameras, despite their small size, are made with the best SONY Exmor CMOS sensors to provide equal quality to our larger AHD cameras. Here you can download a video clip in 2MP 1080P resolution.

DOWNLOAD 2MP VIDEO

WDR, BLC, DNR features

AHD cameras have many advanced adjustments, such as IP cameras. You can act on the settings with an on-screen menu that you can control with the button on the camera or even from our DVRs in the UTC models. With a convenient on-screen menu, you can fine-tune the image rendering in order to adapt the camera to the area to be monitores. The WIDE DYNAMIC RANGE (WDR) function is useful if you are shooting bright areas along with darker areas. With the BLC you can improve the shooting of a backlit subject. The DIGITAL NOISE REDUCTION function allows you to improve shooting in weak signal or low light conditions.

VIDEO RECORDING


Compatible with all DVRs

These AHD cameras are designed to be connected to a digital video recorder , also called DVR, which is converting the analog video signals to digital and recording on Hard Disk. With the video recorder you can perform all the digital functions of IP systems, like remote control via the Internet or motion detection. The cameras in this range are compatible with all DVRs on the market, but it is much better that your DVR supports the maximum resolution of the camera (2MP) to avoid having to use it in CVBS. For maximum compatibility, consider to buy one of our DVRs.

RK Series DVR

UTC only OSD remote control

These AHD cameras include a UTC chip that allows you to adjust the internal option of the camera directly from the DVR, sending commands along the video cable. It's a very convenient function, essential in hidden cameras where the device might be hard to reach. To be able to control the camera menu remotely you need a DVR that supports the UTC protocol, such as our RK series DVRs.
ATTENTION: You can control the OSD menu and switch the video format of these cameras ONLY FROM DVRs via UTC protocol. These cameras do not have on-board OSD button. If your DVR does not support UTC, you can still use these cameras, but you must specify the video format you need while ordering (AHD, CVI, TVI or CVBS).


TECHNICAL DATA


CODE RE-BCC3FD4 RE-BCC4FD4
Description AHD CVI TVI CVBS microcamera AHD
CAMERA
Maximum resolution 2MP 2MP
Optical sensor SONY Exmor IMX323 1/2.9" CMOS SONY Exmor IMX323 1/2.9" CMOS
Chipset Fuhan FH8536 Fuhan FH8536
AHD video resolution 1920x1080 @ 25/30 fps (2 MP HD 1080P) 1920x1080 @ 25 fps (2 MP HD 1080P)
TVI video resolution 1920x1080 @ 25/30 fps (2 MP HD 1080P)
CVI video resolution 1920x1080 @ 25/30 fps (2 MP HD 1080P)
CVBS resolution 960x576 (960H)
Electronic shutter 1/25" ... 1/50000" 1/25" ... 1/50000"
S/N ratio >50dB >50dB
Power supply 12VDC 12VDC
Infrared illuminator
ICR
Starlight Minimum illumination 0,01 lux Minimum illumination 0,01 lux
Lens Fixed pinhole 3.7 mm. Fixed minilens 3.6 mm.
Focus Fixed Fixed
SUPPLIED
Audio
Audio output
Video output BNC female BNC female
Power input 5.5x2.1 mm. plug 5.5x2.1 mm. plug
FUNCTIONS
Mirror
Overlay
BLC
AWB Automatic and Manual
DNR
WDR
Anti fog
HSBLC
Privacy mask
GENERAL
Casing Aluminum Aluminum
Protection degree IP54 IP66
Swivel bracket
Operating temperature -10°C +50°C RH95% Max -10°C +50°C RH95% Max
Power supply 12VDC +/-10% 12VDC +/-10%
Power consumption Max 100 mA Max 100 mA
Overall dimensions Diam. 23 x 70 mm. Diam. 23 x 70 mm.
Weight 65 gr. 65 gr.

Q & A


What is included?

Microcamera
Connection cable (50 cm)

What is not included?

All cameras can be powered with a 12VDC power supply. However, the power adapter is not included. If you need a power adapter, look among ours POWER SUPPLIES FOR CCTV
