Western Digital PURPLE Series


The high performance Hard Disks with the exclusive AllFrame technology. Designed for continuous overwriting, 24/7, are the ideal storage device for all NVR and DVR videorecorders.

HDD FOR NVR DVR


WD PURPLE 1TB

Hard disk for NVR DVR
HD-1000S

1TB 3.5" Hard Disk for videosurveillance

WD PURPLE 2TB

Hard disk for NVR DVR
HD-2000S

2TB 3.5" Hard Disk for videosurveillance

WD PURPLE 4TB

Hard disk for NVR DVR
HD-4000S

4TB 3.5" Hard Disk for videosurveillance

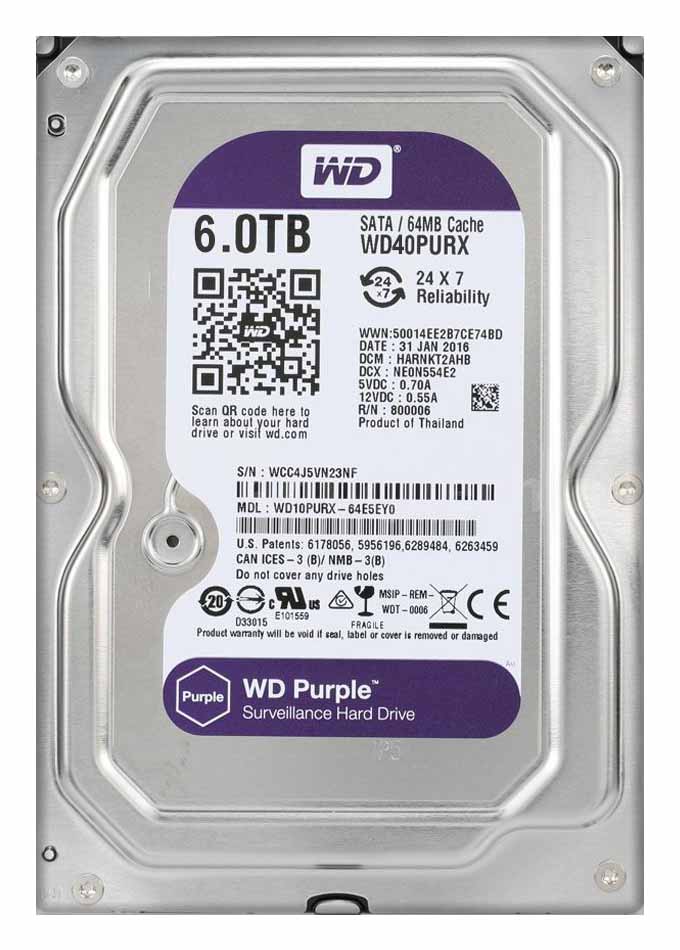

WD PURPLE 6TB

Hard disk for NVR DVR
HD-6000S

6TB 3.5" Hard Disk for videosurveillance

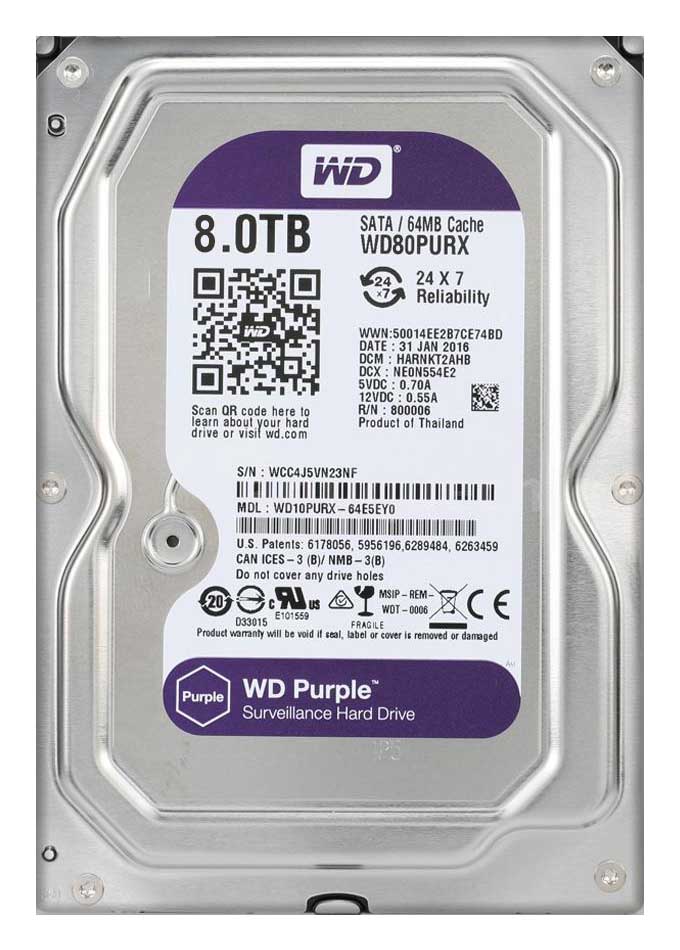

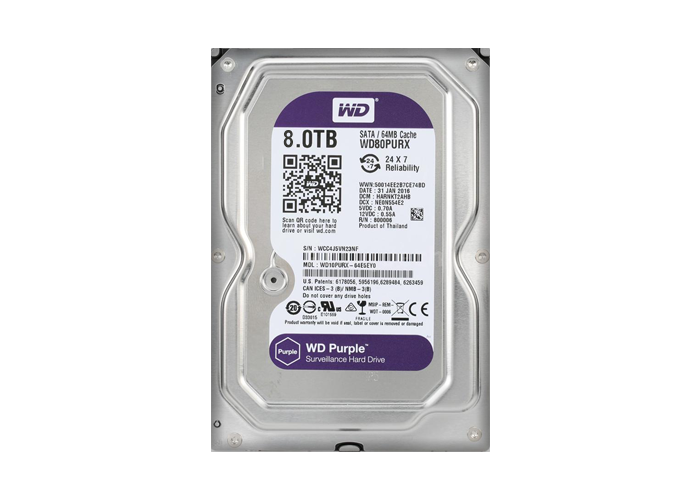

WD PURPLE 8TB

Hard disk for NVR DVR
HD-8000S

8TB 3.5" Hard Disk for videosurveillance

WD BLUE 1TB

Hard disk for NVR DVR
HD-1000L

1TB 2.5" Hard Disk for mini NVR

THE BEST HARD DISK FOR CCTV


Designed for security NVR DVR

Digital video recorders store data on one or more internal Hard Disks. The same 3.5" SATA HDDs used in Personal Computers are suitable for NVR and DVR. Normally our NVRs and DVRs are supplied without Hard Disk so you can combine a disk of the right capacity for your need. Although the video recorders accept any type of SATA 3.5" HDD, it is not a good choice to buy a desktop hard disk because the PC drives are not designed for non-stop reading/writing, 24 hours a day, and would end up having a short life and poor performance.
These Western Digital Purple Series hard disks are instead designed for uninterrupted, 24/7, writing and guarantee the reliability and durability required in video surveillance applications.


Exclusive features for high performance

Thanks to the IntelliSeek™ technology, the WD Purple Hard Drives optimize the seek speed reducing the power consumption and the noise compared to the normal disks for desktop. The exclusive AllFrame™ technology also improves the ATA stream for smooth playback of recorded videos.
WD Purple HDDs support a workload of 180TB/year, more than three times that of a normal desktop disk, with an MTBF (Average Time Between Failures) of 1.5 million hours. WD PUrple discs guarantee the reliability and durability needed for your video security system.


3 years warranty

We guarantee a 3-year warranty, both for private and corporate purchases, on all WD Purple HDDs for video surveillance that you purchase from us. If your Hard Disk fails, you will have replaced it in a short time. Please use the buttons below to check if your disc is under warranty on the base of the serial number or to open the RMA procedure to return your disc.
CHECK YOUR WARRANTY OPEN RMA


Calculate the video storage

To choose the right hard disk for your application you need to know how much video storage it can contain. Obviously this data depends on the number of cameras, video resolution and video compression. To roughly calculate the amount of recording hours a disc can contain you can use our online calculator. You can select H265 + compression, which is supported by all our NVRs and DVRs.

HARD DISK CALCULATOR FOR CCTV

VIDEO TUTORIAL

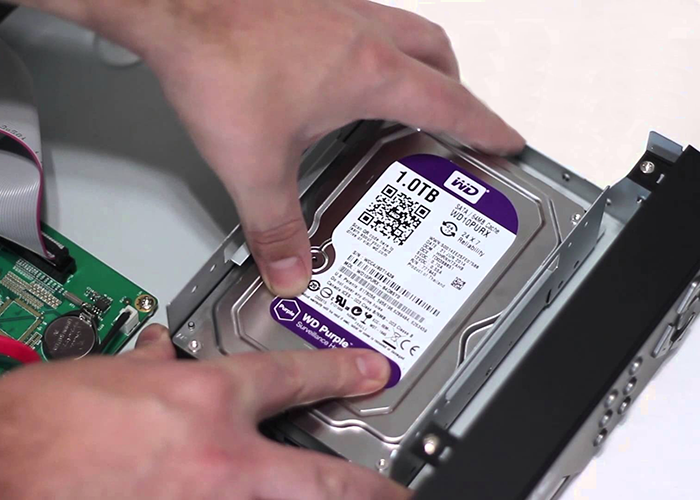

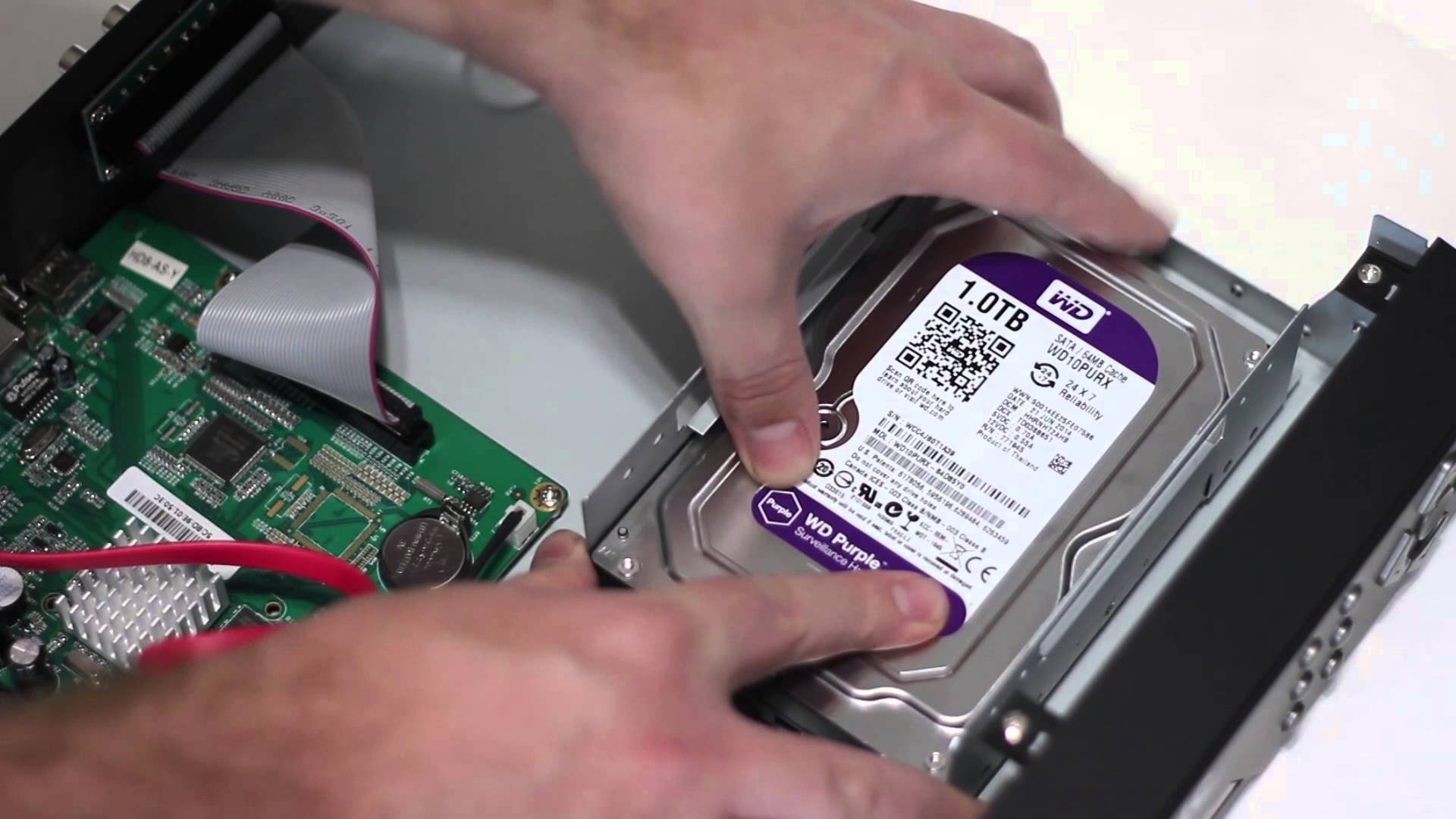

This video tutorial shows you how to install the Hard Disk in an NVR/DVR

TECHNICAL DATA



CODE HD-1000S HD-2000S HD-4000S HD-6000S HD-8000S HD-1000L
Description Hard Disk per TVCC Hard Disk per TVCC Hard Disk per TVCC Hard Disk per TVCC Hard Disk per TVCC Hard Disk per mini NVR/DVR
FEATURES
Formatted capacity 1TB 2TB 4TB 6TB 8TB 1TB
Disk size 3.5" 3.5" 3.5" 3.5" 3.5" 2.5"
Interface transfer rate 6 Gb/s 6 Gb/s 6 Gb/s 6 Gb/s 6 Gb/s 6 Gb/s
Cache 64 MB 256 MB 256 MB 256 MB 128 MB 128 MB
Speed 5400 RPM 5400 RPM 5400 RPM 5400 RPM 5400 RPM 5400 RPM
GENERAL
Power consumption - Read/Write 3,3 W 4,4 W 5,1 W 5,3 W 6,4 W 1,5 W
Power consumption - Idle 2,9 W 4,1 W 4,5 W 4,9 W 5,7 W 0,5 W
Power consumption - Stand-by 0,4 W 0,4 W 0,4 W 0,4 W 0,7 W 0,1 W
Acoustics seek 22 dB 24 dB 28 dB 28 dB 20 dB 21 dB
Acoustics standby 21 dB 23 dB 25 dB 25 dB 29 dB 19 dB
Shock - Read/Write (2 ms) 30 Gs 30 Gs 30 Gs 30 Gs 30 Gs 19 dB
Shock - Read (2 ms) 65 Gs 65 Gs 65 Gs 65 Gs 65 Gs 65 Gs
Shock - Inactive(2 ms) 250 Gs 250 Gs 250 Gs 250 Gs 250 Gs 250 Gs
Operating temperature 0..65°C 0..65°C 0..65°C 0..65°C 0..65°C 0..65°C
Overall dimensions (mm) 26,1 x 147 x 101,6 26,1 x 147 x 101,6 26,1 x 147 x 101,6 26,1 x 147 x 101,6 26,1 x 147 x 101,6 7 x 100,2 x 69,85
Weight (Kg) 0,45 Kg 0,60 Kg 0,68 Kg 0,75 Kg 0,65 Kg 0,20 Kg

Q & A


Which Hard Disk is included?

All our NVRs and DVRs are supplied without Hard Disk which must always be purchased separately.

Is the Hard Disk installed?

If you order one Hard Disk with one of our plug & play kits we will deliver it already mounted and formatted in the video recorder. If you order a Hard Disk with all our other video recorders you will receive it separately and you will have to do installation and formatting.

What's the price?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.
