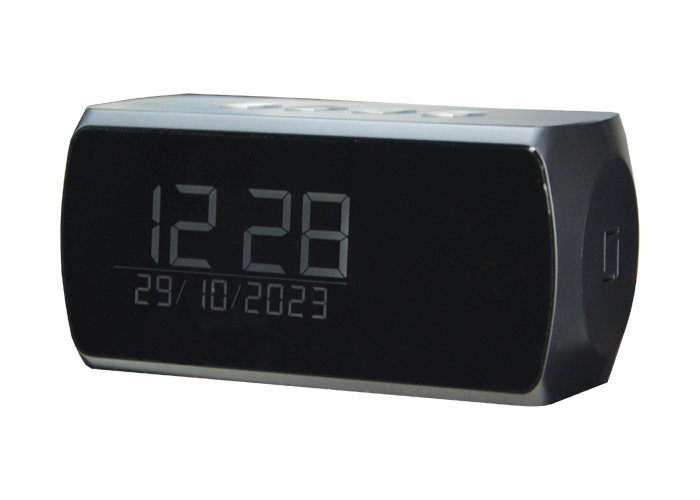

TABLE CLOCK SPYCAM


DK-CL5-TUY

Hidden camera in power adapter

2MP 1080P TUYA App

Table clock camera with SD card, IR illuminator. WiFi control via Internet.

Pin-hole lens 140° Micro SD card slot up to 128GB 300-hour video file storage on SD card of maximum capacity Built-in microphone for audio Built-in speaker for audio 2-ways audio 10 m. IR illuminator Motion detection 4 hours recording with built-in battery Recording also with mains power adapter Wi-Fi for mobile control with app Free P2P Cloud Server for Internet Control Free App

SPYCAM FOR HOME AND OFFICE


The hidden cameras for your desktop

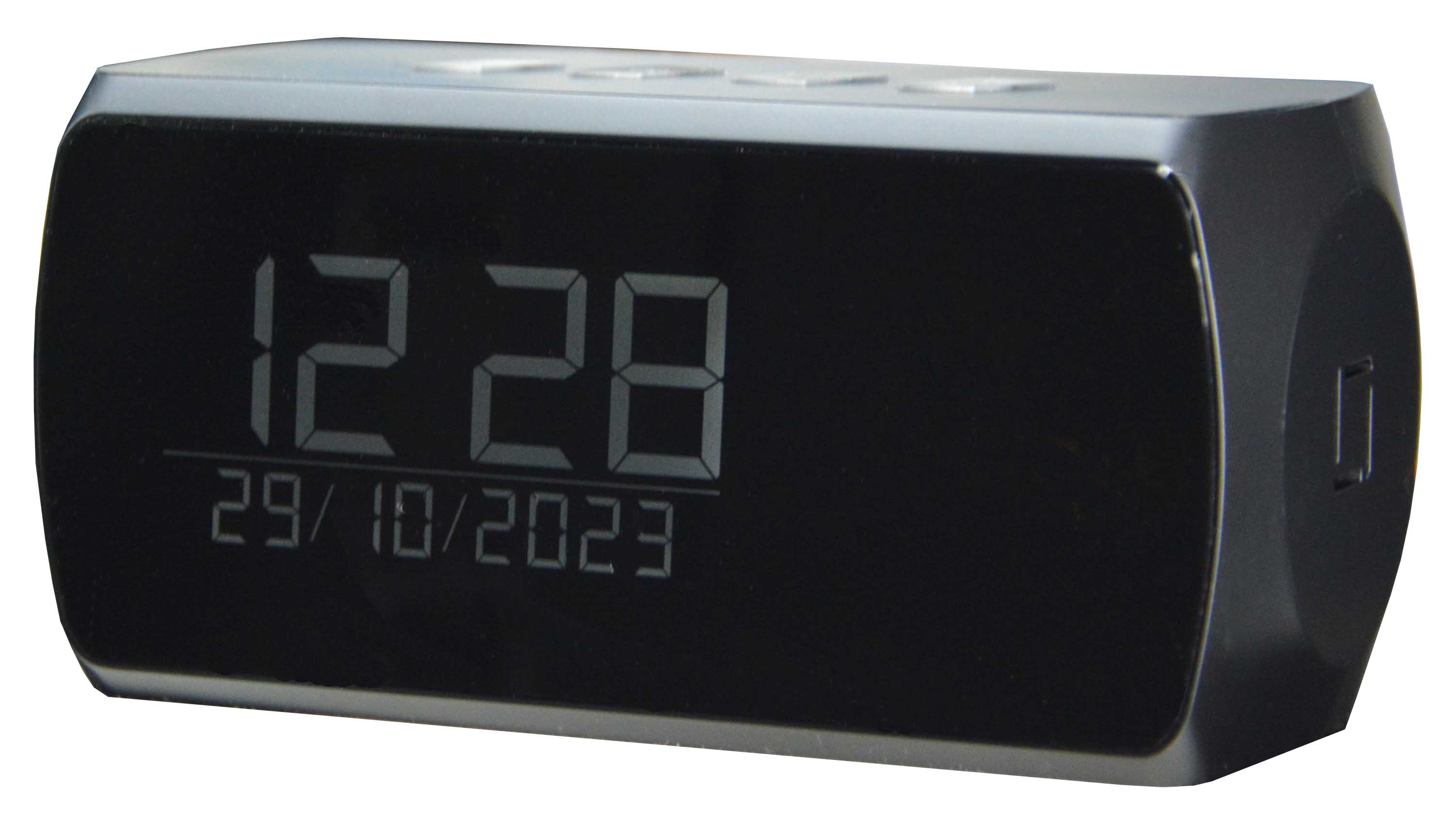

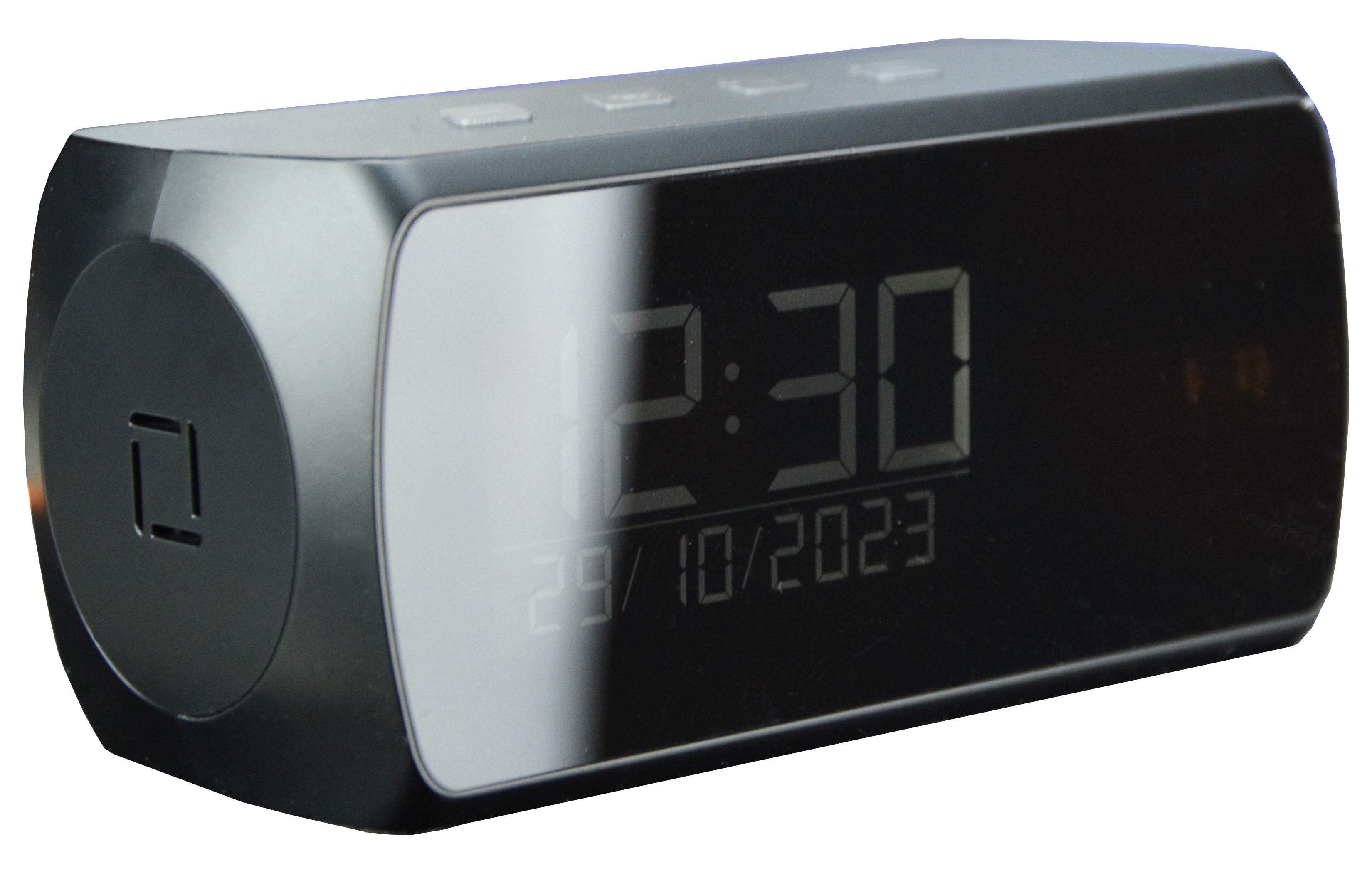

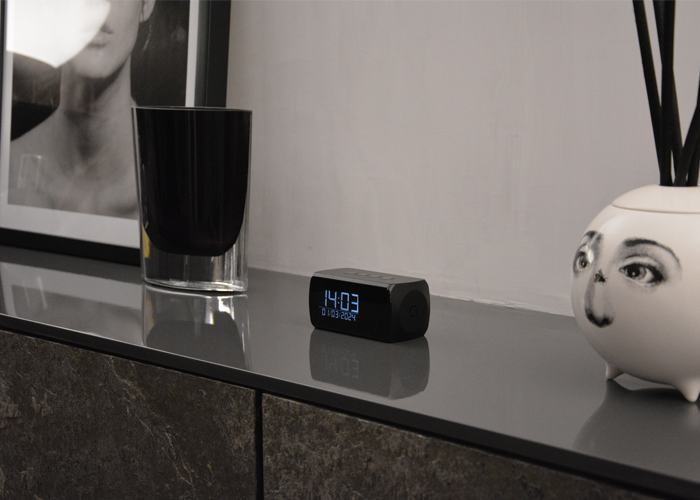

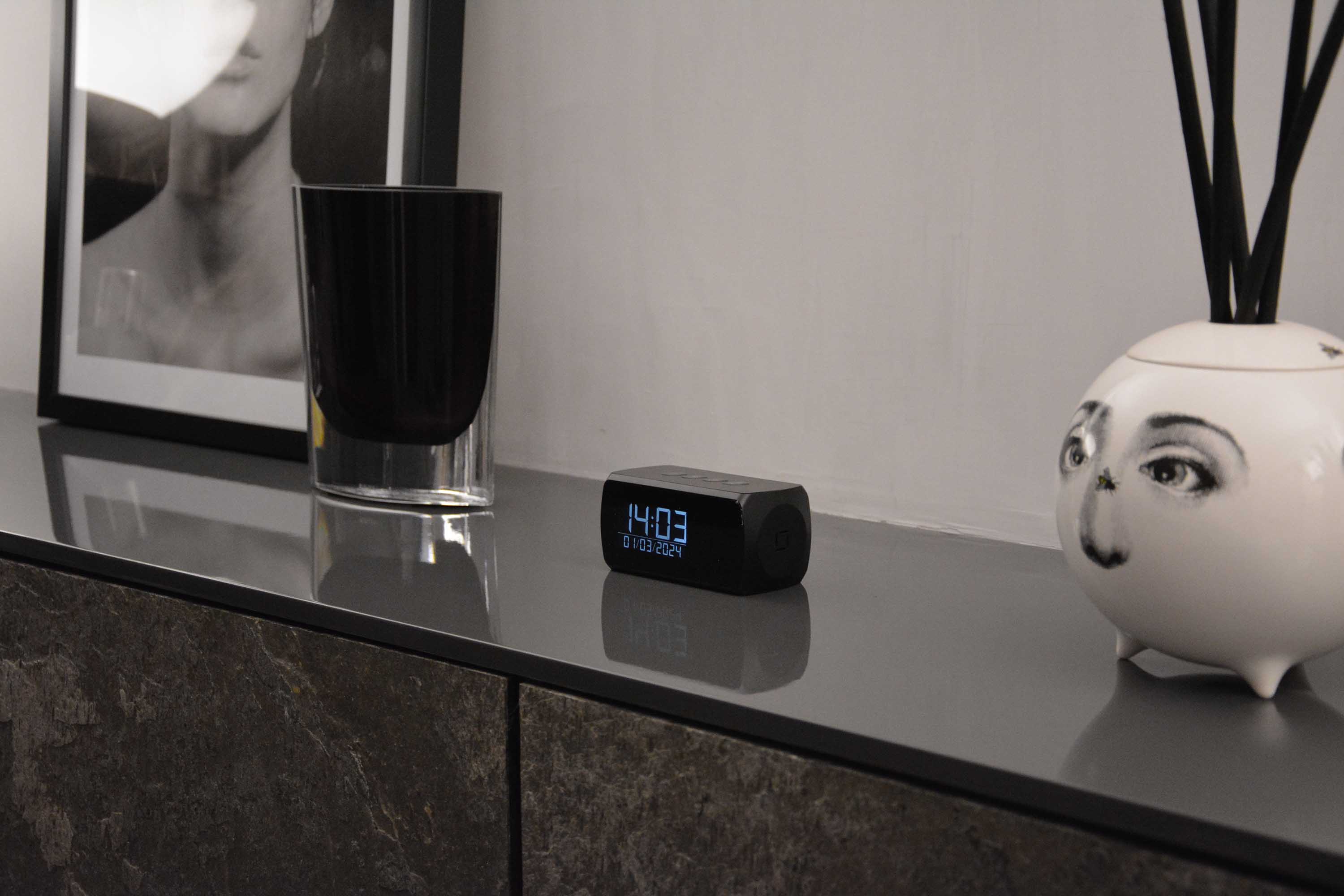

These cameras are hidden in a table clock. They are ideal for monitoring the whole room discretely. The insignificant appearance of a common desktop accessory allows you to insert these cameras into any type of interior, whether in the home or office. Behind the front black glass, the mini lens of the camera is totally invisible even if the table clock is carefully inspected. You can place these clocks on a bedside table or shelf, without arousing suspicion. They work both connected to the mains or on batteries.

VIDEO AND AUDIO


FullHD high resolution video

These hidden cameras for investigation provide a video resolution of 2 MP at 25 f/s. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and provide high quality video and rich detail. In order to guarantee maximum performance, we use the same high-level CMOS of our IP cameras for traditional CCTV surveillance in these hidden cameras. Watch here below a few demo clips.

WATCH DEMO VIDEOS

Mini lens with dark glass, mic and 2-ways audio

These mini cameras are equipped with a wide-angle lens with a coverage of approximately 90°. The front black glass makes the lens totally invisible and the video is brighter compared with other spycams with lens hole. For this reason, this camera is the best solution if you need to monitor a dim room or even in the dark.
These cameras are also equipped with a microphone for recording ambient audio as well as a loudspeaker that you can use to talk to the people near the camera via app.


Invisible IR illuminator up to 10 m.

These table spy cameras are equipped with invisible infrared LEDs for night vision in the dark. Thanks to the IR LEDs the camera is able to shoot in the dark in a medium-sized room , up to 10 meters. It's a feature you rarely find on investigative cameras of this kind. The IR LED's turn on automatically in the dark and are absolutely invisible at night. Here you can see the difference between monitoring at low-light with and without IR illuminator.

VIDEO RECORDING


Storage on SD card memory

The spy cameras in this range record movies on a removable Micro SD memory card. The micro SD card is not included . To use these cameras you need to buy a micro SD card of the maximum capacity supported by the camera. You can playback your footage via app or computer.

DK-CL5-TUY
SD max. 128GB
Max. video storage 300 ore

Motion detection

These cameras support 3 recording modes: continuous, timer and motion detection. In CONTINUOUS mode the camera records 24/7. Once the memory is full the oldest files are automatically overwritten. In TIMER mode the device start recording automatically at a certain time fo the day. These cameras also support the MOTION DETECTION function which allows you to record only if there is movement in front of the lens. It is a very convenient function to avoid wasting precious memory space by recording irrelevant scenes.


POWER SUPPLY

Built-in battery

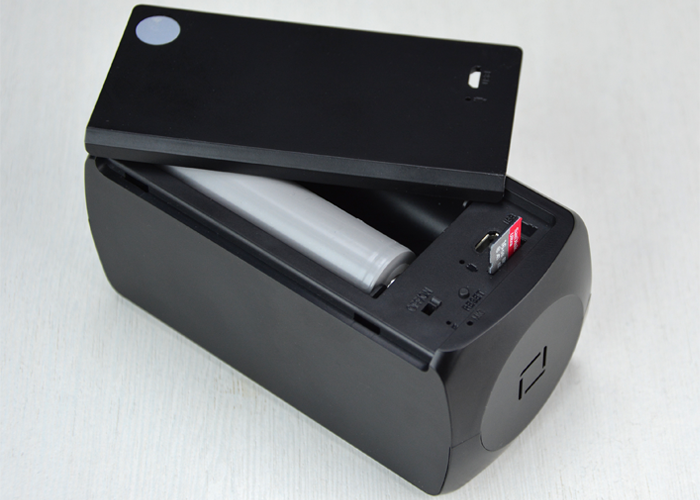

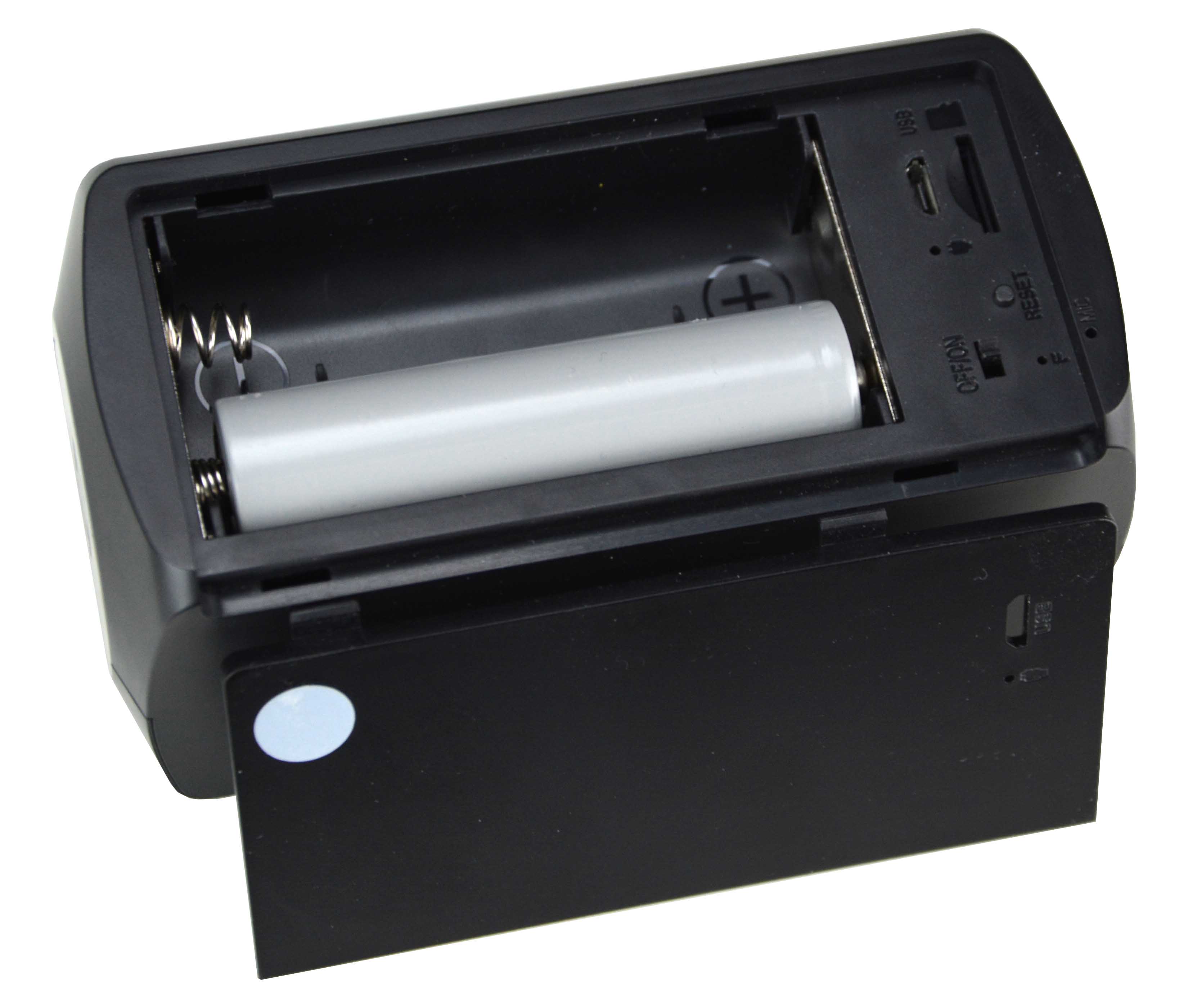

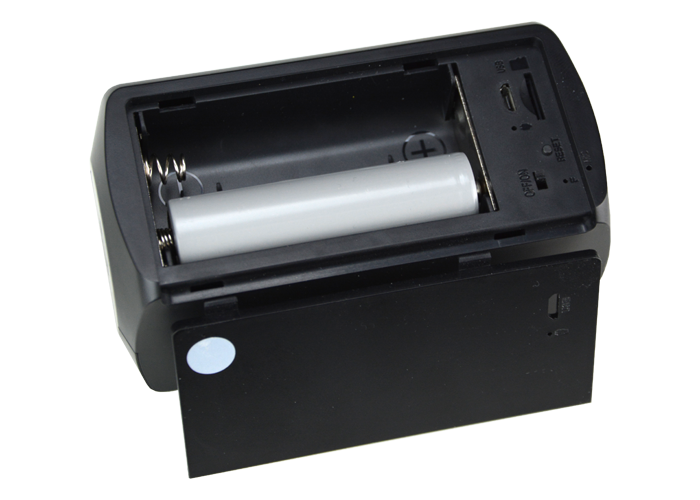

These spy cameras are equipped with a built-in rechargeable lithium battery that allows recording without mains power. The battery is recharged by connecting a USB charger (included) with the cable provided. You can extend the standard battery life by adding another 18650 battery (not included) in the second free slot.

DK-CL5-TUY
Battery included 18650 3.7V 2600mAh
Battery life 4 ore

220V power supply

These cameras can run on the internal battery, but can also be mains powered, with a USB power adapter. In this way the camera can remain in operation 24 hours a day, like a real CCTV video surveillance system. These clock cameras are an excellent solution to provide your venue with a 24/7 hidden surveillance, quick and easy to set up.

REMOTE CONTROL

SmartLife, the Internet Of Things mobile app

These hidden cameras are equipped with a Wi-Fi transmitter for Smartphone control. You can connect the camera to your home Wi-Fi network and control your spy camera over the Internet with the free P2P cloud server. These cameras support the powerfull Smartlife app by Tuya, the popular app for domotics that we also use for all our smarthome products. With the APP you can WATCH AND HEAR in real time. You can RECORD and take pictures. You can even PLAYBACK your footage. If you enable Motion Detection you can RECEIVE real time push notification on your mobile phone all the time that an intrusion occurs. This app is also supporting 2-ways audio

Free app for iOS or Android Real time live view Playback Listen-in 2-ways audio PTZ motor camera control Push notifications Cloud P2P Smartlife Smartlife Powered by Tuya

EASY TO INSTALL

Based on TUYA platform

All products in this range are based on TUYA home automation platform and its IOT app Smart-Life which is very popular all over the world. With this system you can fully automate your home , simply by purchasing devices and connecting them to your WiFi in a matter of seconds. Supervise your properties with our 220V cameras or battery cameras; control your lights, pumps, irrigation with our remote controls or interact with people with our intercoms. Our Smart Home devices are wireless, easy to install and really inexpensive.


Connect to your WiFi without PC

Unlike our Onvif cameras for CCTV systems, these cameras are designed to be installed without the aid of a computer and without knowing anything about networks or IP. You just need a mobile phone to connect the cameras to your home wifi in a few minutes. Download the free Smart Life app on your smartphone and show the QR code that pop up on the screen in front of the camera. In just a few easy steps your camera is ready to work via the Internet. The P2P cloud server avoid difficult router settings and support any Internet connection, even 4G or satellite.

EASY TO USE

Monitor via Internet by PC

Although these home automation cameras are mainly designed for control by smartphone or tablet, you can also monitor via computer. It can be useful to comfortably control your home while you are at work. No software is required to access from a computer, just use any browser and connect to protect-eu.ismartlife.me logging in with your smartphone. All browser are supported: Chrome, Firefox or even Safari for Mac.


Save videos on Cloud

These cameras can save recorded video in the event of an intrusion on a cloud server via the web. It's an interesting feature, if you are concerned that your cameras could be stolen by the intruders. You can playback the video recordings at any time, via app or computer. You can choose among several subscription options at a reasonable fee.

VOICE CONTROL

Compatible with Amazon Alexa and Google Assistant

Our Tuya based cameras are compatible with Amazon Alexa and Google Home / Google Assistant voice control platforms. Both platforms offer you different devices with monitors such as Amazon Echo Show or Google Nest Hub where you can watch your cameras with a simple voice command. Just download the SmartLife skill and in a few minutes you will be ready to call the name of your camera and watch it in the display. With our Smart Home cameras and Amazon Alexa or Google Assistant, you can install a WiFi monitor in every room of your home with just a few taps on your smartphone.

Compatible with Amazon Echo Alexa Compatible with Google assistant Google Home

TIPS


Make a perfect hidden camera

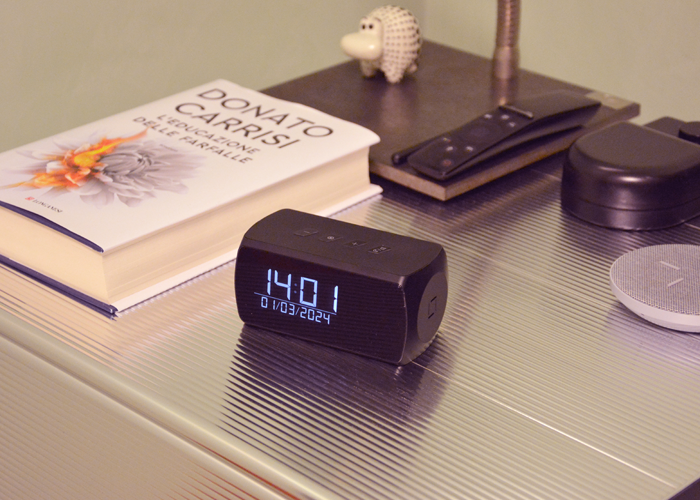

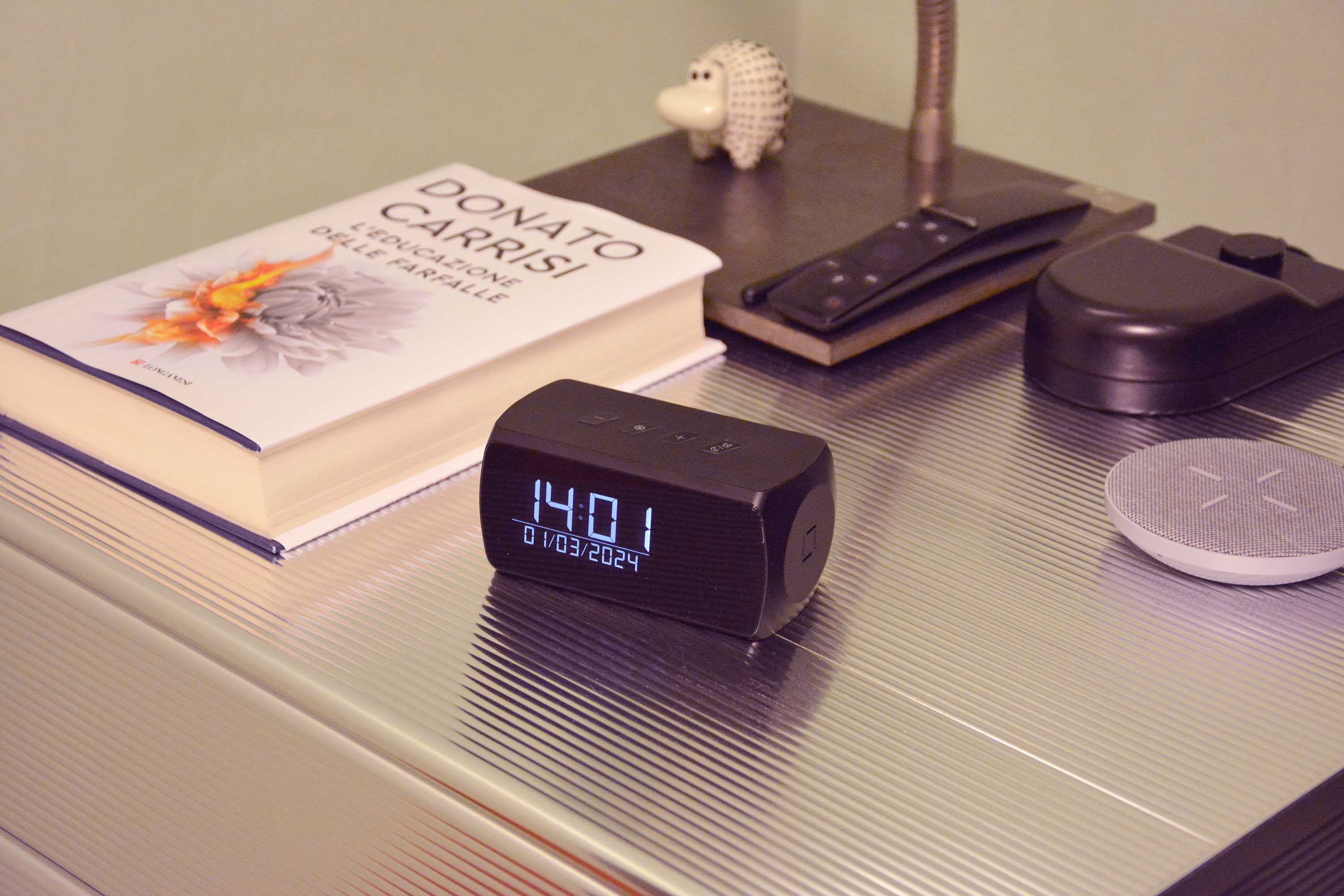

To make an effective covert shot, you need to choose a favorable position for your camera. By their nature, these speakers should be placed on a table, shelf or bedside table and pointed to cover the room. They are absolutely unsuspected objects that normally do not draw attention.


Check your WiFi coverage

To choose the best place for your wifi camera you must first check the coverage of your WiFi signal. In fact, these devices must connect to your WiFi network in order to work. You can easily check the coverage of your wifi network with your mobile phone just checking the available signal where you want to install the device. If you can surf the Internet smoothly with your phone, then the signal is good for your smart home device. In general, a normal WiFi Hot Spot, such as your Internet router, allows you to reach devices up to 3 or 4 rooms away. If your WiFi does not cover the area where you would like to install the device, you can extend your WiFi network by installing additional Hot Spots or WiFi repeaters.


Great for elderly care

These cameras can also be used effectively for the surveillance of the elderly because they integrate video camera and 2-ways audio in a single device. Wireless and not very intrusive, these cameras can be placed in every room of the house to check that the elderly person is not at risk and that the staff who look after him behave correctly. If necessary you can speck in the room, providing instructions without the elderly person having to do anything.

TECHNICAL DATA


CODE DK-CL5-TUY
Description Clock camera with SD and WiFi
Type Battery or mains power - Tuya-based
CAMERA
Maximum resolution 2MP FullHD 1080P
Optical sensor 1/2.7" CMOS OV2710
Video resolution 1920x1080 @ 25 f/s
Video compression H264 Dual
Infrared illuminator 1 940nm invisible IR LED 10 m. range
ICR
Lens Low lux minilens 140°
Focus Fixed
Rotating motor lens
Shutter 1/25...1/12000
S/N Ratio Over 50dB
Video files format Tuya
Video storage About 300 hours on 128GB @ 1080P
SUPPLIED
Network port
Wi-Fi 802.11 b/g/n 2.4GHz
USB port MicroUSB for charger
Audio microphone
Audio speaker
SD card slot Max. 128GB Class 10 or superior
TV CVBS output
POWER SUPPLY
Standard battery Rechargeable 2600 mAh 4 hours recording
Mains power supply Adapter included
FUNCTIONS
Recording mode Continuous, Motion, Scheduler
Automatic overwrite Yes
Camera control Smartphone/Tablet/PC via WiFi
Protocols Tuya
Onvif
P2P
Browser Via Tuya cloud
Smartphone Free APP Tuya SmartLife for iOS Android
Multi streaming
Saving on the web cloud
Mirror Horizontal and vertical
Corridor
Overlays Date and Time (excludable)
BLC
AWB
DNR
WDR
Anti fog
HSBLC
Starlight
Motion detection
Privacy mask
Anti tampering
Alarm actions Start recording, Push notifications on mobile
Sending Time-Lapse photos
GENERALITIES
Casing Working digital alarm clock
Degree of protection IP40
Operating temperature -5°C +40°C RH95% Max
Supply USB 5VDC (220V AC adaptor included)
Power consumption Max. 3W
Overall dimension 144x65x50 mm
Weight 194 gr.

QUESTIONS & ANSWERS


What is included?

USB ADAPTER
USB CABLE
SD READER
APP
PC SOFTWARE
USER MANUAL

What is not included?

Cameras record on MicroSD card. The micro SD card is not included. You can buy in our price list a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by the camera in the technical data table above.
