WIFI CCTV KITS

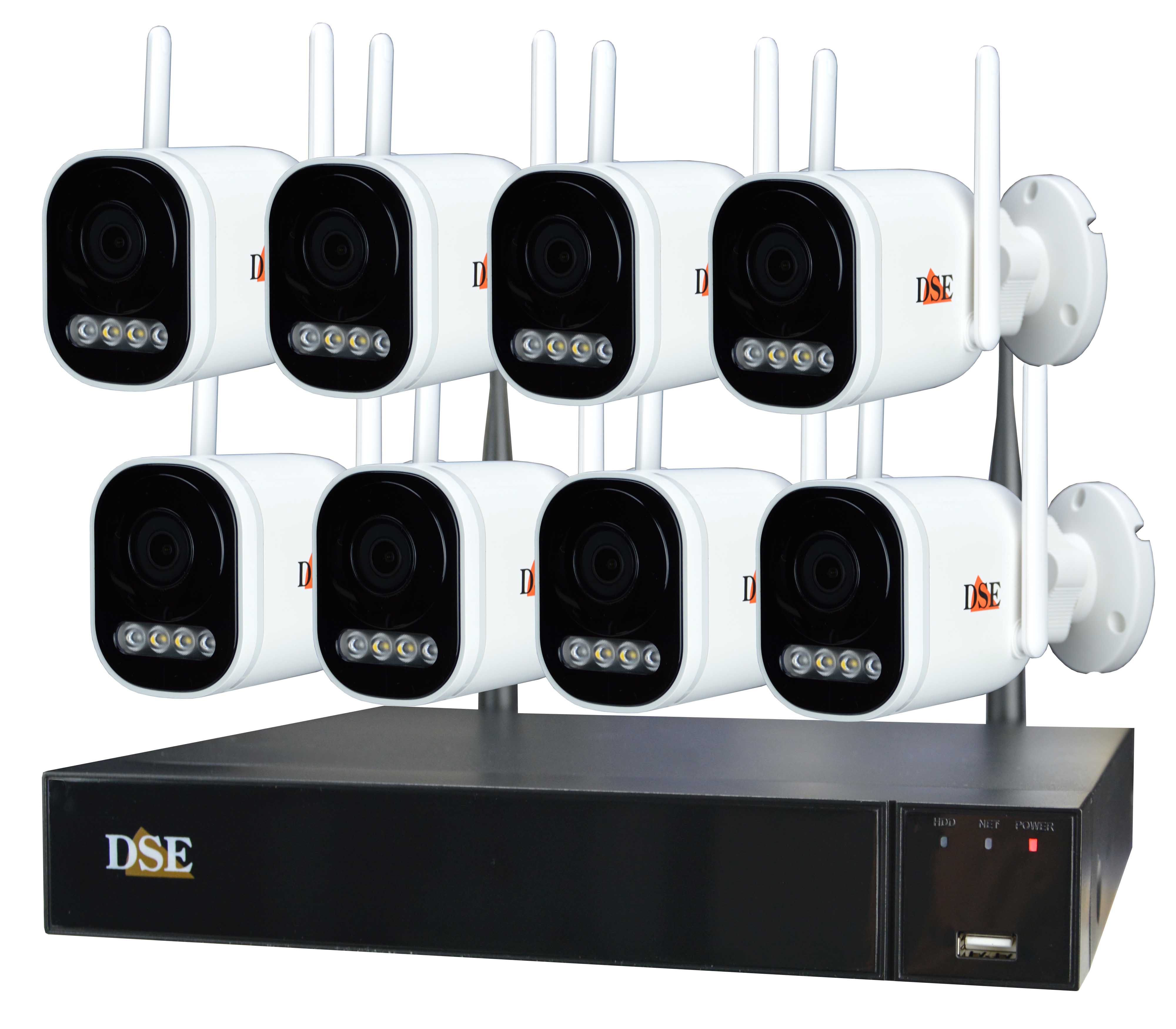

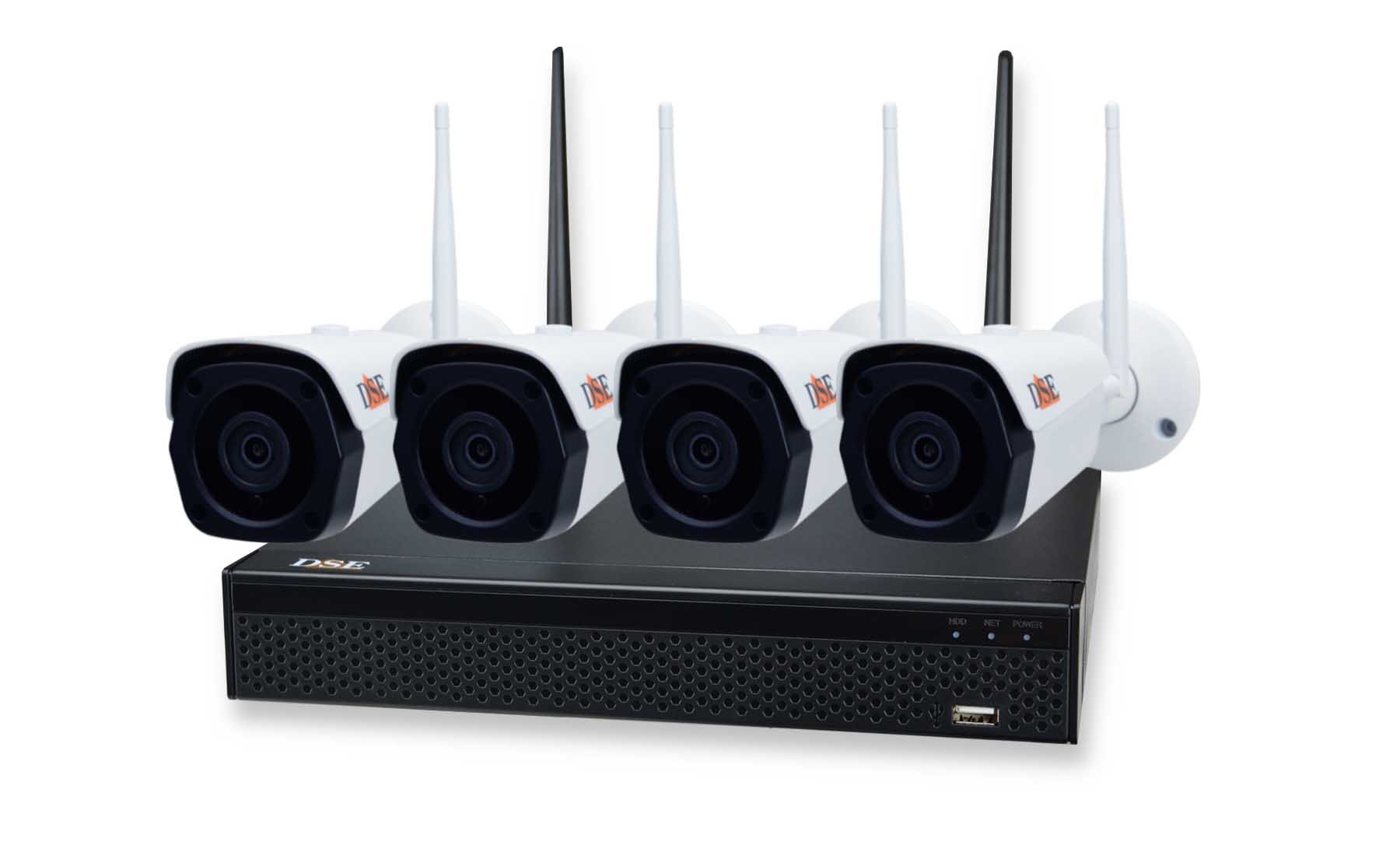

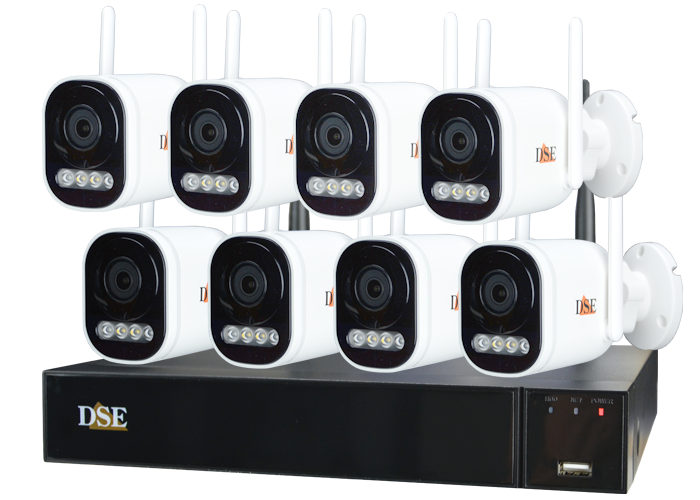

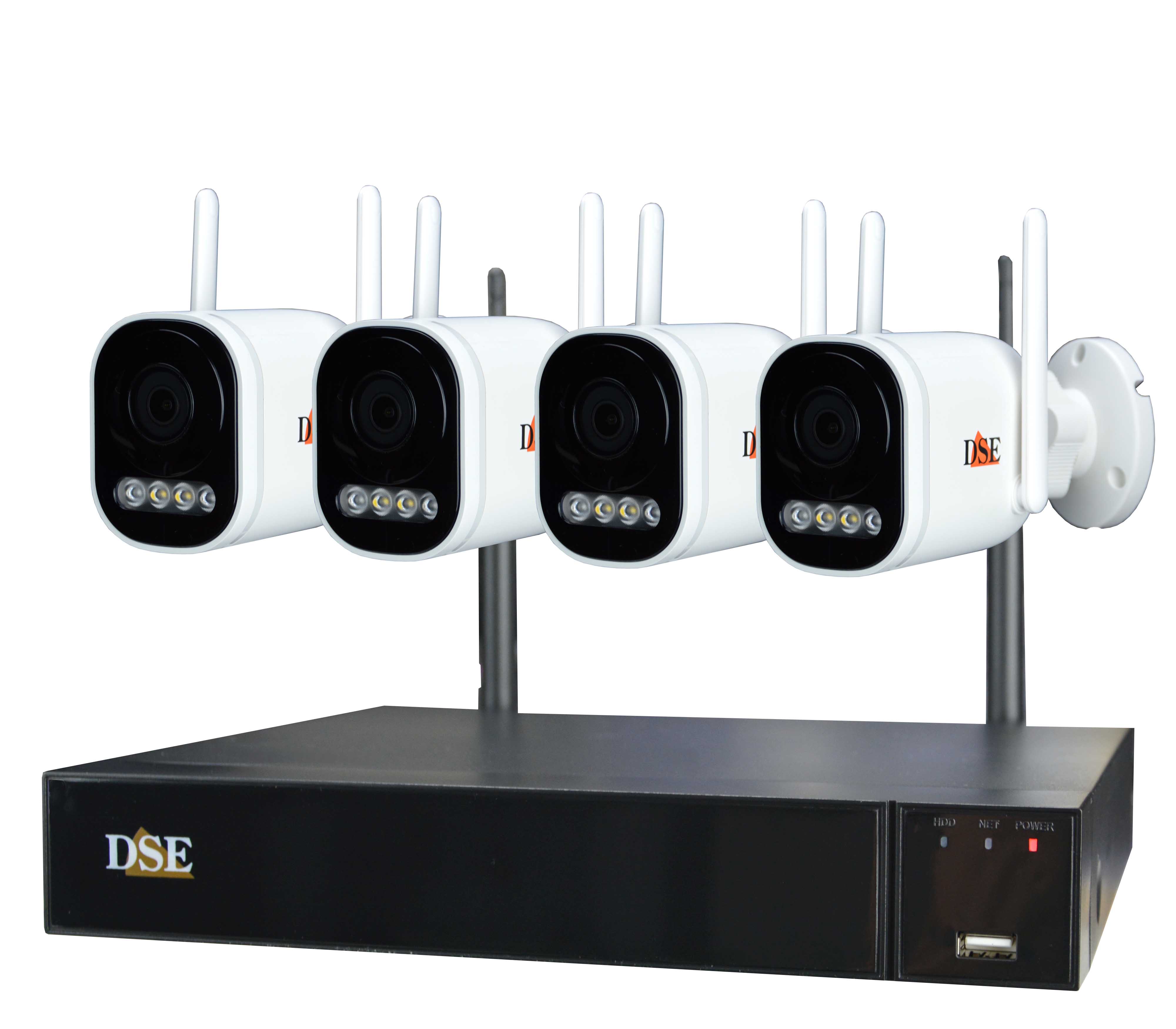

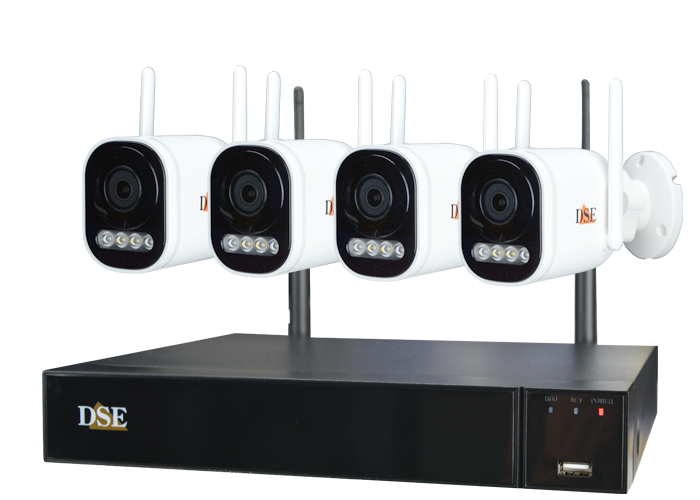

5MP WIFI KIT

1 TO 8 CAMERAS

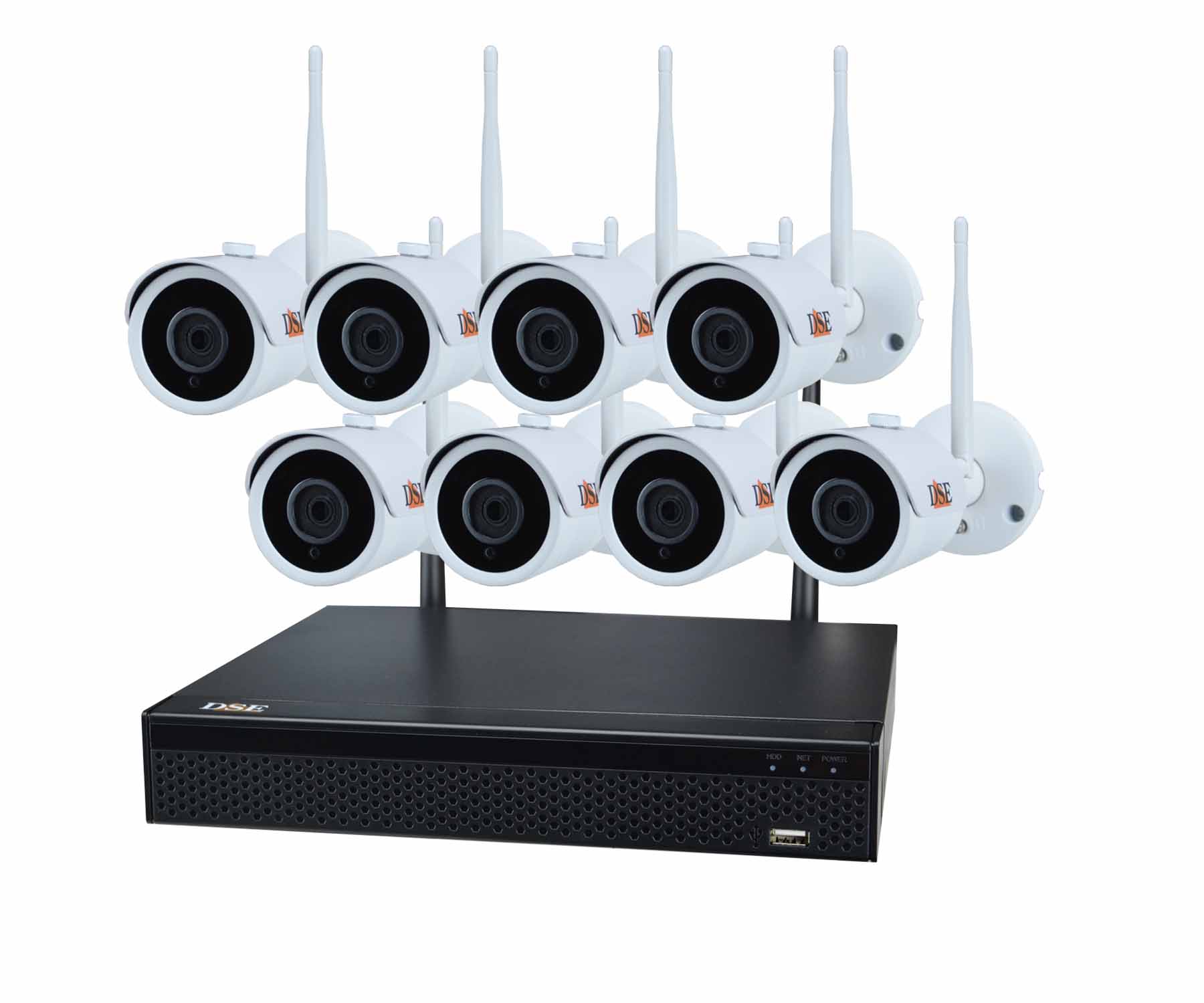

Plug&Play wifi CCTV kit, including NVR and 1 to 8 cameras 5MP ACTIVE DETERRENCE

HUMAN DETECTION | VEHICLE DETECTION | RED/BLUE STROBE LIGHT | IR+WHITE LED | SOUNDER | AUDIO INTERCOM

Installazione plug and play in 5 minuti Waterproof casing for outdoor H264 and H265 video compression Infrared illuminator up to 30 m. 3.6 mm. fixed wide-angled lense Built-in audio microphone 2 ways audio loudspeaker 2 ways audio via app Sounder Alarm white light Blue Red strobe light Human detection Vehicle detection Wifi Wireless cameras WEB control with free P2P cloud server Free APP for smartphone and tablet Can hold HDD up to 8TB

ACCESSORIES

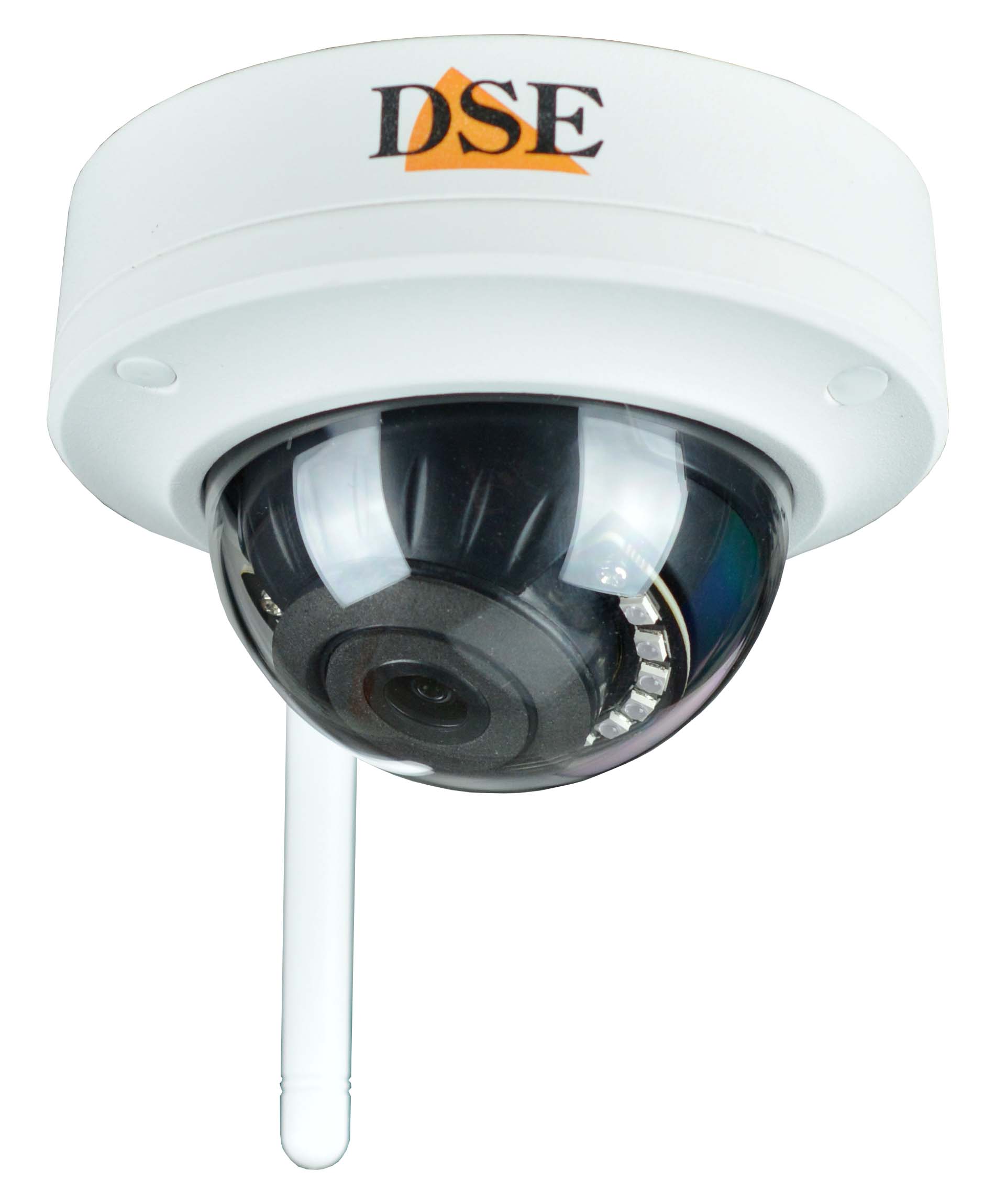

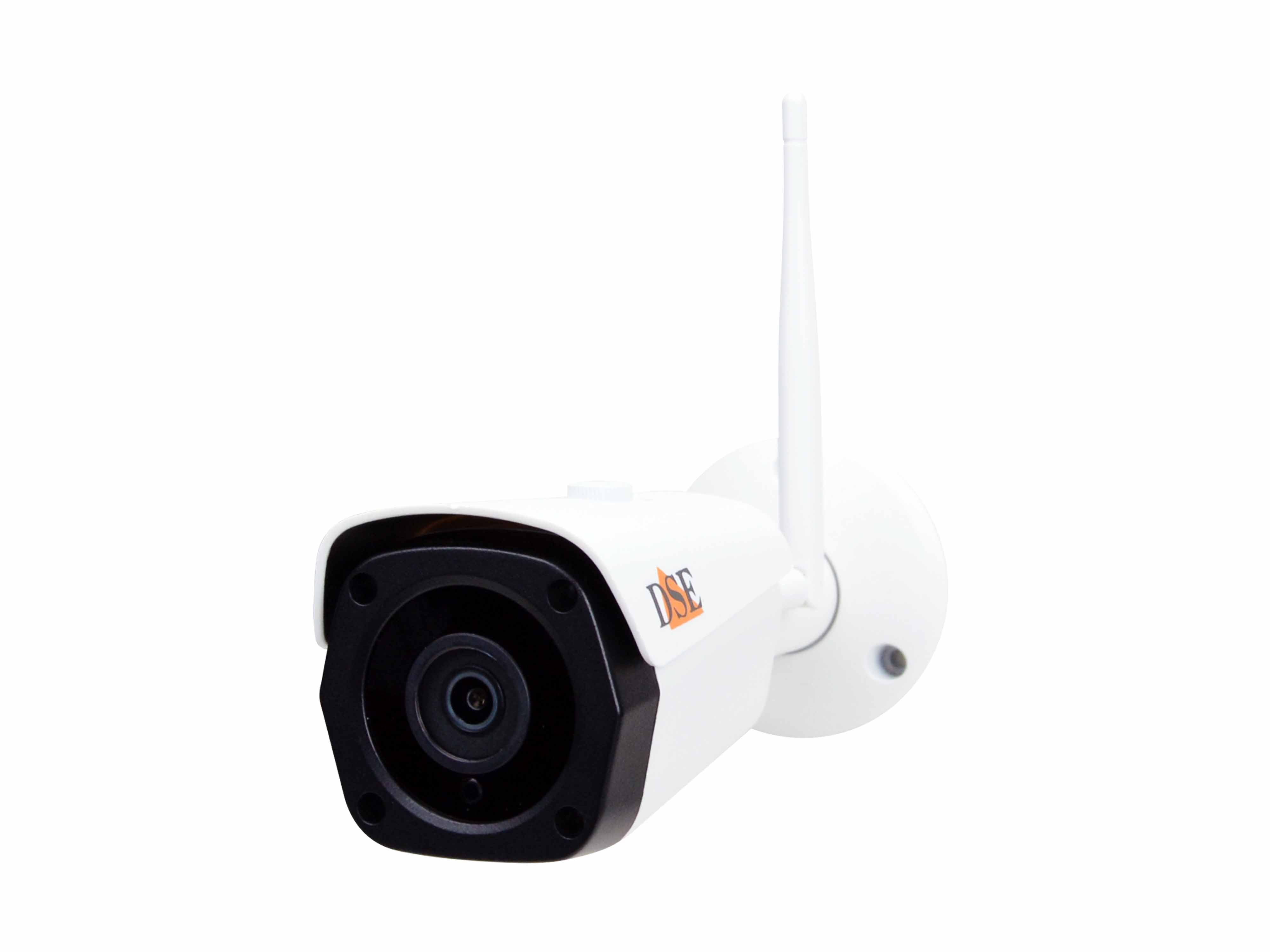

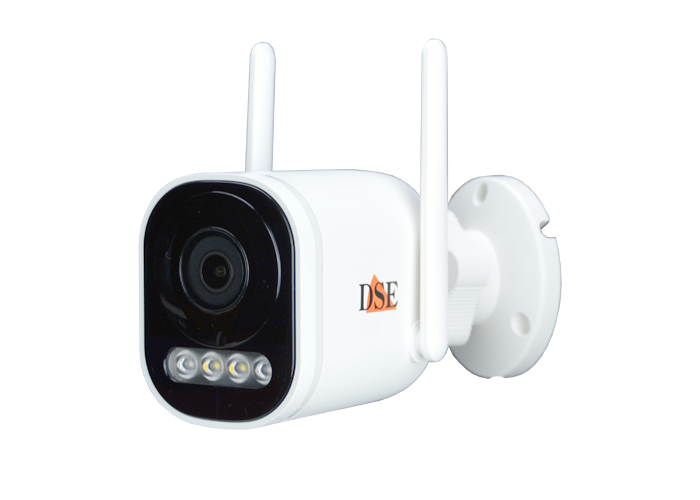

ADDITIONAL CAMERA

Additional camera to extend wifi CCTV kits RKK-KIT5A
5MP
ONLY SUITABLE FOR RKK-KIT5A. CHECK THE PRICE LIST FOR OLDER KITS

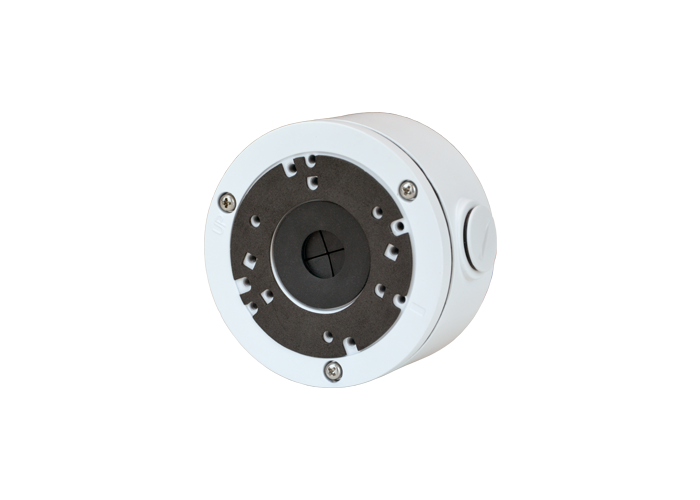

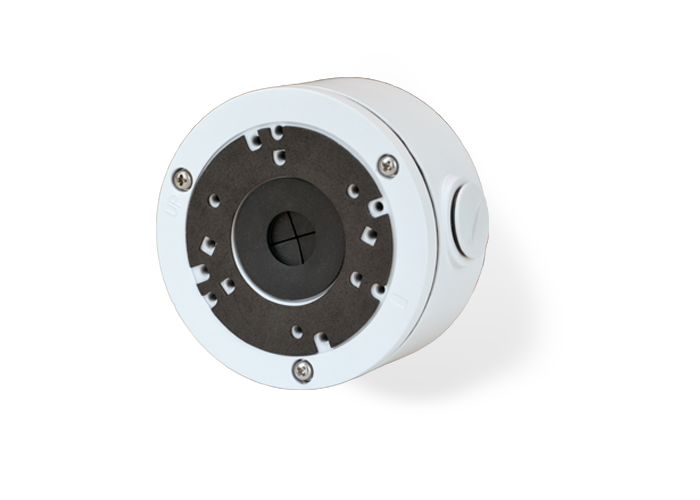

WATERPROOF JUNCTION BOX

Outdoor junction box for protecting terminals of the WiFi kit cameras

POLE COLLAR FOR JUNCTION BOXES

Accessory for mounting junction boxes on round poles

WIFI REPEATER

WiFi repeater to extend the wifi coverage of wifi kits (Max 2 per Kit)

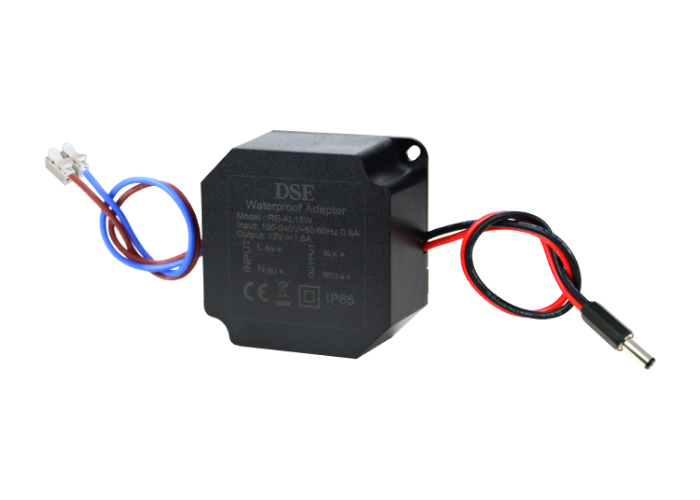

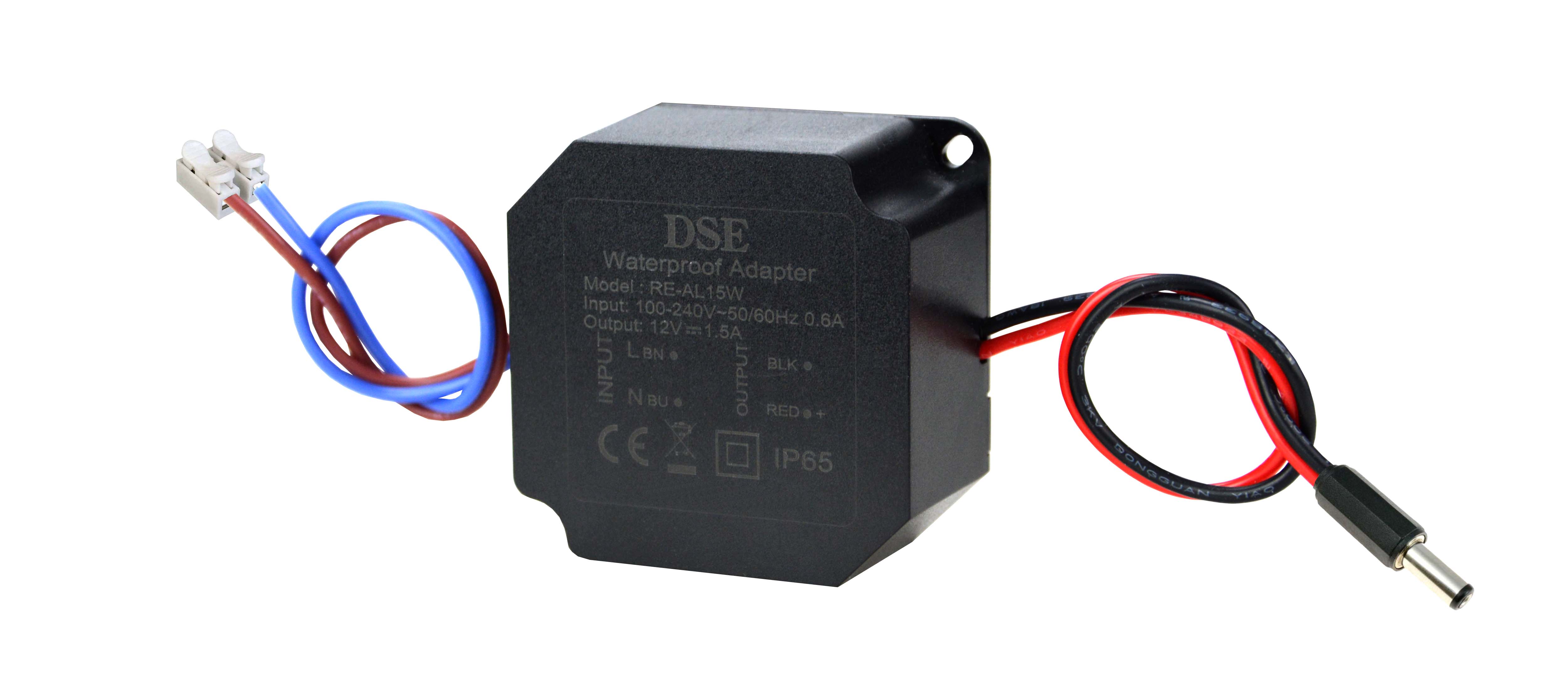

BOX TYPE POWER ADAPTER

Optional power adapter for mounting in junction box. To replace the standard power socket adapter included with the wifi kits

BACKUP BATTERY

12VDC battery for camera backup in case of mains power failure

THE CCTV MADE EASY


The 100% DIY kit

Are you looking for a CCTV system which you can install by yourself in just a few minutes? Our plug and play wifi kits are the best choice for you. Everything you need is included in the package: cameras, power adapters and NVR. You do not need any technical skills: just follow our simple mounting instructions and in a few minutes you will see your cameras appear on your monitor and on your mobile phone.


High-performance Wifi: 300 m. range without obstacles

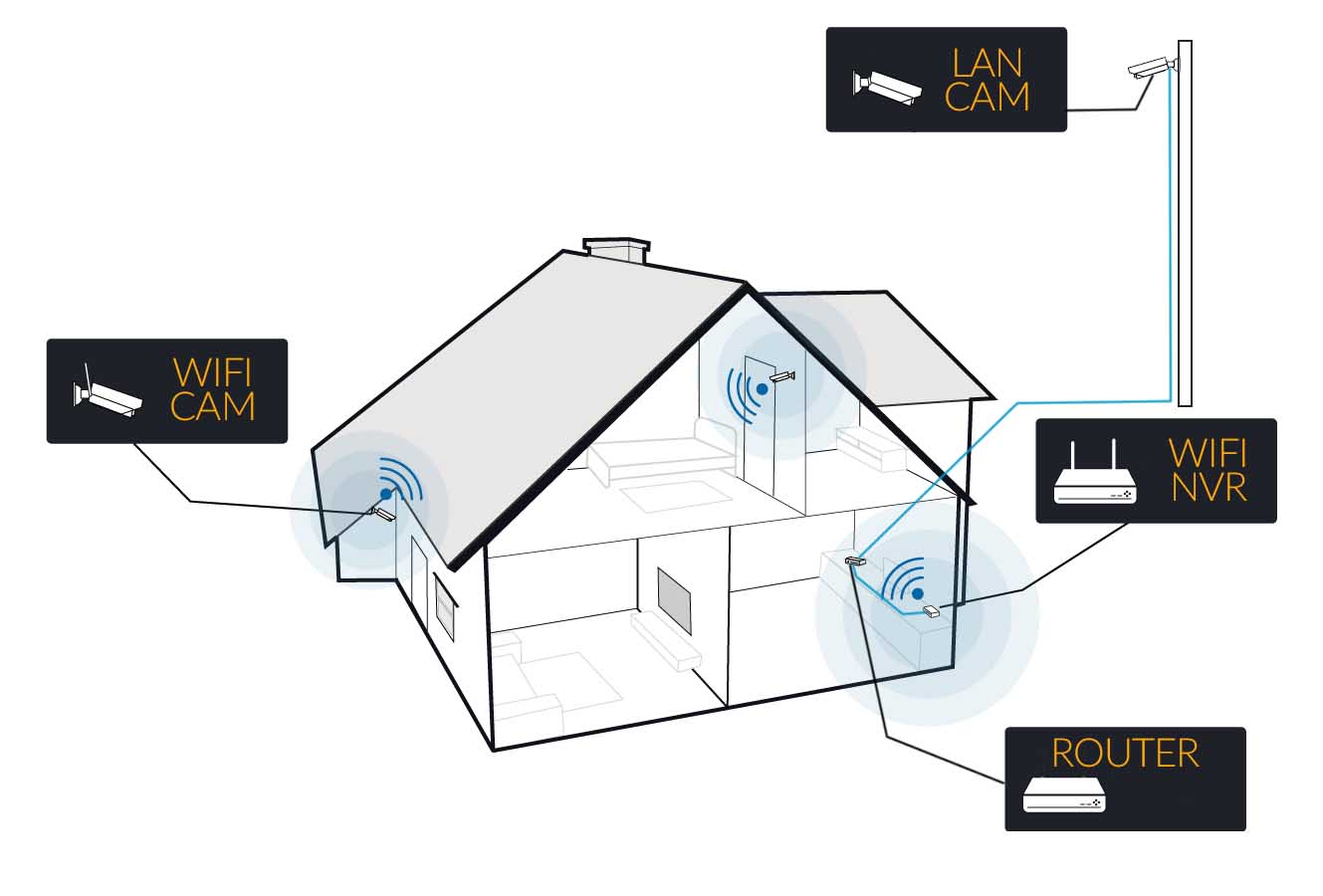

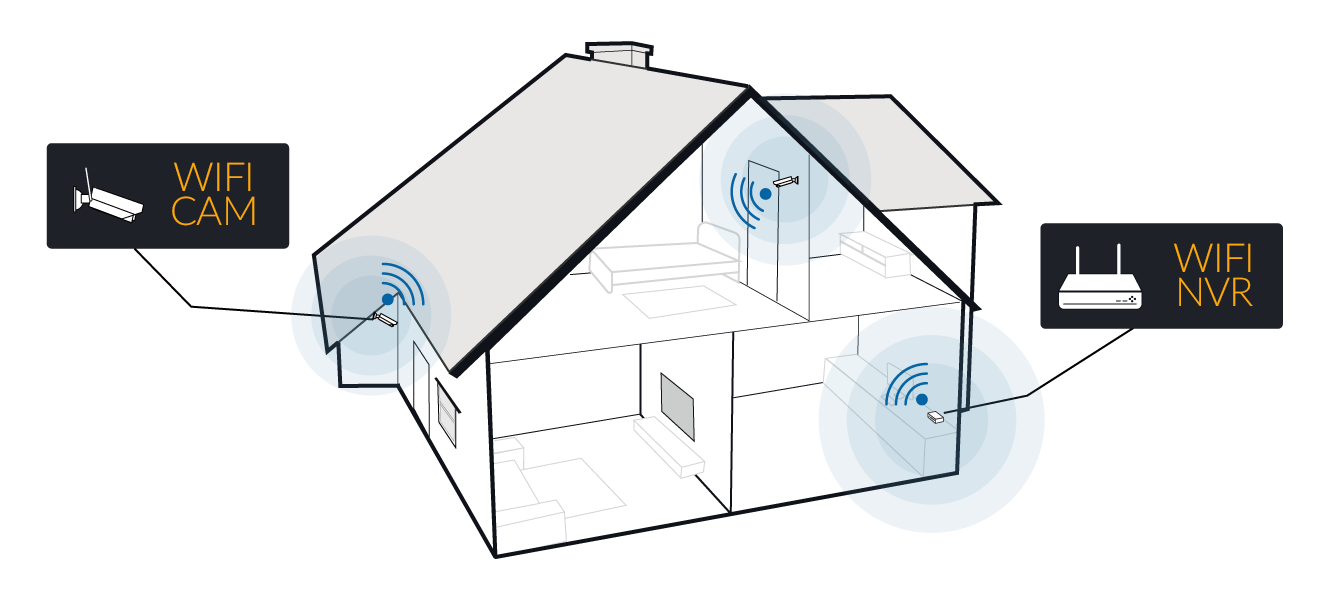

With our RKK wifi kits you do not have to worry about running cables through your walls. You can install the cameras wherever you want, as long as there is a power socket. The video signal between the cameras and the NVR, the control unit of the system, is WiFi, without wires. Our latest generation WiFi modules allow an excellent range: up to 300 m. without obstacles. Indoors, the distance between the cameras and the NVR can reach up to 4/5 rooms. If your property is very large and you need to extend the wifi range, you can buy up to 2 optional wifi repeaters.

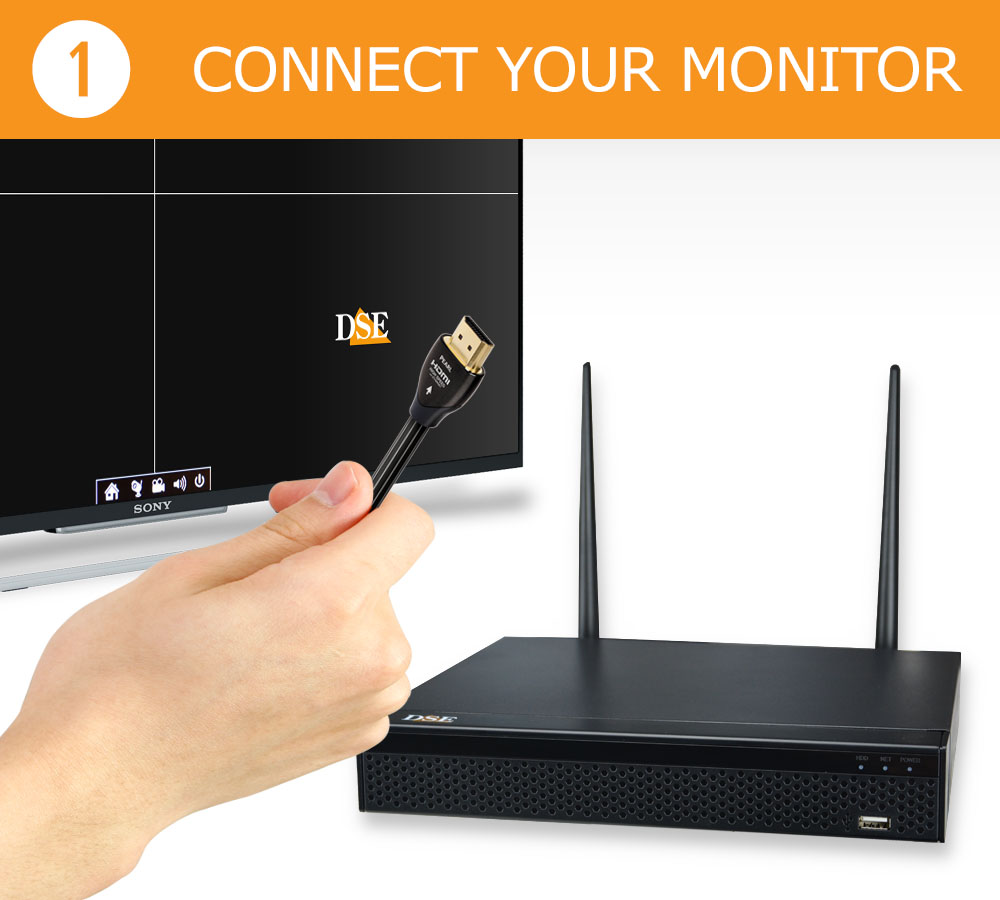

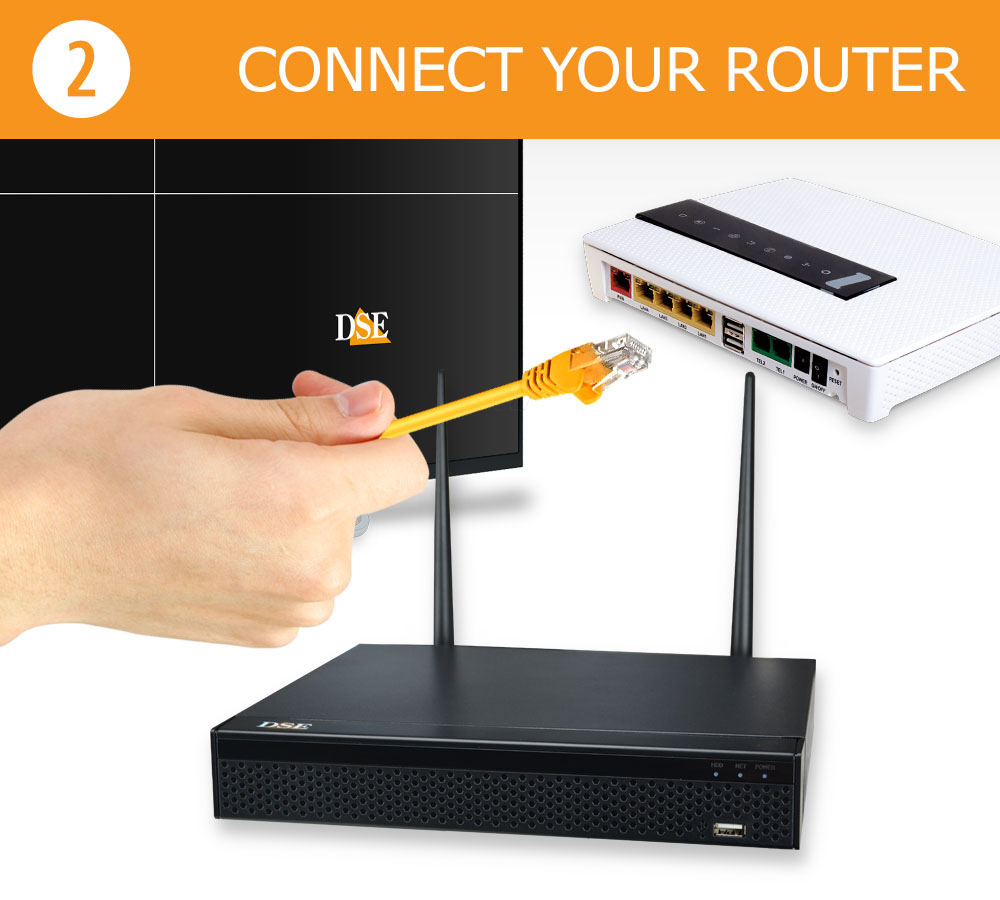

Ready in 5 minutes

Our CCTV WiFi kits are developed to be installed by anybody in a few minutes. They do not require any technical knowledge and they are ready to work as soon as they are mounted, without any settings to be adjusted. You just have to connect the cameras to a power outlet and the NVR to the monitor and the Internet router. As a monitor you can use a TV (HDMI) or a computer monitor (VGA). See how easy this is, in 4 quick steps.


Fully scalable and customizable

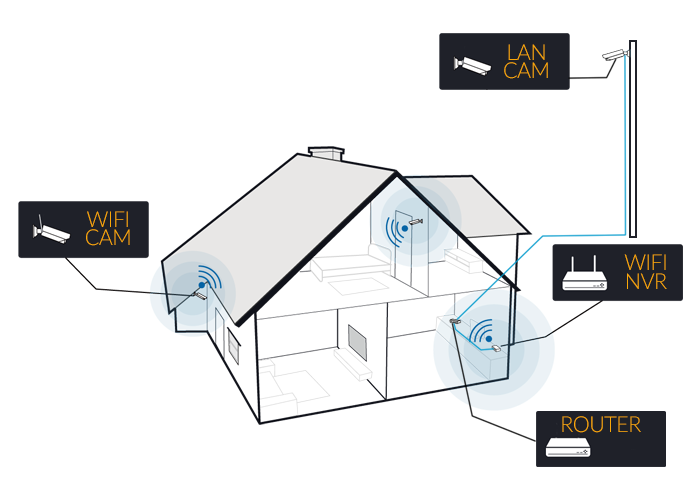

With RKK wifi kits you are free to design your CCTV system exactly as you like. If you want to expand your system, you can order additional cameras at any time. If you have to cover a large site you can use several wifi kits together, since they do not interfere with each other. Watch in this video tutorial, recorded for our first generation of wifi kits, how our CCTV kit can be easily installed and expanded.

WATCH VIDEO TUTORIAL

HUMAN AND VEHICLE DETECTION

Our wifi kits come with Artificial Intelligence and HUMAN DETECTION. Human detection is much better than normal motion detection because it does not simply trigger on the base of pixel modification, but only when the intruder is a human being. Thanks to human detection, these cameras do not detect animals, or objects moved by the wind, but only real people providing secure and reliable detections. The human detection algorithm is not only detecting the face of the intruders, but also the shape of the body and human moves. This allows these cameras to detect intruders wearing masks. In the event of human detection you can send email and push notifications. You can even activate several deterrence devices on the camera. All cameras in this range also supports VEHICLE DETECTION, useful to prevent unauthorized access or parking.

ACTIVE DETERRENCE

Built-in DETERRENT devices

These kits come with active deterrence cameras with several built-in alarm devices that are activated when an intruder is detected. The WHITE LEDs (A) light up, illuminating the scene like daylight. The red/blue flashing light (B) indicates that an alarm has been generated. The loudspeaker (C) can play a loud warning sound or a pre-recorded message. The microphone (D) allows you to listen-in and even speak to intruders, carrying out a quick and effective first intervention. You can also activate the deterrent devices manually via app.

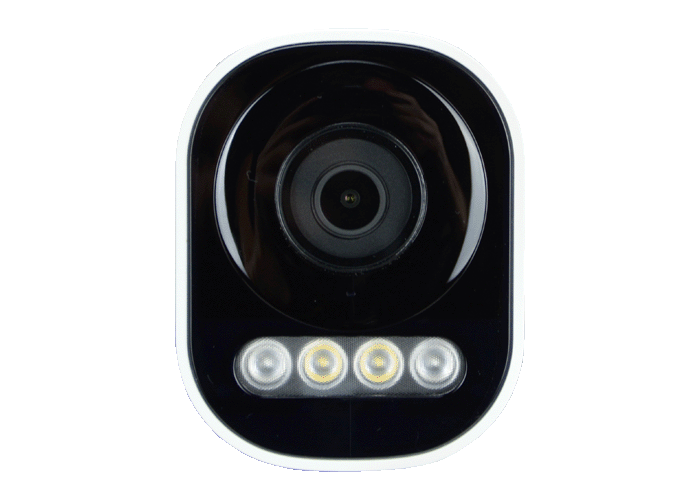

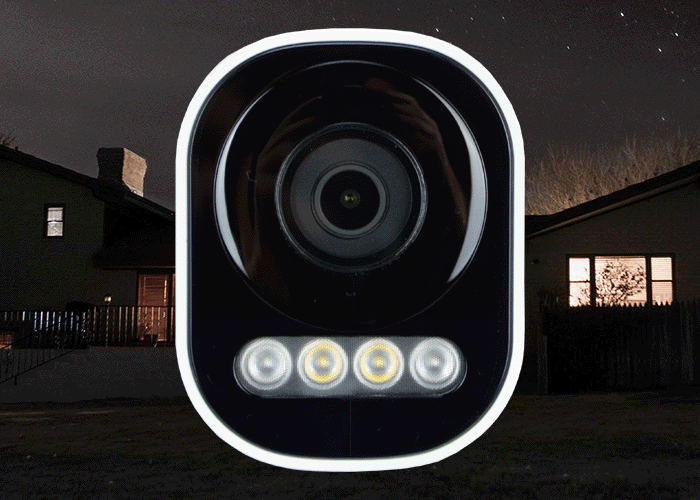

IR+WHITE illuminator

Active Deterrence cameras come with special LEDs for monitoring at night that can produce both infrared illumination and visible white light. It is possible to set one of the two modes, but more frequently these cameras are set to produce IR illumination in normal conditions and turn on the white LEDs in the event of an intrusion. In this way the area under surveillance remains dark most of the time, with black/white recording, and gets brightly lit in case of detection, switching to color video. The sudden switching on of the white light gives the intruder the sensation of having been cought, often before he could get close, pushing him to desist.


RED/BLUE flashing light

These active deterrent cameras have a built-in red/blue flashing light which is used as a warning signal or alarm indicator. All the intelligent detections of the camera can be set to trigger this speedlight. The red/blue flashing light has a deterrent effect, like the white LEDs at night, but also clearly visible during the day.

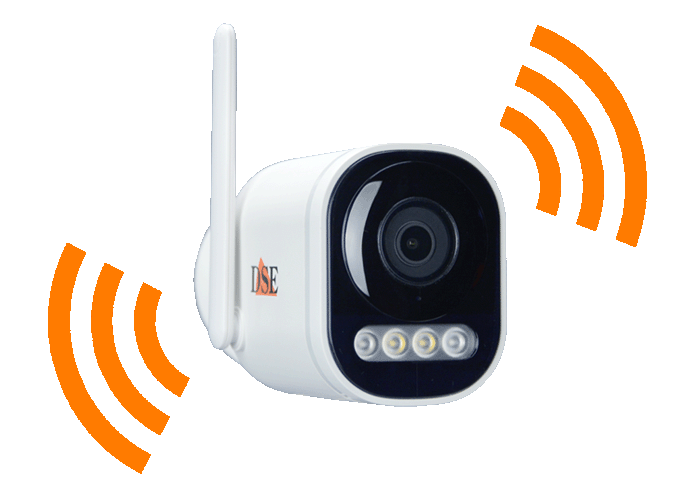

Built-in sounder

These cameras have a built-in microphone and speaker. If a detection occurs, these cameras can activate an audible alarm, for example reproducing the sound of a siren to discourage an intruder or signal danger. You can choose from the factory sounds or download an additional sound pack from our site. You can also record your own warning message, which is useful if you use these cameras to provide instructions.

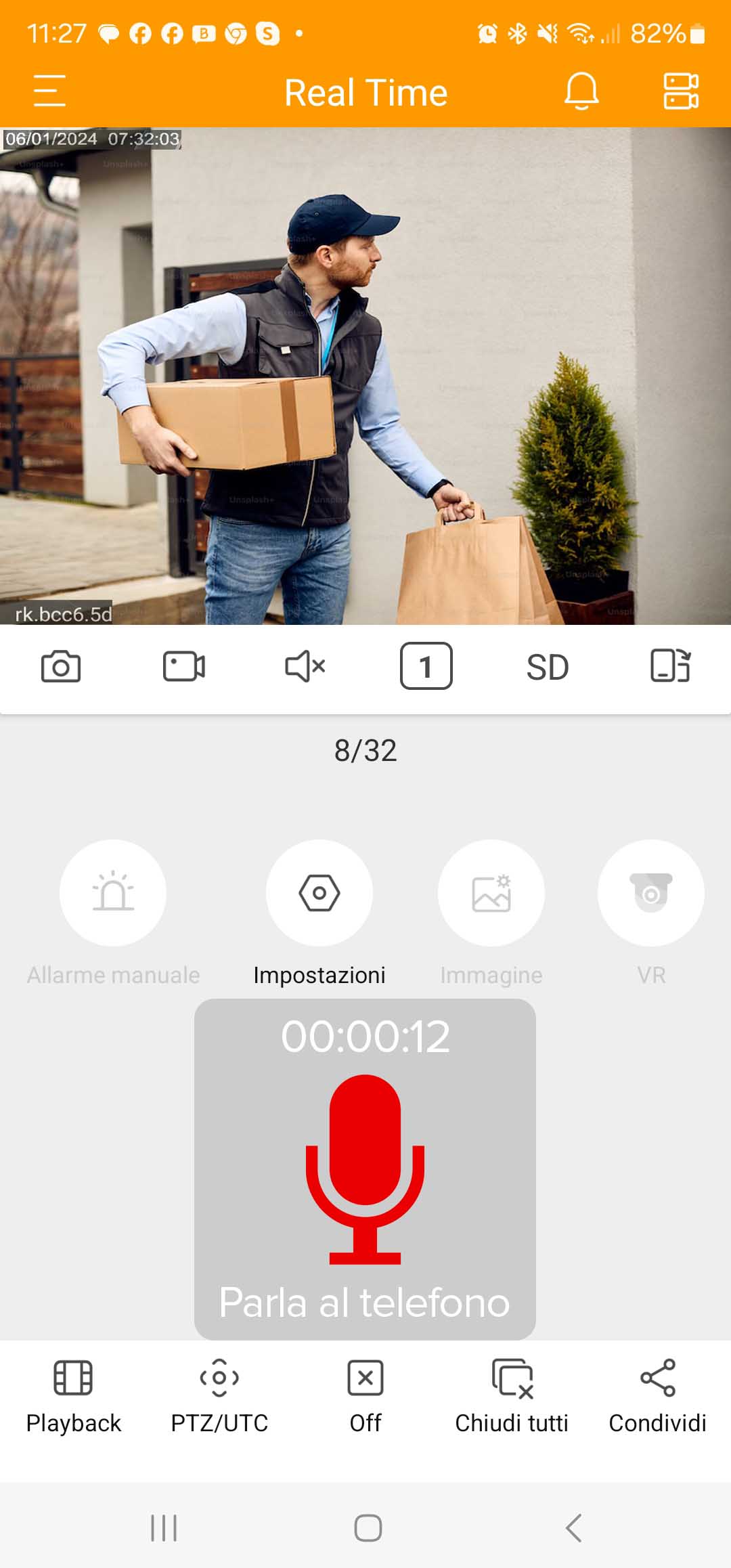

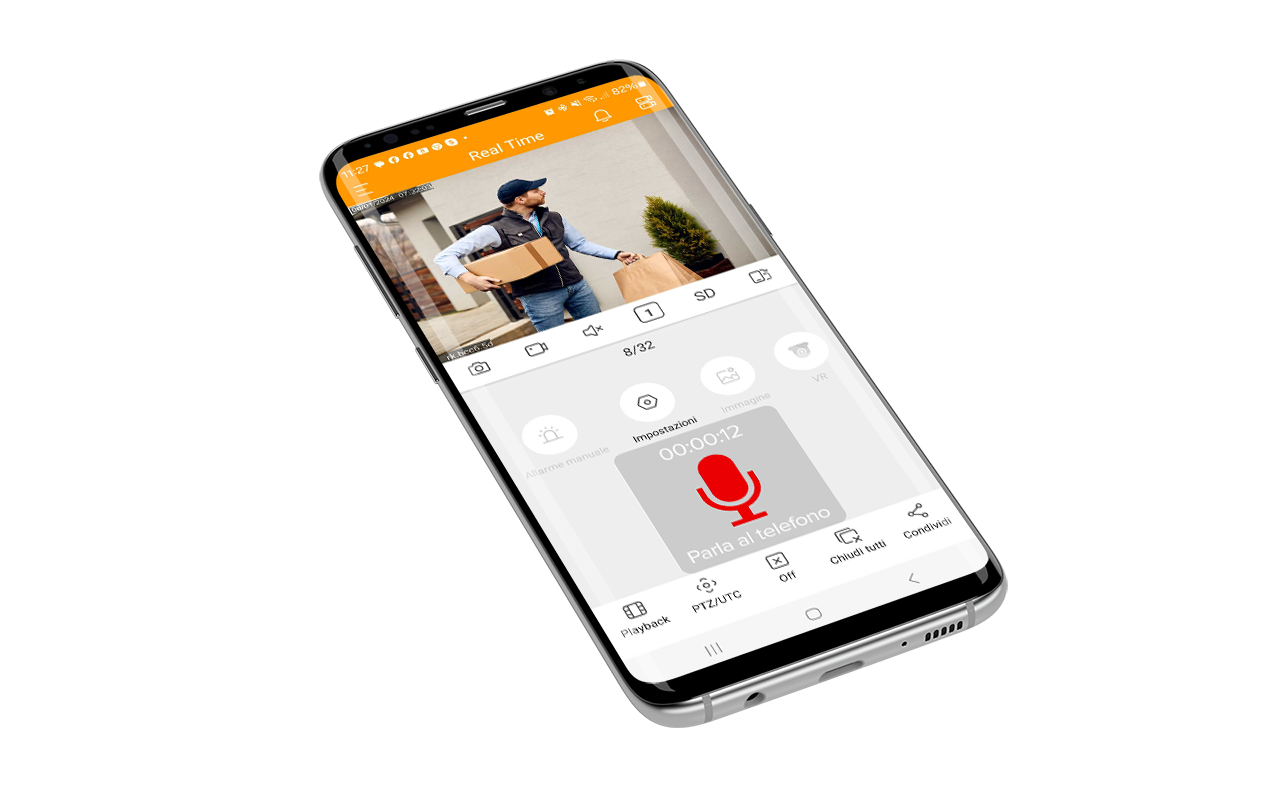

Audio INTERCOM

This kits also support 2-ways audio that you can use conveniently by talking through your smartphone. By pressing the intercom button on our app you can speak through the camera speaker, stepping-in in any situation without taking risks. You can also use the intercom function to provide instructions to personnel in front of the camera.

VIDEO


High Resolution 5 megapixel

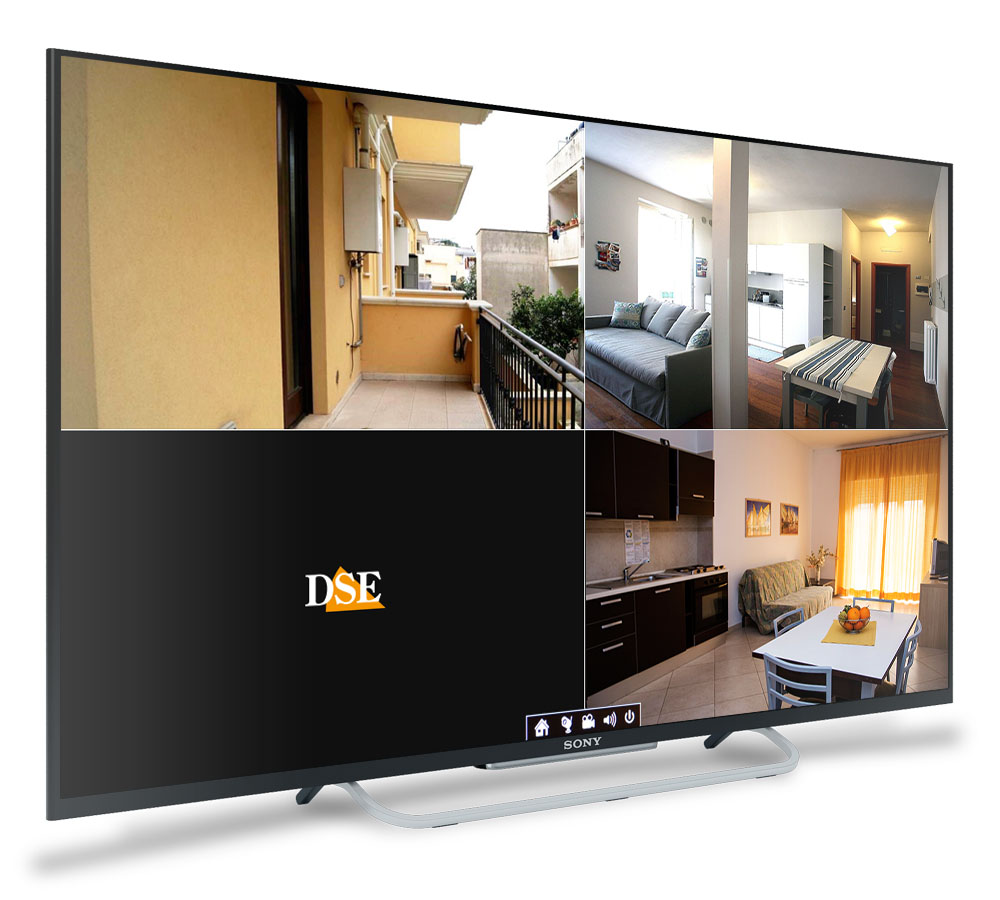

Our RKK wifi kits are really easy to use, but as powerful as our best hard-wired IP systems. The cameras of wifi kits provide 5MP video resolution with detail rich, color accurate images even when zooming-in during playback. H265+ video compression, the same used in our best NVR, allows to control up to 8 cameras per kit without compromising the video quality. Check here a few video demo of the most popular video resolution.

HARDWARE

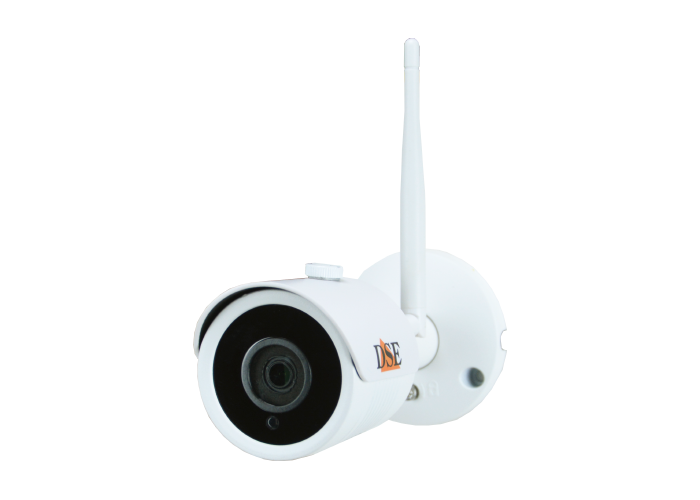

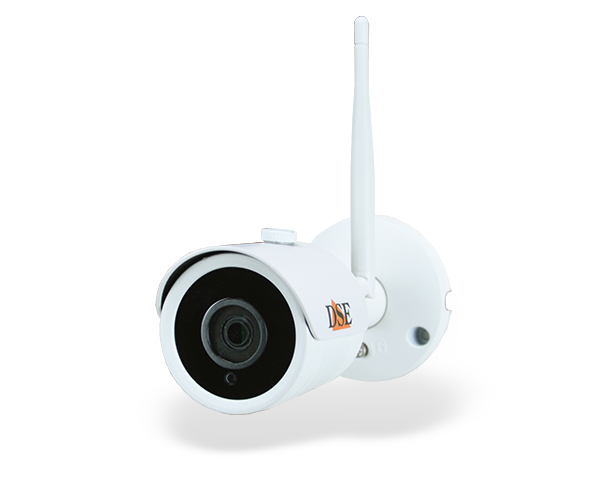

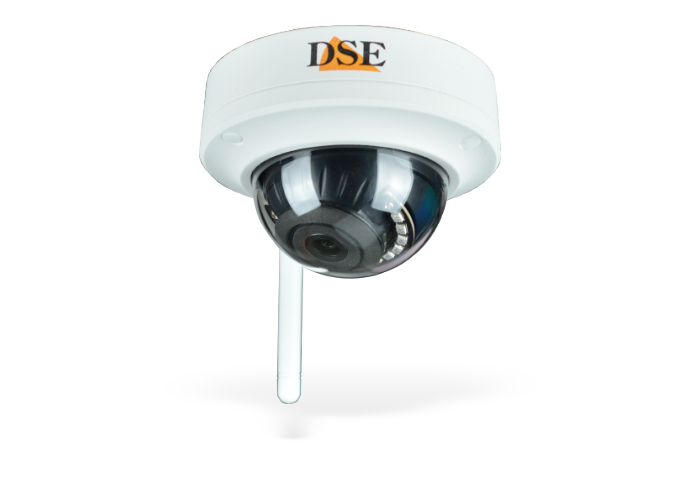

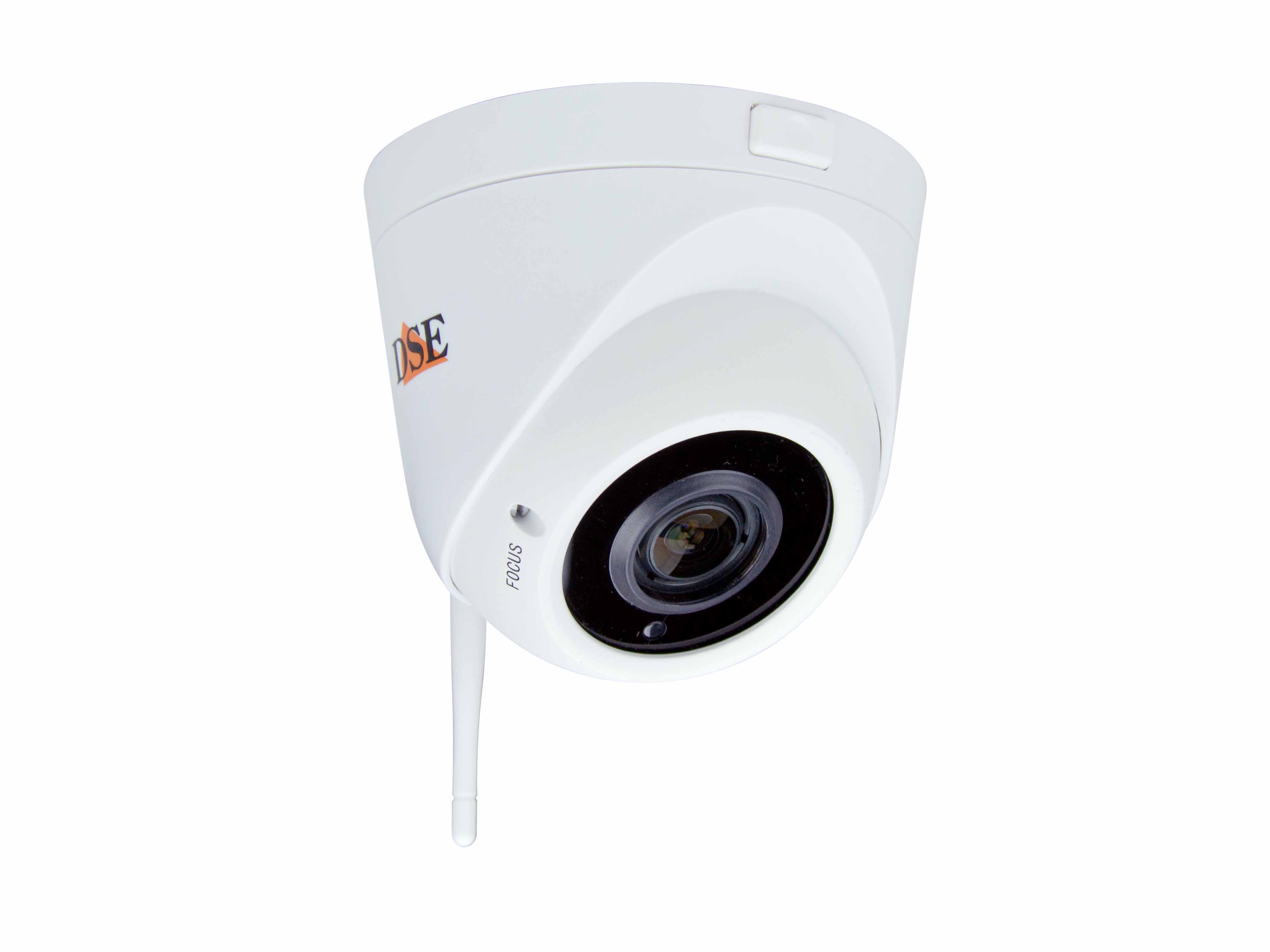

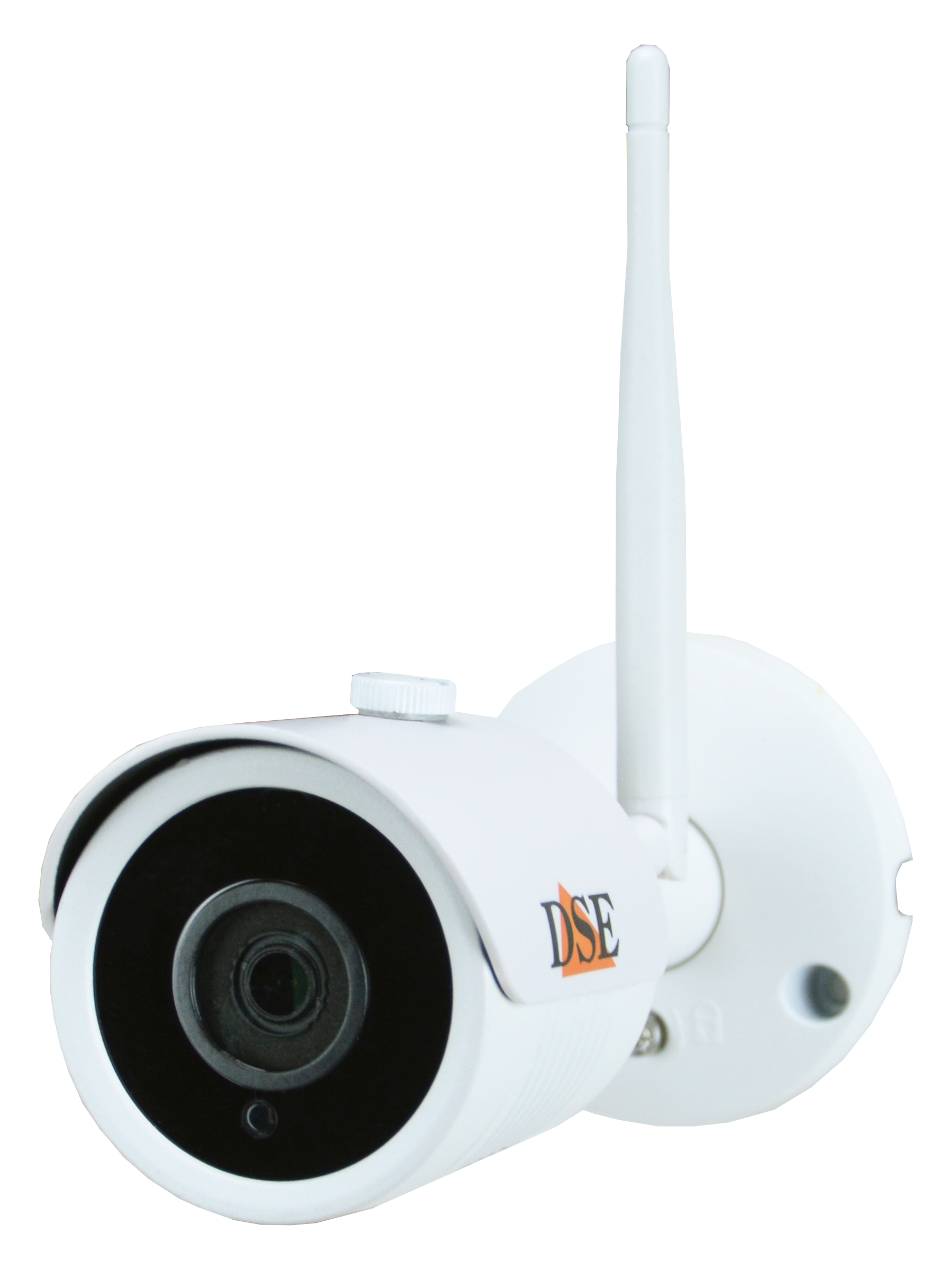

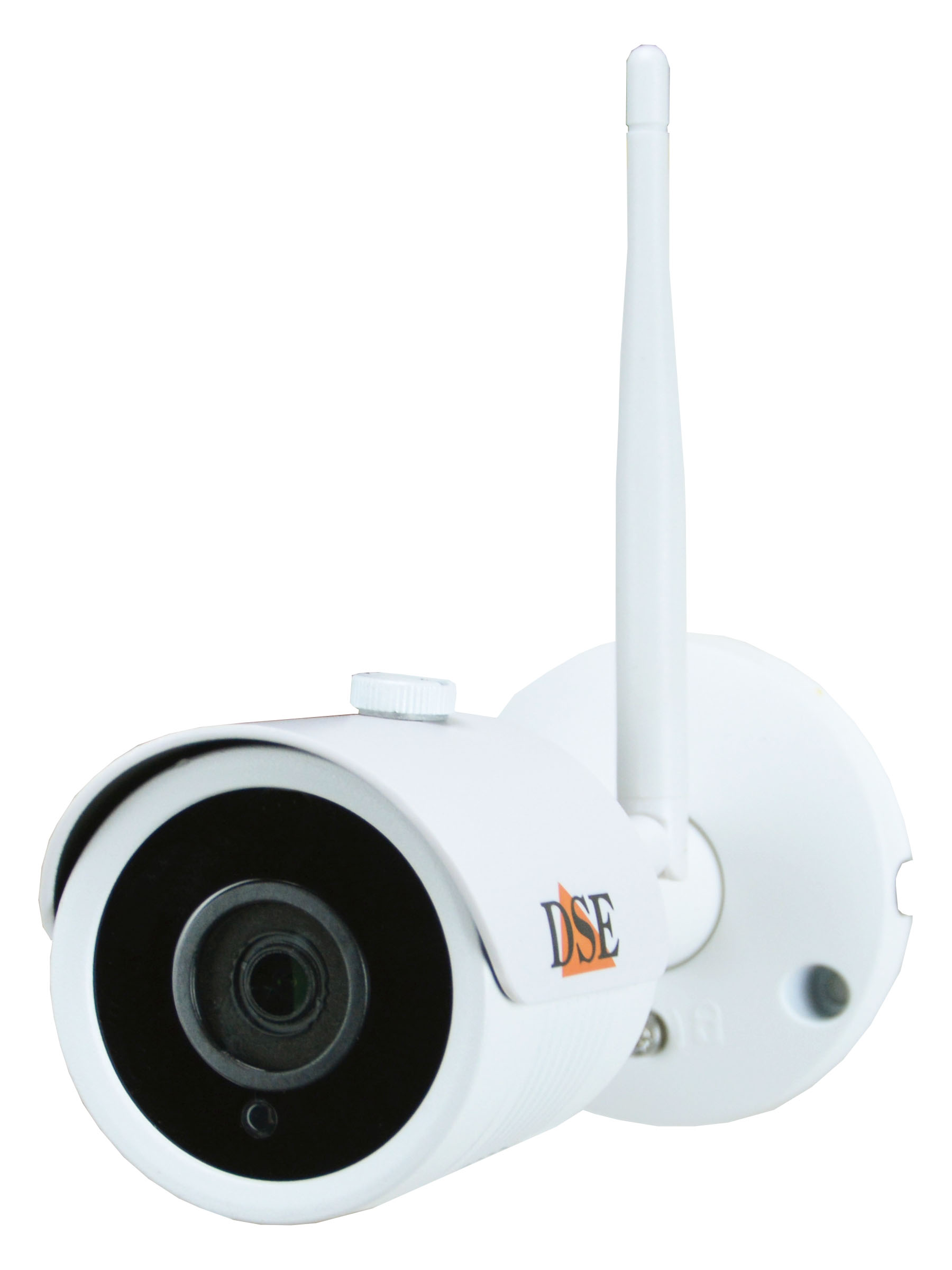

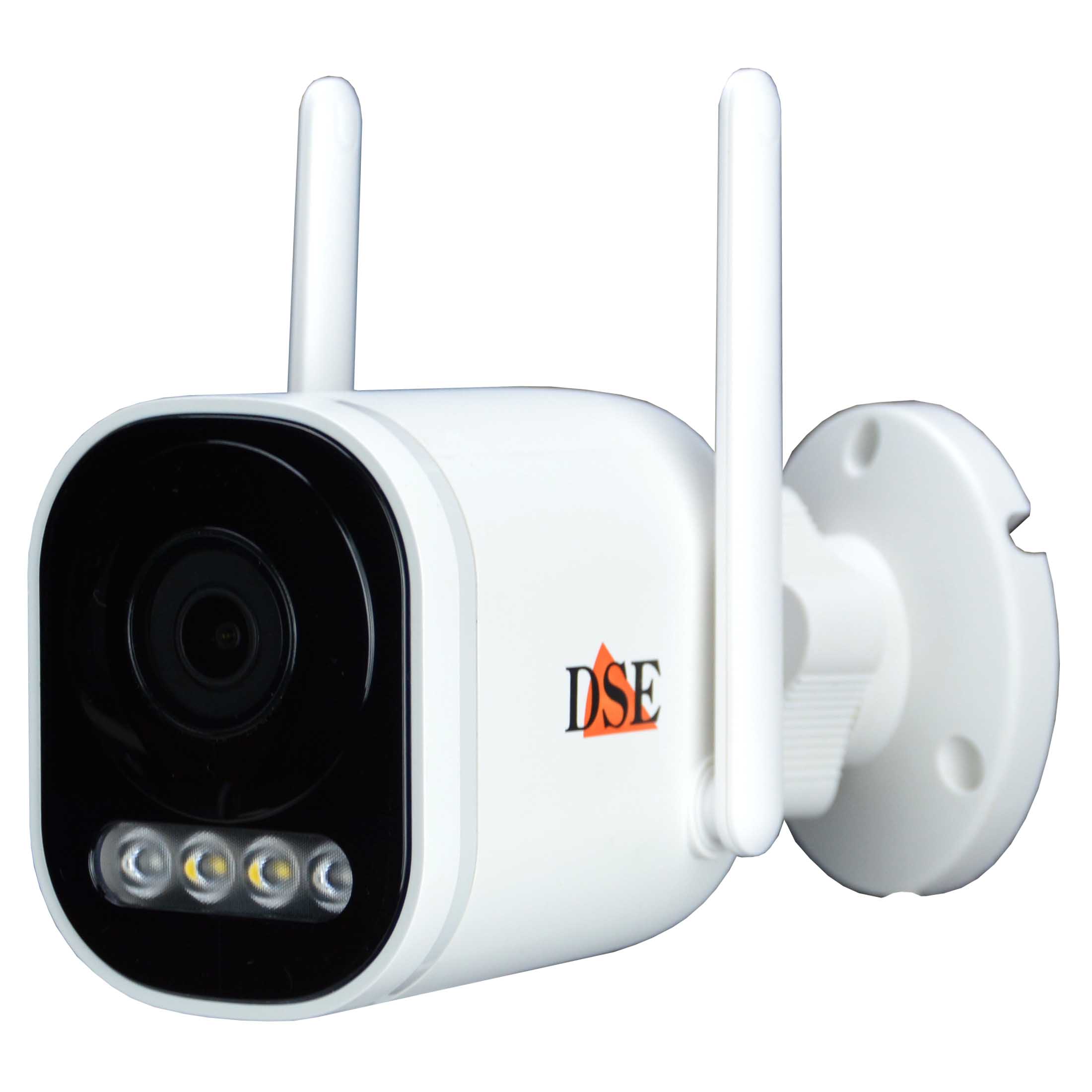

WiFi cameras for indoors and outdoors

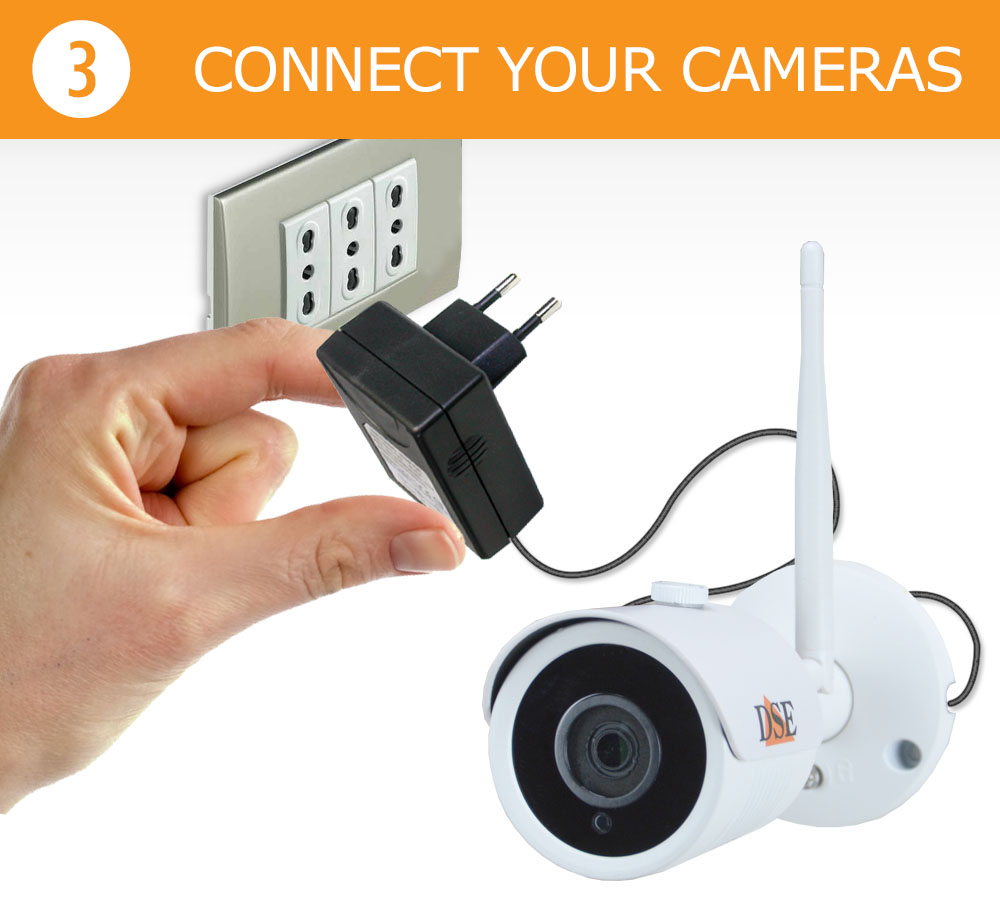

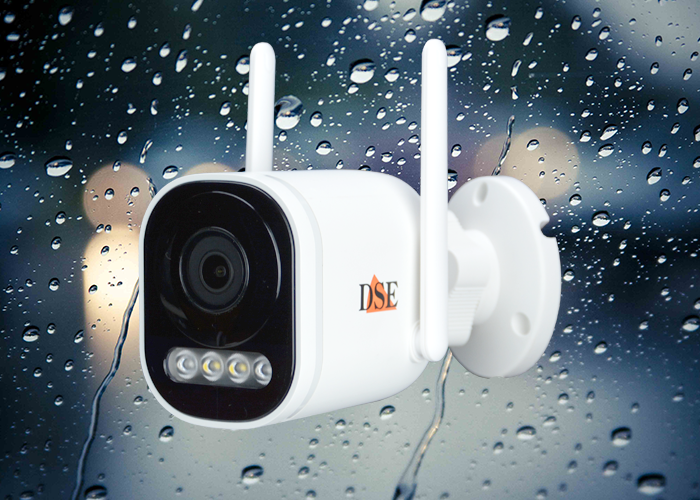

The cameras of these kits can be installed in few seconds. Just screw up the antennas and plug in the socket: that's it. You can install them outdoors, even under the rain, because they are completely waterproof (IP66), but you can also use them indoors thanks to their stylish design and small size.
The cameras come with 3.6 mm. wide-angle lens and a built-in infrared illuminator which makes it possible to monitor in the dark up to 30 m. They are east to position, thanks to the swivel bracket and can be mounted to both ceiling or walls.
ATTENTION. These cameras come without network port and are only suitable to our wifi kits or wifi NVR.


Cameras backup battery

If you want your wifi video surveillance system to continue to work even in the event of a 220V power failure, you can buy these backup batteries for the cameras. This 12V battery pack connects between the camera and the power adapter. In the event of a 220V power failure, the battery allows the camera to continue to operate for several hours . The battery recharges automatically when mains is restored.
You can use these batteries with a UPS for the NVR, so your CCTV system will be fully protected in case of blackout.

CAMERA BATTERIES

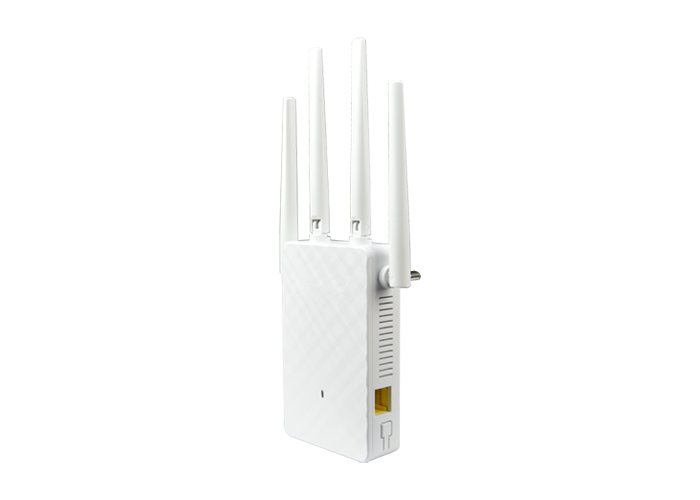

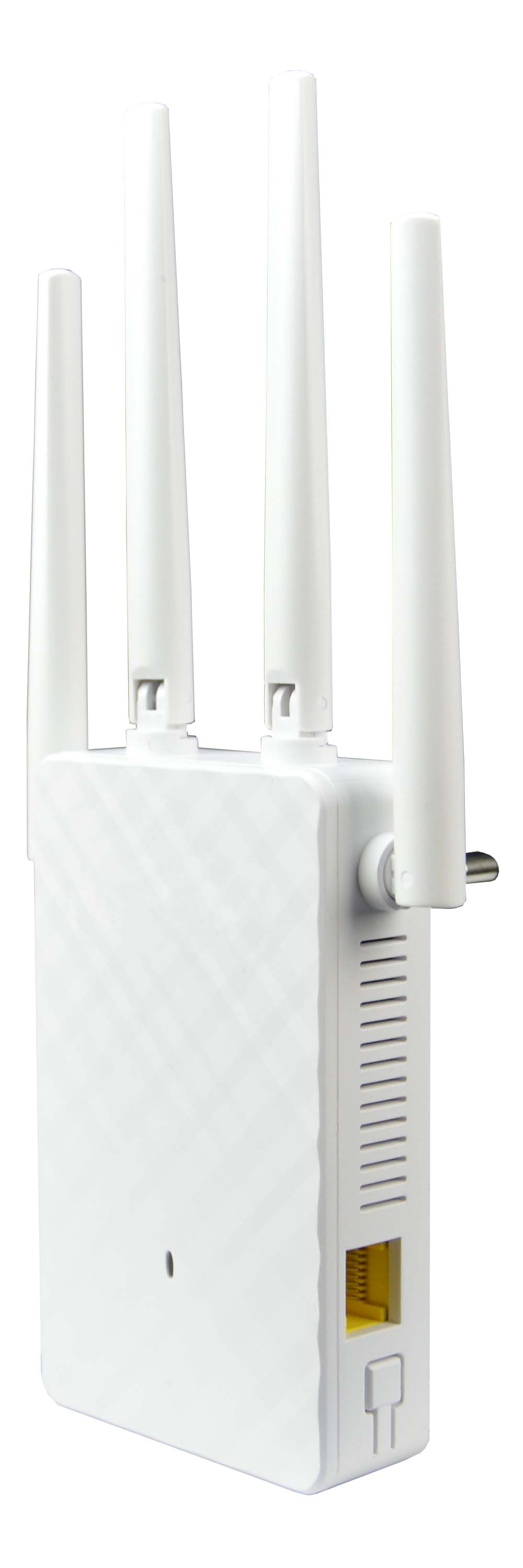

WIFI REPEATERS

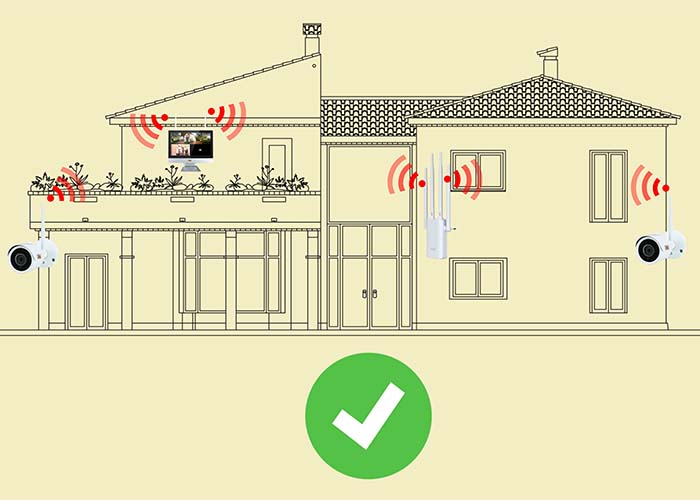

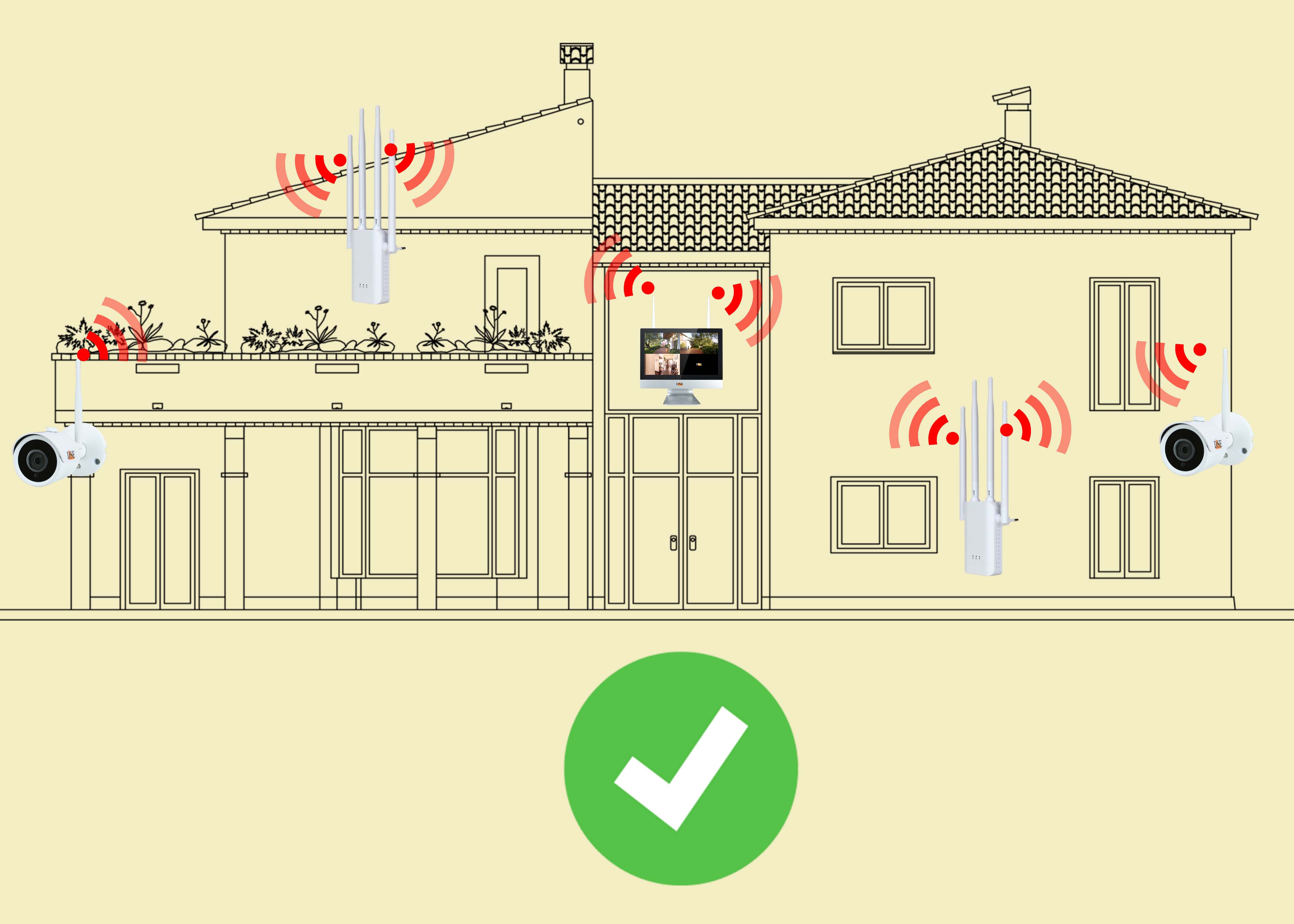

Extend the wifi range with our wifi repeaters

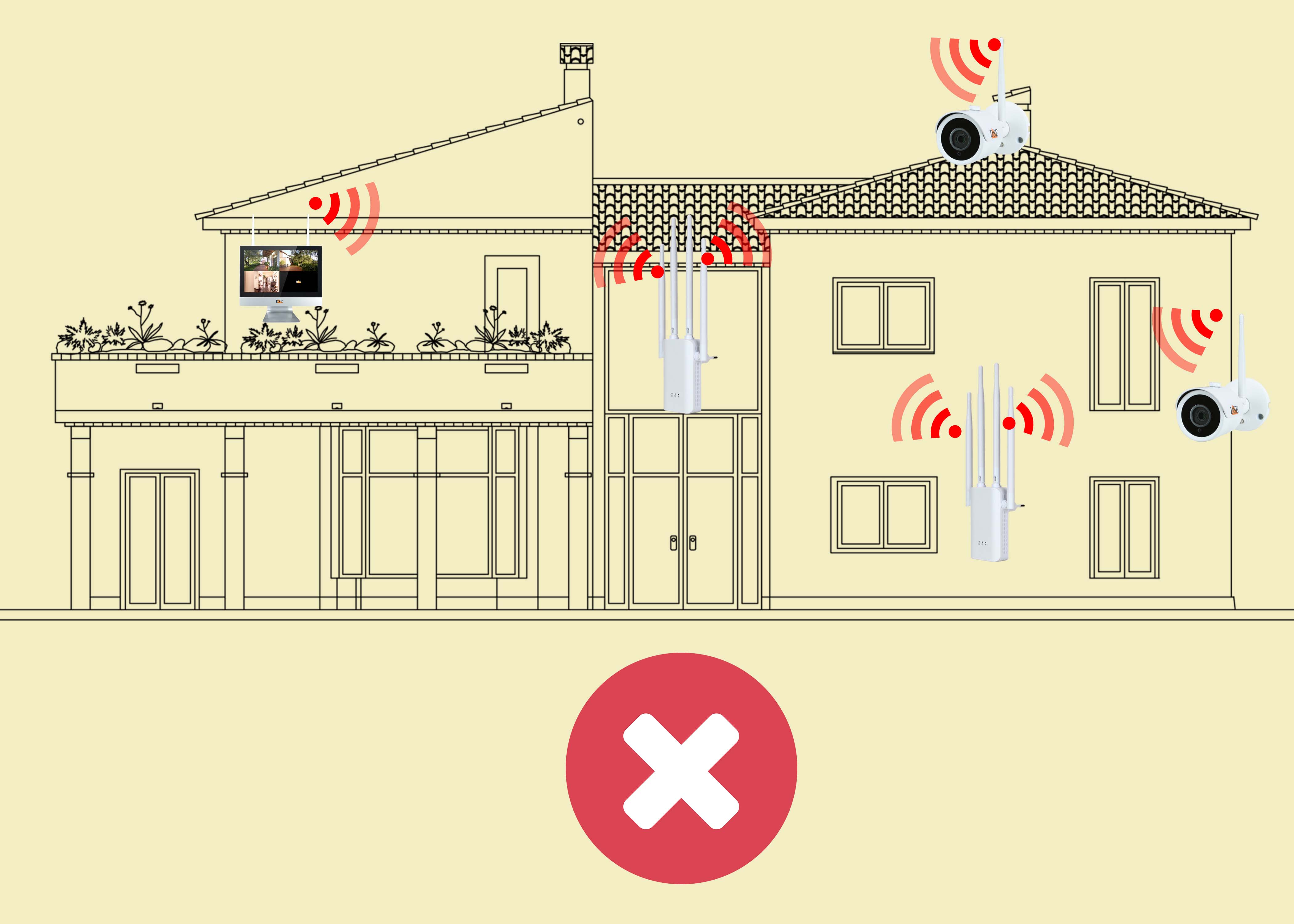

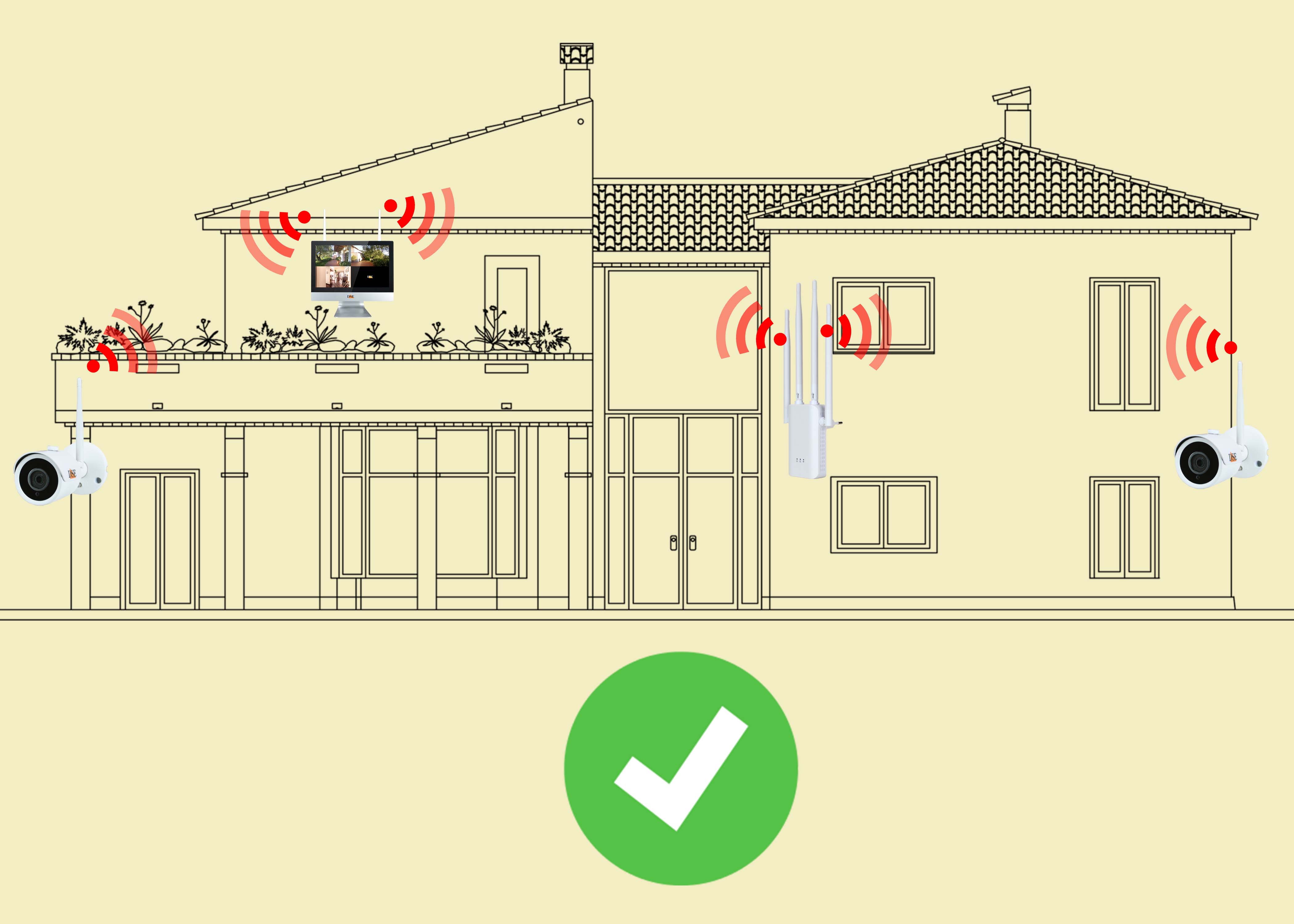

If the property to be monitored is very large, you can buy our wifi repeaters to relaunch the wifi signal of the NVR and increase the range of the RKK wifi kits . You can install up to 2 repeaters per wifi kit, placed in opposite directions to the NVR. If our kits allow you 4-5 rooms in range, with these repeaters you can relaunch 4-5 rooms range in two opposite directions. If you order the repeater together with the kit, it is delivered to you already configured and you will only have to plug it into a socket, halfway between the camera and the NVR. If you order the wifi repeater later, you can configure it yourself, in a few easy steps.

FEATURES


Recording modes: continuous, schedule, AI motion

Our kits record videos on the base of the setting you choose. You can record all the time, or just some hours during the week, or even just in case of intrusion detected by the intelligent detection features. You can easily search footage and export them on USB pen drives or computers to share them with the police.


Recording on Hard Disk up to 8TB

These wifi kits store video files on one or more internal hard disks. They can record continuously or only in case of intrusion. The NVRs come without any Hard Disk to let you choose the best disk size according to the required storage capacity. You can use any brand of SATA hard disk up to 8TB capacity. Even ordinary desktop hard disks work well, but for long durability special Hard Disks for video surveillance, such as those in our catalog, are recommended. If you order one of our hard disk, together with the wifi kit, you will receive it installed and formatted, ready to use.

Hard Disk WD Purple for NVR DVR

In compliance with Privacy Laws

The RKK wifi kits record on their own internal hard disk until the memory is full, after that the new files overwrite the old ones. To suit any local privacy regulation it is possible to limit the video storage to a specific number of days. It is also possible to set privacy masks to exclude sensitive areas from surveillance for privacy matters.

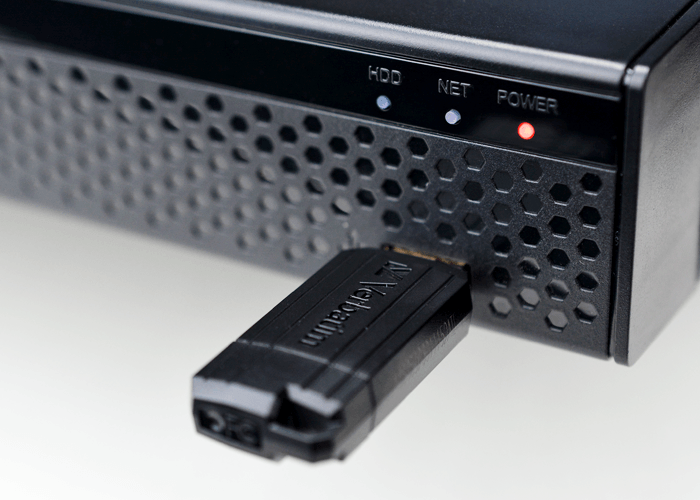

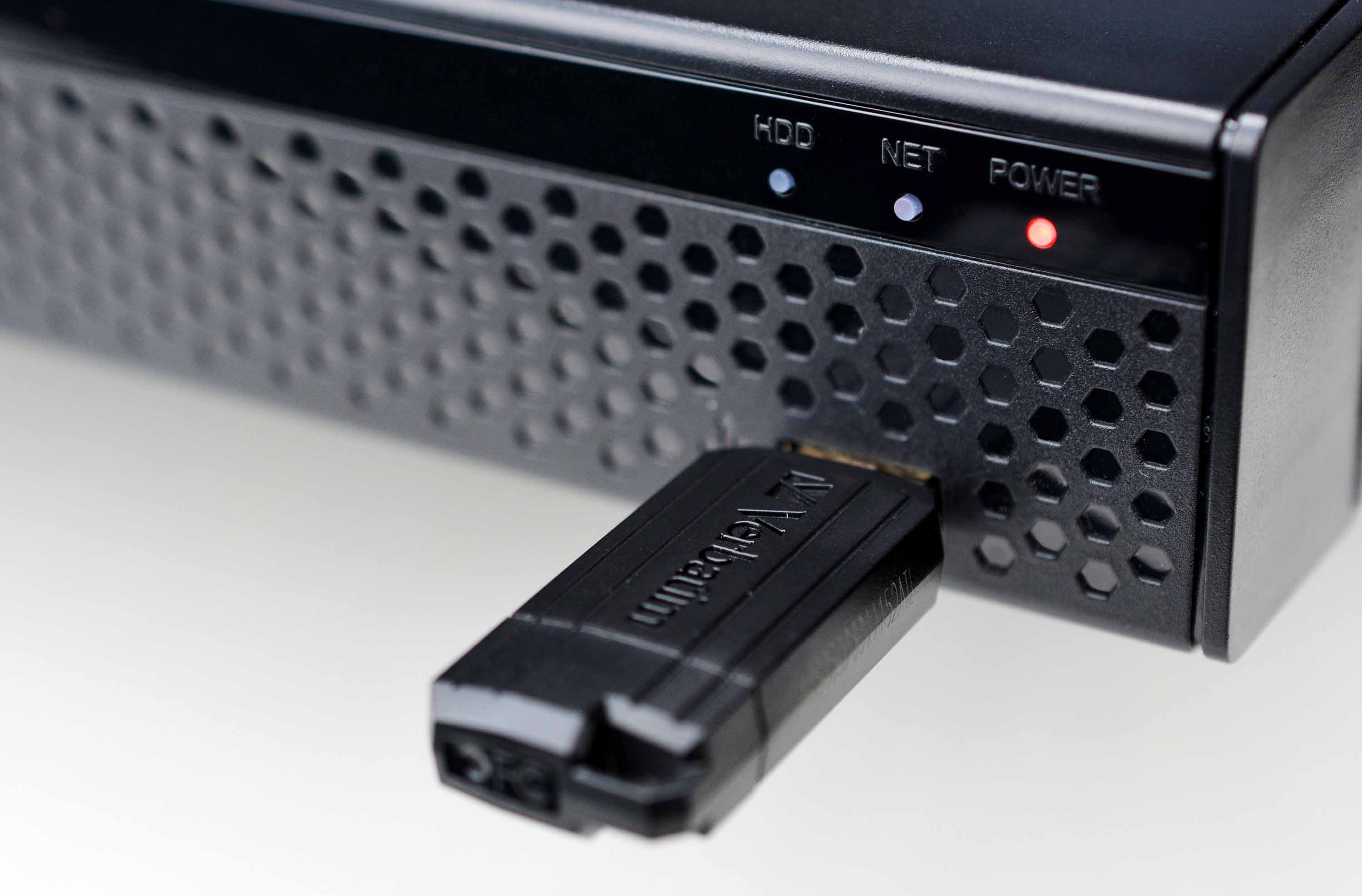

Video backup with USB

Thanks to the search functions, it is easy to find the important events in the video archive, scrolling the timeline. You can easily export video footages to be delivered to law enforcement. This backup operation can be done online with a computer, or by plugging-in a USB pendrive into the USB port of the NVR. Video files are exported in a standard AVI format and can be played with common video players such as VLC.

MOUSE CONTROL


All functions one click away

These WiFi kits are packed with features but yet easy to use and configure with the on-screen menu. These NVR do not have buttons on the front panel, because all operations can be done with the supplied mouse. You can WATCH the live video of all the cameras on the screen and CONTROL external PTZ cameras. You can CHOOSE among several display modes and ZOOM IN by dragging the mouse. The OSD menu allows you to CONFIGURE all NVR options and PLAY BACK the recorded videos, searching by date and time. You can also EXPORT AND DOWNLOAD video files on USB pen drives in AVI format.

CONTROL VIA PC


Control via browser

Every computer on the network is a perfect monitor for your RK Series videorecorder. No software needs to be installed. Just use your favourite browser and enter the login password. All browers are supported, thanks to the new no-plugin access function. You can WATCH live video, RECORD , take snapshots and ZOOM-IN by dragging the mouse. A user friendly menu, available in many languages, allows you to SET all system options. You can also PLAYBACK the videos which have been recorded in the hard drive, searching date and time over the timeline. All our RK devices also support the RTSP protocol, which allows you to watch live video with popular video players such as VLC.

Control IP cameras with Chrome, Firefox, Edge, Safari

Control via software

IOVEDO.RK - MONITORING SOFTWARE
Our free IoVedo.RK software allows you to monitor via computer all our RK Series cameras, NVRs, DVRs and kits. You can use our software in your local network, by calling the IP of the device, or via the Internet, by entering the serial number supported by our CLOUD P2P SERVER.
You can WATCH LIVE up to 64 cameras, setting CUSTOM LAYOUTS to receive videos from many remote devices. You can PLAYBACK the footage recorded in the device memory and DOWNLOAD the video files. You can also control your PTZ cameras.
Like all our systems, the IoVedo.RK software supports the ONVIF protocol, so you can also use it to monitor ANY OTHER ONVIF CAMERAS you already have in your system.

WINDOWS MAC

CONTROL VIA APP

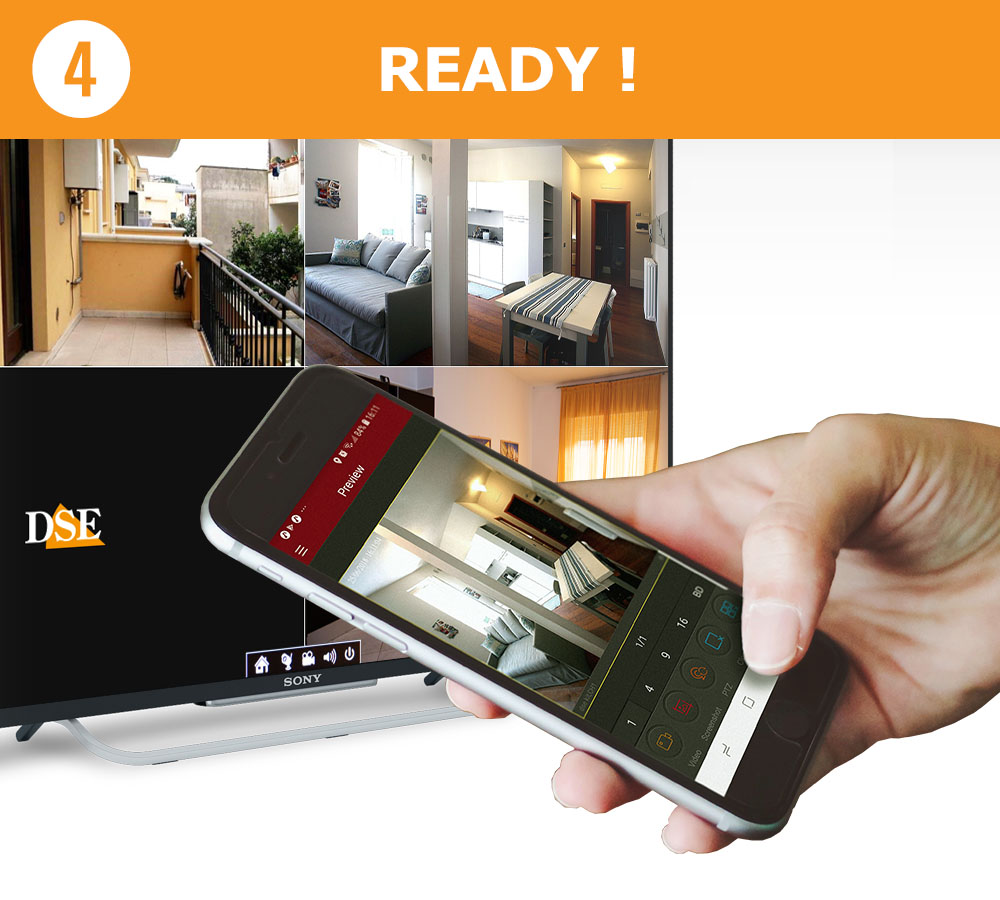

Get connected with your smartphone

With our free DSE APP for Android and iOS, you can control your cameras with a mobile phone or tablet. You can use the app over your own wifi network, by typing the IP address of the NVR, but also via the Internet, typing in your CLOUD ID. You can WATCH up to 16 cameras live on the screen. You can RECORD , take snapshots and ZOOM IN with the classic two-finger gesture. You can also PLAY BACK online videos recorded on the NVR's memory, searching by date and time. If you enable motion detection, you can RECEIVE push notifications on your mobile phone if an intrusion occurs, with a snapshot of the event.

IoVedo.RK Free App for iOS and Android Live viewing in real time Playback of recordings Audio in Motorized cameras control P2P cloud server for immediate web access Alarm notifications IoVedo.EZ IoVedo.EZ

FREE SERVICES


P2P Cloud server for easy access by WEB

Thanks to our free P2P cloud server, Online 24/7, you can immediately connect to your NVR through the Internet without worrying about static IP, DDNS, port forwarding the router and other difficult configurations. Every NVR come with an ID code, already registered on our reliable P2P server. You just have to create an account on the server and upload the ID of your NVR. You can do it straight with your mobile phone, by simply scanning the QR code you find on the product. Our P2P connection works 100% with any ISP, even radio, satellite o 4G.


E-mail, Push Notifications

These kits allow you to send out notifications in case an intruder is detected by the intelligent detection. You can activate the NVR buzzer, send messages via EMAIL with the picture of the event as well as push NOTIFICATIONS to mobile phones with our IoVedo.RK app. When you receive an alarm notification you should connect right away to your video surveillance system to check what is going on.


Save images on Google Cloud

With these devices you can save images on Google Cloud. Saving on the web is useful for keeping important images safe from tampering attempts. To use the cloud strage you need to get a space on Google Cloud and enter the access details in the device configuration. You can save on Google Cloud all images recorded in the event of an alarm, not continuous recording.

FIND OUT MORE ON GOOGLE CLOUD

QUALITY - PRICE


Get your money worth

These WiFi CCTV kits are part of our RK Series, which also includes Hard-wired IP cameras, PTZ IP cameras, NVR and DVR. All products in this range share the same GUI, software and app. These cameras, however, can only work with these kits and even the NVR of these kits cannot manage our other IP cameras. These limitations do not give you any disadvantage, on the contrary they allow you to buy an optimized hardware, without spending money on useless functions that you would not use.

TECHNICAL DATA



  RKK-KIT5A-1..8
Description Wifi CCTV kit
Product includes WiFi NVR, WiFi cameras with bracket, 12VDC power adapters
Available versions 1 to 8 camera kit
CAMERAS
Camera type WiFi IPC
Video resolution 5MP 2880x1620 15fps
Protocol Private
Video compression H265
WiFi IEEE802.11b/g/n 300 m range no obstacles
Audio Microphone and speaker on cameras
Lens Fixed wide angle 2.8 mm
Sensor 1/3" GC4653 CMOS
Illuminator Night vision up to 30 m. (12x14µ IR, 2x30µ white LED, red/blue strobe light)
Day/Night IR Cut filter removable
LEDs modes Only IR | Only white LEDs | IR and white LEDs on detection
Active deterrence White LED | Blue/Red strobe | Sounder
Intruder detection Human detection (AI) | Vehicle detection (AI)
Camera case ABS waterproof IP65
Camera bracket Swivel bracket
Overall dimensions (mm) Bullet 152x80x79
Power supply 12VDC (Plug-type adapter included)
Power consumption Max. 350 mA (IR on)
Weight (gr) 340
Operating Temperature -20..+60°C RH95% max

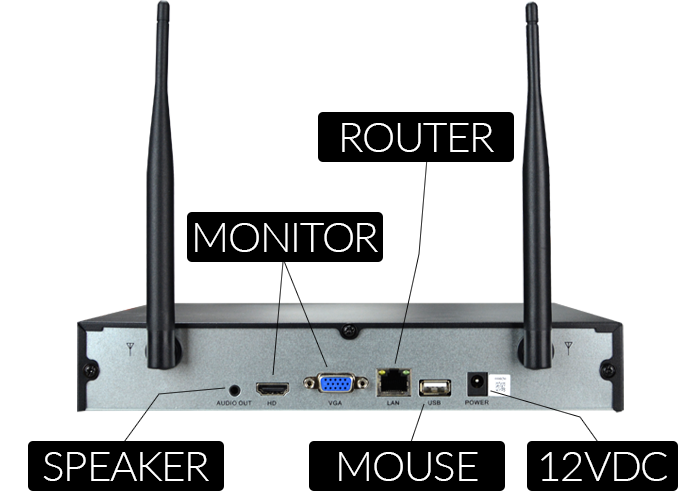

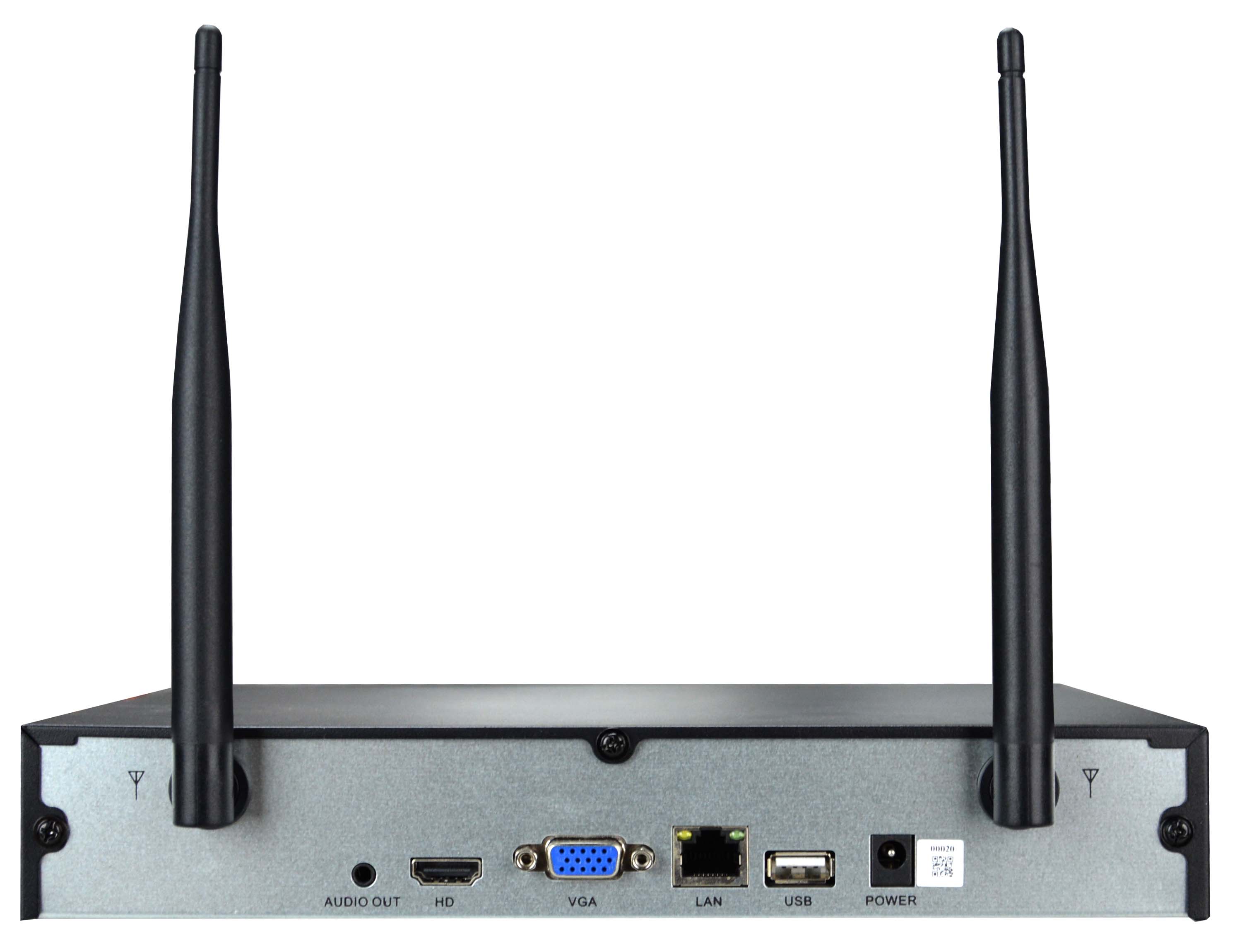

NVR
Processor ARM Cortex A7 Quad-core
Operating System Linux embedded
Video channels 8 WiFi
Channel video resolution 5MP 1080P(2880×1620) 15fps
Audio G711a
Monitor ports HDMI (up to 4K) + VGA (1080P)
Built-in monitor
Audio output 1 minijack 3.5 mm. (+ HDMI)
WiFi IEEE802.11b/g/n
LAN ports 1xRJ45 10M/100M
Protocols TCP/IP, HTTP, UPNP, DNS, NTP, SMTP, DHCP, DDNS, RTP, RTSP, RTCP, P2P
USB 2x2.0
Hard Disk 1 SATA 3.5" max 8TB (not included)
P2P cloud server Free with QR code
Recording modes Continuous, week schedule, detection
Privacy masks
Alarm actions E-mail, upload to cloud Google/Dropbox, local buzzer, Push notifications
APP for mobile/tablet IoVedo.RK free for iOS-Android
Remote control by PC All Browser supported
Power supply 12VDC/2A (adaptor included)
Power consumption (NVR) 250 mA w/o HDD
Overall dimensions and weight 260x215x46 mm. 1120 gr. (without HDD)
PERFORMANCE
Live view 1CH up to 8MP, 4-9CH D1
Recording 5MP 8CHx15f/s
Simultaneous playback 2CH 5MP@15f/s

QUESTIONS & ANSWERS

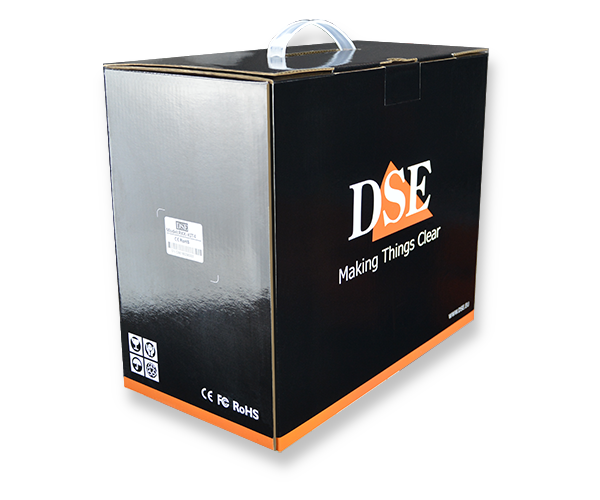

What is in the kit?

When you order your new surveillance wifi kit, you just need to choose the resolution (2, 5 or 8MP) and the number of cameras you like. The systems at 2MP support from 1 to 8 cameras, while the systems at 5/8MP from 1 to 4 cameras. These kits come in a convenient suitcase package, which includes:

NVR
CAMERAS
POWER ADAPTERS
MOUSE
MANUALS
SW IoVedo.RK
APP

What is not included?

Aside from the kit, you also need to order a

HARD DISK

that is the memory on which the NVR records the video files. The NVRs are compatible with any SATA Hard Disks up to 8TB. If you order one of our hard disks with your kit, we will deliver it already installed and ready to use. The size of the Hard Disk effects the video storage capacity of the kit. Hard Disks from 1 to 2 TB are usually enough for most of the systems.

What is the price?

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.
