Plug & Play POE CCTV kit


Do-It-Yourself POE kits with IP security cameras. Complete POE surveillance systems ready to install in a few minutes. Plug&Play installation and no configuration. The best video security solution for home, shops and offices.

HARDWIRED

CCTV POE KIT


3MP POE KIT

FROM 1 TO 4 CAMERAS

IP POE CCTV kit with 4 ports NVR and 1 to 4 cameras
3MP AUDIO | HUMAN DETECTION

Plug and play installation in 5 minutes Waterproof outdoor casing H264 and H265 video compression Infrared illuminator 30 m. Wide angle lens 2.8 mm. Built-in audio microphone 4K HDMI  monitor output 4 input and 1 output Maximum 1 HDD HDD up to 8TB Motion detection Human detection Just one cable per camera Control via WEB with free P2P cloud server Free APP for smartphones and tablets

4MP POE KIT

FROM 1 TO 4 CAMERAS

IP POE CCTV kit with 4 ports NVR and 1 to 4 cameras
4MP AUDIO | HUMAN DETECTION

Plug and play installation in 5 minutes Waterproof outdoor casing H264 and H265 video compression Infrared illuminator 30 m. Wide angle lens 2.8 mm. Built-in audio microphone 4K HDMI  monitor output 4 input and 1 output Maximum 1 HDD HDD up to 8TB Motion detection Human detection Just one cable per camera Control via WEB with free P2P cloud server Free APP for smartphones and tablets

8MP POE KIT

FROM 1 TO 4 CAMERAS

IP POE CCTV kit with 4 ports NVR and 1 to 4 cameras
8MP

Plug and play installation in 5 minutes Waterproof outdoor casing H264 and H265 video compression Infrared illuminator 30 m. Wide angle lens 3.6 mm. 4K HDMI  monitor output 4 input and 1 output Maximum 1 HDD HDD up to 8TB Motion detection Just one cable per camera Control via WEB with free P2P cloud server Free APP for smartphones and tablets

3MP POE KIT

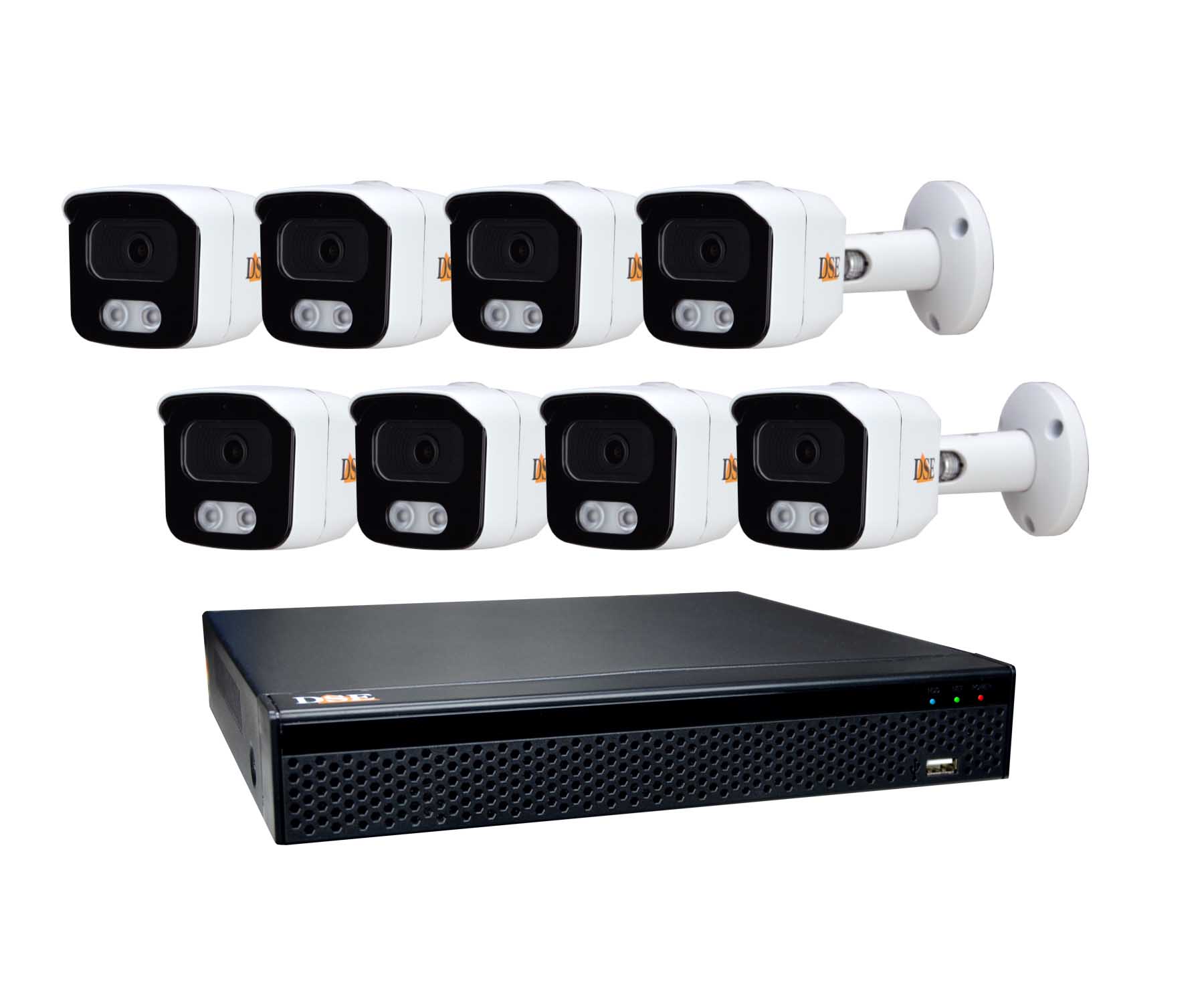

FROM 5 TO 8 CAMERAS

IP POE CCTV kit with 8 ports NVR and 5 to 8 cameras
3MP AUDIO | HUMAN DETECTION

Plug and play installation in 5 minutes Waterproof outdoor casing H264 and H265 video compression Infrared illuminator 30 m. Wide angle lens 2.8 mm. Built-in audio microphone 4K HDMI  monitor output 4 input and 1 output Maximum 1 HDD HDD up to 8TB Motion detection Human detection Just one cable per camera Control via WEB with free P2P cloud server Free APP for smartphones and tablets

4MP POE KIT

FROM 5 TO 8 CAMERAS

IP POE CCTV kit with 8 ports NVR and 5 to 8 cameras
4MP AUDIO | HUMAN DETECTION

Plug and play installation in 5 minutes Waterproof outdoor casing H264 and H265 video compression Infrared illuminator 30 m. Wide angle lens 2.8 mm. Built-in audio microphone 4K HDMI  monitor output 4 input and 1 output Maximum 1 HDD HDD up to 8TB Motion detection Human detection Just one cable per camera Control via WEB with free P2P cloud server Free APP for smartphones and tablets

8MP POE KIT

FROM 5 TO 8 CAMERAS

IP POE CCTV kit with 8 ports NVR and 5 to 8 cameras
8MP

Plug and play installation in 5 minutes Waterproof outdoor casing H264 and H265 video compression Infrared illuminator 30 m. Wide angle lens 3.6 mm. 4K HDMI  monitor output 4 input and 1 output Maximum 1 HDD HDD up to 8TB Motion detection Just one cable per camera Control via WEB with free P2P cloud server Free APP for smartphones and tablets

OPTIONAL ACCESSORIES

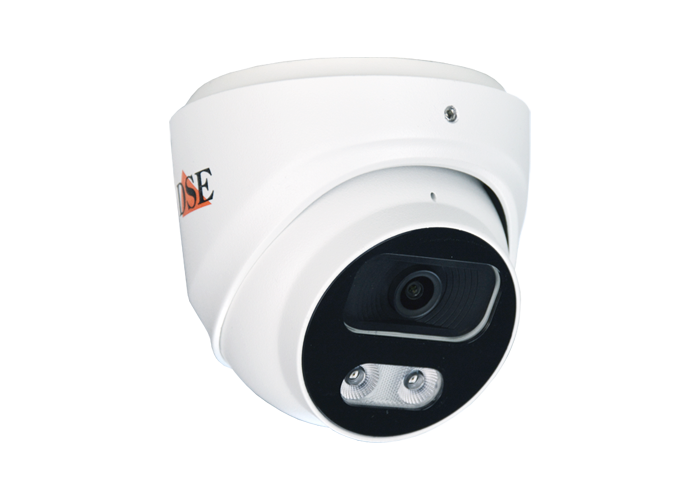

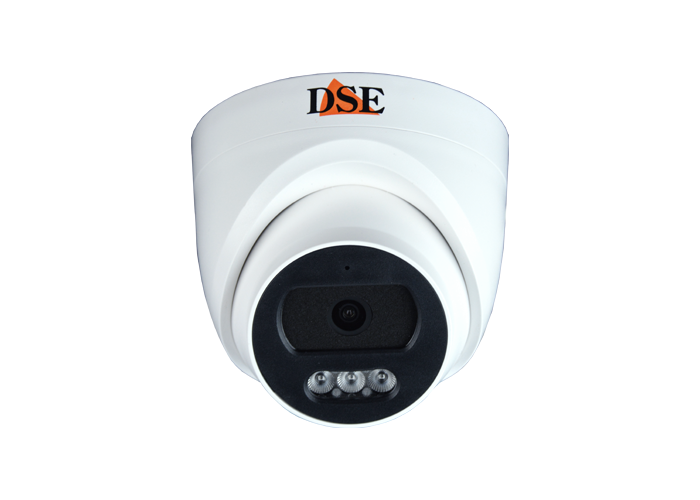

ADDITIONAL CAMERA

3MP

Additional camera for CCTV POE RKK Kit 3MP ONVIF AUDIO

ADDITIONAL CAMERA

4MP

Additional camera for CCTV POE RKK Kit 4MP
ONVIF AUDIO | HUMAN DETECTION

ADDITIONAL CAMERA

8MP

Additional camera for CCTV POE RKK Kit 8MP ONVIF

WATERPROOF
JUNCTION BOX
FOR CONNECTIONS

Outdoor waterproof junction box for cameras

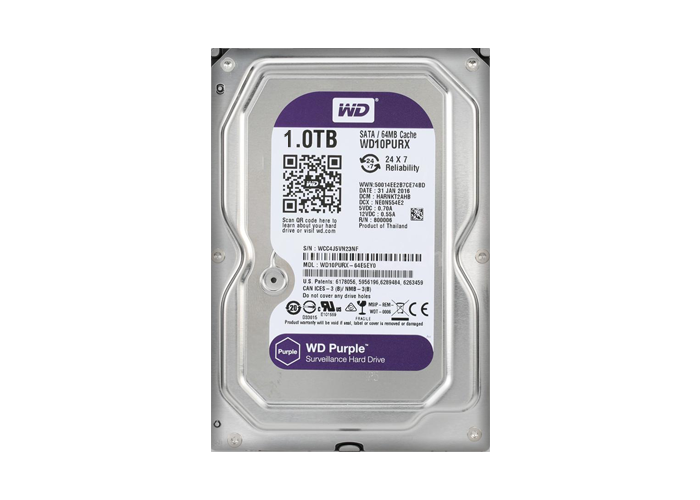

INTERNAL
HARD DISK
FOR NVR

Complete your kit with an Hard Disk for the NVR of the size you prefer

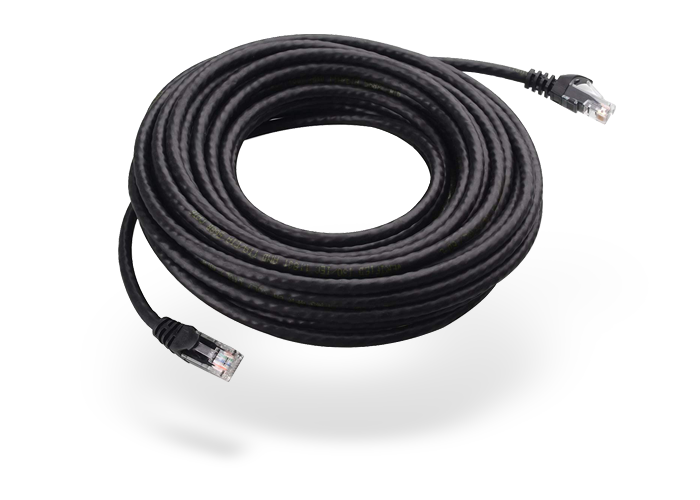

READY-TO-USE
NETWORK CABLES
FOR CAMERAS

Complete your kit buying the patch cords of the right length for your cameras

ADD IP POE
CAMERAS OF DIFFERENT
TYPES TO YOUR KIT

Order any other IP POE cameras in our range. We will add it to your kit.

PLUG & PLAY SECURITY KITS


The real DIY kit to install by yourself

Are you looking for a hardwired video surveillance system and want to install it yourself? Our POE plug and play kit is the best choice. The box contains everything you need: cameras and NVR video recorder. You just need to order separately the Hard Disk and the network cables, of the right size for your system. No technical skills required: follow the simple assembly instructions and in a few minutes you will see your cameras appear on the monitor and on your mobile phone via the Internet.
The cameras of these kits are connected to the video recorder with a network cable. If you prefer wireless kits, take a look at our WIFI Kits.


Your hard-wired plug & play CCTV system

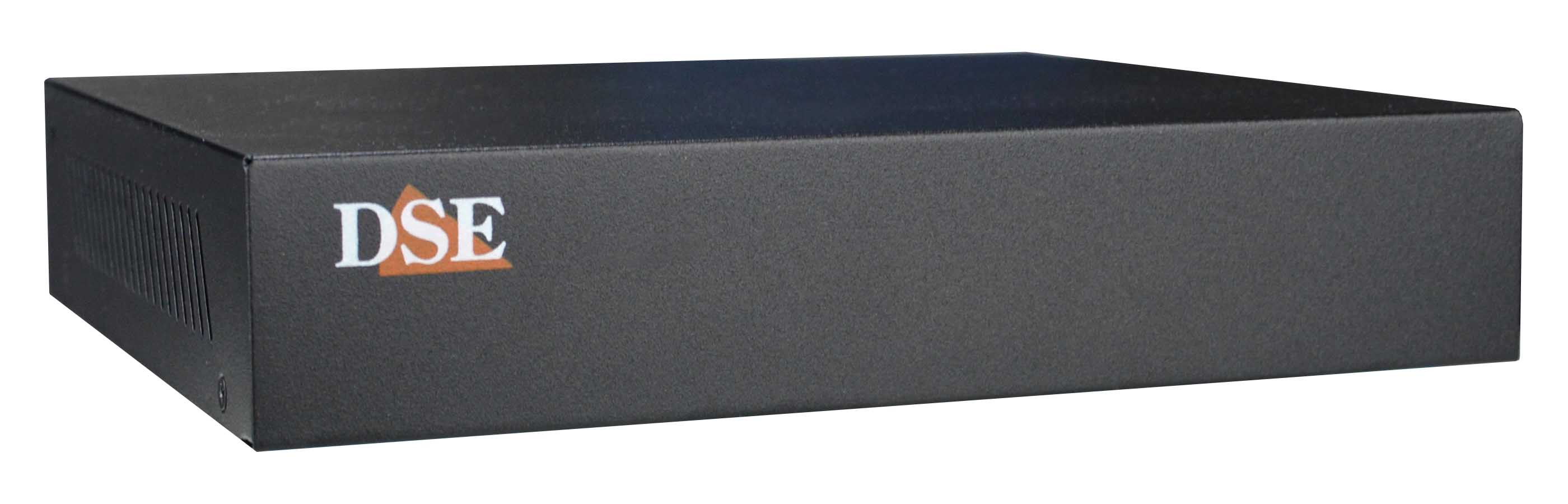

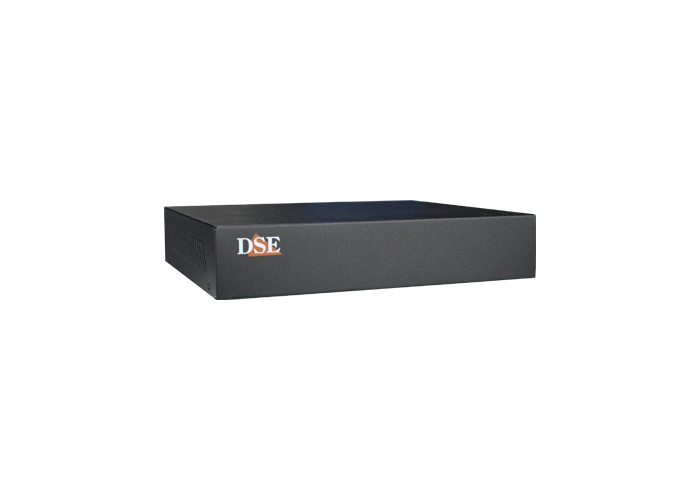

These POE video surveillance kits are made up of an NVR, the video recorder, and IP cameras. Each camera must be connected to the NVR with a network cable. Network cables are not included and you can buy them separately, of the length you prefer (max. 100 m.). On the back of the NVR you will find 8 POE network ports to which you connect the cameras. These POE kits are ideal for protecting flats or shop where cameras and NVR can be hardwired. They provide higher performance than our WiFi wireless kits. Check out here the main connections available on the back of the NVR where you will connect all the elements of the system.


Ready to use in just a few minutes

Our hard-wired CCTV kits are designed to be installed by anyone in minutes. They require no technical knowledge and are ready to work as soon as installed, with no settings to adjust. You only need to connect the cameras to the NVR with a network cable. As a monitor you can use a TV set (HDMI) or a computer monitor (VGA). All instructions and menus are provided. See how easy it is, in 4 quick steps.


Scalable and customizable

With our RKK POE kits you are free to set up and manage your video surveillance as you like. These are in fact true ONVIF professional IP systems, compatible with all kind of network cameras. If you want to add cameras to your system you can buy additional kit cameras at any time. You can also order our other POE cameras, such as dome or PTZ cameras, and use them instead of the standard ones. If you want, you can even add ONVIF IP cameras of any brand to your kit. All kits accept up to 8 direct cameras, plus 8 additional camera connected to your local network (not plug&play). All the kits share the same model of NVR so you are free to order an entry level kit and a few higher resolution additional cameras. Check out the diagram of a small POE kit with 2 cameras below.

VIDEO


High Resolution 3 to 8 megapixel

Our RKK wired kits are really simple to use, but as powerful as our best professional IP systems. You can choose between kits with a video resolution of 3MP, 4MP and 8MP. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixel), and 3MP are the current standard of digital, high resolution, broadcast TV and satisfy the needs of the majority of security systems. If you can spend a higher budget, consider our 4MP kits that provide more details while zooming in. This range also includes 8MP (4K) kits that you can consider for critical areas that requires the highest definition of tiny details. When designing your kity you are free to mix different resolution cameras based on the importance of the area to monitor. Compare the most common video resolution watching our demo videos.


H265, H265+, H264 video compression

The POE kits in this range support the latest H265 and H264 video compression formats, including the latest advanced versions, to get the highest performance out of any camera. H265 is the most efficient codec available today and allows these Kits to store almost twice video storage than H264 NVRs. All IP cameras of these kits support H265 to record high quality video stream with the minimum bandwidth requirement. Here, on the side, you can download two similar clips in H264 and H265 format: please note the difference in size and the similar video quality.

VIDEO H264 VIDEO H265

DSE is a member of ONVIF

You can buy your IP products from us with confidence. DSE is one of the few companies in Italy that is a member of the international association ONVIF, which includes all the main IP security manufacturers and set the standard of communication protocol in this field. Unlike other kits, our RKK kits, support the ONVIF standard, just like our best hard-wired IP systems. If your kit has free channels you are free to add manually any of our IP cameras, of any series, or even other brands of Onvif IP cameras.

HARDWARE

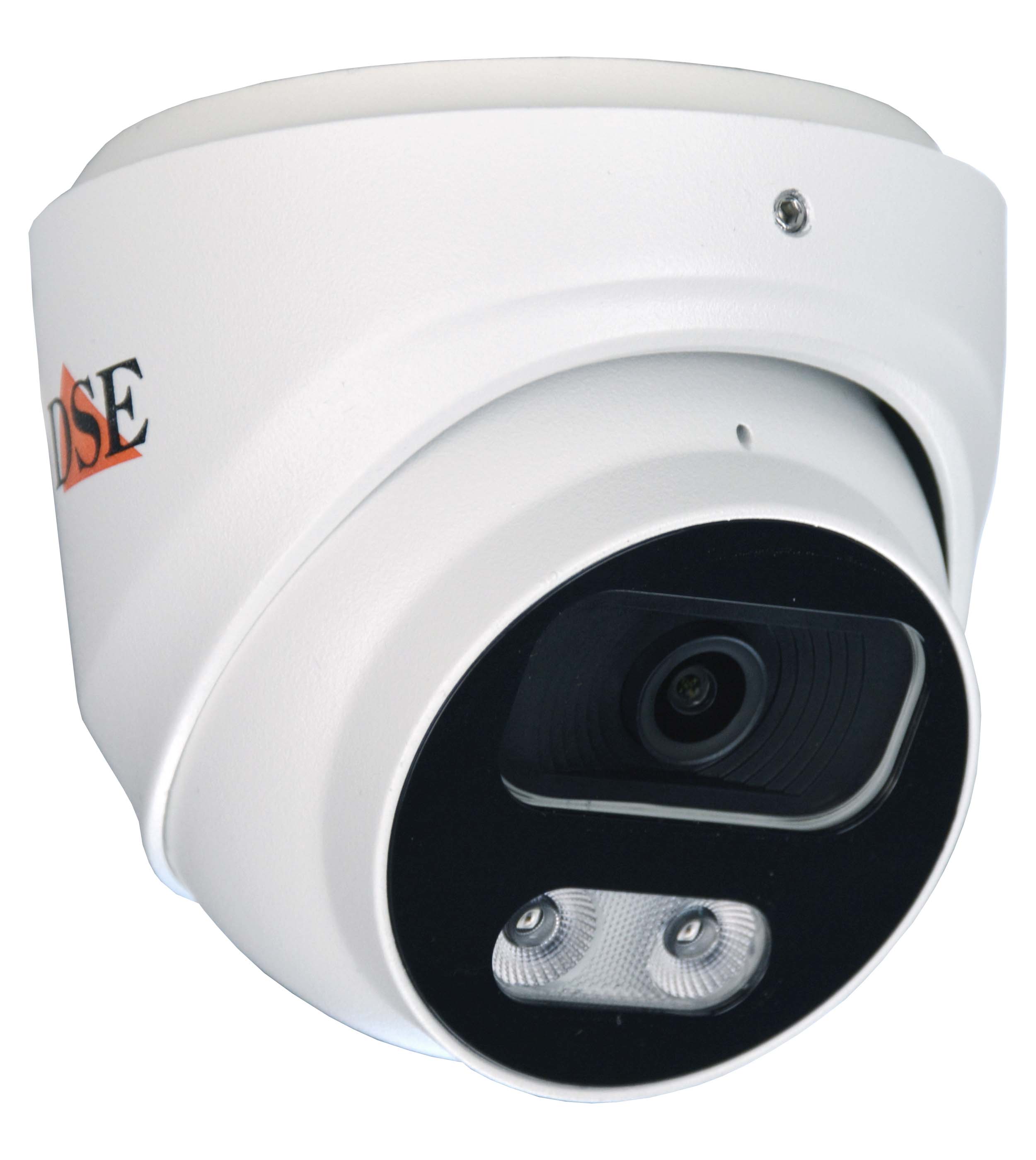

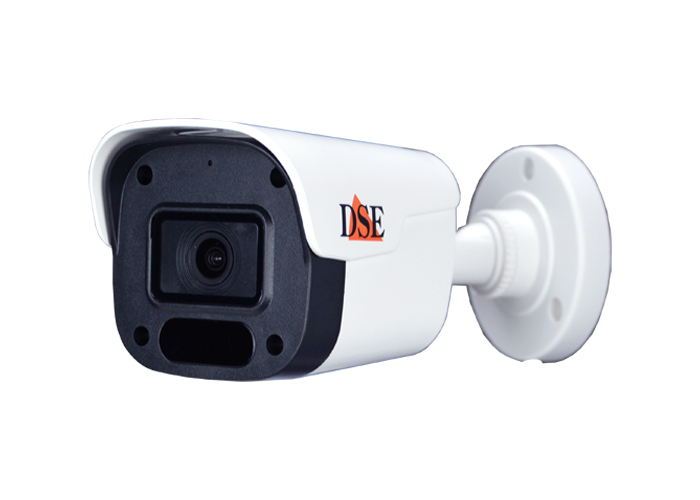

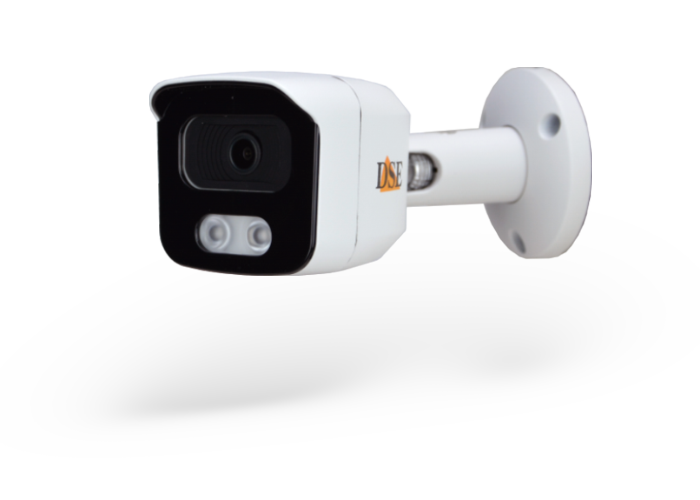

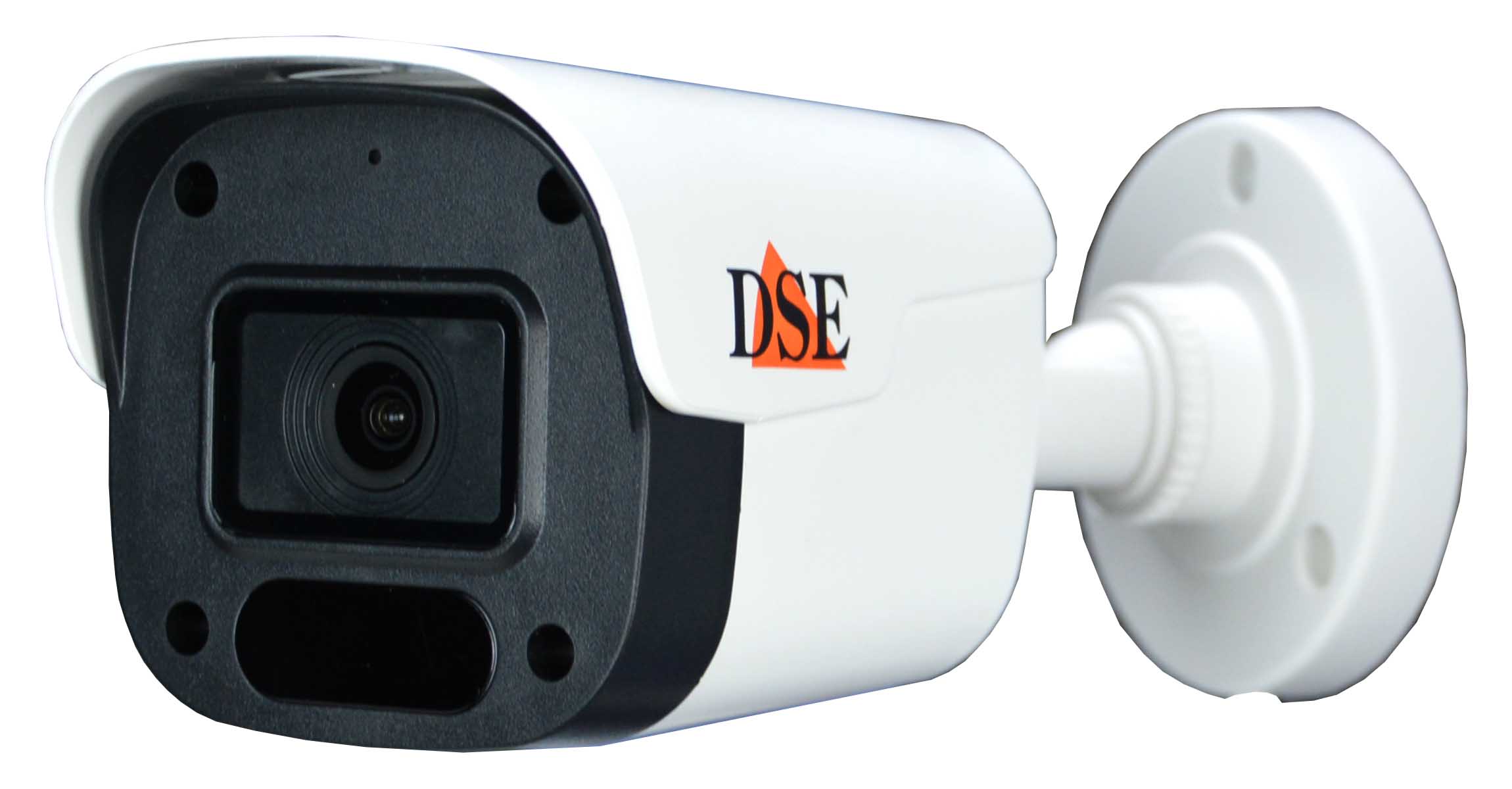

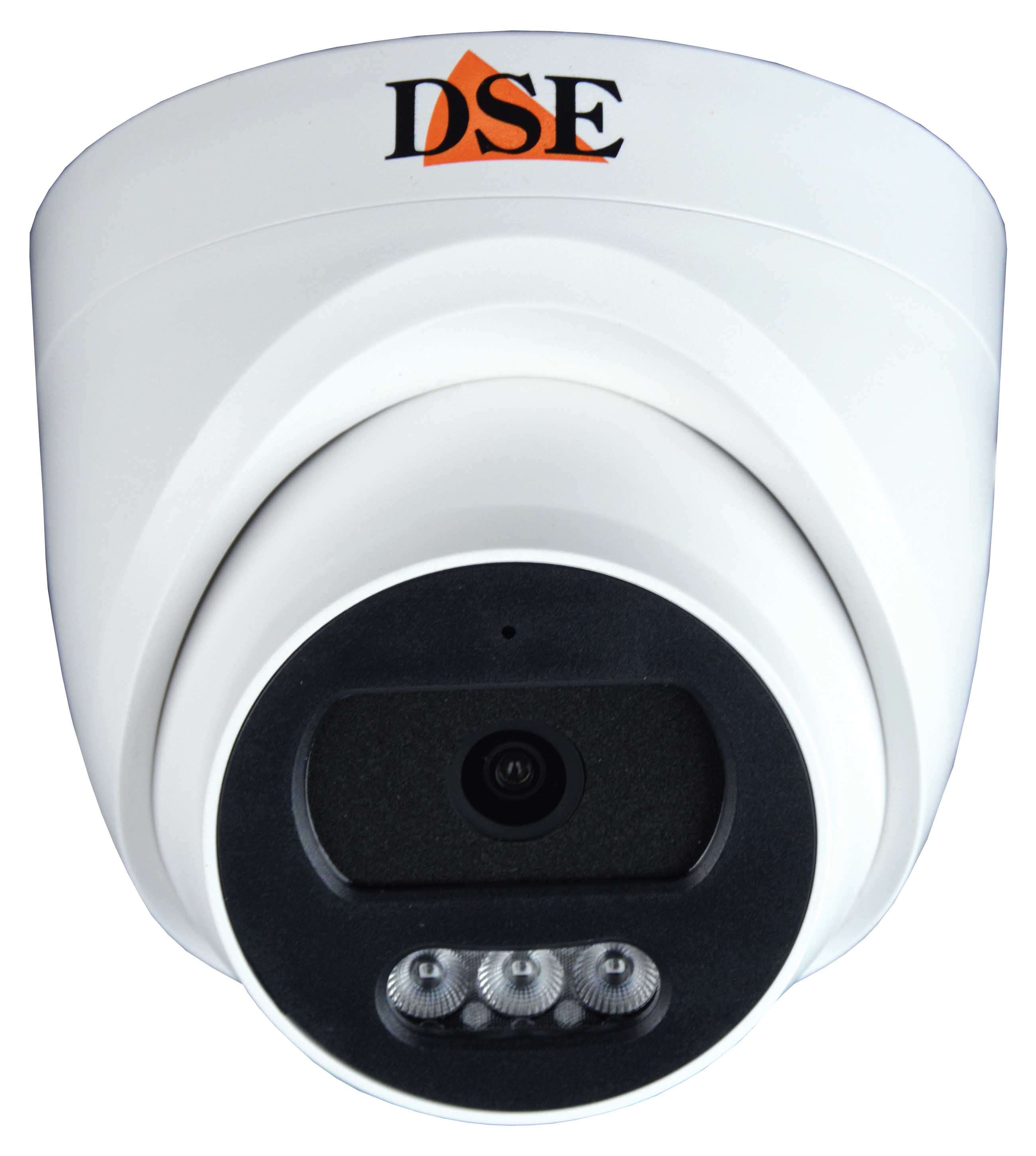

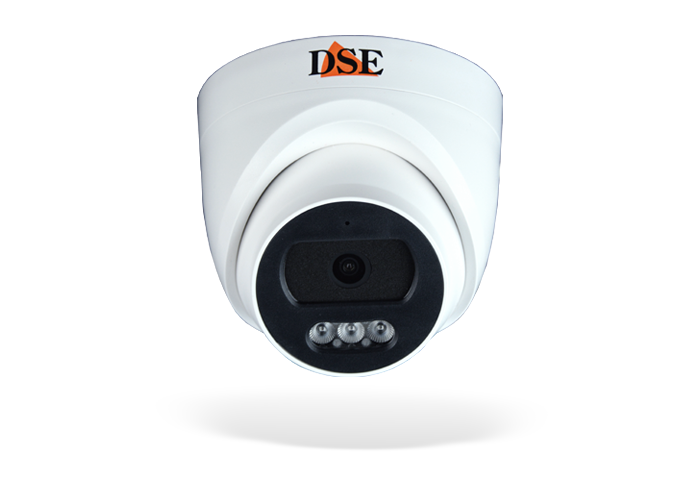

IP cameras for indoors and outdoors

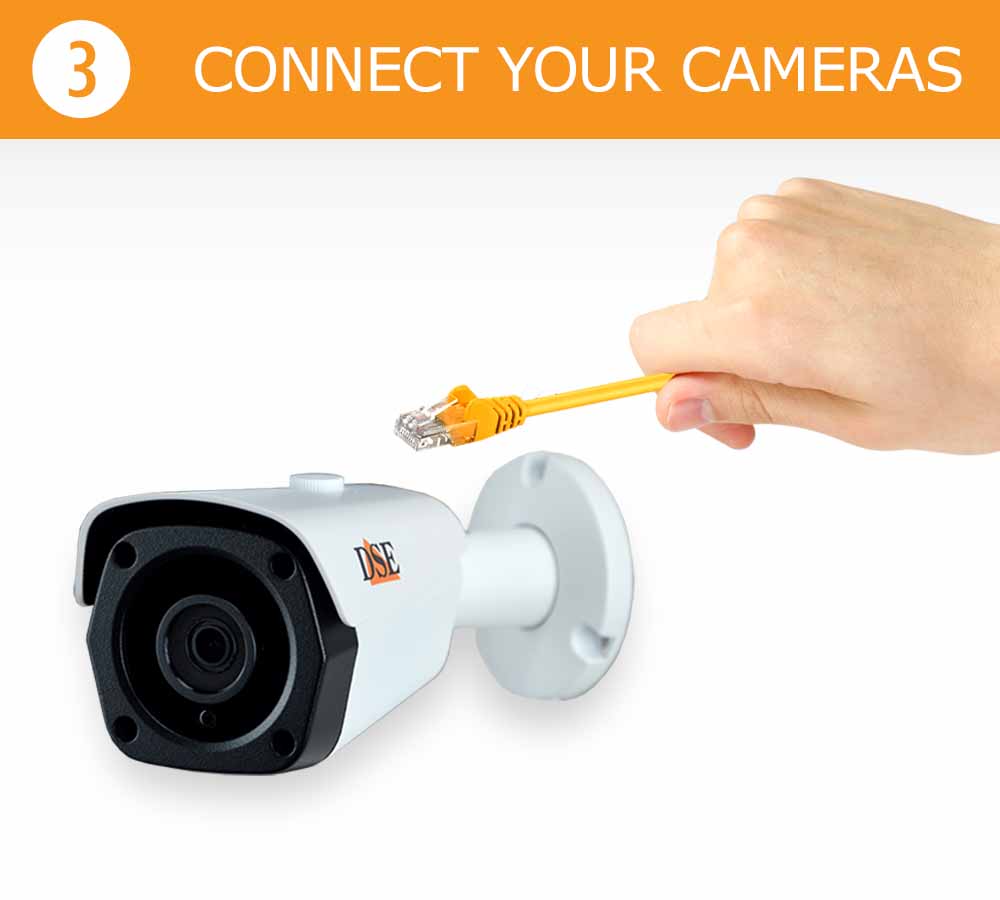

The cameras of these kits can be installed in few seconds. Just connect the cameras to the NVR: that's it. You can install the cameras outdoors, even under the rain, because they are completely waterproof (IP67), but you can also use them indoors thanks to their stylish design and small size. These cameras come with wide-angle lens and a built-in infrared illuminator which makes it possible to monitor in the dark up to 30 m. They are easy to install, thanks to the swivel bracket and can be mounted to both ceiling or walls. The cameras in these kits all have black front glass , which reduces the attraction of night bugs, and QuickLock antitampering, single screw, bracket.

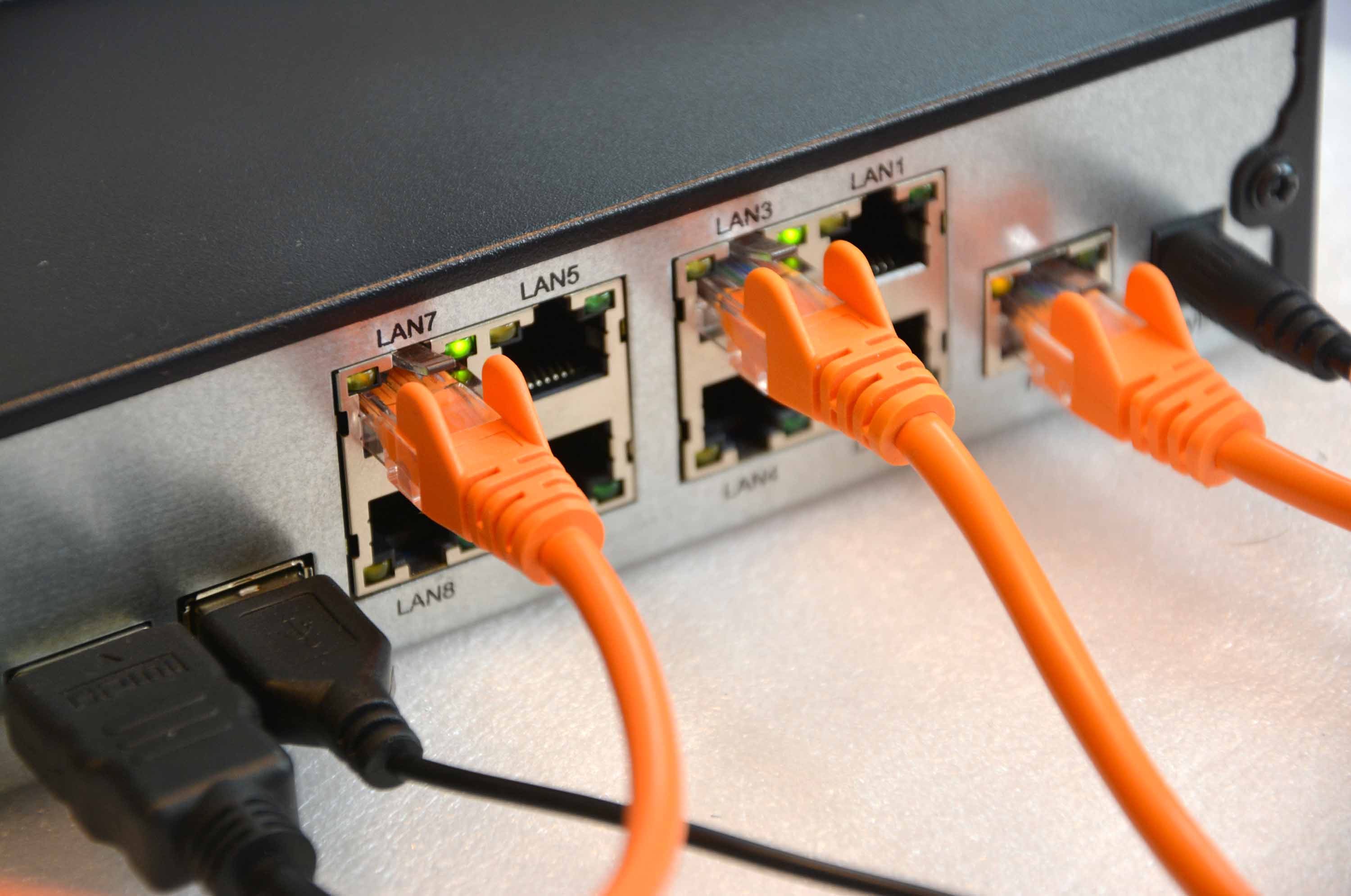

100/250 m. POE power supply

The cameras in these kits support the POE power that comes from the NVR via the network cable (IEEE 802.3af Class 3). To make them work you just have to connect them to an NVR port, with a network cable that you can purchase separately of the length you prefer. This type of power supply allows you to use cables with a length of up to 100 meters under normal conditions and even 250 m if you enable the Extended POE function in the NVR. If for some reason you cannot connect the camera to the NVR and prefer to connect it to your external network, the cameras also have a local power plug to which you can connect a 12VDC power adapter. In the picture you can see the connection cable coming out of the camera, with the RJ45 network connector and the 12V auxiliary power connector, which normally remains unused.


Audio microphone

Many kits in this range include cameras with built-in microphone for audio. This is a highly requested feature, especially for indoor surveillance, where audio recording can be of great importance. The location of the microphone is designed to ensure optimal acoustic performance without compromising the camera IP rating (waterproof). You can hear the audio in the recorded video and also during live viewing, both on site, from the NVR, and remotely via our app.


Waterproof junction box

This junction box is designed to make the installation of the camera easier. You can buy it as an optional accessory. This box is used to hold the camera's connectors avoiding any external wiring. The box is IP65 watertight and is therefore ideal for outdoor installations as it protects the cables from humidity. The lid of the junction box comes with 4 screw-holes for the camera. This junction box is compatible with all cameras of this kit.

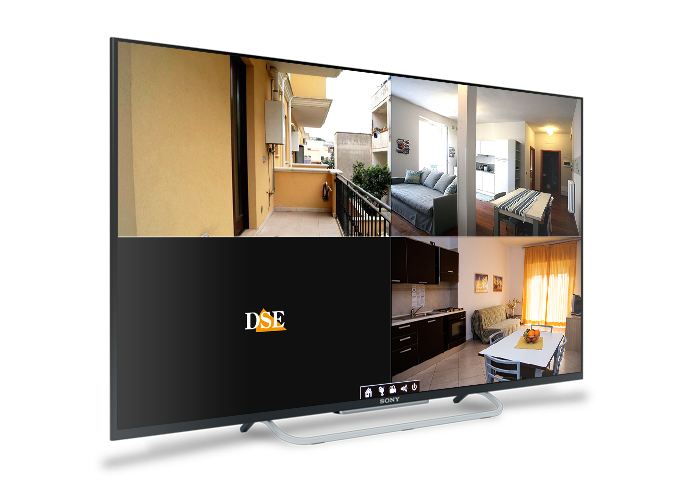

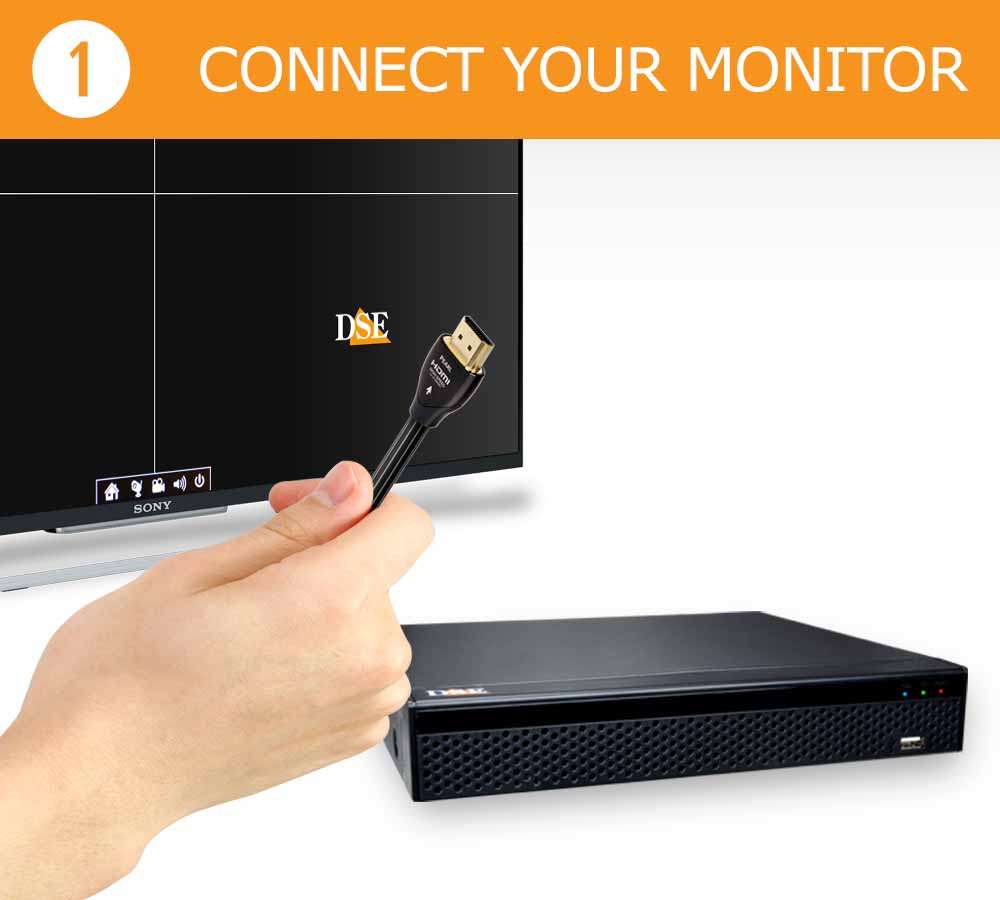

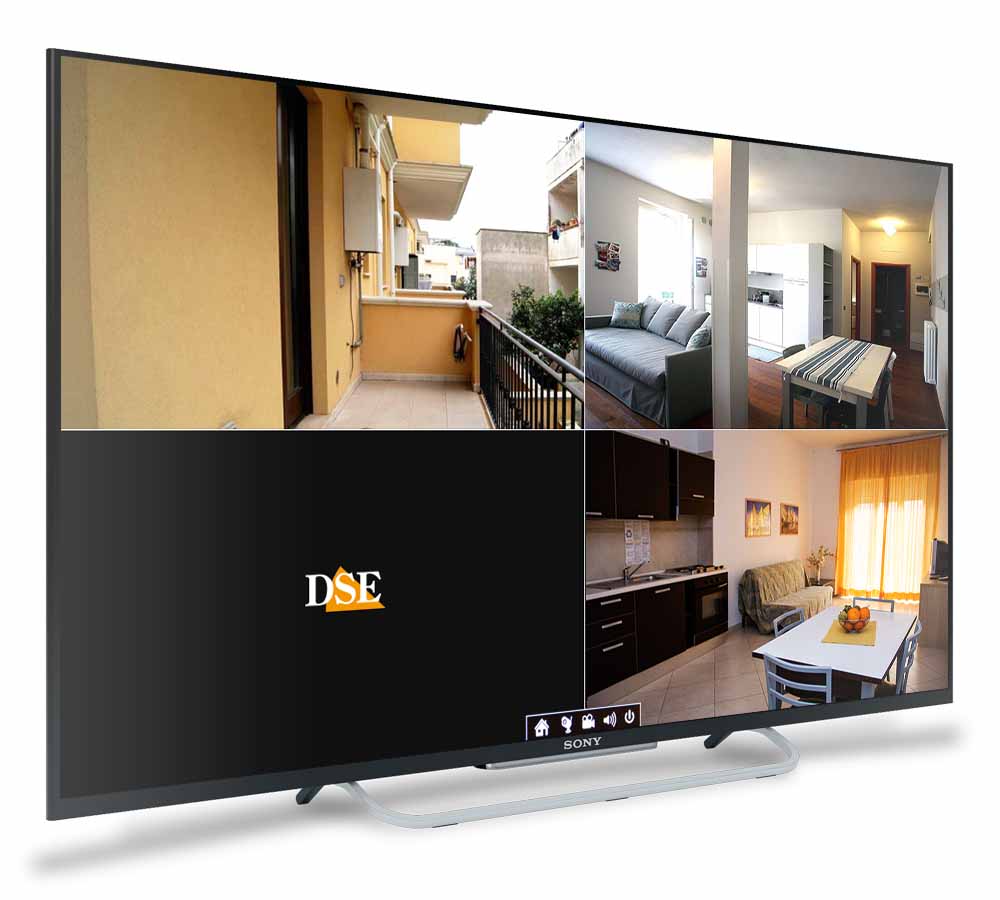

Monitor and TV 4K HDMI and VGA

No special monitors are used in video surveillance anymore. The NVRs in these kits have an HDMI port for the connection of a TV sets or computer monitor up to 4K resolution.
In addition to the HDMI port there is also a VGA port for the connection of a PC monitor up to FullHD 1080P.
These NVRs do not include low resolution BNC analog video output. If you need it, you can use a VGA / BNC converter.
Remember that the HDMI video signal is rather sensitive. If you need to split or transport it use our HDMI splitter and transmitters.

FEATURES


Recording modes: continuous, schedule, motion

Our kits record videos on the base of the setting you choose. You can record all the time, or just for some hours during the week, or even just in case of intrusion (motion detection). You can easily search your video footage and export them on USB pen drives or computers to provide them to police or other authorities.

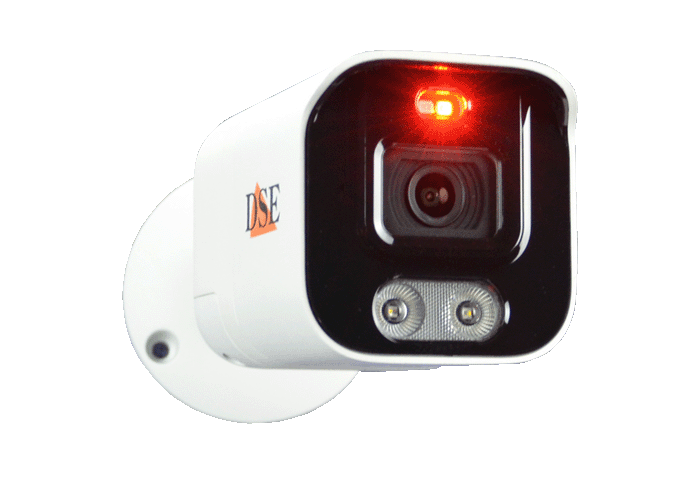

Human Detection

A few kits in this range come with Artificial Intelligence and HUMAN DETECTION. Human detection is much better than normal motion detection because it does not simply trigger on the base of pixel modification, but only when the intruder is a human being. Thanks to human detection, these cameras do not detect animals, or objects moved by the wind, but only real people providing secure and reliable detections. The human detection algorithm is not only detecting the face of the intruders, but also the shape of the body and human moves. This allows these cameras to detect intruders wearing masks. In the event of human detection you can send email, FTP and push notifications. You can even switch a local alarm output in the NVR.


Recording on Hard Disk up to 8TB

These poe kits store video files on one internal hard disk. They can record continuously or only in case of intrusion. The NVRs come without any Hard Disk to let you choose the best disk size according to the required storage capacity. You can use any brand of SATA hard disk up to 8TB capacity. Even ordinary computer hard disks work well, but for longer durability special Hard Disks for video surveillance, such as those in our catalog, are recommended. If you order one of our hard disk, together with the POE kit, you will receive it installed and formatted, ready to use.

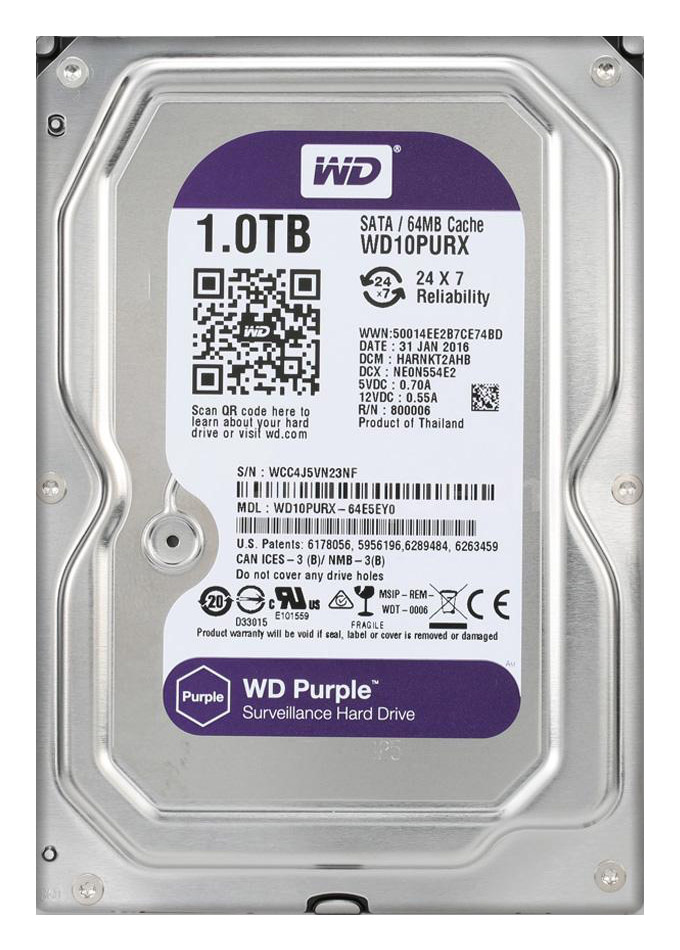

Hard Disk WD Purple for NVR DVR

In compliance with Privacy Laws

The RKK kits record on their own internal hard disk until the memory is full, after that the new files overwrite the old ones. To suit any local privacy regulation it is possible to limit the video storage to a specific number of days. It is also possible to set privacy masks to exclude sensitive areas from surveillance for privacy matters.


Video backup with USB

Thanks to the search functions, it is easy to find the important events in the video archive, scrolling through the timeline. You can easily export video footages to be delivered to law enforcement. This backup operation can be done online with a computer, or by plugging-in a USB pendrive into the USB port of the NVR. Video files are exported in a standard AVI format and can be played with common video players such as VLC.

MOUSE CONTROL


All functions one click away

The NVRs of these kits are packed with features but yet easy to use and configure with the on-screen menu. These NVRs do not have buttons on the front panel, because all operations can be done with the supplied mouse. You can WATCH the live video of all the cameras on the screen and CONTROL external PTZ cameras. You can CHOOSE among several display modes and ZOOM IN by dragging the mouse. The OSD menu allows you to CONFIGURE all NVR options and PLAY BACK the recorded videos, searching by date and time. You can also EXPORT AND DOWNLOAD video files on USB pen drives in AVI format.

Videosurveillance software

PC CONTROL


Full control via browser

Every computer on the network is a perfect monitor for your RK Series videorecorder. No software needs to be installed. Just use your favourite browser and enter the login password. All browers are supported, thanks to the new no-plugin access function. You can WATCH live video, RECORD , take snapshots and ZOOM-IN by dragging the mouse. A user friendly menu, available in many languages, allows you to SET all system options. You can also PLAYBACK the videos which have been recorded in the hard drive, searching date and time over the timeline. All our RK devices also support the RTSP protocol, which allows you to watch live video with popular video players such as VLC.

Control IP cameras with Chrome, Firefox, Edge, Safari

Control via PC

IOVEDO.RK - MONITORING SOFTWARE
Our free IoVedo.RK software allows you to monitor via computer all our RK Series cameras, NVRs, DVRs and kits. You can use our software in your local network, by calling the IP of the device, or via the Internet, by entering the serial number supported by our CLOUD P2P SERVER.
You can WATCH LIVE up to 64 cameras, setting CUSTOM LAYOUTS to receive videos from many remote devices. You can PLAYBACK the footage recorded in the device memory and DOWNLOAD the video files. You can also control your PTZ cameras.
Like all our systems, the IoVedo.RK software supports the ONVIF protocol, so you can also use it to monitor ANY OTHER ONVIF CAMERAS you already have in your system.

WINDOWS MAC

APP CONTROL


Get connected with your smartphone

With our free DSE APP for Android and iOS, you can control your cameras with a mobile phone or tablet. You can use the app over your own wifi network, by typing the IP address of the NVR, but also via the Internet, typing in your CLOUD ID. You can WATCH up to 16 cameras live on the screen. You can RECORD , take snapshots and ZOOM IN with the classic two-finger gesture. You can also PLAY BACK online videos recorded on the NVR's memory, searching by date and time. If you enable motion detection, you can RECEIVE push notifications on your mobile phone if an intrusion occurs, with a snapshot of the event.

IoVedo.RK Free app for iOS and Android Live view in real time Playback of recordings Audio in Motorized camera control P2P cloud server for immediate web access Alarm notifications APP IoVedo.EZ IoVedo.EZ

FREE SERVICES


P2P Cloud server for easy access by WEB

Thanks to our free P2P cloud server, Online 24/7, you can immediately connect to your NVR through the Internet without worrying about static IP, DDNS, port forwarding the router and other difficult configurations. Every NVR come with an ID code, already registered on our reliable P2P server. You just have to create an account on the server and upload the ID of your NVR. You can do it straight with your mobile phone, by simply scanning the QR code you find on the product. Our P2P connection works 100% with any ISP, even radio, satellite o 4G.


E-mail, FTP, Push notifications

These kits allow you to send out notifications in case of an alarm. You can send messages via EMAIL with the picture of the event as well as push image NOTIFICATIONS to mobile phones with our IoVedo.RK app. You can also upload video files to FTP web servers. When you receive an alarm notification you should connect right away to your video surveillance system to check what is going on.


Save images on Google Cloud

With these devices you can save images on Google Cloud. Saving on the web is useful for keeping important images safe from tampering attempts. To use the cloud strage you need to get a space on Google Cloud and enter the access details in the device configuration. You can save on Google Cloud all images recorded in the event of an alarm, not continuous recording.

FIND OUT MORE ON GOOGLE CLOUD

QUALITY - PRICE


Get your money worth

These POE Kits are part of our RK Series, which also includes IP cameras, WiFi cameras, NVR and DVR. All the products in this range use the same graphics, software and apps. Our RK Series is developed for the residential market and is designed to guarantee the best value for money. Nevertheless these are professional systems where we use the best CMOS and Chipset on the market to ensure high quality video.

TIPS

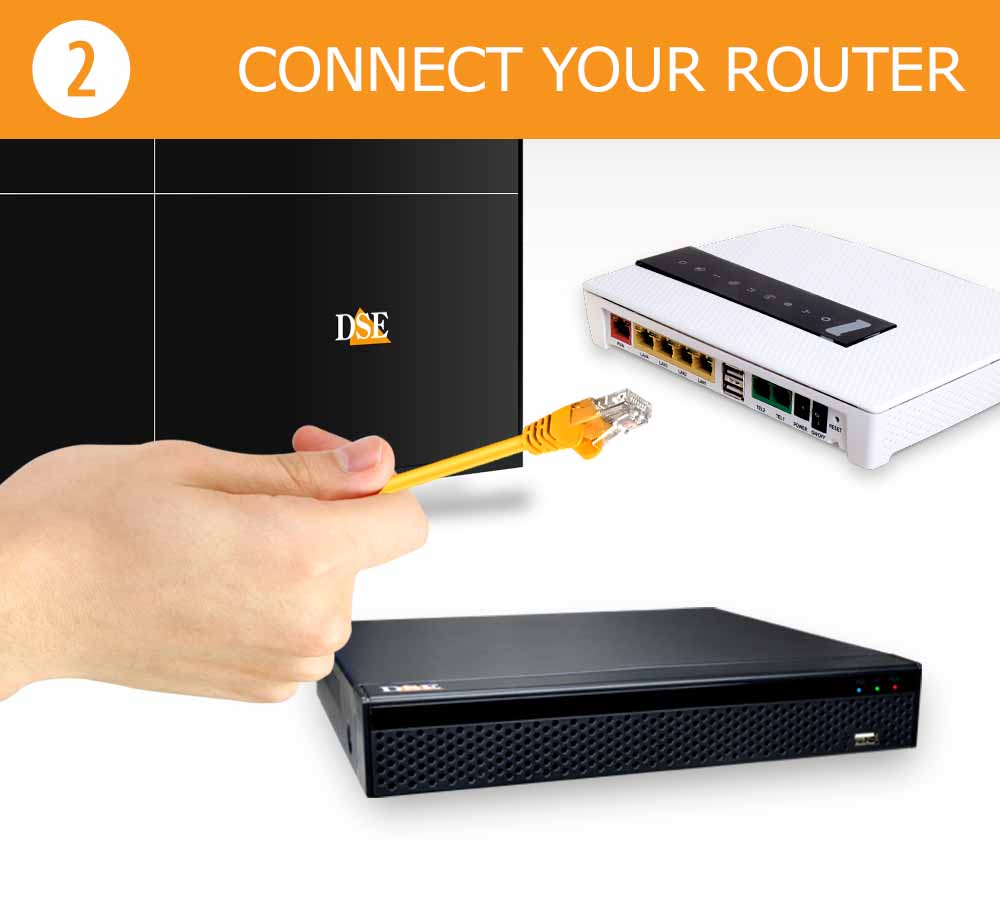

Connect the kit to the Internet, even on 4G

Although these kits can work well even locally, you will have great benefits from connecting it to the Internet. It's an easy operation with our app and it lets you control your cameras over the Internet, wherever you are. If you have an ADSL or Fiber Internet connection, you must connect your video surveillance network to a router port. If you do not have a wired Internet access, you can also use a 4G router with a data SIM to create a mobile Internet connection. Our P2P server allows you to connect via the web without any configuration with any type of provider, even via 4G, radio or satellite.

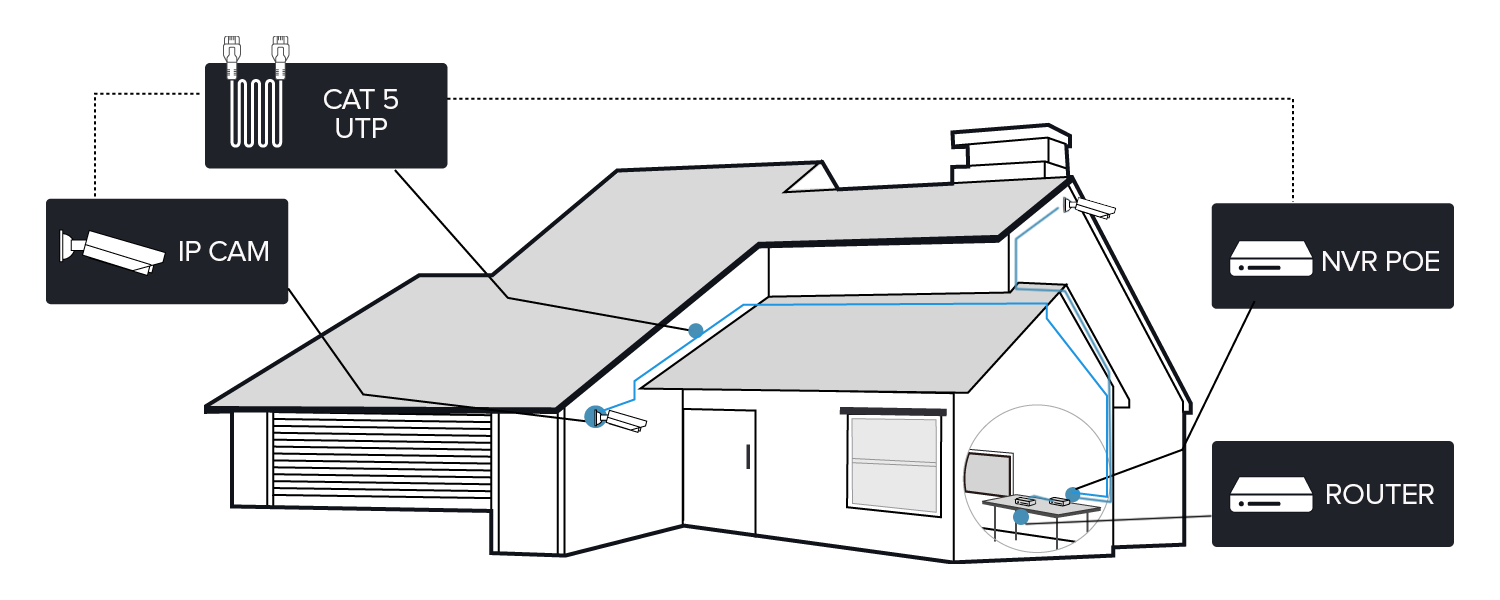

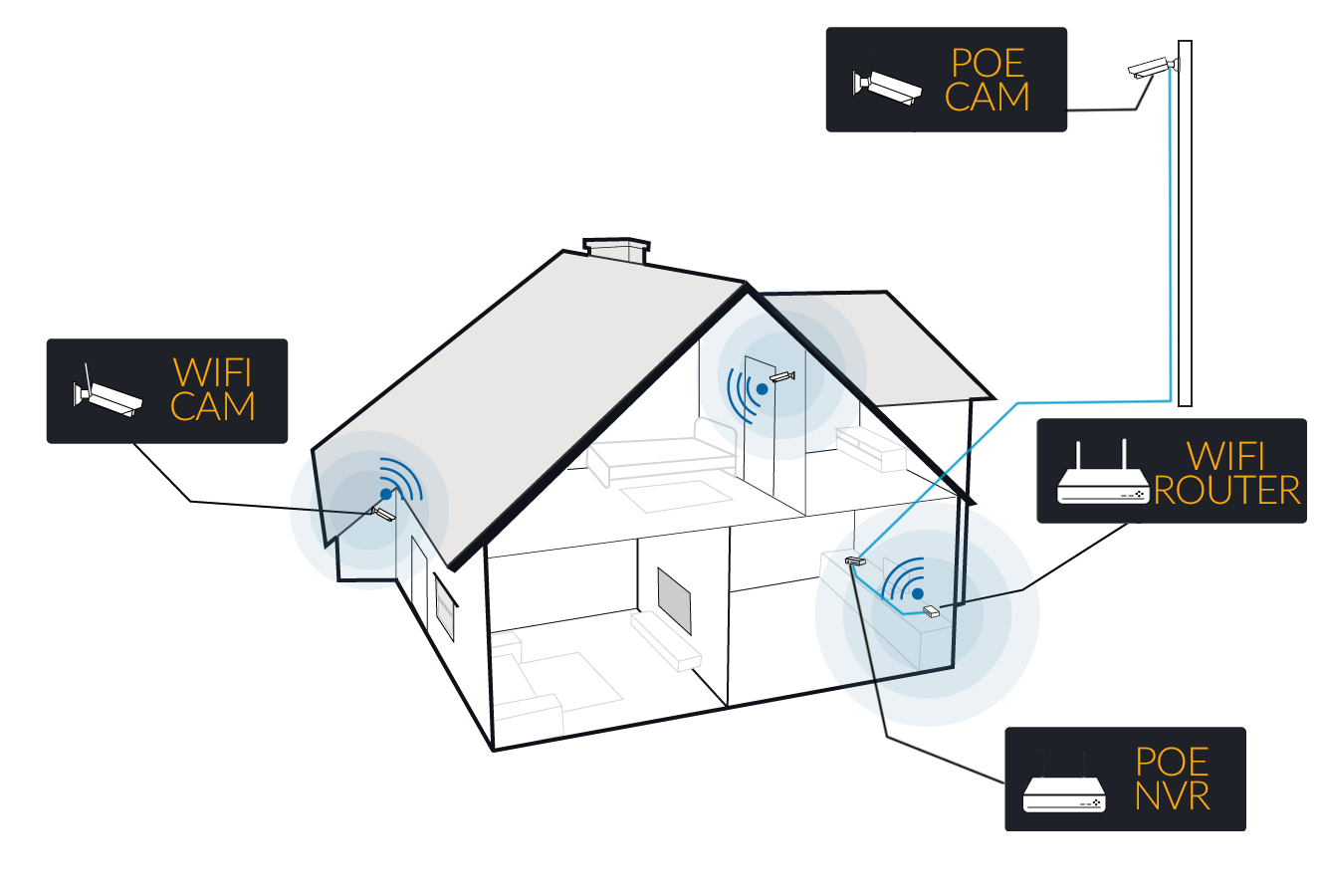

Connect the cameras to your own network

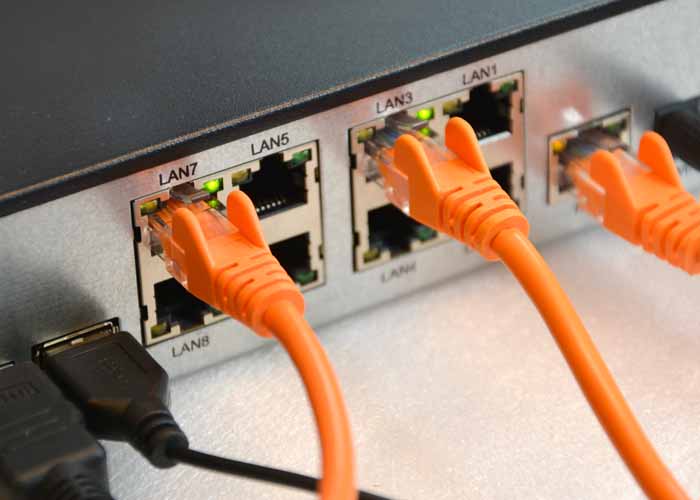

The cameras of these kits connect via cable to the POE ports of the NVR. If you have difficulty reaching the position you want via cable, you can connect the camera to your home network and add it to the kit as an external camera. You can do the same by purchasing separate wifi cameras to connect to your wireless home network. All the NVRs in this range can handle up to 16 cameras, between internal and external, with resolution up to 8MP (4K), also with audio and PTZ. Only our RKK kits offer a similar possibility of customization that allows you to design your very personal CCTV kit without limits. In this example, look at an NVR that manages a camera from the POE kit, connected by cable, and two wifi cameras connected to the local wifi network.


Run the wires like a pro

To install these kits you need to connect the cameras to the NVR with a network cable. Our kits are supplied without network cables so you can buy the cable lengths that are most suitable for your application. Among our cables you will find everything you need. The best choice for a plug & play installation is to purchase our convenient CAT5E patch cords, available from 5 to 20 meters. For longer distances, or to run the cables in small pipes, you can buy our CAT5E cable coils, which you can cut to your needs, and the RJ45 network connectors, to be crimped to the cable with the special clamp.


Add your old IP cameras

If you already have some Onvif IP cameras installed at home you don't need to replace them. You can add it to your new kit by connecting it to a POE port or as a camera on an external network. It is an easy operation to perform in the video recorder menu, where you manage the video channels of the kit. Once the camera has been added, you can control it locally and remotely, along with the other cameras of the kit, without any limitation. With our POE kits you are free to use any IP onvif camera and you are not tied to a single brand, like in almost all similar products on the market.

TECHNICAL DATA



  RKK-9P4-K3-1..4
RKK-9P8-K3-5..8
RKK-9P4-K4-1..4
RKK-9P8-K4-5..8
RKK-9P4-K8-1..4
RKK-9P8-K8-5..8
Description POE CCTV Kit POE CCTV Kit POE CCTV Kit
Set Up 1..4 CAMERA KIT - NVR 9 channels with 4 POE ports, from 1 to 4 IP cameras with bracket
5..8 CAMERA KIT - NVR 16 channels with 8 POE ports, from 5 to 8 IP cameras with bracket
1..4 CAMERA KIT - NVR 9 channels with 4 POE ports, from 1 to 4 IP cameras with bracket
5..8 CAMERA KIT - NVR 16 channels with 8 POE ports, from 5 to 8 IP cameras with bracket
1..4 CAMERA KIT - NVR 9 channels with 4 POE ports, from 1 to 4 IP cameras with bracket
5..8 CAMERA KIT - NVR 16 channels with 8 POE ports, from 5 to 8 IP cameras with bracket
Available versions Kit from 1 to 8 cameras Kit from 1 to 8 cameras Kit from 1 to 8 cameras
CAMERA DATA
Camera type IP POE 3MP IP POE 4MP IP POE 8MP
Video resolution 3 MP 4 MP 8 MP
Frame rate 2304x1296@25f/s ... 1920x1080@25f/sec 2688x1512 @ 20 f/s ... 2560x1440 1920x1080 1280x720 @ 25 f/s 3840x2160 2592x1536 2560x1440 1920x1080 1280x720 @ 20 f/s
ONVIF protocol Onvif Profile S Certified Onvif Profile S Certified Onvif Profile S Certified
Video compression H265, H265+, H264 H265, H265+, H264 H265, H265+, H264
WiFi
Audio Built-in microphone Built-in microphone
Lens Wide angle fixed 2.8 mm Wide angle fixed 2.8 mm Wide angle fixed 3.6 mm
Sensor 1/2.9" CMOS GC2063 1/3" CMOS GC4653 1/2.7" CMOS Smartsens SC8238
Chipset Fullhan 8652 Fullhan 8656 Sigmastar SSC338Q
Infrared illuminator Night range 30 m. (2x42µ LED) Night range 30 m. (2x42µ LED) Night range 30 m. (2x42µ LED)
Day/Night ICR ICR ICR
Intruder detections Motion detection | Human detection Motion detection | Human detection Motion detection
Camera casing IP66 waterproof aluminum IP66 waterproof aluminum IP66 waterproof aluminum
Camera bracket Adjustable with internal antitampering cable passage Adjustable with internal antitampering cable passage Adjustable with internal antitampering cable passage
Camera dimensions (mm) 190 x 65 x 65 mm. 190 x 65 x 65 mm. 190 x 65 x 65 mm.
Camera power supply POE IEEE 802.3af o 12VDC POE IEEE 802.3af o 12VDC POE IEEE 802.3af o 12VDC
Camera consumption Max 1.2W (6W IR on) Max 1.2W (6W IR on) Max 1.2W (6W IR on)
Camera weight (gr) 500 500 500
Operationg temperature -20..+60°C RH95% max -20..+60°C RH95% max -20..+60°C RH95% max
NVR DATA
Processor ARM Cortex A7 Quad-core ARM Cortex A7 Quad-core ARM Cortex A7 Quad-core
Operating system Linux embedded Linux embedded Linux embedded
Video channels 1..4 CAMERA KIT - 9
5..8 CAMERA KIT - 16
1..4 CAMERA KIT - 9
5..8 CAMERA KIT - 16
1..4 CAMERA KIT - 9
5..8 CAMERA KIT - 16
Video resolutions Max. 8MP (4K) Max. 8MP (4K) Max. 8MP (4K)
Audio G711u, G711a, ADPCM G711u, G711a, ADPCM G711u, G711a, ADPCM
Monitor output HDMI (4K) and VGA (1080P) HDMI (4K) and VGA (1080P) HDMI (4K) and VGA (1080P)
Audio output 1 RCA (+ HDMI) 1 RCA (+ HDMI) 1 RCA (+ HDMI)
WiFi
Network port 1xRJ45 WAN + 4 or 8xRJ45 POE (for cameras) 10M/100M 1xRJ45 WAN + 4 or 8xRJ45 POE (for cameras) 10M/100M 1xRJ45 WAN + 4 or 8xRJ45 POE (for cameras) 10M/100M
POE 4 or 8 ports POE IEEE 802.3af and POE+ IEEE 802.3at. Total max. power 100W 4 or 8 ports POE IEEE 802.3af and POE+ IEEE 802.3at. Total max. power 100W 4 or 8 ports POE IEEE 802.3af and POE+ IEEE 802.3at. Total max. power 100W
Extended POE 250 m. 250 m. 250 m.
I/O 4 input - 1 output 4 input - 1 output 4 input - 1 output
Max incoming bandwidth 80/120MBPS 80/120MBPS 80/120MBPS
Protocols TCP/IP, HTTP, UPNP, DNS, NTP, SMTP, PPPOE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, P2P TCP/IP, HTTP, UPNP, DNS, NTP, SMTP, PPPOE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, P2P TCP/IP, HTTP, UPNP, DNS, NTP, SMTP, PPPOE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, P2P
USB 2x2.0 2x2.0 2x2.0
Hard Disk 1 SATA 2.5/3.5" max 8TB (non compreso) 1 SATA 2.5/3.5" max 8TB (non compreso) 1 SATA 2.5/3.5" max 8TB (non compreso)
P2P cloud server Free with QR code Free with QR code Free with QR code
Recording modes Continuous, weekly hourly schedule, motion detection, human detection Continuous, weekly hourly schedule, motion detection, human detection Continuous, weekly hourly schedule, motion detection, human detection
Privacy masks
Alarm actions Email, video upload via FTP, video upload to cloud, local buzzer, output Email, video upload via FTP, video upload to cloud, local buzzer, output Email, video upload via FTP, video upload to cloud, local buzzer, output
APP for phone/tablet Free for iOS and Android Free for iOS and Android Free for iOS and Android
PC remote access All browser supported All browser supported All browser supported
Centralization software Free for PC and MAC Free for PC and MAC Free for PC and MAC
Power supply 52VDC/1800mA (power adapter included) 52VDC/1800mA (power adapter included) 52VDC/1800mA (power adapter included)
NVR consumption Max 6W Max 6W Max 6W
Dimensions and weight 260x215x43 mm. 2Kg (without HDD) 260x215x43 mm. 2Kg (without HDD) 260x215x43 mm. 2Kg (without HDD)
PERFORMANCES
Live Viewing 1CH up to 8MP, 4-9-16CH D1 1CH up to 8MP, 4-9-16CH D1 1CH up to 8MP, 4-9-16CH D1
Recording 4K 10CHx25f/s, 5MP 14CHx25f/s, 4MP 16CHx25f/s, 3MP 16CHx25f/s, 2MP 16CHx25f/s, 720P 16CHx25f/s 4K 10CHx25f/s, 5MP 14CHx25f/s, 4MP 16CHx25f/s, 3MP 16CHx25f/s, 2MP 16CHx25f/s, 720P 16CHx25f/s 4K 10CHx25f/s, 5MP 14CHx25f/s, 4MP 16CHx25f/s, 3MP 16CHx25f/s, 2MP 16CHx25f/s, 720P 16CHx25f/s
Simultaneous playback 1CH 4K@25f/s, 5MP@25f/s 2CH 4MP@25f/s, 3MP@25f/s
4CH 2MP@25f/s, 720P@25f/s
1CH 4K@25f/s, 5MP@25f/s 2CH 4MP@25f/s, 3MP@25f/s
4CH 2MP@25f/s, 720P@25f/s
1CH 4K@25f/s, 5MP@25f/s 2CH 4MP@25f/s, 3MP@25f/s
4CH 2MP@25f/s, 720P@25f/s

QUESTIONS & ANSWERS

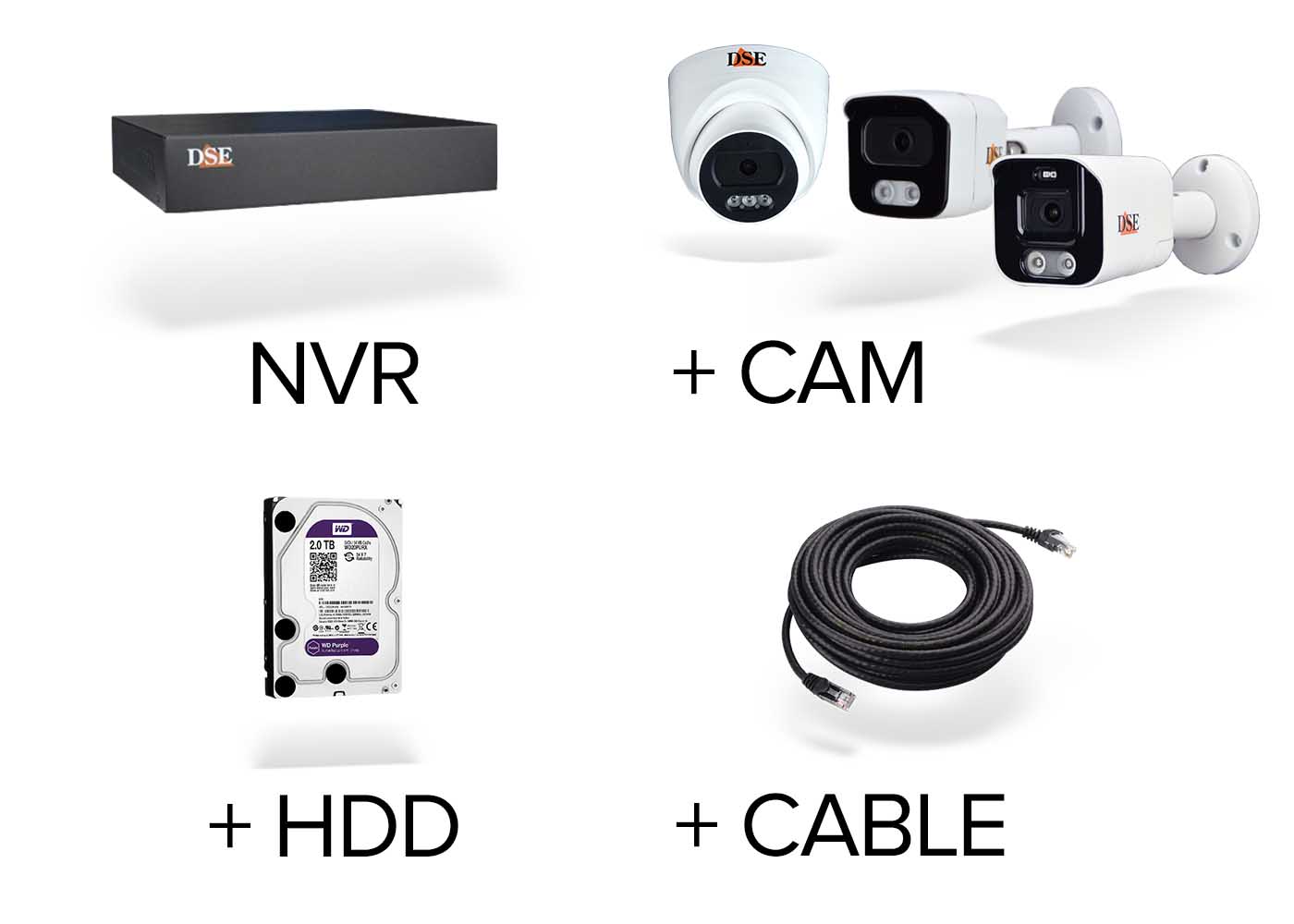

What is included in the kit?

To order your new video surveillance system you only have to choose the video resolution and the number of cameras. These kits contain:

VIDEORECORDER NVR
CAMERAS
MOUSE
MANUALS
SW
APP

What is not included?

In addition to the kit, you also need to order separately a HARD DISK

HARD DISK

The NVRs are compatible with all SATA hard disks up to the maximum size of 8TB. If you order one of our NVR-specific Hard Drives together with the kit, we will deliver it already installed and ready to use. The size of the Hard Disk determines the capacity of the video archive that you can keep in memory. Hard disks of 1 or 2 TB are normally enough for most applications.

Also the NETWORK CABLES for the connection of cameras are not included in the kit.

NETWORK CABLES

Among our CABLES you can choose the network cables best suited for your system.

What's the price?

You can find the prices of our products in the Online Price List or in the CCTV STORE, our e-commerce portal.
