CONTROLLING ANY ELECTRICAL DEVICE WITH YOUR SMARTPHONE.
COMPATIBLE WITH AMAZON ALEXA.
FOR REMOTE CONTROL OF: SIRENS, LIGHTS, PUMPS, GATES, IRRIGATION ...
NO/NC CLEAN CONTACT FOR ANY DEVICE
1 NO/NC RELAY | 5..37VDC POWER
Board with 1 NO/NC stable/momentary relay with WiFi and control via WEB. DC power supply. With terminals for local switches.
ACCESSORIES
|
|
| RE-AL15W 220V adapter |

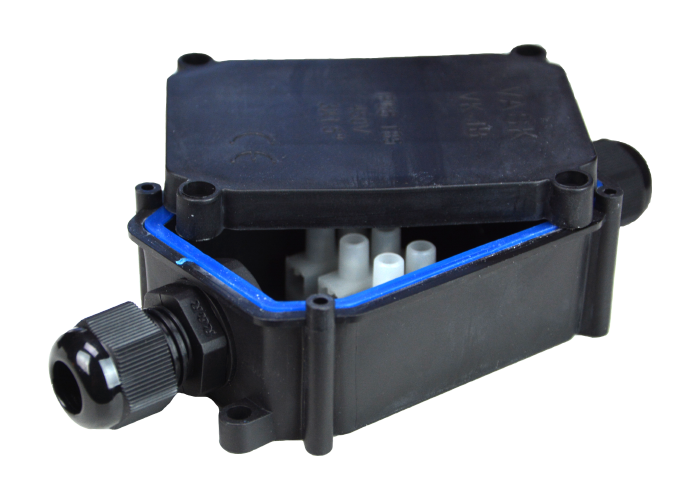

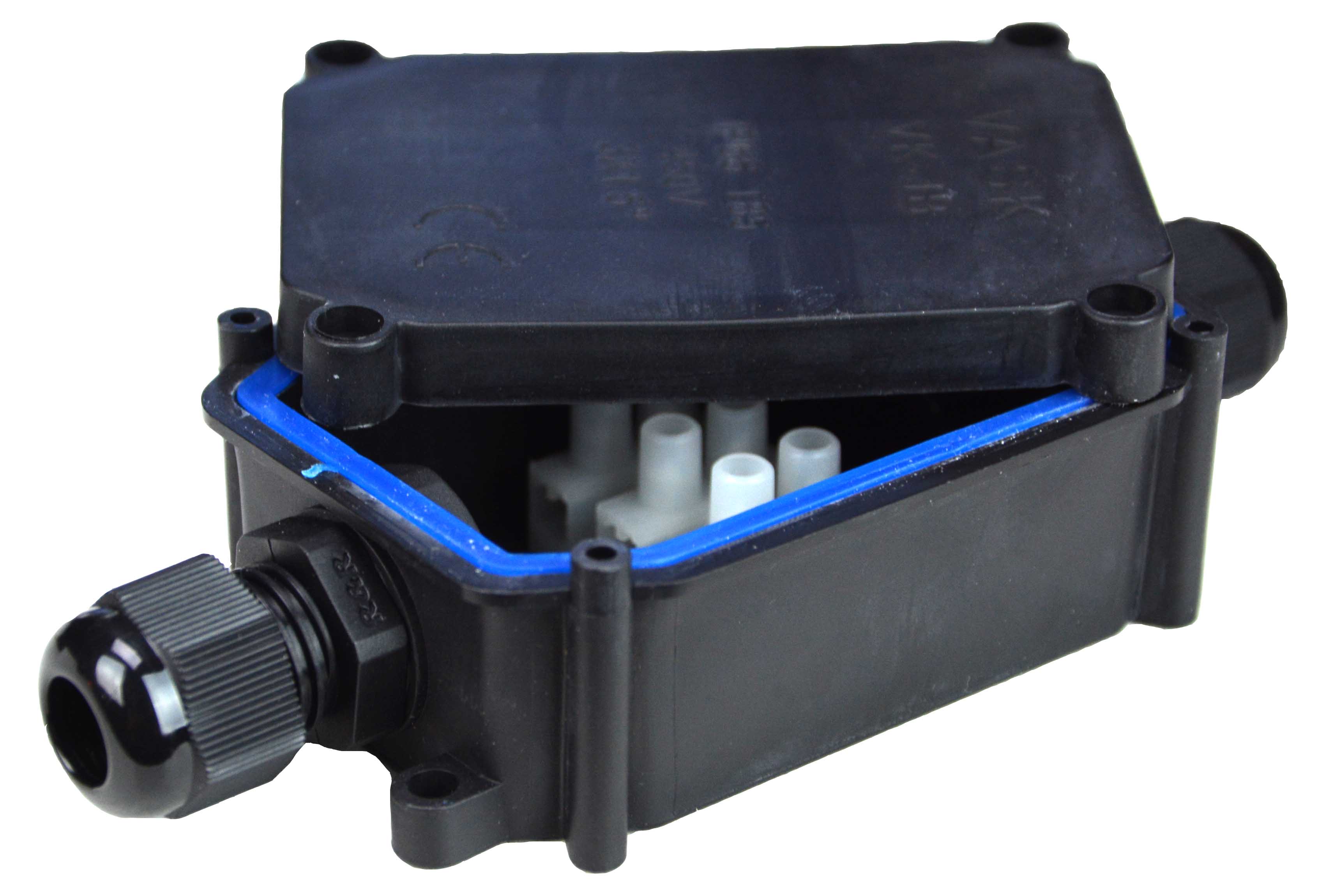

RE-BOXC IP66 casing |
2 NO/NC RELAYS | 5..37VDC POWER
Board with 2 NO/NC stable/momentary relays with WiFi and control via WEB. DC power supply. With terminals for local switches.
ACCESSORIES
|
|
| RE-AL15W 220V adapter |
4 NO/NC RELAYS | 5..37VDC POWER
Board with 4 NO/NC stable/momentary relays with WiFi and control via WEB. DC power supply. With terminals for local switches.
ACCESSORIES
|
|
| RE-AL15W 220V adapter |
SWITCH/PUSHBUTTON CONTROL FOR 220V DEVICES
1 ON/OFF CONTACT 100..240VAC
Module with 1 stable/momentary switch with WiFi and control via WEB. AC power supply. With terminals for local switches.
ACCESSORIES
|
|
| RE-BOXC IP66 casing |
2 ON/OFF CONTACTS 100..240VAC
Module with 2 stable/momentary switch with WiFi and control via WEB. AC power supply. With terminals for local switches.
ACCESSORIES
|
|
| RE-BOXC IP66 casing |
E27 LAMPHOLDER
E27 lampholder with WiFi and control via WEB

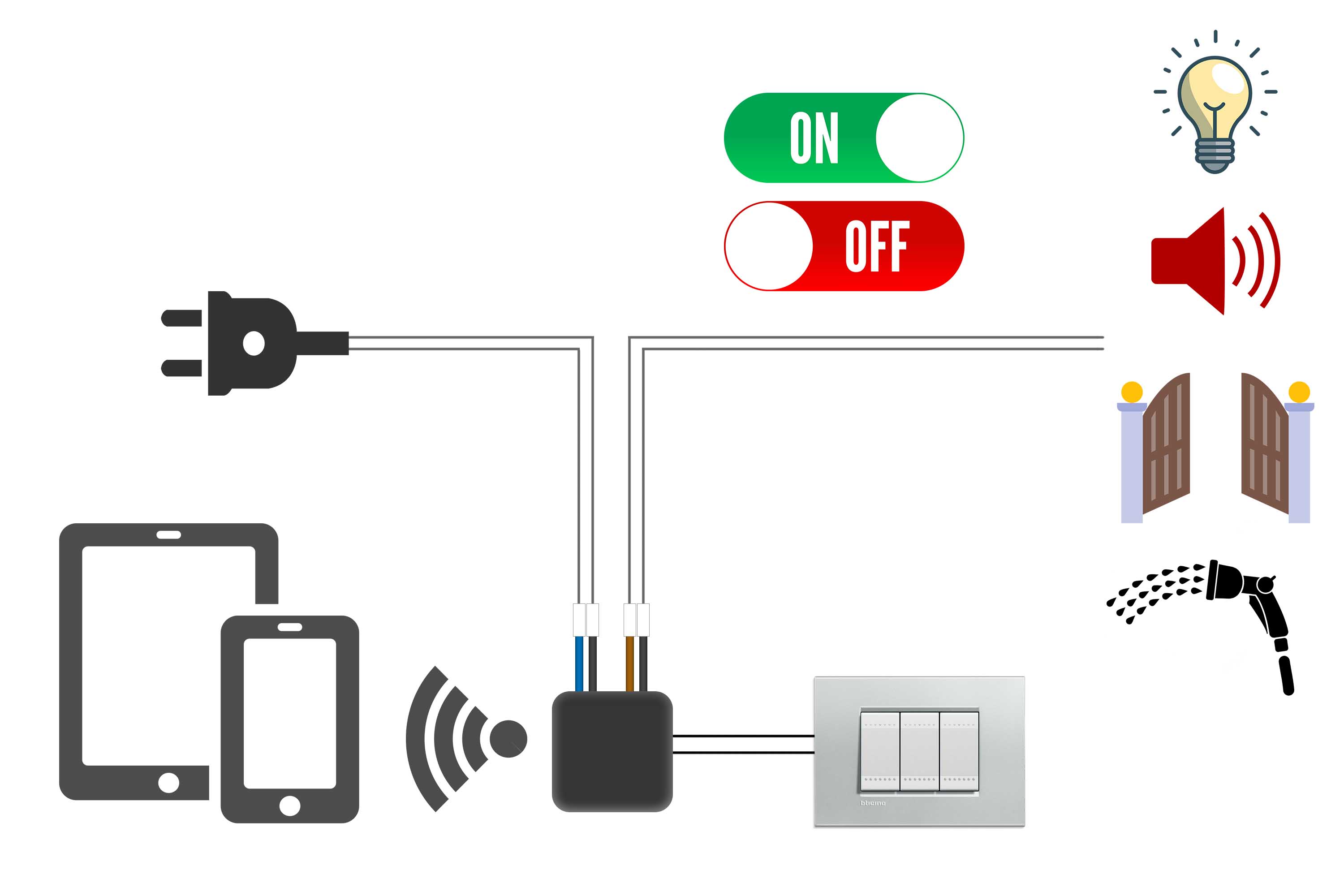

With these WiFi remote controls, you can add smartphone control via the Internet to any electrical device, without complex wiring work and at a low cost. They can perform the functions of switches (stable on/off contact) and push buttons (momentary contact), configurable as needed. You can control lighting, sound alarms, pumps, irrigation systems, electric locks, and gate openers by easily replacing the traditional switches, buttons, and relays in your electrical system. With our WiFi controls, it's easy to make your home fully controllable over the Internet from your phone.
With our CCTV cameras you can monitor you home or office with ease. With these web remote controls, you can add real-time proactivity to your CCTV system , as if you were on site. If you see suspicious behavior you can activate lighting, sirens or a fog deterrent. If you see someboy you know, you can open a gate. At your command, these remote control relays switch right away, with a response time of less than a second, and a visual notification appears on your smartphone. .
These Smart Home products are part of our DM Series for home automation, which includes WiFi cameras, remote controls and video intercoms. All products in this range are based on TUYA home automation platform and its IOT app Smart-Life, widely used all over the world. With our Smart Home products you can fully automate your home , simply by purchasing devices and connecting them to your WiFi in a matter of seconds. Supervise your properties with our 220V cameras or battery cameras; control your lights, pumps, irrigation with our remote controls or interact with people with our intercoms and doorbells. Our Smart Home devices are wireless, easy to install and really inexpensive.

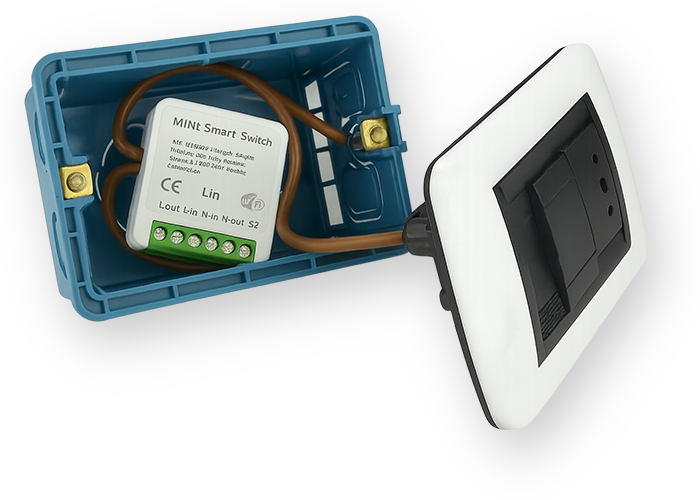

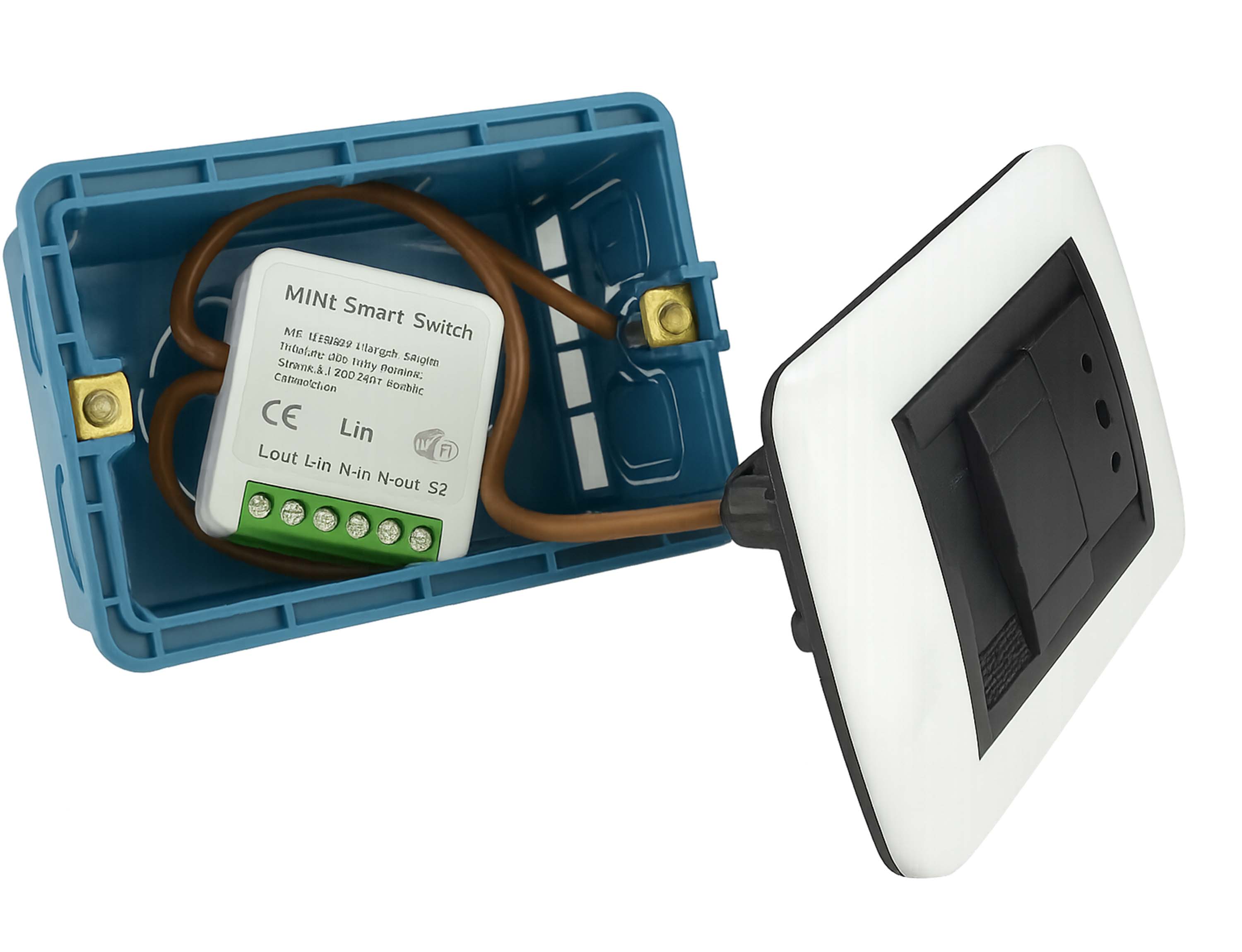

Our wifi modules are usually installed inside junction boxes, where you will connect the power supply and the device to be controlled. All our WiFi modules come with inputs for connecting local switches, push buttons, or changeover switches. This means you can control your home devices both via app and with your usual traditional controls. The 220V modules are very compact and can even fit inside a standard Ticino 503 box, right behind the manual switch.
Do not forget the remote control must connect to your WiFi network, so make sure with your phone that you have a good signal where you want to install it.
All our WiFi remote controls come with powerful 10A relays, capable of directly controlling all the 220V devices in your home. For example, you can control the garden lighting, which will turn on automatically based on your preferences, or you can schedule the pool pump and irrigation. You can also control the house lights so that they turn off automatically after a certain time or even turn on and off randomly to discourage burglars when you are on vacation. With our WiFi relays, you can also control gates, doors, and shutters, which you can open with your phone instead of with keys.
In this range of WiFi remote controls, you’ll find switch modules and relay boards. In many cases, these two products can perform the same function, but they are actually a bit different. The WiFi switch modules connect to 220V mains and provide 220V output to the load. They are very easy to install but can only control 220V devices. The WiFi relay boards require a separate DC power supply but provide a dry NO/NC contact output, which you can use to control devices of any voltage and even perform functions other than load control. See on the side two simple connection examples. For more details, you can download the installation manuals.

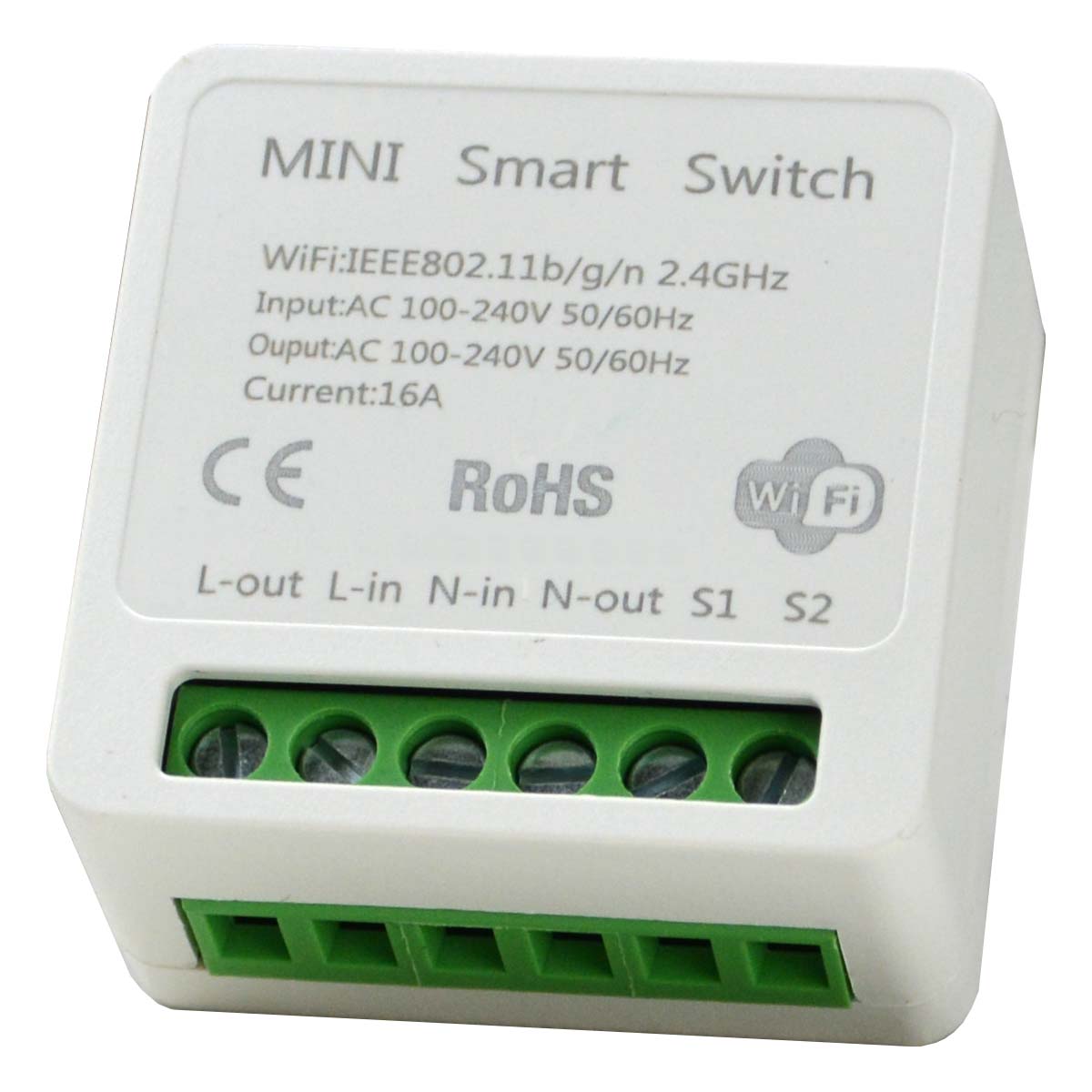

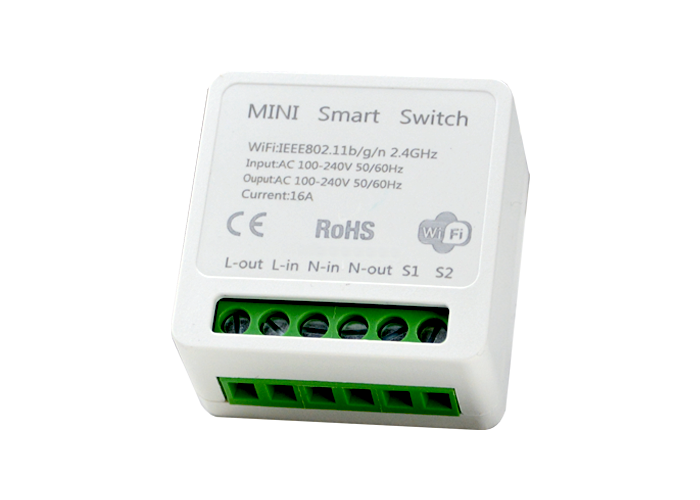

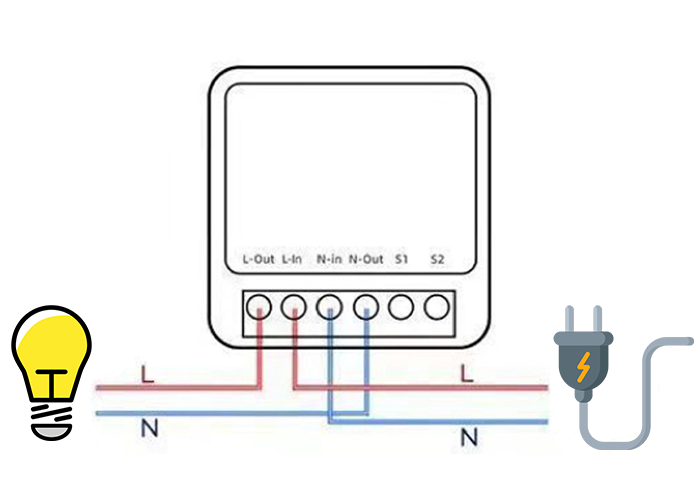

1 WIFI SWITCH/PUSHBUTTON
L-in/N-in | 100..240VAC power
L-out/N-out | 100..240VAC to the load
S1-S2 | Local switch
This module controls 1 100..240VAC device via wifi. It can work in parallel to a local switch and you can even install it in the junction box, right behind the switch.

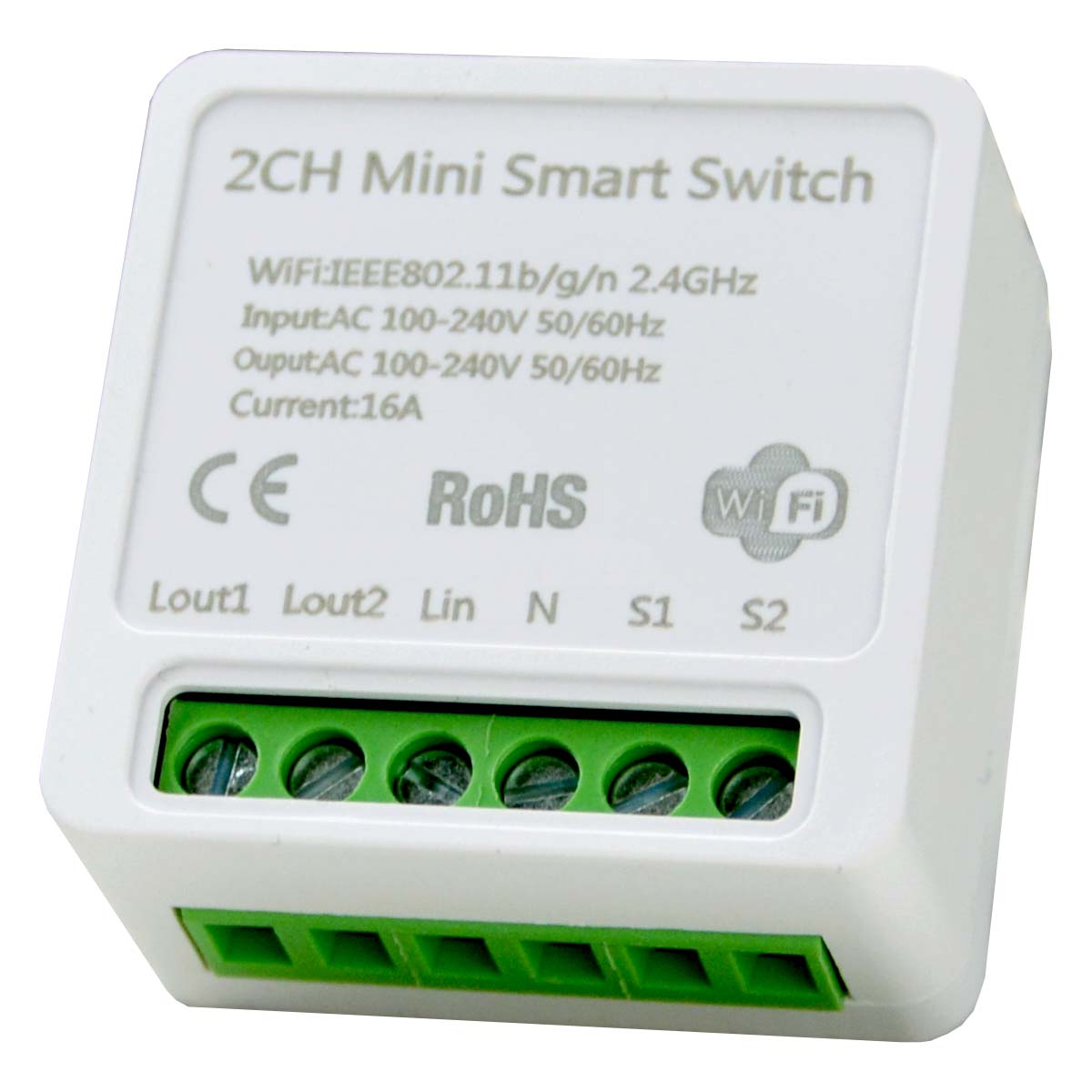

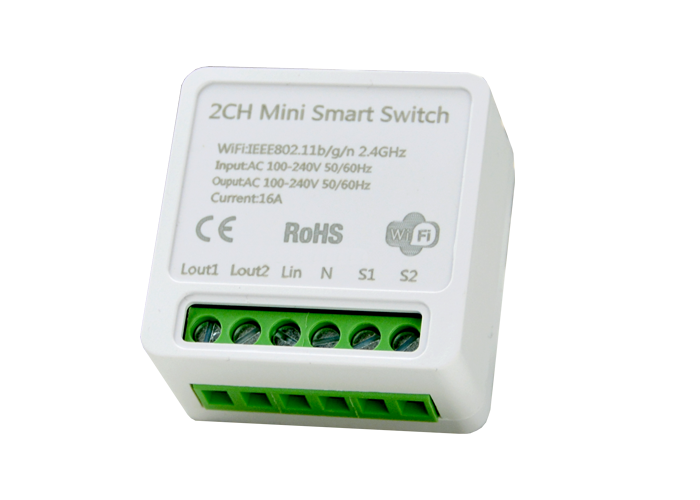

1 WIFI SWITCH/PUSHBUTTON
L-in/N-in | 100..240VAC power
L-out/N-out | 100..240VAC to the load
S1-S2 | Local switch
This module controls 2 100..240VAC device via wifi. It can work in parallel to 2 local switches and you can even install it in the junction box, right behind the switch.

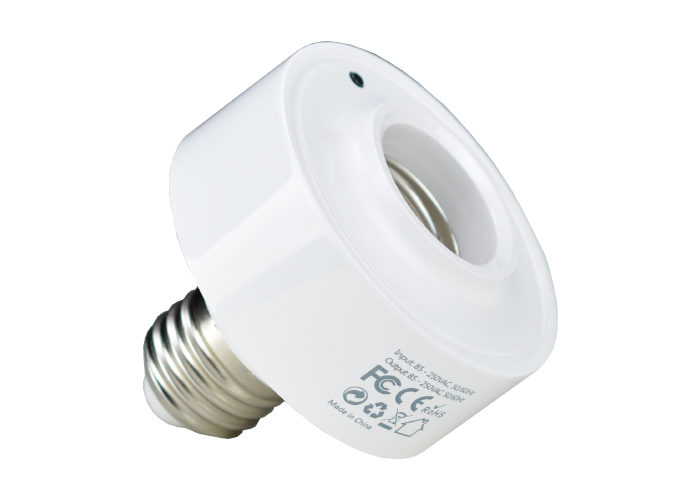

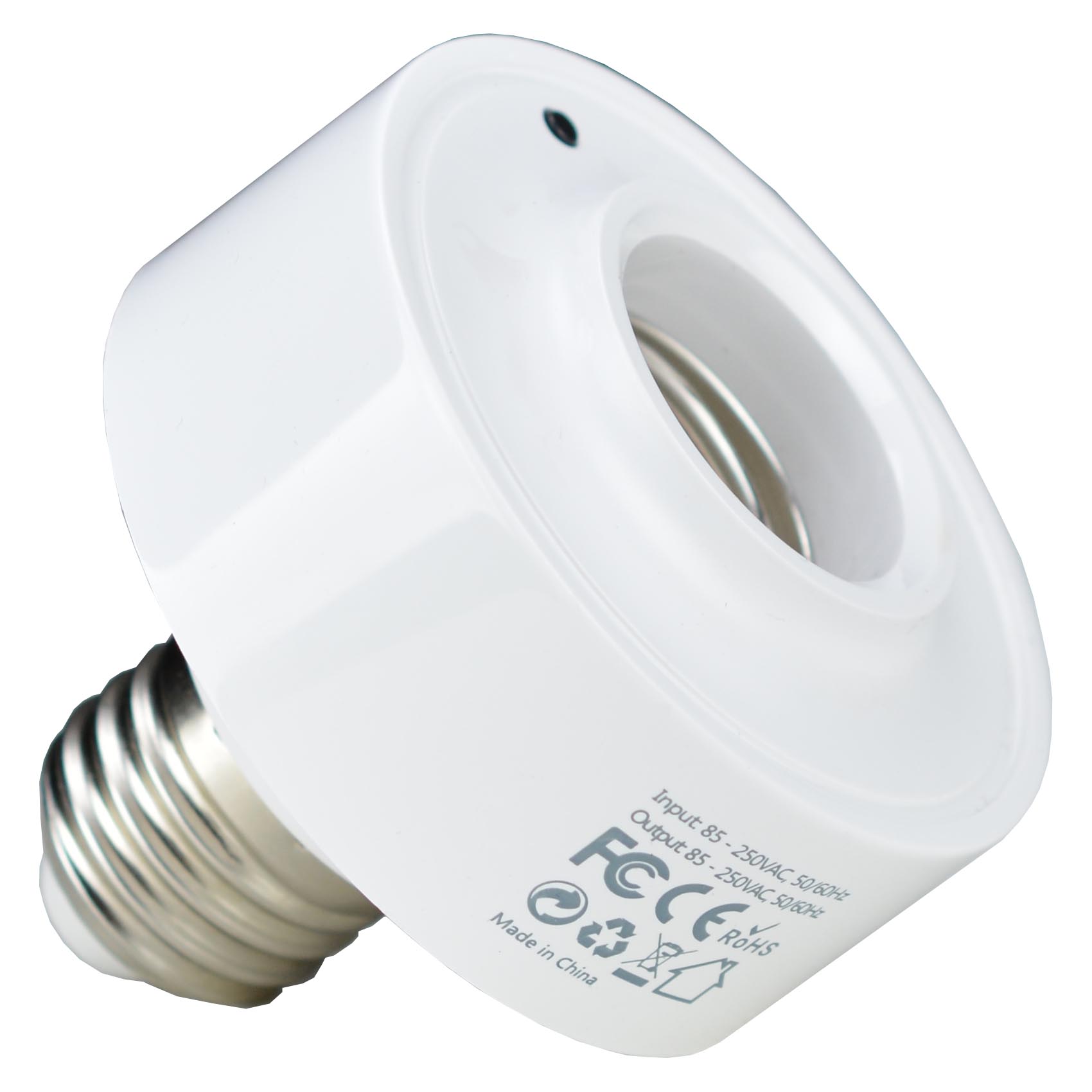

WIFI LAMP HOLDER
E27 | standard lamp holder
This module controls any bulb with E27 socket via wifi. It is screwed between the bulb and the original lamp holder and is immediately operational. It is ideal for outdoor lighting on poles.

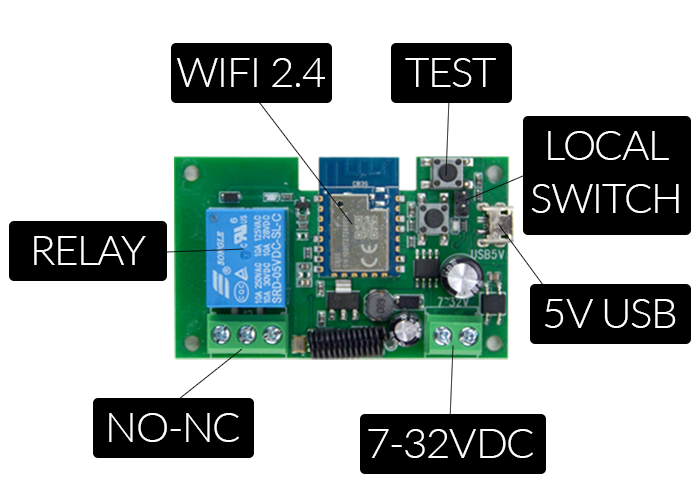

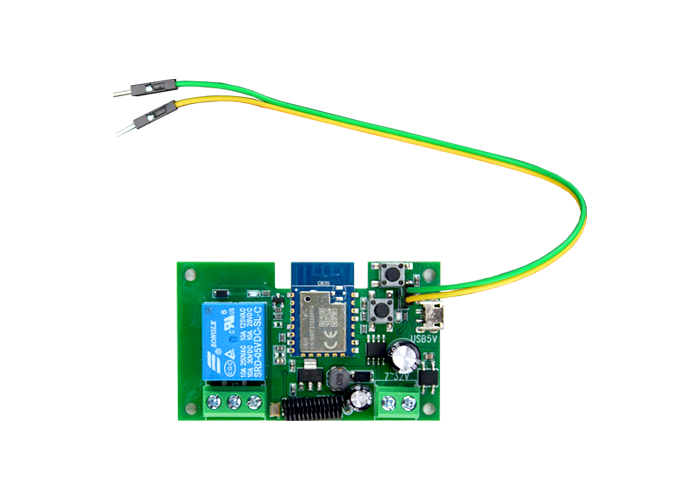

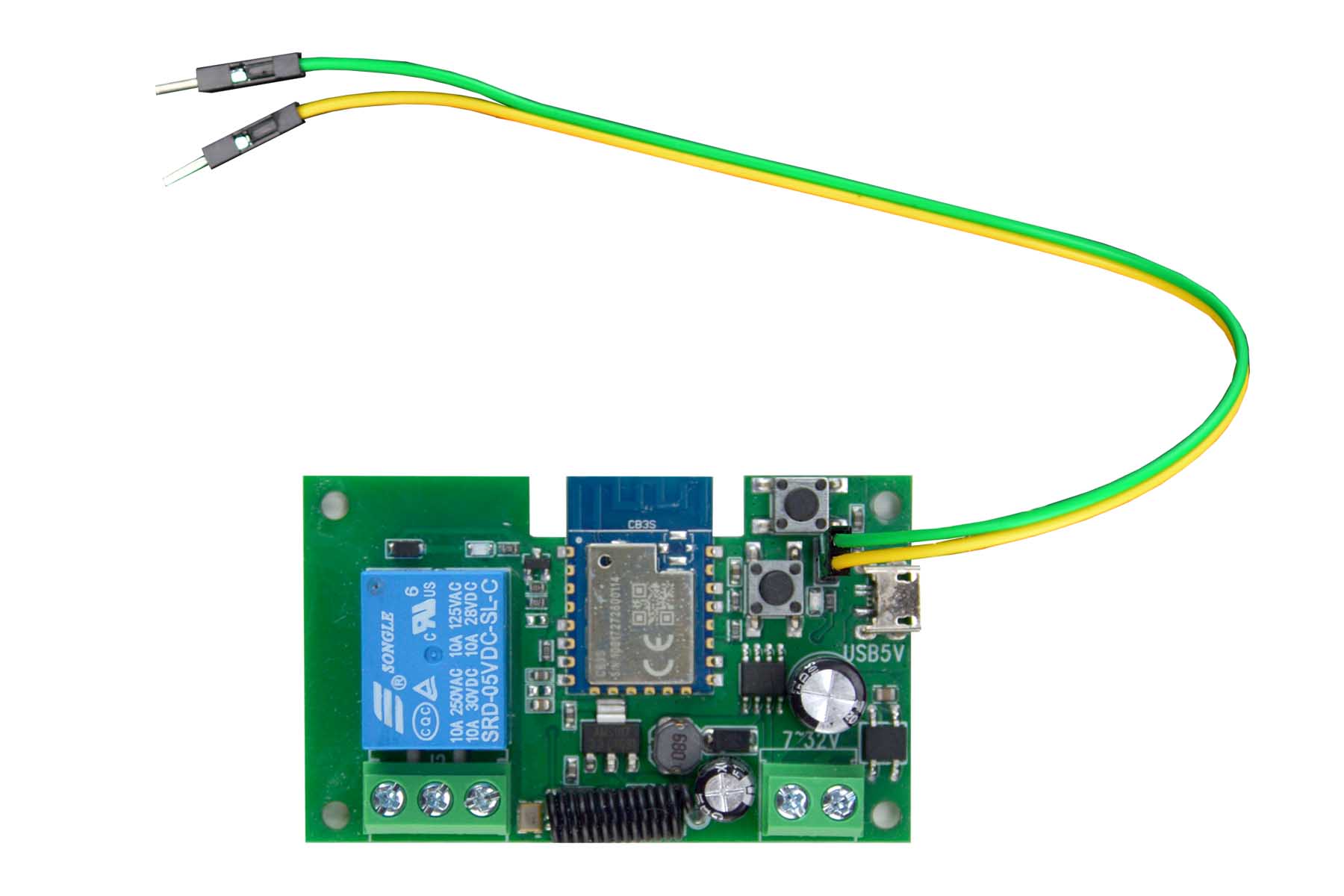

1 WIFI RELAY
A | 1 x Relay NO/NC
B | Antenna
C | WiFi Module
D | On-board control buttons
E | USB 5VDC power supply
F | 7-32VDC power supply
G | 1 local external control
This board comes with 1 dry contact to control 1 AC/DC device up to 10A via wifi. It works stand-alone or in parallel to 1 local switch.

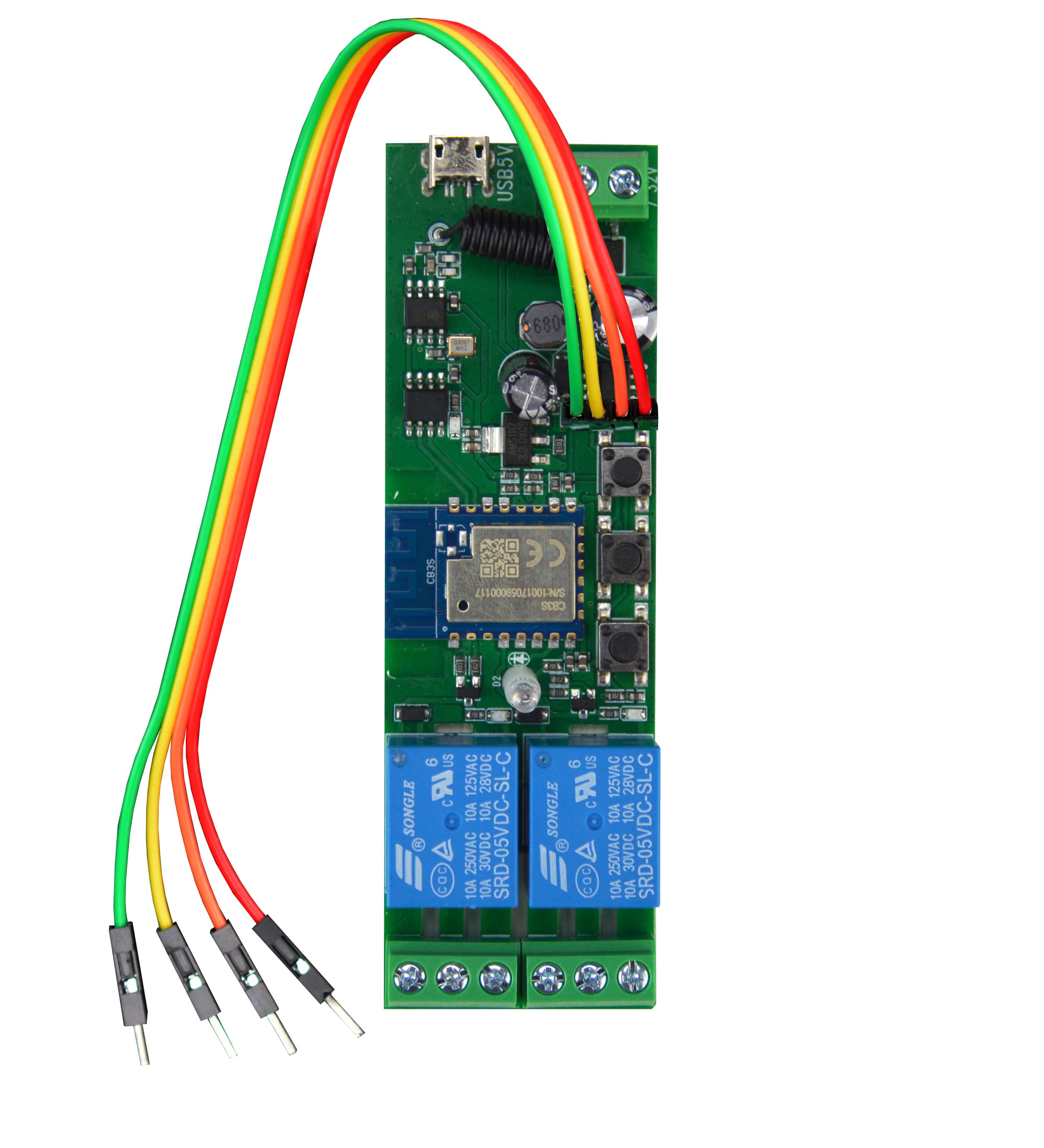

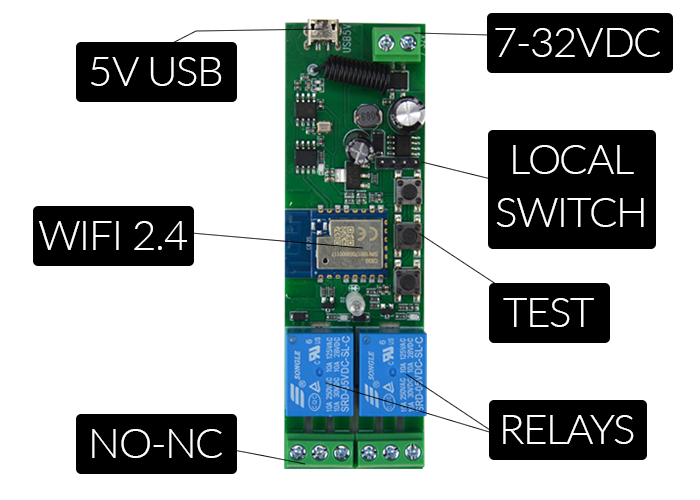

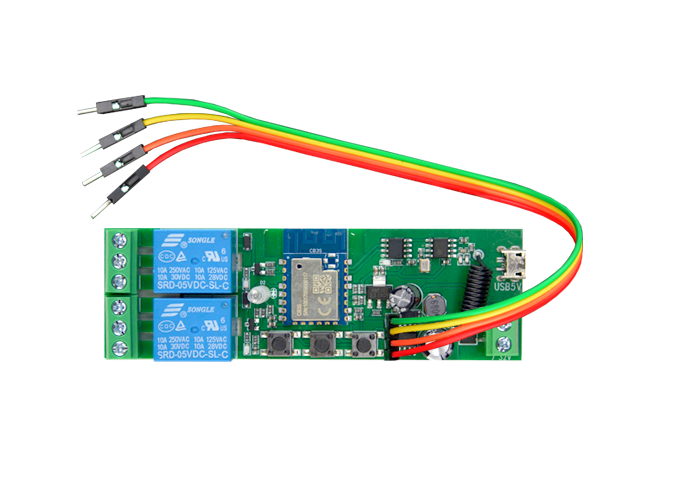

2 WIFI RELAYS
A | 2 x Relais NO/NC
B | Antenna
C | WiFi Module
D | On-board control buttons
E | USB 5VDC power supply
F | 7-32VDC power supply
G | 2 local external controls
This board comes with 2 dry contacts to control 2 AC/DC devices up to 10A via wifi. It works stand-alone or in parallel to 2 local switches.

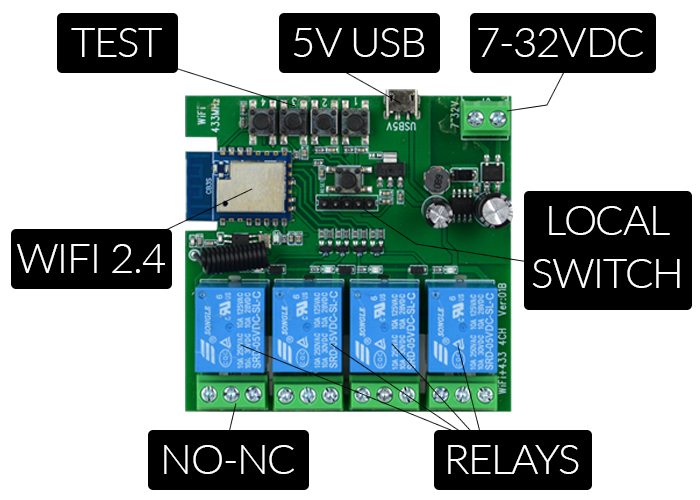

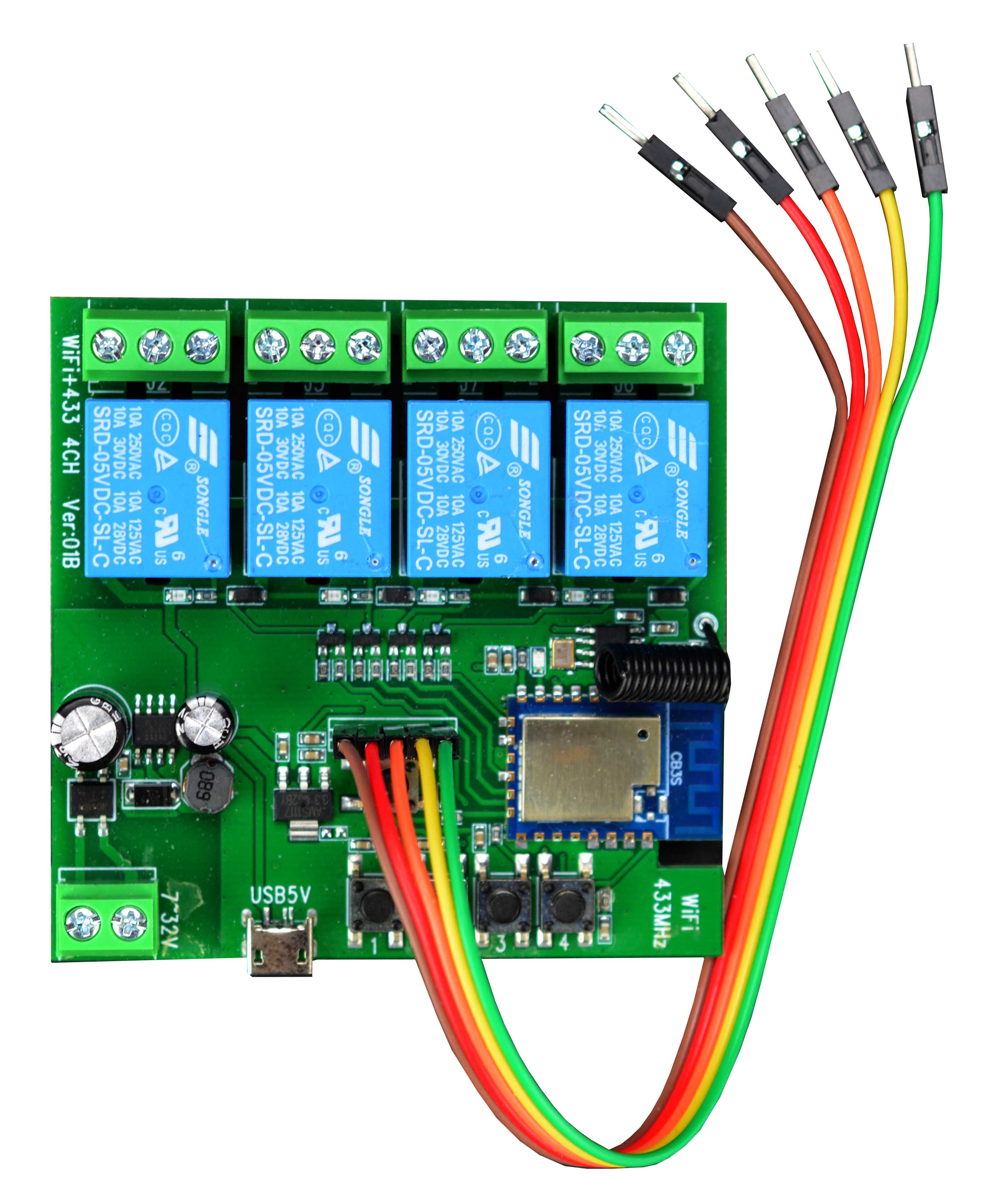

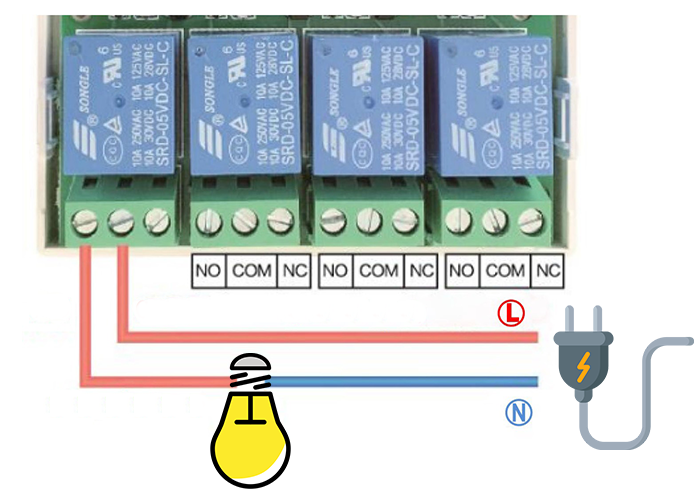

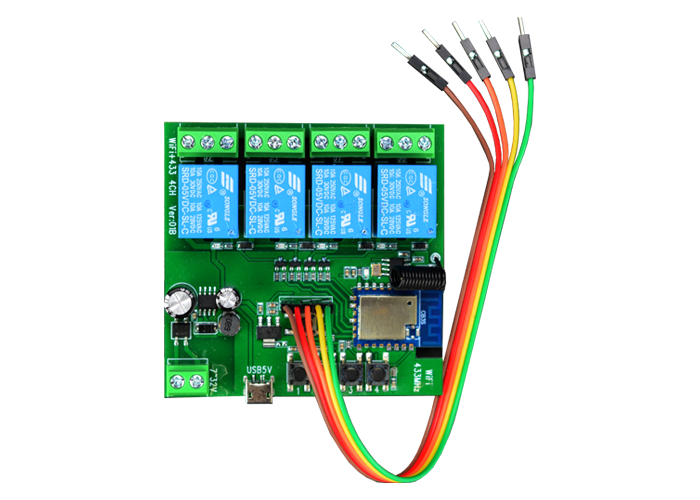

4 WIFI RELAYS
A | 4 x Relais NO/NC
B | Antenna
C | WiFi Module
D | On-board control buttons
E | USB 5VDC power supply
F | 7-32VDC power supply
G | 4 local external controls
This board comes with 4 dry contacts to control 4 AC/DC devices up to 10A via wifi. It works stand-alone or in parallel to 4 local switches.

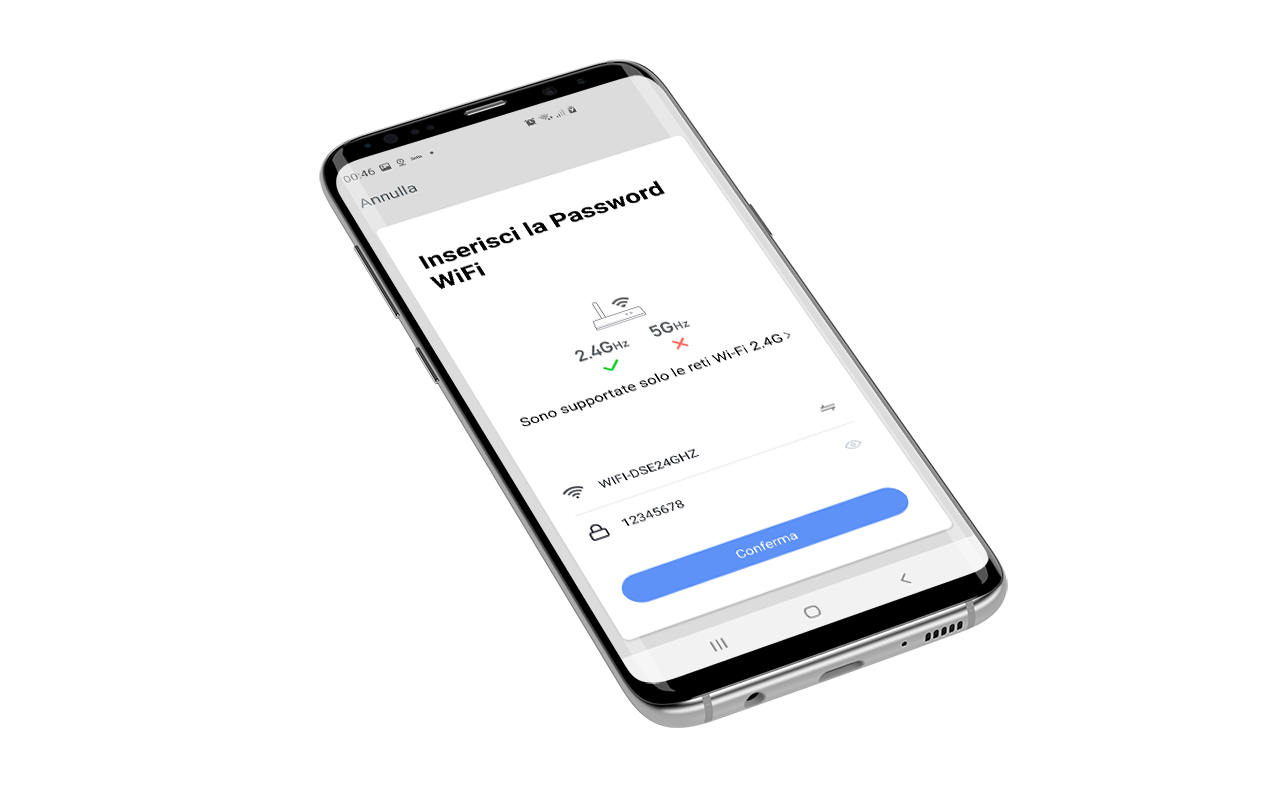

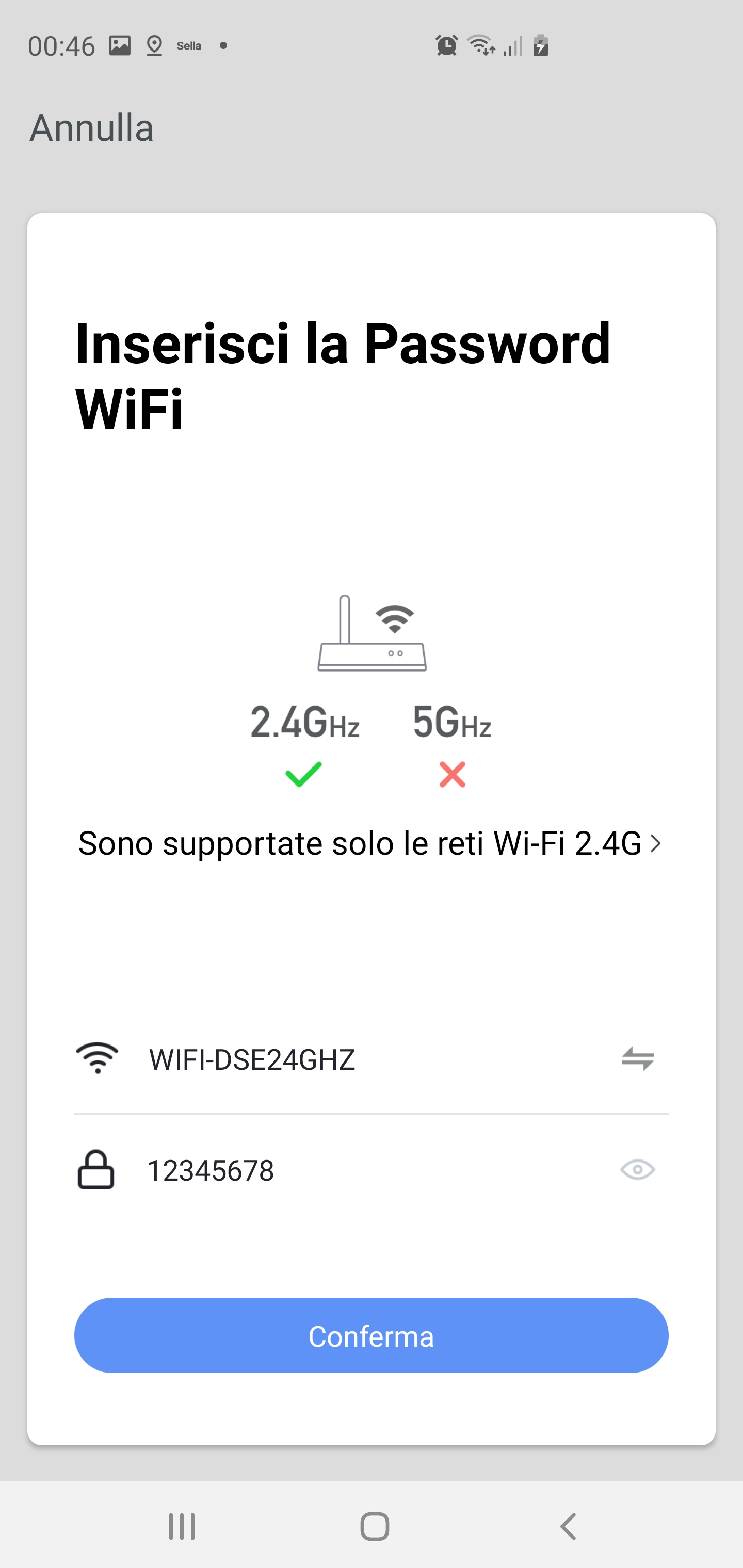

Connecting these remote controls to your wifi network is very simple. Download the free app Smart Life on your smartphone and follow the connection wizard that connect the module to your wifi network automatically. Now your remote control is ready to work via the Internet. Thanks to the P2P cloud server, you don't have to configure anything in your router. It works with any kind of Internet connection, even 4G, radio or satellite.

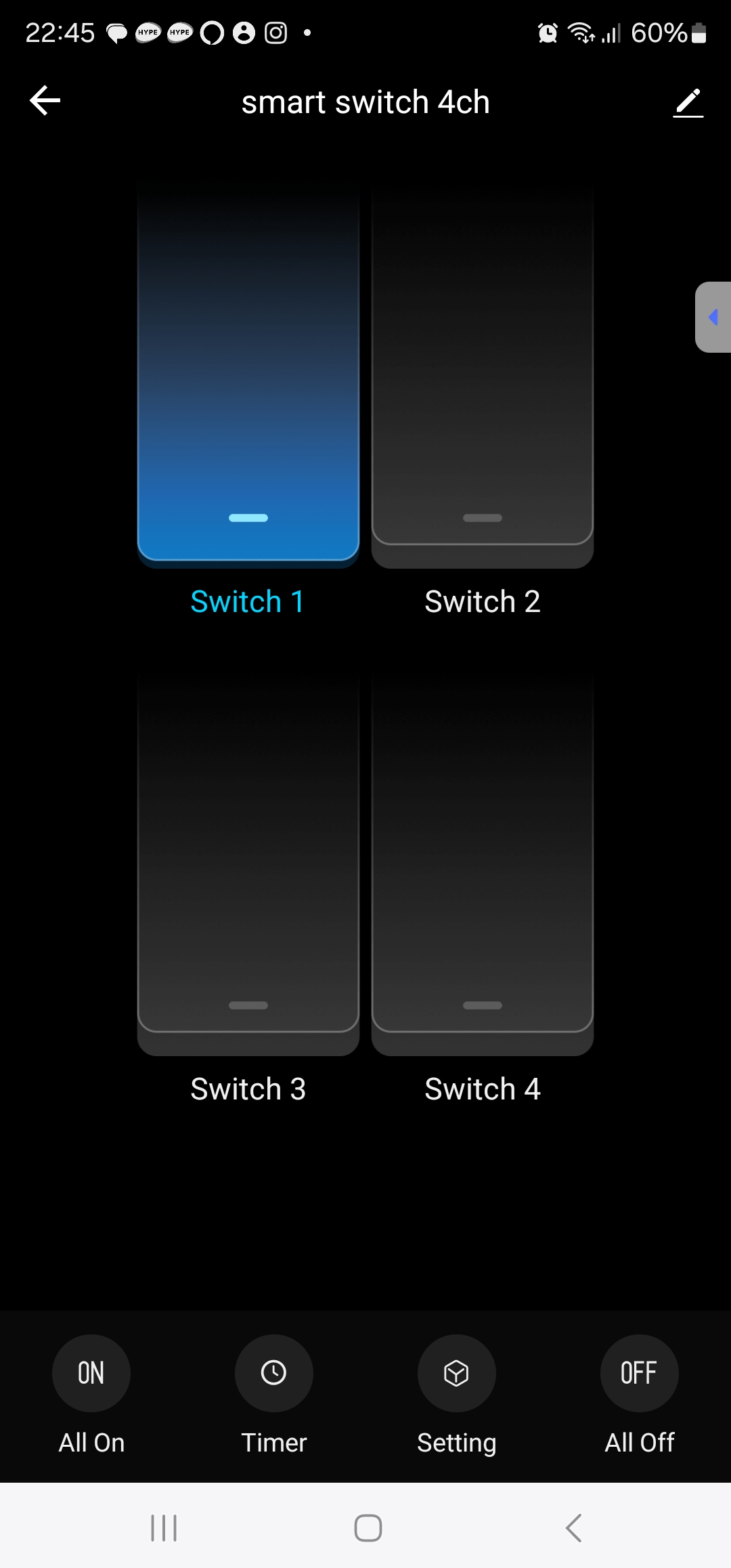

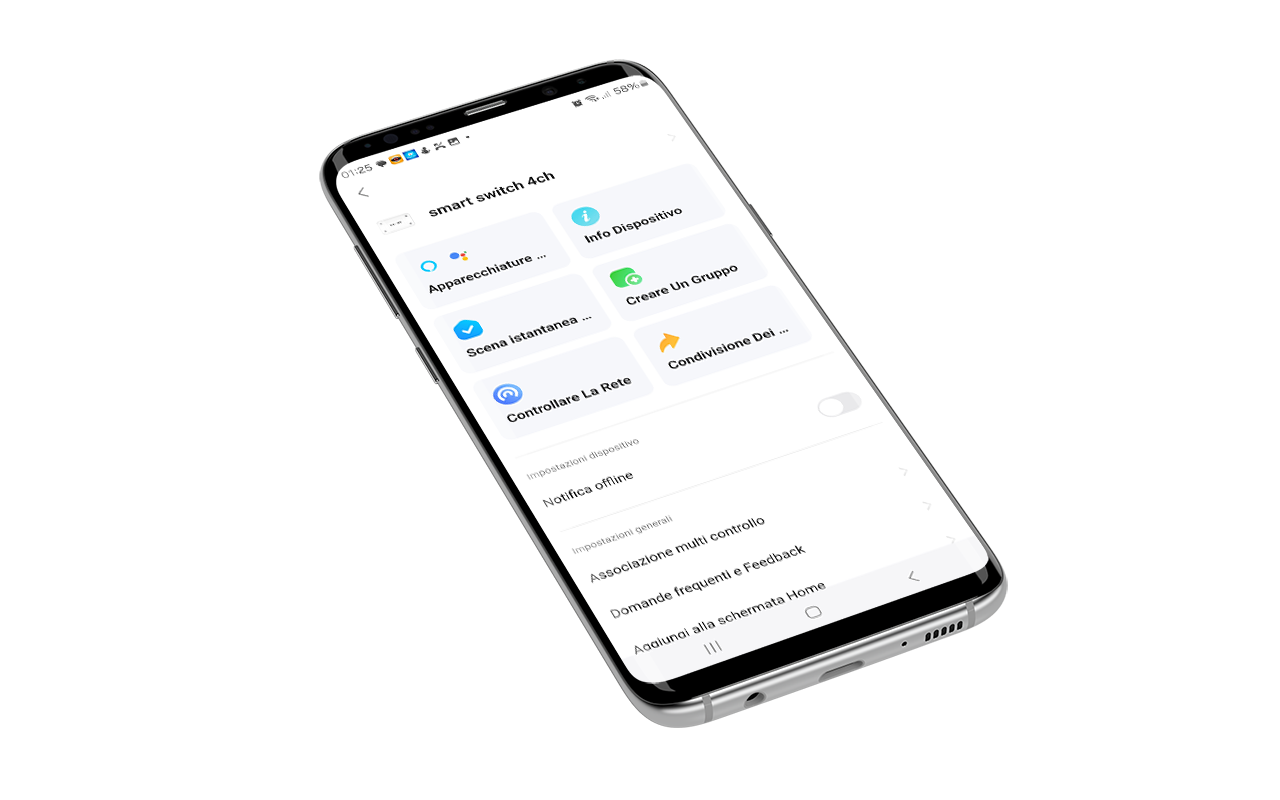

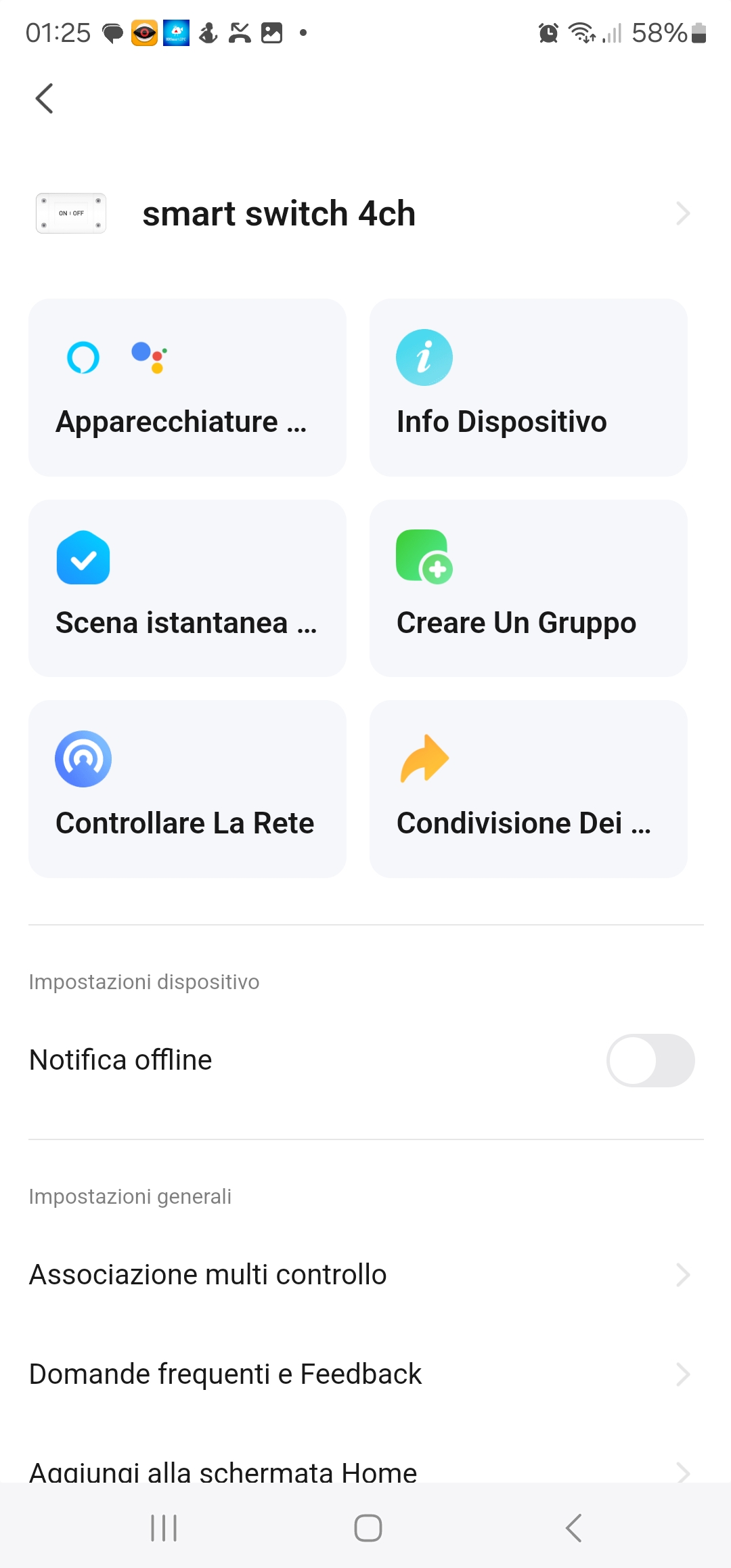

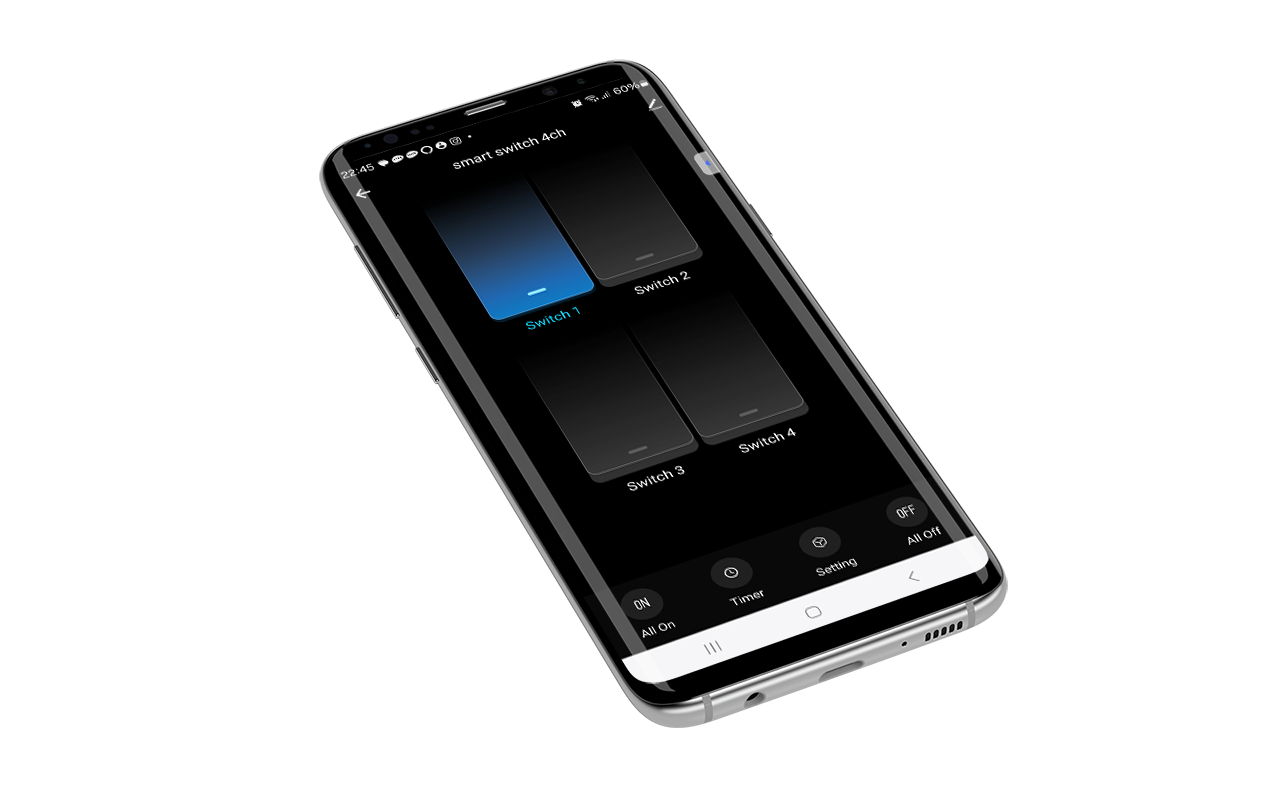

You can control our wifi relay through the Internet, with the free app SmartLife. Smartlife is the app of the Tuya platform that is supporting all our cameras, intercoms and devices for smart home. Without needing any configuration, you can CONTROL your equipment with a simple touch, at any time. You can also take advantage of the TIMER or the WEEK SCHEDULER to carry out automatic operations. For added security, you can receive the PUSH NOTIFICATIONS which confirm all automatic functions or warn you if the unit goes offline.

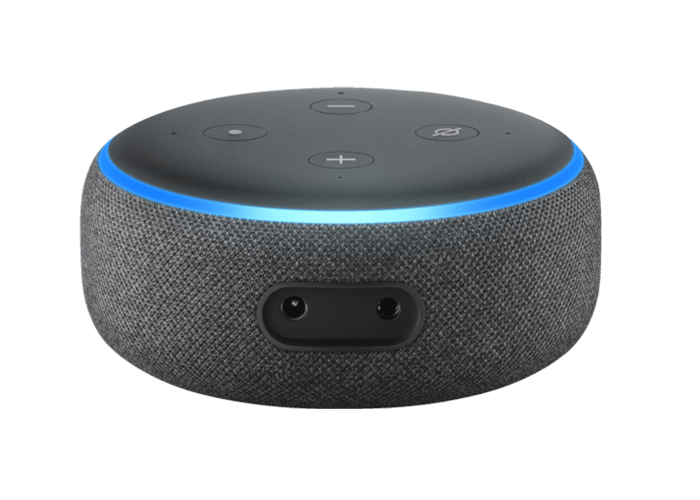

Our wifi remote controls are compatible with the most popular voice control systems like Amazon Alexa and Google Assistant (Google Home). If you use these systems, you can easily connect the SmartLife app to control your devices with voice commands.

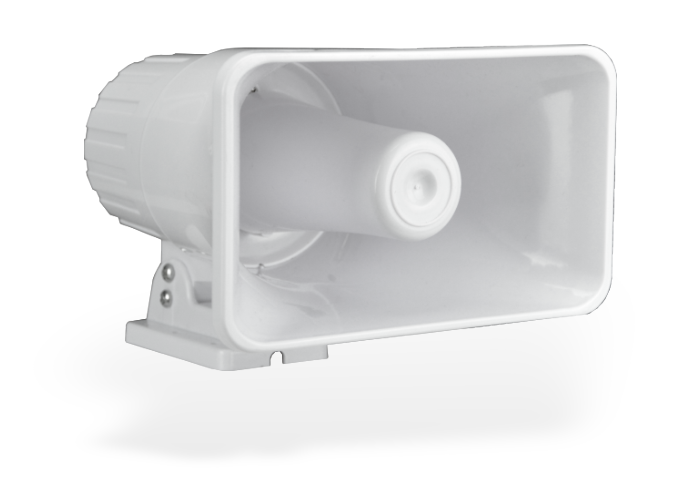

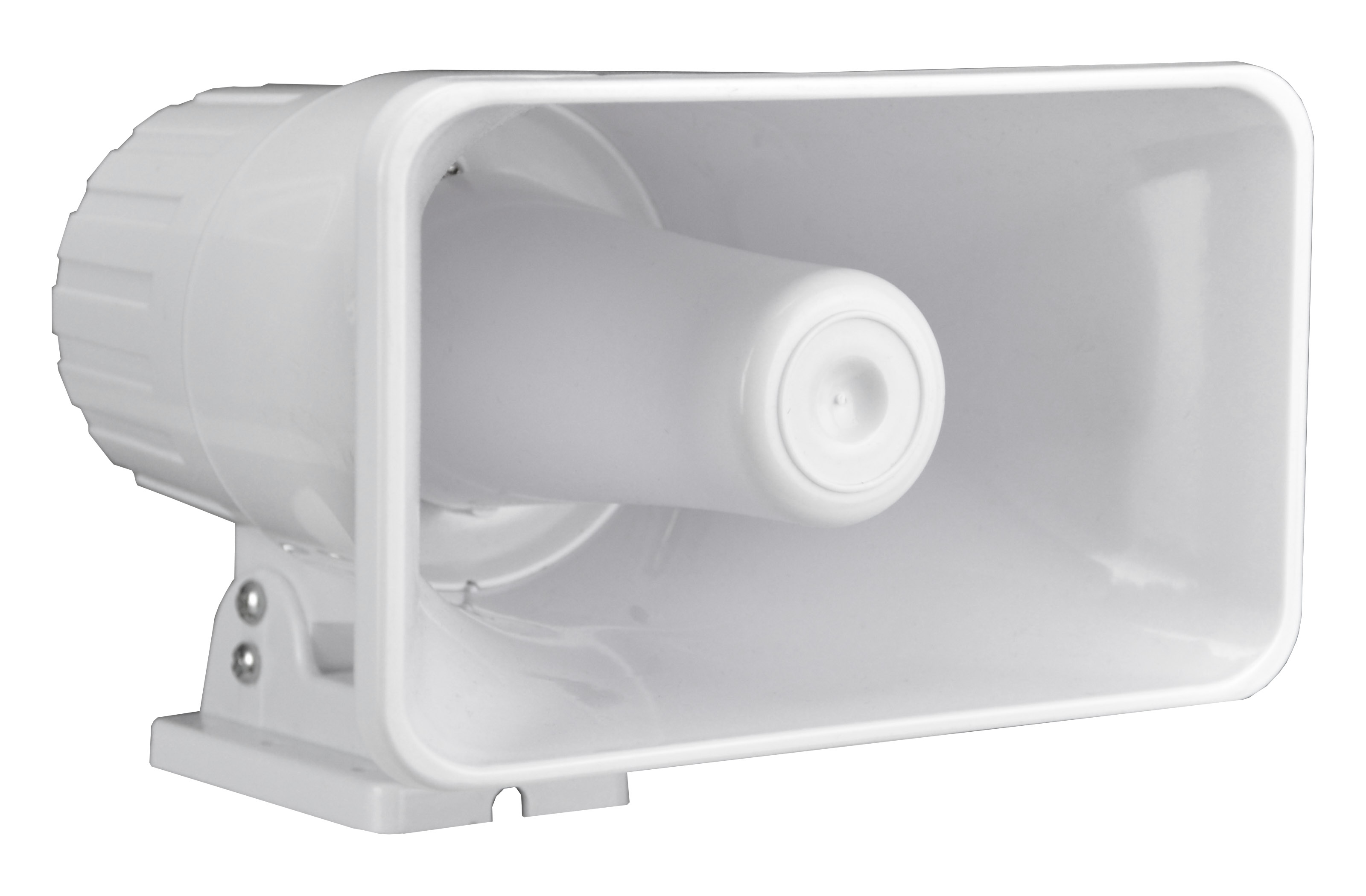

You can activate alarm devices from your smartphone, such as outdoor lights, sirens or fog generators. If you are watching an intruder through your cameras, you can take action right away to get him out.

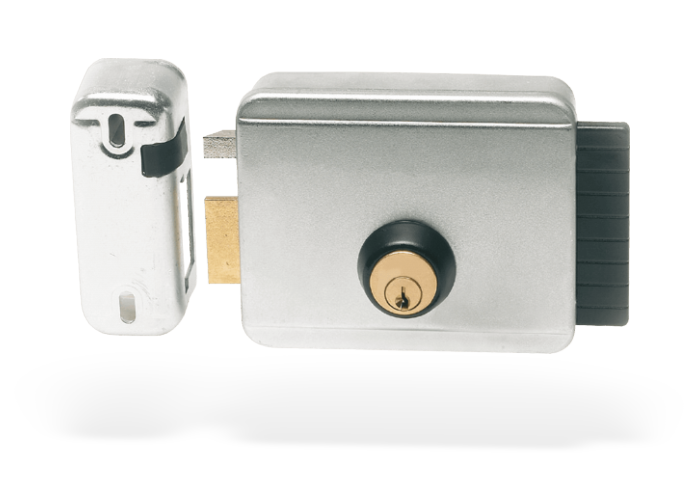

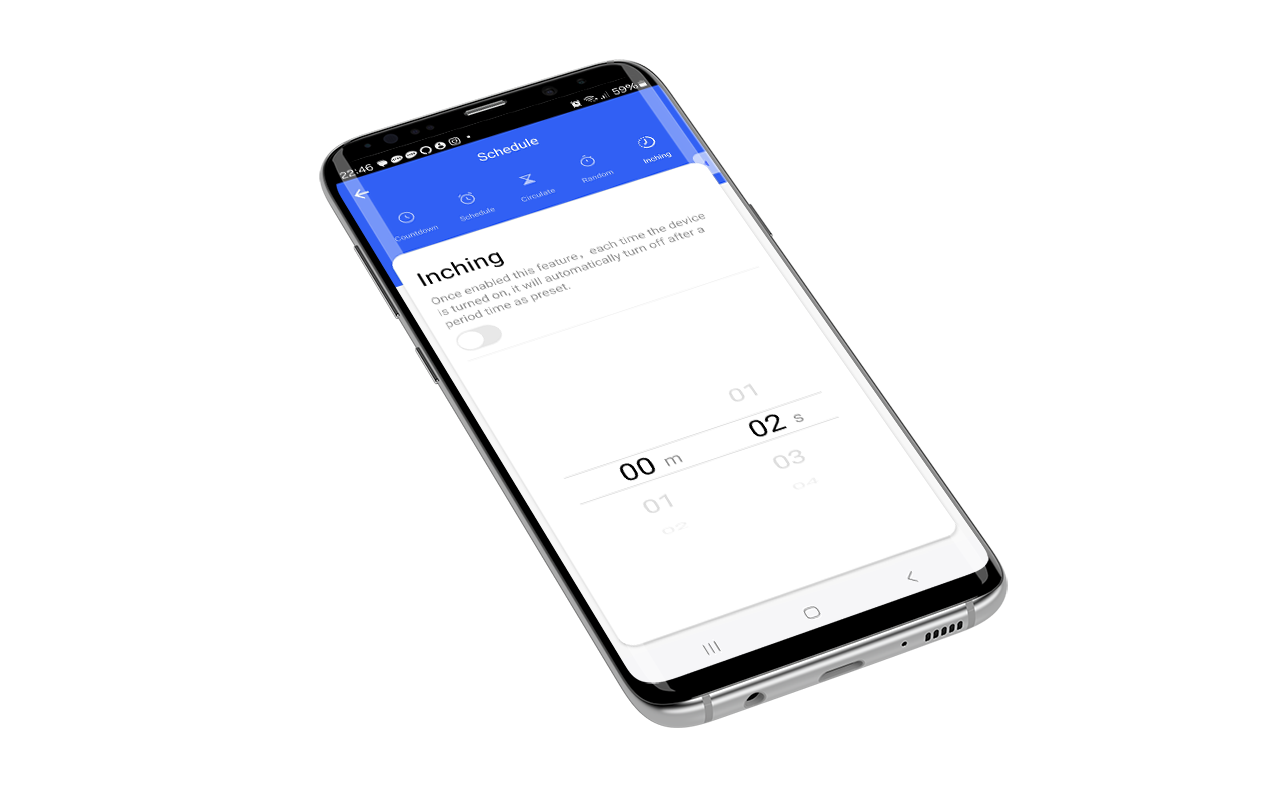

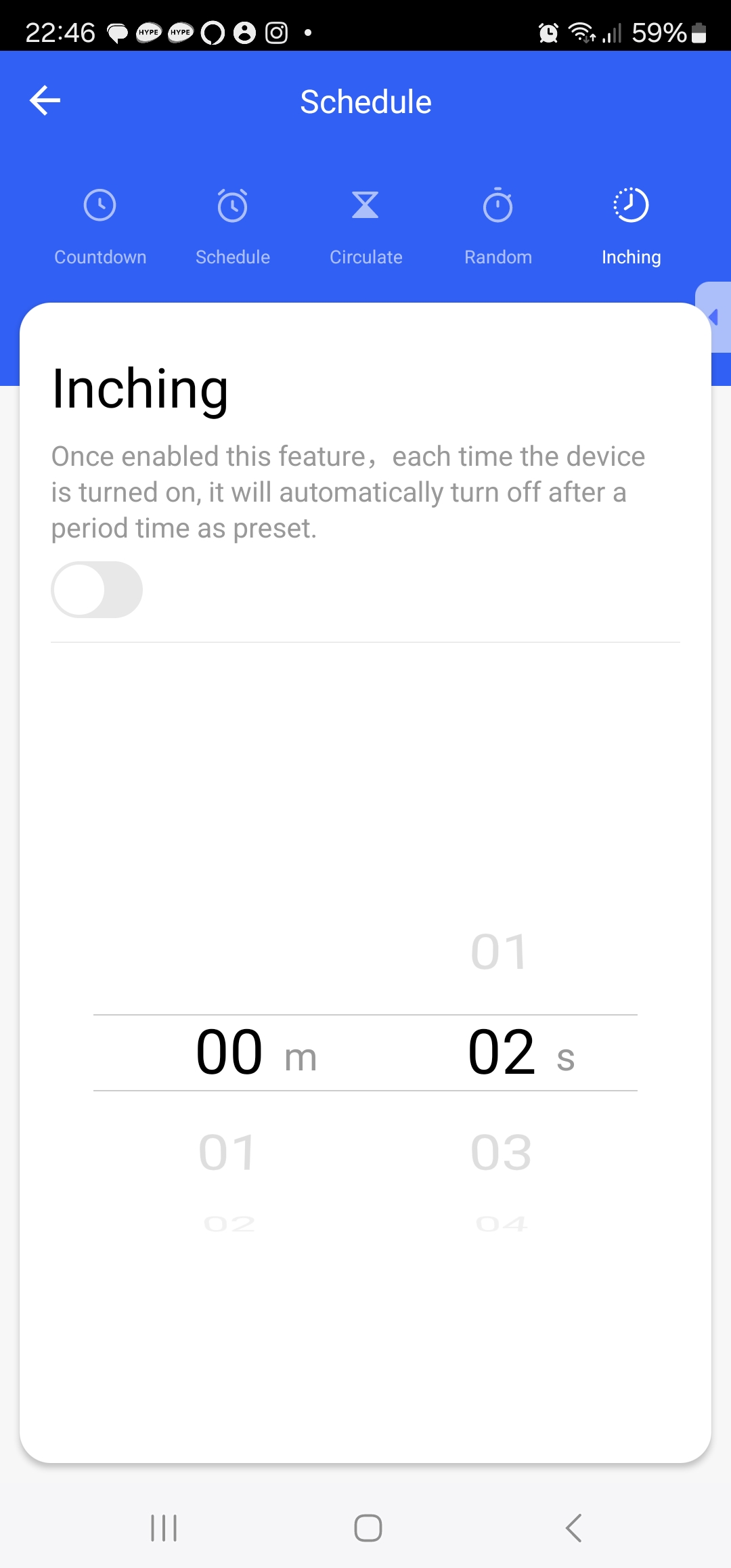

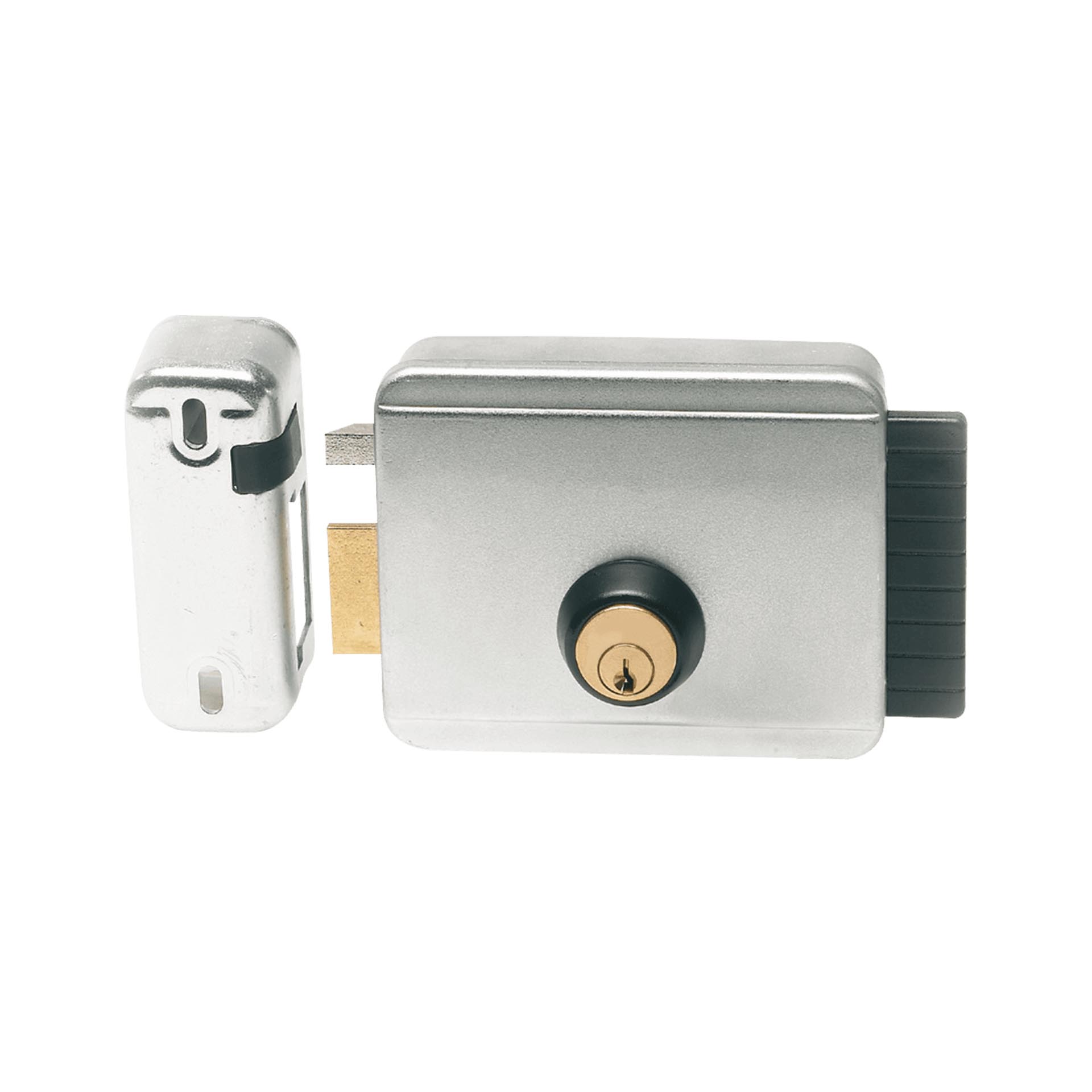

You can activate an electric lock or gate opener from your smartphone. All our relays, in fact, in addition to working in stable on/off mode, can also operate in pulse mode, with programmable closing time. You can open the gate or the garage with your phone instead of searching for the key or remote control. You can also open the door from your smartphone via the Internet if you are not on site.

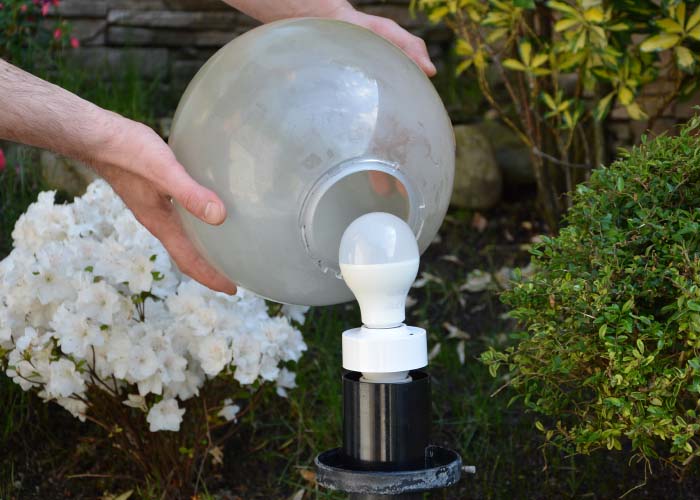

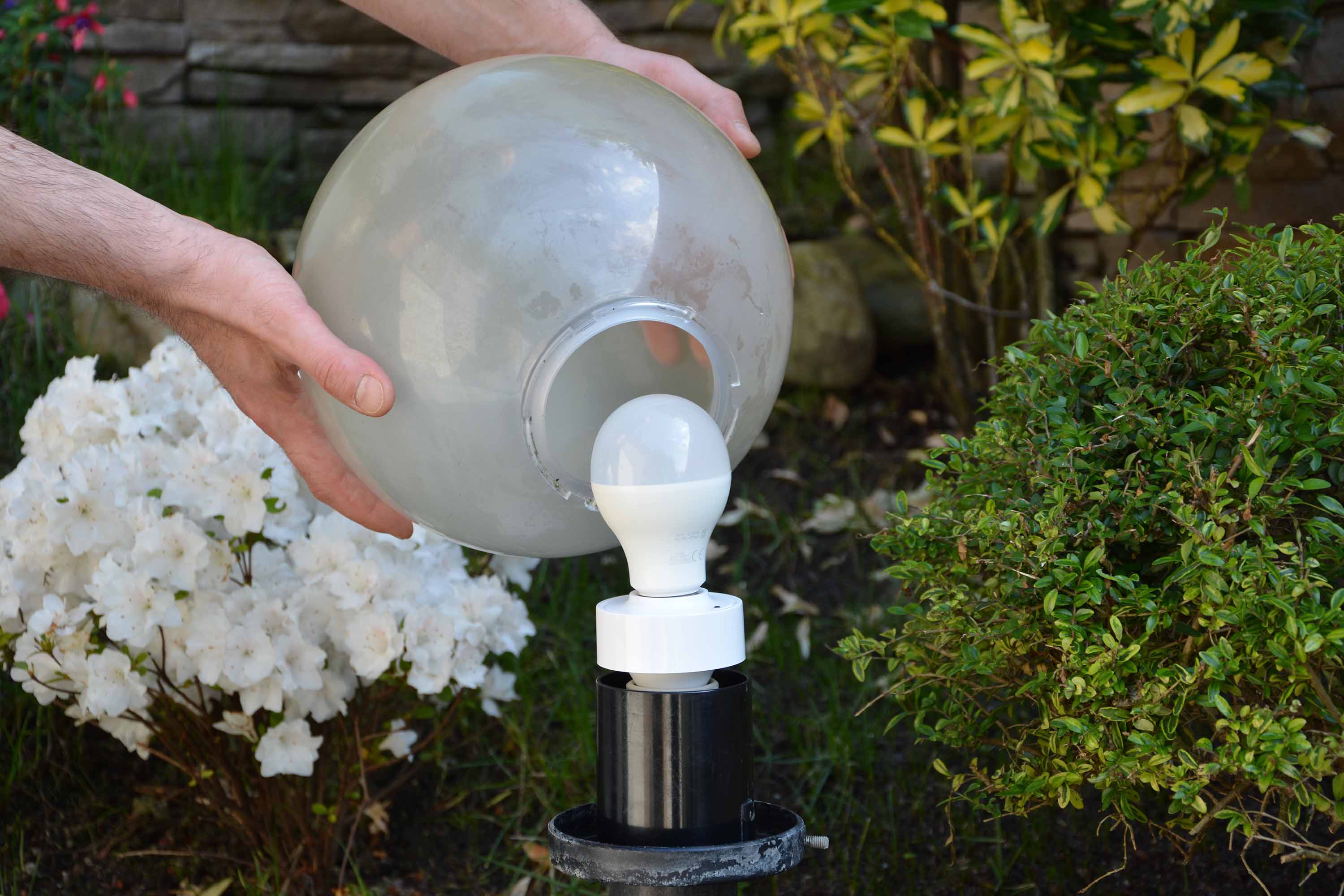

With the WiFi lamp holders you can control the lights of your home or shop from your mobile phone. It is an excellent solution for garden or outdoor lighting on poles that allows you to create a lighting system where every single bulb can be switched on by mobile phone, even without traditional switches. With the week scheduler you can completely automate the lighting of your office or shop based on the time and day of the week.

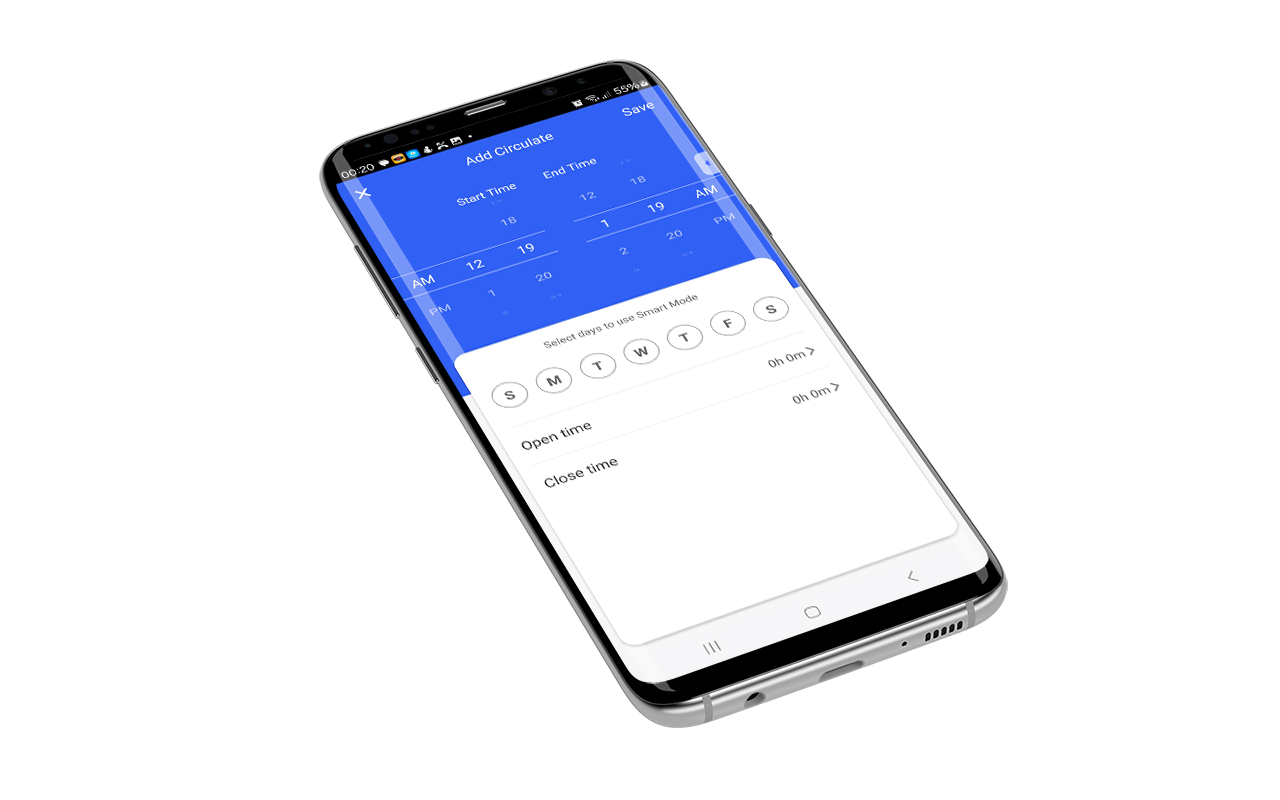

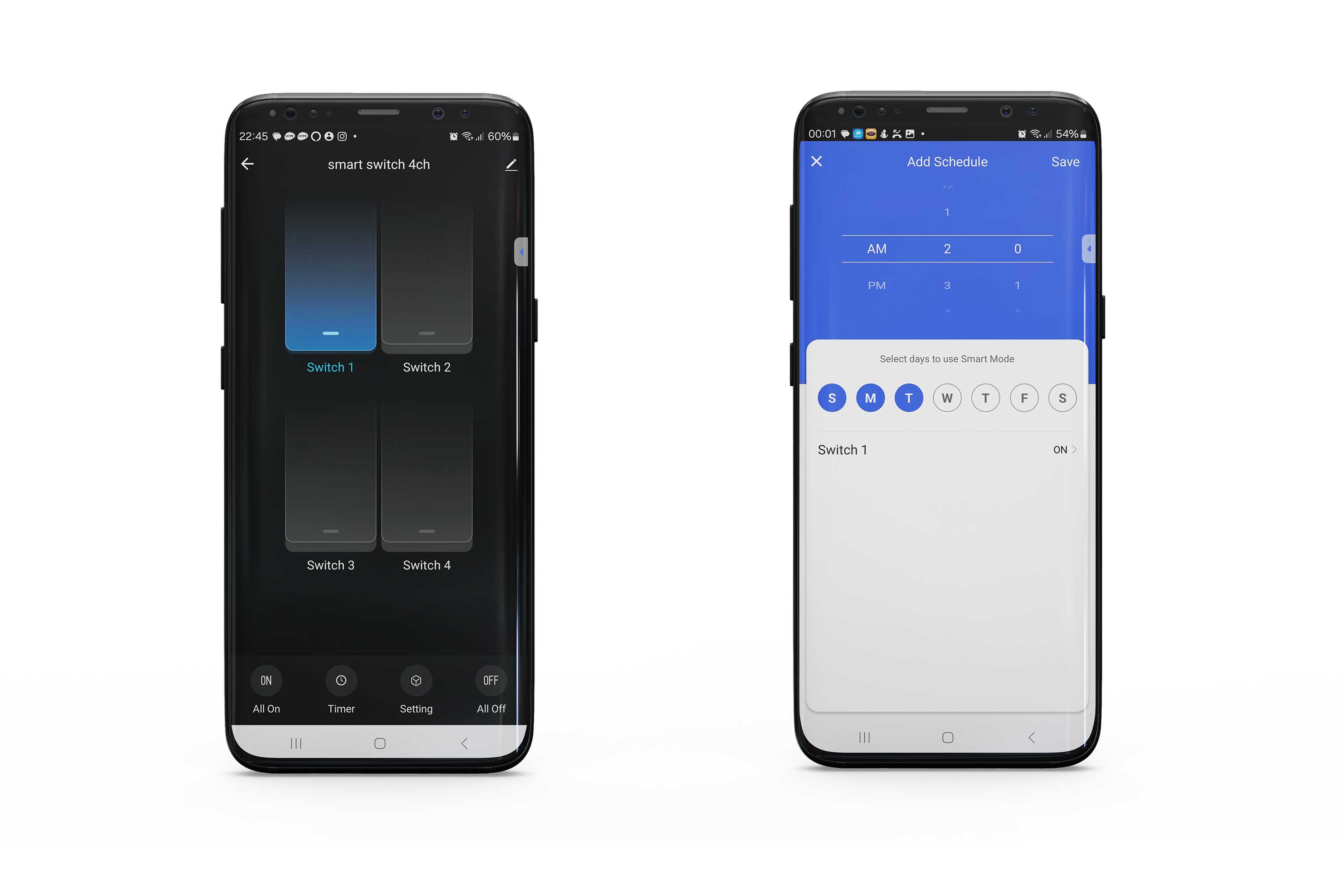

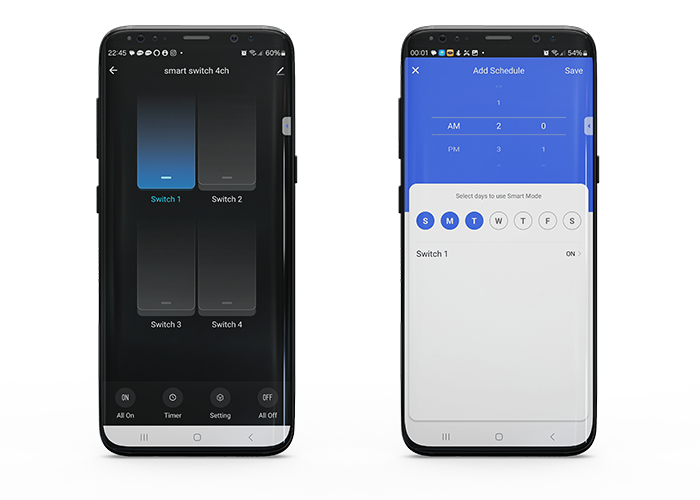

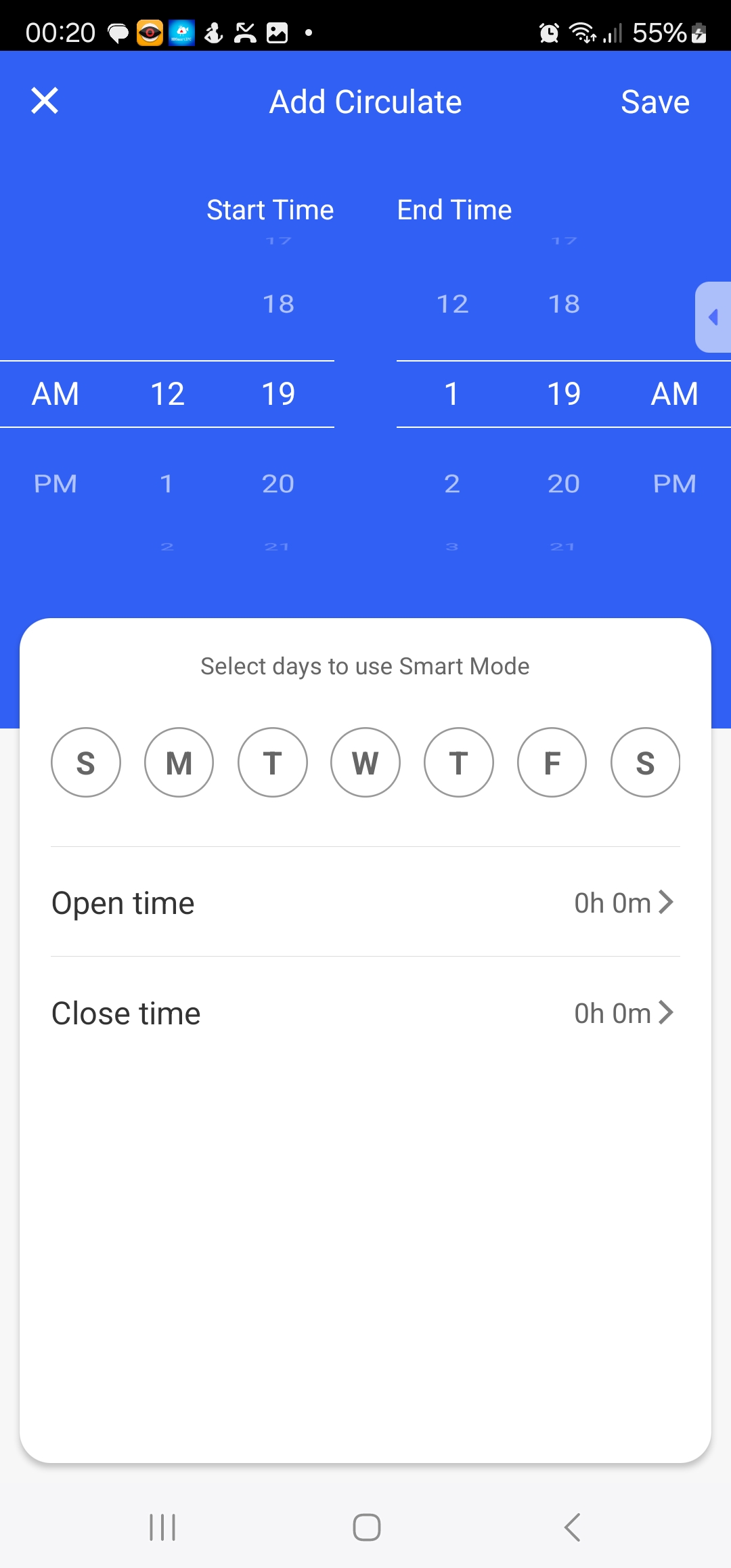

With the weekly scheduler you can pre-set several on/off operations that are performed automatically by the Tuya cloud server, without the need for you to operate with your smartphone. For example, you can program your automatic irrigation system, changing the working hours remotely, when you are on vacation. You can install several wifi modules and control them all from the app, making up your personal, fully programmable, home automation system.
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| CODE | DM-WFC-1R | DM-WFC-2R | DM-WFC-4R | DM-WFC-1B | DM-WFC-2B | DM-WFL1 |
| Description | 1 Wifi NO/NC relay momentary/stable | 2 Wifi NO/NC relay momentary/stable | 4 Wifi NO/NC relay momentary/stable | 1 Wifi switch/pushbutton | 2 Wifi switch/pushbutton | Wifi E27 lampholder |
| Type | Board | Board | Board | Module | Module | E27 lampholder |
| SETUP | ||||||
| Input | 1 microUSB power supply| 1 7..32VDC power input | 1 input for local switch | 1 microUSB power supply| 1 7..32VDC power input | 2 inputs for local switches | 1 microUSB power supply| 1 7..32VDC power input | 4 inputs for local switches | 1 110-240V AC power supply | 1 input for local switch | 1 110-240V AC power supply | 2 inputs for local switch | 1 E27 lamp holder |
| Output | 1 NO/NC relay output. Stable or momentary with adjustable delay | 2 NO/NC relay outputs. Stable or momentary with adjustable delay | 4 NO/NC relay outputs. Stable or momentary with adjustable delay | 1 110-250V AC stable output | 2 110-250V AC stable outputs | 1 E27 lamp holder |
| Built-in controls | 1 reset pushbutton for WiFi link | 1 pushbutton for output relays control | 1 reset pushbutton for WiFi link | 2 pushbuttons for output relays control | 1 reset pushbutton for WiFi link | 4 pushbuttons for output relays control | 1 pushbutton for output relays control and reset | 1 pushbutton for output relays control and reset | 1 pushbutton for WiFi link |
| Signalling | 2 status LED | 2 status LED | 5 status LED | 1 status LED | 1 status LED | 2 status LED |
| Suitable load | 1 max 10A 230VAC | 2 max 10A 230VAC | 4 max 10A 230VAC | 1 max 10A 230VAC | 2 max 10A 230VAC | 1 E27 Bulb |
| Wi-Fi | 802.11 b/g/n 2.4GHz | 802.11 b/g/n 2.4GHz | 802.11 b/g/n 2.4GHz | 802.11 b/g/n 2.4GHz | 802.11 b/g/n 2.4GHz | 802.11 b/g/n 2.4GHz |
| FUNCTIONS | ||||||
| Smartphone | Free APP Tuya SmartLife for iOS Android | Free APP Tuya SmartLife for iOS Android | Free APP Tuya SmartLife for iOS Android | Free APP Tuya SmartLife for iOS Android | Free APP Tuya SmartLife for iOS Android | Free APP Tuya SmartLife for iOS Android |
| P2P | ||||||
| Manual remote control | On/off remote control or momentary with programmable delay with visual confirmation | On/off remote control or momentary with programmable delay with visual confirmation | On/off remote control or momentary with programmable delay with visual confirmation | On/off remote control with visual confirmation | On/off remote control with visual confirmation | On/off remote control with visual confirmation |
| Timer control | Timer up to 24 hours | Timer up to 24 hours | Timer up to 24 hours | Timer up to 24 hours | Timer up to 24 hours | Timer up to 24 hours |
| Week scheduler | Automatic actions by day/hour | Automatic actions by day/hour | Automatic actions by day/hour | Automatic actions by day/hour | Automatic actions by day/hour | Automatic actions by day/hour |
| Random actions | Automatic random actions by day/hour to simulate human presence | Automatic random actions by day/hour to simulate human presence | Automatic random actions by day/hour to simulate human presence | Automatic random actions by day/hour to simulate human presence | Automatic random actions by day/hour to simulate human presence | |
| Push notifications | Confirm automatic actions and device offline | Confirm automatic actions and device offline | Confirm automatic actions and device offline | Confirm automatic actions and device offline | Confirm automatic actions and device offline | Confirm automatic actions and device offline |
| Voice control | Compatible with Amazon Alexa, Google Assitant, Google Home, Samsung SmartThings | Compatible with Amazon Alexa, Google Assitant, Google Home, Samsung SmartThings | Compatible with Amazon Alexa, Google Assitant, Google Home, Samsung SmartThings | Compatible with Amazon Alexa, Google Assitant, Google Home, Samsung SmartThings | Compatible with Amazon Alexa, Google Assitant, Google Home, Samsung SmartThings | Compatible with Amazon Alexa, Google Assitant, Google Home, Samsung SmartThings |
| GENERAL | ||||||
| Casing | Without casing | Without casing | Without casing | ABS | ABS | ABS |
| Protection degree | - | - | - | IP40 | IP40 | IP40 |
| Operating temperature | -20°C +70°C RH85% Max | -20°C +70°C RH85% Max | -20°C +70°C RH85% Max | -20°C +70°C RH85% Max | -20°C +70°C RH85% Max | -20°C +70°C RH85% Max |
| Power supply | USB 5VDC / 7-32VDC | USB 5VDC / 7-32VDC | USB 5VDC / 7-32VDC | 100V-240V AC 50/60 Hz | 100V-240V AC 50/60 Hz | 100V-240V AC 50/60 Hz |
| Overall dimensions | 67x40x17 mm | 140x33x17 mm | 73x73x17 mm | 40x40x22 mm | 40x40x22 mm | 69x70 mm |
| Weight | 24 gr. | 34 gr. | 64 gr. | 26 gr. | 28 gr. | 68 gr. |
In order to use this remote controls you need a wifi network. Your internet router usually come with built-in wifi.
