WEARABLE SPY CAMERAS


DK-GL1-HDS

CAMERA GLASSES
WITH SD AND WIFI

Hidden camera in power adapter

2MP 1080P ONVIF

Spy glasses with SD card. WiFi control by smartphone, even via Internet.

Pin-hole lens 2.8 mm 90° Micro SD card slot up to 128GB 700-hour video file storage on SD card of maximum capacity 40 min. recording with built-in battery Built-in microphone for audio Motion detection Wi-Fi for mobile control with app Free P2P Cloud Server for Internet Control Free App

WITH YOU WHEN YOU NEED IT


The hidden camera to wear



These cameras are designed to be worn among your regular clothes. They are perfect to record what happens around you. Just press a hidden button to start recording and enable WiFi for remote access, even via the Internet. The pin-hole lens, invisible from the outside, shoots in front of you with 90° wide angle, like a third eye.

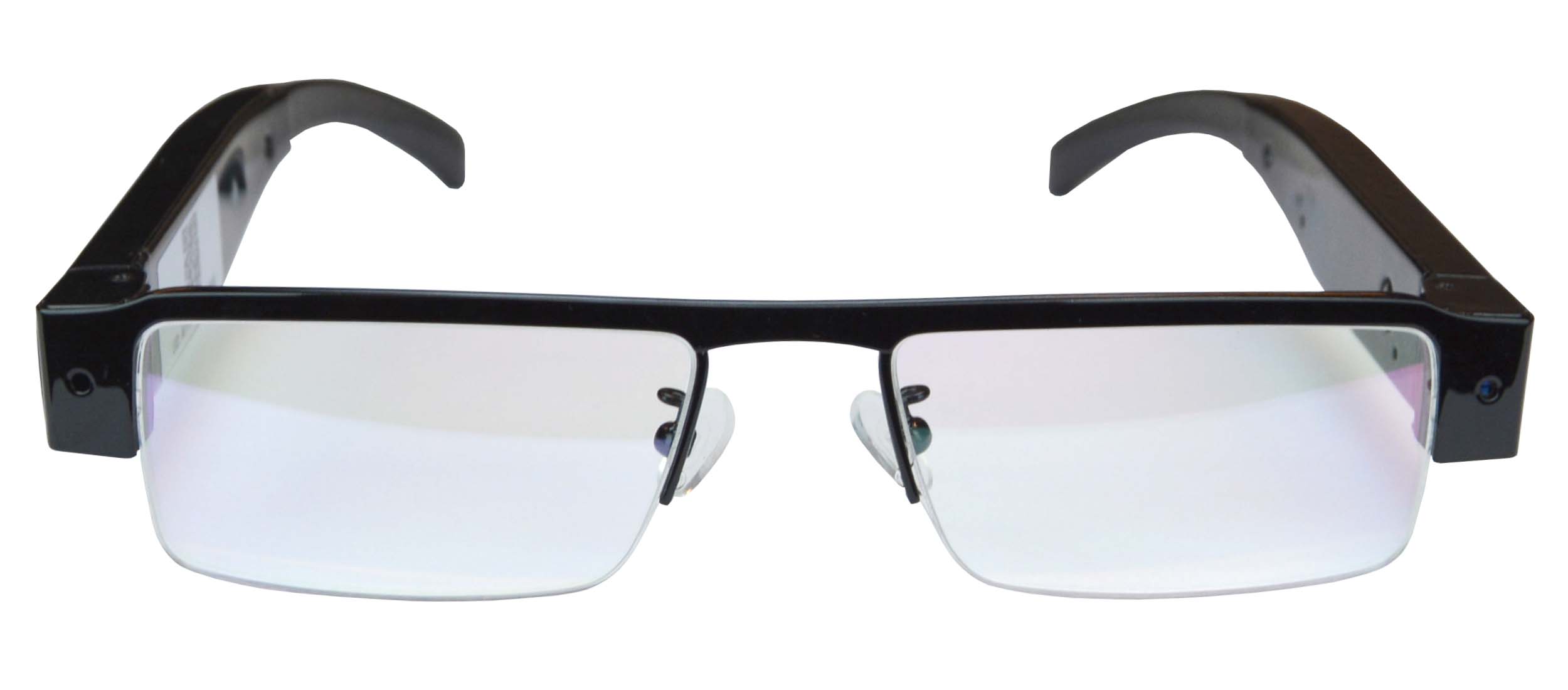

Stylish real glasses



These are real and unexpected eyeglasses. Inside the glasses there are many tiny componenets: lens, microphone, Micro SD card and WiFi . The on/off button is located on the inner side of the left temple and you can operate it when needed by pretending to fix your glasses. An LED, visible only to you, confirms the device is in operation. If you prefer not to wear glasses, you can carry them hanging from your pocket, or simply leave them on a table or shelf.

VIDEO AND AUDIO


2 megapixels high resolution video



These hidden cameras for investigation provide a video resolution of 2 MP at 25 f/s. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and provide high quality video and rich detail. In order to guarantee maximum performance, we use the same high-level CMOS and HiSilicon processors of our IP cameras for traditional CCTV surveillance in these hidden cameras. Download two 2MP demo movies below

2MP normal lighting 2MP low lighting

Pinhole invisible lens



All of our mini SD memory cameras are equipped with a wide angle lens with a coverage of about 90°. The pinhole lens is placed behind a small hole in the temple of the glasses. The camera shoots effectively even in dim light.


Microphone for audio

These power adapter mini-cameras also include audio. All cameras come with a built-in microphone able to cover a medium-sized room. The audio is recorded together with the video and is also available during live view, when you control the camera with your smartphone.

VIDEO RECORDING


Storage on SD card



These spy cameras record videos on a removable Micro SD memory card. The Micro SD card is not included. To use these cameras you must purchase a micro SD card, in Class 10 or higher, of the maximum capacity supported by the camera. These cameras save MP4 files with H264 compression to provide long video storage.

DK-GL1-HDS
SD max. 128GB
Max. storage 700 hours

Video playback and download

To play the movies recorded on the SD card of the camera you must extract the SD card from the device and insert it into a Personal Computer. If your PC does not have an SD card reader, you can use the USB reader which is included in the package. You can play movies with common free players, like VLC or Windows Media Player and download the ones you want to save on your PC. With the mobile app you can also play and download videos by mobile phone, without having to remove the card from the camera.

POWER SUPPLY


Built-in battery

These speaker cameras are equipped with an internal rechargeable lithium battery that allows recording without mains power for 40 minutes. The battery is recharged by connecting a USB charger to the USB port. Obviously these devices drain battery only when you press the recording button.

DK-GL1-HDS
Built-in battery 220mAh
Battery life 40 minuti

REMOTE CONTROL


WiFi with APP for smartphones

These spy glasses are equipped with a Wi-Fi transmitter for Smartphone control. If you have not a WiFi network, you can connect your smartphone directly to the Wi-Fi Hot-Spot generated by the camera. Alternatively, you can connect the camera to your home Wi-Fi network and control your spy camera over the Internet with our free P2P cloud server . You can even connect the camera to your smartphone wifi (hotspot mode) so you could share what you are looking at with other people from anywhere. With our free APP for Android and iOS, you have full control of the cameras with mobile phones or tablets. You can WATCH AND HEAR in real time. You can RECORD and take pictures. You can even PLAY AND DOWNLOAD the video footage in the camera's memory. If you enable Motion Detection you can RECEIVE real time push notification on your mobile phone all the time that an intrusion occurs.

Free iOS and Android app for spycam Spycam live view Listen-in camera feature SD card recording Video download P2P cloud  server for easy web control Alarm push notification IoVedo.EZ IoVedo.EZ

True ONVIF cameras

Unlike all the spycams you find on the internet, our investigation cameras are real onvif IP cameras. You can add these cameras to our NVR, along with our standard IP cameras . It is a very important feature in professional use because it allows you to connect these cameras to any onvif video recorder. On the contrary, other cheap spy cameras that you can buy online only work with their specific app and are not suitable for professional use. DSE is one of the very few companies in Italy to be a member of the international ONVIF association that brings together the main manufacturers in the sector and establishes the communication standard between IP security equipment.


P2P Software

If you want to control your hidden cameras via computer, you can download HDSmart software from our website. Just enter your camera ID and login password to connect via the Internet. You can easily control your home from the office , thanks to the P2P cloud server. HDSmart is compatible with all our DK --- HDS series investigative cameras and displays up to 16 cameras simultaneously. It also allows you to record videos and snapshots of what you are watching live.

DOWNLOAD HDSmart

TIPS


Make a perfect fixed hidden camera

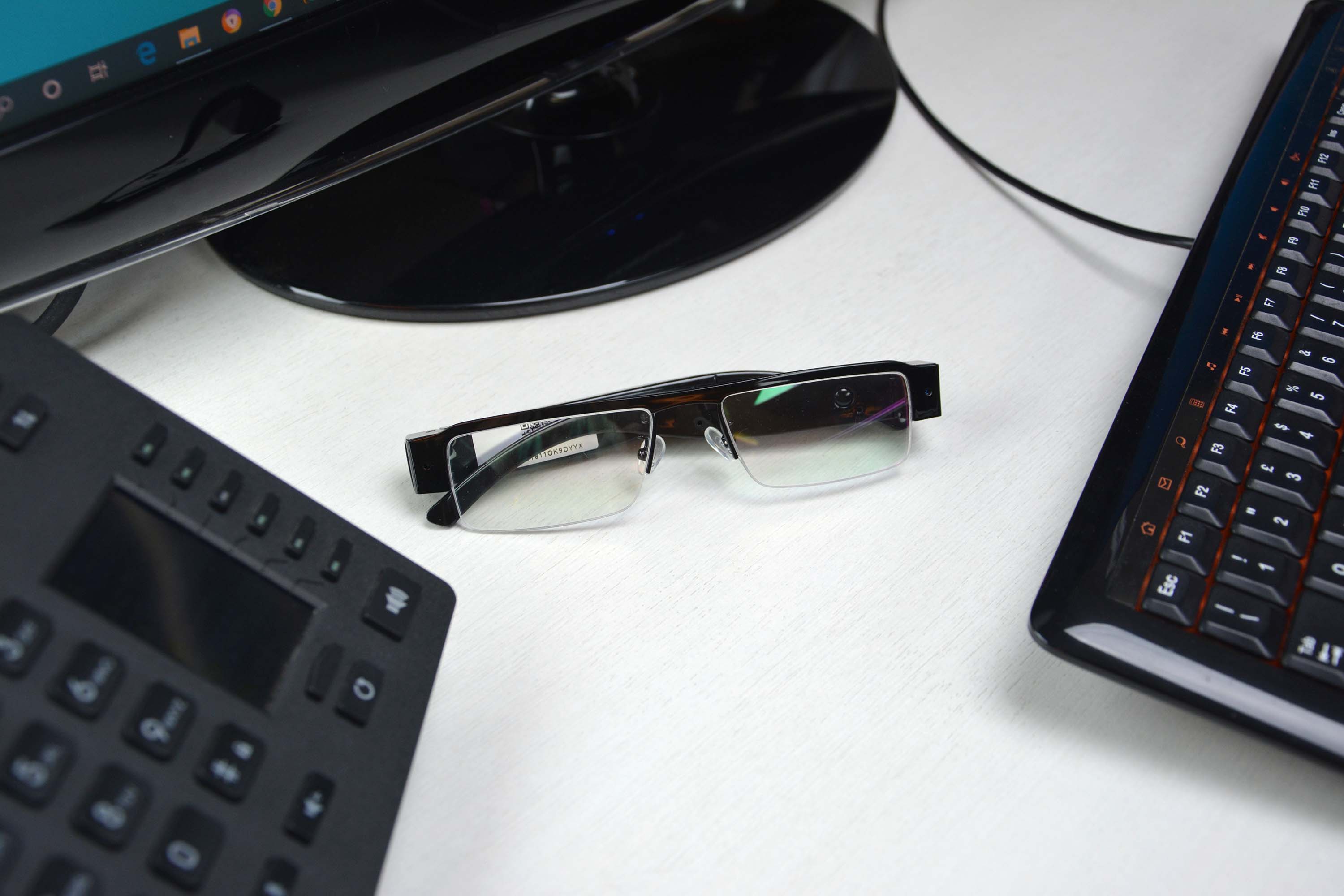

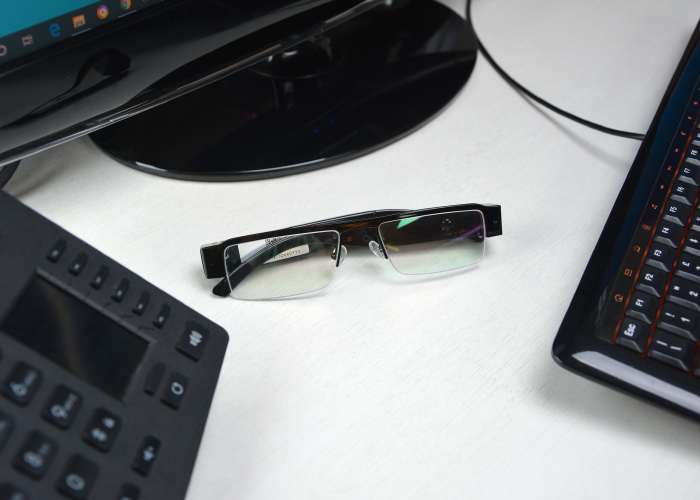

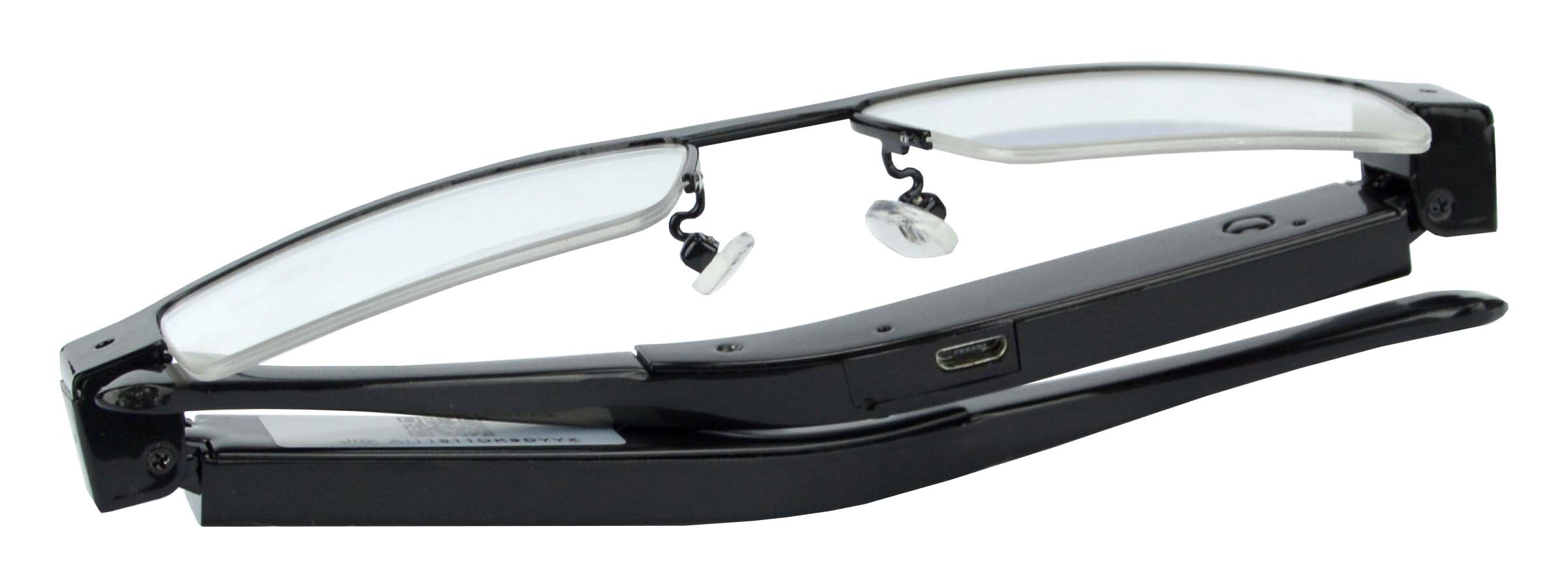

These spy glasses are usually worn, but you can also leave them on a table or shelf to make a perfect hidden fixed camera. The shape of the folded glasses allows an optimal shooting angle to record what happens during a meeting or in an office.


Connect the camera to your smartphone



With our camera goggles and your smartphone in the pocket you can broadcast video anywhere in the world over the Internet. Just connect the WiFi camera to your smartphone, in hotspot mode, and that's it. With the app you can share your video with other people via the web.


TECHNICAL DATA


CODE DK-GL1-HDS
Description Glasses camera with SD and WiFi
Type Control with Smartphone
CAMERA
Maximum resolution 2MP FullHD 1080P
Optical sensor 1/2.7" CMOS OV2710
Chipset Hi3518E
Video resolution 1920x1080 @ 25 f/s
Video compression H264 Dual
Infrared illuminator
ICR
Lens Pinhole 2.8 mm (90°)
Focus Fixed
Shutter 1/25...1/12000
S/N Ratio Over 50dB
Video files format MP4 duration 1..60 minutes
Video storage About 700 hours on 128GB @ 1080P
SET UP
Network port
Wi-Fi 802.11 b/g/n 2.4GHz (AP or Client mode)
USB port MicroUSB
Audio microphone
Audio speaker
SD card slot Max. 128GB Class 10 or superior
TV CVBS output
POWER SUPPLY
Standard battery 220mAh 40 min recording
Mains power supply
FUNCTIONS
Recording mode Continuous, Motion, Scheduler
Automatic overwrite Yes (excludable)
Camera control Smartphone/Tablet via WiFi
Protocols TCP/IP HTTP DHCP DNS RTSP NTP
Onvif Supported
P2P
Browser
Smartphone Free APP for iOS Android
Multi streaming
Saving on the web cloud
Mirror Horizontal and vertical
Corridor
Overlays Date and Time (not excludable)
BLC
AWB
DNR
WDR
Anti fog
HSBLC
Starlight
Motion detection
Privacy mask
Anti tampering
Alarm actions Start recording, Push notifications on mobile
Sending Time-Lapse photos
GENERAL
Casing False glasses
Degree of protection IP40
Operating temperature -5°C +40°C RH95% Max
Supply 5VDC USB
Power consumption Max. 3W
Overall dimension 150x150x30 mm
Weight 45 gr.

QUESTIONS & ANSWERS


What is included?

USB CABLE
SD READER
APP
PC SOFTWARE
USER MANUAL

What is not included?

Cameras record on MicroSD card. The micro SD card is not included. You can buy in our price list a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by the camera in the technical data table above.
