POE over coax transmitters
Transferring network and POE power over coaxial cables. Ideal to update analog CCTV systems to IP without replacing the wires.
Transferring network and POE power over coaxial cables. Ideal to update analog CCTV systems to IP without replacing the wires.
POE TRANSMITTER
OVER COAX 1 BNC
Trasmitter and receiver to transfer POE+LAN over RG59 coaxial cable up to 800 m. Ideal to wire IP camera or extend your network over BNC analog wires
Do you have to wire an IP camera with a coaxial cable? Do you need to extend your network over an exhisting coaxial cable? These are quite frequent scenarios when you are upgrading an old analog CCTV system to IP technology. Our POE transmitters over coax can help. With these transmitters you can send LAN and POE power over a standard RG59 coaxial cable, as it was an Ethernet cable.
Ethernet + POE transmitter on coaxial cable up to 800 m.

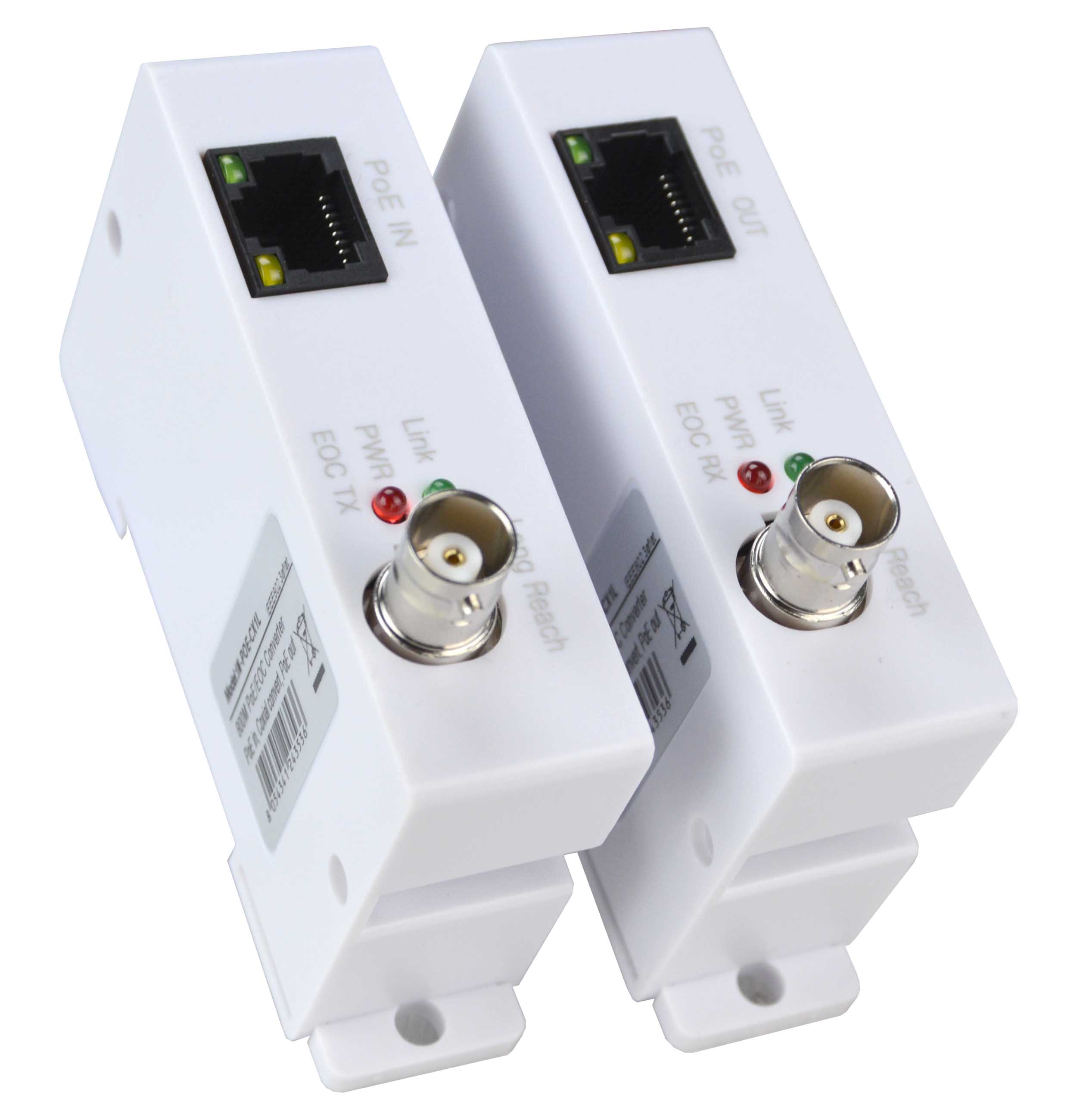

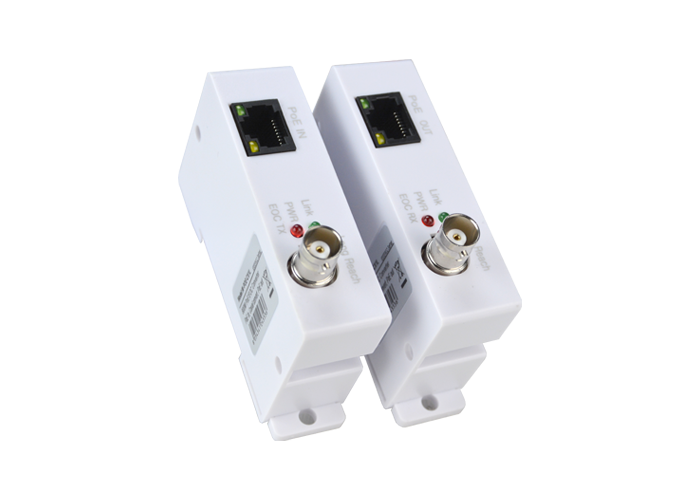

This pair of modules transfers LAN network and POE power over coaxial cable to connect an IP camera. The kit consists of two modules, to be connected to both ends of the coaxial cable, which do not require power. Each module has an RJ45 port (POE IN/POE OUT), for the network and the camera, and a BNC port for the coaxial cable. With the classic RG59 you can wire the camera up to 800 meters (see table). POE and POE+ are supported for fixed and PTZ cameras. You can also use this trasnmitters to extend your local network, with no POE, connecting a switch to the output module. These two elements, transmitter and receiver, are equipped with LEDs that indicate data and POE links on both RJ45 and BNC ports. Suitable for DIN rail mounting (1 module).
|
|
|---|---|
| CODE | IN-POE-CX1L |
| Description | POE transmitter+receiver over coaxial cable |
| SETUP | |
| Ethernet ports | 1 x 10/100 per module |
| Network connectors | RJ45 |
| BNC ports | 1 per module |
| Indicating LEDs | POE/Data on both BNC and RJ45 on both modules |
| SPECIFICATIONS | |
| POE standards | IEEE 802.3af / 3at |
| Max. POE power | 100m=21W | 200m=15W | 300m=11W | 400m=9W | 500m=7W | 800m=5W (with RG59 cable) |
| Wiring range | 500m 100MB | 800m 10MB (between 2 modules with RG59 cable) |
| GENERAL DATA | |
| Casing | ABS |
| Mounting | DIN rail 1 module |
| Degree of protection | IP40 |
| Operating temperature | -10/+45°C Humidity 10%-90% |
| Power supply | Not required (modules take power from the POE uplink) |
| Power consumption | Max. 2W |
| Dimensions | 80x50x22 mm. |
| Weight | 46 gr. per modulo |
See all the accessories supplied with the products in the TECHNICAL DATA table
