BNC video converters
With this AHD video modules you can convert the AHD video signal of an analog camera in HDMI to connect a monitor or a TV set.
With this AHD video modules you can convert the AHD video signal of an analog camera in HDMI to connect a monitor or a TV set.
BNC-HDMI CONVERTER
BNC-HDMI converter for AHD/CVI/TVI video up to 8MP
BNC-HDMI converter for AHD up to 8MP

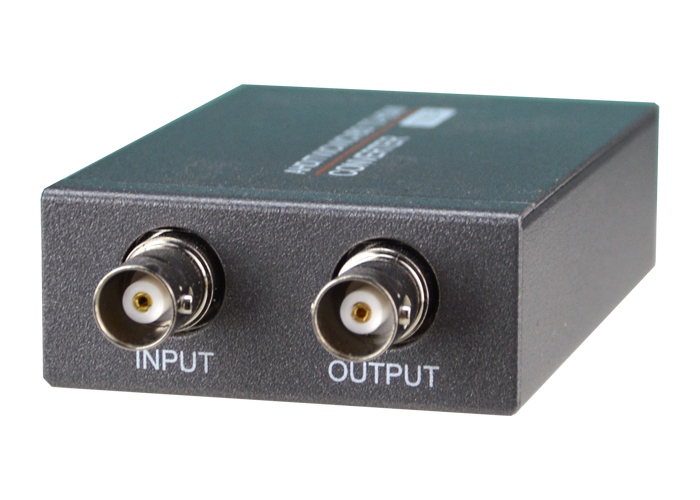

This converter is used to convert an analog video signal to HDMI. It supports both traditional CVBS video signal and new high resolution AHD / CVI / TVI formats up to 8 MP. This product is equipped with BNC camera input and provides 1080P HDMI output to connect an HDMI TV set or monitor. There is also a BNC loop output to send the camera signal to a DVR as well. You can use this converter to connect an AHD surveillance camera to an HDMI device such as TV, monitor or video switcher. USB 5VDC power adapter included.
|
|
|---|---|
| CODE | RE-BNC-HDMI |
| Description | BNC-HDMI converter |
| SET UP | |
| HDMI ports | 1 output 1080P |
| BNC port | 1 input BNC + 1 output BNC loop for DVR |
| Power supply input | 5VDC microUSB port |
| Accessories included | USB adapter |
| FEATURES | |
| Video format | AHD/CVI/TVI up to 8MP - CVBS |
| HDMI max resolution | 1080p FullHD |
| GENERAL | |
| Power supply | 5VDC |
| Casing | Metal |
| Protection degree | IP40 for indoor |
| Operating temperature | -15°C-55°C RH95% MAX |
| Power consumption | 40mA |
| Overall size | 100x55x23 mm |
| Weight | 196g |
12VDC power adapter included
