EASY TO WIRE, ZERO CONFIGURATION PLUG&PLAY. FOR HOUSES FROM 1 TO 4 FAMILIES
UP TO 6 MONITORS PER FAMILY AND UP TO 4 CALL PANELS, EACH WITH 2 DOOR LOCKS AND BADGE READER
CONTROL YOUR INTERCOM AND YOUR WHOLE HOUSE FROM
YOUR SMARTPHONE

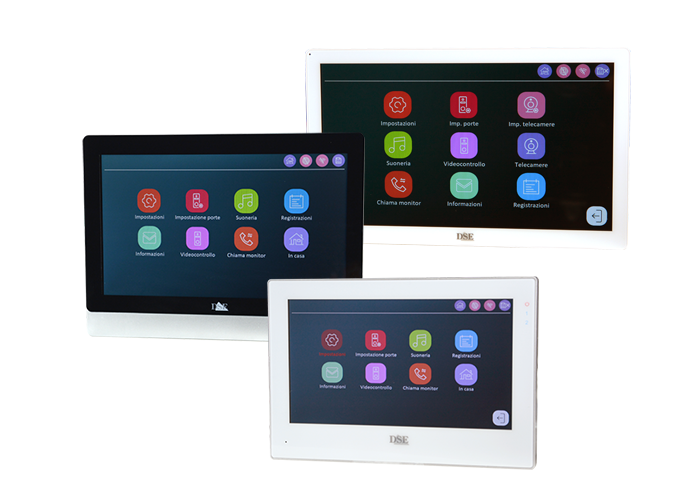

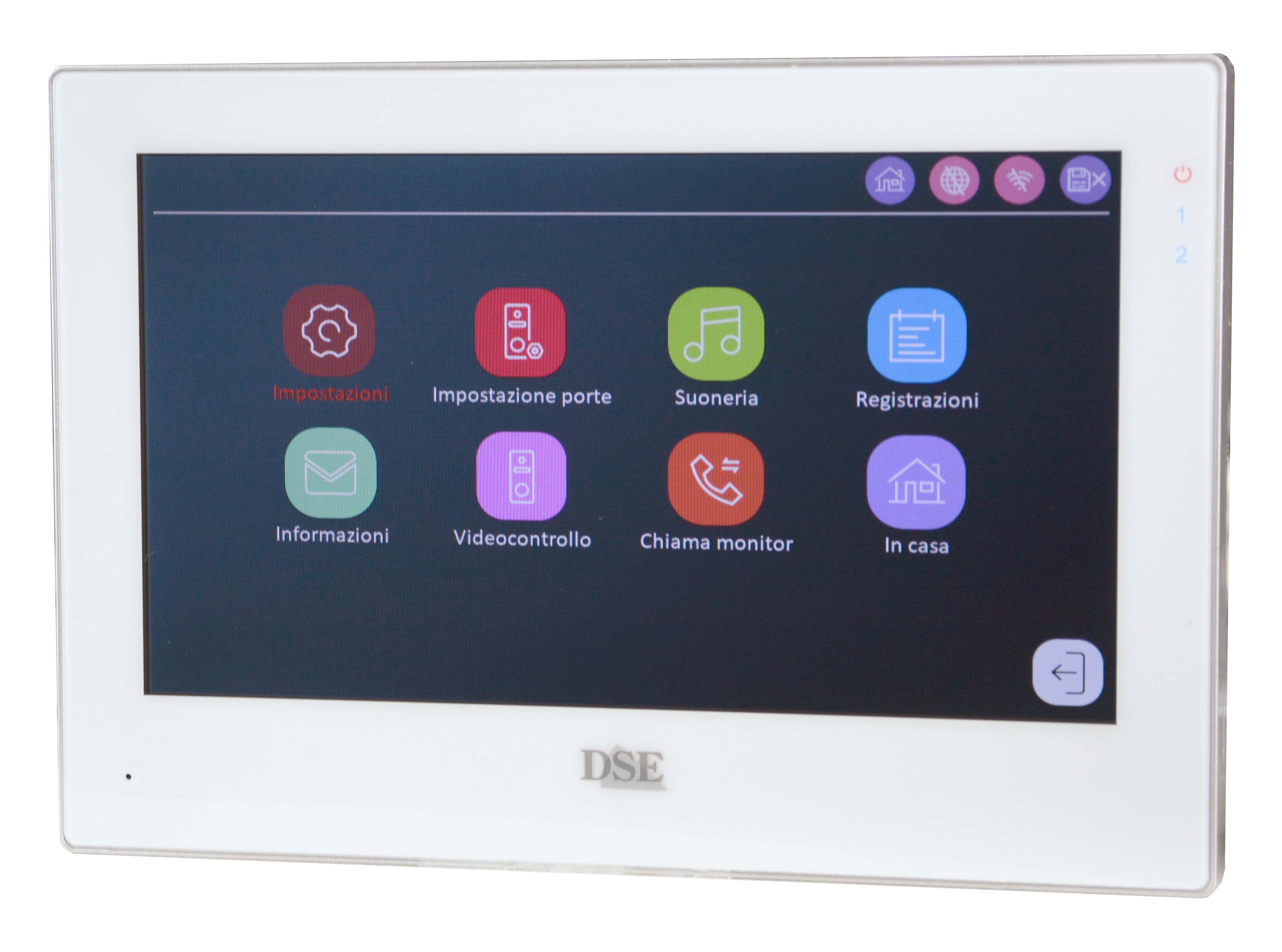

TOUCHSCREEN 7"
Touchscreen monitor 7" white

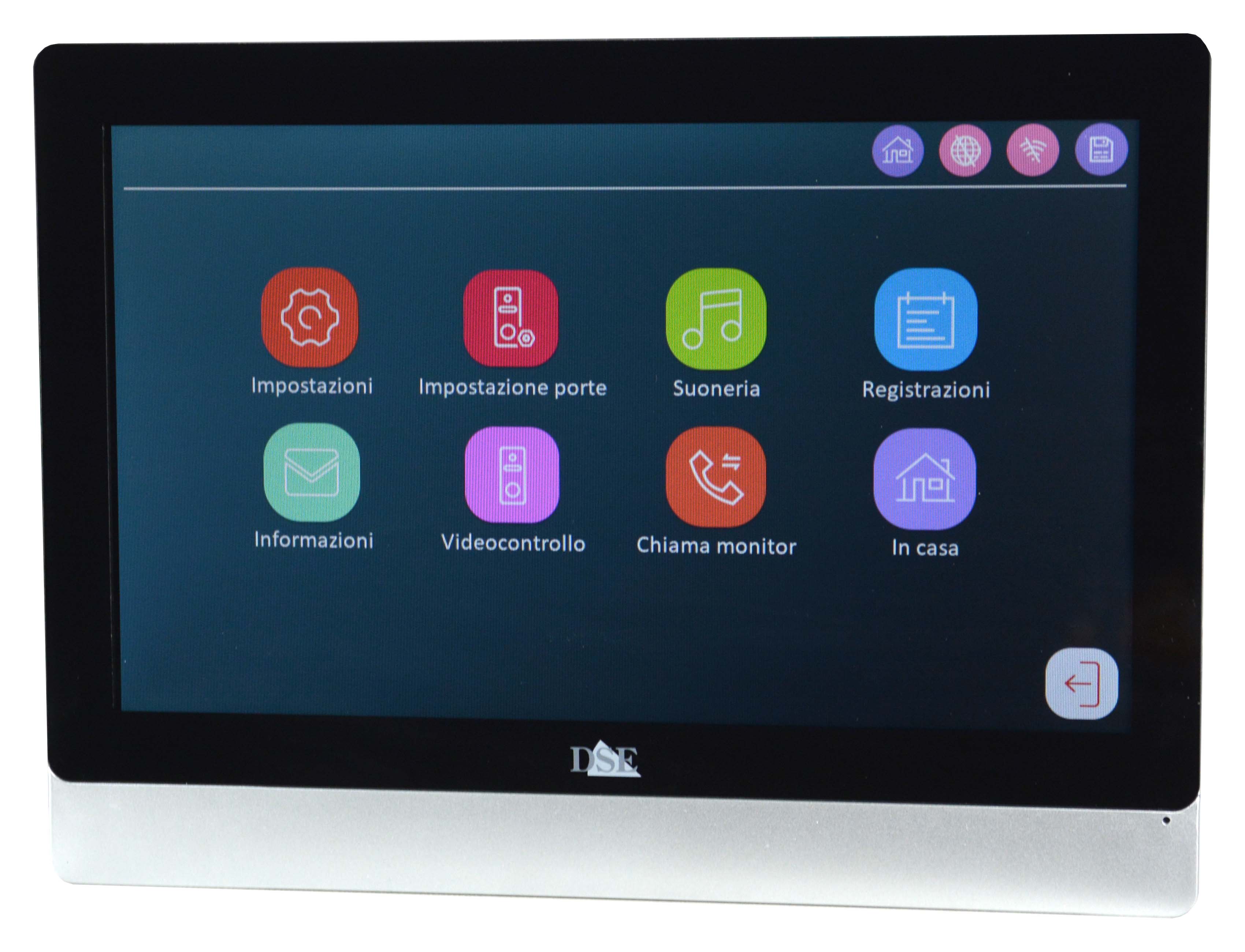

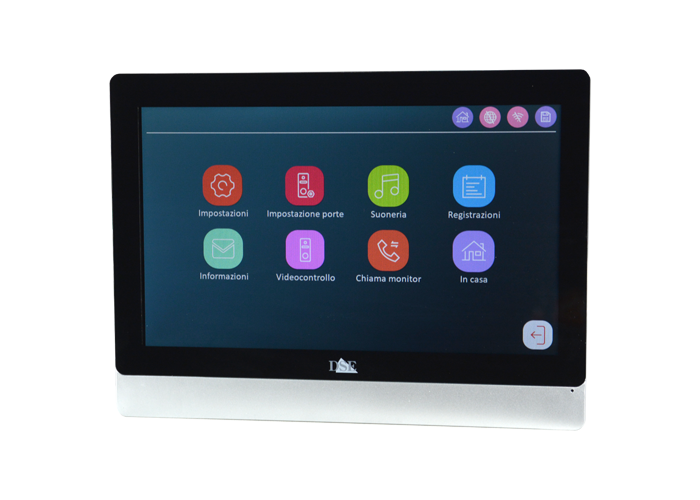

TOUCHSCREEN 9"

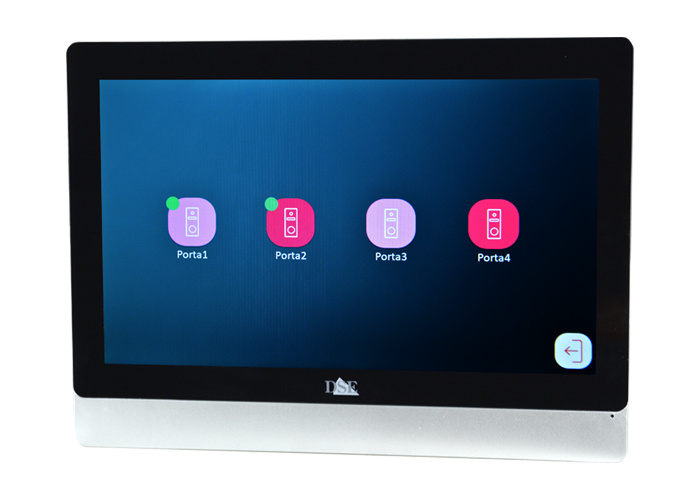

Touchscreen monitor 9" black+inox

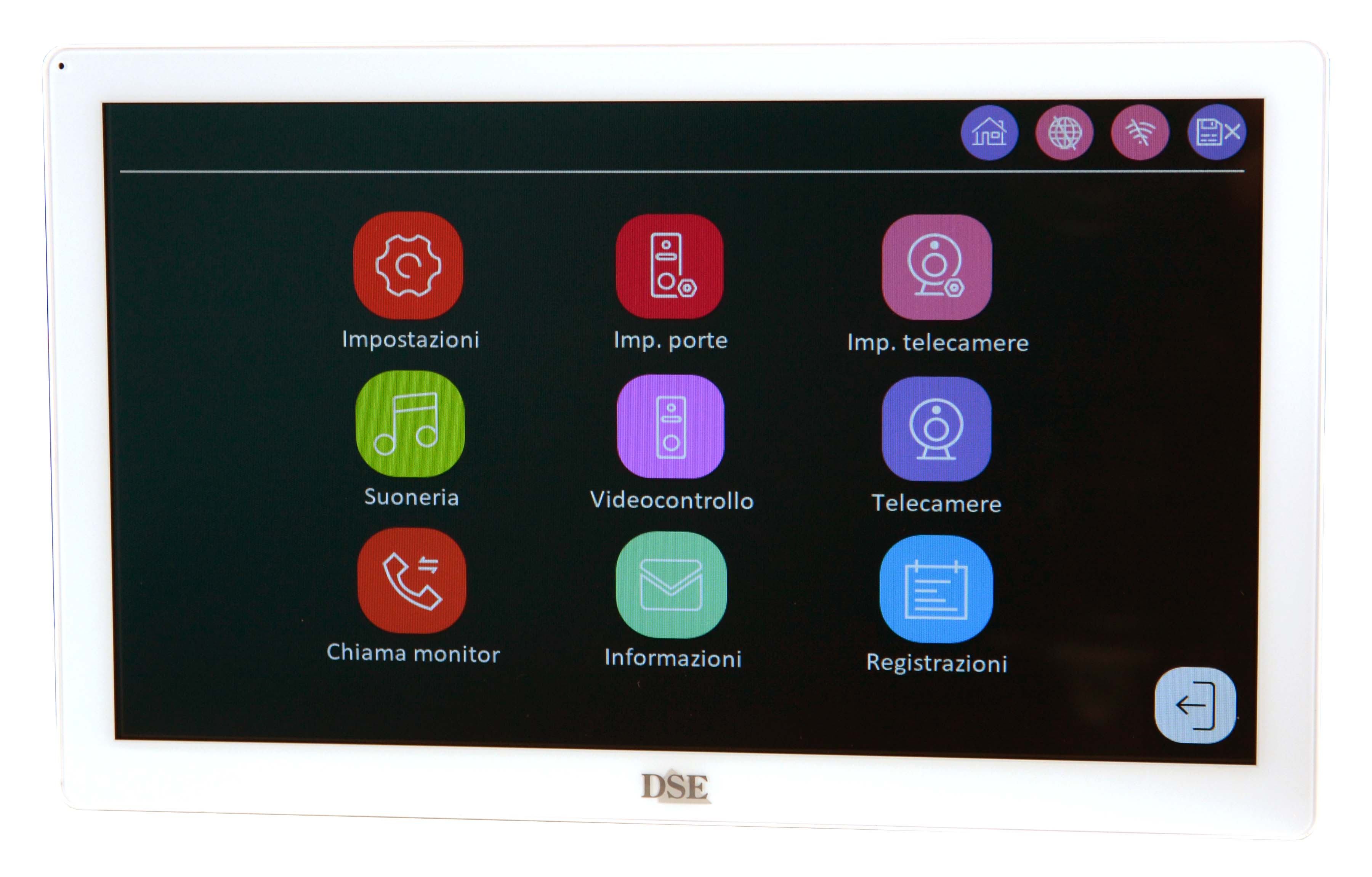

TOUCHSCREEN 10"
Touchscreen monitor 10" white

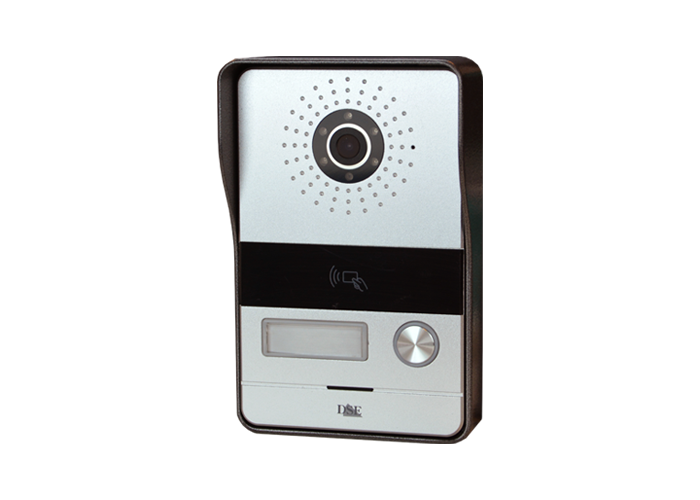

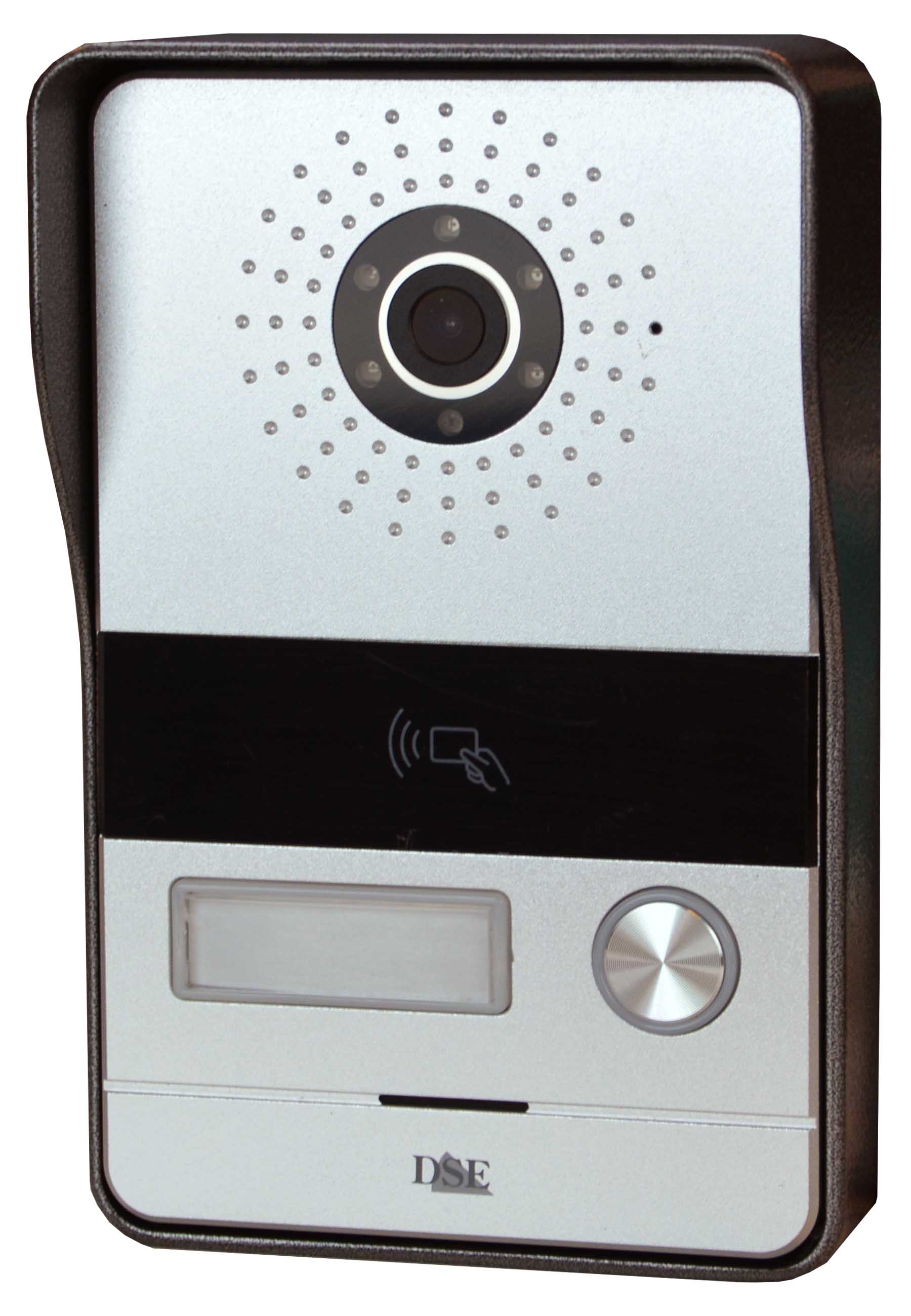

CALL PANEL 1 FAMILY
Surface mounting
1080P camera with IR illuminator
1 control for 12VDC door lock
1 control NO relay for gate (external power)
IC badge reader (5 badges included)

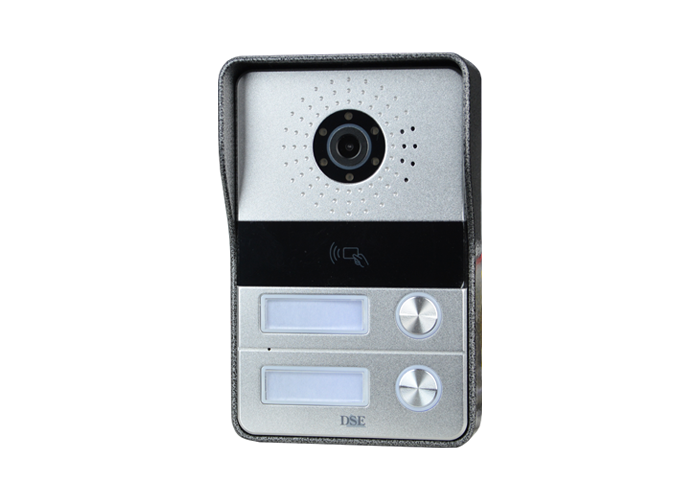

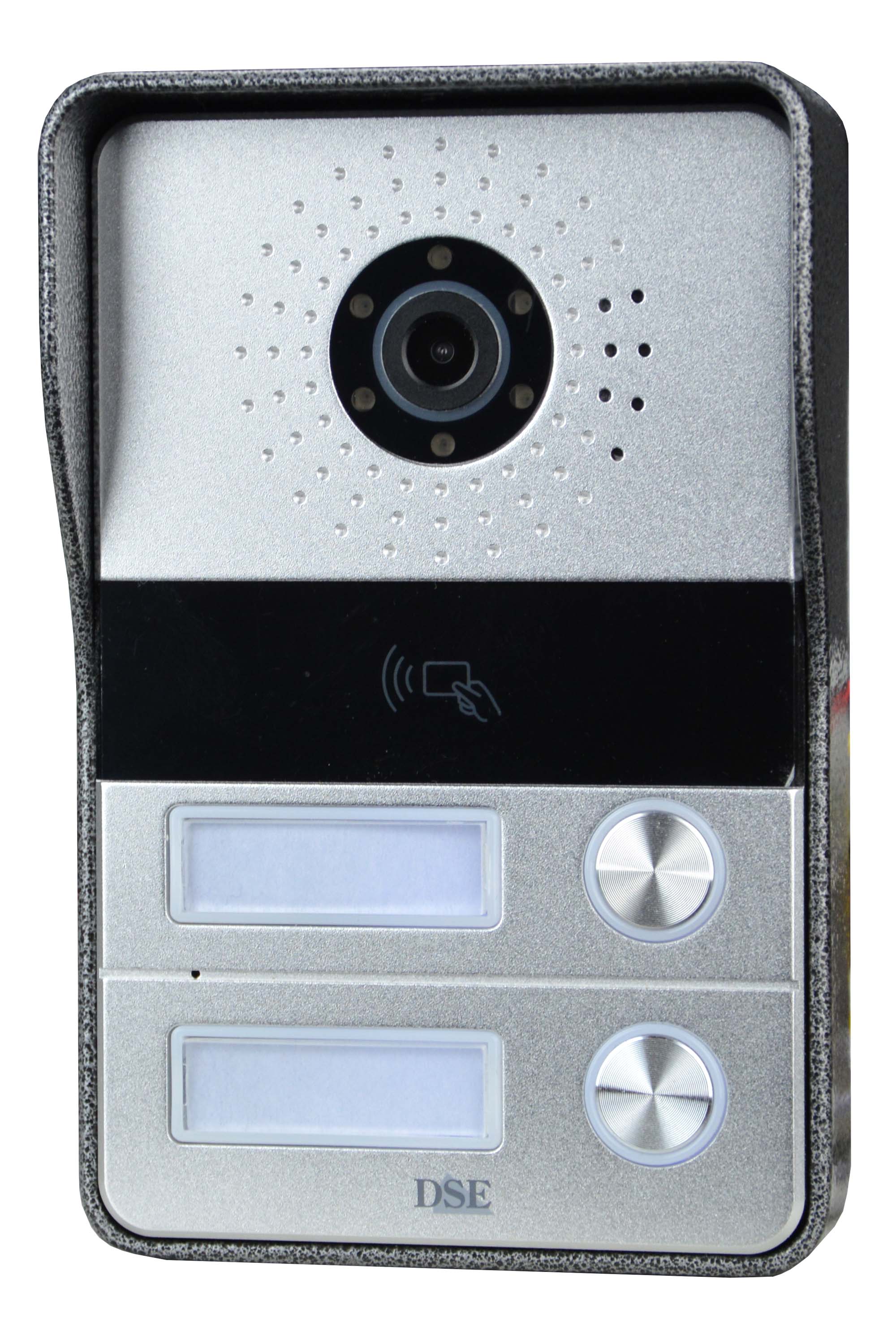

CALL PANEL 2 FAMILIES
Surface mounting
1080P camera with IR illuminator
1 control for 12VDC door lock
1 control NO relay for gate (external power)
IC badge reader (5 badges included)

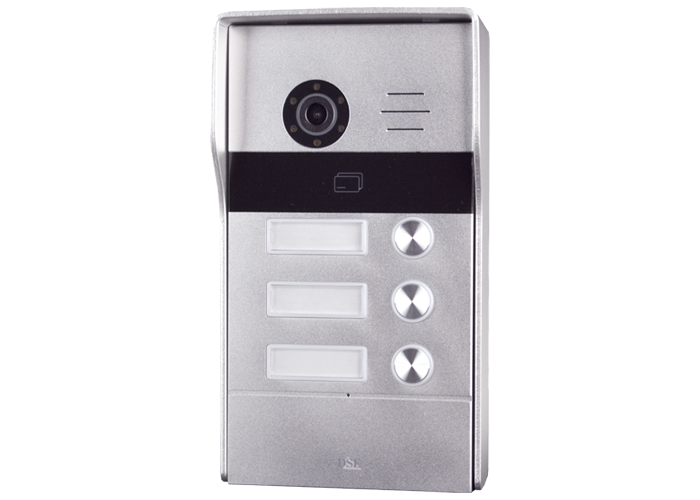

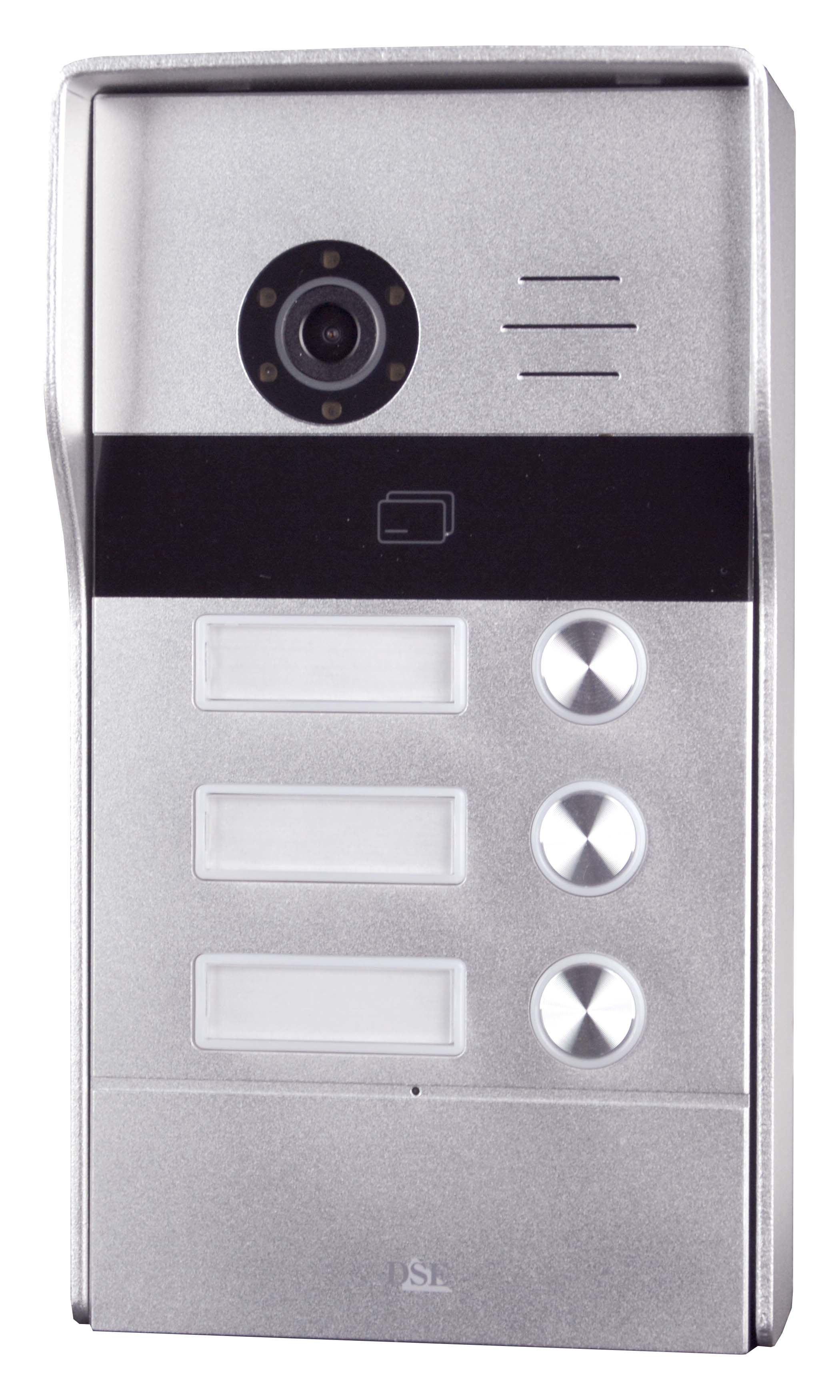

CALL PANEL 3 FAMILIES
Flush mounting
1080P camera with IR illuminator
1 control for 12VDC door lock
1 control NO relay for gate (external power)

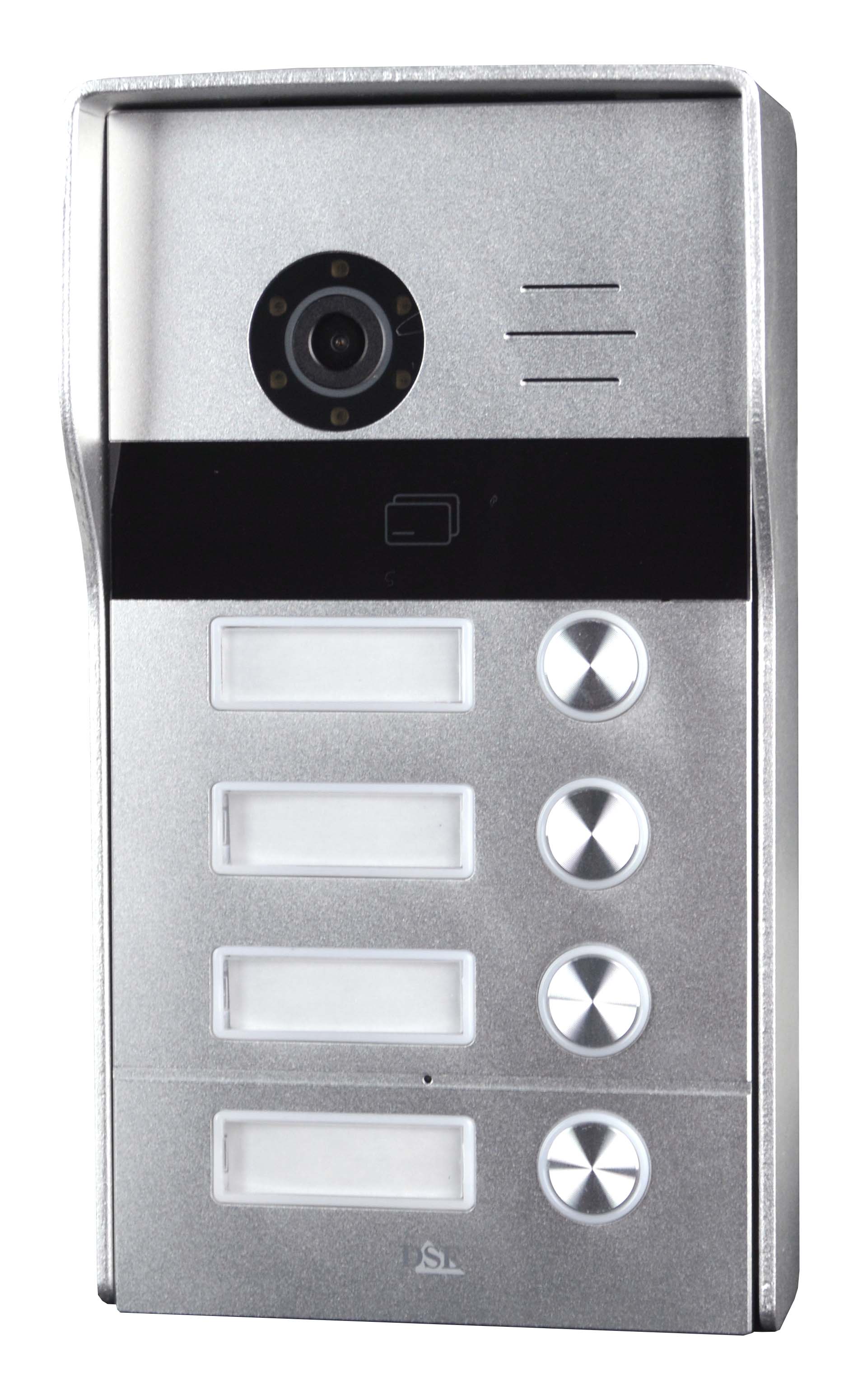

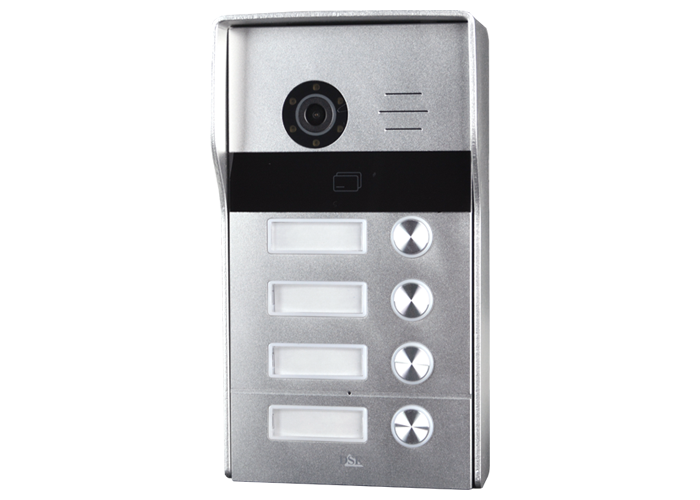

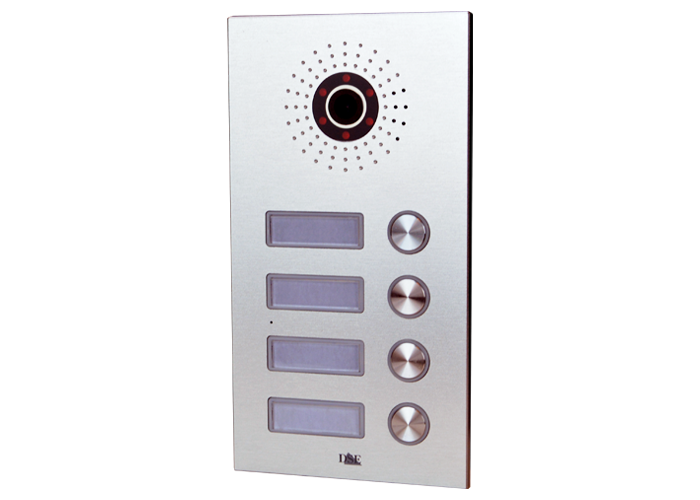

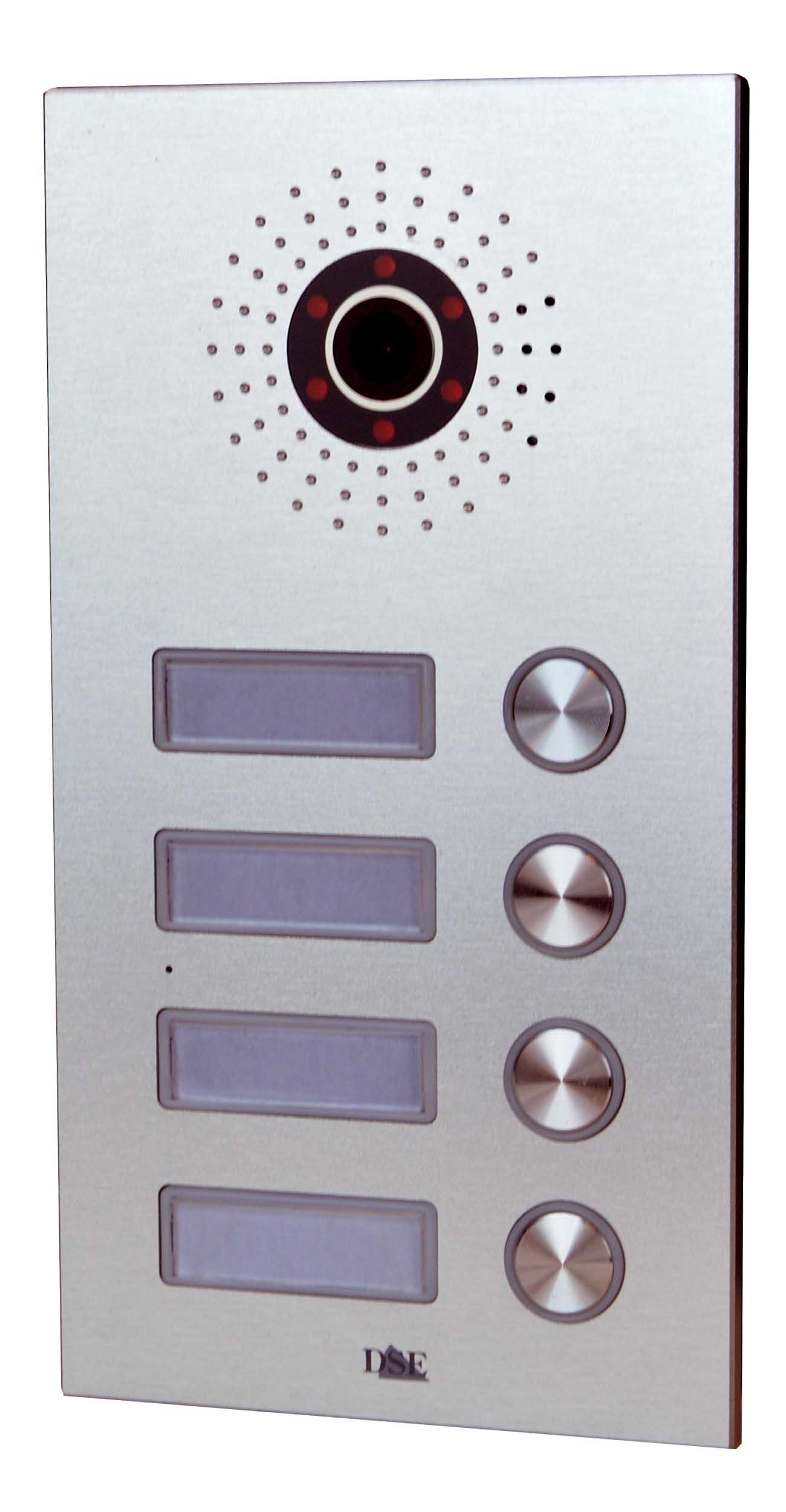

CALL PANEL 4 FAMILIES
Flush mounting
1080P camera with IR illuminator
1 control for 12VDC door lock
1 control NO relay for gate (external power)

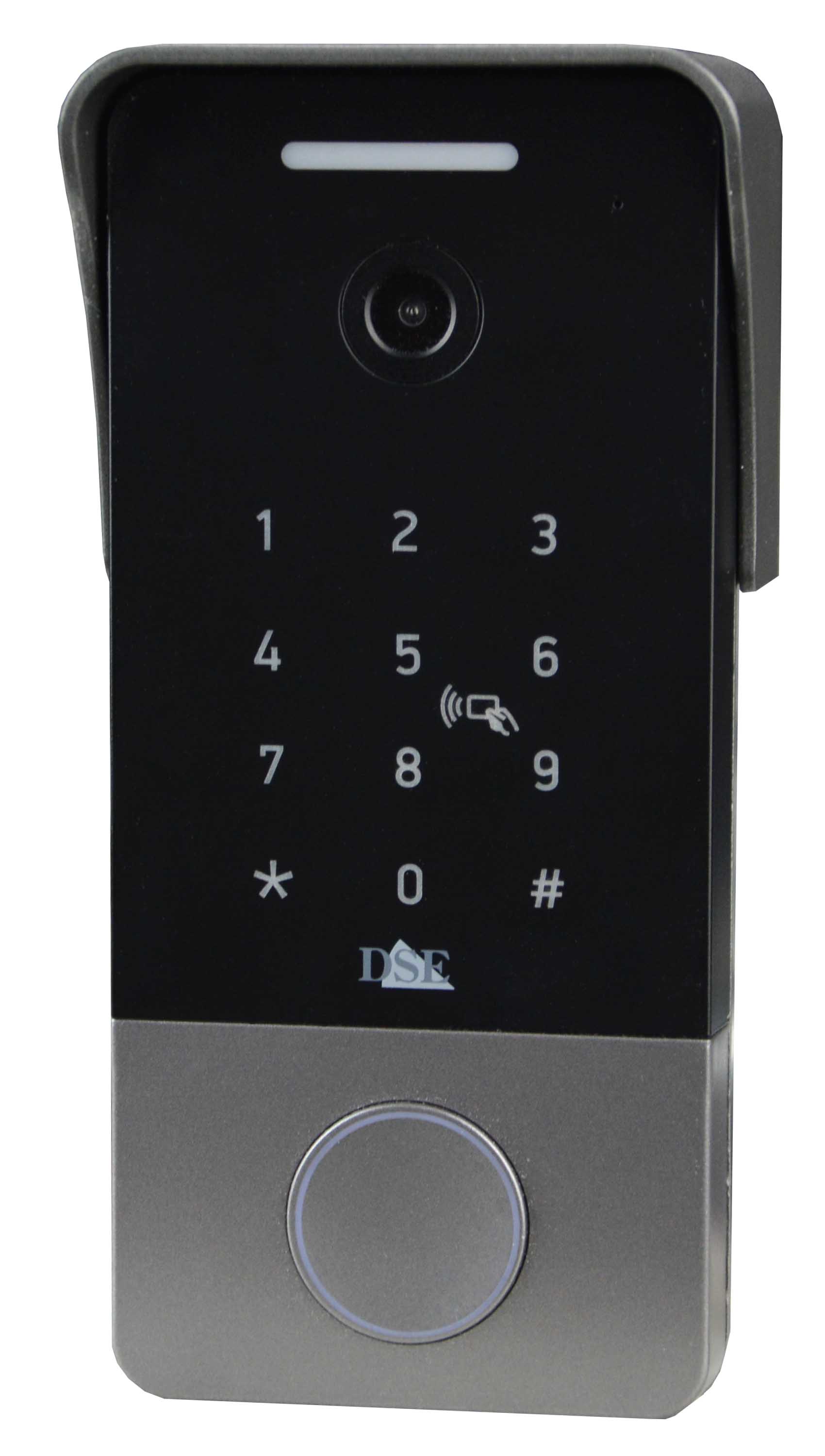

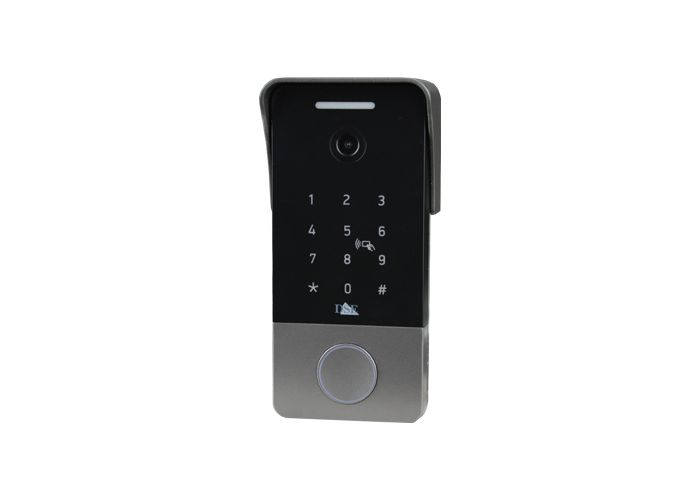

CALL KEYPAD 1 FAMILY
Surface mounting
1080P camera with IR illuminator
1 control for 12VDC door lock
IC badge reader (5 badges included)

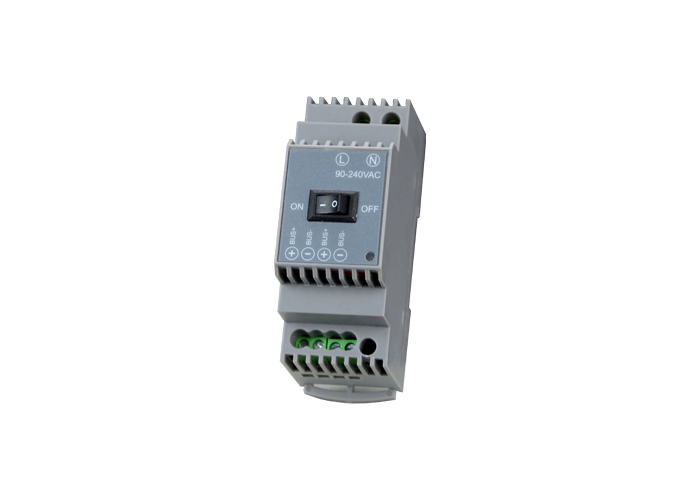

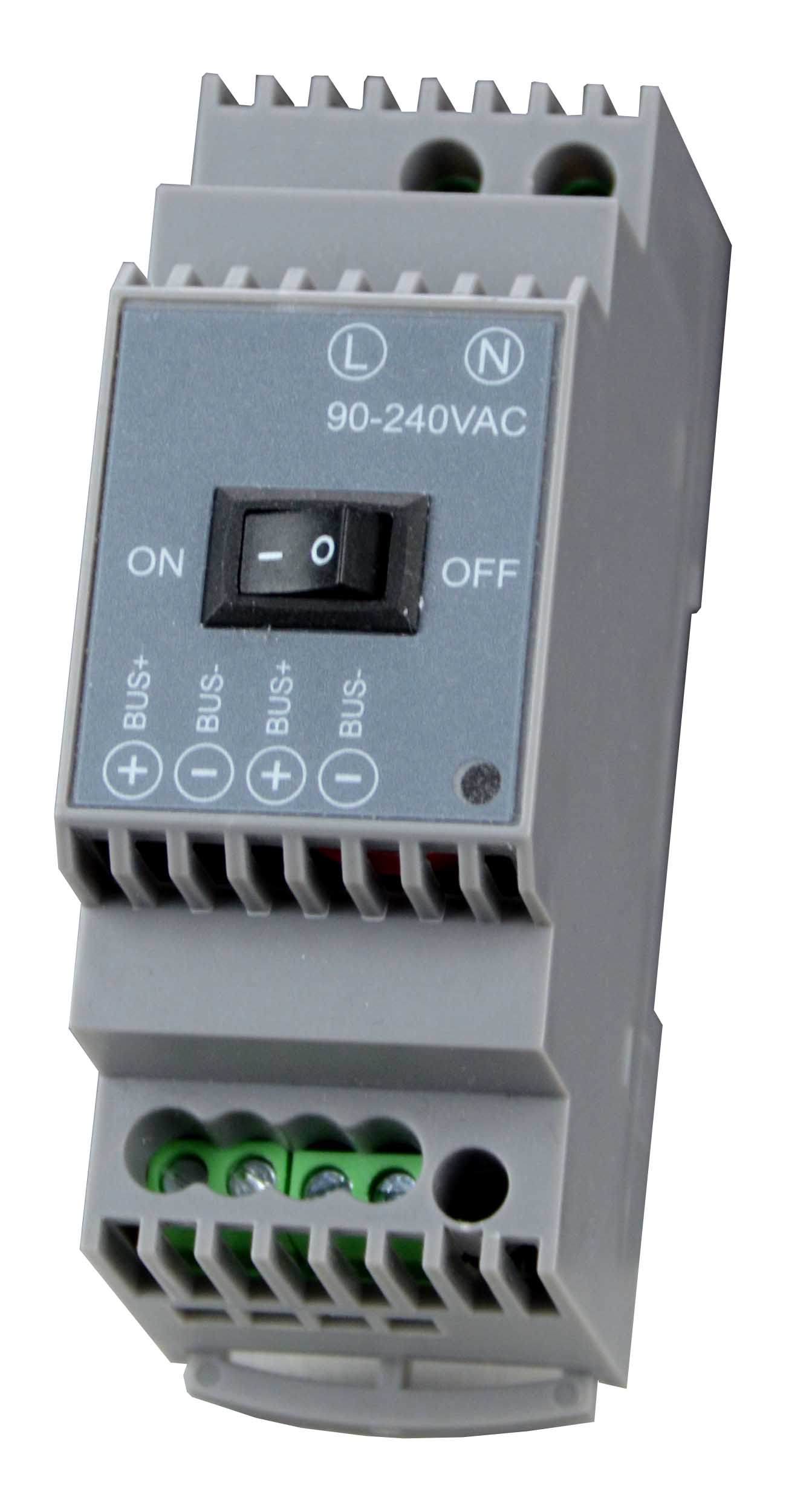

POWER ADAPTER 24VDC
220VAC/24VDC power adapter for DIN rail mounting. Average systems require one adapter every 2 monitors.

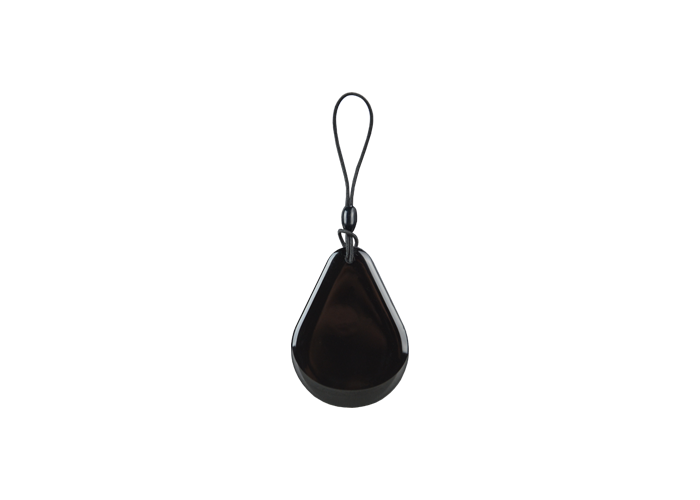

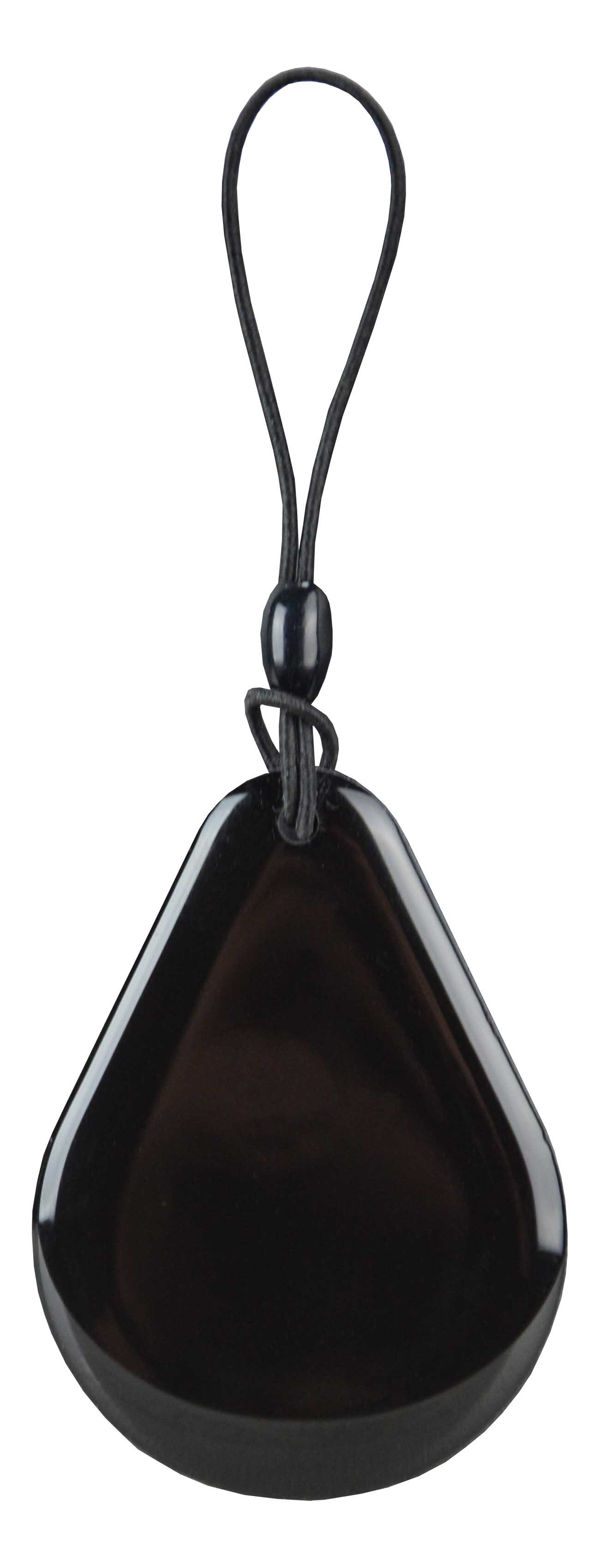

ADDITIONAL IC BADGE
Additional badge for call panels with badge reader (over 5 badges included)
... with so many unique benefits
We have developed our video intercoms with the approach of a camera manufacturer: video quality first. Forget old style handsets and useless pushbuttons. Your new video intercom will be a simple hands-free touchscreen monitor in scratch-resistant glass, with a generous size of 7.9 or 10 inches. Extremely thin and stylish, without large frames and button panels, our DOMOTICAM monitors allow you perfect FullHD color video and blend perfectly into any decor.
Pushbuttons have been discontinued in our DOMOTICAM video intercoms. All commands, such as answering the call, opening the doors or setting the options are performed simply by touching the touchscreen. It's more intuitive than old style systems, with small screens in large frames full of buttons, and reduces the system failures.

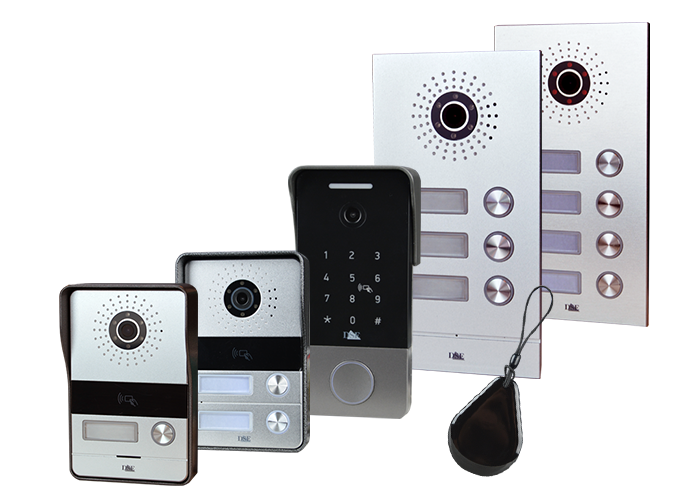

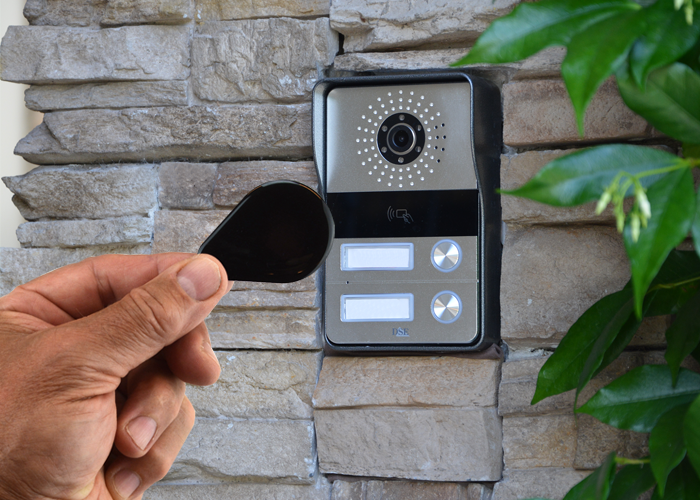

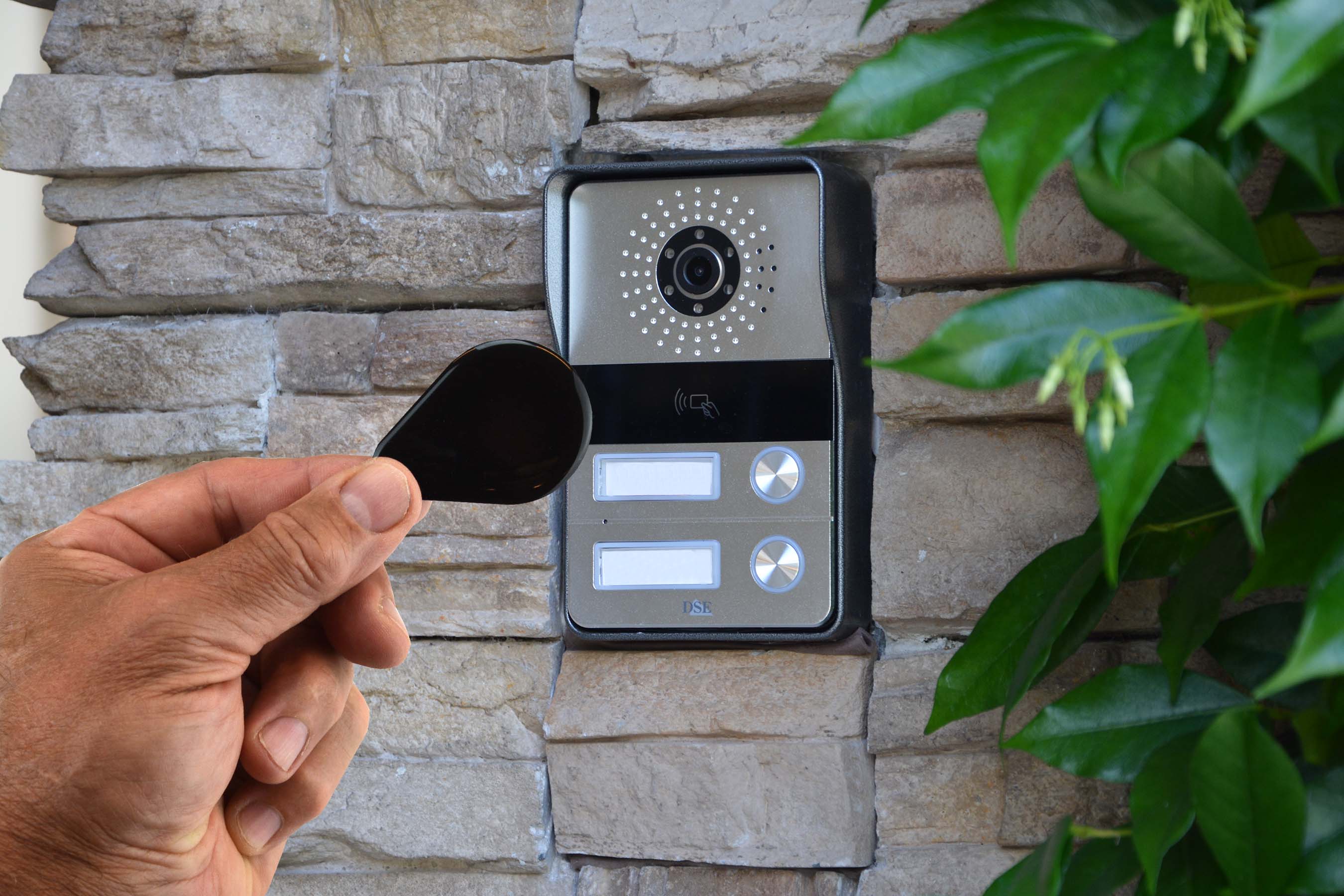

You can choose between different types of vandal-proof aluminum call panels, with solid and essential design, and also code keypads. Each call panel can unlock the pedestrian door as well as a second door such as the driveway gate or garage. Many call panels also have an IC reader which allows you to open one or both locks by approaching the badge (5 badges included)
Our DOMOTICAM video intercoms are suitable for independent houses of 1 to 4 families. Each family can have from 1 to 6 monitors. You can install up to 4 external call panels, which are capable of activating up to 2 locks each. The system is completed with one or more 24VDC power adapter. An average system requires one power adaptor every 2 monitors.

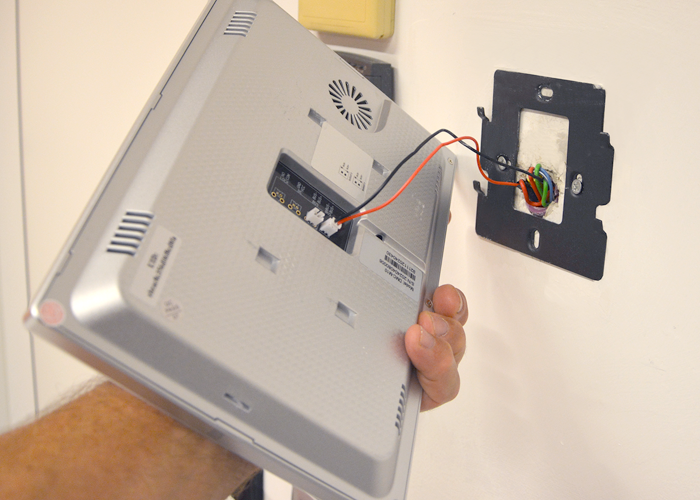

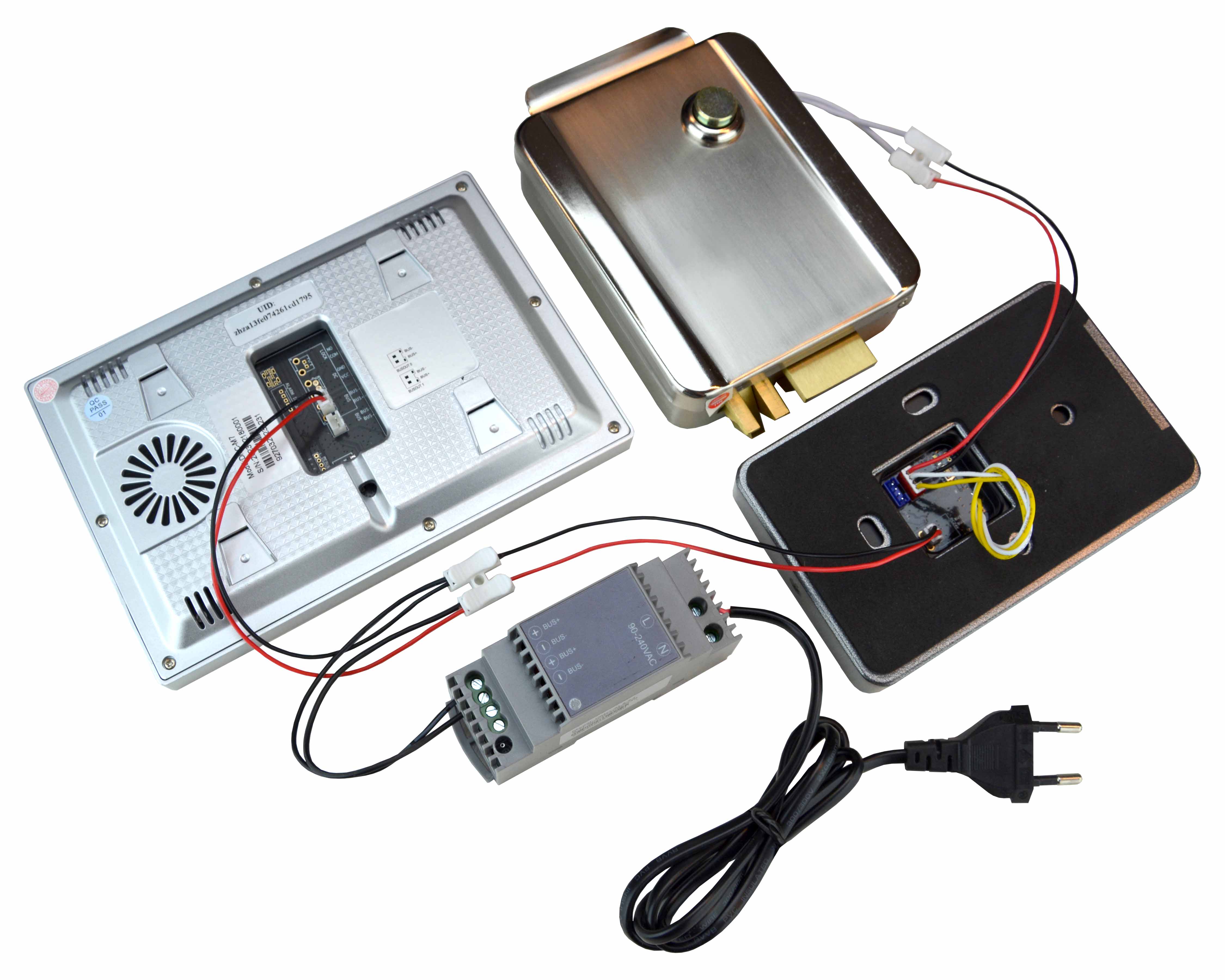

All the elements of the system: monitor, call panels and power adapters are connected to each other with 2 wires only, without any central management unit. You can connect the devices as you like, either in series or star, creating branches of up to 150 meters (with 2x0.75 mm cable). There is no need to respect the +/- polarity, so it will be very easy to exploit any existing wiring. The monitors also come with built-in WiFI so each family can connect their own WiFi and control the video intercom via smartphone.

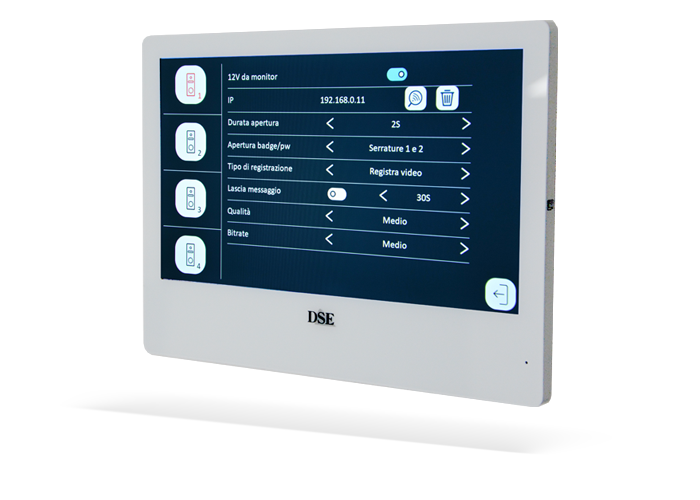

Despite being connected on just 2 wires, our system is absolutely a digital network where each element has its own IP address. However, we designed our system to self-configure itself. Unlike other products, you won't have to set up anything technical to make it work the way you want. Just connect the first monitor to the bus, then all further components, one at a time, and they will take an IP address automatically. Then use the touchscreen menu to assign monitors to each family. Nothing else is needed, no microswitches, no configuration via app or PC: 100% Plug&Play.
These Domoticam products are part of our Smart Home Series for home automation, which also includes cameras, remote controls and video doorbells. The products in this range are based on the TUYA home automation platform and its Smart-Life app, widespread throughout the world . With this range of product you can automate your home entirely, over your wifi network. Monitor your premises with our wifi cameras, even battery powered; switch lights, heating and pumps with our wifi relays and monitor your doors with the video doorbells. Our Smart Home devices are wireless, easy to install and unexpensive.

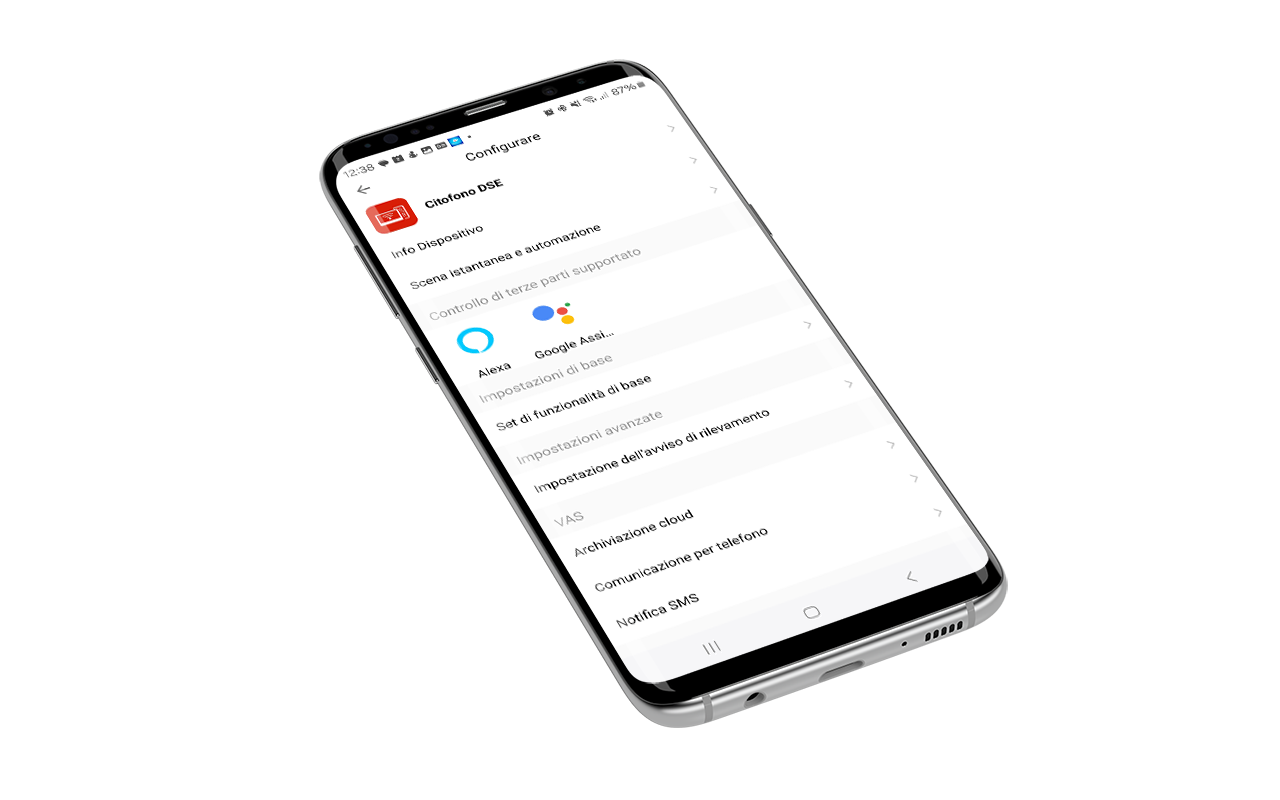

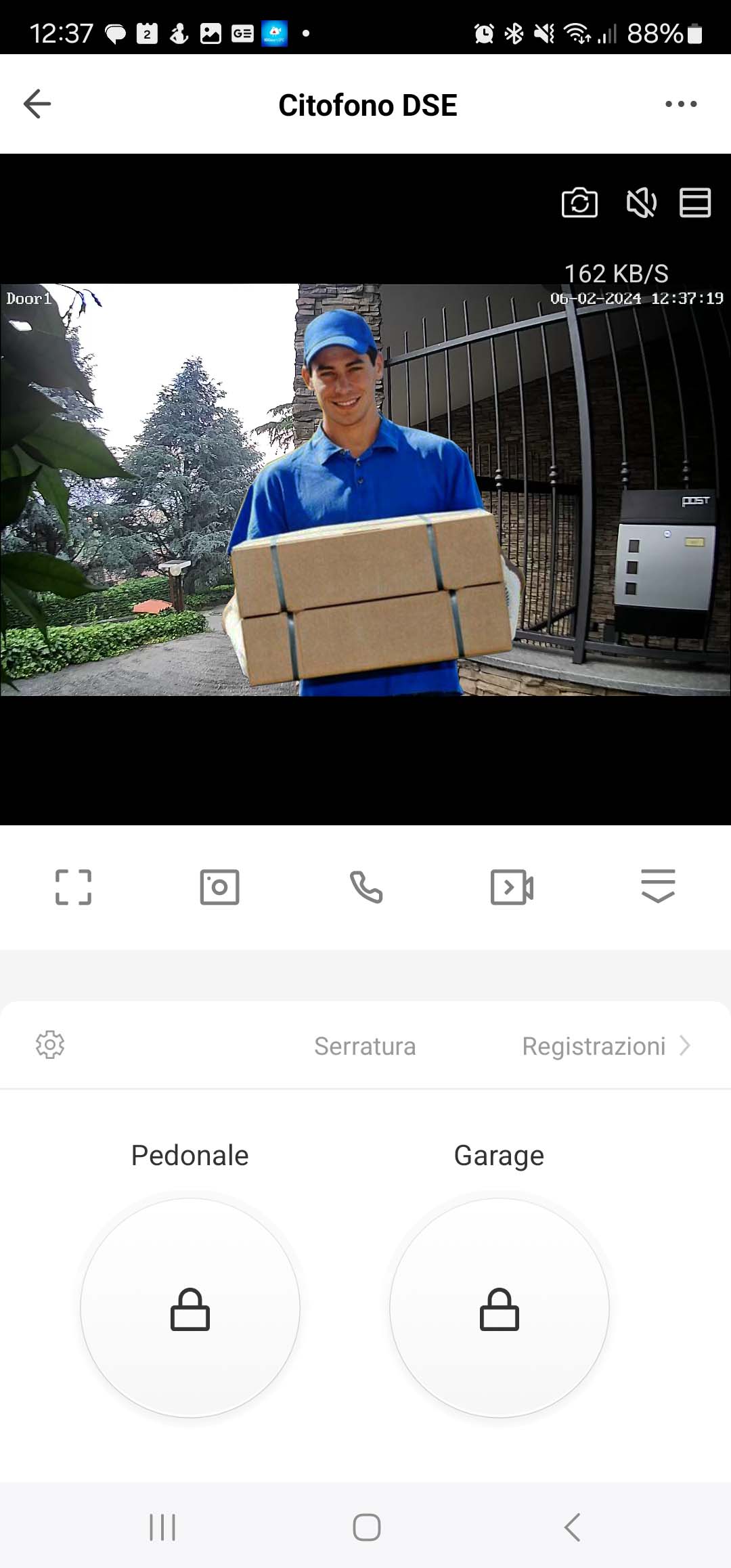

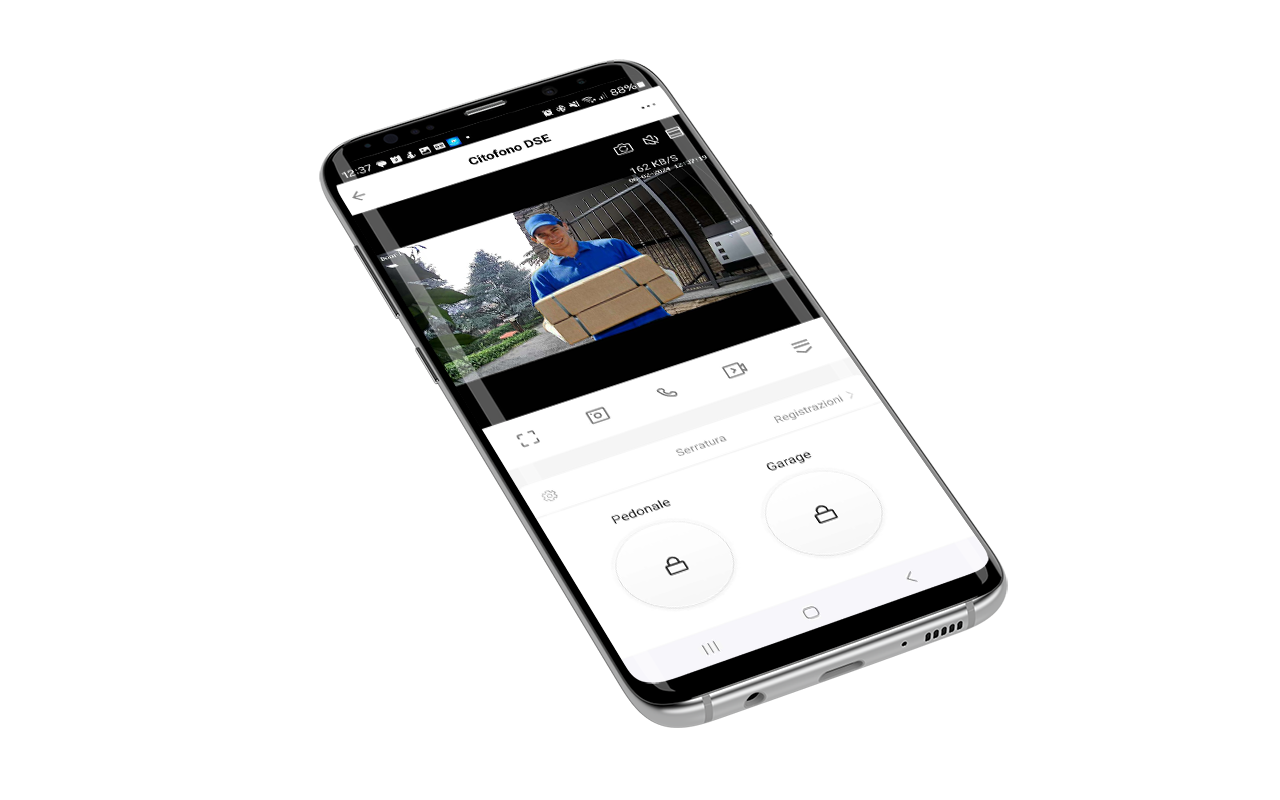

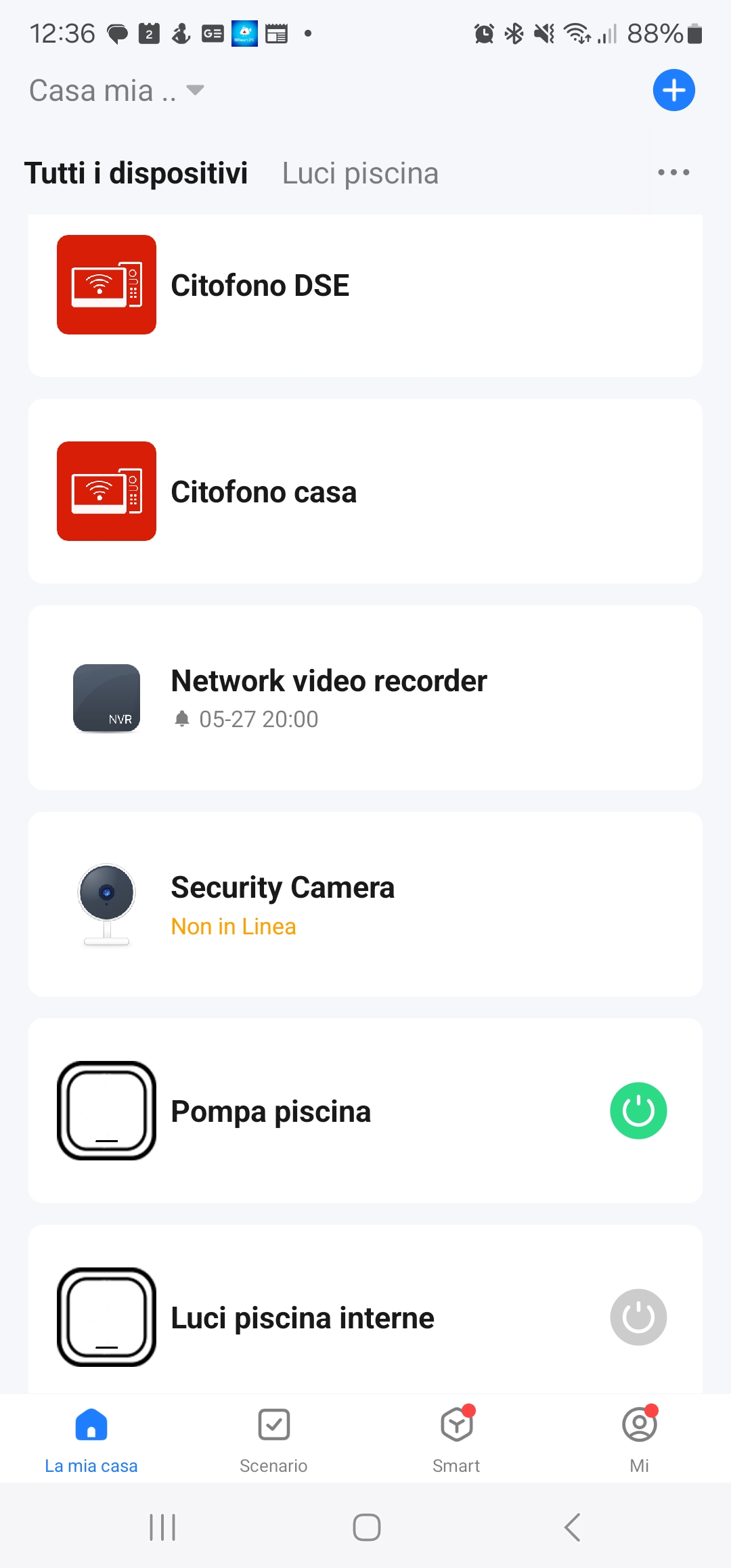

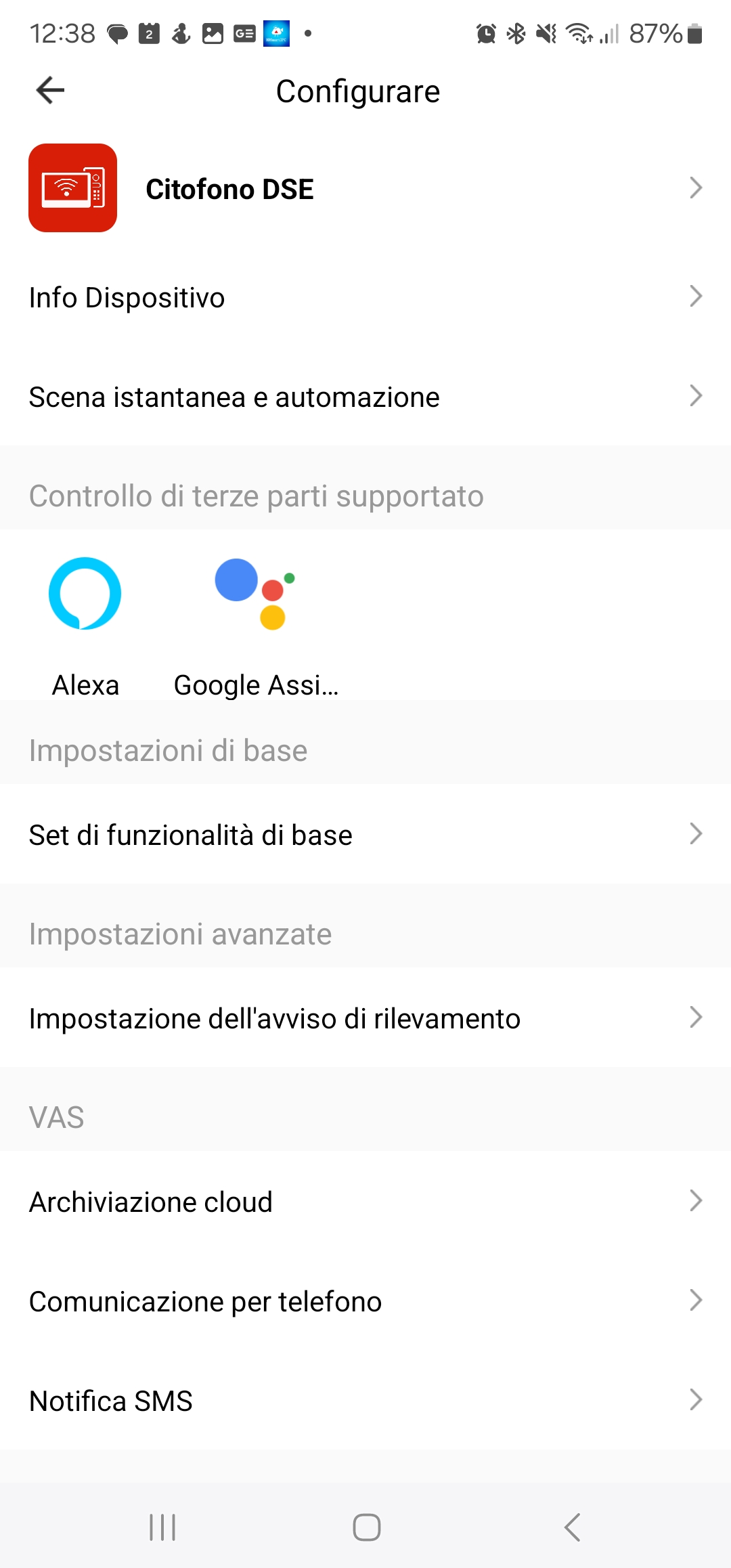

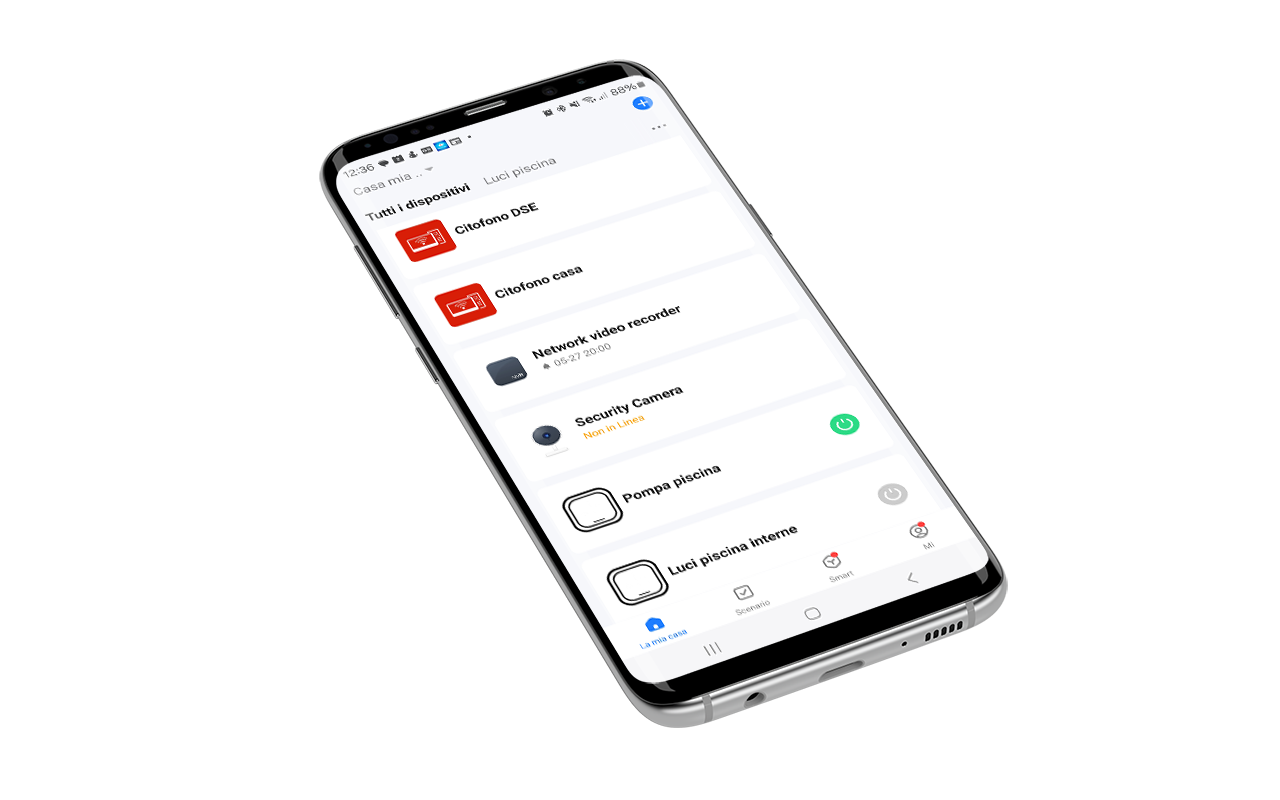

All our Smart Home devices: cameras, remote controls and intercoms, are controlled with the excellent IOT home automation app Smart Life, compatible with all devices in the world based on the Tuya platform. With the Smart Life app you can receive visitors calls on your mobile phone. You can talk to visitors and open the doors. You can also playback recorded videos of previous visitors. Tuya's Smartlife APP is the fastest and most reliable home automation platform and allows you to manage your entire home with a single app.
IOT means Internet Of Things. Today this is no longer just a beautiful name, but a reality accessible to all. With SmartLife, the most popular IOT app in the world, based on the Tuya platform, you can control all our DM Series home automation devices and automate your whole home. You can manage our video intercoms, our home automation cameras, video doorbells and remote controls. You can also control Tuya-based devices from other manufacturers. It's much better than relying on a single manufacturer's private app, which cannot offer you the same performance and flexibility.

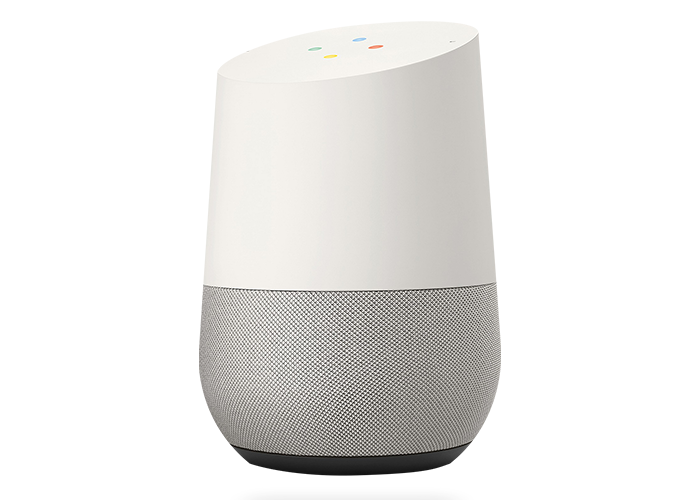

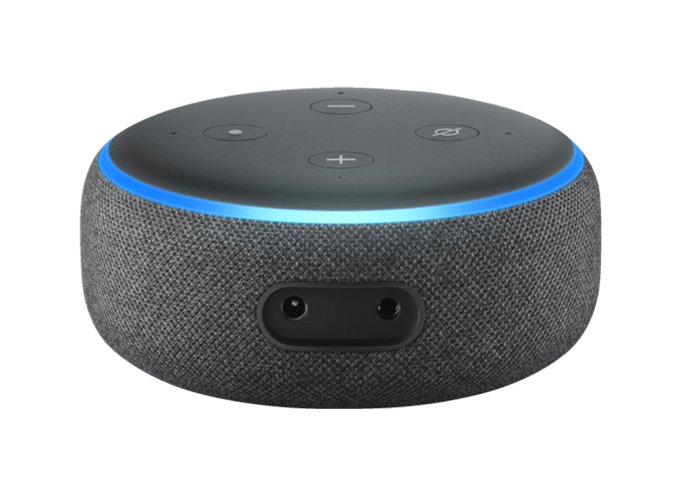

Our Domoticam video intercoms are compatible with the Amazon Alexa and Google Home / Google Assistant voice control platforms. When a visitor rings the doorbell you will hear a voice alert on your devices. You don't have to configure anything, just install the Smartlife skill to manage your devices with your favourite voice assistants.
In a few easy steps

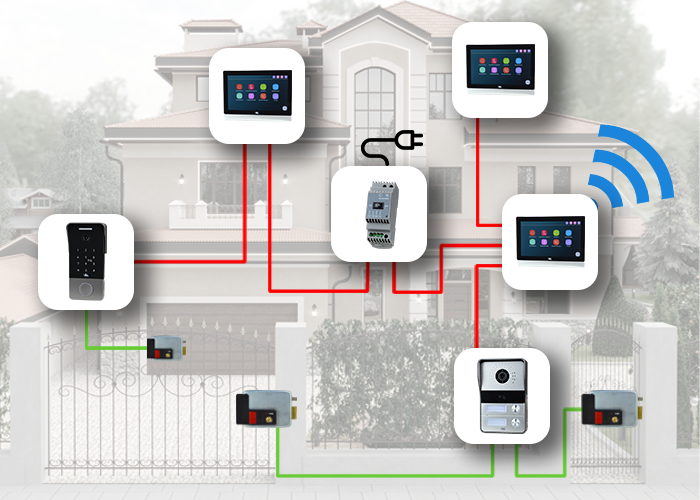

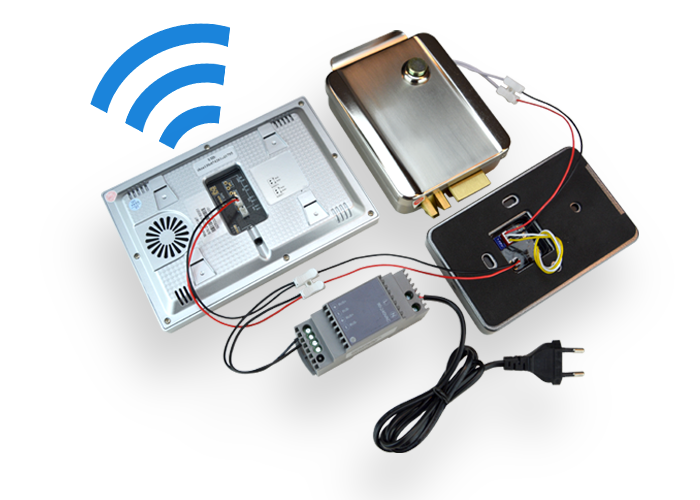

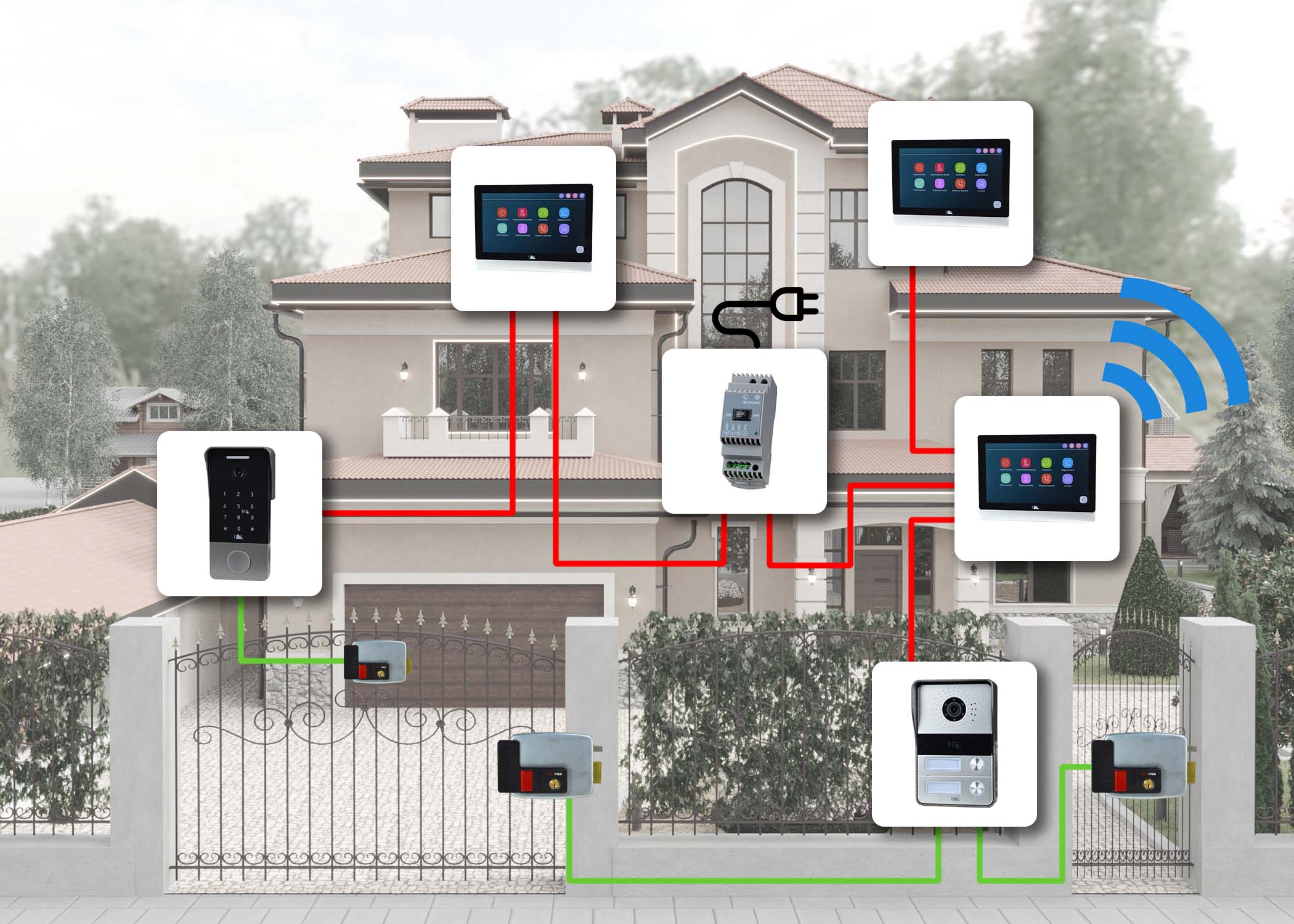

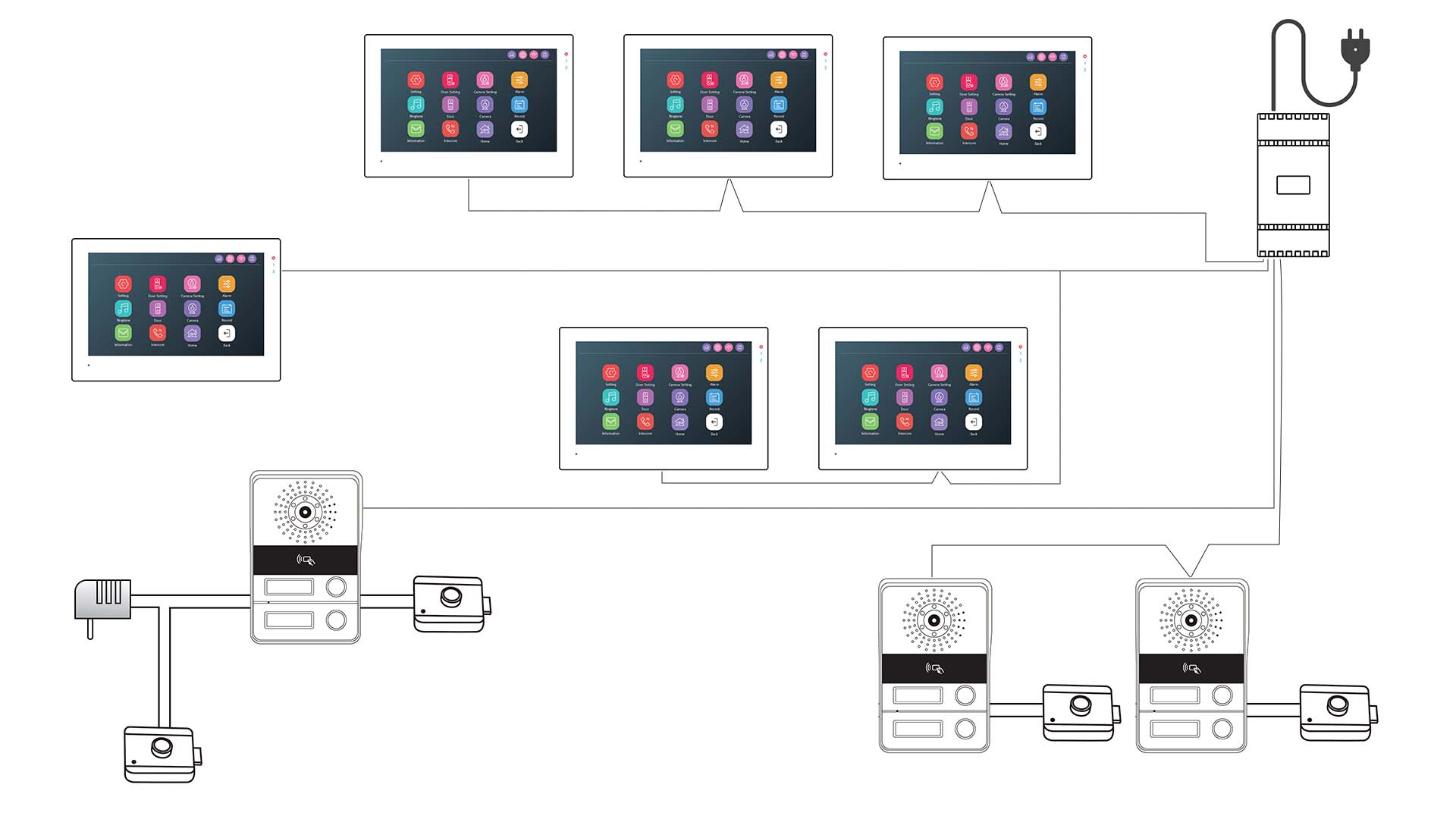

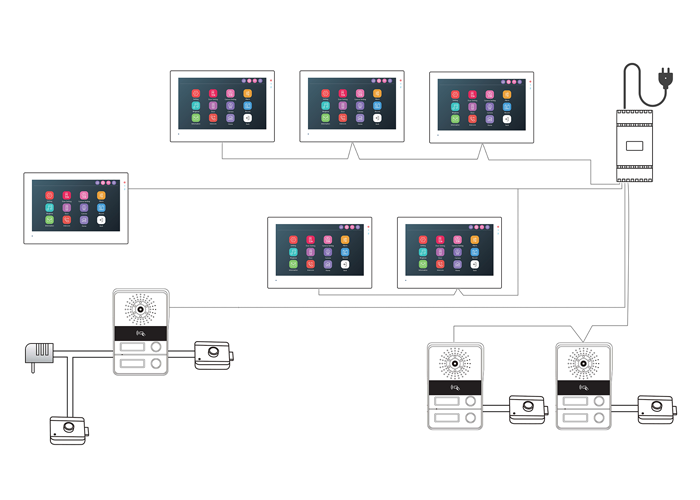

As you can see in the diagram, the 2 wires pair that connects the monitors with the call panels has no rules to respect. You can connect the elements in a row, one to the other, or freely create branches. It is not even necessary to respect the polarity of the two cables. A minimum section of 0.5 mmq is recommended up to 100 m. but you can even use a small twisted pair of a UTP cable, up to 30 meters. If you are replacing an old intercom you can setup your bus using the power cables from the old system and you won't have to run any new cable.
The electric lock of the pedestrian door is wired to the call panel with two wires (EXT2). Our call panels provide the 12VDC power supply necessary for opening the lock and can also connect an external opening button. Most call panels also have a second contact (NO/NC) for an additional door with separate power supply, which is normally used for a gate or garage door. If you need to control more than two doors, you can install a second pushbutton panel (max. 4).

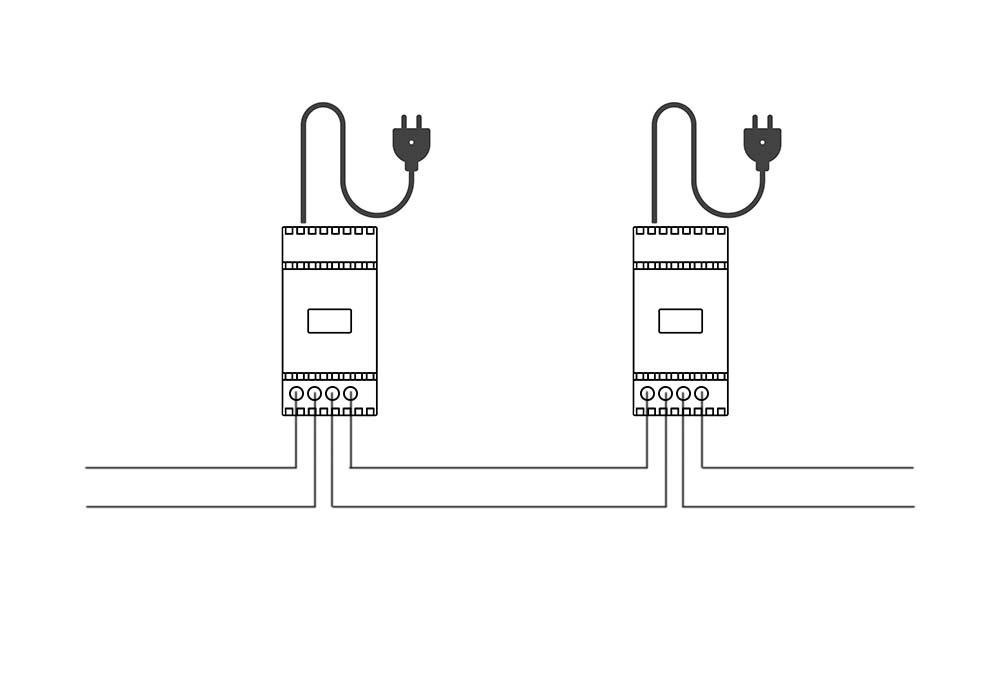

You can connect the power adapter to any point of your circuit, preferably in a central area. A single power adapter (24VDC 3A) can power up to 6 monitors, or up to 3 monitors if you need to power the electric lock, which has a high consumption. If a single power adapter is not enough, you can install others, connecting them to the system's 2 wires pair as shown in the figure.
It is important to connect the components to the BUS one at a time, so that they can obtain their IP address correctly without creating conflicts. You will start with the main monitor: monitor 1 of family 1, then you will connect all the other monitors one at a time. Finally you will connect the pushbutton panels, starting with the one you want to be indicated as Door 1.

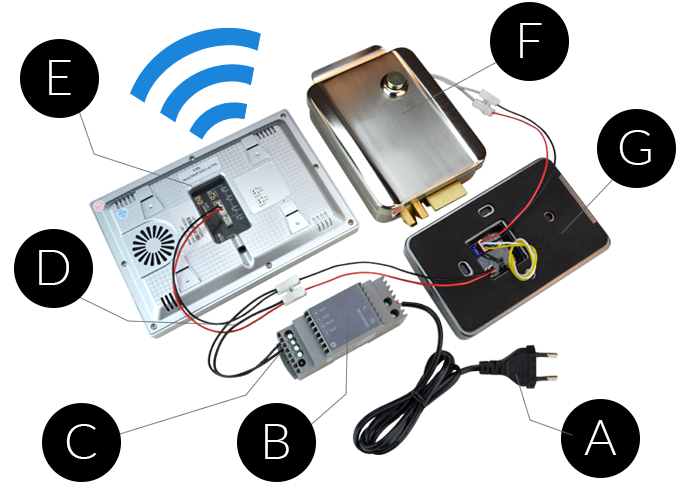

| A | 220V mains power | B | 220V 3A power adapter (for DIN bar) | C | 24VDC power to the BUS (no polarity) | D | 2 wires BUS connecting all monitors and call panels | E | Monitor with WiFi to router | F | 12VDC Electric lock for pedestrian door | G | Call panels with lock control |
|---|

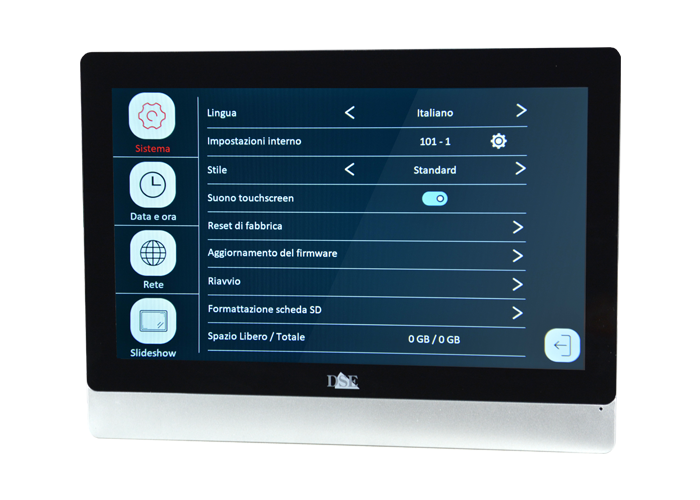

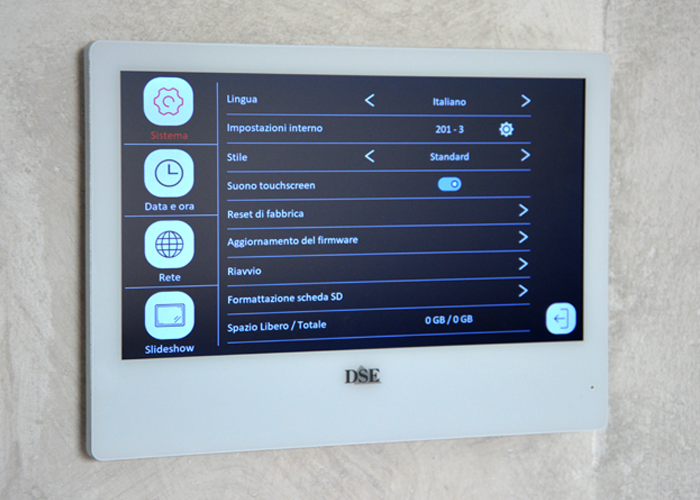

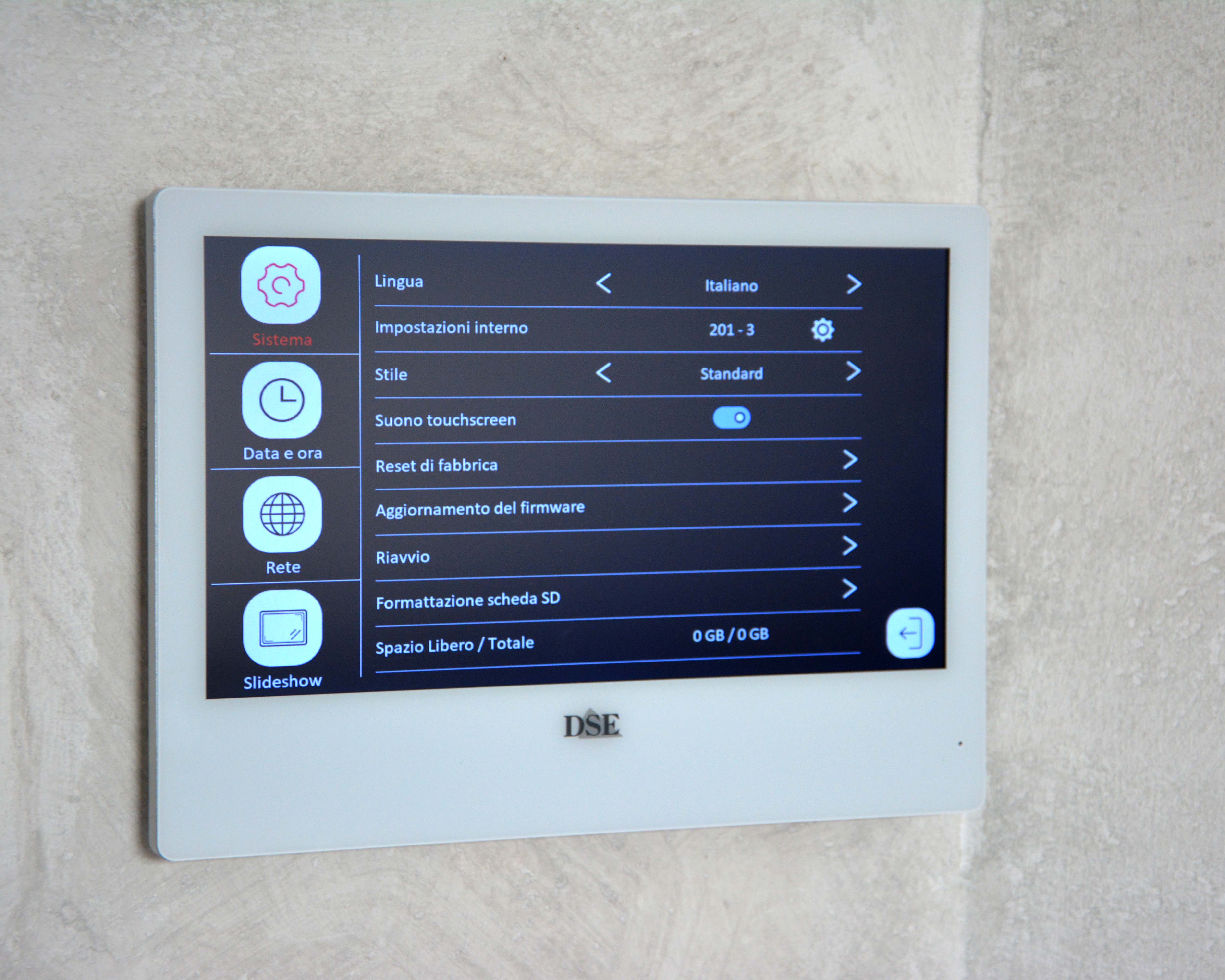

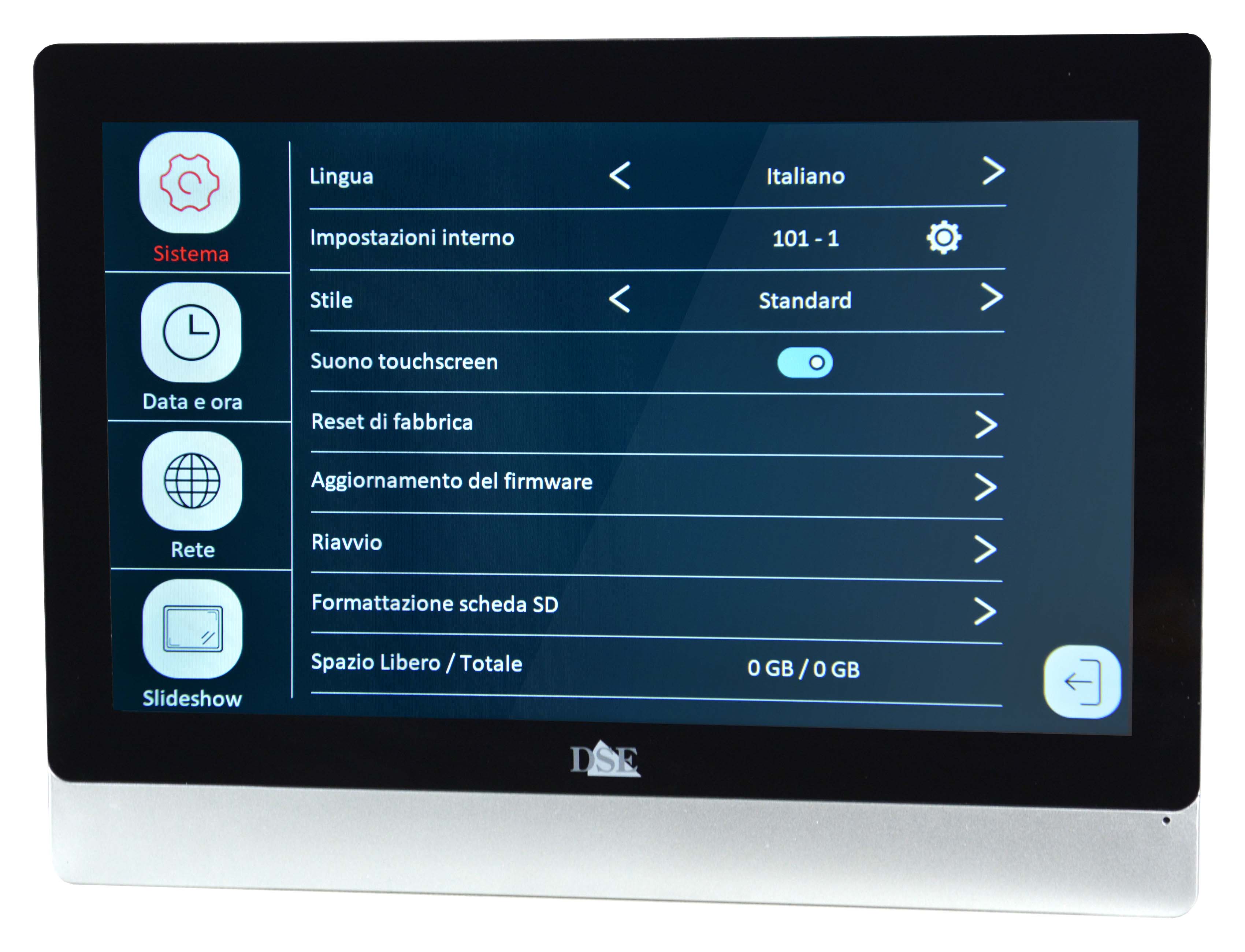

Our Domoticam video intercoms are completely Plug&Play. The only thing you must do is to enter the configuration of each monitor and assign the family and monitor number (e.g. family 1/monitor 1, family 1/monitor 2, family 2/monitor 1 etc.). The call panels have no configuration: button 1 calls family 1, button 2 calls family 2 etc.

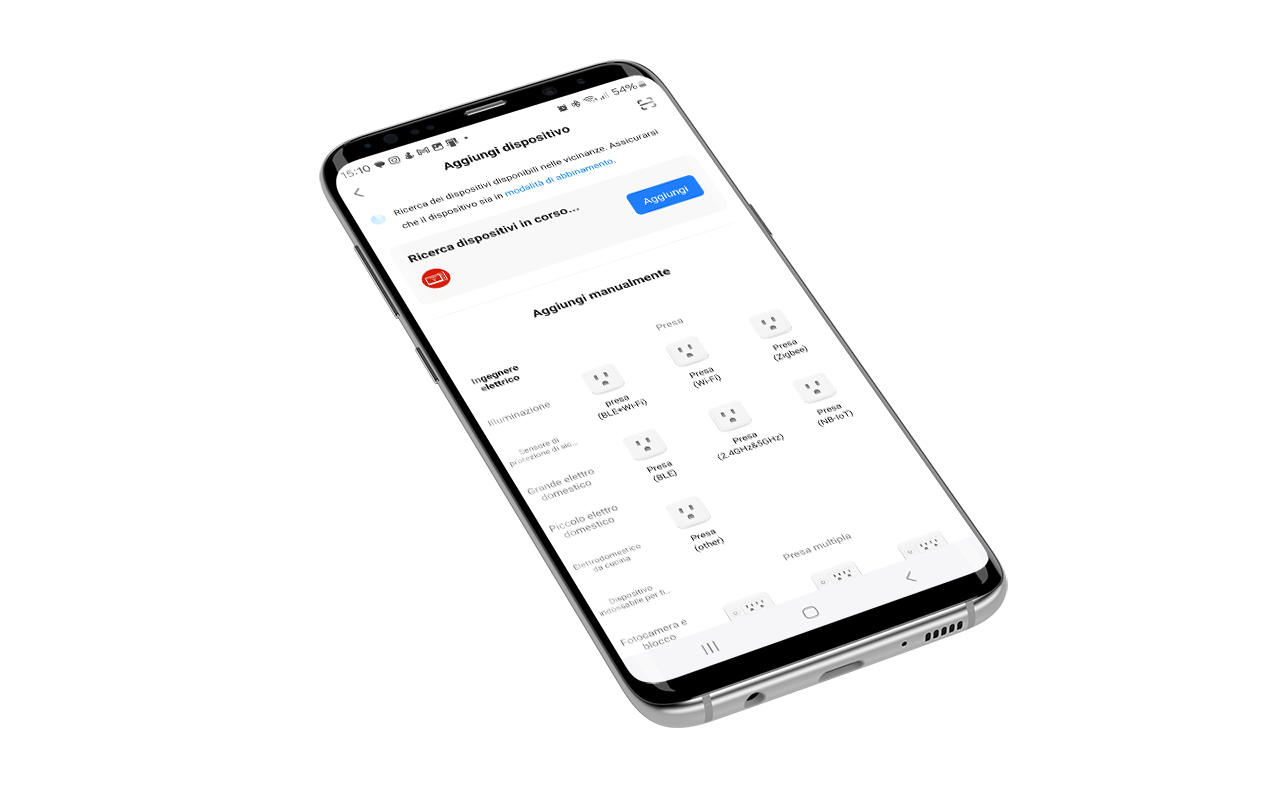

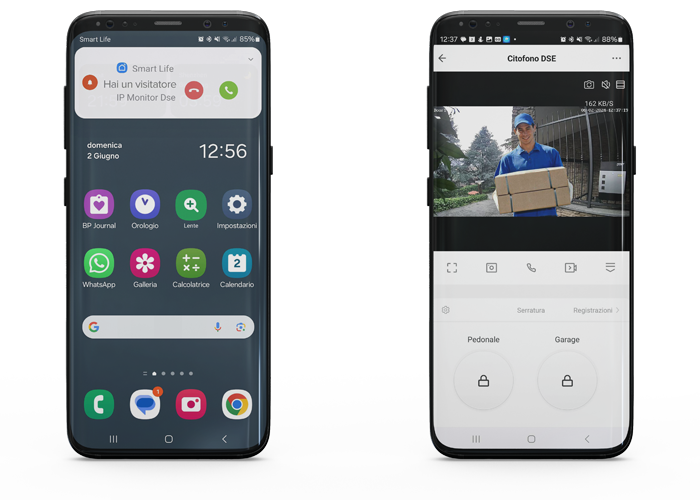

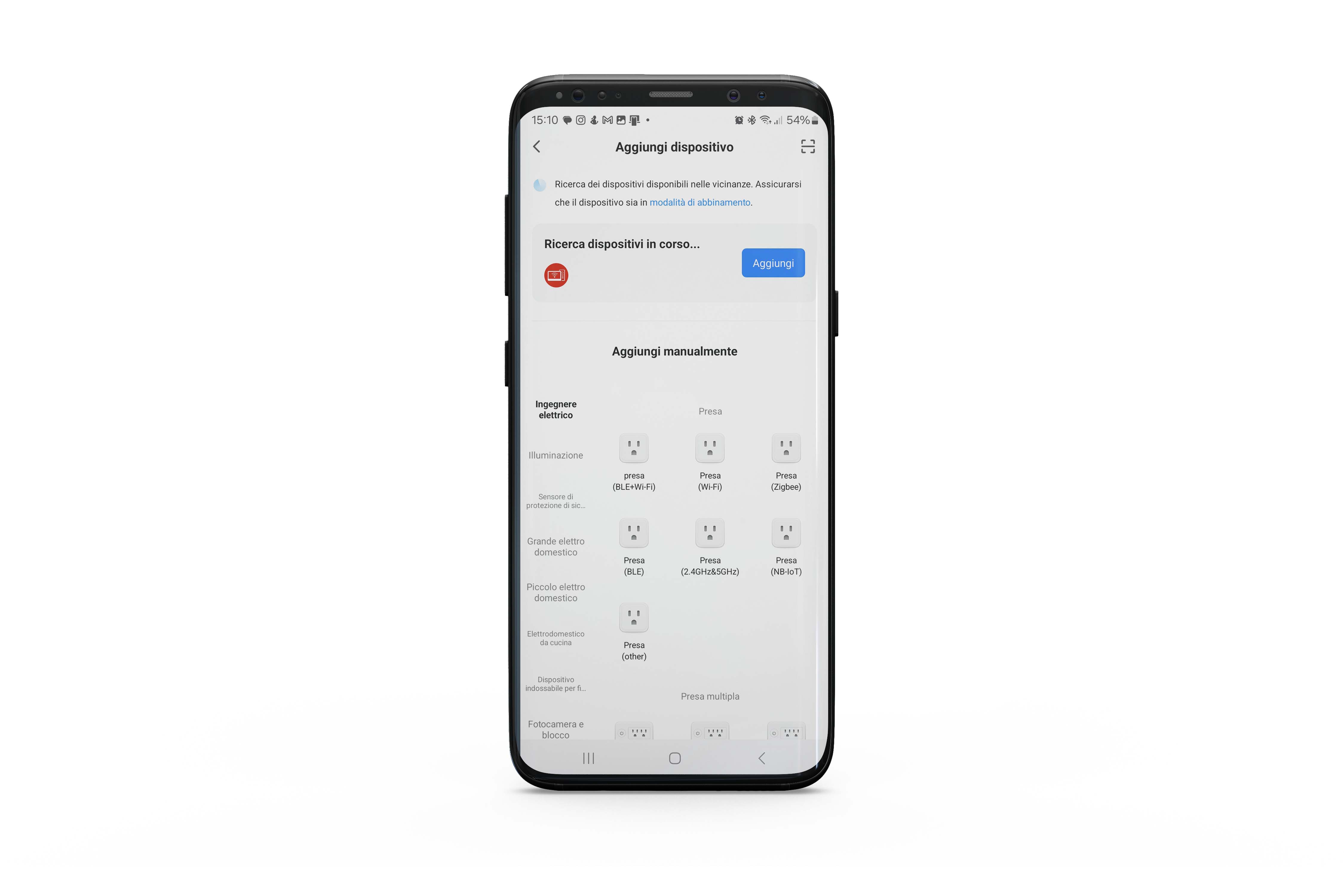

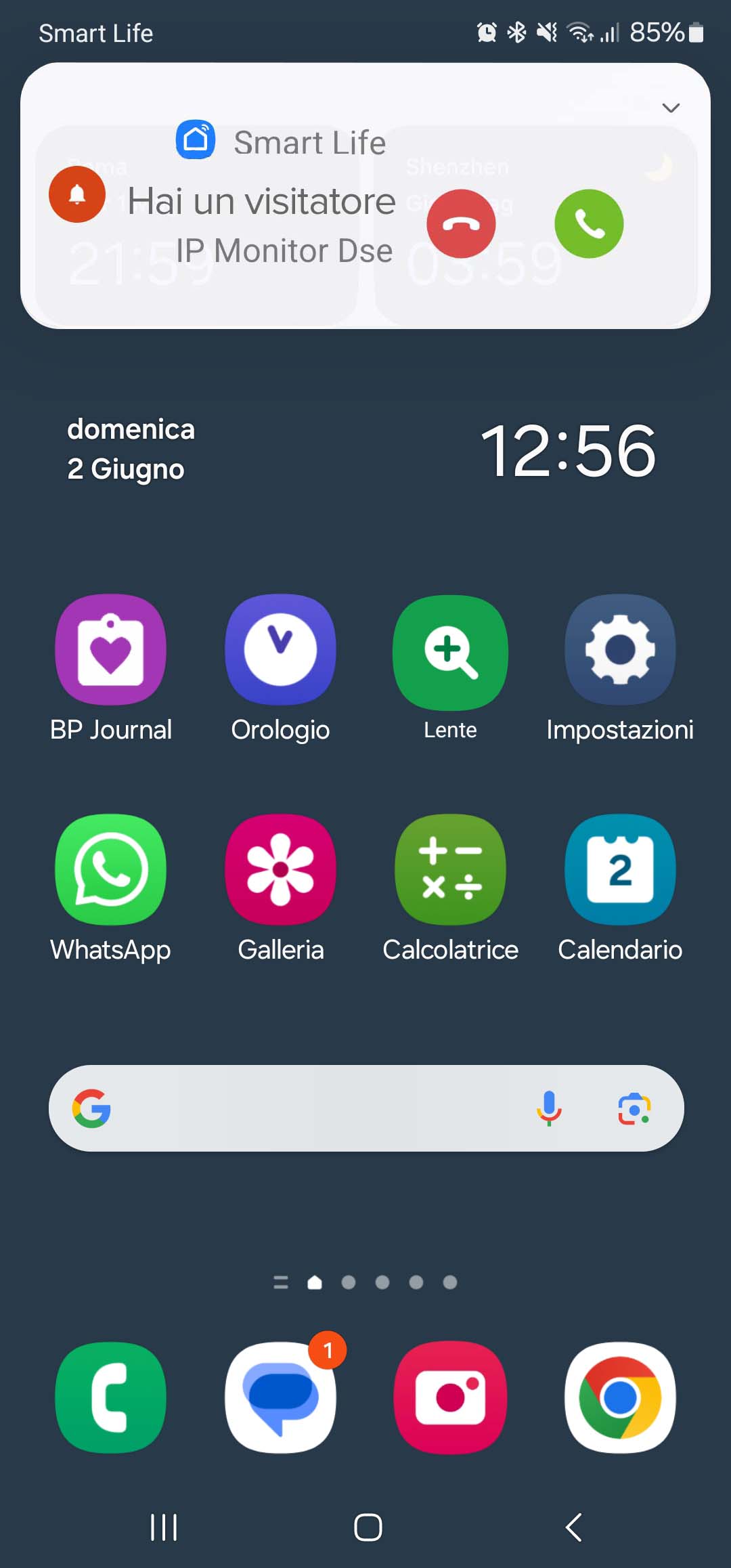

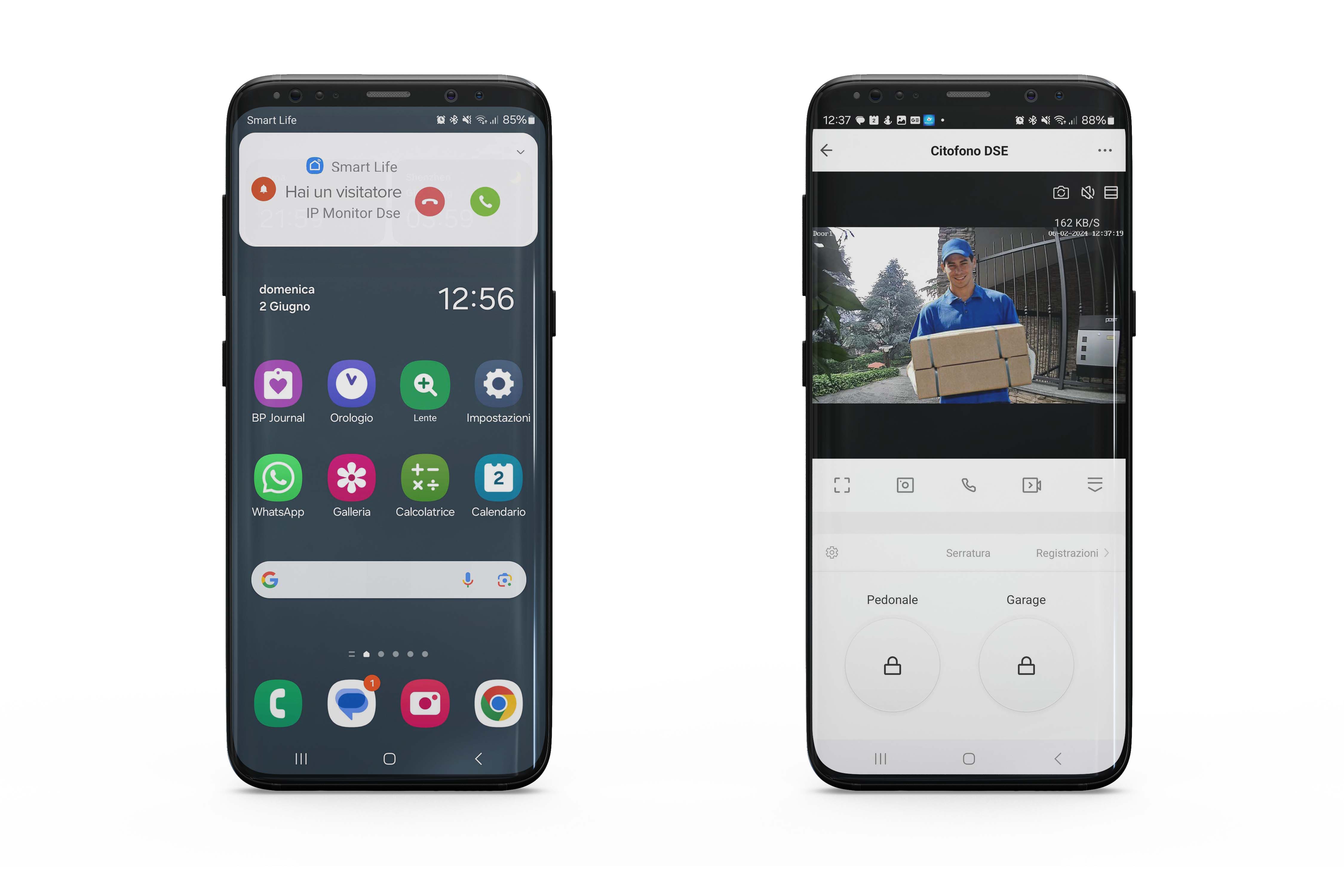

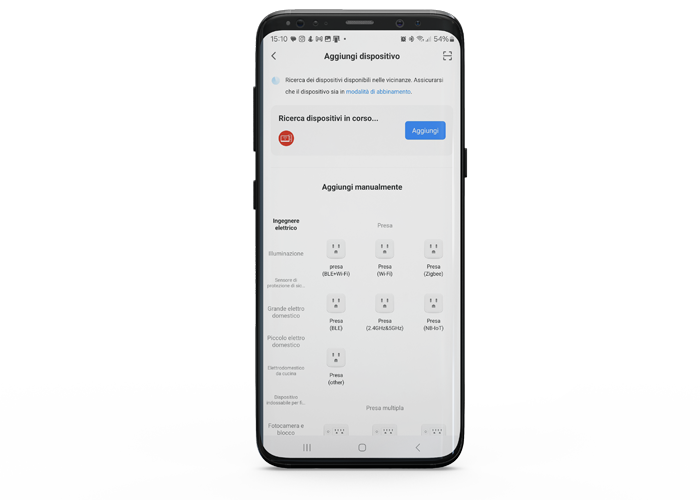

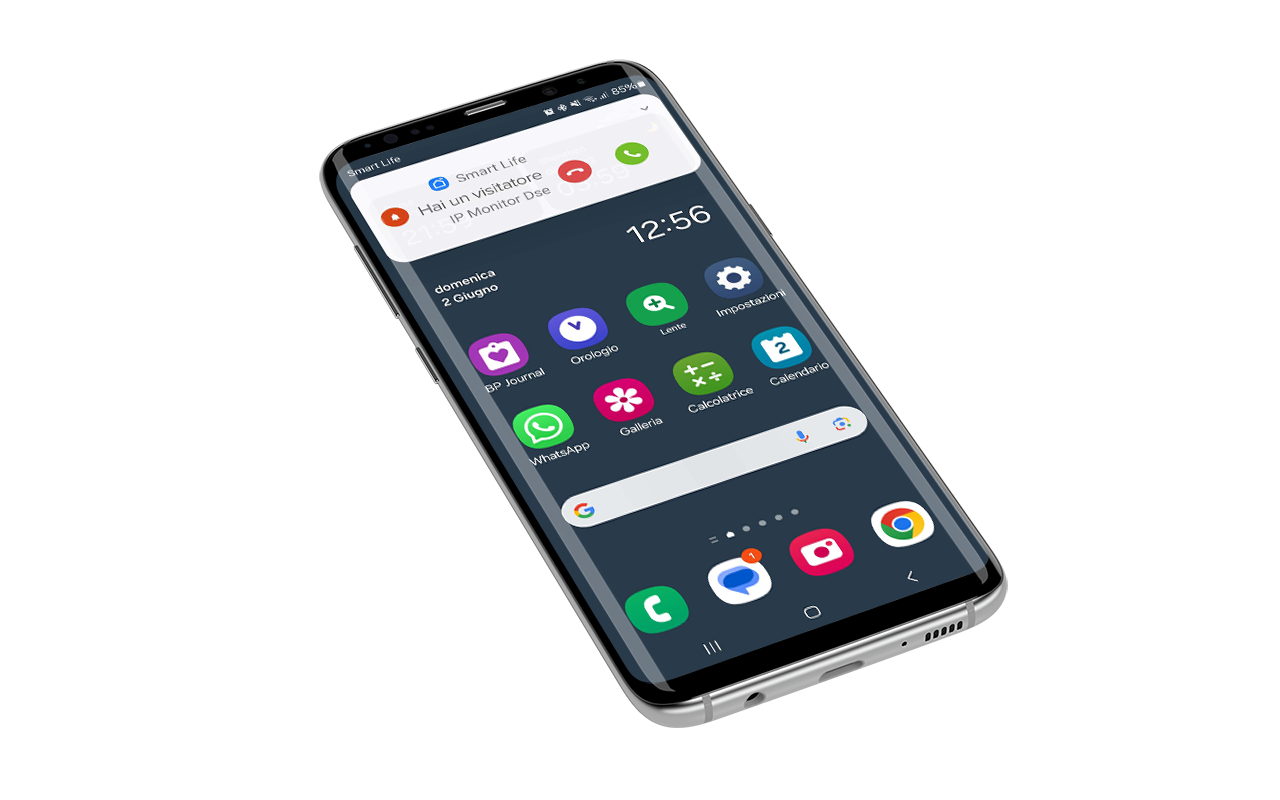

To manage the video intercom from a mobile phone each family can connect its own main monitor to WiFi. In the monitor configuration you can search for your wifi network and enter the password. In the Tuya Smartlife app, just press the button to add your video intercom. You don't have to do anything else because Tuya's powerful servers take care of everything, providing safe, fast and reliable web access.

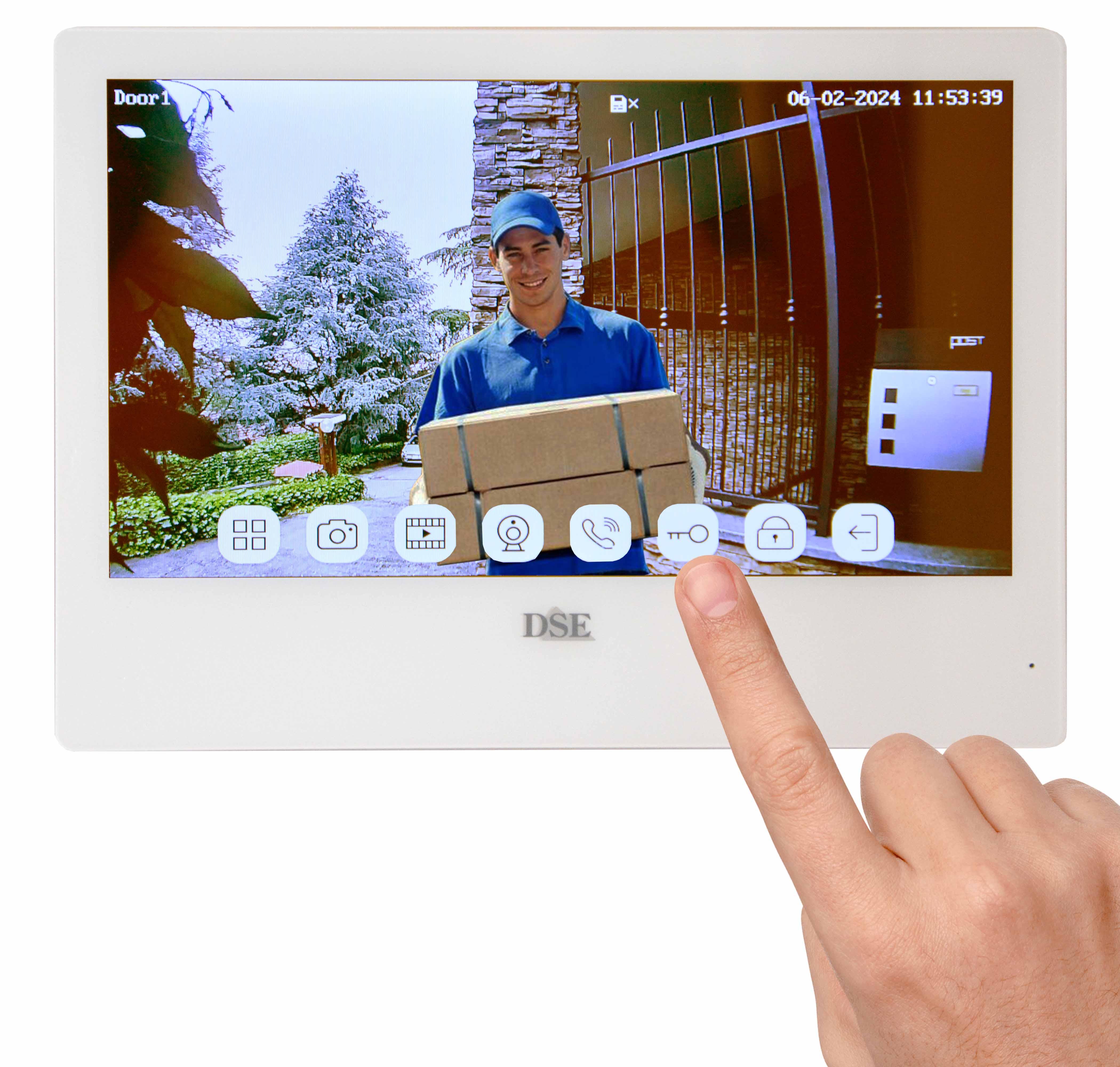

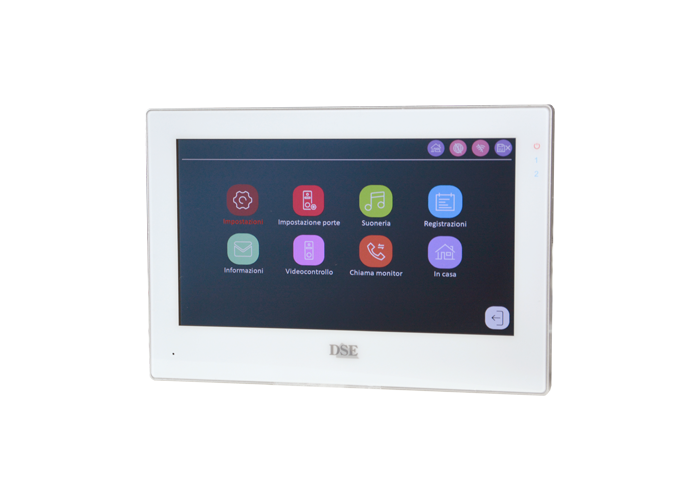

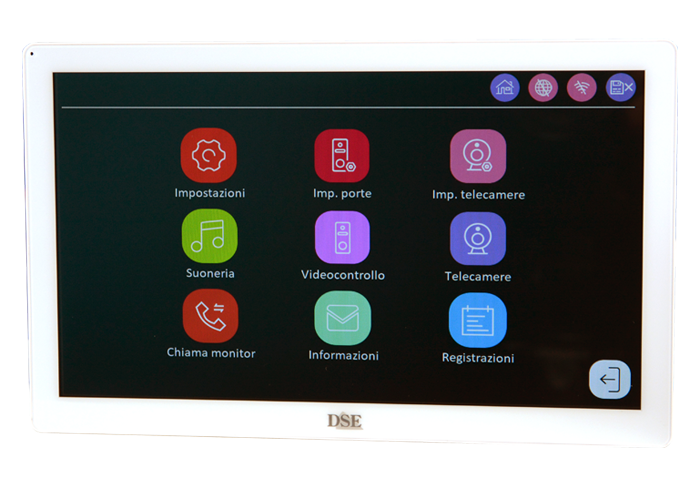

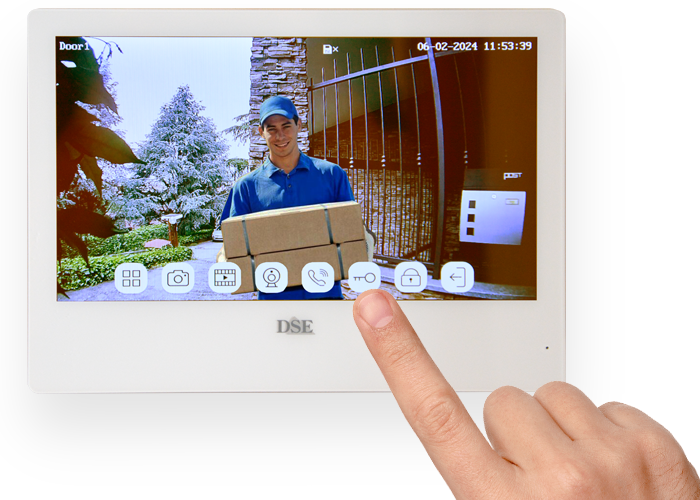

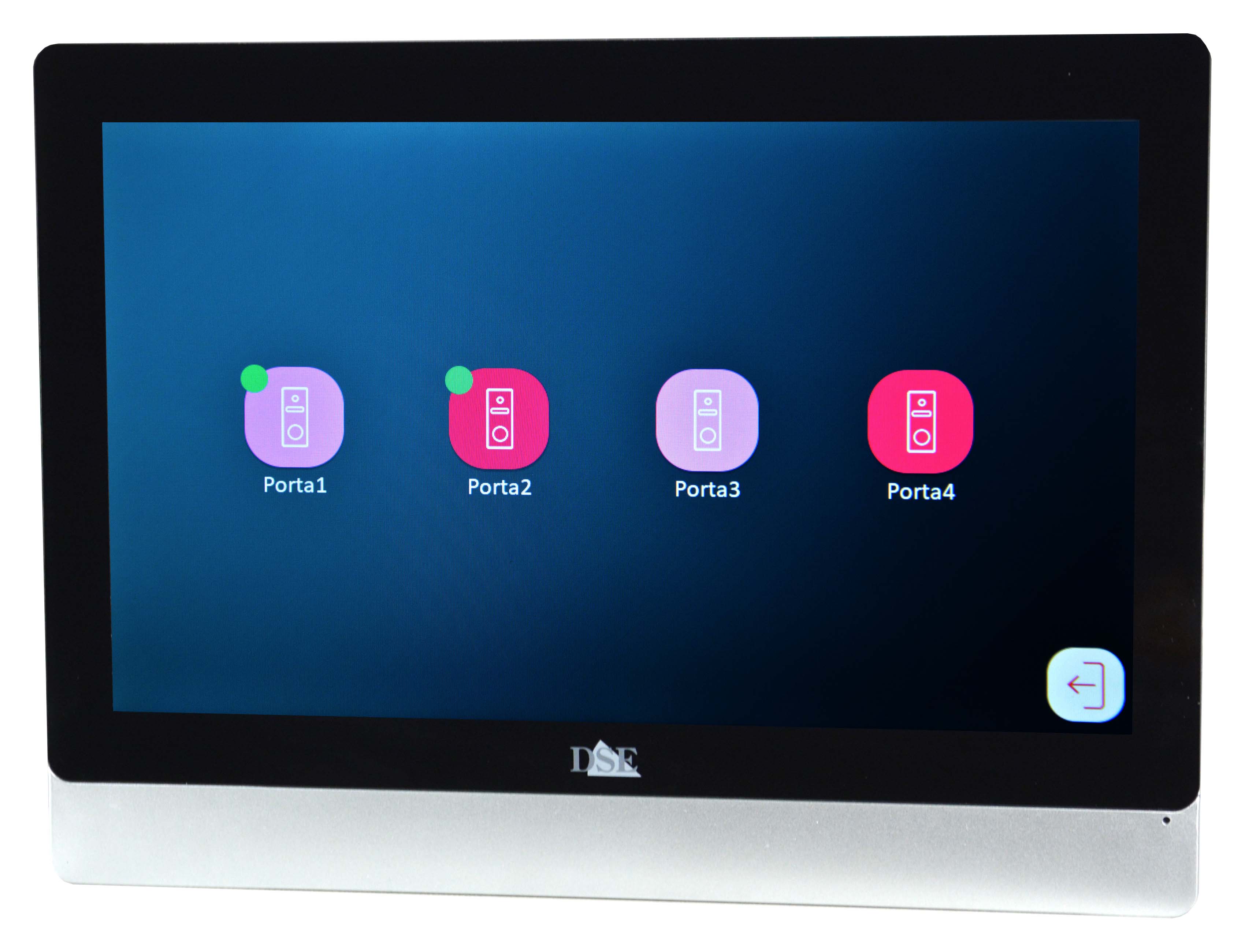

Thanks to the touchscreen, controlling all the functions of the video intercom is always easy and intuitive, even for elderly people. You can ANSWER A CALL and open doors and gates with a simple touch. In the absence of a visitor, you can monitor the system's call panels as you like and OPEN THE DOORS. You can also make INTERNAL CALLS, to communicate from one monitor to another monitor within your family.

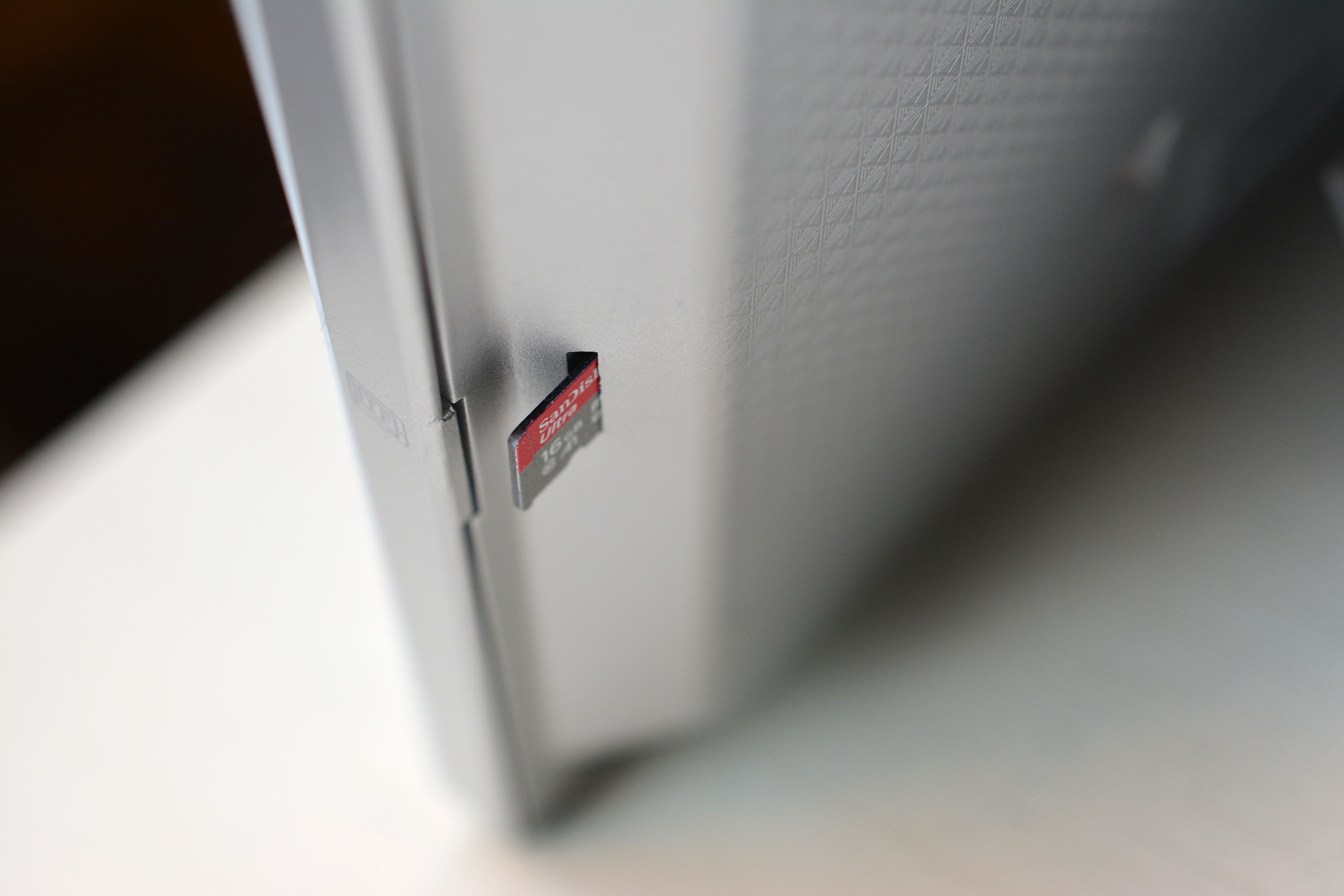

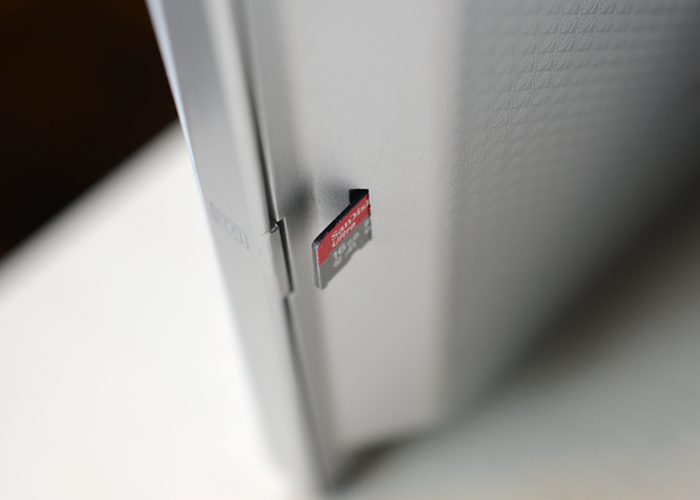

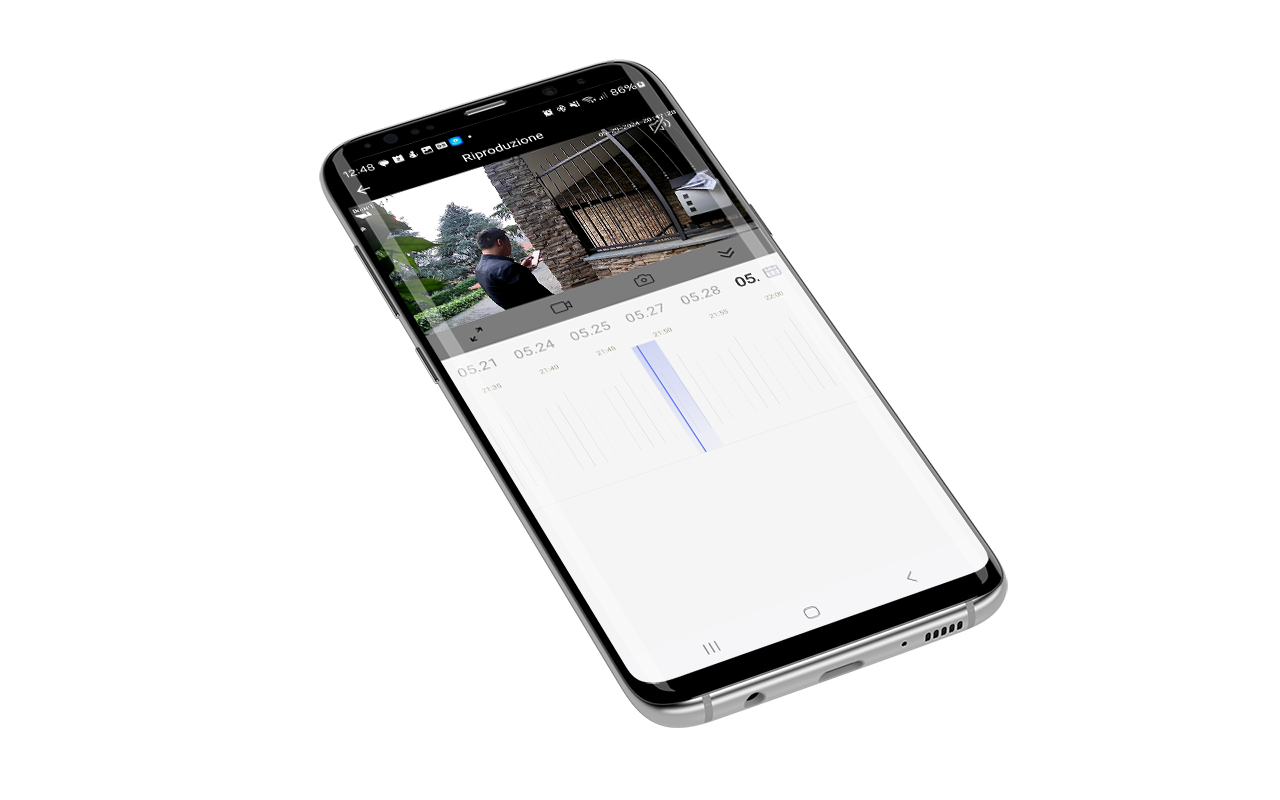

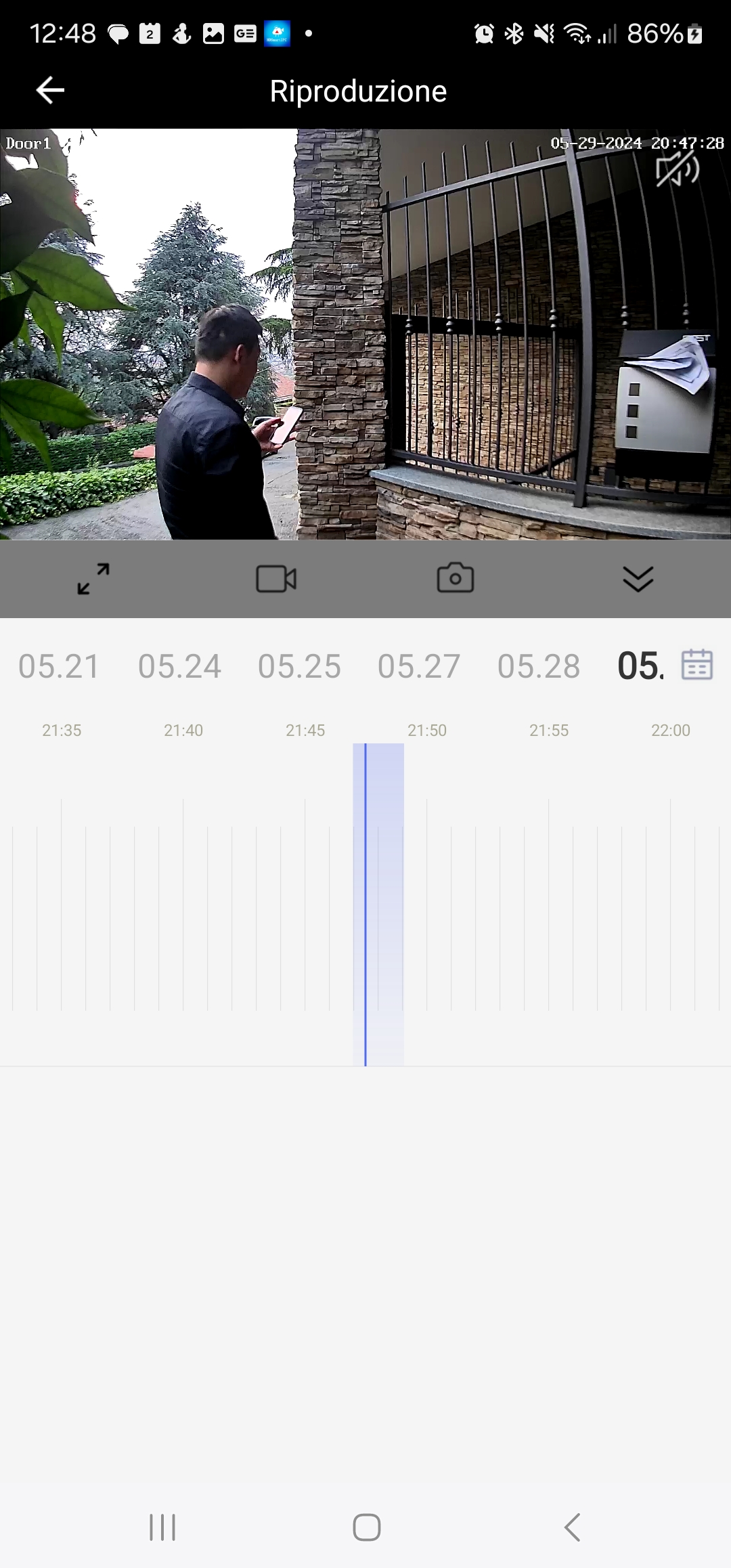

Each monitor comes with a slot for microSD card to record visitor videos. In the PLAYBACK section you can search by date and check all calls. The video intercom also has a convenient ANSWERING MACHINE function that allows visitors to leave a video message in the event of no response. You can also activate the DO NOT DISTURB function if you want the visitor to be asked to leave a message without the internal ringtone being activated. With the Smartlife app you can even playback footage from your mobile phone.

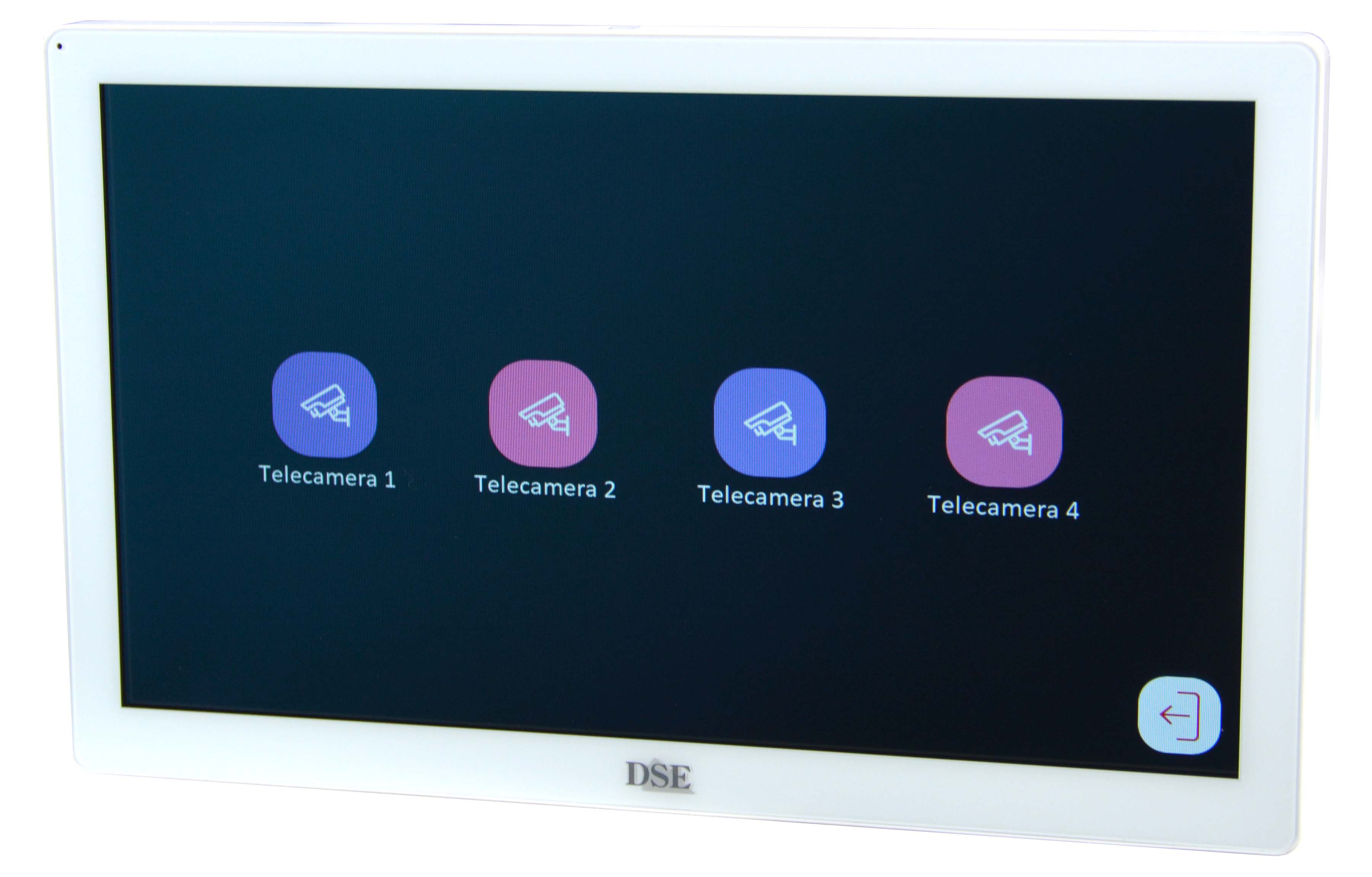

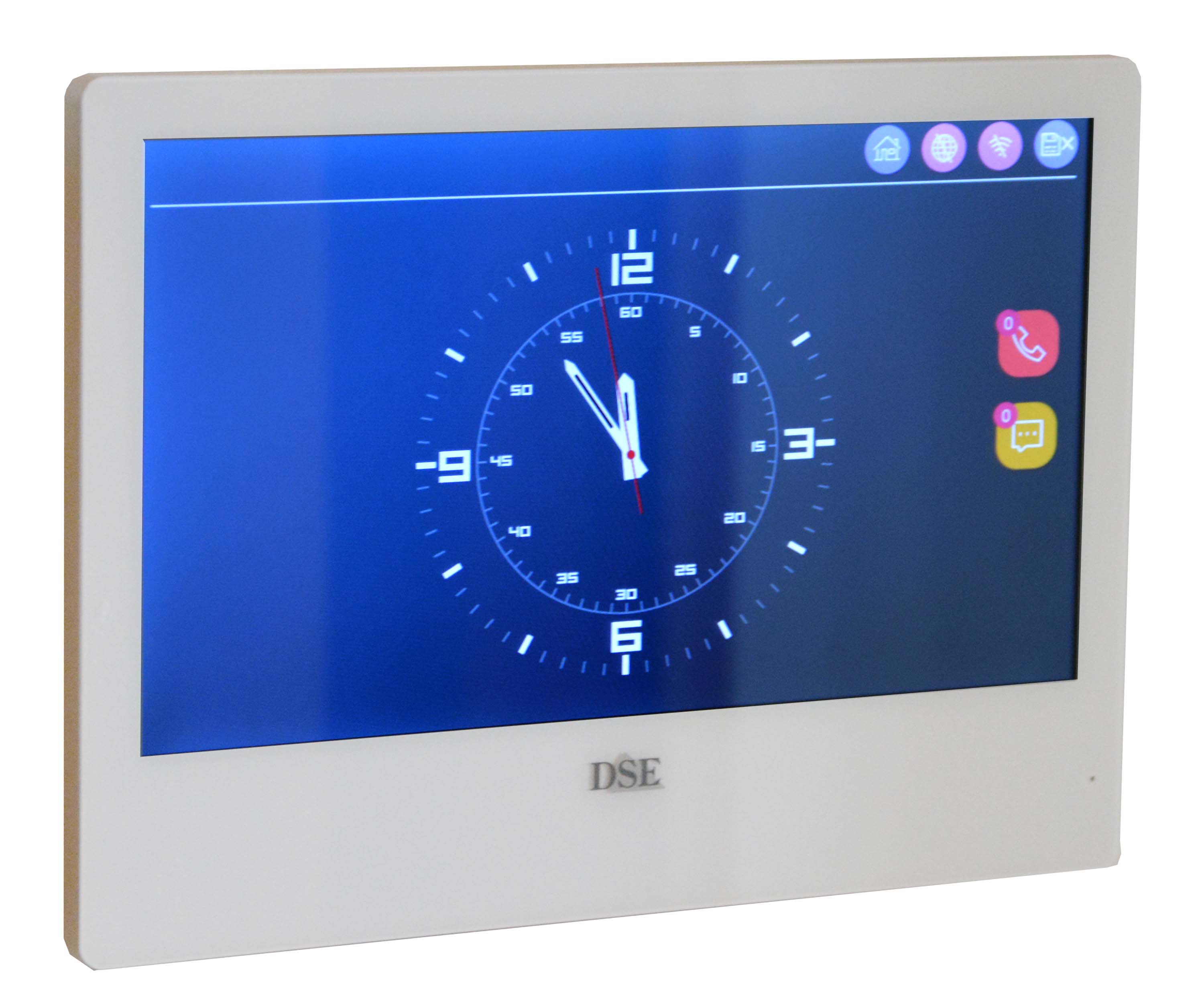

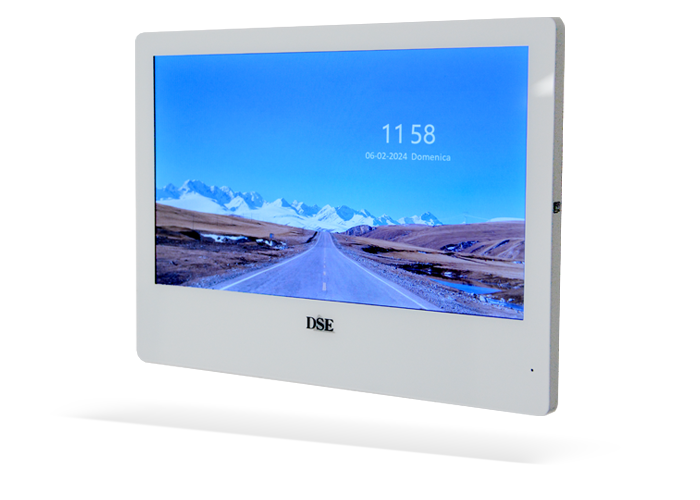

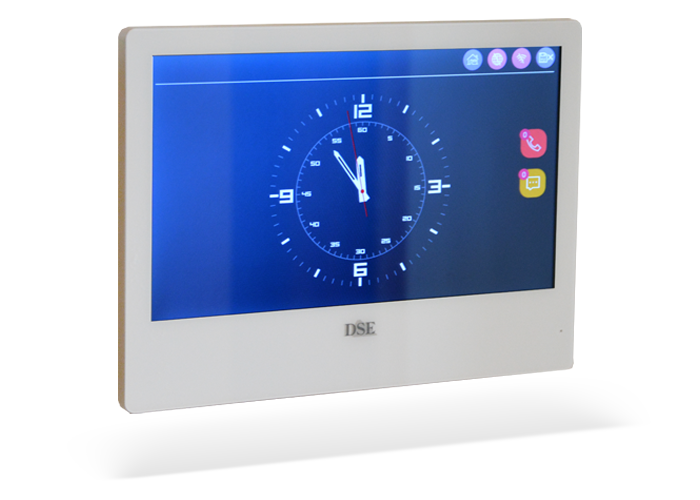

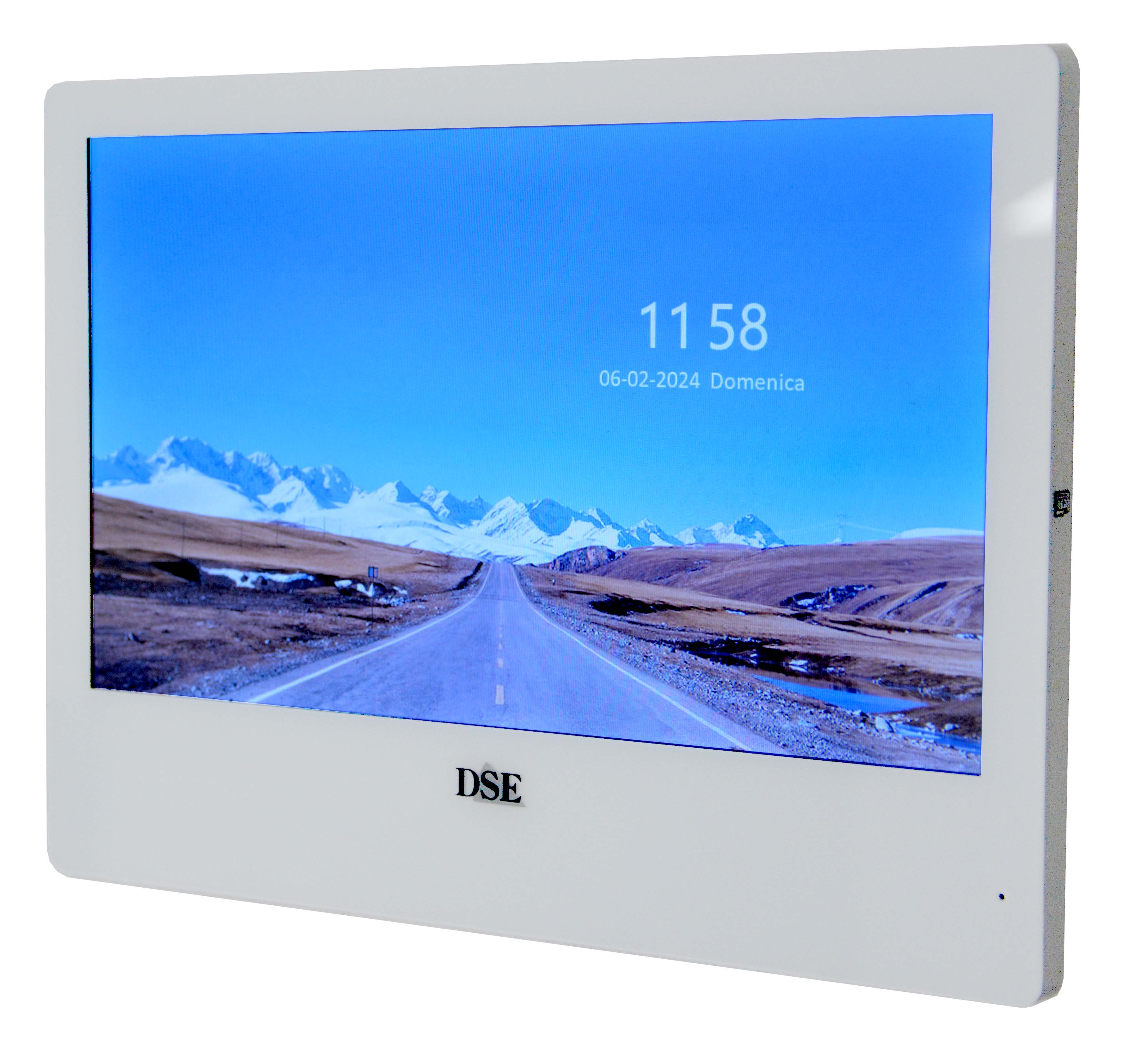

The monitors of Domoticam video intercoms, in addition to standing out for their stylish design and video quality, are also useful when in stand-by mode. They can show the time and weather forecast, or they can display the slideshow of your favorite photos, that you load into the SD card memory. If you prefer, the monitor can also remain off and activate automatically only in the event of a call. You have several nice ringtones available or you can upload your favorite music as a custom ringtone.

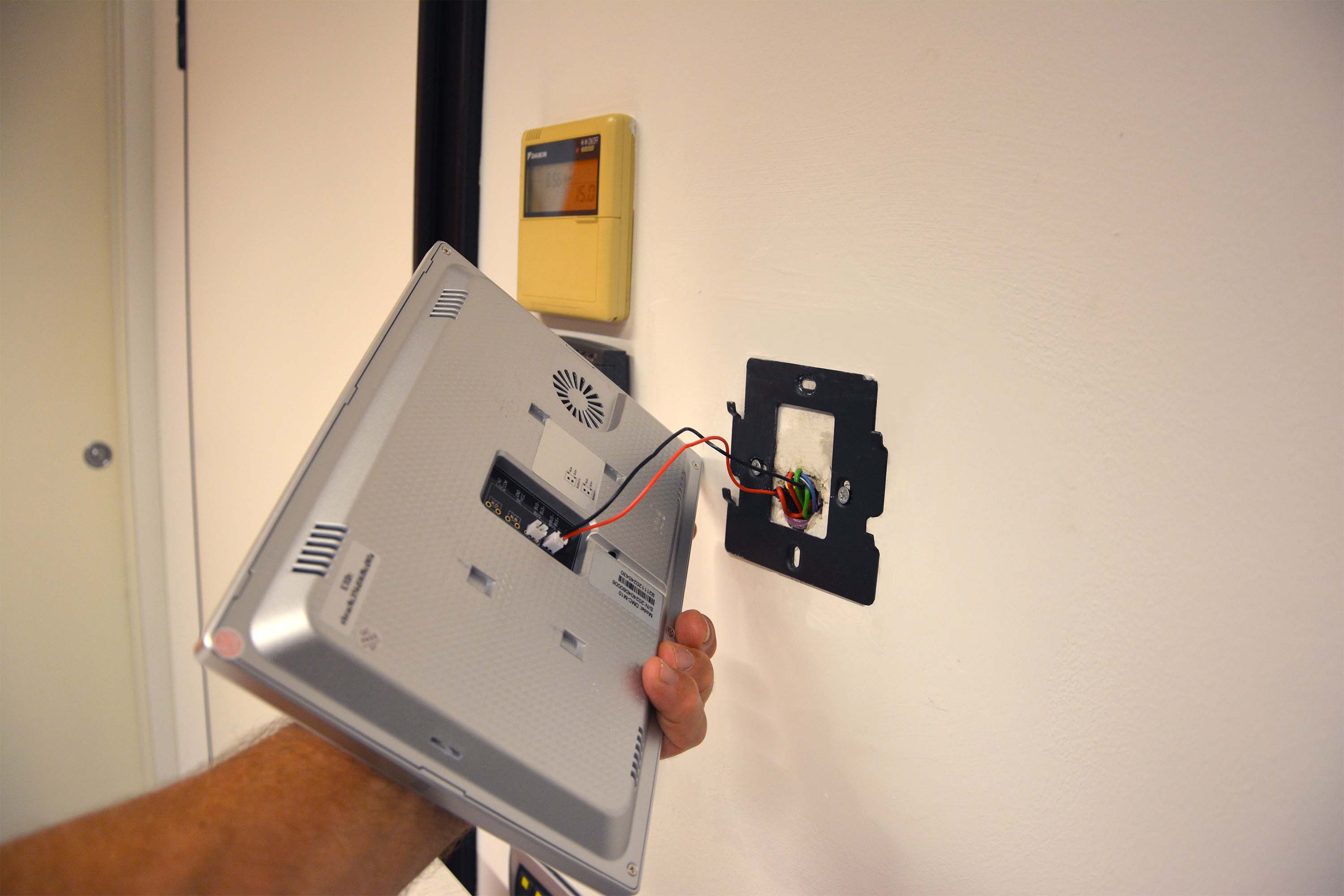

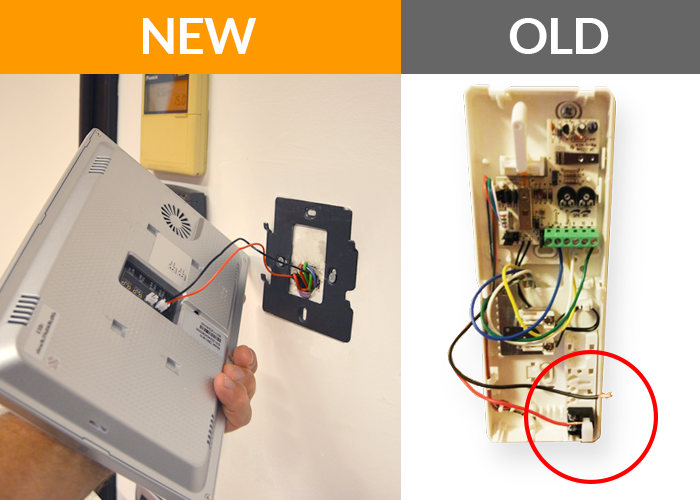

Thanks to the innovative 2-wire connection, without polarity, which accepts any type of connection, replacing an old intercom is easy and there is no need of a single new wire. First, find the power supply unit of the old system: from there two power wires lead to the internal intercoms and to the call panel at the door. Install the new power adapter there and use the two power wires to connect the new monitors and call panel. Then check the old call panel at the door: you should find the cables that control the door openers that you can connect to the new call panel.

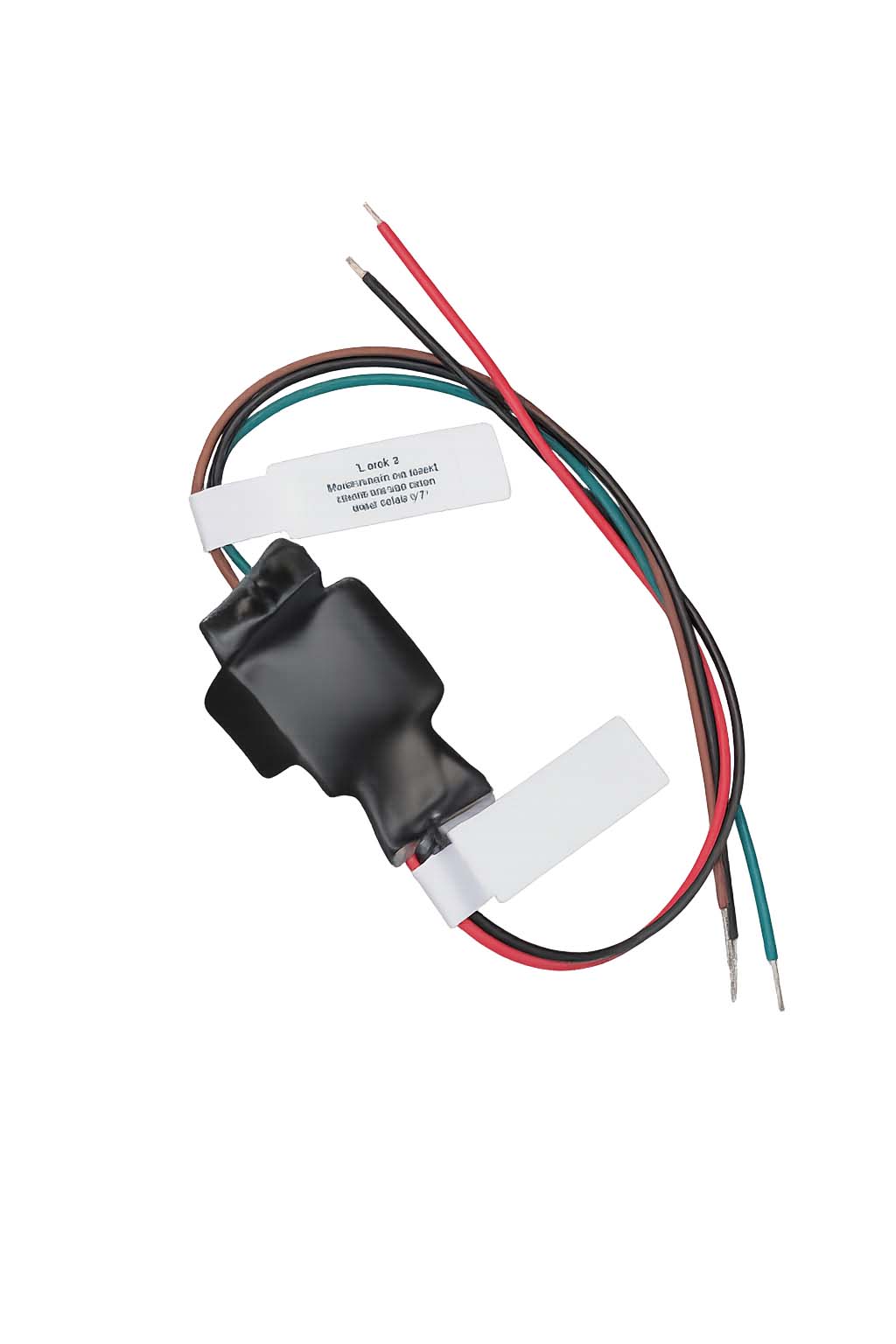

A Domoticam call panel allows you to connect one powered lock, one local door exit button and one relay for an external automation (gate/garage). If you need to open more doors or gates you can install additional call panels (up to 4). Sometime call panels could be also not shown to vistors, but installed in boxes. You can easily unlock all doors of all the call panels from any monitor and even via the app.
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|
| CODE | DMC-M7 | DMC-M9N | DMC-M10 | DMC-P1 | DMC-P2 | DMC-P3F | DMC-P4F | DMC-K1 |
| Description | Touchscreen monitor with loudspeaker | Touchscreen monitor with loudspeaker | Touchscreen monitor with loudspeaker | 1 button call panel | 2 buttons call panel | 3 buttons call panel | 4 buttons call panel | 1 button call panel with keypad |
| Type | 7" with WiFi white | 9" with WiFi black | 10" with WiFi white | 1 call button | 2 call buttons | 3 call buttons | 4 call buttons | 1 call button + keypad |
| MONITOR | ||||||||
| Screen size | 7" | 9" | 10" | |||||
| Monitor resolution | 1024x600 pixel | 1024x600 pixel | 1024x600 pixel | |||||
| Touchscreen | ||||||||
| CAMERA | ||||||||
| Camera resolution | 1920x1080 FullHD (CMOS 1/2.7") | 1920x1080 FullHD (CMOS 1/2.7") | 1920x1080 FullHD (CMOS 1/2.7") | 1920x1080 FullHD (CMOS 1/2.7") | 1920x1080 FullHD (CMOS 1/2.7") | |||
| Infrared illuminator | 5 pcs. IR 6 m. | 5 pcs. IR 6 m. | 5 pcs. IR 6 m. | 5 pcs. IR 6 m. | 5 pcs. IR 6 m. | |||
| Lens | 3.2 mm 150° | 3.2 mm 150° | 3.2 mm 150° | 3.2 mm 150° | 3.2 mm 150° | |||
| CALL PANEL | ||||||||
| Call buttons | 1 | 2 | 3 | 4 | 1 + code unlock keypad | |||
| Badge reader | 5 badge included | 5 badge included | 5 badge included | |||||
| Output for powered electric lock | 1x12VDC | 1x12VDC | 1x12VDC | 1x12VDC | 1x12VDC | |||
| Output for unlock relay | 1xNO | 1xNO | 1xNO | 1xNO | ||||
| Input for exit button | 1xNO | 1xNO | 1xNO | 1xNO | 1xNO | |||
| HARDWARE | ||||||||
| Power supply | 24VDC (adapter not included) | 24VDC (adapter not included) | 24VDC (adapter not included) | 24VDC (adapter not included) | 24VDC (adapter not included) | 24VDC (adapter not included) | 24VDC (adapter not included) | 24VDC (adapter not included) |
| Monitor-Call panel wiring | 2 wires no polarity | 2x0,5 mmq up to 50 m. | 2x0,75 mmq up to 150 m. | 1 pair UTP up to 30 m. | 2 wires no polarity | 2x0,5 mmq up to 50 m. | 2x0,75 mmq up to 150 m. | 1 pair UTP up to 30 m. | 2 wires no polarity | 2x0,5 mmq up to 50 m. | 2x0,75 mmq up to 150 m. | 1 pair UTP up to 30 m. | 2 wires no polarity | 2x0,5 mmq up to 50 m. | 2x0,75 mmq up to 150 m. | 1 pair UTP up to 30 m. | 2 wires no polarity | 2x0,5 mmq up to 50 m. | 2x0,75 mmq up to 150 m. | 1 pair UTP up to 30 m. | 2 wires no polarity | 2x0,5 mmq up to 50 m. | 2x0,75 mmq up to 150 m. | 1 pair UTP up to 30 m. | 2 wires no polarity | 2x0,5 mmq up to 50 m. | 2x0,75 mmq up to 150 m. | 1 pair UTP up to 30 m. | 2 wires no polarity | 2x0,5 mmq up to 50 m. | 2x0,75 mmq up to 150 m. | 1 pair UTP up to 30 m. |
| WiFi | IEEE802.11b/g/n/ 2.4GHz | IEEE802.11b/g/n/ 2.4GHz | IEEE802.11b/g/n/ 2.4GHz | |||||
| Audio Input | Built-in microphone full duplex | Built-in microphone full duplex | Built-in microphone full duplex | Built-in microphone full duplex | Built-in microphone full duplex | Built-in microphone full duplex | Built-in microphone full duplex | Built-in microphone full duplex |
| Audio Output | Built-in speaker | Built-in speaker | Built-in speaker | Built-in speaker | Built-in speaker | Built-in speaker | Built-in speaker | Built-in speaker |
| SD card | Max. 128GB | Max. 128GB | Max. 128GB | |||||
| Max. devices per system | 6 monitor per family (max 4 families) | 6 monitor per family (max 4 families) | 6 monitor per family (max 4 families) | 4 call panels per system | 4 call panels per system | 4 call panels per system | 4 call panels per system | 4 call panels per system |
| FUNCTIONS | ||||||||
| Protocols | Tuya | Tuya | Tuya | Tuya | Tuya | Tuya | Tuya | Tuya |
| Onvif | Not supported | Not supported | Not supported | Not supported | Not supported | Not supported | Not supported | Not supported |
| Voice control | Amazon Alexa, Google Home Google Assistant | Amazon Alexa, Google Home Google Assistant | Amazon Alexa, Google Home Google Assistant | Amazon Alexa, Google Home Google Assistant | Amazon Alexa, Google Home Google Assistant | Amazon Alexa, Google Home Google Assistant | Amazon Alexa, Google Home Google Assistant | Amazon Alexa, Google Home Google Assistant |
| Slideshow | Pictures in SD card | Pictures in SD card | Pictures in SD card | |||||
| Ringtones | Default ringtones and custom music on SD card | Default ringtones and custom music on SD card | Default ringtones and custom music on SD card | Welcome message and ringtone | Welcome message and ringtone | Welcome message and ringtone | Welcome message and ringtone | Welcome message and ringtone |
| Working modes | At home, Away, Do not disturb | At home, Away, Do not disturb | At home, Away, Do not disturb | At home, Away, Do not disturb | At home, Away, Do not disturb | At home, Away, Do not disturb | At home, Away, Do not disturb | At home, Away, Do not disturb |
| Intercom answering machine | Visitors can leave video messages (30/60 sec.) | Visitors can leave video messages (30/60 sec.) | Visitors can leave video messages (30/60 sec.) | Visitors can leave video messages (30/60 sec.) | Visitors can leave video messages (30/60 sec.) | Visitors can leave video messages (30/60 sec.) | Visitors can leave video messages (30/60 sec.) | Visitors can leave video messages (30/60 sec.) |
| P2P | ||||||||
| Browser | ||||||||
| Smartphone | Smart Life or Tuya Free APP for iOS and Android | Smart Life or Tuya Free APP for iOS and Android | Smart Life or Tuya Free APP for iOS and Android | Smart Life or Tuya Free APP for iOS and Android | Smart Life or Tuya Free APP for iOS and Android | Smart Life or Tuya Free APP for iOS and Android | Smart Life or Tuya Free APP for iOS and Android | Smart Life or Tuya Free APP for iOS and Android |
| Alarm actions | Notifications to app of calls with video intercom and doors unlock | Notifications to app of calls with video intercom and doors unlock | Notifications to app of calls with video intercom and doors unlock | Notifications to app of calls with video intercom and doors unlock | Notifications to app of calls with video intercom and doors unlock | Notifications to app of calls with video intercom and doors unlock | Notifications to app of calls with video intercom and doors unlock | Notifications to app of calls with video intercom and doors unlock |
| GENERAL | ||||||||
| Casing | Glass + ABS | Glass + ABS | Glass + ABS | Aluminum + ABS | Aluminum + ABS | Aluminum | Aluminum | Aluminum + ABS |
| Mounting | Wall with bracket for surface mounting | Wall with bracket for surface mounting | Wall with bracket for surface mounting | Wall surface mounting | Wall surface mounting | Wall flush mounting | Wall flush mounting | Wall surface mounting |
| Degree of protection | IP40 for indoor use | IP40 for indoor use | IP40 for indoor use | IP54 for outdoor use | IP54 for outdoor use | IP54 for outdoor use | IP54 for outdoor use | IP54 for outdoor use |
| Bracket included | for wall mounting | for wall mounting | for wall mounting | shock-proof base for wall mounting | shock-proof base for wall mounting | base for wall flush mounting | base for wall flush mounting | shock-proof base for wall mounting |
| Operating temperature | -10°C +50°C RH95% Max | -10°C +50°C RH95% Max | -10°C +50°C RH95% Max | -20°C +60°C RH95% Max | -20°C +60°C RH95% Max | -20°C +60°C RH95% Max | -20°C +60°C RH95% Max | -20°C +60°C RH95% Max |
| Power supply | 24VDC +/-10% | 24VDC +/-10% | 24VDC +/-10% | 24VDC +/-10% | 24VDC +/-10% | 24VDC +/-10% | 24VDC +/-10% | 24VDC +/-10% |
| Power consumption | Max. 250mA | Max. 250mA | Max. 250mA | Max. 200mA (without powered lock) | Max. 200mA (without powered lock) | Max. 200mA (without powered lock) | Max. 200mA (without powered lock) | Max. 200mA (without powered lock) |
| Overall dimensions | 184 x 126 x 22,5 mm. | 224 x 164 x 24 mm. | 249 x 181 x 23 mm. | 85 x 137 x 23 mm. | 85 x 137 x 23 mm. | 100 x 200 x 55 mm. | 100 x 200 x 55 mm. | 62 x 138 x 37 mm. |
| Weight | 306 gr. | 524 gr. | 578 gr. | 386 gr. | 386 gr. | 672 gr. | 672 gr. | 266 gr. |
To create a video intercom system you first need an internal monitor, or more than one if you want to be able to answer the intercom from multiple points. If you have a house with many families you must have at least one monitor per family. Then you need a call panel on the door, which controls up to 2 openings. If you have multiple access, or more than two doors to unlock, you need further call panels. Finally, you need a power adapter for the system: a single power adapter is enough for 2 monitors and one call panel, if you have a larger system you have to buy more power adapters.
