AHD box camera
RE-TCC5F-SL 2MP

CS lens box camera starlight

AHD HIGH RESOLUTION

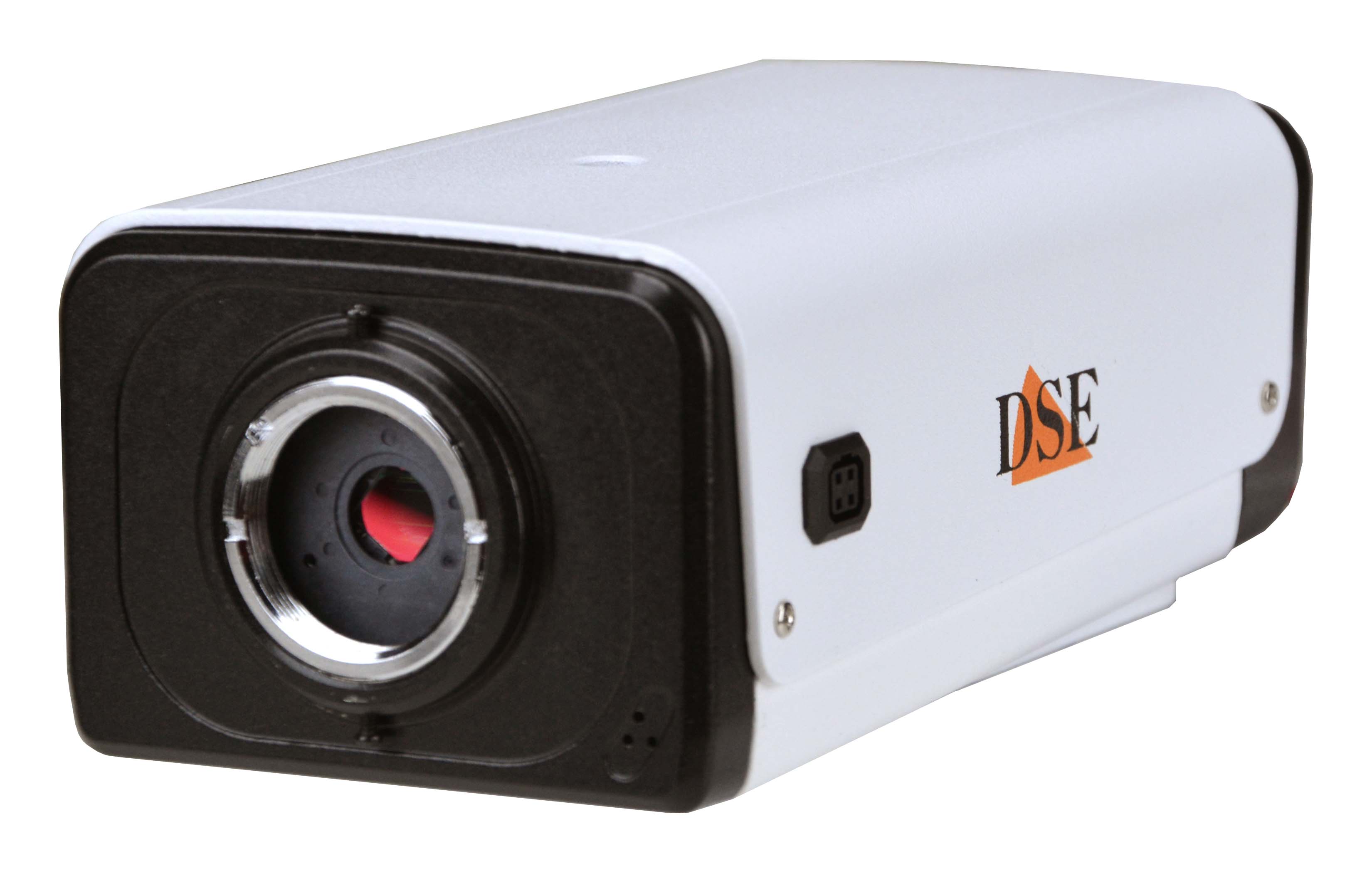

The AHD classic box cameras

These box cameras are the classic analog CCTV cameras, supllied without lens. They are ideal if you look for a camera for special lenses or if you have to replace an old camera of this kind. These cameras are AHD analog cameras , suitable to be connected to AHD videorecorders.
AHD cameras offer you all the megapixel resolution and remote control functions of our digital IP cameras, but in analog technology, fully compatible with any existing cabling, on coaxial or twisted pair.
Here you will find the basic diagram of a small AHD system.


AHD CVI TVI CVBS cameras: what does it means?

All cameras in this AHD range are actually 4 in 1, meaning they can provide 4 types of video signal. The AHD signal is our main video format for high resolution analog video. It is the most popular format and it is an international standard so you can use our AHD camera with any AHD DVR from other brands. CVI and TVI , or TurboHD, are similar formats to AHD but used by other manufacturers. You can switch the video signal of our cameras to these formats if you need to connect to other DVRs. CVBS is the old low resolution analog video. You need to switch the camera to CVBS mode if you want to connect to an analog monitor or an old DVR. You can change the video signal of the camera yourself with the buttons on the back of the camera or with a DVR supporting UTC protocol.

FOR CS-MOUNT LENS

Suitable for any lens

Box cameras are the only cameras we supply without lenses. You are free to match the lens you like choosing among our CCTV lenses. All lenses are compatible, including zoome lenses over 12 mm. that you can hardly find in ordinary cameras. Besides, you can match these box cameras with special lenses for other applications.

LENSES

Universal CS mount

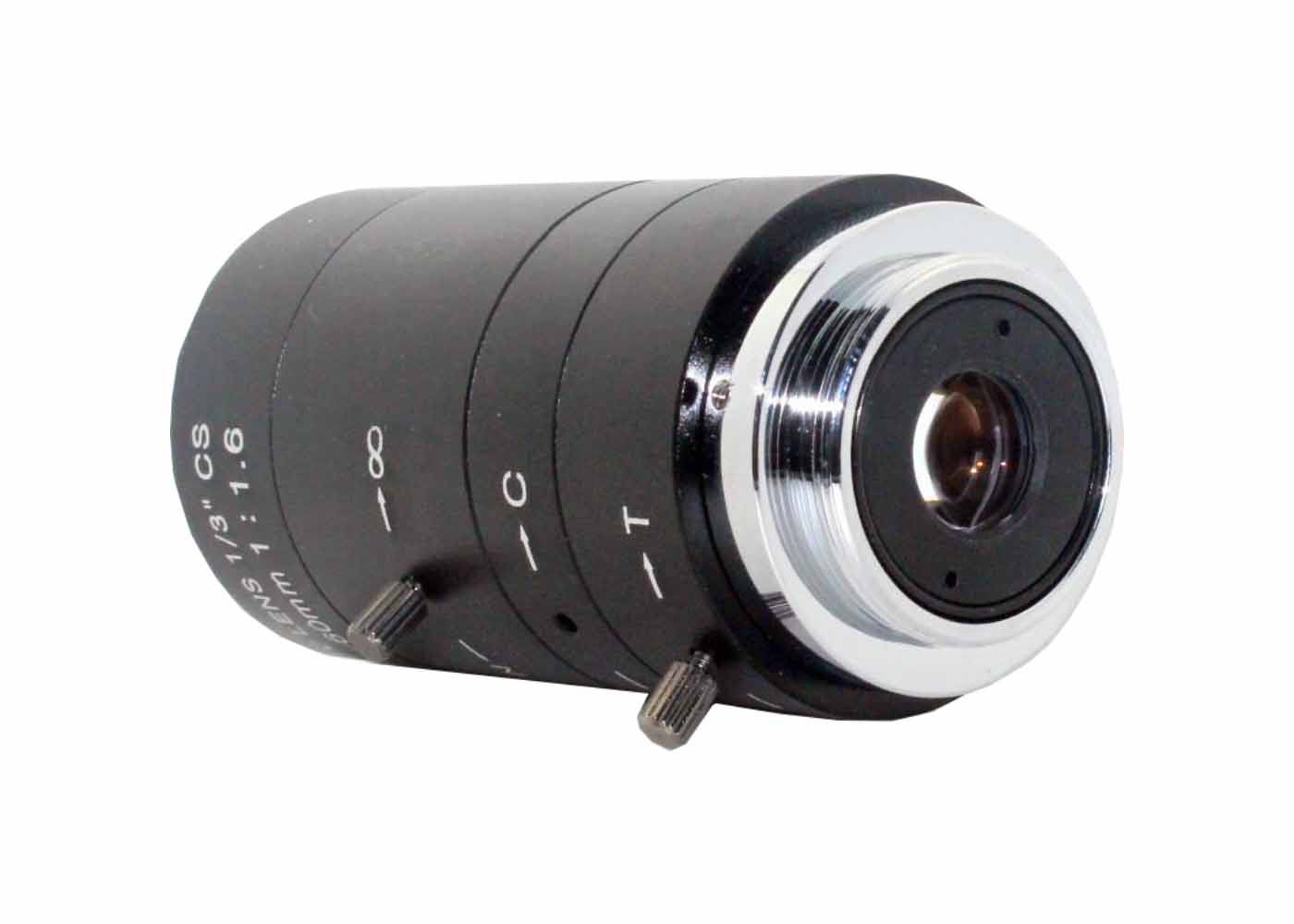

These box cameras come with universal CS-mount ring for the lens. With the help of adapters you can also match C-mount lenses or S-mount mini lenses (M12). These cameras are also equipped with a side connector for DC-drive autoiris lenses . Under the box camera there is a universal 1/4" thread for mounting on CCTV brackets or photo cameras supports.


12VDC power supply, BNC video

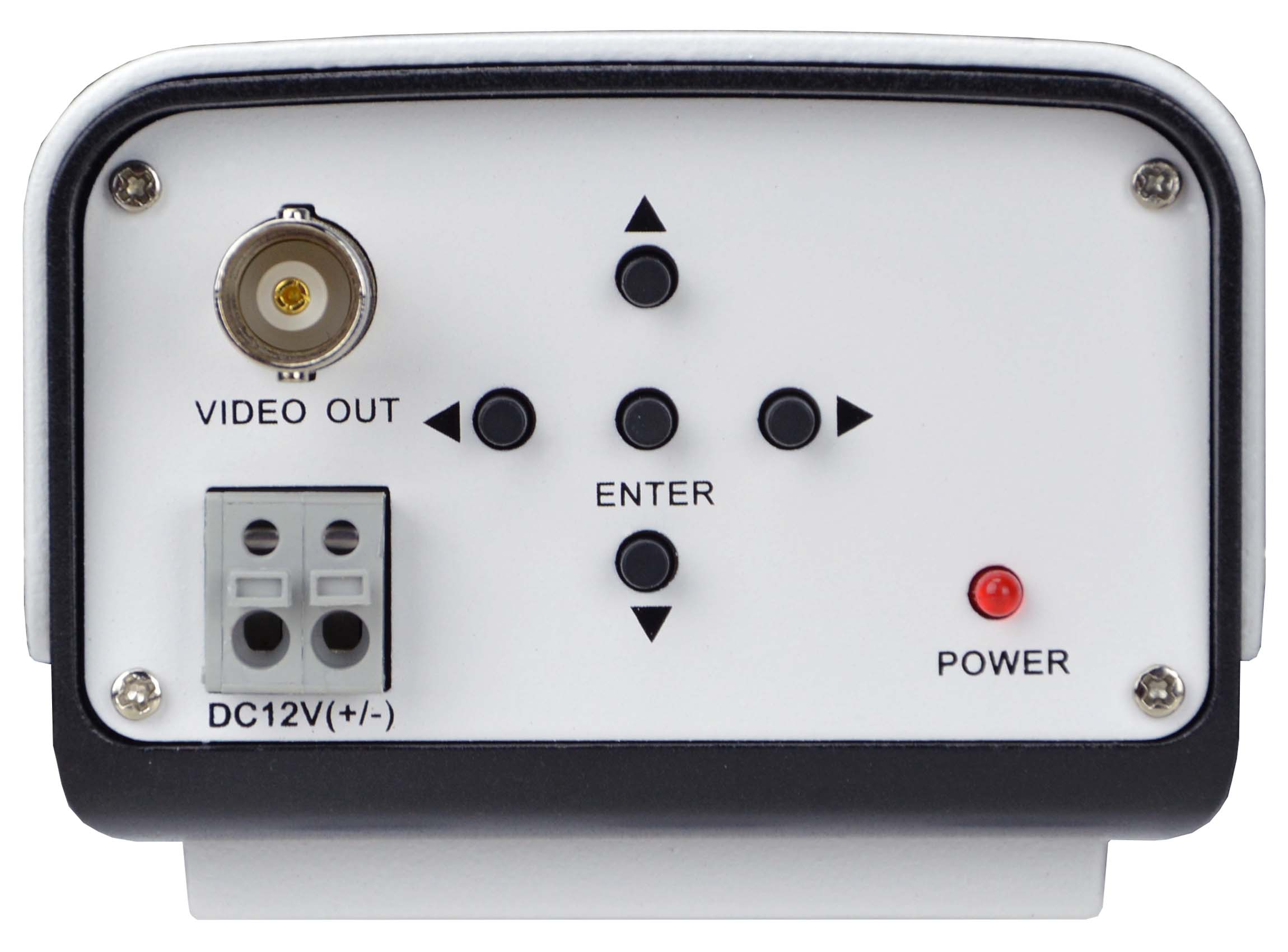

These box cameras have 2 connectors on the back panel: a BNC for video and a 12VDC power terminal board. You can supply 12V power with a power adapter near the camera or with a central power unit. Choose from our range of Power Supply Units the best solution for your system. You can transfer the video signal with a coaxial cable or you can use a twisted pair with small converters also called balun.

POWER ADAPTERS CABLES

High resolution 2 Megapixel 1080P video

The micro cameras in this range provide high-resolution Full HD video signal that is absolutely comparable to our bigger cameras. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and guarantees excellent clear video. Here you can download a video clip in 2MP 1080P resolution.

DOWNLOAD 2MP VIDEO

WDR, BLC, DNR features

AHD cameras have many advanced adjustments, such as IP cameras. You can act on the settings with an on-screen menu that you can control with the button on the camera or even from our DVRs in the UTC models. With a convenient on-screen menu, you can fine-tune the image rendering in order to adapt the camera to the area to be monitores. The WIDE DYNAMIC RANGE (WDR) function is useful if you are shooting bright areas along with darker areas. With the BLC you can improve the shooting of a backlit subject. The DIGITAL NOISE REDUCTION function allows you to improve shooting in weak signal or low light conditions.


STARLIGHT Full color in the dark

These cameras ar called STARLIGHT cameras, being based on the SONY STARVIS™ back-illuminated CMOS sensor. Starlight cameras are designed to produce clear full color view at night taking advantage of every minimal source of natural light. They are perfect to monitor large outdoor areas at night. These cameras also include IR cut filter to support external IR illuminators for monitoring in the dark.

VIDEO RECORDING


Compatible with all DVRs

These AHD cameras are designed to be connected to a digital video recorder , also called DVR, which is converting the analog video signals to digital and recording on Hard Disk. With the video recorder you can perform all the digital functions of IP systems, like remote control via the Internet or motion detection. The cameras in this range are compatible with all DVRs on the market, but it is much better that your DVR supports the maximum resolution of the camera (2MP) to avoid having to use it in CVBS. For maximum compatibility, consider to buy one of our DVRs.

RK Series DVR

OSD remote control with UTC

These cameras come with UTC chip that allows you to adjust the OSD menu of the camera from the DVR by sending commands through the video cable. It's a very convenient function because it allows you to modify the camera options from remote, as you can do with IP cameras. To be able to control the camera menu remotely you need a DVR that supports the UTC protocol, like ours RK Series DVR.

TIPS

Complete your box camera with brackets and casings

In our range of CCTV camera casing and bracketse you will find several dome models suitable for these box cameras. You can choose the one that better suits your application, like swivel wall mounting brackets or outdoor protection casings.

CASINGS AND BRACKETS

TECHNICAL DATA


CODE RE-TCC5F-SL
Description AHD CVI TVI CVBS box camera
CAMERA
Maximum resolution 2MP
Optical sensor Sony Starvis 1/2.9" CMOS
AHD video resolution 1920x1080 @ 25 fps (2 MP HD 1080P)
TVI video resolution 1920x1080 @ 25 fps (2 MP HD 1080P)
CVI video resolution 1920x1080 @ 25 fps (2 MP HD 1080P)
CVBS resolution 960x576 (960H)
Electronic shutter 1/25" ... 1/50000"
S/N ratio >50dB
Power supply 12VDC
Infrared illuminator
ICR
Starlight Minimum illumination 0,001 lux
Lens Without lens (CS-mount)
SET UP
Audio
Audio output
Video output BNC female
Power input Terminal board
FUNCTIONS
UTC
Mirror
Overlay
BLC
AWB Automatic and Manual
DNR
WDR
Anti fog
HSBLC
Privacy mask
GENERAL
Casing Aluminum
Protection degree IP40
Swivel bracket
Operating temperature -10°C +50°C RH95% Max
Power supply 12VDC +/-10%
Power consumption Max 300 mA
Overall dimensions 79x57x148 mm.
Weight 585 gr.

Q & A


What is included?

Camera

What is not included?

All cameras can be powered with a 12VDC power supply. However, the power adapter is not included. If you need a power adapter, look among ours POWER SUPPLIES FOR CCTV. This camera comes without lens and bracket that must be ordered separately.
