POWER ADAPTER CAMERAS


DK-AL1W

CAMERA + DVR

Hidden camera in power adapter

2MP 1080P

Camera in power adapter with SD card. Radio remote control.

Pin-hole lens 3.7 mm 70° Micro SD card slot up to 128GB 24-hour video file storage on SD card of maximum capacity Built-in microphone for audio Motion detection 220V power adapter hidden camera with remote control

DK-AL1EZ

CAMERA + DVR + WIFI

Hidden camera in power adapter

2MP 1080P

Camera in power adapter with SD card. WiFi control by smartphone, even via Internet.

Pin-hole lens 3.7 mm 70° Micro SD card slot up to 128GB 130-hour video file storage on SD card of maximum capacity Built-in microphone for audio Built-in micro speaker for audio Motion detection 220V power adapter Wi-Fi for mobile control with app Free P2P Cloud Server for Internet Control

THE INVISIBLE CAMERAS


The hidden camera for every environment



These cameras are hidden in a small, fully working power adapter. They are ideal for surveying an entire room in an unsuspected way. The insignificant appearance of a common mobile phone power adapter , allows you to put this camera in any type of furniture, both at home and in the office. The pin-hole lens, invisible from the outside, records frontally. You can plug the power adapter into a wall power socket or a multi-outlet power strip. This power adapter comes with a USB port that works as a phone charger and is unsuspected even if observed closely.


Running in a few minutes

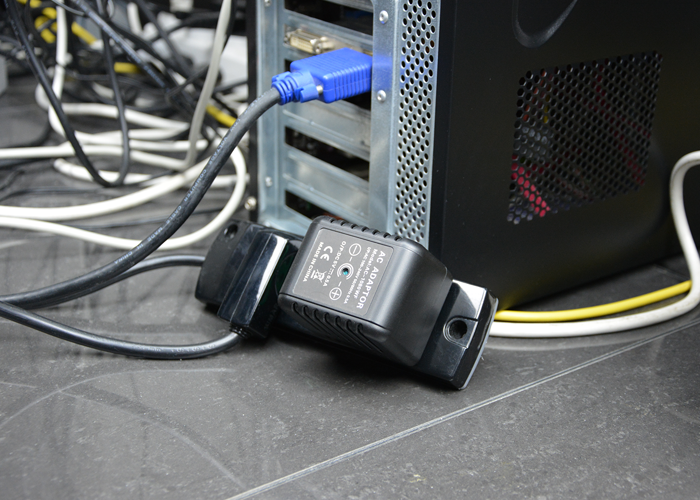

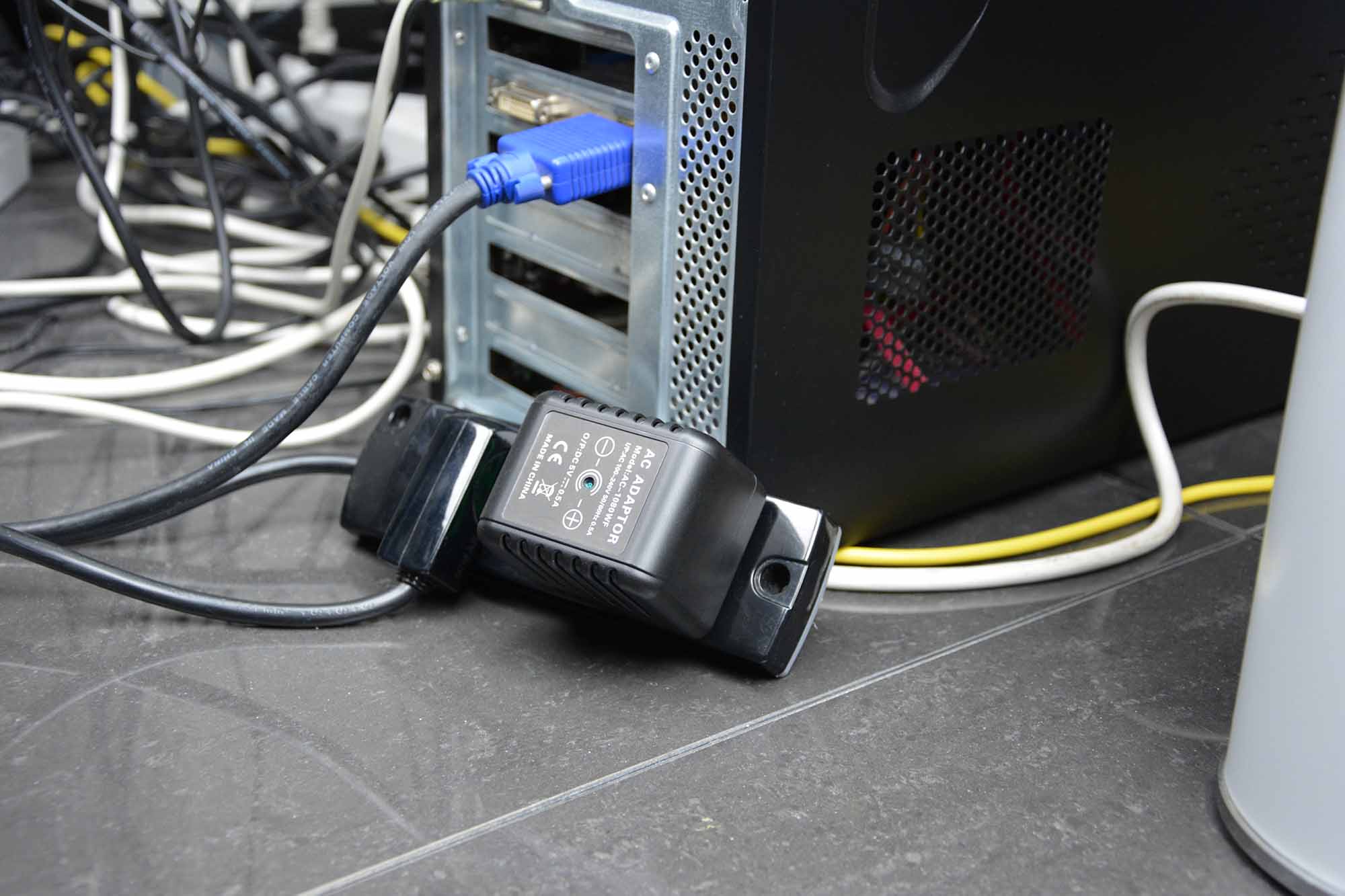

These cameras hidden in the power adapter are ready to work in minutes. Just insert the sd card into the slot and your hidden video surveillance system is ready to be placed wherever you want. For a good shooting angle, you should mount a socket next to the lighting switches or insert the power adapter into a multi-outlet power strip that you can orientate in the best way. This power adapter camera does not require any technical knowledge and can be used in a matter of minutes by anyone.


VIDEO AND AUDIO


2 megapixels high resolution video

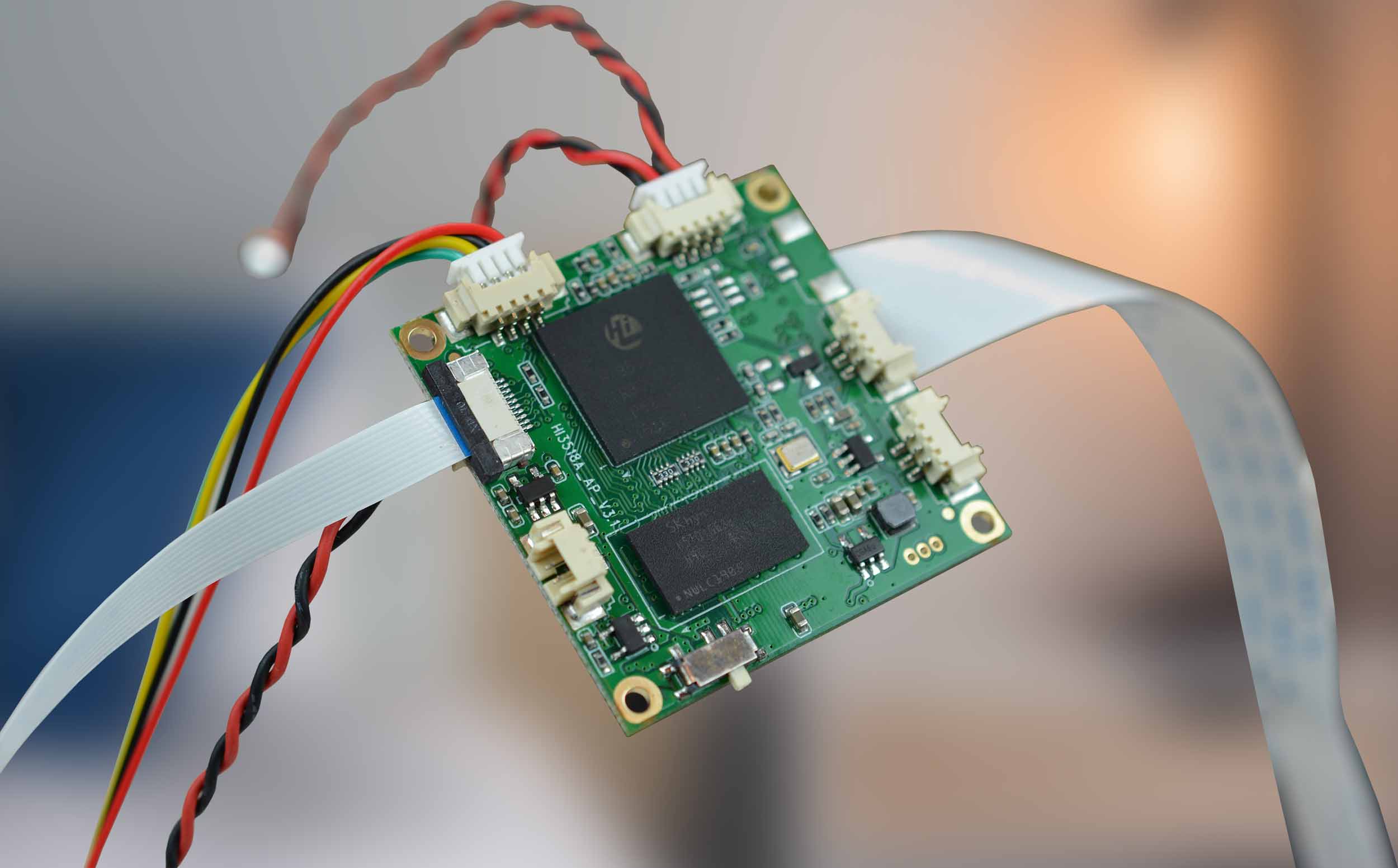

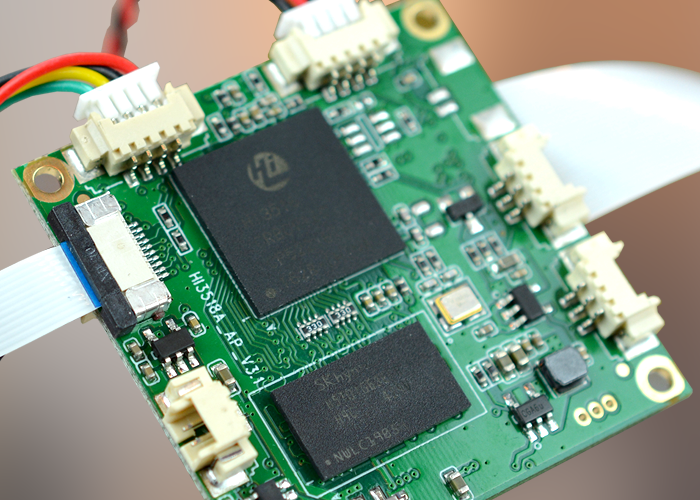

These hidden cameras for investigation provide a video resolution of 2 MP at 25 f/s. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and provide high quality video and rich detail. In order to guarantee maximum performance, we use the same high-level CMOS and HiSilicon processors of our IP cameras for traditional CCTV surveillance in these hidden cameras. Download two 2MP demo movies below

2MP normal lighting 2MP low lighting

Pinhole invisible lens



All of our mini-cameras with SD memory mount a wide-angle lens with a coverage of about 70°. The lens is a pinhole-type and fits perfectly through a small hole of only 1 mm . The camera effectively records even in dim light, with a rendering similar to the naked eye vision, but can not record in total darkness. The pin-hole lens records frontally and provides a straight image with the vertical grip holes.


Audio microphone and speaker

These hidden mini cameras also support audio. All models in the range are equipped with a built-in microphone able to cover a medium-sized room. The high sensitivity microphone allows you to record even whispered words in an average size room. The audio is recorded together with the video and is also available on smartphones, in models with WiFi. The WiFi cameras also feature a built-in micro speaker that allows you to communicate with people in front of the camera from your mobile phone.


VIDEO RECORDING


Storage on SD card memory



All spy cameras in this range record movies on a removable Micro SD memory. Micro SD card is not included . To use these cameras you need to a micro SD card of the maximum capacity supported by the camera. These cameras support Class 10 SD cards or higher. Do not buy slower SD cards, in class 4 or 6, because they will not work properly. The maximum storage capacity depends on the model.

DK-AL1W DK-AL1EZ
SD max. 128GB 128GB
Max. storage 24 hours 130 hours

Video playback and download

To play the movies recorded on the SD card of the camera you must extract the SD card from the device and insert it into a Personal Computer. If your PC does not have an SD card reader, you can buy a USB reader like the one shown in the picture. It costs a few Euros on line. You can play movies with common free players, like VLC or Windows Media Player and download the ones you want to save on your PC. Models with Wi-Fi also allow you to download videos by mobile phone, without having to remove the card from the camera.


Motion detection

All cameras in this range can record continuously. In this mode, many short files are stored in the memory, one after the other. Once the memory space is full, the camera continues to record, automatically overwriting the oldest files. All models are also equipped with the MOTION DETECTION function which allows recording only if movements occur in front of the lens. It is a very convenient function to avoid wasting precious memory space by recording insignificant scenes. Models with integrated wifi can even record on the base of a scheduler, depending on the time of the day.


POWER SUPPLY


220V power supply



All the hidden cameras in the power adapter do not have an internal battery because they draw power from the socket in which they are inserted. The camera can run 24 hours a day , like a real CCTV system for video surveillance. These cameras in the power adapter are an excellent solution to equip your room with a hidden surveillance always in operation and very easy to put in place. The USB port of the power adapter is really working as a phone charger.


CONTROLS


2 power adapter cameras, for 2 different applications



We produce this range of spy cameras for investigation in 2 different versions. The main difference between the models is the way you can start and stop recording.

DK-AL1W

Radio remote control

In models with radio control you can start recording with the included radio remote control that has a range of about 10 m. You can keep the camera on standby and start recording when needed.

DK-AL1EZ

Control with smartphone

WiFi cameras can be controlled with a mobile phone or tablet using our free app. You can connect directly to the wifi hotspot generated by the camera or even via the Internet.


WIFI WITH APP


WiFi and smartphone APP

Available on DK-AL1EZ
Some cameras in this investigation range are equipped with a Wi-Fi transmitter for Smartphone control. You can connect locally to the Wi-Fi hotspot generated by the camera, or you can connect the camera to your home Wi-Fi and access it via the Internet with our free P2P cloud server . With our free APP for Android and iOS, you can control cameras with a mobile phone or tablet. You can SEE AND LISTEN real time. You can RECORD and take pictures. You can also PLAY AND DOWNLOAD the videos recorded in the camera's memory card, looking for the date and time you are interested in. If you enable motion detection, you can RECEIVE push notification on your mobile phone at every intrusion, with a snapshot attached.

IoVedo.EZ Free app for iOS and Android Live viewing from the app Environmental listening Dialogue via the camera speaker Recording control Download video files P2P cloud server for immediate web access Alarm notifications IoVedo.EZ IoVedo.EZ

TIPS


Make a perfect hidden camera

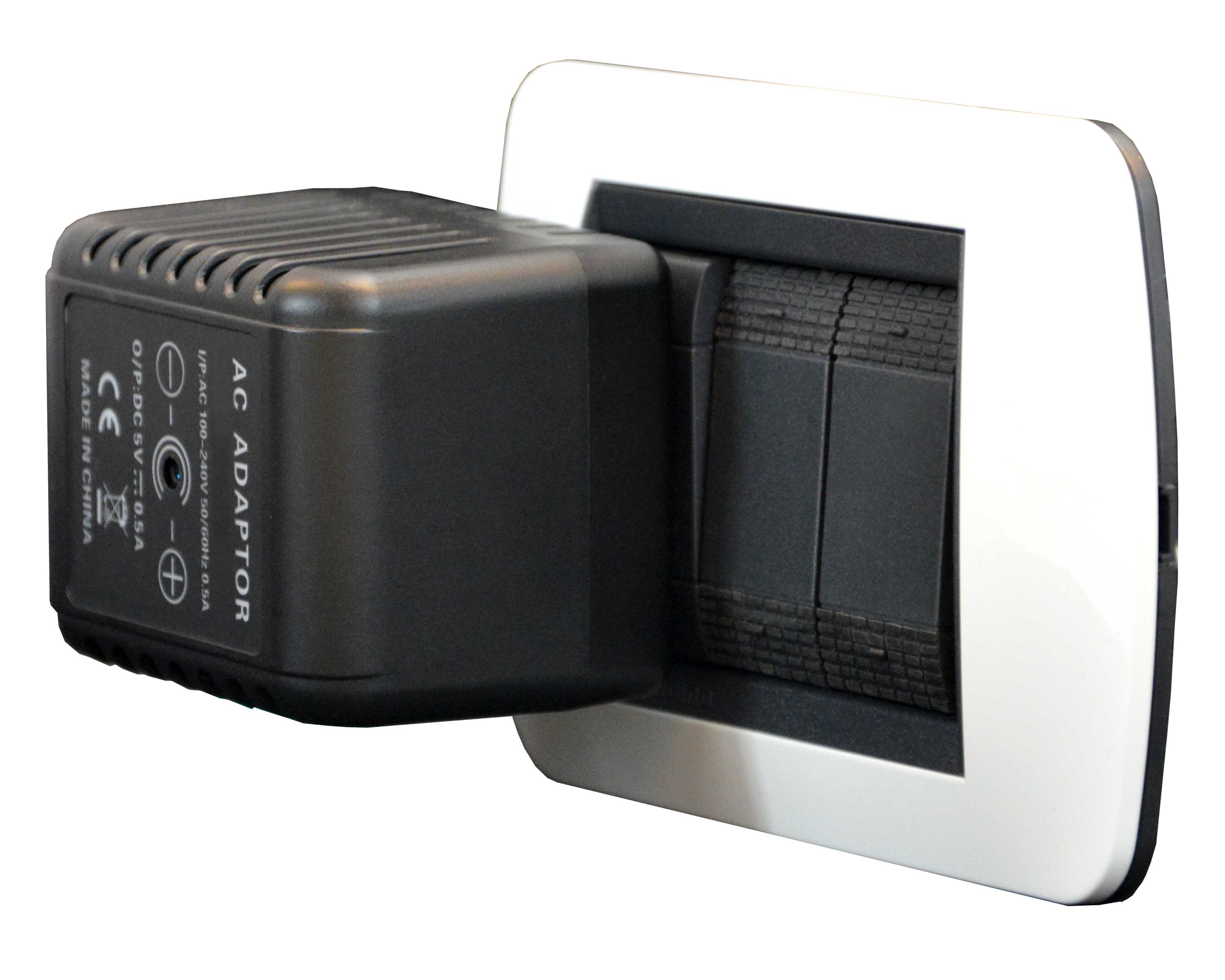

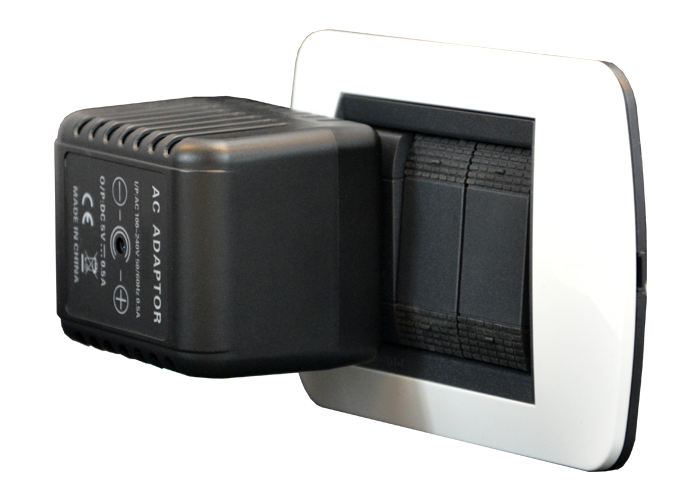

To make an effective hidden camera, you first have to choose a favorable position for your power adapter camera . It is advisable to set up a socket about one meter from the ground, near the light switches. If you do not have this possibility, insert the power supply into a multi-outlet power strip and orient it towards the area to be monitors. Remember that these cameras do not record in absolute darkness, therefore you must provide at least a minimum ambient light.


Connect the camera to your WiFi network



If you buy a power adapter camera with WiFi, you will have great advantages in connecting it to your home WiFi network. It's an operation that runs easily with our app and lets you control your camera through the Internet, wherever you are. Thanks to our free P2P cloud server , you do not need to configure anything in your router, you just need to know the ID of your power adapter that you will find in the package. On first use, you can set a secret access password to protect your privacy. With our app you can watch and listen in real time, playback and download video footage and receive real time push notifications if an intrusion occurs.


TECHNICAL DATA



CODE DK-AL1W DK-AL1EZ
Description Power adapter camera with SD Power adapter camera with SD and WiFi
Type Control with radio remote control Control with Smartphone
CAMERA
Maximum resolution 2MP FullHD 1080P 2MP FullHD 1080P
Optical sensor 1/2.7" CMOS OV OV2710 1/3" CMOS ON AR0330
Chipset STK4580 Hi3516C
Video resolution 1920x1080 @ 25 f/s 1280x720 @ 25 f/s 1280x720 @ 50 f/s 1920x1080 @ 25 f/s
Video compression MJPEG H264 Dual
Infrared illuminator
ICR
Lens Flat pinhole 3.7 mm (70°) Flat pinhole 3.7 mm (70°)
Focus Fixed Fixed
Shutter 1/25...1/12000 1/25...1/12000
S/N Ratio Over 50dB Over 50dB
Video files format AVI 10 minutes length MOV 5/10/15 minutes length
SUPPLIED
Network port
Wi-Fi 802.11 b/g/n 2.4GHz (AP or Client mode)
USB port
Audio microphone
Audio speaker
SD card slot Max. 128GB Class 10 or superior Max. 128GB Class 10 or superior
TV CVBS output
POWER SUPPLY
Standard battery
Mains power supply
FUNCTIONS
Recording mode Continuous, Motion Continuous, Motion, Scheduler
Automatic overwrite Yes Yes (excludable)
Camera control Radio remote control 10 m. Smartphone/Tablet via WiFi
Protocols TCP/IP HTTP FTP DHCP DNS DDNS RTP RTSP NTP SMTP
Onvif
P2P
Browser
Smartphone Free APP for iOS Android
Multi streaming
Saving on the web cloud
Mirror
Corridor
Overlays Date and Time Date and Time (excludable)
BLC
AWB
DNR
WDR
Anti fog
HSBLC
Starlight
Motion detection
Privacy mask
Anti tampering
Alarm actions Start recording Start recording, Email, Push notifications on mobile
Sending Time-Lapse photos
GENERALITIES
Casing Working wall socket power adapter Working wall socket power adapter
Degree of protection IP40 IP40
Operating temperature -5°C +40°C RH95% Max -5°C +40°C RH95% Max
Supply 220V AC 220V AC
Power consumption Max. 400mA Max. 600mA
Overall dimension 50x48x64 mm 50x48x64 mm
Weight 68 gr. 68 gr.

QUESTIONS & ANSWERS


What is included?

DK-AL1W

CAMERA
REMOTE CONTROL
USER MANUAL

DK-AL1EZ

CAMERA
APP
USER MANUAL

What is not included?

Cameras record on MicroSD card. The micro SD card is not included. You can buy in our price list a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by the camera in the technical data table above. To connect the SD card to your computer you may need an SD card reader if your PC does not have one.
