NVR WITHOUT POE PORTS


RK-16-N

NVR for outdoors Onvif IP cameras

H265 NVR for 16 IP cameras up to 5MP

16 IP cameras H264 and H265 video compression 5MP maximum resolution 80MB Mmaximum incoming bandwidth 4K HDMI  monitor output Maximum 1 HDD HDD up to 8TB Motion detection WEB control with free P2P cloud server Free APP for smartphones and tablets

RK-25-N8

NVR for outdoors Onvif IP cameras

H265 NVR for 25 IP cameras up to 8MP

25 IP cameras H264 and H265 video compression 8MP maximum resolution 120MB maximum incoming bandwidth 4K HDMI  monitor output Maximum 2 HDD HDD up to 8TB Motion detection WEB control with free P2P cloud server Free APP for smartphones and tablets

RK-36-N12

H265 NVR for Onvif 4K IP Camera

H265 NVR for 36 IP cameras up to 12MP

36 IP cameras H264 and H265 video compression 12MP maximum resolution 300MB maximum incoming bandwidth 4K HDMI  monitor output Maximum 2 HDD HDD up to 6TB Motion detection WEB control with free P2P cloud server Free APP for smartphones and tablets

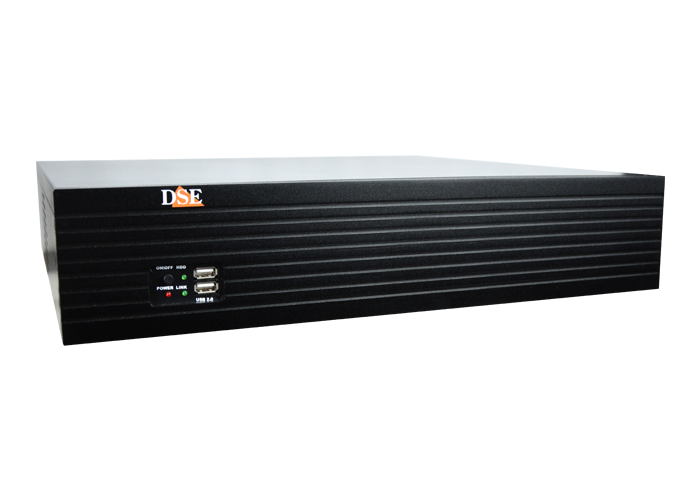

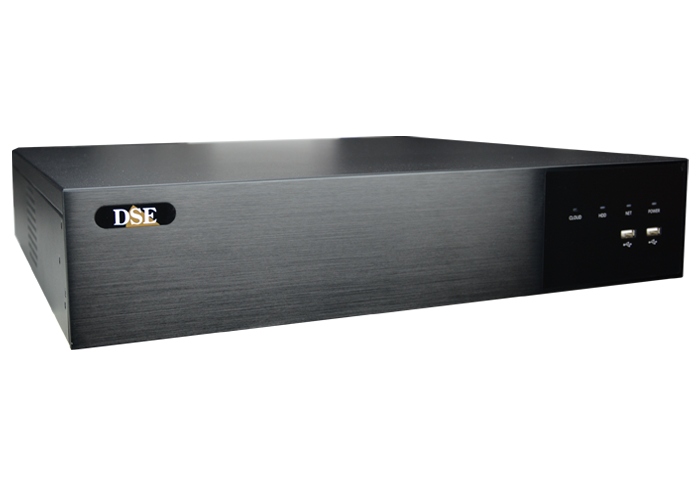

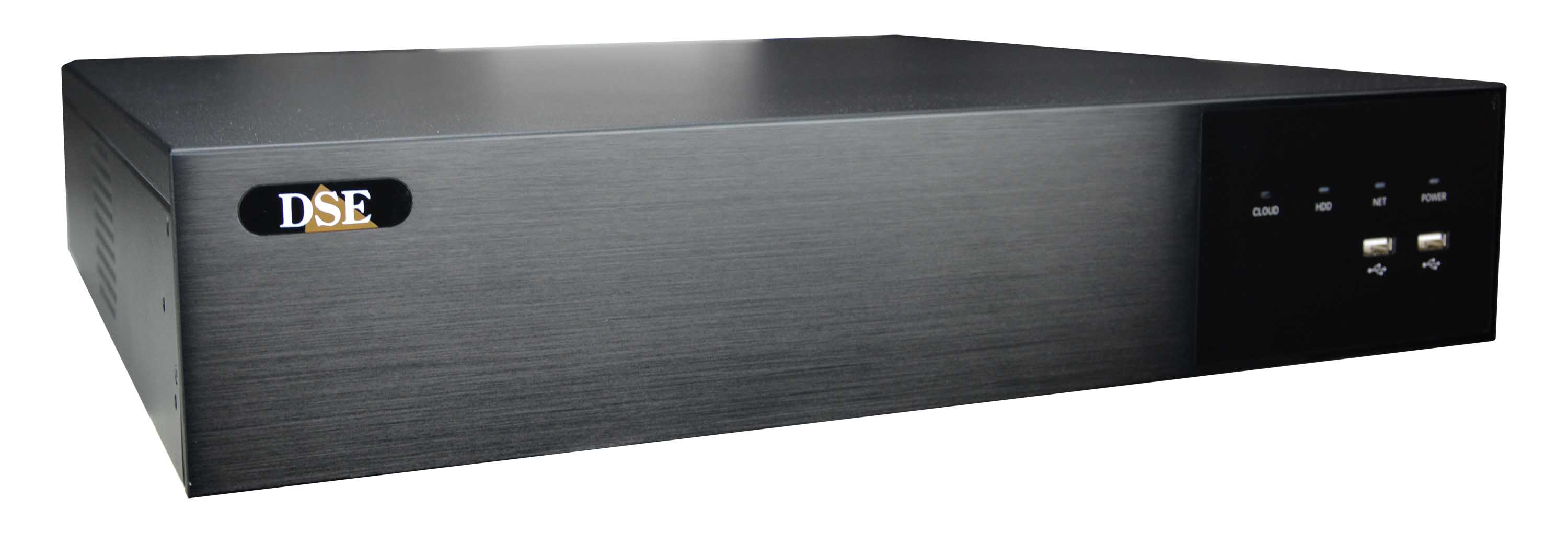

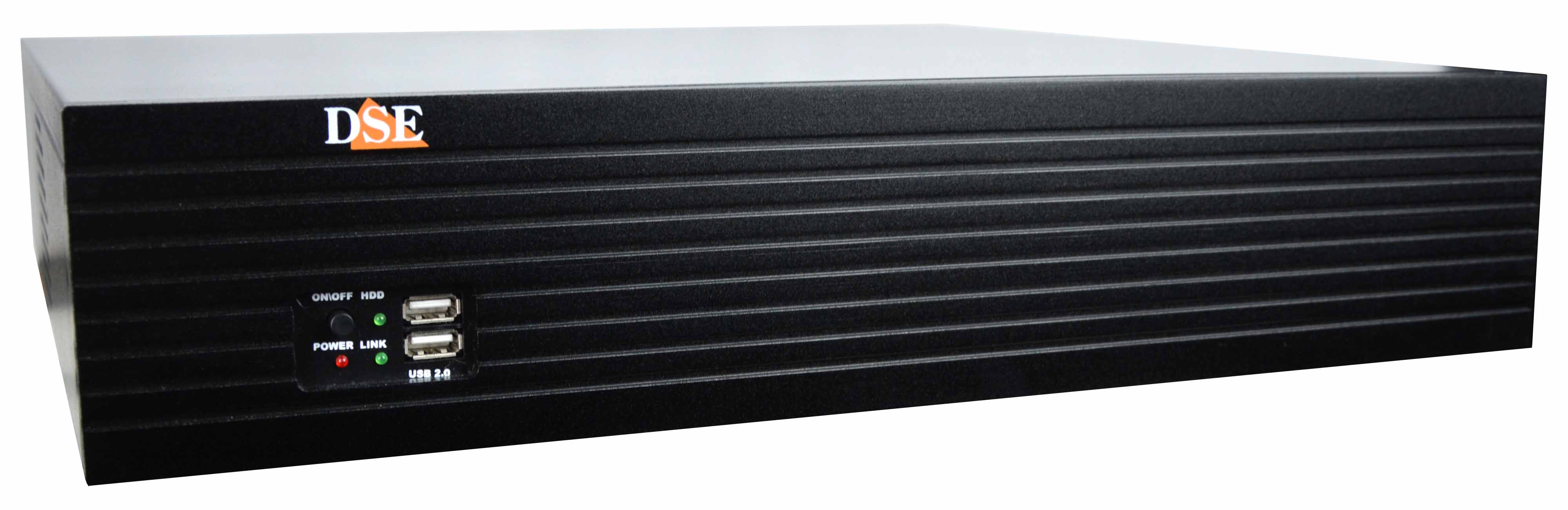

RK-64-N12

H265 NVR for Onvif 4K IP Camera

H265 NVR for 64 IP cameras up to 12MP

64 IP cameras H264 and H265 video compression 12MP maximum resolution Maximum incoming bandwidth 350MB 4K HDMI  monitor output Maximum 8 HDD HDD up to 6TB Motion detection WEB control with free P2P cloud server Free APP for smartphones and tablets

NVR WITH POE PORTS


RKK-9P4-N

NVR for outdoors Onvif IP cameras

H265 NVR for 9 IP cameras up to 5MP with 4 POE ports for cameras

9 IP cameras 4 POE ports for IP cameras H264 and H265 video compression 5MP maximum resolution 80MB Mmaximum incoming bandwidth Maximum 1 HDD HDD up to 8TB Motion detection WEB control with free P2P cloud server Free APP for smartphones and tablets

RKK-9P4-N

NVR for outdoors Onvif IP cameras

H265 NVR for 9 IP cameras up to 5MP with 8 POE ports for cameras

9 IP cameras 8 POE ports for IP cameras H264 and H265 video compression 5MP maximum resolution 80MB Mmaximum incoming bandwidth Maximum 1 HDD HDD up to 8TB Motion detection WEB control with free P2P cloud server Free APP for smartphones and tablets

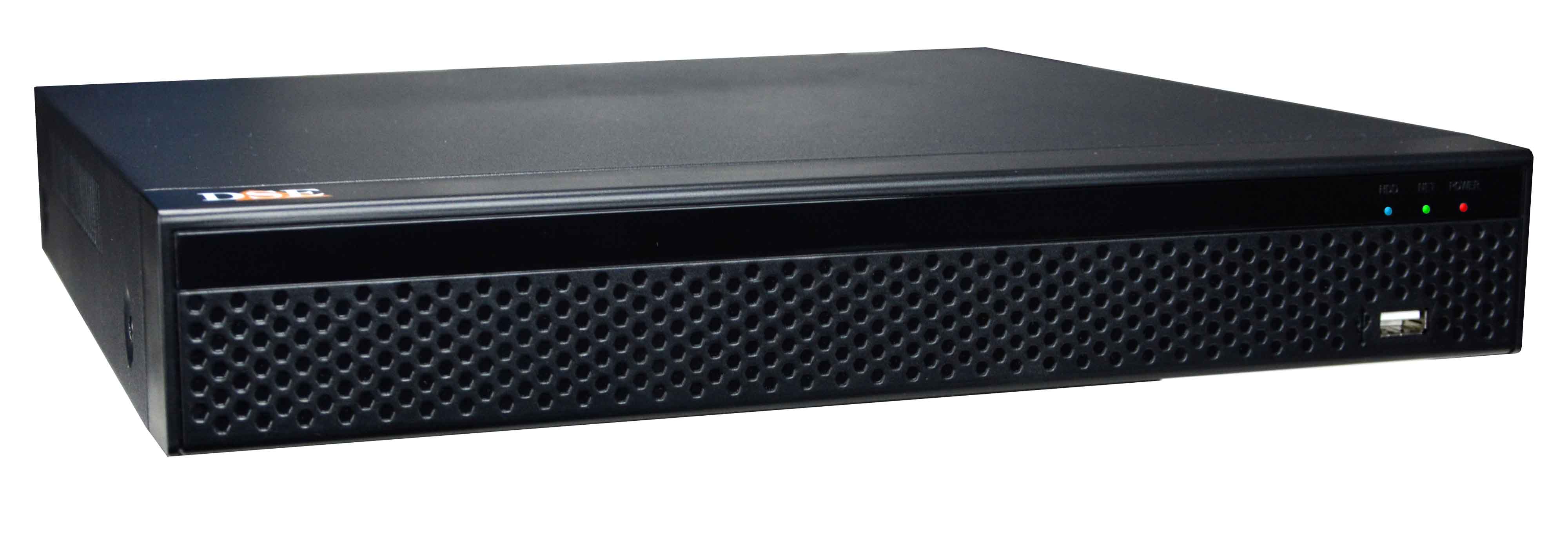

RKK-16P-N8

NVR for outdoors Onvif IP cameras

H265 NVR for 25 IP cameras up to 8MP with 16 POE ports for cameras

25 IP cameras 16 POE ports for IP cameras H264 and H265 video compression 8MP maximum resolution 120MB Mmaximum incoming bandwidth 4K HDMI  monitor output16 input and 4 output Maximum 4 HDD HDD up to 8TB Motion detection WEB control with free P2P cloud server Free APP for smartphones and tablets

NVR WITH WIFI


RKK-NVR2-8

NVR fot Onvif outdoor IP camera

H265 NVR for 8 WiFi IP cameras up to 2MP

8 WiFi IP cameras H264 and H265 video compression Maximum resolution 2MP Maximum incoming bandwidth 60MB Built-in access point for WiFi cameras Plug&Play connection Can hold max. 1 HDD Can hold HDD up to 8TB Motion detection Web control with free P2P cloud server Free APP for smartphone and tablet

RKK-NVR5-4

NVR fot Onvif outdoor IP camera

H265 NVR for 4 WiFi IP cameras up to 5MP

4 WiFi IP cameras H264 and H265 video compression Maximum resolution 5MP Maximum incoming bandwidth 60MB Built-in access point for WiFi cameras Plug&Play connection Can hold max. 1 HDD Can hold HDD up to 8TB Motion detection Web control with free P2P cloud server Free APP for smartphone and tablet

NVR FOR IP CAMERAS


NVR video recorders for network CCTV systems



These NVRs are video recorders for Onvif IP cameras. They are used to manage and record cameras in an IP video surveillance system. With these NVRs you can control all our IP cameras and also those of other manufacturers, using the ONVIF universal protocol , which is today a widespread international standard.

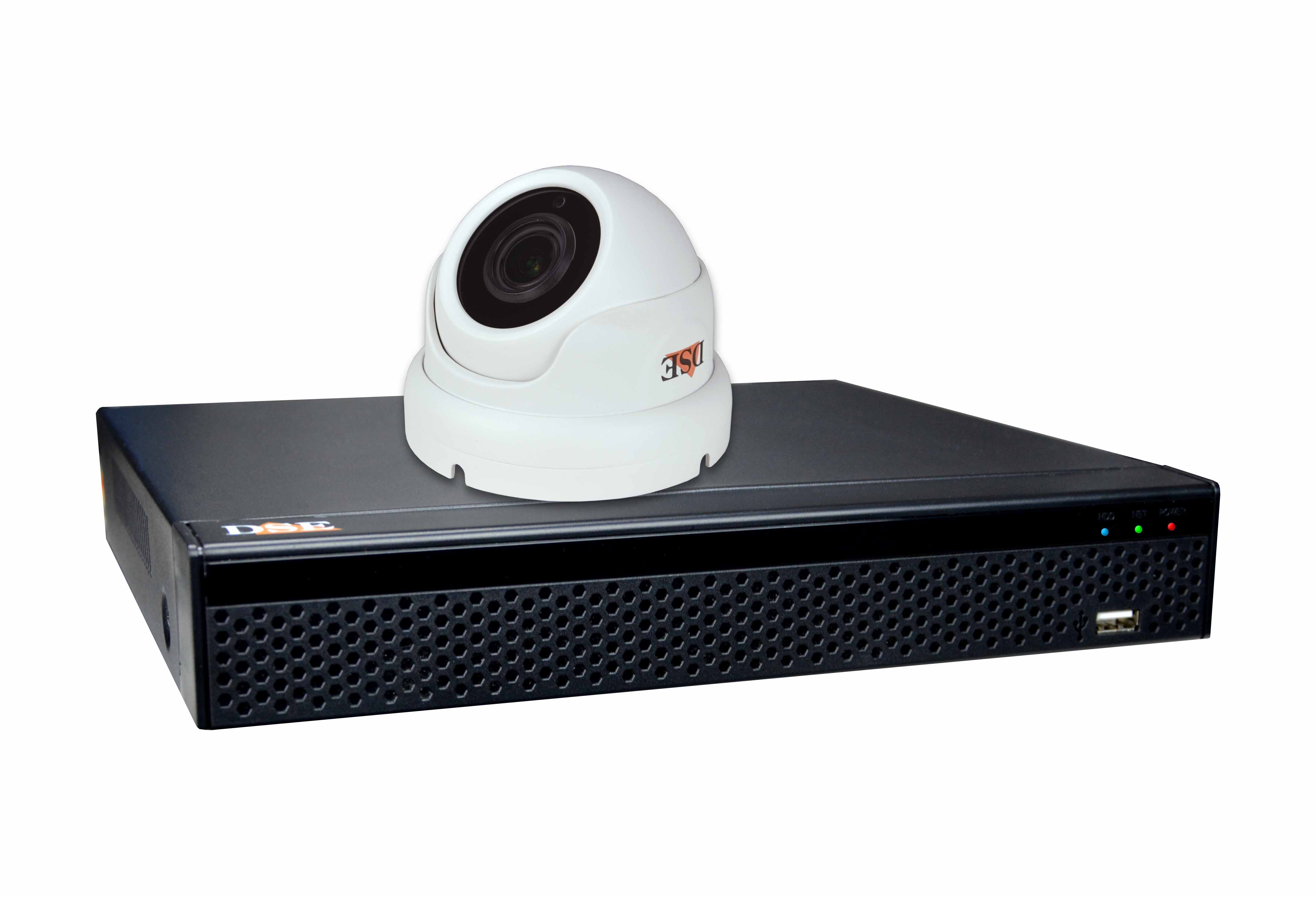

RK SERIES NVR + IP cameras



These NVRs are part of our RK range which also includes DVRs with BNC inputs and IP cameras . This range is designed for the residential and commercial market segments. It combines excellent performance with the most convenient functions for the private user, still providing a high quality / price ratio. All cameras and video recorders in this range are suitable for our IoVedo.RK mobile app and share the same P2P cloud server and software tools for computers.


Why buy a CCTV NVR?



Why do NVRs exist if IP cameras can record on their SD card and can be managed with a computer? NVRs exist because they allow you to control many cameras conveniently and display them all on a monitor, without using a PC. They also come with many convenient functions that help you to centralize alarm detections, search video files and control the NVR via web. NVRs are equipped with an RJ45 network port that you can connect anywhere in your network, for example to a router or a switch. The NVR automatically detects all the onvif IP cameras you have connected to your network, both wired and wifi. If you want to see how easy it is, have a look at our video tutorial on the side.

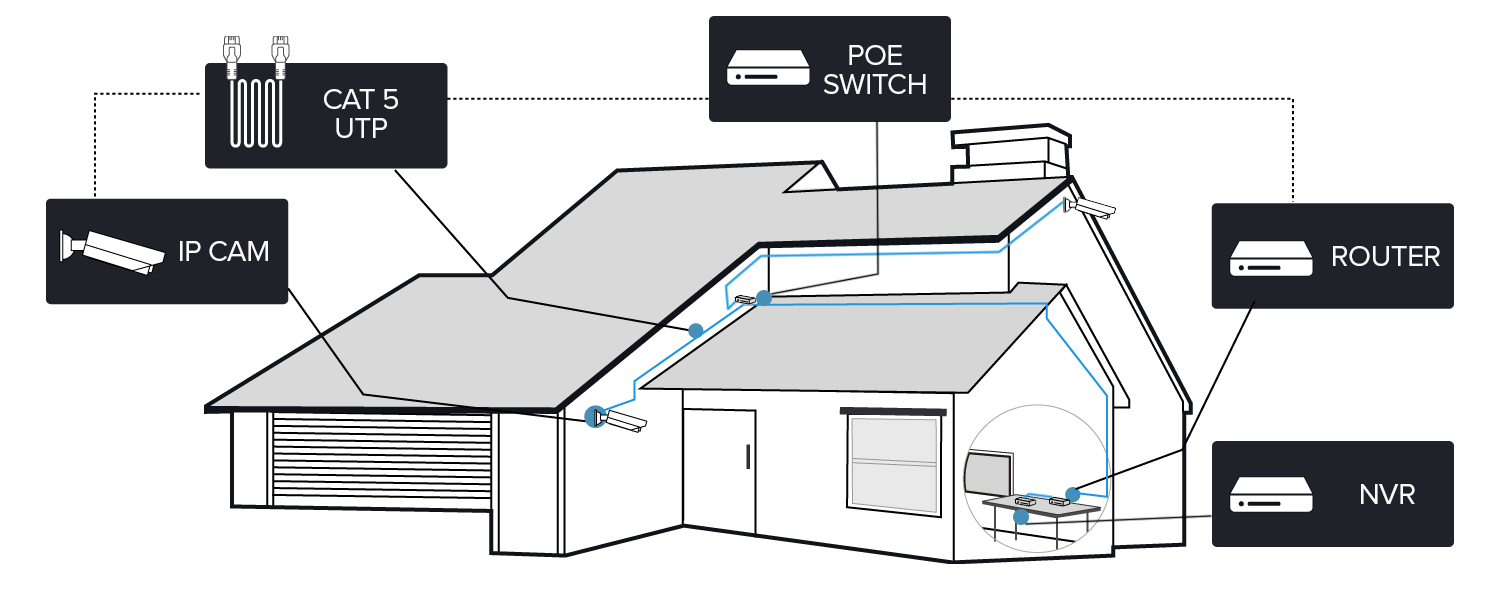

Below is the scheme of a small IP video surveillance system: please note how the cameras are connected to a switch and not to the video recorder as you would do in traditional analog systems.


POE ports or not? WIFI ?

This range of NVRs includes all the versions you can imagine to best suit your security needs. Choose a NVR WITHOUT POE PORTS if you are building a large system or plan to extend it in the future. In these NVRs the cameras are connected to external POE switches that you can place wherever you like. If you are building a small system and your cables all come to the NVR, you can choose a NVR WITH POE PORTS . In this case, the cameras connect directly to the back of the NVR and ours do not even require configuration. NVRs with POE ports make system configuration easier, that is why we use these NVR in our plug and play POE kits . If you want to make a small system with WiFI cameras and you do not want to use your existing wifi network, you can buy our NVR WITH WIFI that let you connect your wireless cameras directly. We use these NVRs in our Plug and play WiFi kits .


NVR HARDWARE


Suitable for any camera up to 12 Megapixels



These NVRs allow you to display and control any onvif IP camera up to 5, 8 or 12MP resolution, depending on the NVR model. 2MP cameras (1080P or Full HD) are today the most popular in CCTV systems for their excellent quality-price ratio. 4MP and 5 MP cameras are used in high level CCTV systems where higher definition and zoom capability are required. 8MP (4K) and 12MP cameras are used to achieve the highest video quality in high-end security applications. These NVRs can handle cameras with different resolutions. Therefore, when designing your system, you can use different kind of cameras according to the importance of the area.


H265, H265+, H264 video compression

The NVRs in this range support the latest H265 and H264 video compression formats, including the latest advanced versions, to get the highest performance out of any Onvif IP camera. If your cameras support H265, the most efficient codec available today, they will work great with these NVRs, recording high quality video stream with the minimum bandwidth requirement. Here, on the side, you can download two similar clips in H264 and H265 format: please note the difference in size and the similar video quality.


Up to 350 MB max. incoming bandwidth



The video stream of any IP camera requires a certain data bandwidth. The bandwidth required by each camera varies, depending on the settings, from a minimum of 2 MB, for 2 MP cameras, up to over 10 MB, for 4K cameras . When you choose an NVR you must be sure that it can handle enough incoming bandwidth to receive all the cameras you will connect. The large input bandwidth, up to 350MB, is one of the main advantages of our RK NVR series, over low-cost, non-professional, products.


Top-tier performance

If you're looking for a high-performance NVR to record high resolution cameras without dropping a single video frame, this NVR range is just right for you. You can record 4K and 12MP cameras at 25 FPS and play back footage in real time. You do not have to worry about adjusting the video stream in the camera configuration because the NVR will do that for you. Check in the technical data table at the bottom of this page the top-notch performance of RK NVRs in live view, recording and playback.

NVR 4K 25 f/s

DSE is an ONVIF member



You can buy our NVR for IP cameras with confidence. DSE is among the very few companies in Italy to be a member of the international ONVIF association that brings together the leading manufacturers in the field and set the communication standard between IP security equipment. Our NVRs strictly support the updated ONVIF standard, therefore YOU CAN USE THEM WITH ALL COMPATIBLE IP CAMERAS , of any brand.

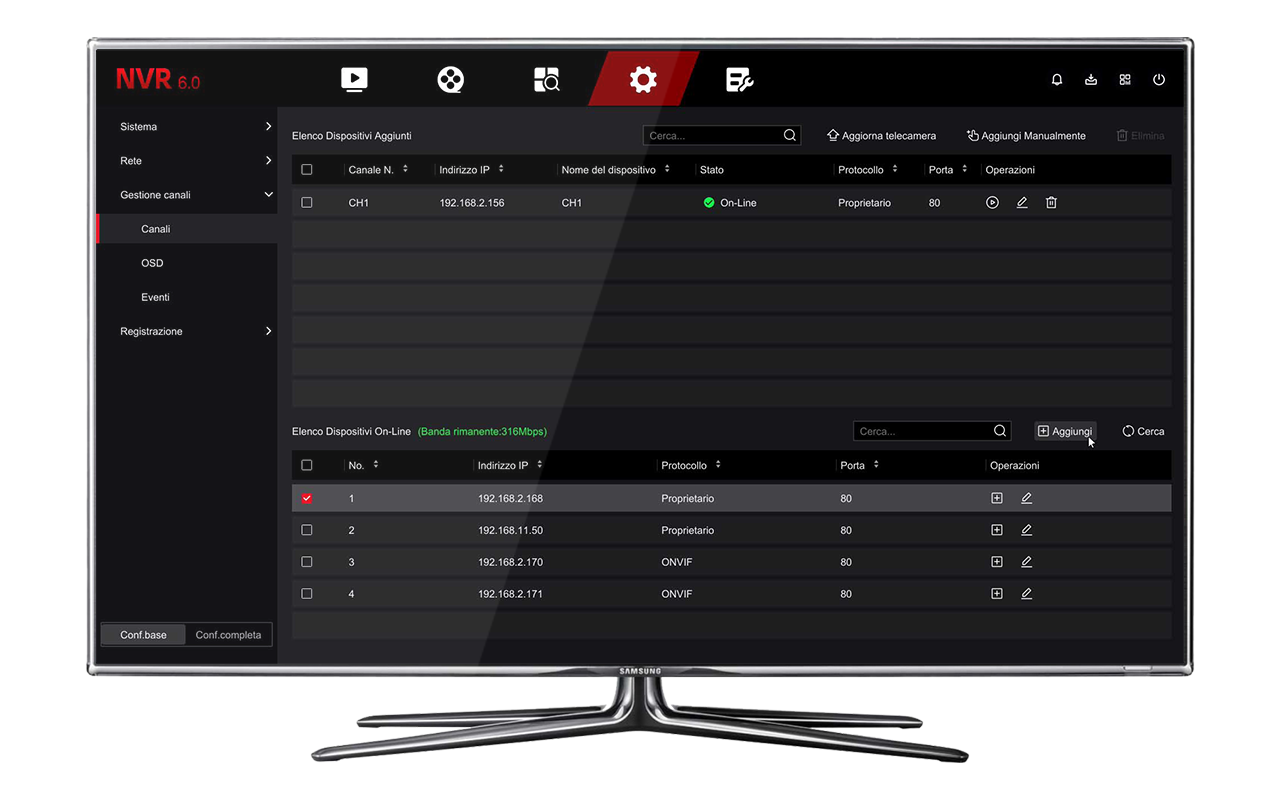

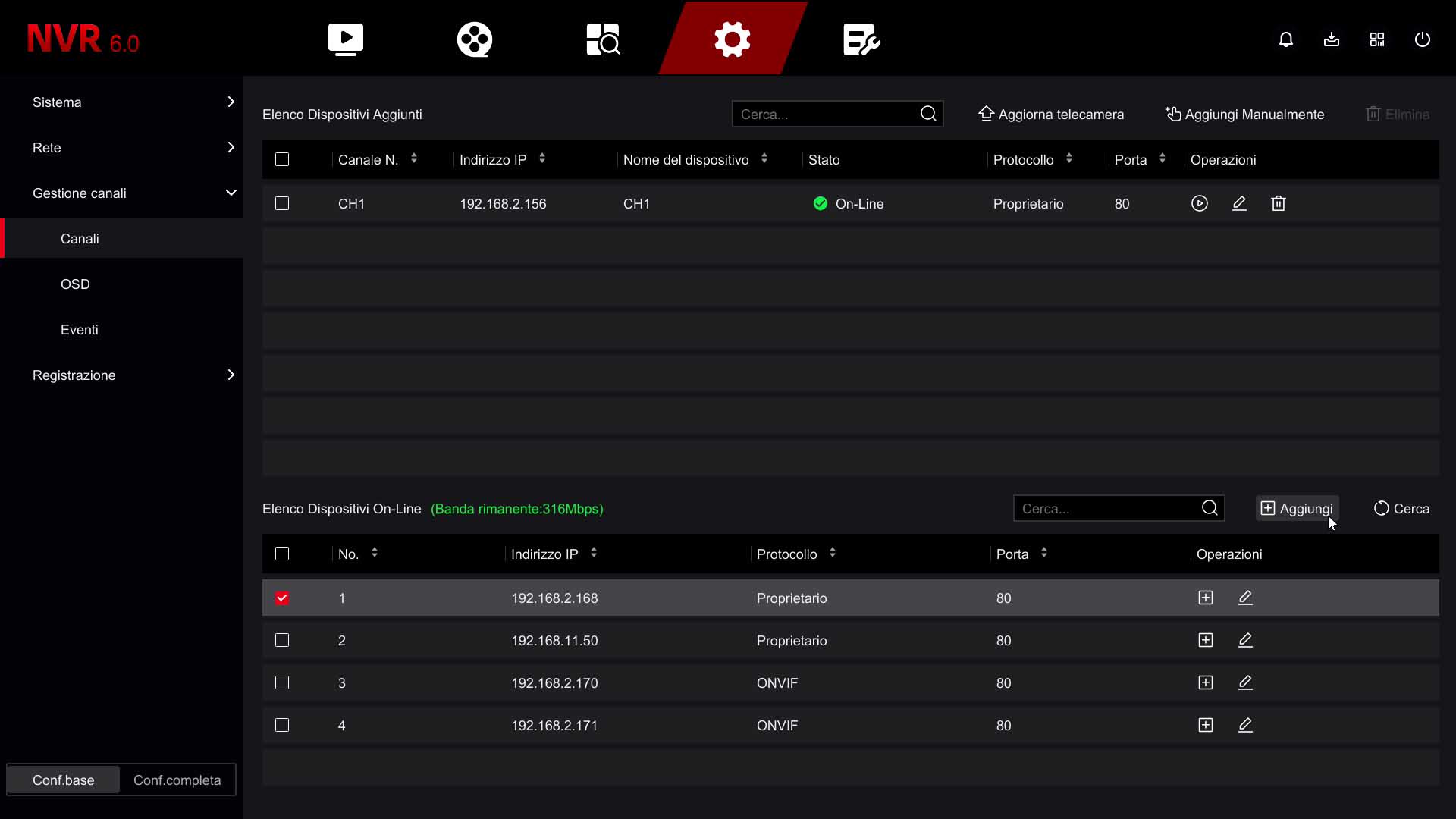

Automatic camera configuration

RK Series NVR are very easy to set up. After configuring all IP cameras, each with its own IP address, you just have to connect the NVR to the network and use the automatic search function. The NVR scan your LAN network detecting all Onvif IP cameras of any brand. You just have to choose where to place the camera on the screen and press the ADD button. You can then take your time to configure recording policy, alarms and all other features of the NVR to best suit your needs.

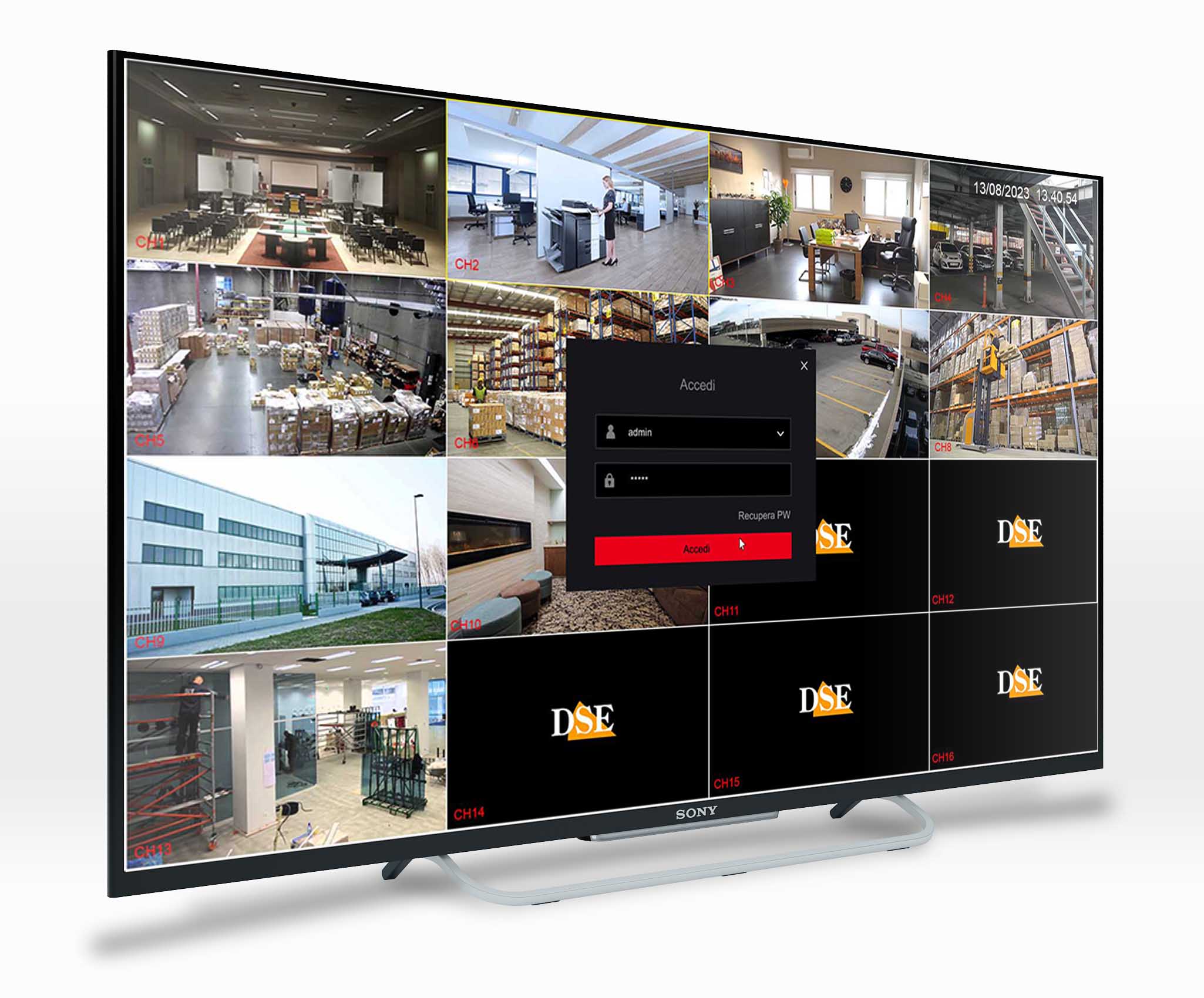

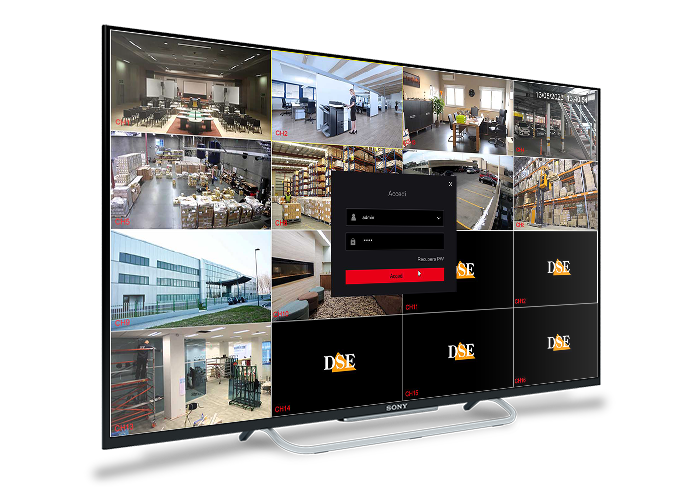

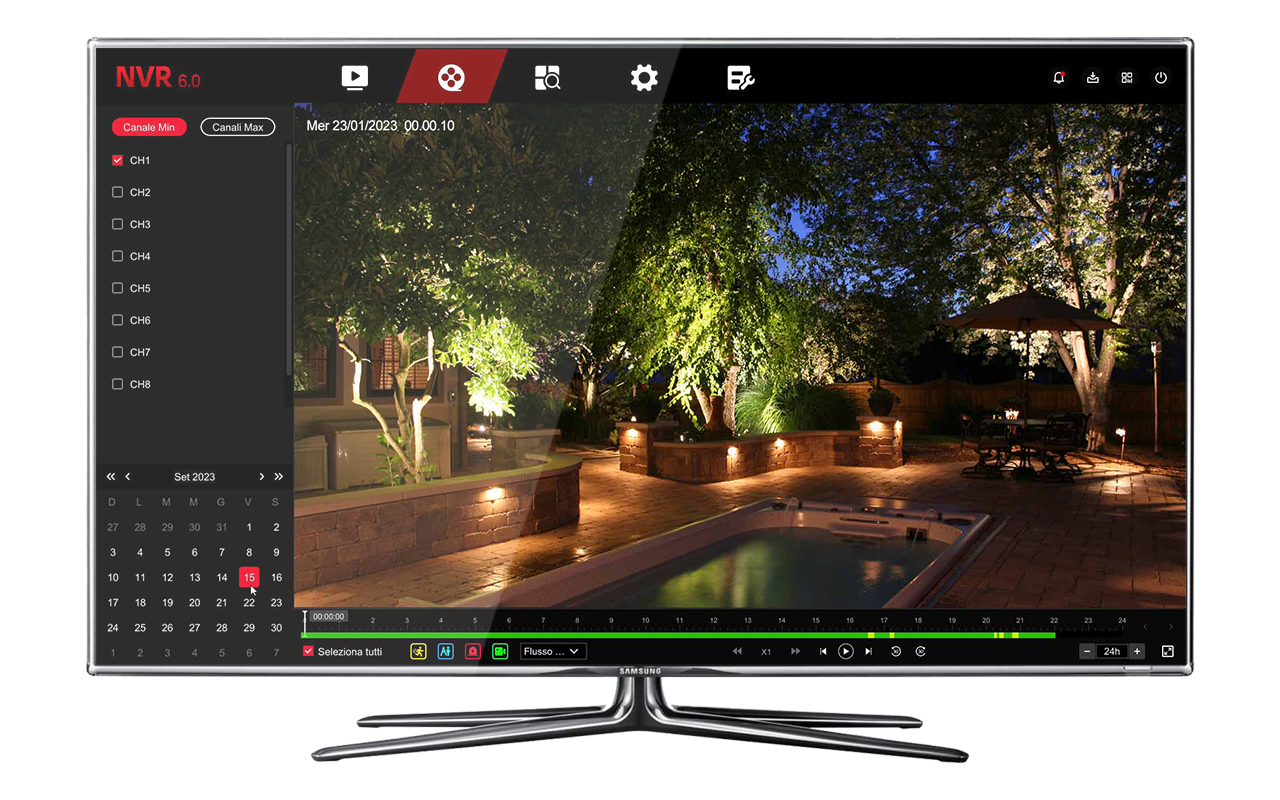

4K HDMI monitor outputs



The NVRs in this range are equipped with 2 monitor outputs: HDMI and VGA.
The HDMI port allows you to connect a TV or computer monitor up to 4K resolution (3840x2160) . If your CCTV system includes over 2MP (1080P) cameras, you will have great advantages in connecting a 4K monitor because it allows you to play back the full resolution of the cameras.
In addition to the HDMI port there is also a VGA port to connect PC monitors up to 2MP 1080P. These NVRs do not support low resolution analogue BNC video output. If you need BNC output you can use a VGA / BNC converter .
Please note that the HDMI video signal is not very strong. If you need to split it or transport it faraway, please use HDMI splitters and transmitters.


Recording on Hard Disk up to 8TB



These network video recorders store video files on one or more internal hard disks. They can record continuously or only in case of intrusion. The NVRs come without any Hard Disk to let you choose the best disk size according to the required storage capacity. You can use any brand of SATA hard disk up to 8TB or 6TB capacity, depending on the model. Even ordinary computer hard disks work well, but for long durability special Hard Disks for video surveillance, such as those in our catalog, are recommended. Please check the datasheets at the bottom of this page to know the HDD capacity of these NVRs.

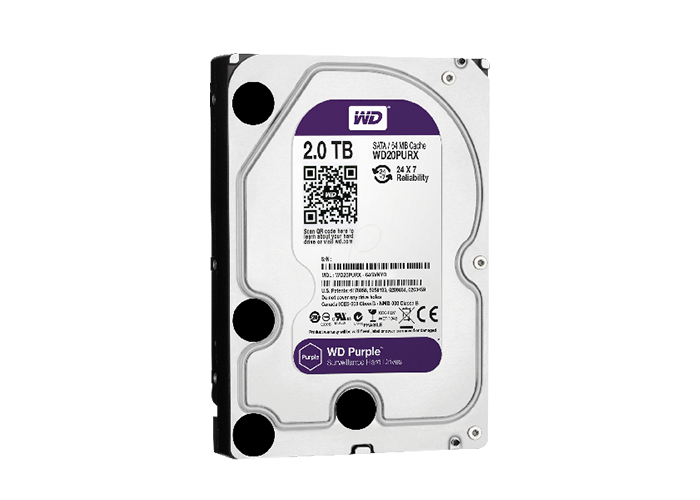

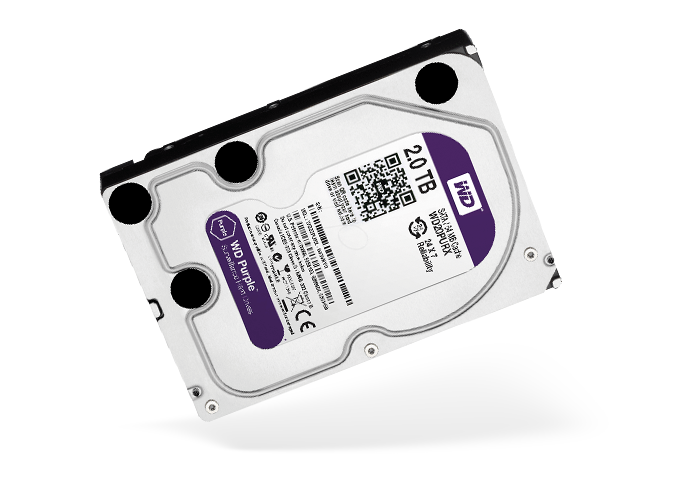

Hard Disk WD Purple for NVR DVR

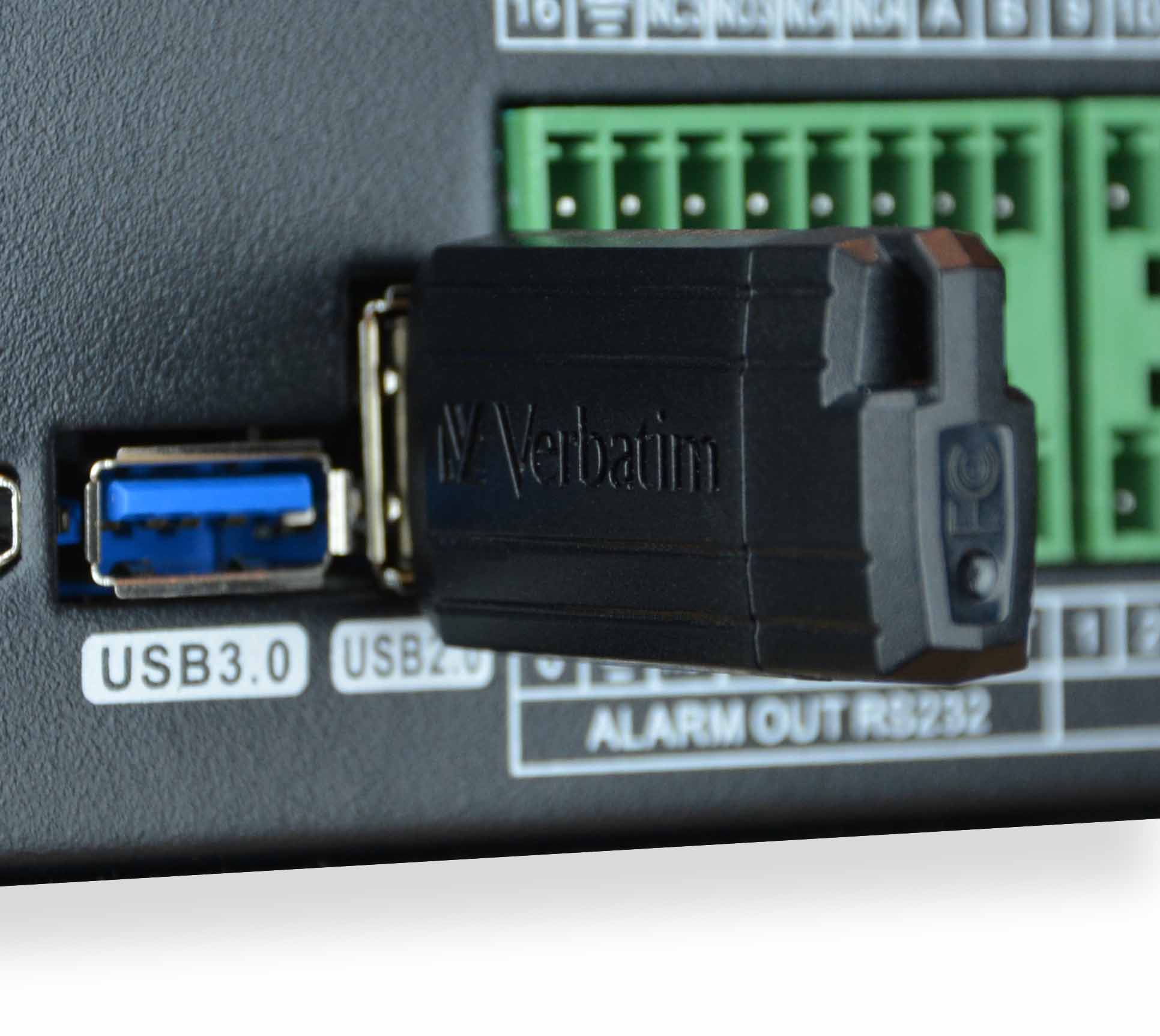

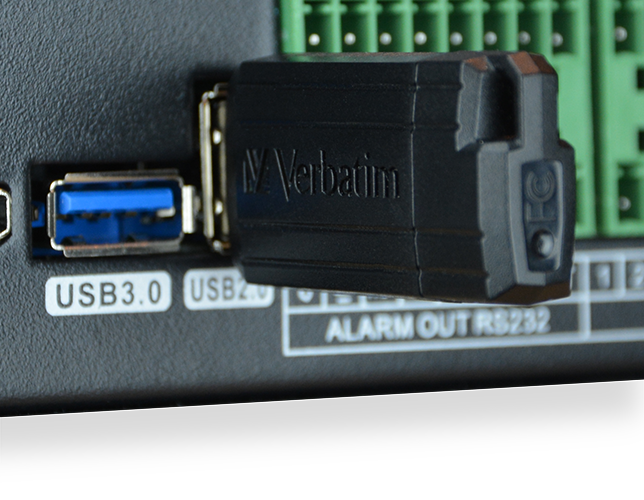

Video backup with USB

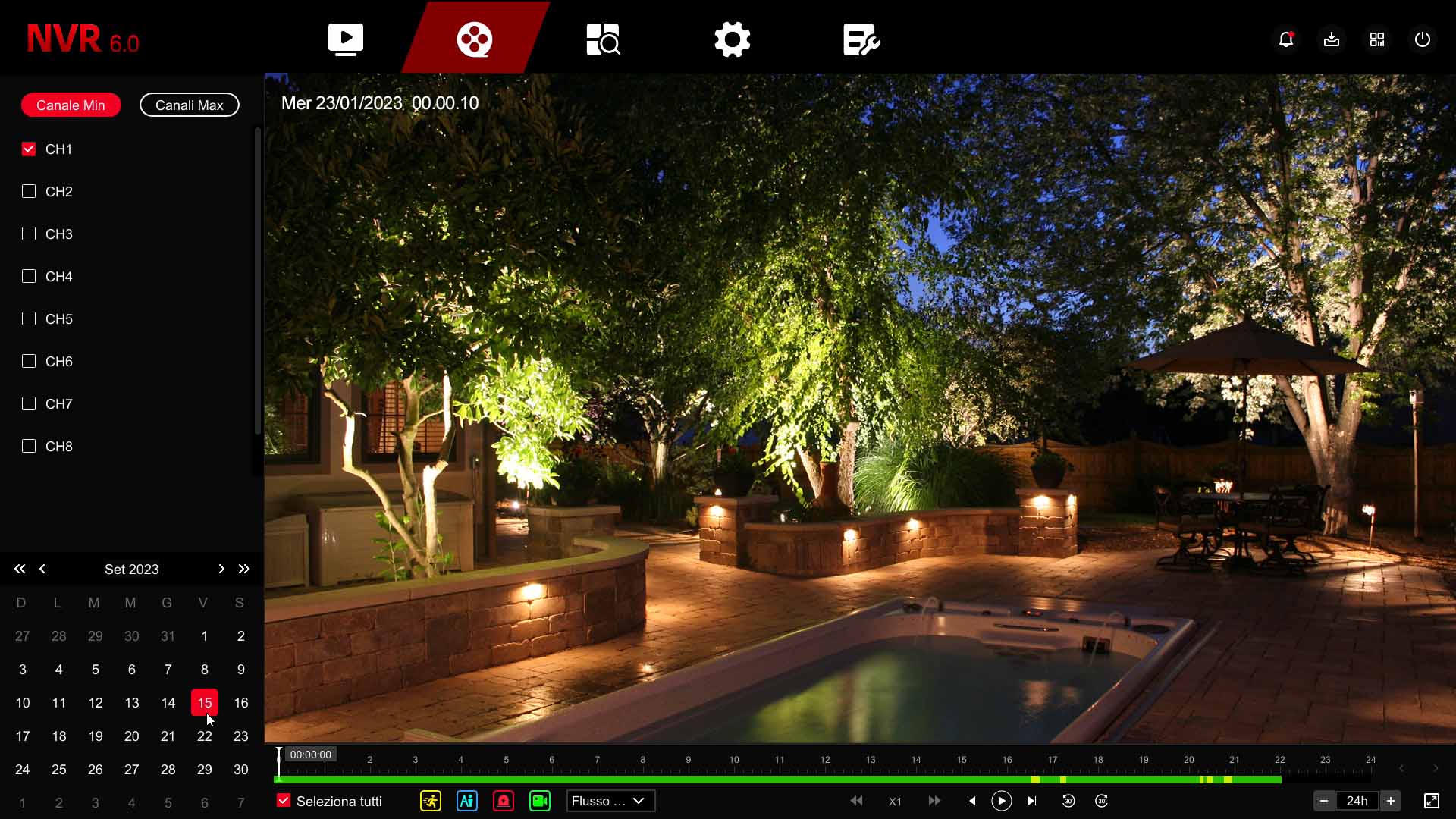

Thanks to the search functions, it is easy to find the important events in the video archive, scrolling the timeline. You can easily export video footages to be delivered to law enforcement. This backup operation can be done online with a computer, or by plugging-in a USB pendrive into the USB port of the NVR. Video files are exported in a standard AVI format and can be played with common video players such as VLC.

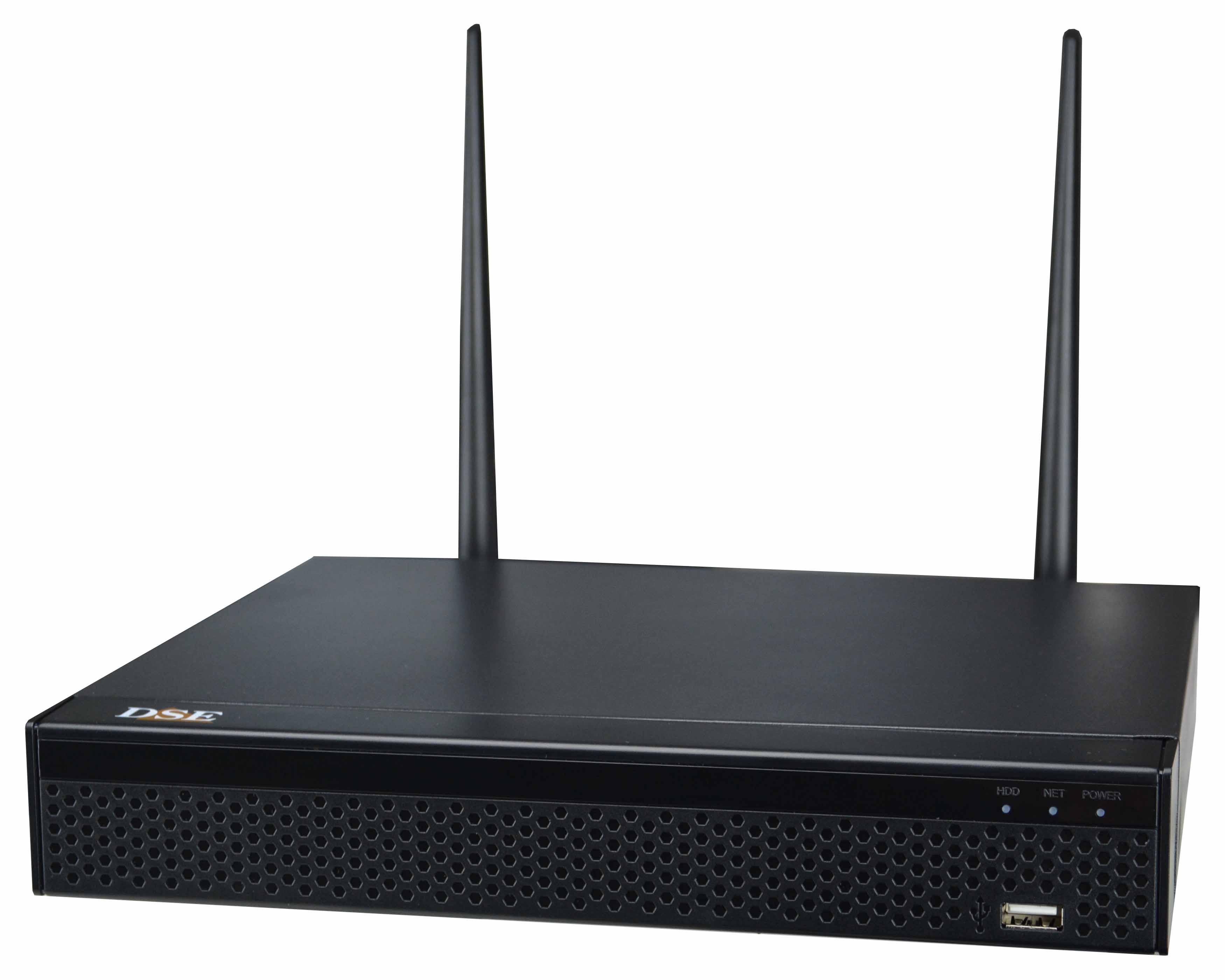

Built-in WiFi

A few models in this range have a built-in WiFi access point for the connection of wireless IP cameras. If you have WiFi cameras in your system, you can connect them directly to the WiFi hotspot of the video recorder, without consuming resources of your external WiFi network. Our WiFi RK series cameras connect automatically thanks to a convenient Plug & Play function. However, in just a few steps, you can connect any Onvif WiFi camera to your NVR. In addition to the wifi cameras, these devices can also manage any IP camera connected to the external network, just like the other models without wifi. To see how to connect cameras to these WiFi NVRs, watch our VIDEO TUTORIAL . Remember that if you are looking for a fully wireless system, you can also consider our Plug & Play WiFi Kit which are based on these NVRs.

NOTE: The WiFi of these video recorders is used to connect wireless cameras, not to connect the NVR to your external WiFi network.


Plug & Play POE ports

In this product range you will find a few NVRs with built-in POE ports for the cameras. They are very convenient for small IP CCTV systems where all camera cables come to the NVR. If you buy our IP cameras you do not have to set anything, because the work plug&play . In such a way you can install a purely digital video surveillance system without having to deal with computers or IP addresses. With our POE NVRs, all you have to do is connecting the products together, as shown in this figure. To connect the cameras to the NVR, use our patch cords or our cable coils.

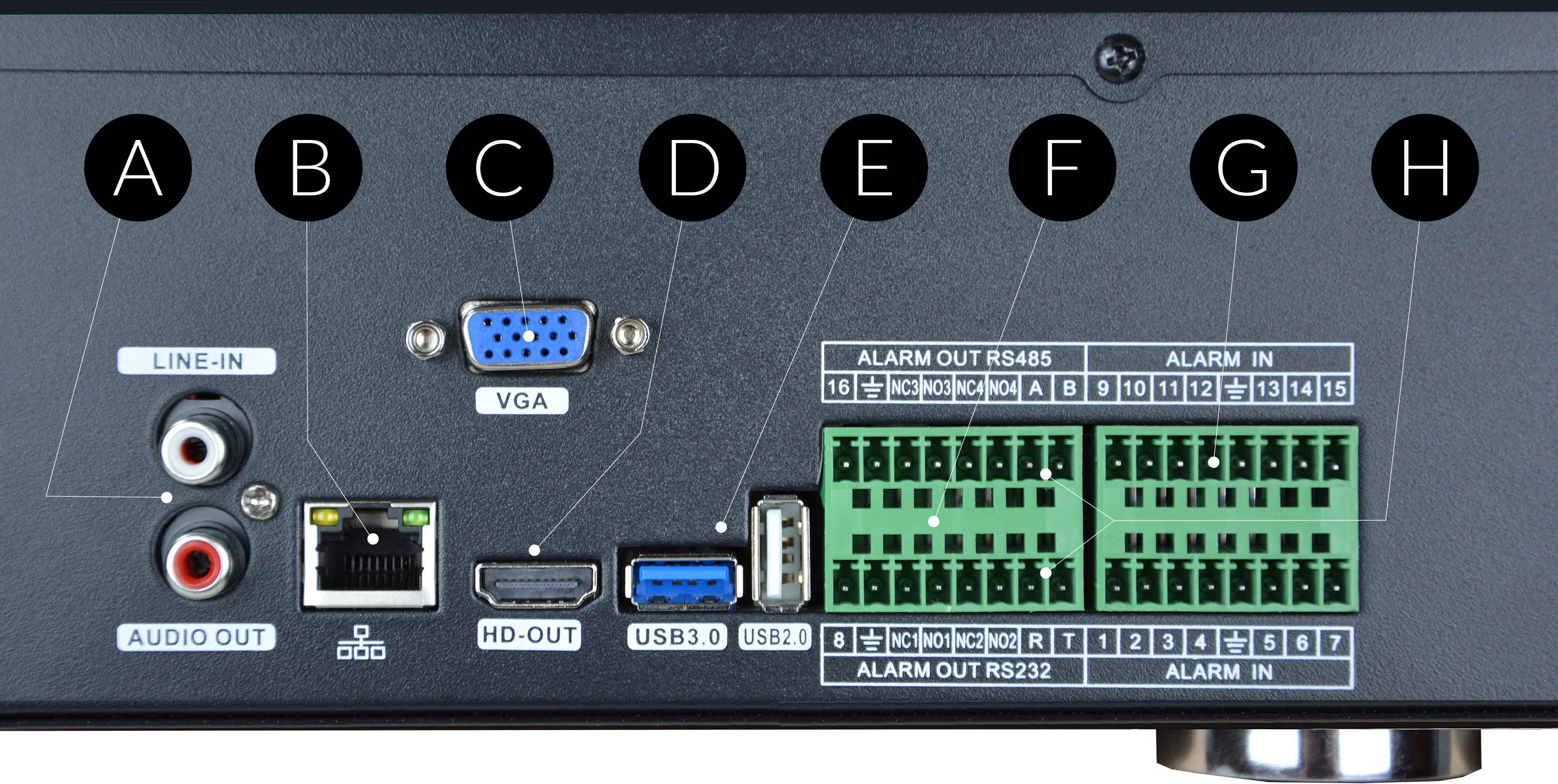

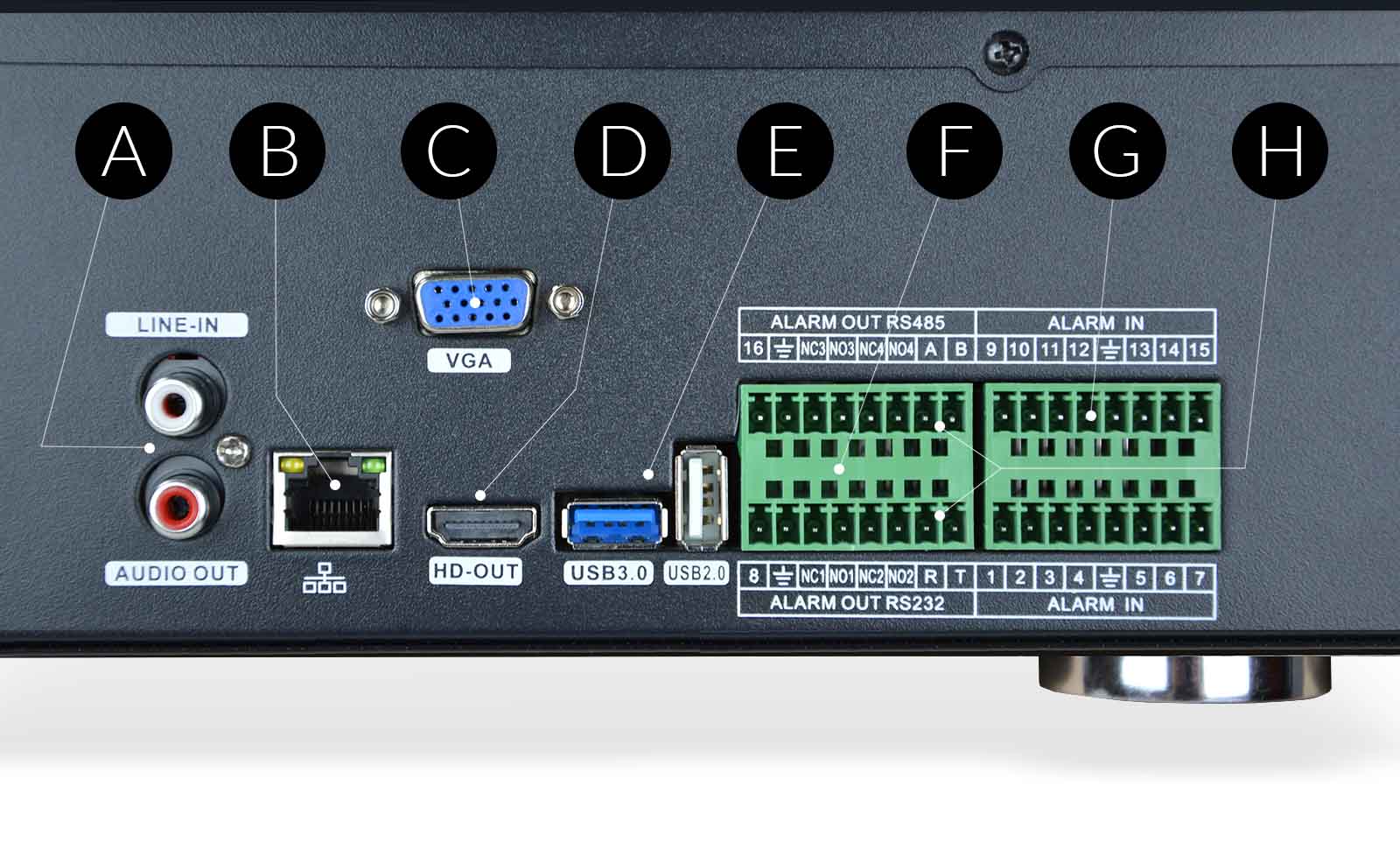

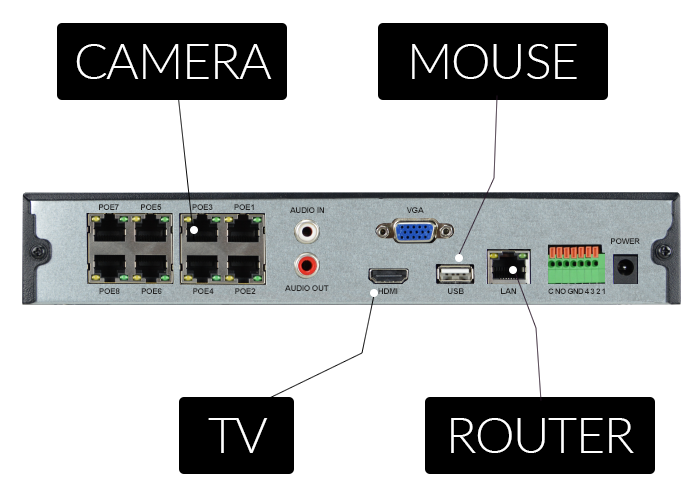

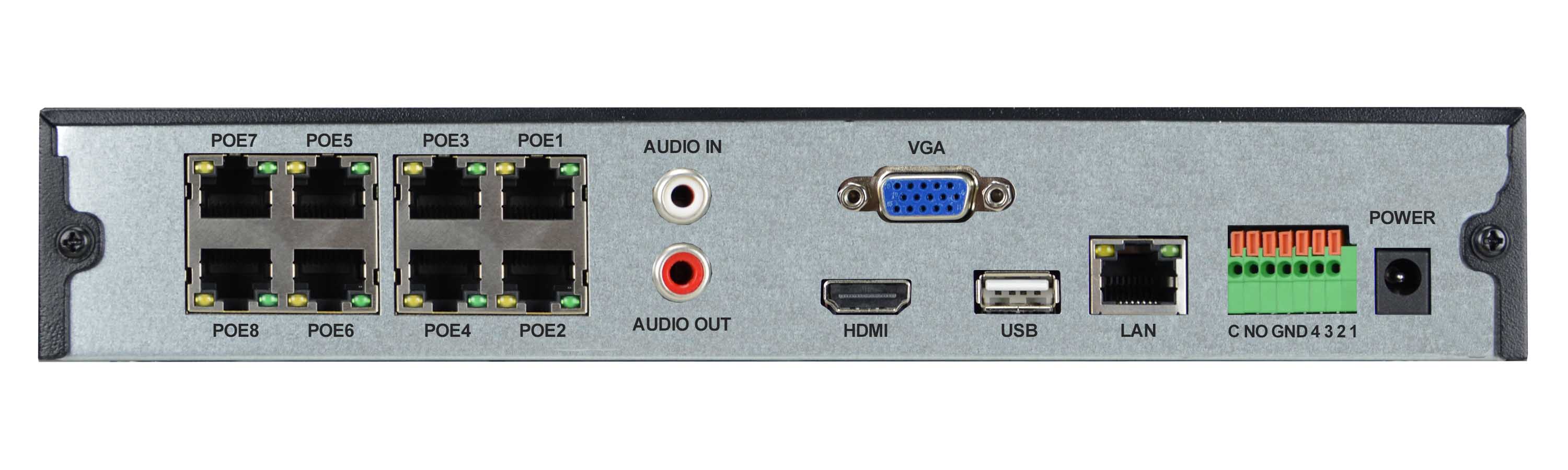

NVR CONNECTIONS


A AUDIO In IP systems the microphone connects to the camera and not to the video recorder, like in analog systems. However, many of these NVRs have an RCA audio input and output to connect a microphone and a speaker. They can be used to communicate bidirectionally with those on site, through APP or PC
B NETWORK POE NVR come with POE ports for the cameras. Other NVRs come with a single RJ45 port to connect to the network. In this case an external POE switch is required for the cameras.
C VGA Here you can connect a computer monitor. This port supports 1080P Full HD maximum resolution
D HDMI Here you can connect a TV or a computer monitor. This port supports 4K maximum resolution
E USB 2.0/3.0 The USB ports can be used to connect the mouse (included) or a USP pendrive for video backup
F INPUTS You can connect here contacts or detectors to generate alarms
G OUTPUT You can connect here sounders, lighting or automations to be activated in the event of alarm
H RS485 Serial port to control electromechanical pan tilt units

NOTE) Check the connections of all models in the technical data table at the bottom of the page


NVR FUNCTIONS

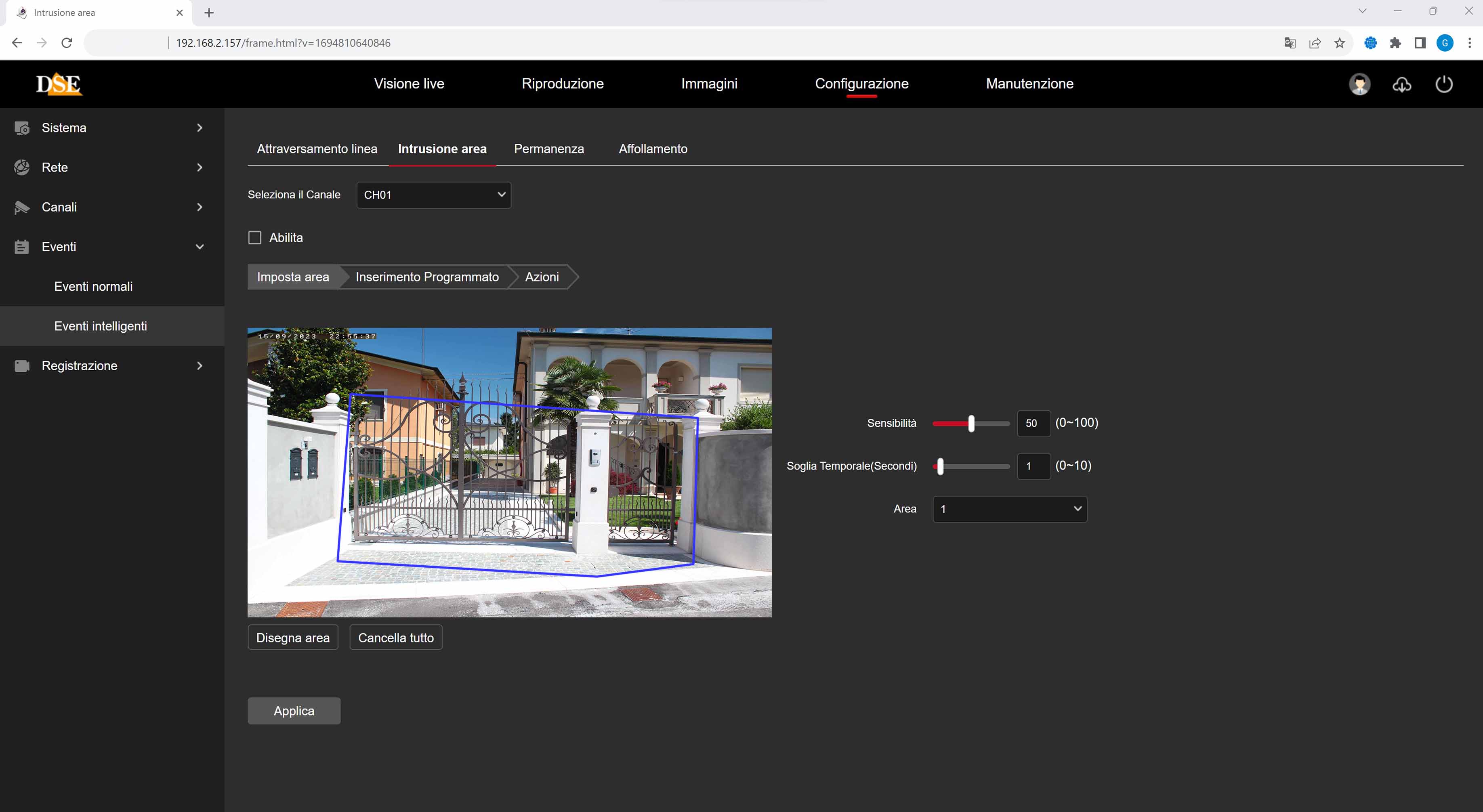

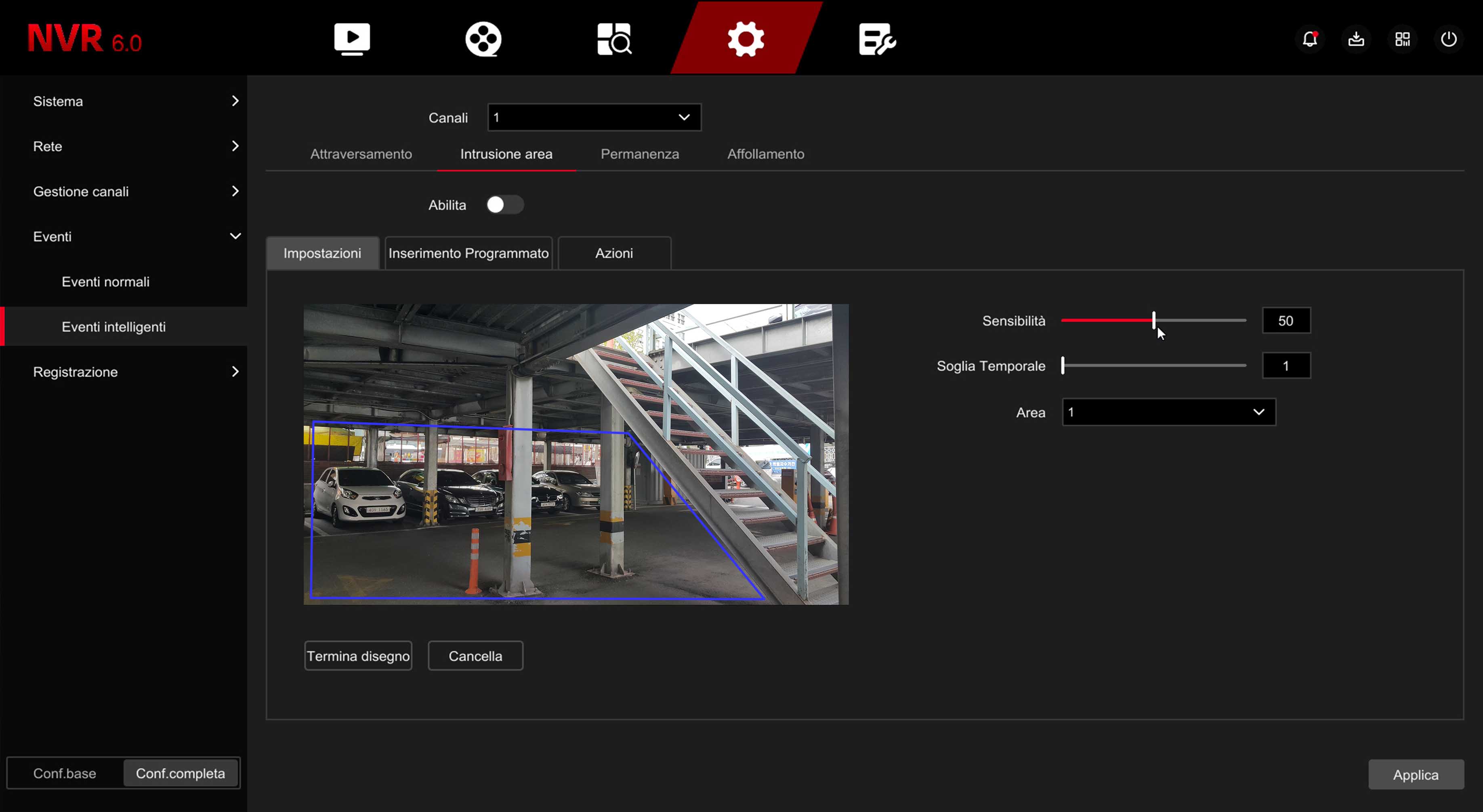

Motion Detection

These NVRs can analyze the video captured by the cameras and generate alarm actions if an intrusion occurs. This function is commonly called MOTION DETECTION and is useful to save disk space by recording only when needed. You can adjust detection area and sensitivity for each channel. You can even set motion arming/disarming periods with a weekly scheduler. In case of an intrusion you can start recording and receive emails and notifications on your mobile phone. You can also save videos on web cloud servers to secure the recorded footage.

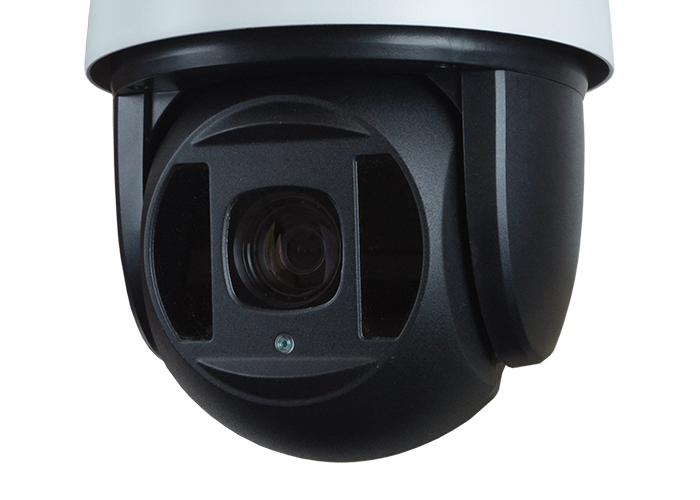

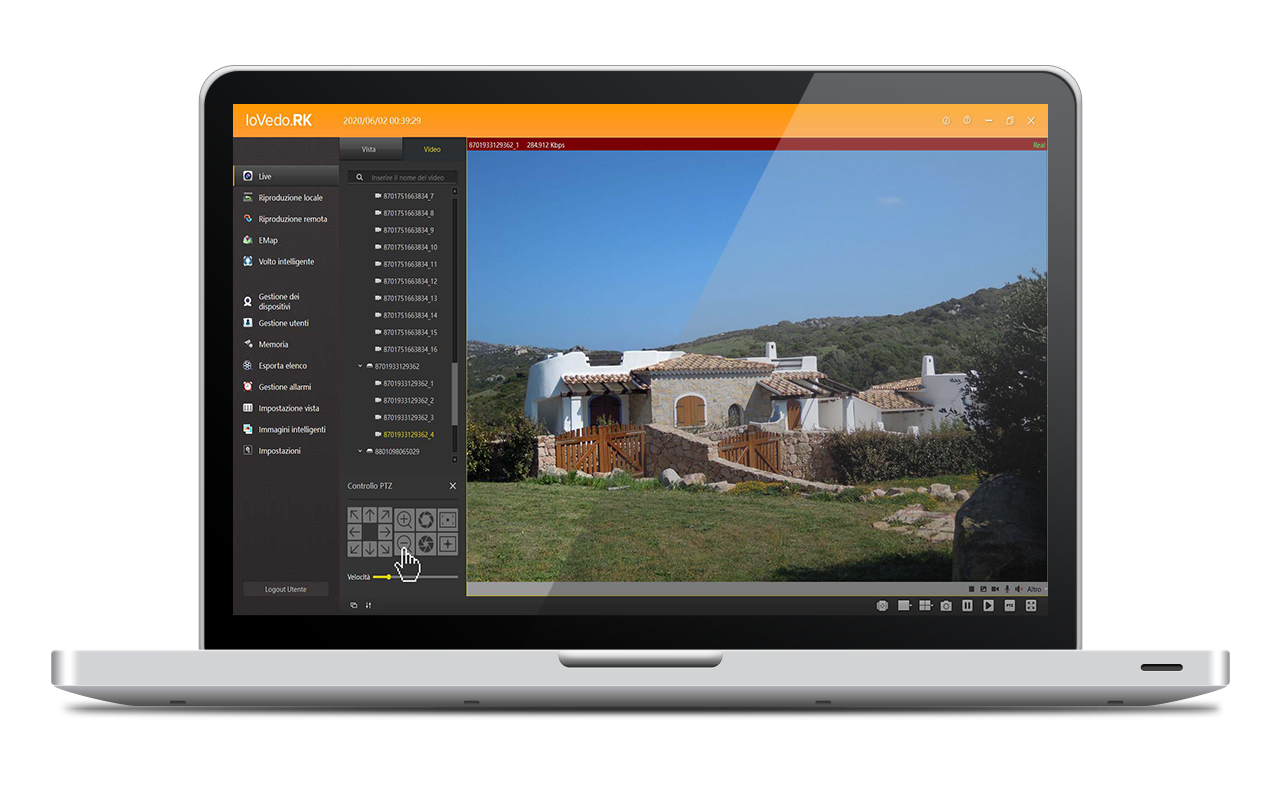

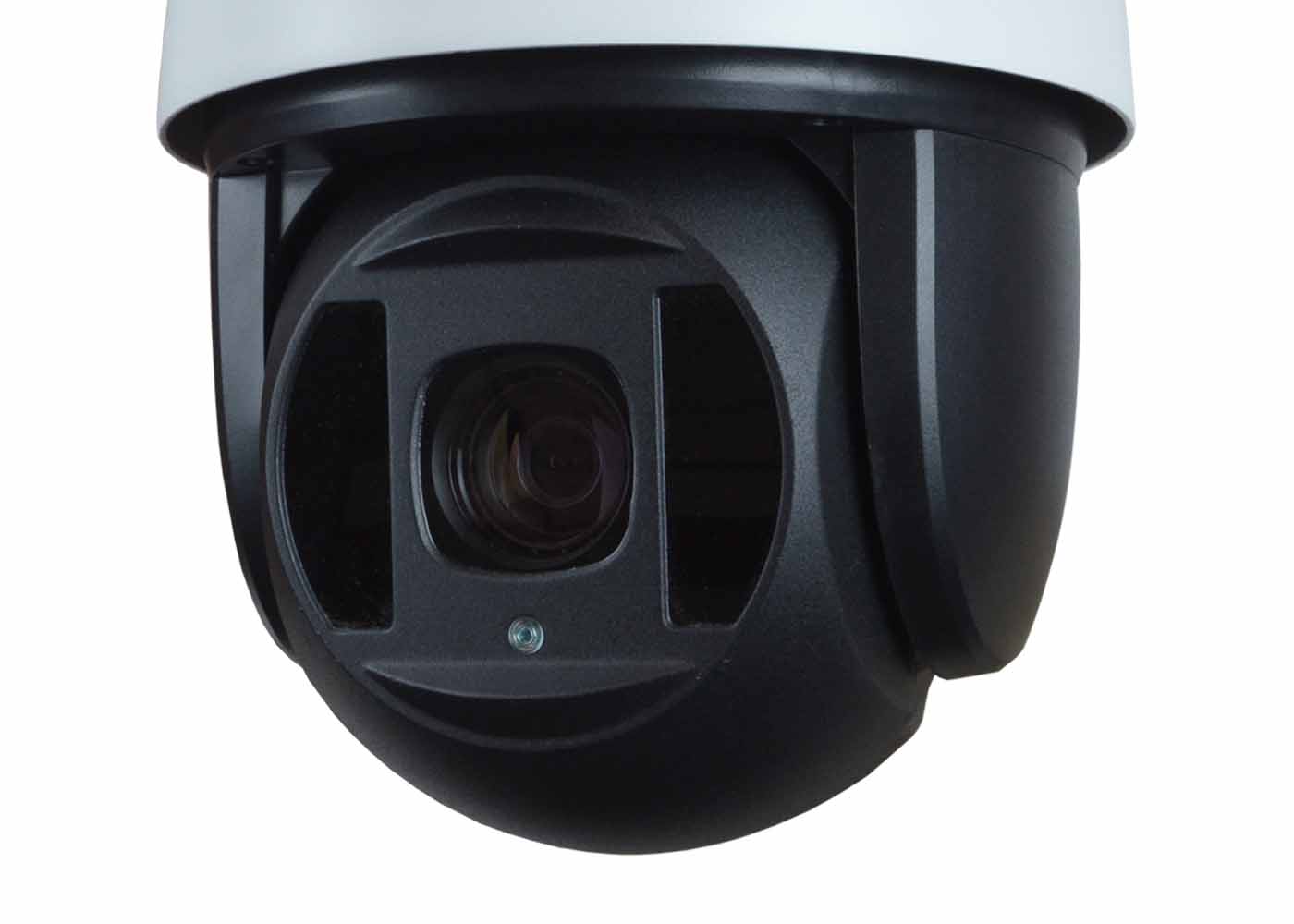

PTZ cameras control



Through the NVR you can control movements, zoom and functions of PTZ motorized IP cameras. You can move the cameras with the mouse of the NVR but also operate via the Internet from a PC or a mobile phones. In IP systems, PTZ cameras does not require additional cables as all controls travel through the network cable, via the Onvif protocol.

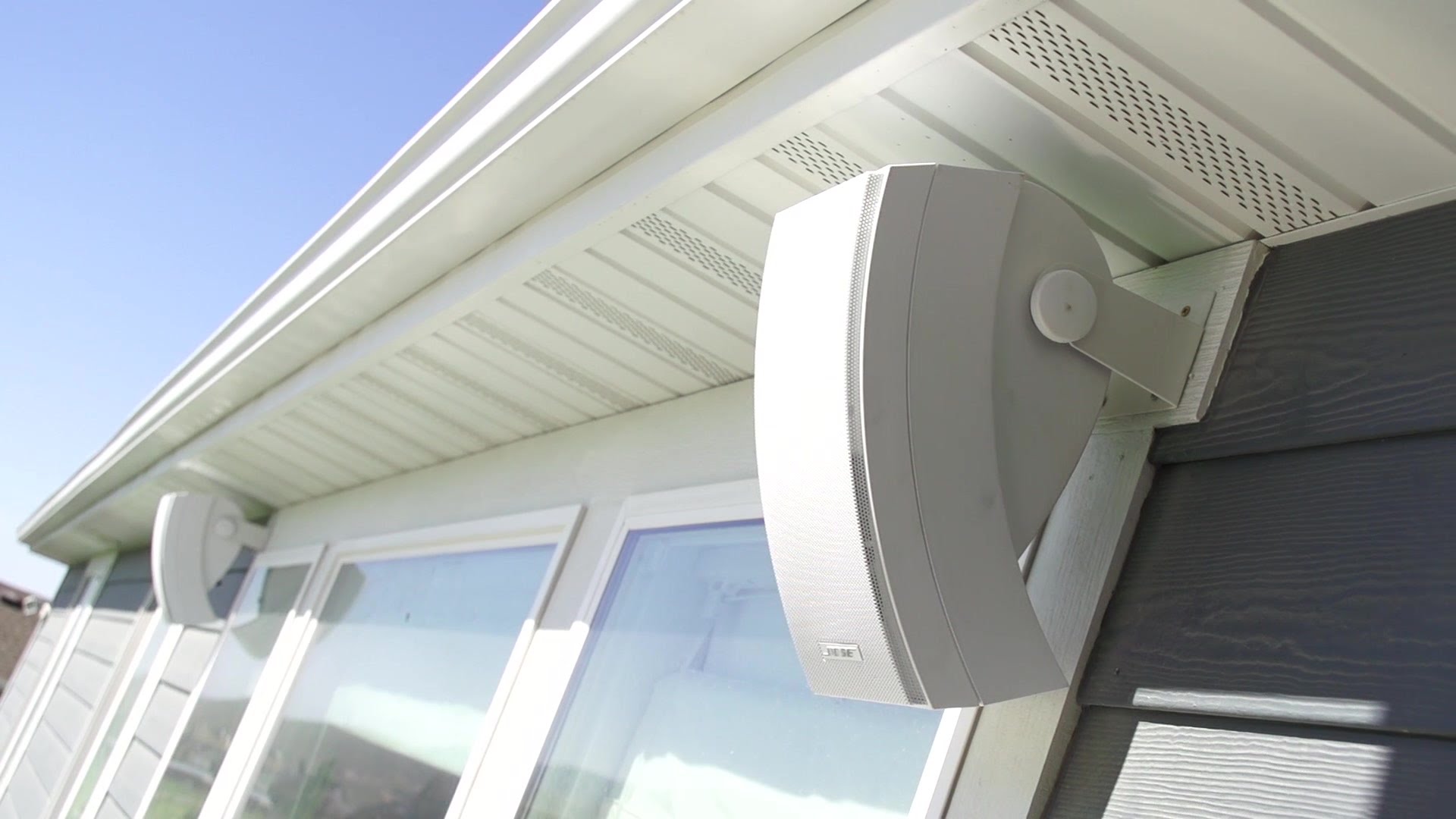

Two-way audio

Some models in this RK range have an audio input and output to which you can connect a microphone and a loudspeaker . When you get connected to the NVR, via computer or mobile phone, you can talk to the people in front of the camera to provide instructions or warnings. It is a convenient function in many industrial applications and also in residential surveillance, to monitor elderly or non self-sufficient people.


Complies with local Privacy regulations



RK Series NVRs record on their internal hard disk until they run out of space. Once the memory is full the NVR automatically overwrites the oldest files. In compliance with privacy regulations it is possible to limit the number of days to be kept in the archive. If you need to set privacy masks, to obscure sensitive areas, remember that in IP systems this should be done in the cameras and not in the NVR.

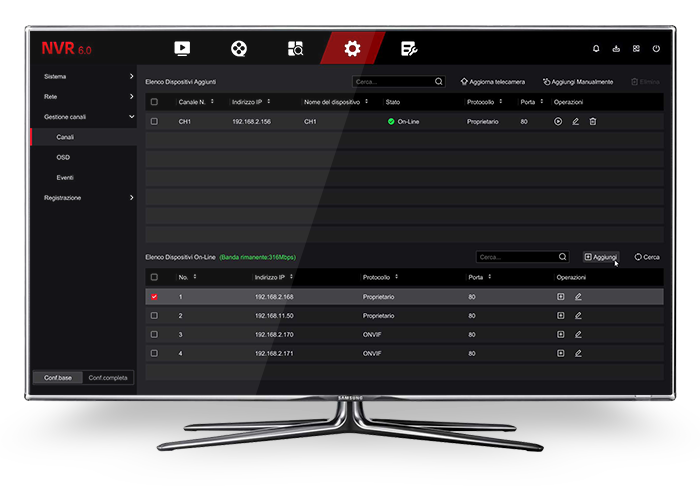

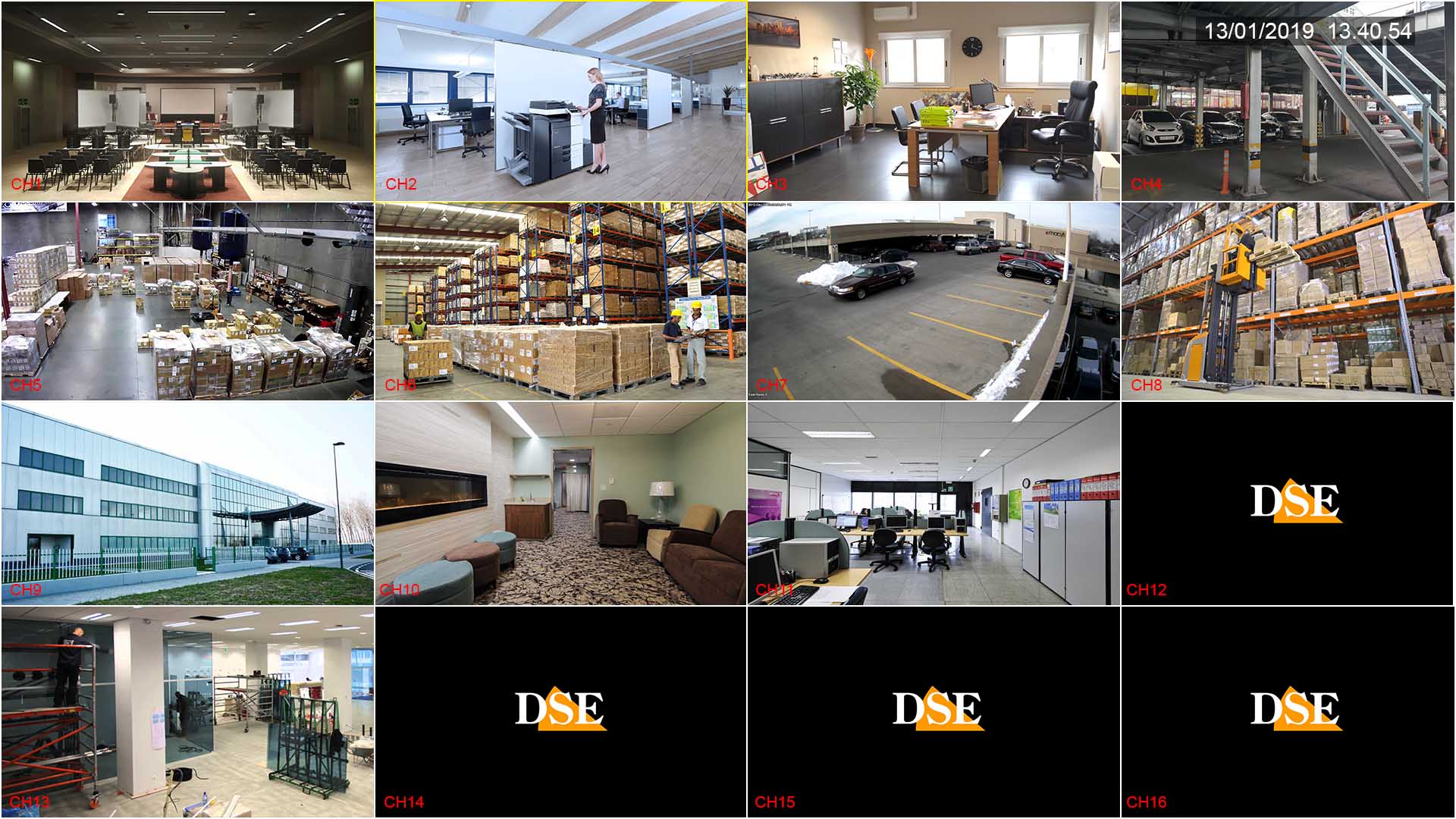

MOUSE CONTROL


All functions one click away

RK series NVRs are packed with features but yet easy to use and configure with the on-screen menu. These NVR do not have buttons on the front panel, because all operations can be done with the supplied mouse. You can WATCH the live video of all the cameras on the screen and CONTROL PTZ cameras. You can CHOOSE among several display modes and ZOOM IN by dragging the mouse. The OSD menu allows you to CONFIGURE all NVR options and PLAY BACK the recorded videos, searching by date and time. You can also EXPORT AND DOWNLOAD video files on USB pendrives in AVI format.

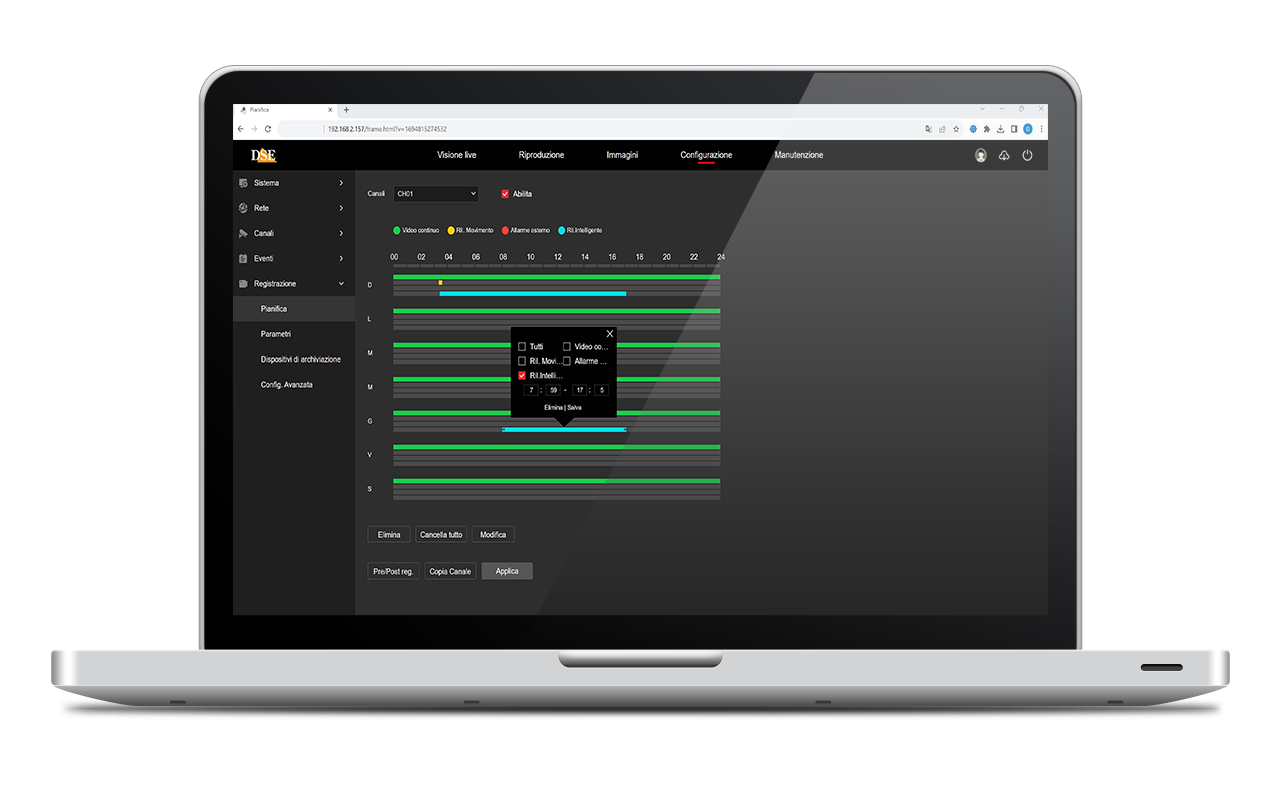

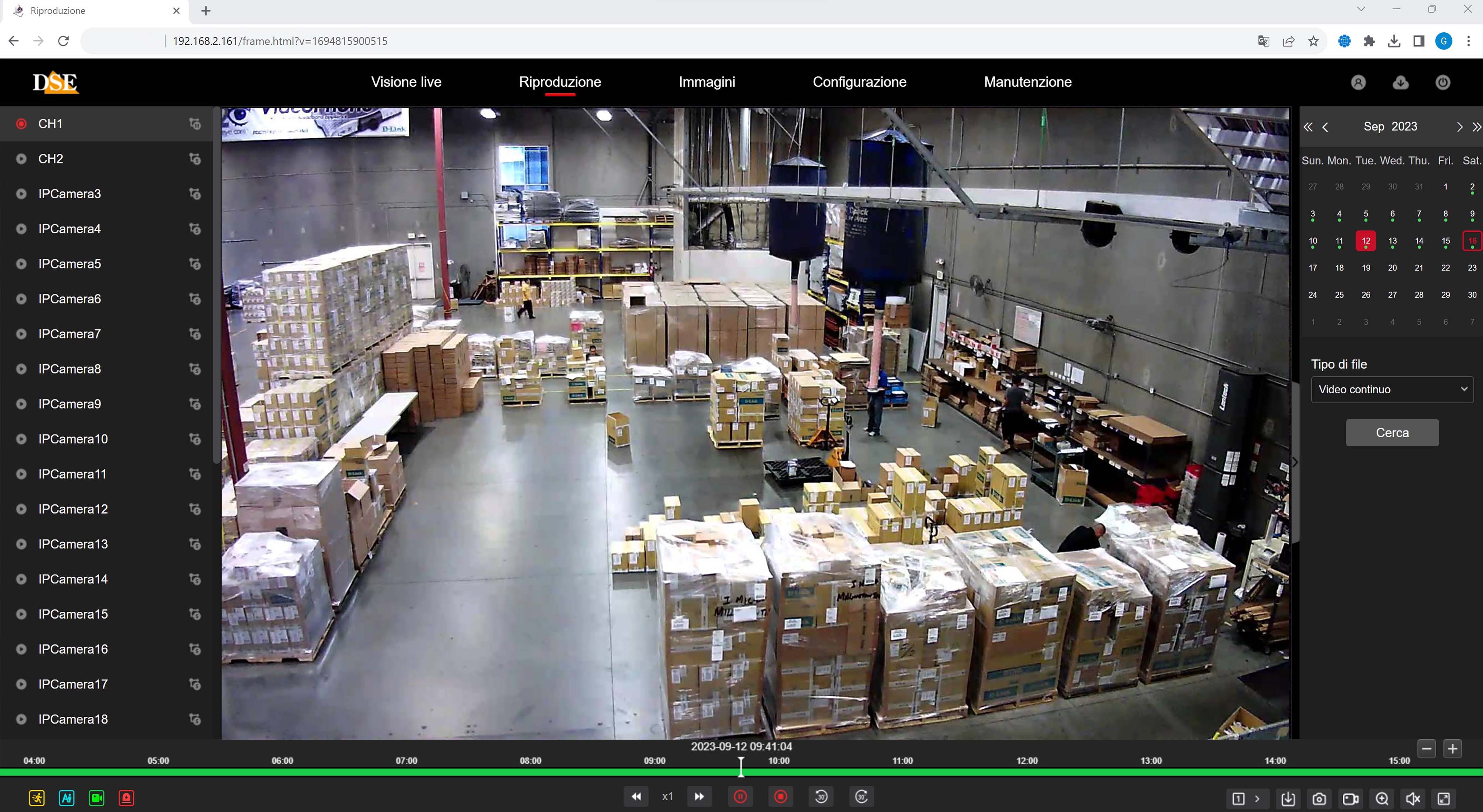

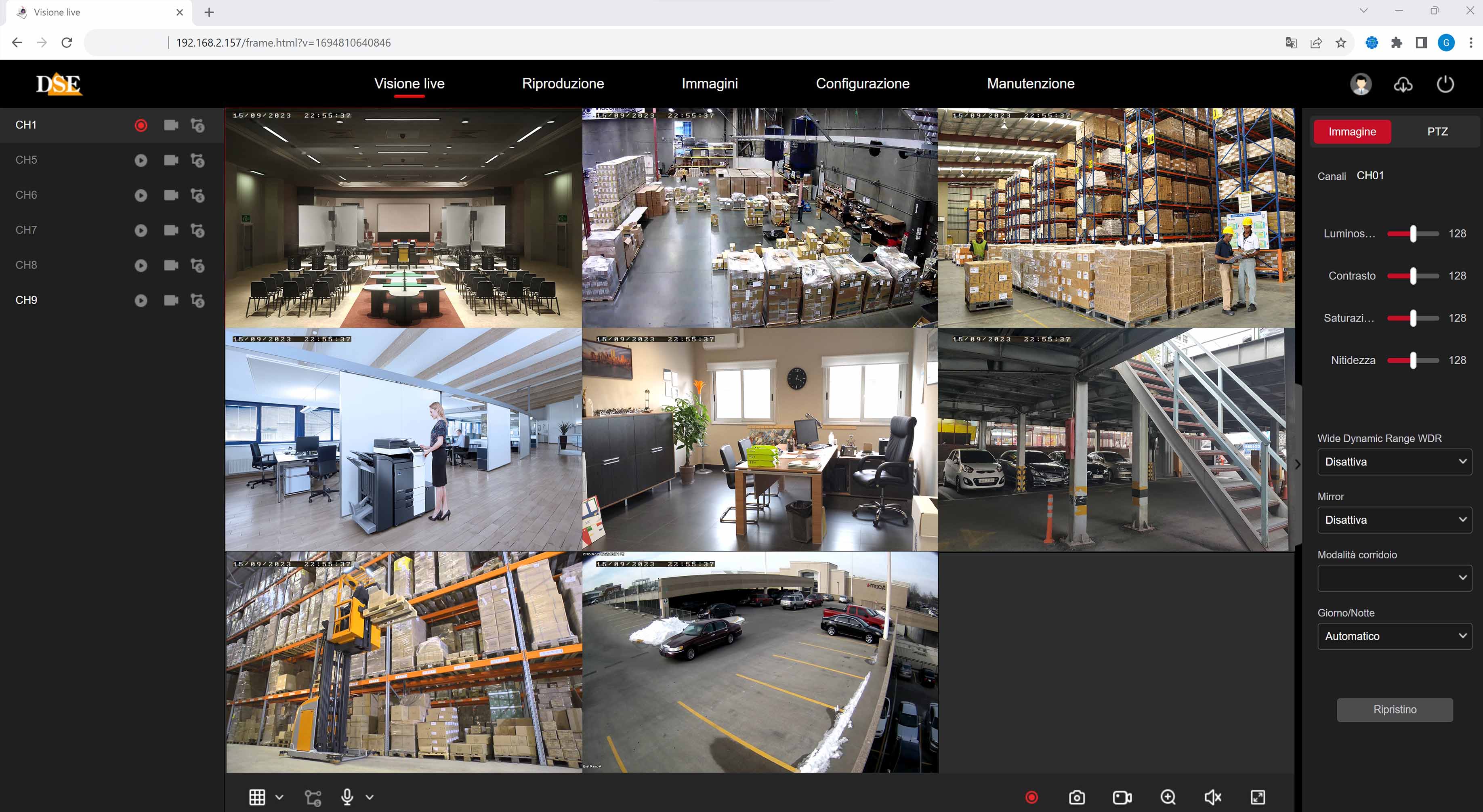

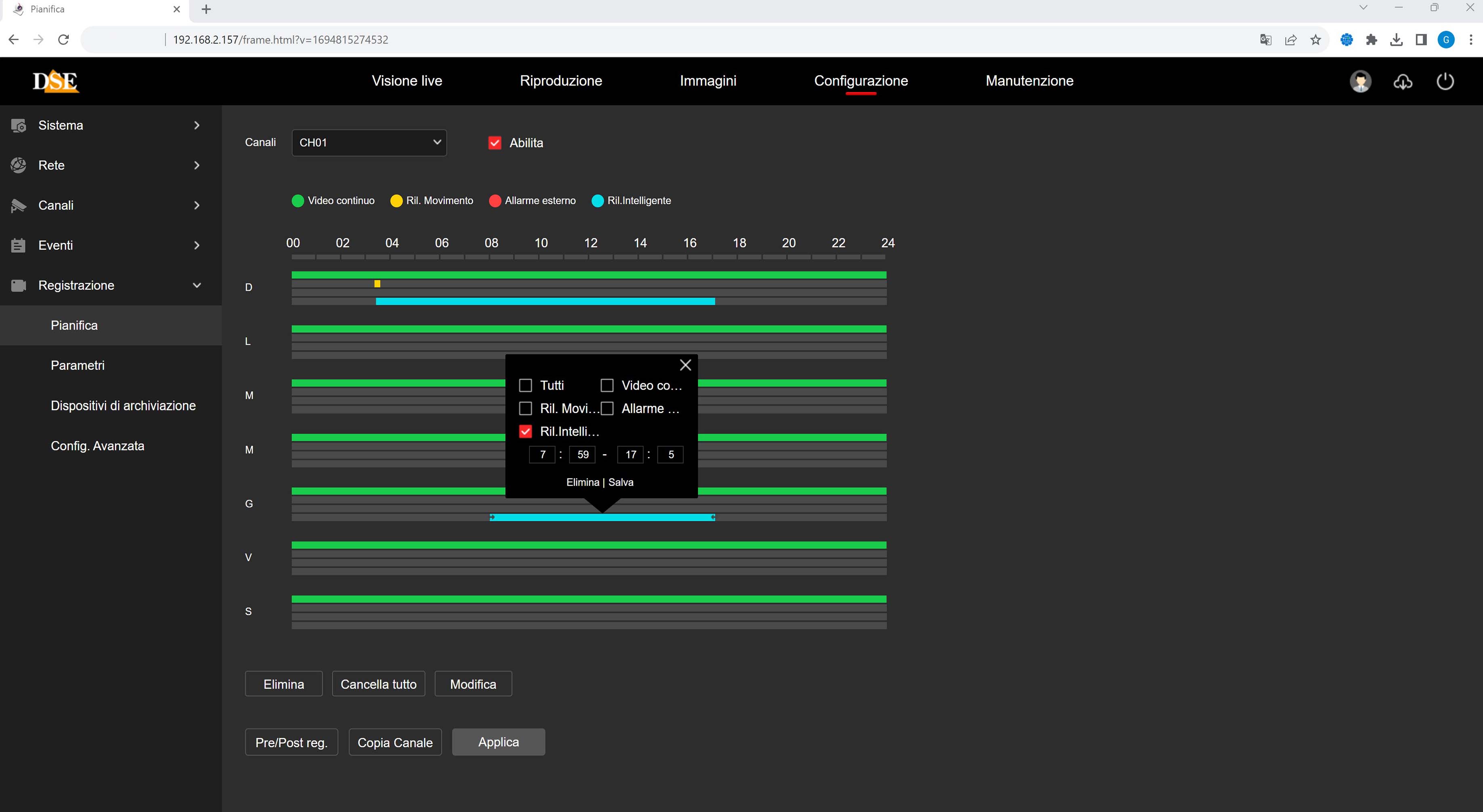

NVR CONTROL VIA PC


Connect with IE browser

Every computer on the network is a perfect monitor for your NVR. No software needs to be installed. Just open the Internet Explorer browser and enter the login password to WATCH the live video of all the cameras on the screen. You can RECORD , take snapshots and ZOOM IN by dragging the mouse. A user-friendly menu allows you to CONFIGURE all the options of the NVR from a computer and PLAY BACK video footage searching by date and time. You can also DOWNLOAD the video files on your computer in AVI format. These devices also support RTSP protocol that allows you to watch live view with ordinary RTSP players, like VLC.

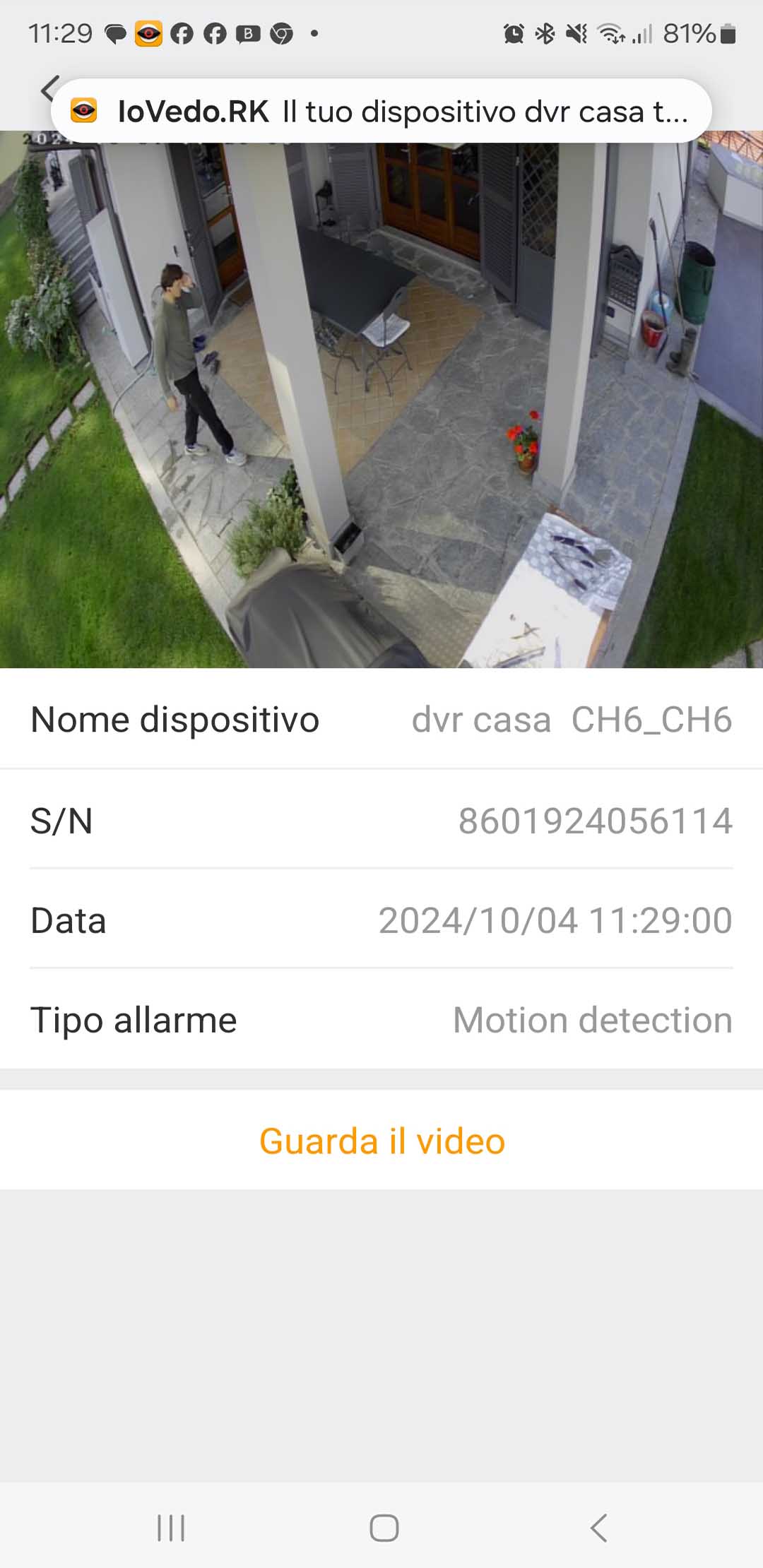

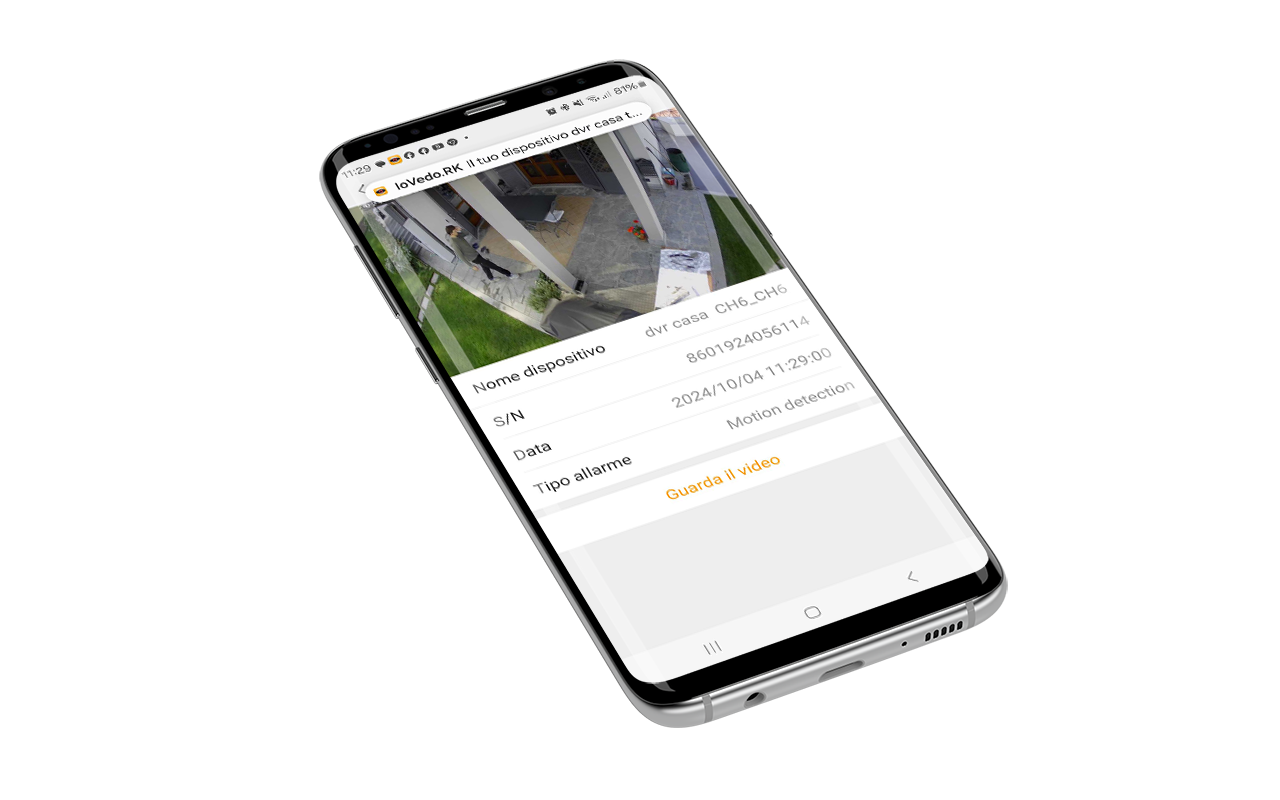

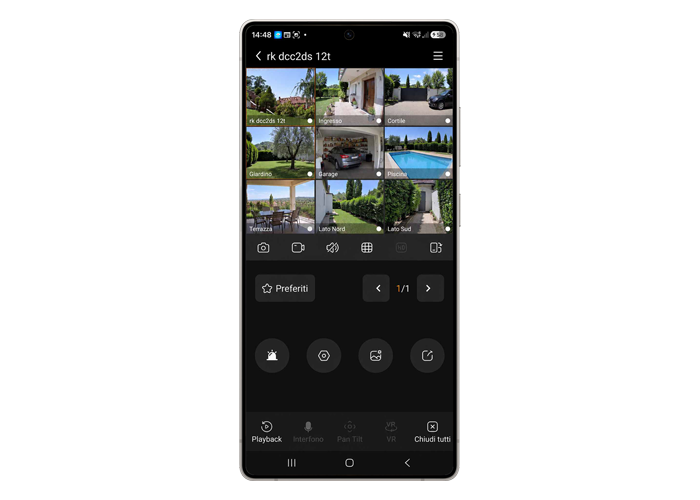

NVR CONTROL VIA APP


Get connected with your smartphone

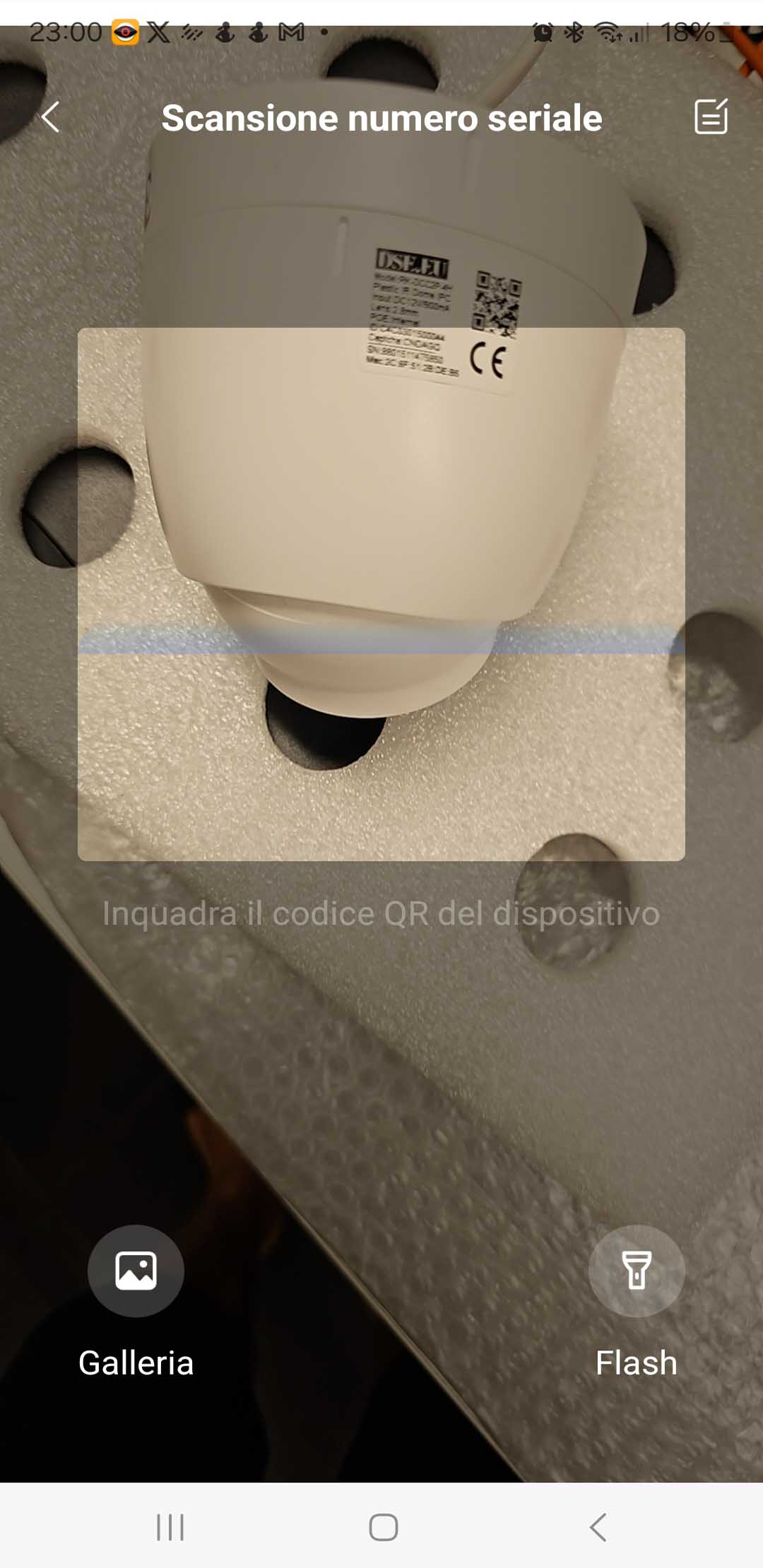

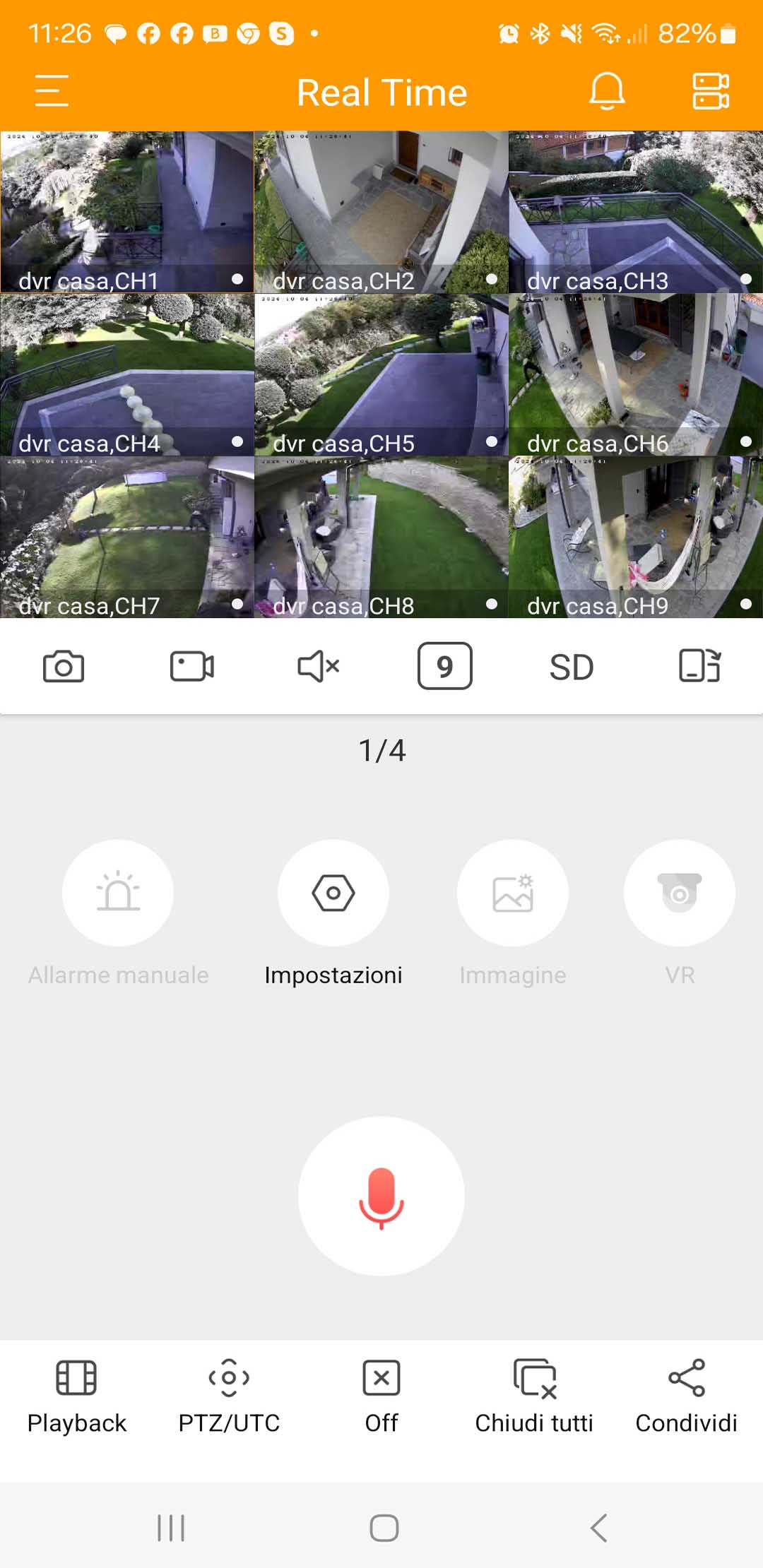

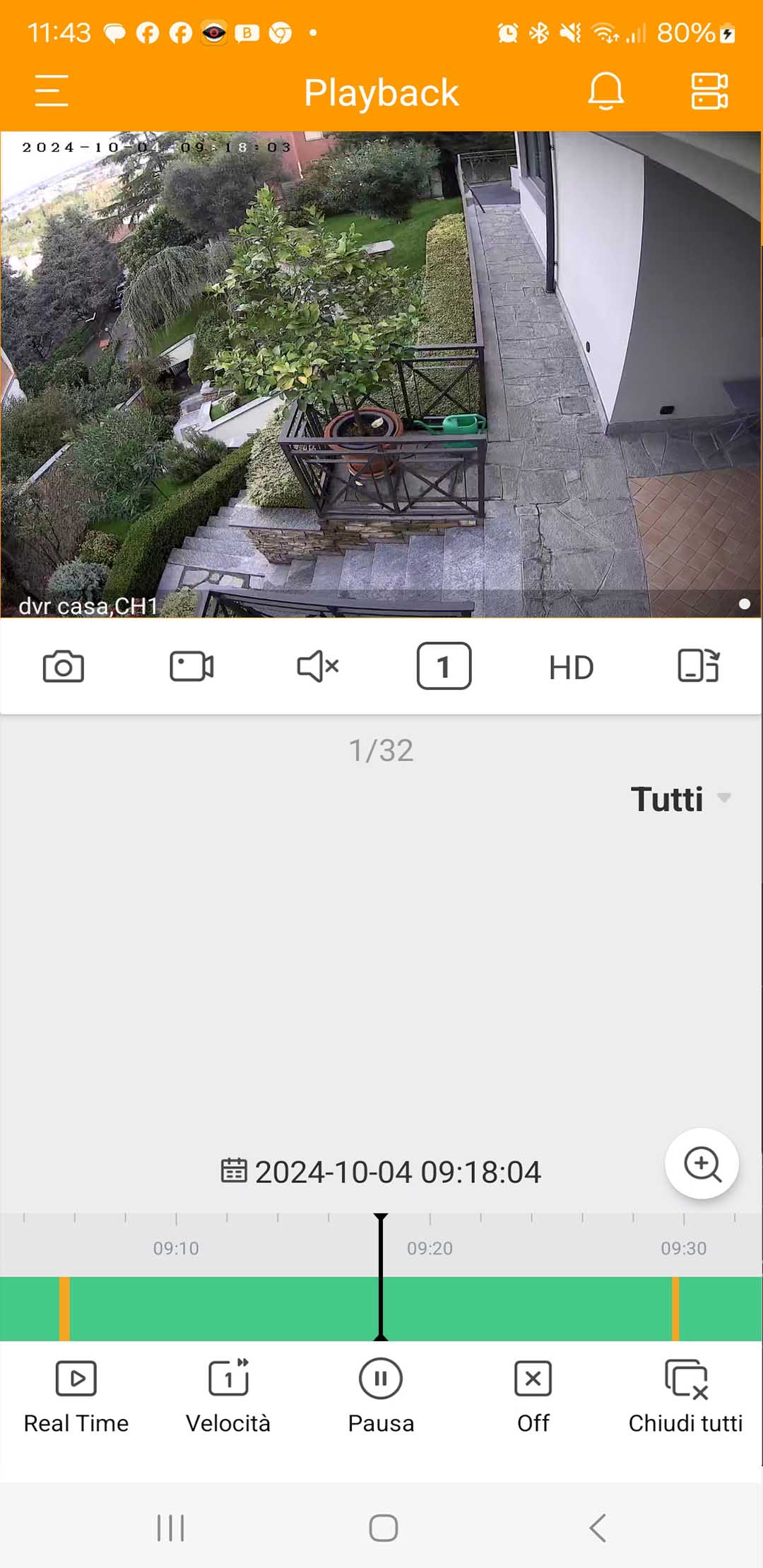

With our free DSE APP for Android and iOS, you can control your cameras with a mobile phone or tablet. You can use the app over your own wifi network, by typing the IP address of the NVR, but also via the Internet, typing in your CLOUD ID. You can WATCH up to 16 cameras live on the screen. You can RECORD , take snapshots and ZOOM INwith the classic two-finger gesture. You can also PLAY BACK online videos recorded on the NVR's memory, searching by date and time. If you enable motion detection, you can RECEIVE push notifications on your mobile phone if an intrusion occurs, with a snapshot of the event.

IoVedo.RK Free App for iOS and Android Live viewing in real time Playback of recordings Audio in Motorized cameras control P2P cloud server for immediate web access Alarm notifications IoVedo.EZ IoVedo.EZ

FREE SERVICES


Free P2P cloud server



You can control your NVR over the Internet in a matter of minutes with our free cloud server. Each NVR has its own ID number and is registered on our P2P cloud server which you can use without any limits. Thanks to the PEER-TO-PEER (P2P) technology, you can connect over the Internet in seconds, even if your Internet connection does not have a static IP and you have no need to modify the router configuration. The P2P cloud server allows you to use these NVRs also with 4G or satellite ISP. Using our cloud server is very easy: just download our APP IoVedo.RK, scan the QR-code on the NVR and you are ready to go.

FREE FOREVER


E-mail, FTP, Push Notifications



These NVRs allow you to send out notifications in case of an alarm. You can send messages via EMAIL with the photo of the event and push NOTIFICATIONS to mobile phones with the IoVedo.RK app. You can also upload video files to FTP web servers. When you receive an alarm notification you should connect right away to your video surveillance system to check what is really happening.


Video archive on WEB Cloud

These NVRs store video files on an internal hard disk. In addition, you can also save motion detection videos, on external cloud servers via the web. These NVRs support Google and Dropbox cloud services. Web cloud saving is useful to keep the videos safe in case the NVR got stolen or damaged. To use cloud storage, you need to buy a cloud folder from one of these providers and then bind your NVR by entering the connection details. Do not confuse cloud storage with our P2P cloud server for easy web operation: they are two different things.

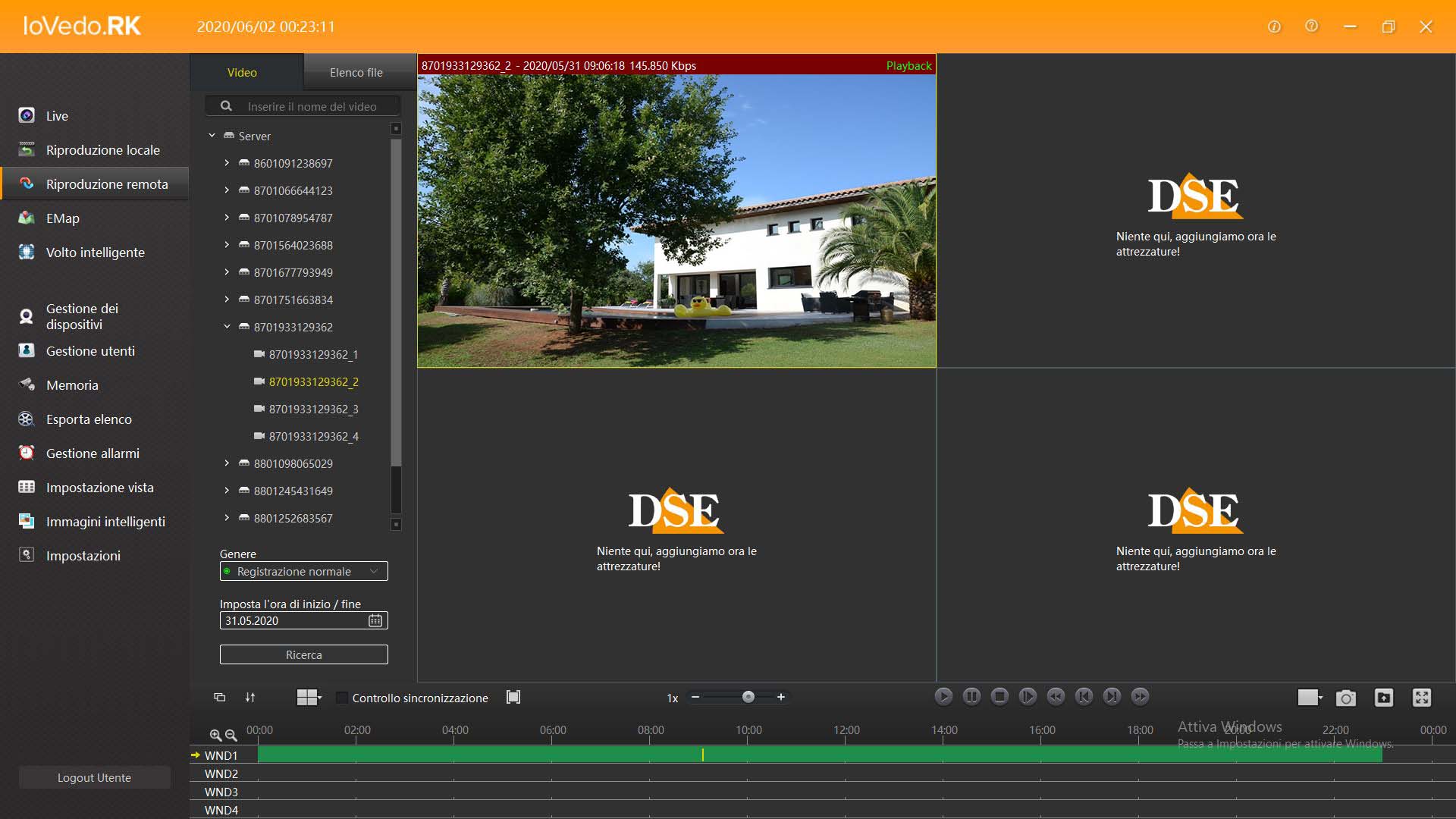

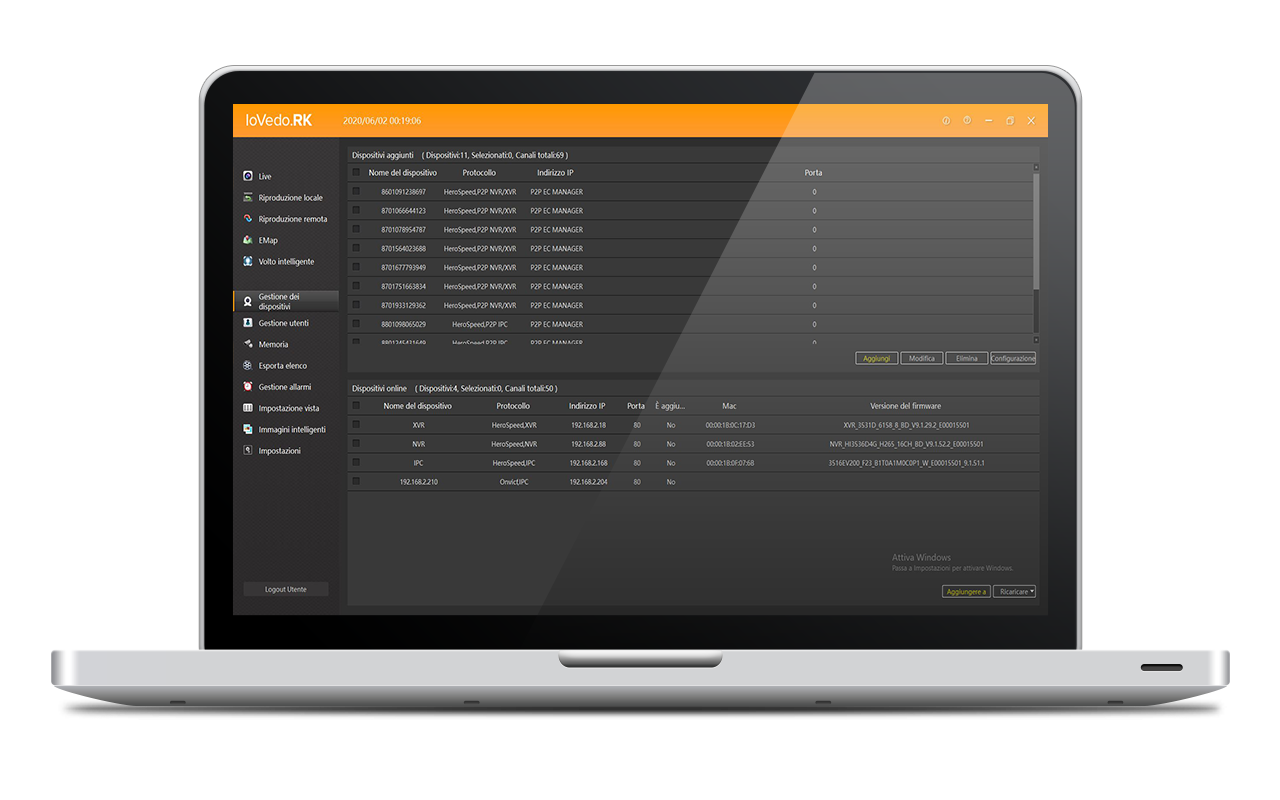

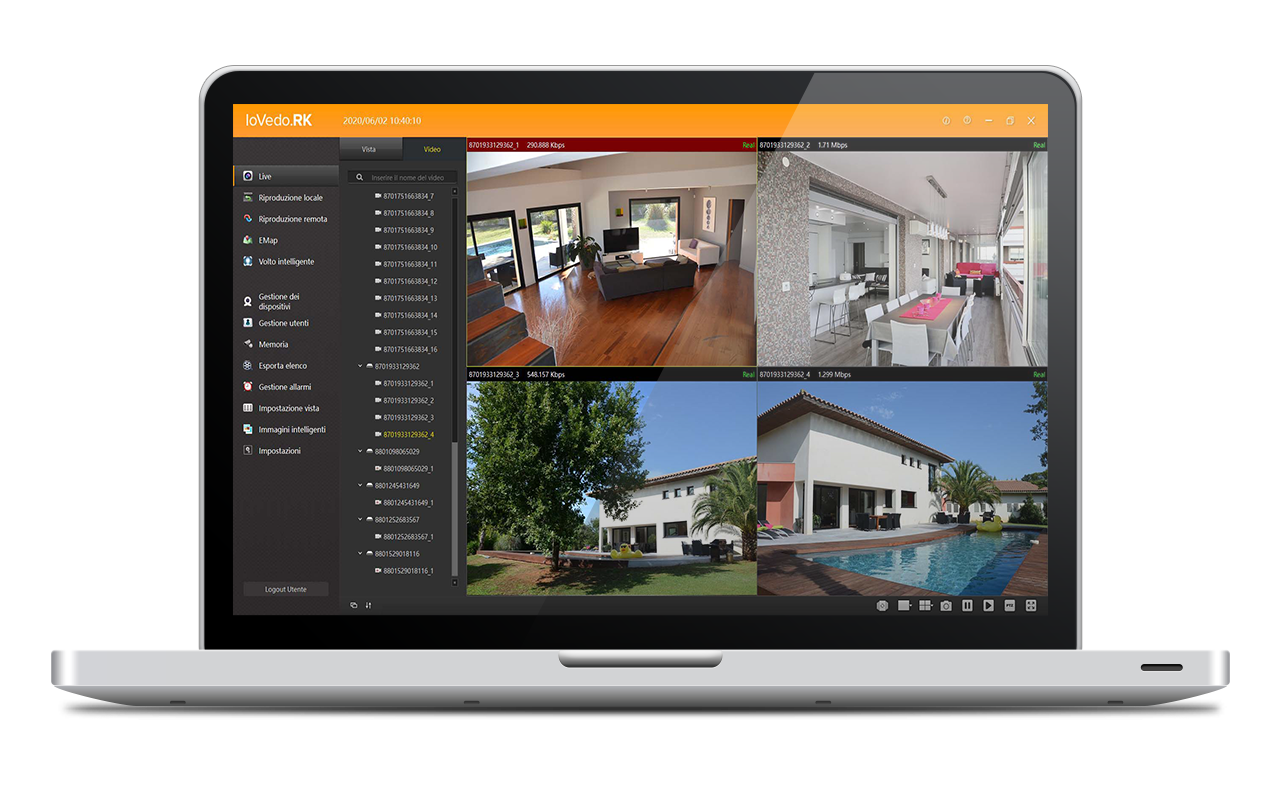

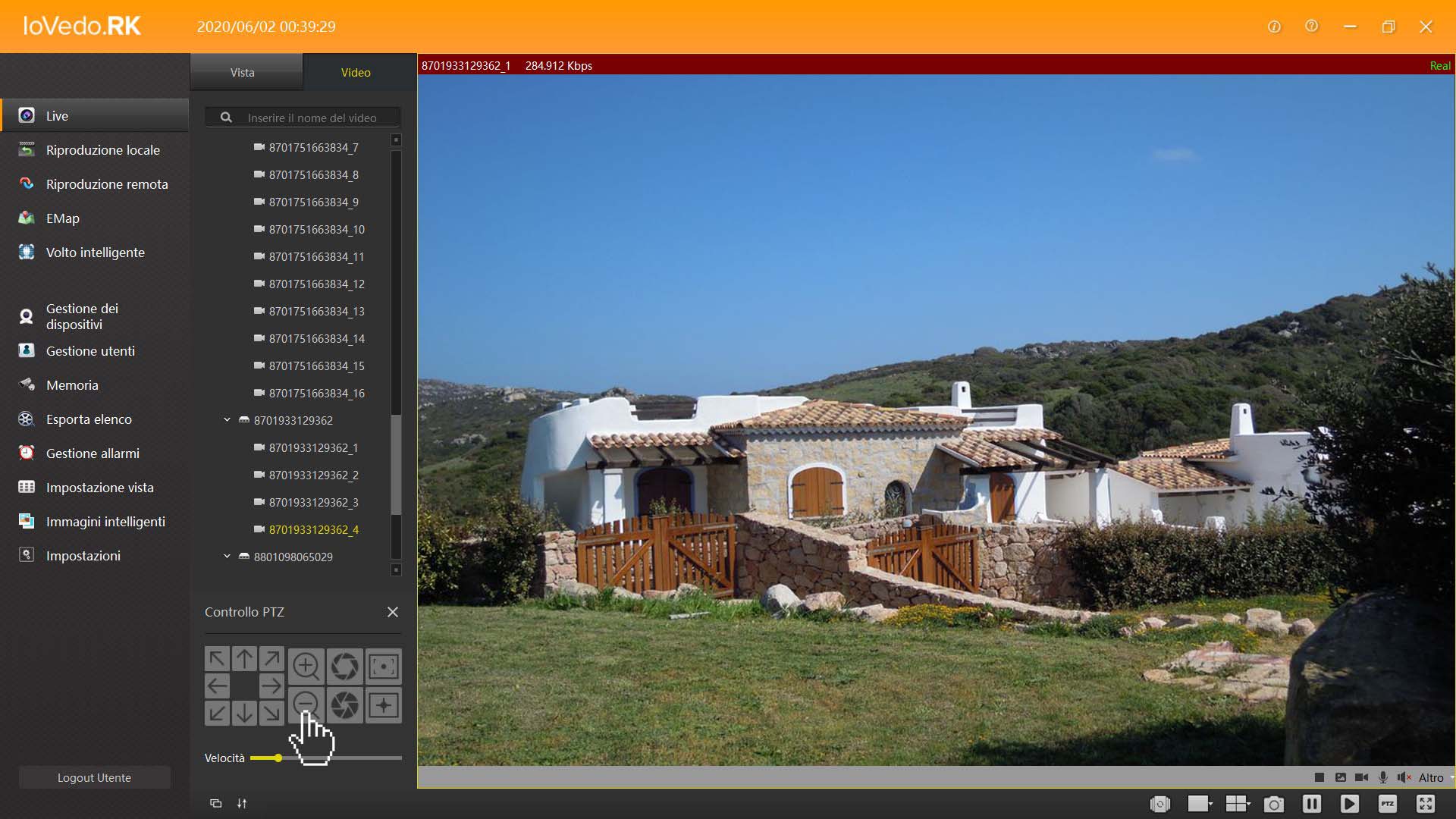

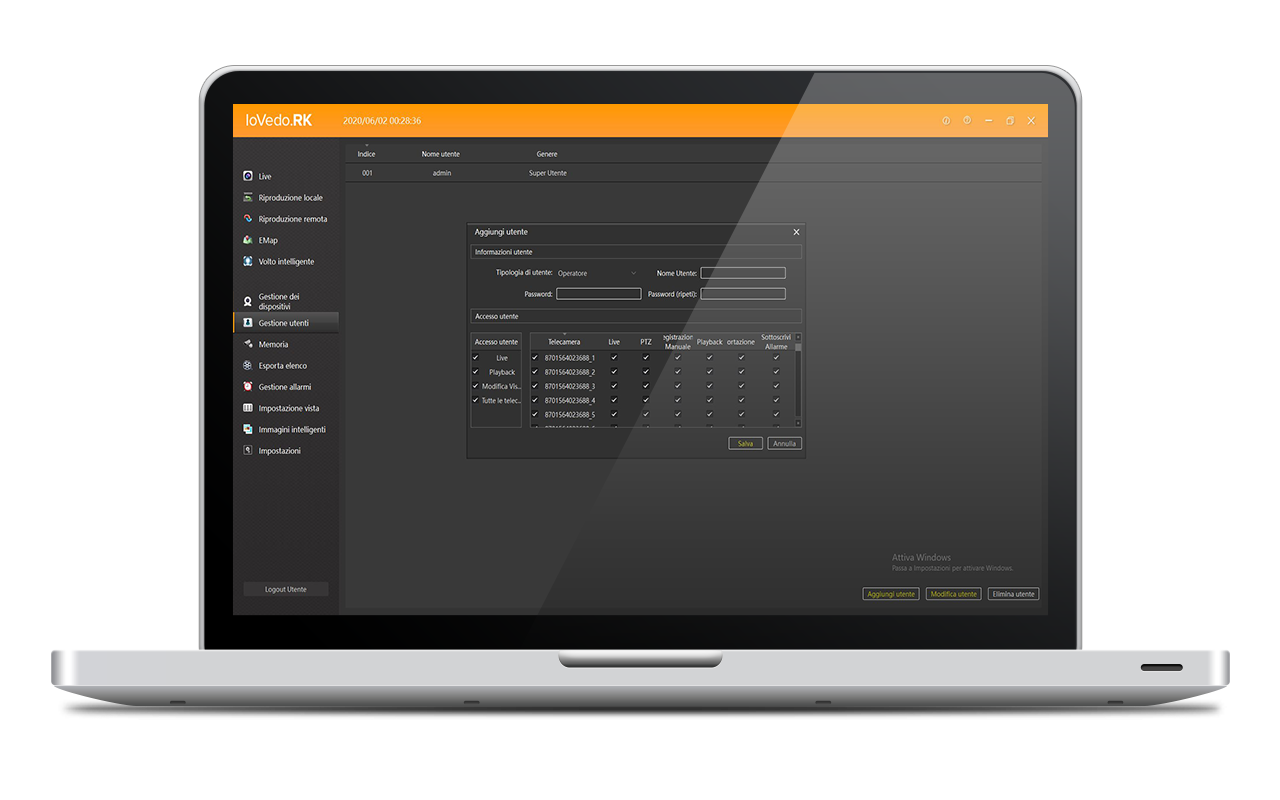

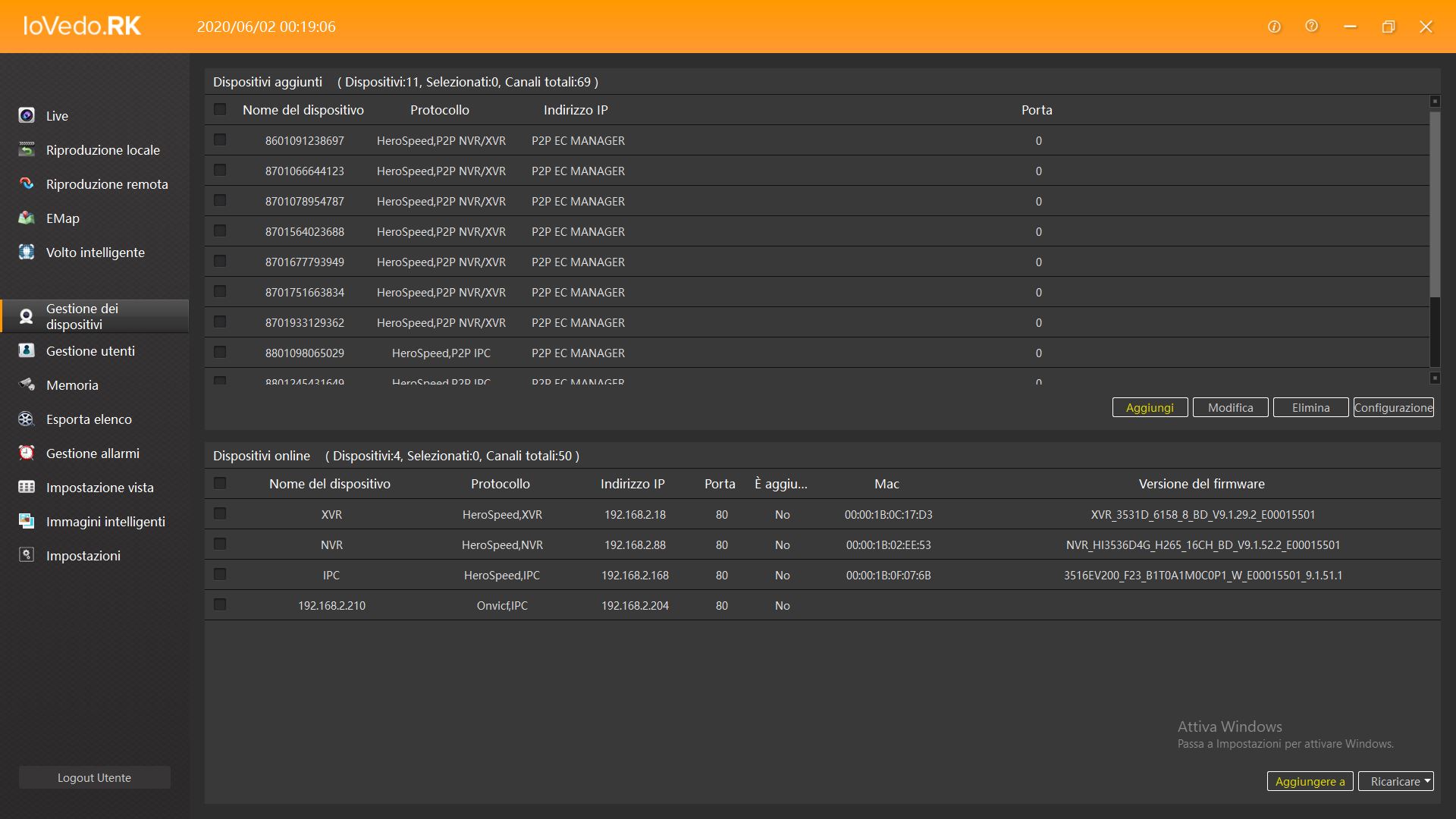

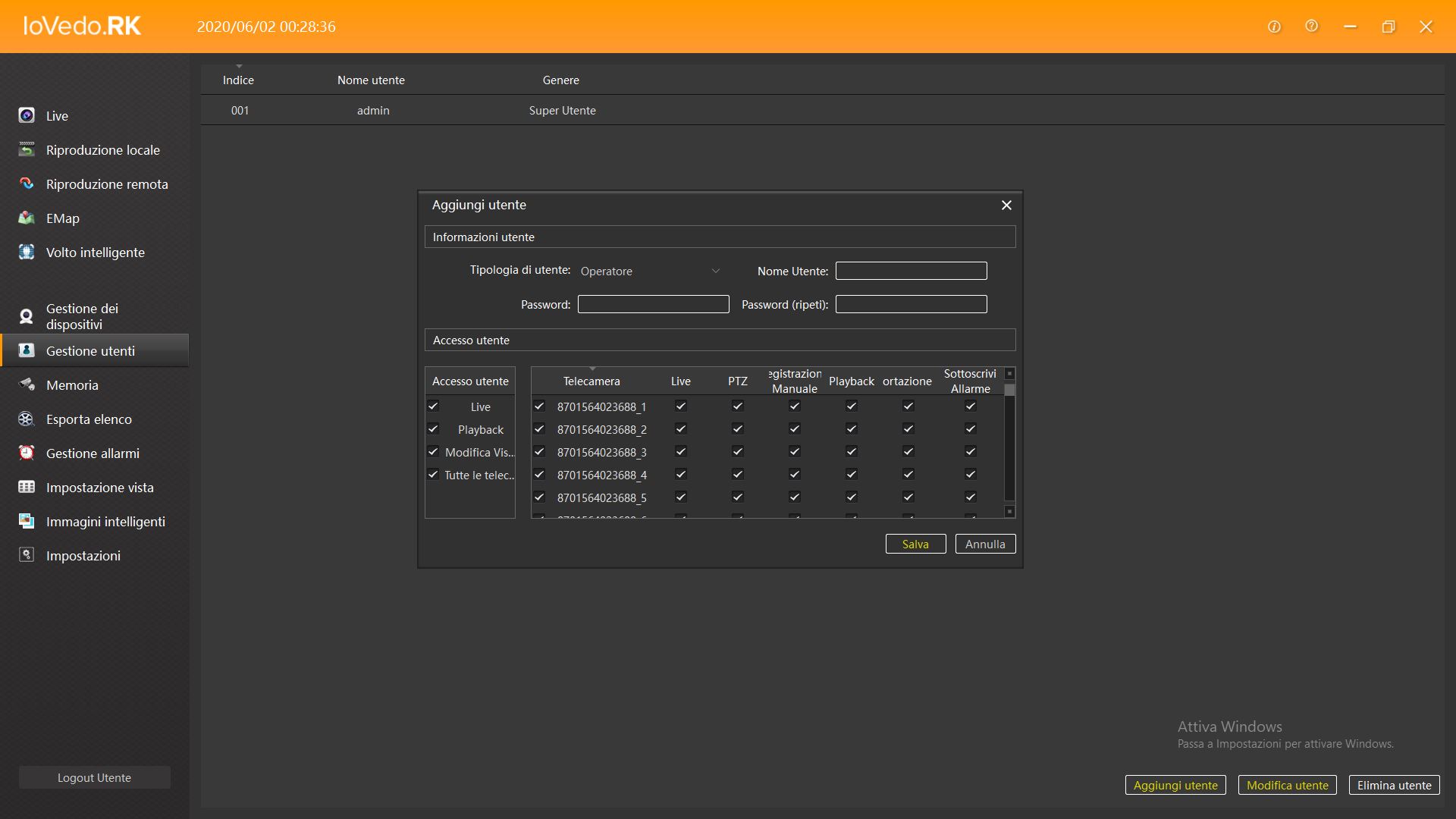

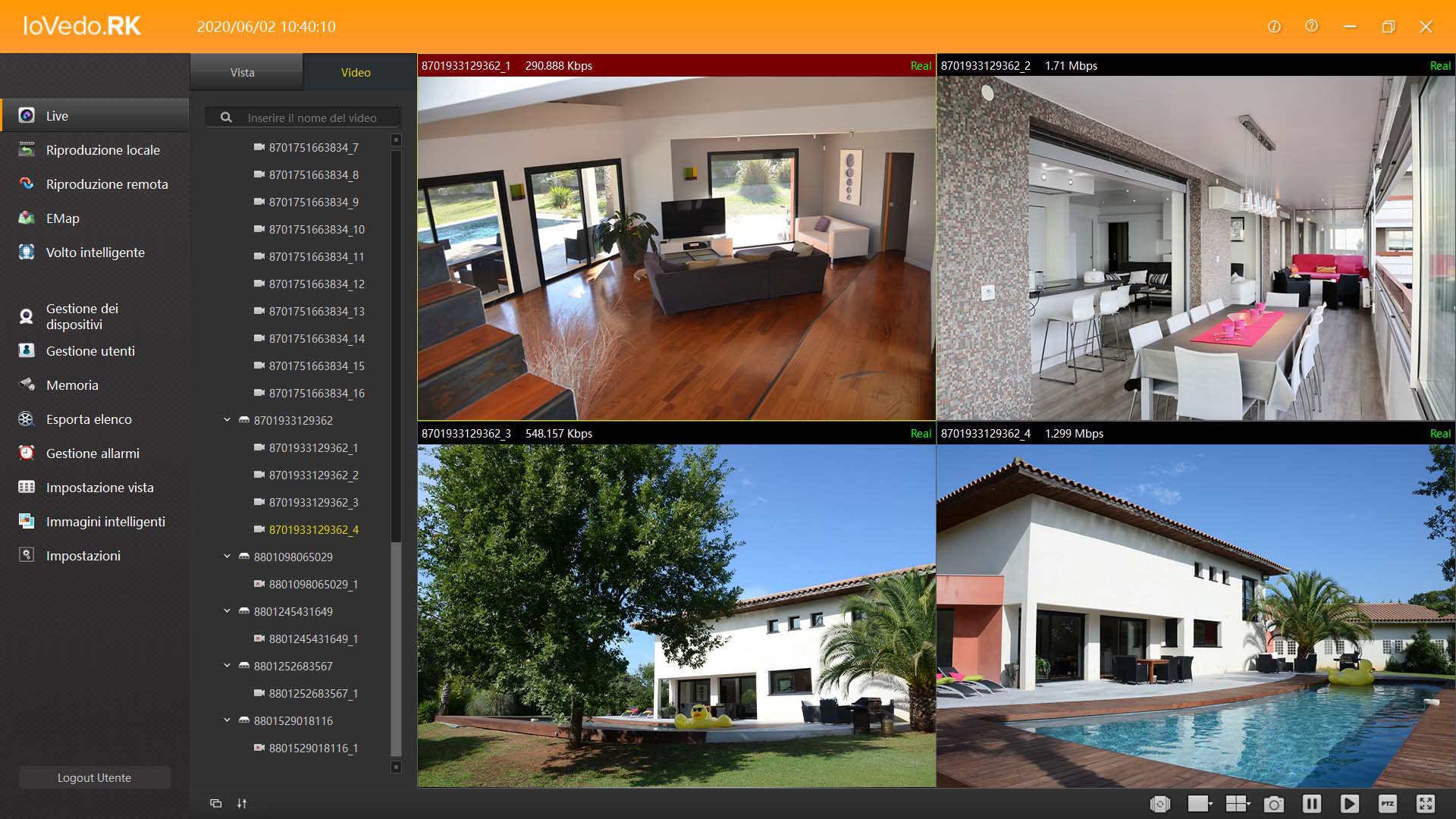

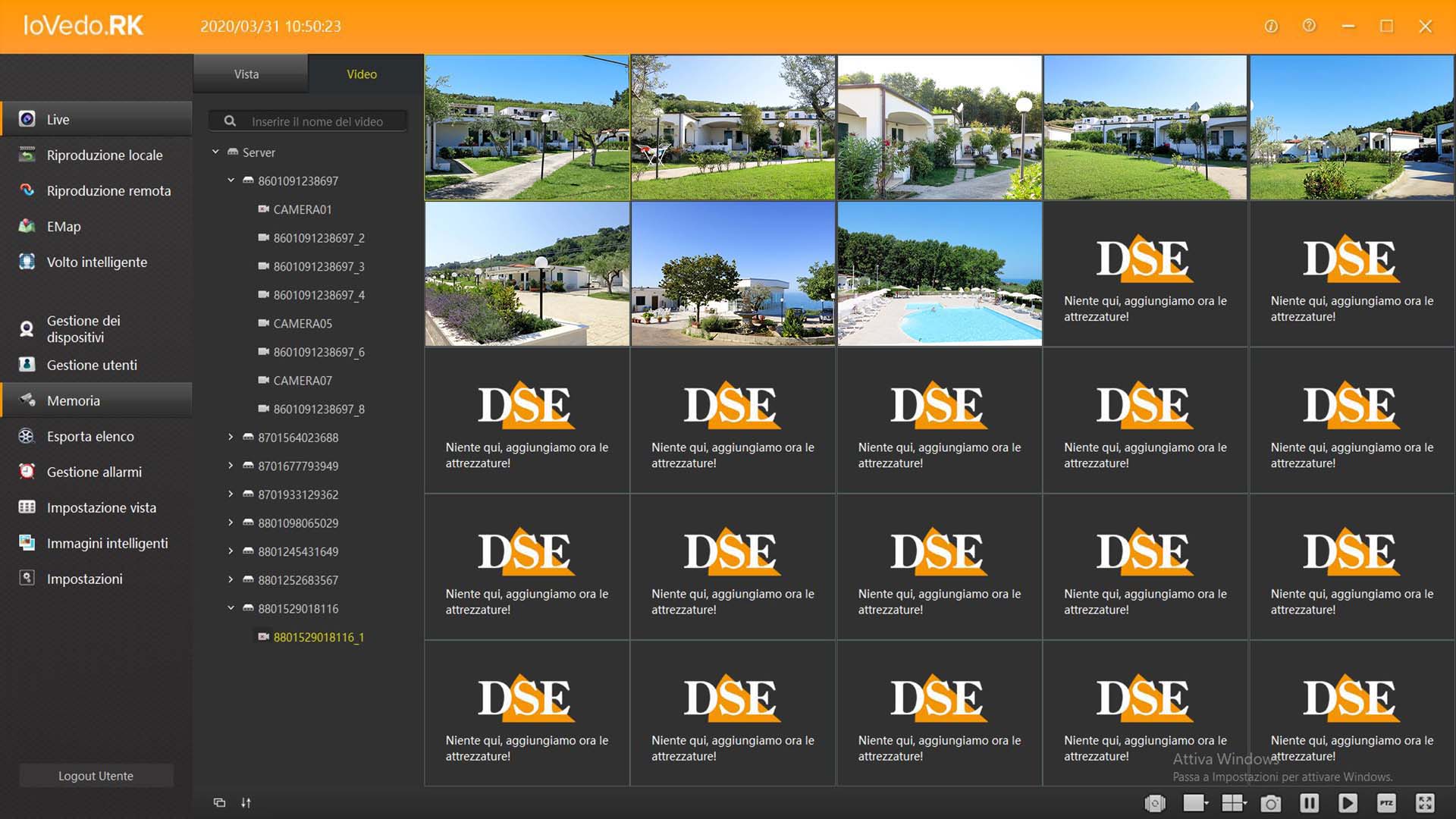

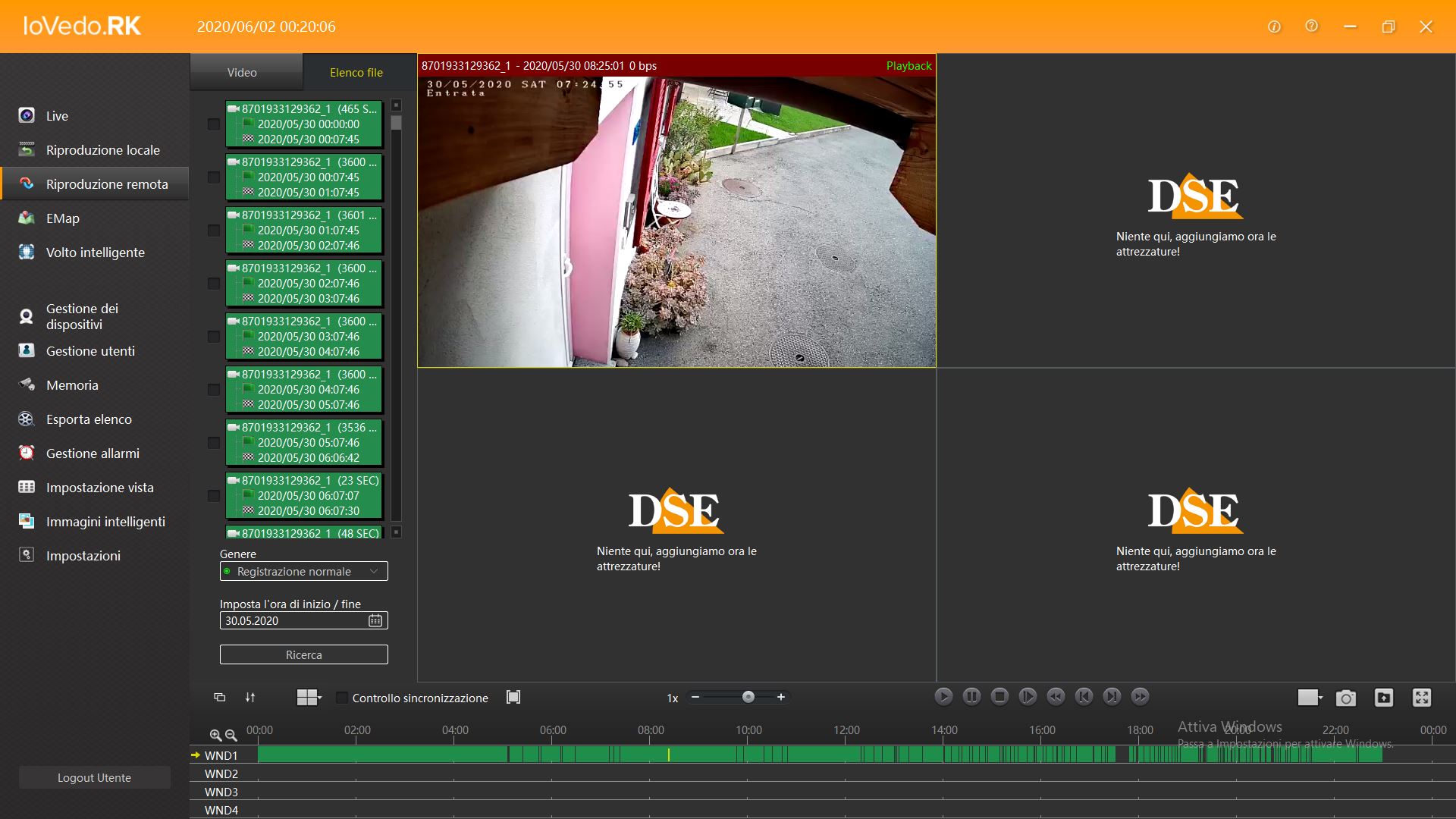

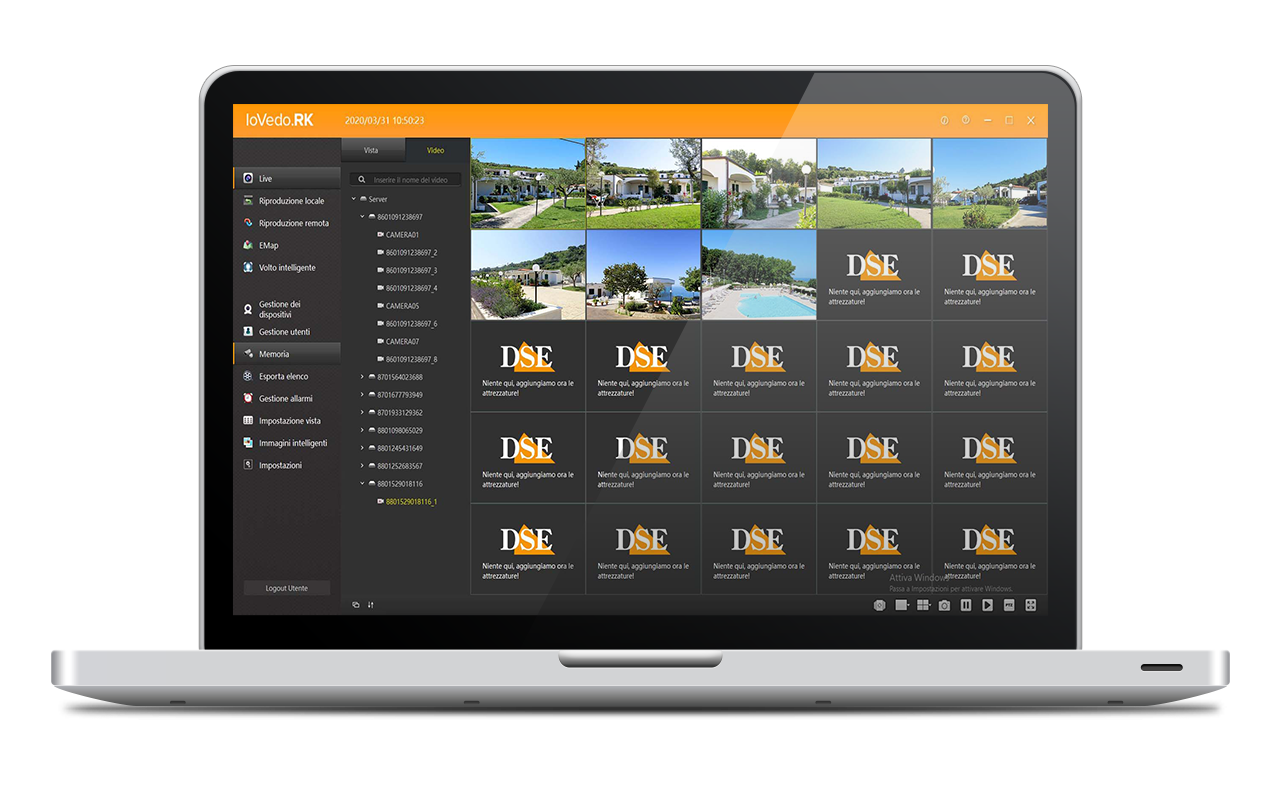

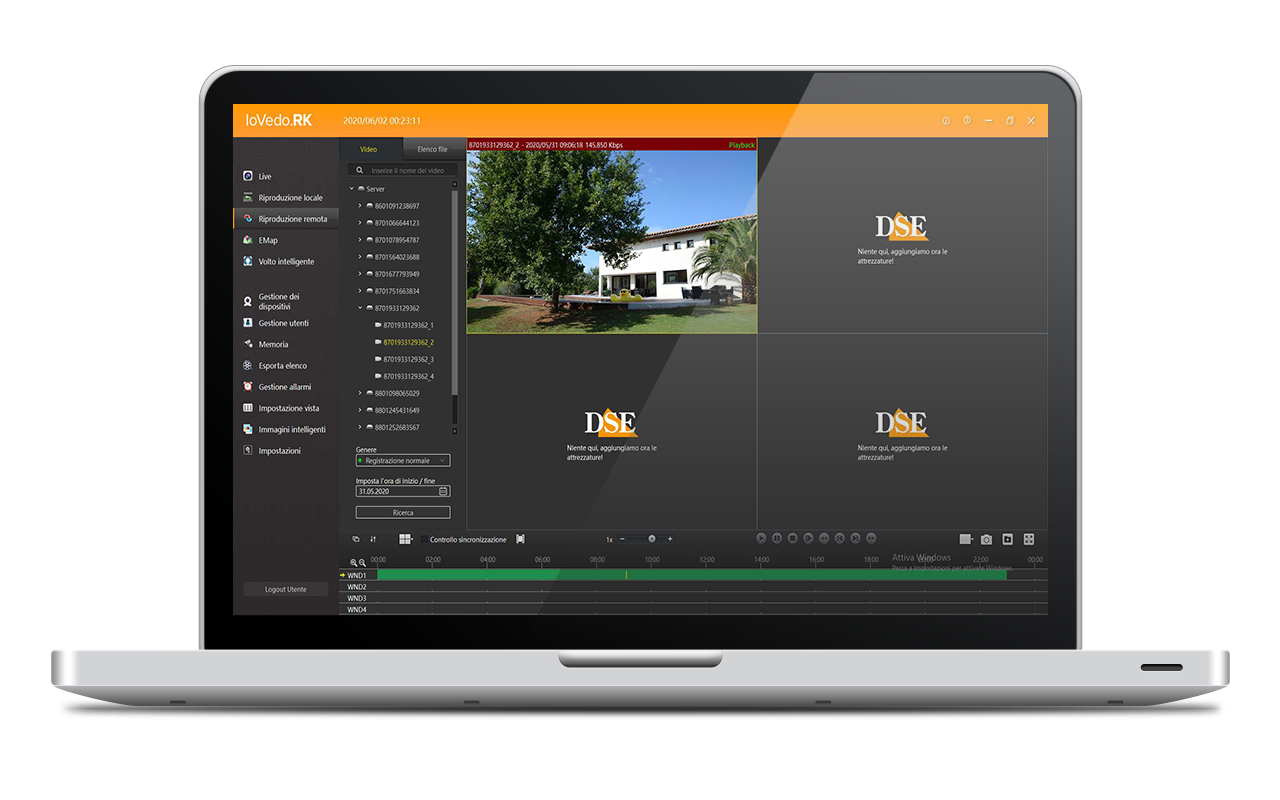

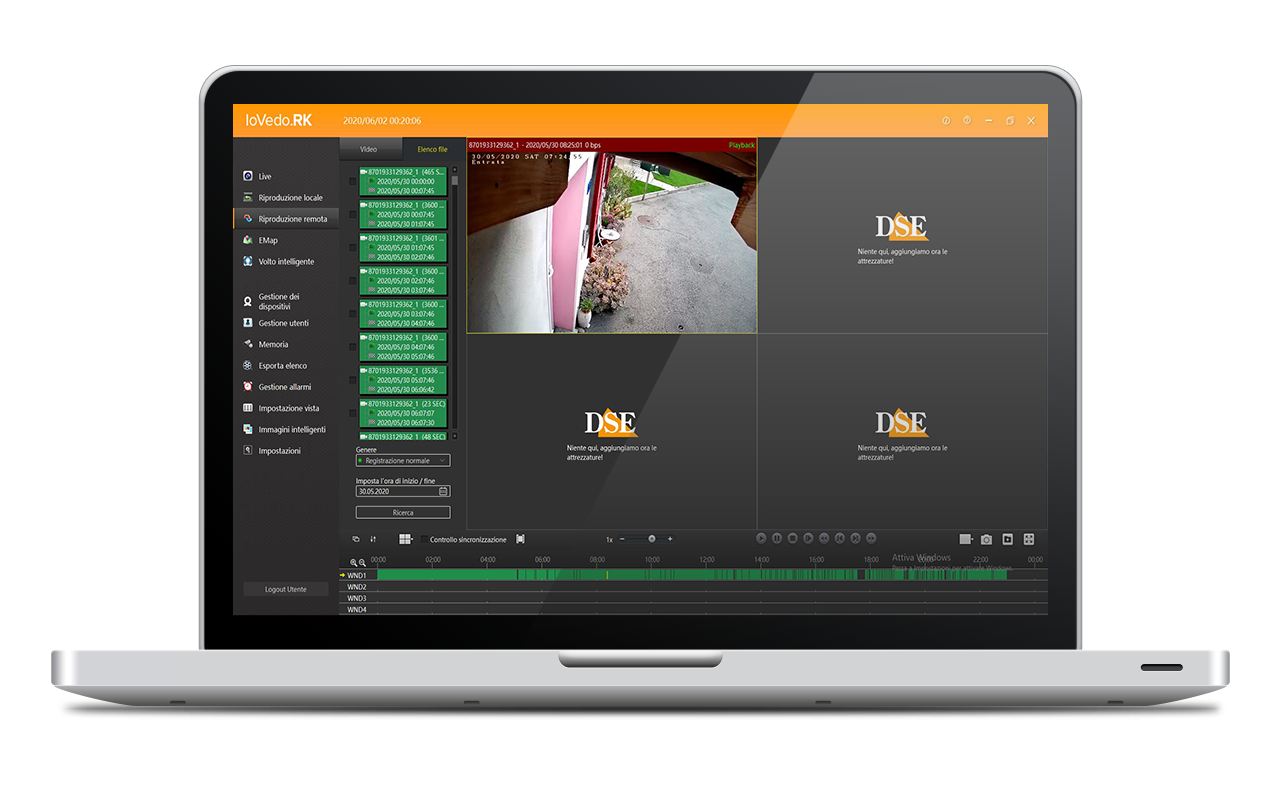

NVR Central monitoring software



You can use a computer to monitor and record cameras from many NVRs. It is useful to manage several CCTV systems on a central monitoring station. You do not have to buy anything, just download our free iVMS software that is suitable for all our RK series NVRs, DVRs and IP cameras. You can install it on as many computers as you like and use it freely, either as a main monitoring station or as an additional control unit. The iVMS software can manage as many NVRs as you need and show them in multiple custom screen layouts with up to 64 cameras simultaneously. iVMS supports our P2P cloud server so you can reach the NVRs over the Internet simply entering the ID.

DOWNLOAD iVMS

SDK for developers

If you are a software developer you can easily implement our devices in your projects. We provide you free SDK libraries to control all functionalities of our devices with your own software. If you need to get clean video stream for your software you can do that via RTSP protocol.

DOWNLOAD SDK

TIPS


Connect the NVR to your network, even 4G



Although an NVR can work well even locally, you will have great benefits from connecting it to the Internet. It's an easy operation with our app and it lets you control your cameras over the Internet, wherever you are. If you have an ADSL or Fiber Internet connection, you must connect your video surveillance network to a router port. If you do not have a wired Internet access, you can also use a 4G router with a data SIM to create a mobile Internet connection. Our P2P server allows you to connect via the web without any configuration with any type of provider, even via 4G, radio or satellite.


Continue using your old analog cameras



In addition to these NVRs, our RK range of video recorders also includes the DVR versions for analog AHD cameras. Our DVRs with BNC inputs are actually hybrid systems that can handle both analog and IP cameras together.
If you already have an analog surveillance system, with AHD cameras or old CVBS cameras, you can make it work with new IP cameras thanks to these devices. The RK Series NVRs and DVRs share the same graphics, programming menus, apps and software.

RK SERIES HYBRID DVR

NVR TECHNICAL DATA



CODE RK-16-N RK-25-N8 RK-36-N12 RK-64-N12 RKK-9P4-N RKK-9P8-N RKK-16P-N8 RKK-NVR2-8 RKK-NVR5-4
Description NVR for IP cameras NVR for IP cameras NVR for IP cameras NVR for IP cameras NVR for IP cameras with POE ports NVR for IP cameras with POE ports NVR for IP cameras with POE ports NVR for IP cameras with WiFi NVR for IP cameras with WiFi
VIDEO
Video channels 16 IP 25 IP 32 IP 64 IP 9 IP 9 IP 25 IP 8 IP WiFi + 1 wired 4 IP WiFi
Compatible cameras ONVIF IP cameras ONVIF IP cameras ONVIF IP cameras ONVIF IP cameras ONVIF IP cameras ONVIF IP cameras ONVIF IP cameras ONVIF IP WiFi cameras ONVIF IP WiFi cameras
ONVIF Protocol Onvif profile S Onvif profile S Onvif profile S Onvif profile S Onvif profile S Onvif profile S Onvif profile S Onvif profile S Onvif profile S
Supported video compressions H265, H265+, H264, H264+ H265, H265+, H264, H264+ H265, H265+, H264, H264+ H265, H265+, H264, H264+ H265, H265+, H264, H264+ H265, H265+, H264, H264+ H265, H265+, H264, H264+ H265, H265+, H264, H264+ H265, H265+, H264, H264+
Video resolution Max. 5MP Max. 8MP Max. 12MP Max. 12MP Max. 5MP Max. 5MP Max. 8MP Max. 2MP Max. 5MP
Dual stream
HARDWARE
Main processor ARM Cortex A7 Quad-Core ARM Cortex A7 Quad-Core ARM Cortex A17 Quad-Core ARM Cortex A17 Quad-Core ARM Cortex A7 Quad-Core ARM Cortex A7 Quad-Core ARM Cortex A7 Quad-core ARM Cortex A7 Quad-core ARM Cortex A7 Quad-core
Operating system LINUX embedded LINUX embedded LINUX embedded LINUX embedded LINUX embedded LINUX embedded LINUX embedded LINUX embedded LINUX embedded
Network port 1xRJ45 10/100/1000 1xRJ45 10/100/1000 1xRJ45 10/100/1000 2xRJ45 10/100/1000 1xRJ45 WAN + 4xRJ45 POE 10M/100M 1xRJ45 WAN + 8xRJ45 POE 10M/100M 1xRJ45 WAN 10/100/1000 + 16xRJ45 POE 10M/100M 1xRJ45 WAN + 3xRJ45 LAN (no POE) 10M/100M 1xRJ45 WAN + 3xRJ45 LAN (no POE) 10M/100M
Incoming bandwidth Max. 80 MBPS Max. 120 MBPS Max. 300 MBPS Max. 350 MBPS Max. 80 MBPS Max. 80 MBPS Max. 120 MBPS Max. 60 MBPS Max. 60 MBPS
WiFi IEEE802.11b/g/n IEEE802.11b/g/n
POE port for cameras Requires external switch Requires external switch Requires external switch Requires external switch 4 POE 8 POE 16 POE 3 RJ45 no POE 3 RJ45 no POE
Hard Disk capacity 1 SATA Max. 8TB 2 SATA Max. 8TB 2 SATA Max. 6TB 8 SATA Max. 6TB 1 SATA Max. 8TB 1 SATA Max. 8TB 1 SATA Max. 8TB 1 SATA Max. 8TB 1 SATA Max. 8TB
e-Sata port 1 for external HDD
Audio input 1 RCA for two-way audio 1 RCA for two-way audio 1 RCA for two-way audio 1 RCA for two-way audio
Audio output 1 minijack 3.5 mm 1 RCA for two-way audio 1 RCA for two-way audio 1 RCA for two-way audio 1 minijack 3.5 mm 1 minijack 3.5 mm 1 RCA for two-way audio 1 minijack 3.5 mm 1 minijack 3.5 mm
Alarm inputs 16 programmable alarm inputs 16 programmable alarm inputs
Alarm outputs 4 programmable alarm outputs 4 programmable alarm outputs
Serial ports RS485 Pelco P/D protocol RS485 Pelco P/D protocol
USB ports 2xUSB2.0 2xUSB2.0 1xUSB2.0 1xUSB3.0 2xUSB2.0 1xUSB3.0 2xUSB2.0 2xUSB2.0 2xUSB2.0 2xUSB2.0 2xUSB2.0
HD video output 1xHDMI 1xVGA 1xHDMI 1xVGA 1xHDMI 1xVGA 2xHDMI 1xVGA 1xHDMI 1xVGA 1xHDMI 1xVGA 1xHDMI 1xVGA 1xHDMI 1xVGA 1xHDMI 1xVGA
HDMI video output resolution 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 2560x1440 3840x2160 (4K) 1024x768 1280x1024 1440x900 1280x720 (720P) 1920x1080 (1080P) 2560x1440 3840x2160 (4K) 1024x768 1280x1024 1440x900 1280x720 (720P) 1920x1080 (1080P) 2560x1440 3840x2160 (4K) 1024x768 1280x1024 1440x900 1280x720 (720P) 1920x1080 (1080P) + Solo HDMI 1: 2560x1440 3840x2160 (4K) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 2560x1440 3840x2160 (4K) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P)
VGA video output resolution 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P) 1024x768 1280x1024 1280x720 (720P) 1920x1080 (1080P)
CVBS video outputs
Mouse USB included USB included USB included USB included USB included USB included USB included USB included USB included
Remote control
PERFORMANCES
Live Viewing 1CH up to 5MP, 4-9-16CH D1 1CH up to 8MP, 4-9-16-25CH D1 1CH up to 12MP, 4-9-16-25-36CH D1 1CH up to 12MP, 4-9-16-25-36-64CH D1 1CH fino 5MP, 4-9CH D1 1CH fino 5MP, 4-9CH D1 1CH up to 8MP, 4-9-16-25CH D1 1CH fino 2MP, 4-9CH D1 1CH fino 5MP, 4CH D1
Recording 5MP @ 16CHx25f/s, 4MP @ 16CHx25f/s, 3MP @ 16CHx25f/s, 2MP @ 16CHx25f/s, 720P @ 16CHx25f/s 4K @ 12CHx25f/s, 5MP @ 20CHx25f/s, 4MP @ 25CHx25f/s, 3MP @ 25CHx25f/s, 2MP @ 25CHx25f/s, 720P @ 25CHx25f/s 12MP @ 25CHx25f/s, 4K @ 30CHx25f/s, 5MP @ 36CHx25f/s, 4MP @ 36CHx25f/s, 3MP @ 36CHx25f/s, 2MP @ 36CHx25f/s, 720P @ 36CHx25f/s 12MP @ 29CHx25f/s, 4K @ 35CHx25f/s, 5MP @ 58CHx25f/s, 4MP @ 64CHx25f/s, 3MP @ 64CHx25f/s, 2MP @ 64CHx25f/s, 720P @ 64CHx25f/s 5MP 9CHx25f/s, 4MP 9CHx25f/s, 3MP 9CHx25f/s, 2MP 9CHx25f/s, 720P 9CHx25f/s 5MP 9CHx25f/s, 4MP 9CHx25f/s, 3MP 9CHx25f/s, 2MP 9CHx25f/s, 720P 9CHx25f/s 4K 12CHx25f/s, 5MP 20CHx25f/s, 4MP 25CHx25f/s, 3MP 25CHx25f/s, 2MP 25CHx25f/s, 720P 25CHx25f/s 2MP 9CHx25f/s, 720P 9CHx25f/s 5MP 4CHx25f/s, 4MP 4CHx25f/s, 3MP 4CHx25f/s, 2MP 4CHx25f/s, 720P 4CHx25f/s
Playback 1CH 5MP@25f/s, 4MP@25f/s, 3MP@25f/s
4CH 2MP@20f/s, 720P@25f/s
1CH 4K@25f/s, 5MP@25f/s, 4MP@25f/s, 3MP@25f/s
4CH 2MP@25f/s, 720P@25f/s
3CH 12MB@15f/s 4CH 4K@25f/s 6CH 5MP@25f/s, 8CH 4MP@25f/s, 10CH 3MP@25f/s 16CH 2MP@25f/s, 720P@25f/s 3CH 12MB@15f/s 4CH 4K@25f/s 6CH 5MP@25f/s, 8CH 4MP@25f/s, 10CH 3MP@25f/s 16CH 2MP@25f/s, 720P@25f/s 1CH 5MP@25f/s, 2CH 3MP@25f/s, 4CH 2MP@20f/s, 720P@25f/s 1CH 5MP@25f/s, 2CH 3MP@25f/s, 4CH 2MP@20f/s, 720P@25f/s 1CH 4K@25f/s, 5MP@25f/s 2CH 4MP@25f/s, 3MP@25f/s
4CH 2MP@25f/s, 720P@25f/s
4CH 2MP@20f/s, 720P@25f/s 1CH 5MP@25f/s, 2CH 3MP@25f/s, 4CH 2MP@20f/s, 720P@25f/s
SOFTWARE
Protocols TCP/IP HTTP UPNP PPPOE FTP DHCP DNS DDNS RTP RTSP NTP SMTP P2P TCP/IP HTTP UPNP PPPOE FTP DHCP DNS DDNS RTP RTSP NTP SMTP P2P TCP/IP HTTP UPNP PPPOE FTP DHCP DNS DDNS RTP RTSP NTP SMTP P2P TCP/IP HTTP UPNP PPPOE FTP DHCP DNS DDNS RTP RTSP NTP SMTP P2P TCP/IP HTTP UPNP PPPOE FTP DHCP DNS DDNS RTP RTSP NTP SMTP P2P TCP/IP HTTP UPNP PPPOE FTP DHCP DNS DDNS RTP RTSP NTP SMTP P2P TCP/IP HTTP UPNP PPPOE FTP DHCP DNS DDNS RTP RTSP NTP SMTP P2P TCP/IP HTTP UPNP PPPOE FTP DHCP DNS DDNS RTP RTSP NTP SMTP P2P TCP/IP HTTP UPNP PPPOE FTP DHCP DNS DDNS RTP RTSP NTP SMTP P2P
P2P Server Cloud Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode
Web cloud archive Google, Dropbox Google, Dropbox Google, Dropbox Google, Dropbox Google, Dropbox Google, Dropbox Google, Dropbox Google, Dropbox Google, Dropbox
Browser IE8 or superior IE8 or superior IE8 or superior IE8 or superior IE8 or superior IE8 or superior IE8 or superior IE8 or superior IE8 or superior
Smartphone iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad
Centralization software IVMS for Windows included IVMS for Windows included IVMS for Windows included IVMS for Windows included IVMS for Windows included IVMS for Windows included IVMS for Windows included IVMS for Windows included IVMS for Windows included
Recording mode Timed, Continuous, Motion Timed, Continuous, Motion Timed, Continuous, Motion Timed, Continuous, Motion, Alarm Timed, Continuous, Motion Timed, Continuous, Motion Timed, Continuous, Motion, Alarm Timed, Continuous, Motion Timed, Continuous, Motion
FUNCTIONS
Multi display 1/4/9/16 cameras, cyclic 1/4/9/16/25 cameras, cyclic 1/4/9/16/25/36 cameras, cyclic 1/4/9/16/25/36/64 cameras, cyclic 1/4/9 cameras, cyclic 1/4/9 cameras, cyclic 1/4/9/16/25 cameras, cyclic 1/4/9 cameras, cyclic 1/4 cameras, cyclic
OSD overlays Time, Date, Channel Name Time, Date, Channel Name Time, Date, Channel Name Time, Date, Channel Name Time, Date, Channel Name Time, Date, Channel Name Time, Date, Channel Name Time, Date, Channel Name Time, Date, Channel Name
Motion detection Adjustable with weekly programmer for each channel Adjustable with weekly programmer for each channel Adjustable with weekly programmer for each channel Adjustable with weekly programmer for each channel Adjustable with weekly programmer for each channel Adjustable with weekly programmer for each channel Adjustable with weekly programmer for each channel Adjustable with weekly programmer for each channel Adjustable with weekly programmer for each channel
Alarm actions Recording, Buzzer, Email, FTP, Photo, Message on monitor, Cloud upload, Push notifications Recording, Buzzer, Email, FTP, Photo, Message on monitor, Cloud upload, Push notifications Recording, Buzzer, Email, FTP, Photo, Message on monitor, Cloud upload, Push notifications Recording, Buzzer, Email, FTP, Photo, Message on monitor, Cloud upload, Push notifications, Relè outputs Recording, Buzzer, Email, FTP, Photo, Message on monitor, Cloud upload, Push notifications Recording, Buzzer, Email, FTP, Photo, Message on monitor, Cloud upload, Push notifications Recording, Buzzer, Email, FTP, Photo, Message on monitor, Cloud upload, Push notifications Recording, Buzzer, Email, FTP, Photo, Message on monitor, Cloud upload, Push notifications Recording, Buzzer, Email, FTP, Photo, Message on monitor, Cloud upload, Push notifications
PTZ IP cameras control
Serial PTZ control RS485 PelcoP/D RS485 PelcoP/D
Digital zoom
Automatic overwrite
Video archive limitation for privacy
Search for videos with timeline
Password protection
GENERAL
Casing Metal Metal Metal Metal Metal Metal Metal Metal Metal
Rack mounting 19" 2U - Fixing brackets included
Operating temperature -10°C +55°C RH95% Max -10°C +55°C RH95% Max -10°C +55°C RH95% Max -10°C +55°C RH95% Max -10°C +55°C RH95% Max -10°C +55°C RH95% Max -10°C +55°C RH95% Max -10°C +55°C RH95% Max -10°C +55°C RH95% Max
Power supply 12VDC +/-10% 12VDC +/-10% 12VDC +/-10% 100-240 VAC 50/60 Hz 52VDC +/-10% 52VDC +/-10% 52VDC +/-10% 12VDC +/-10% 12VDC +/-10%
220V adaptor included Not required
Consumption Max 300mA (without HDD) Max 500mA (without HDD) Max 500mA (without HDD) Max 50W (without HDD) Max 6W (without HDD and POE) Max 6W (without HDD and POE) Max 12W (without HDD and POE) Max 250 mA (without HDD) Max 250 mA (without HDD)
Dimensions 260x215x43 mm 310x295x46 mm 310x295x46 mm 440x450x95 mm 260x215x43 mm 260x215x43 mm 493x367x69 mm 260x215x43 mm 260x215x43 mm
Weight 740 gr (without HDD) 1300 gr (without HDD) 1300 gr (without HDD) 7300 gr (without HDD) 820 gr (without HDD) 820 gr (without HDD) 9800 gr (without HDD) 820 gr (without HDD) 820 gr (without HDD)

QUESTIONS & ANSWERS

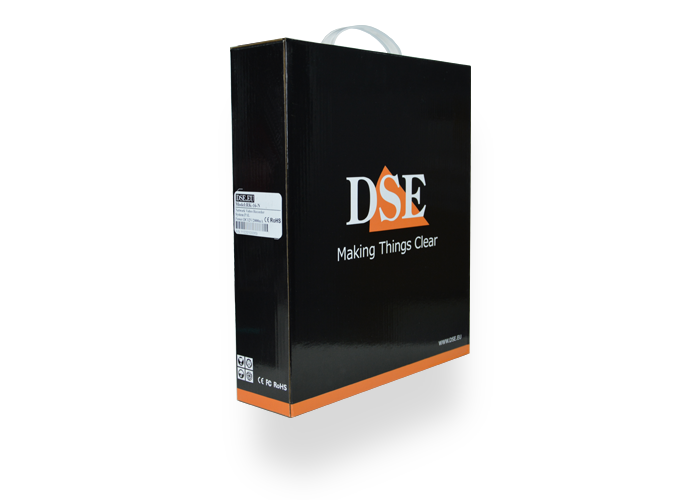

What is included?

NVR
POWER ADAPTER
MOUSE
MANUALS
SW iVMS
APP

What is not included?

All our NVRs are supplied without a Hard Disk. In our price list you can buy specific Hard Disks for video surveillance to be installed inside.
