Brackets, casings, junction boxes


Here you will find the waterproof junction boxes to protect the terminals of our security cameras. You will also find general purpose camera housings and brackets for mounting CCTV cameras on the wall, ceiling, pole and corner.

MOUNTING ACCESSORIES


JUNCTION BOXES

Scatole stagne per connessioni tvcc

Useful to protect the connectors of our IP or AHD cameras

BRACKETS FOR DOME AND PTZ

Alimentatori per telecamere videosorveglianza TVCC

Useful for mounting our IP or AHD dome cameras

GENERAL PURPOSE BRACKETS & HOUSINGS

UPS per telecamere videosorveglianza TVCC

Various accessories for the installation of CCTV cameras

JUNCTION BOXES


All our cameras, both IP and AHD, are equipped with a 40 cm cable with terminals. It is better to protect the connectors, in order to avoid oxidation. If you mount the camera near a junction box, you can protect the terminal there, otherwise you should order these waterproof junction boxes which are specifically designed for our fixed cameras.




RE-BOX1

JUNCTION BOX FOR ..BCC2.. ..DCC2.. CAMERAS

This junction box is suitable for our smaller IP and AHD cameras, with fixed lens. These cameras are easy to recognize because the product code contains .. BCC2 .. or ..DCC2 .. which indicates the type of casing. We use these cameras in our plug & play kits, both POE and WiFi. This junction box is IP66 waterproof, to protect the connectors from the rain, and is suitable to contain the connectors of the camera and possibly also a small power adapter, if you remove the plastic shell. On the lid of the junction box there are the holes to screw the base of the camera. Cable access is possible from the back of the box, for in-wall pipes, or on the side, for external pipes.
This camera box is made of painted aluminum and is not effected by rust. Some neoprene gaskets on the lid and on the base of the box prevent the penetration of dust, humidity and insects. There is also an internal safety cable to prevent the cover from falling during installation.

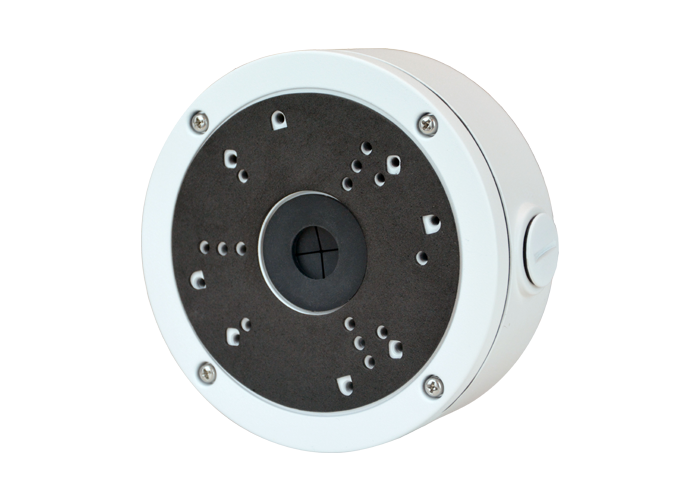

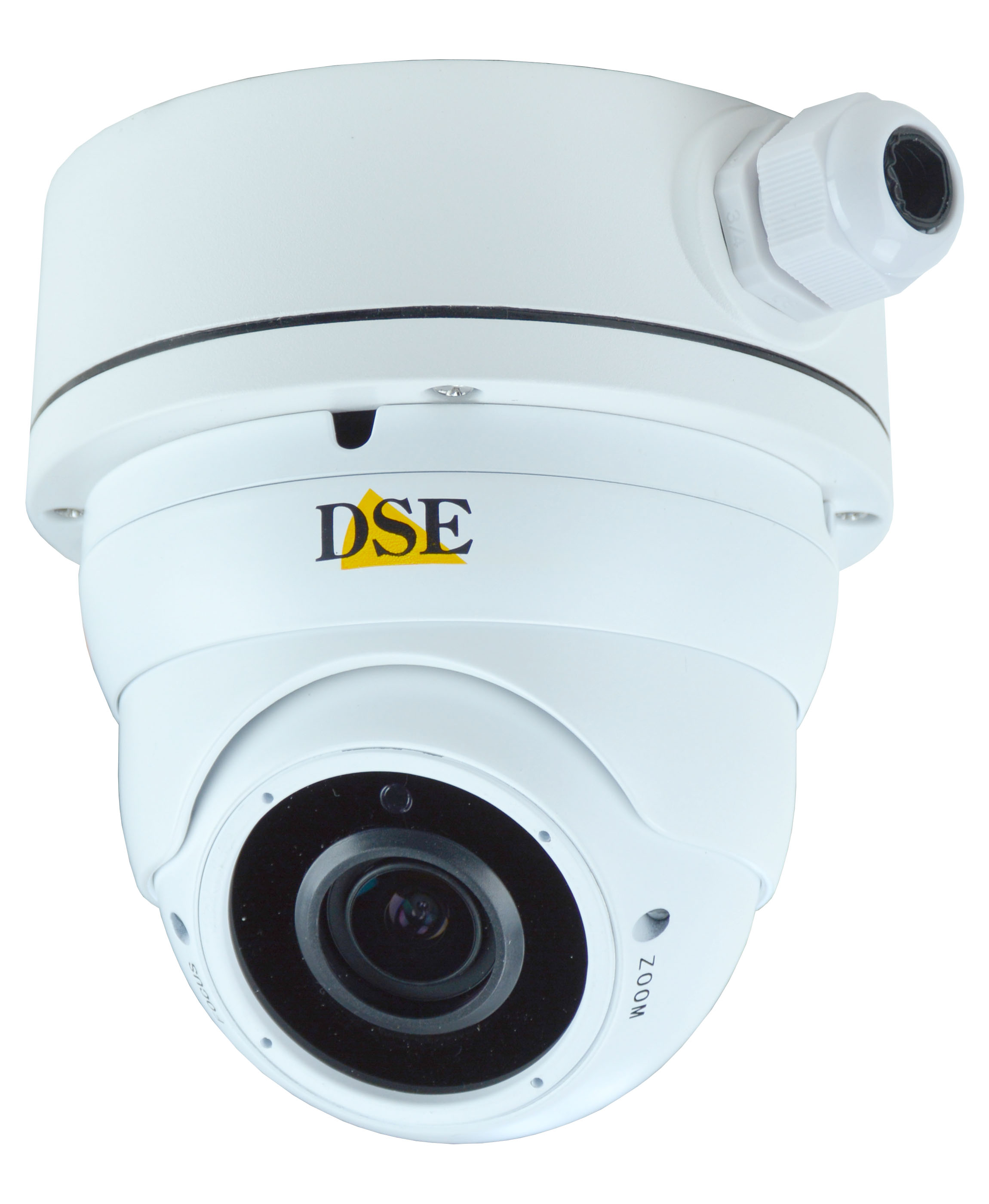

RE-BOX2

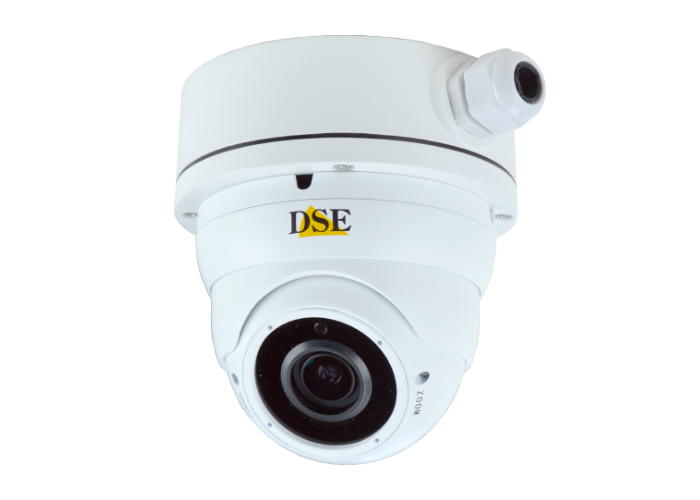

JUNCTION BOX FOR ..-BCC5.. ..BCC6.. ..DCC5..

This junction box is suitable for our bigger IP and AHD cameras, with varifocal or zoom lens. These cameras are easy to recognize because the product code contains ..BCC5.., ..BCC6.., e ..DCC5.. which indicates the type of casing. This junction box is IP66 waterproof, to protect the connectors from the rain, and is suitable to contain the connectors of the camera and possibly also a power adapter. On the lid of the junction box there are the holes to screw the base of the camera. Cable access is possible from the back of the box, for in-wall pipes, or on the side, for external pipes.
This camera box is made of painted aluminum and is not effected by rust. Some neoprene gaskets on the lid and on the base of the box prevent the penetration of dust, humidity and insects. There is also an internal safety cable to prevent the cover from falling during installation.


RH-BOX2 RH Series PRO

JUNCTION BOX FOR RH-BCC1.. RH-DCC1.. RH2-BCC2

This junction box is suitable for our RH PRO series IP camera designed for large projects. This junction box is IP66 waterproof, to protect the connectors from the rain, and is suitable to contain the connectors of the camera and possibly also a power adapter. On the lid of the junction box there are the holes to screw the base of the camera. Cable access is possible from the back of the box, for in-wall pipes, or on the side, for external pipes.
This camera box is made of painted aluminum and is not effected by rust.


RH-BOX3 RH Series PRO

JUNCTION BOX FOR RH-BCC3..

This junction box is suitable for some RH PRO series IP camera. This junction box is IP66 waterproof, to protect the connectors from the rain, and is suitable to contain the connectors of the camera and possibly also a power adapter. On the lid of the junction box there are the holes to screw the base of the camera. Cable access is possible from the back of the box, for in-wall pipes, or on the side, for external pipes.
This camera box is made of painted aluminum and is not effected by rust.


BRACKETS FOR DOME & PTZ


Here you will find all mounting brackets for our dome cameras, fixed and motorized.




RE-DCC5STB

WALL MOUNTING BRACKETS FOR DOME CAMERAS ..DCC5...

This wall bracket is suitable for our IP cameras RK-DCC5... and AHD cameras RE-DCC5.... You can use this bracket to mount the dome camera on the wall, creating a classic lantern style. This bracket is made of die-casted aluminum, so it is not effected by rust. It is hollow inside to allow the passage of cables and to eventually accommodate the terminals. Although being designed for our ..DCC5 .. dome cameras, with a little adjustment of the holes, you can also use this bracket for other dome cameras which do not have this dedicated accessory, such as our microspeed dome cameras.


SD-DST3

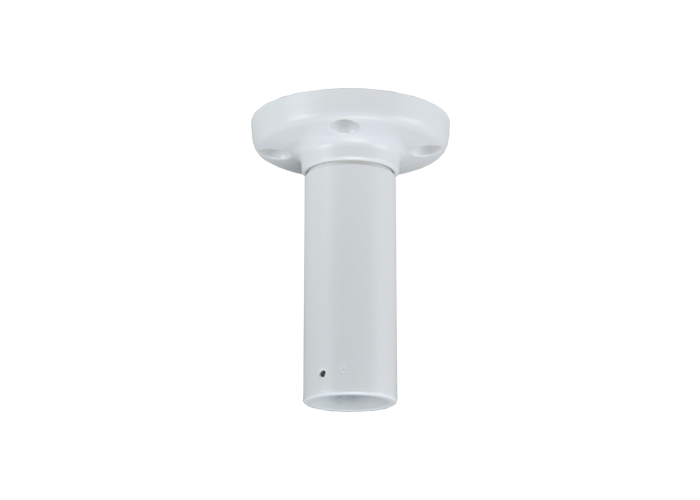

CEILING MOUNT BRACKET FOR RL-SD... RJ-SD... SD-D... SPEED DOME CAMERAS

This ceiling bracket is suitable for our speed dome cameras, both IP and AHD. This is not suitable to our smaller PTZ cameras, like minispeed dome or microspeed dome. You can use this bracket, instead of the standard one, if you want to hang the camera to the ceiling. This bracket is made of die-casted aluminum, so it is not effected by rust. It is hollow inside to allow the passage of cables.

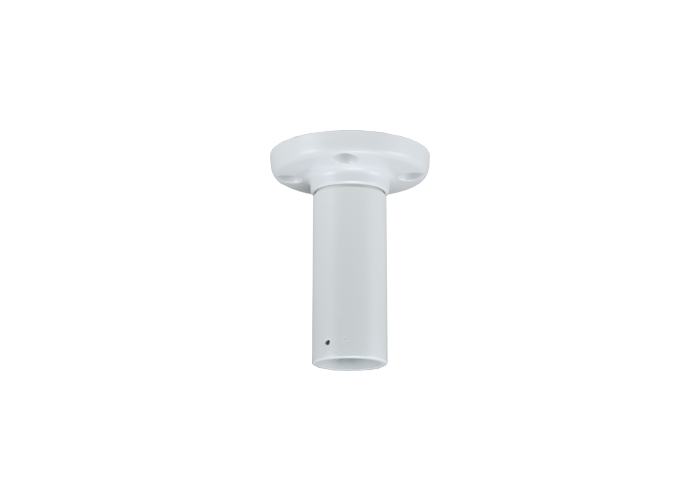

SD-DST3M

CEILING MOUNT BRACKET FOR RL-SDM... RJ-SDM... SD-DM... MINI SPEED DOME CAMERAS

This ceiling bracket is suitable for our mini speed dome cameras, both IP and AHD. This is not suitable to our bigger speed dome cameras. You can use this bracket, instead of the standard one, if you want to hang the camera to the ceiling. This bracket is made of die-casted aluminum, so it is not effected by rust. It is hollow inside to allow the passage of cables.

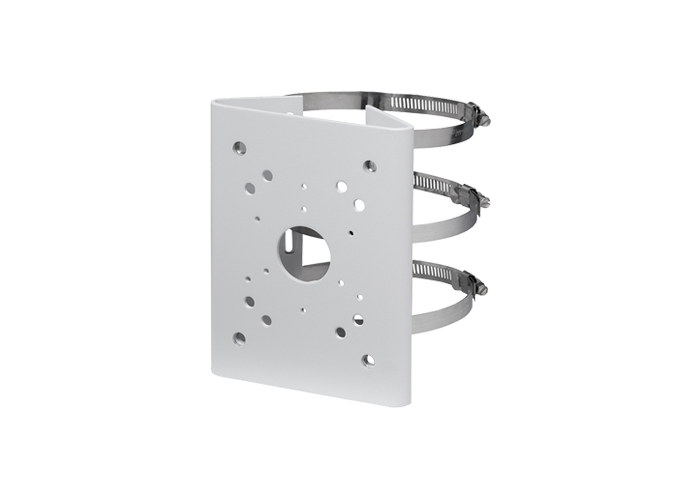

SD-DST4

POLE MOUNTING COLLAR FOR RL-SD... RJ-SD... SD-D... SPEED DOME CAMERAS

This pole mounting base is suitable for our speed dome cameras, both IP and AHD. You can use this collar to mount the dome camera on a round pole. Although being designed for our speed dome cameras, with a little adjustment of the holes, you can also use this bracket for other motorized or fixed cameras which do not have this dedicated accessory. This collar consists of a metal mounting base with 3 steel adjustable clamps suitable for poles with a maximum diameter of 15 cm. For mounting on larger poles, you can replace the standard clamps with longer ones. This accessory is designed to be usedused together with the standard wall bracket included with the cameras.

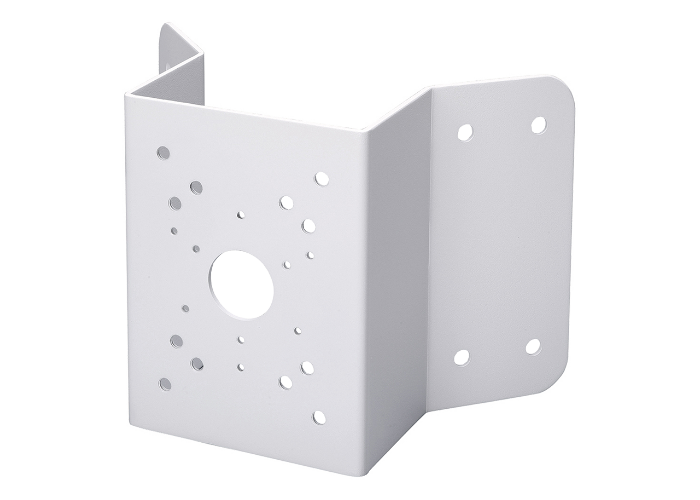

SD-DST5

CORNER MOUNTING BRACKET FOR RL-SD... RJ-SD... SD-D... SPEED DOME CAMERAS

This corner mounting base is suitable for our speed dome cameras, both IP and AHD. You can use this bracket to mount the dome camera on a corner. Although being designed for our speed dome cameras, with a little adjustment of the holes, you can also use this bracket for other motorized or fixed cameras which do not have this dedicated accessory. This accessory is designed to be usedused together with the standard wall bracket included with the cameras.


RH-ST3D RH Series PRO

CEILING MOUNT BRACKET FOR RH-SD... SPEED DOME CAMERAS

This ceiling bracket is suitable for our RH PRO Series speed dome cameras. You can use this bracket, instead of the standard one, if you want to hang the camera to the ceiling. This bracket is made of die-casted aluminum, so it is not effected by rust. It is hollow inside to allow the passage of cables.

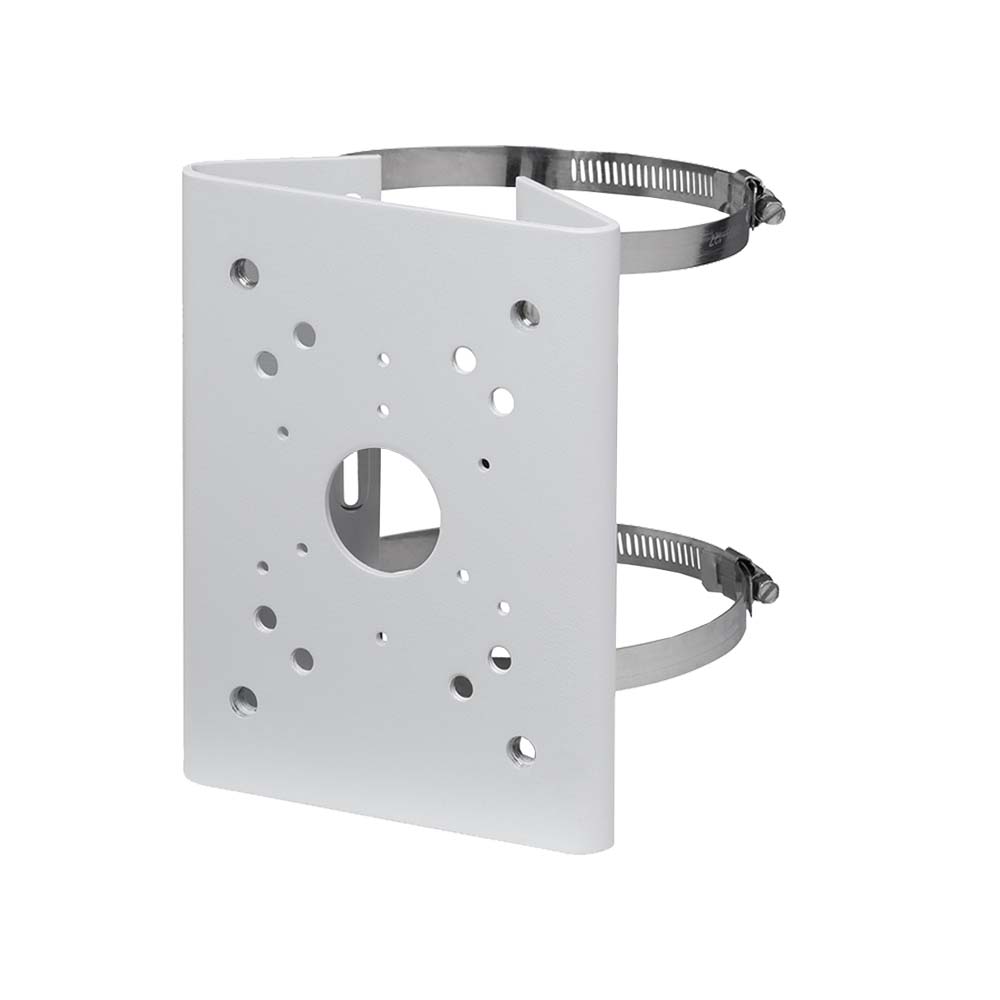

RH-ST4D RH Series PRO

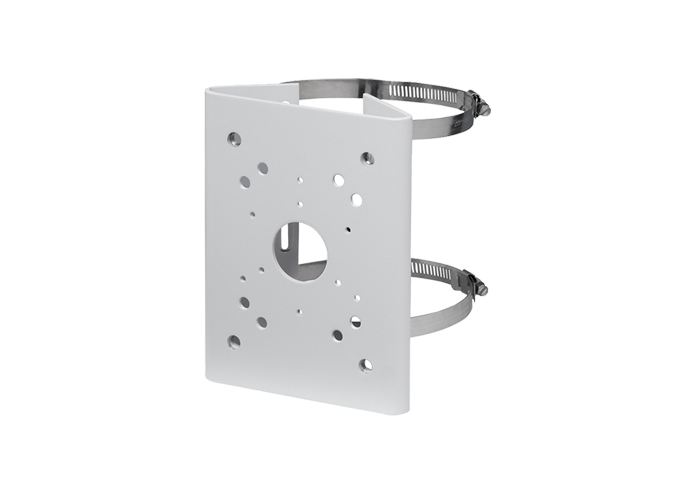

POLE MOUNTING COLLAR FOR RH-SD.. SPEED DOME CAMERAS

This pole mounting base is suitable for our RH PRO Series speed dome cameras. You can use this collar to mount the camera on a round pole. This collar is suitable for poles with a maximum diameter of 15 cm. This accessory is designed to be usedused together with the standard wall bracket included with the cameras.


RH-ST5D RH Series PRO

CORNER MOUNTING BRACKET FOR RH-SD.. SPEED DOME CAMERAS

This corner mounting base is suitable for our RH PRO Series speed dome cameras. You can use this collar to mount the camera on a corner. This accessory is designed to be usedused together with the standard wall bracket included with the cameras.


GENERAL BRACKETS AND HOUSING


Here you will find general purpose brackets and housing, easy to adapt to all security cameras




RE-C3 with RE-ST2/RE-ST2S

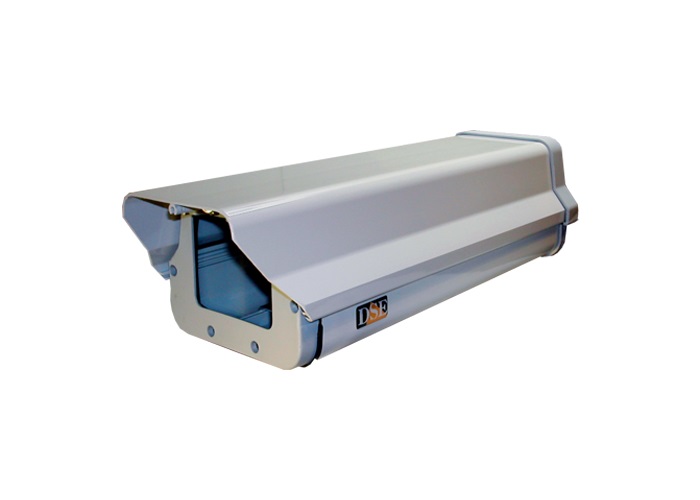

WATERPROOF HOUSING FOR BOX CAMERAS WITH BRACKETS

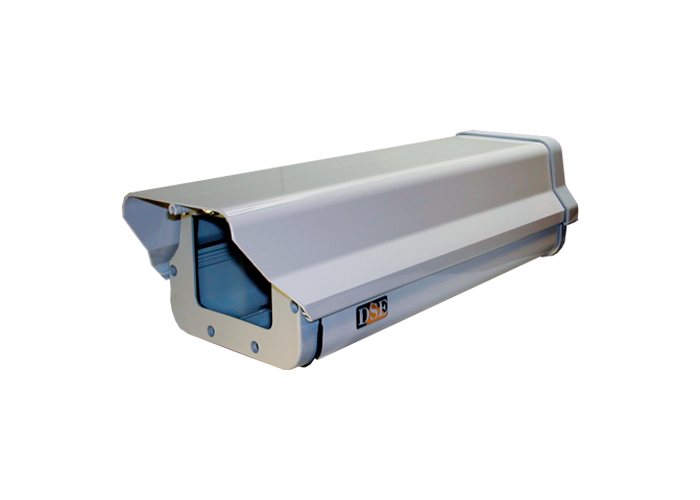

This waterproof casing for CCTV is suitable for all box type cameras to be installed outdoor. You can also use it to contain and protect any other types of video and photo cameras. This casing is made of aluminum and is waterproof IP65. It is air-conditioned, because, in addition to the track for the camera, it also contains a 12VDC heater and fan which automatically switches on when necessary, based on the internal temperature of the container. The lid is hinged and tilting, for easy access to the components inside.

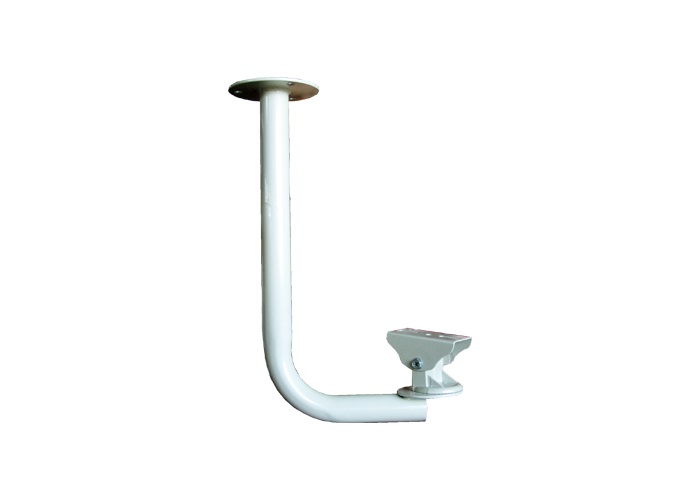

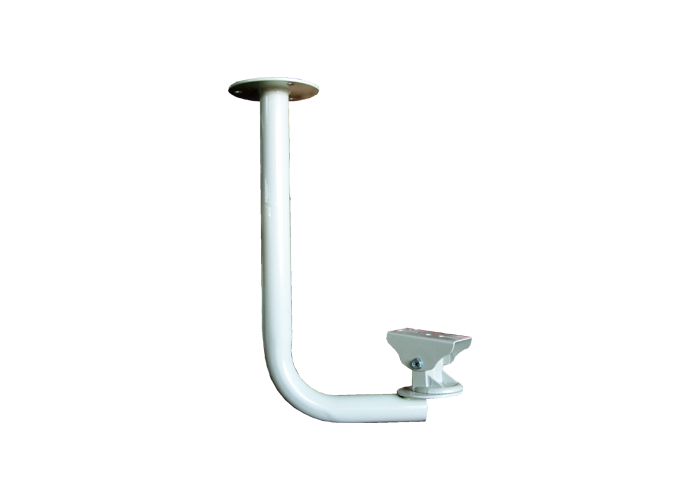

To install the housing, you can purchase the RE-ST2 wall bracket or the RE-ST2S ceiling bracket separately. These robust aluminum brackets can also be purchased without the casing, to install other devices.

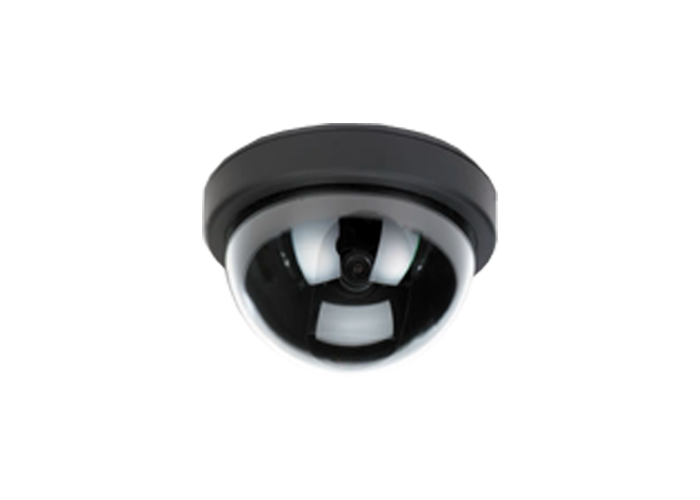

RE-C5S WITH RE-ST6

MINI DOME HOUSING FOR INDOOR WITH BRACKET

This mini dome housing for indoor is suitable for all mini cameras, both IP and AHD. It is very small, so it is ideal in many indoor environments where a larger camera would be out of place. The housing is made of plastic and is suitable for indoor installation only. It can also contain our wifi mini-cameras, because the plastic cover does not shield the antenna. This housing is equipped with an external transparent globe and a black inner cover which serves to make the inside of the case not visible from the outside. This makes it difficult to guess the shooting direction of the camera.

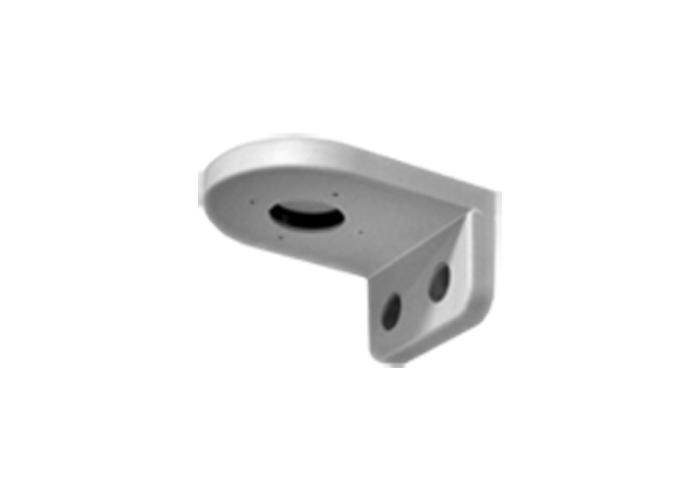

You can mount this casing directly on the ceiling or on the wall. If you prefer the "lantern" style, you can buy the RE-ST6 wall bracket separately.


RE-C5

DOME HOUSING FOR INDOOR

This mini dome housing for indoor is suitable for all mini cameras, both IP and AHD. It is bigger then the mini dome RE-C5S, so it is also suitbale for other devices, bigger than mini cameras. The housing is made of plastic and is suitable for indoor installation only. It can also contain our wifi mini-cameras, because the plastic cover does not shield the antenna. This housing is equipped with an external transparent globe and a black inner cover which serves to make the inside of the case not visible from the outside. This makes it difficult to guess the shooting direction of the camera. This casing support wall or ceiling direct mounting.


RE-C5B WITH RE-ST6B

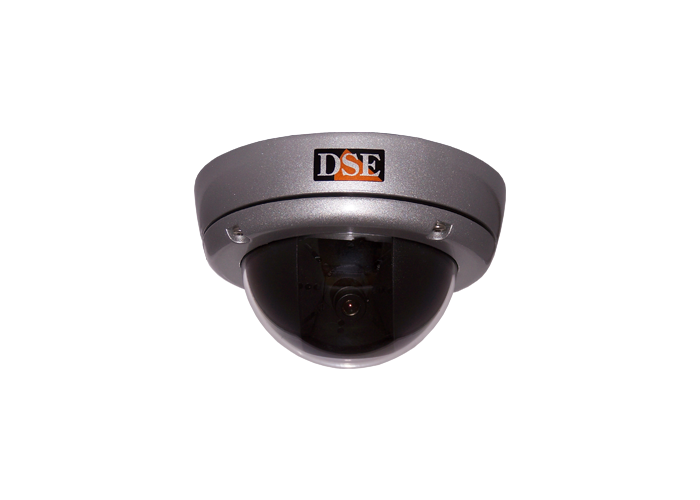

VANDAL-PROOF DOME HOUSING FOR OUTDOOR WITH BRACKET

This dome housing for outdoor is suitable for all mini cameras, both IP and AHD. It is water-proof IP66 and vandal-proof IK10. This housing is made of strong die-casted aluminum and polycarbonate. It is equipped with an external transparent globe and a black inner cover which serves to make the inside of the case not visible from the outside. This makes it difficult to guess the shooting direction of the camera.

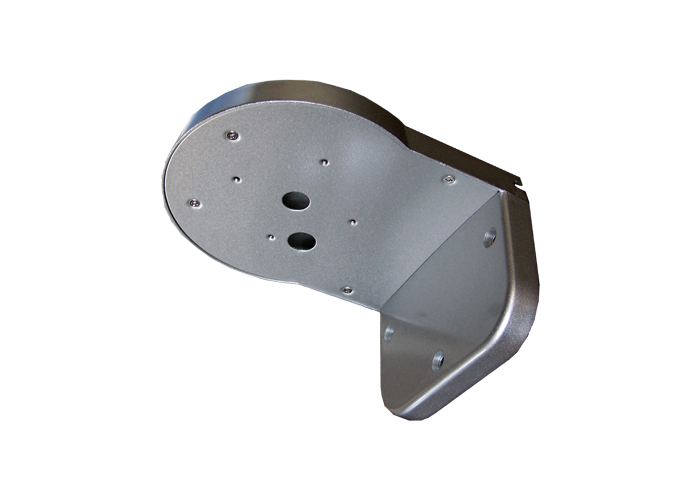

You can mount this casing directly on the ceiling or on the wall. If you prefer the "lantern" style, you can buy the RE-ST6B vandal-proof wall bracket separately.

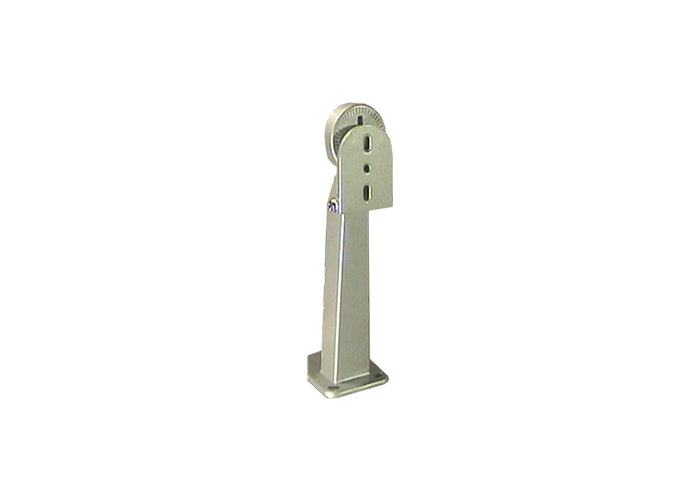

RE-ST1L

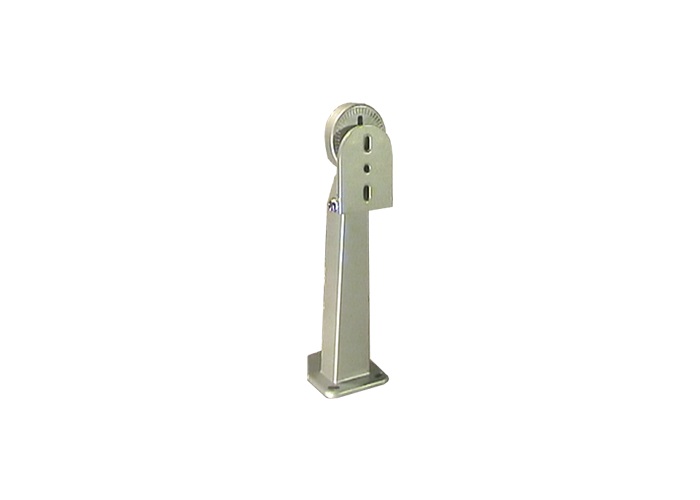

WALL BRACKET FOR BOX CAMERAS

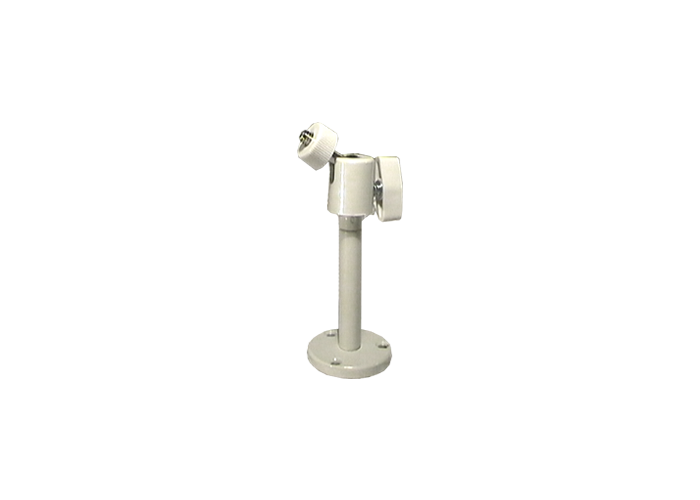

This wall mounting bracket is suitable for all classic box type cameras. It is made of painted aluminum. It is equipped with swivel joint and is 16 cm long, with a maximum load of 3Kg.


RE-ST3

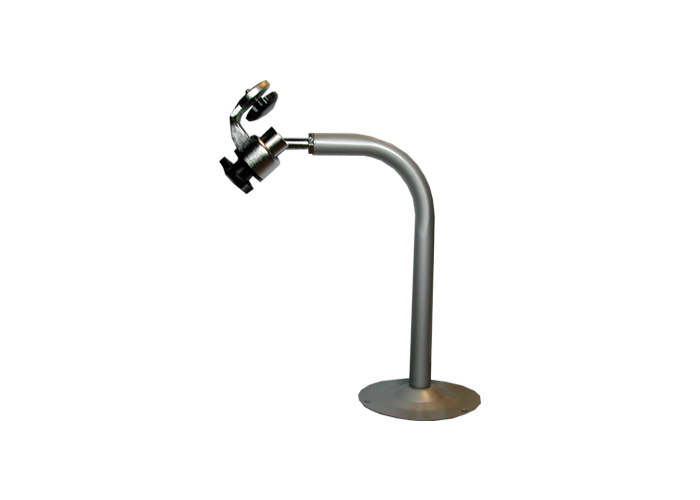

WALL/CEILING BRACKET FOR BOX CAMERAS

This wall/ceiling mounting bracket is suitable for all classic box type cameras. It is made of painted aluminum. It is equipped with swivel joint and provides 22 cm space from the surface and 18 cm. heigth. Maximum load is 5Kg.

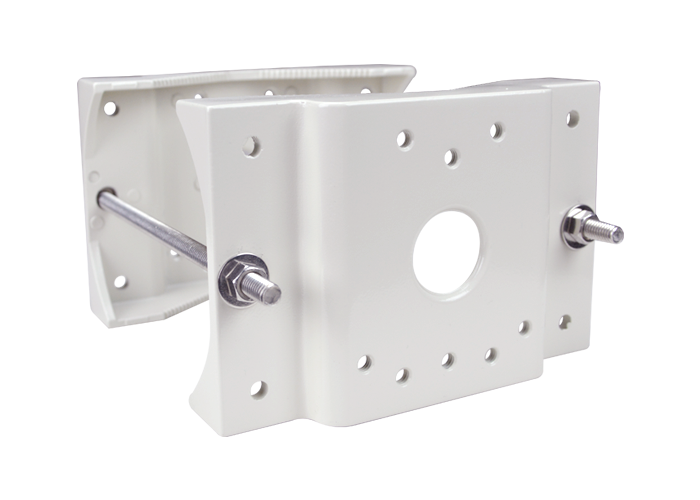

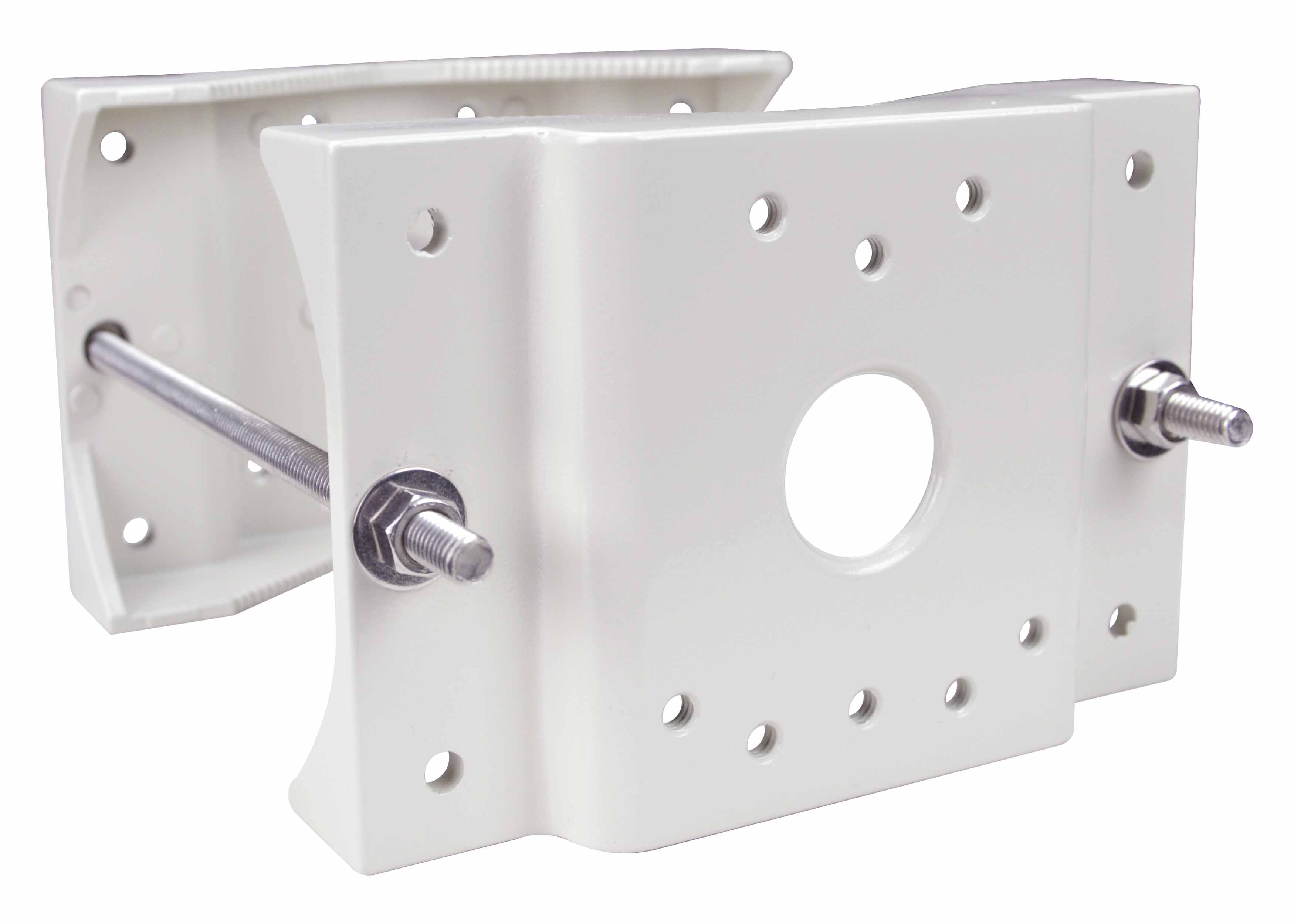

RE-ST5

POLE COLLAR FOR CAMERAS

This bracket is suitable for all pole mount cameras. You can use it for all cameras that do not have this dedicated accessory. The mounting plate come with the most common fixing holes, but you can easily practice those required by your camera. This pole collar is made entirely of painted aluminum and is suitable for poles with a maximum diameter of 14 cm.


RE-BCC56BA

DEEP BASE FOR CAMERAS

This bracket is suitable for all cameras and is useful to keep more distance from the wall . You can use it for all cameras that need to be moved away from the fixing surface to obtain a better shooting angle. The base come with the most common fixing holes, but you can easily drill those required by your camera. It is made entirely of aluminum and you could paint it in the color of the wall for an excellent aesthetic result.
