VGA video converters - transmitters


With these VGA modules you can connect a BNC camera to a VGA monitor as well as get a BNC output from DVR that do not have it. With VGA transmitters you can connect a monitor far from your DVR.

VGA CONVERTERS & TRANSMITTERS


BNC TO VGA CONVERTER

RE-DV4
RE-BNCVGA

BNC to VGA converter for CVBS video

VGA TO BNC CONVERTER

RE-VGABNC
RE-VGABNC

VGA to BNC converter for CVBS video

VGA TRANSMITTER

RE-VGARJ2
RE-VGARJ2 1080P

VGA transmitter and receiver for UTP cable 50 m. range

VGA CONVERTERS

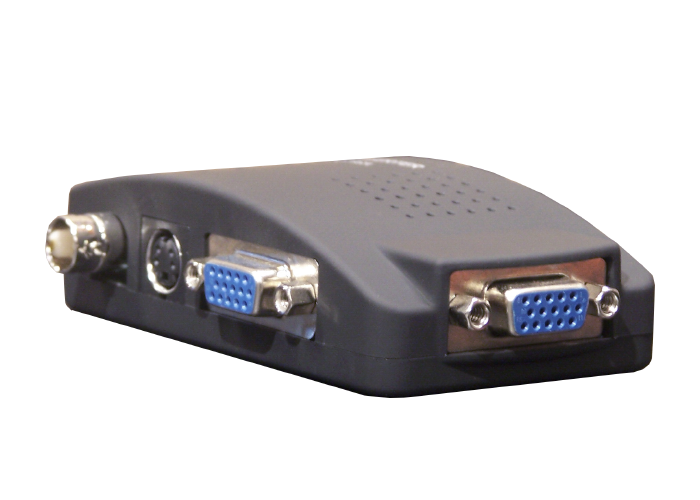

RE-BNCVGA

BNC-VGA converter for CVBS

This converter is used to convert CVBS analog video signal to VGA. You can use it to connect any analog camera directly to a monitor, without going through a DVR. The product is equipped with a BNC (or S-Video) input for the camera and provides up to 1920x1200 VGA output for connecting a PC monitor. In addition, an auxiliary VGA input is also available to connect another video source, like a computer for example. If you connect two video sources to this converter you can switch the source with a pushbutton or enjoy PIP (picture-in-picture) view to display the second video source in a window on the screen. 5VDC power adapter and VGA cable are included.

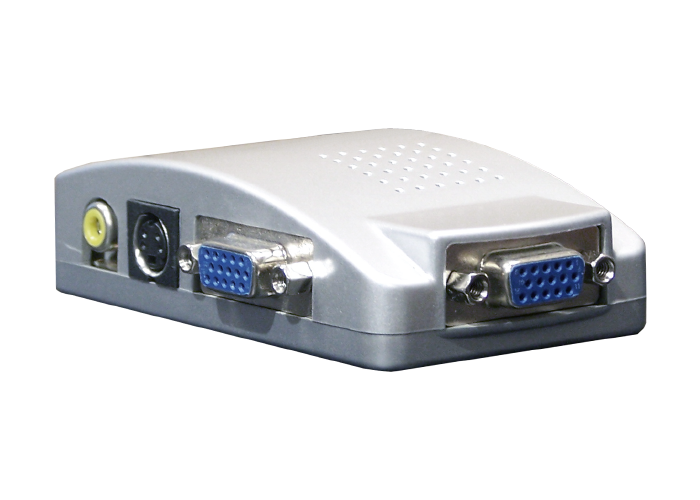

RE-VGABNC

VGA-BNC CVBS converter

This converter is used to convert a VGA video signal to CVBS analog video. You can use it for DVR / NVR, which normally come with VGA monitor output. Transforming the VGA monitor output into CVBS can be useful for connecting a small monitor with analog input carrying the video signal even very far, over coaxial cables or twisted pair.
The product is equipped with a VGA input to be connected to the video source and an analog RCA (or S-Video) output. All video resolutions up to 1920x1080 are included. This device also works as a splitter because it comes with an auxiliary VGA output to connect, for example, a local VGA monitor. 5VDC power supply (power adapter not included). USB, VGA, RCA cables included.


VGA TRANSMITTERS

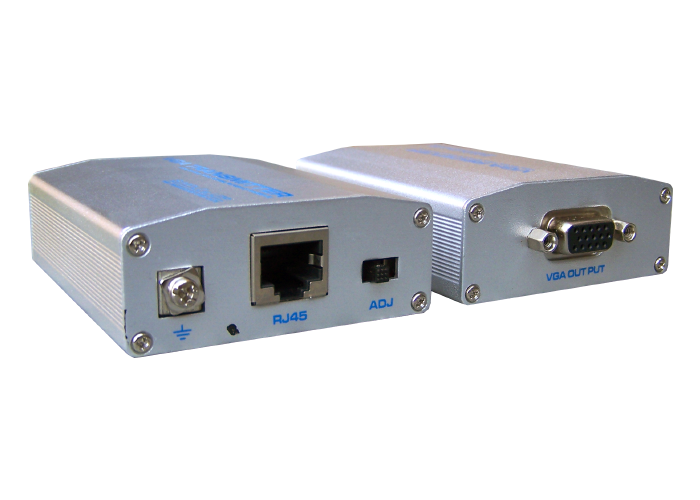

RE-VGARJ2

VGA transmitter and receiver over UTP ethernet cable

This transmission system, consisting of transmitter and receiver, allows you to carry the VGA video signal over UTP network cable up to a maximum distance of 50 meters . It is useful for connecting the monitor far from the NVR / DVR, considering that the VGA cable cannot be longer than a few meters. The maximum distance of the cabling depends on the resolution of the VGA signal: 1024x768: 50 m.; 1280x1024: 30 m.; 1600x1200: 20 m.; 1920x1080: 10m. This kit consists of a transmitter, to be placed near the video source and a receiver, which must be placed near the monitor. The two modules must be connected together with a CAT5E UTP network cable. Both elements require no power. Dimensions: 69x90x26 mm. Weight: 118 gr. per unit. The kit includes a VGA cable.
