POE Injectors, POE Splitters, POE transmitters over coax


All the accessories you need to wire POE IP cameras

POE INJECTORS AND SPLITTERS


POE
INJECTOR

IP outdoor onvif camera

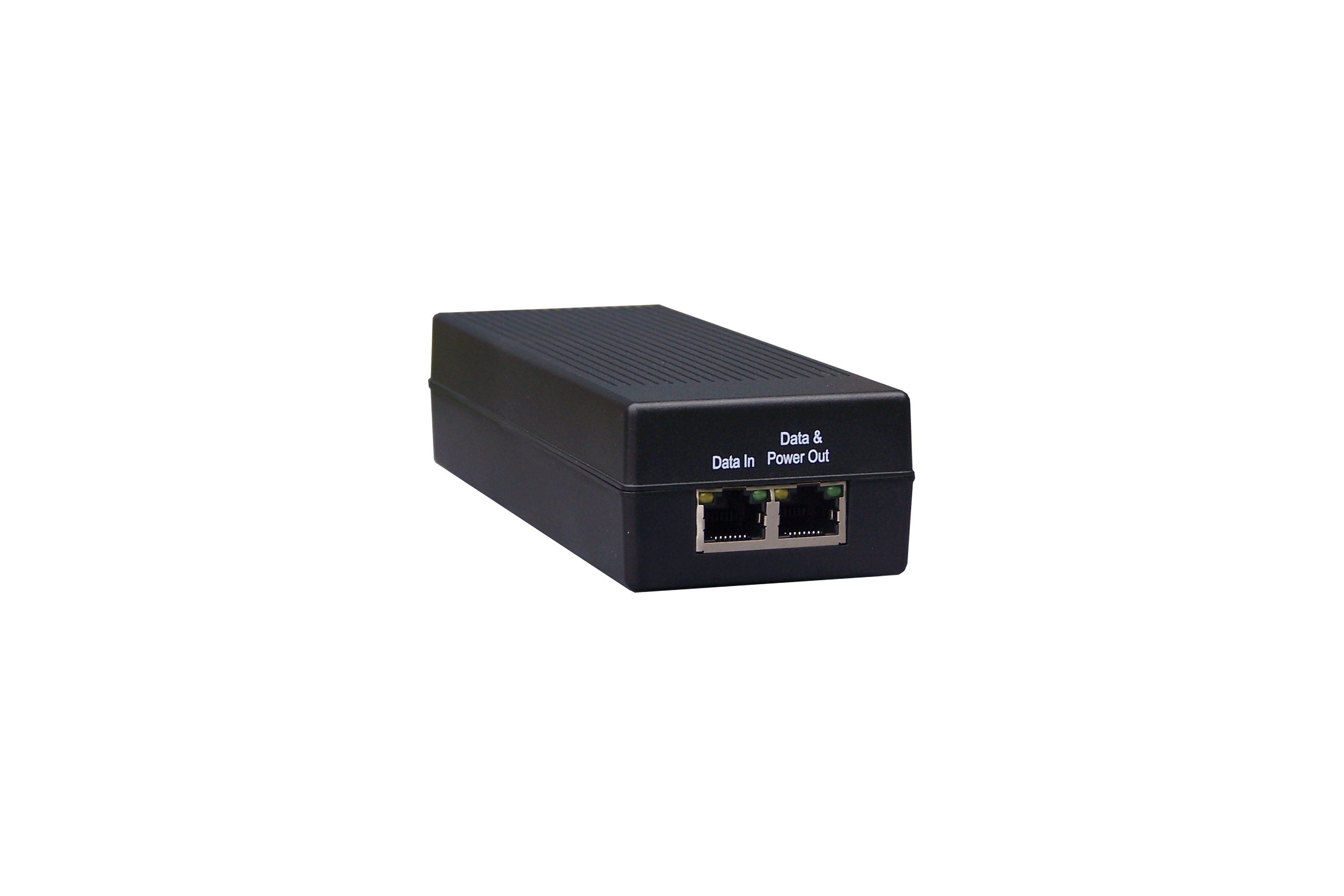

IN-POE1

This injector add POE power supply to a line that does not have POE. Useful when your switch has no POE ports.

POE
SPLITTER

IP outdoor onvif camera
IN-POE-SP3

This splitter gets 12VDC power out of a POE line. Useful to power non-POE cameras.

12VDC
INJECTOR+SPLITTER

Telecamera IP esterno onvif

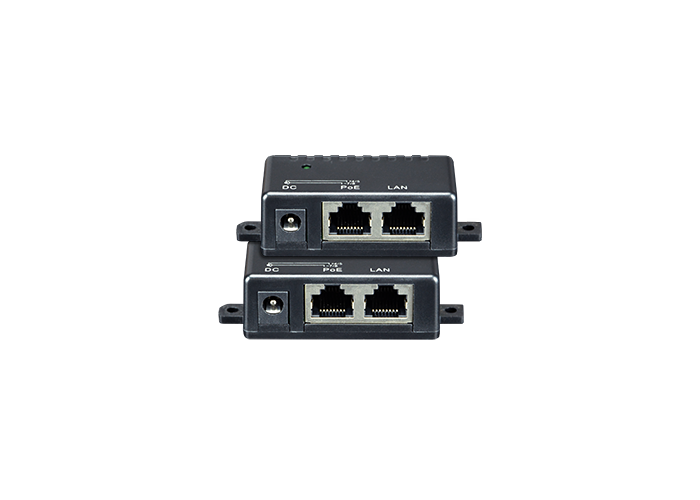

IN-POE-SP1

This device inject and conduct 12VDC power supply along the network cable. Useful for non-POE switch and non-POE camera.

POE TRANSMITTERS OVER COAX


POE TRANSMITTER
OVER COAX 2 BNC

POE TRANSMITTER
IN-POE-CX1

Useful to wire IP cameras with RG59 coaxial cables. 2 BNC channels.

POE TRANSMITTER
OVER COAX 4 BNC

POE TRANSMITTER
IN-POE-CX4

Useful to wire IP cameras with RG59 coaxial cables. 4 BNC channels.

POE INJECTORS AND SPLITTERS

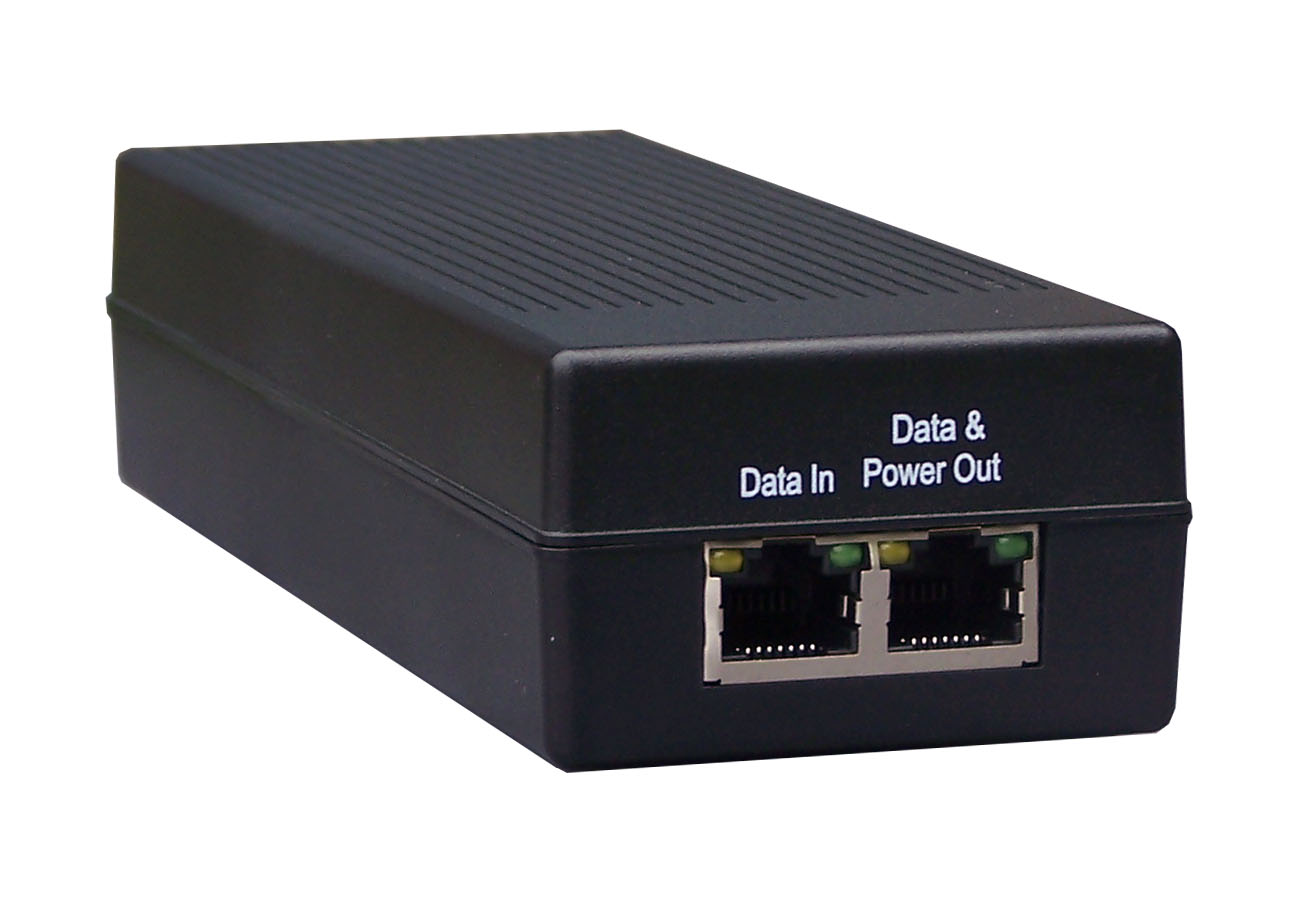

IN-POE1

POE injector

If your switch is an ordinary computer switch, or a router, probably has no POE ports. If you want to connect an IP camera, without using power adapters, you can buy this POE injector which, "injects" POE power into a line that does not have it. These POE injectors have two RJ45 network ports. The network gets in without power supply, through the input port, and comes out with POE power, towards the camera . These injectors support both 10/100 and 10/100/1000 network and provides IEEE802.3af / 3at POE power up to 30W for all cameras, including PTZ cameras. Each injector must be connected to the 220V mains with the cable included.


IN-POE-SP3

POE splitter

Due to the small size, some of our IP mini-cameras cannot include the POE circuit and must be powered at 12VDC with an external power adapter. If the camera does not support POE power supply, you can still power it from a POE line using a SPLITTER. The POE splitter is a small unit that does not require its own power supply and is placed near the camera. It receives the network with POE power supply and provides the cameras with the non-POE network and a separate 12VDC plug. The splitter supports 10/100 lines and is suitable for all of our fixed cameras. You can't use it, however, with motorized cameras due to high power consumption.

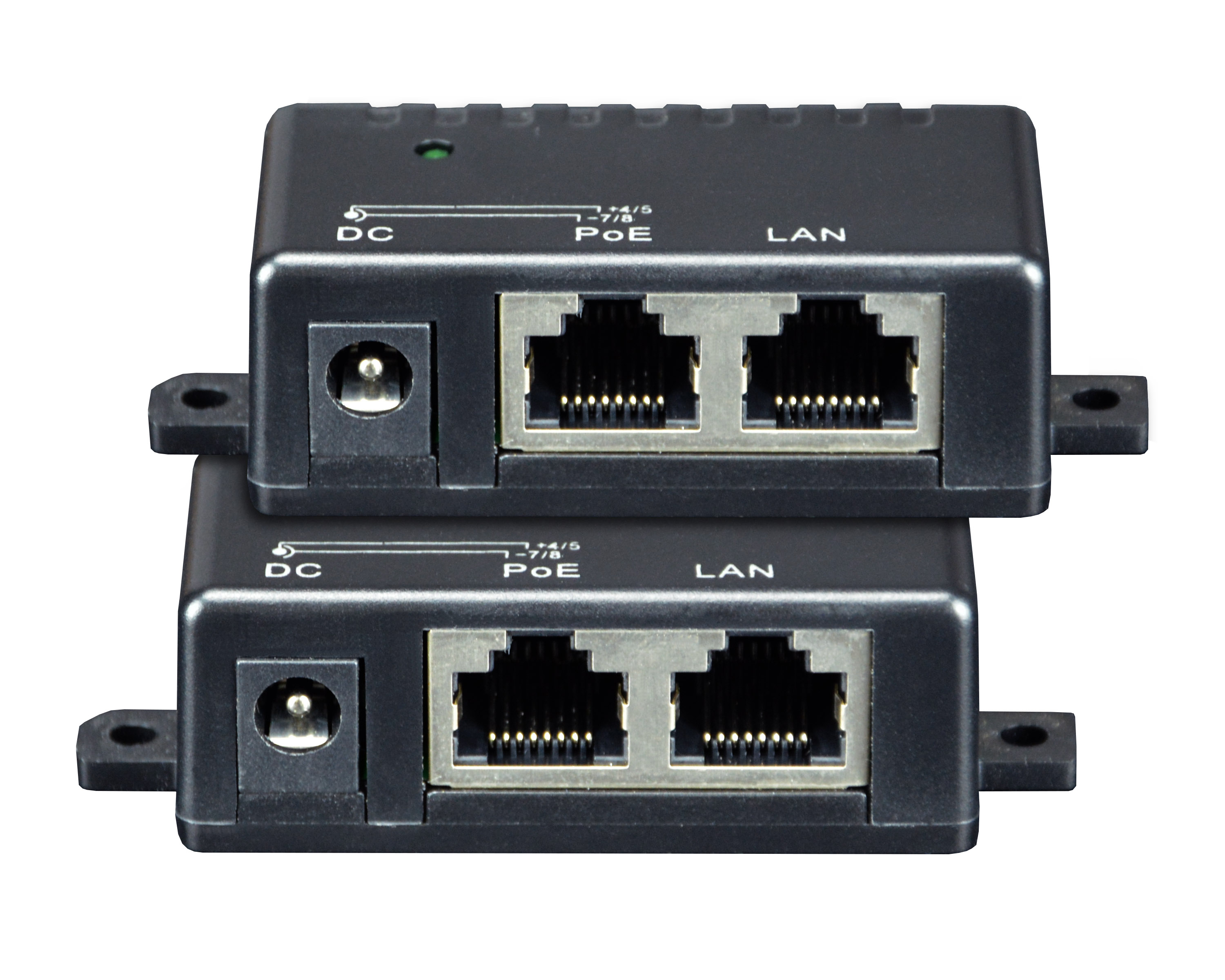

IN-POE-SP1

12VDC injector + splitter

If neither your switch nor your camera support POE power, you should power the camera with a separate 12VDC power adapter. If you want, you can carry the 12VDC power supply together with the data, along the network cable with our 12V Injector-Splitter. This product is made of two identical blocks that must be wired at both end of the cable. Each block has a DC plug and 2 RJ45 ports to connect the passing-through network cable. You must connect a 12VDC power adapter to the upstream block while the block close to the camera is suppling power to the device. The power adapter is not included and you can choose one from our power adapters.


POE TRANSMITTERS OVER COAX


IN-POE-CX1 and IN-POE-CX4

POE Injector + Transmitter on coaxial cable

Do you have to wire an IP camera with a coaxial cable? It's a quite frequent scenario when you need to upgrade an old analog CCTV system to IP technology. The best product to wire IP cameras over coax are our POE transmitters over coax. With these transmitters you can send LAN and POE power over a standard RG59 coaxial cable, as it was an Ethernet cable. You need 2 of these modules to wire an IP camera, one on each side of the coax. Only one of the 2 modules needs power, and you can choose between 12VDC and 52VDC. If you supply 12VDC power, then the transmitter will transfer LAN only and you must power the cameras separately. If you provide 52VDC power, then the transmitter will transfer POE power to the camera. These modules are available with 2 or 4 BNC ports in order to allow you to spread your network over coax. For example, you could reach one place with a LAN cable and install there a 4 port module. From there, with 4 coax, you could reach 4 modules with 2 ports and connect 4 IP cameras. There is nothing better to re-use old coaxial wiring with IP cameras. Please note that 12V or 52VDC power adaptors ar not included. See here our range of power adaptors.


TECHNICAL DATA


INJECTOR - SPLITTER
TRANSMITTERS

CODE IN-POE1 IN-POE-SP3 IN-POE-SP1 IN-POE-CX1 IN-POE-CX4
Description POE injector POE splitter 12VDC injector + splitter POE injector + transmitter over coax POE injector + transmitter over coax
SETUP
Ethernet ports 1 x 10/100/1000 1 x 10/100 1+1 x 10/100/1000 1 x 10/100 1 x 10/100
Network connectors RJ45 RJ45 RJ45 RJ45 RJ45
BNC ports 2 4
Accessories included AC cable - TX and RX module, DC cable for camera - -
SPECIFICATIONS
POE standards IEEE 802.3af / 3at (POE+) IEEE 802.3af / 3at (POE+) IEEE 802.3af / 3at (only with 52VDC power) IEEE 802.3af / 3at (only with 52VDC power)
Max. power per port POE 30W 12VDC 1A 12VDC (power depends on power adapter) POE 30W POE 30W
Wiring range 100 m. 100 m. 30 m. between the two modules 100 m. between the two modules (2500 m. without POE) 100 m. between the two modules (2500 m. without POE)
GENERAL DATA
Casing ABS ABS ABS ABS ABS
Degree of protection IP40 IP40 IP40 IP40 IP40
Operating temperature 0-40°C Humidity 10%-90% 0-40°C Humidity 10%-90% 0-40°C Humidity 10%-90% 0-40°C Humidity 10%-90% 0-40°C Humidity 10%-90%
Power supply 110/240VAC 50/60Hz Not required 12VDC to one module 12VDC (LAN only) or 52VDC (LAN with POE) 12VDC to one module (LAN only) or 52VDC (LAN with POE)
220V adaptor included Not required Not required
Dimensions 160x60x36 mm. 70x30x20 mm. 50x25x35 mm (each module) 115x54x22 mm. 134x81x24 mm.
Weight 300 gr 220 gr. 100 gr. 78 gr. 154 gr.

Q & A


What is included?

See all the accessories supplied with the products in the TECHNICAL DATA table

What is the price?

You can find the prices of our products in the Online Price List or in the CCTV STORE, our e-commerce portal.
