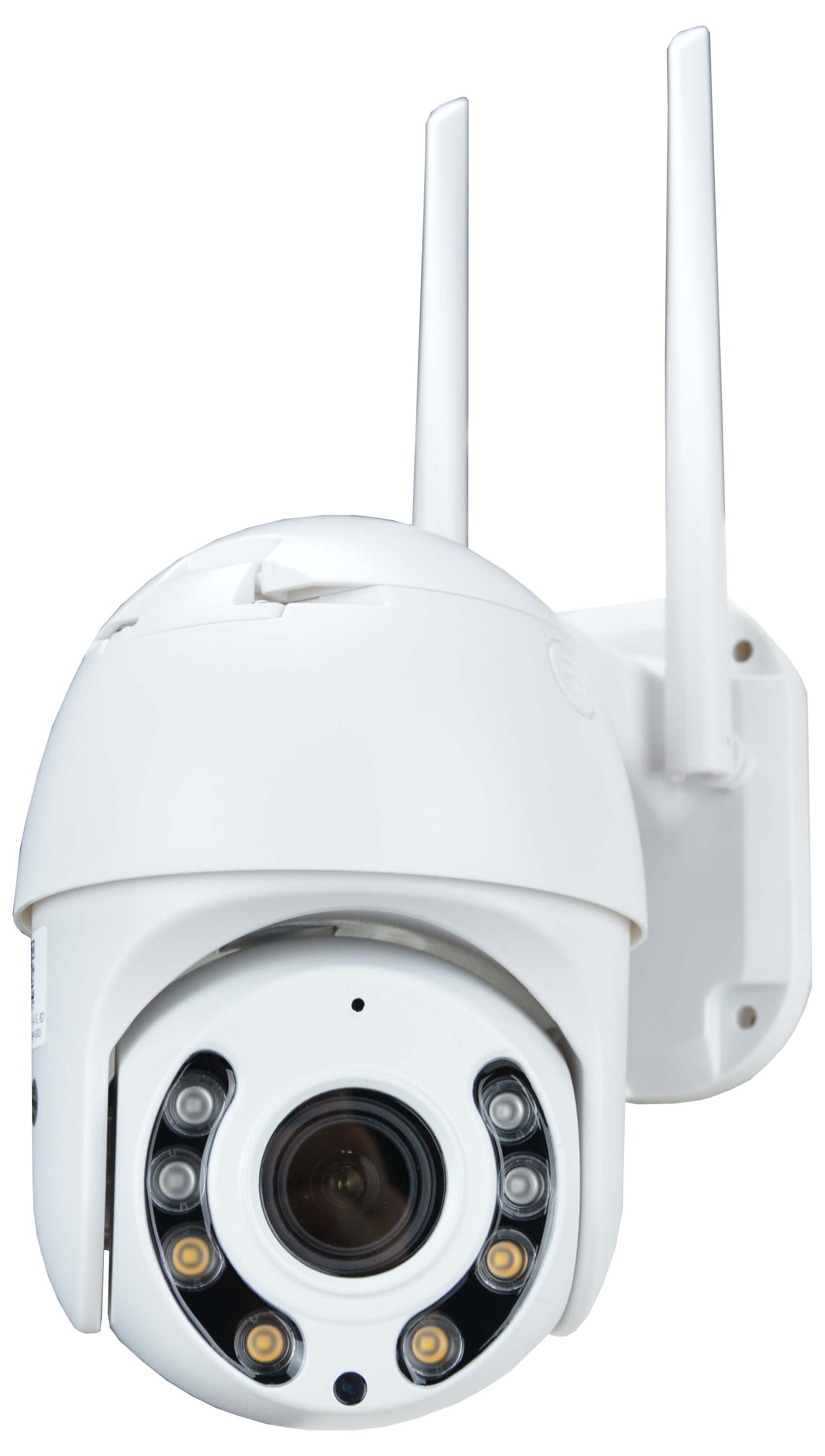

WIFI PTZ CAMERAS

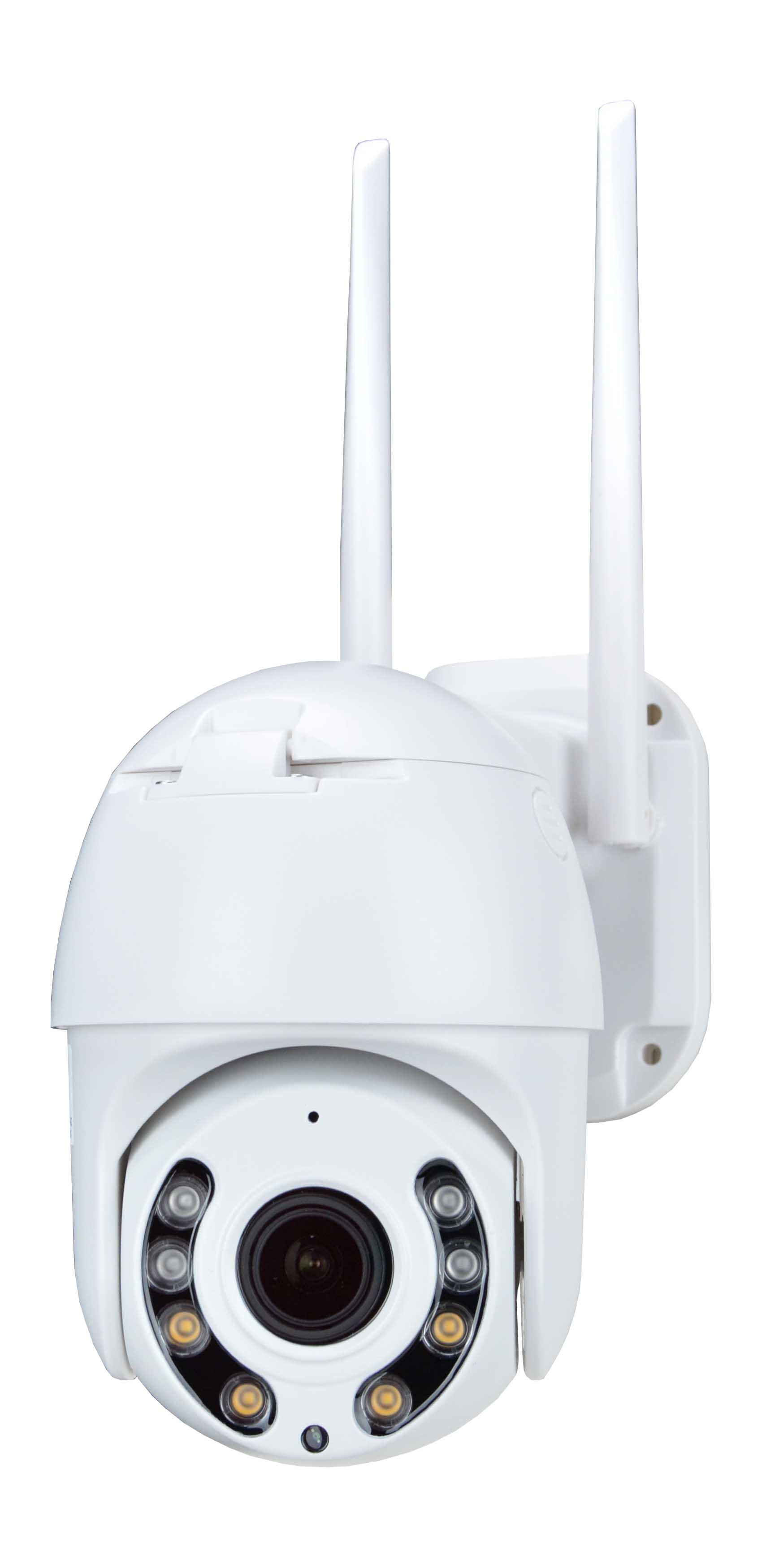

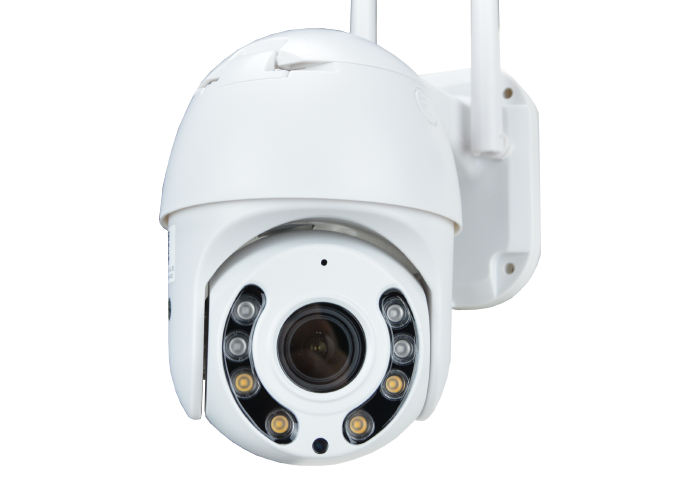

WIFI MINI SPEED DOME
20X ZOOM

Outdoor onvif IP camera
RL-SDM20 2MP

Waterproof outdoor casing Pan Tilt Zoom motorized camera 60°/sec rotation speed 60 m SmartIR infrared illuminator 20x zoom lens Motorized zoom lens Autofocus lens Infrared Cut Filter H264 and H265 video compression

THE WIRELESS PTZ


Motorized IP cameras for WiFi network

The cameras in this range are wireless motorized cameras, that you can connect to your WiFi network. You can install these wifi speed dome cameras wherever you like just plugging-in the power adapter. To use these cameras you need to have a wifi network, the one you connect to with your mobile phone. These cameras also have a hard-wired network port in case you prefer traditional wiring.


300 m. range WiFi transmitter

All IP cameras in this range have a built-in WiFi transmitter that you can connect to your WiFi network. A basic WiFi network is generated directly from your Internet router. If your router cannot cover the whole area, you can extend your wifi network with additional Hot spots. The wifi range of these cameras, in open air, gets up to 300 meters. Indoor, with walls and obstacles, you can cover 4-5 rooms.


Discover the benefits of IP wireless cameras

One of the main advantages of IP technology over traditional analogue technology (today AHD) is the ability to connect wireless cameras using WiFi. You can use these WiFi cameras to build a fully wireless CCTV system or you can use them together with other wired IP cameras. The video signal of our WiFi cameras is perfectly stable and reliable. Once you have set up your system you will not be able to notice any difference between the cameras that you have connected via cable and the wireless ones. . You can connect these cameras to your wifi network or directly to WiFi NVRs , which we use to make our wifi plug and play kits. Check out the the video tutorial here on the side to see how easy it is. Below you can see the layout of a small IP system, partly wired and partly wifi.

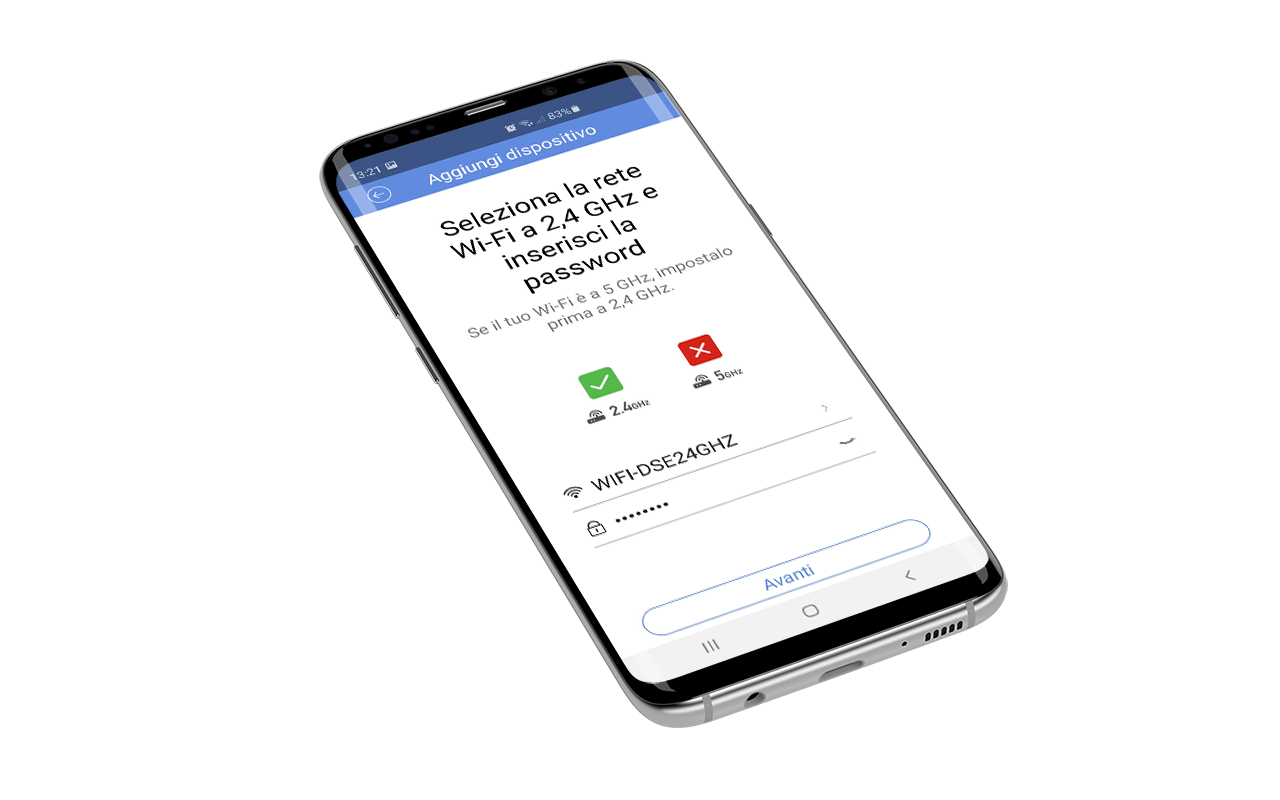

WiFi auto-configuration with app

These motorized WiFi cameras are very easy to install because they support auto-configuration via app. Unlike all our other wifi IP cameras, these cameras do not require to be initially connected with wires, becuase you can link them straight to your local wifi with just a few taps on your smartphone. All you have to do is joining the wifi hotspot that the camera generates by default, search for your local wifi network and enter the password. In just a few seconds you are ready to use your new PTZ wifi camera and reach it through the Internet.


VIDEO


High 2 Megapixel video resolution

The motorized IP cameras of this WiFi series assure Full HD video resolution. 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and meets the needs of most security systems. It is ideal for wireless cameras because it provides good video quality still requiring very little bandwidth. Here below you can download a short demo clip in FullHD.

2MP VIDEO

DSE is an ONVIF member

You can buy your IP products from us with confidence. DSE is one of the few companies in Italy that is a member of the ONVIF international association, which includes all the main IP security manufacturers and set the standard of communication protocols in this field. Our IP products, perfectly suits the latest ONVIF standard, so you can use our cameras with all NVR, of any brand. The ONVIF protocol also includes all PTZ commands, so you can control our PTZ IP cameras with any Onvif-compliant control device.


H264 and H265 video compression

Our IP motorized cameras support H264 H265 video compression, including the latest upgrades, in order to combine high quality video stream and low bandwidth consumption. These cameras can manage 2 VIDEO STREAMS with different compressions and resolutions, that you can choose from the client device. Choose the well-established H264 format for maximum compatibility with all NVRs, or use the latest H265 to increase the video storage capacity and minimize the bandwidth. Here on the side you can download two similar clips in H264 and H265 format: please note the different file size.


12VDC power supply

All wifi cameras in this series are equipped with a power plug to connect the 12VDC power adapter included. WiFi cameras are designed to operate without wires, therefore, do not support POE power supply. In the picture aside, you can see the camera terminals, with the 12V power plug and the RJ45 network port.


SMART IR infrared illuminator with ICR

To be able to shoot even in total absence of light these PTZ cameras are equipped with infrared LEDs that provide invisible long range night lighting up to 60 meters. Thanks to the Smart IR technology, the LED power adapts to the distance of the subject avoiding overexposure in close-ups. The cameras in this range are equipped with 4 42μ High Performance Superflux LEDs that provide a high illuminating power while maintaining a relatively low power consumption. The LEDs turn on automatically below 10 lux. In night mode the camera records in Black White thanks to a mechanical removal mechanism of the IR filter (ICR). If you want, you can set the camera to work only in color mode, excluding the infrared night function.


Mirror, WDR, BLC, DNR, AGC

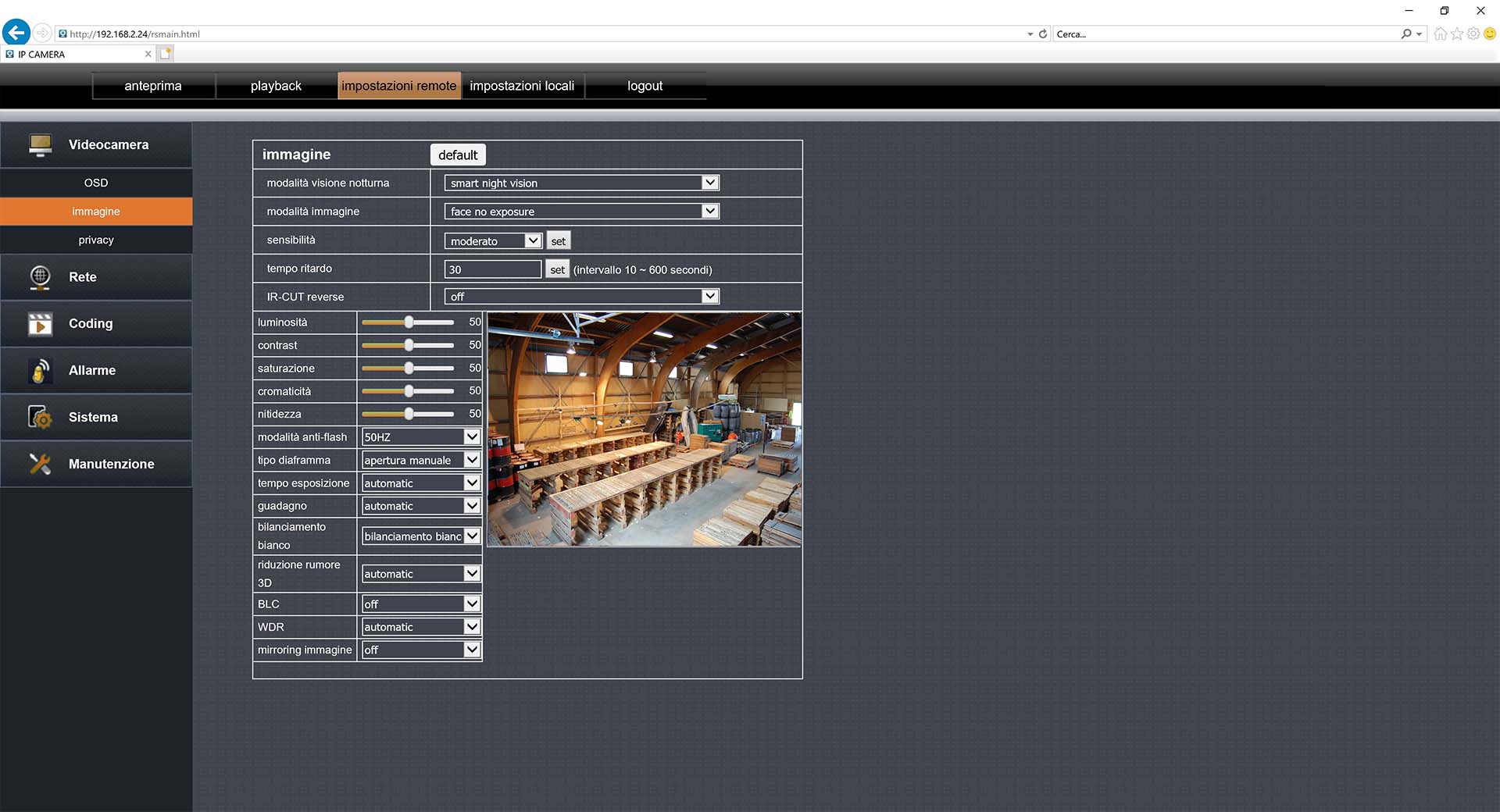

These mini IP WiFi speed dome cameras have many advanced settings. With the browser you can adjust them to your liking in order to adapt the camera to your needs. You can adjust the image and rotate it, with the MIRROR functions, in order to suit the area to be monitored. The WIDE DYNAMIC RANGE (WDR) function is useful if you shoot bright areas together with darker areas. With the BLC you can enhance dark subject on a bright background. The AGC and DIGITAL NOISE REDUCTION functions allow you to improve recording in difficult conditions with poor visibility.


Motion detection and privacy masks

All cameras in this range have the MOTION DETECTION function, that allows you to detect intrusions in the camera's field of view. The PRIVACY masks are used to obscure parts of the video in order to respect other people privacy. Please note that in order to use these functions, the PTZ camera must be kept still.


20x motorized zoom

These IP mini speed dome cameras come with a motorized zoom lens that you can control remotely. It grants you 20x optical magnification. The zoom lens is equipped with autofocus to automatically focus on subjects at any distance. Be very careful if you compare our speed dome cameras with others on the market because it is unfortunately very common that low-profile dealers shows false zoom values in the OSD in order to sell 18X zoom lenses as they were 30x.


PAN TILT ZOOM

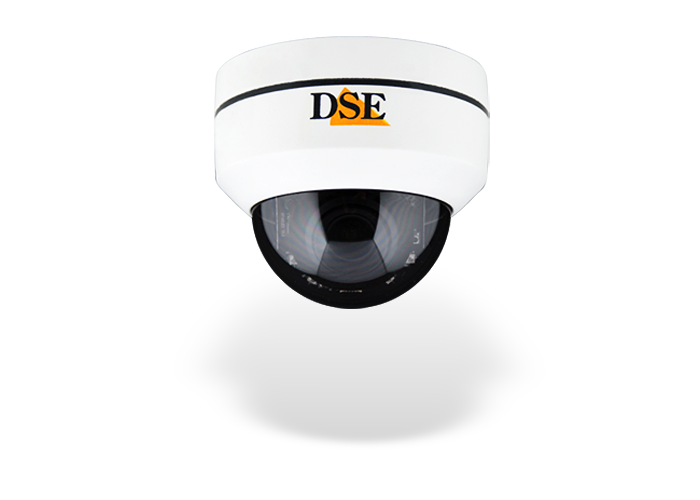

IP67 protection and Black Glass

All RW cameras are waterproof, with IP67 rating. You can install these camera indoor or outdoor, under the rain. We do not use cheap plastic casings for our RW cameras, but only robust die-cast, fire painted, aluminum enclosures. That's why you can use these cameras anywhere, without worrying about extreme temperature or corrosion. All the cameras in this range come with Black Glass front covers which increase the efficiency of LEDs (about 8% more than normal glass) and reduce the attraction of insects at night.

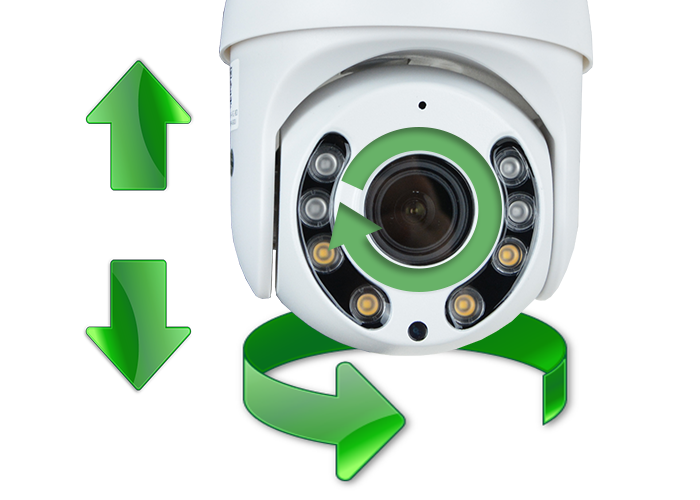

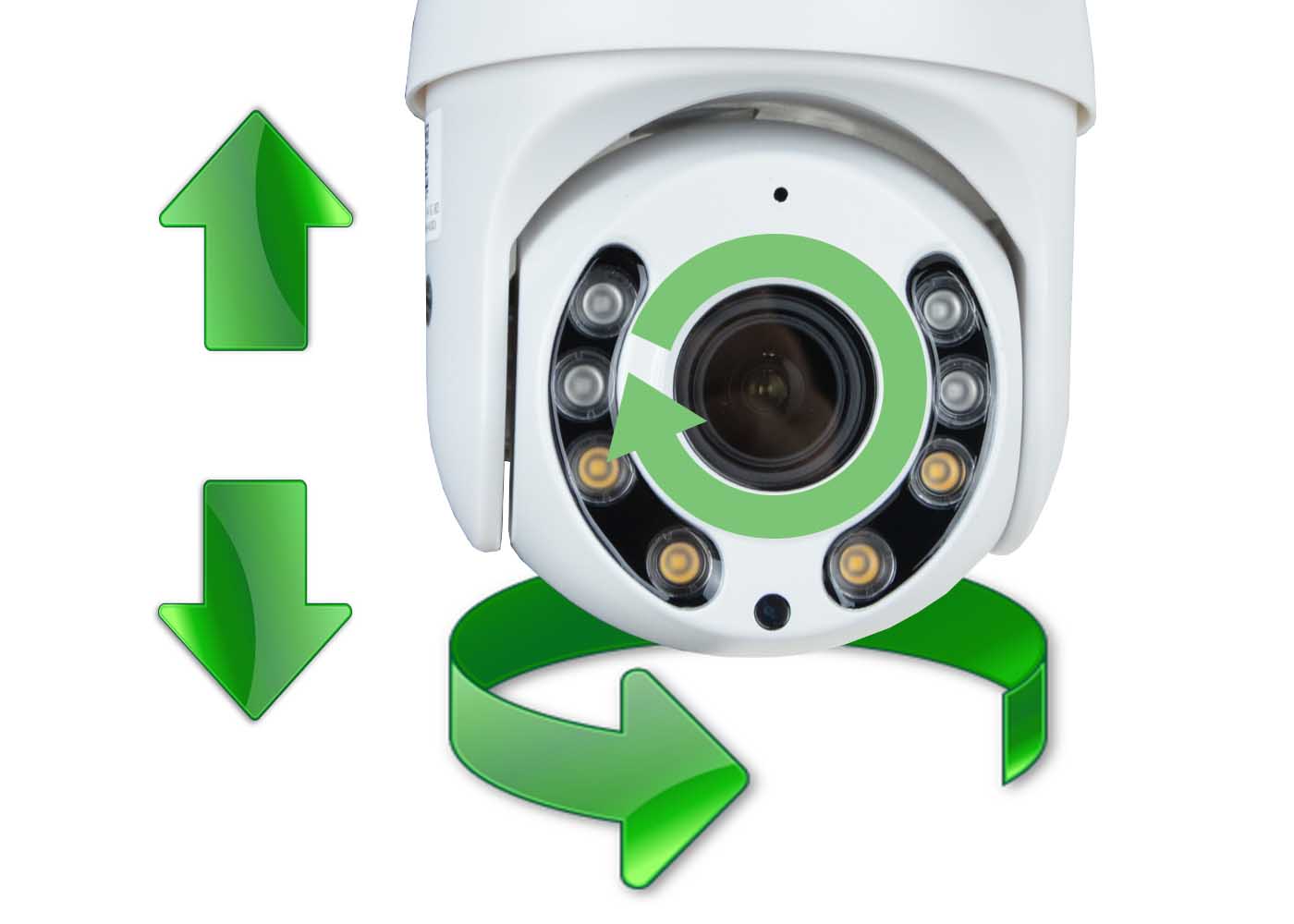

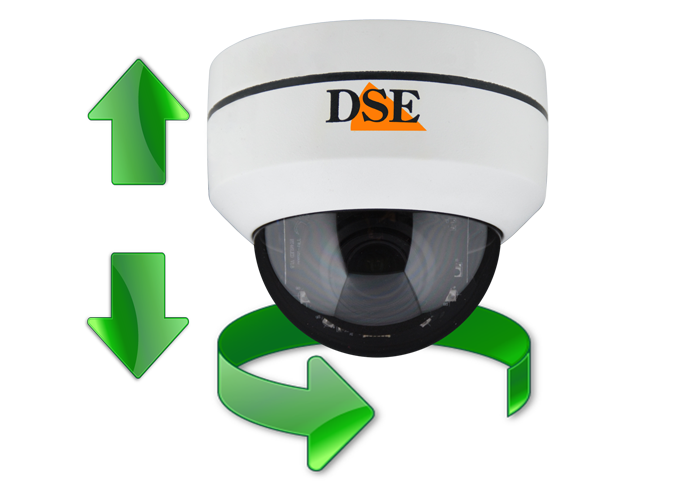

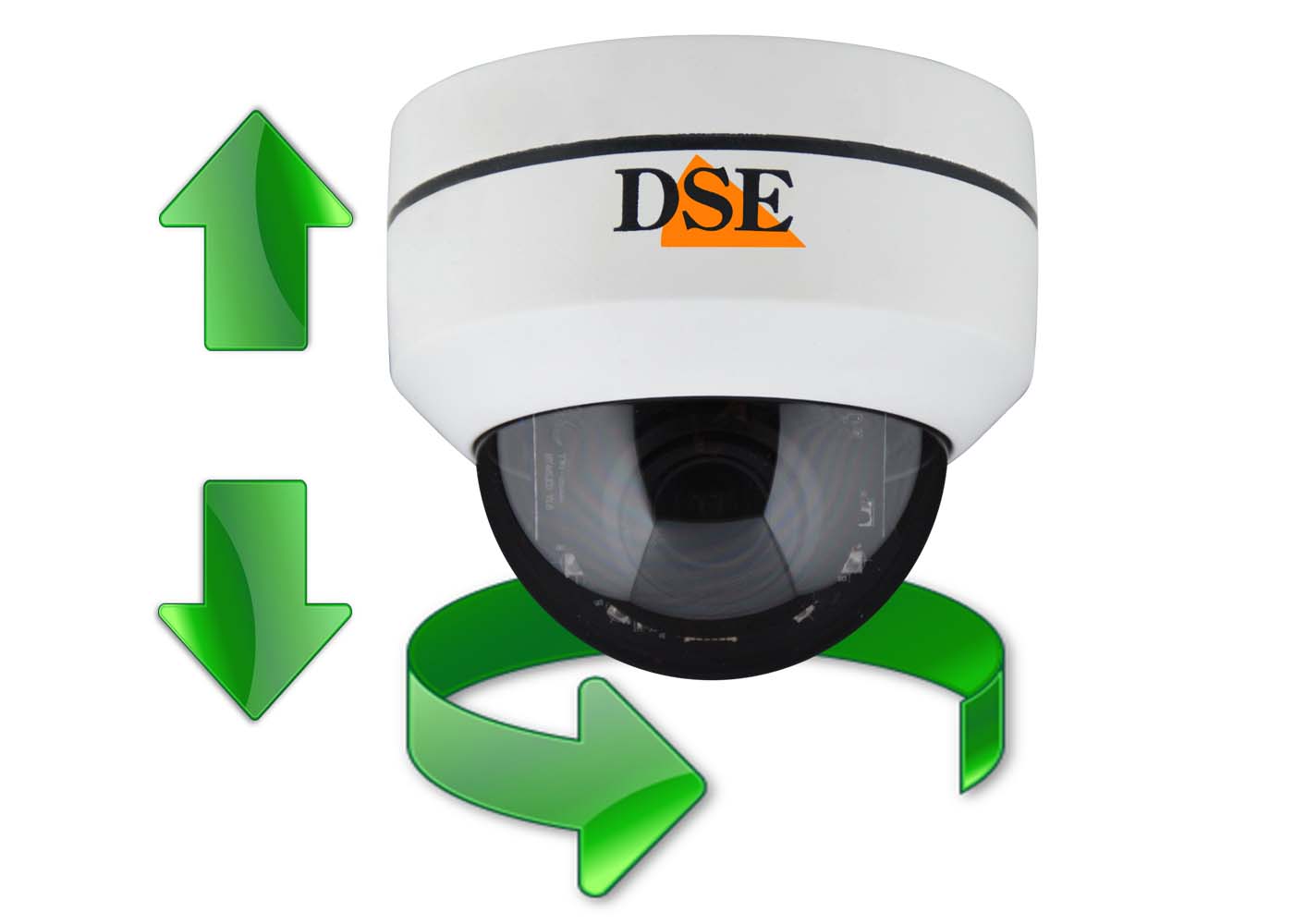

Pan Tilt rotation up to 60 °/sec

The cameras in this range are all motorized and remote controllable. They can rotate 360° horizontally (PAN) and 180° vertically (TILT). During tilt moving, they are equipped with AUTOFLIP to provide straight video even over 90° of rotation, beyond the vertical axis. The all-metal rotor mechanism ensures high precision in positioning and long durability. These mini speed dome models can rotate from one point to another at 60°/sec.

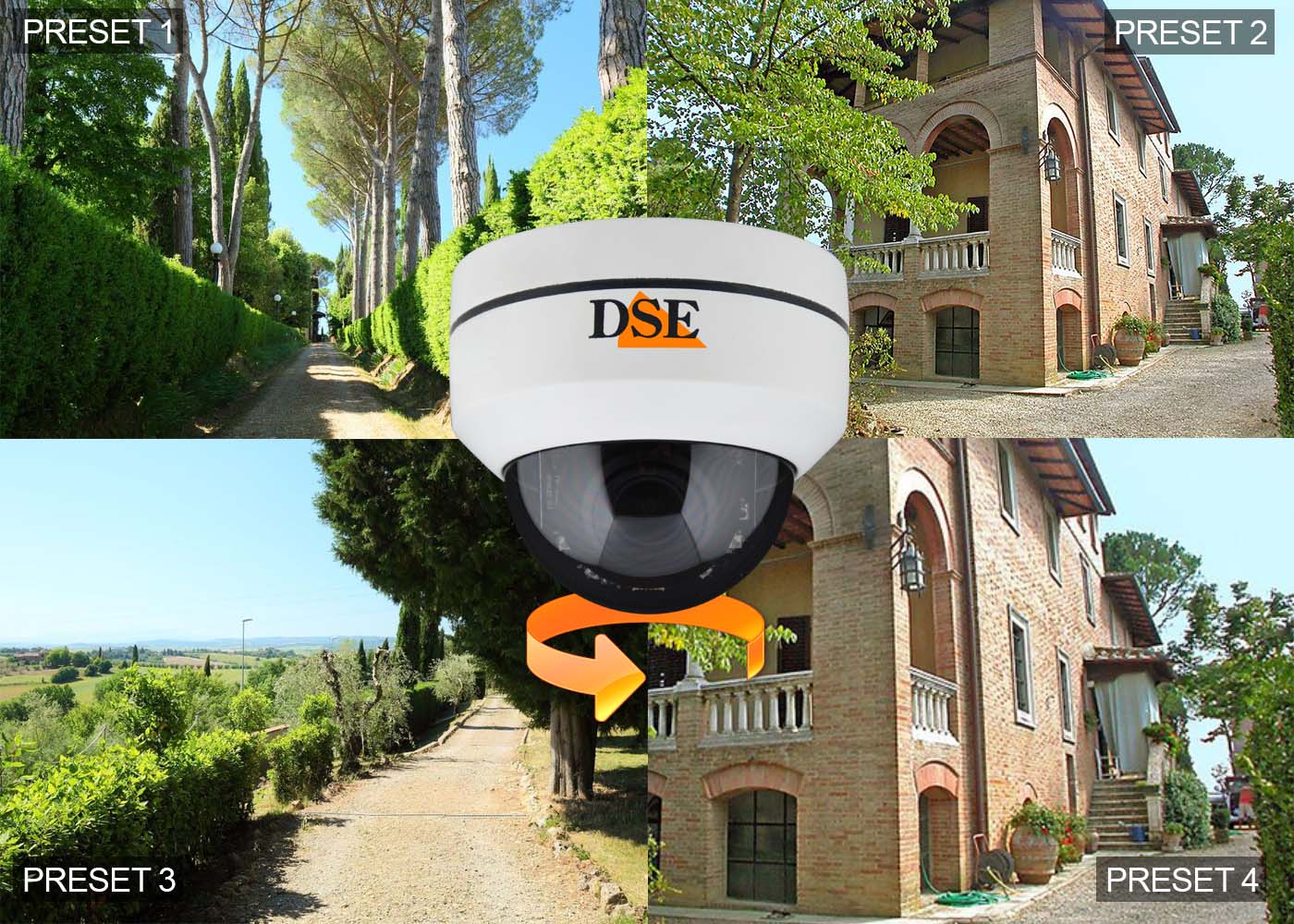

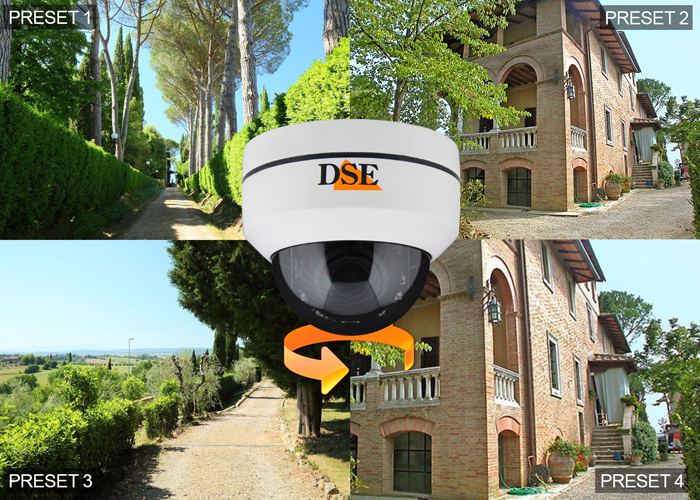

256 presets, 3 cruise, scan, home function

All our speed dome cameras in this range can perform automatic moves. You can set 256 PRESET to quickly recall specific positions, and 3 CRUISE to monitor a sequence of several presets. With the SCAN function you can monitor large areas by keeping the camera in constant rotation. You can also set a home automatic action, also called IDLE, that the camera performs automatically in the absence of operator commands.


Mounting accessories

These mini speed dome wifi cameras are supplied with a wall mount bracket . There are also several mounting accessories that you can buy separately. The ceiling mount bracket must be purchased if you wish to hang the camera. The pole collar, with steel clamps and the corner mounting base are also available to make camera mounting easier.

SPEED DOME ACCESSORIES

THE PC CONTROL

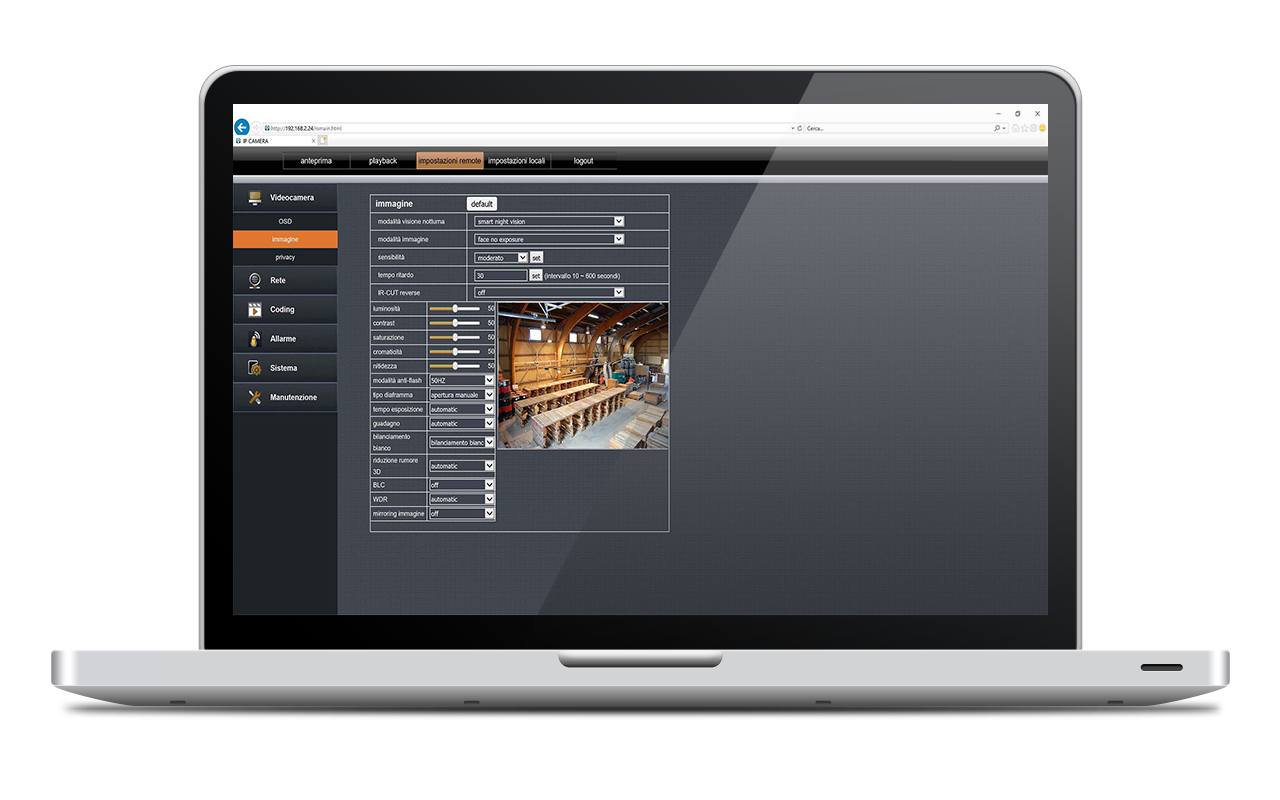

Connect via browser

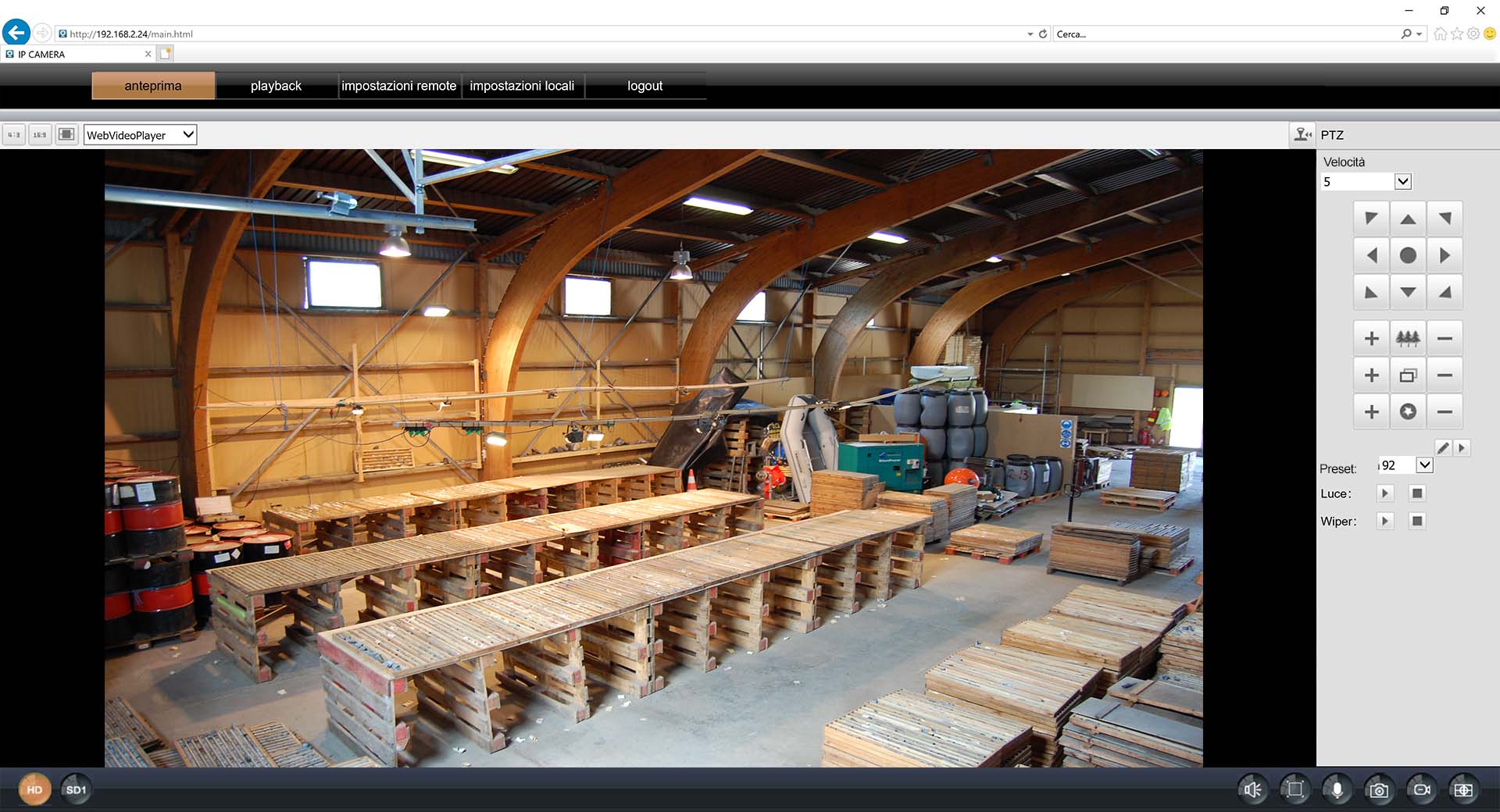

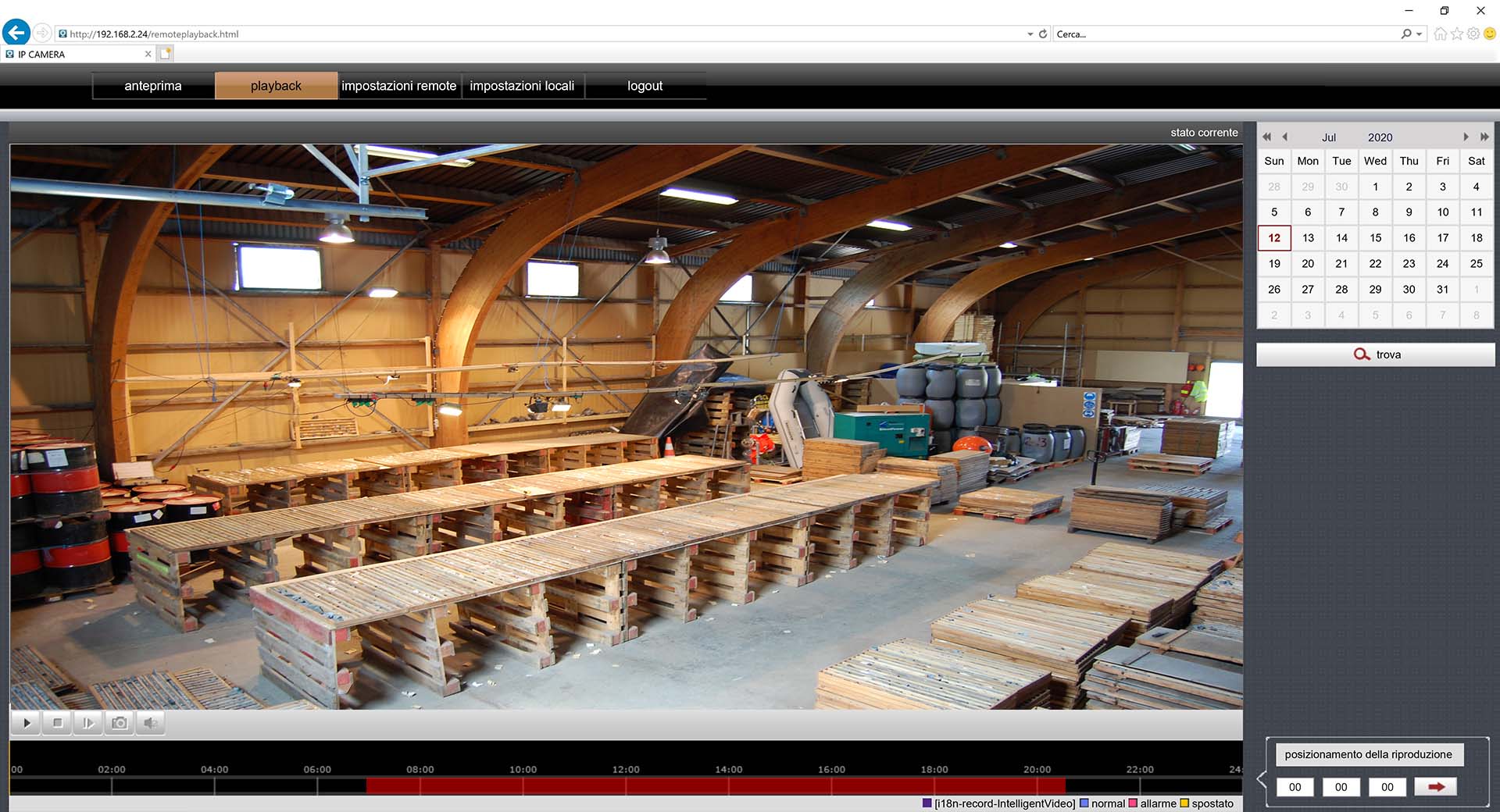

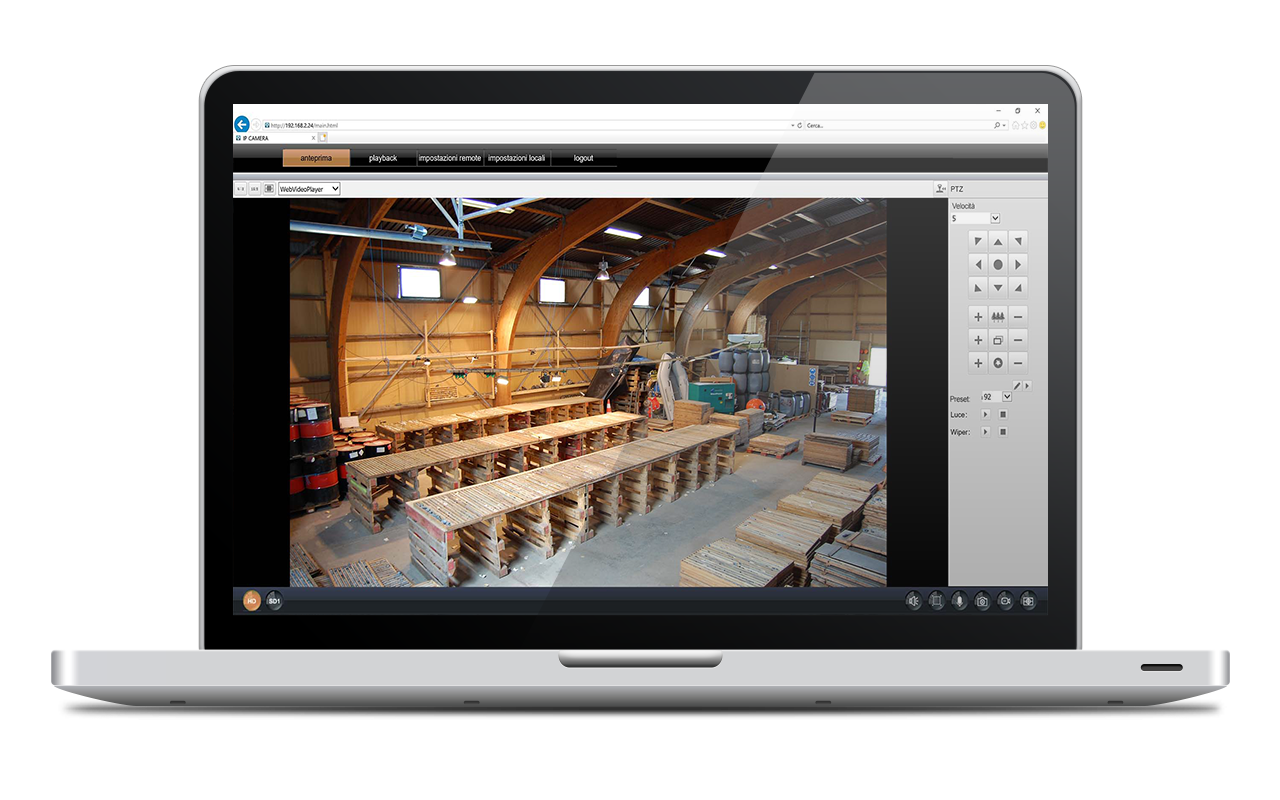

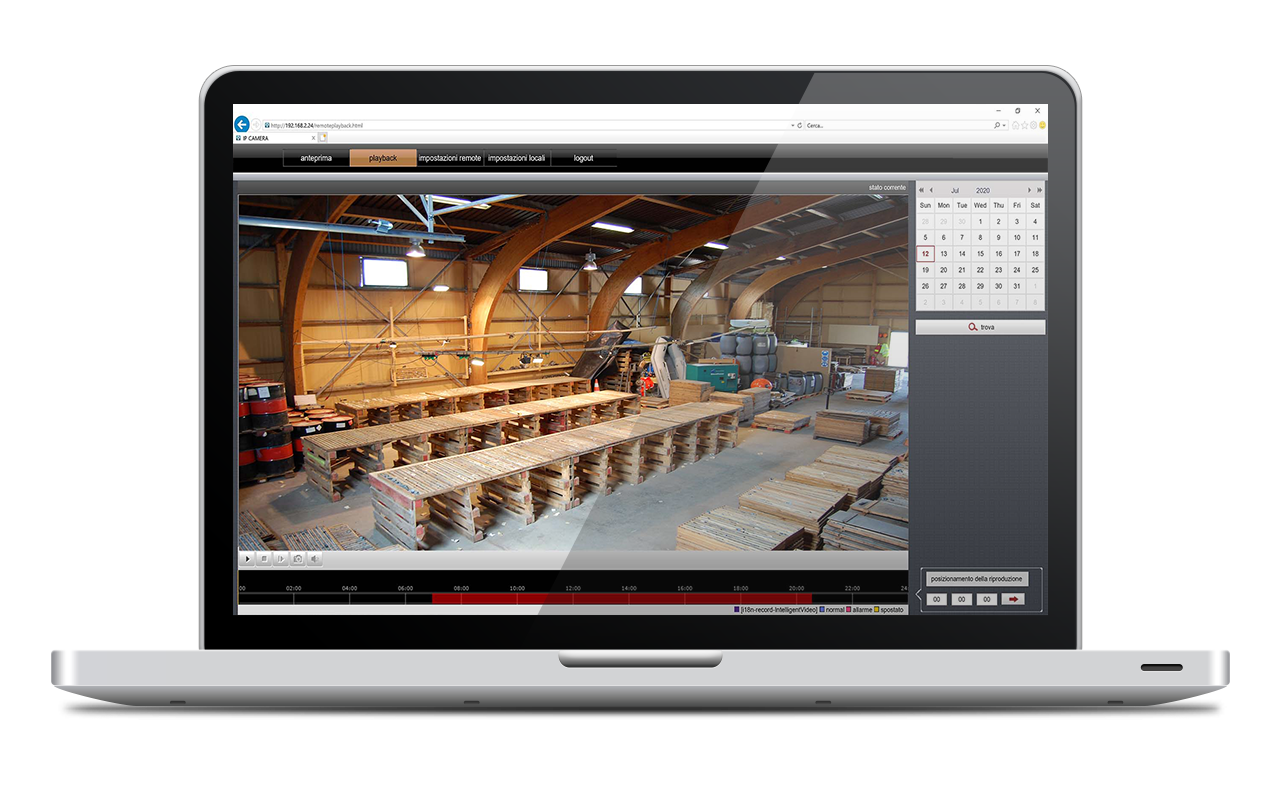

Every computer on the network is a perfect monitor and control station for your PTZ cameras. No software needs to be installed. Just open the Internet Explorer browser and enter the login password to WATCH the live video on the monitor. You can easily CONTROL the camera movement and zoom with the mouse. A programming menu allows you to CONFIGURE all the camera options and automatic features.


SMARTPHONE CONTROL

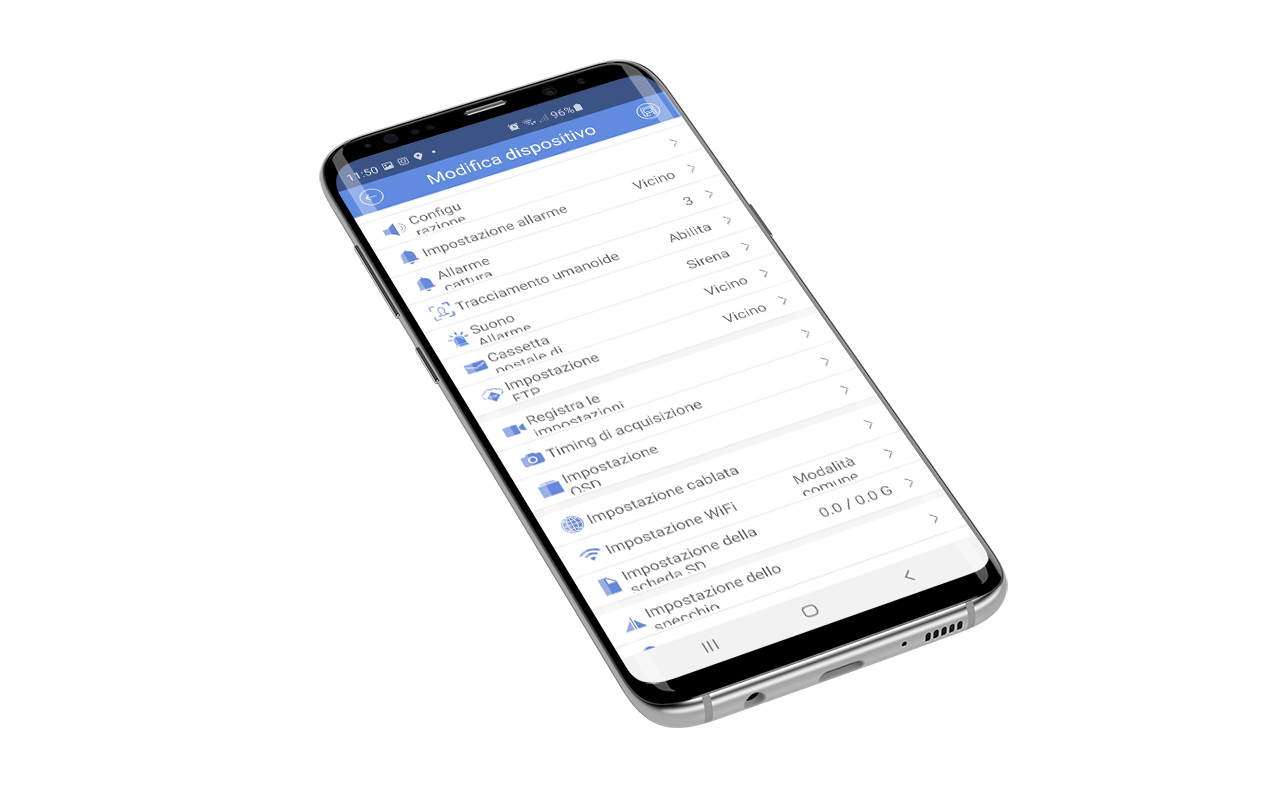

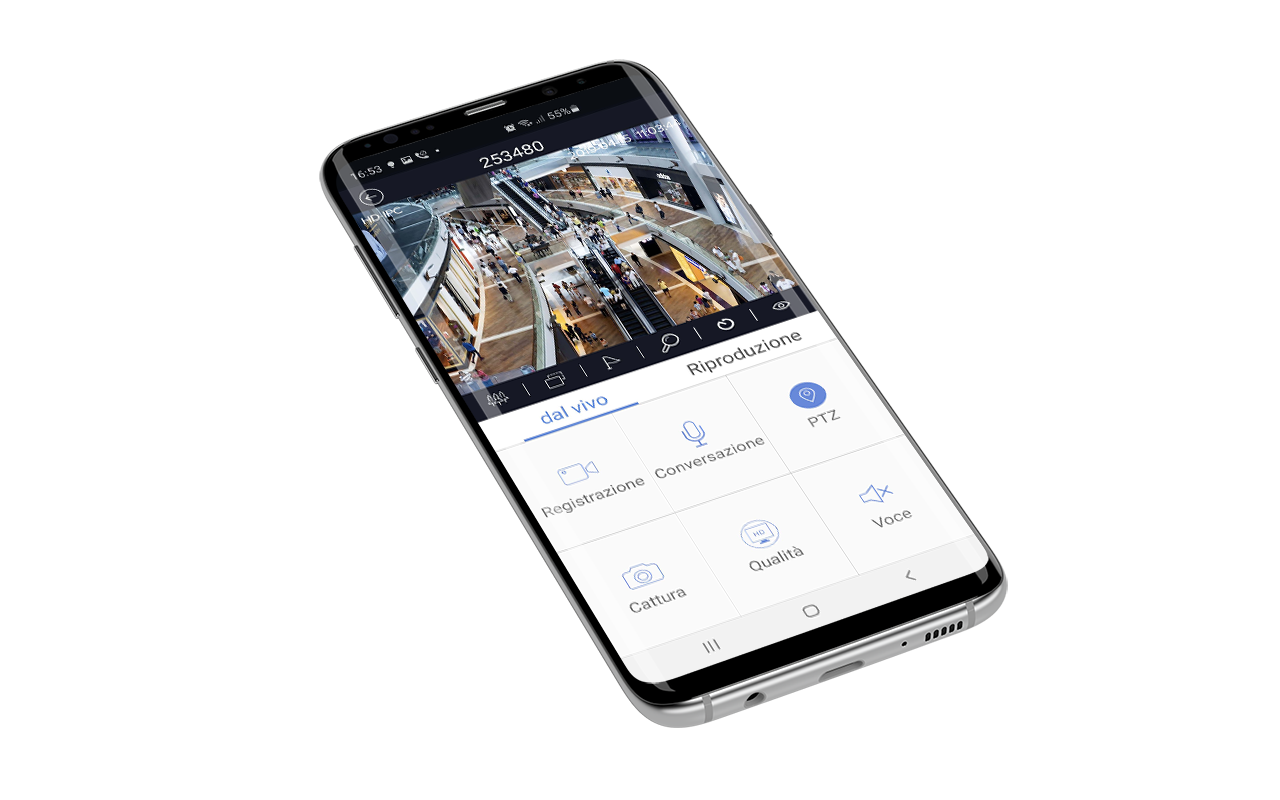

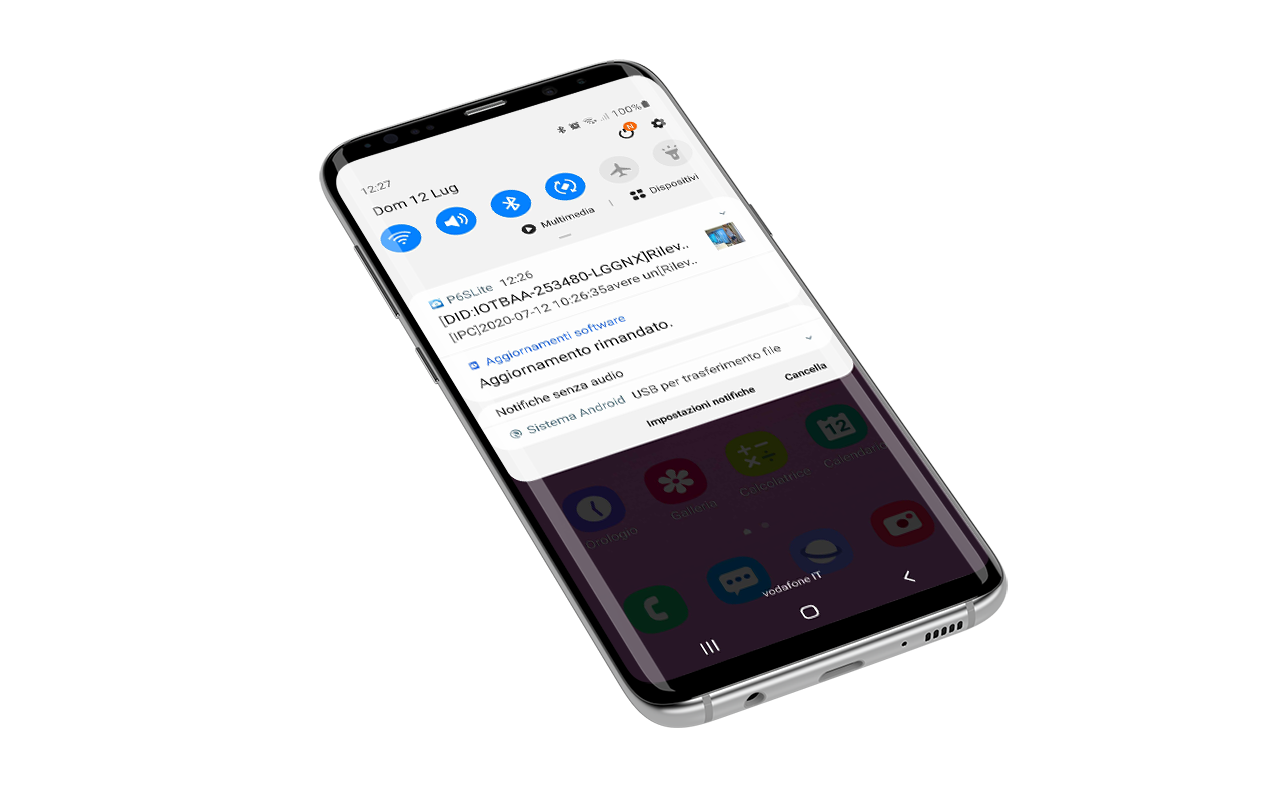

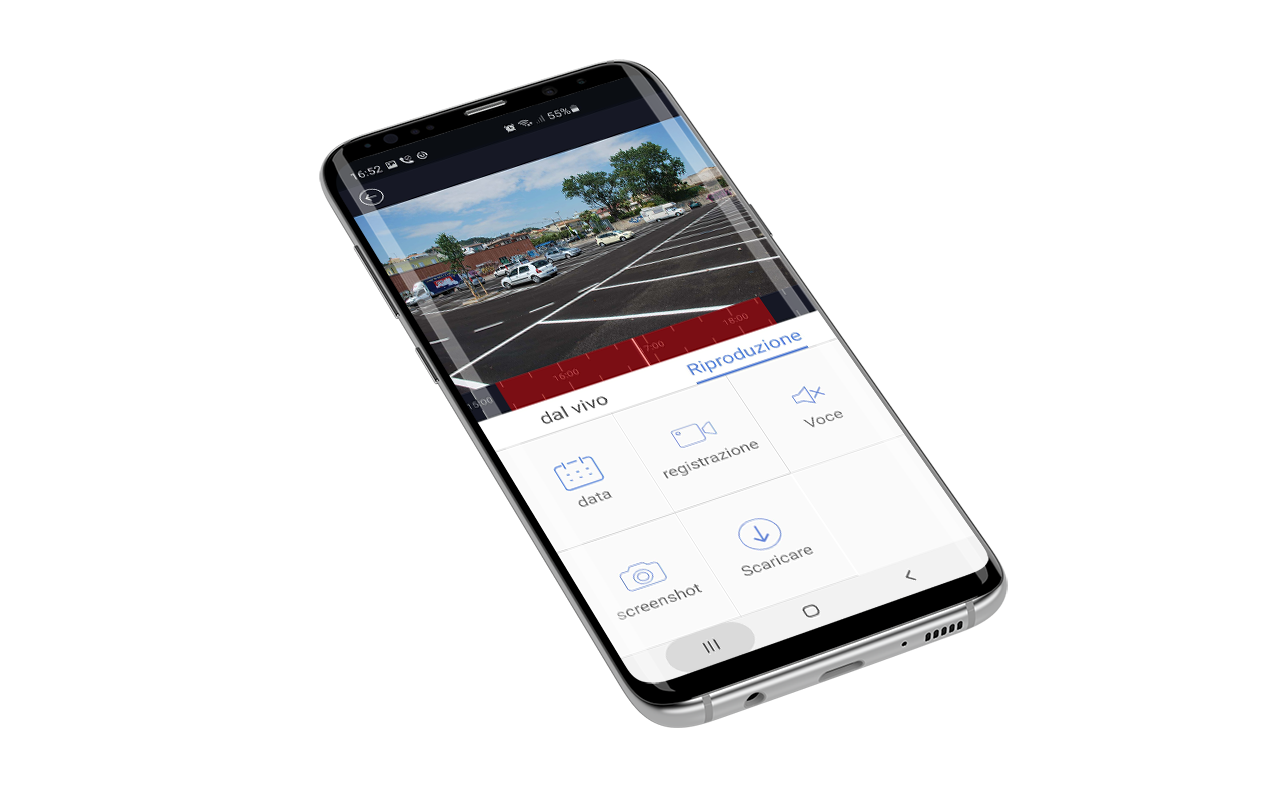

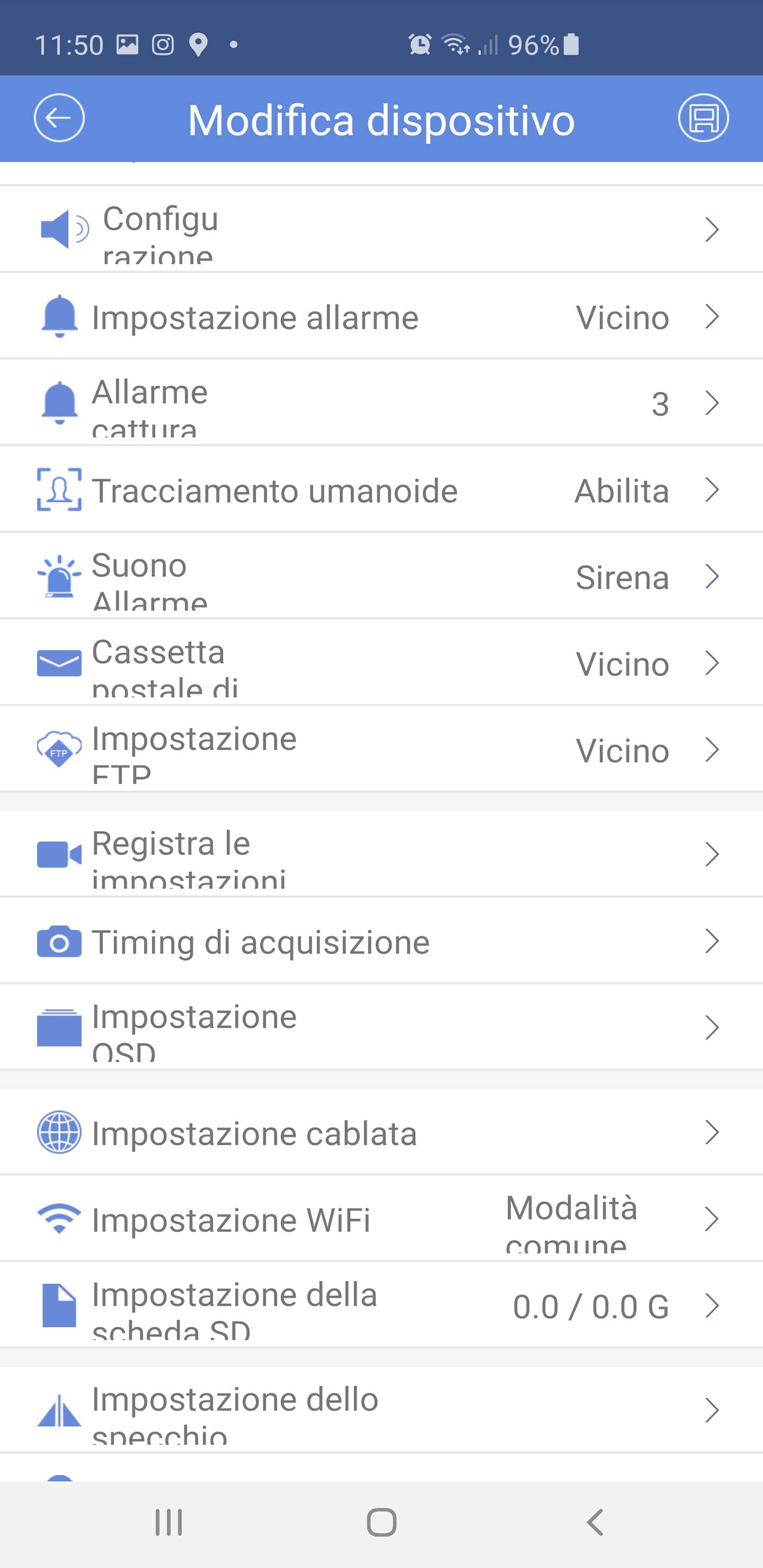

APP for smartphone and tablet

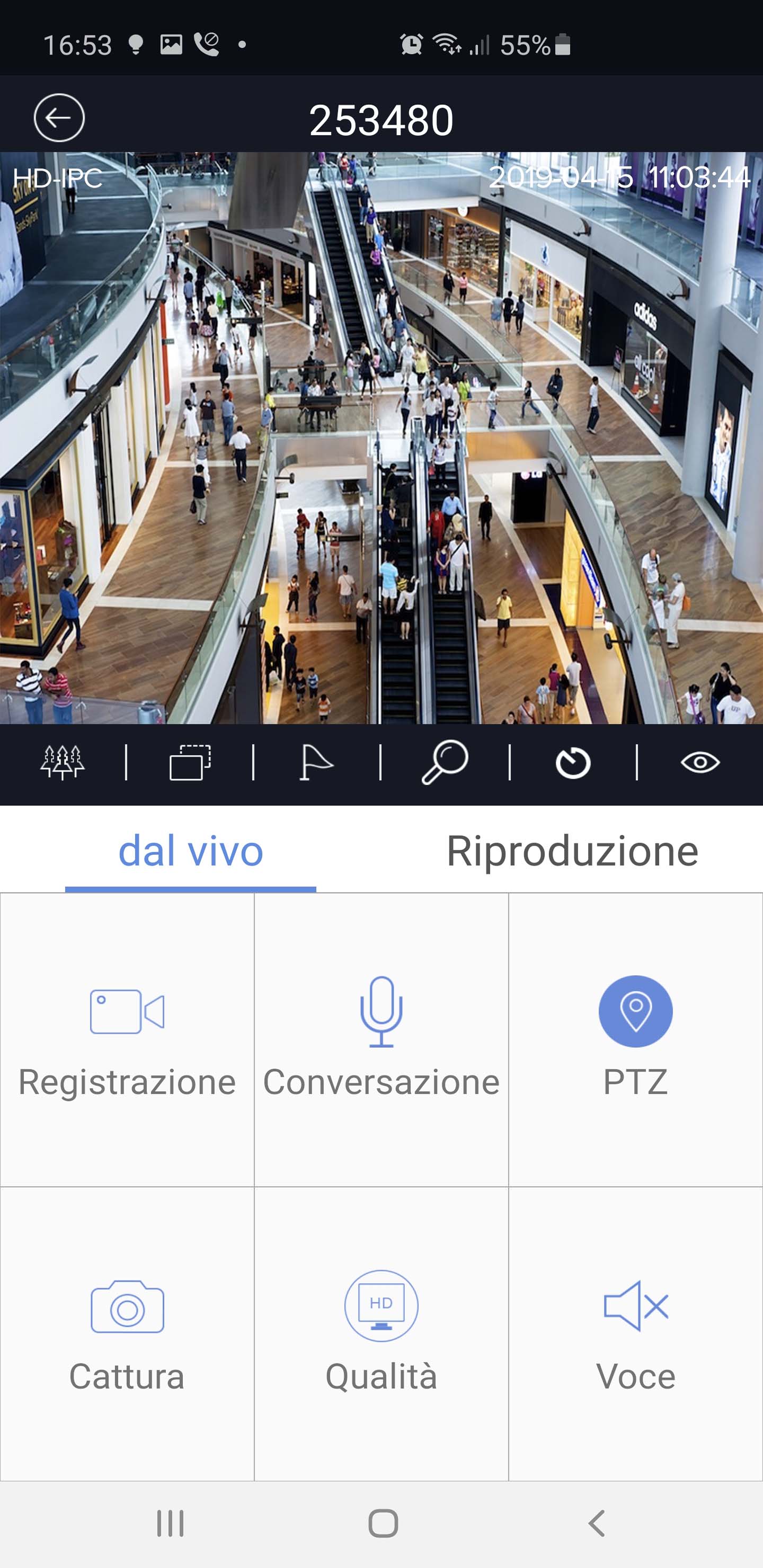

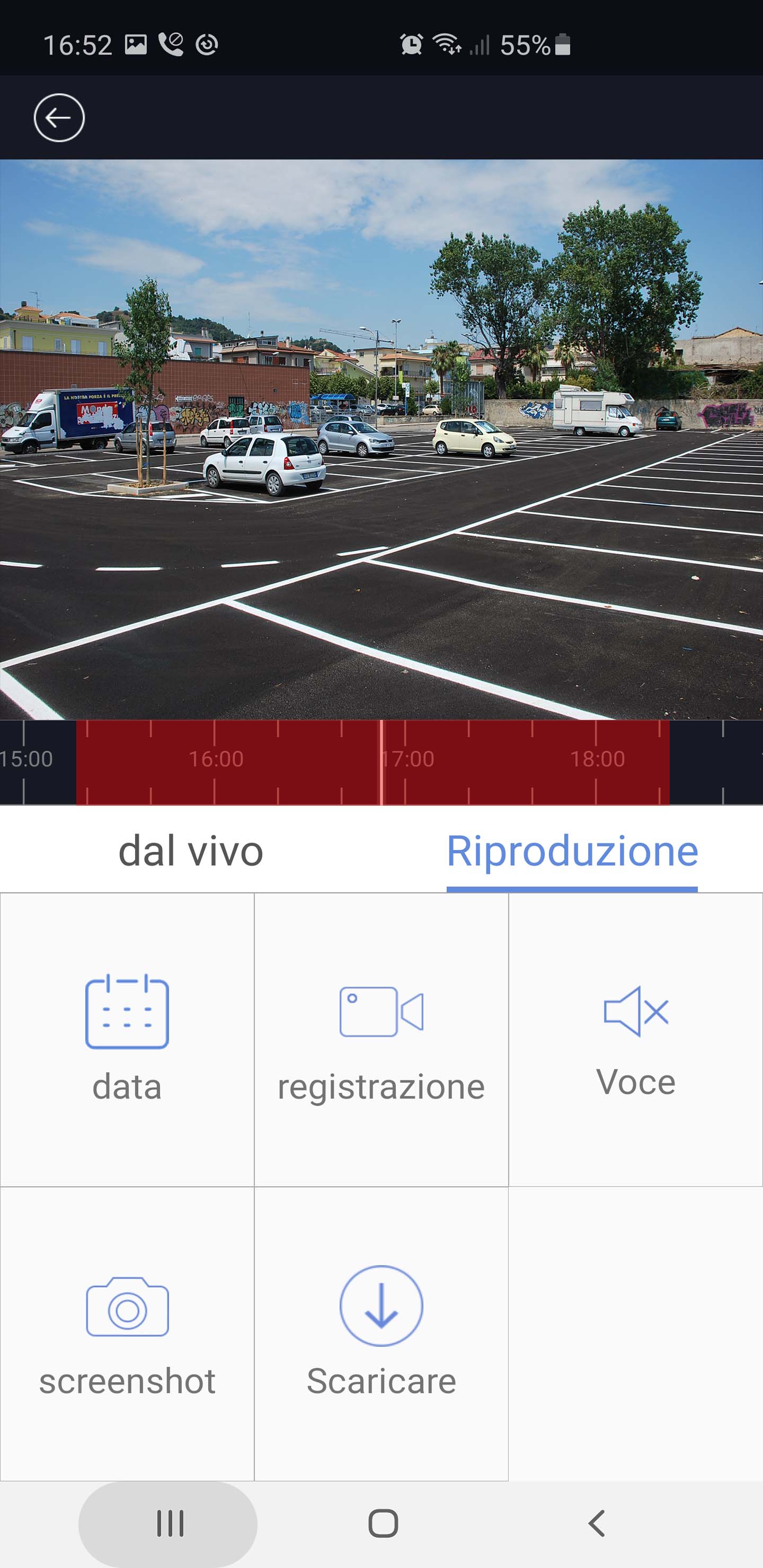

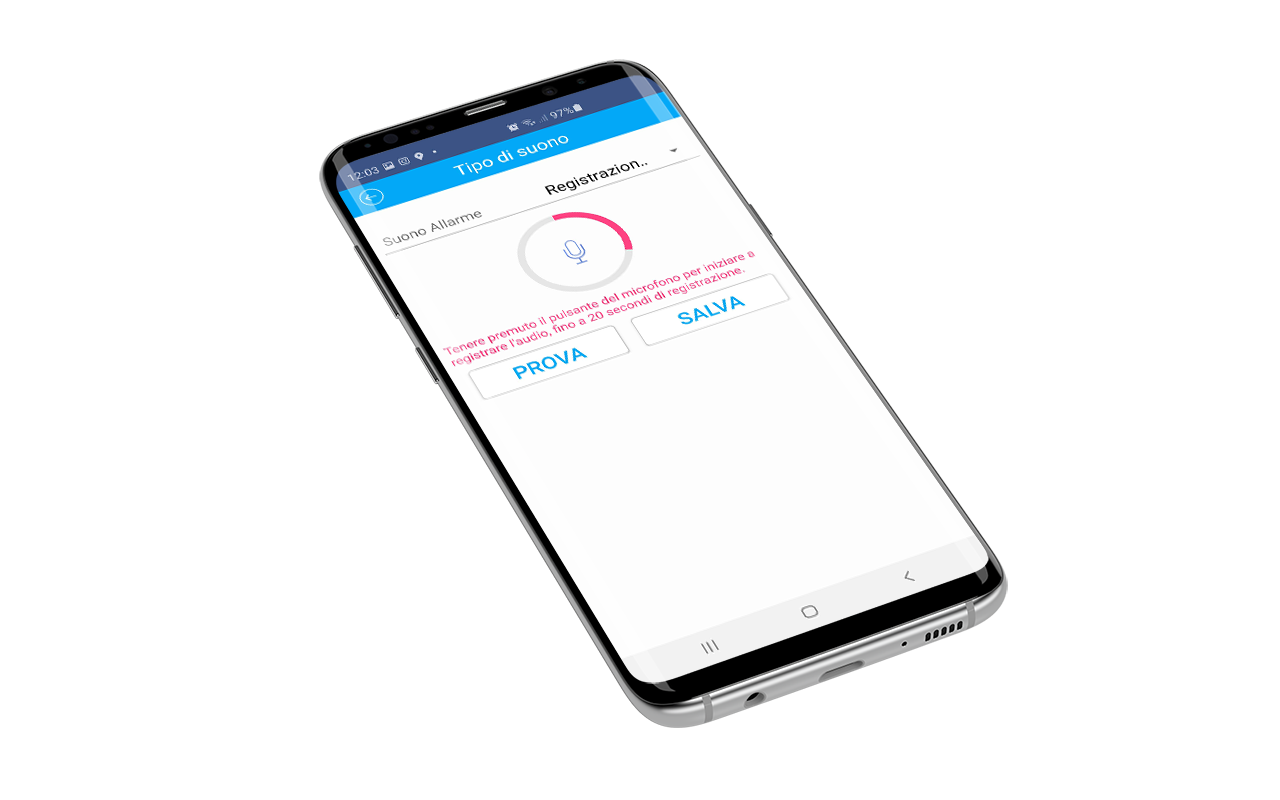

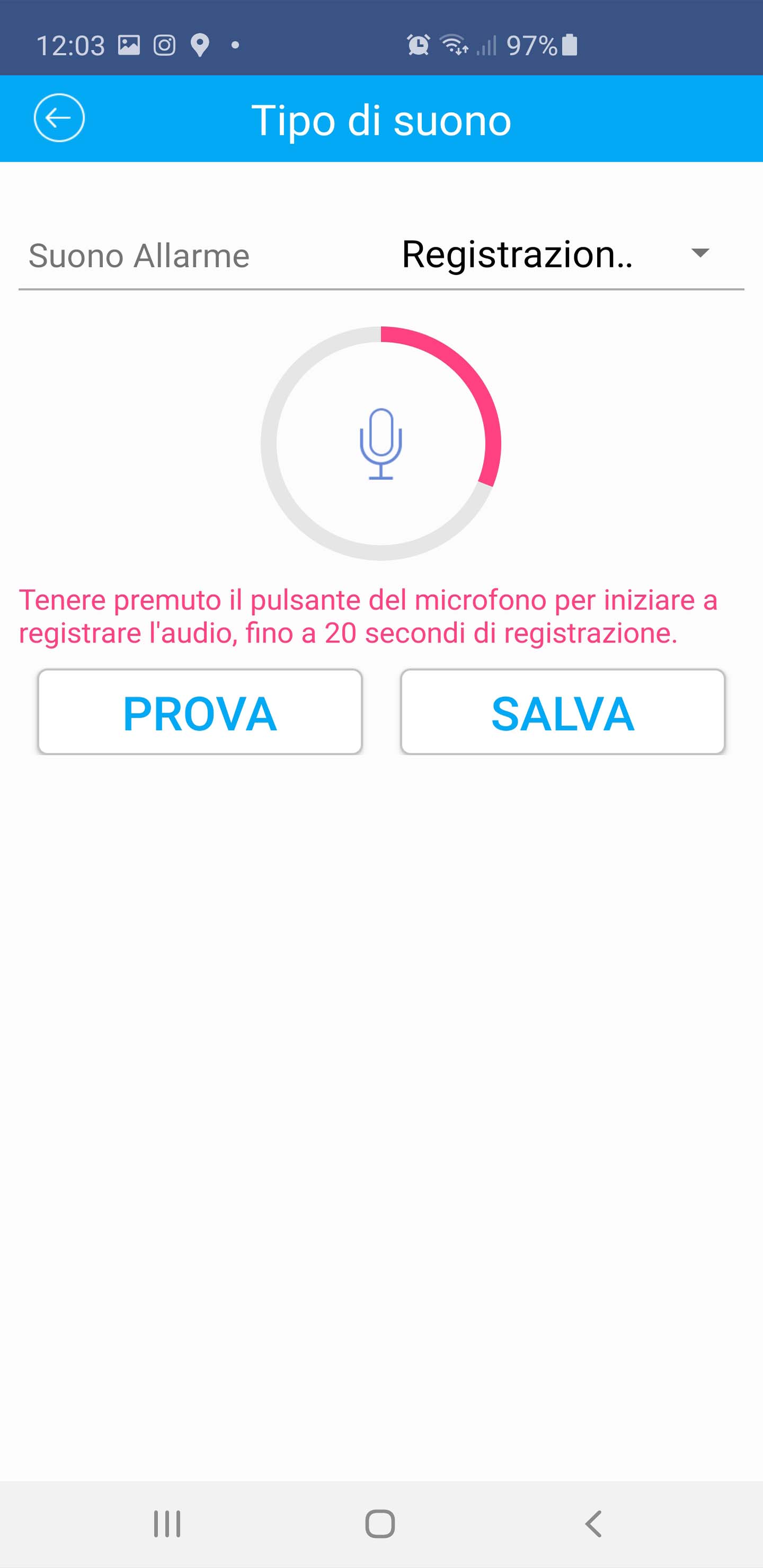

The RW series cameras can be controlled from a smartphone or tablet with the free app. You can WATCH the live video, CONTROL CAMERA PTZ and RECORD videos or CAPTURE snapshots. Furthermore, with the app you can easily configure the wifi connection of the camera and receive push notifications in case of intrusion. If you use the camera only with the app, without any NVR, you can also hear the audio and talk through the built-in speaker. You can also PLAYBACK and DOWNLOAD the videos recorded in the camera memory.

Free app for iOS and Android Live viewing from the app Audio in Bidirectional communication Motorized cameras control Recording control APP APP

THE RECORDING


Onvif NVR compatibility

These cameras are designed to be used with a network video recorder, also called NVR. You can use all ONVIF NVR video recorders on the market. If you are building a new system we recommend, for a perfect compatibility, our RK Series NVRs. Through the NVR you can control all the movements of your motorized cameras either locally, using the mouse, or via WEB with a PC or smartphone.


128GB SD Card slot

All cameras in this series have a built-in microSD card slot. You can insert a micro SD memory up to 128GB and record video clips straight in the camera. Once the memory card is full, the automatic overwriting of the oldest video files is usually set. The BUILT-IN MEMORY turns your IP camera into a stand-alone video surveillance system capable of recording even without a network video recorder. We recommend you still use the SD card, even if you have an NVR, because it record in every condition, even if the network is disconnected because of a failure or sabotage.

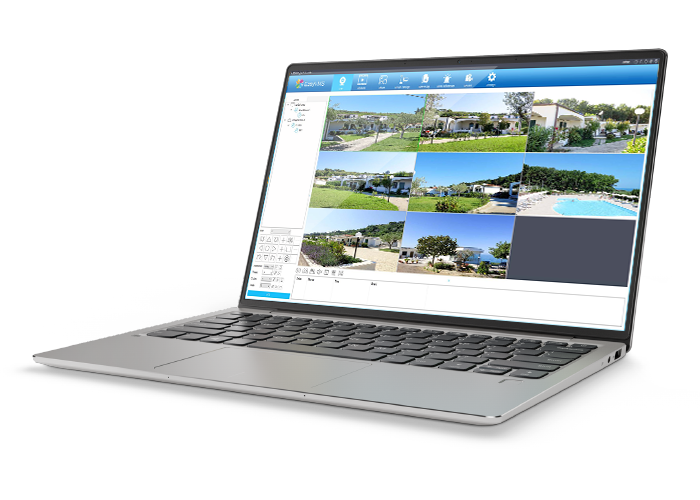

NVR software for Windows

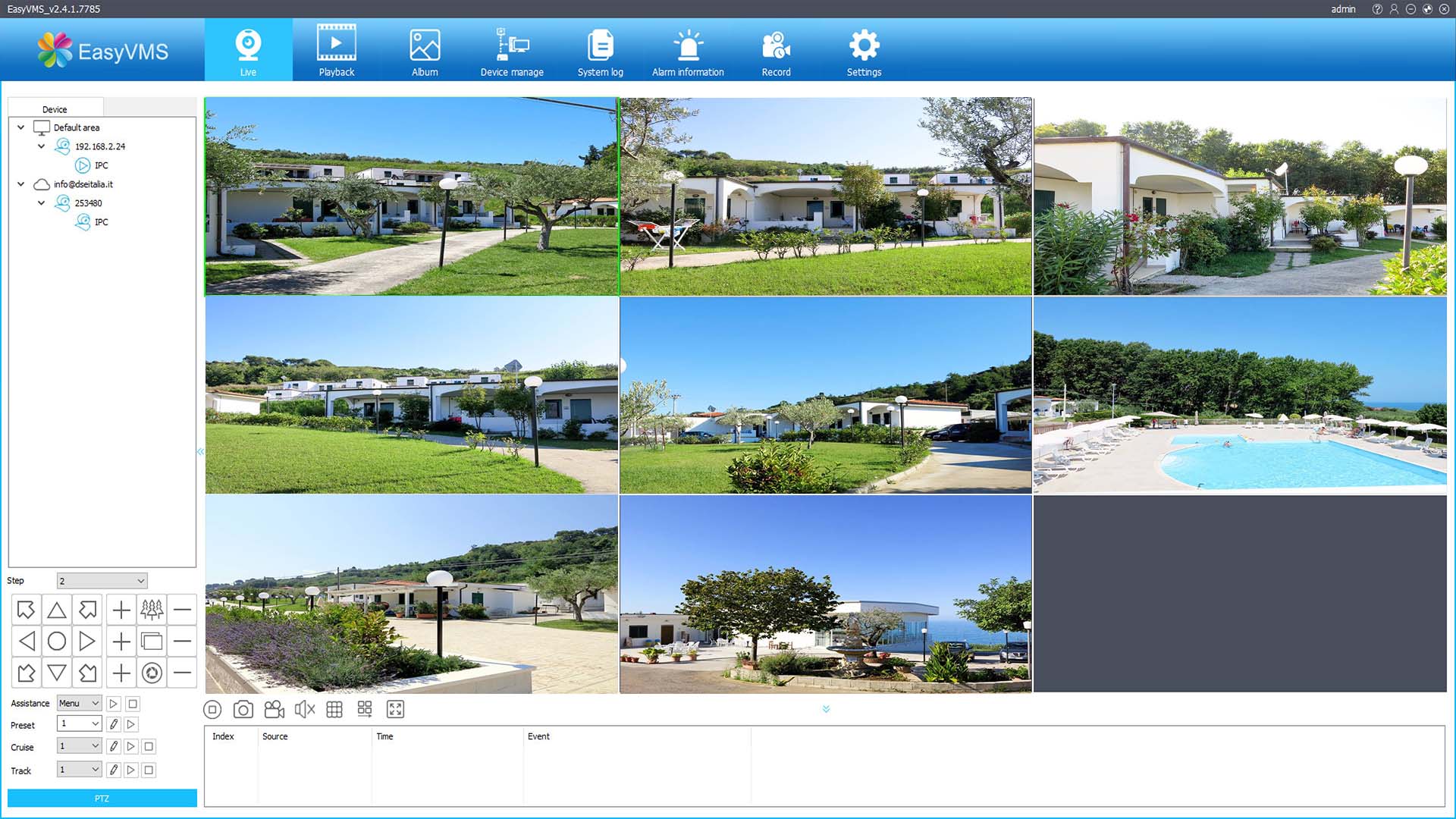

You can use a computer to monitor and record our IP cameras. You do not have to buy anything, just download our free VMS software suitable for all our IP cameras. You can install it on as many computers as you want and use it freely, either as a main video recorder, or as an additional control unit. There is also a more specific software, only for these RW Series cameras, which allows more control on all features: it is our free ESEECLOUD software. In addition to local camera control, this software also allows you to access via the WEB with the P2P cloud server.

DOWNLOAD VMS DOWNLOAD ESEECLOUD

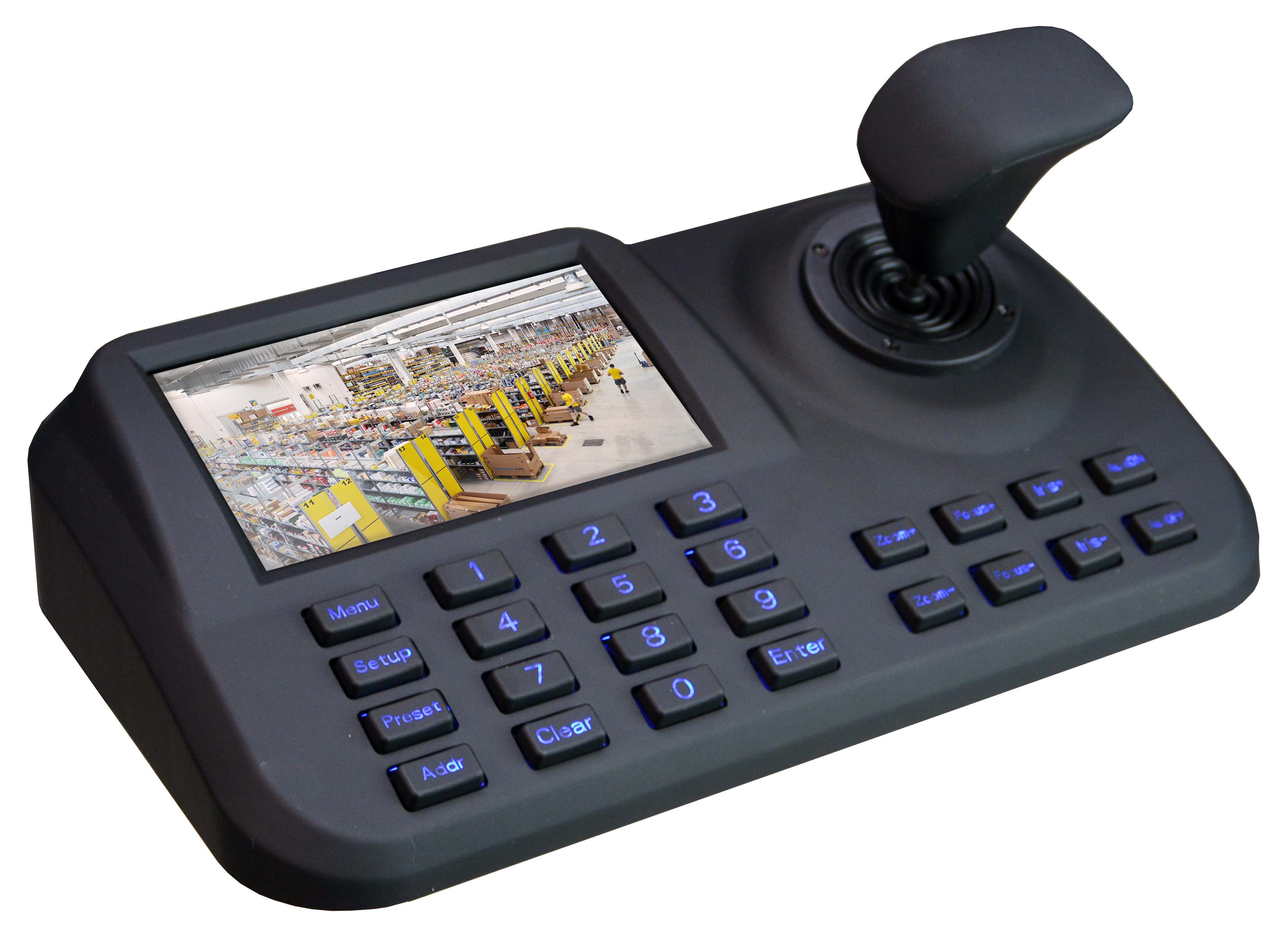

PC, NVR or KEYBOARD control

You can control the movements of our motorized IP cameras in many ways. You can connect to the camera with your computer and move the camera with the mouse. You can also control the camera via the NVR, locally with the mouse or via the web with a PC or mobile phone. If you want to create a standalone control point with joystick, you can purchase one of our PTZ IP keyboard . You can use more than one control unit in the same the network, such as PC, NVR or a keyboard, using the one which is more conveniently, according to the situation.


NETWORK SERVICES


Free P2P Cloud server

With your smartphone and computer you can also control your cameras via the Internet. Each camera has an ID number and is registered on our P2P cloud server that you can use for free without limits. Thanks to the PEER-TO-PEER (P2P) technology you can connect via the Internet in a few seconds, even if your Internet connection does not have a static IP and there is no need to intervene in the router configuration. The P2P cloud allows you to use these cameras even with cellular or satellite Internet connection.


TIPS


Use these cameras also with our WiFi kits

These WiFi cameras are perfectly compatible with our WiFi kits , the plug and play wireless systems, for flats and shops. If you want, you can connect these cameras to the wifi NVR of these kits, in addition to the standard ones. If you purchase these WiFi cameras together with the WiFi kit, we will deliver everything configured and ready to work: 100% plug & play. You can configure your wifi kit to your liking, adding these WiFi speed dome cameras when you need PTZ functions. See how you can add these cameras to the wifi kits in this video tutorial.


TECHNICAL DATA



CODE RW-SDM20
Description IP PTZ camera with wifi
Type Mini speed dome
CAMERA
Maximum resolution 2MP
Optical sensor 1/2.9" CMOS Smartsense SC2232
Chipset HS Hi3516E
Video resolution 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s
Video compression H264 H265 H265+ H264+
POE power supply
Local power supply 12VDC
Infrared illuminator 60 m. (4LED d42 850nm)
ICR
Lens zoom 20x 4.7...94 mm.
Focus Autofocus
Shutter 1/25...1/12000
S/N ratio Over 52dB
HARDWARE
Network Port RJ45 10/100 Base-T
Audio Input Built-in microphone (not usable with NVR)
Audio Output Built-in speaker (not usable with NVR)
I/O Alarm
SD card Max. 128GB
CVBS Output
MOVEMENT
Rotation speed Max. 60°/sec
Rotation range 360° PAN, 180° TILT with autoflip
Accuracy in positioning <0,5°
Automatic functions 255 presets, 3 cruise, scan 360°, A-B scan
Home function
Timer PTZ
FUNCTIONS
Protocols TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP
Onvif Onvif Profile S v. 2.4
P2P
Browser IE9 or superior
Smartphone Free APP for iOS and Android
Multi streaming 2 streams
Saving on the web cloud
Mirror Vertical and/or Horizontal
Corridor
Overlays Date Time Name
BLC
AWB
DNR
WDR
Anti fog
HSBLC
Starlight Digitale
Motion detection
Privacy mask
Anti tampering
Alarm actions Push notifications on app
Invio foto Time-Lapse
GENERAL
Casing Aluminum and polycarbonate
Degree of protection IP67 for outdoor use
Bracket included Wall
Operating temperature -20°C +60°C RH95% Max
Power supply 12VDC +/-10%
Power consumption Max. 500 mA (1100 mA IR ON)
Overall dimensions 150 mm.(D) 245 mm (H)
Weight 2 Kg.

QUESTIONS & ANSWERS


What is included?

CAMERA
BRACKET
POWER SUPPLY
L KEY
MANUALS
IP SETTING SW
NVR SW
APP

What is not included?

These mini speed-dome cameras come with a wall bracket, but if you need to mount them to a pole, ceiling or corner you have to order a separate SPEED DOME BRACKET
