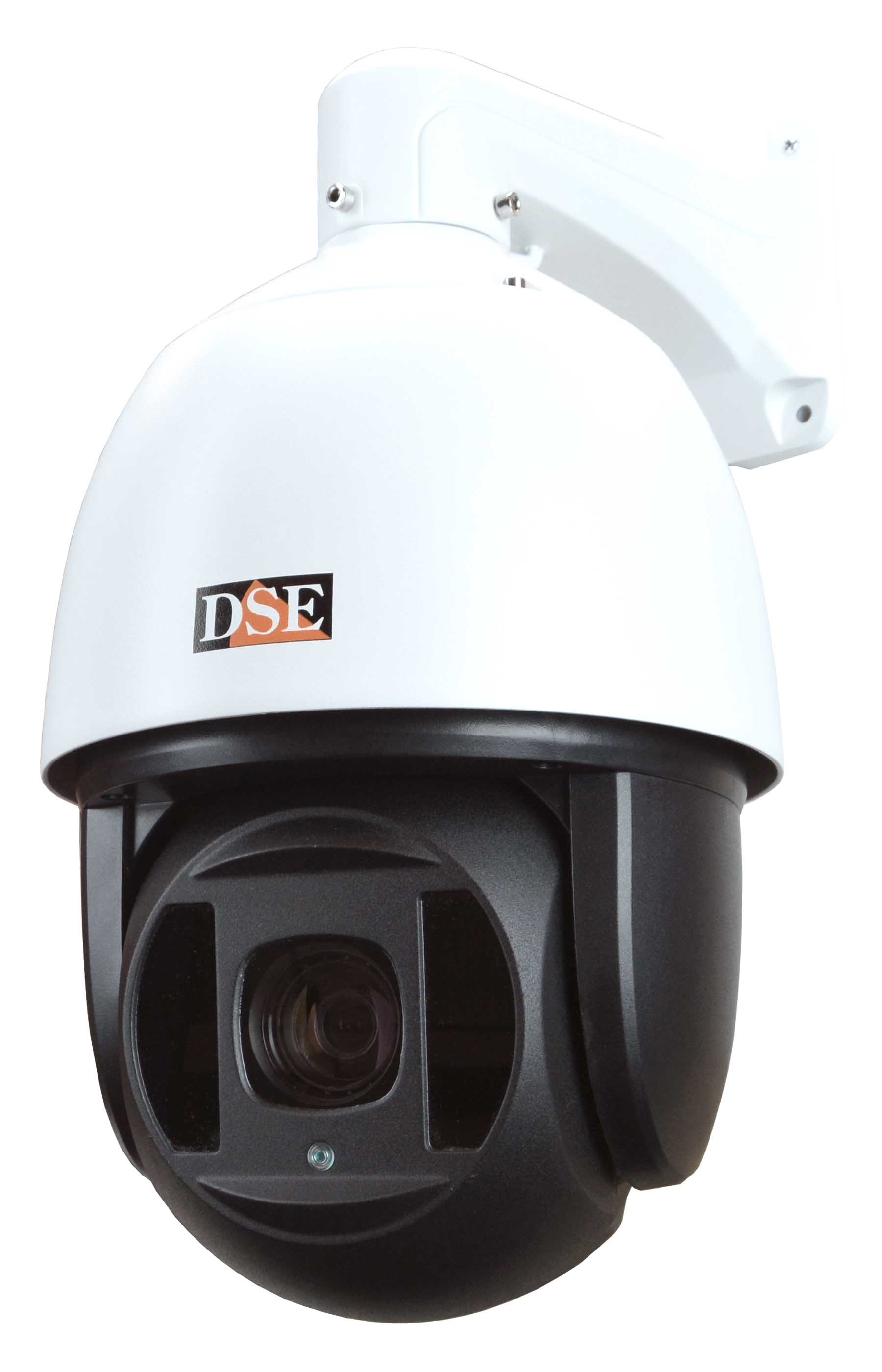

SD-D30FD4

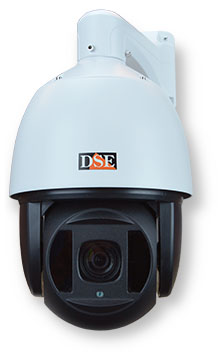

SD-D30HD

HIGHLIGHTS

SONY Exmor CMOS
AHD 720P/1080P resol.
1000 TVL CVBS resol.
30x zoom autofocus
150 m. IR
Up to 400 °/sec.
256 preset, 8 tour
8 pattern recording
Auto-Flip
Automatic timer
Idle function
Pelco D/P protocol
IP66 waterproof casing  100% metal
Speed adjust. on zoom
IR adjust. on zoom

TECHNICAL DATA

Speed-dome technical data

FEATURES

OSD
These speed dome cameras come with several programmable features that can be set by a convenient On Screen Display.

  MOUNTING ACCESSORIES
Wall mounting bracket is included, Further wall, ceiling and pole mounting brackets are available separately.
See BRACKETS FOR SPEED DOME

WATERPROOF SWITCH BOX
Micro switches for ID and protocol setting are protected by a waterproof cover and can be set once the camera is installed.

PRODUCT PACKAGE

  Speed dome camera with lens
  Wall mounting bracket
  Power adaptor

RELATED PRODUCTS

Mini speed dome
Brackets for speed dome
keyboards and accessories

Speed dome cameras for outdoor surveillance are ideal for monitoring outdoor areas when remote control of the camera is required. These cameras can turn in any direction and zoom in and out according to the commands of the operator. They can also make predefined automatic movements.
These cameras can be installed  outdoor without protection. Several kind of brackets are available for wall, ceiling and pole mounting.

 Main features

Fast and precise mechanism
These cameras are called High Speed Domes because they are able to move much faster than our standard PTZ cameras. The Pan Tilt head turns up to 400°/sec horizontal speed (PAN) and 120°/sec vertical speed (TILT).
The speed of the movement can vary according to the pressure on the control joystick and also adjusts automatically according to the zoom ratio of the lens.
The moving head is made of die-cast aluminum and is placed on an inox steel chassis in order to provide long term reliability even in heavy duty, continuous turning applications.

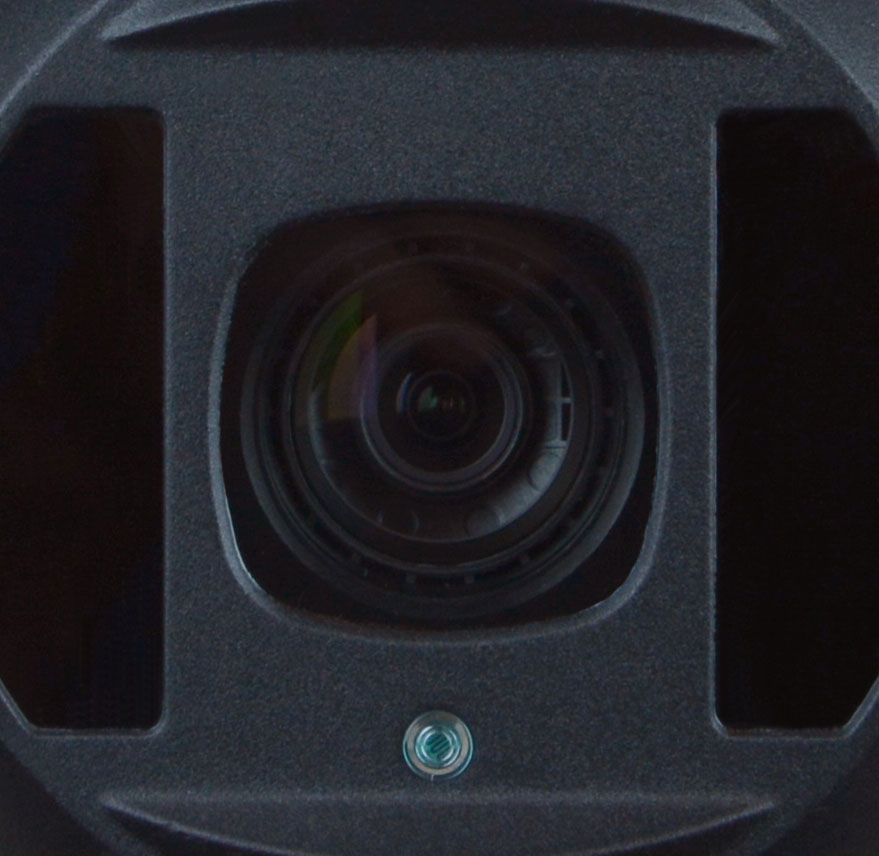

30x zoom lens with autofocus
These cameras come with a powerful 30x zoom lens with remote control.
Cameras feature a precise autofocus system (can be switch to manual if required) in order to adjust the focus automatically according to the target distance.  Zoom speed is also adjustable. Pant/tilt dome speed can be set to change automatically according to the zoom level.

150 m. infrared illuminator with ICR
Cameras come with a built-in 850 nm. infrared illuminator which allows a maximum illumination range of 150 m.
The IR illuminator switch on automatically at night at allows the camera to monitor even in darkness.
All cameras include the day & night feature so they provide color video during the day and B/W view at night.
The day & night feature is made by Infrared Cut-Filter Removable (ICR)
which provides better low light sensitivity and superior color rendering of other cheaper technologies.

Soft-address
The control cable for speed dome cameras is a twisted pair which connect all speed dome one to the other. Each camera is identified by a unique ID address from 1 to 256. The ID of each camera is normally set by dip-switches on board. Besides this hardware configuration, SD cameras also support software addressing, particularly useful for quick setup of large systems.

256 PRESET and 8 TOUR
These cameras can store predefined positions, generally called PRESET, each of them identified by specific XY coordinates, zoom level and focus adjustment.
Preset can be called by keyboard just by entering the ID number. It is also possible to configure automatic TOUR (also called CRUISE or PATROL) among several preset.
Cameras can store up to 256 PRESET and up to 8 TOURS

Panoramic SCAN
These speed dome cameras can monitor large areas by turning continuously at 360° or between 2 predefined limits in order to provide a panoramic view.

Auto-Flip
DSE speed dome cameras have the auto-flip function so can turn automatically 180° in order to follow movements that turn over 90° on the vertical axis.

8 PATTERN recording
DSE Speed domes can record any custom-made sequence that can be re-called by keyboard and be executed automatically. This function is generally known like PATTERN recording.
Cameras can store up to 8 PATTERNS

Idle function
After a predefined period of inactivity these cameras come back to a selectable IDLE function (preset, scan, tour or pattern)

Automatic timer
8 programmable timers are available to start some automatic functions according to the time od the day. This feature is very useful to focus surveillance on critical areas and to protect people privacy in working places.

Metal waterproof housing with fan and heater
These cameras come with an IP66 waterproof casing that can be installed outdoor.
The casing is made of die-casted aluminum for maximum durability.
Inside the casing, an automatic fan and heater preserve the camera from extreme temperature. Fan and heater turn on and off automatically according to the environmental temperature allowing to install these cameras even in high mountain areas.
The quite big size of these cameras make them not very suitable for indoor mounting. Should you look for an indoor PTZ camera please check our mini speed dome cameras.
The wall mounting bracket is included in the package.
The ceiling or pole mounting brackets are not included and should be purchased separately (see brackets for speed dome) according to the mounting requirement.

 Speed dome control

Besides standard power and video cabling, PTZ cameras require one twisted pair for control.
All our speed dome cameras can be controlled by our DVR which come with an RS485 port for this purpose.
Through our DVR you can move PTZ cameras with your mouse and even over the web by PC or smartphone.
If you prefer a traditional joystick control, you can also move these cameras with our speed dome keyboards which are very convenient to use for local control.
DSE speed domes commands are based on the very common PELCO P/D protocol and are suitable to be controlled by any other equipment supporting this standard.

 Installation and wiring

These camera are designed to work hanged on appropriate brackets.
The wall mounting bracket is included with the camera. Other kind of mounting brackets are available to be purchased separately according to the mounting conditions.
Speed dome cameras require 3 kinds of cabling: video, power supply and RS485 control BUS.
VIDEO - cameras can be directly connected to DVR using a 75 ohm coaxial cable such as CV-RG59  Alternatively, video can be transferred over a twisted pair by converting the signal with video balun. AHD cameras connects exactly as all other analog cameras, but provide HD resolution only with AHD DVR. All 720P AHD cameras can be switched to CVBS (standard analog video) if required.
POWER SUPPLY - The camera takes a 12 VDC power supply. To convert 220V mains power into 12 V DC, a 3A power adaptor is included. In case you prefer to power the cameras from a single power point you can use a cabinet power supply unit like RE-AL20.
RS-485 - Speed dome cameras are controlled by means of a twisted pair cable (RS485 BUS) that connects all cameras in series and can be up to 1200 m. long. Each camera has its own switch programmable ID code, so can be controlled independently. Up to 256 camera can be connected on one bus and controlled from remote using control keyboards or DVR.

A good cable for short distance wiring of speed dome camera is the classic LAN cable CV-CAT5E which including 4 twisted pairs allows transferring video (with balun) + power + RS485 with a single cable.
For those with less experience, or needing to refresh their knowledge, the tutorial section contains a number of lessons explaining how to wire and install a hard-wired CCTV system correctly.
