RH Series PRO IP cameras


BULLET
IR 80 m.

Onvif IP camera
RH-BCC1-12S 12MP ZOOM

Low lighting starlight camera Waterproof outdoor casing SmartIR infrared illuminator 80 m. POE or 12VDC power supply Recording on SD card up to 128GB Adjustable lens 4.1-12.8 Audio input/output On-camera alarm input/output Video analysis H264 and H265 video compression

BULLET
IR 50 m.

Onvif IP camera
RH-BCC1-4Z 4MP ZOOM

Waterproof outdoor casing SmartIR infrared illuminator 50 m. POE or 12VDC power supply Recording on SD card up to 128GB Adjustable lens 2.8-12 Audio input/output On-camera alarm input/output Video analysis H264 and H265 video compression

BULLET
IR 30 m.

Onvif IP camera
RH-BCC3-4Z 4MP ZOOM

Waterproof outdoor casing SmartIR infrared illuminator 30 m. POE or 12VDC power supply Recording on SD card up to 128GB Adjustable lens 2.8-12 Audio input/output Video analysis H264 and H265 video compression

BULLET
IR 20 m.

Onvif IP camera
RH2-BCC2 1MP

Waterproof outdoor casing SmartIR infrared illuminator 20 m. POE or 12VDC power supply Fixed lens 3.6 Audio input/output

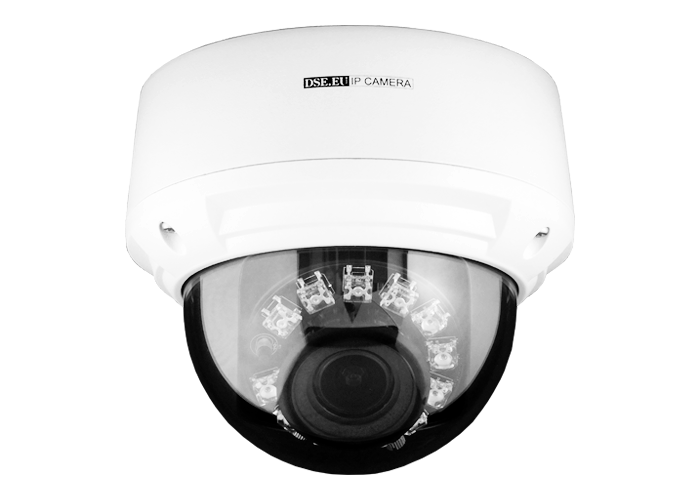

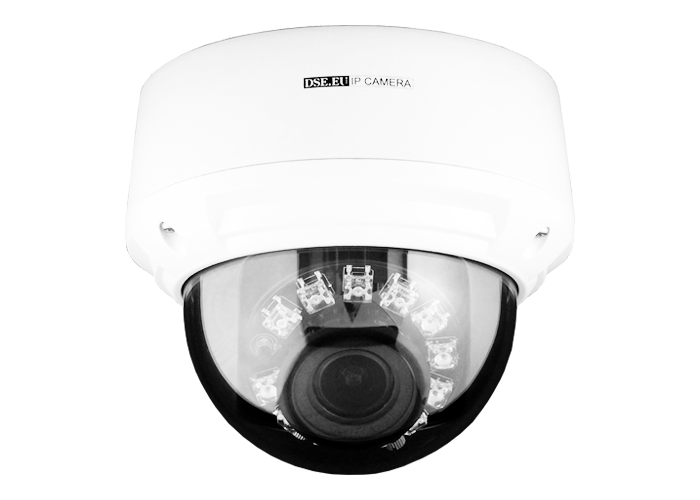

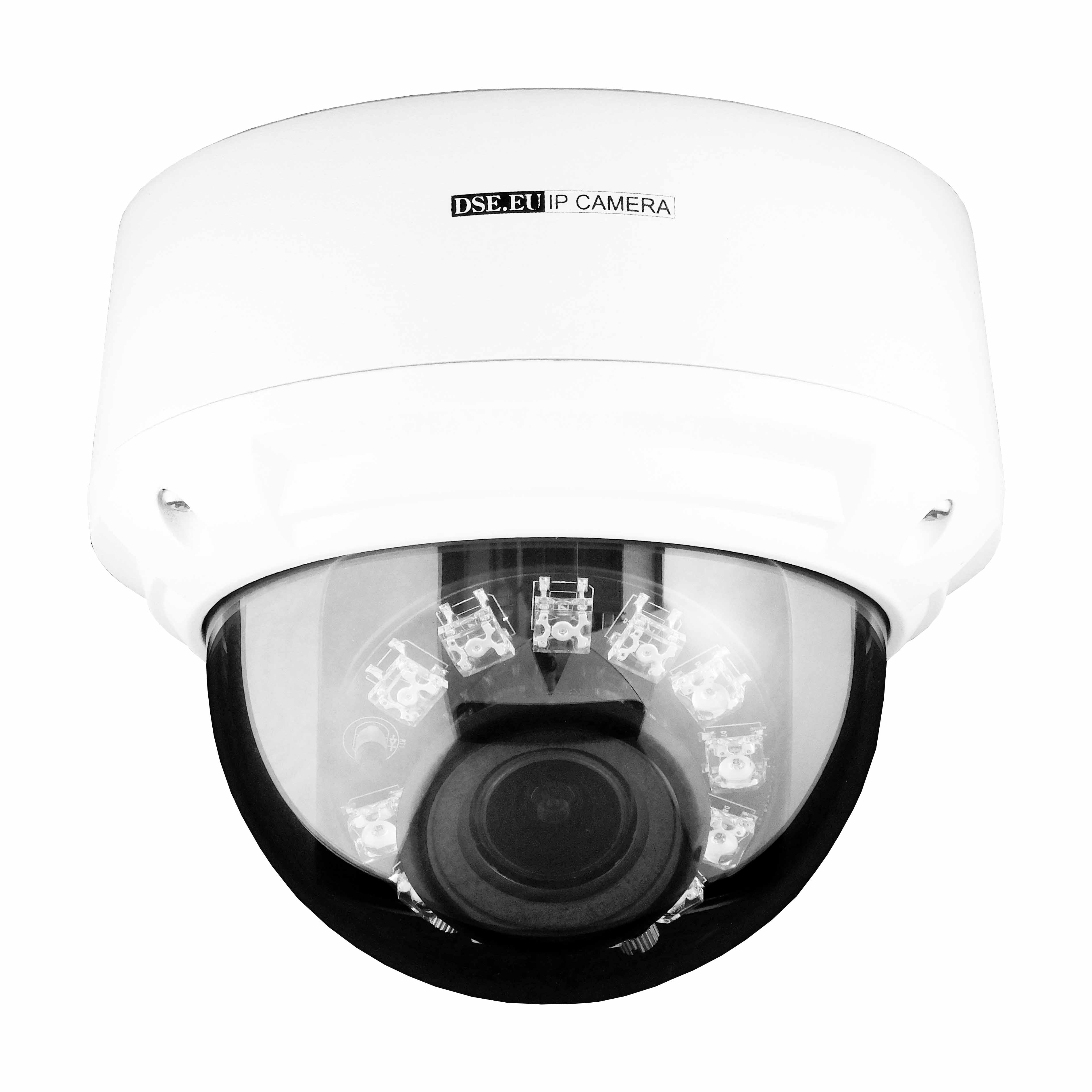

DOME
IR 30 m.

Onvif IP camera
RH-DCC1-4Z 4MP ZOOM
RH-DCC1-5 5MP

Waterproof outdoor casing SmartIR infrared illuminator 30 m. POE or 12VDC power supply Protezione IK10 Recording on SD card up to 128GB Adjustable lens 2.8-12 Audio input/output On-camera alarm input/output Video analysis H264 and H265 video compression

MINI DOME
IR 10 m.

Onvif IP camera
RH-DCC2 2MP

Waterproof outdoor casing SmartIR infrared illuminator 10 m. POE or 12VDC power supply Recording on SD card up to 128GB Fixed lens 3.6 Audio input/output

MINI
PINHOLE

Onvif IP camera
RH-TCC3SL 2MP

Low lighting starlight camera Recording on SD card up to 128GB Obiettivo pinhole 3.6 Audio input/output On-camera alarm input/outputVideo analysis Video analysis H264 and H265 video compression

THE HIGH-END IP CAMERAS


Network IP cameras for advanced CCTV systems

The cameras in this range are network digital cameras, also called IP cameras. With these cameras you can create a fully digital video surveillance system that works over a LAN network. Each camera has a LAN port and an IP address, that you can set just like you do with computers or other network devices. You can monitor your cameras with a PC or you can consider to purchase a network video recorder (NVR) to comfortably manage many cameras. This RH PRO range is designed for top notch systems that require maximum hardware and software performance.


Switch to digital. Get the benefits of the IP CCTV

Compared to traditional analog technology (nowadays AHD), IP technology offers many advantages and is therefore increasingly used in CCTV systems of any size. The main advantage of IP cameras lies in the network cabling that can be branched out with switches and allows you to connect many cameras with just one single cable. Another benefit of IP CCTV is the WiFi support. You can use wireless Wi-Fi cameras to reach places that are not easy to wire. Furthermore, with IP cameras you can connect video, power supply, audio and PTZ controls with a single cable, with no need of additional wiring. Unlike analog cameras, IP cameras produce a digital video stream that is ready to be stored. For this reason NVR video recorders are efficient and inexpensive even when they have to manage high resolution cameras, over 2MP.
See below an example of a small IP CCTV system.


RH SERIES IP cameras PRO

The RH Series IP cameras are our professional IP range for the high-end market. Compared to our IP cameras for residential and commercial markets, these RH Series come with comprehensive hardware setup and advanced video analysis functions. They are ideal in industrial systems and in complex projects where interaction with external systems and dedicated softwares might be needed. You can also consider our RH Series cameras for your own private CCTV system if you want top notch performance and reliability. If you are looking for high quality IP cameras for residential market, take a look at our RK Series.

Telecamere IP RH High end

THE VIDEO


High video resolution up to 12 Megapixel

The cameras in this RH series guarantee the highest video quality. You can choose between 1MP, 2MP, 4MP, 5MP and 12MP resolution models. The 1MP resolution, also called 720p (1280x720 pixels), is good for close-up monitoring. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and meets the needs of most security systems. If you can dedicate a slightly higher budget, consider also the 4MP and 5 MP models, which allow greater sharpness when recording distant subjects and more details in close-ups. This range also includes a 12MP (over 4K) model that is suitable for high-level applications where the recongition of the smallest details is required. To best manage your cameras we recommend using one of our RK Series NVR video recorders. When designing your system you can use cameras with different resolutions based on the importance of the monitored area. Here on the side you can download short demo movies in the most common resolutions.


DSE is a member of ONVIF

You can buy your IP products from us with confidence. DSE is one of the few companies in Italy that is a member of the ONVIF international association, which includes all the main IP security manufacturers and set the standard of communication protocol in this field. Our IP products, perfectly comply with the latest ONVIF standard, so you can use our cameras with any NVR. The ONVIF protocol includes all the controls instructions for the zoom lens, so you can control the camera's zoom with any device that complies with the standard.


H264 H265 video compression

The cameras in this range support H264 H265 video compression, including the latest upgrades, in order to combine high quality video stream and low bandwidth consumption. These cameras can manage 3 VIDEO STREAMING with different compression and resolution, that you can choose from the client device. The frame rate is also adjustable up to 25 frames / second (real-time). Choose the well-established H264 format for maximum compatibility with all NVRs, or use the latest H265 to increase the video storage capacity and minimize the bandwidth. Here on the side you can download two similar clips in H264 and H265 format: please note the different file size.


12VDC and POE power supply

All cameras in this range, except the mini pinhole cameras, support POE power supply via the network cable (IEEE 802.3af Class 3). To make them work, all you have to do is connect a POE switch or a POE NVR using standard, 8 cores, UTP cable. POE power supply supports up to 100 meters cabling in normal conditions. If for some reason you can not use POE power, all cameras also have a local power jack that you can connect to a 12VDC adapter. In this picture you can see the connection cable of the cameras, with the RJ45 network plug and the 12V auxiliary power connector.


SMART IR infrared illuminator with ICR

To be able to work in total darkness, these cameras are equipped with infrared LEDs that provide invisible night illumination UP TO 80 METERS depending on the model. Thanks to Smart IR technology, the LED power adapts automatically to the subject distance avoiding overexposure on closed targets. The cameras in this range come with high performance LED PIRANHA SUPERFLUX LEDs that provide a high illuminating power while maintaining a relatively low energy consumption. The LEDs turn on automatically below 10 lux. In night mode the camera works in Black White thanks to an ICR mechanism (Infrared Cut-Filter Removable). If you want, you can set the camera to work only in color mode, excluding the infrared night function.


HTTPS protocol support

All our RH IP cameras fully support HTTPS encrypted communication protocol that is highly recommended for high-risk CCTV systems. you may need to use https protocol, instead of ordinary http, in many application fields like banking or public security.


FUNCTIONS


Mirror, WDR, BLC, DNR, HLC, Antifog

The RH Series IP cameras come with a full pack of advanced features. With an Internet browser you can change the options to adapt the camera to your needs. You can adjust the image and rotate it, with the MIRROR function, in order to adapt the framing to the area to be monitored. The WIDE DYNAMIC RANGE (WDR) function is useful if you monitor bright areas together with darker areas. With the BLC you can enhance dark subject on a bright background. The ANTIFOG, HLC and DIGITAL NOISE REDUCTION functions allow you to face difficult monitoring conditions with poor visibility.


STARLIGHT for night-time color recording

This range of cameras includes some STARLIGHT models, based on the SONY STARVIS™ back-illuminated CMOS sensor. Starlight cameras are designed to produce clear full color video at night, taking advantage of every minimal natural light source. Starlight PTZ cameras are highly recommended when monitoring large outdoor areas which are too vast for IR illuminators.


INTELLIGENT VIDEO ANALYSIS


Advanced video detections

These RH series cameras include advanced digital video analysis features that allows you to detect unusual situations that occur within the camera's field of view. This Intelligent Video Analysis function, is a high-tech feature, designed for advanced security systems, that you can not find in our "Naked" IP cameras, for the residential market. Intelligent Video Analysis is essential when protecting high risk areas, however it can be also very useful for ordinary CCTV systems, to detect suspicious actions. Several kinds of detection are available to suit the security need of shops, companies and public places. Each of these video analysis functions can be individually configured and enabled-disabled according to the time and date. When a suspicious event is detected, the cameras start recording, activate alarm output for local warning, and send out email or FTP upload. It is also possible to send out alarm signals to the HRC monitoring software included or to any alarm management platforms supporting the ONVIF Videoanalytics Service Spec.V220 standard.
Upon request we provide developers with all the information needed to implement the Intelligent Video Analysis functions in their own software.

TYPE OF DETECTION RH-BCC1-12Z
RH-BCC1-4Z
RH-BCC3-4Z
RH-DCC1-4Z
RH-TCC3SL
RH2-BCC2
RH-DCC2
Intrision in a perimeter PERIMETER
Camera dazzle ANTI MASKING
Fence VIRTUAL FENCE
Double virtual wall (Double Fence) DOUBLE FENCE
Excessive permanence (Loiter) LOITER
Excessive permanence of multiple subjects (Multi Loiter) MULTI-LOITER
Abandoned object ABANDONED OBJECT
Removed object from selected area REMOVED OBJECT
Subject moving quickly UNUSUAL SPEED
Vehicle proceeds in the opposite direction U TURN
Parking in no parking area NO PARKING
Camera moved from original position TAMPERING

HARDWARE

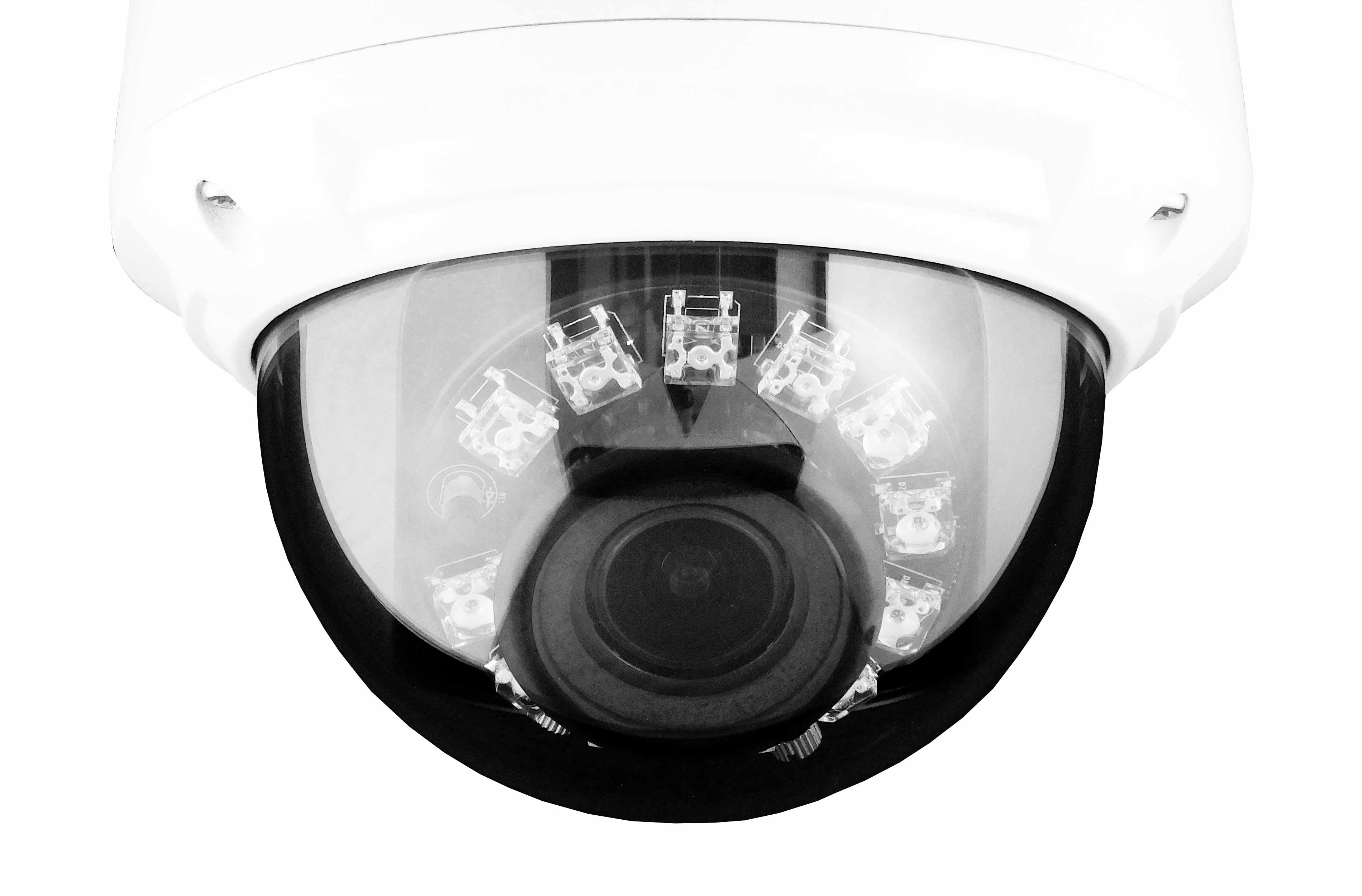

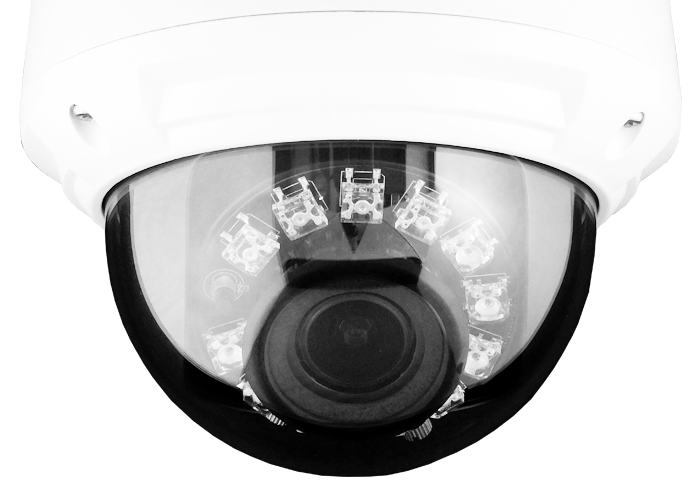

Fixed or motor zoom lens

The cameras in this RH range have a fixed lens or a motorized zoom, depending on the model. Small cameras, up to 20 m. IR, come with 3.6 mm FIXED LENS for close-up monitoring. This lens provides a wide-angle view of about 70°, optimal for short distance. Models with IR illumination over 20 m come with an adjustable lens that allows you to adjust the angle of view to best suit the area to be monitored. Most of the cameras include MOTORIZED ZOOM that can be adjusted from remote, via computer, NVR, or even mobile phones. These motorized versions also feature AUTOFOCUS , which saves you a lot of valuable time when installing the cameras. We recommend using motorized zoom cameras all the time you install cameras in hard-to-reach places. The minicameras for hidden surveillance come with a 3.6 mm FIXED PINHOLE wide-angle lens, perfect for hiding behind a tiny hole.


IP66 and IK10 protection

All cameras in this RH range are waterproof, with IP66 protection degree. You can place them both inside or outside, under the rain. We do not use cheap plastic enclosures for our IP cameras, but only robust fire-painted die-cast aluminum casings. Therefore, you can set these cameras up anywhere, without worrying about outdoor temperature and corrosion. In addition, RH-DCC1 ... dome models provide IK10 anti-vandal resistance and can be installed in high-risk areas without the worry of the camera being damaged by shocks or tampering attempts.

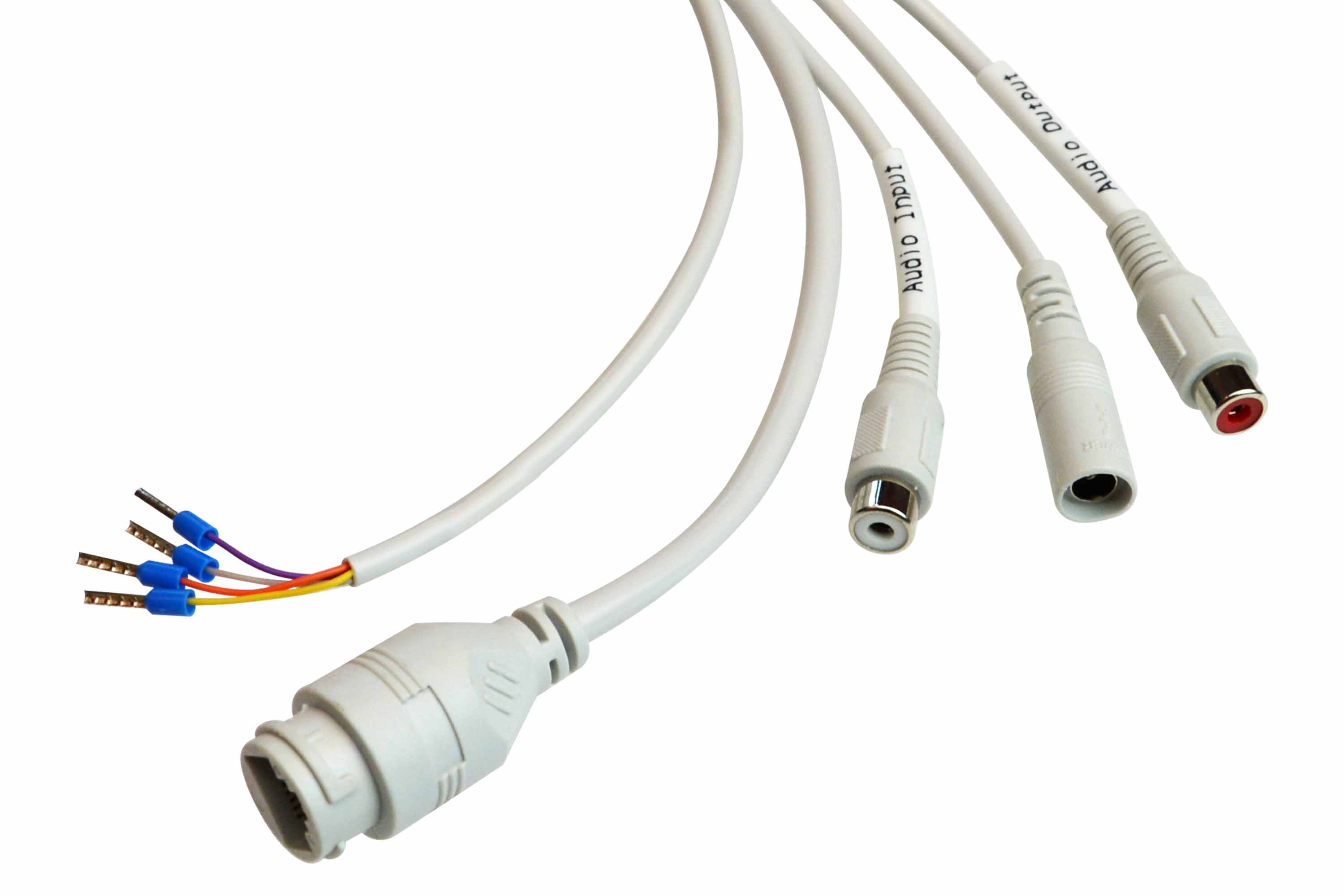

Alarm input - output

Many cameras in this range come with 1 or 2 alarm inputs for the connection of sensors, detectors, switches and other contacts that can generate automatic alarm actions. This makes these cameras perfect for automated industrial systems. These cameras also have an alarm output for the connection of devices to be activated in the event of an alarm, such as sirens or indicating lights. These alarm outputs are particularly useful in video analysis applications, to warn of unusual events. Here on the side is the connection cable of a full feature RH camera.

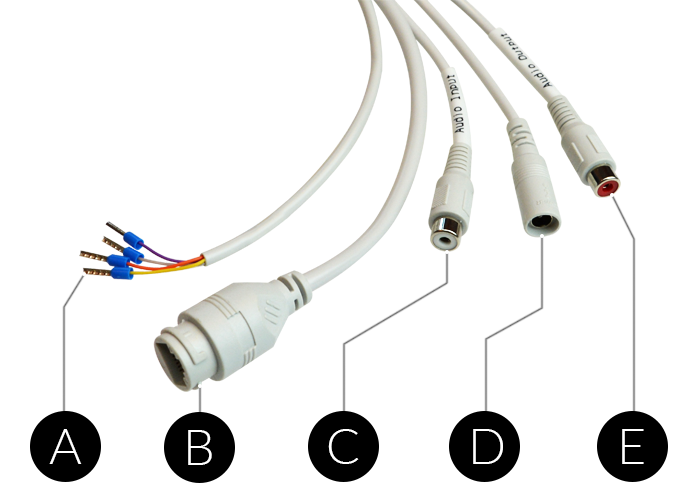

A ALARM INPUT - OUTPUT
B RJ45 NETWORK PORT
C RCA AUDIO INPUT FOR MICROPHONE
D 12VDC POWER SUPPLY
E RCA AUDIO OUTPUT FOR SPEAKER

NOTE) Check the technical data sheet at the bottom of the page to see the available connections for each model


Audio input and output

These IP cameras come with RCA audio input and output for bidirectional dialogue to which you can connect a microphone and a speaker. When you connect to the camera remotely, with your computer or mobile phone, you can talk to the people in the area to provide instructions or warnings. It is a useful function in many applications where the real-time interaction with an operator is required.


Water-proof junction box

To make the installation of these cameras easier, we have designed a waterproof junction box that you can purchase as an optional accessory. These WATERPROOF BOX is ideal to contain the terminals, protecting them from water and wearing. The front cover includes holes for the camera bracket. You can let the cables out from the rear or from the side of the box (waterproof cable gland is included). If you need to install the camera on a pole, an optional POLE COLLAR is also available.

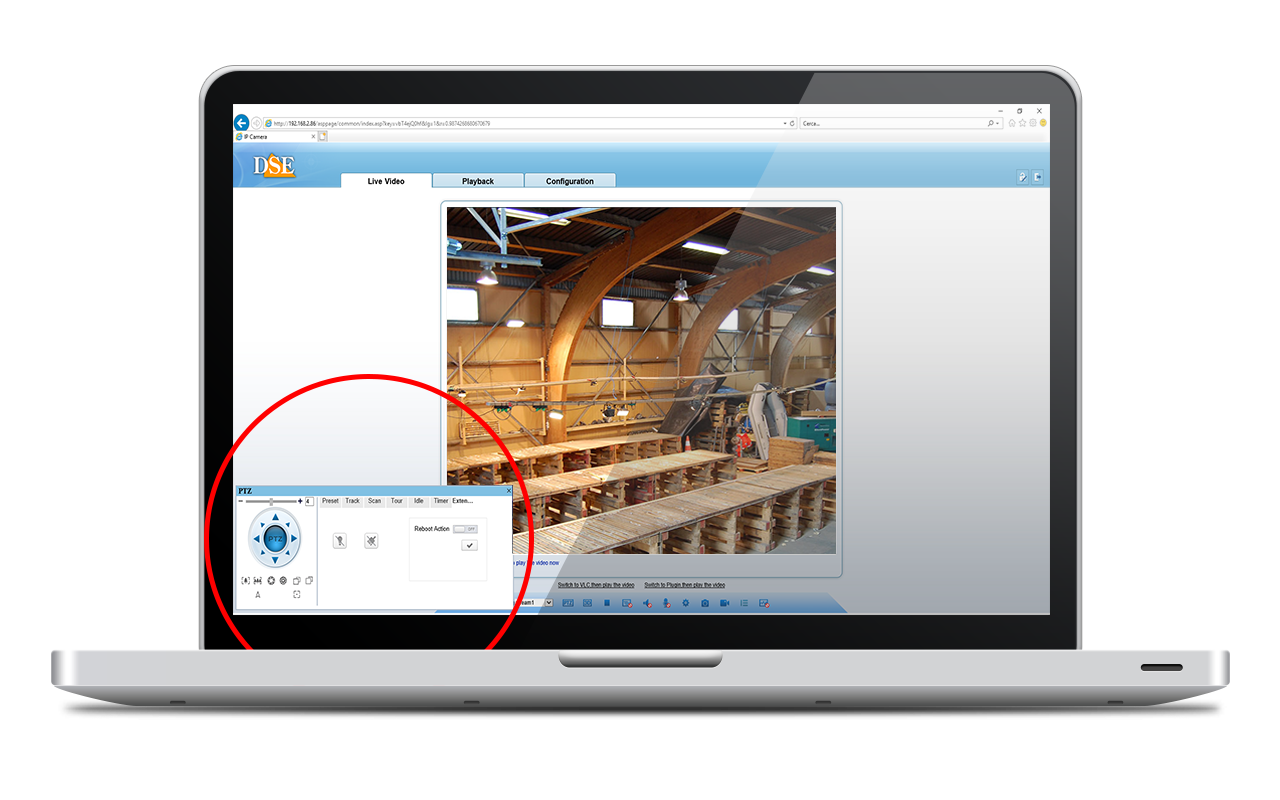

PC CONTROL

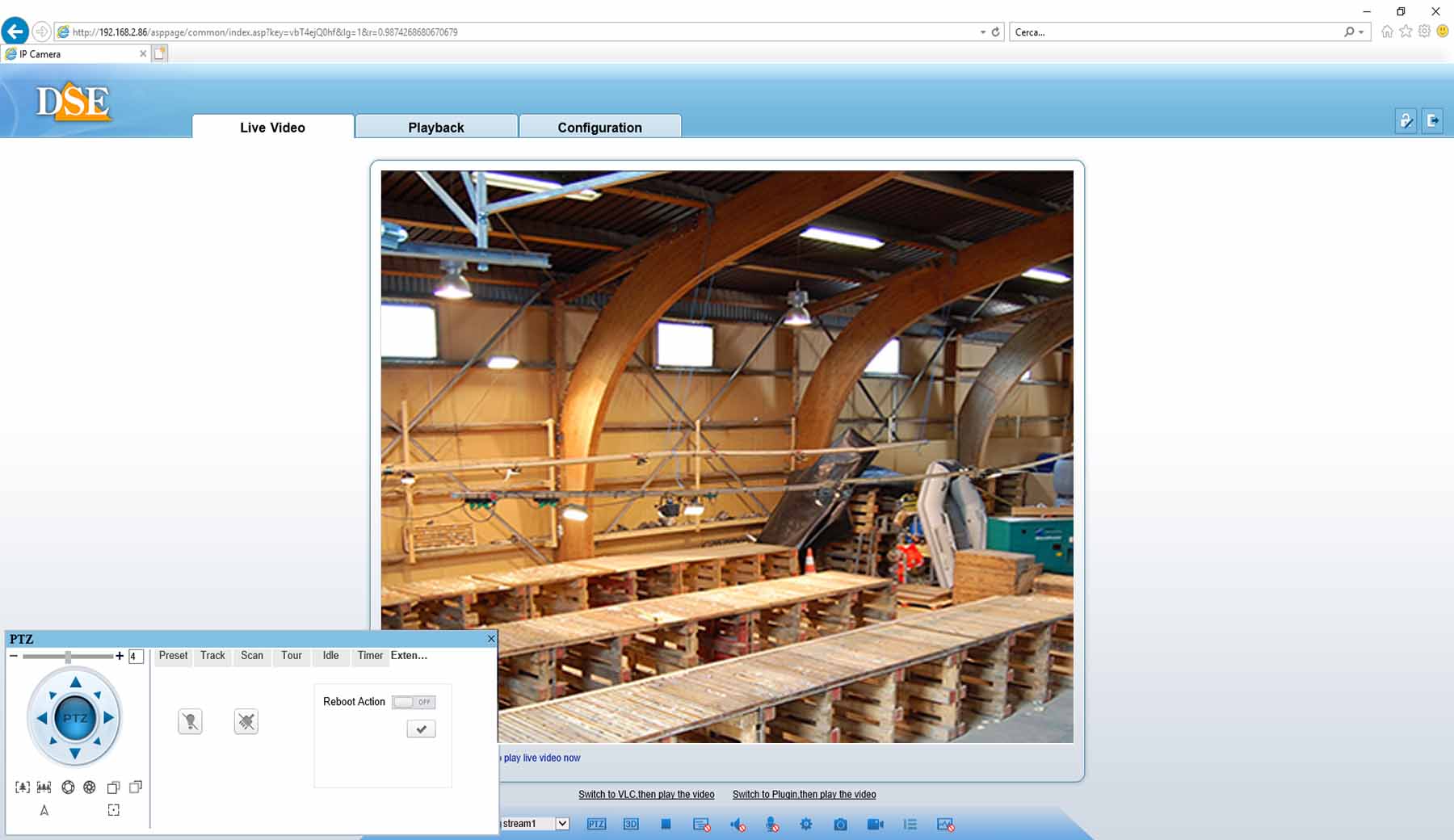

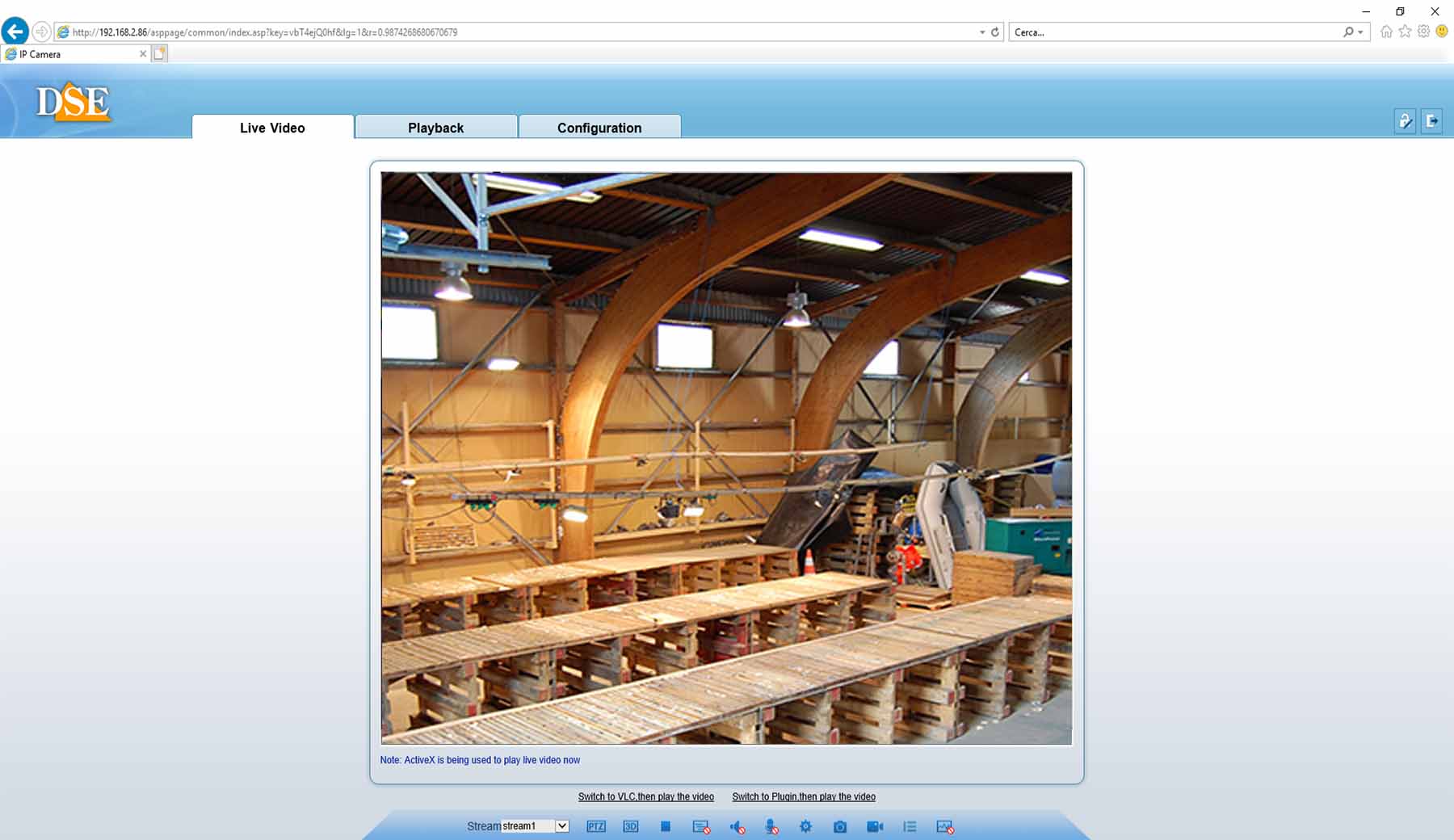

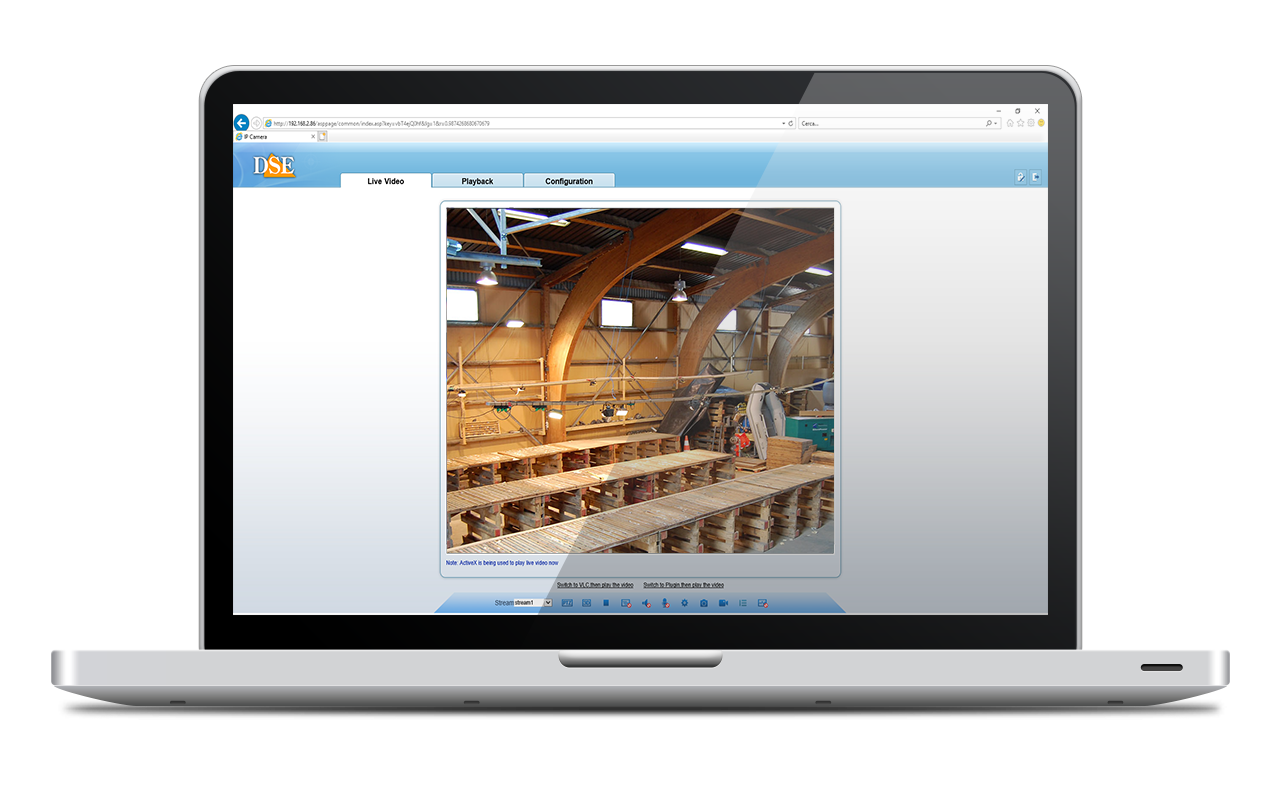

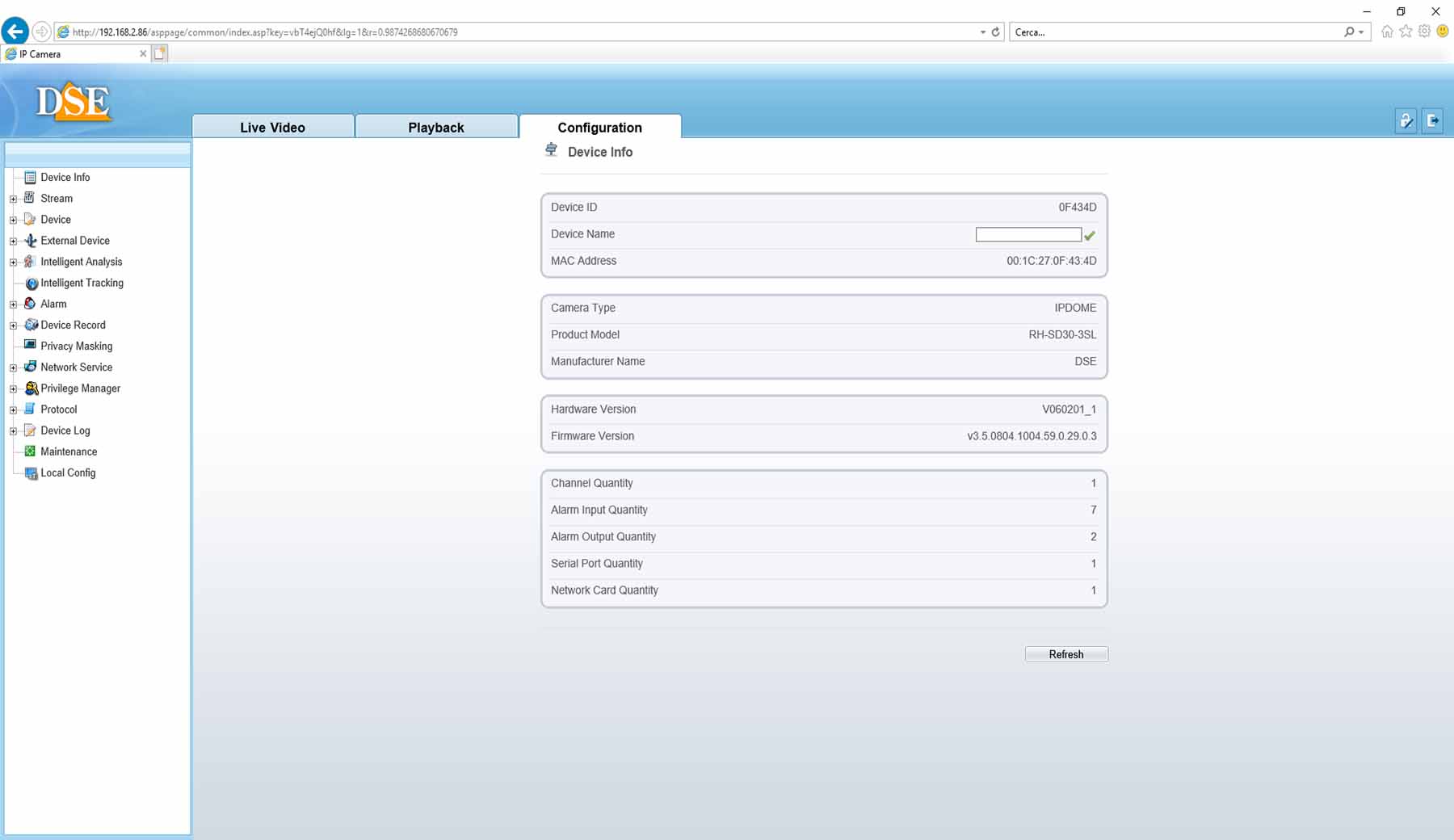

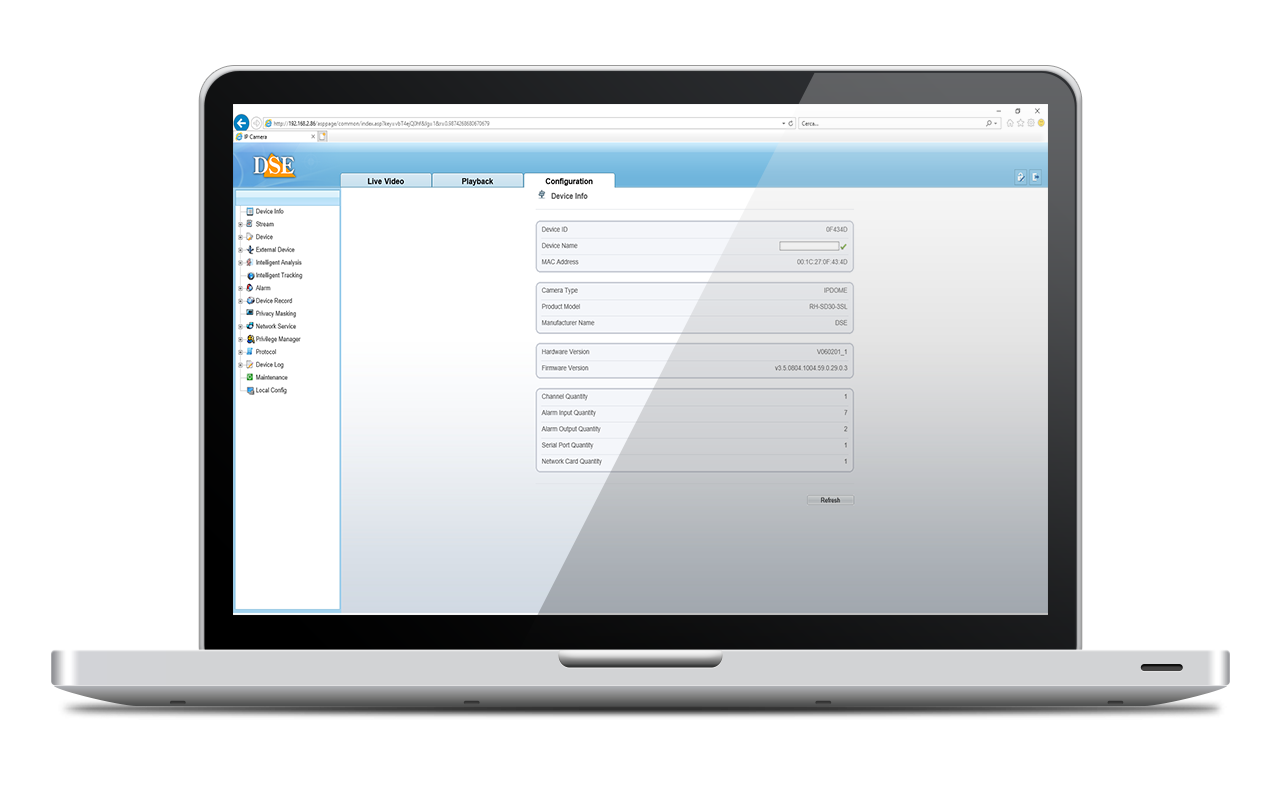

Full camera control via browser

Every computer on the network is a perfect monitor for your IP cameras. No software needs to be installed. Just use your Internet Explorer browser and enter the login password for WATCHING live video. You can RECORD , take snapshots and ZOOM-IN by dragging the mouse. A user friendly menu, available in many languages, allows you to SET all system options. You can also PLAYBACK the videos which have been recorded in the camera memory, searching date and time over the timeline. The cameras in this range also support the RTSP protocol, which allows you to watch live video with ordinary players such as VLC.

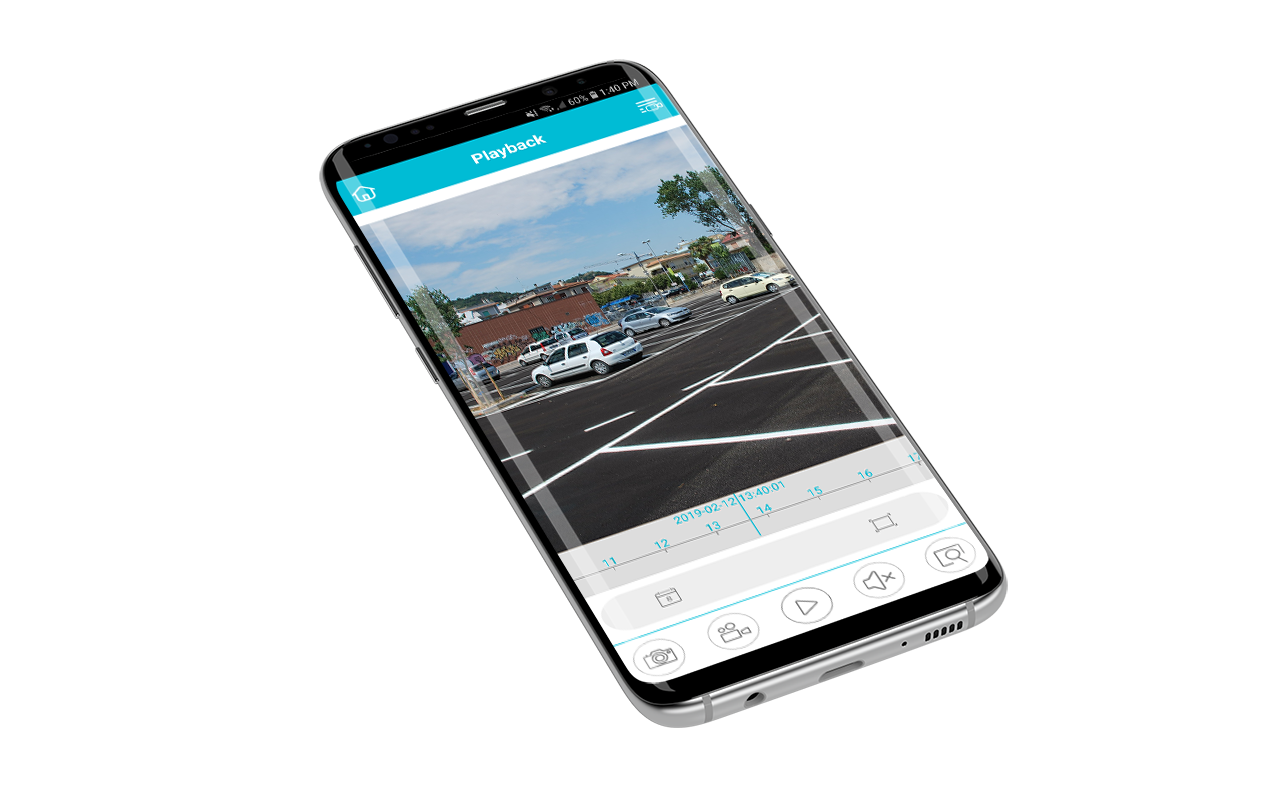

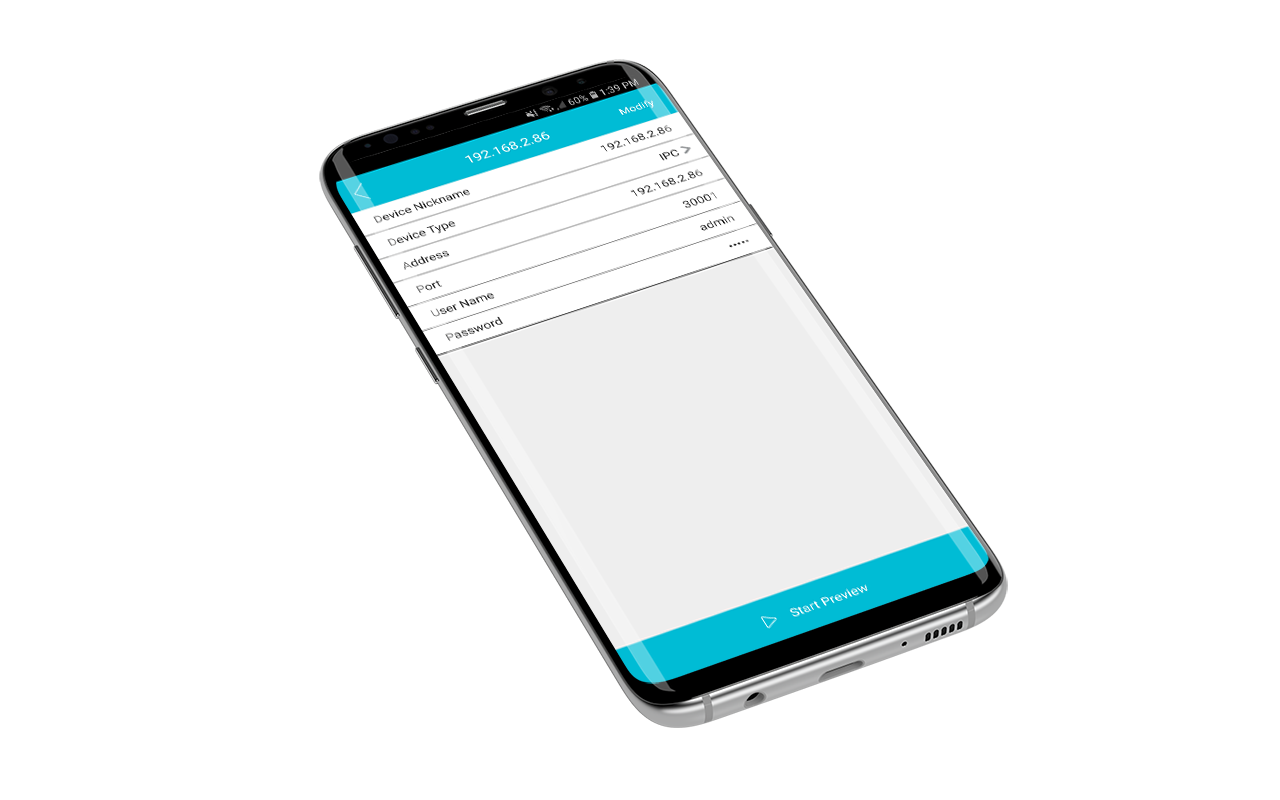

SMARTPHONE APP

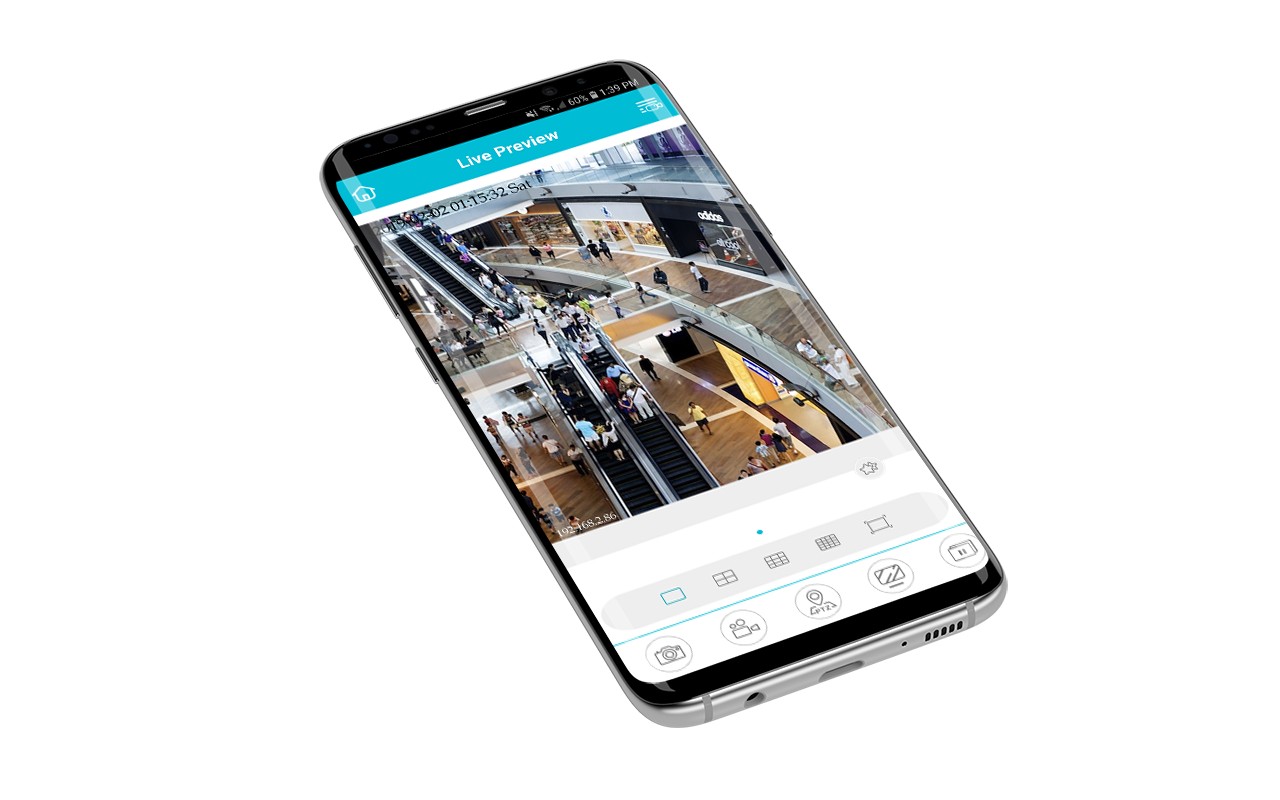

Connect with your smartphone

With our free APP for Android and iOS, you can control your IP cameras with a mobile phone or tablet. You can use the app within your Wi-Fi network, calling the IP address of the camera, or via the Internet, calling the camera CLOUD ID. You can WATCH up to 16 cameras on the screen. You can RECORD , take snapshots and ZOOM IN with the classic two-finger gesture. You can also PLAYBACK the videos which have been recorded in the camera memory, searching date and time over the timeline.

Free app for iOS and Android Live viewing from the app Audio in Audio out Motorized cameras control Playback APP APP

IP VIDEO RECORDING


Compatible with all Onvif NVR

The cameras of this RH series, like all our IP cameras, can be used with network video recorders, also called NVR. These cameras are compatible with all ONVIF NVR on the market. If you are building a brand new system we recommend our RK Series NVRs, for perfect compatibility.
If you are using our RH series cameras for a residential system, buying an NVR is recommended, because it makes Internet connection easier with its P2P cloud server. Being designed for high security installations these RH cameras do not support P2P cloud server.


128GB SD Card slot

Almost all cameras in this series have a built-in microSD card slot. You can insert a micro SD memory up to 128GB and record videos directly on the camera. You can record in case of alarm or even continuously on the base of a time scheduler. When the camera runs out of memory space, it will automatically start overwriting the oldest files. The SD MEMORY turns these IP cameras into a independent video surveillance systems capable of recording even without a network video recorder. We recommend you still use the SD card, even if you have an NVR, because it record in every condition, even if the network is disconnected because of a failure or sabotage.

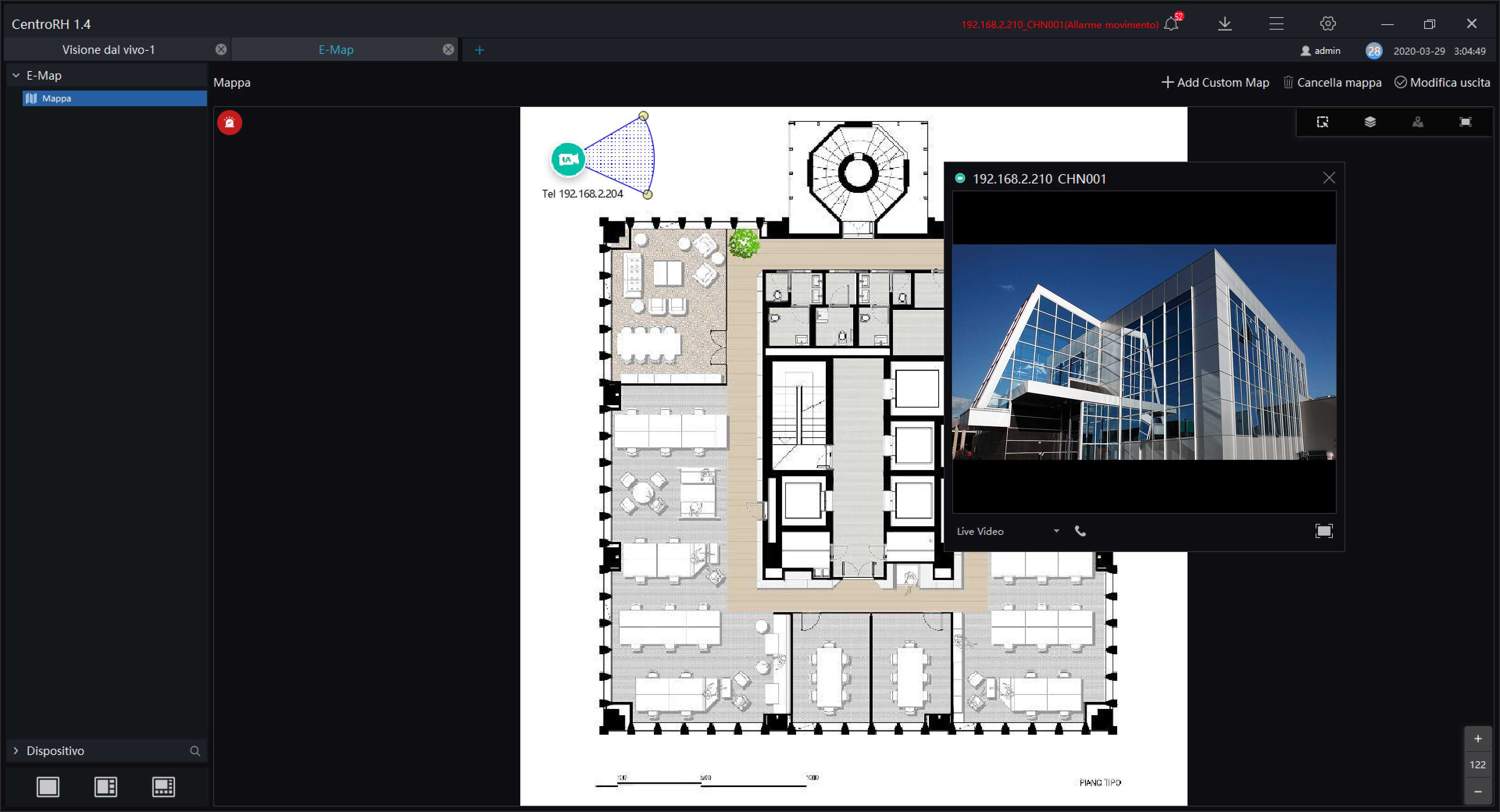

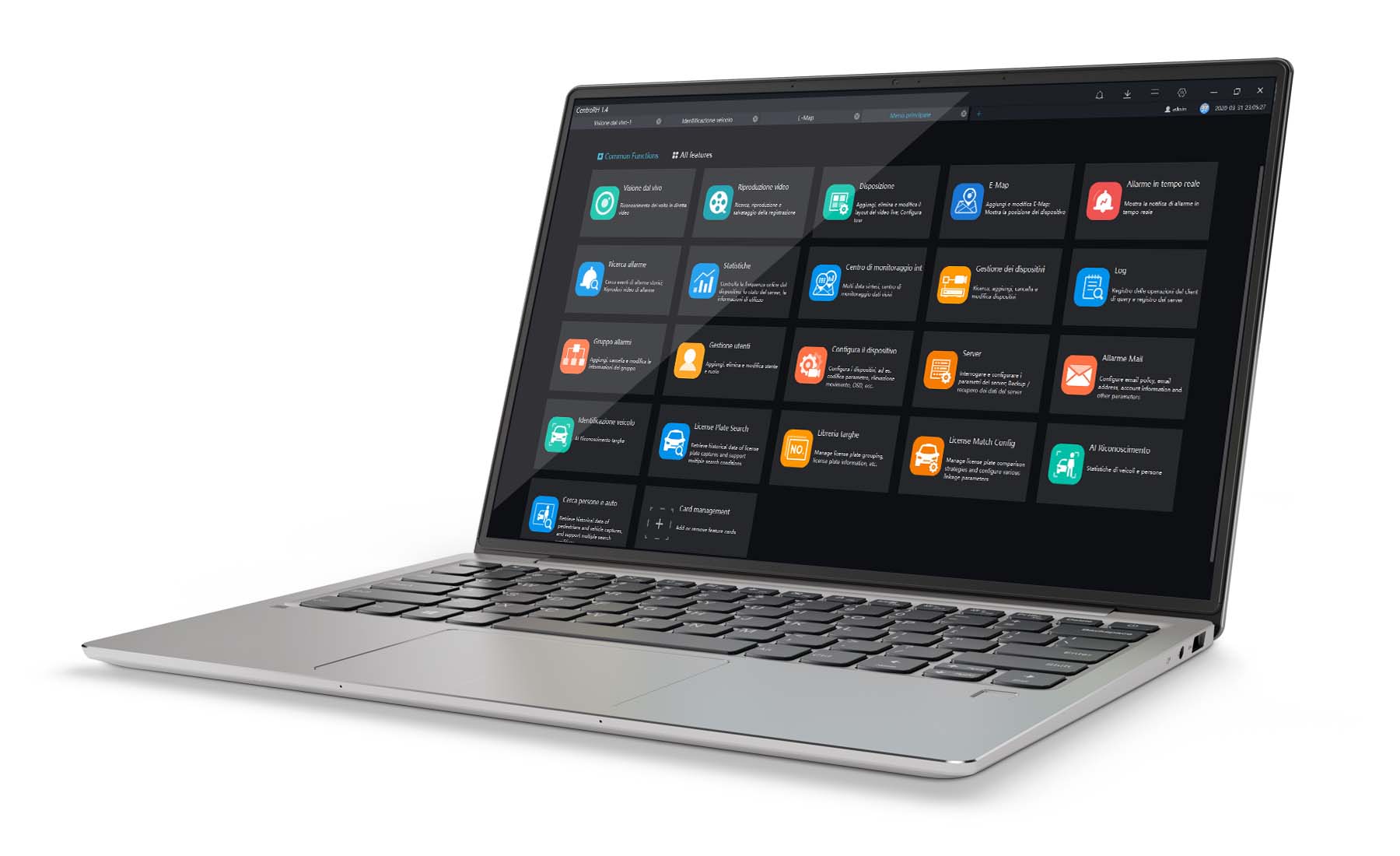

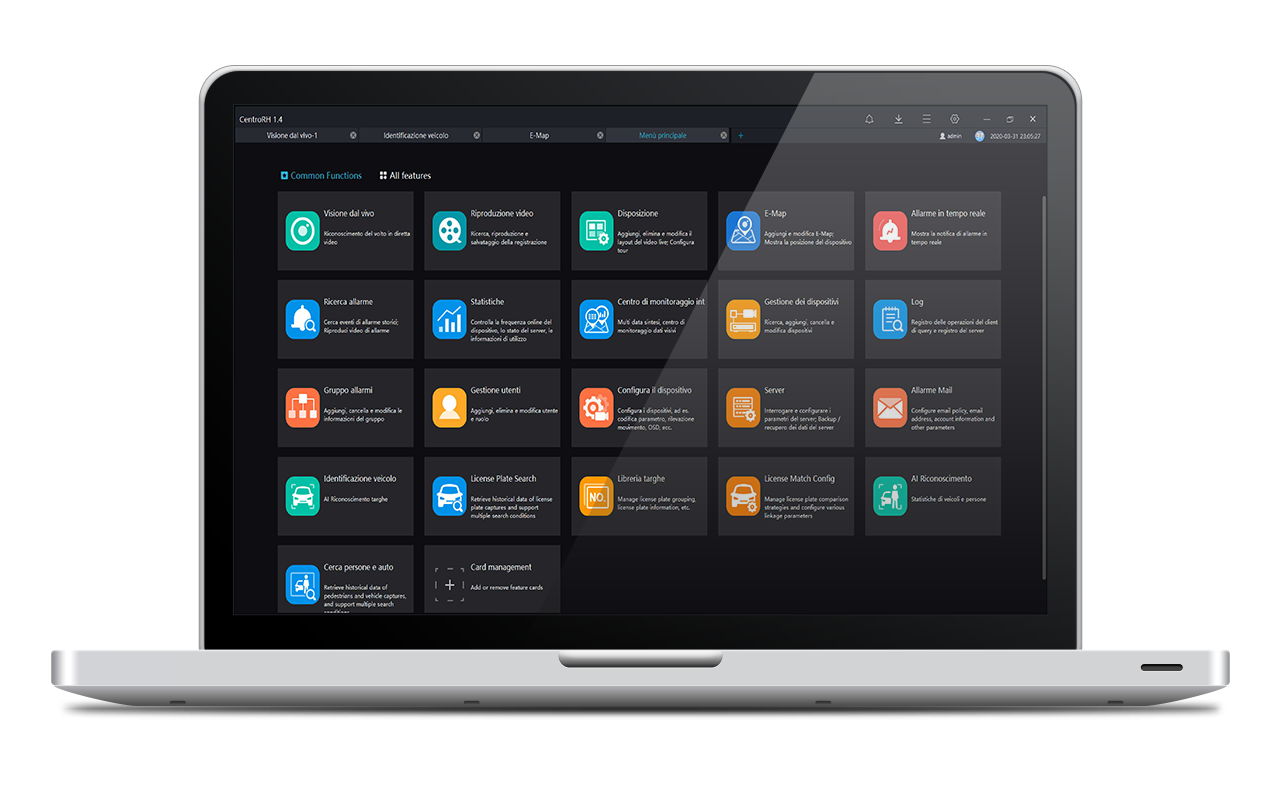

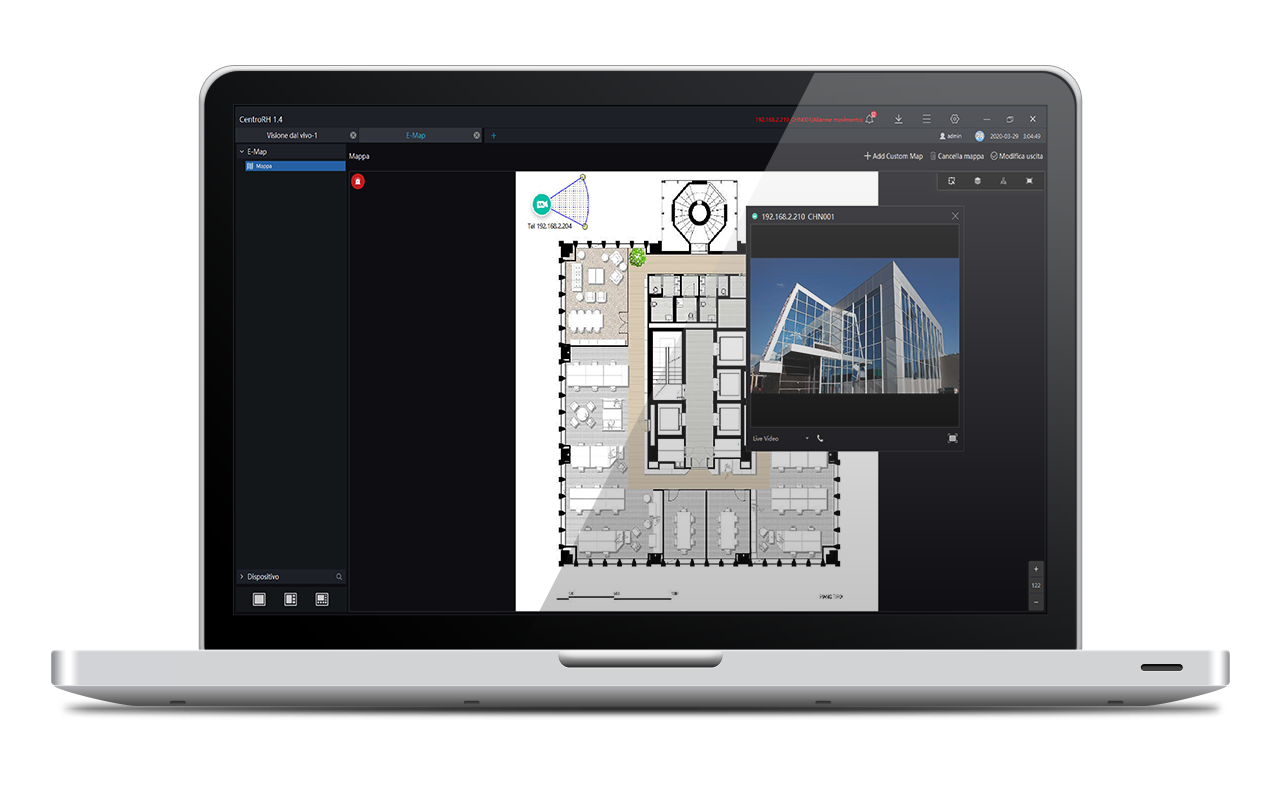

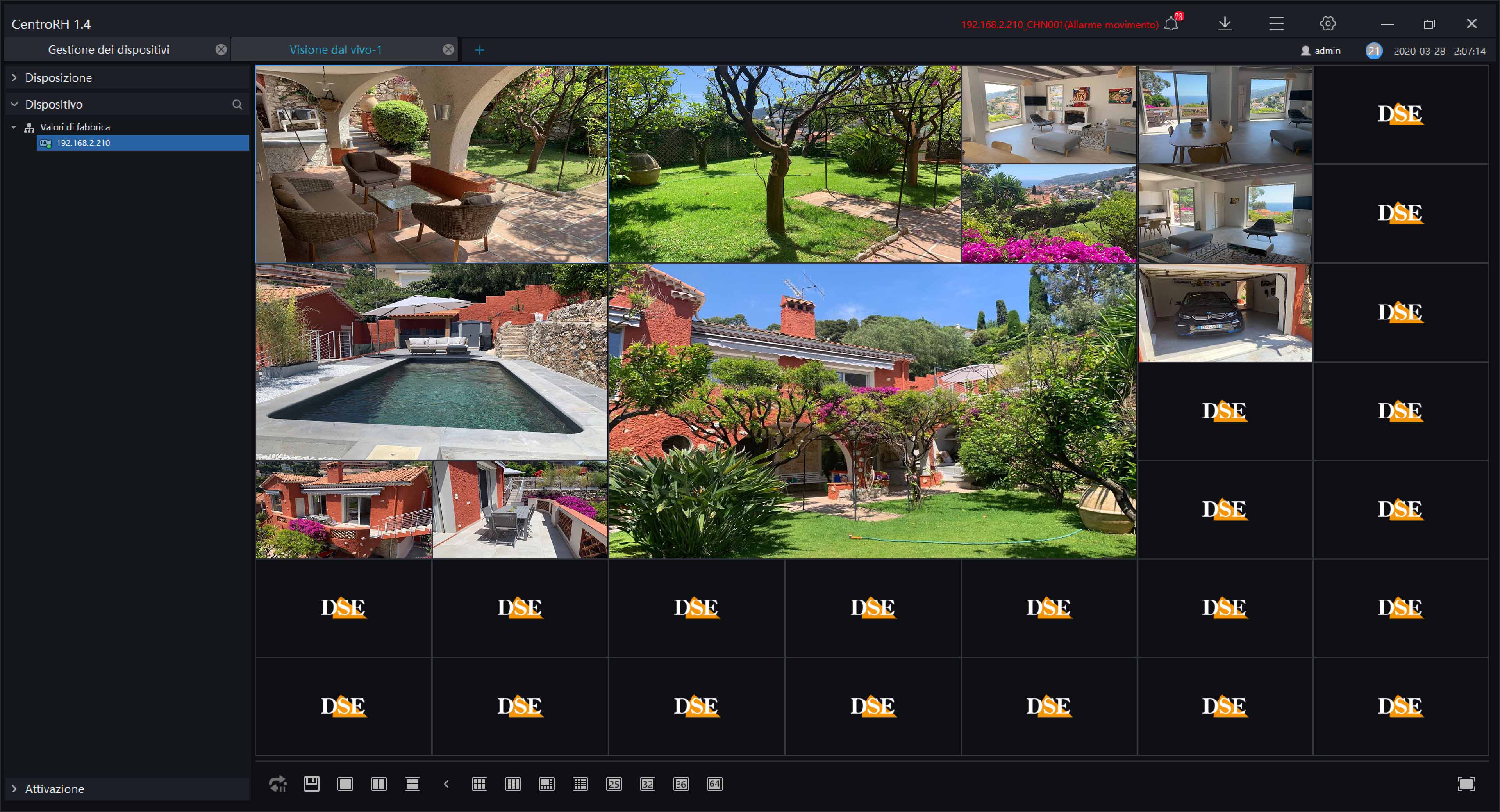

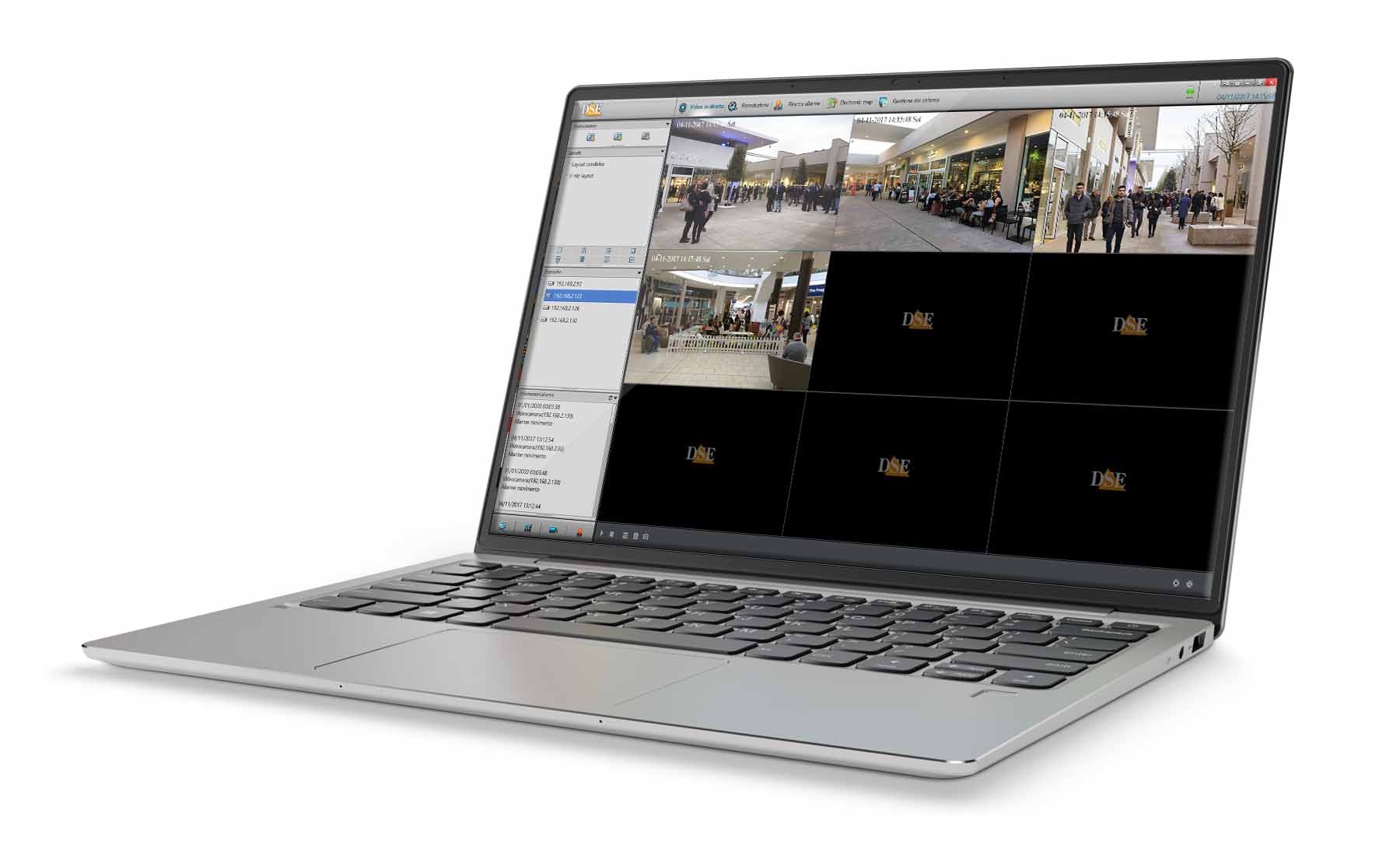

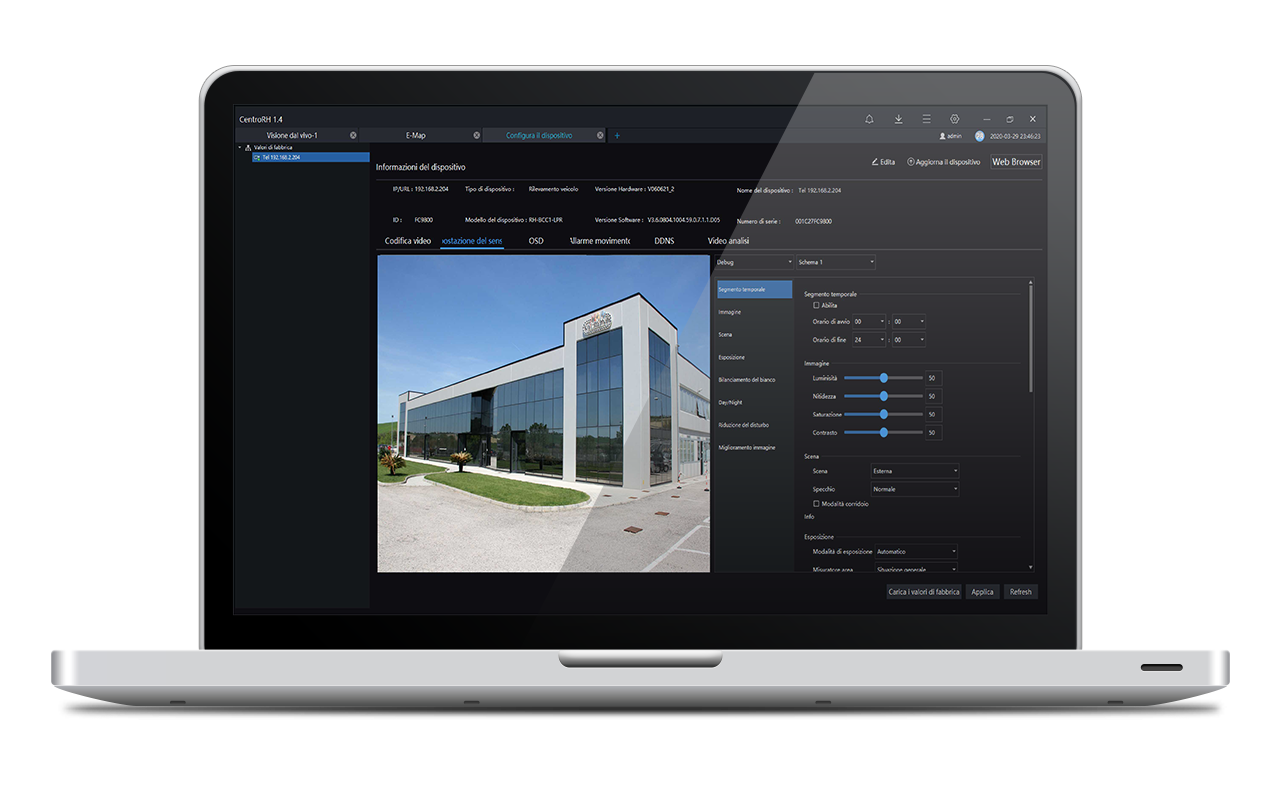

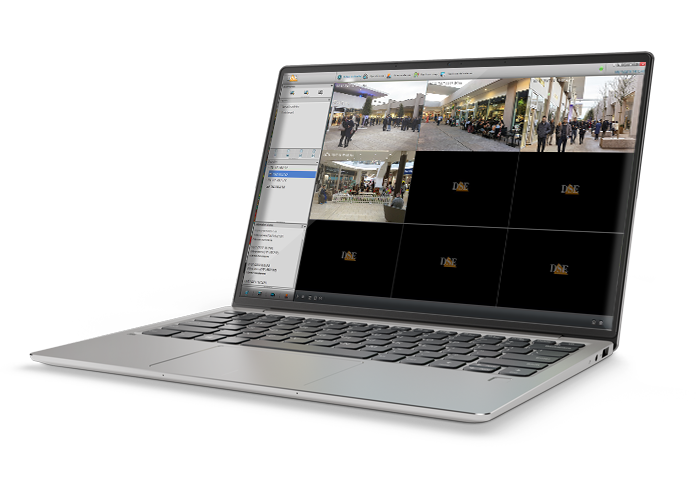

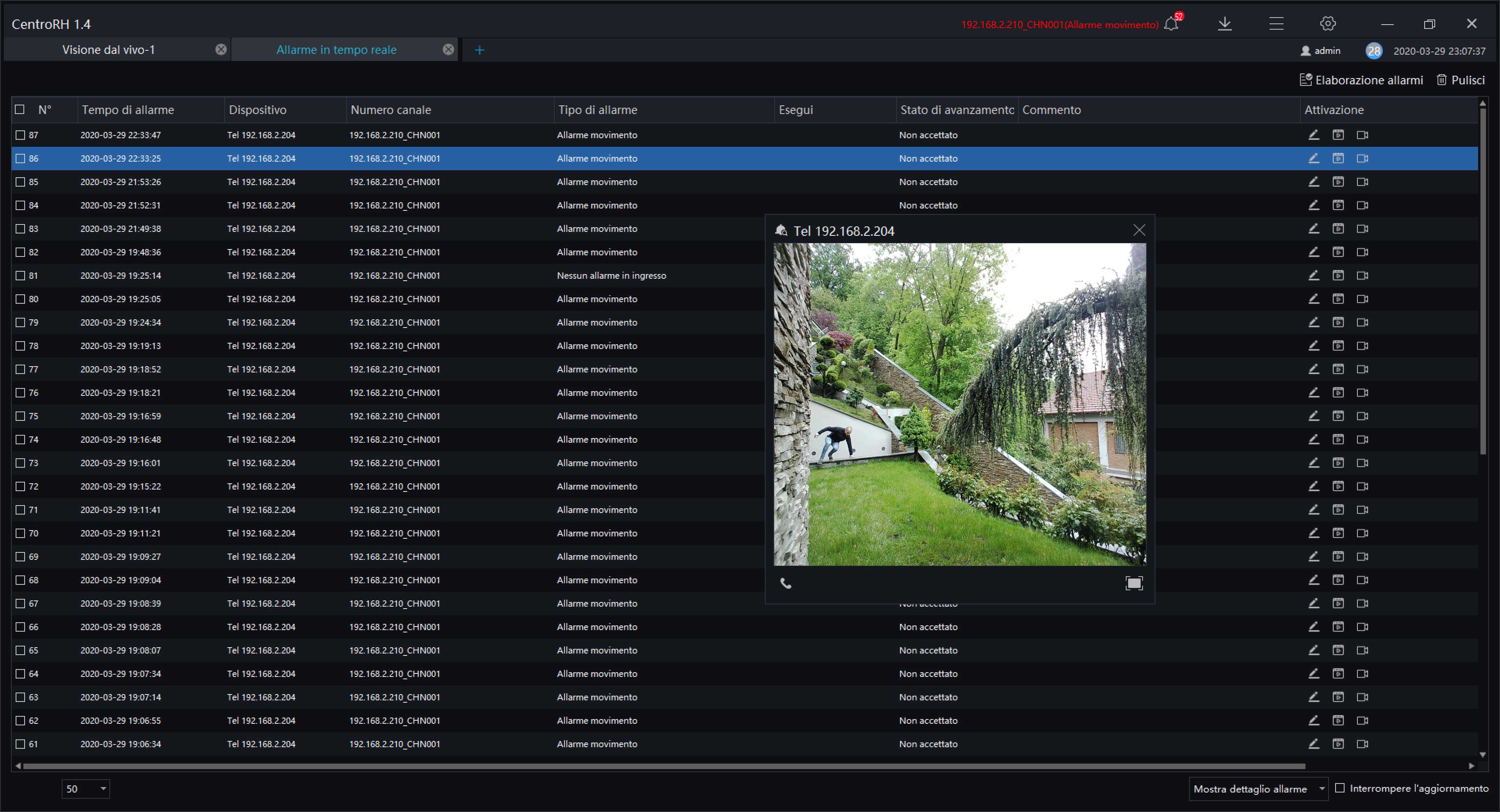

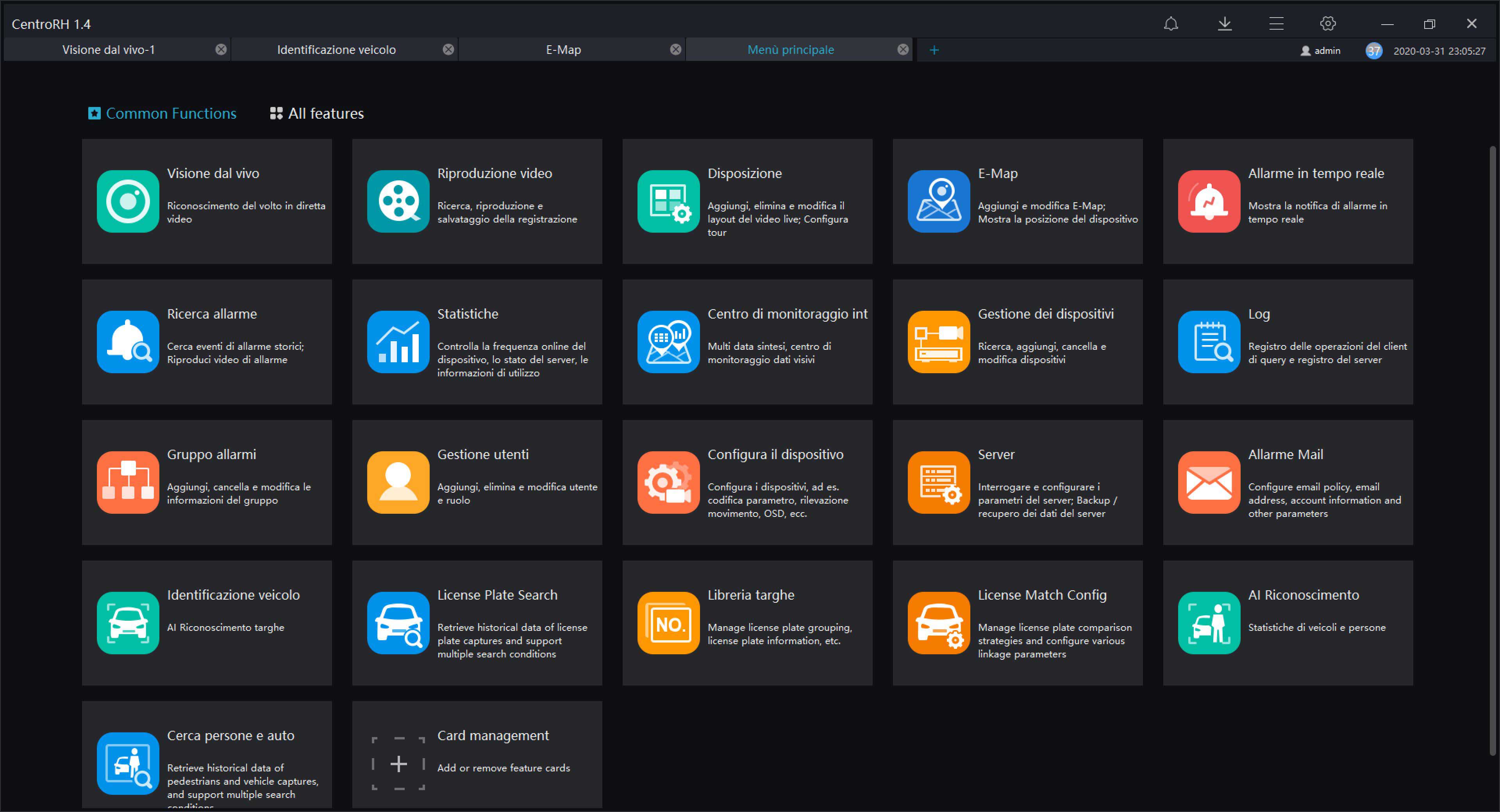

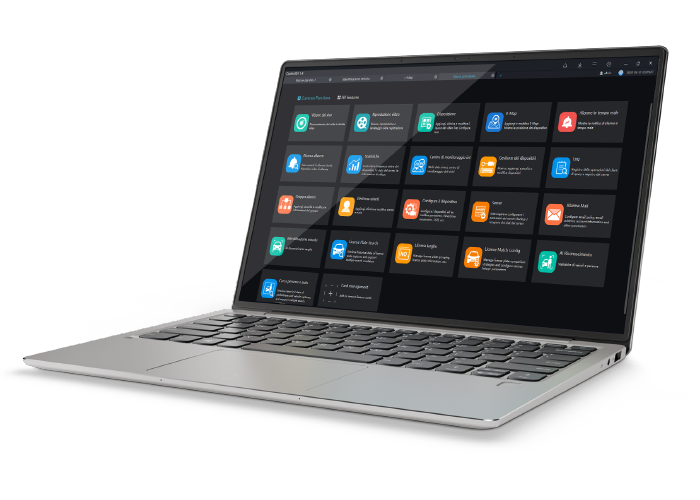

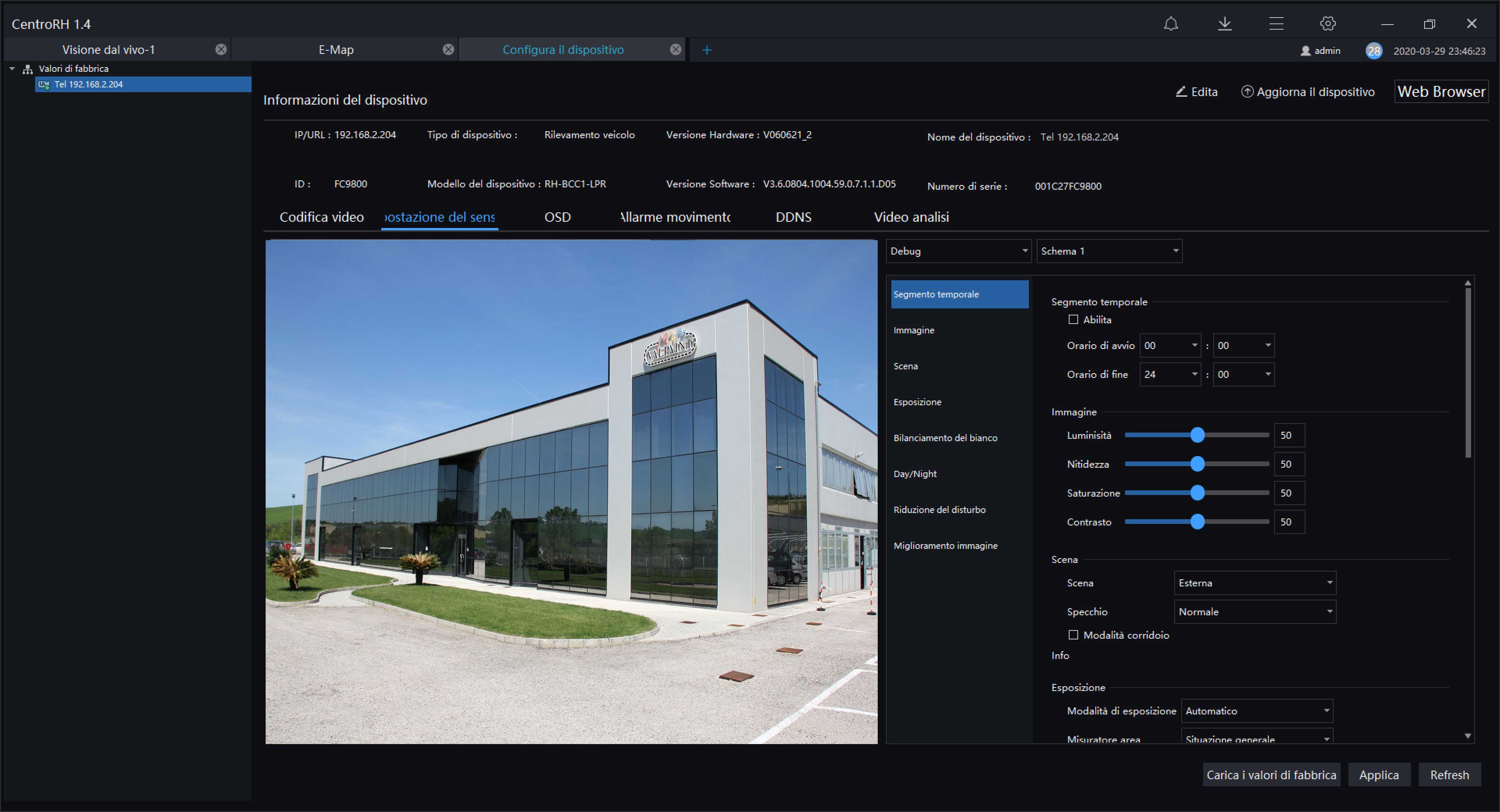

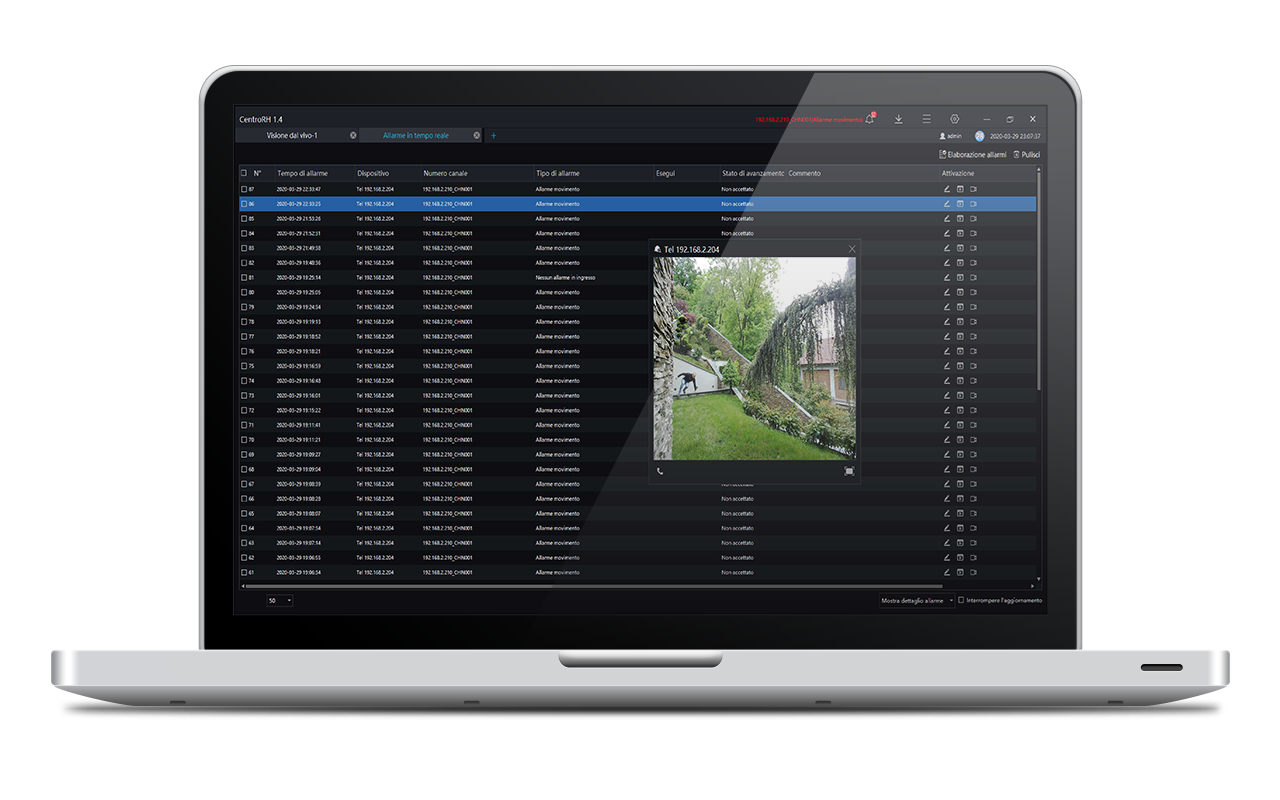

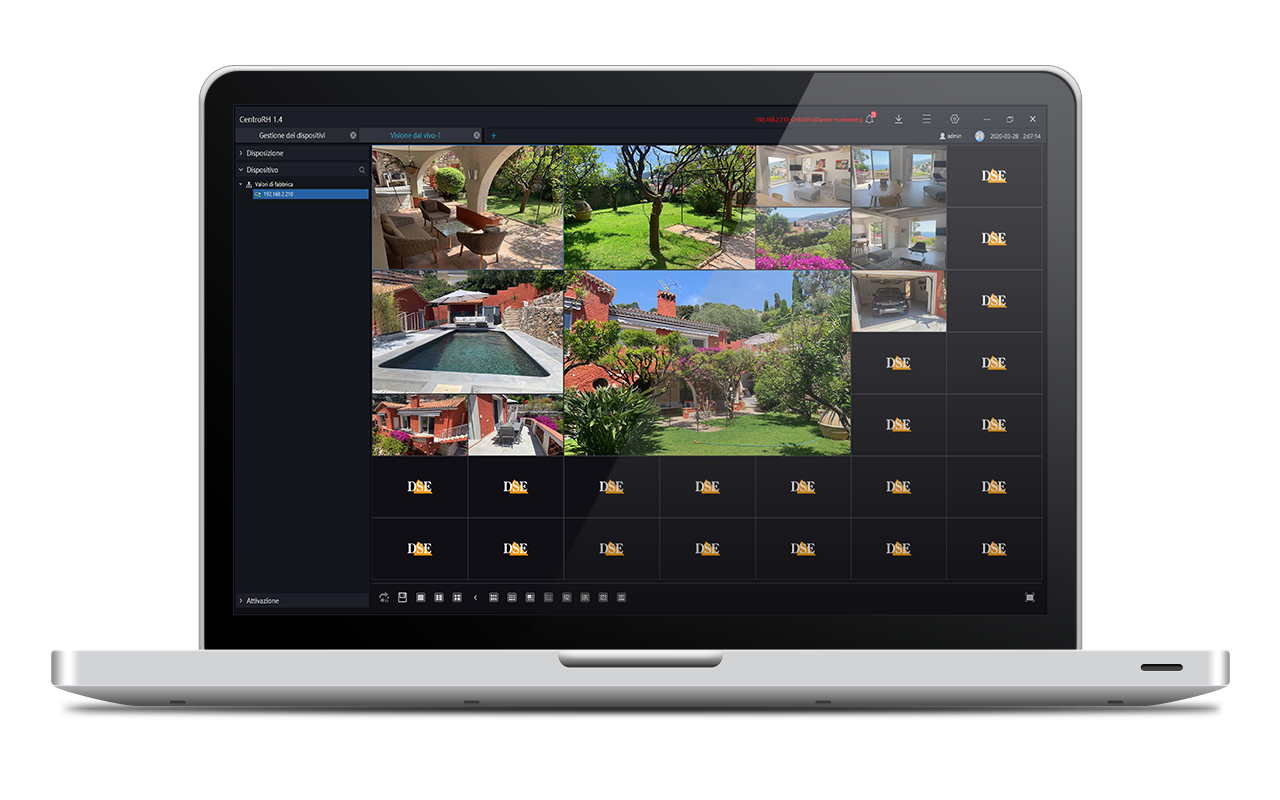

NVR software for Windows

You can use a computer to monitor and record our IP cameras. You do not have to buy anything, just download our free VMS software suitable for all our IP cameras. You can install it on as many computers as you want and use it freely, either as a main video recorder, or as an additional control unit. There is also a more specific software, only for these RH Series cameras, which allows more control on all features: it is our free RHC software . In addition to monitoring, this software allows you to change the camera options and assign IP addresses during installation.

DOWNLOAD VMS DOWNLOAD RHC

Recording on NAS

All cameras in this range allow you to record on an external NAS. A Network Attached Storage (NAS) is a network device that holds one or more hard drives. You can record your videos on a remote NAS just in case of alarm or continuously, on the base of a time scheduler. When the memory is full, the automatic overwriting of the oldest files is normally set. Recording on external HDD allows you to achieve high video storage capacity and store your video files on a common network resource, ready to be shared with other applications.


SDK, API e CGI for developers

The RH Series cameras are designed for high-tech applications where software interaction with other equipment is often required. We provide developers with free SDK libraries and APIs to control all functionalities of the cameras with their own software. Moreover, these cameras can be fully controlled via CGI commands (Common Gateway Interface) over HTTP protocol. The list of CGI commands is also available for free upon request.

DOWNLOAD SDK

TECHNICAL DATA



CODE RH-BCC1-12S RH-BCC1-4Z RH-BCC3-4Z RH2-BCC2 RH-DCC1-4Z RH-DCC1-5 RH-DCC2 RH-TCC3SL
Description IP camera IP camera IP camera IP camera IP camera IP camera IP camera IP camera
Type Fixed bullet Fixed bullet Fixed bullet Fixed bullet Fixed dome Fixed dome Fixed dome Fixed mini
CAMERA
Max resolution 12MP 4MP 4MP 1MP 4MP 5MP 2MP 2MP
Optical sensor 1/1.7" CMOS IMX226 SONY STARVIS 1/3" CMOS SONY lowlux 1/3" CMOS SONY lowlux 1/3" CMOS APTINA 1/3" CMOS SONY lowlux 1/2,8" CMOS SONY lowlux 1/2,8" CMOS SONY lowlux 1/2,8" CMOS IMX307 SONY STARVIS
Chipset HS Hi3519 HS Hi3516D HS Hi3516D HS Hi3516C HS Hi3516D HS Hi3516A HS Hi3516C HS Hi3516C
Starlight
Video resolutions 4000x3000 @ 20 fps ... 4096x2160 @ 25 fps ... 3840x2160 @ 25 fps ... 1920x1080 @ 25 fps ... 1280x720 @ 25 fps 2592x1520 @ 25 fps ... 2560x1440 @ 25 fps ... 2304x1296 @ 25 fps ... 1920x1080 @ 25 fps ... 1280x720 @ 25 fps 2592x1520 @ 25 fps ... 2560x1440 @ 25 fps ... 2304x1296 @ 25 fps ... 1920x1080 @ 25 fps ... 1280x720 @ 25 fps 1280×720 @ 25 fps 2592x1520 @ 25 fps ... 2560x1440 @ 25 fps ... 2304x1296 @ 25 fps ... 1920x1080 @ 25 fps ... 1280x720 @ 25 fps 2592x1920 @ 10fps ... 2048x1536 @ 20fps ... 1920x1080 @ 25 fps 1920×1080 @ 25 fps 1920x1080 @ 25 fps ... 1280x720 @ 25 fps
Video compression H265 H264 MJPEG H265 H264 MJPEG H265 H264 MJPEG H264 MJPEG H265 H264 MJPEG H264 MJPEG H264 MJPEG H265 H264 MJPEG
POE power supply
Local power supply 12VDC 12VDC 12VDC 12VDC 12VDC 12VDC 12VDC 12VDC
Infrared illuminator Smart IR 80 m. (850nm) Smart IR 50 m. (850nm) Smart IR 30 m. (850nm) Smart IR 20 m. (850nm) Smart IR 30 m. (850nm) Smart IR 30 m. (850nm) Smart IR 10 m. (850nm)
ICR
Lens 4.1 - 12 mm. motorized 2.8 - 12 mm. motorized 2.8 - 12 mm. motorized 3.6 mm. 2.8 - 12 mm. motorized 2.8 - 12 mm. 3.6 mm. 3.6 mm. PIN HOLE conical
Focus Autofocus - Manual Autofocus - Manual Autofocus - Manual Manual Autofocus - Manual Manual Manual Manual
Shutter 1/25...1/12000 1/25...1/20000 1/25...1/20000 1/25...1/20000 1/25...1/20000 1/25...1/20000 1/25...1/20000 1/25...1/20000
S/N ratio Over 52dB Over 52dB Over 52dB Over 52dB Over 52dB Over 52dB Over 52dB Over 52dB
SUPPLIED WITH
Network port RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T
Audio input Female RCA Female RCA Female RCA Female RCA Female RCA Female RCA Female RCA
Audio output Female RCA Female RCA Female RCA Female RCA Female RCA Female RCA Female RCA
Alarm I/O 1 input + 1 output 1 input + 1 output 1 input + 1 output 1 input + 1 output 2 inputs + 1 output
SD card Max 128GB Max 128GB Max 128GB Max 128GB Max 128GB Max 128GB Max 128GB
CVBS output RCA RCA BNC BNC BNC BNC BNC BNC
RS485
FUCTIONS
Protocols TCP/IP IPV4/IPV6 HTTP HTTPS UDP FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP PPPoE UPnP APR SNMP TCP/IP IPV4/IPV6 HTTP HTTPS UDP FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP PPPoE UPnP APR SNMP TCP/IP IPV4/IPV6 HTTP HTTPS UDP FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP PPPoE UPnP APR SNMP TCP/IP IPV4/IPV6 HTTP HTTPS UDP FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP PPPoE UPnP APR SNMP TCP/IP IPV4/IPV6 HTTP HTTPS UDP FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP PPPoE UPnP APR SNMP TCP/IP IPV4/IPV6 HTTP HTTPS UDP FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP PPPoE UPnP APR SNMP TCP/IP IPV4/IPV6 HTTP HTTPS UDP FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP PPPoE UPnP APR SNMP TCP/IP IPV4/IPV6 HTTP HTTPS UDP FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP PPPoE UPnP APR SNMP
Onvif Onvif Profile S v. 2.6 Onvif Profile S v. 2.6 Onvif Profile S v. 2.6 Onvif Profile S v. 2.6 Onvif Profile S v. 2.6 Onvif Profile S v. 2.6 Onvif Profile S v. 2.6 Onvif Profile S v. 2.6
CGI
SDK
P2P
Browser Internet Explorer Internet Explorer Internet Explorer Internet Explorer Internet Explorer Internet Explorer Internet Explorer Internet Explorer
Smartphone APP DSE SmartLive DSE SmartLive DSE SmartLive DSE SmartLive DSE SmartLive DSE SmartLive DSE SmartLive DSE SmartLive
NVR software HRC for Windows HRC for Windows HRC for Windows HRC for Windows HRC for Windows HRC for Windows HRC for Windows HRC for Windows
Multi streaming 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream
Simultaneous accesses Max. 10 client Max. 10 client Max. 10 client Max. 10 client Max. 10 client Max. 10 client Max. 10 client Max. 10 client
Recording on NAS
Web cloud storage
Mirror Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal
Corridor 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270°
Overlays Date Time Description Date Time Description Date Time Description Date Time Description Date Time Description Date Time Description Date Time Description Date Time Description
BLC
AWB
DNR
WDR 120dB 120dB 120dB 120dB 120dB 120dB 120dB 120dB
Antifog
HSBLC
Motion detection Adjustable with weekly scheduler Adjustable with weekly scheduler Adjustable with weekly scheduler Adjustable with weekly scheduler Adjustable with weekly scheduler Adjustable with weekly scheduler Adjustable with weekly scheduler Adjustable with weekly scheduler
Privacy mask
Intelligent Video Analysis Perimeter, Masking, Virtual Wall, Double virtual wall, Loiter, Multi loiter, Abandoned object, Removed object, Abnormal speed, U turn, Prohibited parking, Tampering Perimeter, Masking, Virtual Wall, Double virtual wall, Loiter, Multi loiter, Abandoned object, Removed object, Abnormal speed, U turn, Prohibited parking, Tampering Perimeter, Masking, Virtual Wall, Double virtual wall, Loiter, Multi loiter, Abandoned object, Removed object, Abnormal speed, U turn, Prohibited parking, Tampering Perimeter, Masking, Virtual Wall, Double virtual wall, Loiter, Multi loiter, Abandoned object, Removed object, Abnormal speed, U turn, Prohibited parking, Tampering Perimeter, Masking, Virtual Wall, Double virtual wall, Loiter, Multi loiter, Abandoned object, Removed object, Abnormal speed, U turn, Prohibited parking, Tampering Perimeter, Masking, Virtual Wall, Double virtual wall, Loiter, Multi loiter, Abandoned object, Removed object, Abnormal speed, U turn, Prohibited parking, Tampering Perimeter, Masking, Virtual Wall, Double virtual wall, Loiter, Multi loiter, Abandoned object, Removed object, Abnormal speed, U turn, Prohibited parking, Tampering Perimeter, Masking, Virtual Wall, Double virtual wall, Loiter, Multi loiter, Abandoned object, Removed object, Abnormal speed, U turn, Prohibited parking, Tampering
ROI 8 ROI zones 8 ROI zones 8 ROI zones 8 ROI zones 8 ROI zones 8 ROI zones 8 ROI zones 8 ROI zones
Alarm actions Recording, Email, FTP, Output activation Recording, Email, FTP, Output activation Recording, Email, FTP, Output activation Recording, Email, FTP, Output activation Recording, Email, FTP, Output activation Recording, Email, FTP, Output activation Recording, Email, FTP, Output activation Recording, Email, FTP, Output activation
Time-Lapse photos
GENERAL
Casing 100% aluminum 100% aluminum 100% aluminum 100% aluminum 100% aluminum 100% aluminum 100% aluminum 100% aluminum
Degree of protection IP66 outdoor IP66 outdoor IP66 outdoor IP66 outdoor IP66 outdoor IK10 vandal-proof IP66 outdoor IK10 vandal-proof IP66 outdoor IP40 indoor
Included bracket Wall and ceiling Wall and ceiling Wall and ceiling Wall and ceiling Wall and ceiling
Operating temperature -40°C +60°C RH90% Max -40°C +60°C RH90% Max -40°C +60°C RH90% Max -40°C +60°C RH90% Max -40°C +60°C RH90% Max -40°C +60°C RH90% Max -40°C +60°C RH90% Max -10°C +50°C RH90% Max
Consumption Max. 5 W (8 W IR ON) Max. 4 W (8 W IR ON) Max. 3.5 W (8 W IR ON) Max. 3.5 W (7 W IR ON) Max. 3.5 W (7 W IR ON) Max. 3.5 W (7 W IR ON) Max. 3 W (5 W IR ON) Max. 3 W
Dimensions 169 x 70 x 60 mm. 110 (D) x 375 mm. 264 x 82 x 80 mm. 169 x 70 x 60 mm. 130 (D) x 112 mm. 130 (D) x 112 mm. 100 (D) 53 mm. 47 x 56 x 40 mm.
Weight 1680 gr. 1680 gr. 830 gr. 550 gr. 880 gr. 880 gr. 450 gr. 170 gr.

QUESTIONS & ANSWERS


What is included?

CAMERA
WATERPROOF RJ45
L KEY
WALL PLUGS
HOLE TEMPLATE
MANUALS
IP CHANGE SW
NVR SW
APP

What is not included?

All cameras can be powered with a 12VDC power supply. However, the power adapter is not included since POE power is also possible. If you need a power adapter, see ours POWER ADAPTERS FOR CCTV
