INTELLIGENT CAMERAS


FIXED LENS IR 30 m.
OPTIMAL DETECTION 5 M.

IP camera outdoor onvif
RK-BCC2B-5A 5MP STARLIGHT

Waterproof casing suitable for outdoor 30 m. Smart IR illuminator 3.6 mm. fixed lens POE or 12VDC power ICR (IR Cut-Filter Removable) H264 H265 video compression SD card slot (max 128GB) Free P2P Cloud Server Free APP for smartphone and tablet
Face recognition Intrusion in area detection Line crossing detection People loitering detection People gathering detection

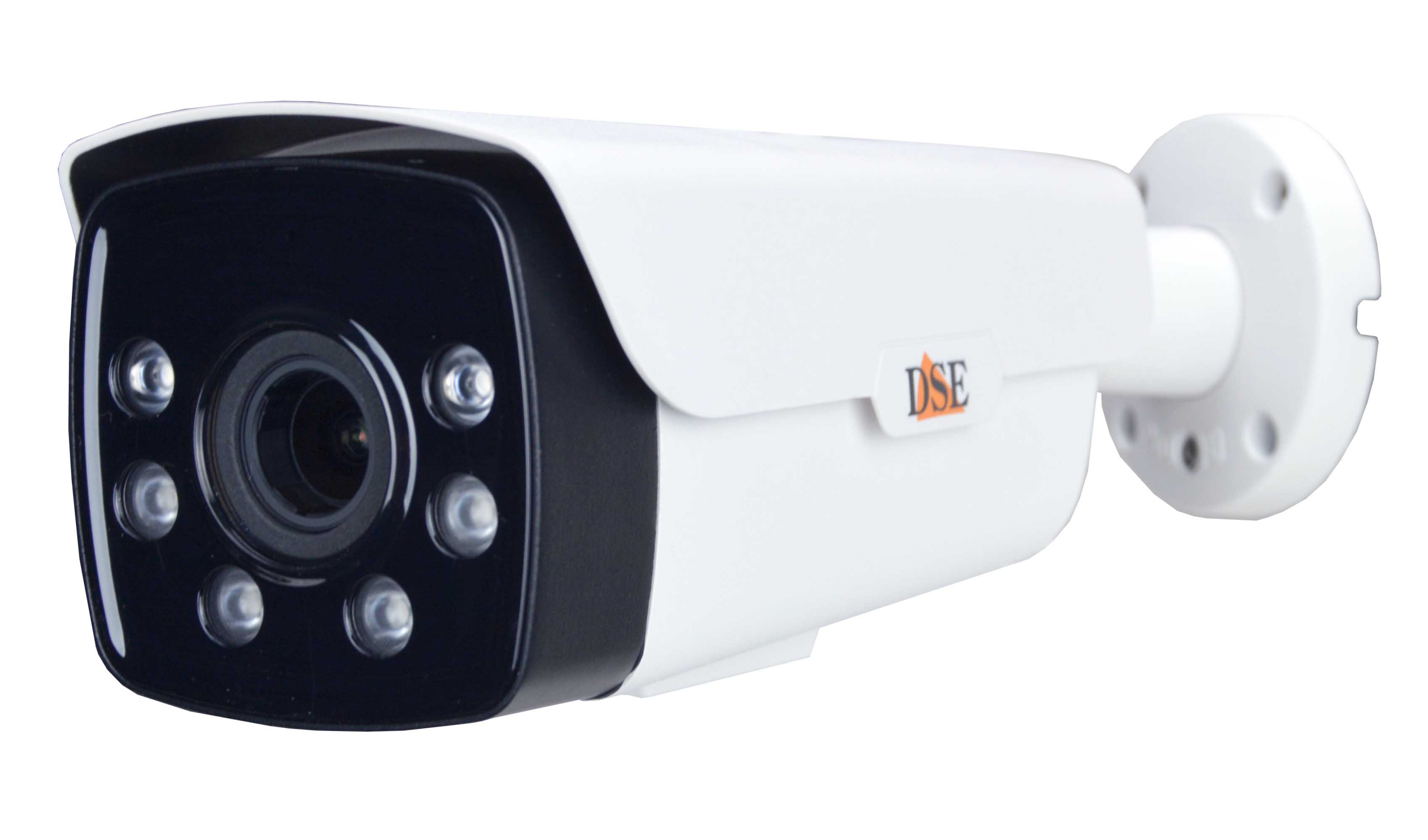

ZOOM MOTOR LENS IR 60 m.
OPTIMAL DETECTION 13 M.

IP camera outdoor onvif zoom
RK-BCC6D-5ZA 5MP STARLIGHT

Waterproof casing suitable for outdoor 60 m. Smart IR illuminator 2.7-13.5 mm manual varifocal lens Motorized zoom lens Autofocus lens POE or 12VDC power ICR (IR Cut-Filter Removable) H264 H265 video compression SD card slot (max 128GB) Free P2P Cloud Server Free APP for smartphone and tablet
Face recognition Intrusion in area detection Line crossing detection People loitering detection People gathering detection


THE ARTIFICIAL INTELLIGENCE


AI IP cameras with video analisys

These cameras in this range are digital network cameras, also called IP cameras. With these cameras you can create a completely digital video surveillance system that develops over a LAN. In addition to all the functions of our normal IP cameras, these advanced models are equipped with sophisticated video analysis functions and face recognition. In this page, dedicated to intelligent cameras, we explain these additional advanced functions. If you want to know more about the "normal" functions of these cameras, please visit STANDARD RK SERIES CAMERAS


RK SERIES cameras and NVR: the winning combination

The cameras with Artificial Intelligence are part of our RK RANGE which includes also standard IP cameras and NVR. The advanced facial recognition and video analysis functions of these cameras, although performed by the camera, are much more powerful in combination with our RK Series NVRs that allow you to manage alarm events with ease. If you plan to buy these intelligent cameras, we definetely suggest you to include one of our RK SERIES NVR SUPPORTING VIDEO ANALISYS


FACIAL RECOGNITION

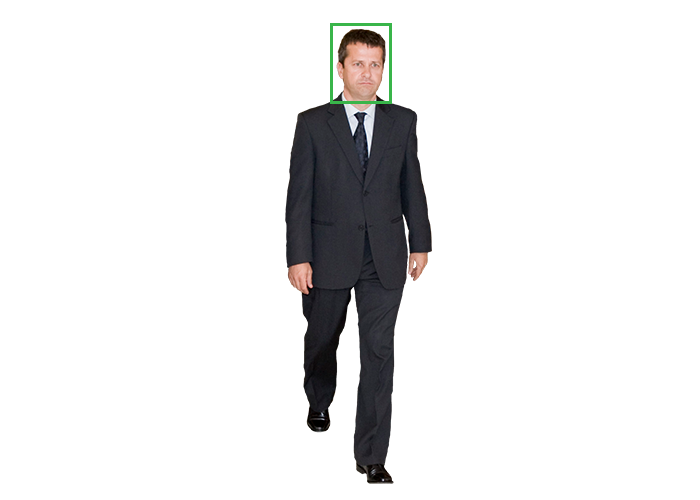

Human face detection

The first thing that distinguishes these cameras from normal cameras is that they are able to detect the presence of a human face in the frame. They can do that thanks to a highly advanced algorithm that detects the shape of human faces and acquires the facial features in real time. For optimal detection the target should be in front of the camera at 5 or 13 meters, depending on the model. The detection algorithm works day and night, even with many people in front of the lens and even if the target is wearing hat, beard, glasses or partial masking. When the camera detects a face, it can perform alarm actions.
ALARM ACTIONS: PHOTO ON SD, ALARM TO NVR

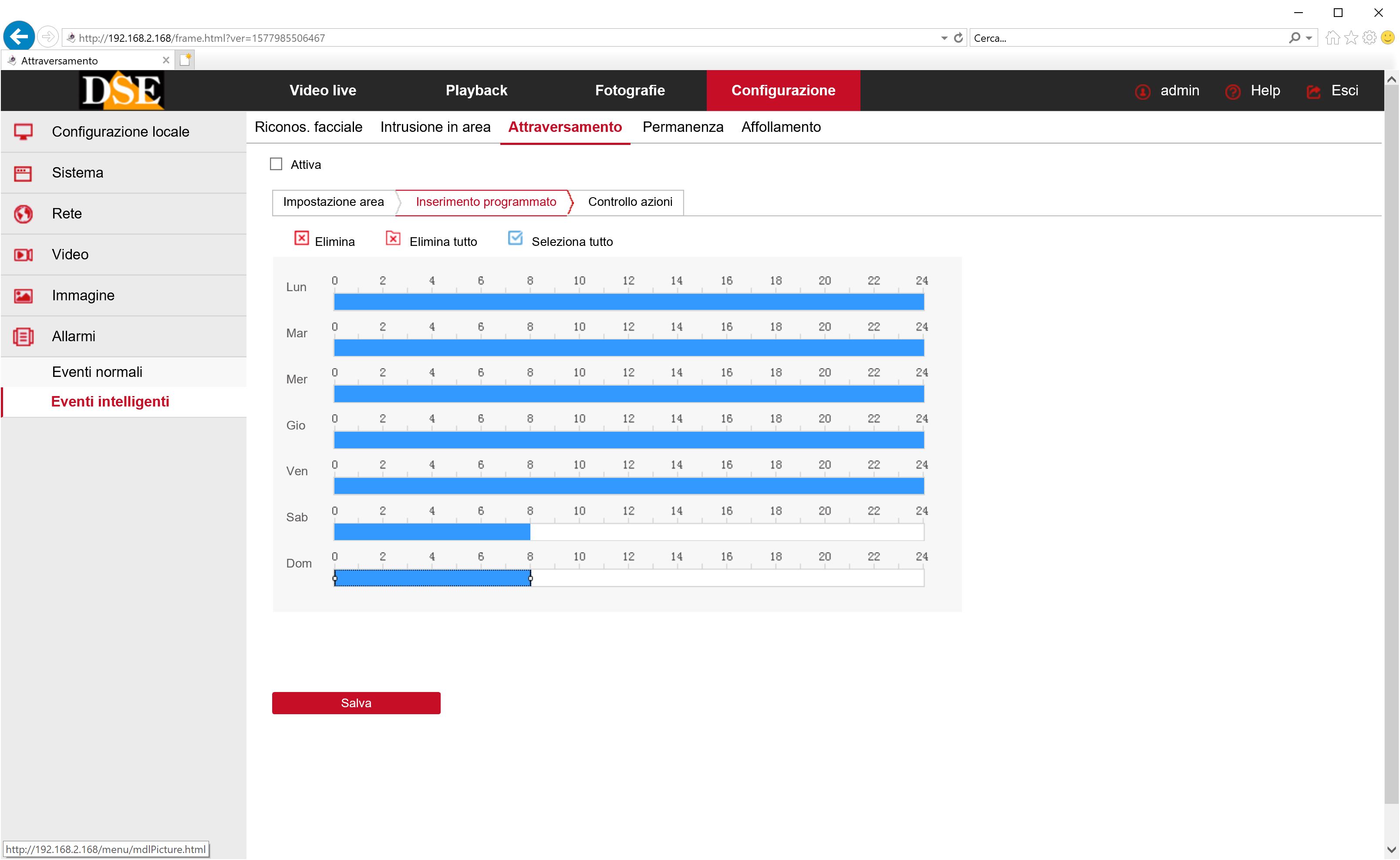

WEEK SCHEDULER: YES

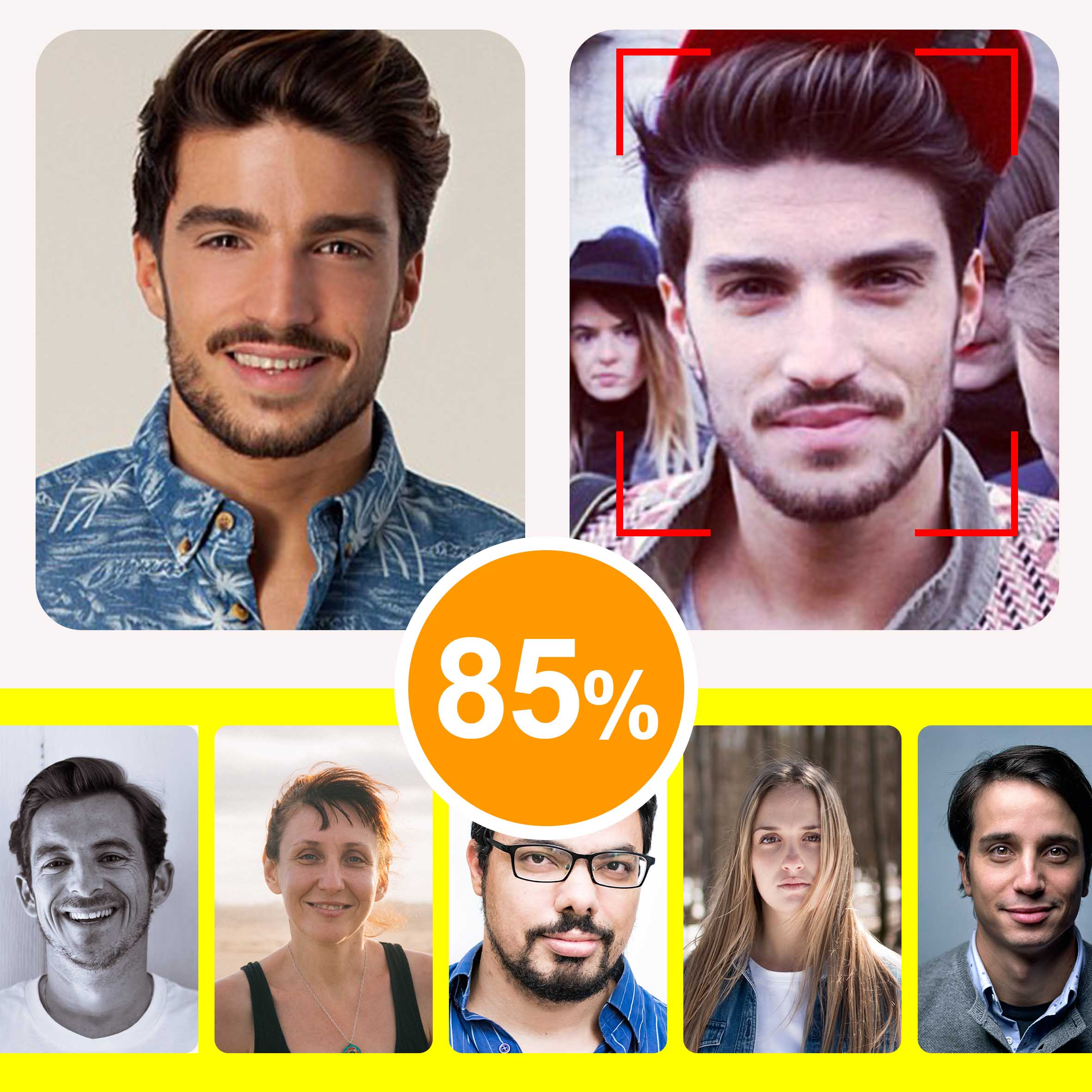

Facial recognition up to 5000 pictures

These cameras can compare people faces with an internal photo database. They can send a report to the NVR if the face is present in the database, or if it is not present. You can upload any kind of picture, like your family members or the employees of a company. You can also upload a photo of a missing or wanted person. Each camera can hold up to 5000 pictures. You can adjust the recognition area and the alarm thresholds as desired.
ALARM ACTIONS: PHOTO ON SD, ALARM TO NVR
WEEK SCHEDULER: YES


HUMAN DETECTION


What is Human detection?

In these cameras with Artificial Intelligence, the ordinary motion detection evolves into the new dimension of HUMAN DETECTION. Human detection is very different from normal motion detection because it does not simply trigger on the pixel change, but only when a human body is detected . All the types of intelligent detection features of these cameras, which you find explained later in this chapter, do not detect an animal, or an object moved by the wind, but only a real person. The human detection technologies of these cameras are a great innovation, compared to the classic motion detection, because they allow more specific and reliable alarms.


LINE CROSSING human detection

These cameras detect if a certain virtual line is crossed by a person. They can also distinguish in which direction the person is heading. This detection of line crossing is very useful in public places, or in companies, to warn in case of unauthorized access in sensitive or dangerous areas . You can draw up to 4 crossing lines in the frame and also choose a precise crossing direction.
ALARM ACTIONS: EMAIL, FTP, ALARM TO NVR
WEEK SCHEDULER: YES


INTRUSION IN AREA human detection

These cameras detect if a person breaks into a defined perimeter. This detection is very similar to normal motion detection, but, unlike this, it is triggered only human bodies. Intrusion detection is useful to monitor outdoor areas or access routes and report unauthorized intrusions. You can draw up to 4 sensitive areas in the frame and also set a delay of up to 10 seconds.
ALARM ACTIONS: EMAIL, FTP, ALARM TO NVR
WEEK SCHEDULER: YES

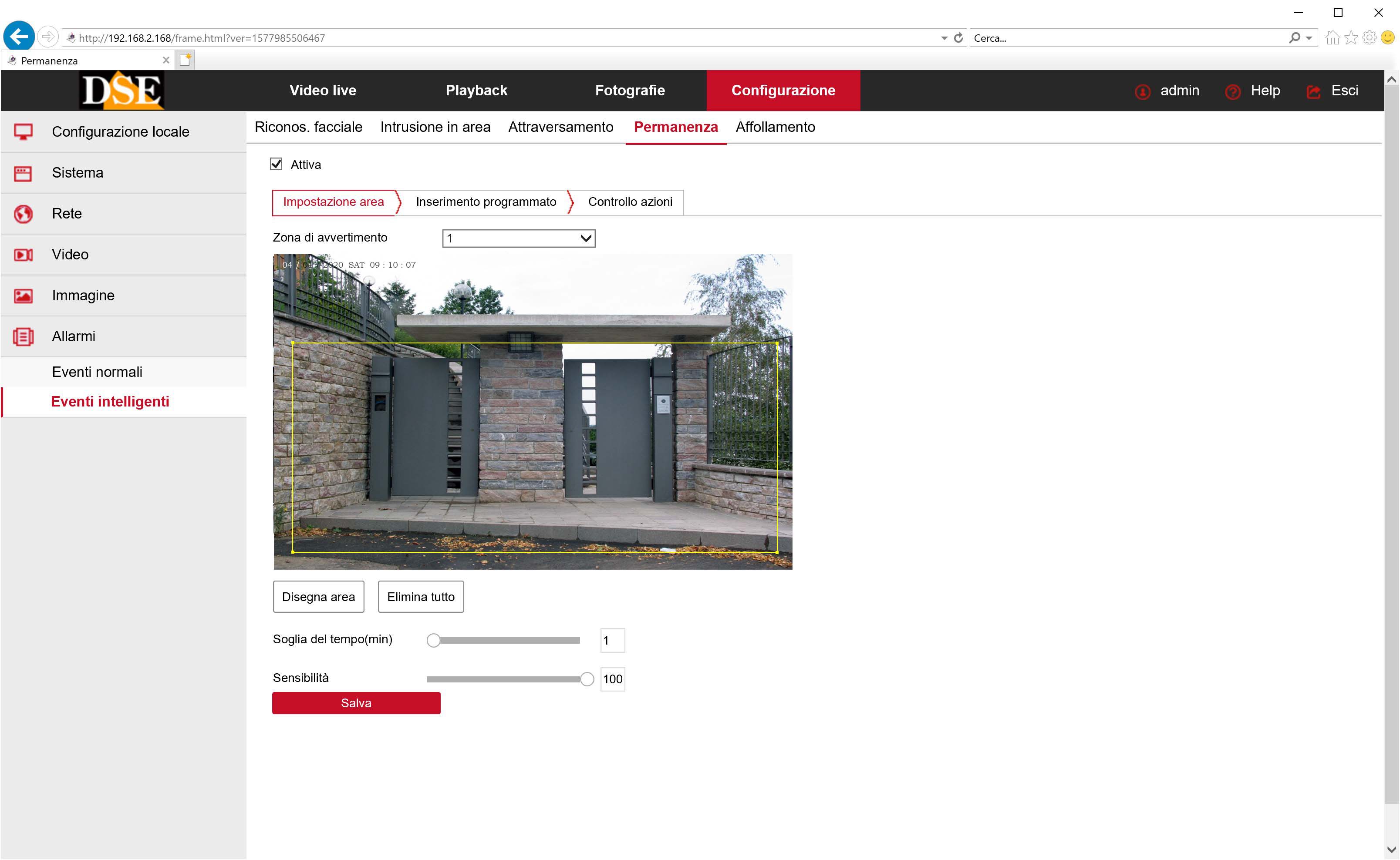

LOITERING human detection

These cameras detect if a person stays in a pre defined area for too long. This is usually considered a suspicious behaving. This loitering detection is very useful for the surveillance of shops. You can draw up to 4 sensitive areas in the frame and choose the maximum stay duration from 1 to 10 minutes.
ALARM ACTIONS: EMAIL, FTP, ALARM TO NVR
WEEK SCHEDULER: YES


PEOPLE GATHERING human detection

These cameras detect if too many people stay in a predefined area. This gathering detection is very useful for the surveillance of public venues and allows real-time notification of overcrowding situations. You can draw up to 4 sensitive areas in the frame and choose the allowed crowding percentage.
ALARM ACTIONS: EMAIL, FTP, ALARM TO NVR
WEEK SCHEDULER: YES

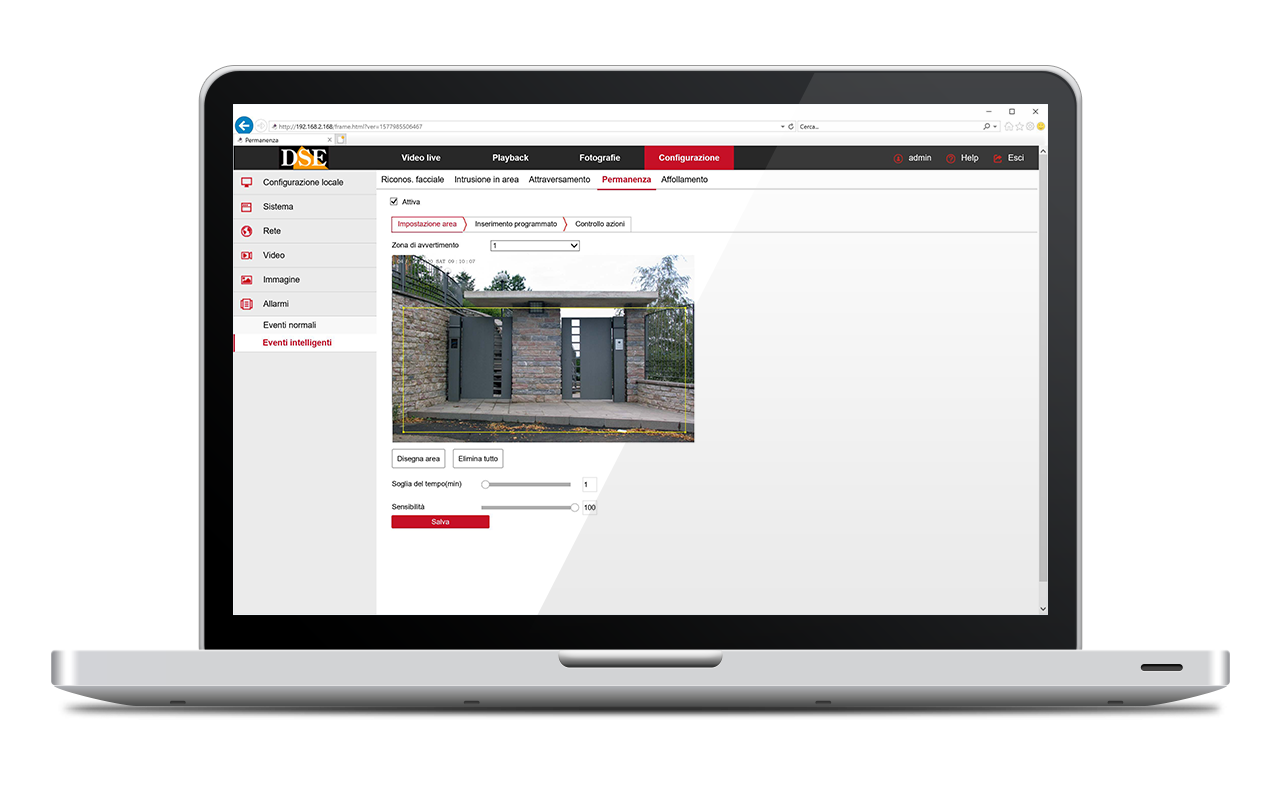

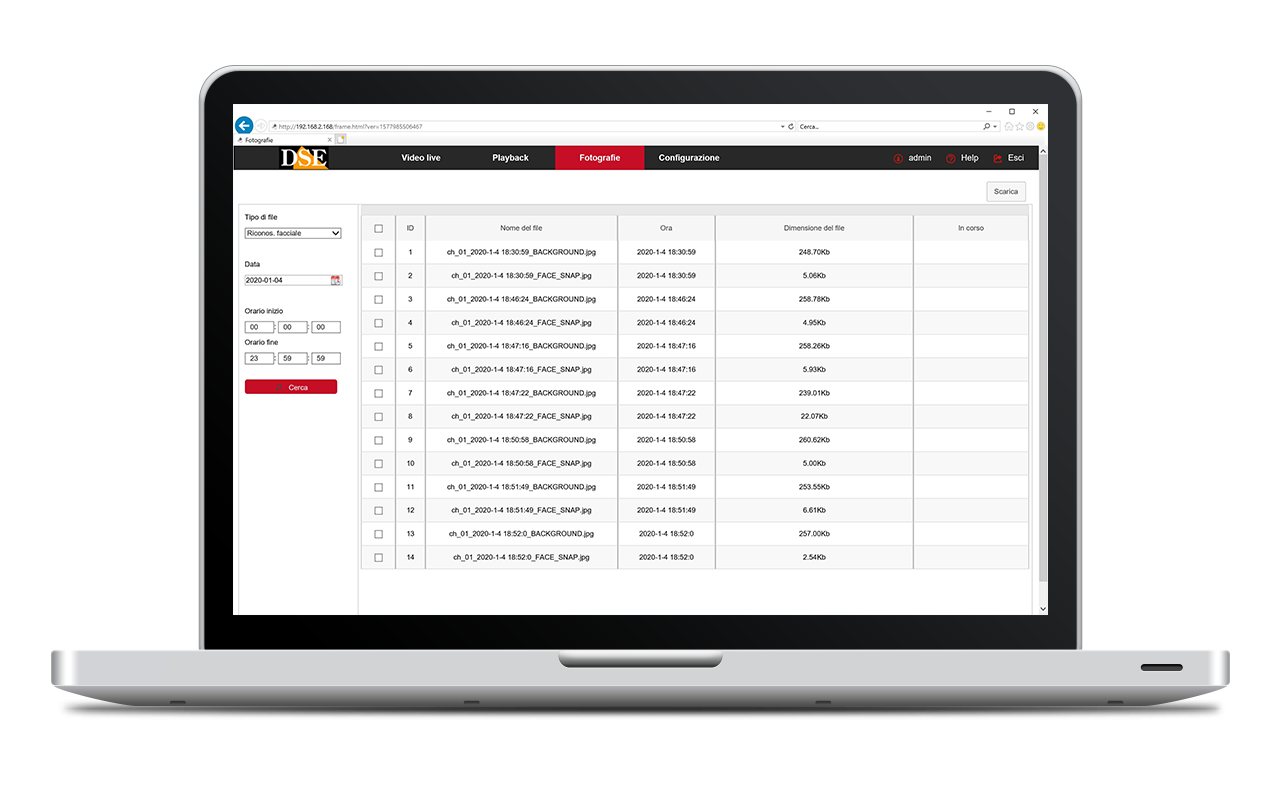

VIDEO ANALISYS WITH PC

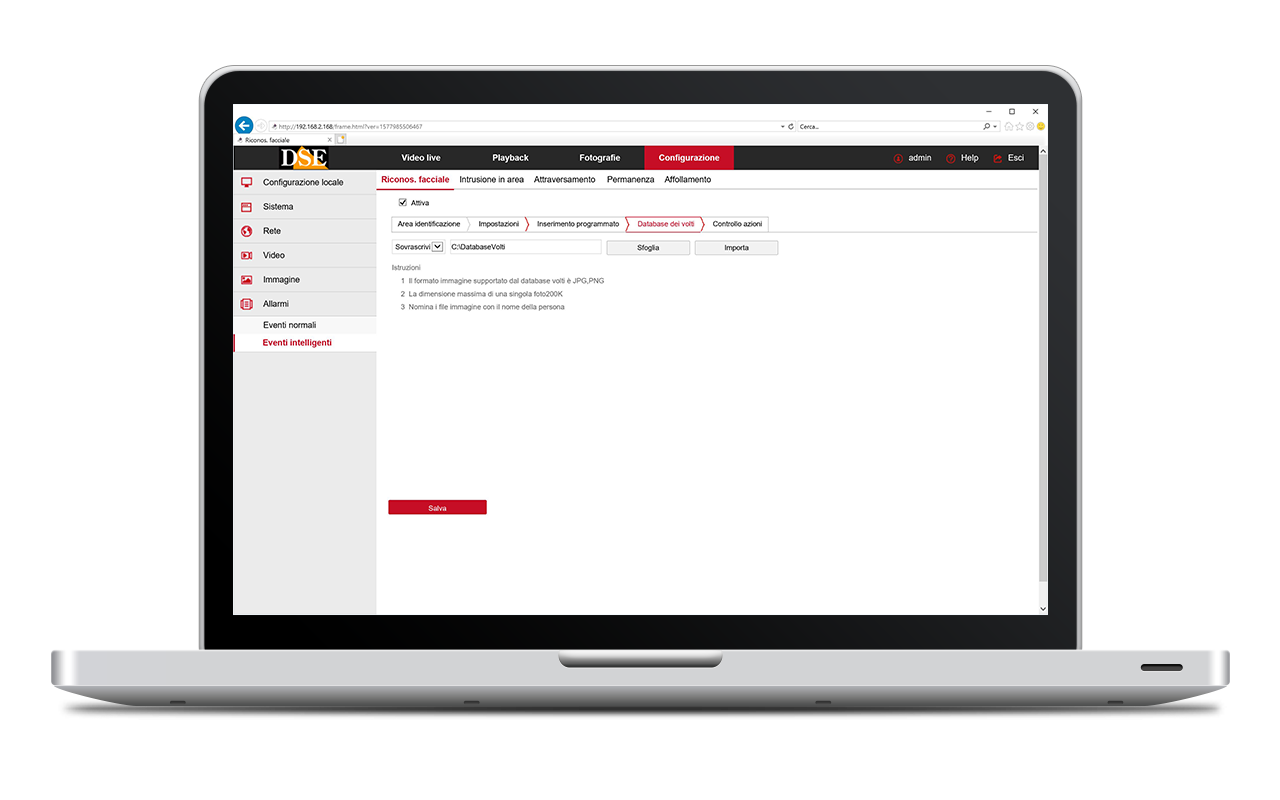

Full control of human detection by browser

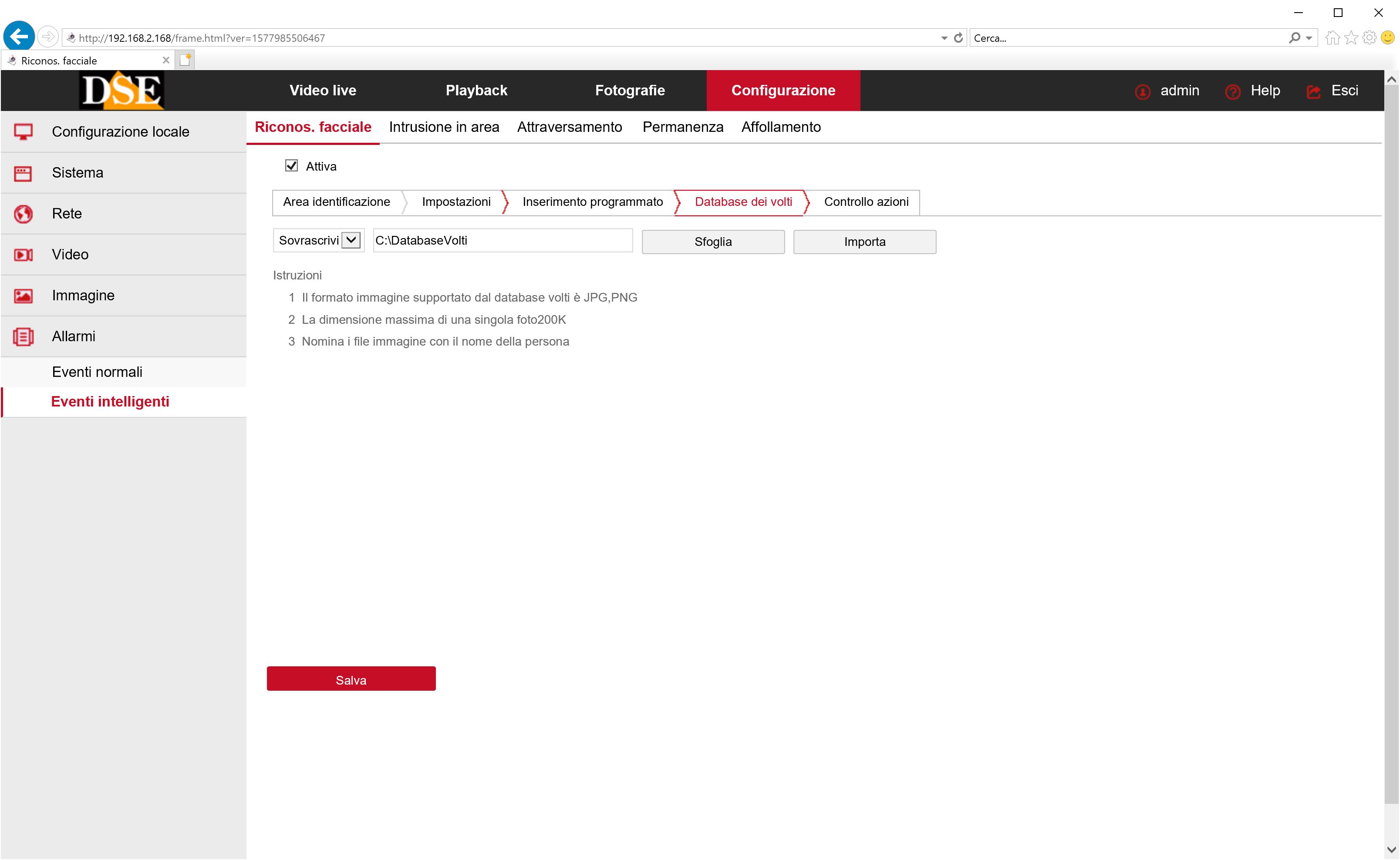

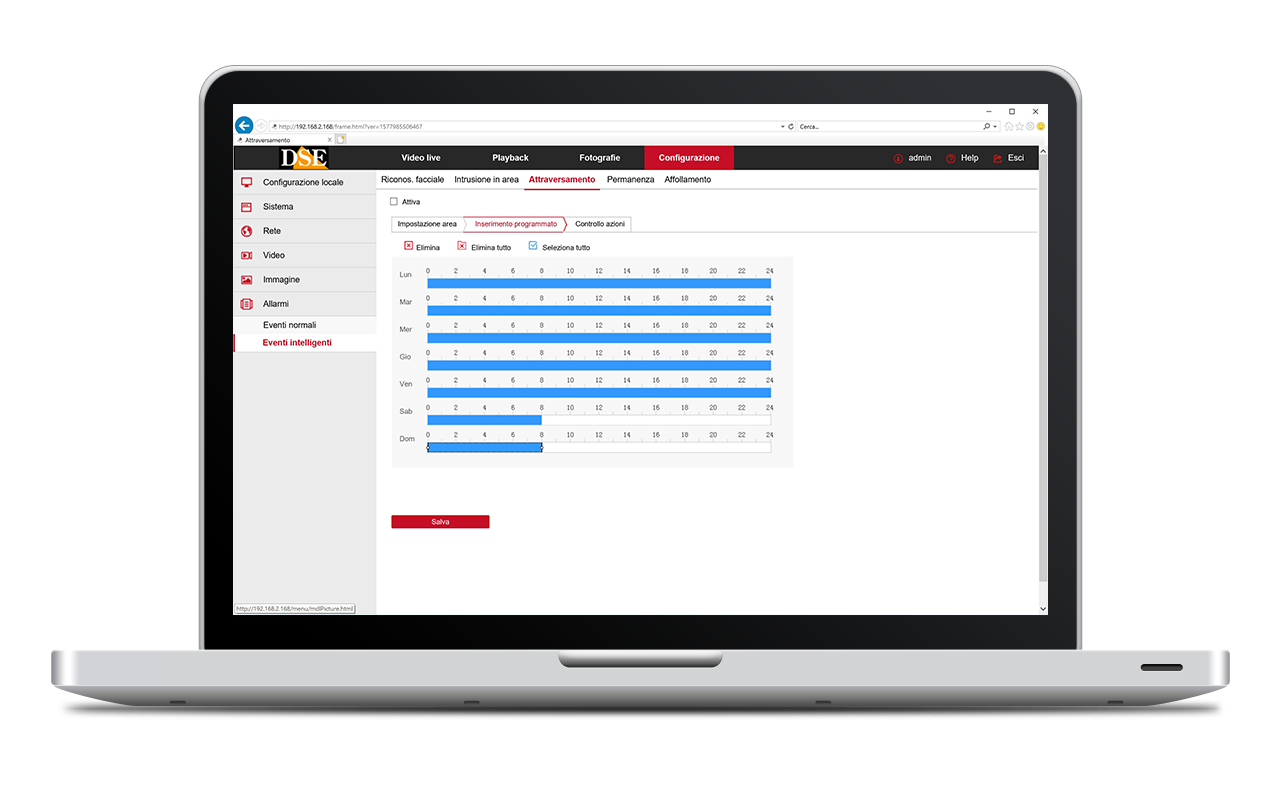

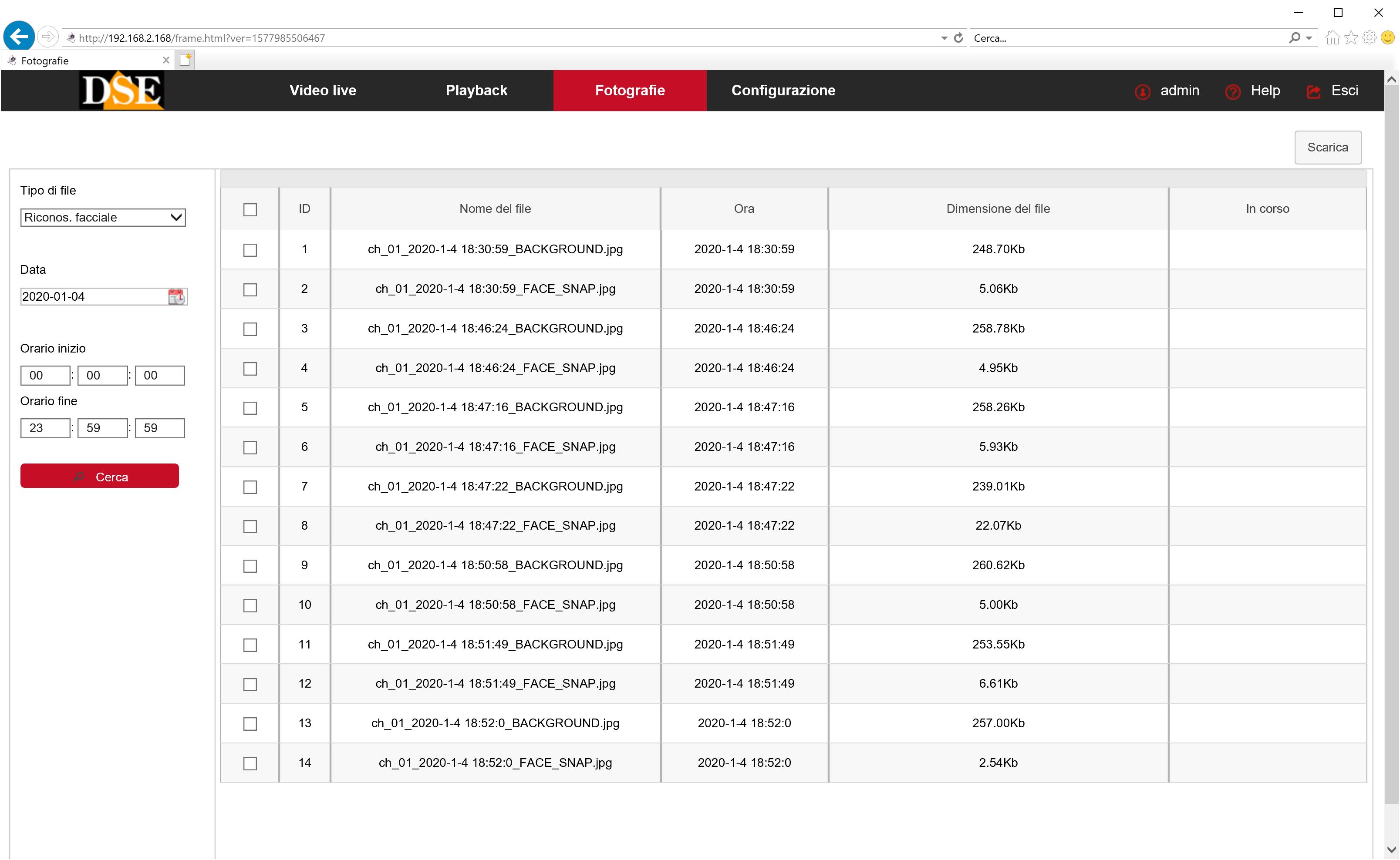

Every computer on the network is a perfect controller for your AI smart cameras. No software needs to be installed. Just open the Internet Explorer browser and type the login password to start WATCHING the live video on the screen. You can CONFIGURE all human detection features and UPLOAD THE PICTURES for facial recognition. With the browser you can also PLAY the videos stored in the SD card and the face detections snapshots.

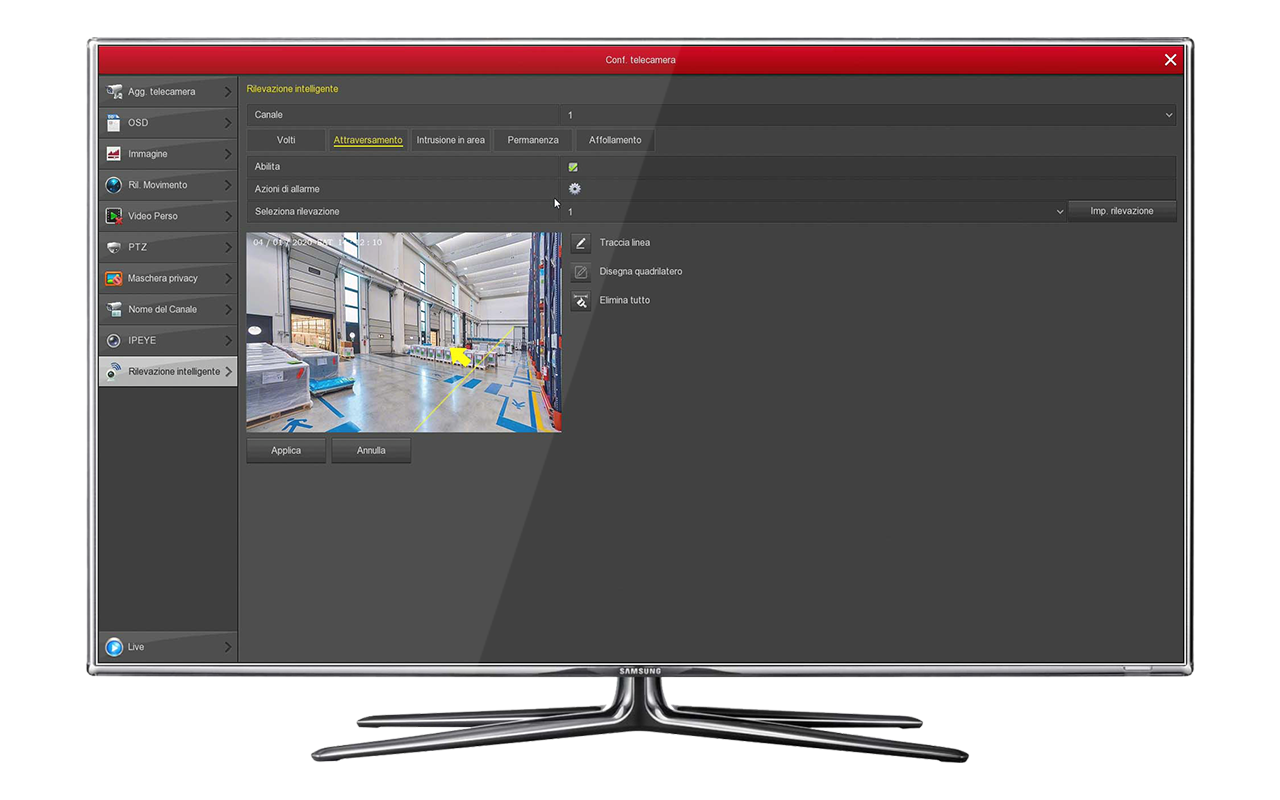

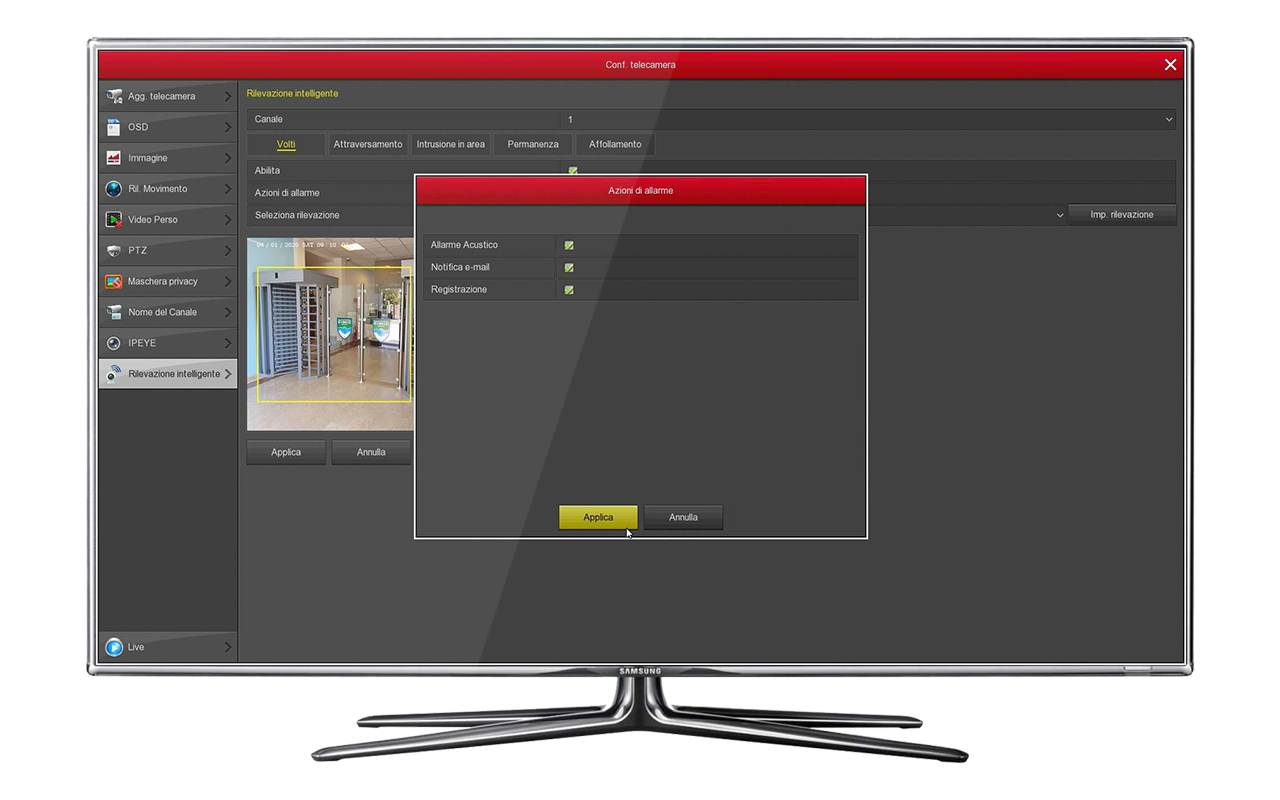

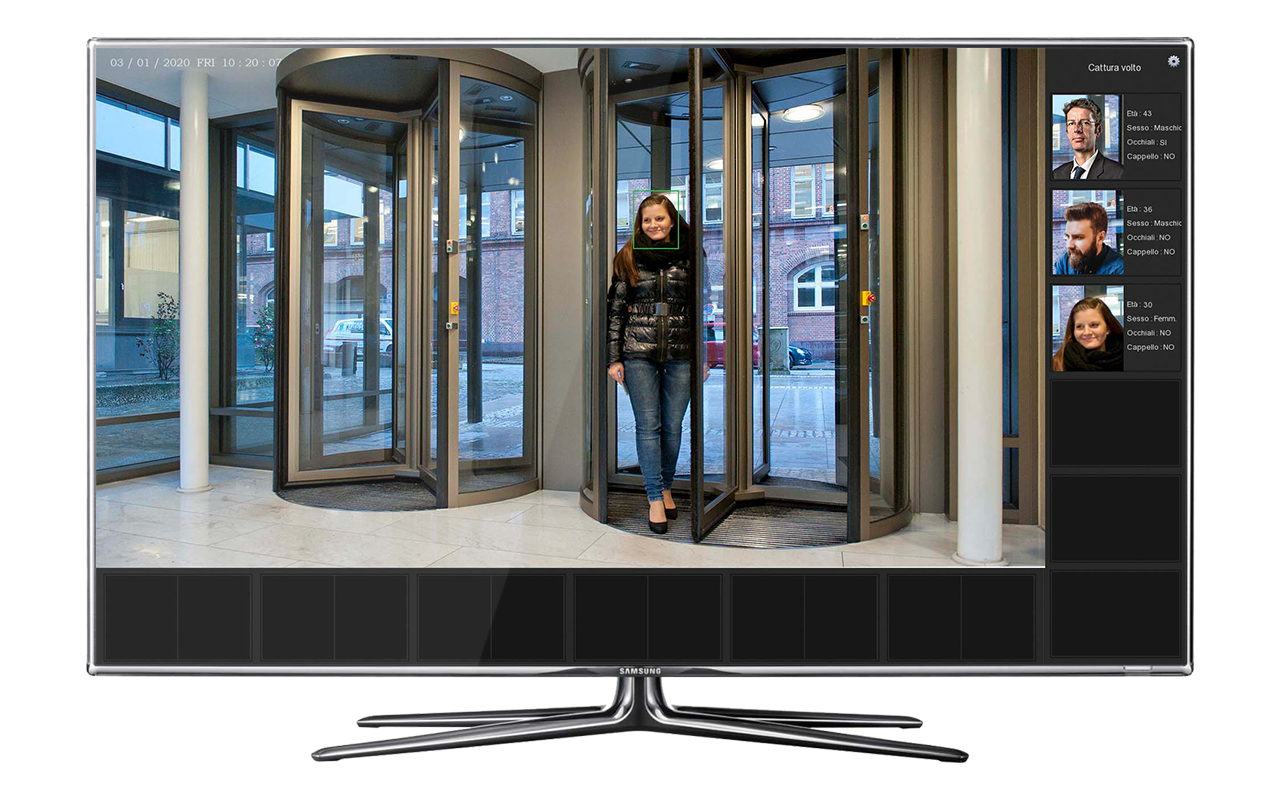

VIDEO ANALISYS WITH PC

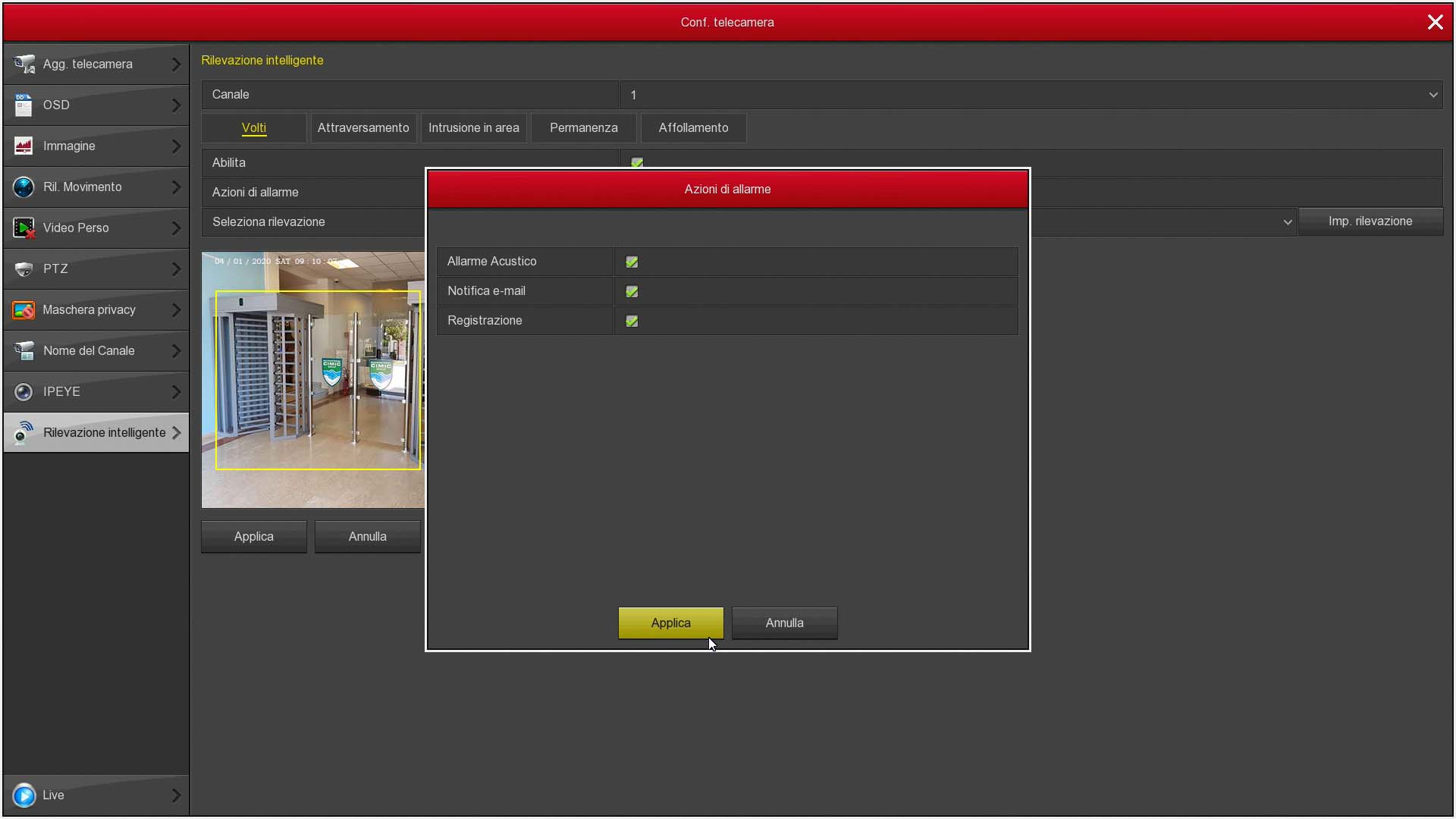

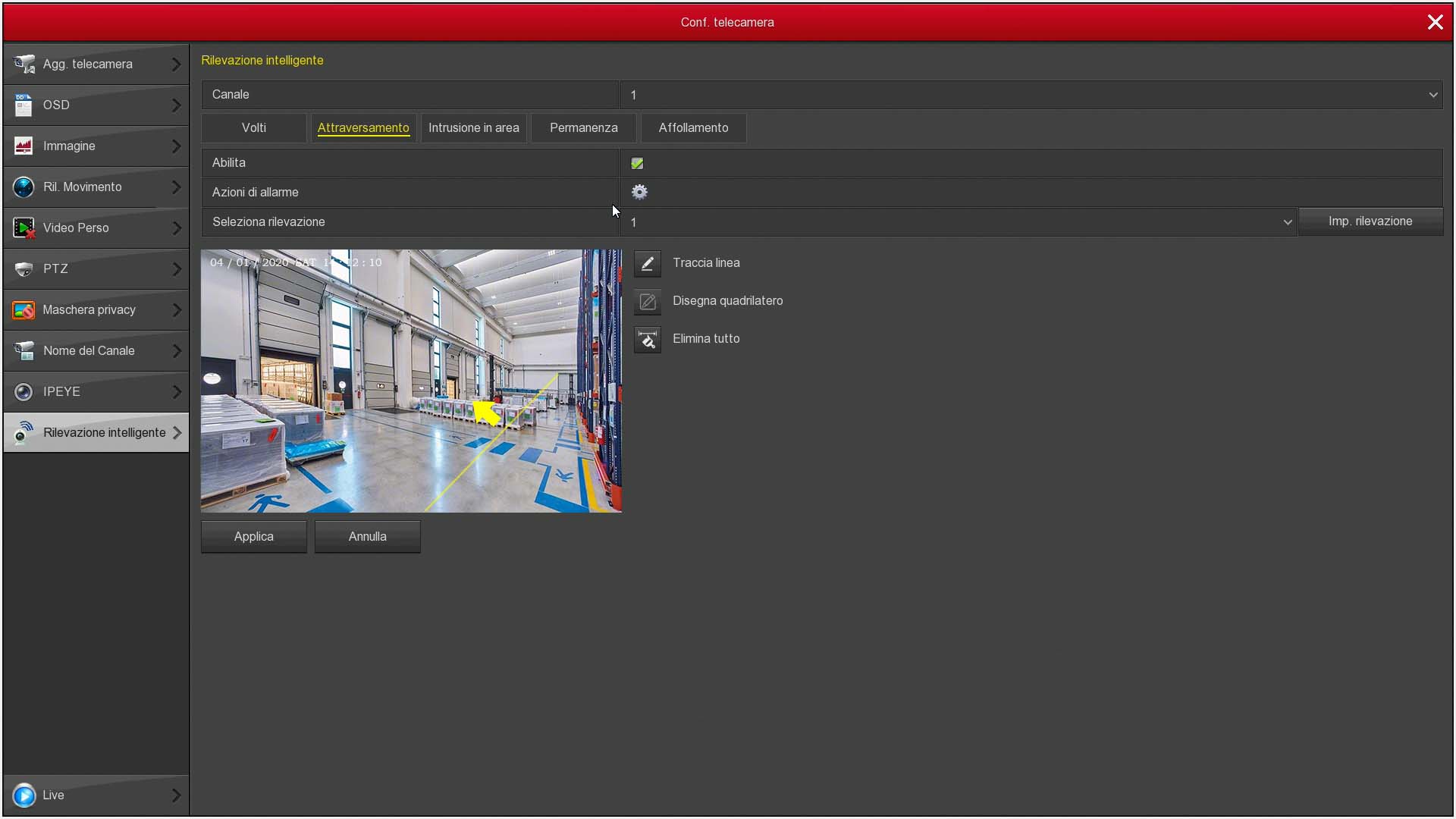

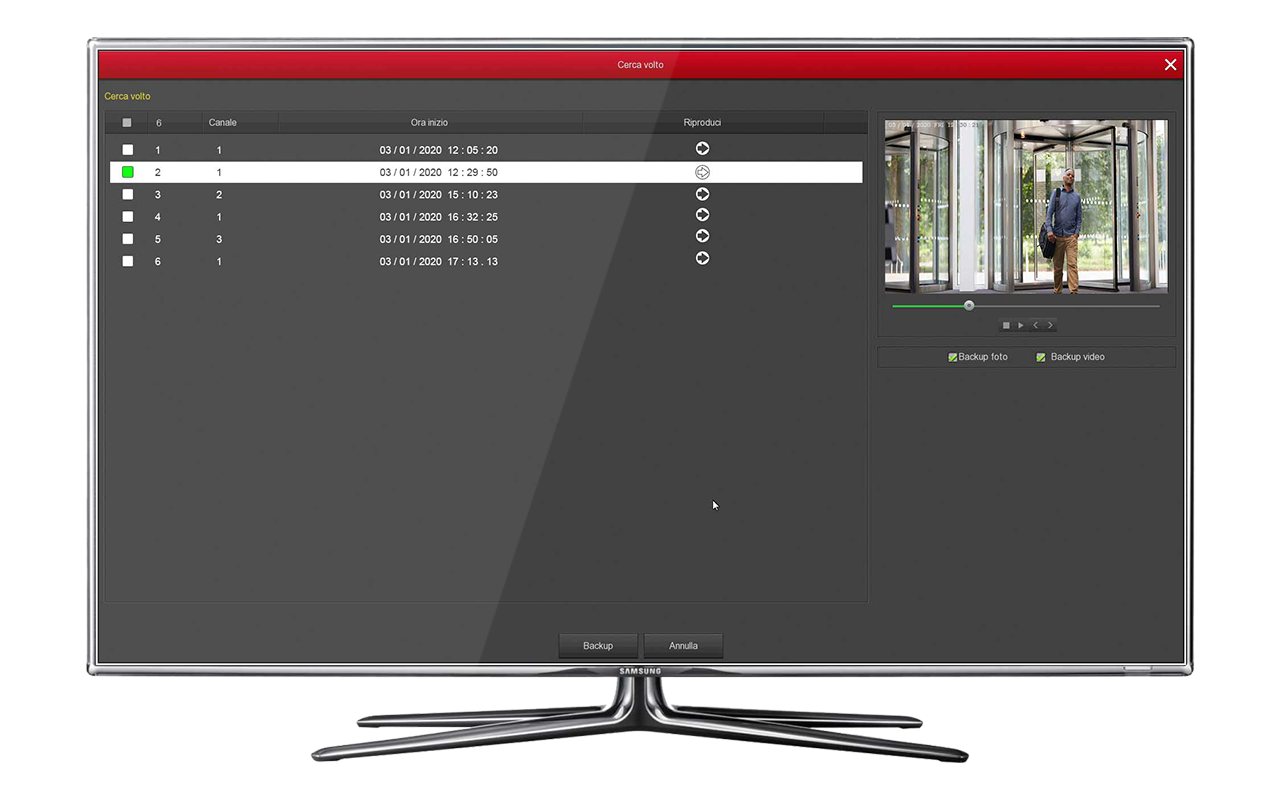

Full control of human detection with our NVR

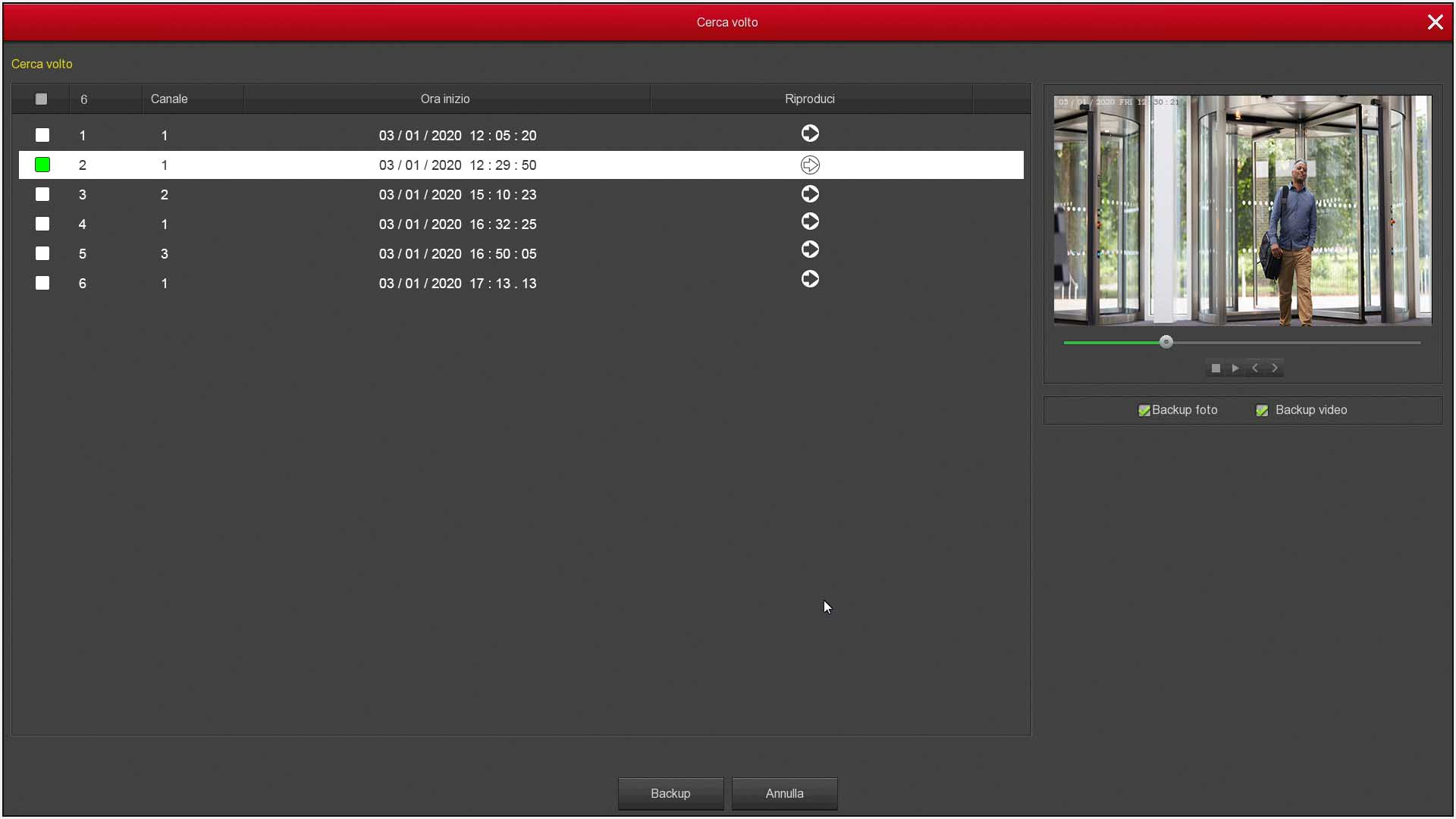

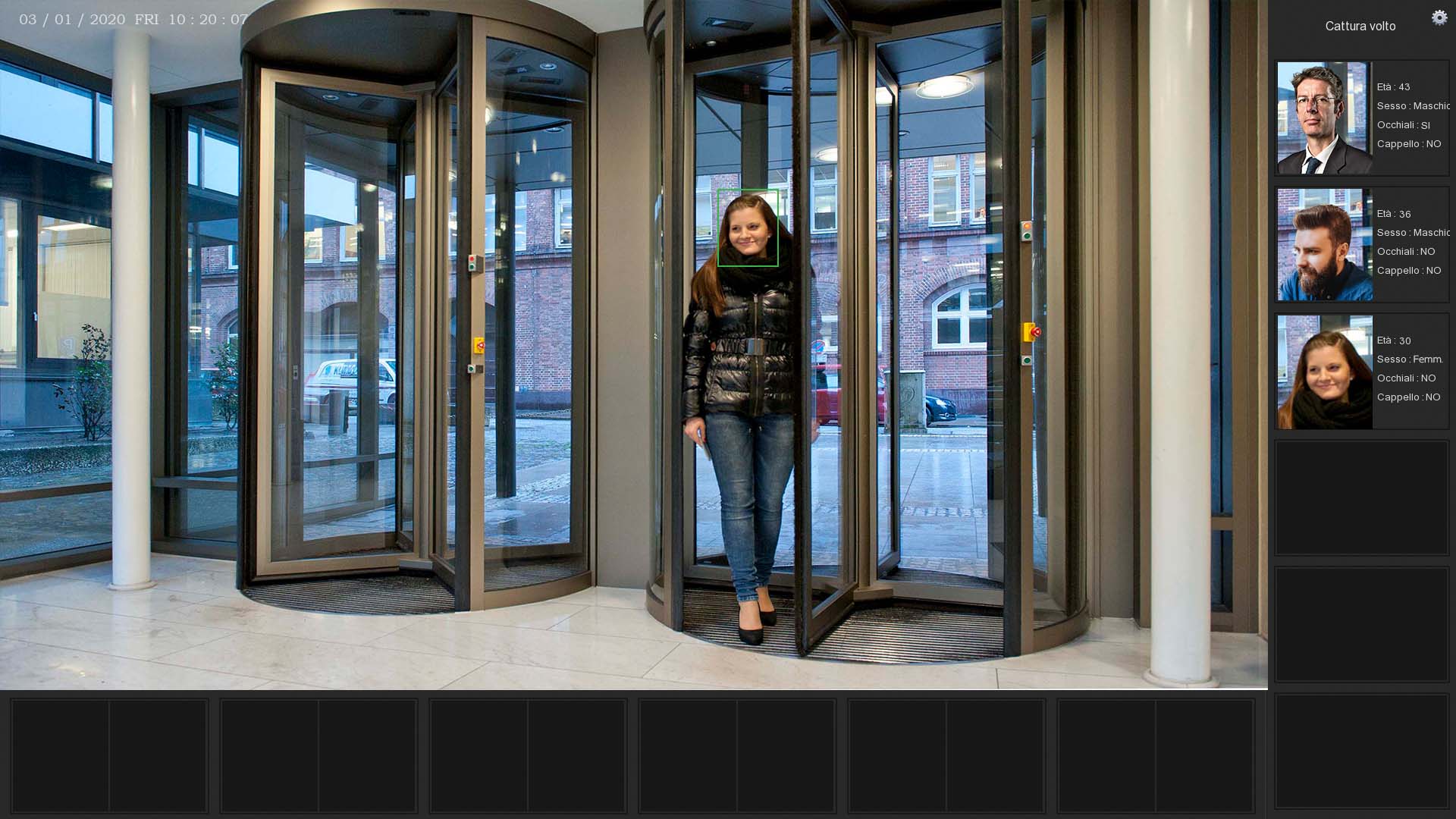

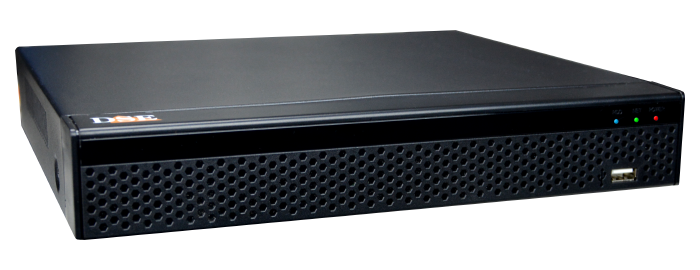

To make the most of the intelligent video analysis functions of these cameras, we recommend our RK series NVR. With our NVRs you can CONFIGURE all the intelligent detections without the need for a computer and you can TRIGGER LOCAL ALARMS like video recording, buzzer or relay outputs. You can also send out REMOTE ALARMS via email or FTP. Our NVRs make SEARCH AND PLAYBACK the events much easier as well as DOWNLOAD the video files. All our RK SERIES NVR are supporting the smart functions of these cameras, so there is no addition cost.

NVR video analisys

TIPS


Add advanced features with little extra cost

On this page we have described the special detection features of these "intelligent" cameras, but obviously these cameras also offer you all the many functions of our standard IP cameras, which you can check here. If you take a look at our PRICE LIST, you will see that these AI models prices are just a little higher than the corresponding standard models and all our standard NVRs support these functions by default, without extra charges. These cameras with artificial intelligence are not only designed for banks and museums, but can be easily integrated in any CCTV system, together with our normal cameras.


SDK/CGI for developer

If you are a software developer, you can use our cameras in your projects by integrating them perfectly with your software. We provide you free SDK and CGI libraries to control all functionality with external applications.

DOWNLOAD SDK-CGI

TECHNICAL DATA



CODE RK-BCC2B-5A RK-BCC6D-5ZA
Description IP camera with facial recognition and human detection IP camera with facial recognition and human detection
CAMERA
Max. resolution 5MP 5MP
Sensor 1/2.8" CMOS SONY Starvis IMX335 1/2.8" CMOS SONY Starvis IMX335
Chipset HS Hi3516D HS Hi3516D
Video resolution 2592x1944 2560x1920 @ 20 f/s ... 2560x1440 @ 25 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s 2592x1944 2560x1920 @ 20 f/s ... 2560x1440 @ 25 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s
Video compressione H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG
POE power supply IEEE 802.3af IEEE 802.3af
Local power 12V DC 12V DC
IR Illuminator 30 m. (4LED 42µ 850nm) 60 m. (6LED 42µ 850nm)
ICR
Lens Fixed 3.6 mm. Motorized 2.7-13.5 mm.
Focus Fixed Autofocus
Shutter 1/25...1/10000 1/25...1/10000
S/N ratio Above 52dB Above 52dB
SET UP
Network port RJ45 10/100 Base-T RJ45 10/100 Base-T
Audio input
Audio output
I/O
SD card Max. 128 GB Max. 128 GB
CVBS output
VIDEO ANALISYS
Face detection
Face recognition 5000 pictures 5000 pictures
Line crossing 4 lines with directions detection 4 lines with directions detection
Intrusion in area 4 areas 4 areas
Loitering 4 areas up to 10 minutes 4 areas up to 10 minutes
People gathering 4 areas 4 areas
OTHER FEATURES
Protocols TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP
Onvif Onvif Profile S Onvif Profile S
P2P Free with QRcode Free with QRcode
Browser IE8 or above IE8 or above
Smartphone iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad
Multi streaming 3 stream 3 stream
WEB cloud storage Google Dropbox Google Dropbox
Mirror Vertical and/or Horizontal Vertical and/or Horizontal
Corridor 90° - 270° 90° - 270°
Overlay Date Time Label Date Time Label
BLC Automatic or Adjustable Automatic or Adjustable
AWB Automatic or Adjustable Automatic or Adjustable
DNR 2D 3D 2D 3D
WDR Automatic or Adjustable Automatic or Adjustable
Anti Fog Automatic or Adjustable Automatic or Adjustable
HSBLC
Starlight
Motion detection Adjustable with week scheduler Adjustable with week scheduler
Privacy mask 3 adjustable areas 3 adjustable areas
Anti tamper Adjustable with week scheduler Adjustable with week scheduler
Alarm actions Recording Email FTP Cloud Push notification Recording Email FTP Cloud Push notification
GENERAL
Casing Aluminum Aluminum
Protection rating IP67 Water-proof IP67 Water-proof
Swivel bracket Wall + Ceiling Wall + Ceiling
Operating temperature -20°C +60°C RH95% Max -20°C +60°C RH95% Max
Power supply 12VDC +/-10% o POE 12VDC +/-10% o POE
POE power consumption Max 3W (6W IR on) Max 5W (10W IR on)
12VDC power consumption Max 240mA (440mA IR on) Max 400mA (850mA IR on)
Dimensions 176 x 75 x 71 mm. 220 x 105 x 109 mm.
Weight 500 gr. 1400 gr.

QUESTION & ANSWER


What's included?

CAMERA
WATERPROOF RJ45
L TOOL
SCREWS
HOLE TEMPLATE
MANUALS
SW IP SETTING
SW NVR
APP

What's not included?

All cameras can be powered with a 12VDC power supply. However, the power adapter is not included since POE power is widely used. If you need a power supply, see ours POWER SUPPLY UNITS
