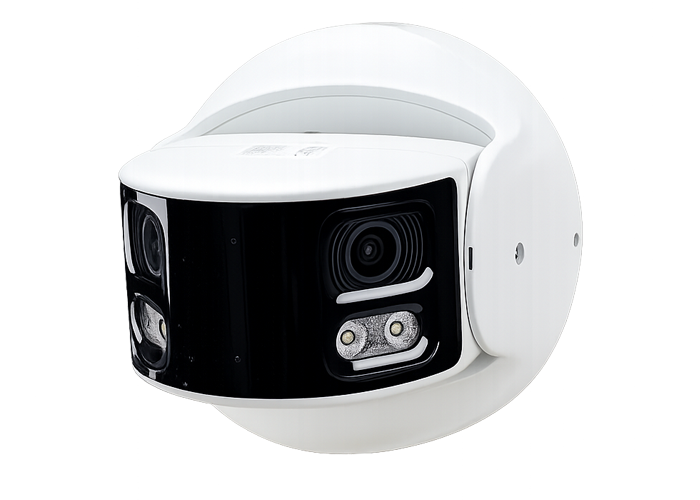

Panoramic cameras
POE multi-lens cameras for ultra-wide panoramic coverage beyond 180°. Use them standalone or with our NVRs.
POE multi-lens cameras for ultra-wide panoramic coverage beyond 180°. Use them standalone or with our NVRs.
DUAL-LENS 226°
These cameras are called “panoramic” because they are equipped with multiple lenses and can monitor a viewing angle of more than 180 degrees. They are ideal for installation at the center of a wall, as a single camera can provide full area coverage that would otherwise require two or three standard cameras.

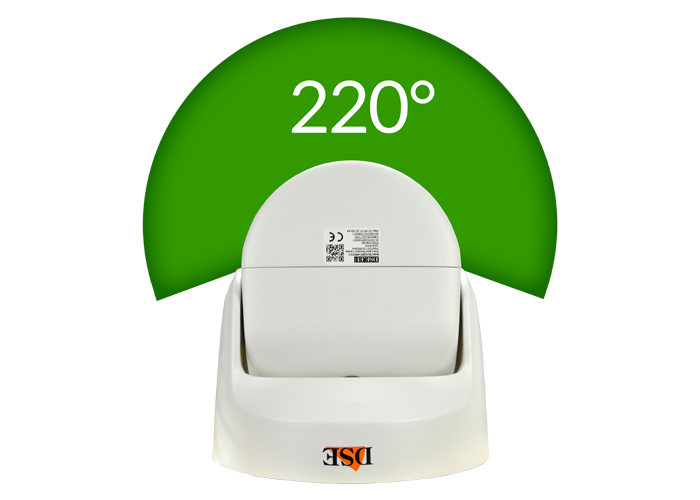

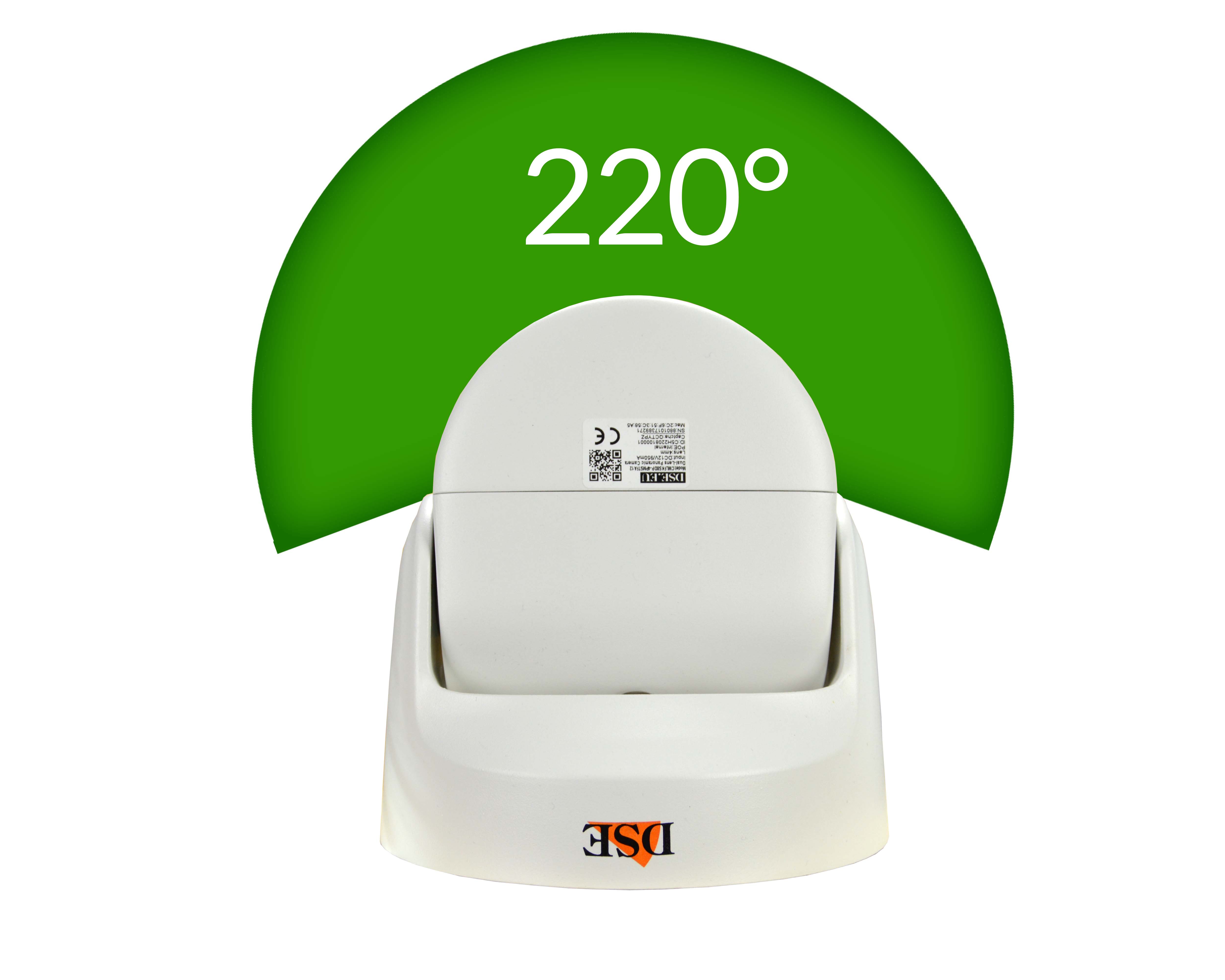

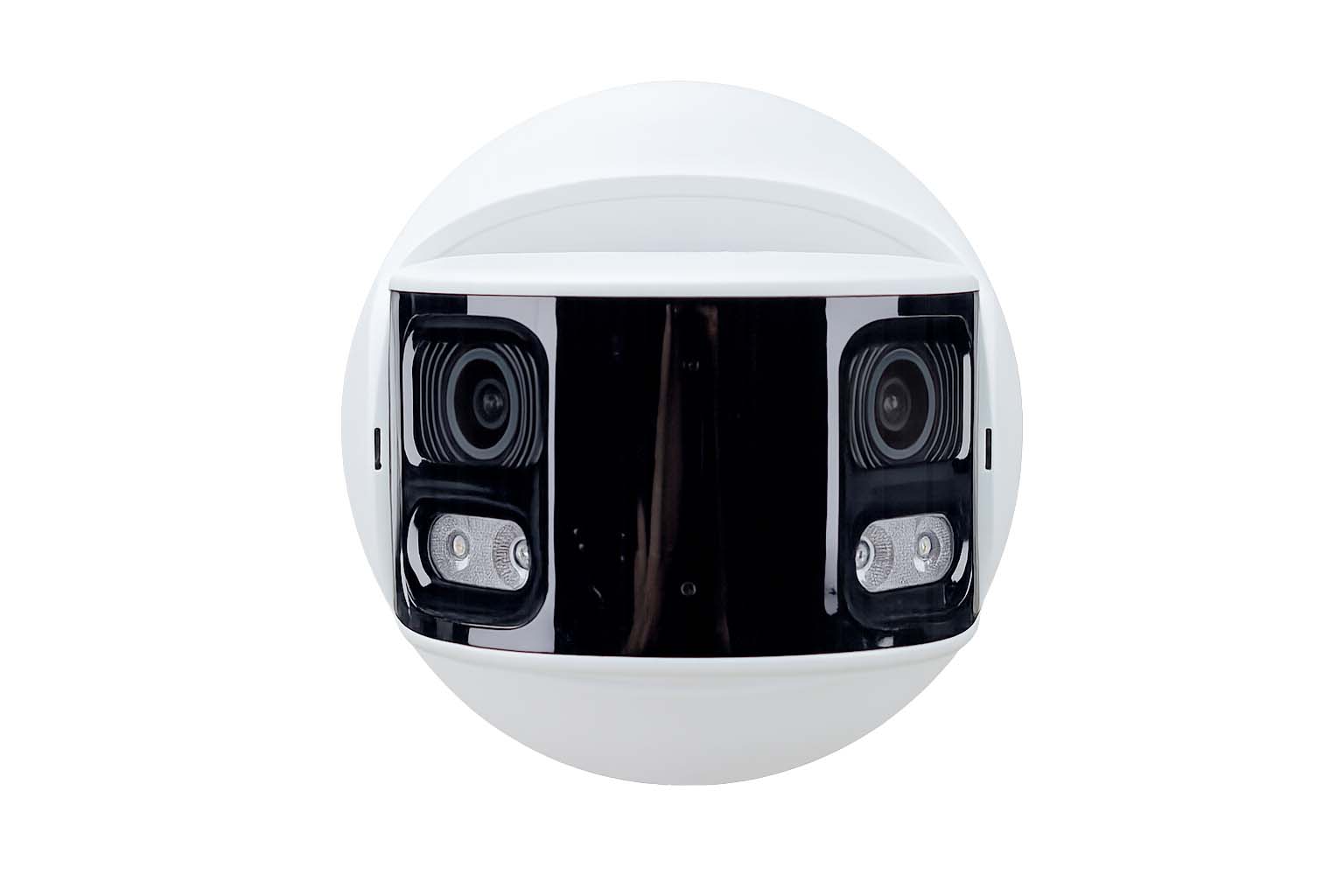

These cameras are equipped with two wide-angle lenses that provide a combined field of view of over 200 degrees. They are ideal for center-wall installations, as a single camera can cover the entire 180° frontal area. Thanks to the two truly independent lenses, you get a stunning 32:9 image in 4K resolution, equivalent to two standard cameras. Do not confuse our panoramic solutions with other products with fisheye lenses and low video quality. Our panoramic cameras deliver wide coverage while always ensuring large, clearly visible targets and distortion-free images.

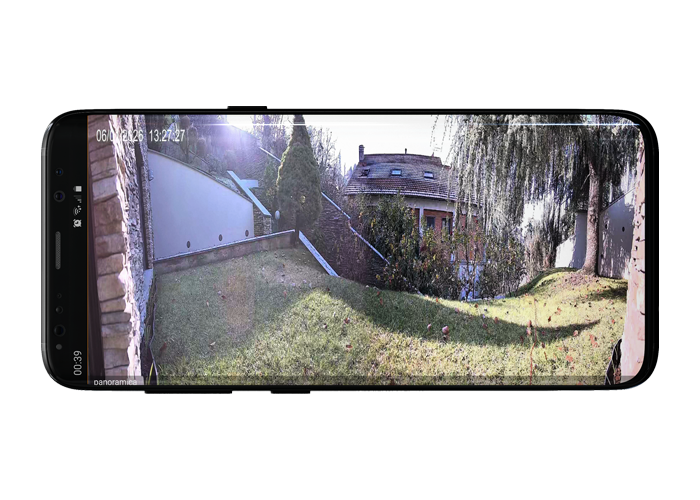

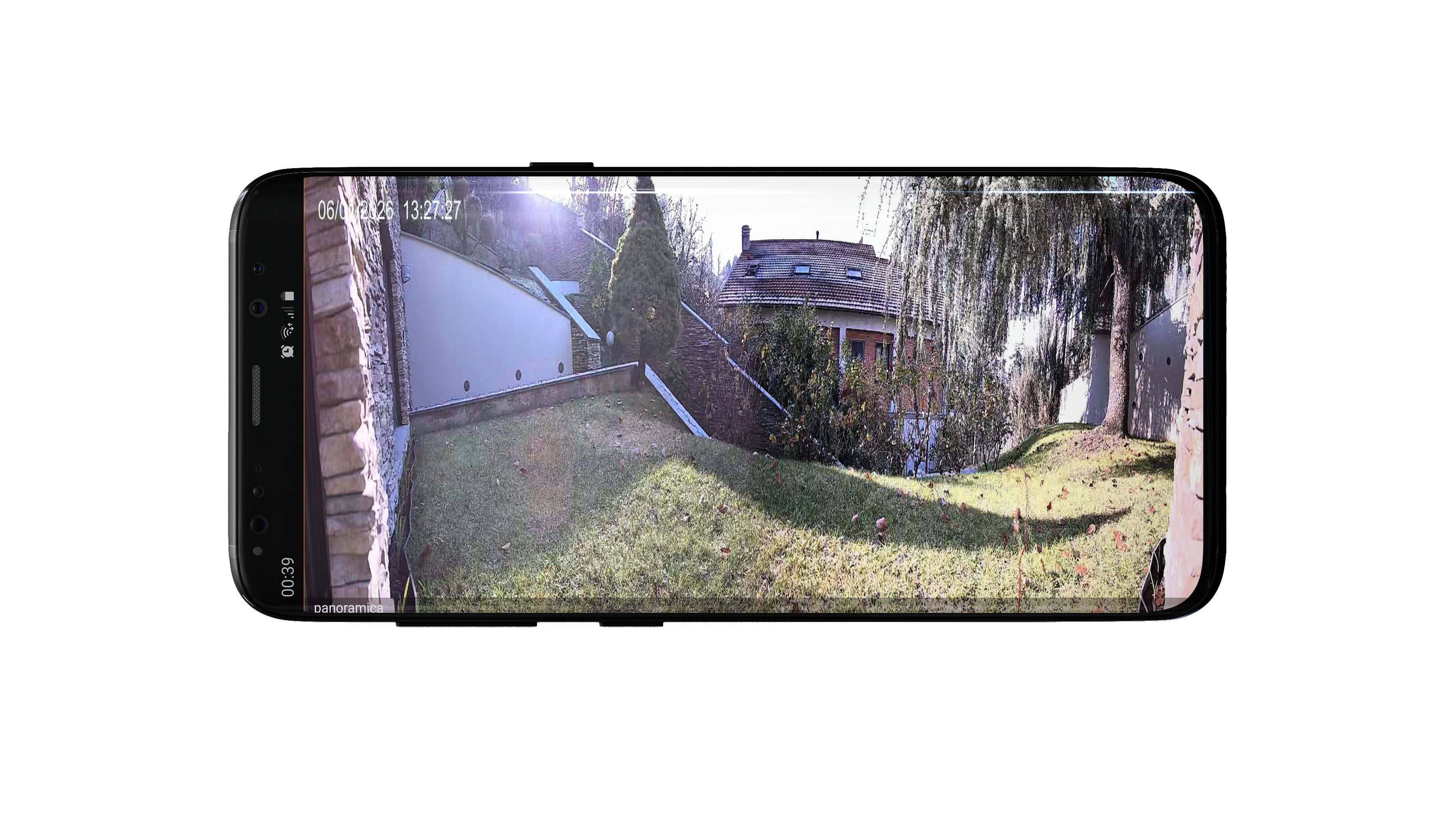

Unlike other products that generate non-standard video formats, our panoramic cameras produce video in 4K resolution with a 32:9 aspect ratio. Despite the ultra-wide image, the video is fully compatible with all viewing devices. You can monitor your panoramic camera from a computer, smartphone, or tablet, and connect it to any of our NVRs—just as you would with a standard camera.

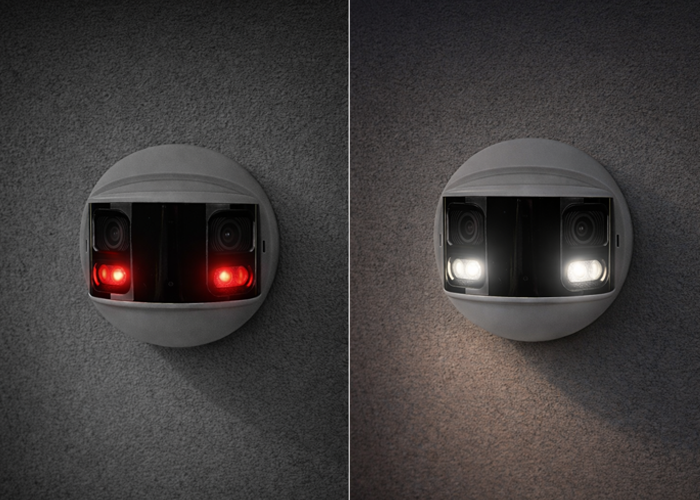

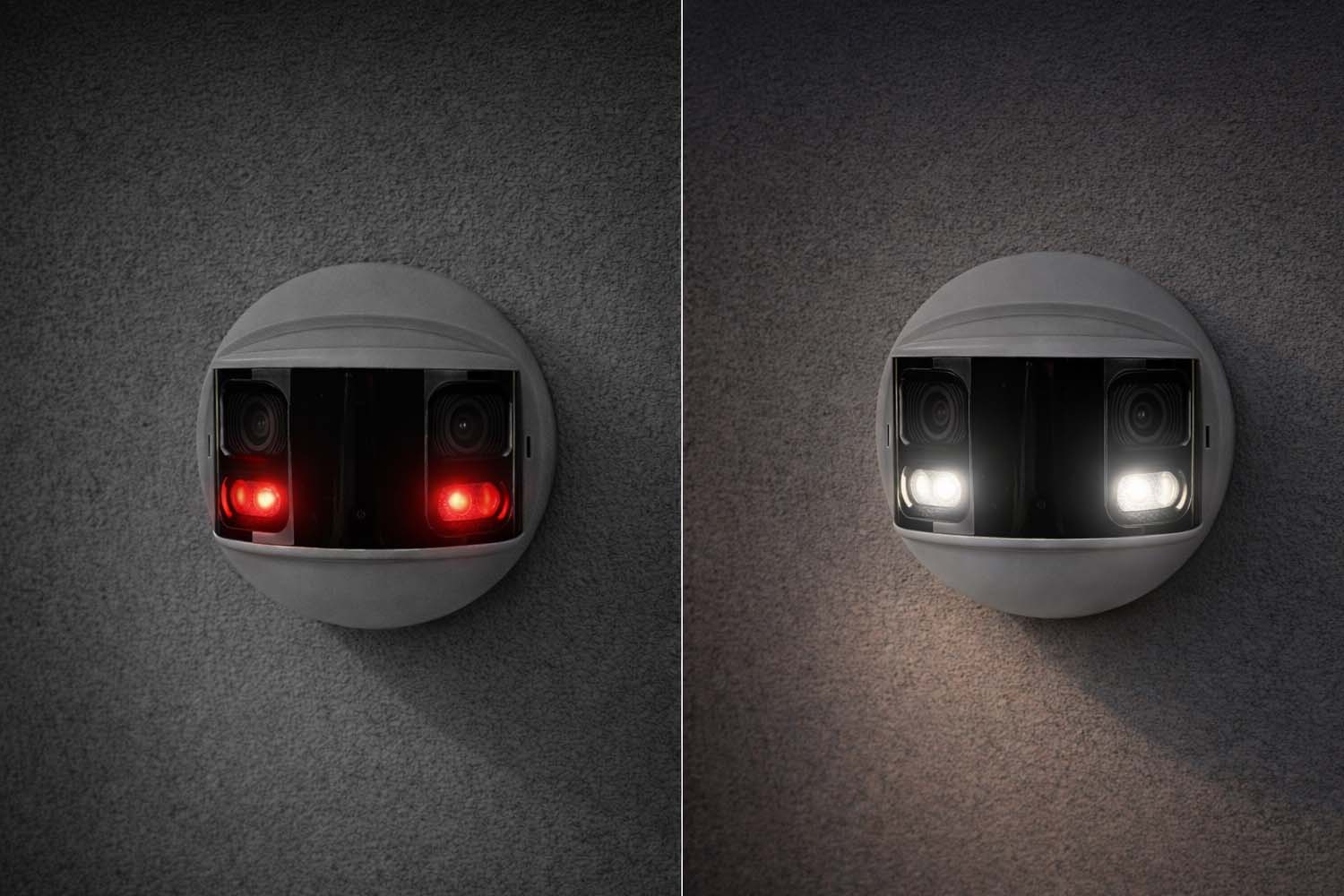

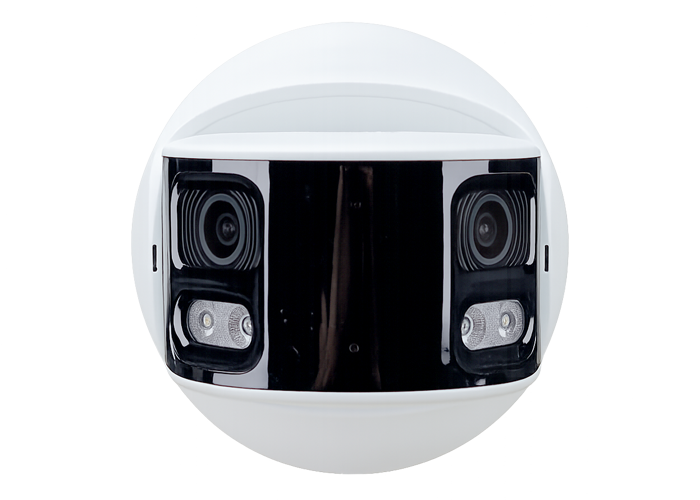

To monitor areas beyond 180 degrees, both day and night, these cameras are equipped not only with dual lenses but also with a dual night illuminator, offering a 50-meter illumination range. The illuminator can provide both infrared light and visible white light. You can select either mode, but most commonly the camera is configured to operate in infrared mode and automatically activate the white LEDs in the event of an intrusion. This way, the monitored area remains normally dark with black-and-white recording and instantly switches to full daylight illumination upon detection, enabling color recording. The sudden activation of the white LEDs also acts as a deterrent, encouraging intruders to retreat.

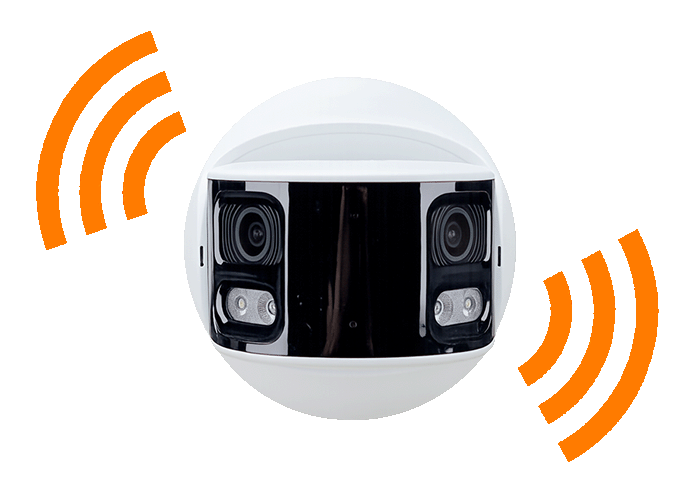

These cameras have a built-in microphone and speaker. If a detection occurs, these cameras can activate an audible alarm, for example reproducing the sound of a siren to discourage an intruder or signal danger. You can choose from the factory sounds or download an additional sound pack from our site. You can also record your own warning message, which is useful if you use these cameras to provide instructions.
These dual lens panoramic cameras also support 2-ways audio that you can use conveniently by talking through your smartphone. By pressing the intercom button on our app you can speak through the camera speaker, stepping-in in any situation without taking risks. You can also use the intercom function to provide instructions to personnel in front of the camera.
To further expand the possibilities of intervention, these 180° cameras can also be connected to external devices, placed near the camera, thanks to their terminal block with 1 input and 1 alarm output. With the alarm output you can, for example, turn on the garden lighting or activate an acoustic signal when the camera detects an event. With the alarm input you can generate an alarm in the camera when, for example, a gate opens or a beam barrier is crossed.
Queste telecamere utilizzano sensori retroilluminati SONY STARVIS 2, l'ultima generazione di cmos Sony, in grado di fornire ottime riprese a colori con minima luminosità ambientale. Le telecamere che usano questi sensori si chiamano anche STARLIGHT perchè possono riprendere di notte anche ampie aree, impossibili da illuminare con gli illuminatori, sfruttando minime fonti luminose.
SCOPRI SONY STARVIS 2
All cameras in this range are equipped with Artificial Intelligence featuring HUMAN AND VEHICLE DETECTION. This technology is more advanced than standard motion detection, as it does not trigger simply on pixel changes but only when the intrusion is caused by a person or a vehicle. In the event of an intrusion, you can send email alerts, FTP uploads, and push notifications, as well as activate the siren or the alarm output.
These RK series cameras include advanced digital video analysis features that allows you to detect unusual situations that occur within the camera's field of view. This Intelligent Video Analysis function, is a high-tech feature, designed for advanced security systems, however it can be also very useful for ordinary CCTV systems, to detect suspicious actions. Several kinds of detection are available to suit the security need of shops, companies and public monitoring. Each of these video analysis functions detect only human presence and can be enabled-disabled according to the time of the day.
All cameras in this range support POE power via the network cable (IEEE 802.3af Class 3). To make them work, all you have to do is connect one POE switch or a POE NVR using standard, 8 cores, UTP cable. If for some reason you can not use POE power, all cameras also have a local power jack that you can connect to a 12VDC adapter. In the picture you can see the connection cable coming out of the camera, with the RJ45 network plug and the 12V auxiliary power connector.

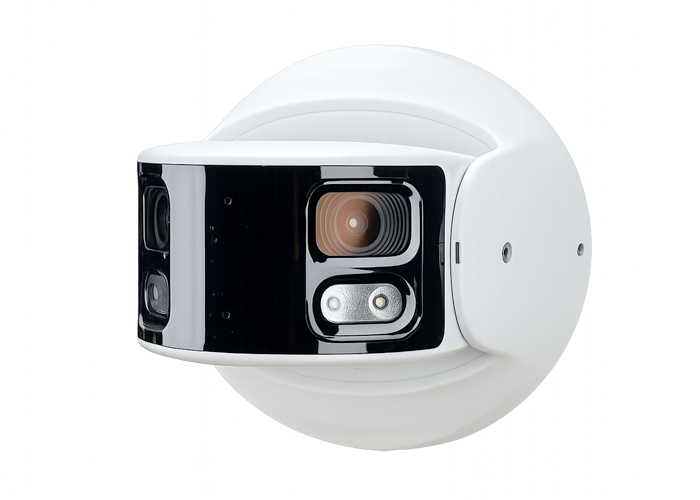

All RK cameras are water-proof, with IP67 protection degree. You can install them both inside or outside exposed to rain. All these cameras come in a robust die-cast, fire painted, aluminum casing. That's why you can use these cameras anywhere, without worrying about extreme temperature or corrosion. All the cameras in this range come with Black Glass front covers which protects the lens from refraction of the IR light and is less attractive to night-time insects.

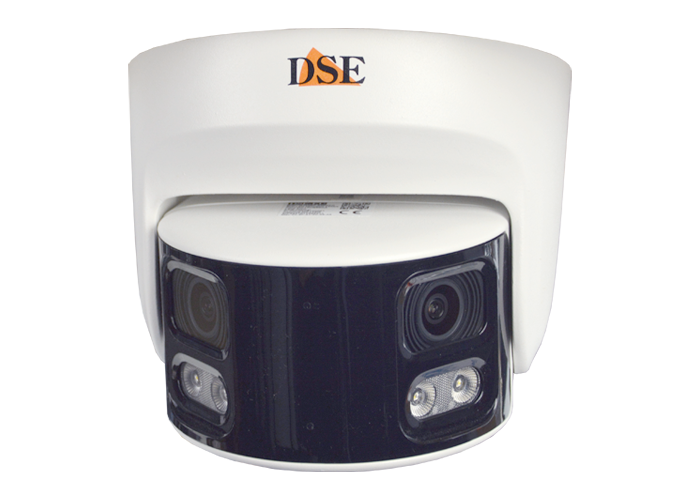

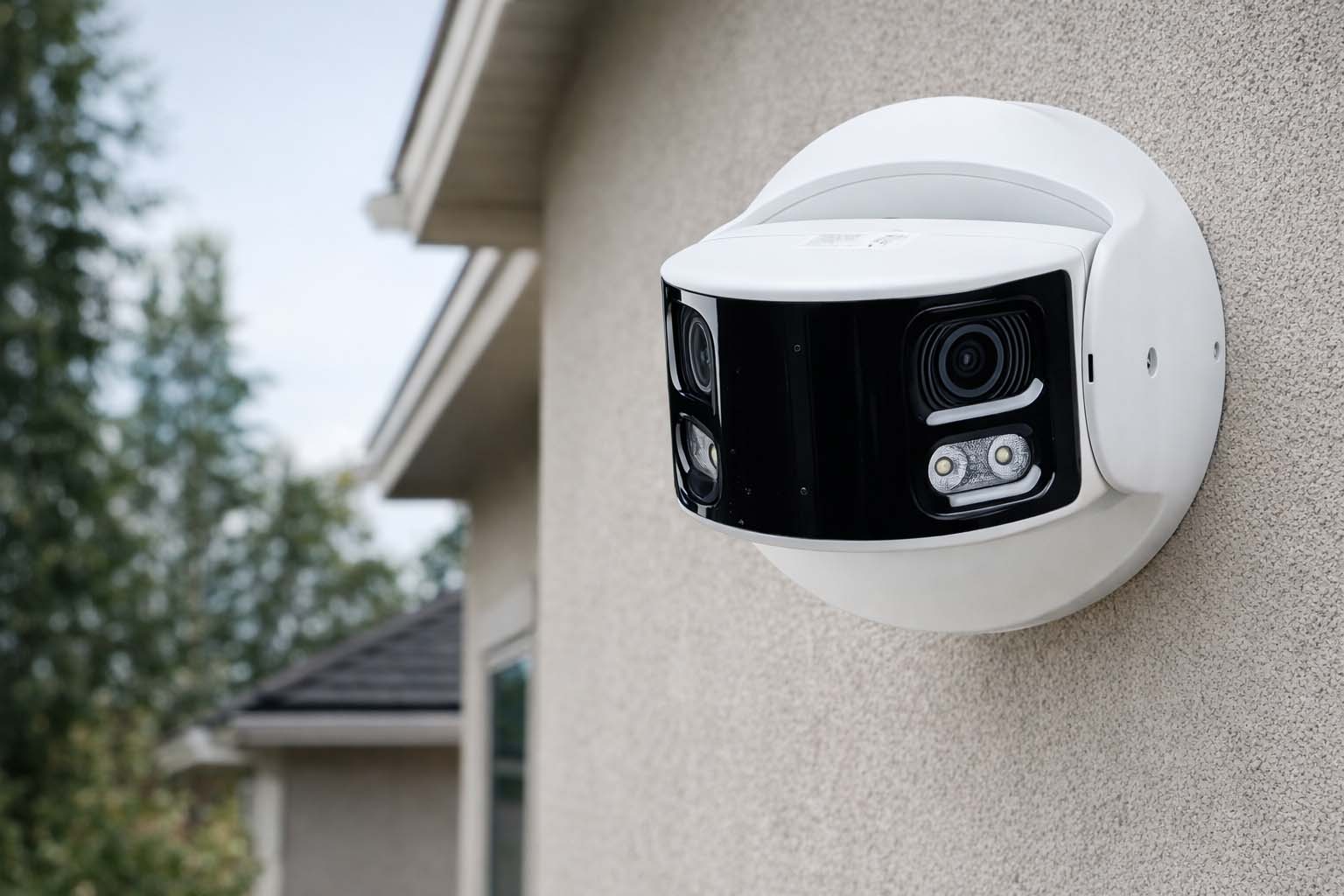

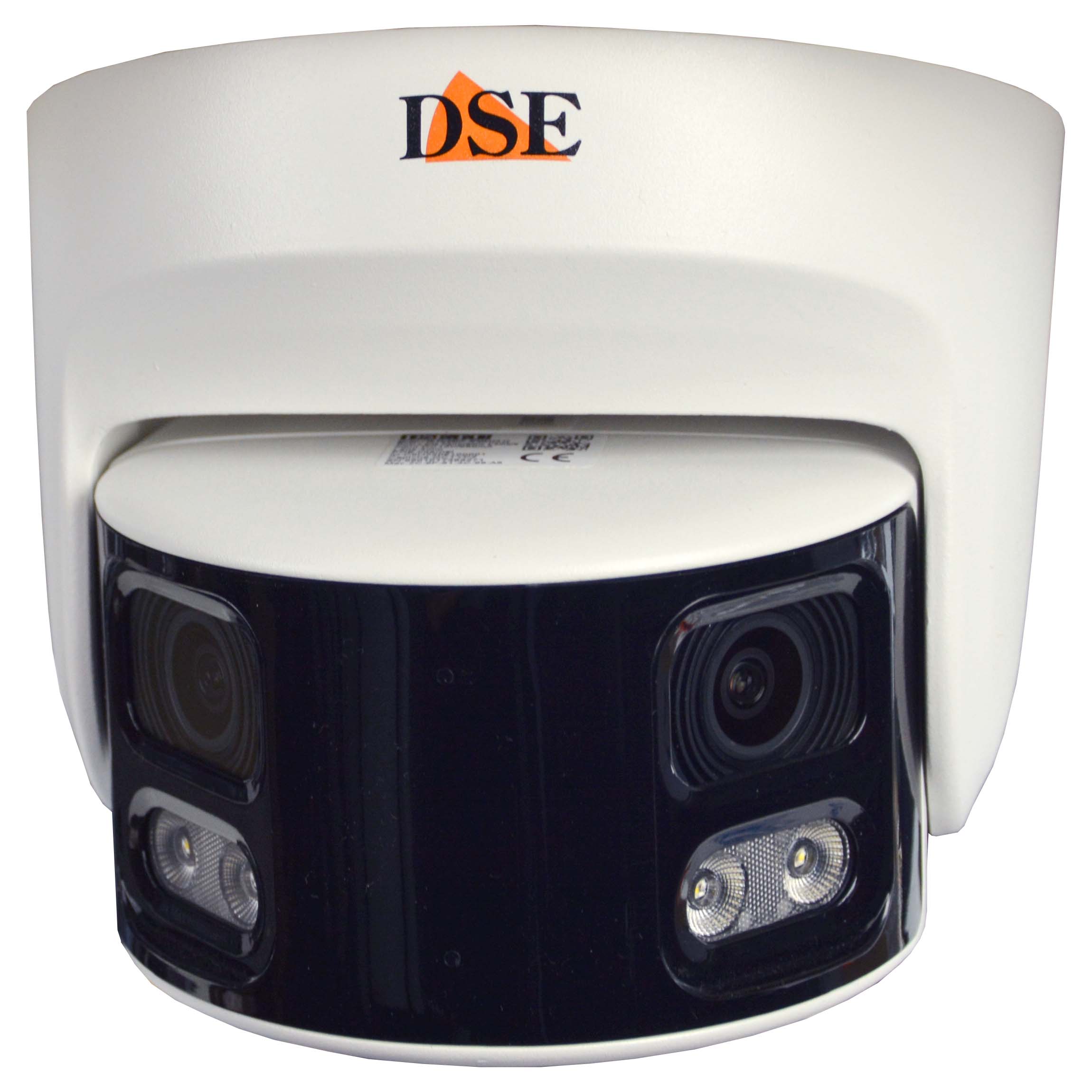

These panoramic cameras can be installed directly on a wall or on a ceiling. Unlike standard cameras, which are typically mounted on building corners, these dual-lens cameras are designed for center-of-facade installation, as they are able to cover the area in all directions, from left to right.

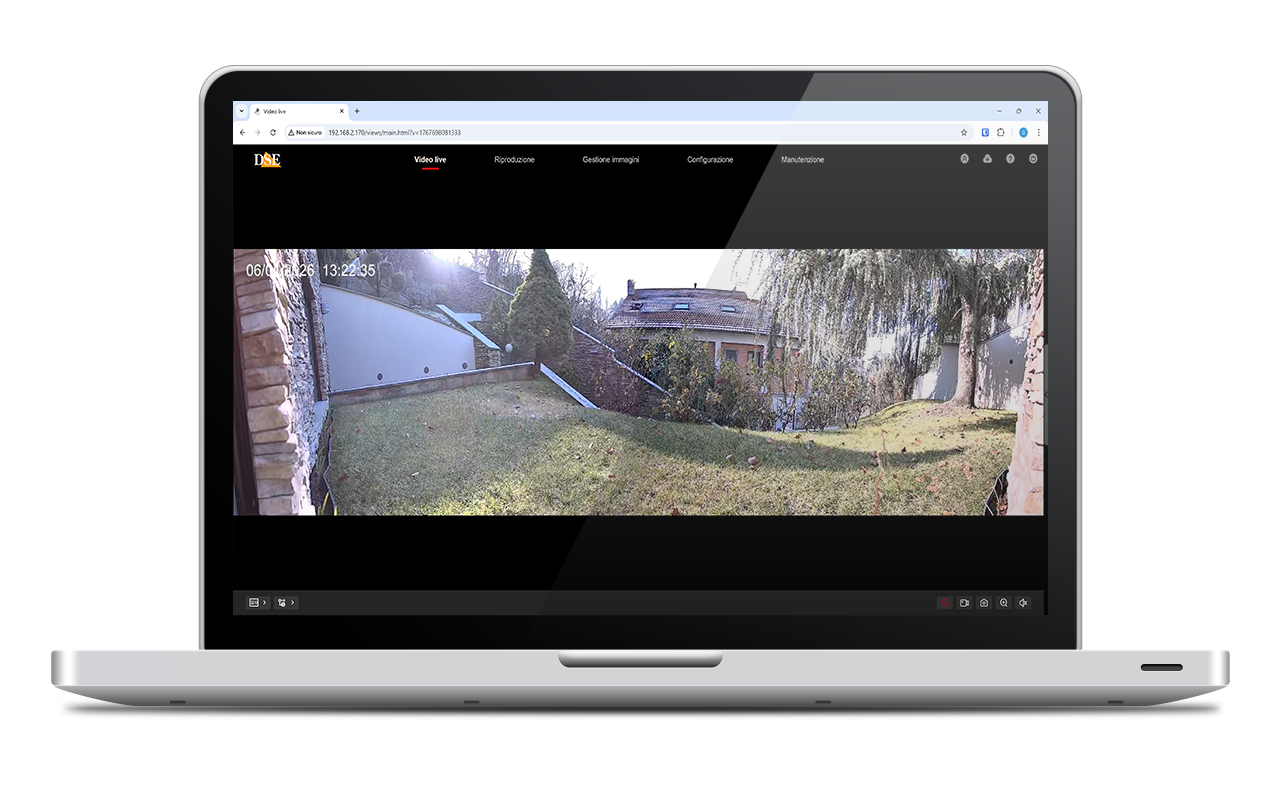

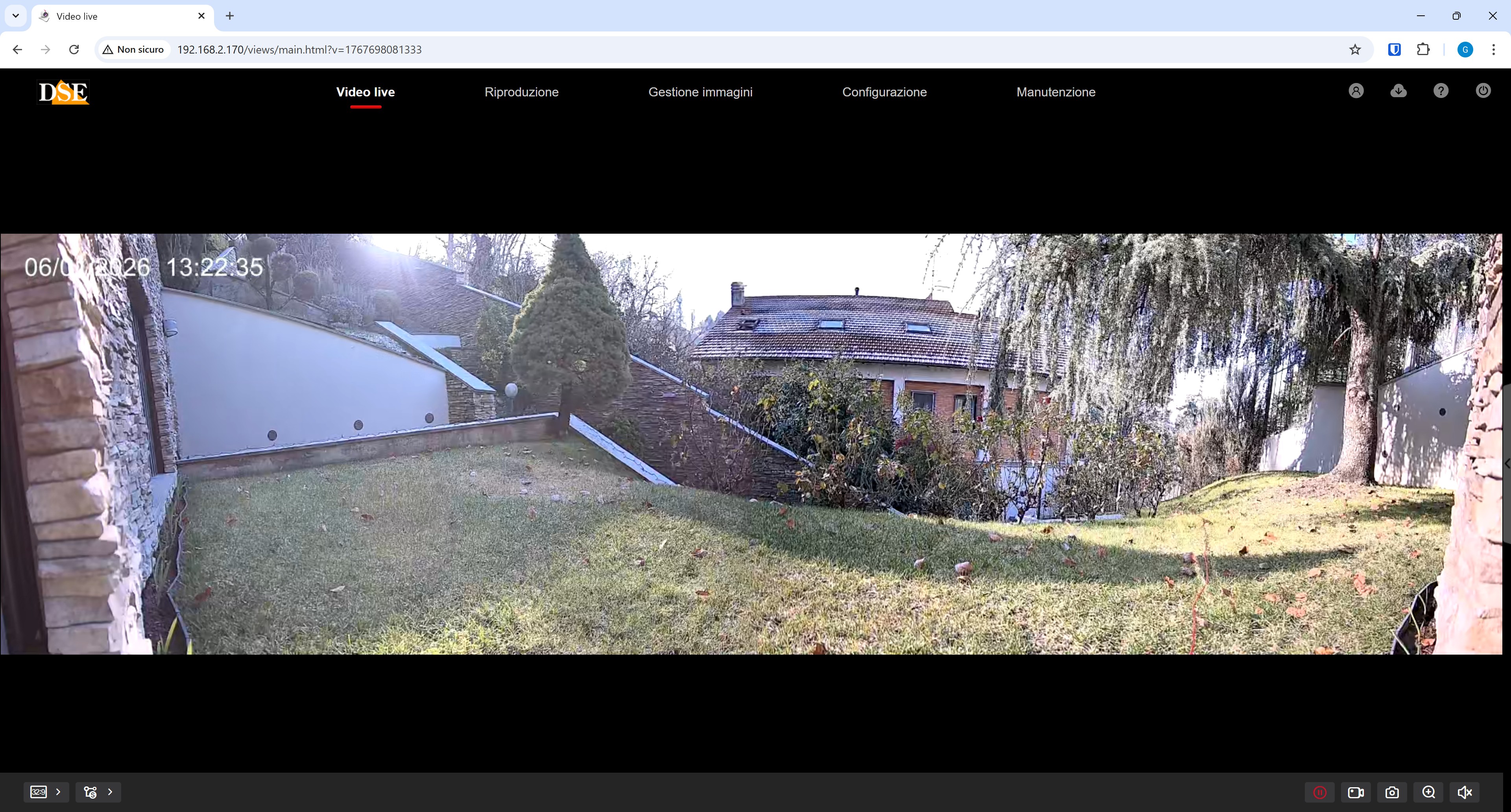

Every computer on the network is a perfect monitor for your IP cameras. No software needs to be installed. Just use your favourite browser and enter the login password. All browers are supported, thanks to the new no-plugin access function. You can WATCH live video, RECORD , take snapshots and ZOOM-IN by dragging the mouse. A user friendly menu, available in many languages, allows you to SET all system options. You can also PLAYBACK the videos which have been recorded in the camera memory, searching date and time over the timeline. The cameras in this range also support the RTSP protocol, which allows you to watch live video with ordinary players such as VLC.
Your browser is also supporting 2-WAYS AUDIO which allows you to talk through the camera speaker.
IOVEDO.RK - MONITORING SOFTWARE
Our free IoVedo.RK software allows you to monitor via computer all our RK Series cameras, NVRs, DVRs and kits. You can use our software in your local network, by calling the IP of the device, or via the Internet, by entering the serial number supported by our CLOUD P2P SERVER.
You can WATCH LIVE up to 64 cameras, setting CUSTOM LAYOUTS to receive videos from many remote devices. You can PLAYBACK the footage recorded in the device memory and DOWNLOAD the video files. You can also control your PTZ cameras.
Like all our systems, the IoVedo.RK software supports the ONVIF protocol, so you can also use it to monitor ANY OTHER ONVIF CAMERAS you already have in your system.
With our free APP IoVedo.RK, for Android and iOS, you can control your IP cameras with a mobile phone or tablet. You can use the app within your Wi-Fi network, calling the IP address of the camera, or via the Internet, calling the camera CLOUD ID. You can WATCH up to 16 cameras on the screen. You can RECORD , take snapshots and ZOOM IN with the classic two-finger gesture. You can also PLAYBACK the videos which have been recorded in the camera memory, searching date and time over the timeline. If you enable motion detection, you can receive NOTIFICATION on your mobile phone at every event.
Our app is also supporting 2-WAYS AUDIO which allows you to talk through the camera speaker.
With your smartphone and your computer you can control your cameras easily over the Internet. Each camera has an ID number and is registered on our P2P cloud server with unlimited access. Thanks to the PEER-TO-PEER (P2P) technology, you can connect via the Internet in seconds, even if your Internet connection does not have static IP address. No special router settings, such as port forwarding, are required. The P2P cloud server allows you to use these cameras even with mobile or satellite Internet connection that usually do not accept direct link.
With these devices you can save images on Google Cloud. Saving on the web is useful for keeping important images safe from tampering attempts. To use the cloud strage you need to buy a space on Google Cloud and enter the access details in the device configuration. You can save on Google Cloud all images recorded in the event of an alarm, not continuous recording.
FIND OUT MORE ON GOOGLE CLOUD
To setup your camera you have to modify the default IP address to make it suitable for your own network. You can do that in a matter of seconds with our free IPTool.RK software which is suitable for all RK series IP cameras, DVR and NVR. IPTool.RK detects and displays all the IP cameras connected to your network and allows you to edit the IP setting in just a few clicks.
DOWNLOAD IPTool.RK
These cameras work best with a network video recorder, also called NVR. You can match our cameras with any NVR video recorder supporting onvif or RTSP protocols. If you are designing a new CCTV system we recommend, for perfect compatibility, ours RK Series NVR which share the same GUI, software and app of these cameras and allow you to set the camera configuration. Although IP cameras support several recording methods, buying an NVR is always recommended, because it has many useful features that makes life easier for the users. Besides, nowadays NVRs are really inexpensive.
All cameras in this series have a built-in micro SD card slot. You can insert a micro SD memory up to 256GB and record video clips straight in the camera. In the camera configuration you can define mode and period of the day for recording. You can also take time-lapse pictures (every xx seconds, minutes, hours, days). Once the memory card is full, the automatic overwriting of the oldest video files is usually set. Even if you have an NVR, we recommend you still use the SD card, because it record in every condition, even if the network is disconnected because of a failure or sabotage.
If you are a software developer you can easily implement our devices in your projects. We provide you free SDK libraries and CGI commands to control all functionalities of our devices with your own software. If you need to get clean video stream for your software you can do that via RTSP protocol.
DOWNLOAD SDK DOWNLOAD CGI
|
|
|---|---|
| CODE | RK-PAN-2X4H |
| Description | Panoramic IP camera |
| CAMERA | |
| Maximum resolution | 2x4MP==8MP |
| Image sensor | 1/1.8" SONY Starvis 2 IMX664 |
| Chipset | Novatek NT98539A |
| Video resolution | 5120x1440 @ 25 f/s | 1920x540 @ 25 f/s |
| Video compression | H264 H265 H264+ H265+ |
| POE | IEEE 802.3af |
| Local power supply | 12V DC |
| Illuminator | 50 m. (4LED 42µ 850nm) IR+White LED |
| ICR | |
| Lens | 2x4 mm. fixed lens |
| Focus | Fixed |
| HARDWARE | |
| LAN port | RJ45 10/100 Base-T |
| Audio input | Built-in mic |
| Audio output | Built-in speaker |
| Sounder | Standard and custom sounds |
| Flash light | |
| Alarm I/O | 1 input + 1 output |
| Built-in memory | |
| SD card | Max. 256 GB |
| CVBS output | |
| FUNCTIONS | |
| Protocols | TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP ONVIF |
| Onvif |  Onvif Profile S/T Certified |
| P2P | Free with QRcode |
| Browser | All browser supported |
| Smartphone | iPhone iPad Android Android-Pad |
| Multi streaming | 2 stream |
| WEB cloud storage | |
| Mirror | |
| Corridor | |
| Overlay | Date Time Label |
| BLC | Automatic or Adjustable |
| AWB | Automatic or Adjustable |
| DNR | 2D 3D |
| WDR | Automatic or Adjustable |
| Anti Fog | Automatic or Adjustable |
| HSBLC | |
| Starlight | |
| Motion detection | Adjustable with week scheduler |
| Human detection | Intrusion in area, Entering area, Leaving area, Virtual fence, Crowding, Loitering |
| Vehicle detection | |
| Face recognition | |
| Time-Lapse snapshot | Sec. min. hh. dd. interval |
| Privacy mask | 3 adjustable areas |
| Anti masking | |
| Region Of Interest | |
| Alarm actions | Recording | Email | FTP | Cloud | Push notification | White LEDs | Alarm output | Sounder |
| GENERAL | |
| Casing | Aluminum |
| Protection rating | IP67 Water-proof |
| Swivel bracket | Wall + Ceiling |
| Operating temperature | -20°C +60°C RH95% Max |
| Power supply | 12VDC +/-10% or POE |
| POE power consumption | Max 6W (12W IR on) |
| Dimensions | 152 (D) x 156 mm. |
| Weight | 1188 gr. |
All cameras can be powered with a 12VDC power supply. However, the power adapter is not included since POE power is widely used. If you need a power supply, see ours POWER SUPPLY UNITS
