Optimal reading 15 m. or 30 m.

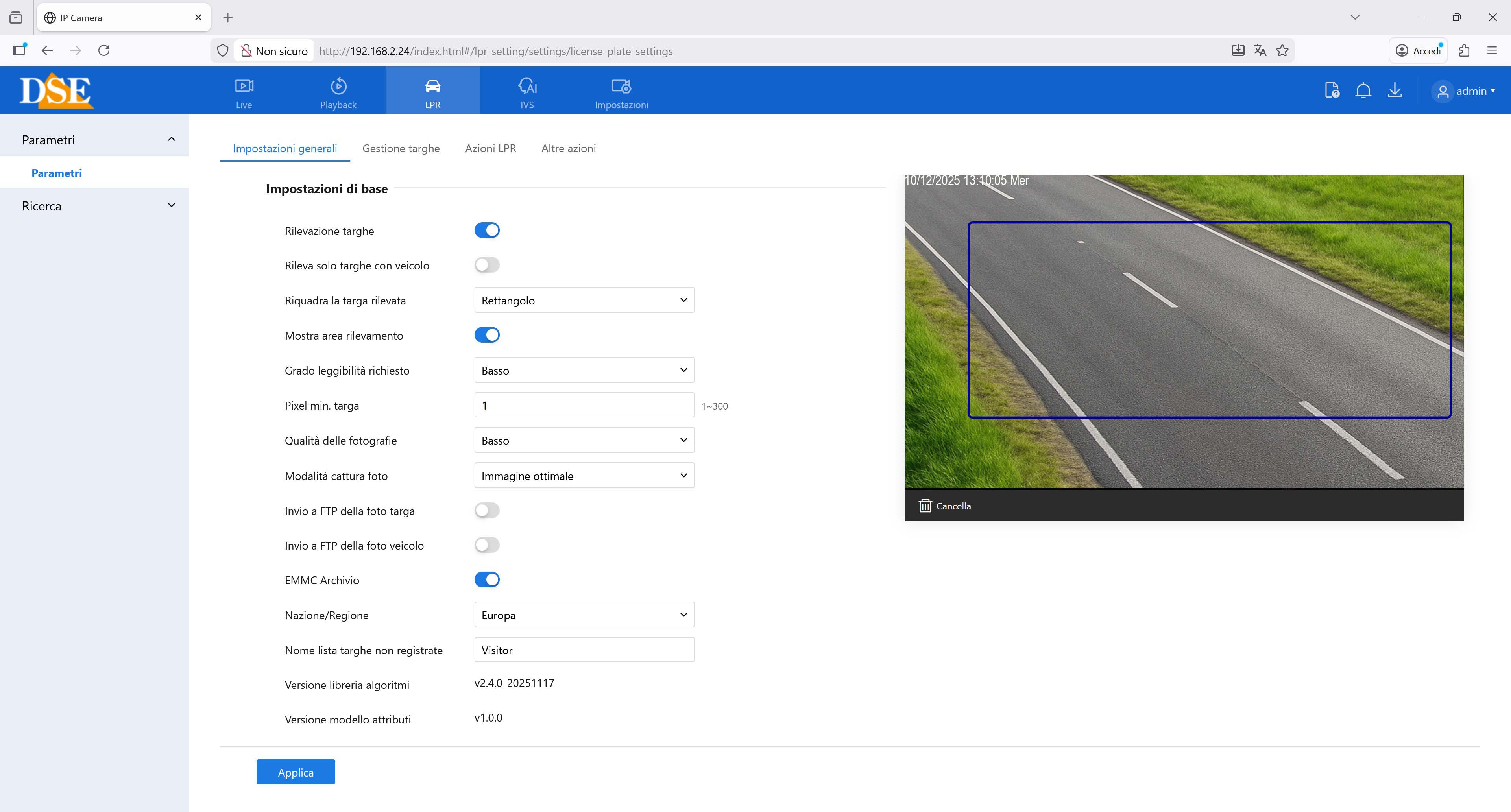

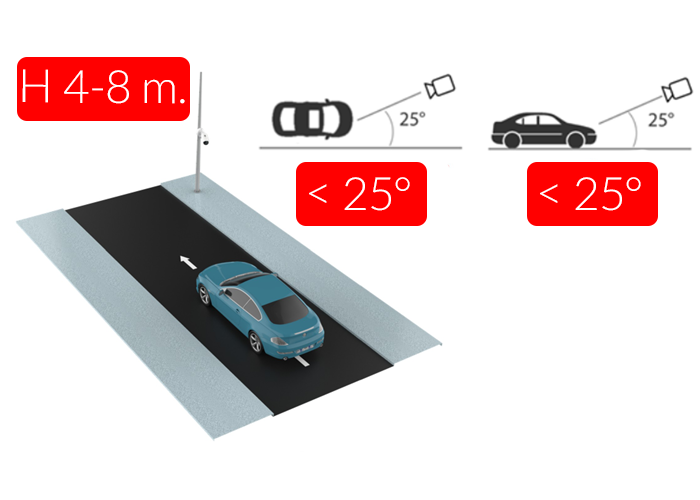

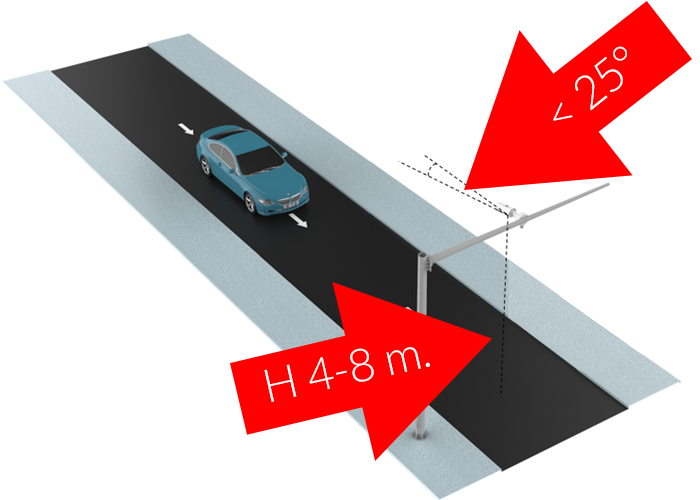

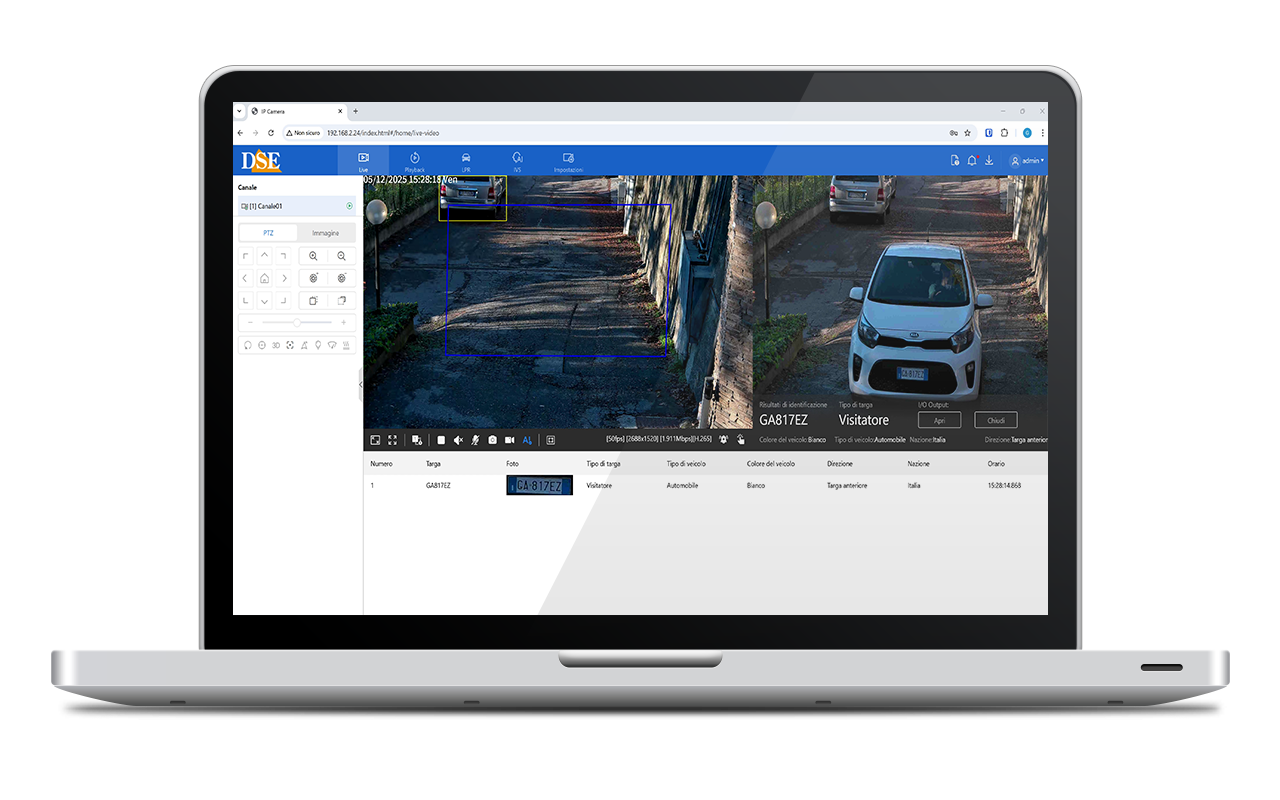

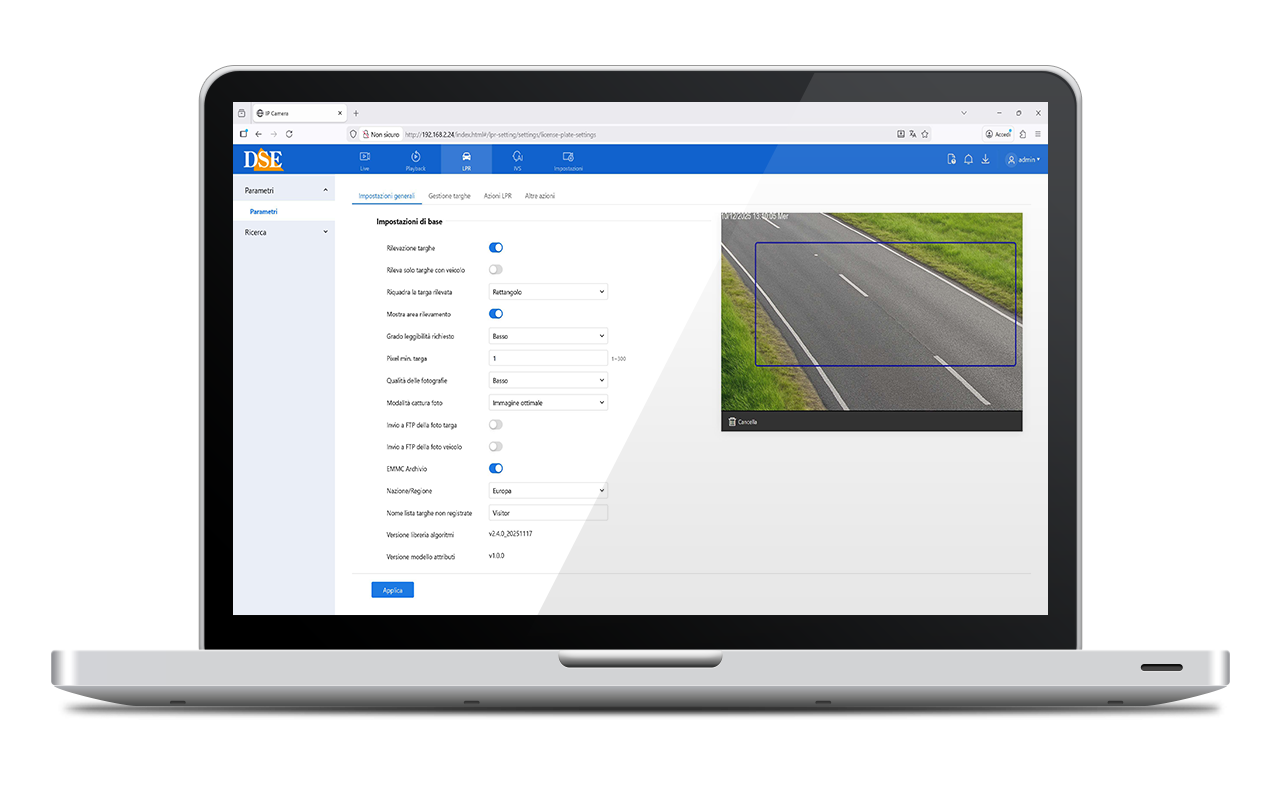

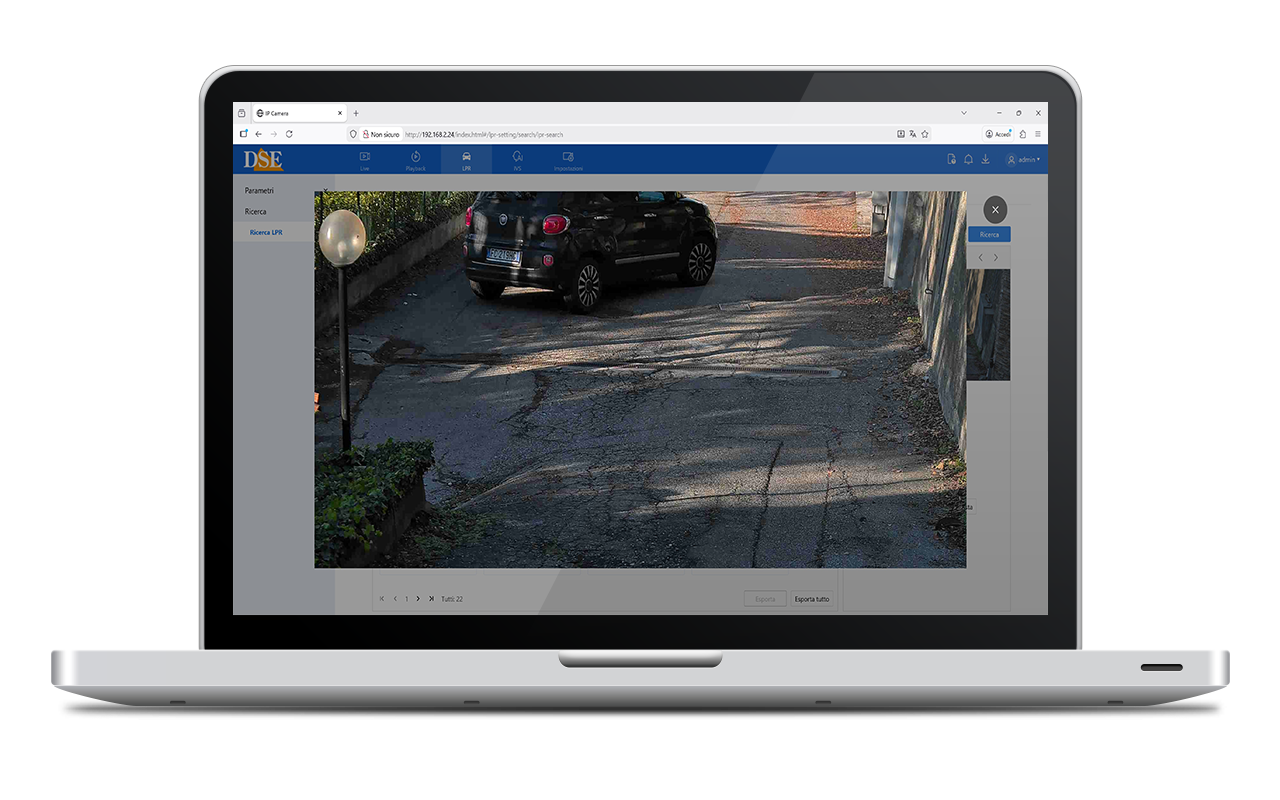

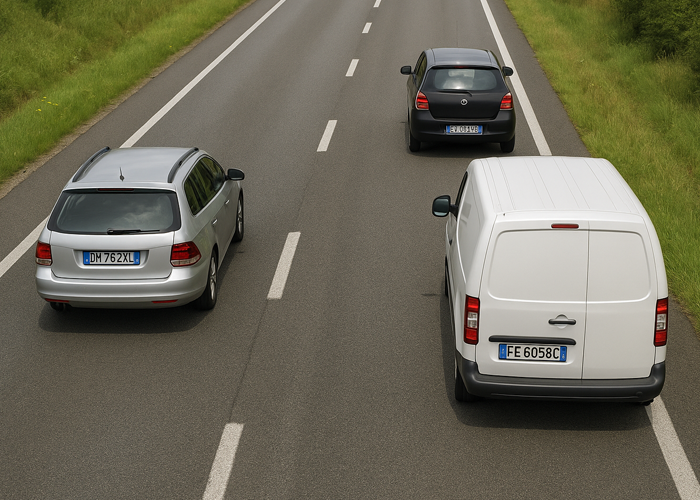

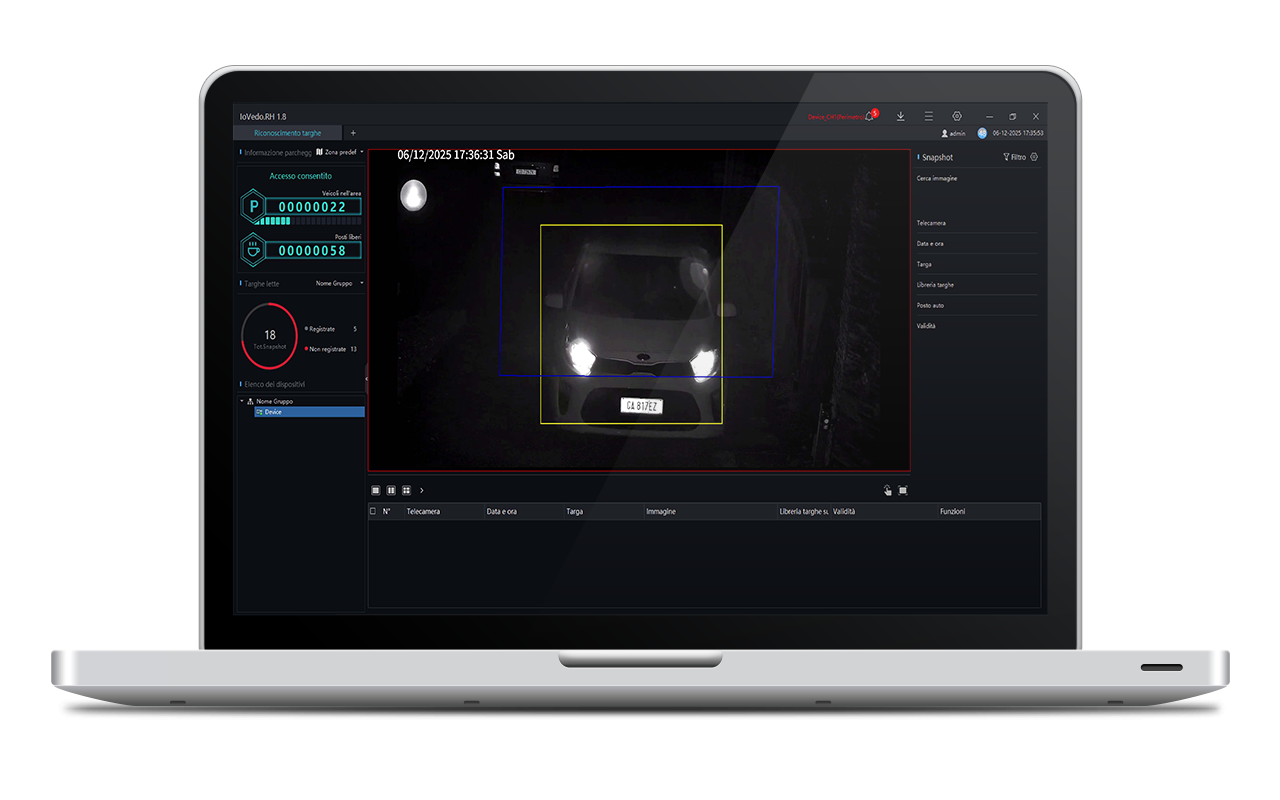

Although these cameras can read license plates in virtually any road-side scenario, the highest reading accuracy is achieved at the ideal distance of 5 to 30 meters. The cameras can be installed either above the roadway or on the roadside, maintaining an optimal height of 4 to 8 meters and an angle of less than 25° relative to the direction of vehicle travel. They can capture both front and rear plates, monitoring up to 3 lanes. Once the camera is installed, all adjustments can be performed remotely via computer.

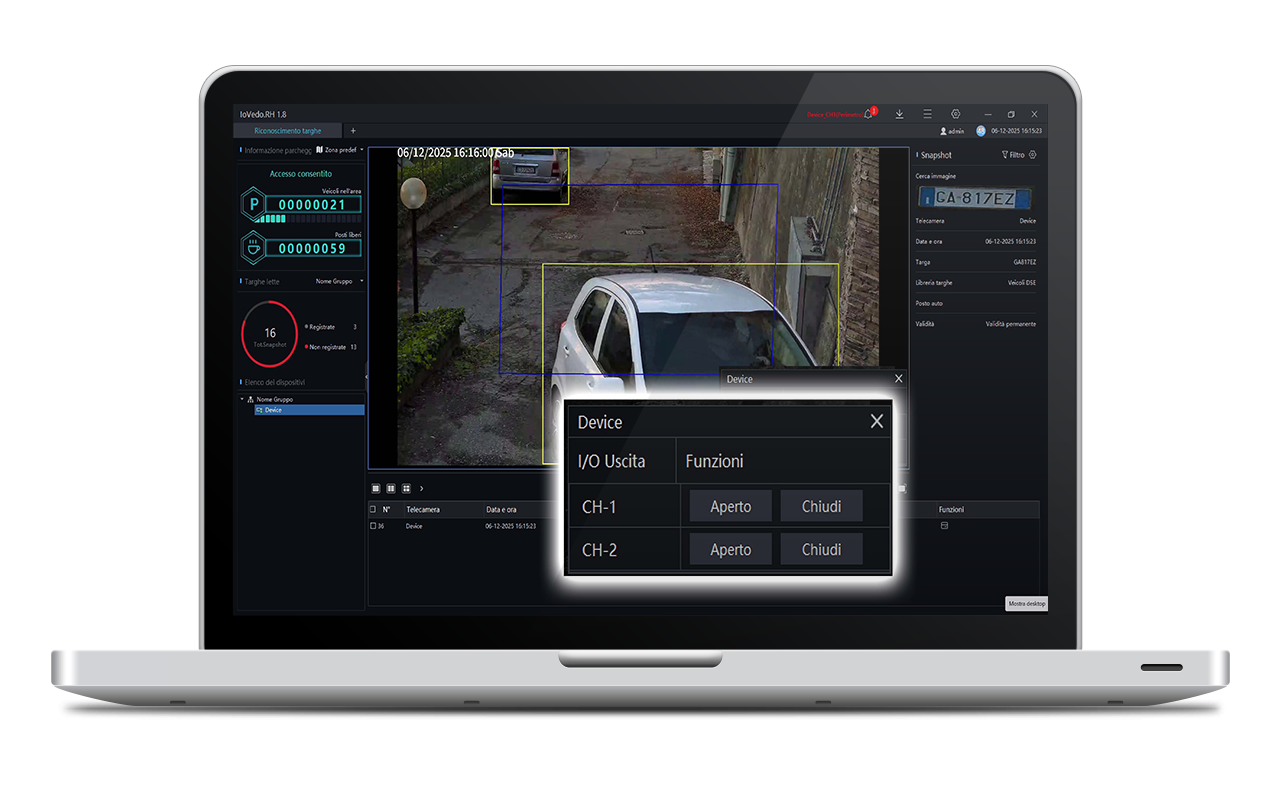

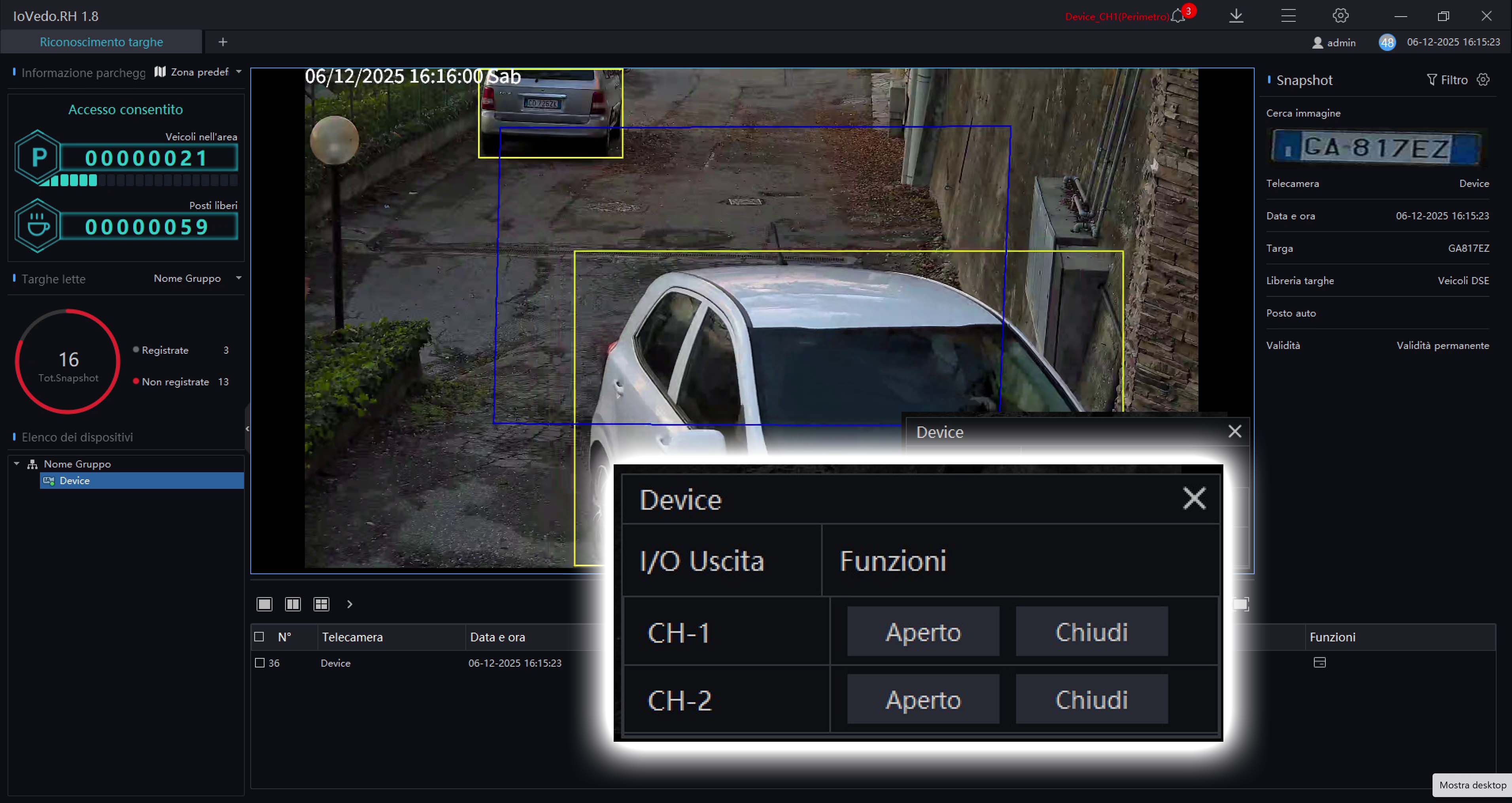

1-2 Relay outputs for access control

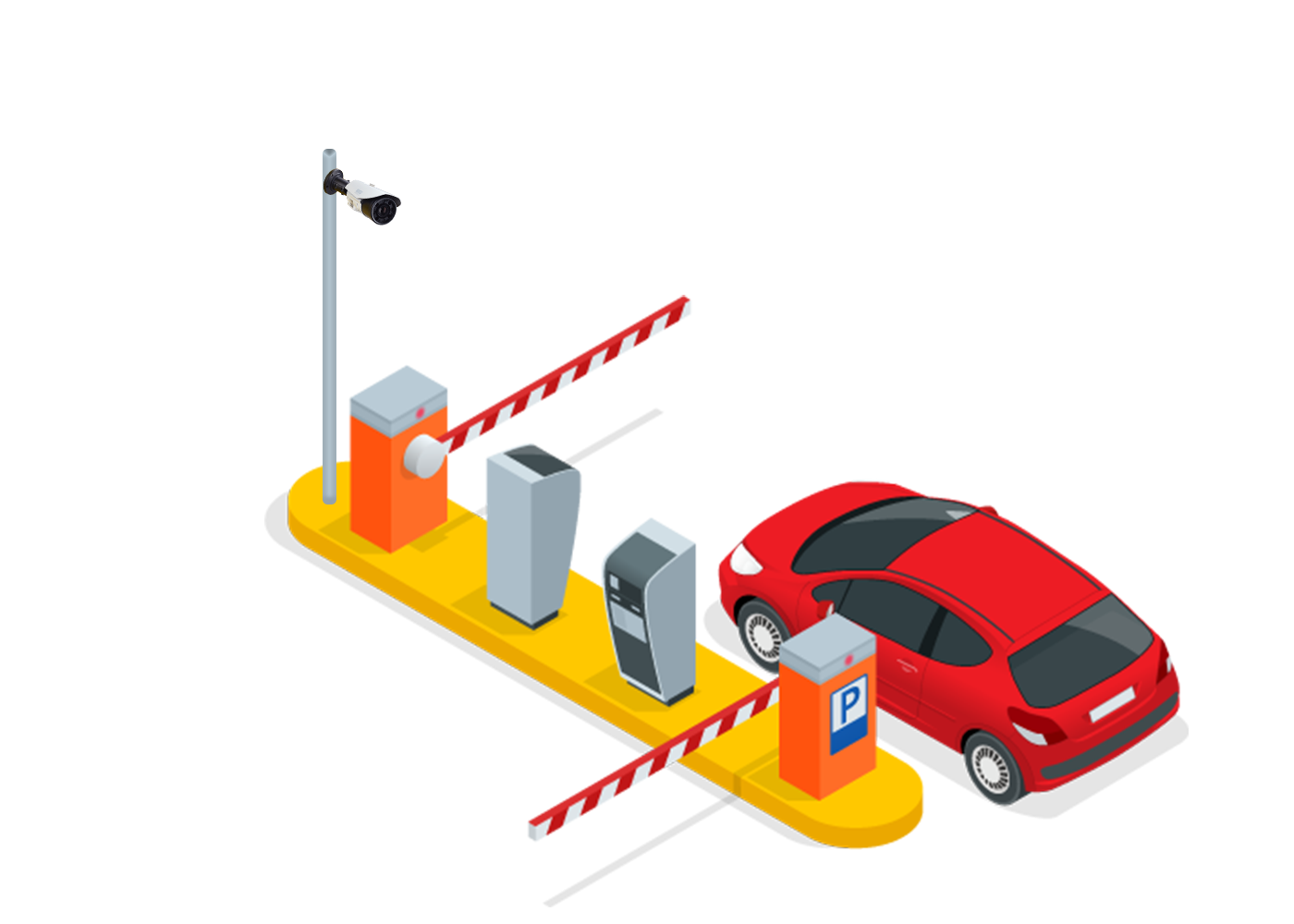

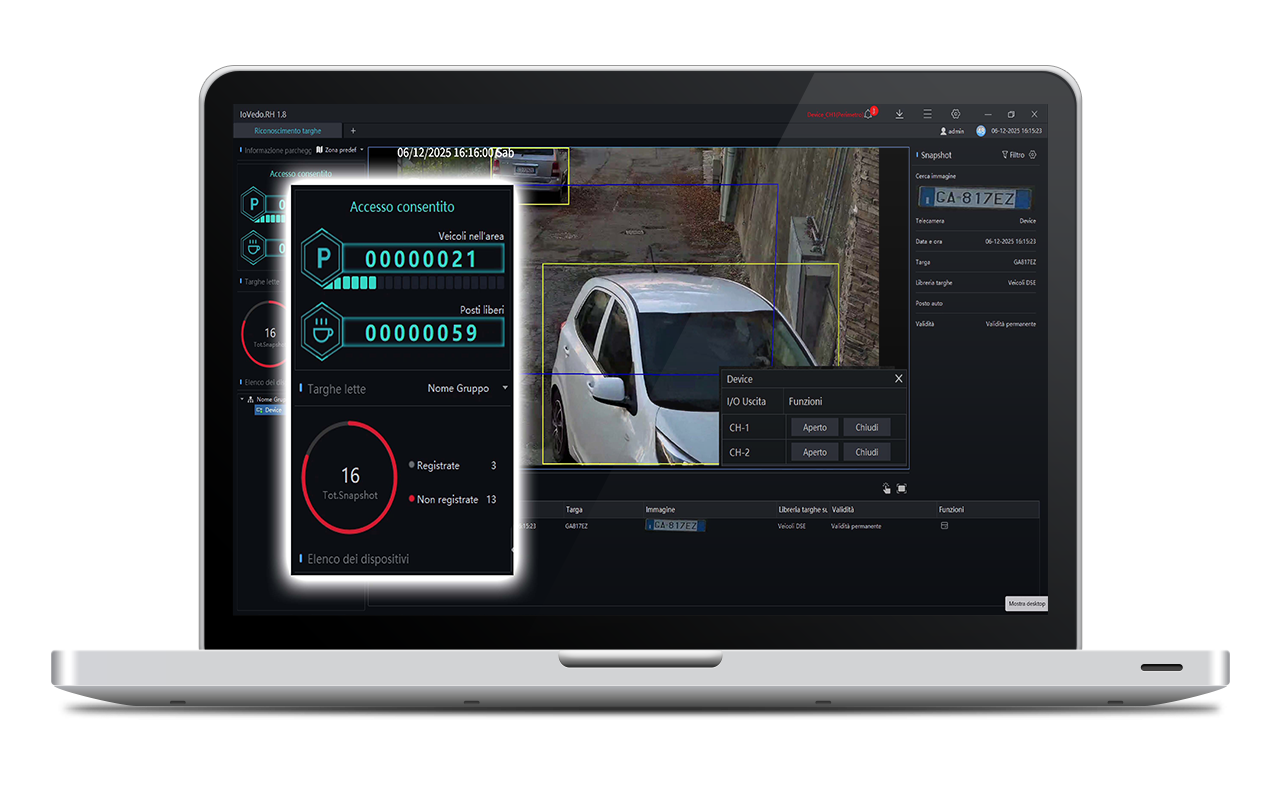

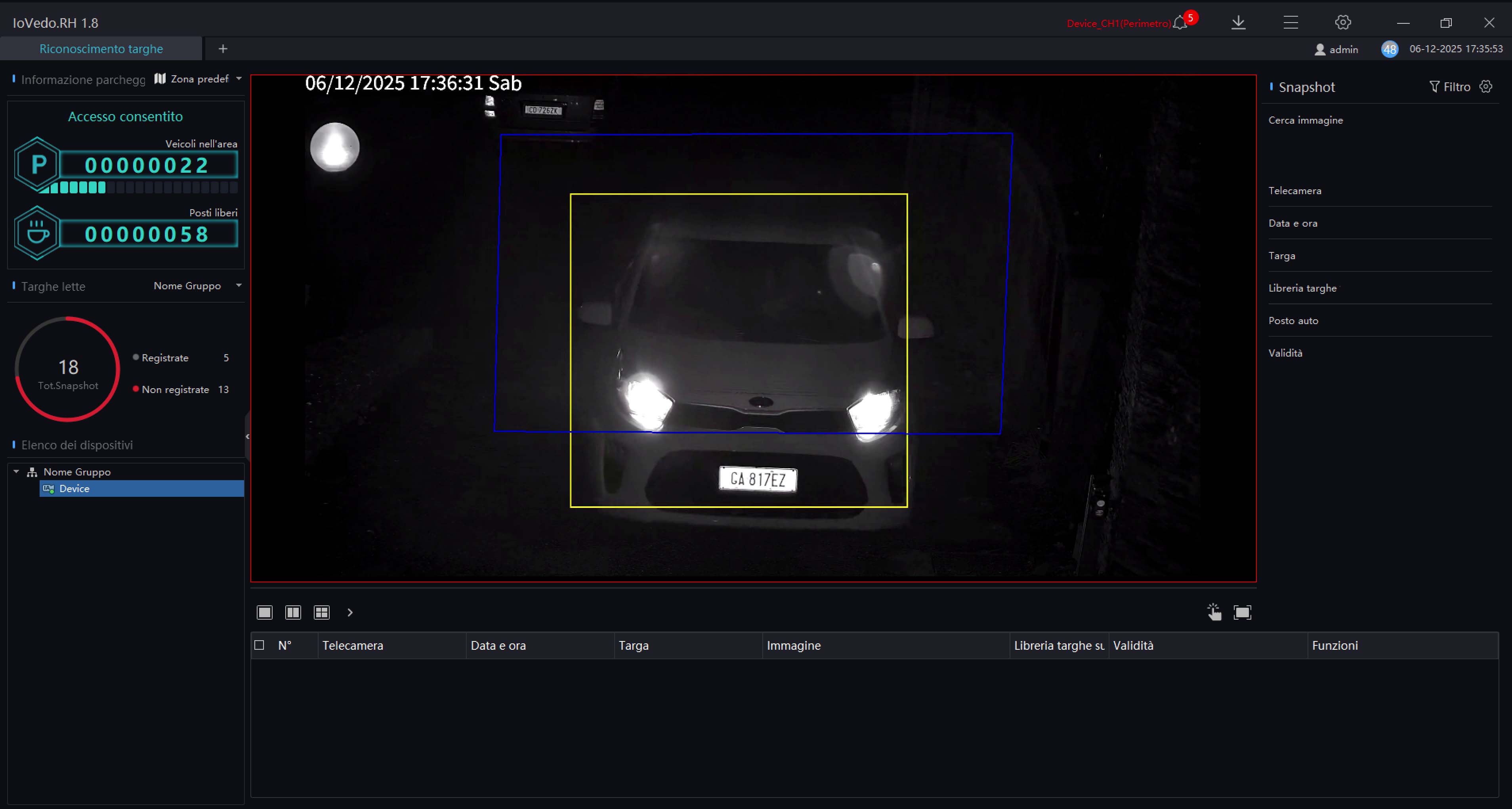

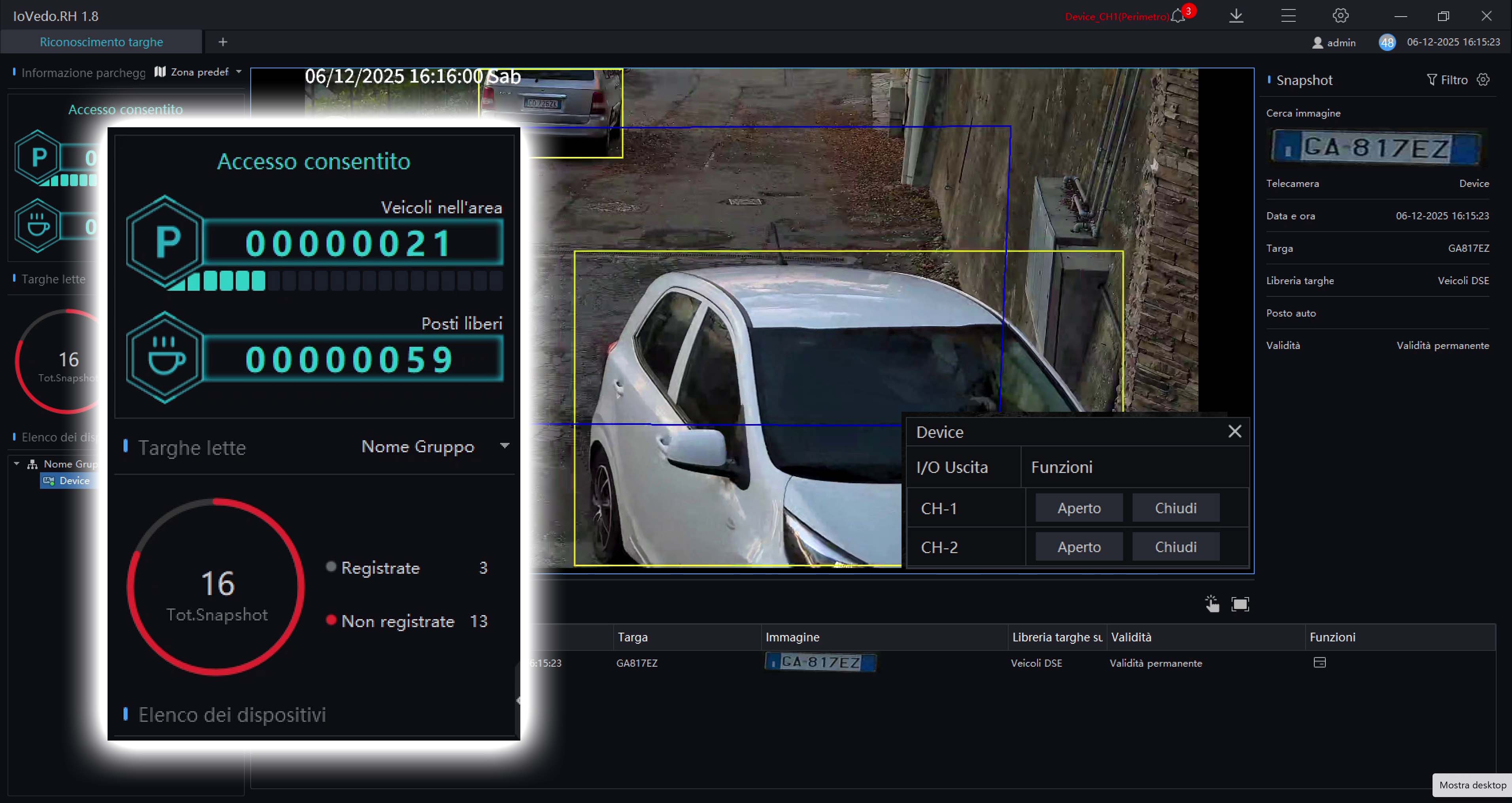

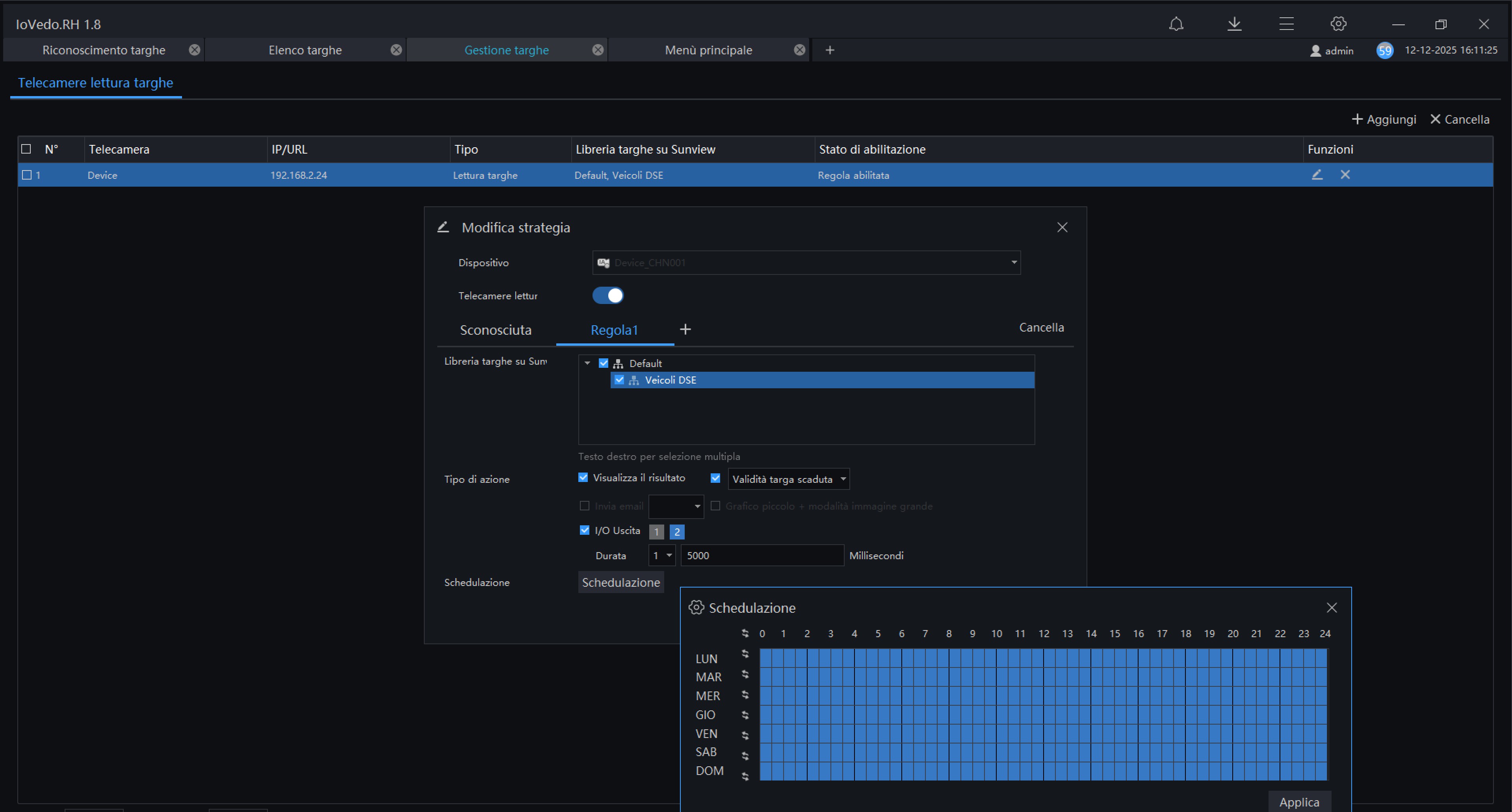

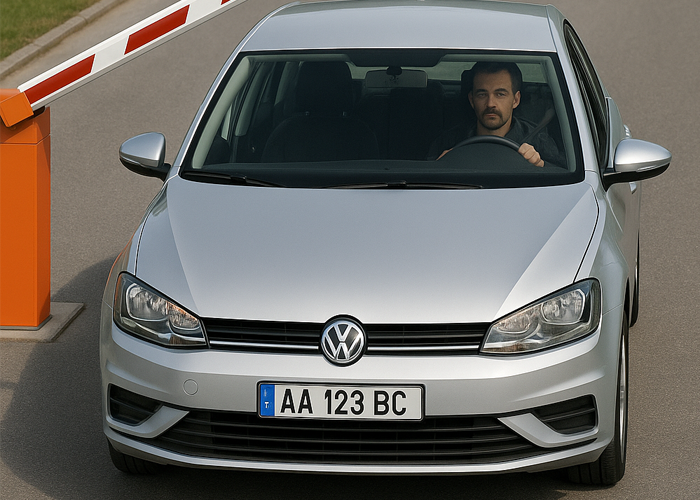

These license plate recognition cameras are also ideal for automatic access control and for monitoring parking areas in businesses and hospitality facilities. They are equipped with 1 or 2 fully programmable onboard relays that can automatically activate access barriers, gates, or even audible alerts and lighting. The camera can trigger these outputs based on the detected license plate, enabling automated access for companies, hotels, campsites, and parking areas. The IoVedo.RK software also supports parking management with automatic calculation of available spaces.

White/Black List 5000-20000 plates

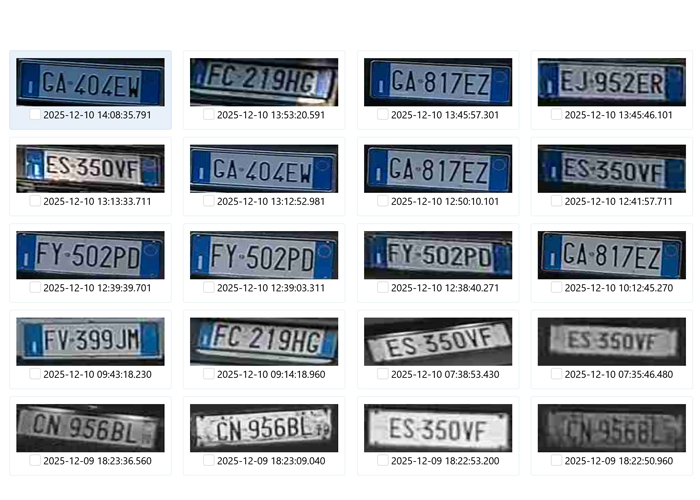

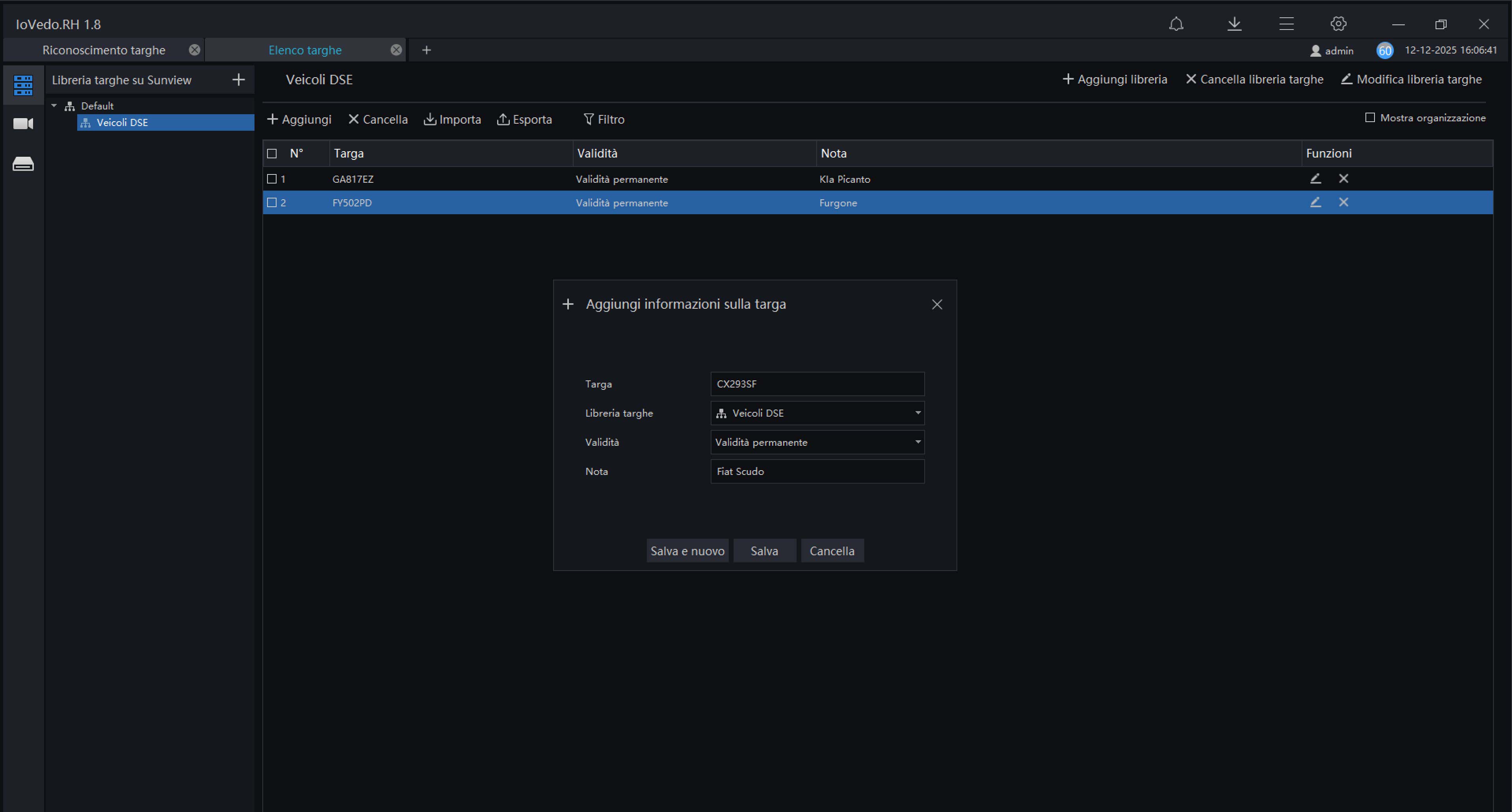

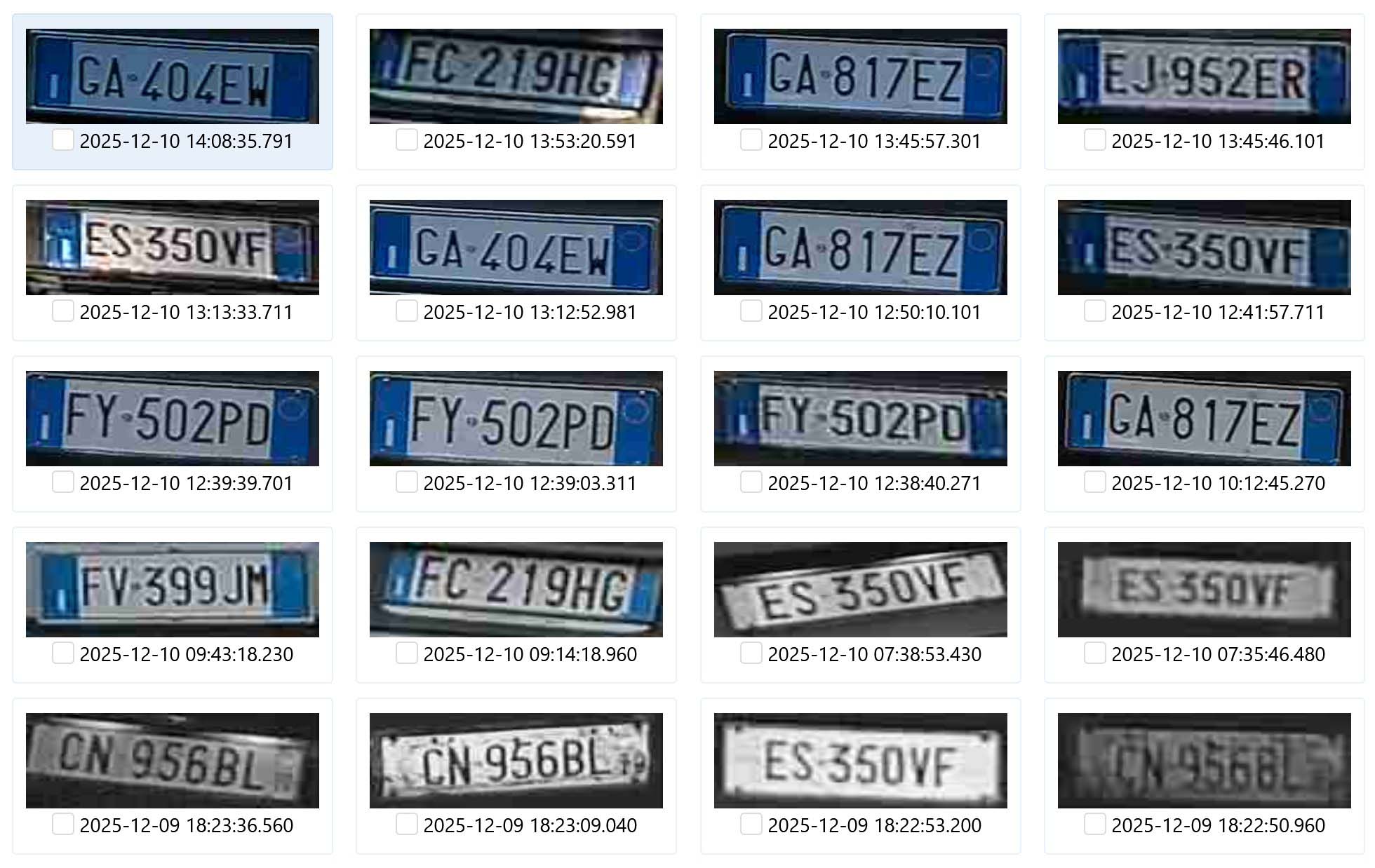

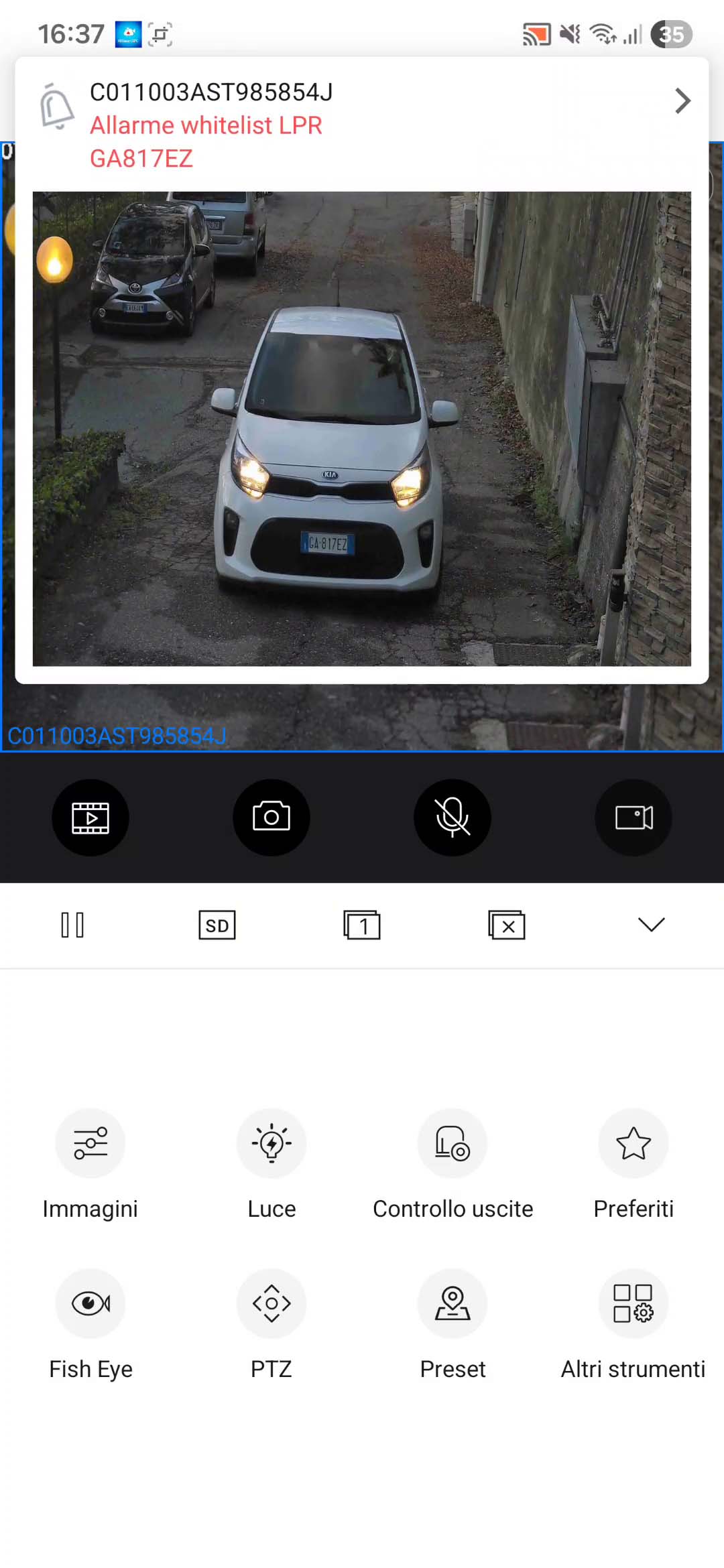

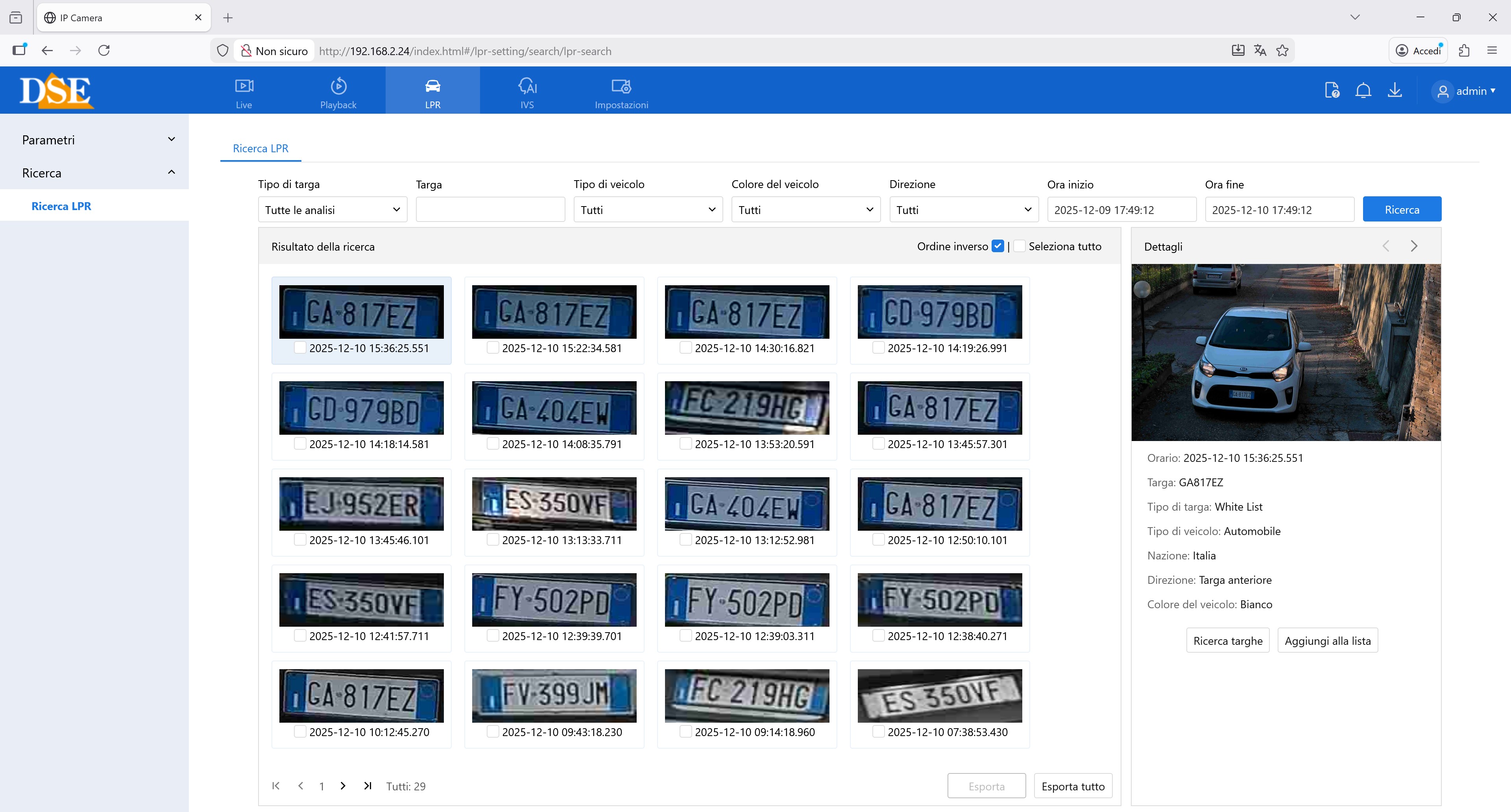

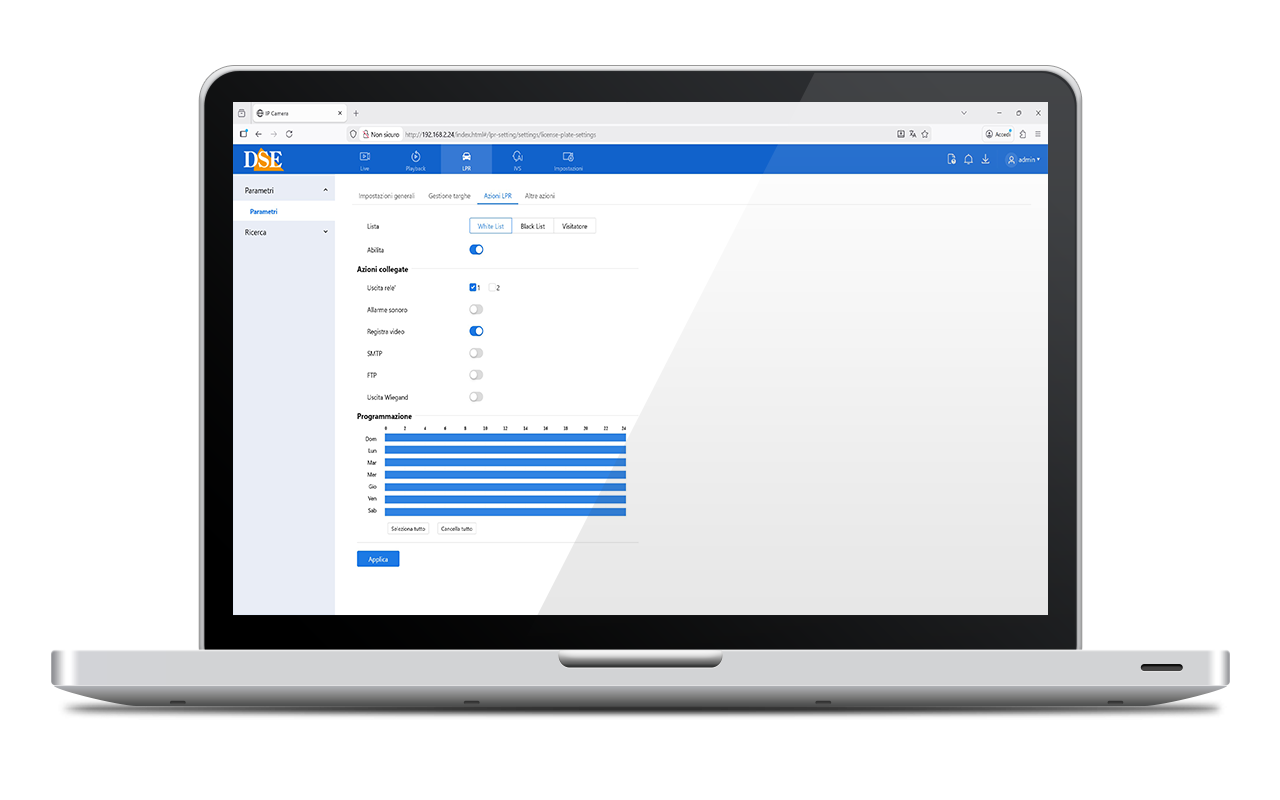

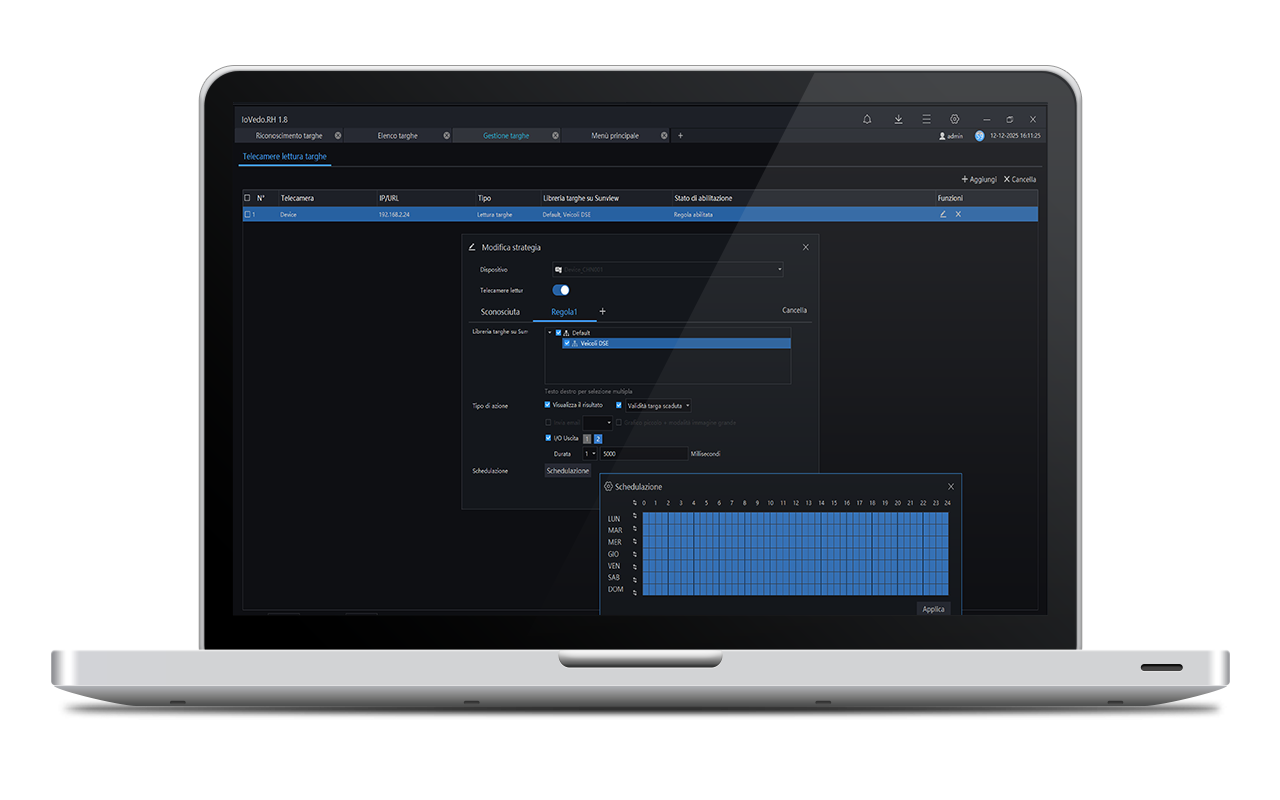

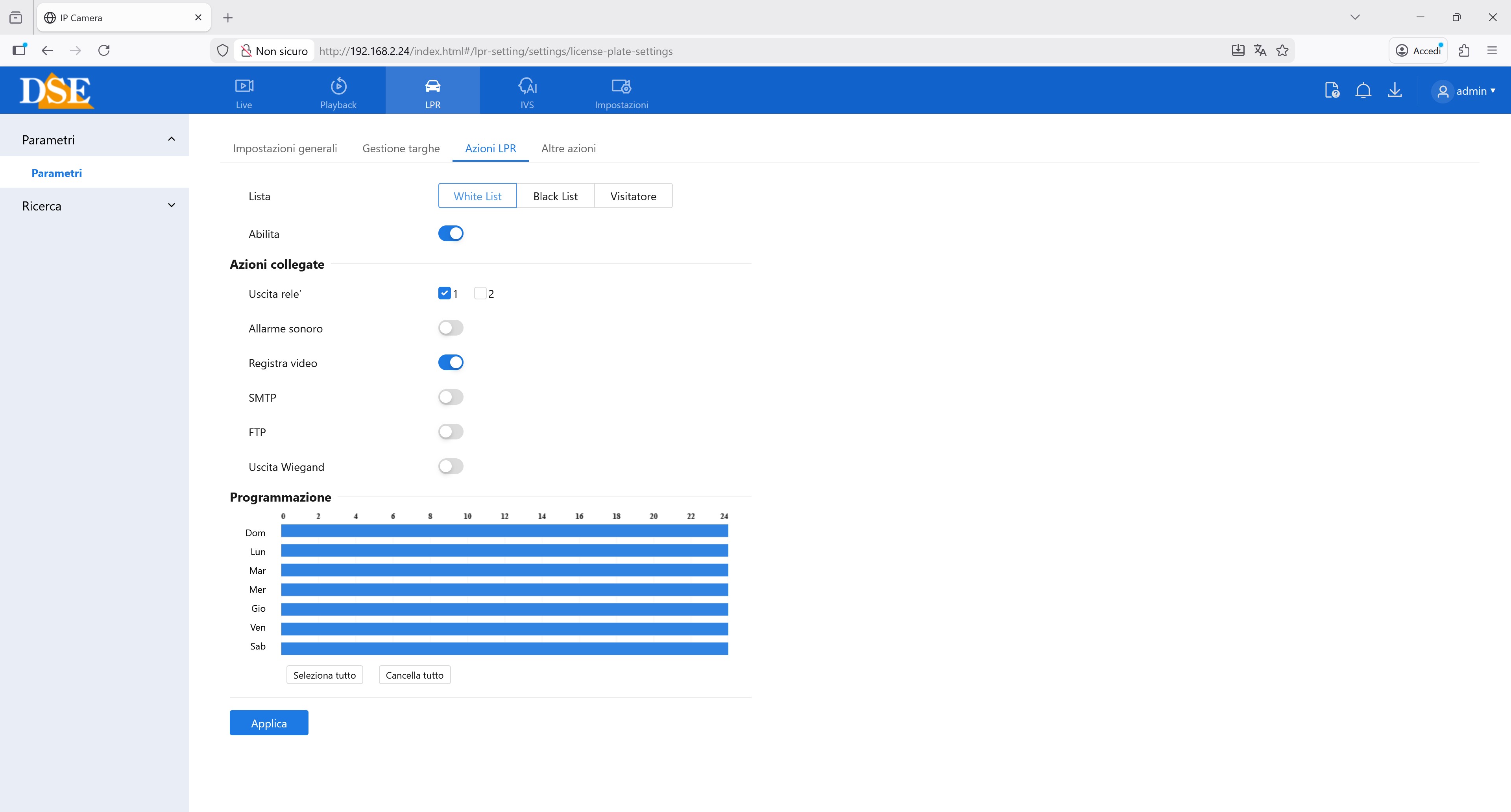

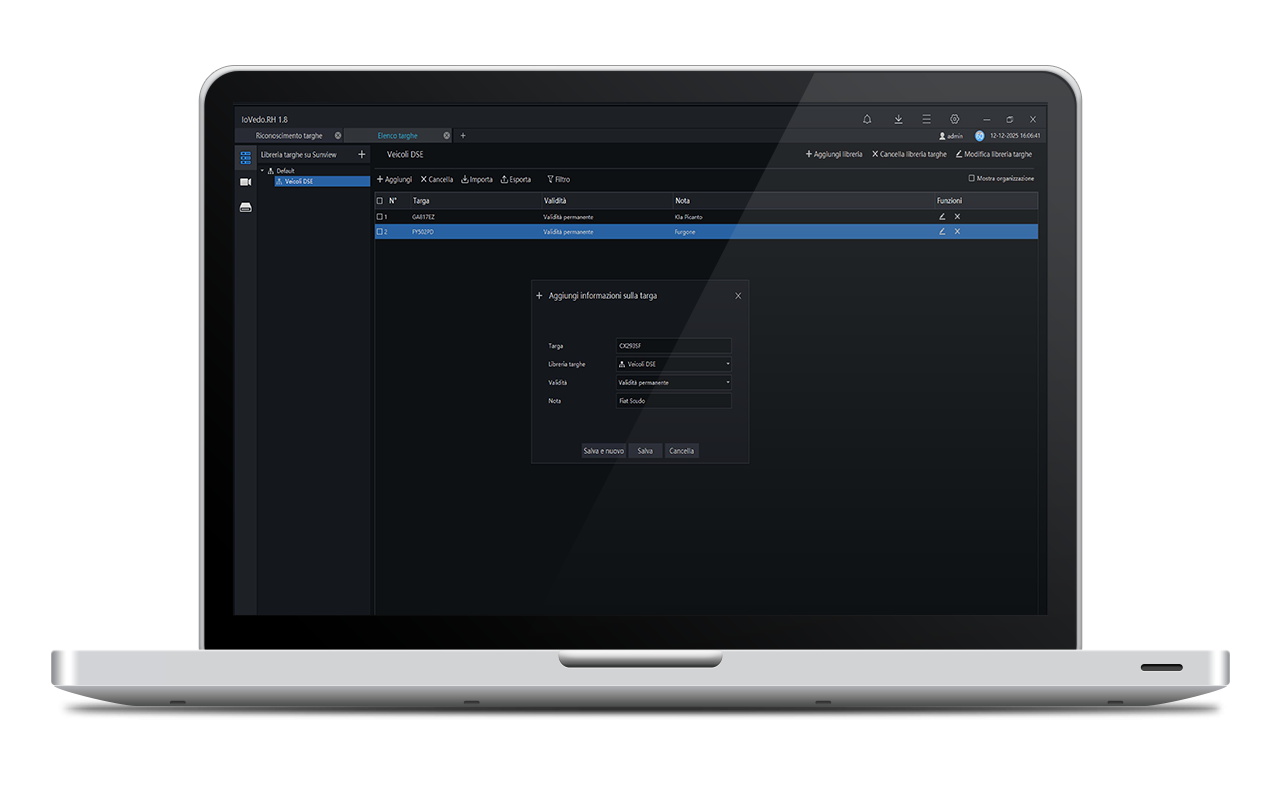

These LPR/ANPR cameras can manage a license plate database containing up to 20,000 entries. You can maintain a list of authorized vehicles (whitelist) and unauthorized vehicles (blacklist) and trigger automatic actions depending on whether the detected plate is in these lists or is unknown. Plates are uploaded from a computer, but they reside in the camera’s internal memory, allowing it to perform its automated functions independently, even without a network connection.

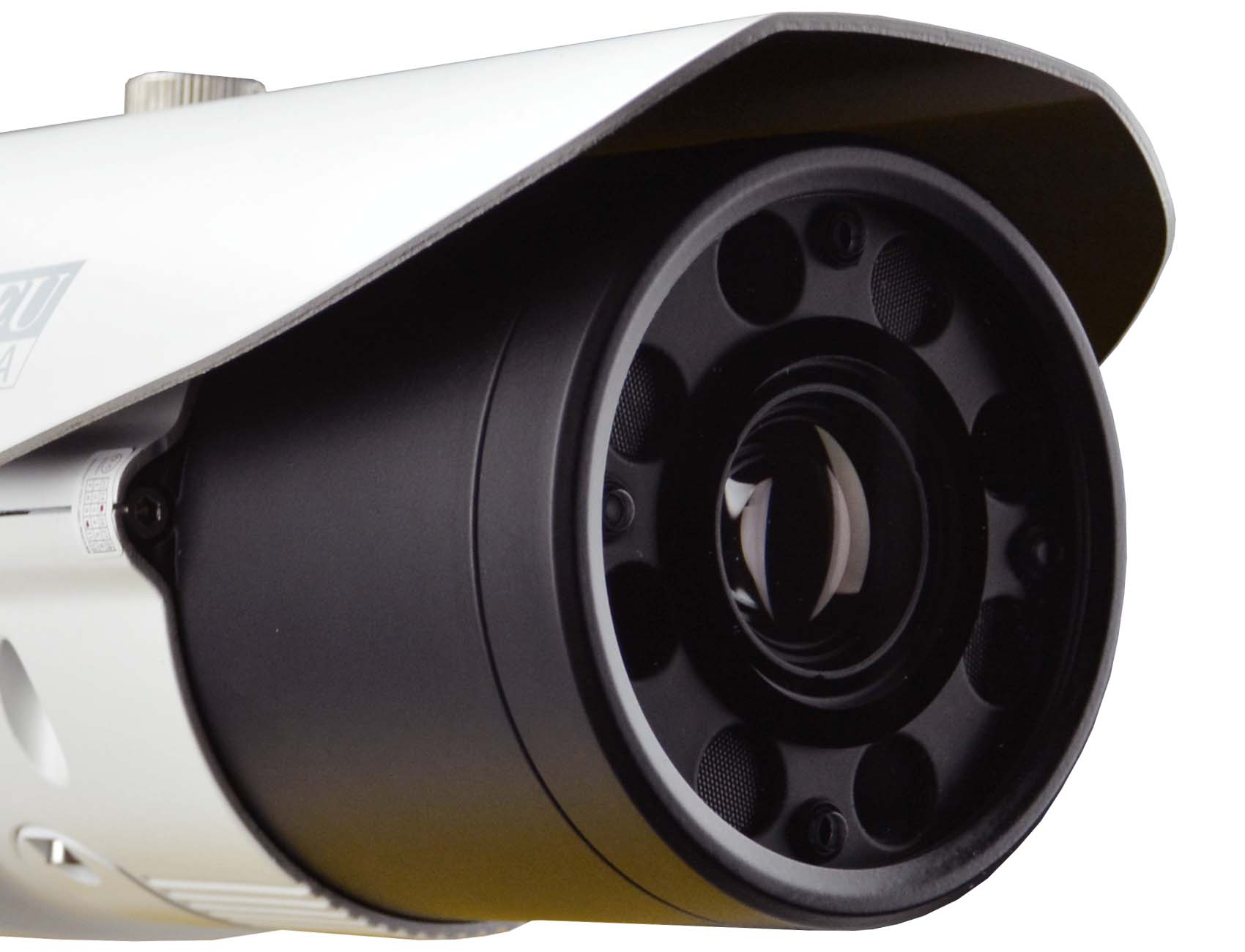

Adjustable IR illuminator 40 to 80 m.

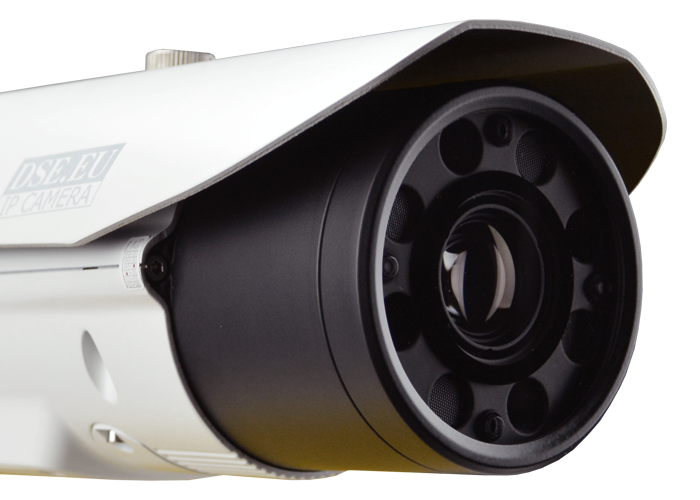

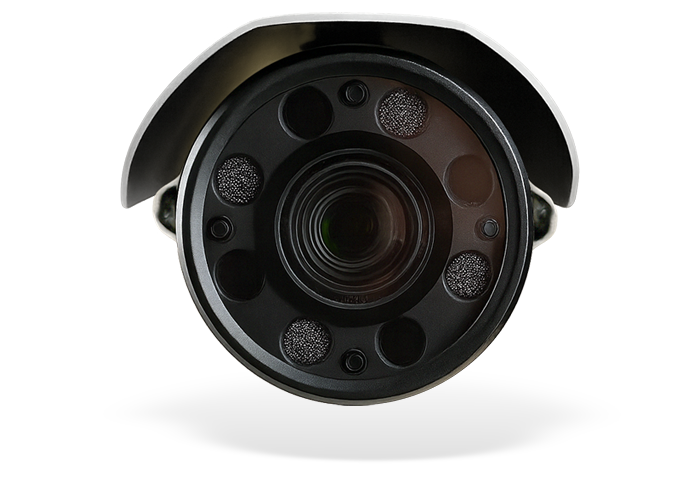

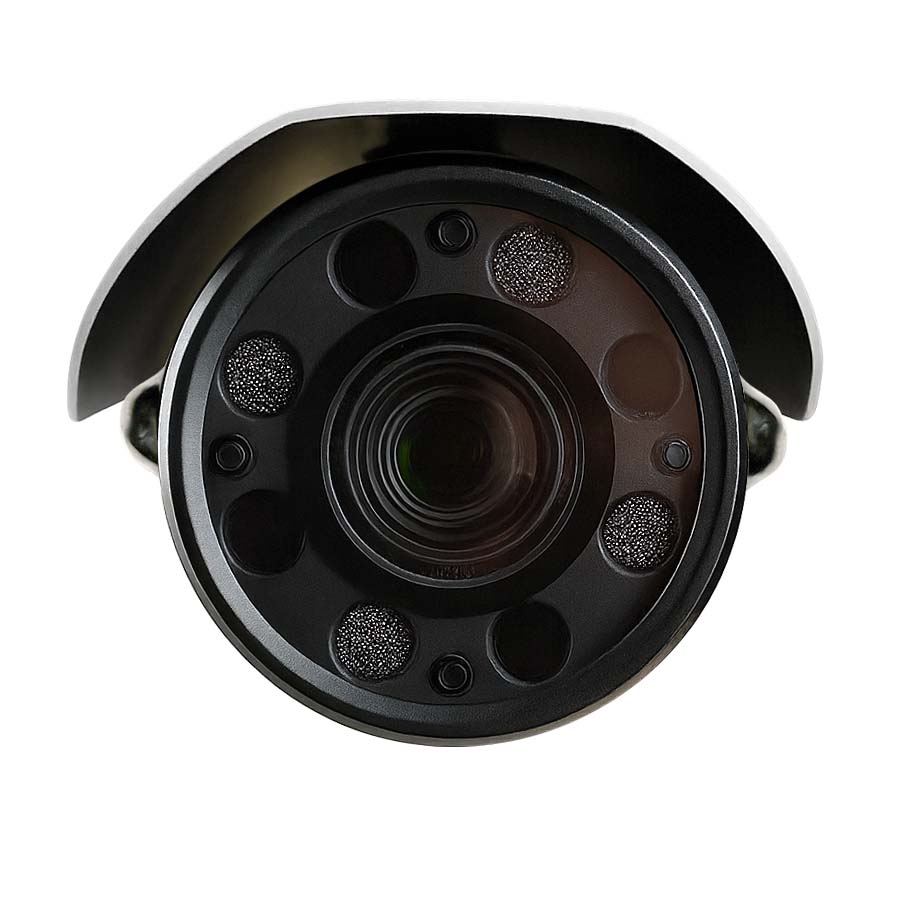

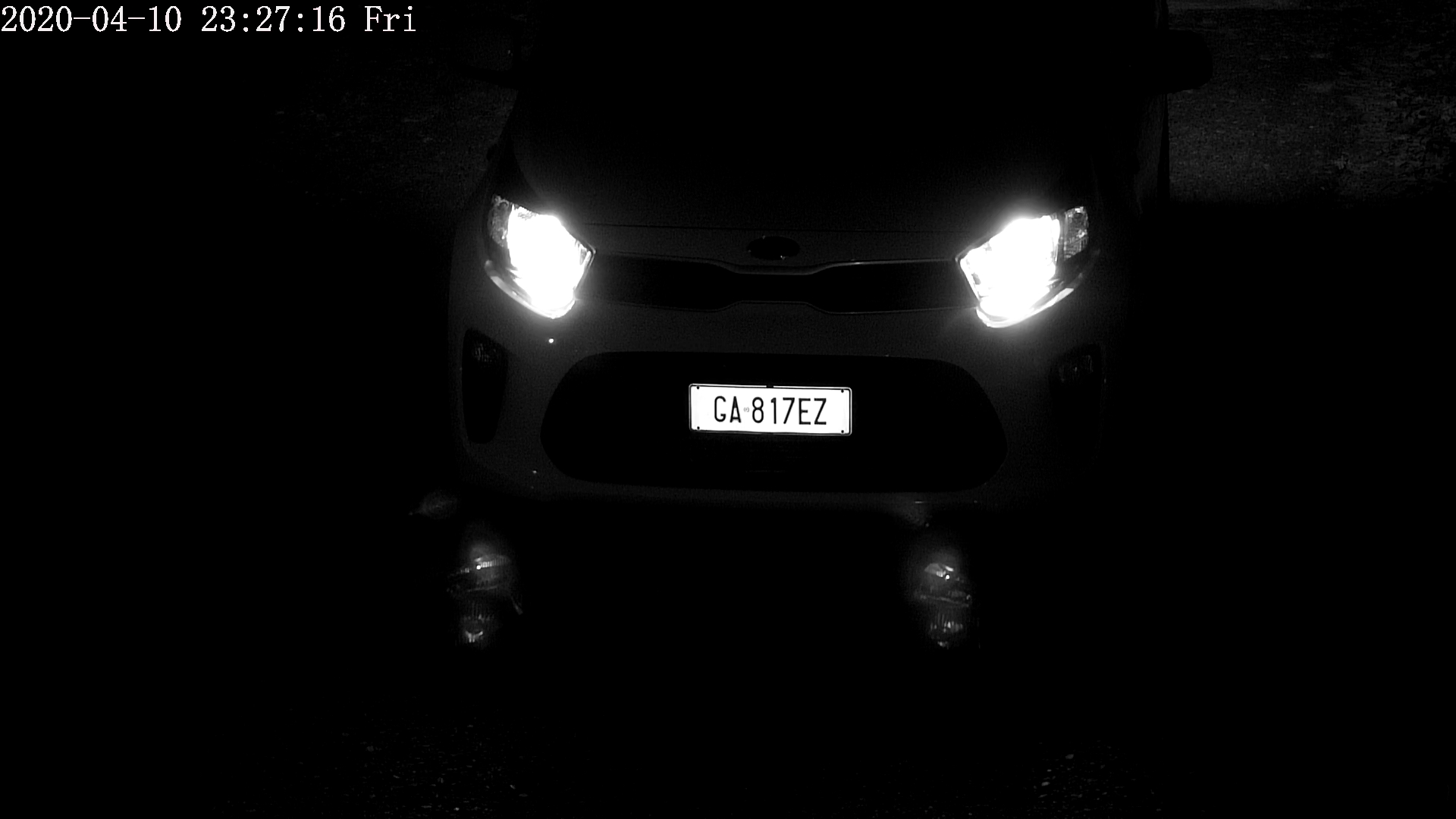

With low light or at night, these cameras capture license plates using their infrared illuminator. In license plate recognition cameras, IR illumination is far superior to white LEDs used by other manufacturers, as it produces light that is invisible to the human eye and does not disturb drivers. The LED power can be adjusted to match the actual reading distance. Keep in mind that in night mode the camera records in black and white, so vehicle colors cannot be identified.

Motor Zoom with autofocus

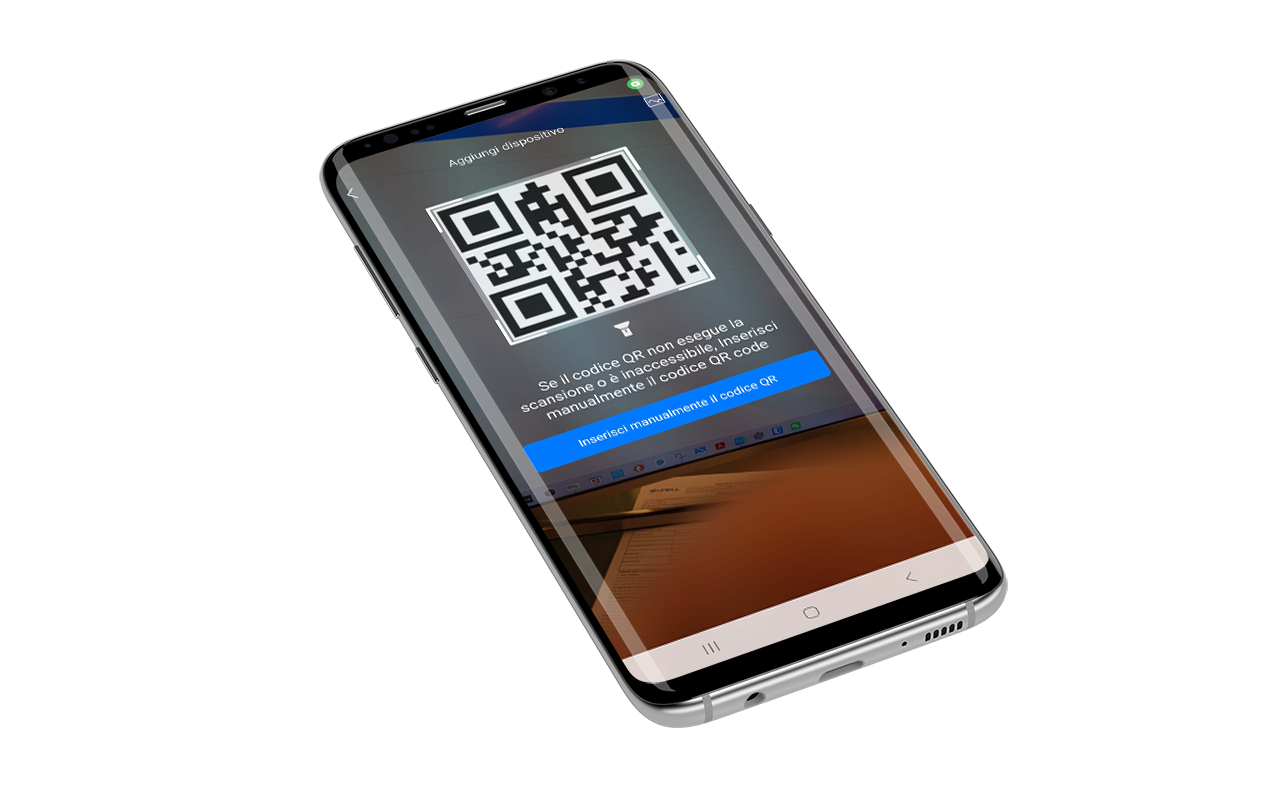

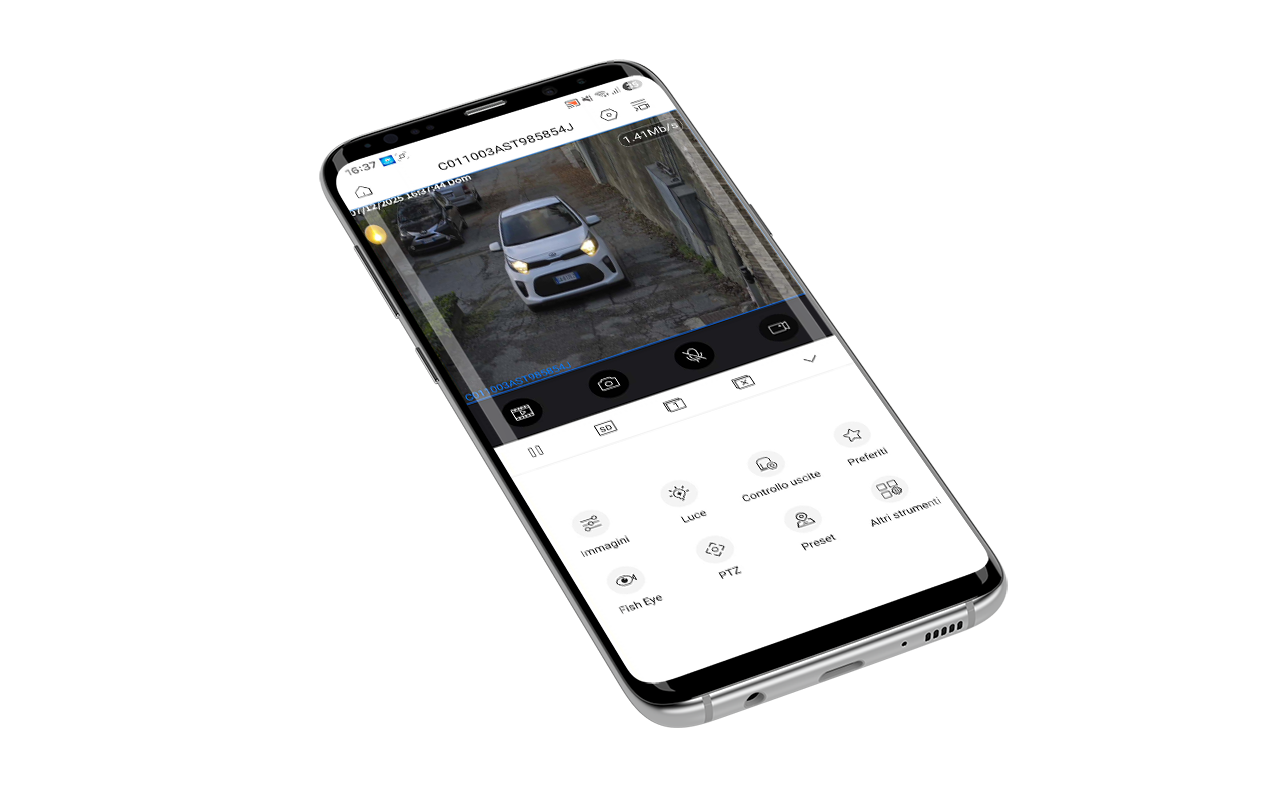

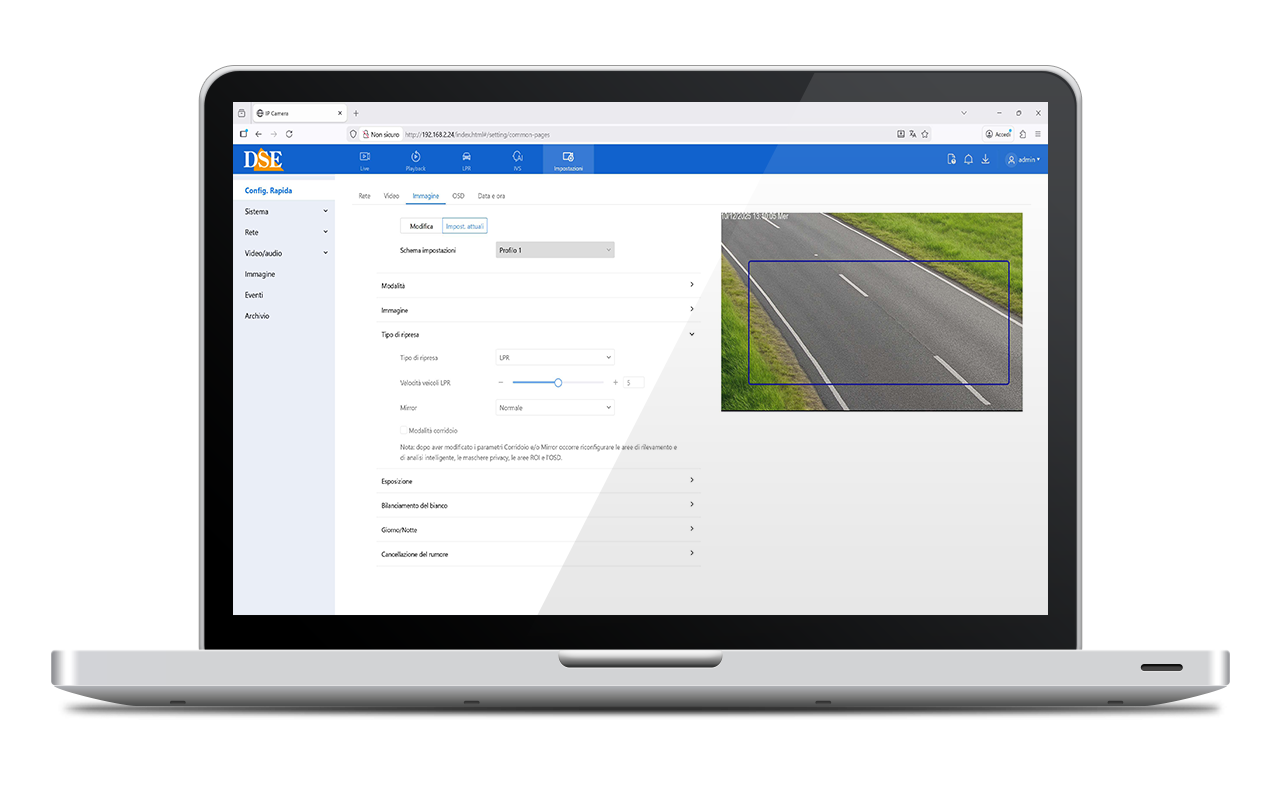

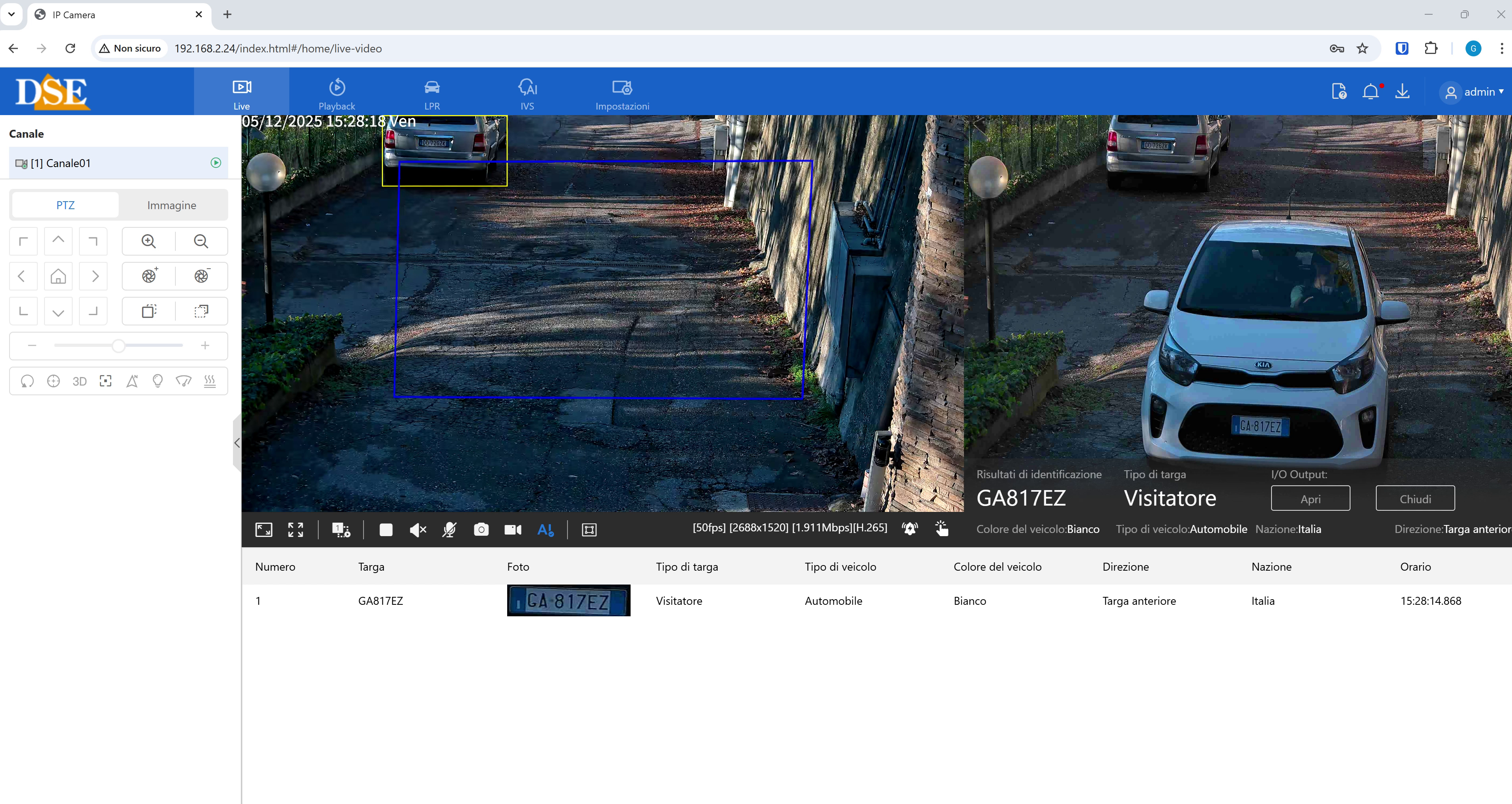

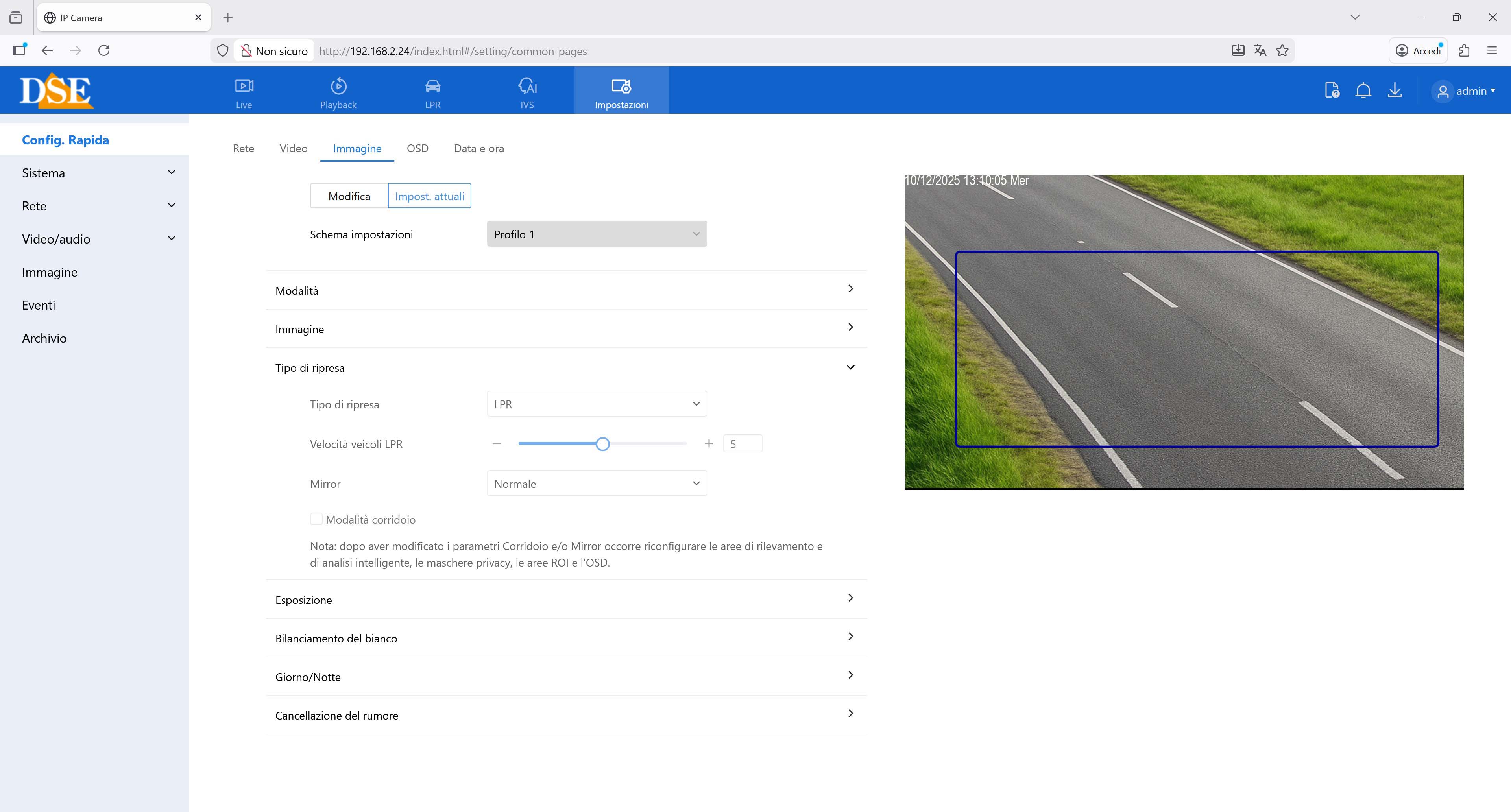

For accurate plate recognition, perfect lens adjustment is essential. This is why our ANPR cameras are equipped with a motorized zoom lens that you can easily configure remotely via PC, NVR, or app. The lens features motor zoom and autofocus to automatically focus on the plate at the reading point. Low-speed models, typically intended for access control, have wider-angle lenses, while high-speed models have more powerful zoom. You can adjust the zoom to frame up to 3 lanes.

2-ways audio with automatic warnings

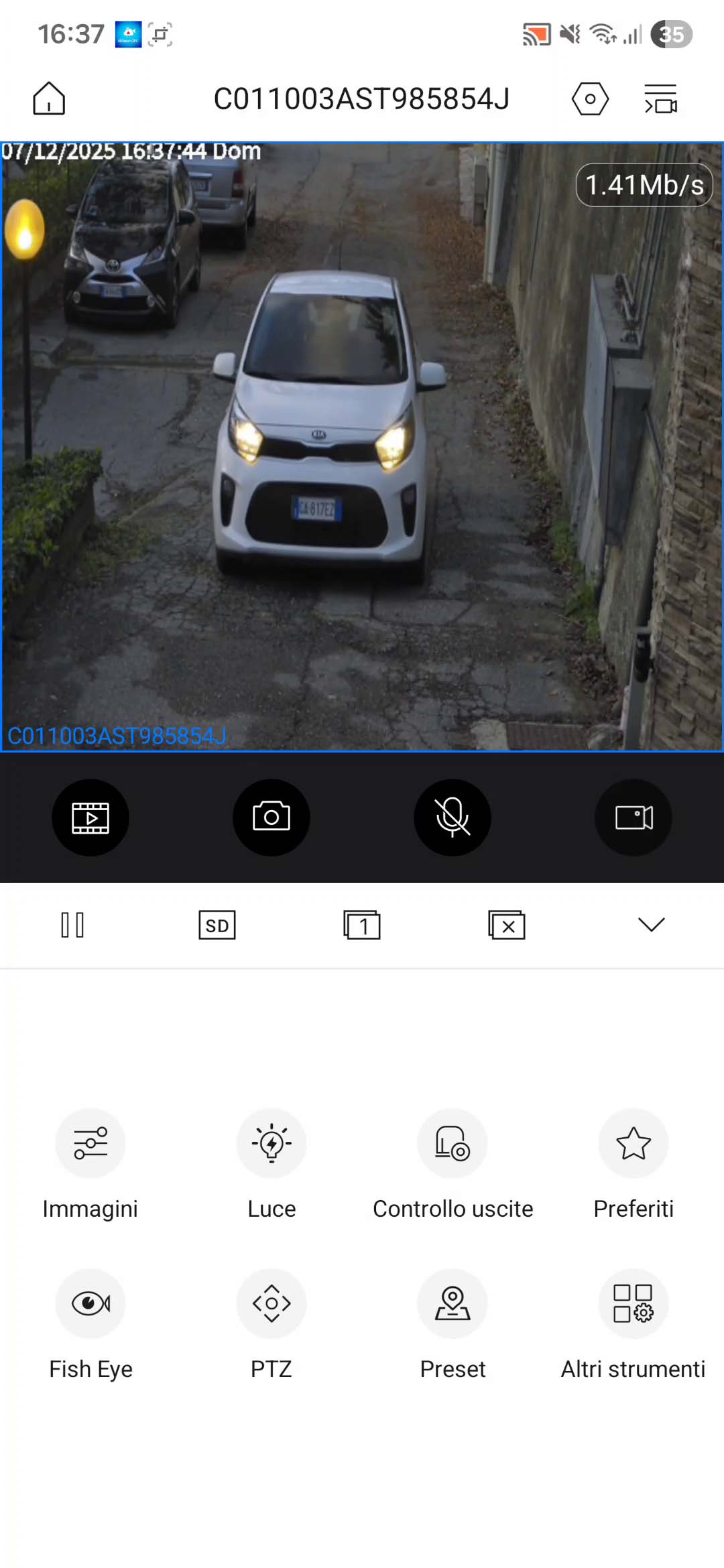

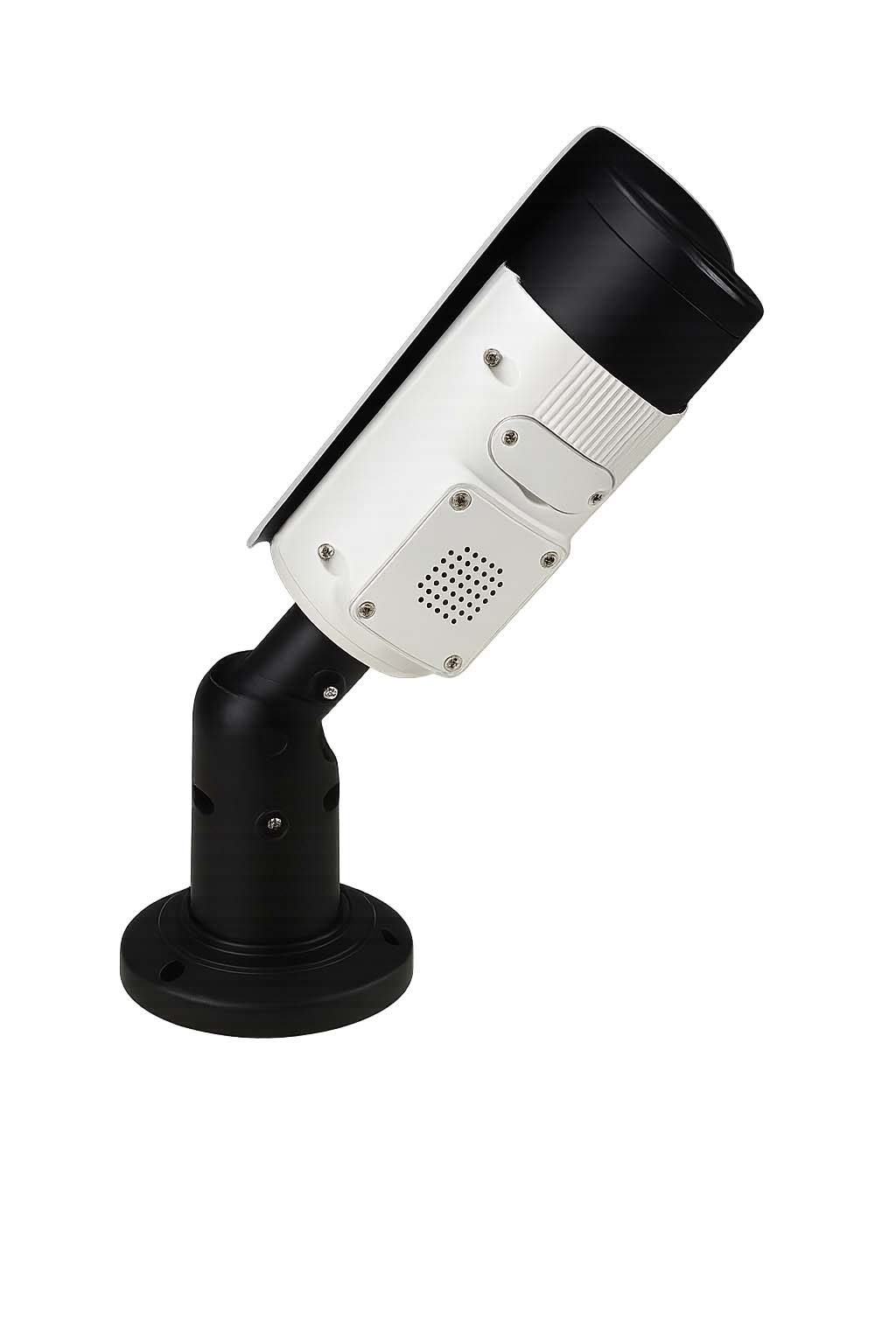

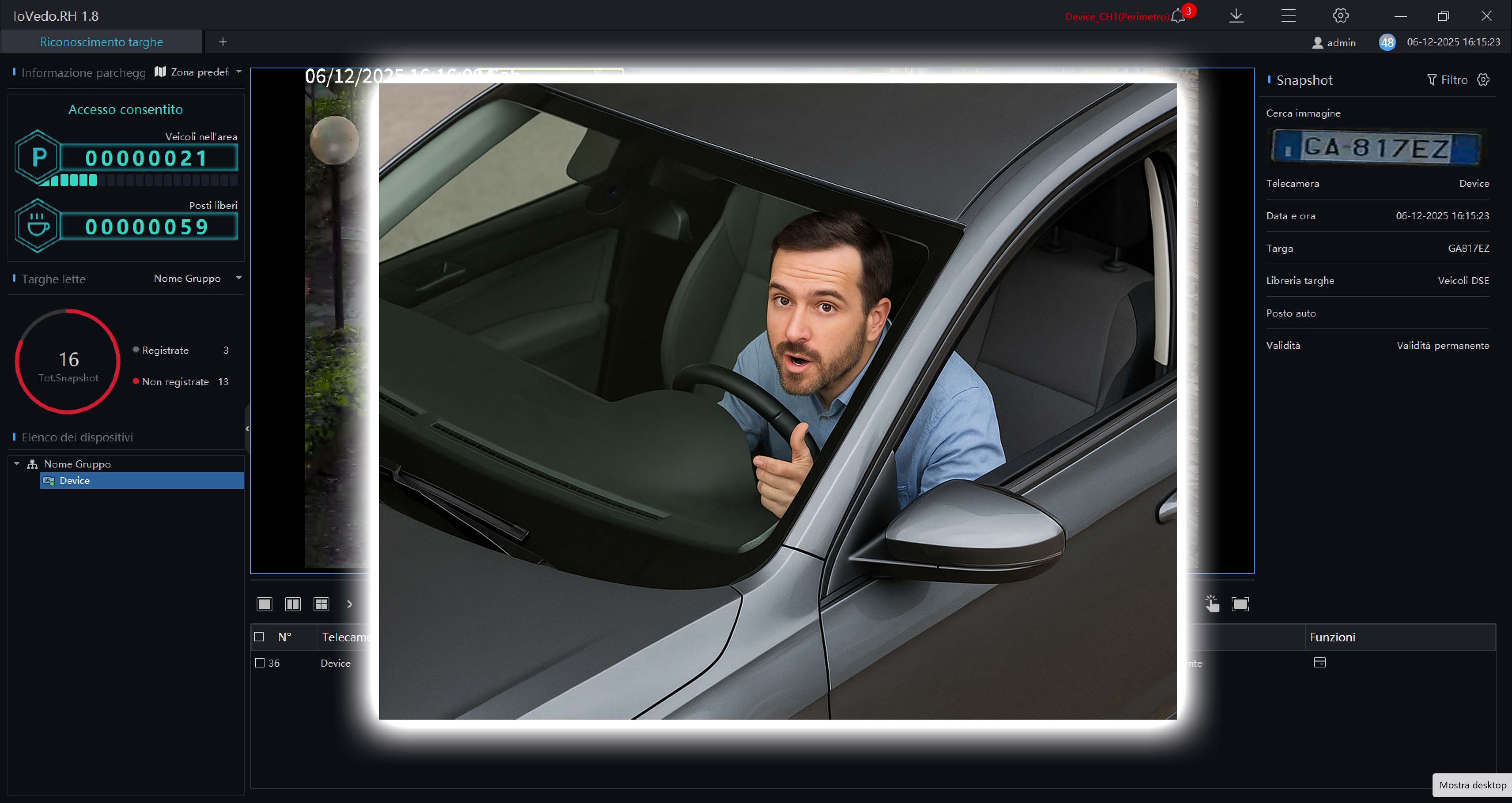

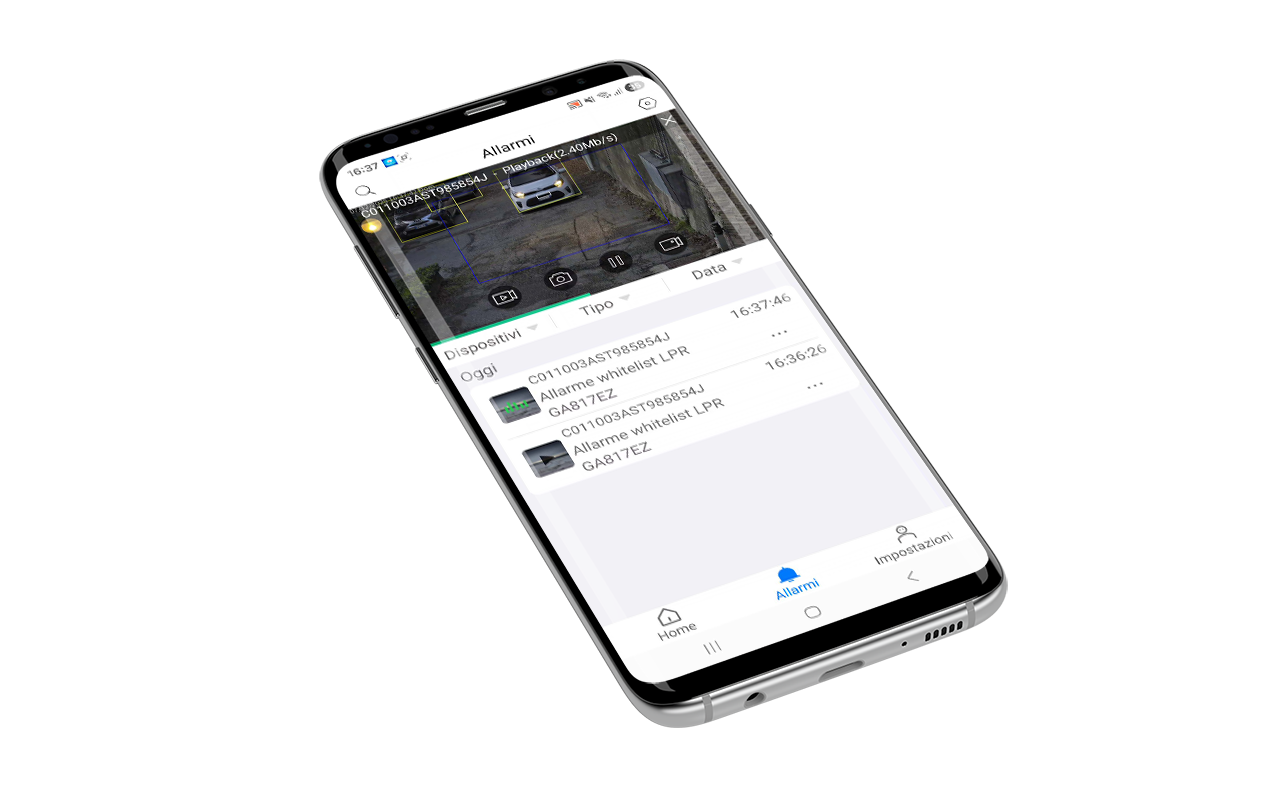

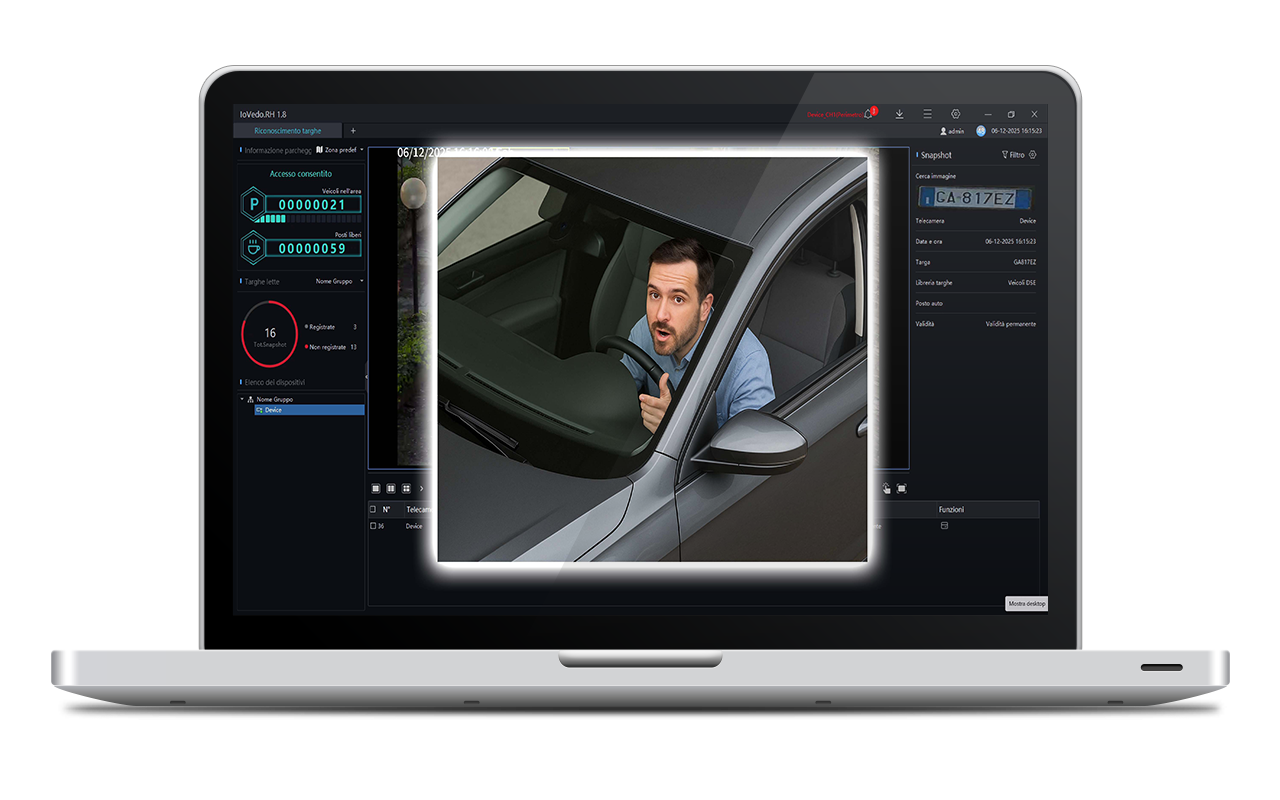

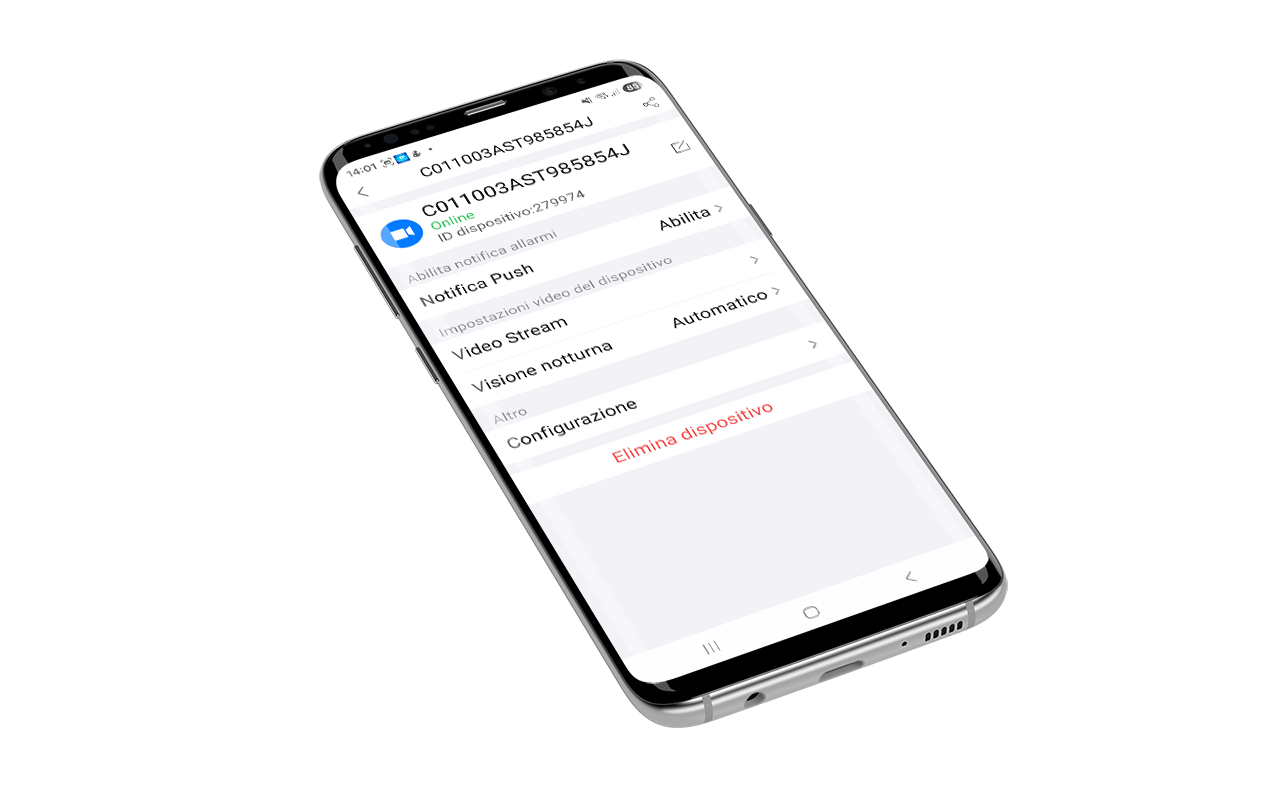

Unlike most ANPR cameras on the market, some of our LPR cameras feature a built-in microphone and a powerful speaker (A) that can be heard up to 20 meters away. You can use them to broadcast customized automatic voice messages or for two-way communication with drivers, an essential function for access control points. You can speak and listen easily from a computer or from the app.

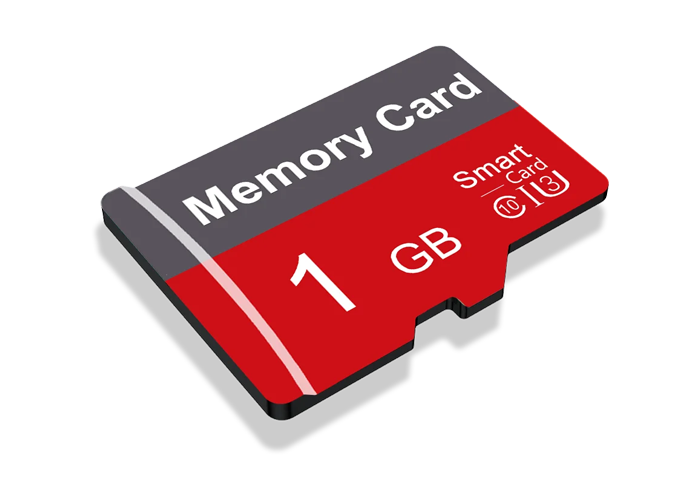

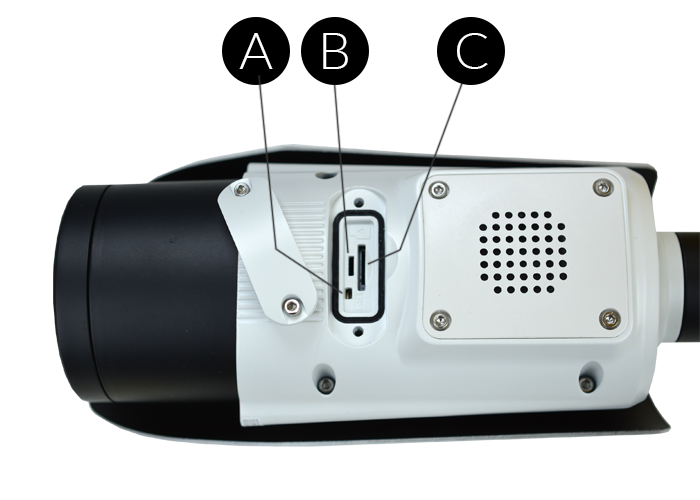

4GB EMMC and SD card slot up to 1TB

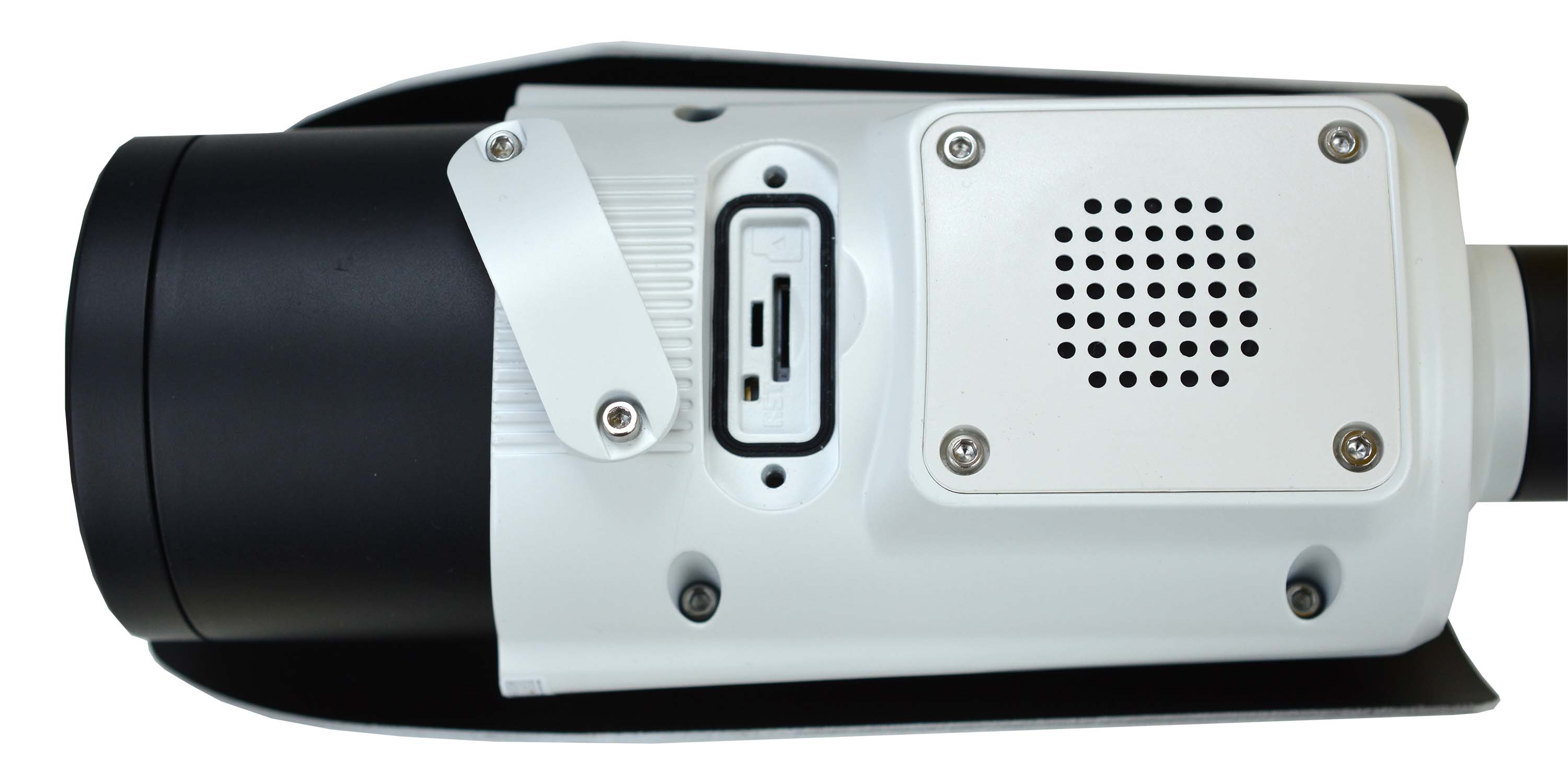

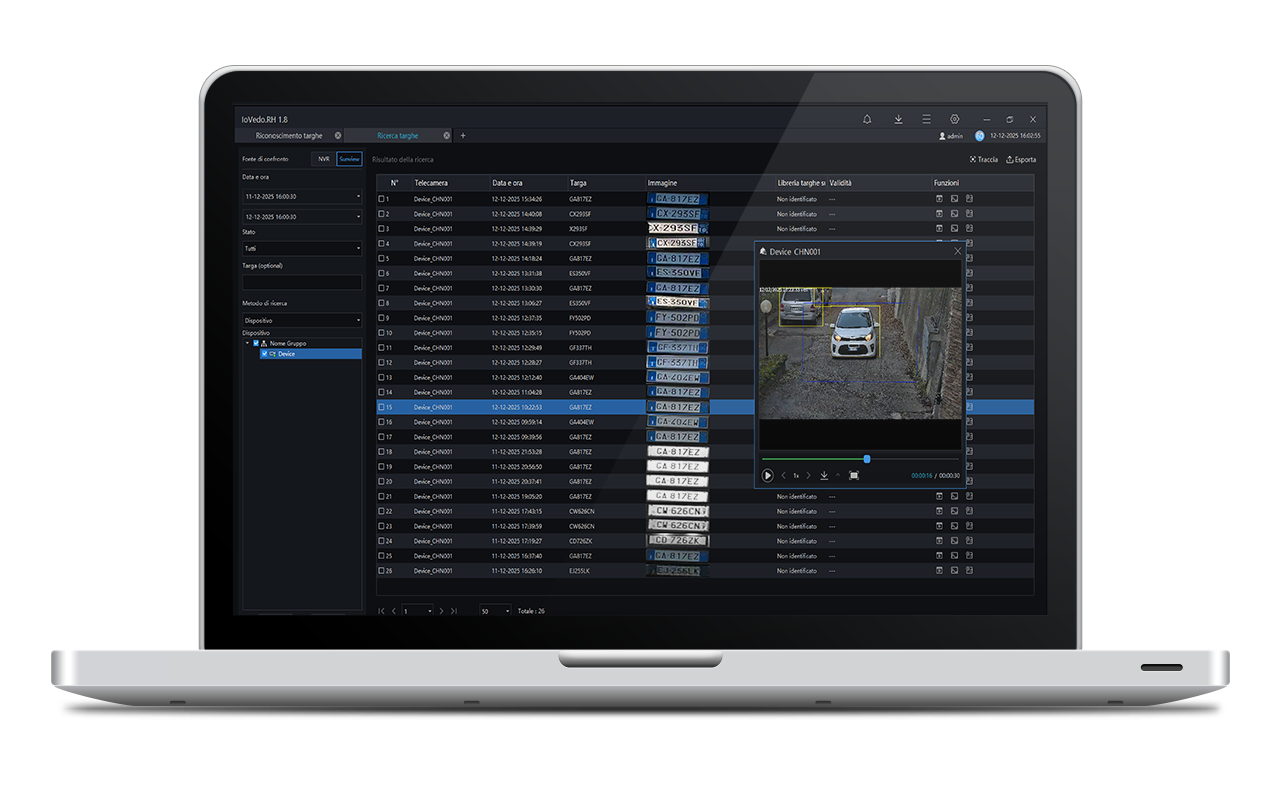

These cameras are equipped with a microSD card slot (C) supporting up to 1TB. Some model also include a 4GB internal memory. The internal memory is used to store authorized plate lists as well as photos and videos of detected plates. The removable memory, on the other hand, can be used to save general-view video recordings, either continuously or only when detections occur. You can access both memory areas from a PC or the app. The microSD slot is protected by a sealed cover, which also shields the reset button (A) and the LED indicator showing proper SD operation (B).

POE power for one cable wiring

All cameras in this range support POE power via the network cable (IEEE 802.3af Class 3). To make them work, all you have to do is connect them via network cable to a POE switch. If for some reason you cannot take advantage of POE power, alternatively you can a power the camera with a 12VDC power adapter. Only one network cable is needed to install our ANPR IP cameras.

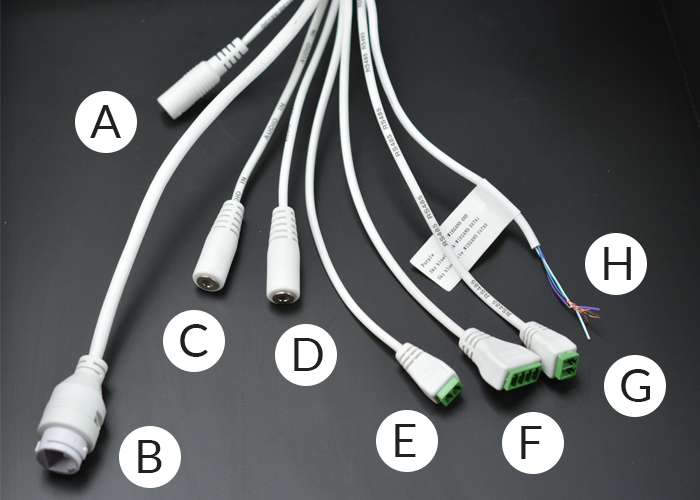

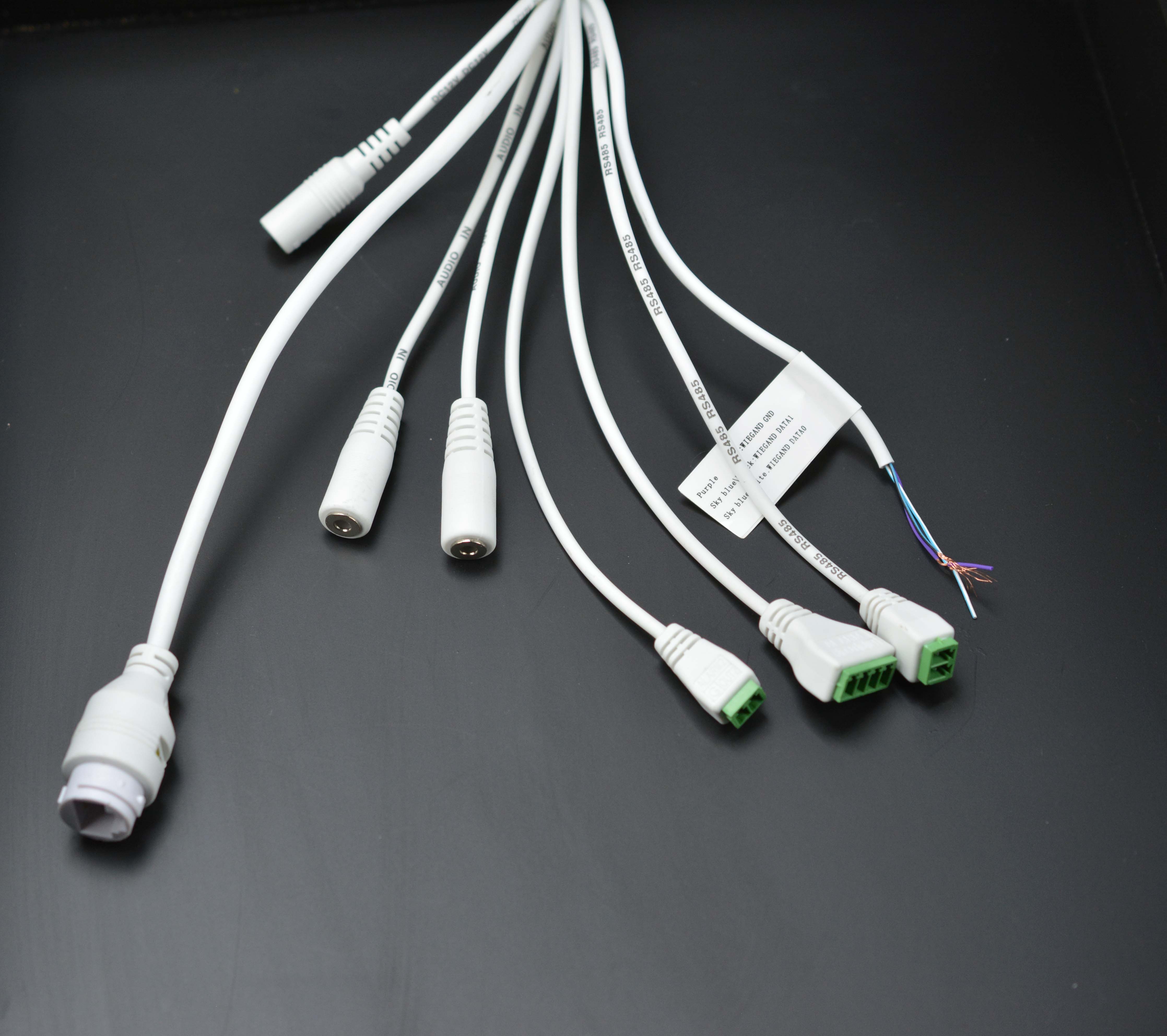

Connectors for external devices

IP66, IK10 and mounting accessories

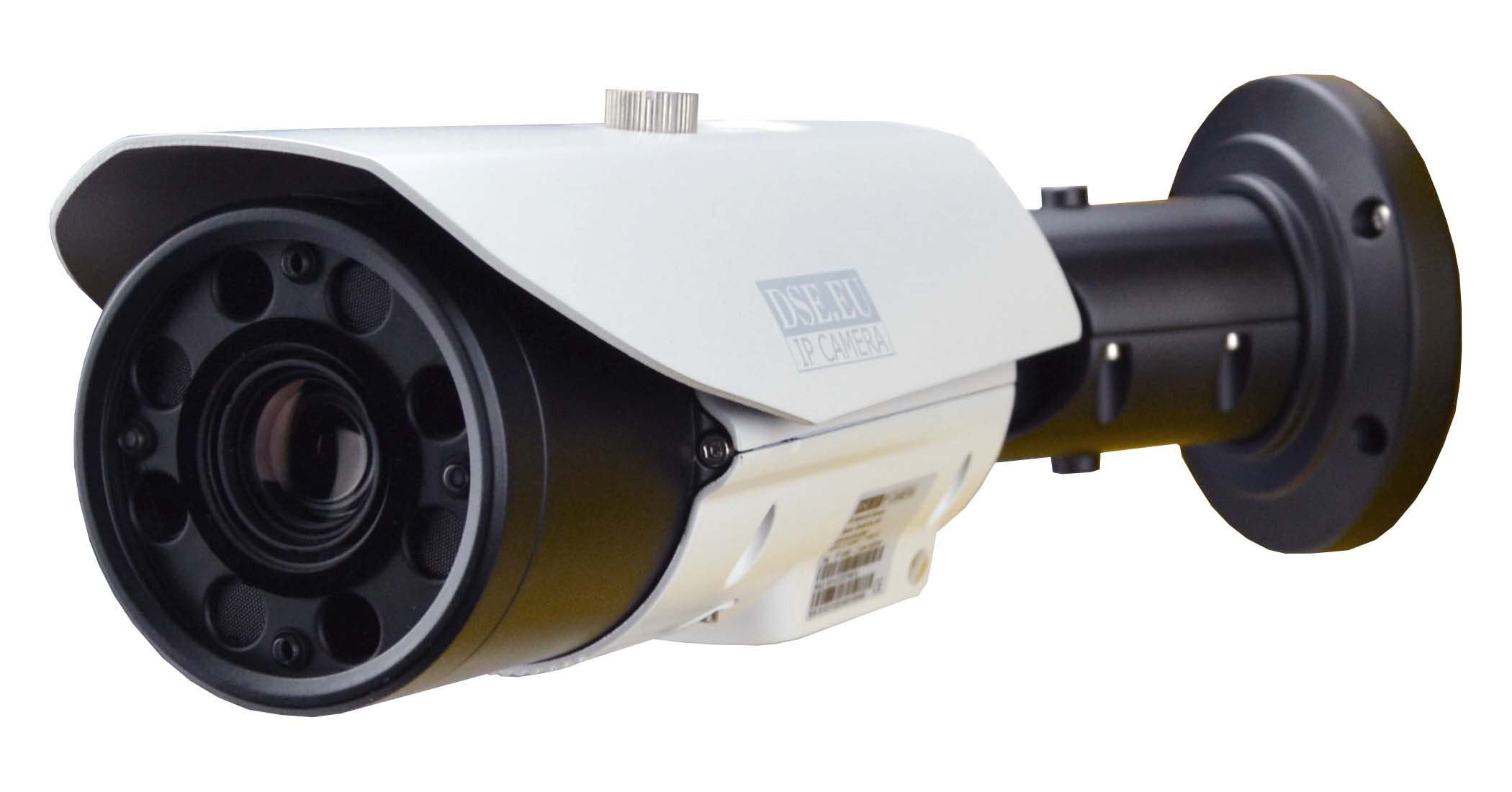

Our ANPR cameras are housed in a waterproof IP66 enclosure suitable for outdoor installation and exposure to harsh weather conditions. The enclosure is made of robust aluminum and offers the highest IK10 impact resistance. The camera comes complete with a mounting bracket for wall or ceiling mounting.

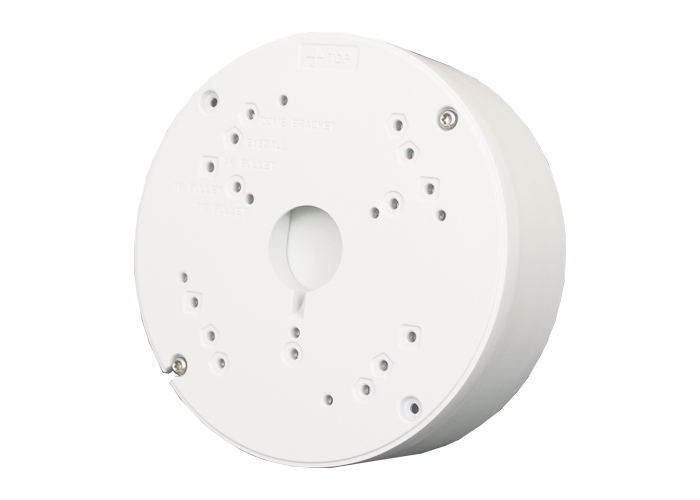

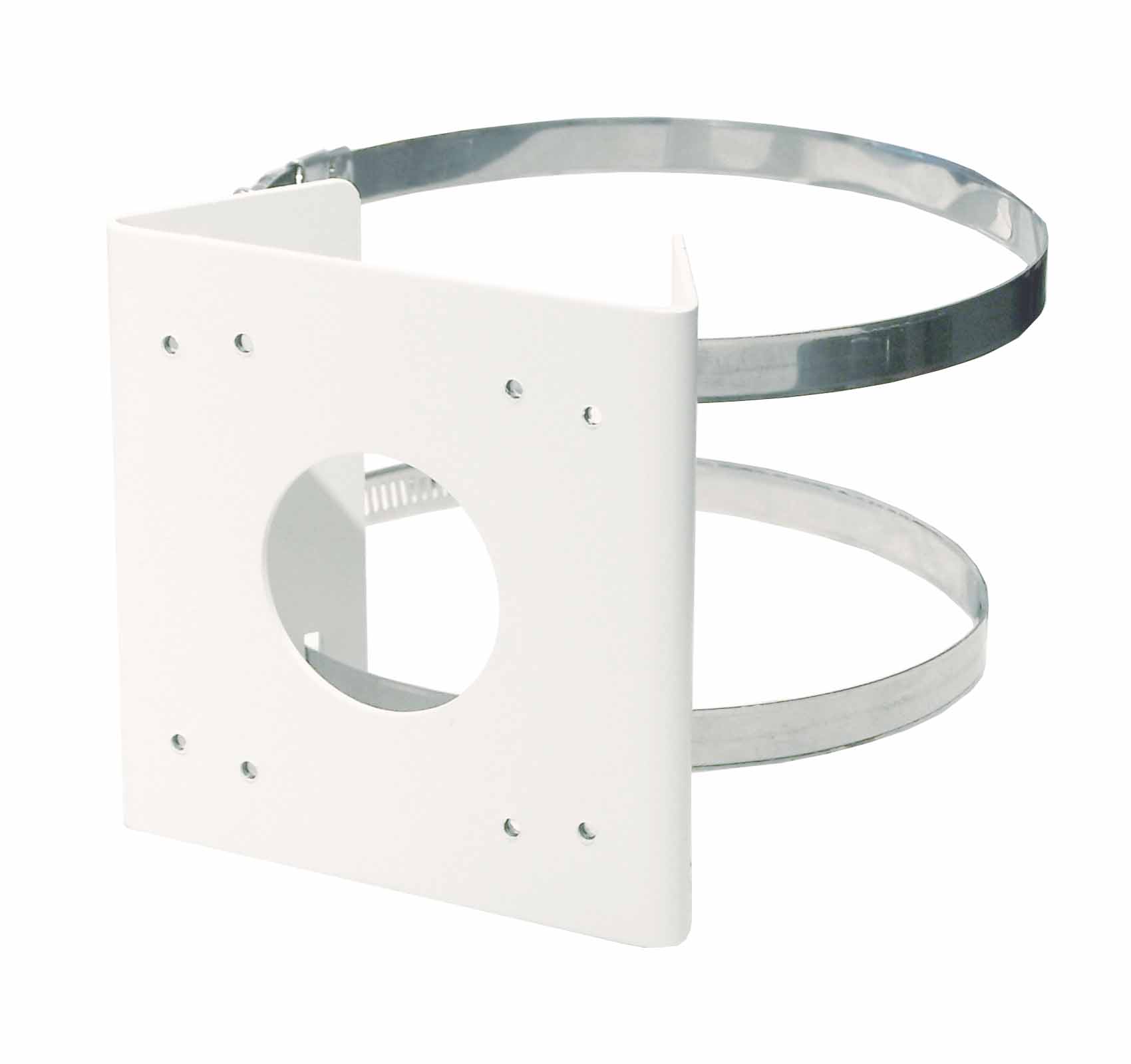

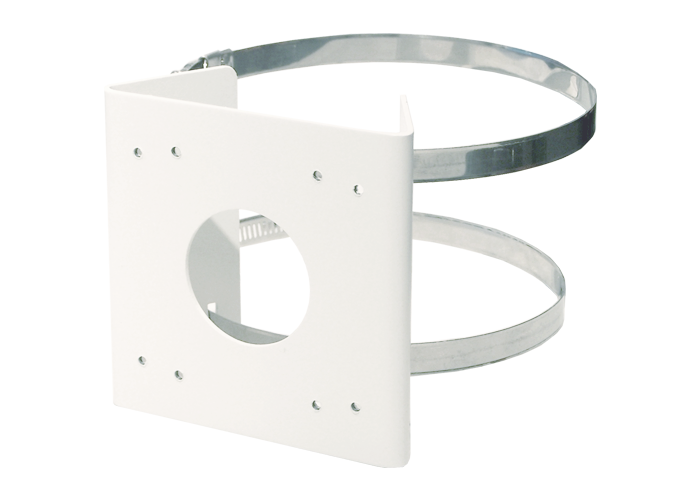

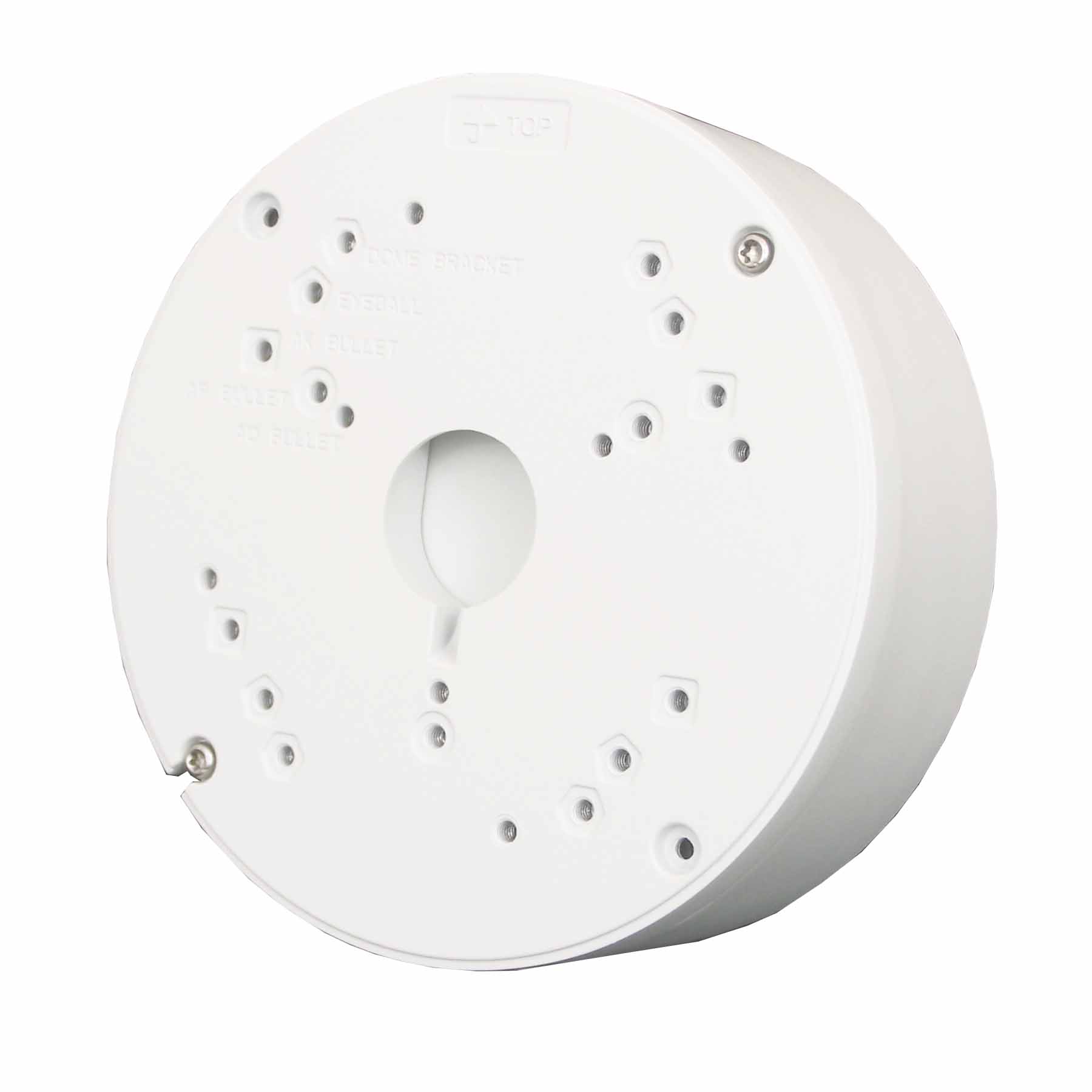

To make installation easier, an optional mounting base is available. This WEATHERPROOF BOX is designed to protect all cable connections and features a pre-drilled cover for direct camera installation. If you need to mount the camera on a pole, you can also purchase the dedicated pole-mount accessory.

RH SERIES PRO IP cameras

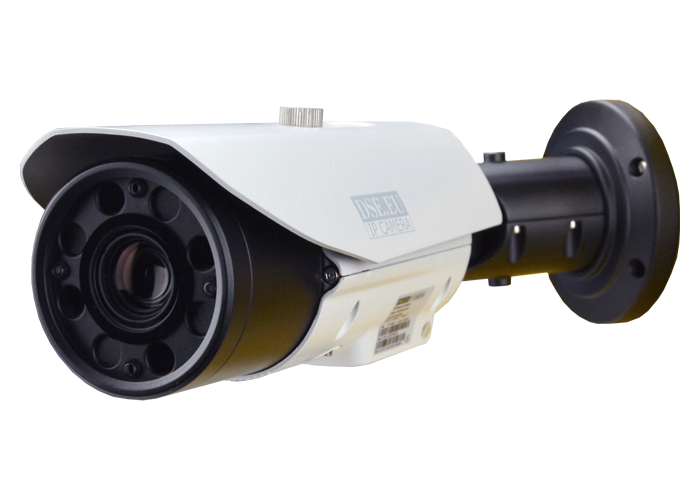

These OCR license plate recognition cameras are part of our RH PRO Series, our professional IP range designed for the high-end market and high-tech applications. Cameras in this series stand out from residential and commercial models thanks to their IK10 enclosures, extensive hardware setup, and the use of top-tier chipsets with advanced AI video analytics functions.

100% Onvif certified cameras

ONVIF is the international association that brings together the leading IP camera manufacturers and defines the communication standard between IP-based security devices. By purchasing from us, you not only have the assurance of choosing one of the few Italian companies that are members of the association, but also the certainty of buying from the only Italian manufacturer that produces ONVIF-certified IP cameras. Our cameras are listed in the official “ONVIF Conformant” product registry, having successfully passed the stringent compliance tests required by the ONVIF Profile S standard.

ONVIF MEMBERS ONVIF PRODUCTS

128GB SD Card slot

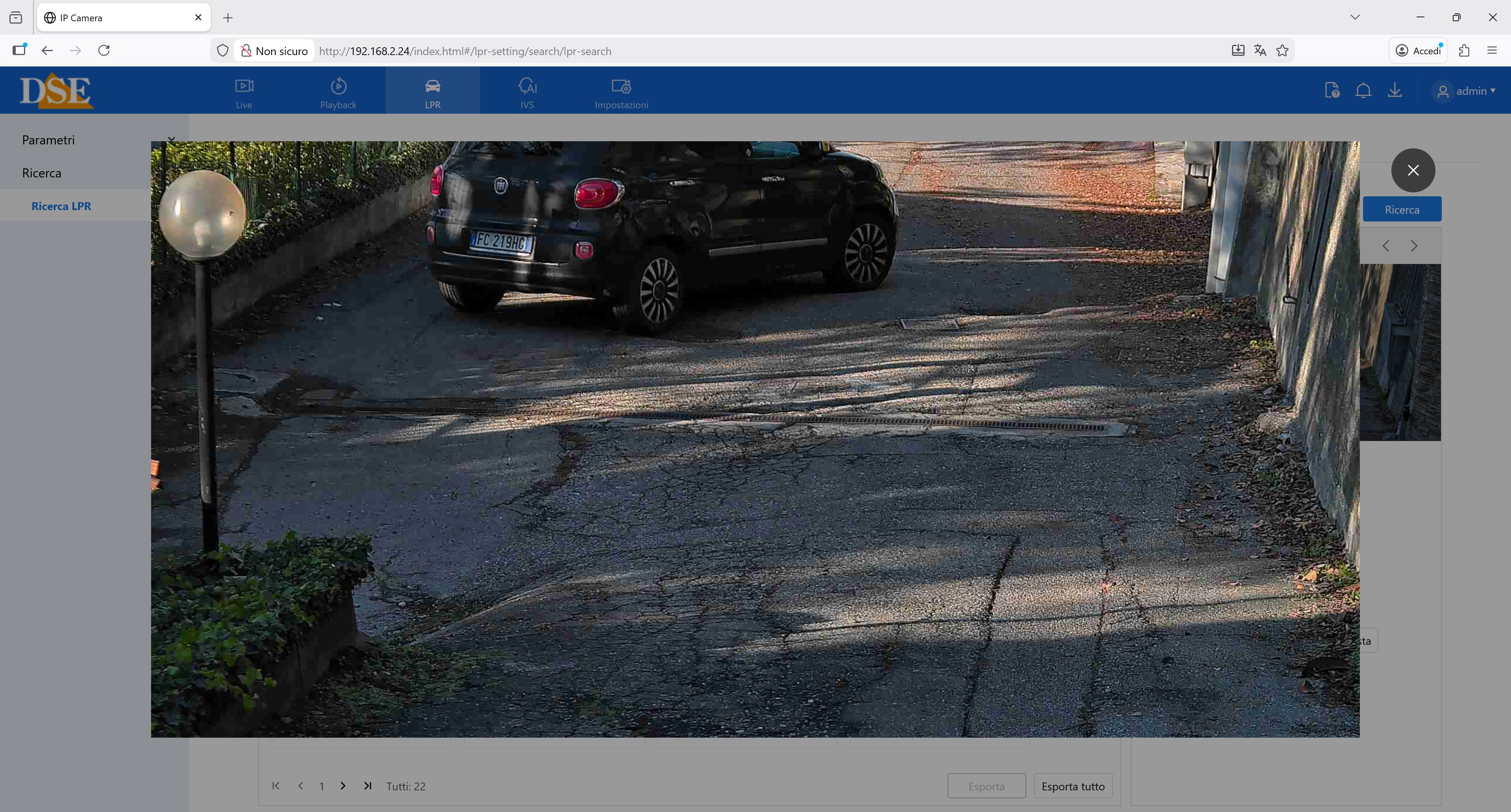

These cameras already feature built-in internal storage for recording license plates and vehicle videos. In addition, they include a slot for a microSD card of up to 1 TB, allowing video recording even when no vehicles with detected license plates are present. Recording can be triggered by an intelligent alarm that detects anomalous situations, or it can be set to continuous mode based on a scheduled time program. Once the available storage space is full, automatic overwriting of the oldest files is typically enabled. You can easily review and download recordings remotely, and use the camera for recording even without an NVR.

SDK, API e CGI for developers

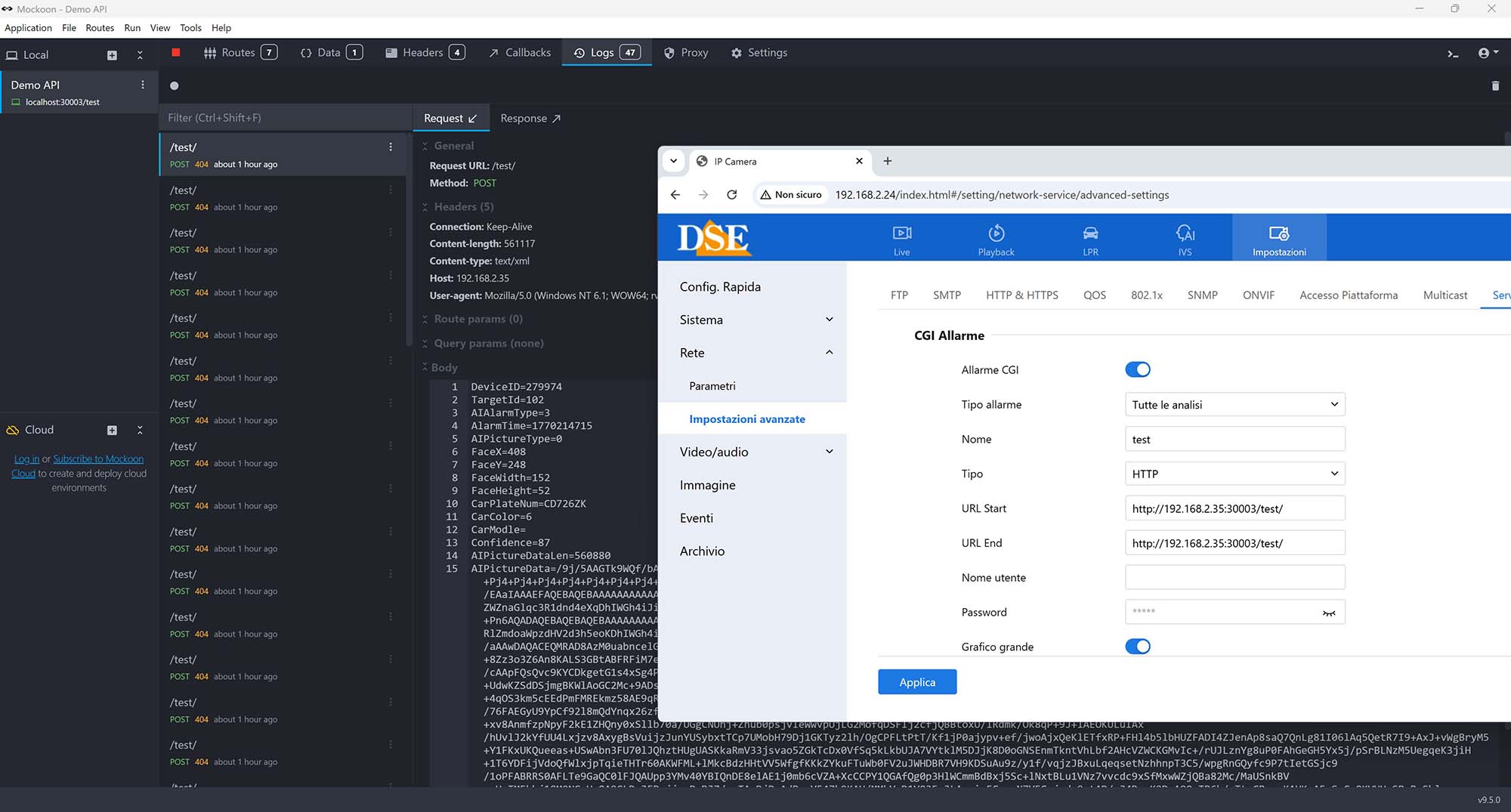

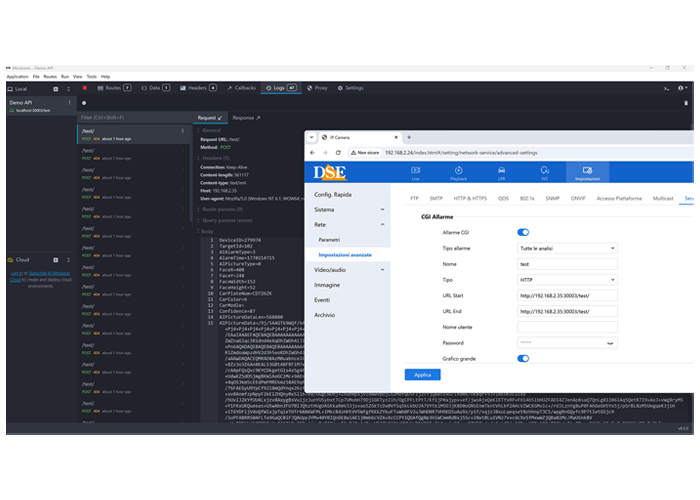

The RH Series cameras are designed for high-tech applications where software interaction with other equipment is often required. We provide developers with free SDK libraries and APIs to control all functionalities of the cameras with their own software. Moreover, these cameras can be fully controlled via CGI commands (Common Gateway Interface) over HTTP/HTTPS protocol. The list of CGI commands is available in the MANUALS section.
