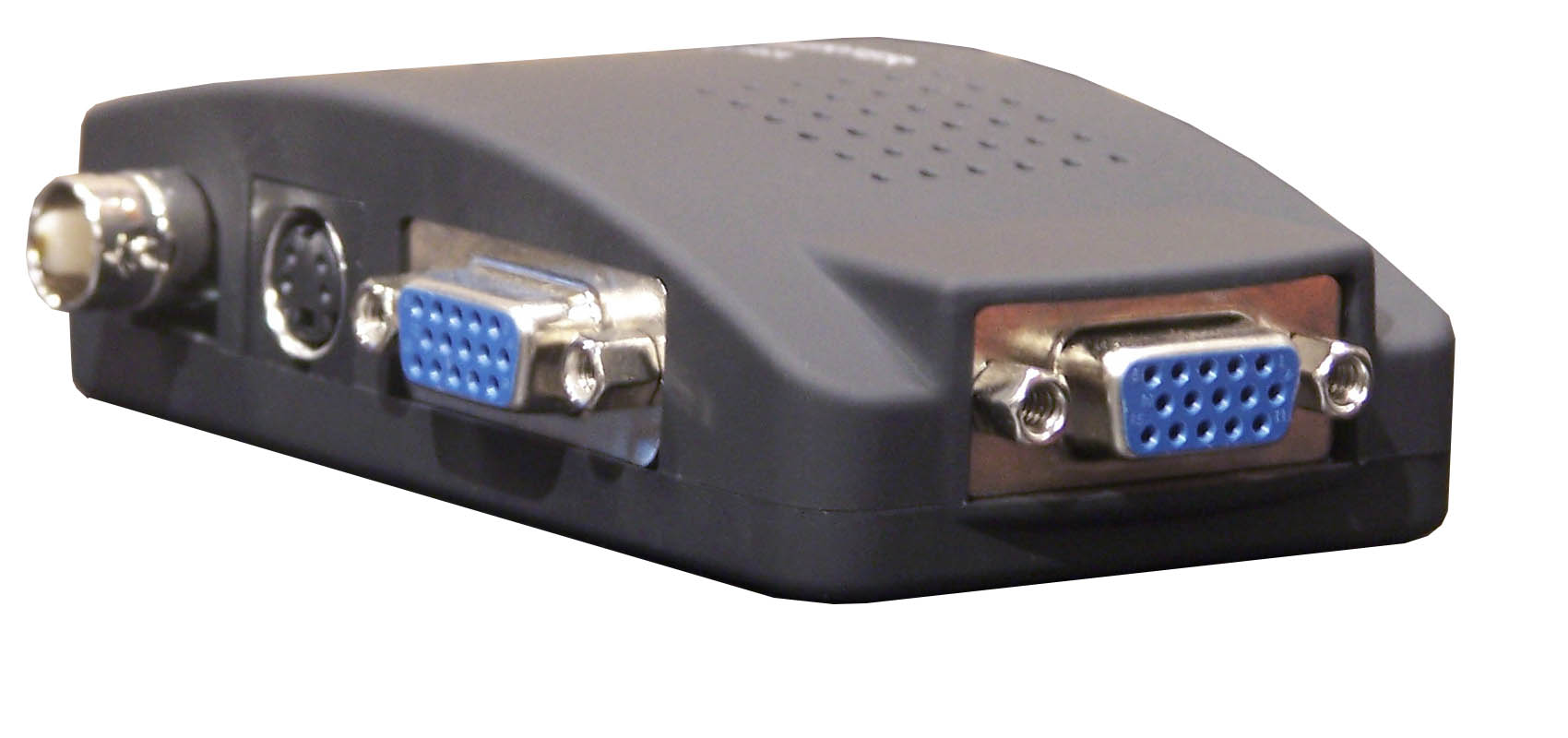

Analog to VGA video converter
RE-BNCVGA
Computer monitors with VGA port are now very popular in CCTV systems.
Available in any size and price competitive are today the best display for
all our DVRs, in digital or analog technology. For this reason all our DVR
come with a VGA video output for direct connection to a PC monitor.
This
BNC/VGA interface converts any analog video input in a VGA output and can be
used to connect any analog video source, like CCTV cameras or old DVR, to a
computer monitor.
RE-BNCVGA is actually much more than simple converter.
It includes a video switcher. 2 video sources, one analog and one VGA, can
be connected to this device and the user can select which one is going to be
displayed on the VGA output. In such a way, RE-BNCVGA can be useful to
display analog cameras on PC monitor, still being able to use this monitor
with a PC.
When managing 2 video inputs, this converter supports PIP
function(Picture-In-Picture) that allows user to watch the second video source in
a small window on the screen.
This video converter supports any
composite video with BNC connector, but also S-Video, for connecting
old-style analog equipment.
RE-BNCVGA is compatible with most VGA
video resolution from 800x600 to 1920x1200 and needs 5VDC power (adaptor
included)
It comes with an OSD menu which allows adjusting brightness,
contrast, hue and saturation.
This product includes: Converter,
220VAC/5VDC adaptor, VGA cable.
VGA to Analog video converter
RE-VGABNC
In our latest generation DVR, the BNC video output for analog
monitor has been discontinued. The reason of that, is the BNC output cannot
support the full resolution of modern DVR, not even the analog ones.
If on one hand this fact is a unavoidable step in the evolution of CCTV systems,
on the other hand results to be inconvenient in several circumstances.
Although providing low resolution, the BNC video output supports long
wiring, so it can be useful when a monitor must be placed very far from the DVR.
Besides, BNC output is suitable to connect external analog equipment like TV
modulators.

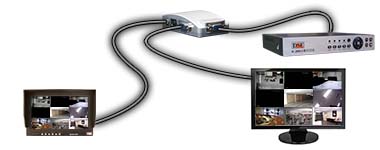

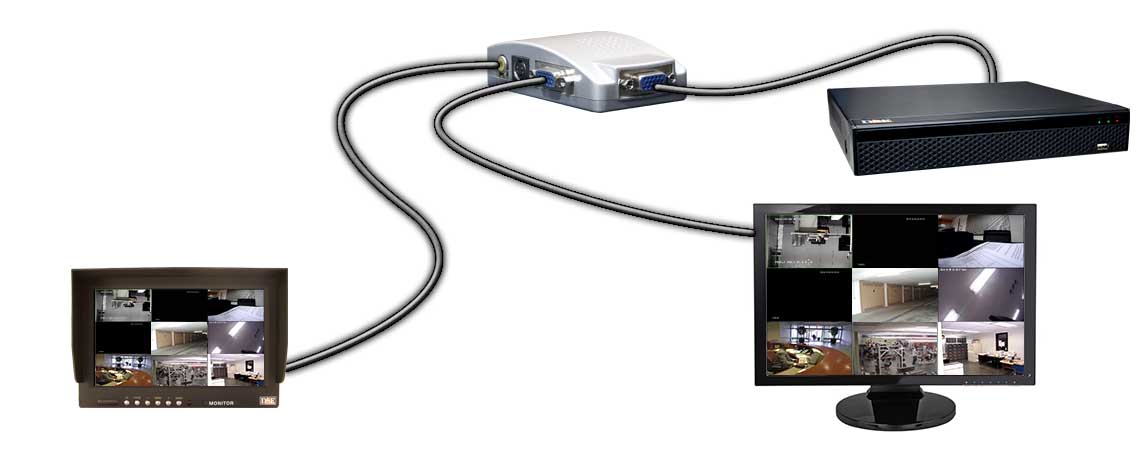

This
VGA/analog interface converts any VGA video input, like the VGA port of a
DVR, in an analog video output. It is compatible with most VGA video
resolution from 800x600 to 1920x1200 and needs 5VDC power (5VDC USB cable
included).
RE-VGABNC is actually more than simple converter.
It includes a video distributor that splits the incoming VGA source in 2
video outputs: one VGA, same as source video, and one RCA analog video
(or S-Video).
Thanks to its double-output, RE-VGABNC allows to get an
analog video output from a VGA port, still being possible to use the VGA port
for a VGA monitor.
RE-VGABNC works with any VGA video input, even with
Personal Computers. It can be useful to get an analog copy
of the PC desktop image to be sent to analog devices.
This device comes with an OSD menu which allows adjusting brightness,
contrast, hue and saturation.
This product includes: Converter,
5VDC USB power cord (220V adaptor not included), VGA cable.
|
