Pocket-size camera with SD card
THE HIGH-RESOLUTION PORTABLE MINI CAMERAS DK SERIES
A personal security camera, in your pocket
WITH WIFI AND P2P SERVER FOR REMOTE CONTROL VIA INTERNET
THE HIGH-RESOLUTION PORTABLE MINI CAMERAS DK SERIES
WITH WIFI AND P2P SERVER FOR REMOTE CONTROL VIA INTERNET
CAMERA + DVR + WIFI
Pocket-size camera with SD card. WiFi control with smartphone, even via the Internet.

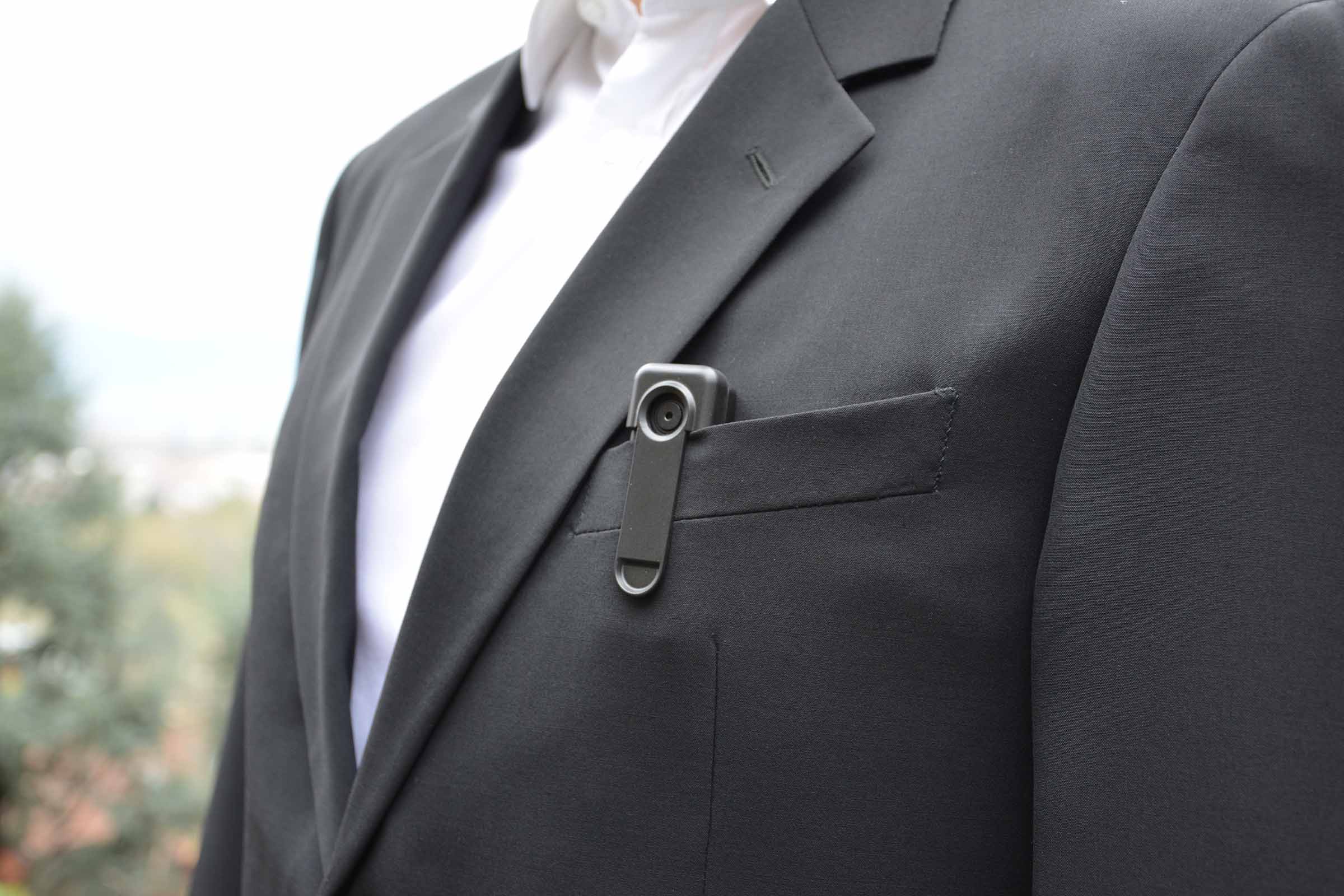

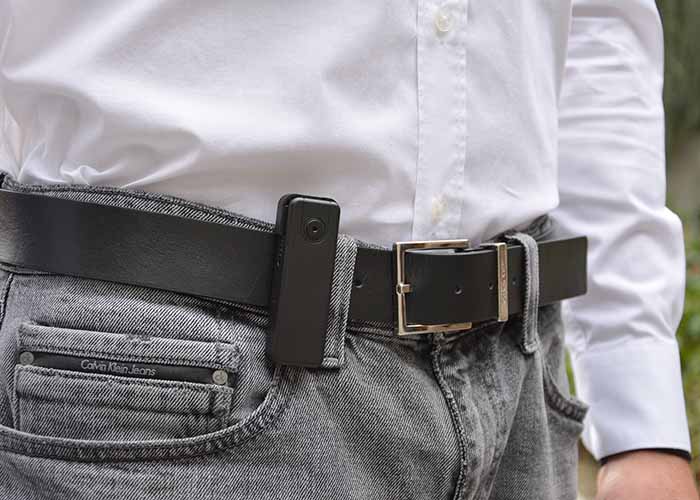

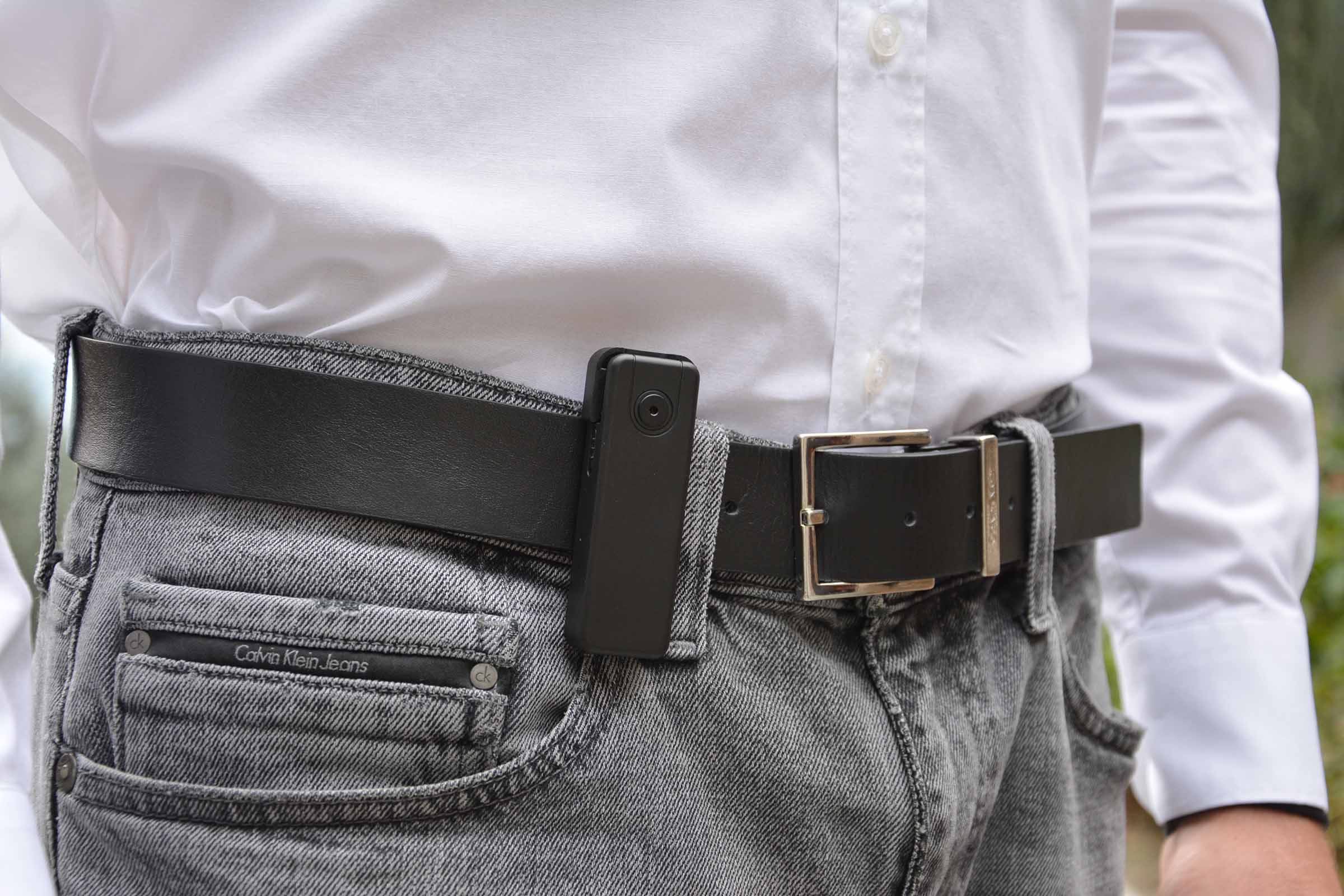

These mini-cameras are designed to be kept in pockets or hung on belts to record events at any time. They are ideal for law enforcement, supervisors, bodyguards and anyone who needs to record videos without being noticed and keeping hands free. With our portable cameras you can store on video everything that happens, while participating in the action. You could not do so with mobile phones. Strong, inexpensive and easy to use, these pocket cameras are great for many kind of users. Policemen, security guards, but also bus or taxi drivers can increase their personal safety with these small cameras in their pocket.

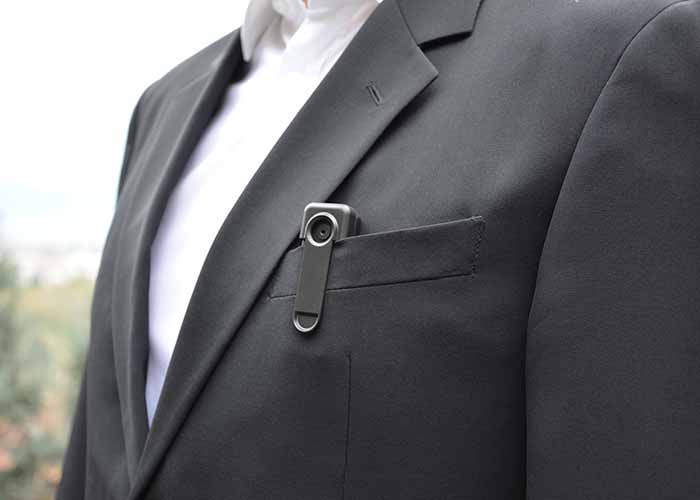

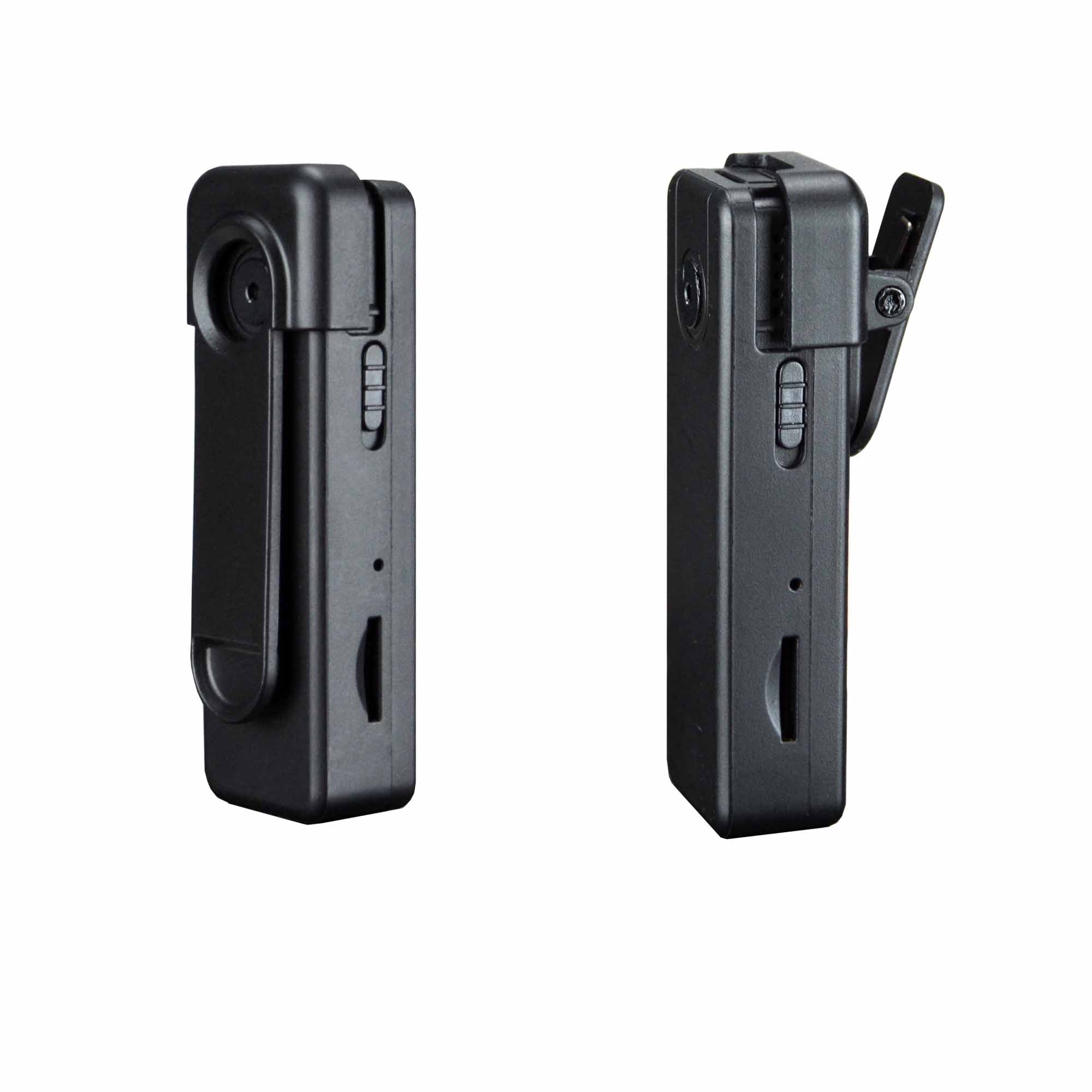

These pocket-size cameras are ready to go. Just insert the SD card into the slot and your pocket microcamera is ready to use. You can keep it in your pocket, shut off, for the whole day and activate it easily, and without getting noticed, with the start button . Together with the camera, you will receive several clip-on accessories to attach it to clothing (pocket-belt). These pocket cameras do not require any technical knowledge and can be used in minutes by anyone.
These portable cameras are developed for law enforcement, but can be used for many other purposes. Thanks to the different accessories supplied, you can easily place the camera among your clothes. You can record sport performance with high quality video and audio. Thanks to the built-in wifi you can watch the camera on a mobile phone. If you connect your camera to a wifi network, or to a mobile phone in hotspot mode, you can also connect through the Internet. These cameras can also operate with mains power supply and this makes them suitable to be used as hidden cameras as well.

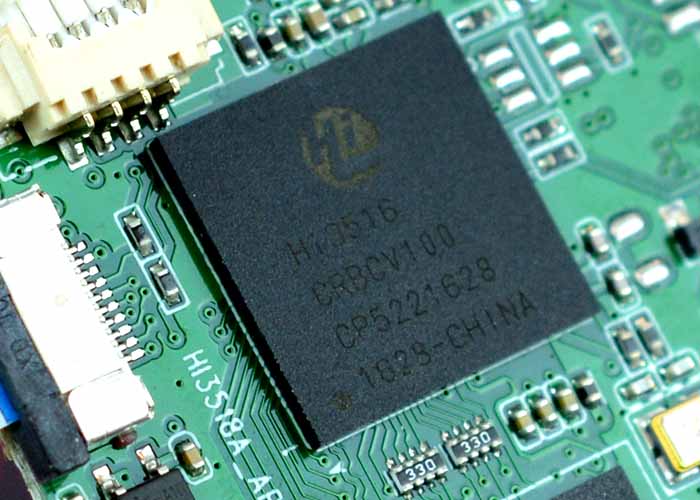

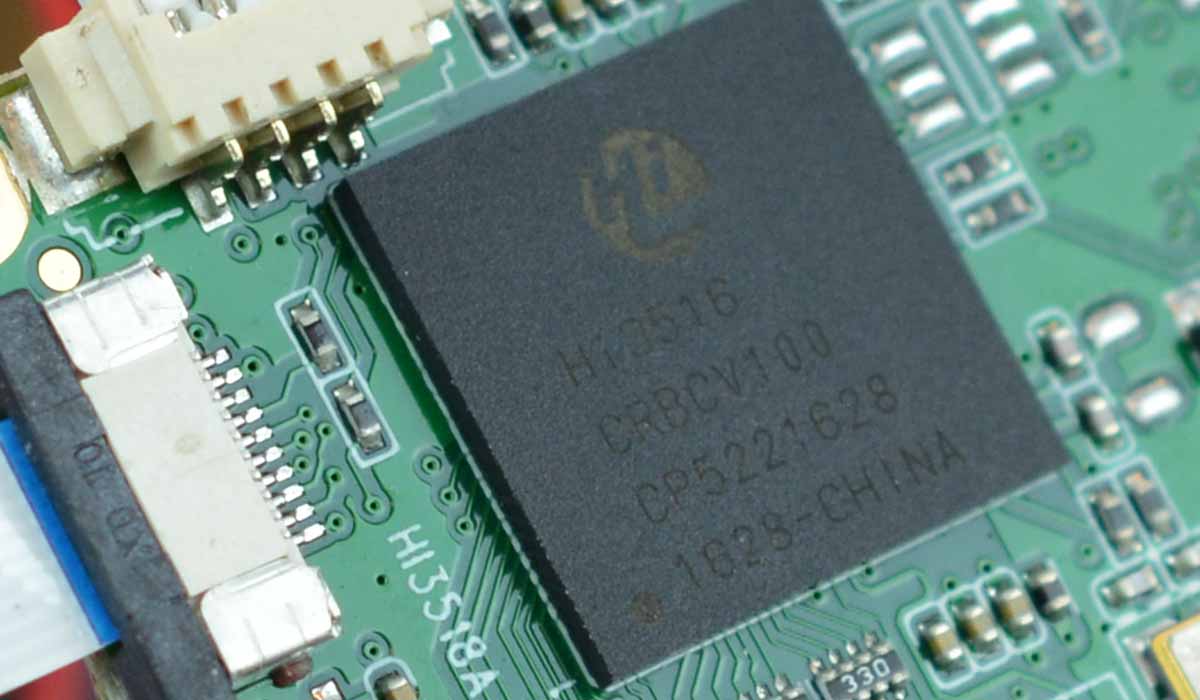

These wearable cameras provide a video resolution of 2 MP at 25 f / s. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and allows you to capture quality and rich in detail images. In order to guarantee maximum performance, we use the same high-level CMOS and HiSilicon processors of our IP cameras for traditional CCTV surveillance in these hidden cameras. Please download two 2MP demo movies below
2MP normal lighting 2MP low lighting

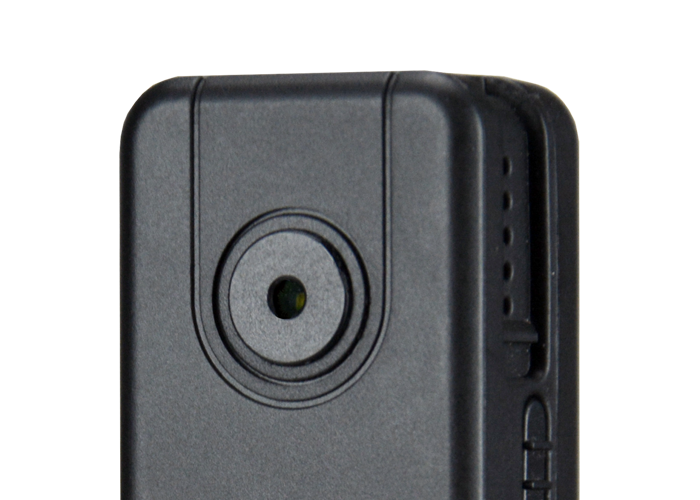

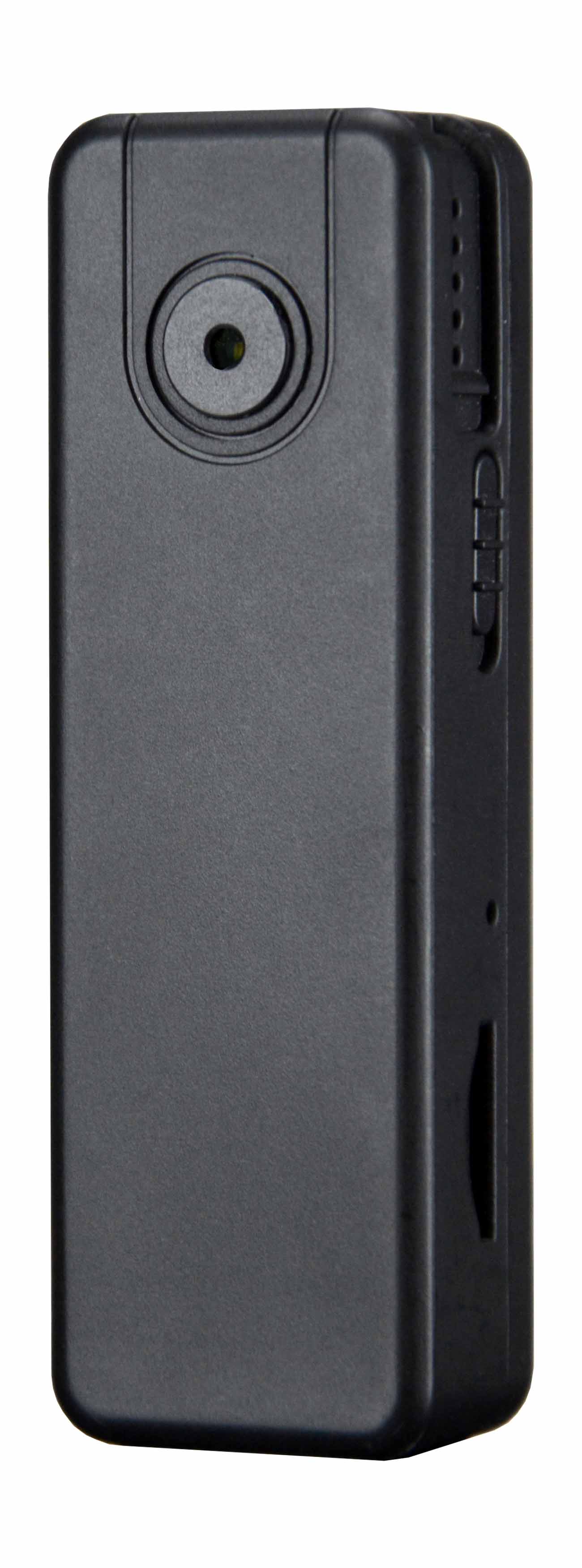

These mini-cameras come with a wide-angle lens with a coverage of around 70°. The pin-hole lens is suitable to be hidden behind a small hole if you want to hide the camera. The camera also records well in dim light, with a rendering similar to the naked eye vision, but can not record in total darkness. This pocket camera also records audio with the built-in high sensitivity microphone . The audio is recorded together with the video and is also available in real time on mobile phones, if you enable WiFi. The sound quality, both in recording and in real-time, is one of the advantages that make the difference between this range of professional cameras and hobby products.

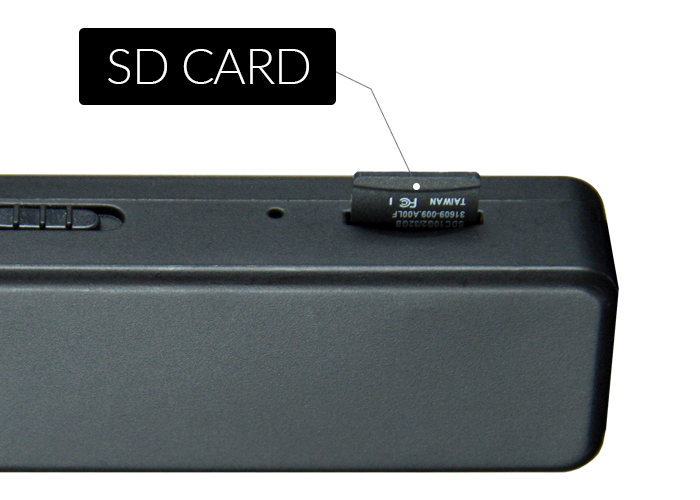

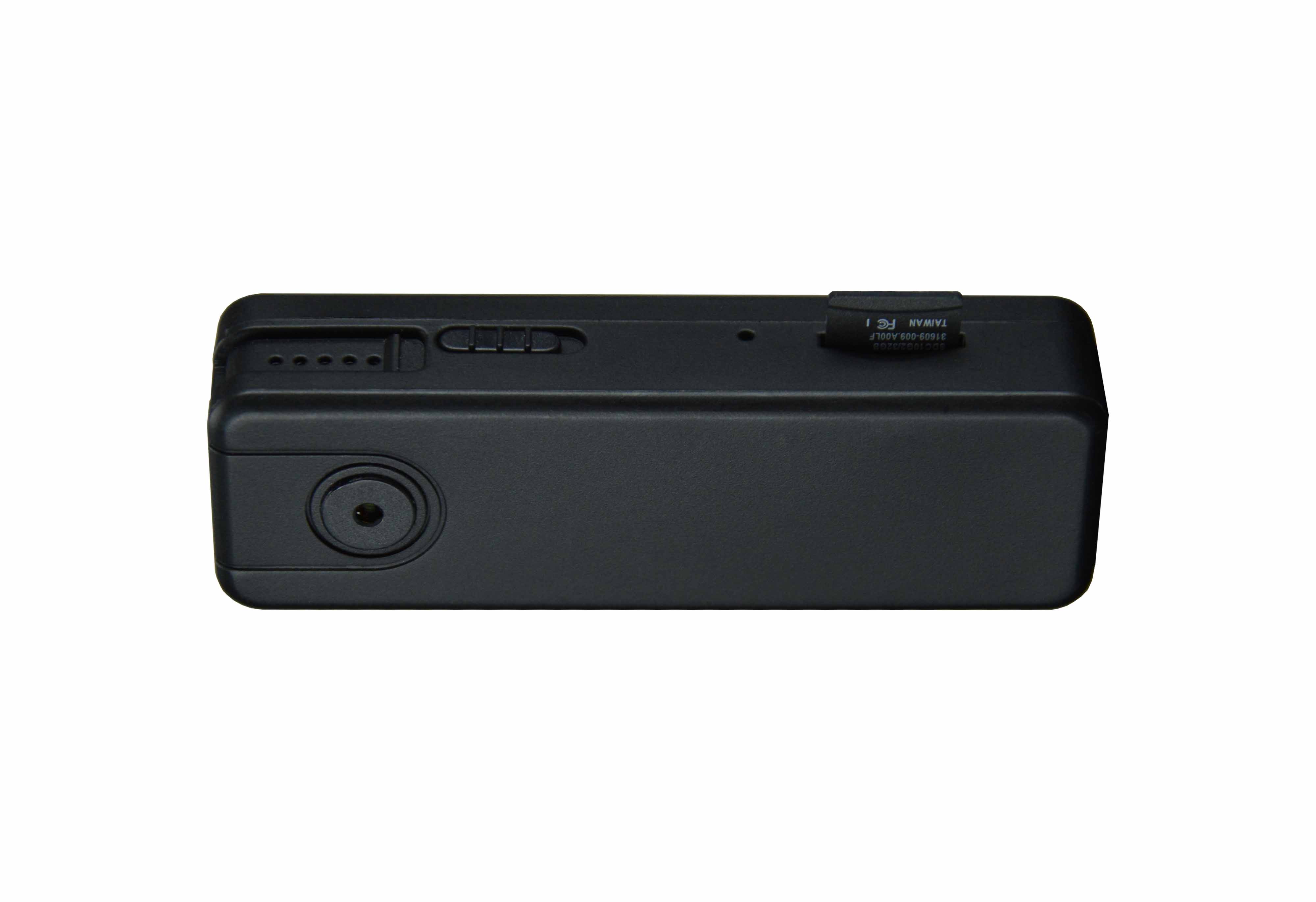

These cameras record videos on removable Micro SD memory. The SD card is not included . To use these cameras you have to buy separately a micro SD card, in Class 10 or higher, of the maximum capacity supported by the camera. Do not buy slower SD cards, in class 4 or 6, because they will not work properly. The camera records the video in H264 and allows a considerable video storage size.
| DK-ST1EZ | |
|---|---|
| SD max. | 128GB |
| Max. video storage | 260 hours |
To playback the videos recorded on the SD card of the camera you must extract the SD card from the device and insert it into a Personal Computer. If your PC does not have an SD card reader, you can use the USB SD card reader which is enclosed in the package. You can play the video clips with common free players, like VLC or Windows Media Player and download the ones you want to save on your PC. If you want, you can activate the Wi-Fi feature and download the video footage on your mobile phone, without removing the SD card from the camera.
These hidden cameras can record in 3 ways: continuously, in motion detection or by scheduler. In CONTINUOUS RECORDING mode, many video files are stored in the memory, one after the other. Once the memory is full, the camera continues to record, automatically overwriting the oldest files. In MOTION DETECTION mode, the camera only records if there is a movement in front of the lens. Motion detection is a very convenient function to avoid wasting precious memory space by recording non-relevant scenes. It is also possible to record using the TIME SCHEDULER which activates the recording according to the time. NOTE: Motion recording optimizes memory usage, but does not extend the battery life compared to continuous recording.
These cameras come with a small built-in rechargeable lithium battery. The internal battery allows 1.5 hours of continuous recording . Once exhausted, the battery recharges in a few hours by connecting the camera to a computer or USB charger with the supplied USB cable. You can save battery by keeping the device switched off and activating it with the top button when it is time to record. Two small LEDs allow you to check the device status at a glance.
These pocket cameras can also record with the mains power supply always connected to the USB port. If you leave the USB port connected to a power supply you can record continuously, 24 hours a day, without any problems of battery life. This possibility, combined with the small size and wifi control, make this type of cameras also suitable for making hidden cameras. In our catalog you can find a USB adapters and a car lighter power adapter. You can also find a board-type USB power adapter that is ideal to hide with the camera in hidden video surveillance.

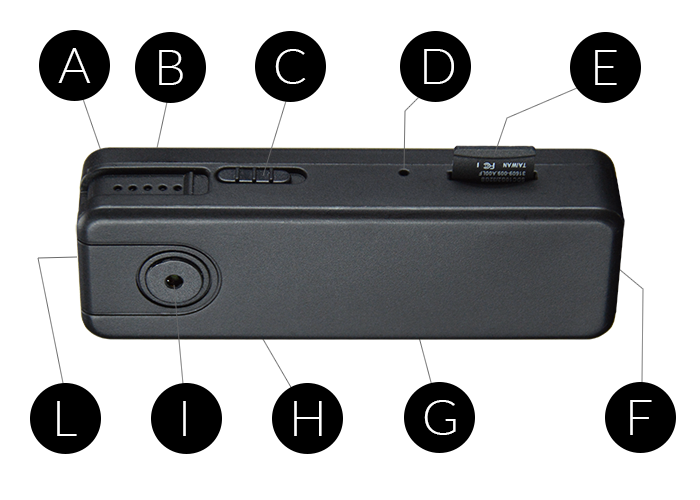

These wearable cameras are easily controlled by push-buttons.
| A | BLUE LED - WIFI STATUS |
|---|---|
| B | RED LED - RECORDING STATUS |
| C | RECORDING SWITCH |
| D | RESTART |
| E | MICRO SD CARD SLOT |
| F | MICRO USB PORT FOR BATTERY CHARGING |
| G | RESTORE FACTORY DEFAULT |
| H | WIFI SWITCH |
| I | PIN-HOLE LENS |
| L | ON/OFF PUSH-BUTTON |
These investigating cameras are equipped with a Wi-Fi transmitter that allows you to control the camera from a smartphone. You can connect directly to the Wi-Fi network generated by the camera and see the video on your smartphone within 10-15 meters of distance, for example from the room next to the one where you left the camera. If you have a way, you can also connect the camera to your home Wi-Fi and access via the Internet with our free P2P cloud server . With our free APP for Android and iOS, you can fully control the camera with a mobile phone or tablet. You can WATCH AND LISTEN-IN live. You can RECORD and take pictures. You can also PLAY AND DOWNLOAD the video footage in the camera's memory, searching by date and time. If you enable motion detection, you can RECEIVE push notification on your mobile phone at any intrusion, with a snapshot attached.
If you use this mini-camera in your home or office you will have great advantages in connecting it to your home WiFi network. It's an operation that runs easily with our app and lets you control your camera through the Internet, wherever you are. Thanks to our free P2P cloud server , you do not need to configure anything in your router, you just need to know the ID of your camera, which is provided in the package. On first use, you will be asked to set a secret password to protect your privacy. With our app you can watch and listen in real time, playback your recordings and even receive real-time push notifications if an intrusion occurs.

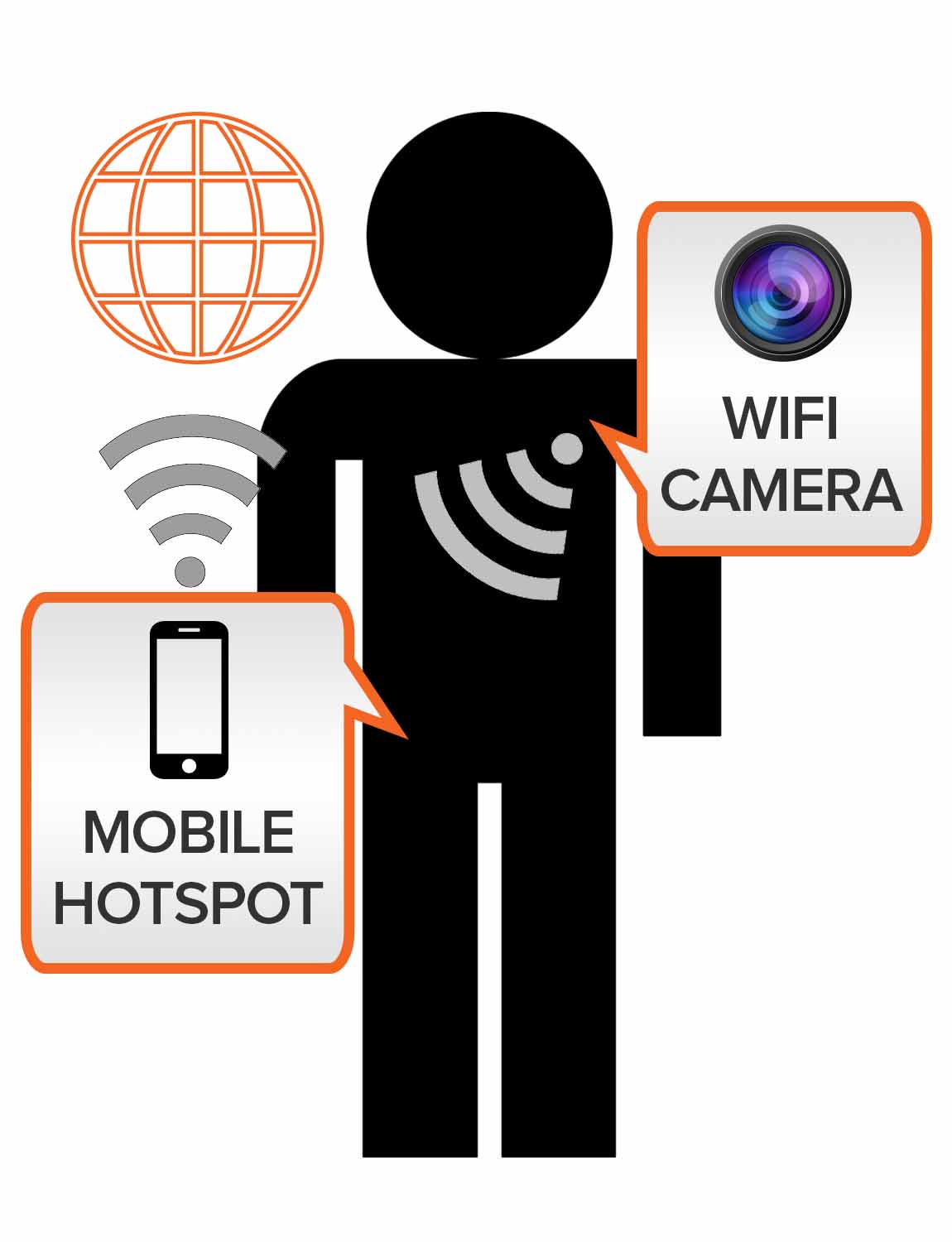

If you want to reach the camera via the web, but you can not use a wifi network, you can connect the camera to your mobile phone (in HotSpot mode). This way the camera can access the Internet through the mobile device and you can reach it via the web. With this camera in your pocket and your smartphone, you can allow another person to see and hear what happens in real time from anywhere in the world.
|
|
|---|---|
| CODE | DK-ST1EZ |
| Description | Stick camera with SD card and WiFi |
| Type | Control by buttons and smartphone |
| CAMERA | |
| Maximum resolution | 2MP FullHD 1080P |
| Optical sensor | 1/2.7" CMOS GC2023 |
| Chipset | Hi3518C |
| Video resolutions | 1920x1080 @ 25 f/s |
| Video compression | H264 Dual |
| Infrared illuminator | |
| ICR | |
| Lens | Flat pinhole 3.7 mm (70°) |
| Focus | Fixed |
| Shutter | 1/25...1/12000 |
| S/N ratio | Oltre 50dB |
| Video files format | MOV 5/10/15 minutes |
| Max. video storage | Max. 260 hours on 128GB |
| HARDWARE | |
| LAN port | |
| Wi-Fi | 802.11 b/g/n 2.4GHz (AP or Client mode) |
| USB port | Micro USB |
| Audio microphone | |
| Audio speaker | |
| SD card slot | Max. 128GB Classe 10 o higher |
| TV CVBS output | |
| POWER SUPPLY | |
| Standard battery | 3.7Ah 800 mAh |
| Standard battery-life | 1,5 hours of continuous recording |
| Compatible batteries< | |
| Battery recharge | From USB port with a PC or a power adapter (not included) |
| Recording on mains power | Power supply to USB port |
| FUNCTIONS | |
| Recording mode | Continue, Motion, Time scheduler |
| Automatic overwrite | Yes (excludable) |
| Camera control | By pushbuttons or Smartphone/Tablet via WiFi |
| Protocols | TCP/IP HTTP FTP DHCP DNS DDNS RTP RTSP NTP SMTP |
| Onvif | |
| P2P | |
| Browser | |
| Smartphone | Free APP for iOS Android |
| Multi streaming | |
| Saving on web cloud | |
| Mirror | |
| Corridor | |
| Overlays | Date and Time (excludable) |
| BLC | |
| AWB | |
| DNR | |
| WDR | |
| Anti fog | |
| HSBLC | |
| Starlight | |
| Motion detection | |
| Privacy mask | |
| Anti tampering | |
| Alarm actions | Start recording, Email, Push notifications |
| Sending Time-Lapse photos | |
| GENERAL | |
| Casing | Stick type |
| Protection degree | IP40 |
| Operating temperature | -5°C +40°C RH95% Max |
| Power supply | 5VDC +/-10% for battery recharge |
| Consumption | Max. 600mA a 5VDC |
| Overall dimensions | 73x24x15 mm |
| Weight | 24 gr. |
Cameras record on MicroSD card. The micro SD card is not included. You can buy in our price list a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by the camera in the technical data table above.
